基于改进动态窗口的车库AGV路径规划及仿真

doi:10.16182/j.issn1004731x.joss.23-0638

摘要/Abstract

摘要：

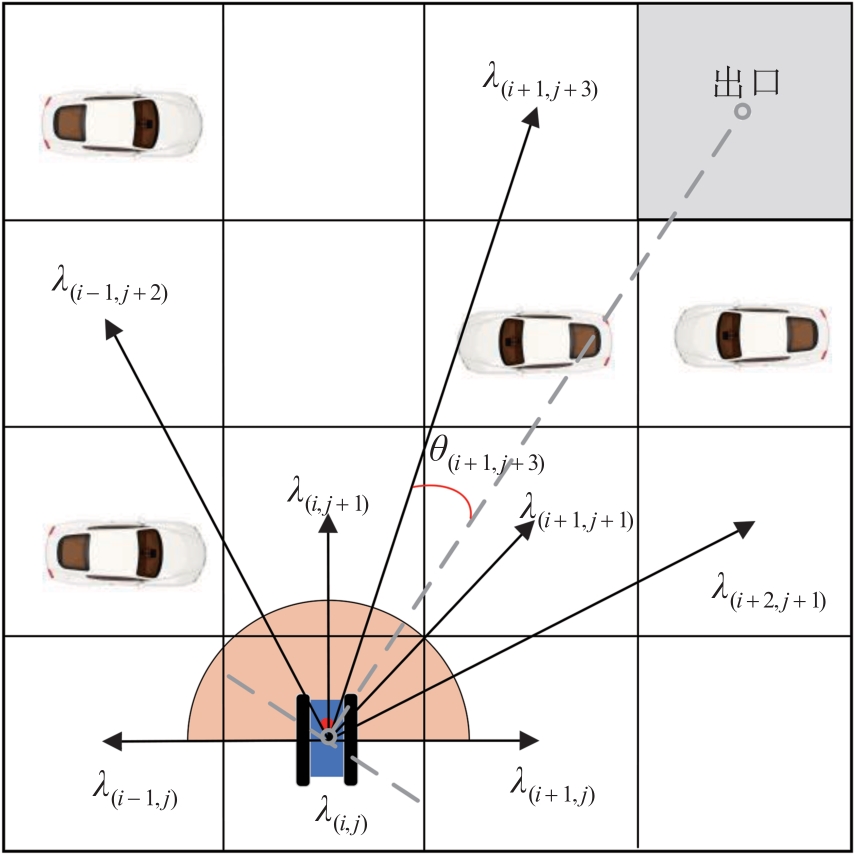

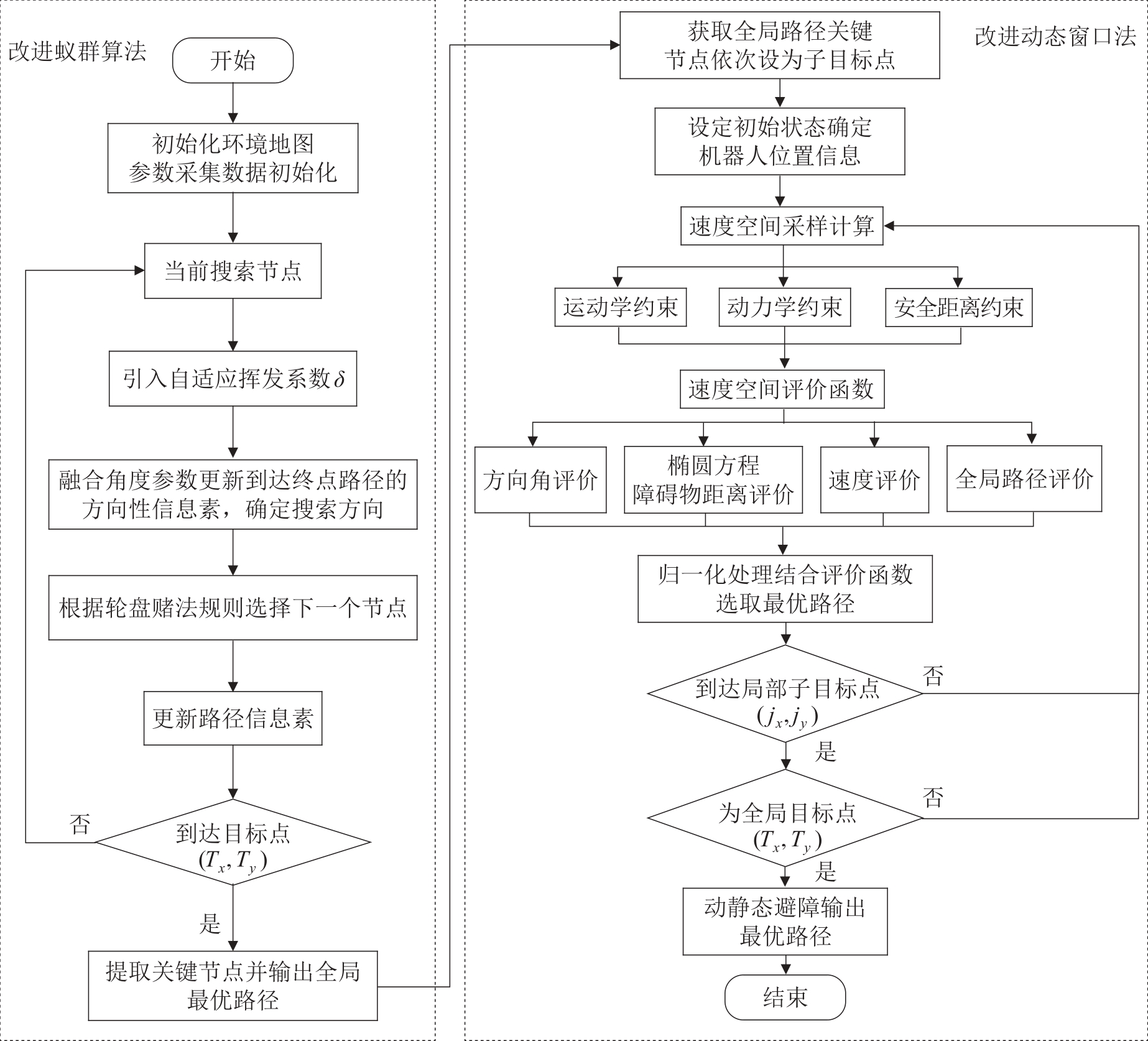

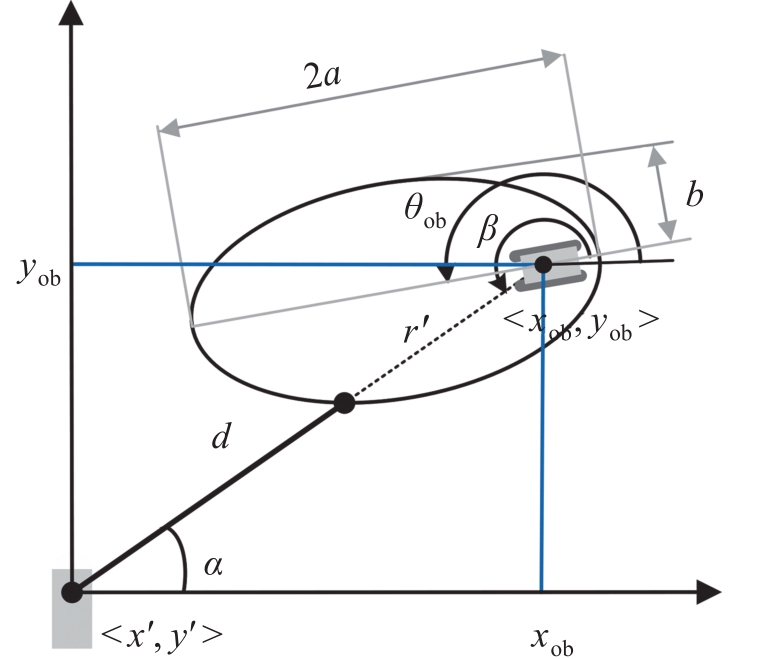

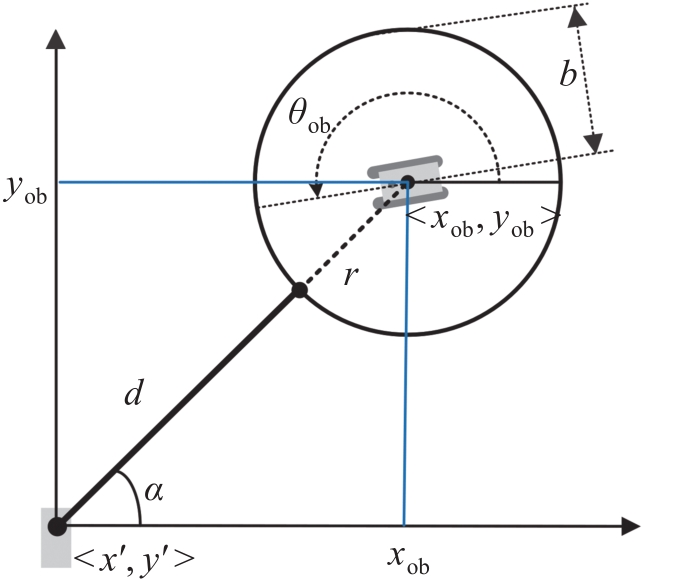

针对在智能车库环境下，移动机器人(AGV)在作业过程中面临着复杂路径环境下的路径规划和实时避障，提出一种改进的蚁群算法与动态窗口法(DWA)相结合的混合算法。在全局规划中引入自适应调整信息素挥发系数，融合角度参数建立车库方向信息素矩阵，增大目标点引导能力，扩大蚂蚁的方向选择性；在局部规划中设计基于椭圆方程的障碍物距离评价子函数的改进动态窗口法，并提取改进蚁群算法的全局关键节点作为新增的路径评价子函数，在全局路径的约束下，保持动态规划的最优性。仿真结果表明：改进算法较传统算法能够较好地应对突发的动静态障碍物，更符合AGV实际作业过程中在多重环境因素的影响下的动态规划要求。

关键词: 车库AGV, 蚁群算法, 动态窗口法, 动静态避障, 路径规划, 椭圆方程

Abstract:

Aiming at the path planning and real-time obstacle avoidance of AGV in complex path environment of intelligent garage, an improved hybrid algorithm combining ant colony algorithm and dynamic window method is proposed. In the global planning, the adaptive adjustment of pheromone volatilization coefficient and the fusion of angle parameters are introduced to establish the garage direction pheromone matrix to increase the guidance ability of target points, expand the direction selectivity of ants. In the local planning, the improved DWA of the obstacle distance evaluation sub-function based on elliptic equation is designed. By extracting the global path node of the improved ant colony algorithm as the new path evaluation sub-function, and under the global path constrains, the optimality of dynamic planning is realized. The system simulation results show that the algorithm can reasonably cars deal with the dynamic and static obstacles, more in line with the requirements of dynamic programming under the influence of multiple environmental factors in the actual operation of AGV.

Key words: garage AGV, ant colony, DWA, dynamic and static obstacle avoidance, path planning, elliptic equation

中图分类号:

TP391.9

马宗方,张琳旋,宋琳等 . 基于改进动态窗口的车库AGV路径规划及仿真[J]. 系统仿真学报, 2024, 36(10): 2265-2276.

Ma Zongfang,Zhang Linxuan,Song Lin,et al . Garage AGV Path Planning and Simulation Based on Improved DWA[J]. Journal of System Simulation, 2024, 36(10): 2265-2276.

图/表 18

图1

表1

改进蚁群参数设置

主要参数	量值	主要参数	量值
蚂蚁个数m	50	信息素挥发系数 $ρ$	0.5
最大迭代次数N	200	信息素强度Q	50
信息素启发因子 $α$	1.1	信息素上限	0.9
信息素启发因子 $β$	20	信息素下限	0.1

表1

图2

表2

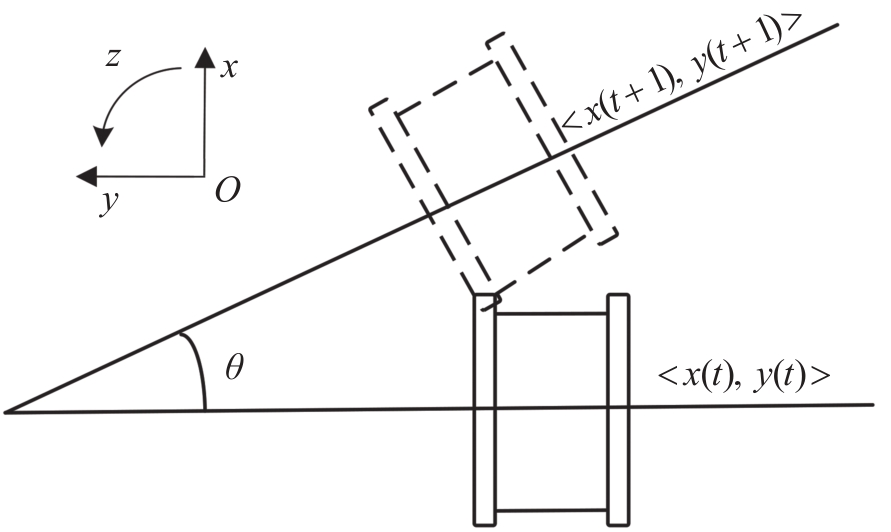

图3

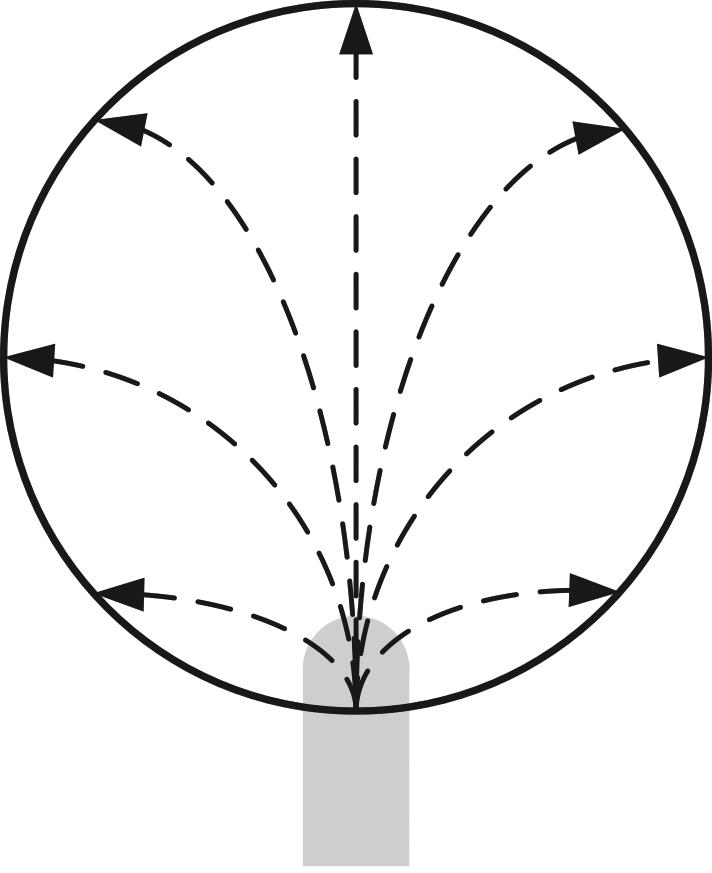

图4

图5

图6

图7

表3

表4

图8

图9

表5

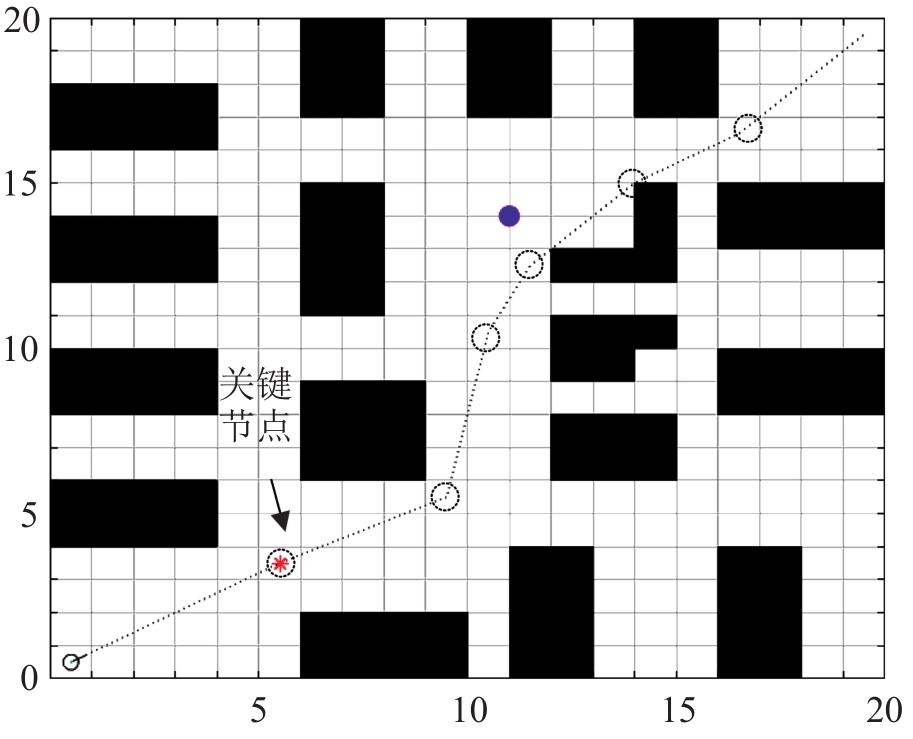

图10

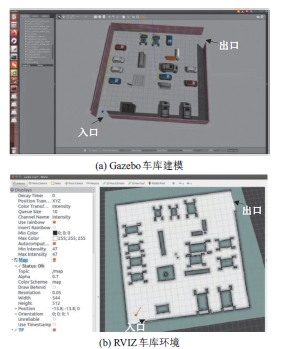

图11

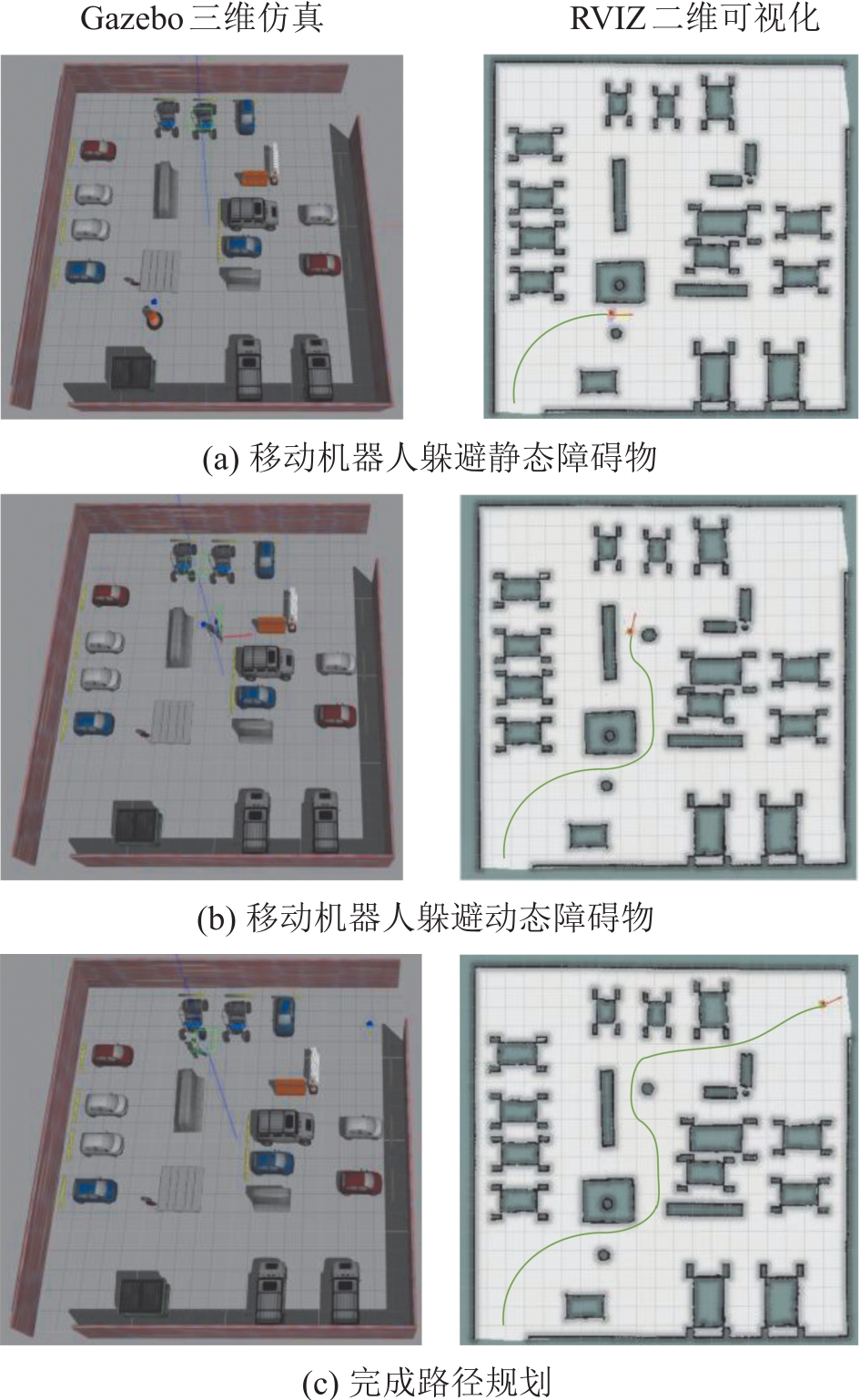

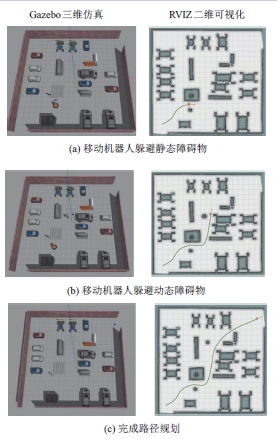

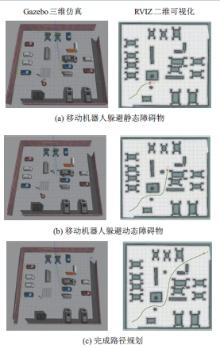

图12

表6

参考文献 19

1	梁军, 韩冬冬, 盘朝奉, 等. 基于移动机器人的智能车库关键技术综述[J]. 机械工程学报, 2022, 58(3): 1-20.
	Liang Jun, Han Dongdong, Pan Zhaofeng, et al. Review on Critical Technologies of Robot-based Intelligent Garages[J]. Journal of Mechanical Engineering, 2022, 58(3): 1-20.
2	张明慧, 史小辉. 城市智慧停车解决方案及应用实例[J]. 物联网技术, 2020, 10(4): 36-40.
3	Lin Yucheng, Cheung W F. Developing WSN/BIM-based Environmental Monitoring Management System for Parking Garages in Smart Cities[J]. Journal of Management in Engineering, 2020, 36(3): 04020012.
4	杨来义, 毕敬, 苑海涛. 基于SAC算法的移动机器人智能路径规划[J]. 系统仿真学报, 2023, 35(8): 1726-1736.
	Yang Laiyi, Bi Jing, Yuan Haitao. Intelligent Path Planning for Mobile Robots Based on SAC Algorithm[J]. Journal of System Simulation, 2023, 35(8): 1726-1736.
5	AL-Taharwa Ismail, Sheta Alaa, Al-Weshah Mohammed. A Mobile Robot Path Planning Using Genetic Algorithm in Static Environment[J]. Journal of Computer Science, 2008, 4(4): 341-344.
6	Rashid Razif, Perumal N, Elamvazuthi I, et al. Mobile Robot Path Planning Using Ant Colony Optimization[C]//2016 2nd IEEE International Symposium on Robotics and Manufacturing Automation (ROMA). Piscataway: IEEE, 2016: 1-6.
7	Martin C Santiago Robert, Anton Louise De Ocampo, Ubando Aristotle T, et al. Path Planning for Mobile Robots Using Genetic Algorithm and Probabilistic Roadmap[C]//2017 IEEE 9th International Conference on Humanoid, Nanotechnology, Information Technology, Communication and Control, Environment and Management (HNICEM). Piscataway: IEEE, 2017: 1-5.
8	陈志梅, 李敏, 邵雪卷, 等. 基于改进RRT算法的桥式起重机避障路径规划[J]. 系统仿真学报, 2021, 33(8): 1832-1838.
	Chen Zhimei, Li Min, Shao Xuejuan, et al. Obstacle Avoidance Path Planning of Bridge Crane Based on Improved RRT Algorithm[J]. Journal of System Simulation, 2021, 33(8): 1832-1838.
9	王鹤静, 王丽娜. 机器人路径规划算法综述[J]. 桂林理工大学学报, 2023, 43(1): 137-147.
	Wang Hejing, Wang Lina. Review of Path Planning for Robots[J]. Journal of Guilin University of Technology, 2023, 43(1): 137-147.
10	Liu Yuecheng, Zhao Yongjia. A Virtual-waypoint Based Artificial Potential Field Method for UAV Path Planning[C]//2016 IEEE Chinese Guidance, Navigation and Control Conference (CGNCC). Piscataway: IEEE, 2016: 949-953.
11	郑维, 刘德垚, 王洪斌, 等. 三级缓冲区结合模糊逻辑的DWA及其应用[J]. 小型微型计算机系统, 2022, 43(8): 1615-1624.
	Zheng Wei, Liu Deyao, Wang Hongbin, et al. DWA with Three-level Buffer and Fuzzy Logic and Its Application[J]. Journal of Chinese Computer Systems, 2022, 43(8): 1615-1624.
12	Fox D, Burgard W, Thrun S. The Dynamic Window Approach to Collision Avoidance[J]. IEEE Robotics & Automation Magazine, 1997, 4(1): 23-33.
13	Omer Ali Abubakr, Mohammed Abdel Kareem Jaradat, Mamoun Adel Hafez. A Reduced Cascaded Fuzzy Logic Controller for Dynamic Window Weights Optimization[C]//2018 11th International Symposium on Mechatronics and Its Applications (ISMA). Piscataway: IEEE, 2018: 1-4.
14	魏立新, 张钰锟, 孙浩, 等. 基于改进蚁群和DWA算法的机器人动态路径规划[J]. 控制与决策, 2022, 37(9): 2211-2216.
	Wei Lixin, Zhang Yukun, Sun Hao, et al. Robot Dynamic Path Planning Based on Improved Ant Colony and DWA Algorithm[J]. Control and Decision, 2022, 37(9): 2211-2216.
15	赵伟, 吴子英. 双层优化A^*算法与动态窗口法的动态路径规划[J]. 计算机工程与应用, 2021, 57(22): 295-303.
	Zhao Wei, Wu Ziying. Dynamic Path Planning Based on Bilevel Optimization A^* Algorithm and Dynamic Window Method[J]. Computer Engineering and Applications, 2021, 57(22): 295-303.
16	Chang Lu, Shan Liang, Jiang Chao, et al. Reinforcement Based Mobile Robot Path Planning with Improved Dynamic Window Approach in Unknown Environment[J]. Autonomous Robots, 2021, 45(1): 51-76.
17	Dai Jun, Li Dongfang, Zhao Junwei, et al. Autonomous Navigation of Robots Based on the Improved Informed-RRT^* Algorithm and DWA[J]. Journal of Robotics, 2022, 2022: 3477265.
18	Xiquan Mai, Li Di, Ouyang Jian, et al. An Improved Dynamic Window Approach for Local Trajectory Planning in the Environment with Dense Objects[J]. Journal of Physics: Conference Series, 2021, 1884(1): 012003.
19	Wang Zhidong, Wu Changhong, Xu Jing, et al. Research on Path Planning of Cleaning Robot Based on an Improved Ant Colony Algorithm[C]//2020 2nd International Conference on Computer Science Communication and Network Security (CSCNS2020). Les Ulis: EDP Sciences, 2021: 07005.

栅格地图	算法	最优路径长度/m	迭代次数	拐点数
场景Ⅰ	ACO	31.627	120	12
	EAS	29.799	89	8
	本文算法	28.035	56	7
场景Ⅱ	ACO	32.472	114	10
	EAS	29.201	77	6
	本文算法	27.475	38	3

主要参数	量值
最大线速度/(m/s)	5
最大角速度/(rad/s)	30
最大线加速度/(m/s²)	0.5
最大角加速度/(rad/s²)	60
线速度分辨率/(m/s)	0.1
角速度分辨率/(rad/s)	1
障碍物膨胀半径/m	0.4
机器人半径/m	0.5
时间分辨率/s	0.1

主要参数	量值
方位角评价系数	0.1
障碍物距离评价系数	0.2
速度评价系数	0.3
路径评价系数	0.2

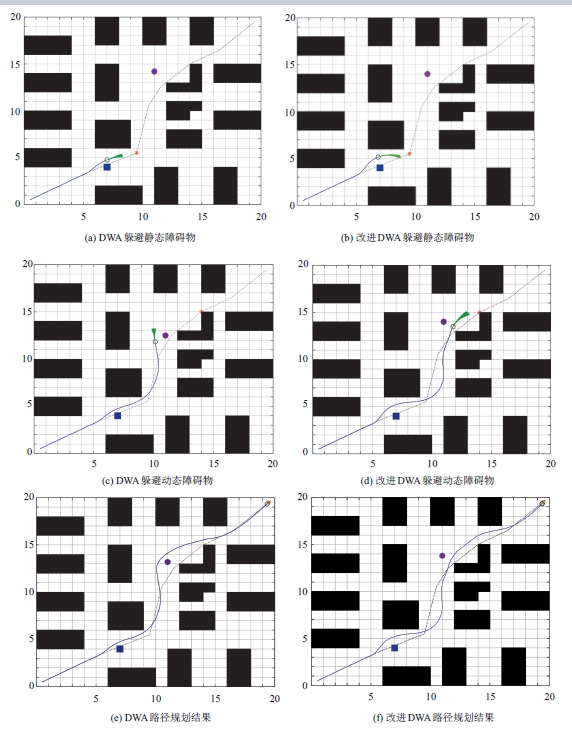

局部规划算法	迭代次数	路径长度/m	运行时间/s
传统DWA	574	31.601	128.465
改进DWA	531	28.758	101.941

局部规划算法	路径长度/m	运行时间/s
传统DWA	32.649	135.728
融合算法	28.435	106.271
