基于改进哈里斯鹰算法的机器人路径规划研究

doi:10.16182/j.issn1004731x.joss.23-1342

摘要/Abstract

摘要：

为提升哈里斯鹰优化算法收敛精度，解决易陷入局部最优等问题，提出了一种基于迭代混沌精英反向学习和黄金正弦策略的哈里斯鹰优化算法（gold sine HHO，GSHHO）。利用无限迭代混沌映射初始化种群，运用精英反向学习策略筛选优质种群，提高种群质量，增强算法的全局搜索能力；使用一种收敛因子调整策略重新计算猎物能量，平衡算法的全局探索和局部开发能力；在哈里斯鹰的开发阶段引入黄金正弦策略，替换原有的位置更新方法，提升算法的局部开发能力；在9个测试函数和不同规模的栅格地图上评估GSHHO的有效性。实验结果表明：GSHHO在不同测试函数中具有较好的寻优精度和稳定性能，在2次机器人路径规划中路径长度较原始HHO算法分别减少4.4%、3.17%，稳定性分别提升52.98%、63.12%。

关键词: 哈里斯鹰优化算法, 迭代混沌, 精英反向学习, 黄金正弦算法, 栅格法, 路径规划

Abstract:

In order to improve the convergence accuracy of the HHO algorithm, this paper proposes a GSHHO(gold sine harris hawks optimization) algorithm based on multi-strategies. An infinite iterative chaotic map is used to initialize the population, and an elite reverse learning strategy is used to improve population quality; A convergence factor adjustment strategy is used to recalculate prey energy, balancing the global exploration and local development capabilities of the algorithm; In the development phase of Harris Eagle, the golden sine strategy was introduced to replace the original position update method and improve the local development ability of the algorithm; Experiments were conducted to evaluate the optimization performance of GSHHO. Experimental results show that the path length of GSHHO is reduced by 4.4% and 3.17% respectively and the stability is increased by 52.98% and 63.12% respectively compared with the original HHO algorithm.

Key words: HHO algorithm, iterative chaos, elite reverse learning, golden sine algorithm, grid method, path planning

中图分类号:

TP391.9

白宇鑫,陈振亚,石瑞涛等 . 基于改进哈里斯鹰算法的机器人路径规划研究[J]. 系统仿真学报, 2025, 37(3): 742-752.

Bai Yuxin,Chen Zhenya,Shi Ruitao,et al . Research on Robot Path Planning Based on Improved Harris Hawks Algorithm[J]. Journal of System Simulation, 2025, 37(3): 742-752.

图/表 9

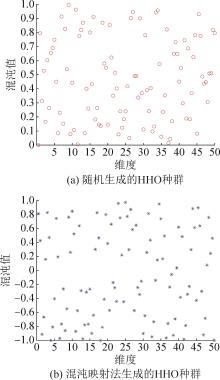

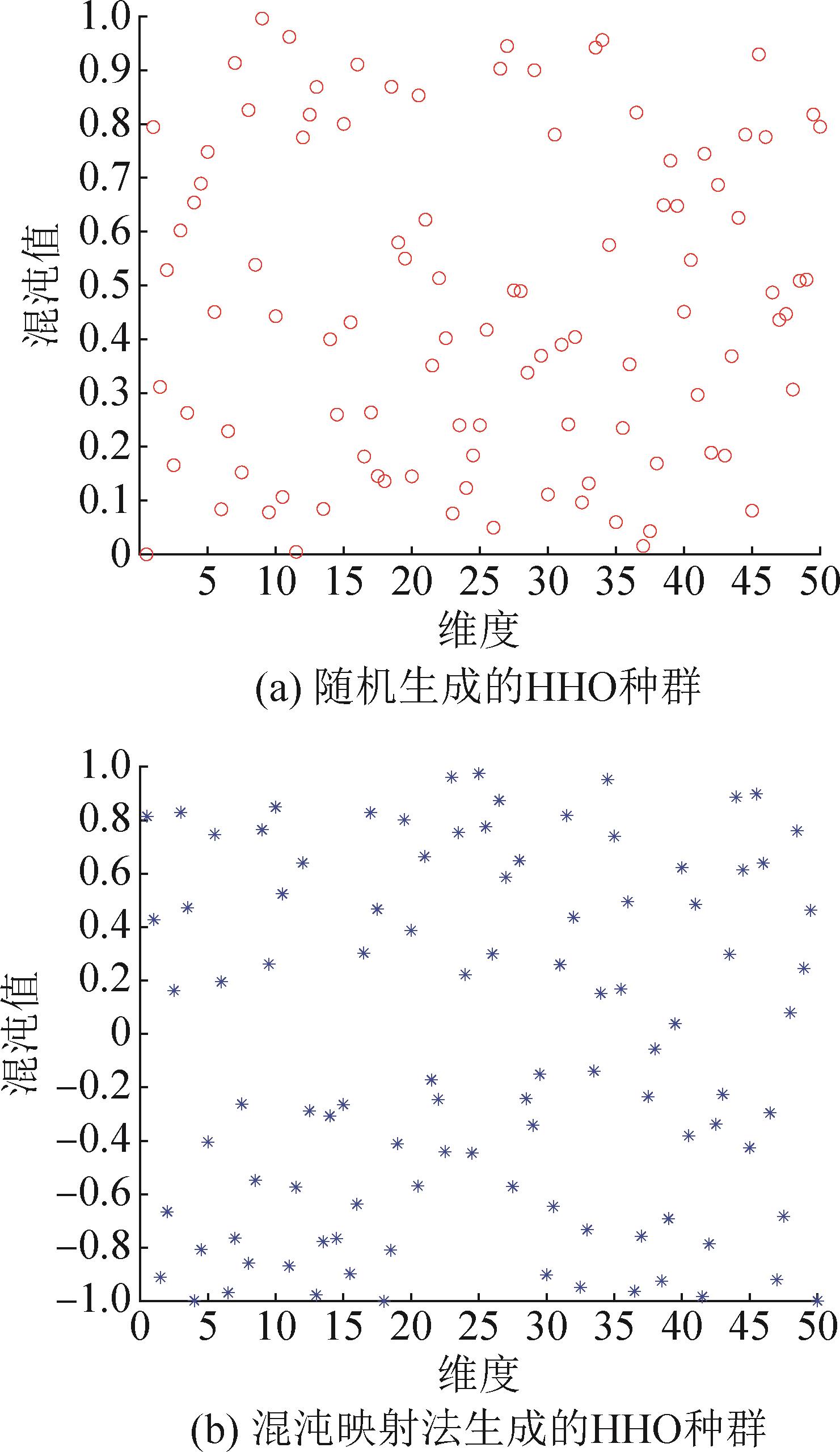

图1

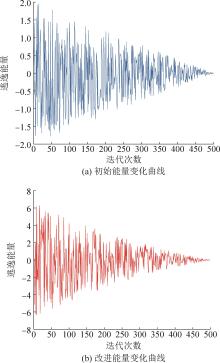

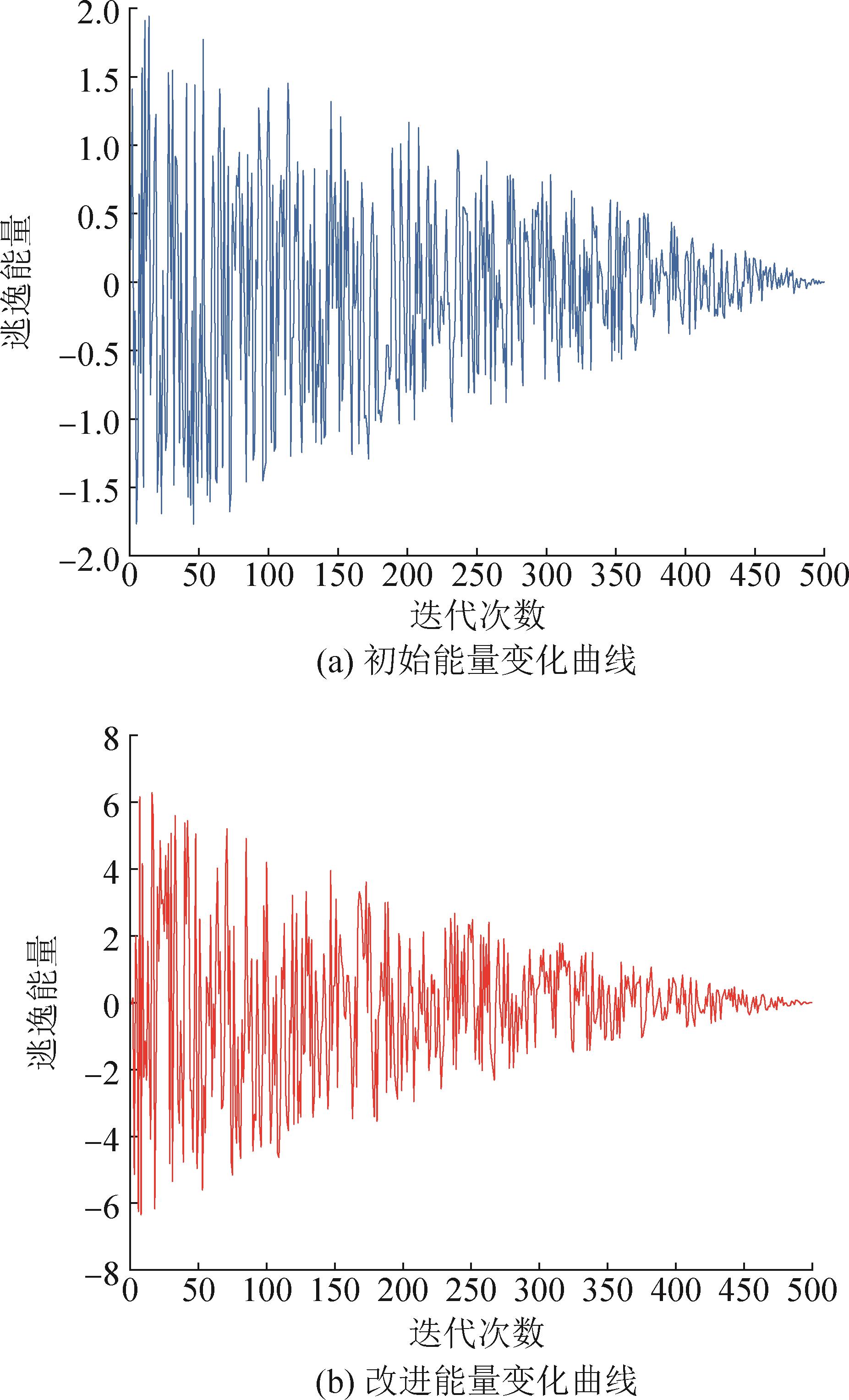

图2

表1

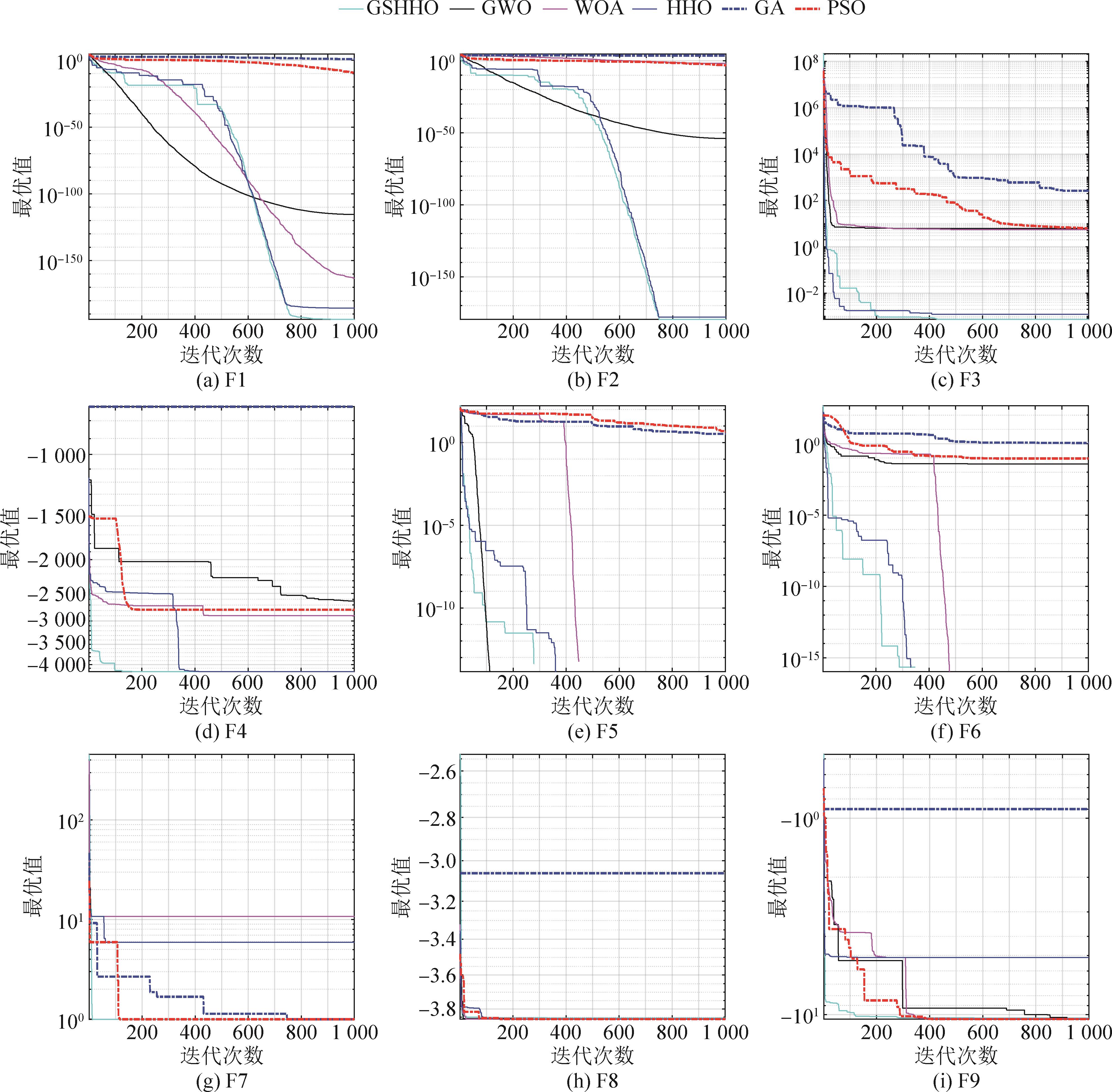

9个测试函数

函数类别	表达式	取值范围
单峰测试函数	$F 1 (x) = ∑ i = 1 30 x i 2$	(-100，100)
	$F 2 (x) = ∑ i = 1 30 ∑ j = 1 i x j 2$	(-100，100)
	$F 3 (x) = ∑ i = 1 29 100 (x i + 1 - x i 2) + (x i - 1) 2$	(-30，30)
多峰测试函数	$F 4 (x) = - ∑ i = 1 30 x i s i n x i$	(-100，100)
	$F 5 (x) = ∑ i = 1 30 x i 2 - 10 c o s (2 π x i) + 10$	(-10，10)
	$F 6 (x) = 1 4 000 ∑ i = 1 30 x i 2 - ∏ i = 1 30 c o s x i i + 1$	(-100，100)
固定维多峰测试函数	$F 7 (x) = 1500 + ∑ j = 1 25 1 j + ∑ i = 1 2 (x i - a i j) 6 - 1$	(-65.536，65.536)
	$F 8 (x) = - ∑ i = 1 4 c i e x p - ∑ j = 1 6 a i j (x j - p i j) 2$	(0，1)
	$F 9 (x) = - ∑ i = 1 10 (x - a i) (x - a i) T + c i - 1$	(0，10)

表1

表2

图3

表3

图4

图5

表4

参考文献 23

1	周庆懿, 瞿佳伟, 张春雷. 基于机器视觉的五轴点胶机工件定位算法研发[J]. 自动化与仪表, 2022, 37(5): 63-69.
	Zhou Qingyi, Qu Jiawei, Zhang Chunlei. Research of Workpiece Positioning Algorithm of Five-axis Dispensing Machine Based on Machine Vision[J]. Automation & Instrumentation, 2022, 37(5): 63-69.
2	余浪, 苗鸿宾, 申光鹏, 等. 基于机器视觉的工件识别与定位算法[J]. 自动化与仪表, 2023, 38(6): 29-33, 38.
	Yu Lang, Miao Hongbin, Shen Guangpeng, et al. Algorithm for Workpiece Recognition and Location Based on Machine Vision[J]. Automation & Instrumentation, 2023, 38(6): 29-33, 38.
3	Meng Fan, Li Jinhui, Zhang Yunqi, et al. Transforming Unmanned Pineapple Picking with Spatio-temporal Convolutional Neural Networks[J]. Computers and Electronics in Agriculture, 2023, 214: 108298.
4	Shi Huaitao, Li Gang, Bai Xiaotian, et al. Research on Nonlinear Control Method of Underactuated Gantry Crane Based on Machine Vision Positioning[J]. Symmetry, 2019, 11(8): 987.
5	Fan Qian, Chen Zhenjian, Li Zhao, et al. An Efficient Refracted Salp Swarm Algorithm and Its Application in Structural Parameter Identification[J]. Engineering with Computers, 2022, 38(1): 175-189.
6	Hu Rongxin, Bao Liyong, Ding Hongwei, et al. Analysis of the Influence of Population Distribution Characteristics on Swarm Intelligence Optimization Algorithms[J]. Information Sciences, 2023, 645: 119340.
7	Ali Asghar Heidari, Mirjalili Seyedali, Faris Hossam, et al. Harris Hawks Optimization: Algorithm and Applications[J]. Future Generation Computer Systems, 2019, 97: 849-872.
8	Brezočnik Lucija, Fister Iztok, Podgorelec Vili. Swarm Intelligence Algorithms for Feature Selection: A Review[J]. Applied Sciences, 2018, 8(9): 1521.
9	Zenab Mohamed Elgamal, Norizan Binti Mohd Yasin, Tubishat Mohammad, et al. An Improved Harris Hawks Optimization Algorithm with Simulated Annealing for Feature Selection in the Medical Field[J]. IEEE Access, 2020, 8: 186638-186652.
10	宋美佳, 贾鹤鸣, 林志兴, 等. 融合非线性收敛因子与变异准反射学习的哈里斯鹰优化算法[J]. 智能系统学报, 2024, 19(3): 738-748.
	Song Meijia, Jia Heming, Lin Zhixing, et al. Harris Hawks Optimization Algorithm Based on Nonlinear Convergence Factor and Mutation Quasi-reflected-based Learning[J]. CAAI Transactions on Intelligent Systems, 2024, 19(3): 738-748.
11	李岩, 钱谦. 基于多种群与协同量子化的哈里斯鹰优化算法[J]. 控制与决策, 2024, 39(7): 2169-2176.
	Li Yan, Qian Qian. Harris Hawks Optimization Algorithm Based on Multigroup and Collaborative Quantization[J]. Control and Decision, 2024, 39(7): 2169-2176.
12	Akpamukcu Mehmet, Ates Abdullah, Akdag Ozan. Combination of Electromagnetic Field and Harris Hawks Optimization Algorithms with Optimization to Optimization Structure and Its Application for Optimum Power Flow[J]. Journal of the Chinese Institute of Engineers, 2023, 46(7): 754-765.
13	Gezici Harun, Livatyalı Haydar. Chaotic Harris Hawks Optimization Algorithm[J]. Journal of Computational Design and Engineering, 2022, 9(1): 216-245.
14	Wang Xiaonan, Hu Hao, Liang Yanxue, et al. On the Mathematical Models and Applications of Swarm Intelligent Optimization Algorithms[J]. Archives of Computational Methods in Engineering, 2022, 29(6): 3815-3842.
15	黄志锋, 刘媛华, 任志豪, 等. 融合改进哈里斯鹰和改进动态窗口的机器人动态路径规划[J]. 计算机应用研究, 2024, 41(2): 450-458.
	Huang Zhifeng, Liu Yuanhua, Ren Zhihao, et al. Research on Mobile Robot Dynamic Path Planning Based on Improved Harris Hawk Algorithm and Improved Dynamic Window Algorithm[J]. Application Research of Computers, 2024, 41(2): 450-458.
16	黄琴, 张惠珍, 马良, 等. 混合哈里斯鹰优化算法求解带模糊需求的低碳多式联运路径规划问题[J]. 计算机应用研究, 2023, 40(10): 2978-2983, 2999.
	Huang Qin, Zhang Huizhen, Ma Liang, et al. Hybrid Harris Hawks Optimization Algorithm for Solving Low-carbon Multimodal Transportation Problem with Fuzzy Demand[J]. Application Research of Computers, 2023, 40(10): 2978-2983, 2999.
17	Belge Egemen, Altan Aytaç, Hacıoğlu Rıfat. Metaheuristic Optimization-based Path Planning and Tracking of Quadcopter for Payload Hold-release Mission[J]. Electronics, 2022, 11(8): 1208.
18	Huang Lin, Fu Qiang, Tong Nan. An Improved Harris Hawks Optimization Algorithm and Its Application in Grid Map Path Planning[J]. Biomimetics, 2023, 8(5): 428.
19	Yu Yang, Gao Shangce, Cheng Shi, et al. CBSO: A Memetic Brain Storm Optimization with Chaotic Local Search[J]. Memetic Computing, 2018, 10(4): 353-367.
20	逯苗, 何登旭, 曲良东. 非线性参数的精英学习灰狼优化算法[J]. 广西师范大学学报(自然科学版), 2021, 39(4): 55-67.
	Lu Miao, He Dengxu, Qu Liangdong. Grey Wolf Optimization Algorithm Based on Elite Learning for Nonlinear Parameters[J]. Journal of Guangxi Normal University(Natural Science Edition), 2021, 39(4): 55-67.
21	黄霖, 符强, 童楠. 基于自适应调整哈里斯鹰优化算法求解机器人路径规划问题[J]. 计算机应用, 2023, 43(12): 3840-3847.
	Huang Lin, Fu Qiang, Tong Nan. Solving Robot Path Planning Problem by Adaptively Adjusted Harris Hawk Optimization Algorithm[J]. Journal of Computer Applications, 2023, 43(12): 3840-3847.
22	Tanyildizi E, Demir G. Golden Sine Algorithm: A Novel Math-inspired Algorithm[J]. Advances in Electrical and Computer Engineering, 2017, 17(2): 71-78.
23	Mansor M A, Morris A S. Path Planning in Unknown Environment with Obstacles Using Virtual Window[J]. Journal of Intelligent and Robotic Systems, 1999, 24(3): 235-251.

函数	指标	GWO	WOA	HHO	GA	PSO	GSHHO
F1	最优值	1.400 1×10^-125	2.765 4×10^-218	2.765 4×10^-218	0.025 4	2.935 9×10^-11	2.765 4×10^-218
	平均值	3.113 5×10^-117	1.980 6×10^-156	3.017 2×10^-189	1.470 2	3.014 2×10^-9	6.717 5×10^-191
	标准差	9.360 5×10^-117	6.240 4×10^-156	0	2.087 3	5.743 6×10^-9	0
F2	最优值	4.557 1×10^-65	1.546×10^-193	1.546×10^-193	8.330 3×10²	1.338 3×10^-4	1.546 0×10^-193
	平均值	9.318 8×10^-52	18.815 4	1.144 6×10^-163	3.982 3×10³	0.001 8	1.853 0×10^-165
	标准差	5.033 1×10^-51	52.093 2	9.987 6×10^-161	2.398 5×10³	0.001 9	0
F4	最优值	-3.716 0×10³	-4.189 8×10³	-4.189 8×10³	-1.845 4×10³	-3.064 7×10³	-4.189 8×10³
	平均值	-2.804 3×10³	-3.434 4×10³	-4.164 8×10³	-1.228 6×10³	-2.493 1×10³	-4.189 8×10³
	标准差	3.403 2×10²	5.785 2×10²	1.369 9×10²	2.7755×10²	3.672 1×10²	0.033 0
F6	最优值	0.998 0	0.998 0	0.998 0	0.998 0	0.998 0	0.998 0
	平均值	5.107 7	3.314 9	1.196 8	1.023 4	3.103 3	0.998 0
	标准差	4.441 2	3.858 7	0.404 4	0.129 7	2.322 3	2.375 4×10^-10
F8	最优值	-3.322 0	-3.315 6	-3.315 6	-2.607 5	-3.322 0	-3.410 2
	平均值	-3.256 5	-3.256 9	-3.122 3	-1.608 8	-3.278 4	-3.383 7
	标准差	0.069 8	0.089 1	0.097 3	0.548 3	0.058 3	0.072 3
F9	最优值	-10.536 4	-10.536 3	-10.536 3	-2.123 4	-10.536 4	-10.536 6
	平均值	-10.535 9	-7.911 9	-5.302 8	-1.217 0	-9.862 5	-10.588 1
	标准差	3.030 3	3.098 7	0.960 9	0.422 7	2.086 7	0.077 6

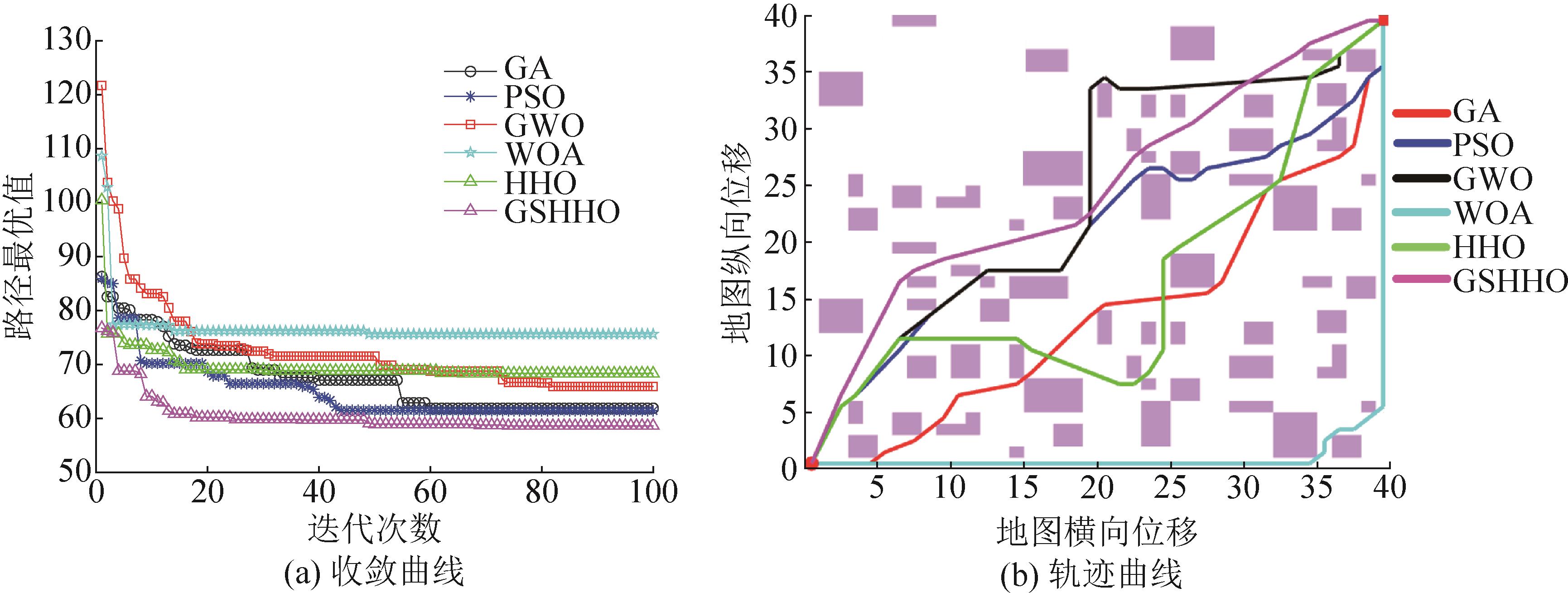

地图	实验次数	GA	PSO	GWO	WOA	HHO	GSHHO
简单	1	28.577 7	29.827 2	28.577 7	31.964 0	28.577 7	28.419 3
	2	28.531 2	31.052 5	28.577 7	30.809 8	30.484 9	28.139 5
	3	31.052 5	29.411 7	29.892 6	31.424 7	28.577 7	28.577 7
	4	28.725 2	29.411 7	28.419 3	29.890 2	31.052 5	28.419 3
	5	30.533 9	28.577 7	28.577 7	32.339 9	30.475 2	28.577 7
	6	29.233 5	29.411 7	28.577 7	31.655 4	29.264 6	28.139 5
	7	30.188 5	30.188 5	30.188 5	33.095 2	30.767 4	28.631 5
	8	31.052 5	30.188 5	29.954 7	33.090 8	30.297 6	29.901 7
	9	29.954 7	31.073 3	28.577 7	30.282 0	28.577 7	28.577 7
	10	30.892 7	28.577 7	28.725 2	32.483 8	31.052 5	28.577 7
复杂	1	60.566 8	65.052 5	64.069 5	76.828 4	69.022 7	58.925
	2	63.927 5	61.259 2	63.434 7	76.828 4	60.784 9	59.562 1
	3	61.165 8	70.924 4	65.277 0	75.656 9	62.269 9	61.326 7
	4	66.620 5	62.837 5	61.699 2	76.828 4	67.363 0	61.240 7
	5	59.891 9	66.227 2	59.891 0	76.828 4	68.086 0	59.708 6
	6	60.532 0	71.424 3	66.544 3	75.656 9	63.954 6	59.804 9
	7	73.447 9	71.317 6	78.519 7	76.828 4	59.985 6	58.241 0
	8	59.522 4	62.891 8	59.669 0	76.828 4	61.778 5	59.141 0
	9	60.572 1	67.537 7	63.545 4	76.242 6	65.359 1	58.082 5
	10	61.820 5	62.561 2	62.506 0	76.828 4	64.570 5	60.870 2

地图环境	算法	最优值	平均值	标准差
简单	GA	28.531 2	29.874 2	0.978 3
	PSO	28.577 7	29.772 1	0.832 2
	GWO	28.419 3	29.006 9	0.665 2
	WOA	29.890 2	31.703 6	1.055 0
	HHO	28.577 7	29.912 8	0.994 4
	GSHHO	28.139 5	28.596 2	0.467 6
复杂	GA	62.806 7	59.522 4	4.088 6
	PSO	66.203 3	61.259 2	3.725 8
	GWO	64.515 6	59.669	5.098 7
	WOA	76.535 5	75.656 9	0.472 2
	HHO	64.317 5	59.985 6	2.979 6
	GSHHO	59.690 3	58.082 5	1.098 9
