卫星监测任务仿真的序贯试验设计方法研究

doi:10.16182/j.issn1004731x.joss.23-0602

摘要/Abstract

摘要：

针对卫星监测任务仿真试验在复杂试验空间中无法兼顾样本点数量和模型精度的问题，提出一种基于点密度和局部非线性度的卫星仿真试验混合序贯试验设计方法。使用Voronoi划分描述离散点分布密度，借助泰勒展开式及样本点邻域梯度信息衡量非线性度，将两者组合计算综合指标，对样本点进行排序，进而添加新的样本点，直到满足停止准则。仿真结果表明：相比均匀设计和拉丁超立方设计，序贯试验设计方法在函数算例上可以在较少样本点的情况下达到停止准则。在仿真系统数据上，误差指标RMSE分别提高 $44.88 %$ 和 $38.77 %$ ，MAPE分别提高 $47.07 %$ 和 $37.4 %$ 。序贯试验设计方法相较于传统试验设计在样本点采集上可以有效降低采样数量，提升模型精度。

关键词: 卫星仿真试验, 试验设计, 序贯试验设计, 混合加点准则, 响应建模

Abstract:

Aiming at the problem that satellite monitoring mission simulation tests cannot take into account the number of sample points and model accuracy in the complex test space, a hybrid sequential test design method for satellite simulation tests based on sample density and local nonlinearity is proposed. Voronoi division is used to describe the density of discrete point distribution, and the nonlinearity is measured with the help of Taylor expansion and sample point neighborhood gradient information. The two are combined to calculate the hybrid metrics, and the sample points are ranked and new ones are added until the stopping criterion is satisfied. The simulation results show that the sequential experimental design method can meet the stopping criterion with fewer sample points on the function examples compared to the uniform and Latin hypercube designs. Using the simulated system data, the error metric RMSE results improved by 44.88% and 38.77%, the error metric MAPE results improved by 47.07% and 37.4%, respectively. Compared with the traditional experimental design, the sequential experimental design method can effectively reduce the number of sample points and improve the model accuracy.

Key words: satellite simulation experiment, experimental design, sequential experimental design, hybrid sampling points, response modeling

中图分类号:

T391.9

王彦琳,程志君,王子辰等 . 卫星监测任务仿真的序贯试验设计方法研究[J]. 系统仿真学报, 2024, 36(10): 2257-2264.

Wang Yanlin,Cheng Zhijun,Wang Zichen,et al . Research on Sequential Design Methods for Satellite Combat Simulation Tests[J]. Journal of System Simulation, 2024, 36(10): 2257-2264.

图/表 13

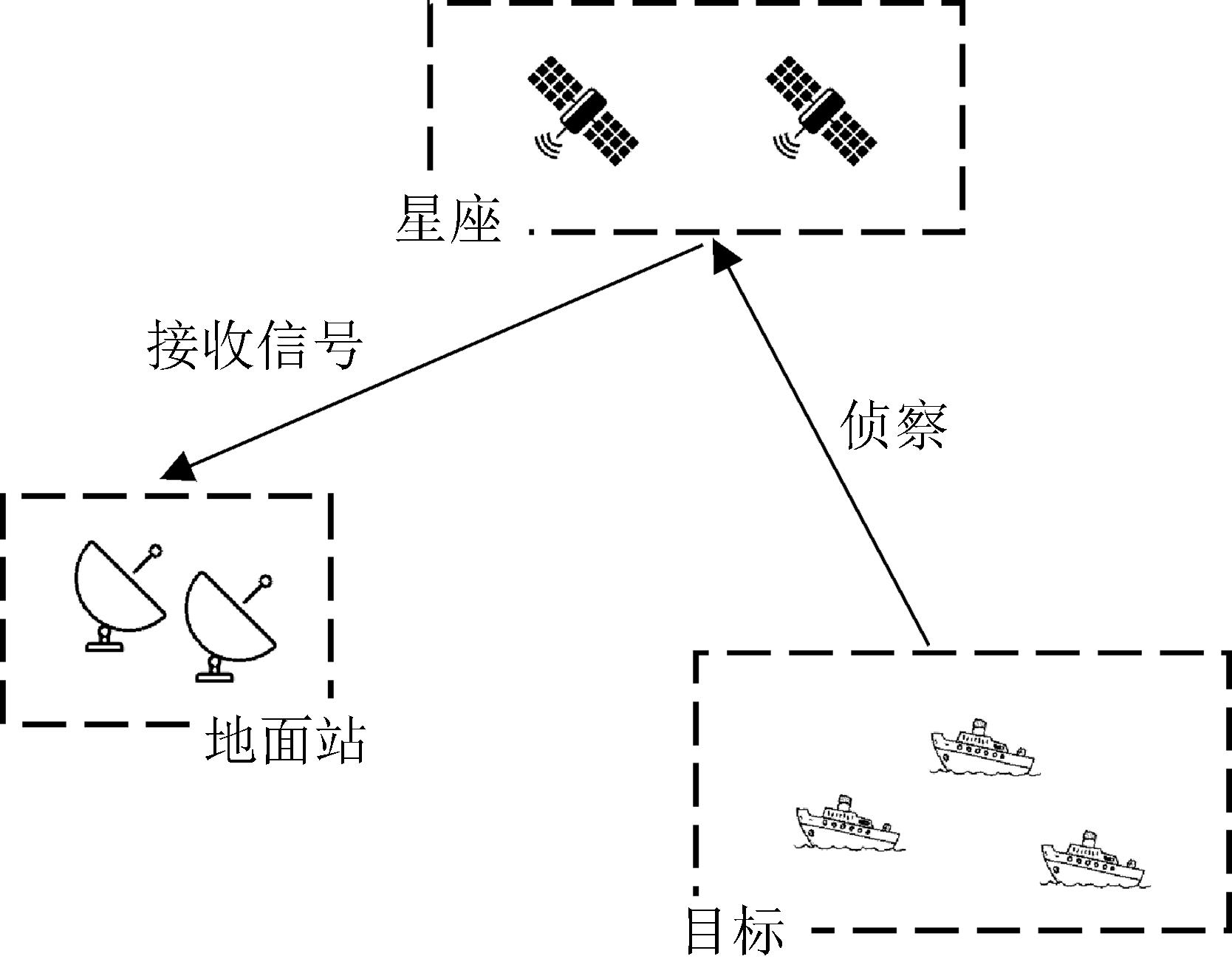

图1

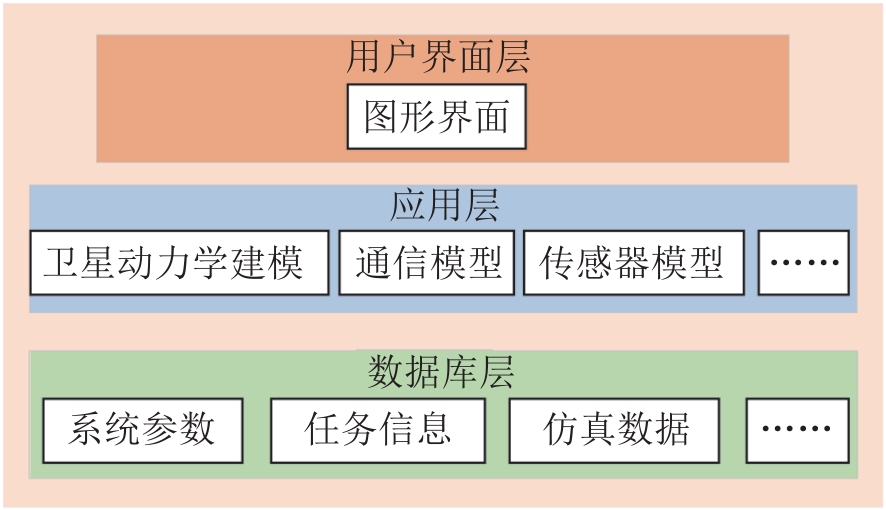

图2

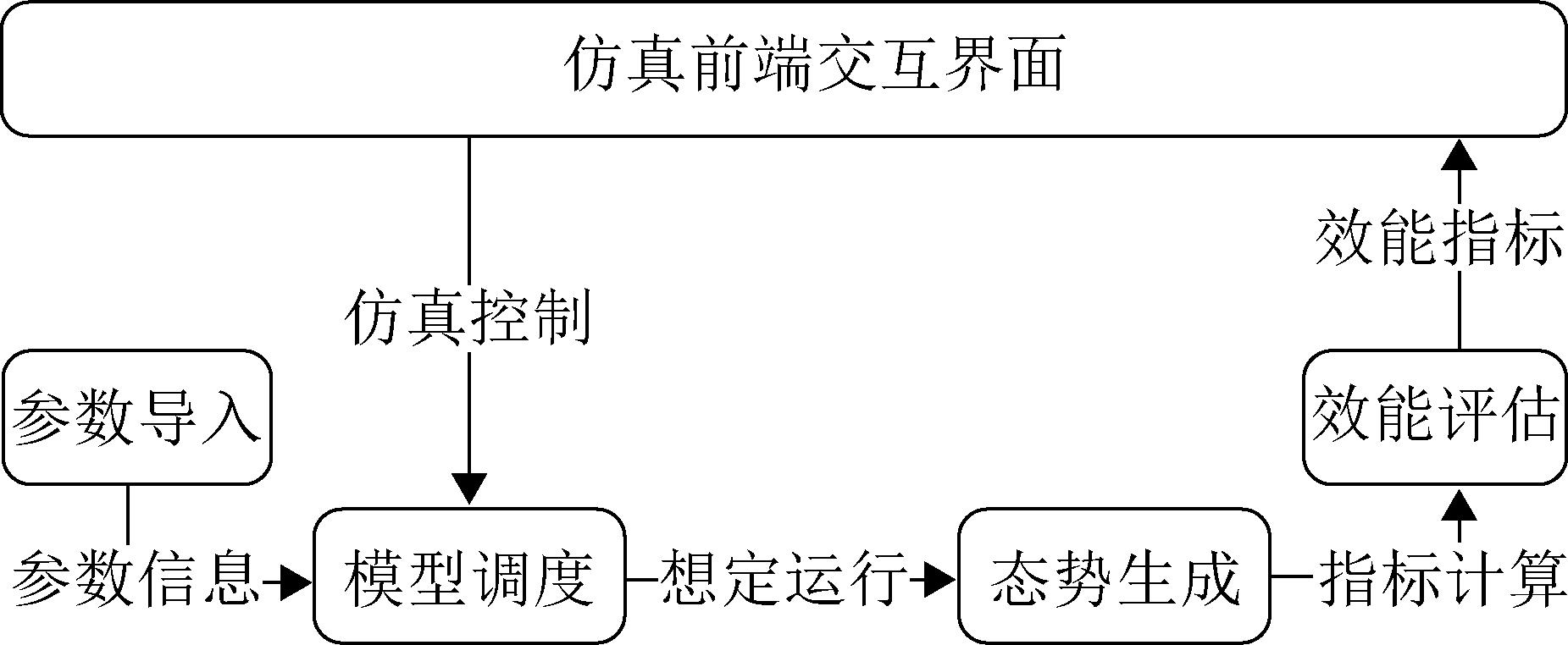

图3

表1

表2

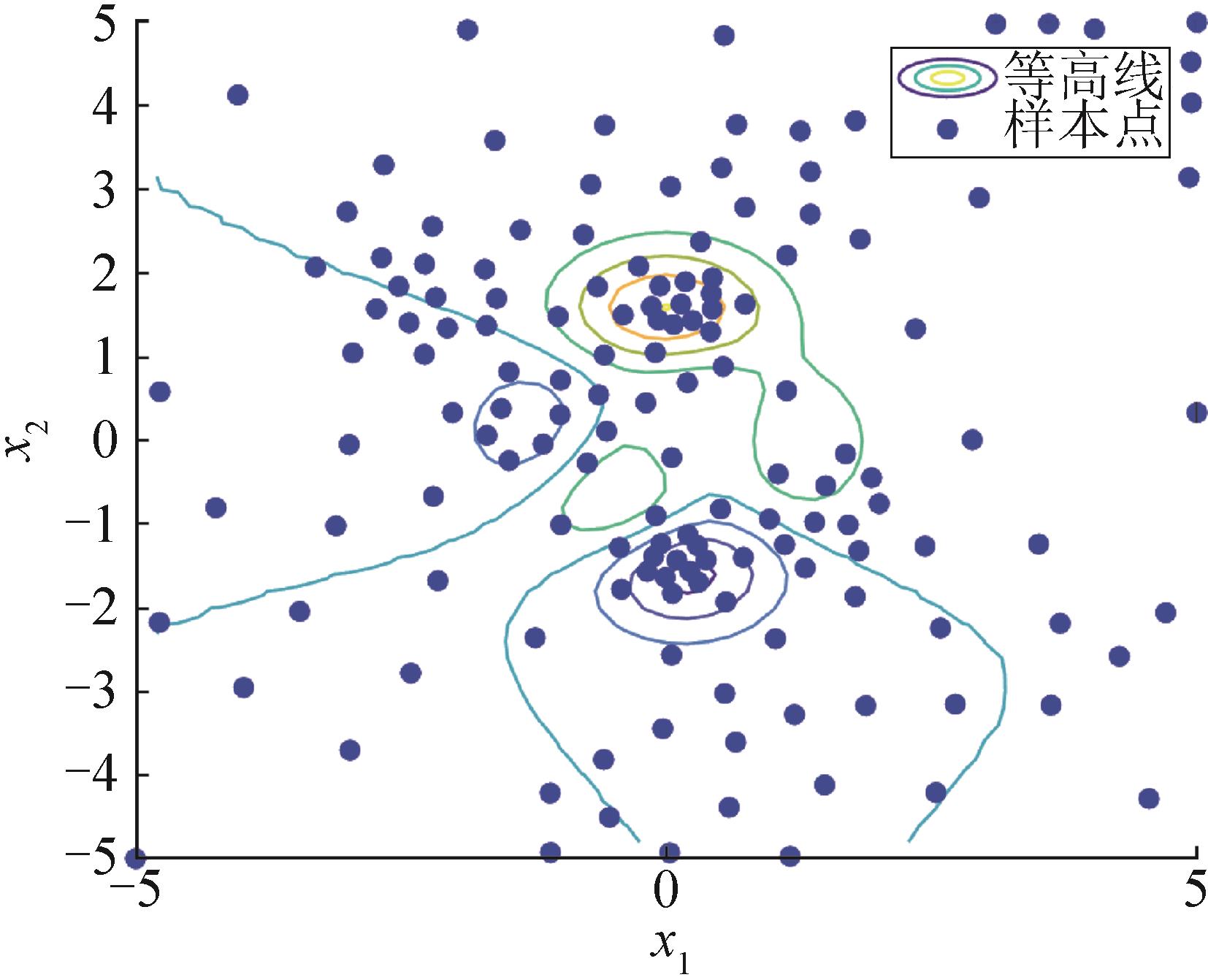

图4

表3

表4

表5

表6

表7

表8

表9

参考文献 15

1	张媛, 陆营波, 陈顶, 等. 装备效能仿真试验因子灰色关联筛选方法研究[J]. 系统仿真学报, 2020, 32(8): 1498-1504.
	Zhang Yuan, Lu Yingbo, Chen Ding, et al. Research on Factor Selection Method of Equipment Effectiveness Simulation Experiment Based on Grey Correlation Analysis[J]. Journal of System Simulation, 2020, 32(8): 1498-1504.
2	洪煌杰, 王红岩, 郝贵祥. 基于响应面法的空降车缓冲气囊参数优化研究[J]. 系统仿真学报, 2013, 25(2): 327-332.
	Hong Huangjie, Wang Hongyan, Hao Guixiang. Research on Parameter Optimization of Airbags for Airborne Vehicle Base on Response Surface Methodology[J]. Journal of System Simulation, 2013, 25(2): 327-332.
3	陈盈果, 刘晓路, 贺仁杰, 等. 试验设计在对地观测卫星系统顶层设计中的应用研究[J]. 宇航学报, 2012, 33(12): 1852-1859.
	Chen Yingguo, Liu Xiaolu, He Renjie, et al. Application of Experimental Design in Top Level Design of Earth Observation Satellite System[J]. Journal of Astronautics, 2012, 33(12): 1852-1859.
4	卢彪, 杨新海, 刘永强, 等. 微卫星在轨释放装置释放精度正交分析与验证[J]. 华中科技大学学报(自然科学版), 2022, 50(2): 76-81.
	Lu Biao, Yang Xinhai, Liu Yongqiang, et al. Orthogonal Analysis and Verification of Release Accuracy of Microsatellite on-orbit Release Device[J]. Journal of Huazhong University of Science and Technology (Natural Science Edition), 2022, 50(2): 76-81.
5	于小红, 王杰娟. 基于均匀设计的空间目标监视卫星覆盖能力仿真分析[J]. 宇航学报, 2010, 31(12): 2801-2806.
	Yu Xiaohong, Wang Jiejuan. Simulation and Analysis of Coverage Ability of Space Surveillance Satellite Based on Uniform Design Method[J]. Journal of Astronautics, 2010, 31(12): 2801-2806.
6	杨彬, 张顺健, 方胜良, 等. 基于STK的卫星覆盖模型研究与仿真分析[J]. 舰船电子对抗, 2016, 39(1): 66-71.
	Yang Bin, Zhang Shunjian, Fang Shengliang, et al. Study and Simulation Analysis of Satellite Coverage Model Based on STK[J]. Shipboard Electronic Countermeasure, 2016, 39(1): 66-71.
7	崔庆安, 季泽, 段焕姣. 基于样本点显著性及嵌套正交设计的序贯设计及建模方法[J]. 系统工程理论与实践, 2019, 39(9): 2398-2411.
	Cui Qingan, Ji Ze, Duan Huanjiao. Sequential Design and Modeling Based on Significance of Samples and Nested Orthogonal Design[J]. Systems Engineering-Theory & Practice, 2019, 39(9): 2398-2411.
8	Shang Xiaobing, Zhang Zhi, Fang Hai, et al. Ensemble Learning of Multi-kernel Kriging Surrogate Models Using Regional Discrepancy and Space-filling Criteria-based Hybrid Sampling Method[J]. Advanced Engineering Informatics, 2023, 58: 102186.
9	张泽斌, 张鹏飞, 郭红, 等. Kriging序贯设计方法在滑动轴承优化中的应用[J]. 哈尔滨工业大学学报, 2019, 51(7): 178-183.
	Zhang Zebin, Zhang Pengfei, Guo Hong, et al. Implementation of Kriging Model Based Sequential Design on the Optimization of Sliding Bearing[J]. Journal of Harbin Institute of Technology, 2019, 51(7): 178-183.
10	Garbo A, German B J. A Model-independent Adaptive Sequential Sampling Technique Based on Response Nonlinearity Estimation[J]. Structural and Multidisciplinary Optimization, 2020, 61(3): 1051-1069.
11	Fuhg Jan N, Fau Amélie, Nackenhorst Udo. State-of-the-art and Comparative Review of Adaptive Sampling Methods for Kriging[J]. Archives of Computational Methods in Engineering, 2021, 28(4): 2689-2747.
12	Crombecq Karel, Gorissen Dirk, Deschrijver Dirk, et al. A Novel Hybrid Sequential Design Strategy for Global Surrogate Modeling of Computer Experiments[J]. SIAM Journal on Scientific Computing, 2011, 33(4): 1948-1974.
13	Aurenhammer F. Voronoi Diagrams-A Survey of a Fundamental Geometric Data Structure[J]. ACM Computing Surveys, 1991, 23(3): 345-405.
14	Eason J, Cremaschi S. Adaptive Sequential Sampling for Surrogate Model Generation with Artificial Neural Networks[J]. Computers & Chemical Engineering, 2014, 68: 220-232
15	Chen Liming, Qiu Haobo, Jiang Chen, et al. Ensemble of Surrogates with Hybrid Method Using Global and Local Measures for Engineering Design[J]. Structural and Multidisciplinary Optimization, 2018, 57(4): 1711-1729.

测试函数名称	维度	测试区间
BOHACHEVSKY	2	[-100, 100]
MATYAS	2	[-10, 10]
PEAKS^[14]	2	[-5, 5]
SIX-HUMP CAMEL^[10]	2	[-2, 2]
ROSENBROCK^[15]	5	[5, 10]
BRATLEY ET AL. (1992)	6	[0, 1]

函数名称	LOLA-Voronoi	均匀设计	拉丁超立方设计
BOHACHE-VSKY	0.001 7	0.000 5	0.000 9
MATYAS	0.000 1	0.000 3	0.000 1
PEAKS	0.043 0	0.915 6	0.835 5
SIX-HUMP CAMEL	0.032 8	0.046 2	0.017 8

设计方法	样本数
设计方法	162	172	182	192
LOLA-Voronoi	0.018 5	0.009 2	0.004 1	0.004 8
均匀设计	0.013 9	0.015 0	0.006 8	0.006 5
拉丁超立方设计	0.008 3	0.010 1	0.006 0	0.006 2

设计方法	样本数
设计方法	172	182	192	202
LOLA-Voronoi	0.165 6	0.081 5	0.028 4	0.014 8
均匀设计	0.137 3	0.082 5	0.046 0	0.015 2
拉丁超立方设计	0.050 3	0.070 3	0.039 7	0.043 1

设计方法	样本数
设计方法	142	152	162	172
LOLA-Voronoi	0.011 0	0.009 9	0.009 5	0.008 5
均匀设计	0.011 2	0.010 3	0.011 3	0.008 8
拉丁超立方设计	0.010 7	0.011 4	0.009 6	0.008 9
