面向智能制造场景的机器人数字孪生建模与控制

doi:10.16182/j.issn1004731x.joss.23-0481

摘要/Abstract

摘要：

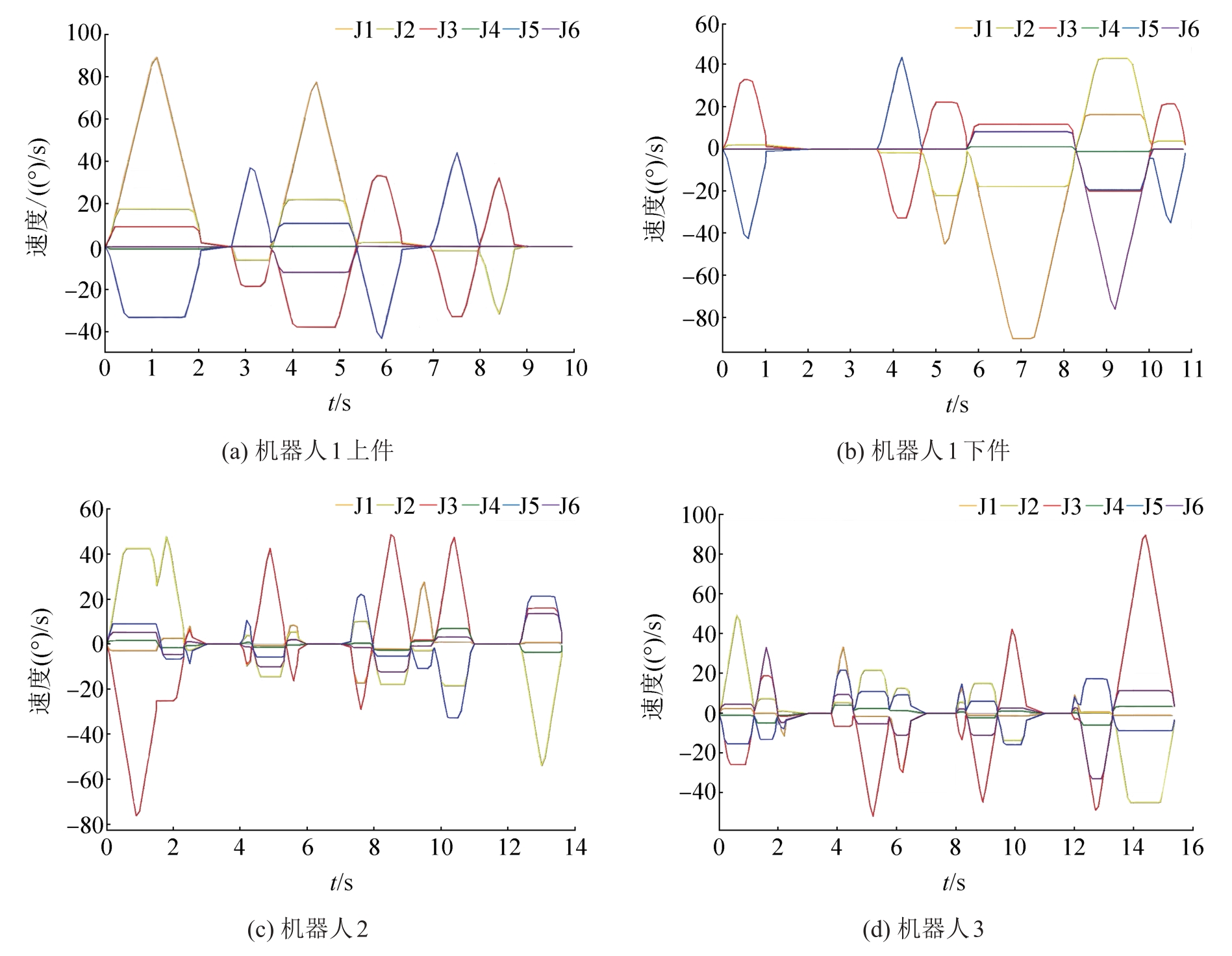

工业4.0及中国制造2025发展方针的提出，加速了制造业从自动化向智能化的转型。工业机器人作为智能制造的代表性设备也将变得更智能化。针对在实际生产中工业机器人点焊调试存在的干涉碰撞、操作繁琐、效率低等问题，基于数字孪生技术进行数字建模和仿真调试。利用TECNOMATIX系列软件中的Process Simulate进行机器人点焊工位的数字化建模与运动定义，综合利用TIA Portal和S7-PLCSIM Advanced搭建虚拟仿真调试环境，实现由外部虚拟PLC控制加工工位的多机器人协同工作。仿真结果表明，机器人在运动过程中所有工作点均可达且关节速度始终保持在合理区间内，满足实际生产过程中安全性和稳定性的要求；通过数字孪生技术进行机器人点焊工位仿真可及时发现产品缺陷，缩短调试周期，降低成本。

关键词: 数字孪生, 虚拟调试, Tecnomatix, TIA, 仿真

Abstract:

The introduction of Industry 4.0 and the Made in China 2025 development policy has accelerated the transformation of the manufacturing industry from automation to intelligence. Industrial robots, as the representative equipment of intelligent manufacturing, will also become more intelligent. Based on digital twin technology, digital modeling, and simulation debugging are conducted for such problems as interference and collision, tedious operation, and low efficiency of industrial robot spot welding debugging in production. Process Simulate from TECNOMATIX software is utilized to digitally model the robot spot welding station and define its motion, and TIA Portal and S7-PLCSIM Advanced are applied to build a virtual simulation and commissioning environment to realize multi-robot cooperative work at the processing station controlled by an external virtual PLC. The simulation results show that the robot can reach all working points during the motion and the joint speed is always kept within a reasonable range, which meets the requirements of safety and stability in the actual production process. At the same time, the robot spot welding station simulation by digital twin technology can find product defects in time, shorten the debugging cycle, and reduce the cost.

Key words: digital twin, virtual commissioning, Tecnomatix, TIA, simulations

中图分类号:

TP391.9

李颖,高岚,朱志松 . 面向智能制造场景的机器人数字孪生建模与控制[J]. 系统仿真学报, 2024, 36(7): 1536-1545.

Li Ying,Gao Lan,Zhu Zhisong . Digital Twin Modeling and Control of Robots for Intelligent Manufacturing Scenarios[J]. Journal of System Simulation, 2024, 36(7): 1536-1545.

图/表 15

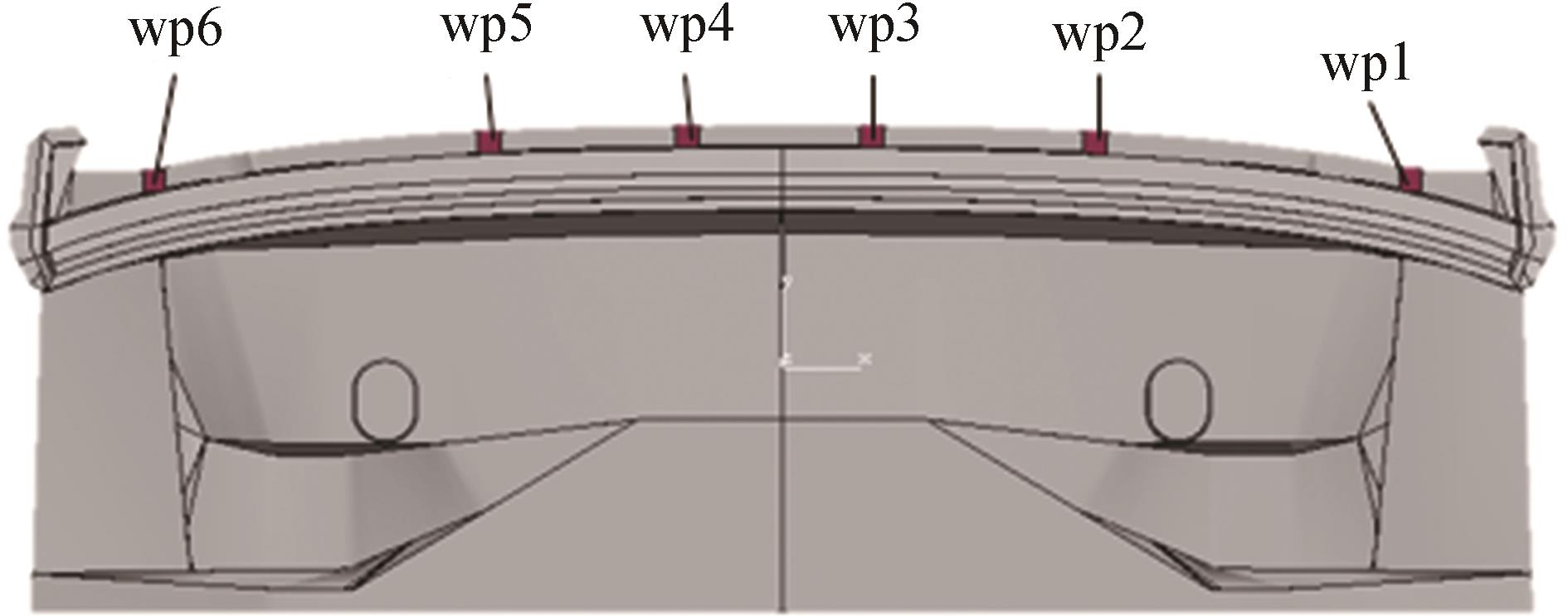

图1

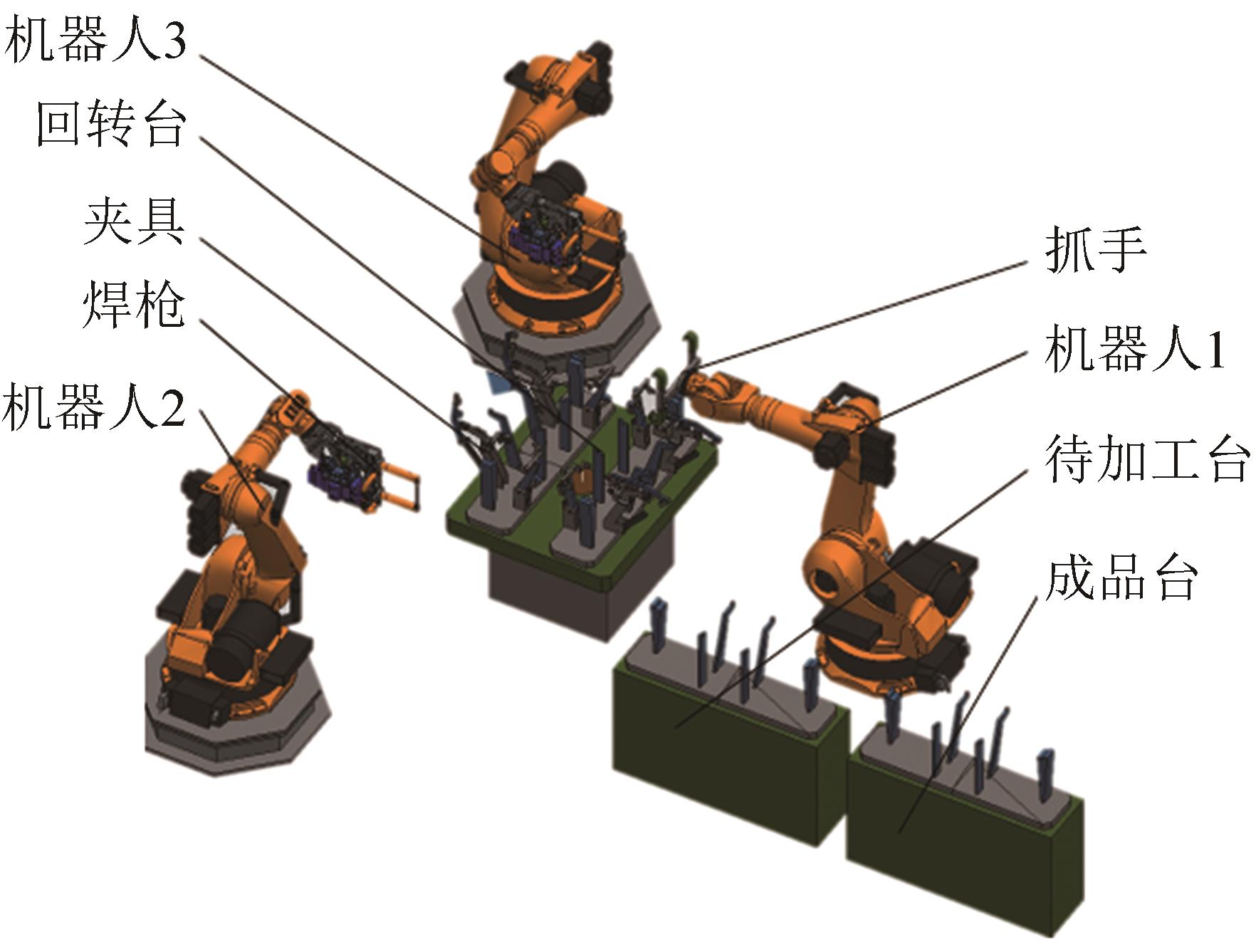

图2

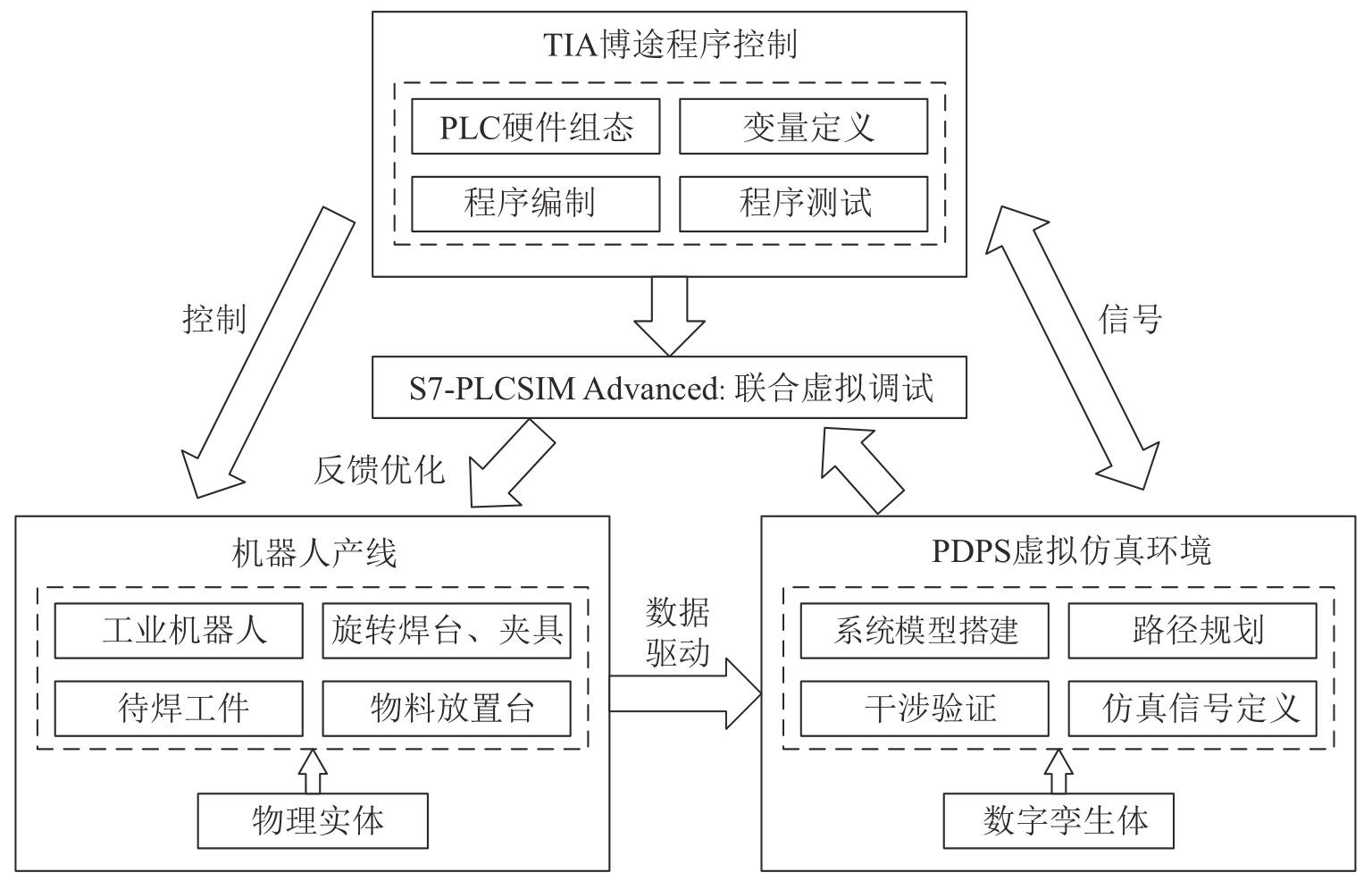

图3

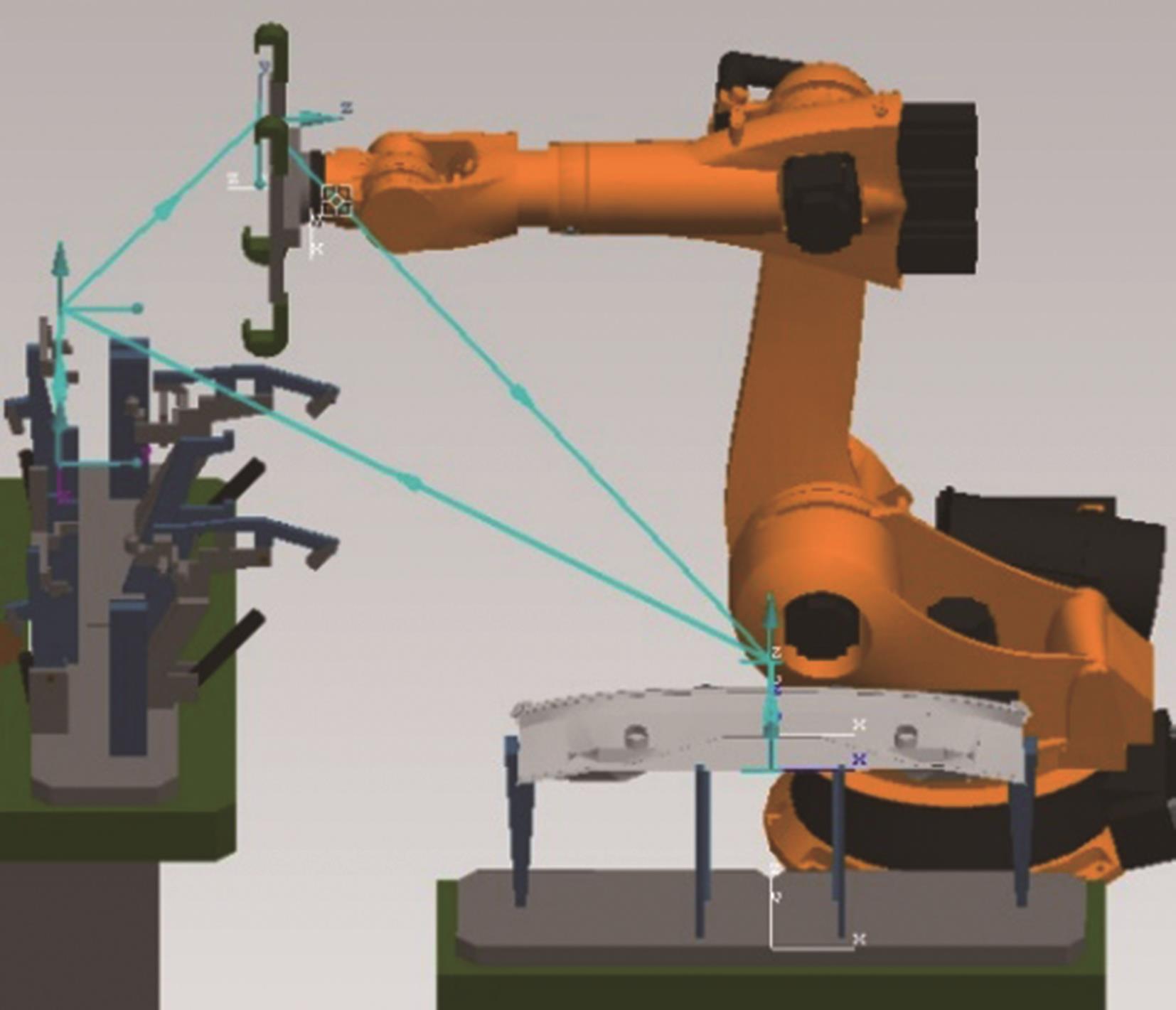

图4

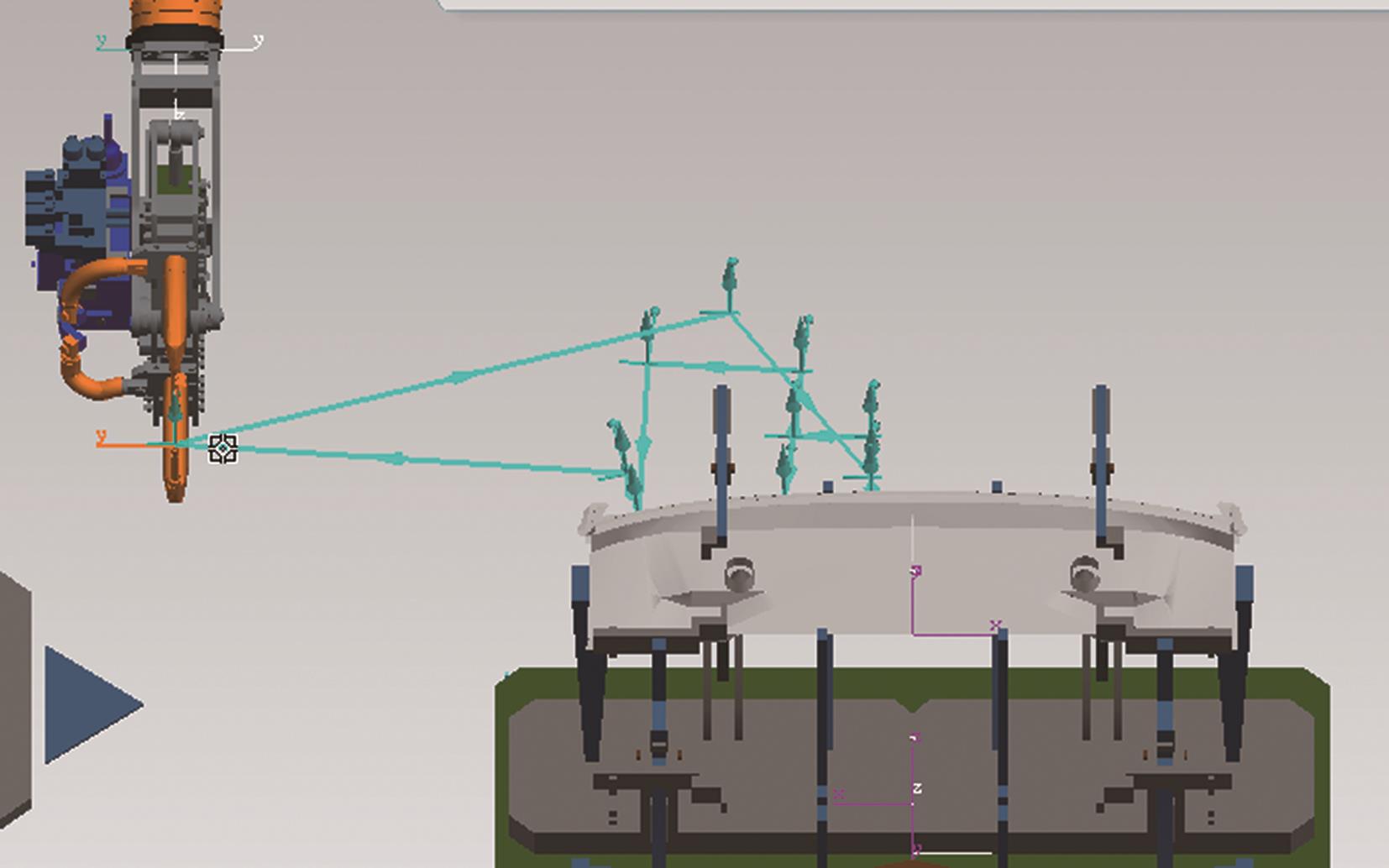

图5

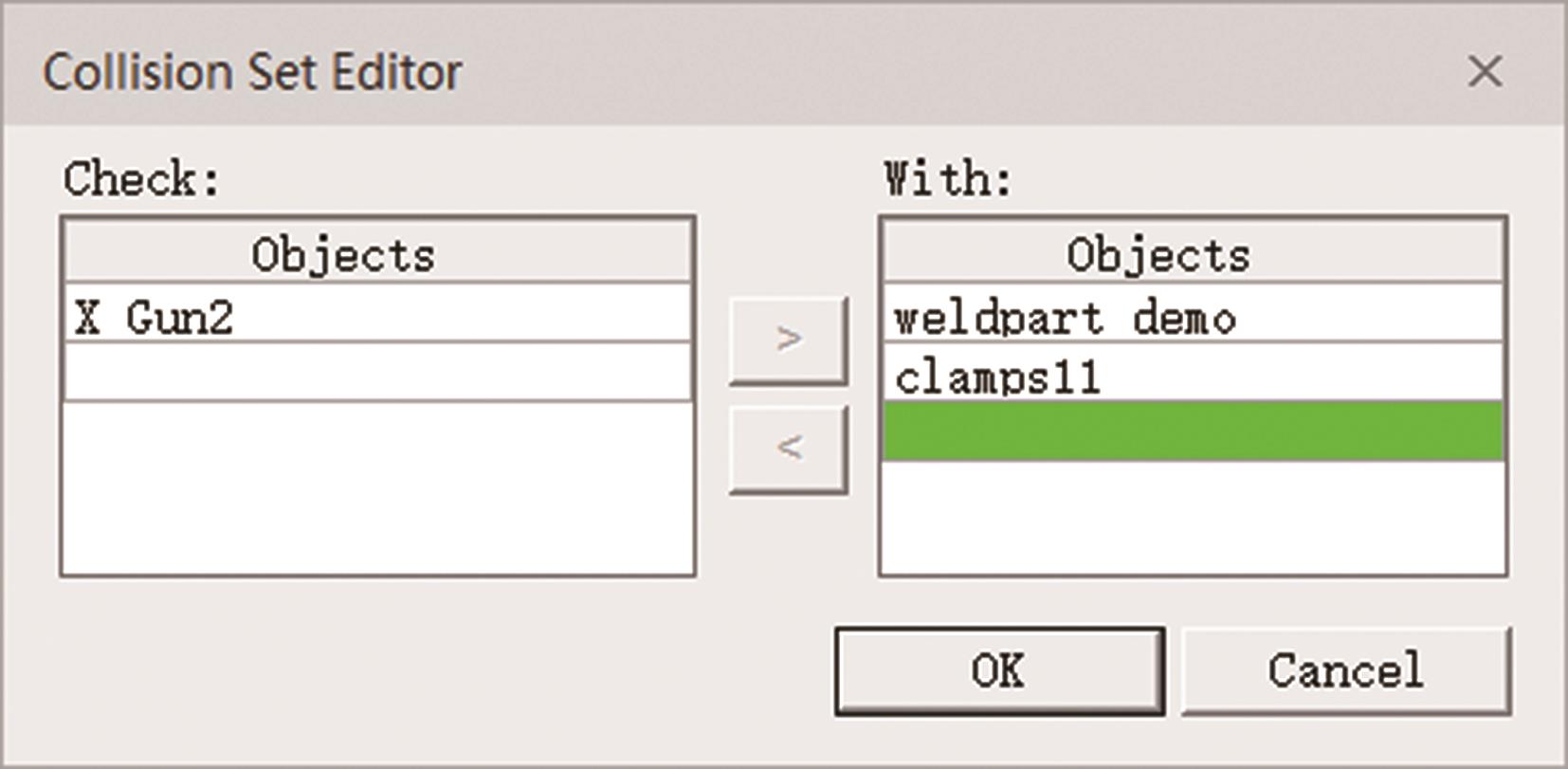

图6

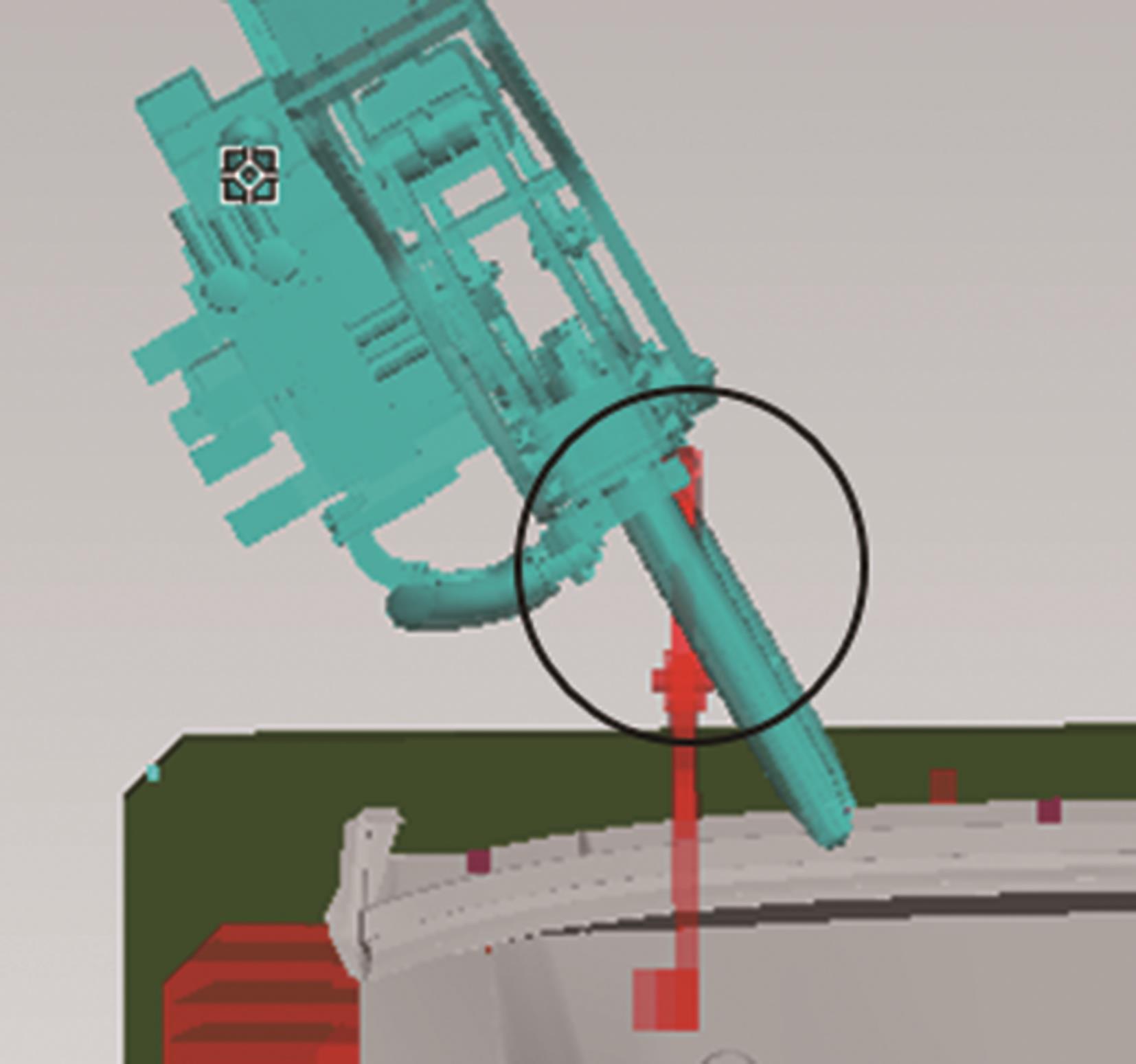

图7

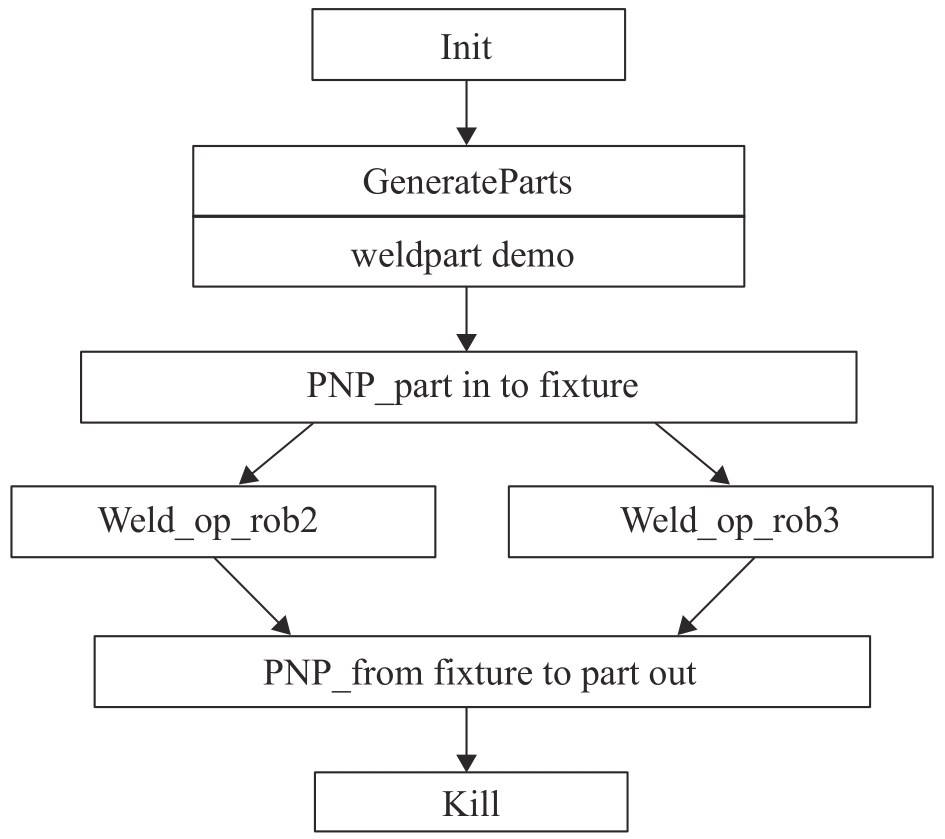

图8

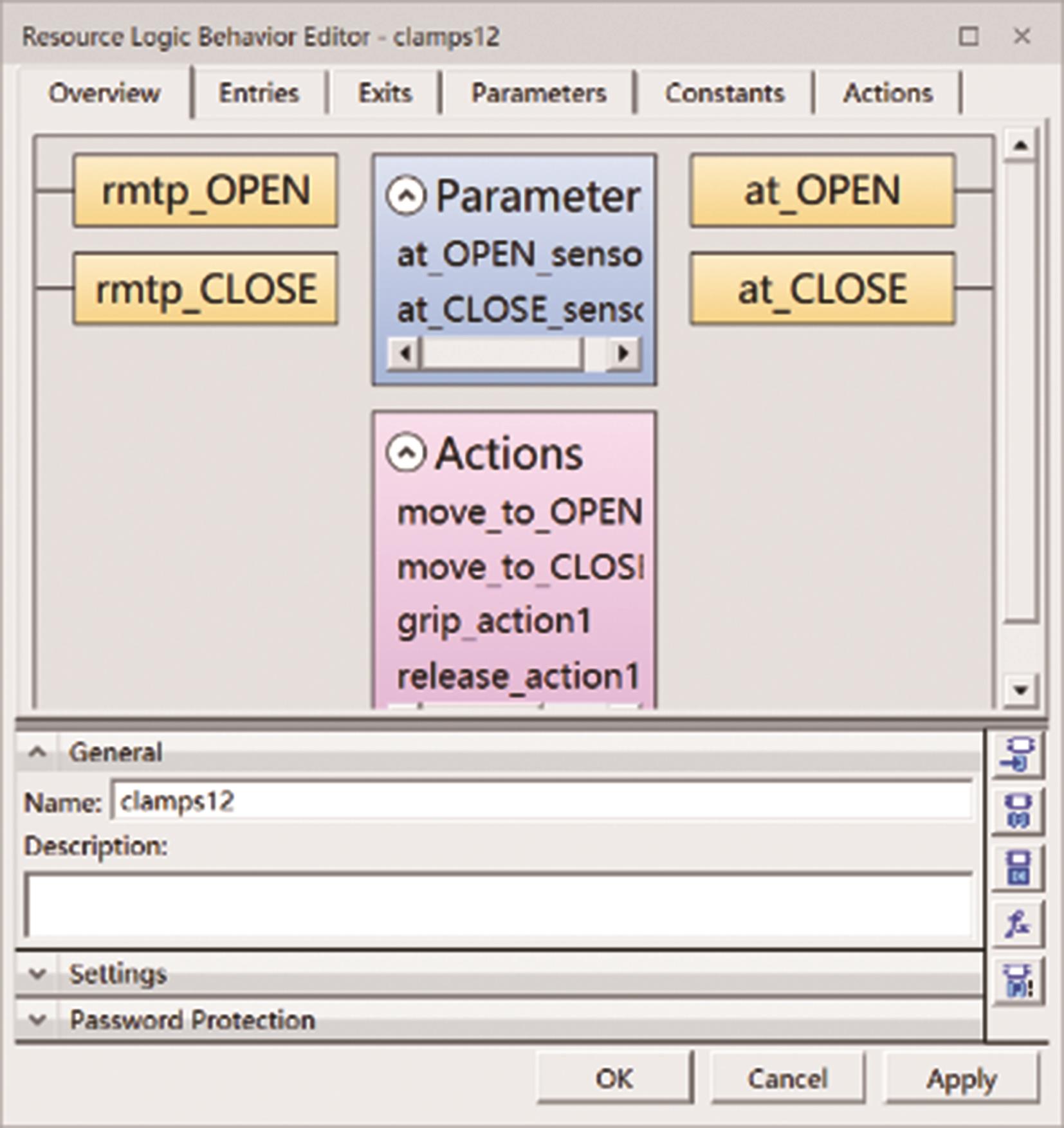

图9

表1

图10

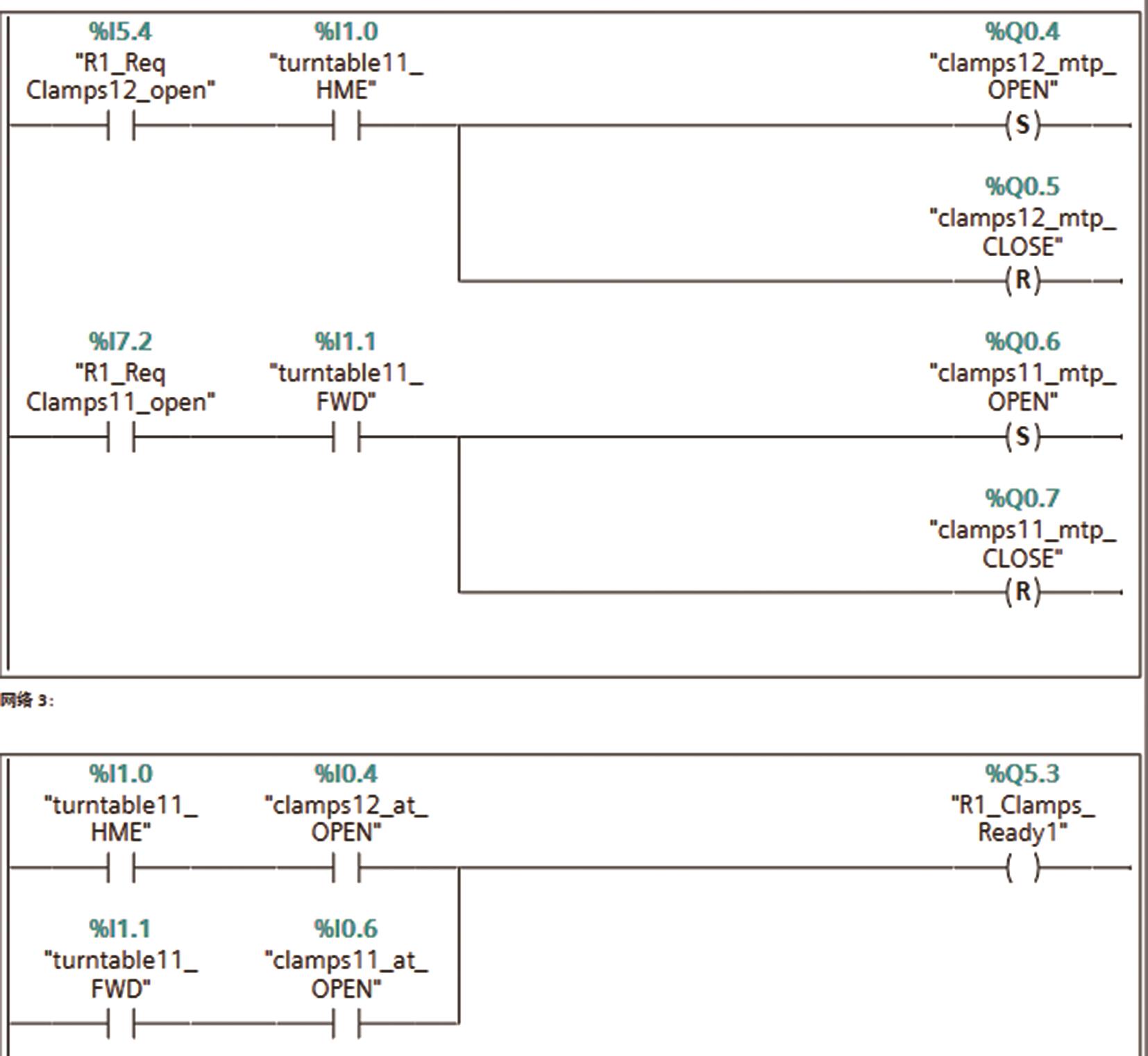

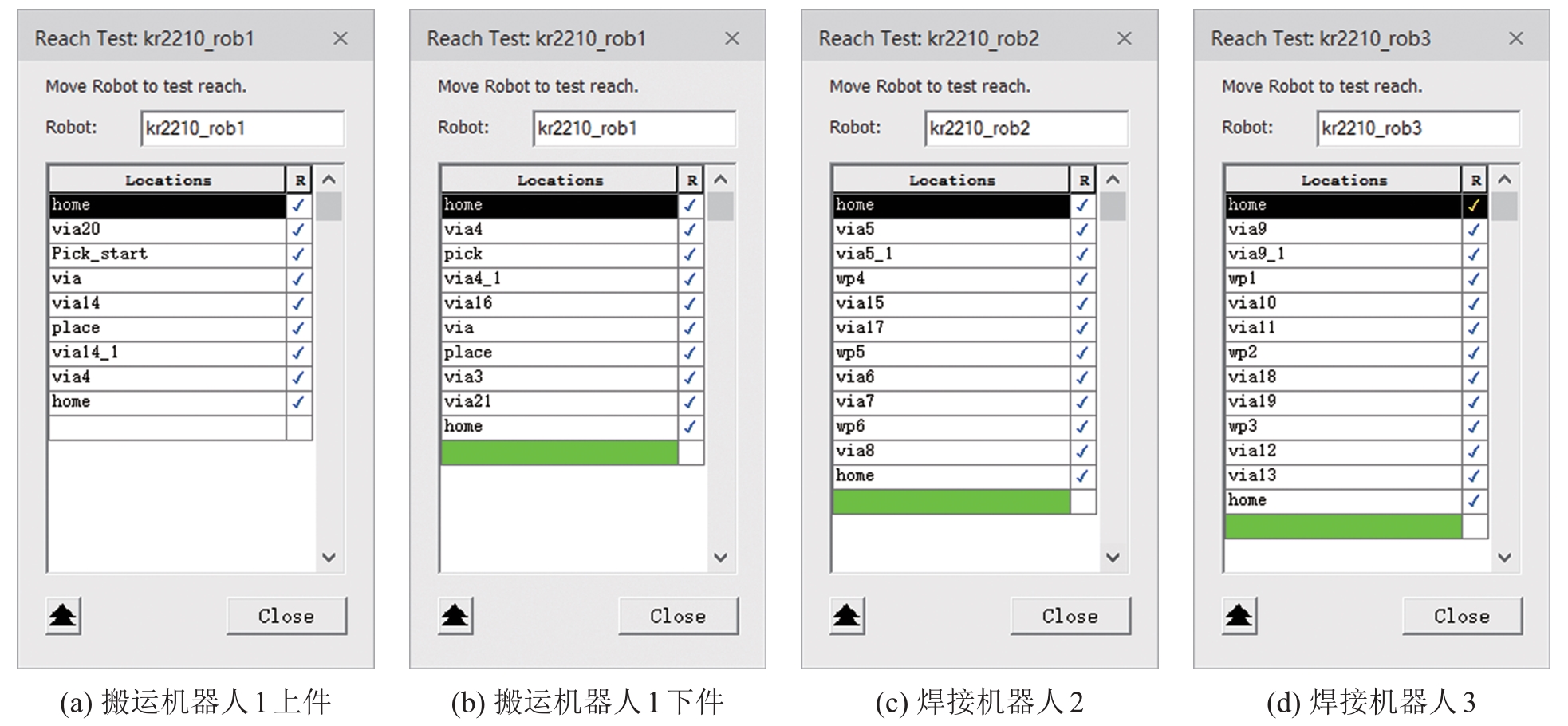

图11

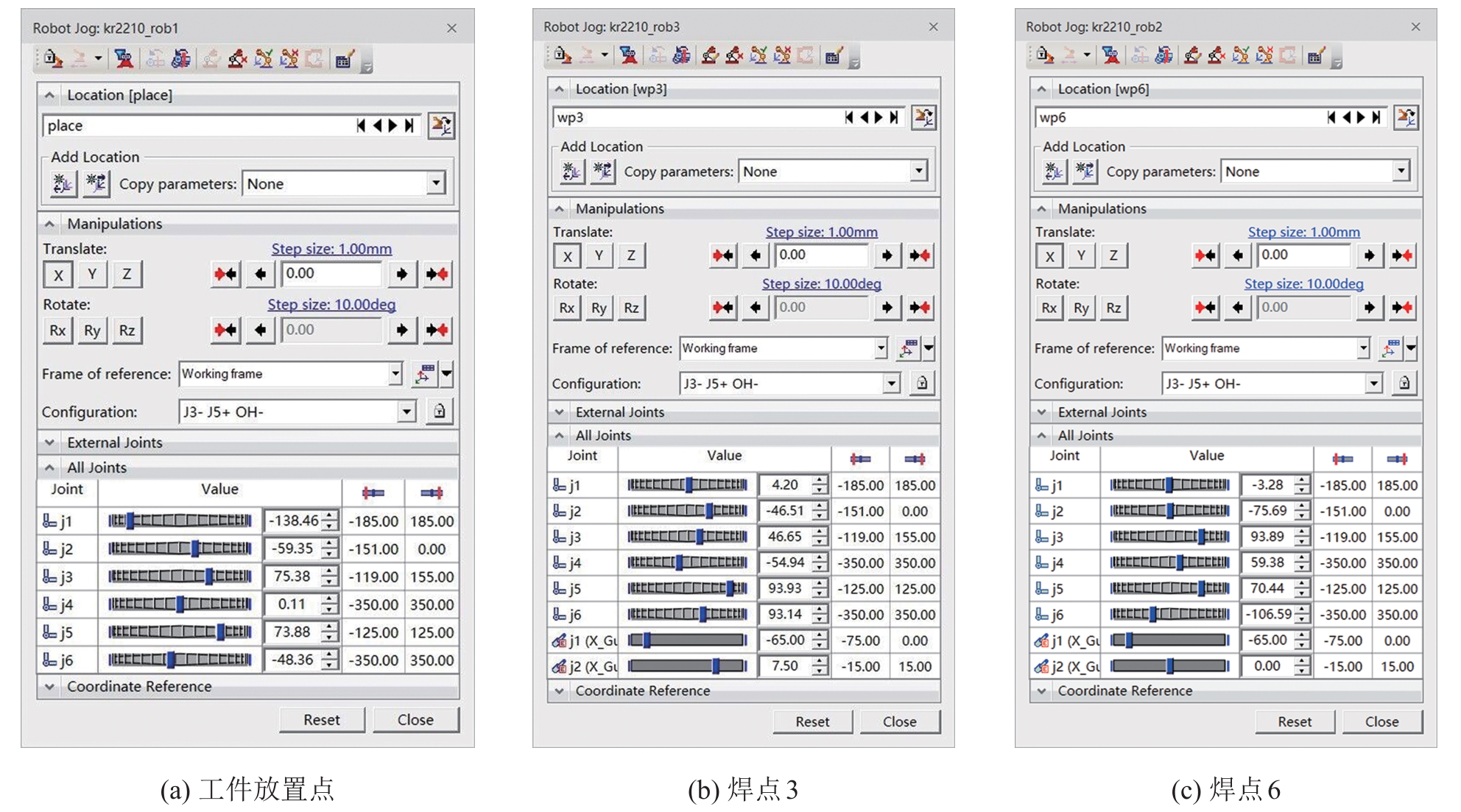

图12

图13

图14

参考文献 17

1	陈玉娇, 曾诗雨, 和红杰, 等. 工业机器人码垛数字孪生系统的研究与实现[J]. 计算机集成制造系统, 2023, 29(6): 1930-1940.
	Chen Yujiao, Zeng Shiyu, He Hongjie, et al. Research and Implementation of Digital Twin System for Industrial Robot Palletizing[J]. Computer Integrated Manufacturing Systems, 2023, 29(6): 1930-1940.
2	Olabi Adel, Damak Mohamed, Bearee Richard, et al. Improving the Accuracy of Industrial Robots by Offline Compensation of Joints Errors[C]//2012 IEEE International Conference on Industrial Technology. Piscataway, NJ, USA: IEEE, 2012: 492-497.
3	Zhong Dong, Xia Zhelei, Zhu Yian, et al. Overview of Predictive Maintenance Based on Digital Twin Technology[J]. Heliyon, 2023, 9(4): e14534.
4	吴雁, 王晓军, 何勇, 等. 数字孪生在制造业中的关键技术及应用研究综述[J]. 现代制造工程, 2021(9): 137-145.
	Wu Yan, Wang Xiaojun, He Yong, et al. Review on the Technology and Application of Digital Twin in Manufacturing Industry[J]. Modern Manufacturing Engineering, 2021(9): 137-145.
5	黄培. 数字孪生在制造业的应用[J]. 中国工业和信息化, 2020(7): 20-26.
6	陶飞, 刘蔚然, 张萌, 等. 数字孪生五维模型及十大领域应用[J]. 计算机集成制造系统, 2019, 25(1): 1-18.
	Tao Fei, Liu Weiran, Zhang Meng, et al. Five-dimension Digital Twin Model and Its Ten Applications[J]. Computer Integrated Manufacturing Systems, 2019, 25(1): 1-18.
7	陶飞, 马昕, 胡天亮, 等. 数字孪生标准体系[J]. 计算机集成制造系统, 2019, 25(10): 2405-2418.
	Tao Fei, Ma Xin, Hu Tianliang, et al. Research on Digital Twin Standard System[J]. Computer Integrated Manufacturing Systems, 2019, 25(10): 2405-2418.
8	王剑, 王好臣, 李学伟, 等. 基于OPC UA的数字孪生车间信息物理融合系统[J]. 现代制造工程, 2023(4): 43-50.
	Wang Jian, Wang Haochen, Li Xuewei, et al. Digital Twin Workshop Information Physical Fusion System Based on OPC UA[J]. Modern Manufacturing Engineering, 2023(4): 43-50.
9	侯正航, 何卫平. 基于数字孪生的飞机装配状态巡检机器人的建模与控制[J]. 计算机集成制造系统, 2021, 27(4): 981-989.
	Hou Zhenghang, He Weiping. Modeling and Control of Digital Twin-based Aircraft Assembly State Inspection Robot[J]. Computer Integrated Manufacturing Systems, 2021, 27(4): 981-989.
10	李幸刚, 张亚萍, 杨雨薇. 一种基于邻域扩展聚类的去噪算法[J]. 系统仿真学报, 2017, 29(11): 2663-2669, 2677.
	Li Xinggang, Zhang Yaping, Yang Yuwei. Denoising Algorithm Based on Neighborhood Expansion Clustering[J]. Journal of System Simulation, 2017, 29(11): 2663-2669, 2677.
11	吴金保, 孙晶晶. 工业机器人点焊系统解析[J]. 日用电器, 2018(9): 88-92.
	Wu Jinbao, Sun Jingjing. Analysis on Spot Welding System of Industrial Robot[J]. Electrical Appliances, 2018(9): 88-92.
12	Pellegrinelli Stefania, Pedrocchi Nicola, Lorenzo Molinari Tosatti, et al. Multi-robot Spot-welding Cells for Car-body Assembly: Design and Motion Planning[J]. Robotics and Computer-Integrated Manufacturing, 2017, 44: 97-116.
13	Aleotti Jacopo, Saveriano Matteo, Monica Riccardo. Editorial: Learning, Perception, and Collaboration for Robots in Industrial Environments[J]. Frontiers in Robotics and AI, 2022, 9: 888971.
14	杨丽婷. 基于虚拟仿真的焊接机器人无碰撞路径及轨迹优化研究[D]. 南昌: 华东交通大学, 2021.
	Yang Liting. Research on Collision-free Path and Trajectory Optimization of Welding Robot Based on Virtual Simulation[D]. Nanchang: East China Jiaotong University, 2021.
15	成正勇, 黎亮, 李小灿, 等. 基于TIA与TECNOMATIX的联合虚拟调试研究[J]. 汽车工艺与材料, 2020(2): 66-71.
	Cheng Zhengyong, Li Liang, Li Xiaocan, et al. Joint Virtual Debugging Research Based on TIA and TECNOMATIX[J]. Automobile Technology & Material, 2020(2): 66-71.
16	伍佳, 黄西利, 陈快. 浅议机器人仿真的可达性和通过性[J]. 装备制造技术, 2022(5): 105-108, 118.
17	吕文壮. 汽车车身焊接机器人路径规划与虚拟仿真研究[D]. 上海: 上海应用技术大学, 2020.
	Wenzhuang Lü. Research on Path Planning and Virtual Simulation of Atomobile Body Welding Robot[D]. Shanghai: Shanghai Institute of Technology, 2020.

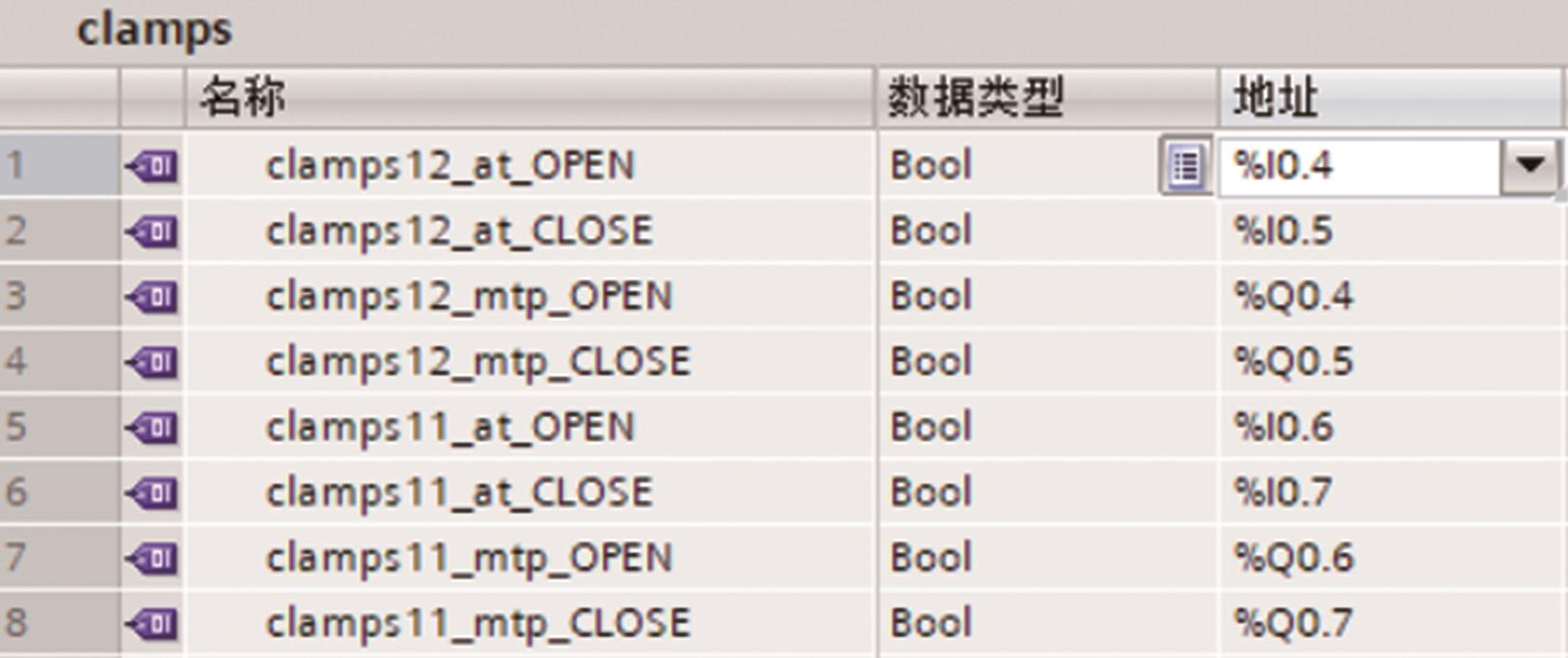

信号名称	信号类型	信号地址	IEC标准信号地址	外部链接	关联资源
clamps12_mtp_OPN	Bool	0.4	Q0.4	test_advanced	clamps12
clamps12_mtp_CLS	Bool	0.5	Q0.5	test_advanced	clamps12
clamps12_at_OPN	Bool	0.4	I0.4	test_advanced	clamps12
clamps12_at_CLS	Bool	0.5	I0.5	test_advanced	clamps12
turntable11_HME	Bool	1.0	I1.0	test_advanced	turntable11
turntable11_FWD	Bool	1.1	I1.1	test_advanced	turntable11
kr2210_rob1_startProgram	Bool	5.0	Q5.0	test_advanced	kr2210_rob1
kr2210_rob1_programNumber	Bool	No Address		test_advanced	kr2210_rob1
