特种车辆发动机动力舱灭火仿真技术研究

doi:10.16182/j.issn1004731x.joss.24-0237

摘要/Abstract

摘要：

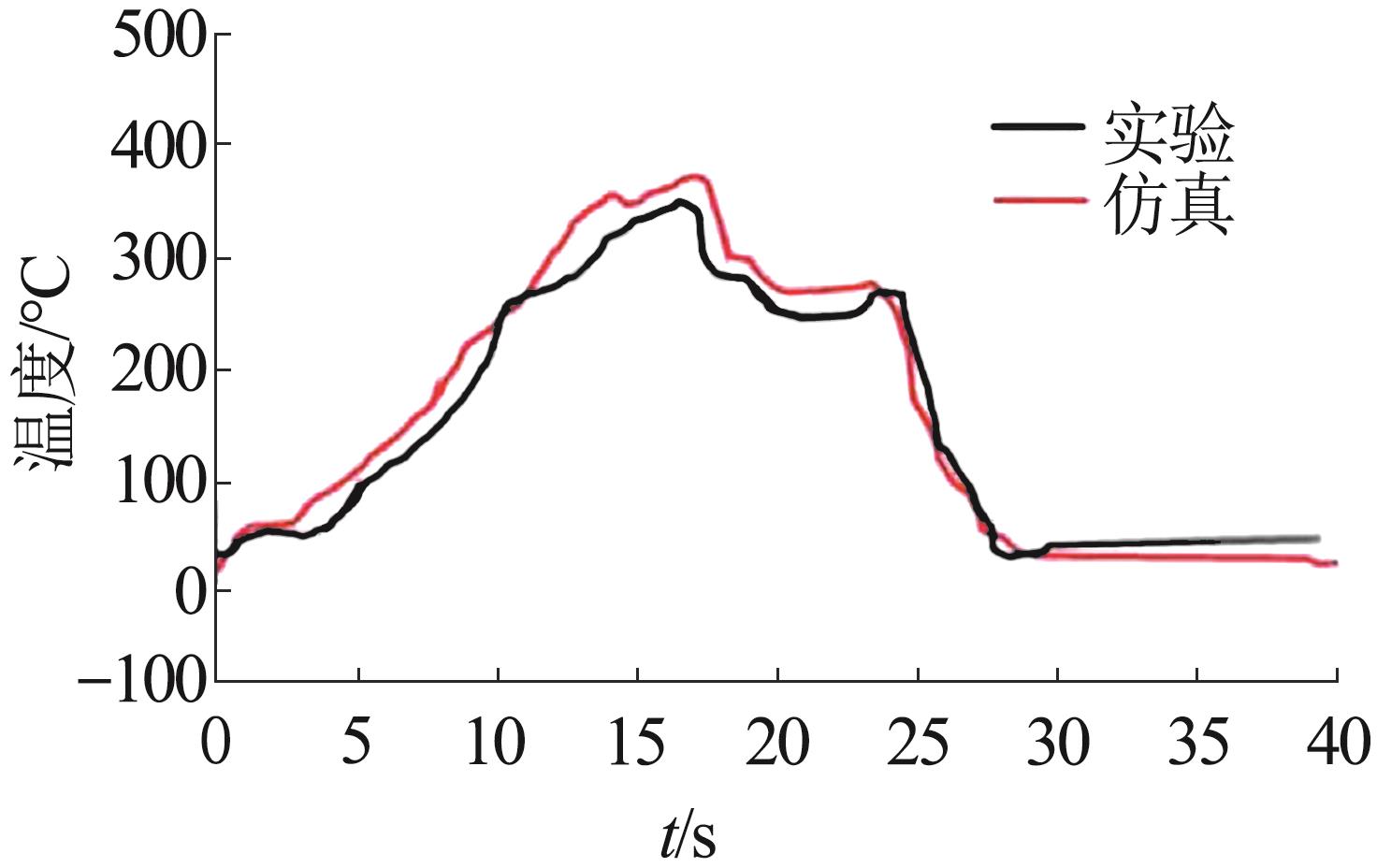

针对动力舱着火后灭火系统的探测响应时间测定和灭火能力评估这一难点，基于湍流模型，对火灾产生后蔓延和灭火过程中Halon灭火剂扩散过程进行数值建模，对车辆动力舱角落以及中部两处位置的火灾发展及灭火过程进行模拟，采集不同环境下火灾发生和灭火过程中的温度变化，得到火灾探测响应时间和灭火时间，并结合实车试验数据进行置信度分析。结果表明：选取的动力舱角落和中部2个试验测点的仿真置信度分别为91.56%及95.08%，验证了数值模型用来仿真火灾发展和灭火过程的有效性及准确性，为灭火系统设计提供技术支撑。

关键词: 动力舱, 灭火仿真, 数值建模, 效能评估, 置信度分析

Abstract:

In view of the difficulty of measuring the detection response time and evaluating fire extinguishing abilities of the fire extinguishing system after a fire accident in the engine compartment, the turbulence model was adopted, and numerical modeling of the fire propagation and the diffusion process of Halon fire extinguishing agent during the firefighting process was carried out. The development of fire and the fire extinguishing process at the corner and the middle position of the vehicle compartment was simulated, and the temperature changes during the occurrence and extinguishing of fires in different environments were collected, so as to obtain fire detection response time and extinguishing time. Moreover, confidence analysis was carried out based on the data of real vehicle tests. The results show that the simulation confidence of the two test points (one at the corner and the other in the middle) of the vehicle compartment is 91.56% and 95.08%, respectively. This verifies the effectiveness and accuracy of the numerical model in simulating the fire development and extinguishing process and provides technical support for the design of the fire extinguishing system.

Key words: engine compartment, fire extinguishing simulation, numerical modeling, effectiveness evaluation, confidence analysis

中图分类号:

TP391.9

牛建民,钟岳,徐峰等 . 特种车辆发动机动力舱灭火仿真技术研究[J]. 系统仿真学报, 2025, 37(8): 2030-2042.

Niu Jianmin,Zhong Yue,Xu Feng,et al . Research on Simulation Technology of Fire Extinguishing in Engine Compartment of Special Vehicle[J]. Journal of System Simulation, 2025, 37(8): 2030-2042.

图/表 18

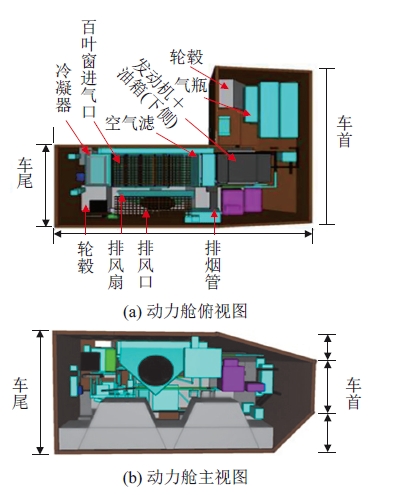

图1

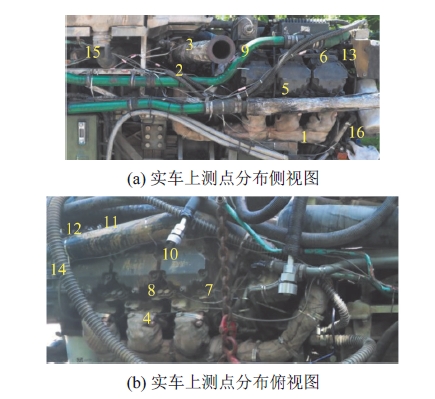

图2

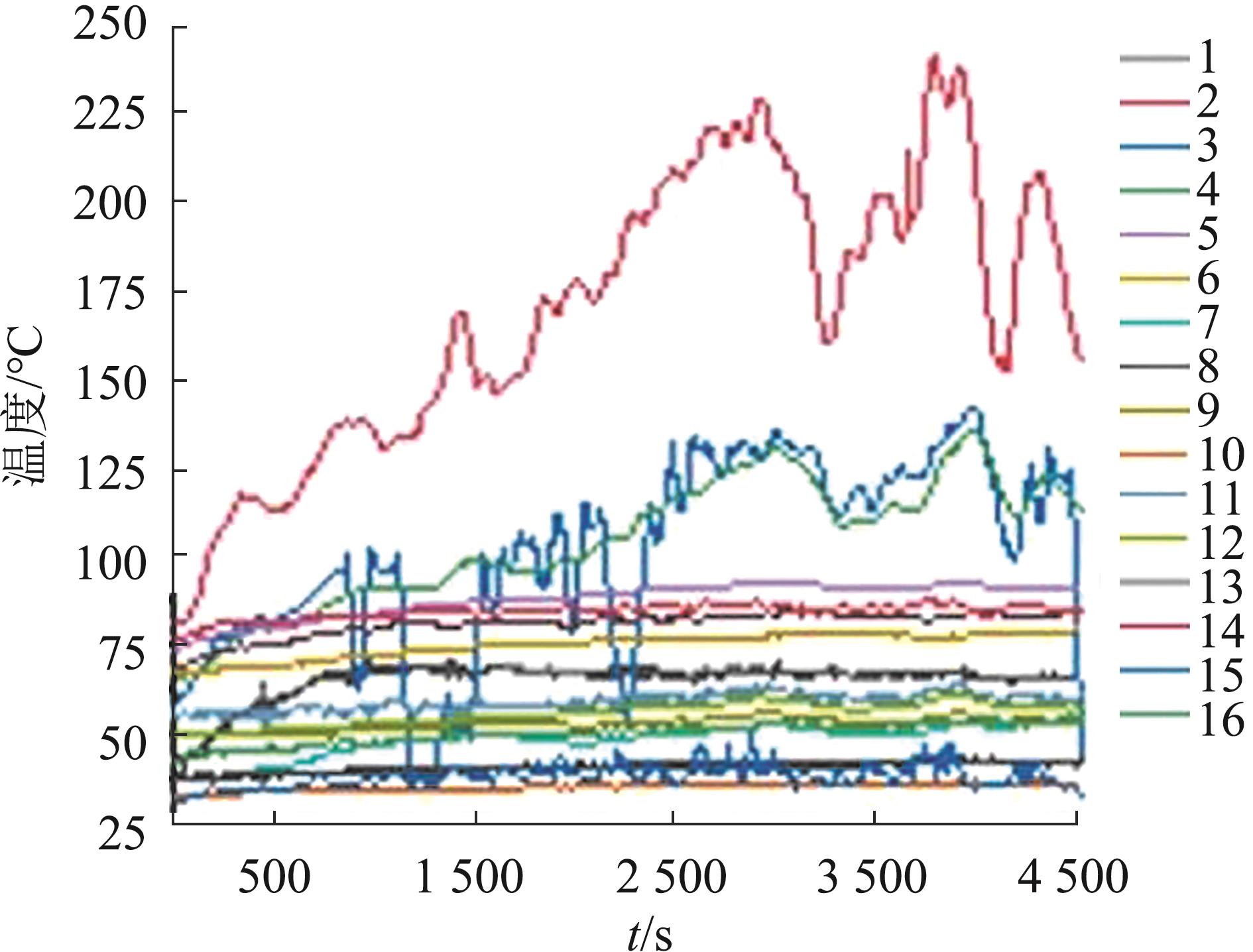

图3

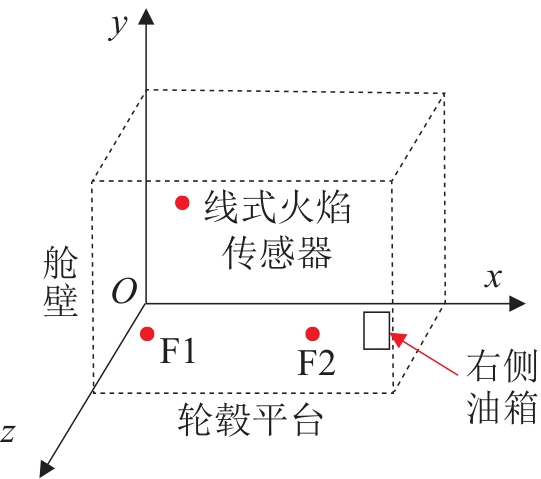

图4

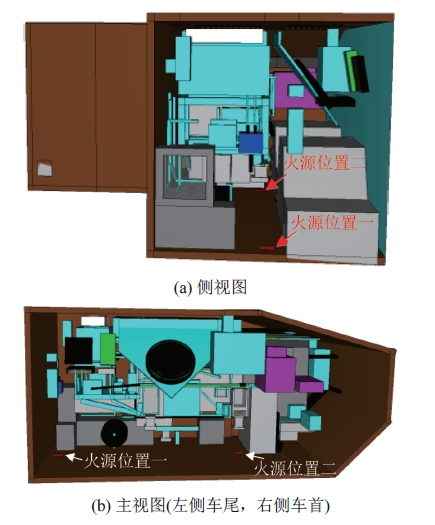

图5

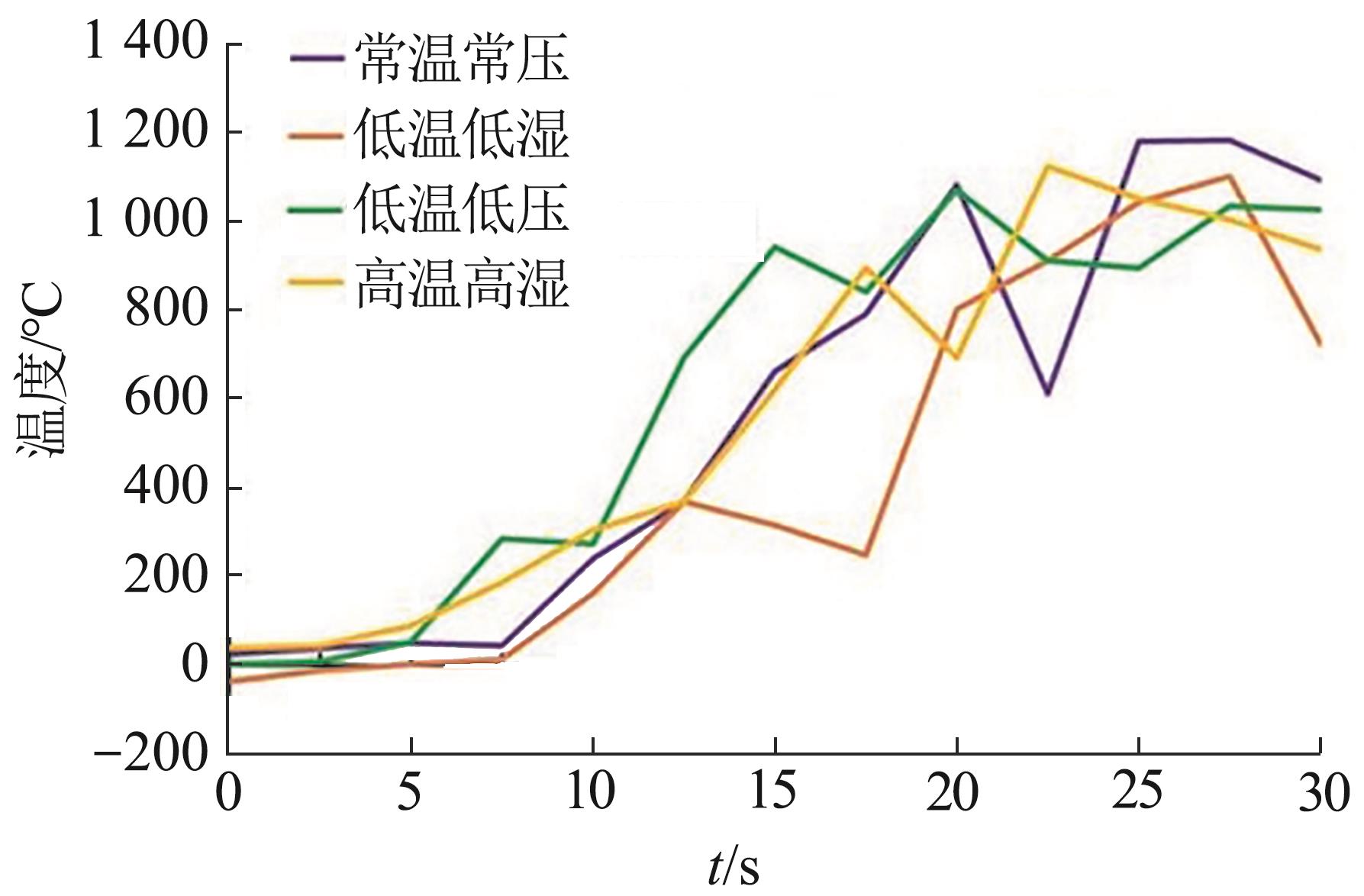

图6

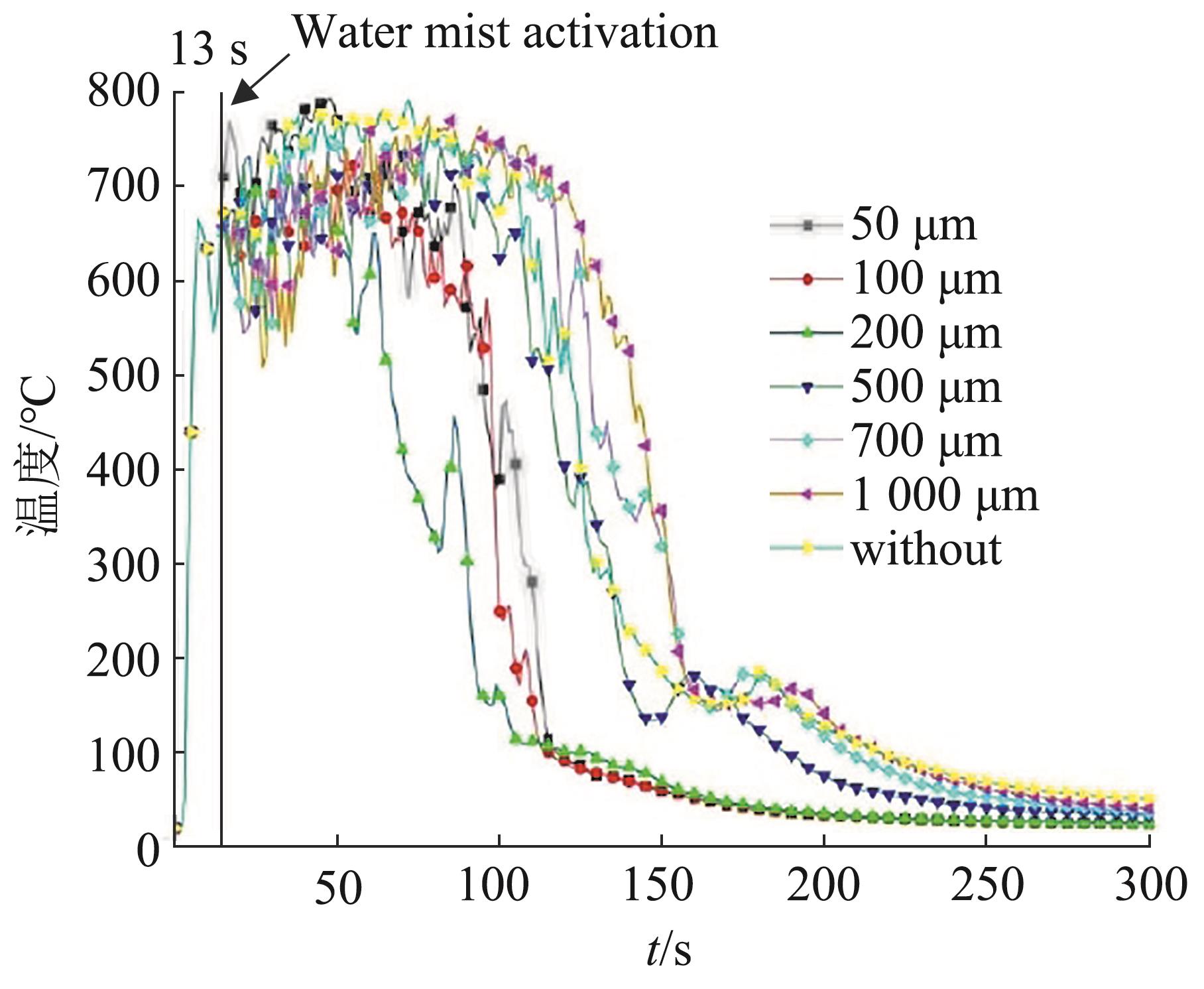

图7

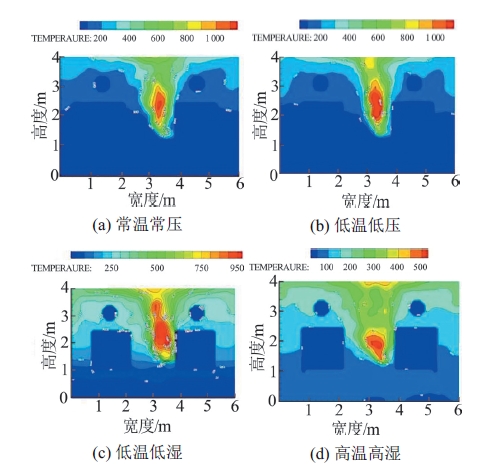

图8

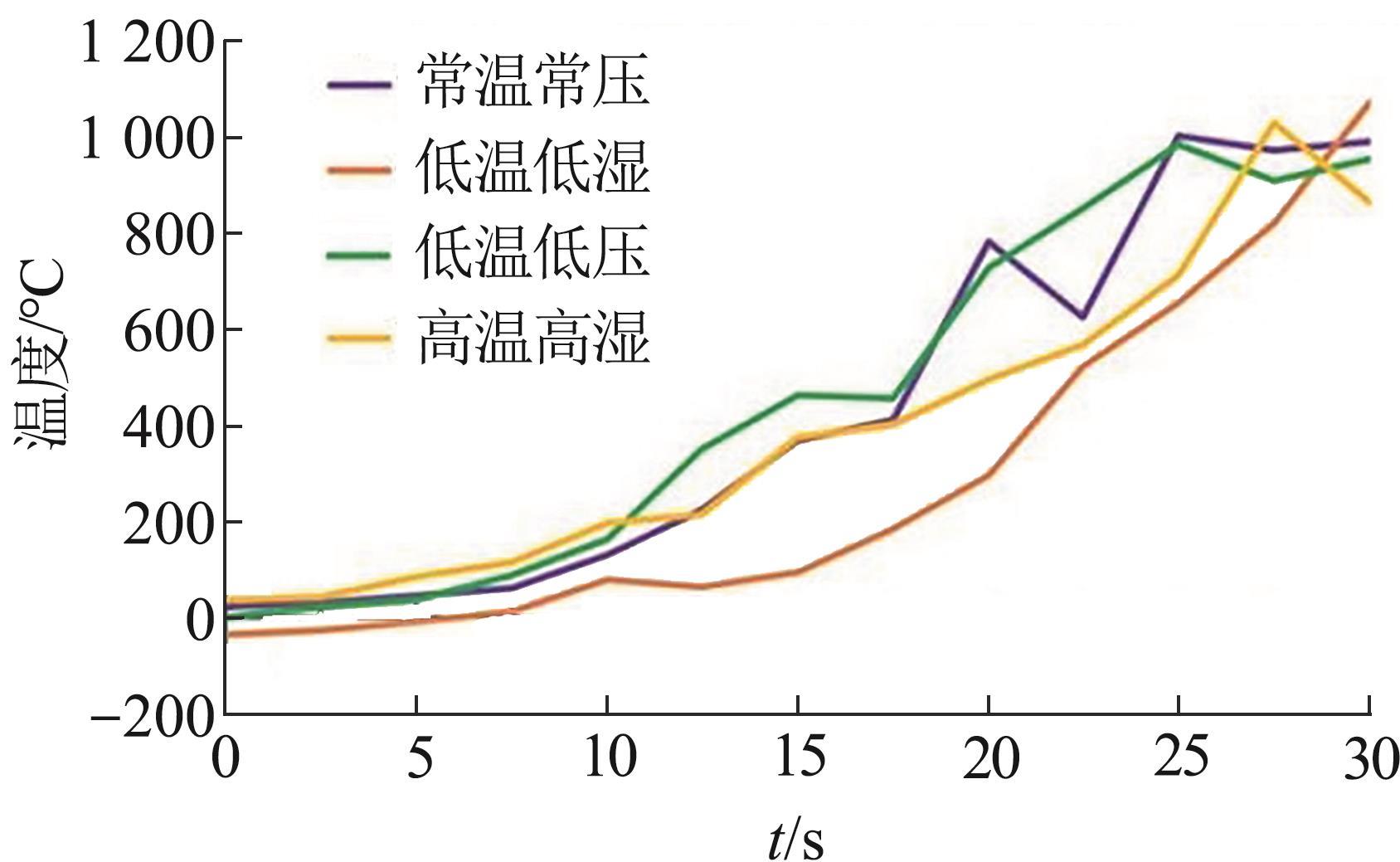

图9

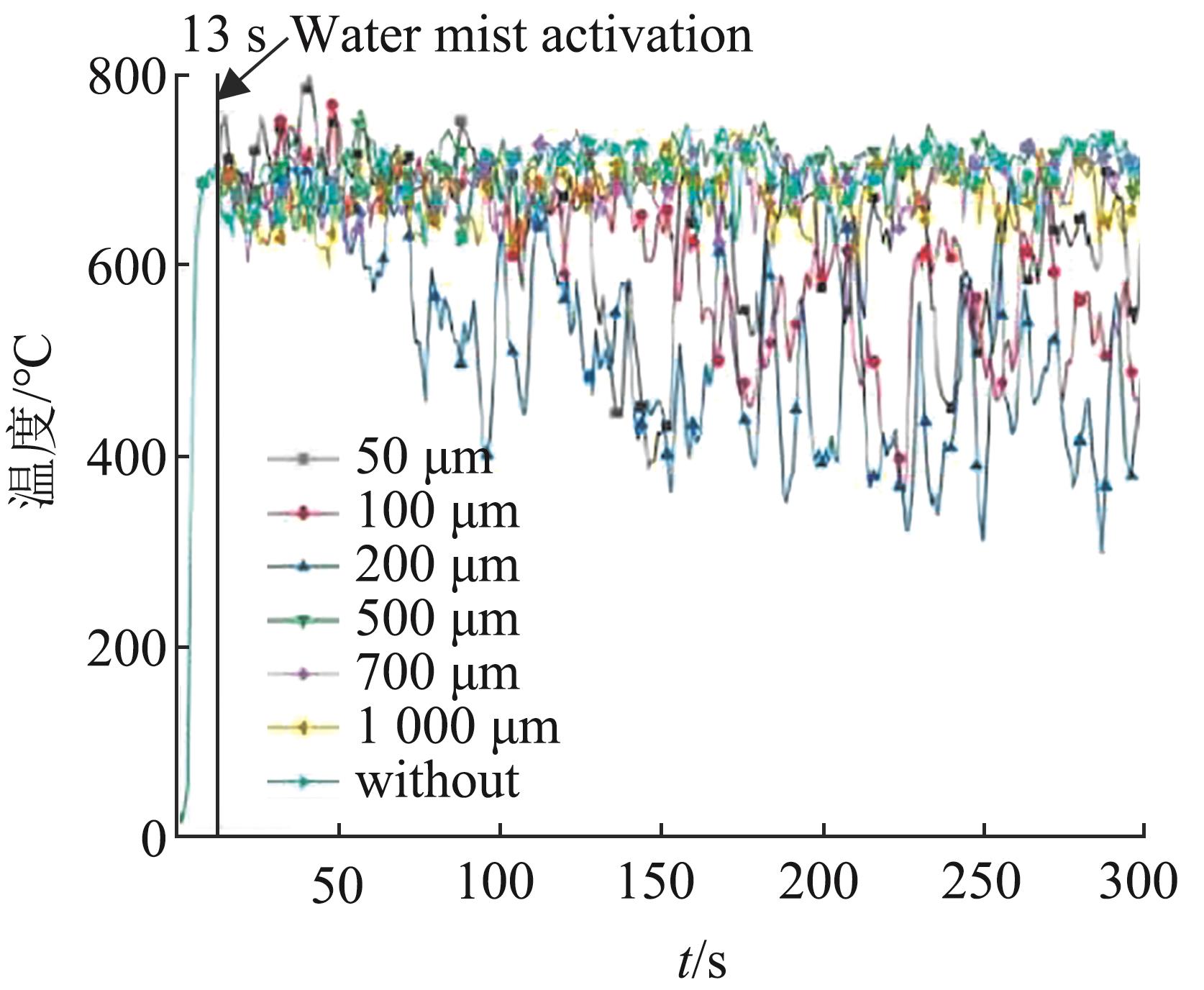

图10

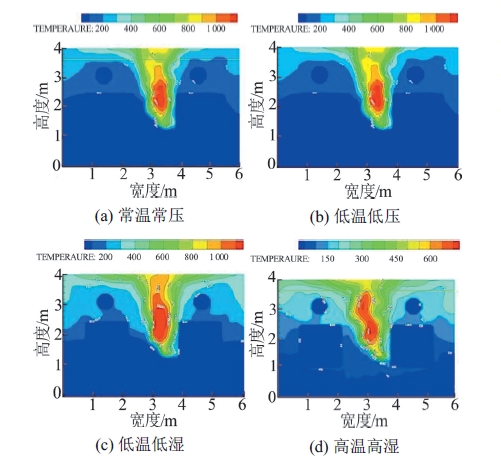

图11

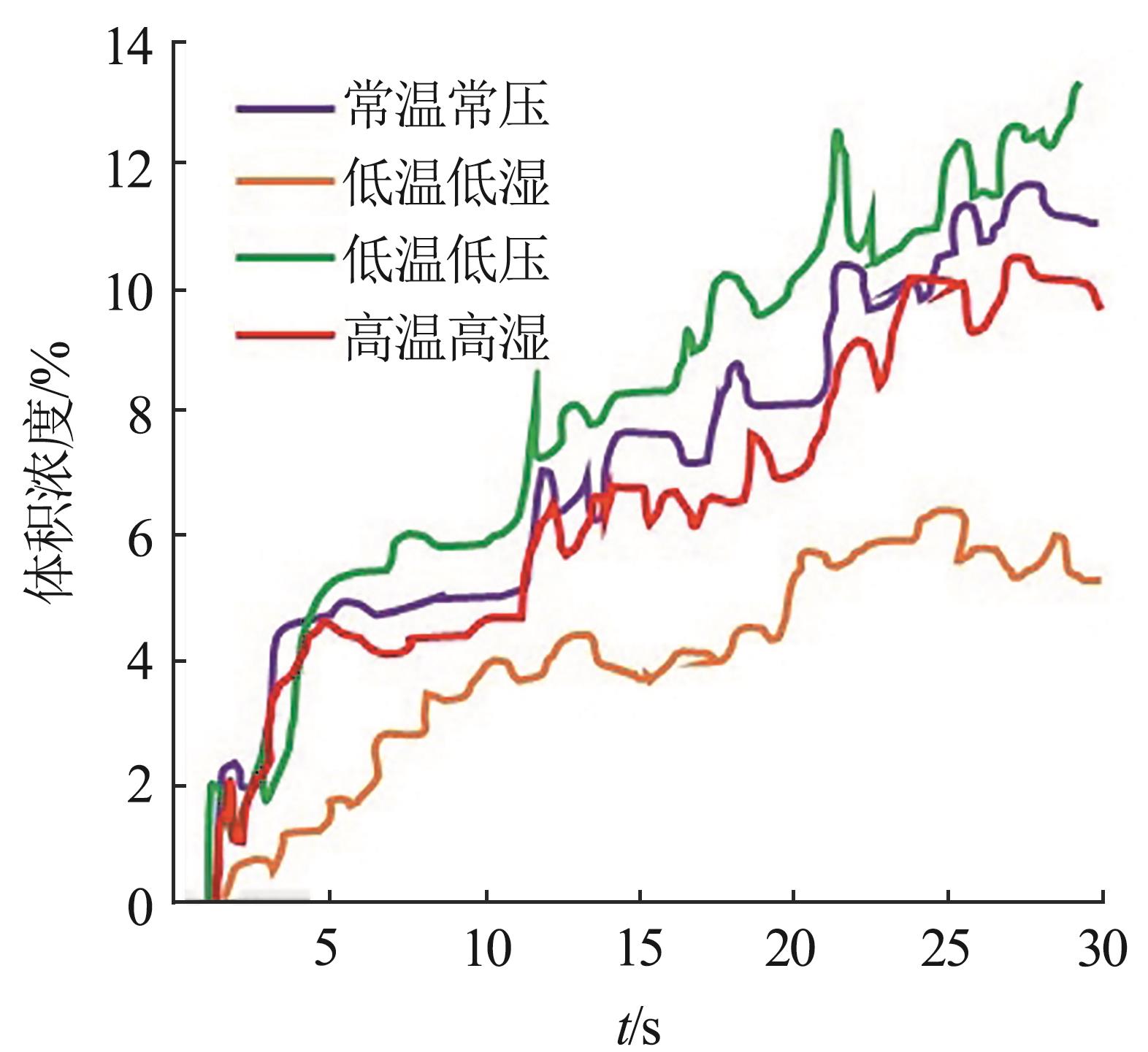

图12

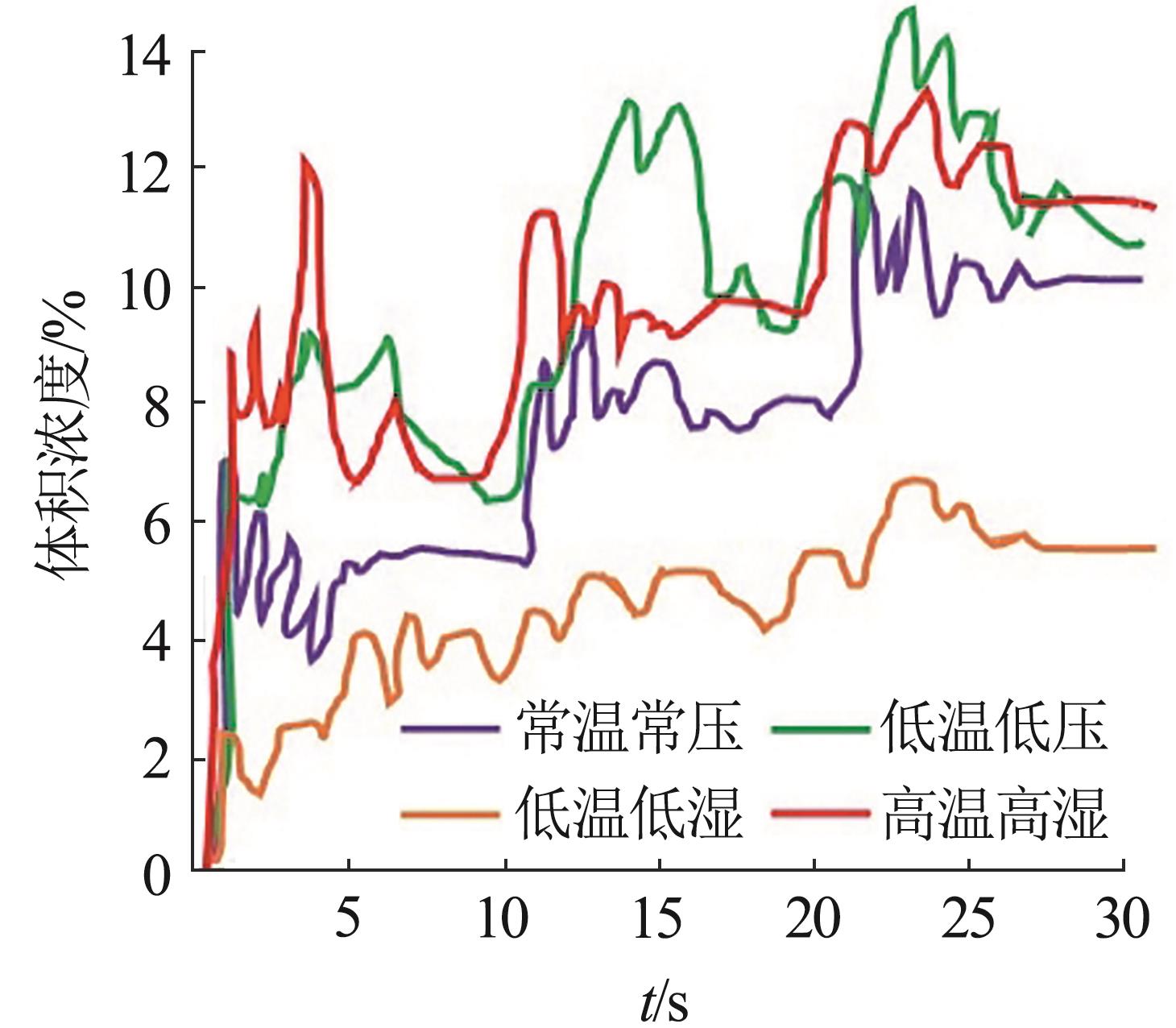

图13

表1

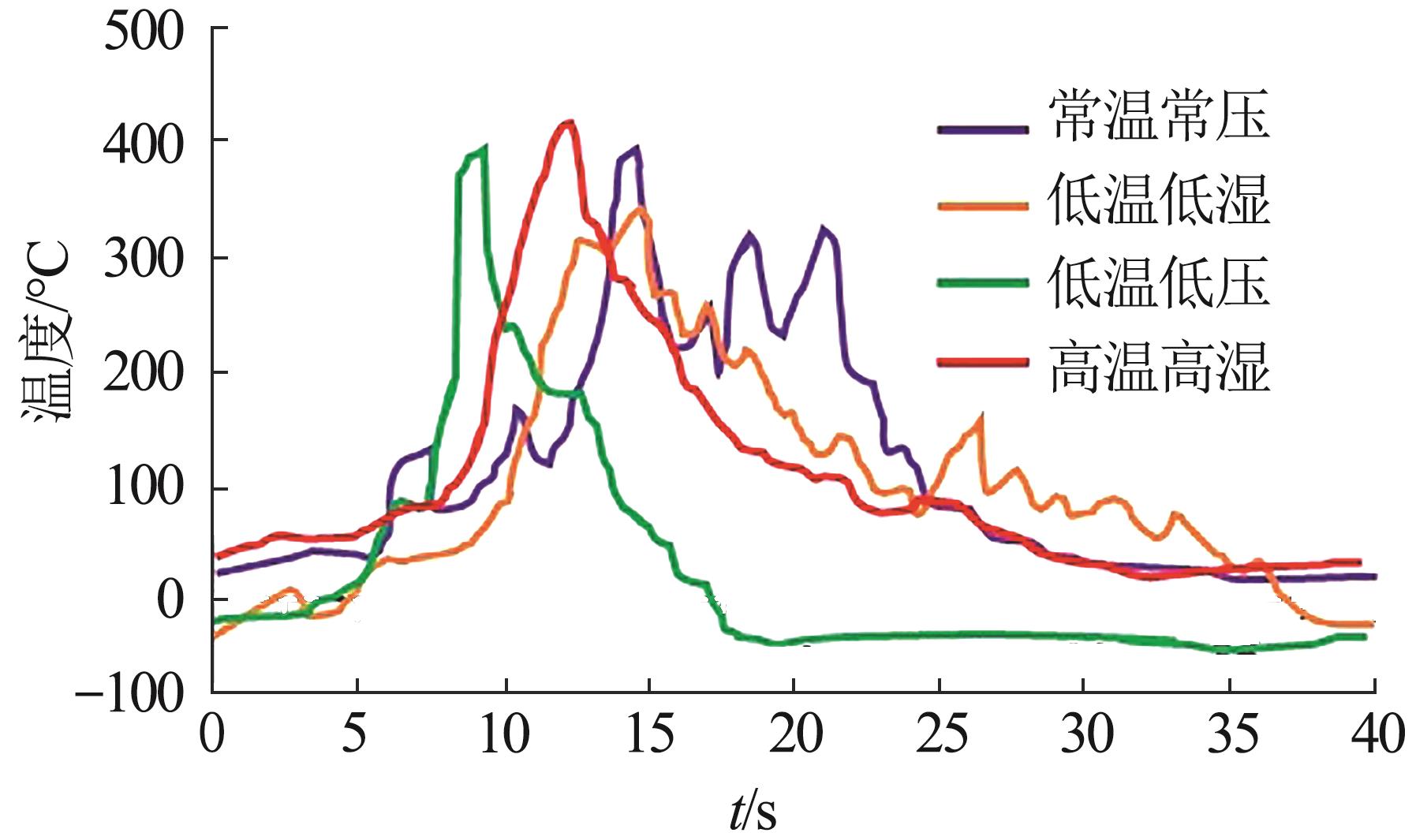

图14

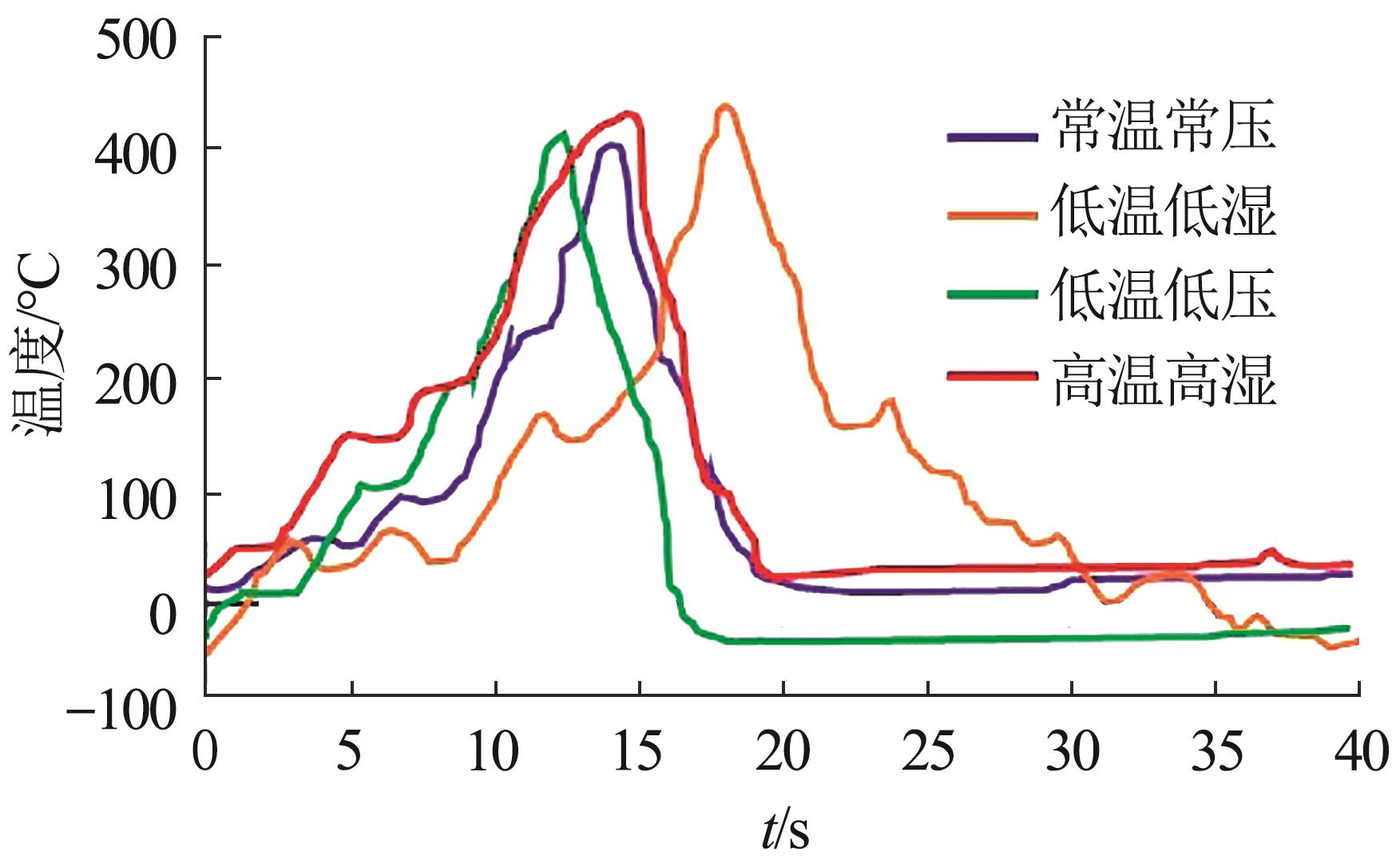

图15

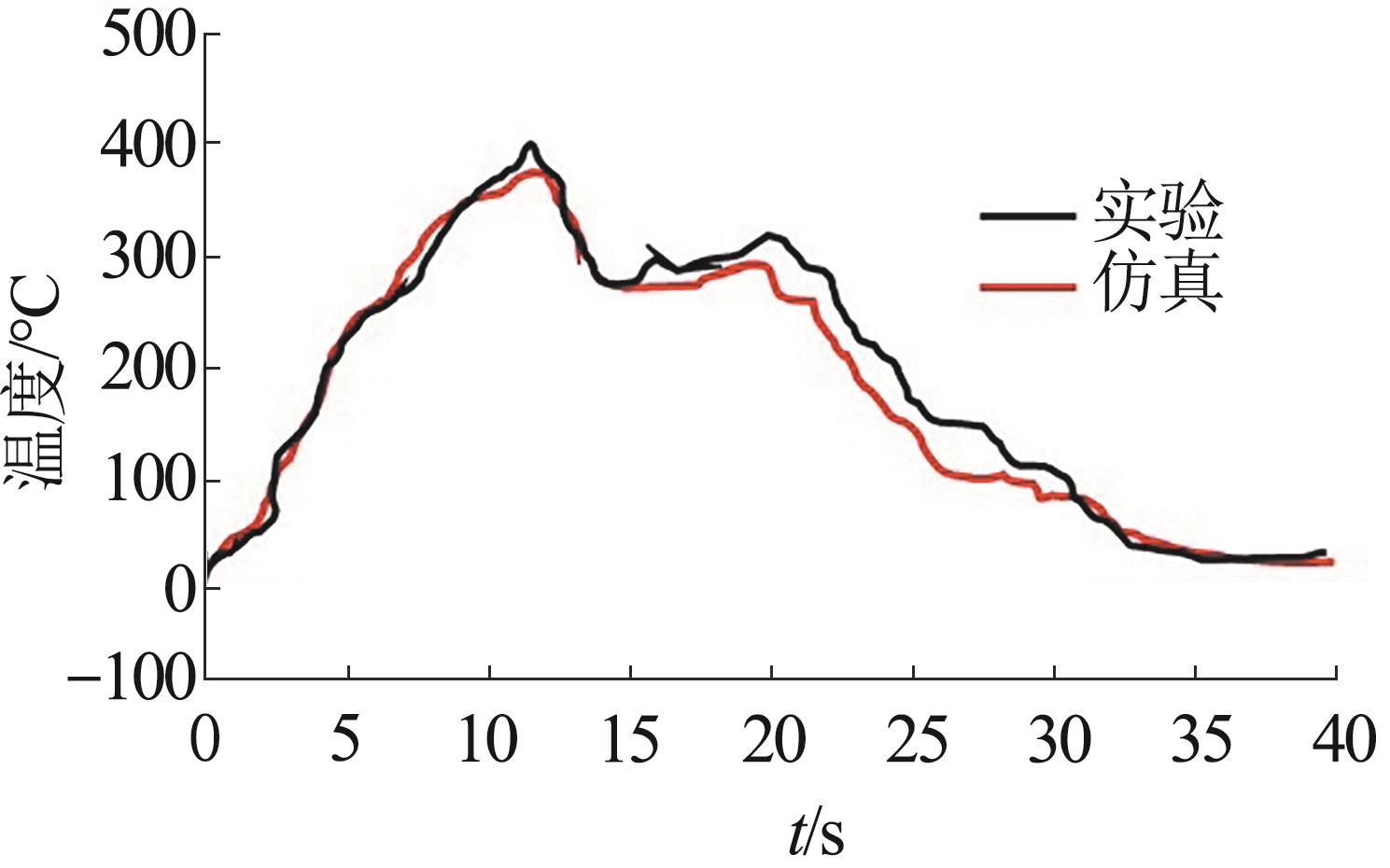

图16

图17

参考文献 18

[1]	李丽. 动力装置舱灭火剂浓度分布影响因素试验分析[J]. 工程与试验, 2018, 58(1): 50-53, 61.
	Li Li. Experimental Analysis of Influencing Factors on Concentration Distribution of Extinguishing Agent in Powerplant Nacelle[J]. Engineering and Test, 2018, 58(1): 50-53, 61.
[2]	谷运双, 霍岩. 载人航天器密封舱内强制通风下的火灾温度场及流场特性仿真分析[J]. 航天器环境工程, 2020, 37(1): 31-36.
	Gu Yunshuang, Huo Yan. The Characteristics of Fire Temperature and Flow Field for Different Ventilation Angles in Manned Spacecraft's Sealed Cabin[J]. Spacecraft Environment Engineering, 2020, 37(1): 31-36.
[3]	Kim Jintaek, Baek Byungjoon, Lee Jeekeun. Numerical Analysis of Flow Characteristics of Fire Extinguishing Agents in Aircraft Fire Extinguishing Systems[J]. Journal of Mechanical Science and Technology, 2009, 23(7): 1877-1884.
[4]	严震海, 胡洋洋, 武红梅, 等. 典型机舱1301灭火系统管网流速及浓度分布仿真计算[J]. 船海工程, 2018, 47(6): 93-97, 101.
	Yan Zhenhai, Hu Yangyang, Wu Hongmei, et al. Simulation of Flow Rate and Concentration Distribution of Typical Cabin 1301 Fire Extinguishing System[J]. Ship & Ocean Engineering, 2018, 47(6): 93-97, 101.
[5]	黄苏平, 朱培, 刘全义, 等. 民机货舱氮气-细水雾协同灭火数值仿真研究[J/OL]. 北京航空航天大学学报. (2023-10-23) [2024-03-05]. .
	Huang Suping, Zhu Pei, Liu Quanyi, et al. Numerical Simulation Study on Synergetic Fire Suppression of Nitrogen/Water-mist in Aircraft Cargo Compartment[J/OL]. Journal of Beijing University of Aeronautics and Astronautics. (2023-10-23) [2024-03-05]. .
[6]	Ivan Miguel De Cachinho Cordeiro, Liu Hengrui, Anthony Chun Yin Yuen, et al. Numerical Investigation of Expandable Graphite Suppression on Metal-based Fire[J]. Heat and Mass Transfer, 2022, 58(1): 65-81.
[7]	Garnayak Subrat, Amjad Ali Pasha, Alsulami Radi, et al. Numerical Investigation to Evaluate the Effects of Gravity and Pressure on Flame Structure and Soot Formation of Turbulent Non-premixed Methane-air Flame[J]. Propulsion and Power Research, 2022, 11(4): 473-495.
[8]	White J P. Measurement and Simulation of Suppression Effects in a Buoyant Turbulent Line Fire[D]. College Park: University of Maryland, College Park, 2016.
[9]	任凯, 杨立, 浦金云, 等. 基于系统动力学特性的虚拟舱室灭火交互模型[J]. 兵工学报, 2013, 34(9): 1137-1143.
	Ren Kai, Yang Li, Pu Jinyun, et al. An Interactive Virtual Compartment Fire Extinguishing Model Based on System Dynamic Characteristic[J]. Acta Armamentarii, 2013, 34(9): 1137-1143.
[10]	Kim T, Suh S, Jung G. Analysis Procedure for Fire Power Suppression on Enemy Artillery Base Using FASCAM[J]. Journal of the Korea Institute of Military Science and Technology, 2015, 18(6): 743-754.
[11]	Hughes T J R, Franca L P, Balestra M. A New Finite Element Formulation for Computational Fluid Dynamics: V. Circumventing the Babuška-brezzi Condition: A Stable Petrov-galerkin Formulation of the Stokes Problem Accommodating Equal-order Interpolations[J]. Computer Methods in Applied Mechanics and Engineering, 1986, 59(1): 85-99.
[12]	刘涛涛, 王国玉, 段磊. 基于实验观测的分域湍流模型在通气超空化中的评价[J]. 北京理工大学学报, 2016, 36(3): 247-251.
	Liu Taotao, Wang Guoyu, Duan Lei. Assessment of a Modified Turbulence Model Based Experiment Results for Ventilated Supercavity[J]. Transactions of Beijing Institute of Technology, 2016, 36(3): 247-251.
[13]	肖华林. 燃烧对湍流的影响机理及考虑燃烧效应的湍流模型的研究[D]. 杭州: 浙江大学, 2023.
	Xiao Hualin. Investigation on the Influence of Combustion on Turbulent Flow and the Corresponding Turbulent Model Considering Combustion Effects[D]. Hangzhou: Zhejiang University, 2023.
[14]	王国玉, 白泽宇, 黄彪. 非均相流模型在气液两相流动计算中的应用及评价[J]. 北京理工大学学报, 2014, 34(7): 685-690.
	Wang Guoyu, Bai Zeyu, Huang Biao. Evaluation of Inhomogeneous Model for Computations of Gas-liquid Multiphase Flows[J]. Transactions of Beijing Institute of Technology, 2014, 34(7): 685-690.
[15]	冼锦宇, 陈钱, 蔡树峰. 超声速气流中液体喷雾流动数值模拟研究[J]. 航空科学技术, 2023, 34(1): 12-20.
	Xian Jinyu, Chen Qian, Cai Shufeng. Numerical Simulation of Liquid Spray Flow in Supersonic Airflow[J]. Aeronautical Science & Technology, 2023, 34(1): 12-20.
[16]	干雨新. 基于笛卡尔网格的复杂流动问题数值模拟[D]. 南京: 南京航空航天大学, 2019.
	Gan Yuxin. Research on Cartesian Grid Method for Simulating Complex Flows[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2019.
[17]	温雄飞, 赵瑜, 马新建, 等. 固体火箭发动机斜切喷管两相流场特性数值模拟研究[J]. 弹箭与制导学报, 2023, 43(2): 72-79.
	Wen Xiongfei, Zhao Yu, Ma Xinjian, et al. Simulation Research on Two-phase Flow Characteristics in Angle-cut Nozzle of Solid Rocket Motor[J]. Journal of Projectiles, Rockets, Missiles and Guidance, 2023, 43(2): 72-79.
[18]	Choi Sang-Do, Eum Tae-Soo, Eun Taek Shin, et al. Numerical Investigation of Flow Around a Structure Using Navier-slip Boundary Conditions[J]. World Journal of Engineering, 2022, 19(5): 667-674.

工况	探测响应时间	灭火时间	总时长
常温常压，火源在舱室角落	12.83	12.01	24.84
常温常压，火源在舱室中部	15.19	0.79	15.98
低温低湿，火源在舱室角落	12.55	24.52	37.07
低温低湿，火源在舱室中部	18.05	24.71	42.76
低温低压，火源在舱室角落	9.91	6.64	16.55
低温低压，火源在舱室中部	13.42	0.65	14.07
高温高湿，火源在舱室角落	12.48	11.71	24.19
高温高湿，火源在舱室中部	14.62	0.73	15.35
