LVC 联合仿真强实时同步算法研究

doi:10.16182/j.issn1004731x.joss.24-0741

摘要/Abstract

摘要：

实况-虚拟-构造(live，virtual，and constructive，LVC)联合仿真已成为当前军用仿真技术研究的热点，然而现有的时间管理策略难以实现LVC仿真要求的强实时性。为此，提出了一种 LVC 联合仿真强实时同步算法。该算法引入基于滑动窗口的中位数平滑策略和基于实时漂移率的时钟补偿策略，实现了分布式节点间时钟的有效同步；引入一种基于软件实现的长短周期混合高精度定时策略，兼顾了定时精度与效率；针对软件延迟问题，提出了一种仿真追赶策略，与高精度定时策略相结合，实现了分布式仿真的精准同步推进。仿真实验结果表明：该算法在同步精度与稳定性上均优于经典时间同步算法，实现了亚毫秒精度的分布式强实时仿真同步。

关键词: 联合仿真, 实况-虚拟-构造仿真, 时间管理, 时钟同步, 仿真追赶策略

Abstract:

Live, virtual, and constructive(LVC) joint simulation has become a hot research topic of current military simulation; however, existing time management strategies usually fail to meet the needs of strict real-time performance of LVC. A LVC joint simulation synchronization algorithm is proposed that starts with a window sliding-based median smoothing strategy and real time drift rate-based clock compensation strategy for effective node synchronization. A novel hybrid timing strategy is introduced combining long and short cycles implemented in software, which balances precision and efficiency. A simulation catch-up strategy is proposed to address software delays, which combined with the high-precision timing strategy, ensures synchronous progress in distributed simulations. Experimental results demonstrate that this algorithm surpasses traditional time synchronization methods in both accuracy and stability, achieving sub-millisecond precision in distributed strict real-time simulation synchronization.

Key words: joint simulation? live-virtual-constructive simulation? time management? clock synchronization, simulation catch-up strategy

中图分类号:

TP 391.9

李俊辉,孙松涛,刘飞 . LVC 联合仿真强实时同步算法研究[J]. 系统仿真学报, 2025, 37(9): 2301-2314.

Li Junhui,Sun Songtao,Liu Fei . Research on Strong Real-time Synchronisation Algorithm for LVC Co-simulation[J]. Journal of System Simulation, 2025, 37(9): 2301-2314.

图/表 14

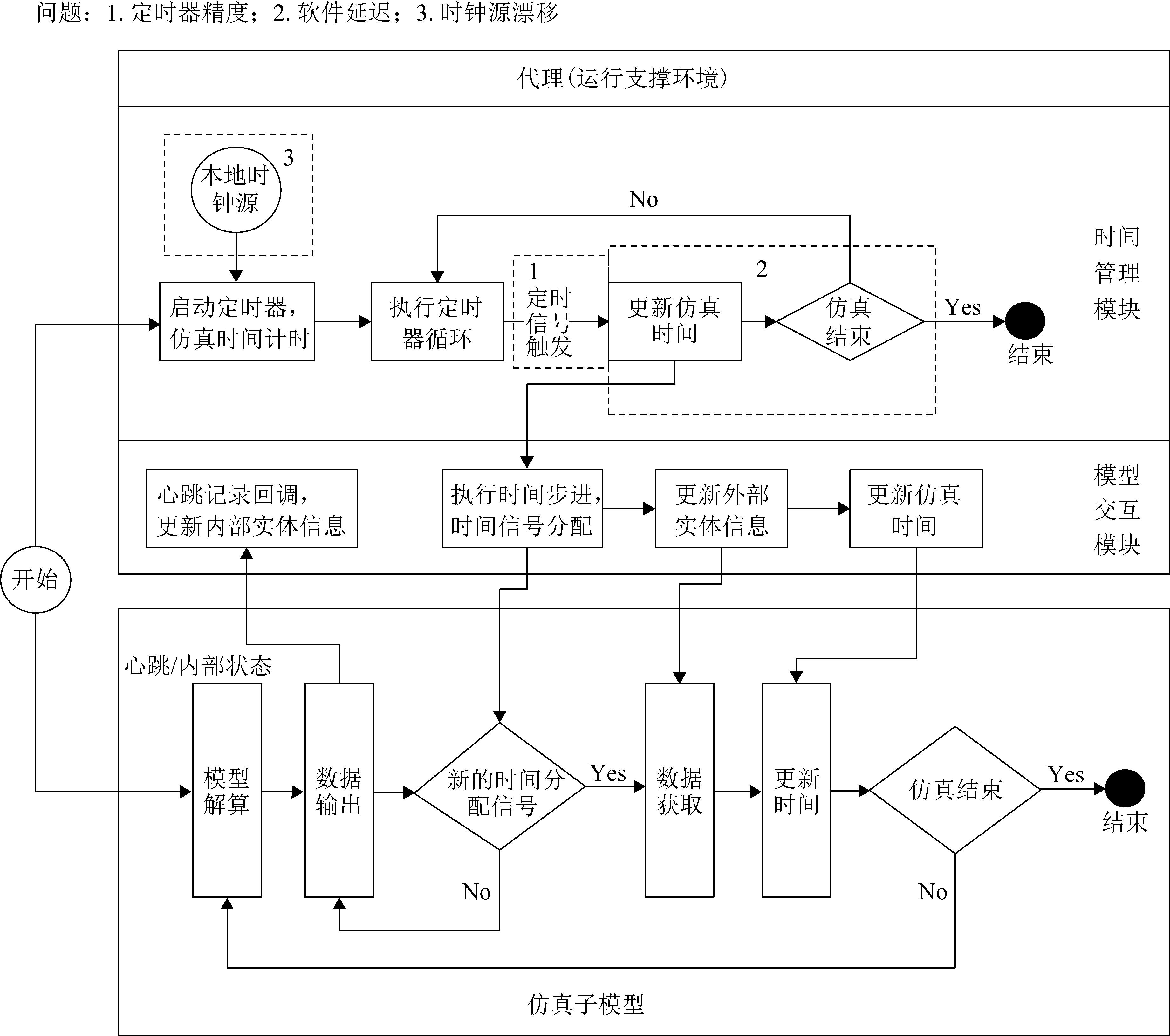

图1

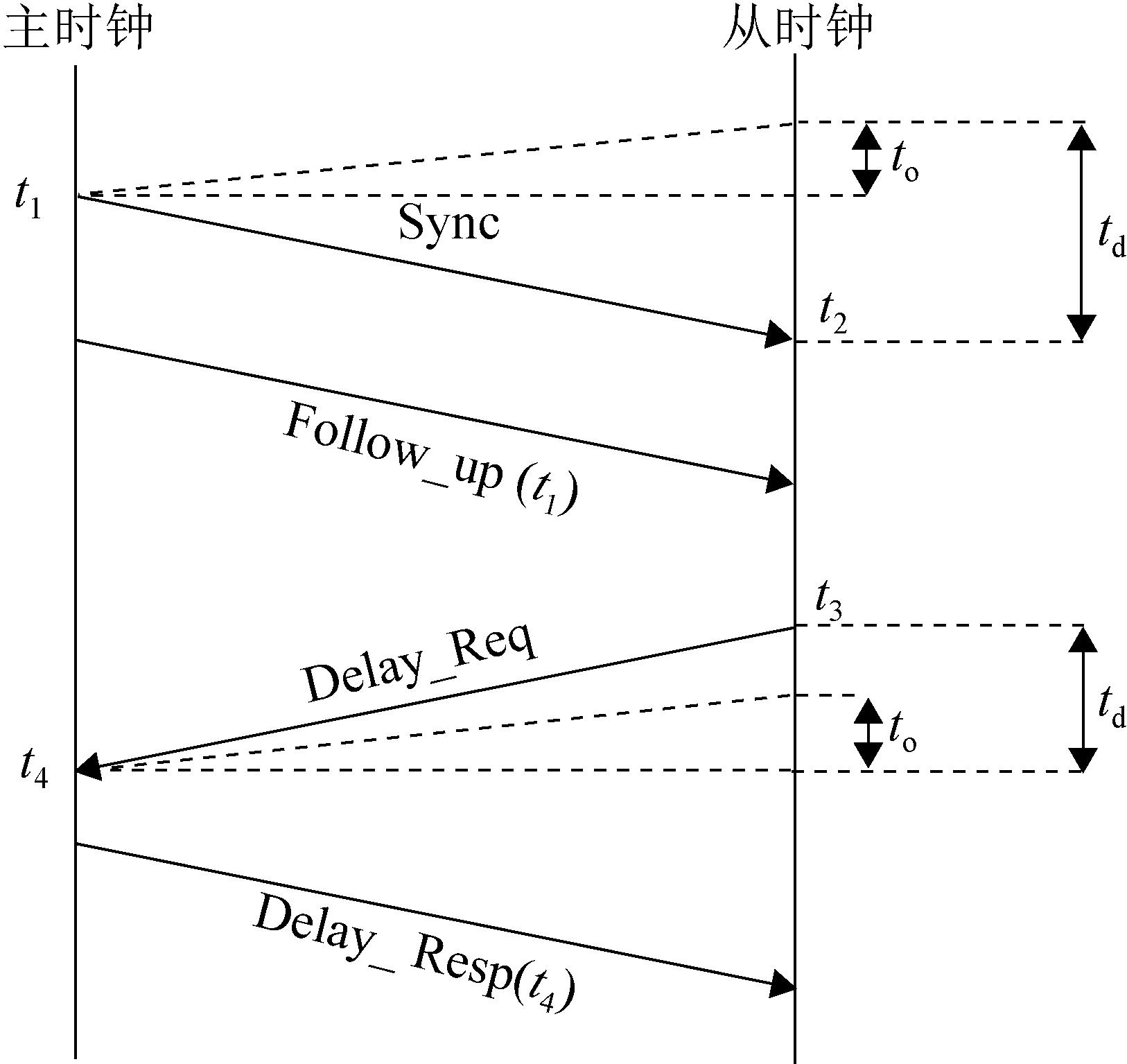

图2

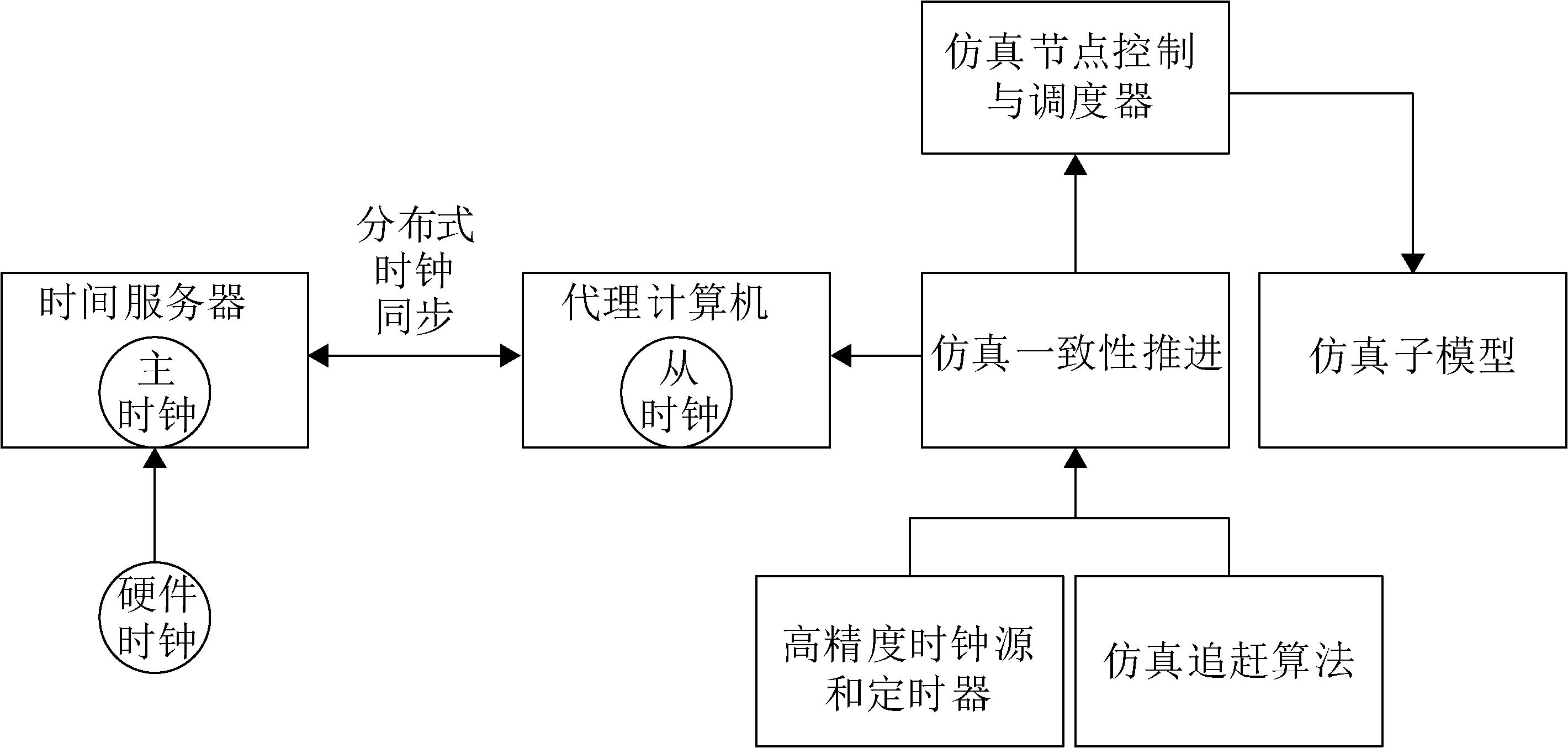

图3

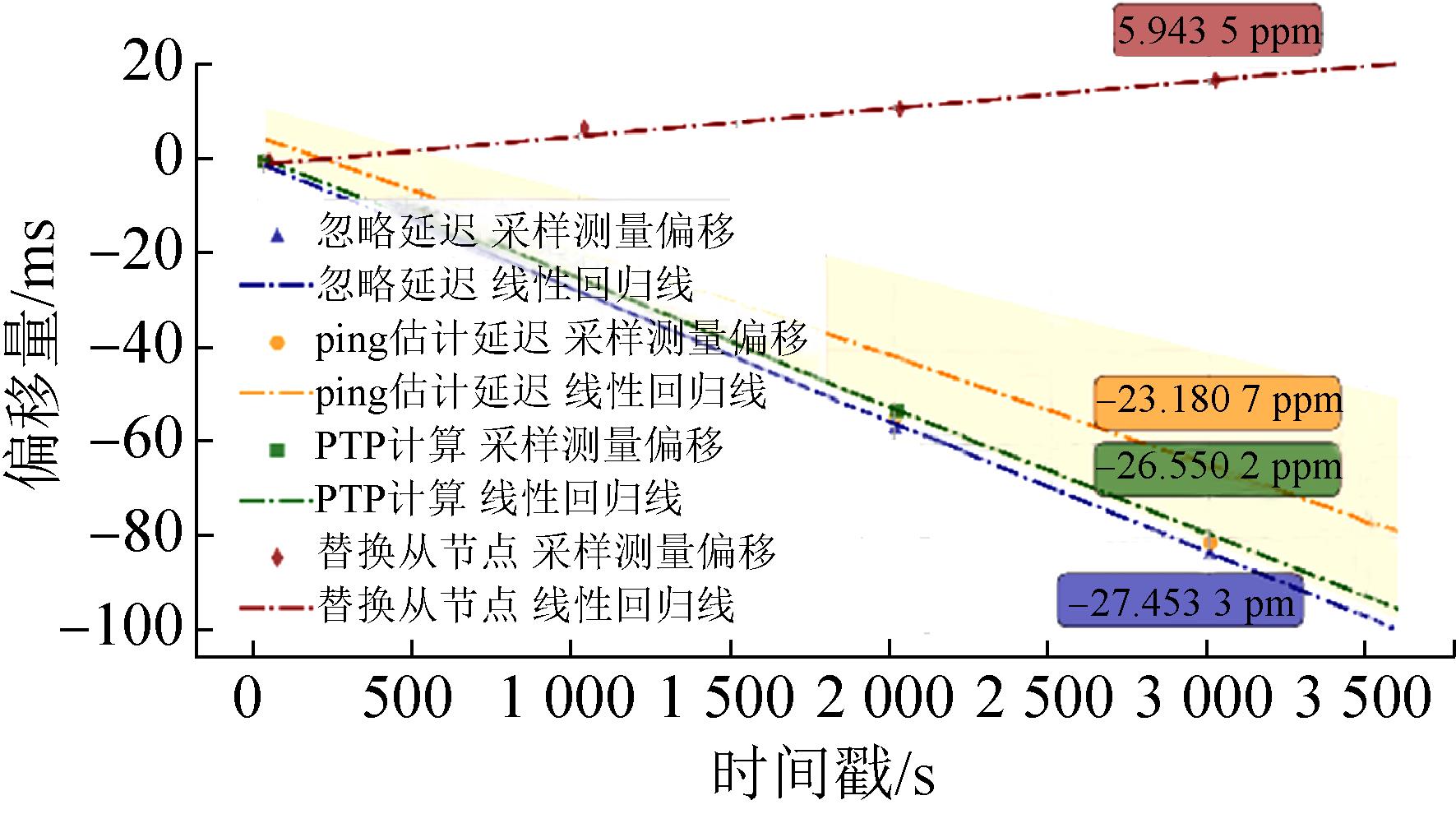

图4

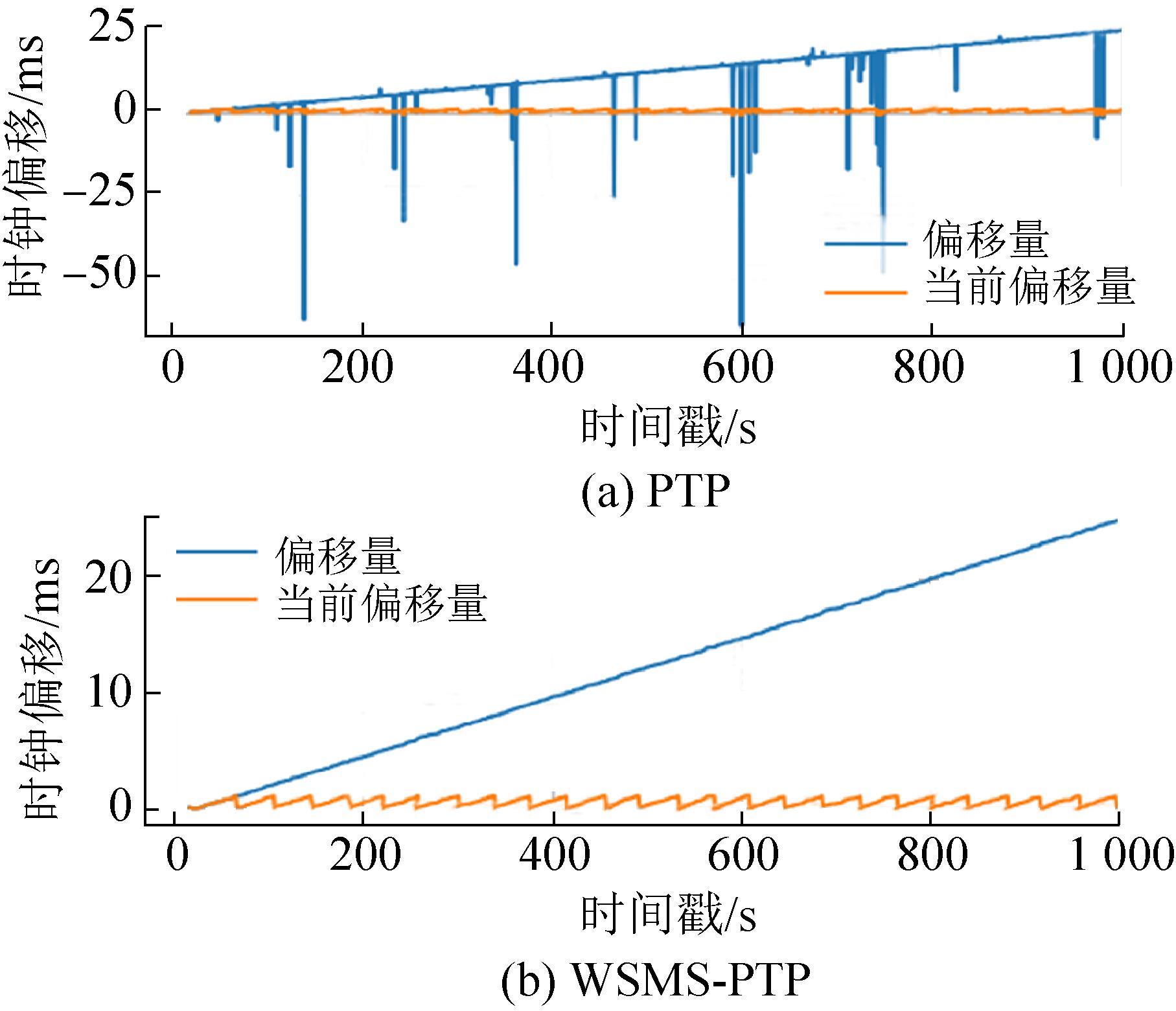

图5

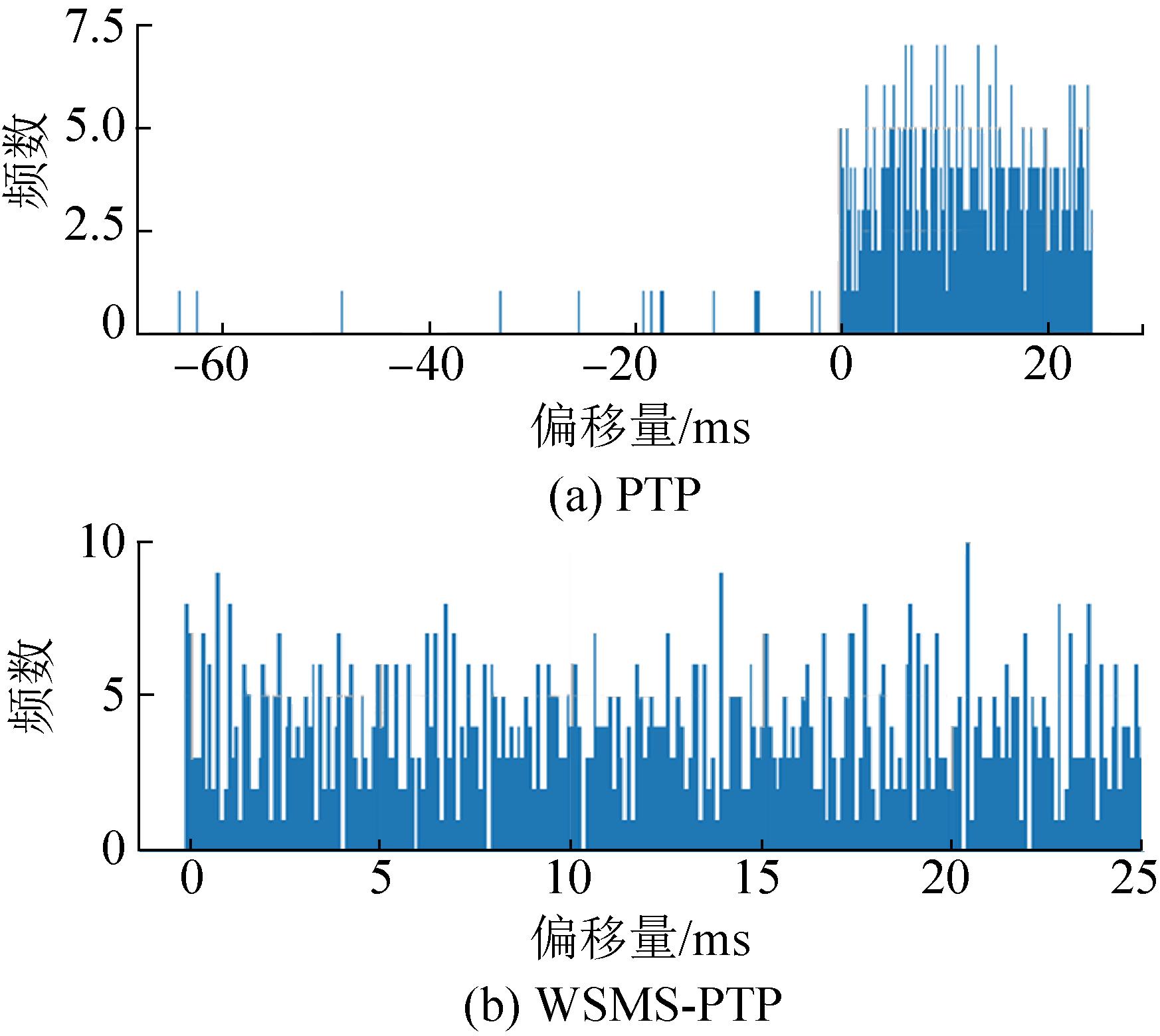

图6

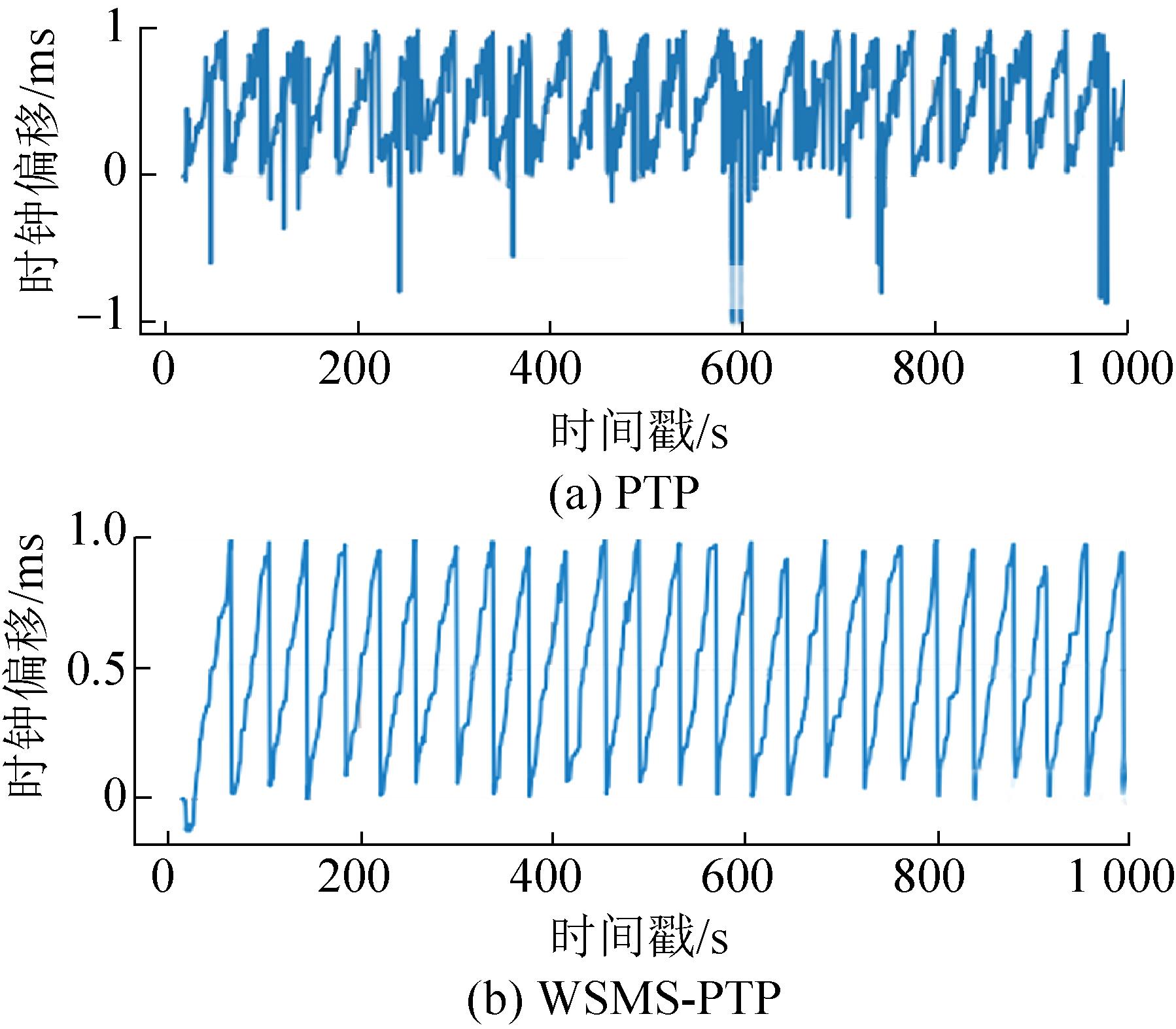

图7

表1

表 2

图8

表3

表4

图9

表5

参考文献 16

[1]	GaoYang, Deng Xiangyang, Zhang Yuanyuan, et al. Time-space Consistency Strategy for Live-virtual-constructive (LVC) Integrated Simulation Environment[C]//Journal of Physics: Conference Series. Bristol: IOP Publishing, 2023: 012037.
[2]	Dahmann J S, Morse K L. High Level Architecture for Simulation: An Update[C]//Proceedings of 2nd International Workshop on Distributed Interactive Simulation and Real-time Applications. Piscataway: IEEE, 1998: 32-40.
[3]	梁培生, 周玉芳, 翟永翠. LVC时间管理的实时性研究[J]. 指挥控制与仿真, 2010, 32(6): 60-64.
	Liang Peisheng, Zhou Yufang, Zhai Yongcui. Research on Real-time of LVC Time Management[J]. Command Control & Simulation, 2010, 32(6): 60-64.
[4]	Zhang Huiqing, Chen Jianyun, Li Xianbin, et al. Precision Time Synchronization Consistency Algorithm for Multi-node Dynamic Time-frequency Synchronization Networks[C]//2023 IEEE 16th International Conference on Electronic Measurement & Instruments (ICEMI). Piscataway: IEEE, 2023: 110-117.
[5]	徐鸿鑫. 基于LVC的联合仿真试验与技术研究[D]. 长沙: 国防科学技术大学, 2015.
	Xu Hongxin. Research About United Simulation Experiments and Technologies Based on LVC[D]. Changsha: National University of Defense Technology, 2015.
[6]	许霄. 武器装备综合仿真试验环境关键技术研究[D]. 长沙: 国防科学技术大学, 2013.
	Xu Xiao. Research on Key Technologies of Synthetic Simulation Test Environment for Weapon System of Systems[D]. Changsha: National University of Defense Technology, 2013.
[7]	王鹏. 对地装备仿真系统及其关键技术研究[D]. 长沙: 国防科学技术大学, 2014.
	Wang Peng. Research on the Key Technologies of the Simulation System for Air/Surface-to-surface Weapons[D]. Changsha: National University of Defense Technology, 2014.
[8]	雷媛元, 焦璐, 王锐, 等. 基于数据分发服务的通用仿真框架技术[J]. 计算机应用, 2020, 40(增1): 146-151.
	Lei Yuanyuan, Jiao Lu, Wang Rui, et al. General Simulation Framework Based on Data Distribution Service[J]. Journal of Computer Applications, 2020, 40(S1): 146-151.
[9]	张翔. 联合仿真试验引擎事件调度服务研究与实现[D]. 长沙: 国防科技大学, 2018.
	Zhang Xiang. Research and Implementation of Event Scheduling Service in Joint Simulation Experiments Engine[D]. Changsha: National University of Defense Technology, 2018.
[10]	王鹏, 李革, 黄柯棣. 靶场内外场一体化仿真体系结构及时间管理[J]. 系统工程与电子技术, 2017, 39(10): 2255-2263.
	Wang Peng, Li Ge, Huang Kedi. Architecture and Time Management for Integrated Simulation of Infield and Outfield[J]. Systems Engineering and Electronics, 2017, 39(10): 2255-2263.
[11]	冯琦琦, 董志明, 贾长伟, 等. 面向LVC仿真的多层分级时间管理方法研究[J]. 计算机仿真, 2020, 37(12): 1-4, 11.
	Feng Qiqi, Dong Zhiming, Jia Changwei, et al. Research on Multi-level Time Management Method for LVC Simulation[J]. Computer Simulation, 2020, 37(12): 1-4, 11.
[12]	Akpınar Murat, Ece Güran Schmidt, Klaus Werner Schmidt. Highly Accurate Clock Synchronization with Drift Correction for the Controller Area Network[J]. IEEE Transactions on Parallel and Distributed Systems, 2022, 33(12): 4071-4082.
[13]	IEEE. IEEE Standard for a Precision Clock Synchronization Protocol for Networked Measurement and Control Systems: 1588-2008 [S]. Piscataway: IEEE, 2008: 1-269.
[14]	IEEE. IEEE Standard for a Precision Clock Synchronization Protocol for Networked Measurement and Control Systems: 1588-2019 [S]. Piscataway: IEEE, 2020: 1-499.
[15]	肖亚城. 面向分布式协同通信的无线时间同步技术研究与实现[D]. 长沙: 国防科技大学, 2022.
	Xiao Yacheng. Research and Implementation of Wireless Time Synchronization Technology for Distributed Collaborative Communication[D]. Changsha: National University of Defense Technology, 2022.
[16]	黄学进, 余婷. 基于分布式仿真系统的实时架构设计[J]. 计算机测量与控制, 2021, 29(5): 209-214, 219.
	Huang Xuejin, Yu Ting. Architecture Design of Distributed Real-time Simulation System[J]. Computer Measurement & Control, 2021, 29(5): 209-214, 219.

变量类别	变量因素	参数设置
系统负载	CPU占用	30%(低)/60%(中)/100%(高)
系统负载	内存占用	30%(低)/50%(中)/80%(高)
定时器方法	定时器类型	Waitable/Multimedia/Sleep/QPCPolling/LaSPM
优化方法	优化类型	不处理/提高系统时钟分辨率/提高优先级/同时提高
测试步长	时间间隔	1/10/100 ms

方法	最大偏差/ms			平均偏差/ms
方法	最大值	均值	最小值	最大值	均值	最小值
无优化QPCPolling	94.86	11.025 000	0.040	0.438 301	0.026 280	0.000 103
无优化 Multimedia	35.38	7.418 704	1.314	1.273 020	0.440 376	0.241 693
优化 Multimedia	1.772	1.549 037	1.224	0.615 292	0.387 068	0.247 414
优化 QPCPolling	0.162	0.068 852	0.011	0.000 392	0.000 162	0.000 014
LaSPM	0.173	0.068 815	0.013	0.000 353	0.000 130	0.000 012

方法	0~1 ms区间计数	1~10 ms区间计数	10~100 ms区间计数
无优化QPCPoling	99.69	0.23	0.08
无优化Multimedia	91.16	8.72	0.12
优化Multimedia	91.51	8.49	0
优化QPCPoling	100	0	0
LaSPM	100	0	0

方法	平均系统占用率/%
QPCPolling	30
Multimeida	1
LaSPM	4

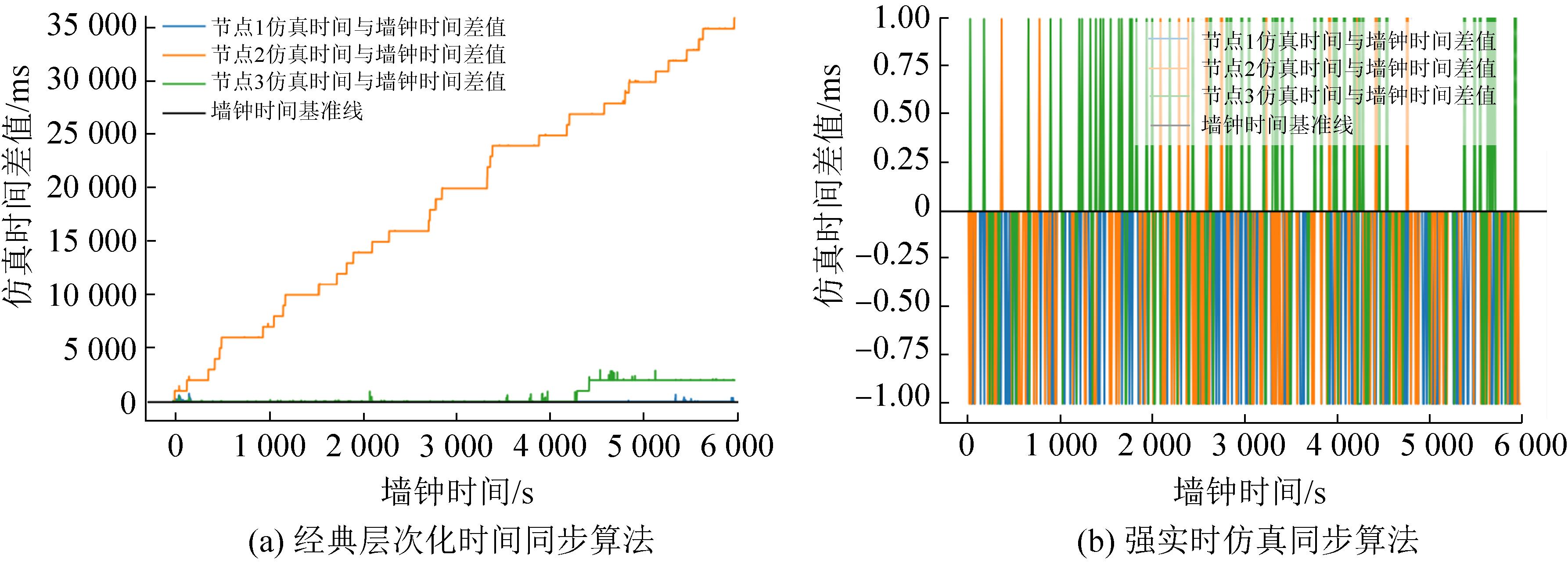

方法	仿真时间/s					差值/ms
方法	节点1		节点2	节点3		节点1		节点2		节点3
经典层次化时间同步算法	5 999.95	5 963.95			5 997.95	50	37 050		2 050
强实时仿真同步算法	6 000	6 000.001			6 000	0	1		0
