无人船实时路径规划与编队控制仿真研究

doi:10.16182/j.issn1004731x.joss.22-0002

系统仿真学报 ›› 2023, Vol. 35 ›› Issue (5): 957-970.doi: 10.16182/j.issn1004731x.joss.22-0002

无人船实时路径规划与编队控制仿真研究

宋大雷¹^,²(), 干文浩¹, 许嘤枝³, 曲秀青¹, 曹江丽⁴()

^1.中国海洋大学工程学院，山东青岛 266100
^2.中国海洋大学海洋高等研究院，山东青岛 266100
^3.中国海洋大学信息科学与工程学部，山东青岛 266100
^4.中国船舶重工集团公司第七〇九研究所，湖北武汉 430205

收稿日期:2022-01-03 修回日期:2022-02-10 出版日期:2023-05-30 发布日期:2023-05-22
通讯作者: 曹江丽 E-mail:songdalei@ouc.edu.cn;jlcao_wh@163.com
作者简介:宋大雷(1971-)，男，教授，博导，博士，研究方向为海洋感知与控制等。E-mail：songdalei@ouc.edu.cn
基金资助:
十三五国防预研项目(995-02030503)

Simulation of Real-Time Path Planning and Formation Control for Unmanned Surface Vessel

Dalei Song¹^,²(), Wenhao Gan¹, Yingzhi Xu³, Xiuqing Qu¹, Jiangli Cao⁴()

^1.College of Engineering, Ocean University of China, Qingdao 266100, China
^2.Institute for Advanced Ocean Study, Ocean University of China, Qingdao 266100, China
^3.College of Information Science Engineering, Ocean University of China, Qingdao 266100, China
^4.709th Research Institute, China Shipbuilding Industry Corporation, Wuhan 430205, China

Received:2022-01-03 Revised:2022-02-10 Online:2023-05-30 Published:2023-05-22
Contact: Jiangli Cao E-mail:songdalei@ouc.edu.cn;jlcao_wh@163.com

摘要/Abstract

摘要：

安全和无碰撞导航是无人船正常航行的基础。通过Unity3D构建高保真的虚拟海洋环境，在无人船建模基础上，提出一种面向未知复杂环境的实时路径规划及编队控制方法。利用激光雷达获取的局部环境信息，在重规划的策略下，结合A-star以及航路抽稀方法完成实时局部路径规划。基于领航-跟随者策略与一致性方法进行编队控制，结合人工势场法完成多无人船的避障航行任务。在多种复杂地图上的仿真实验表明，该仿真系统具有较好的真实性和视觉效果，为无人船模拟试航提供了有效手段。同时，无人船群利用所提算法可以依次抵达预设航路点，自主变换队形实时避障，在工程应用中具有一定理论意义和实用性。

关键词: 无人船, 运动仿真, 场景模拟, 路径规划, 编队控制

Abstract:

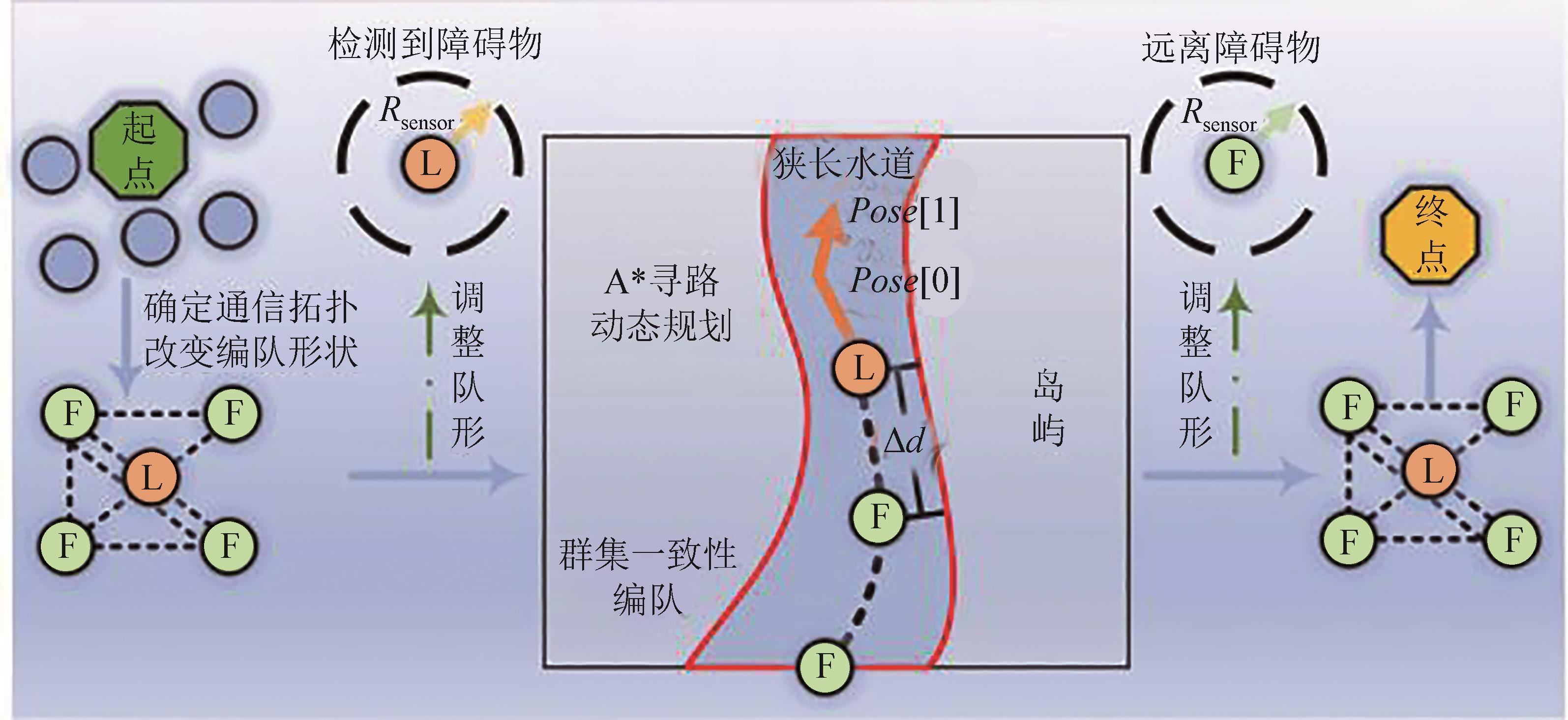

Safety and collision-free navigation are the basis of normal navigation of an unmanned surface vessel. The high-fidelity virtual ocean is constructed by using Unity3D.On the basis of the vessel modeling, a real-time path planning and formation control method for unknown complex environments is proposed. Firstly, the local environment information is obtained by the laser sensor. Then the real-time local path planning is completed by combining A-star and route-thinning methods under the replanning strategy. In addition, formation control is carried out based on the leader-follower strategy and consistency method, and the artificial potential field is used to complete the navigation task of the unmanned surface vessel in terms ofobstacle avoidance. The simulation experiments on various complex scenarios show that the system has excellent authenticity and visual effects and provides an effective means for simulating vessel navigation. At the same time, based on the proposed algorithm, the vessel fleet can arrive at the preset waypoints successively and independently change the formation to avoid obstacles in real-time, which has certain theoretical significance and practicability in engineering applications.

Key words: unmanned surface vessel, motion simulation, scenario simulation, path planning, formation control

中图分类号:

TP24

宋大雷, 干文浩, 许嘤枝, 曲秀青, 曹江丽. 无人船实时路径规划与编队控制仿真研究[J]. 系统仿真学报, 2023, 35(5): 957-970.

Dalei Song, Wenhao Gan, Yingzhi Xu, Xiuqing Qu, Jiangli Cao. Simulation of Real-Time Path Planning and Formation Control for Unmanned Surface Vessel[J]. Journal of System Simulation, 2023, 35(5): 957-970.

图/表 21

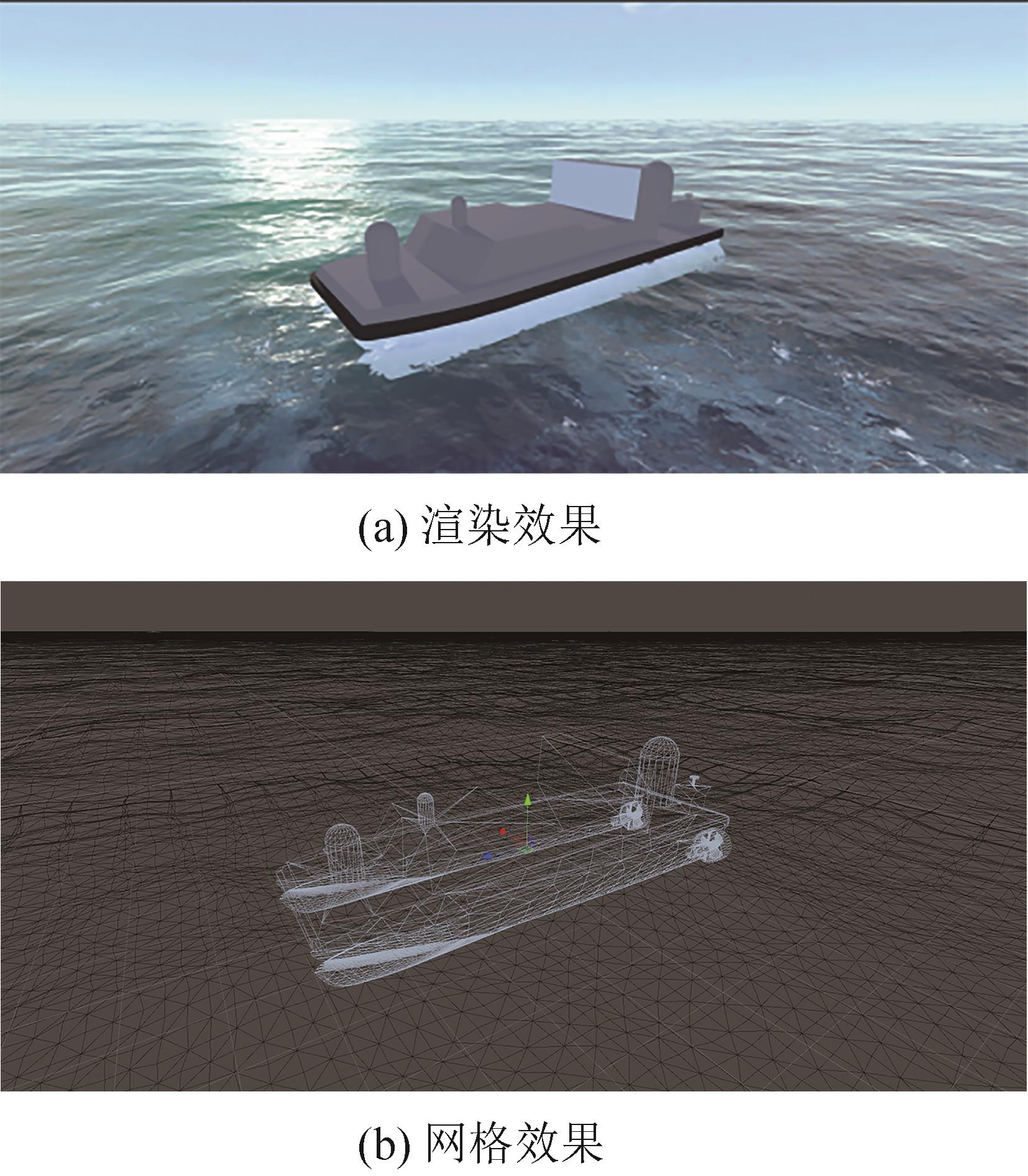

图1

表1

图2

表2

图3

表3

图4

图5

图6

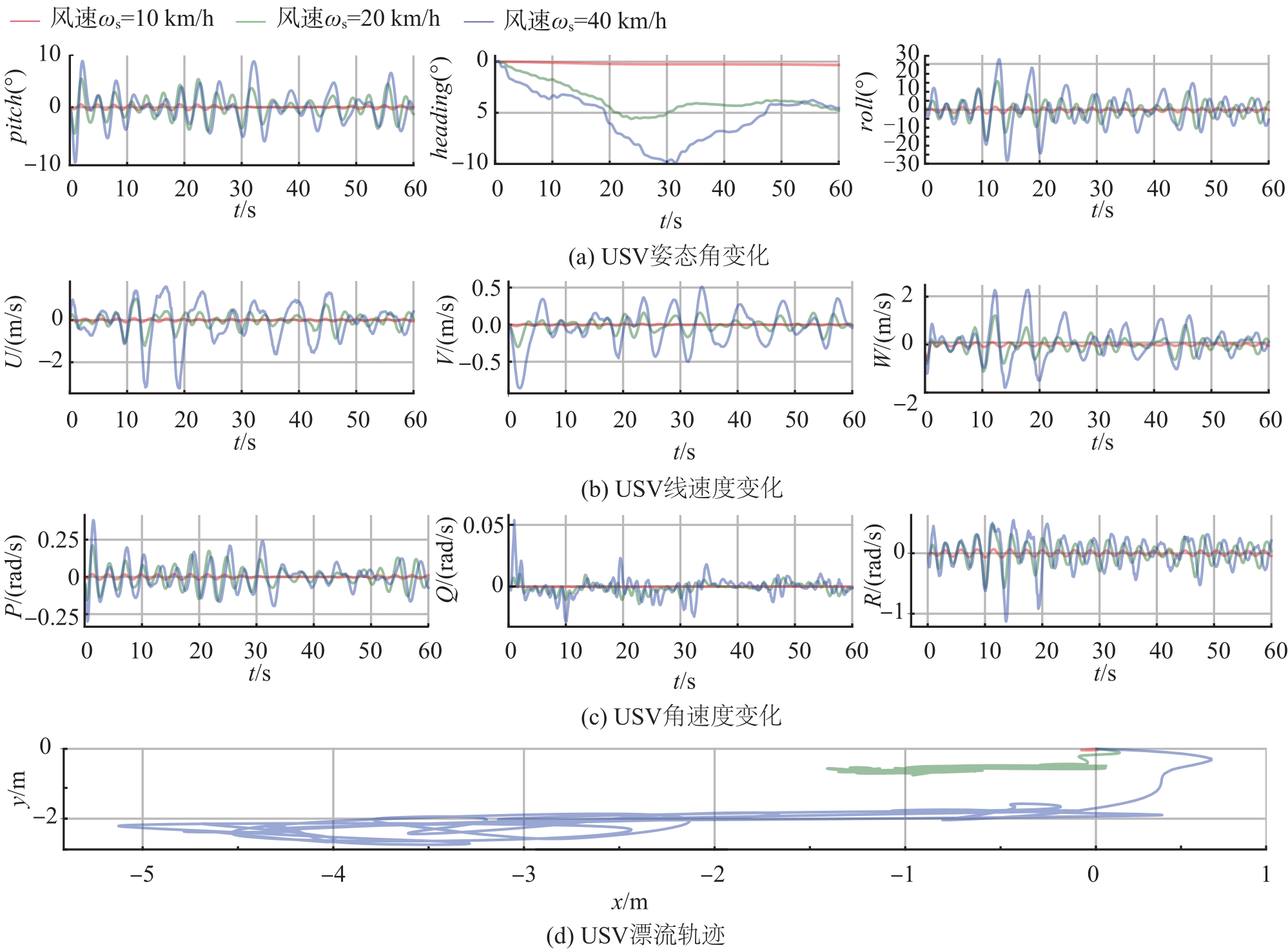

图7

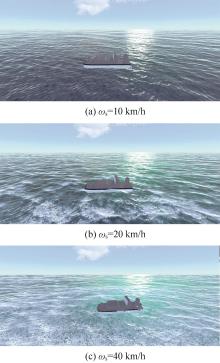

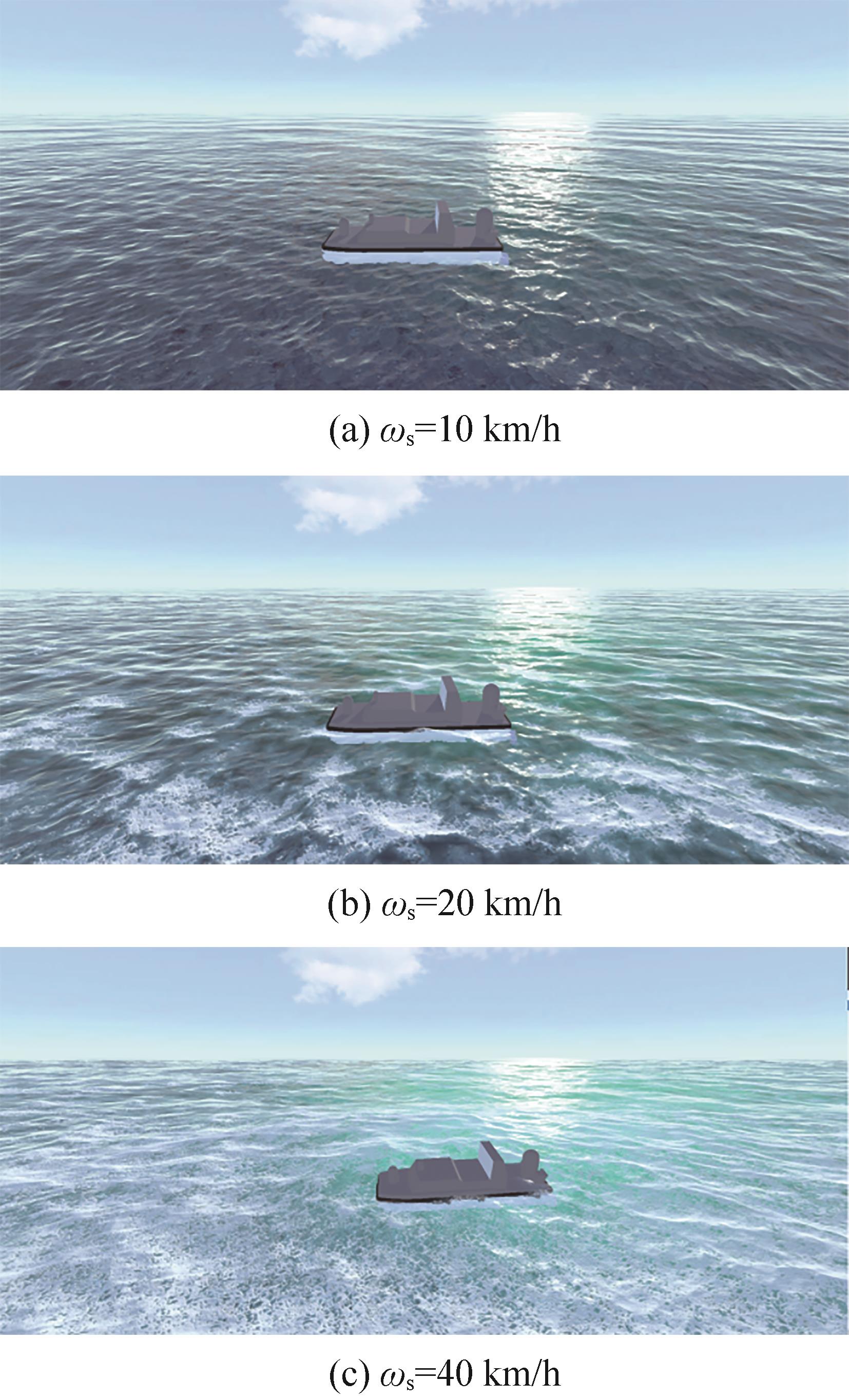

图8

图9

图10

表4

图11

图12

表5

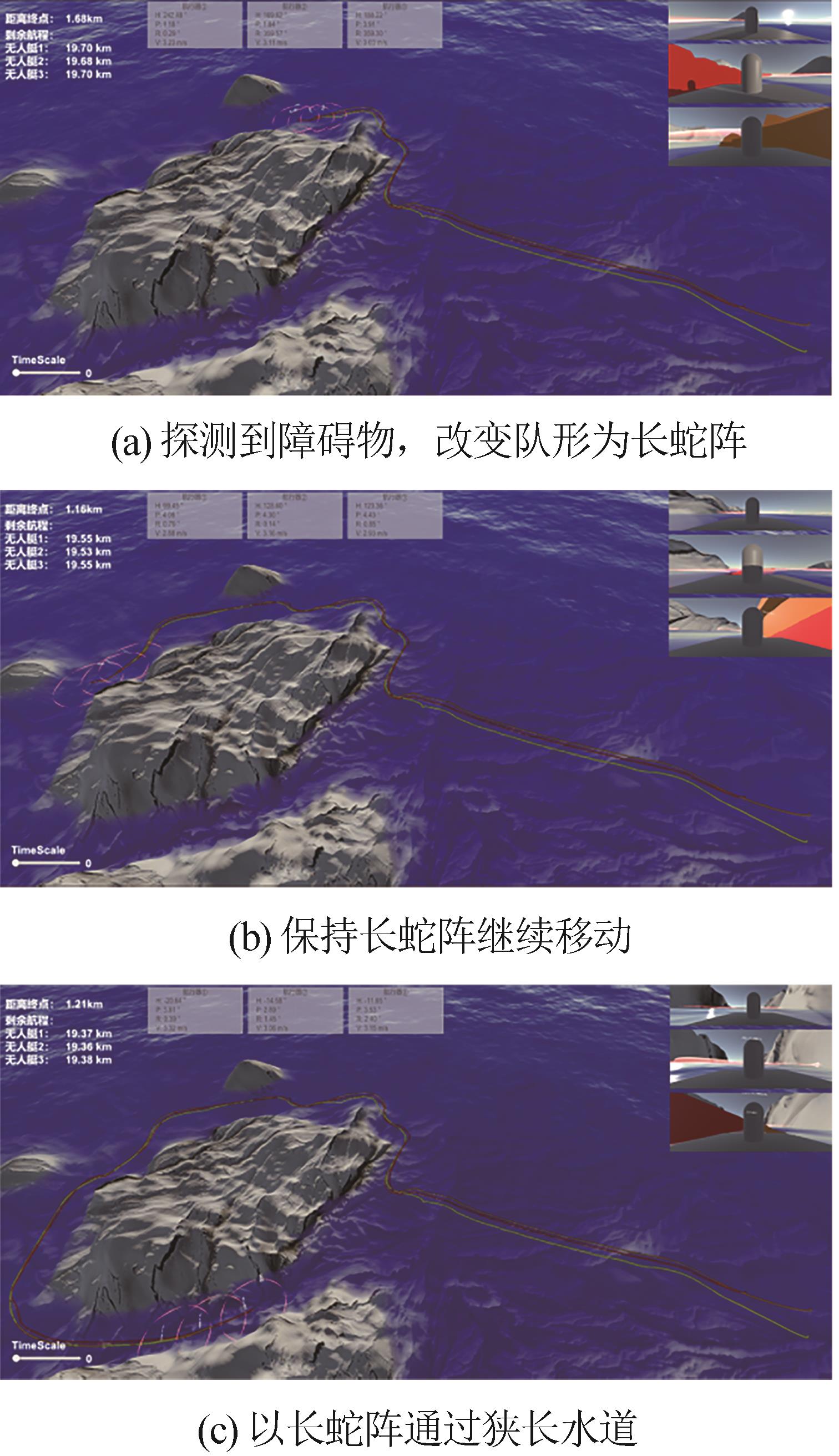

图13

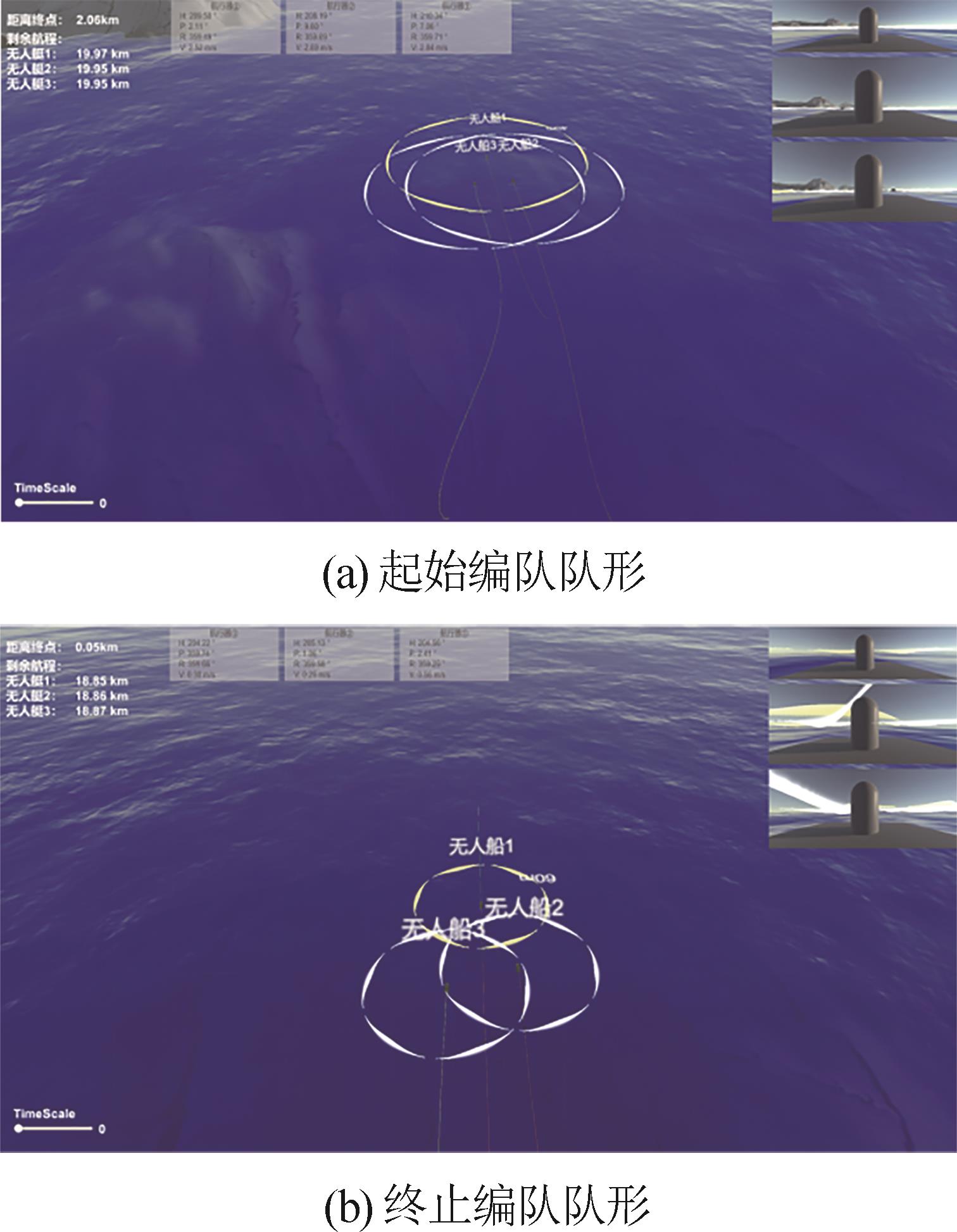

图14

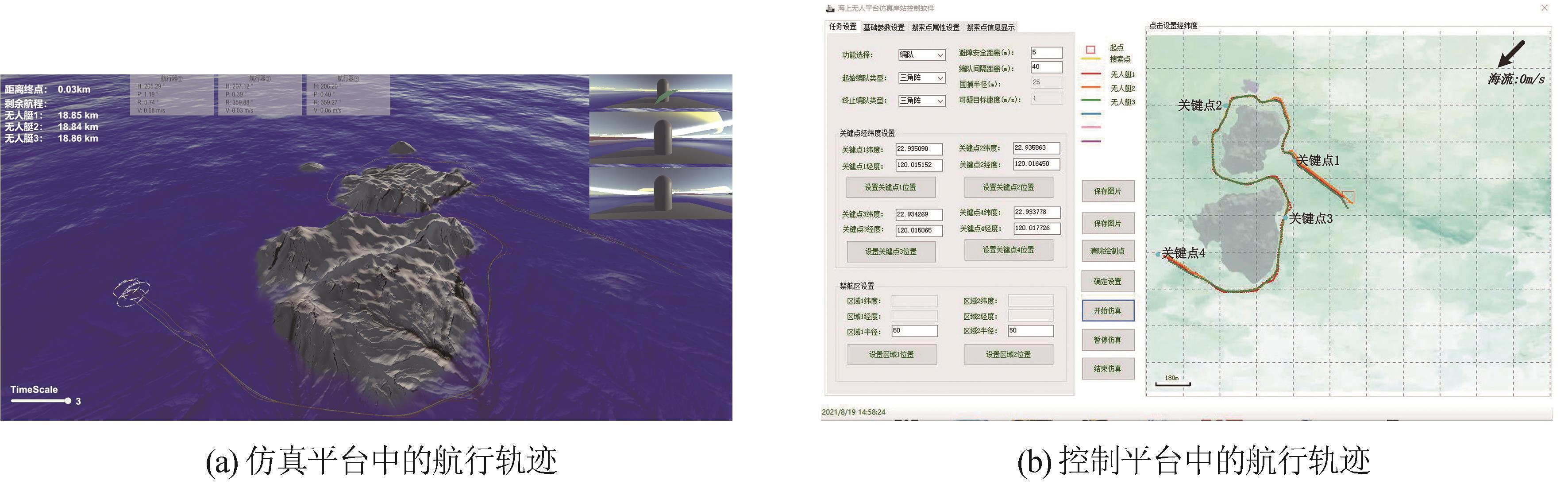

图15

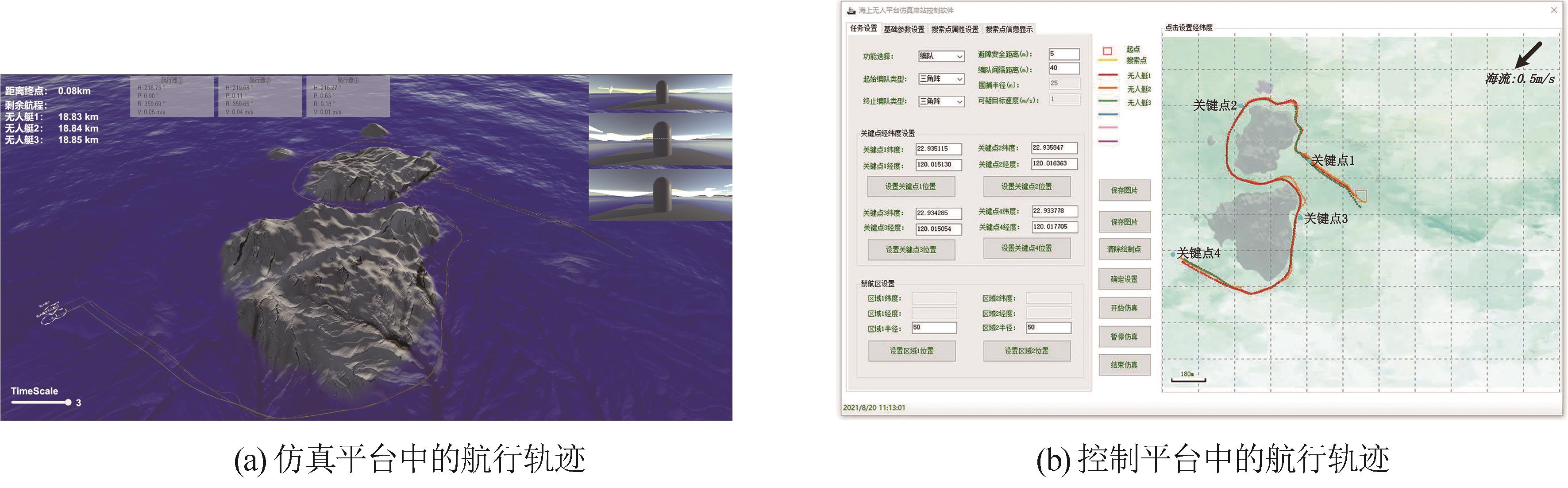

图16

参考文献 18

1	郑荣, 辛传龙, 汤钟, 等. 无人水面艇自主部署自主水下机器人平台技术综述[J]. 兵工学报, 2020, 41(8): 1675-1687.
	Zheng Rong, Xin Chuanlong, Tang Zhong, et al. Review on the Platform Technology of Autonomous Deployment of AUV by USV[J]. Acta Armamentarii, 2020, 41(8): 1675-1687.
2	范云生, 孙晓界, 王国峰, 等. 一种无人水面艇自主动态避碰跟踪控制方法[J]. 系统仿真学报, 2018, 30(10): 3781-3788.
	Fan Yunsheng, Sun Xiaojie, Wang Guofeng, et al. Tracking Control Method of Autonomous Dynamic Collision Avoidance for Unmanned Surface Vehicle [J]. Journal of System Simulation, 2018, 30(10): 3781-3788.
3	侯瑞超, 唐智诚, 王博, 等. 水面无人艇智能化技术的发展现状和趋势[J].中国造船, 2020, 61(增1): 211-220.
	Hou Ruichao, Tang Zhicheng, Wang Bo, et al. Development Status and Trend of Intelligent Technology for Unmanned Surface Vehicles[J]. Shipbuilding of China, 2020, 61(S1): 211-220.
4	刘继鹏. 欠驱动水面无人艇的协同控制研究[D]. 武汉: 华中科技大学, 2017.
	Liu Jipeng. Coordinated Control of Underactuated Surface Unmanned Vehicles[D]. Wuhan:Huazhong University of Science and Technology, 2017.
5	李江昊, 闫亚楠, 彭丹. 微小型移动机器人的路径规划及编队研究[J].计量学报, 2021, 42(4): 445-450.
	Li Jianghao, Yan Yanan, Peng Dan. Path Planning and Formation Research of Micro Mobile Robots[J]. Acta Metrologica Sinica, 201, 42(4): 445-450.
6	王乐乐, 眭泽智, 蒲志强, 等. 一种改进RRT的多机器人编队路径规划算法[J]. 电子学报, 2020, 48(11): 2138-2145.
	Wang Lele, Sui Zezhi, Pu Zhiqiang, et al. An Improved RRT Algorithm for Multi-robot Formation Path Planning[J]. Acta Electronica Sinica, 2020, 48(11): 2138-2145.
7	桑雷, 吕强. 基于人工势场法的多机器人编队与避障[J]. 信息系统工程, 2020, 4(3): 139-142, 145.
	Lei San, Qiang Lü. Multi-robot Formation and Avoidance Barrier Based on Artificial Potential Field[J]. China CIO News, 2020, 4(3): 139-142, 145.
8	潘无为, 姜大鹏, 庞永杰, 等. 人工势场和虚拟结构相结合的多水下机器人编队控制[J]. 兵工学报, 2017, 38(2): 326-334.
	Pan Wuwei, Jiang Dapeng, Pang Yongjie, et al. A Multi-AUV Formation Algorithm Combining Artificial Potential Field and Virtual Structure[J]. Acta Armamentarii, 2017, 38(2): 326-334.
9	Liao Gang, Xu Haixiang, Yu Wenzhao, et al. Path Following Control for Formation of Underactuated Surface Vessels[C]// 28th International Ocean and Polar Engineering Conference (ISOPE 2018). Sapporo, Japan: ISOPE, 2018: 684-689.
10	Sonnenburg C R, Woolsey C A. Modeling, Identification, and Control of an Unmanned Surface Vehicle[J]. Journal of Field Robotics (S1556-4959), 2013, 30(3): 371-398.
11	Mccue L. Handbook of Marine Craft Hydrodynamics and Motion Control[J]. IEEE Control Systems Magazine (S1066-033X), 2016, 36(1): 78-79.
12	Chen L, Jin Y, Yin Y. Ocean Wave Rendering with Whitecap in the Visual System of a Maritime Simulator[J]. Journal of Computing and Information Technology (S1330-1136), 2017, 25(1): 63-76.
13	Fréchot J. Realistic Simulation of Ocean Surface Using Wave Spectra[C]// First International Conference on Computer Graphics Theory and Applications (GRAPP 2006). Setúbal, Portugal: INSTICC, 2006: 76-83.
14	王金强, 王聪, 魏英杰, 等. 未知海流干扰下自主水下航行器位置跟踪控制策略研究[J]. 兵工学报, 2019, 40(3): 583-591.
	Wang Jinqiang, Wang Cong, Wei Yingjie, et al. Position Tracking Control of Autonomous Underwater Vehicles in the Disturbance of Unknown Ocean Currents[J]. Acta Armamentarii, 2019, 40(3): 583-591.
15	吴海鹏. 基于Unity3D船舶摇荡运动实时仿真[D]. 大连: 大连海事大学, 2019.
	Wu Haipeng. Real-time Simulation of Ship Motion Based on Unity3D[D]. Dalian: Dalian Maritime University, 2019.
16	金建海, 周则兴, 张波, 等. 无人艇航行仿真关键技术研究[J]. 系统仿真学报, 2021, 33(12): 2846-2853.
	Jin Jianhai, Zhou Zexing, Zhang Bo, et al. Research on USV Navigation Simulation Key Technologies[J]. Journal of System Simulation, 2021, 33(12): 2846-2853.
17	张哲, 吴剑, 代冀阳, 等. 基于改进A*算法的多无人机协同战术规划[J]. 兵工学报, 2020, 41(12): 2530-2539.
	Zhang Zhe, Wu Jian, Dai Jiyang, et al. Cooperative Tactical Planning for Multi-UAVs Based on Improved A* Algorithm[J]. Acta Armamentarii, 2020, 41(12): 2530-2539.
18	王宁, 代冀阳, 应进. 基于改进势场的无人机编队恢复与一致性仿真[J]. 系统仿真学报, 2022, 34(5): 978-993.
	Wang Ning, Dai Jiyang, Ying Jin. UAV Formation Recovery and Consistency Simulation Based on Improved Potential Field[J]. Journal of System Simulation, 2022, 34(5): 978-993.

参数	取值
总长/m	7.970
设计水线长/m	7.443
总宽/m	2.980
型宽/m	2.880
总高/m	2.400
正常排水量/t	4.665
正常排水吃水/m	0.512

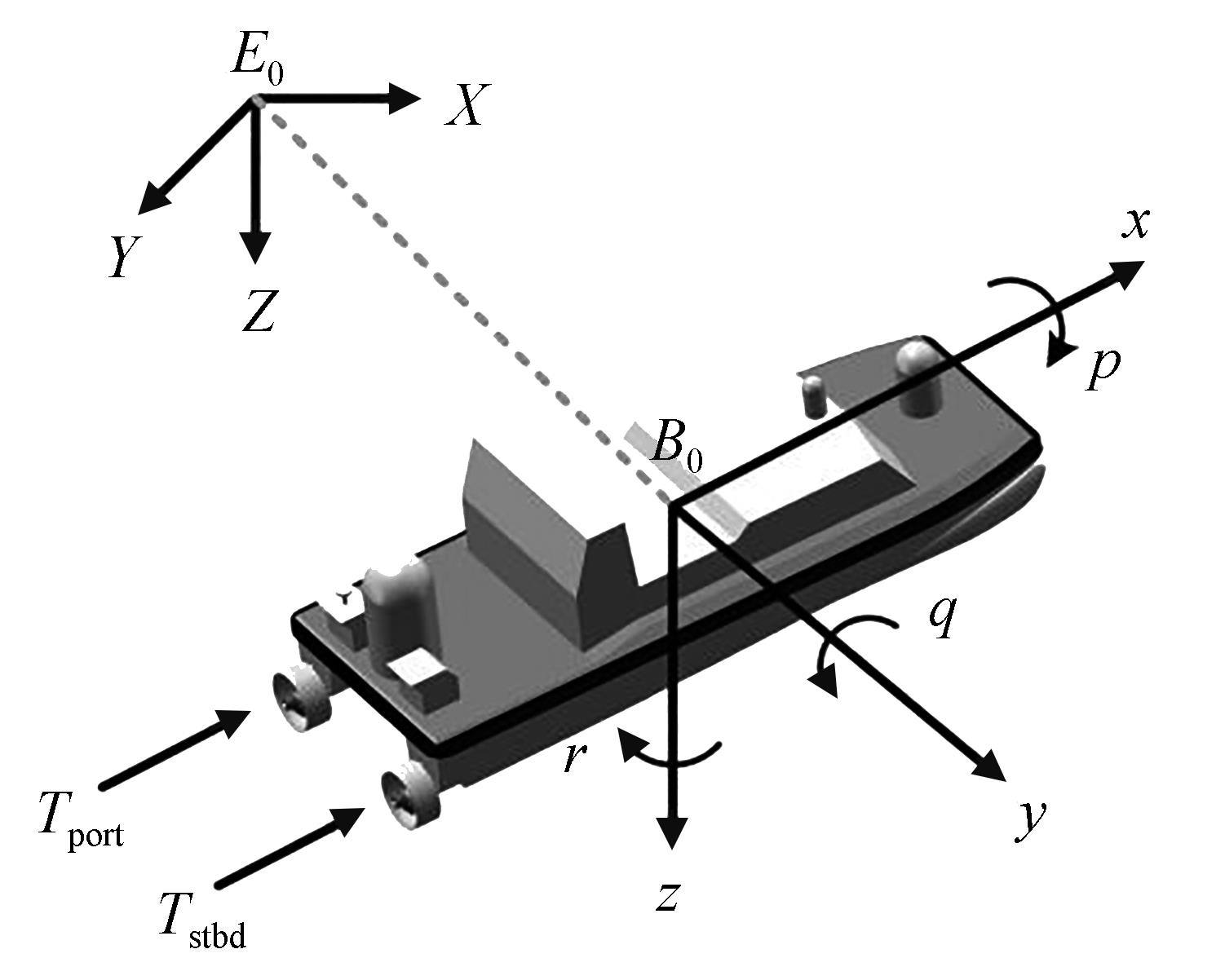

名称	描述	B₀中的速度	E₀中的位姿	名称	描述	B₀中的速度	E₀中的位姿
进退(surge)	沿x轴的直线运动	u	x	横滚(roll)	沿x轴的转动	p	φ
侧移(sway)	沿y轴的直线运动	v	y	纵倾(pitch)	沿y轴的转动	q	θ
起浮(heave)	沿z轴的直线运动	w	z	回转(yaw)	沿z轴的转动	r	ψ

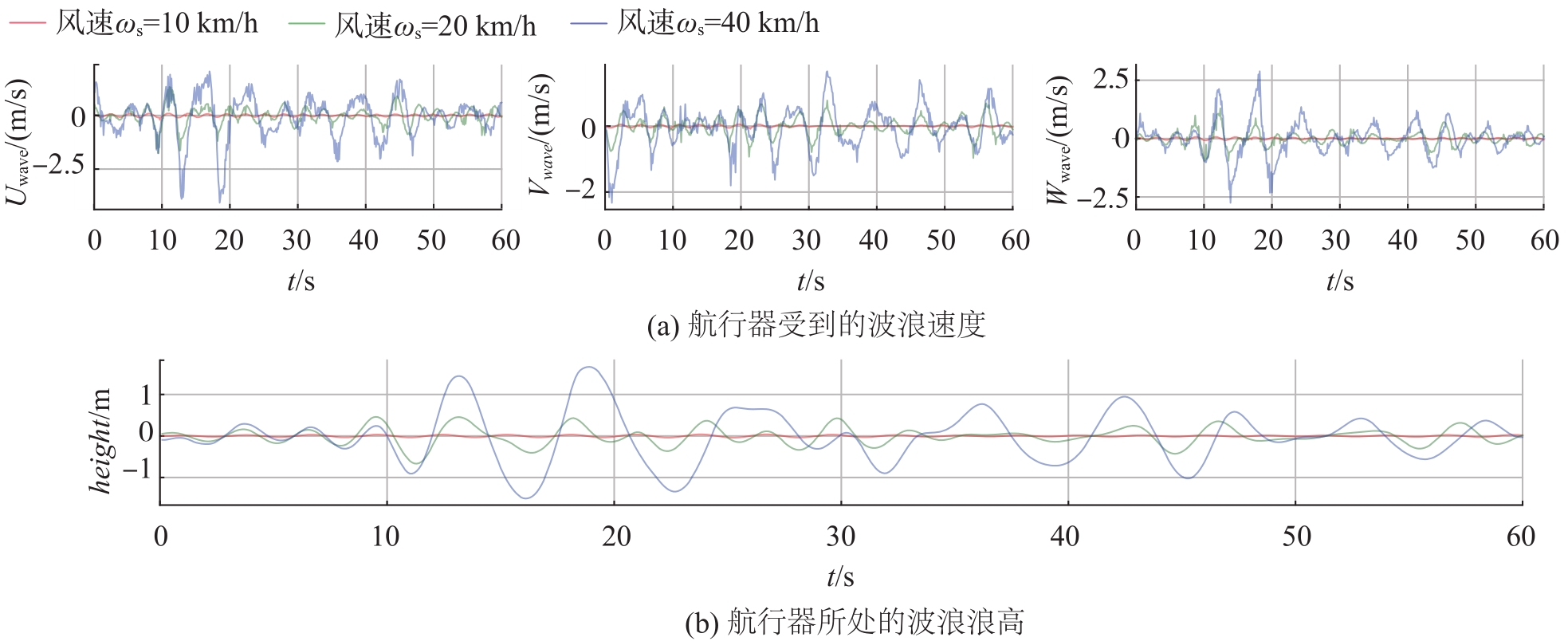

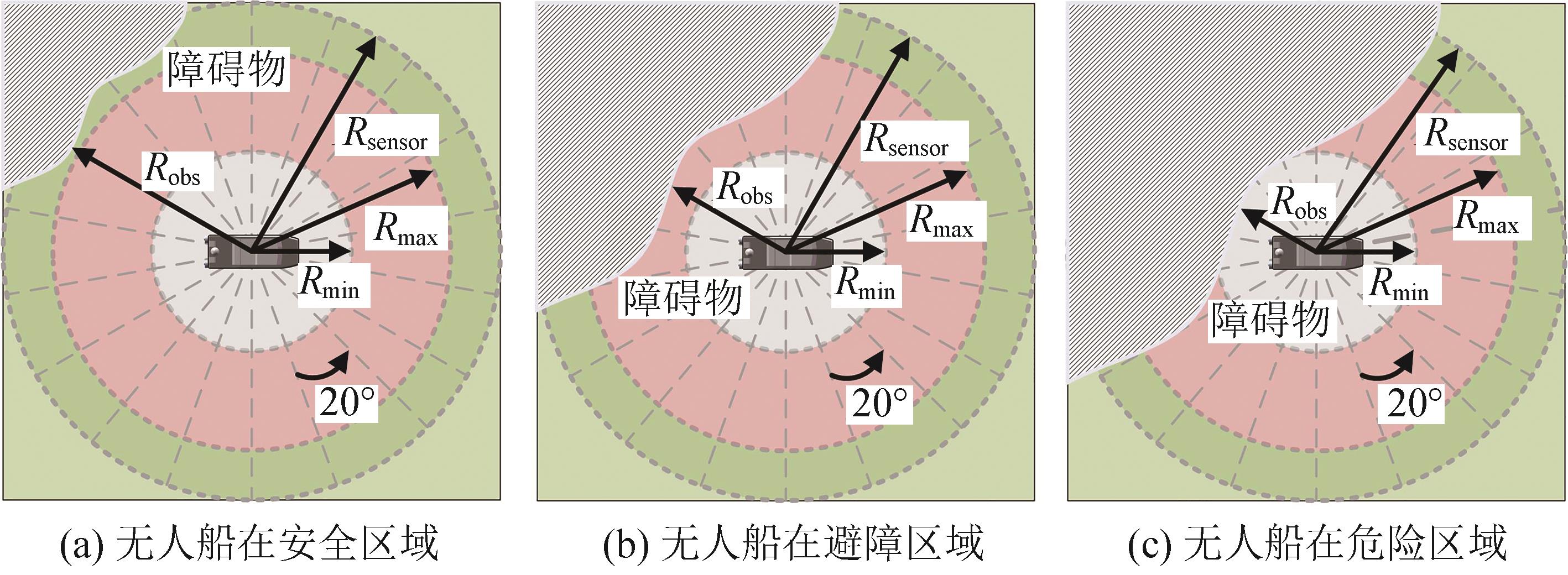

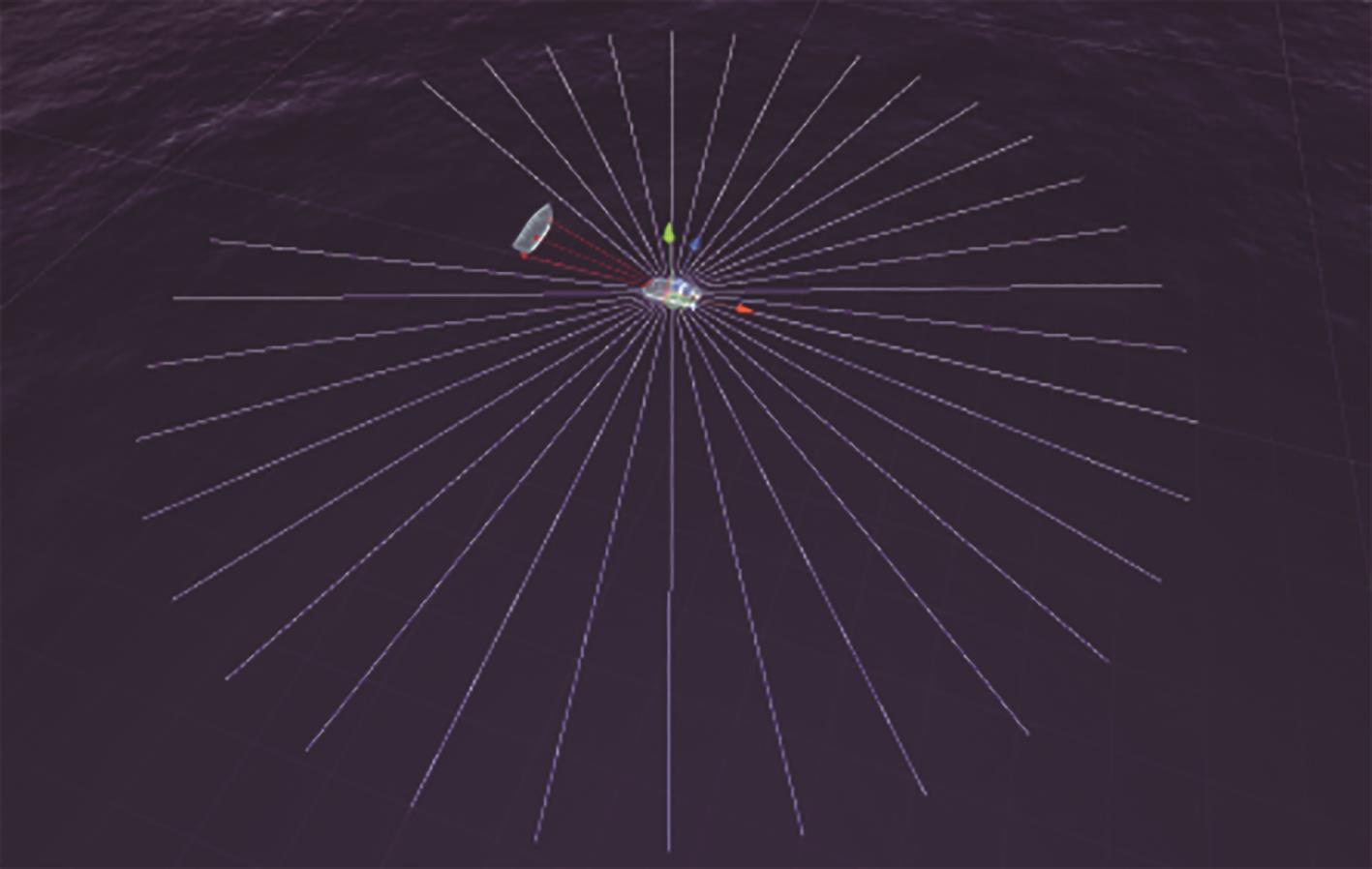

描述	取值
视野宽度(°)	360
有效量程/m	100
距离分辨率/cm	1
角度分辨率(°)	20
扫描频率/Hz	25

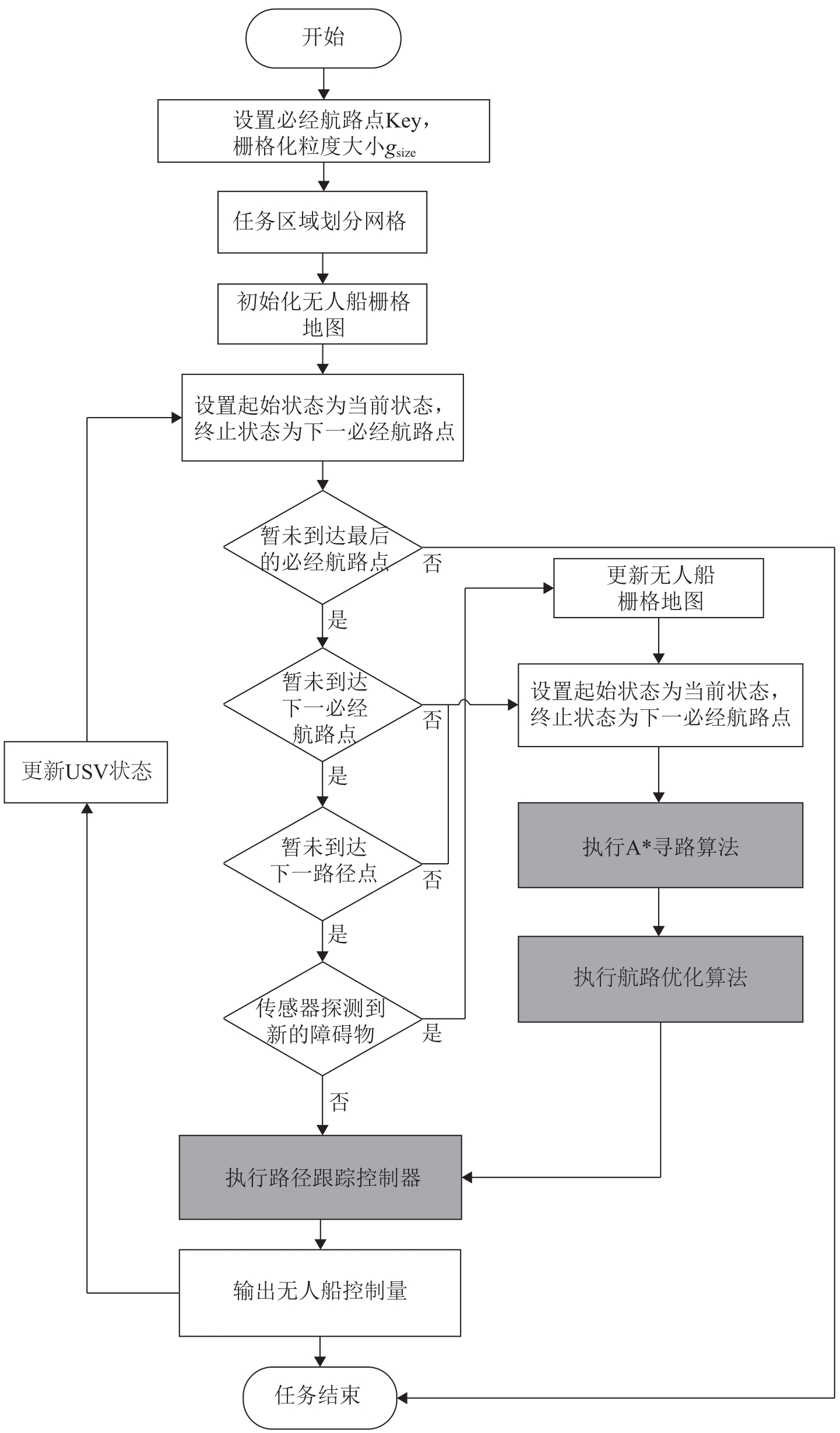

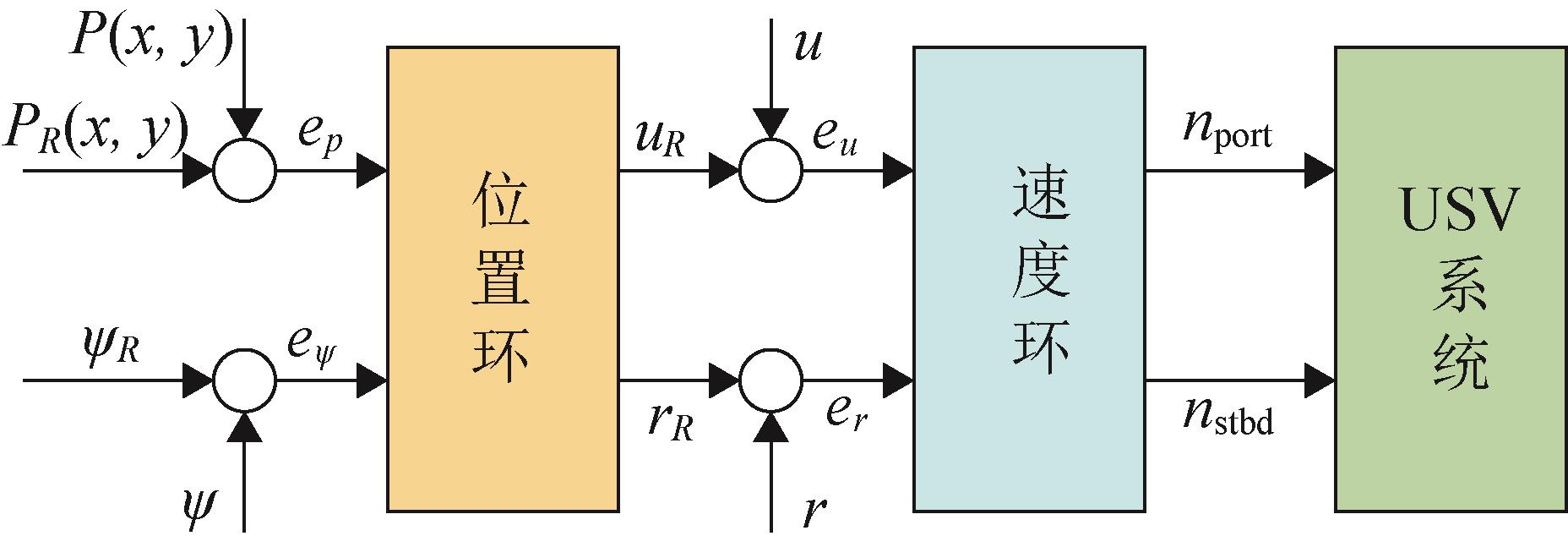

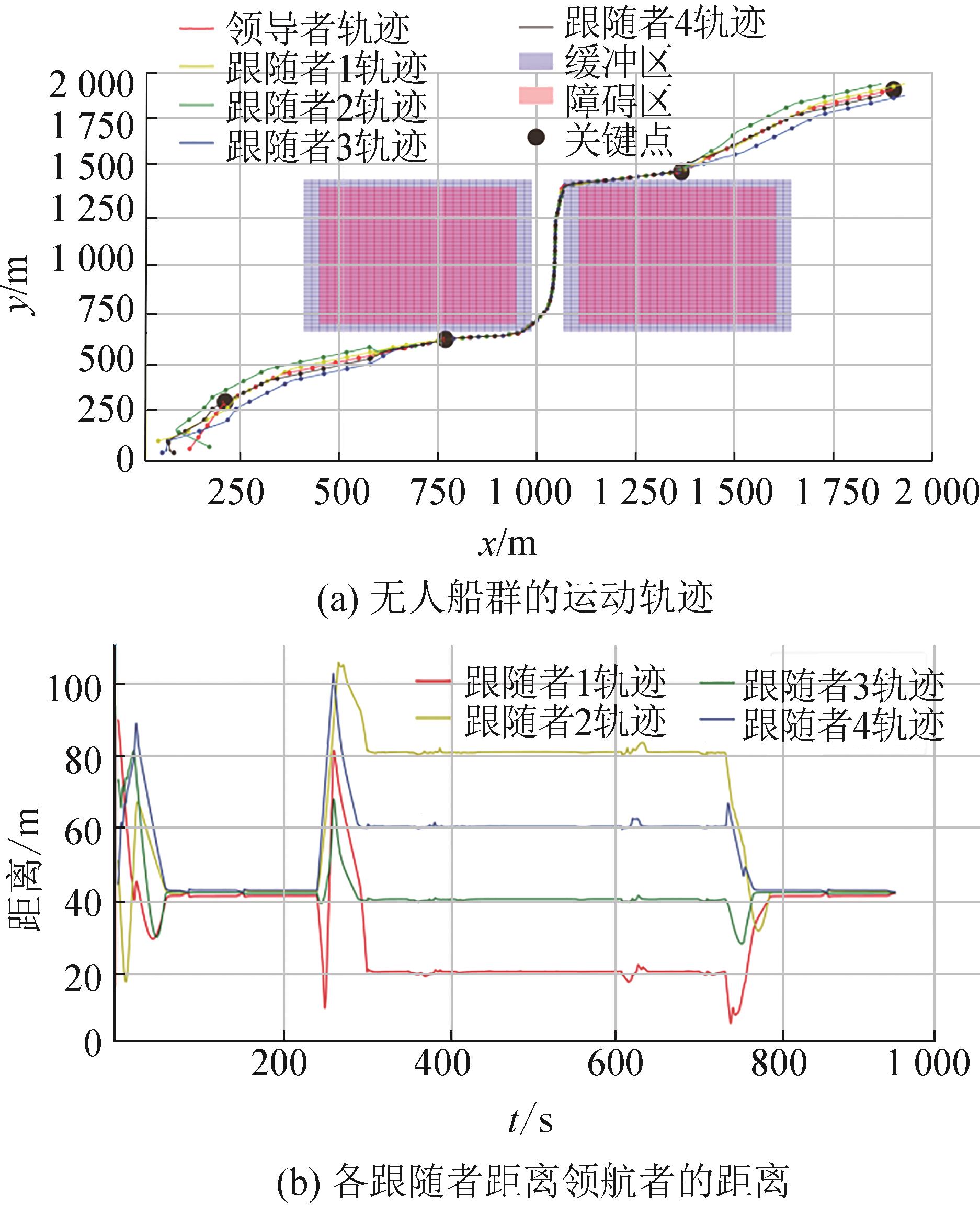

无人船	起始位置/m	起始相位/(°)
领航者	(110, 60)	-90
1号跟随者	(30, 100)	-180
2号跟随者	(160, 70)	-135
3号跟随者	(40, 40)	-180
4号跟随者	(70, 40)	-90

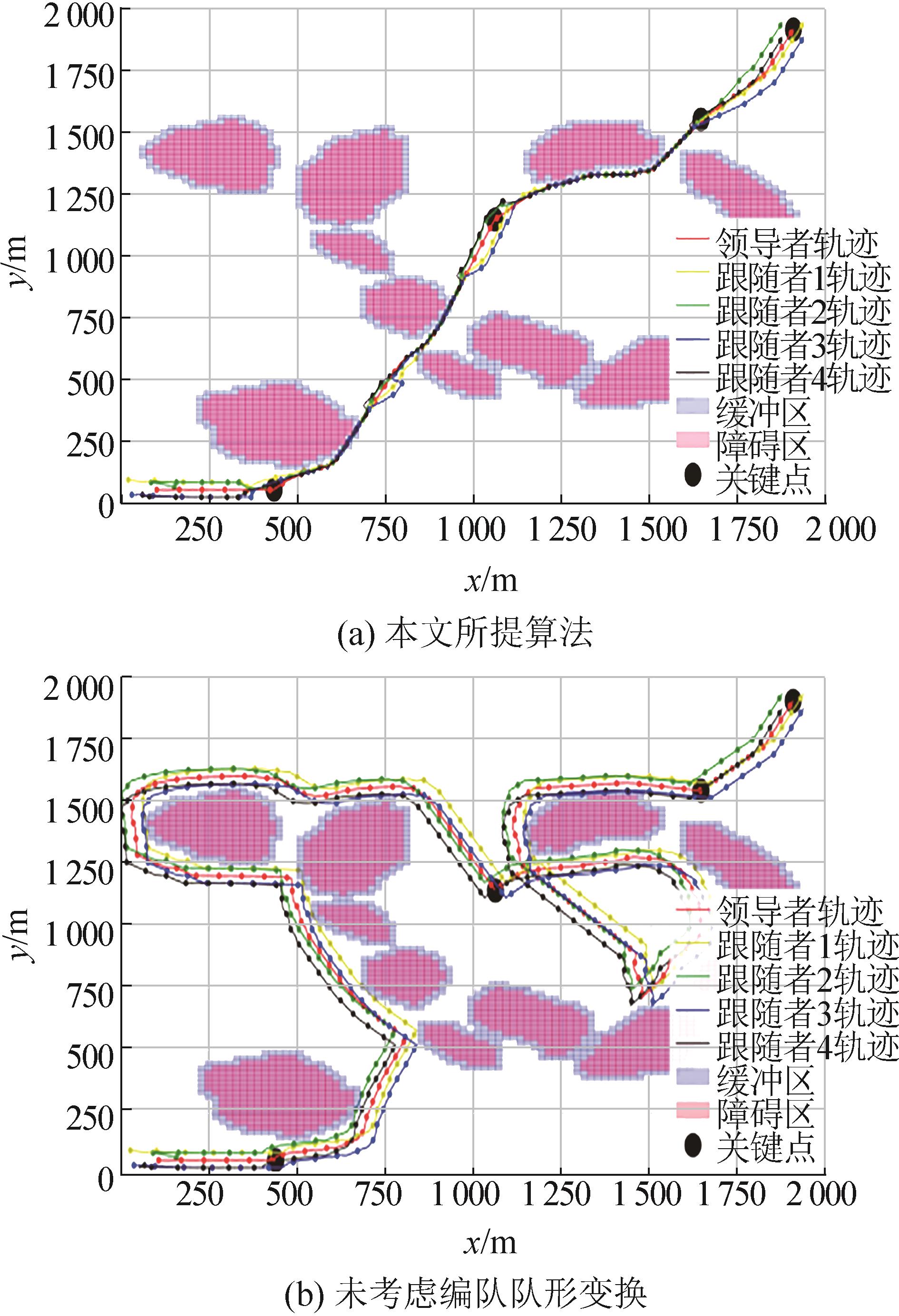

航迹	路径长度/m	航行时间/s
本文所提算法	1 446.68	662.34
未考虑编队队形变换	3 429.52	1 535.34
