一种威胁指数加权的截击引导航线解算算法

doi:10.16182/j.issn1004731x.joss.22-0004

摘要/Abstract

摘要：

截击引导和威胁评估是指挥控制中不可分割的两部分，前者通过航线解算进而实施具体的指挥引导，后者通过计算确定威胁程度高低进而取得态势优势为指挥控制提供依据。以威胁指数为权重，将解算出的引导航线与之加权，提出了一种最优截击指标用以确定威胁程度最小的引导航线解算算法。仿真结果表明：该算法可有效解算出威胁最小的截击航线，且在不同态势、不同威胁权重取值等情况下均可靠。该算法为指挥控制中引导解算方法提供了新思路。

关键词: 指挥控制, 指挥引导, 引导解算, 威胁评估, 威胁指数

Abstract:

Interception guidance and threat assessment are two inseparable parts of command and control. The former implements specific command and guidance through guidance solutions, and the latter provides basis for threat assessment and situation advantage to command and control. Taking threat indexes as the weight, a kind of optimal interception route index is proposed to obtain the guidance solution with the least threat. Simulation results show that the proposed algorithm can effectively provide routing solutions for interception with the least threat, and is reliable under different situations, or with different weights of threat indexes. The algorithm provides a new idea for obtaining route solutions in the field of command and guidance.

Key words: command and control, command and guidance, guidance solution, threat assessment, threat index

中图分类号:

V249

刘书元 . 一种威胁指数加权的截击引导航线解算算法[J]. 系统仿真学报, 2023, 35(5): 971-978.

Shuyuan Liu . An Algorithm for Obtaining Interception Guidance Routes Weighted by Threat Indexes[J]. Journal of System Simulation, 2023, 35(5): 971-978.

图/表 8

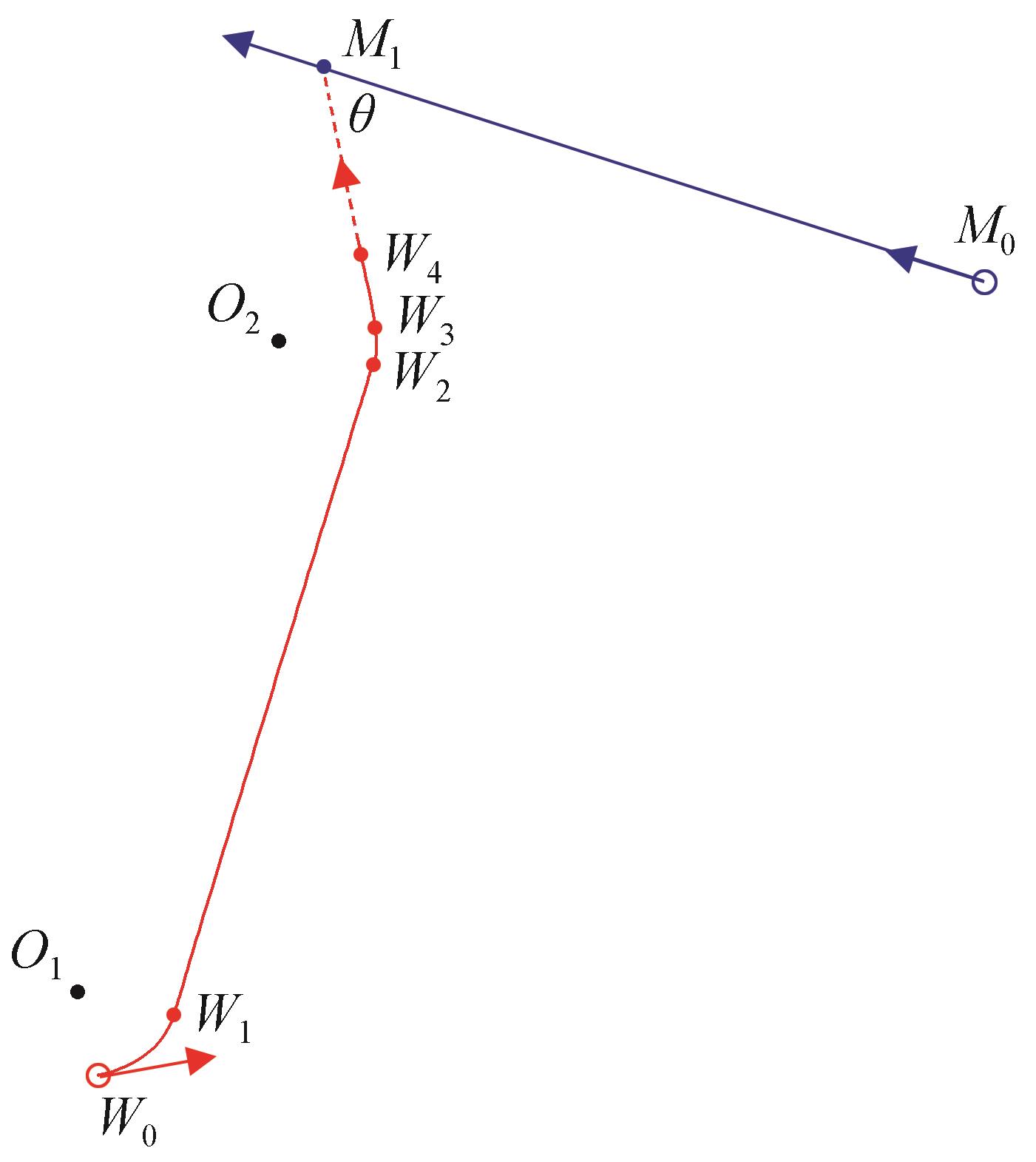

图1

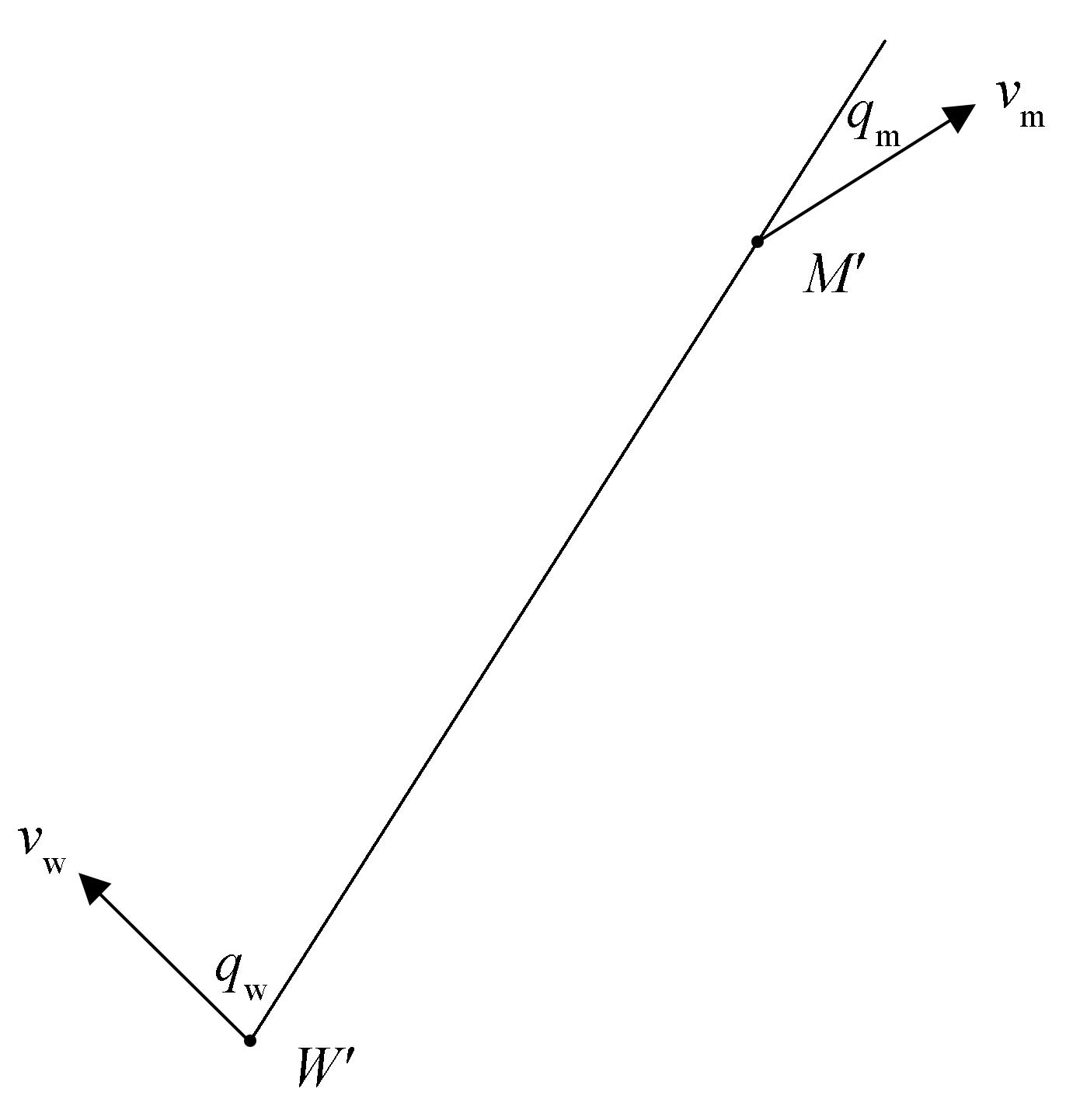

图2

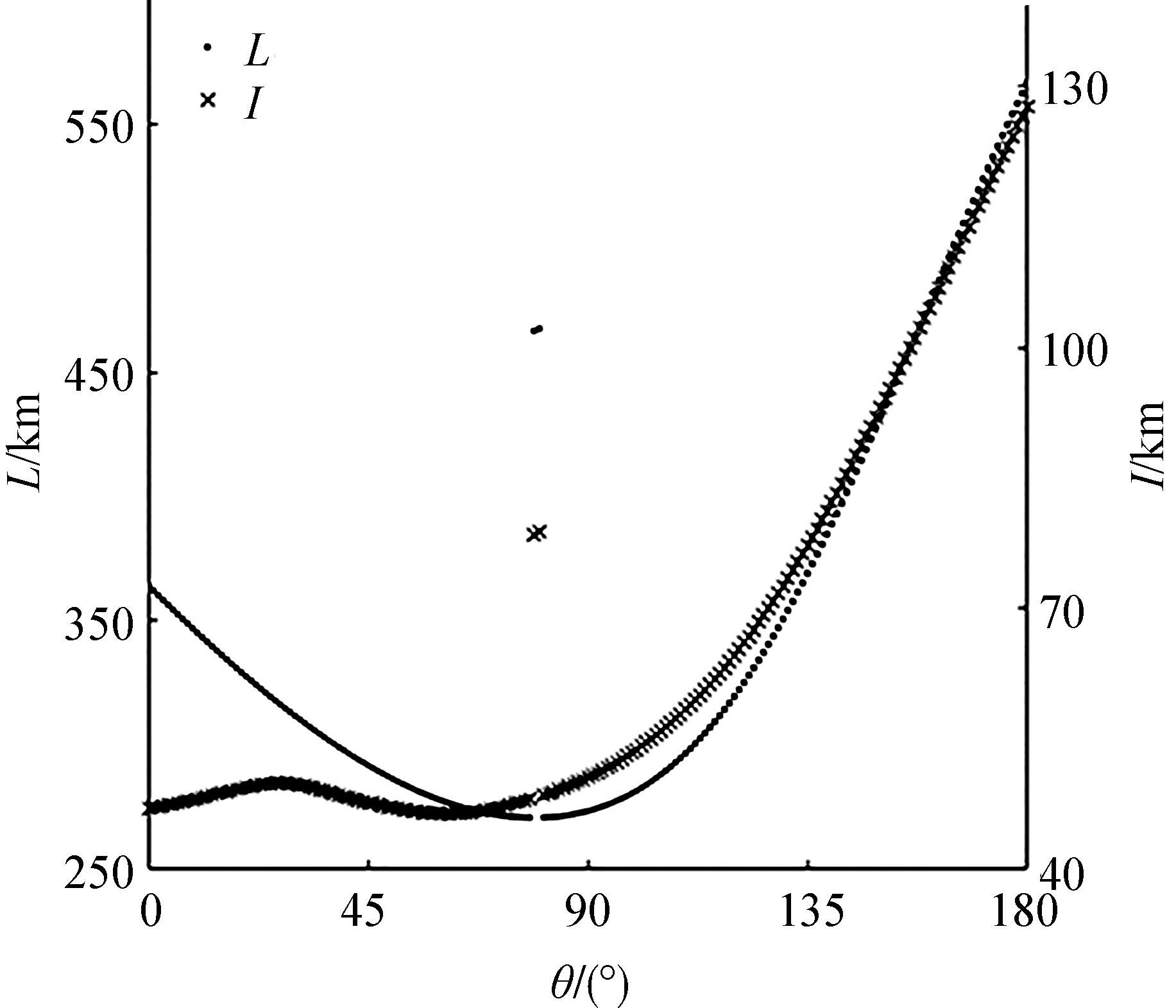

图3

表1

引导解算结果

参数	数值	参数	数值
$θ o$ /(°)	61	\| $w 1 w 2 ⃗$ \|/km	212
(n₁， n₂)	(-1， -1)	I( $θ o$ )/km	46
(φ₁， φ₂)/(°)	(65， 24)	L/km	277

表1

表2

表3

不同态势下引导解算结果

θ_o/(°)	(n₁， n₂)	(φ₁， φ₂)/(°)	\| $w 1 w 2 ⃗$ \|/km	I(θ_o)/km	L/km
21	(-1， 1)	(10， 29)	360	59	401
66	(1， -1)	(29， 23)	221	46	269
174	(-1， 1)	(35， 1)	42	22	83
52	(-1， -1)	(184， 44)	72	46	202
111	(-1， -1)	(153， 16)	129	37	231

表3

表4

不同威胁权重下引导解算结果

(α_a， α_d， α_v)	θ_o/(°)	(n₁, n₂)	(φ₁, φ₂)/(°)	\| $w 1 w 2 ⃗$ \|/km	I(θ_o)/km	L/km
(0.2， 0.6， 0.2)	68	(-1， -1)	(67， 15)	212	38	273
(0.6， 0.2， 0.2)	56	(-1, -1)	(64, 30)	214	58	281

表4

表5

不同距离威胁参数下引导解算结果

(d_R， d_M， d_KMax)/km	θ_o/(°)	(n₁， n₂)	(φ₁， φ₂)/(°)	\| $w 1 w 2 ⃗$ \|/km	I(θ_o)/km	L/km
(140， 90， 60)	56	(-1， -1)	(64， 30)	214	48	281
(100， 70， 40)	64	(-1， -1)	(66， 20)	212	44	275

表5

参考文献 32

1	丁指南. 指挥引导学(上册)[M]. 西安: 空军第二飞行学院, 2006.
	Ding Zhinan. Command and Guidance (Volume one)[M]. Xi'an: The Second Flying Academy of Air Force, 2006.
2	丁指南. 指挥引导学(下册)[M]. 西安: 空军第二飞行学院, 2006.
	Ding Zhinan. Command and Guidance (Volume two)[M]. Xi'an: The Second Flying Academy of Air Force, 2006.
3	李峰, 王瑾, 戴苏榕. 指挥引导模型的自动生成[J]. 火力与指挥控制, 2007, 32(1): 108-110.
	Li Feng, Wang Jin, Dai Surong. Generating Command and Guide Model Automatically[J]. Fire Control and Command Control, 2007, 32(1): 108-110.
4	王宏强, 王文潇, 张雷, 等. 空战截击引导航线自动生成算法研究[J]. 指挥控制与仿真, 2012, 34(1): 44-47, 60.
	Wang Hongqiang, Wang Wenxiao, Zhang Lei, et al. Research on Automatic Generation Algorithm of Air-combat Intercept Guide Airline[J]. Command Control & Simulation, 2012, 34(1): 44-47, 60.
5	许锡锴, 徐磊, 陈辉. 预警机引导单机多目标攻击方案决策研究[J]. 电光与控制, 2019, 26(7): 46-50.
	Xu Xikai, Xu Lei, Chen Hui. On Decision-making for Single-to-multiple Attack Guided by AWACS[J]. Electronics Optics ＆ Control, 2019, 26(7): 46-50.
6	蓝伟华. 空对空多目标攻击载机攻击航线求解逻辑[J]. 电光与控制, 2007, 14(3):16-18.
	Lan Weihua. Attack Course Determination of Fighter in Air-to-Air Multi-target Attacking[J]. Electronics Optics ＆ Control, 2007, 14(3): 16-18.
7	张安, 孙海洋, 张艳霞. 预警机指挥引导编队协同对海作战系统建模与仿真[J]. 系统工程与电子技术, 2016, 38(1): 90-95.
	Zhang An, Sun Haiyang, Zhang Yanxia. Research on Modeling and Simulation of Formation Cooperation under Air Early Warning Command and Guidance on the Sea Battles[J]. Systems Engineering and Electronics, 2016, 38(1): 90-95.
8	体卫群, 张安, 曹拴劳, 等. 机载雷达目标编队试飞指挥引导自动化方法与实现[J]. 系统仿真学报, 2006, 18(4): 821-824, 828.
	Weiqun Ti, Zhang An, Cao Shuanlao, et al. Method and Realization of Automatical Command Guidance of Target Formation Flight Test for Airborne Radar[J]. Journal of System Simulation, 2006, 18(4): 821-824, 828.
9	吴华兴, 黄伟, 康凤举, 等. 基于前置攻击瞄准的UCAV自主拦截方法研究[J].系统仿真学报, 2016, 28(9): 2246-2253.
	Wu Huaxing, Huang Wei, Kang Fengju, et al. Research on Autonomous Intercept Method for UCAV Based on Lead Attack Aiming[J]. Journal of System Simulation, 2016, 28(9): 2246-2253.
10	任鹏, 高晓光. 人机协同智能航迹规划算法[J]. 系统仿真学报, 2015, 27(2): 313-319.
	Ren Peng, Gao Xiaoguang. Man-Machine Coordinated Intelligent Flight Path Planning Algorithm[J]. Journal of System Simulation, 2015, 27(2): 313-319.
11	林彬, 韩光辉, 宋晨晨, 等. 基于辐射扫描算法的机器人路径规划与仿真[J]. 系统仿真学报, 2021, 33(1): 84-90.
	Lin Bin, Han Guanghui, Song Chenchen, et al. Traversal Path Planning and Simulation of Robot Based on Radiation Scanning[J]. Journal of System Simulation, 2021, 33(1): 84-90.
12	张涛, 周中良, 苟新禹, 等. 基于信息熵和TOPSIS法的目标威胁评估及排序[J]. 电光与控制, 2012, 19(11): 16-19.
	Zhang Tao, Zhou Zhongliang, Gou Xinyu, et al. Threat Assessment and Sorting of Aerial Targets Based on Information Entropy and TOPSIS Method[J]. Electronics Optics ＆ Control, 2012, 19(11): 16-19.
13	张银燕. 基于云模型理论的空中目标威胁评估方法[D]. 郑州: 解放军信息工程大学, 2013.
	Zhang Yinyan. Methods of Threat Assessment for Aerial Targets Based on Cloud Model Theory[D]. Zhengzhou: Information Engineering University, 2013.
14	高阳阳, 余敏建, 王子博琳. 基于云模型和改进熵权的空战多目标威胁等级评估[J]. 火力与指挥控制, 2018, 43(9): 35-39.
	Gao Yangyang, Yu Minjian, Wang Zibolin. Target Threat Assessment Technology for UAV Air Combat Based on Cloud Model and Improved Entropy Weight[J], Fire Control &Command Control, 2018, 43(9): 35-39.
15	奚之飞, 徐安, 寇英信, 等. 基于PCA-MPSO-ELM的空战目标威胁评估[J]. 航空学报, 2020, 41(9): 216-231.
	Xi Zhifei, Xu An, Kou Yingxin, et al. Target Threat Assessment in Air Combat Based on PC-MPSO-ELM Algorithm[J]. Acta Aeronautica et Astronautica Sinica, 2020, 41(9): 216-231.
16	杨爱武, 李战武, 徐安, 等. 基于RS-CRITIC的空战目标威胁评估[J]. 北京航空航天大学学报, 2020, 46(12): 2357-2365.
	Yang Aiwu, Li Zhanwu, Xu An, et al. Threat Assessment of Air Combat Target Based on RS-CRITIC[J]. Journal of Beijing University of Aeronautics and Astronautics, 2020, 46(12): 2357-2365.
17	董彦非, 冯惊雷, 张恒喜. 多机空战仿真协同战术决策方法[J]. 系统仿真学报, 2002, 14(6): 723-725.
	Dong Yanfei, Feng Jinglei, Zhang Hengxi. Cooperative Tactical Decision Methods for Multi-aircraft Air Combat Simulation[J]. Journal of System Simulation, 2002, 14(6): 723-725.
18	董彦非, 郭基联, 张恒喜. 多机空战目标威胁评估算法[J]. 火力与指挥控制, 2002(4): 73-76.
	Dong Yanfei, Guo Jilian, Zhang Hengxi. Threat Assessment for Multi-aircraft-Air Combat[J]. Fire Control and Command Control, 2002(4): 73-76.
19	高永, 向锦武. 一种新的超视距空战威胁估计非参量法模型[J]. 系统仿真学报, 2006, 18(9): 2570-2572.
	Gao Yong, Xiang Jingwu. New Threat Assessment Non-Parameter Modeling Beyond-Visual-Range Air Combat[J]. Journal of System Simulation, 2006, 18(9): 2570-2572.
20	肖冰松, 方洋旺, 胡诗国, 等. 一种新的超视距空战威胁评估方法[J]. 系统工程与电子技术, 2009, 31(9): 2163-2166.
	Xiao Bingsong, Fang Yangwang, Hu Shiguo, et al. New Threat Assessment Method in Beyond-the-horizon Range Air Combat[J]. Systems Engineering and Electronics, 2009, 31(9): 2163-2166.
21	魏世孝, 周献中. 多属性决策理论方法及其在C3I系统中的应用[M]. 北京: 国防工业出版社, 1998.
	Wei Shixiao, Zhou Xianzhong. Multi-attribute Decision Making: Theories, Methods, and Their Applications in C3I System[M]. Beijing: National Defense Industry Press, 1998.
22	Hwang C L, Yoon K. Multiple Attribute Decision Making: Methods and Applications[M]. Berlin: Springer-Verlag, 1981.
23	Chen S J, Hwang C L. Fuzzy Multiply Attribute Decision Making: Methods and Applications[M]. Berlin: Springer-Verlag, 1992.
24	Azimirad, E, Haddadnia J. Target Threat Assessment Using Fuzzy Sets Theory[J]. International Journal of Advances in Intelligent Informatics (S2442-6571). 2015, 1(2): 57-74.
25	王佩, 李言俊, 张科. 多机空战多目标威胁评估和分配算法[J]. 火力与指挥控制, 2008, 33(5): 14-17.
	Wang Pei, Li Yanjun, Zhang Ke. Multi-target Threat Assessment and Assignment Algorithm for Multi-aircraft Air Combat Simulation[J]. Fire Control &Command Control, 2008, 33(5): 14-17.
26	孔尚萍, 张海瑞, 廖选平, 等. 基于AHP与熵权法的空中目标威胁评估方法[J]. 战术导弹技术, 2018(1): 79-84.
	Kong Shangping, Zhang Hairui, Liao Xuanping, et al. Aerial Targets Threat Assessment Based on AHP and Entropy Weight Method[J]. Tactical Missile Technology, 2018(1): 79-84.
27	赵磊, 李仁松, 常国任. 预警机引导战斗机空战目标分配模型[J]. 指挥控制与仿真, 2008(5): 34-36.
	Zhao Lei, Li Rensong, Chang Guoren. Model of Target Assignment of the Early Warning Aircraft Steering the Fighter Plane for Airfight[J]. Command Control & Simulation, 2008(5): 34-36.
28	郭辉, 徐浩军, 刘凌. 基于回归型支持向量机的空战目标威胁评估[J]. 北京航空航天大学学报, 2010, 36(1): 123-126.
	Guo Hui, Xu Haojun, Liu Ling. Target Threat Assessment of Air Combat Based on Support Vector Machines for Regression[J]. Journal of Beijing University of Aeronautics and Astronautics, 2010, 36(1): 123-126.
29	王改革, 郭立红, 段红, 等.基于萤火虫算法优化ＢＰ神经网络的目标威胁估计[J]. 吉林大学学报(工学版),2013, 43(4): 1064-1069.
	Wang Gaige Guo Lihong, Duan Hong, et al. Target Threat Assessment Using Glowworm Swarm Optimization and BP Neural Network[J]. Journal of Jilin University (Engineering and Technology Edition), 2013, 43(4): 1064-1069.
30	袁姗姗. 舰载机截击引导仿真研究[J]. 现代计算机, 2019(3): 33-36.
	Yuan Shanshan. Simulation Research on Carrier-Borne Aircraft Intercepting Guidance[J]. Modern Computer, 2019(3): 33-36.
31	于英男, 陈小银, 谢兵. 舰载机目标分配及兵力引导仿真建模研究[J]. 舰船电子工程, 2011, 31(1): 100-103, 127.
	Yu Yingnan, Chen Xiaoyin, Xie Bing. Research on Simulation Modeling of Multi-targets Assignment and Aircraft Guiding of Aircraft Carrier[J]. Ship Electronic Engineering, 2011, 31(1): 100-103, 127.
32	谢邦荣, 杨剑影, 尹健, 等. 导弹单发杀伤概率影响因素分析[J]. 火力与指挥控制, 2004, 29(2): 60-64.
	Xie Bangrong, Yang Jianying, Yin Jian, et al. Analysis of the Influencing Factors Upon Kill Probability for Single Missile[J]. Fire Control & Command Control, 2004, 29(2): 60-64.

态势	M₀=(x， y) km	v_m/(km/h)	K_m/(°)
1	(200， 250)	960	120
2	(250， -250)	1 000	20
3	(150， 150)	1 200	220
4	(-250， 250)	2 200	160
5	(-250， 200)	700	160
