Intersection Positioning Algorithm with Spatial Translation Based on SAR Scene Matching

doi:10.16182/j.issn1004731x.joss.24-1234

Abstract

Abstract:

To address the problem that the positioning precision of the inertial navigation system cannot meet the requirements of autonomous positioning when the aircraft flies, an autonomous positioning method with spatial translation based on circular scanning scene matching of SAR was proposed. The spatial translation positioning model of the aircraft was established according to the position of the ground matching points obtained by single point and single circular scanning scene matching of SAR, the oblique distance between the matching points and the aircraft, and the inertial measurement information of the aircraft. The characteristic information of the matching point sequence was used to reconstruct the aircraft velocity, thereby compensating for the effect of inertial navigation error on positioning and reducing the positioning error. In light of the limitation that the least square solution was sensitive to the statistical characteristics of the error, the quasi-Newton optimization method was introduced to optimize the solution results. Simulation model calculation and analysis were carried out under the condition of level flight. The simulation results show that the spatial translation positioning algorithm is effective and feasible, and the RMSE of the positioning results is less than 5.5 m.

Key words: SAR, single point and single circular scanning imaging, spatial translation, scene matching positioning, velocity reconstruction

CLC Number:

TJ760.2

Pu Cheng'en, Lai Yumin, Shi Rui, Liao Yan, Meng Kezi, Qu Lifeng. Intersection Positioning Algorithm with Spatial Translation Based on SAR Scene Matching[J]. Journal of System Simulation, 2026, 38(4): 1058-1066.

Figures/Tables 11

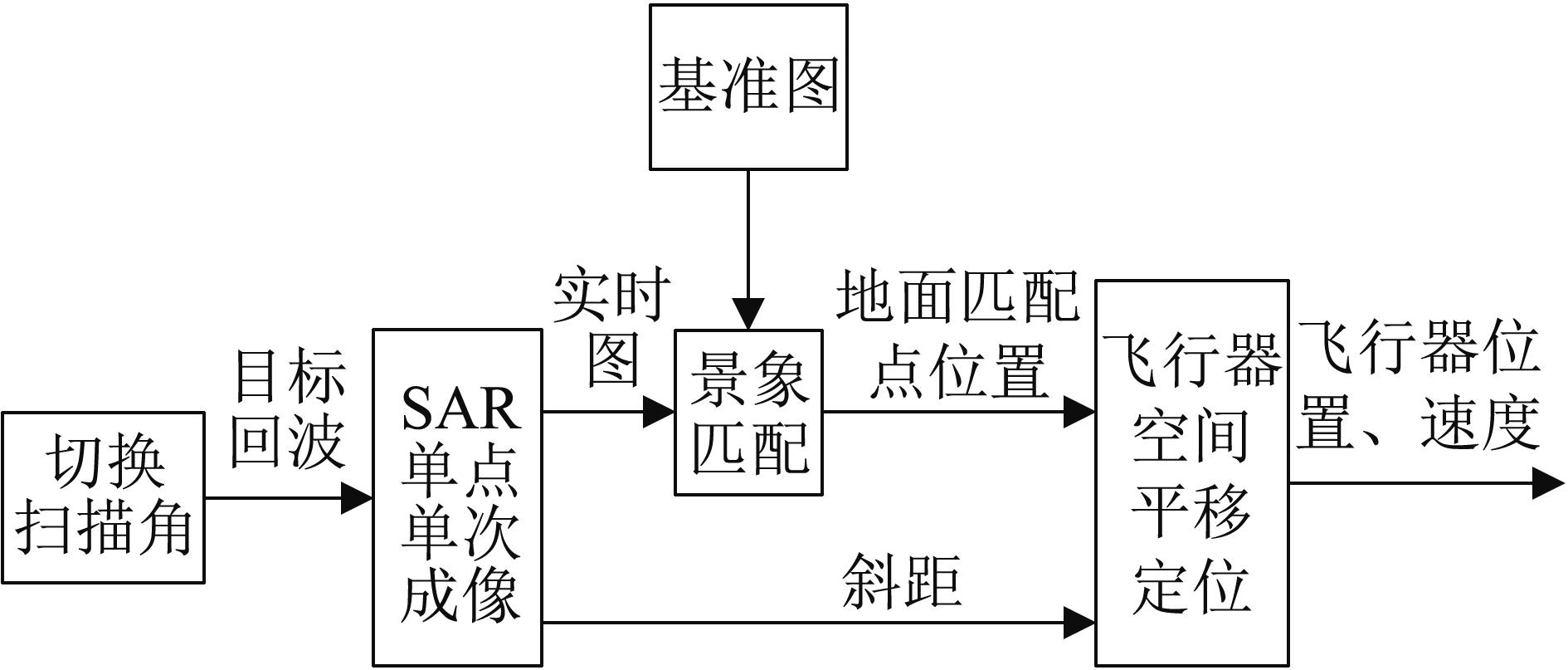

Fig. 1

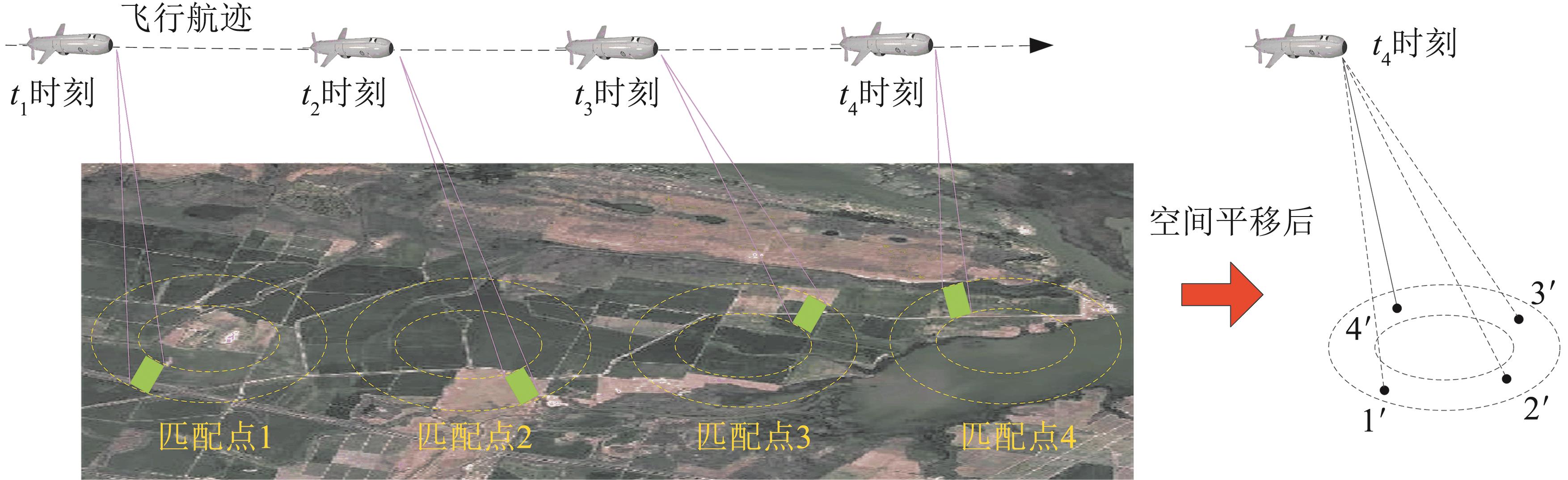

Fig. 2

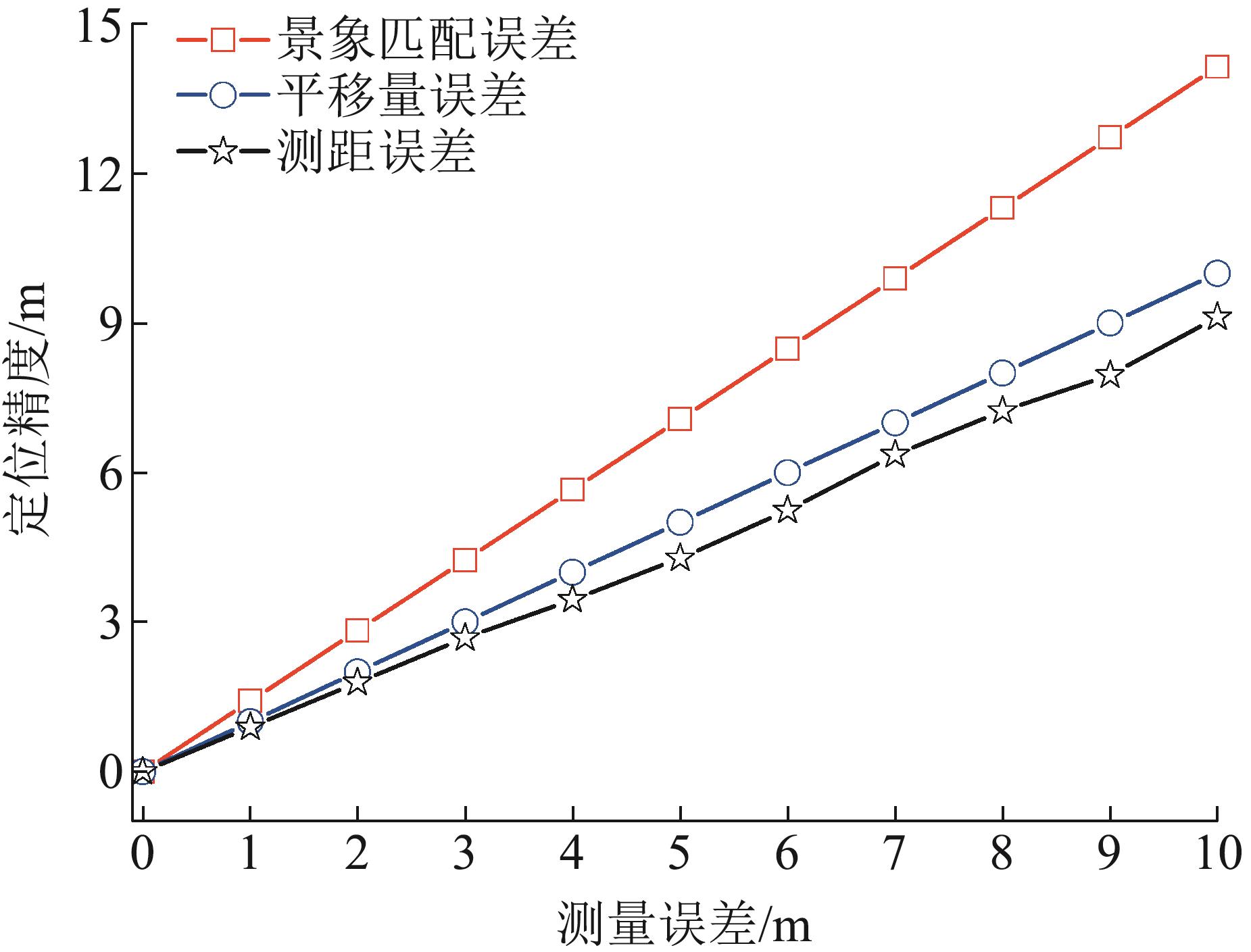

Fig. 3

Table 1

Table 2

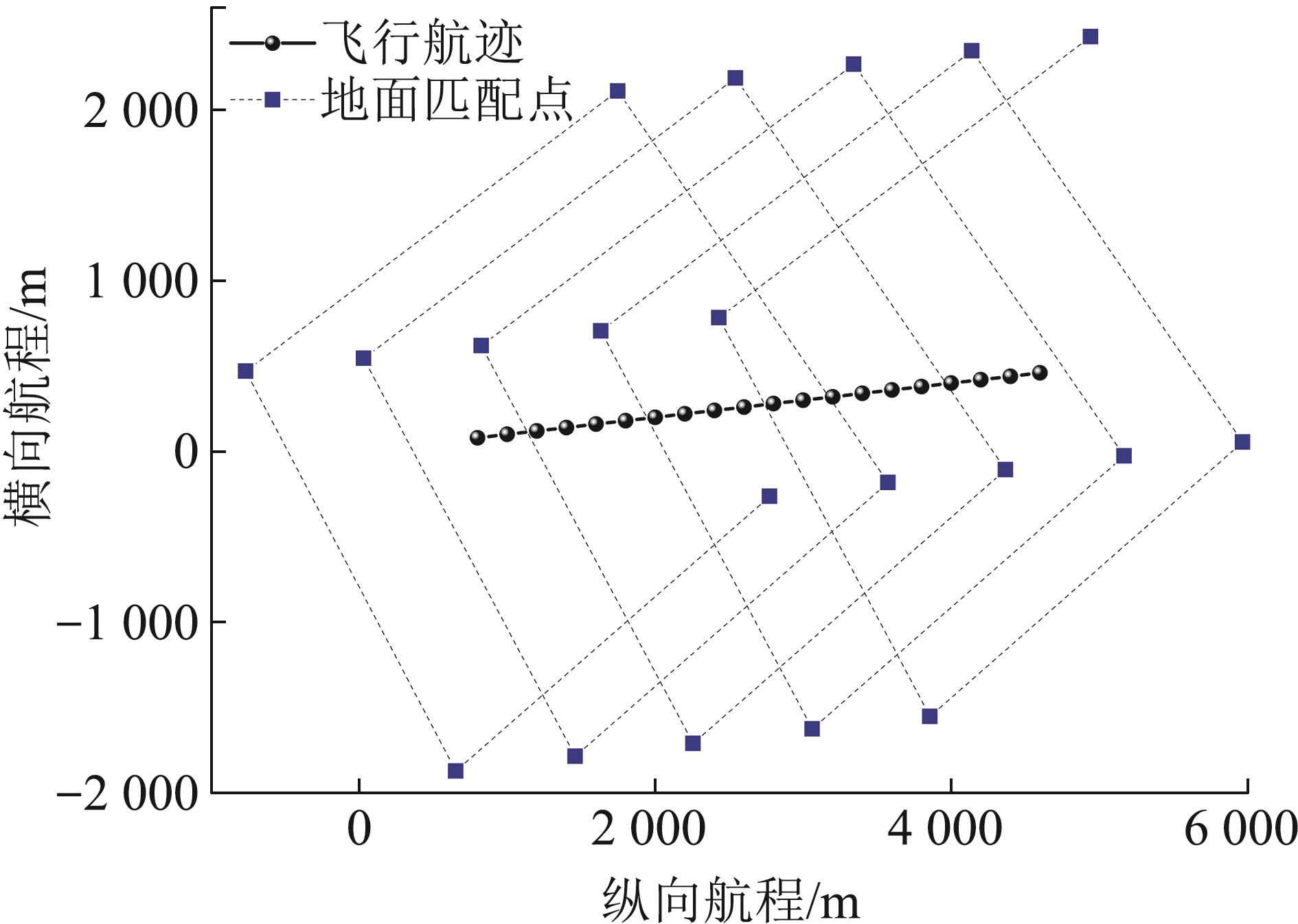

Fig. 4

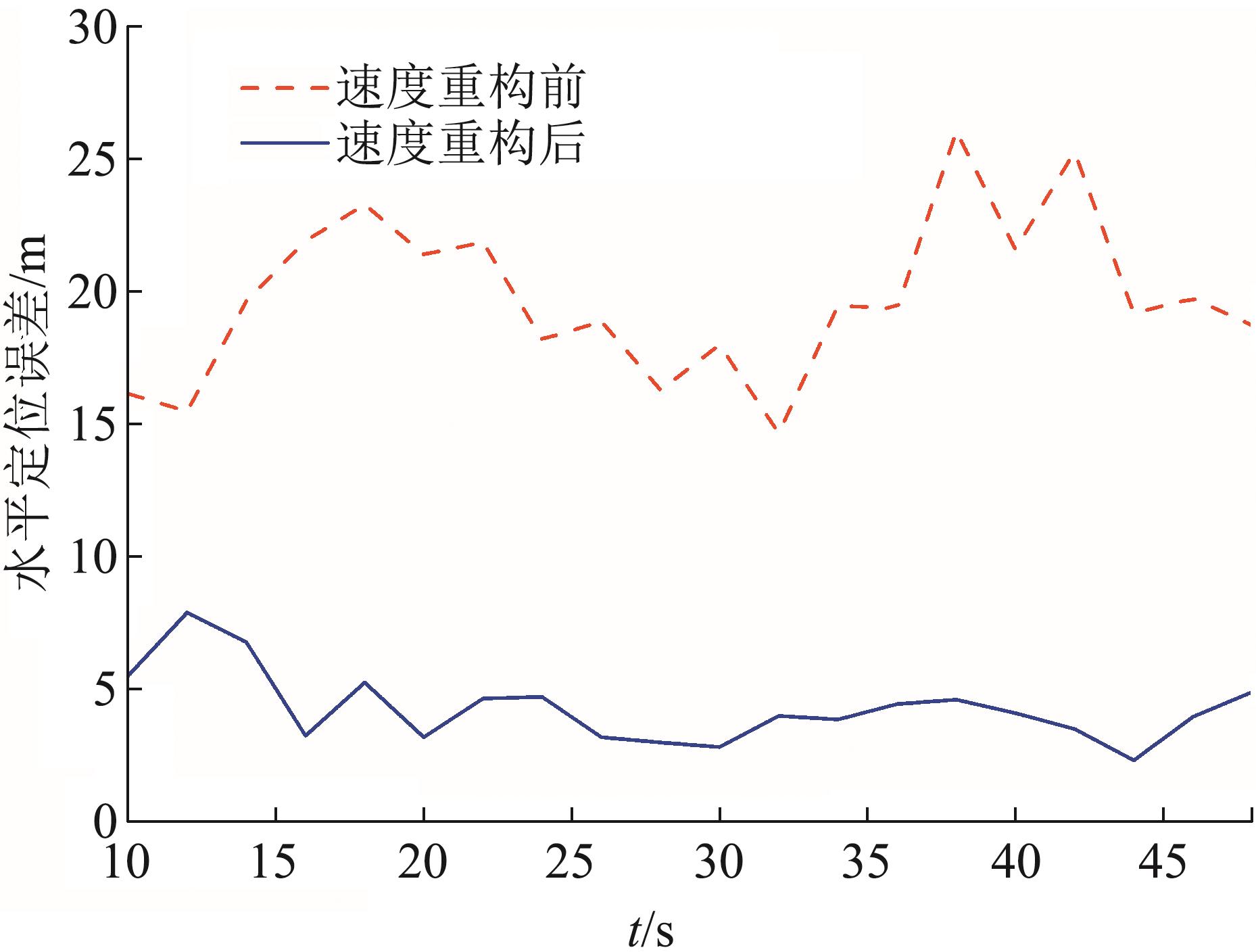

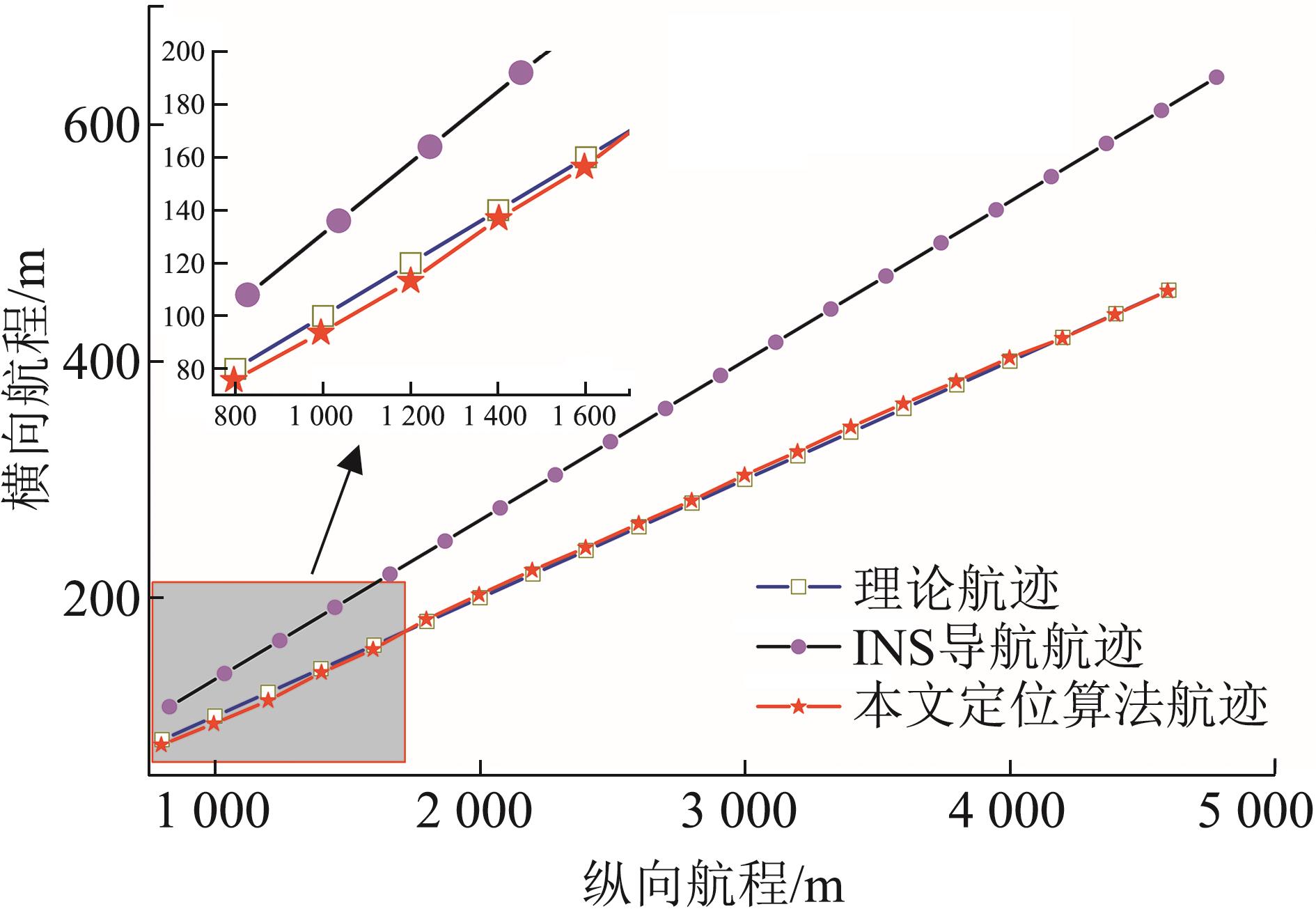

Fig. 5

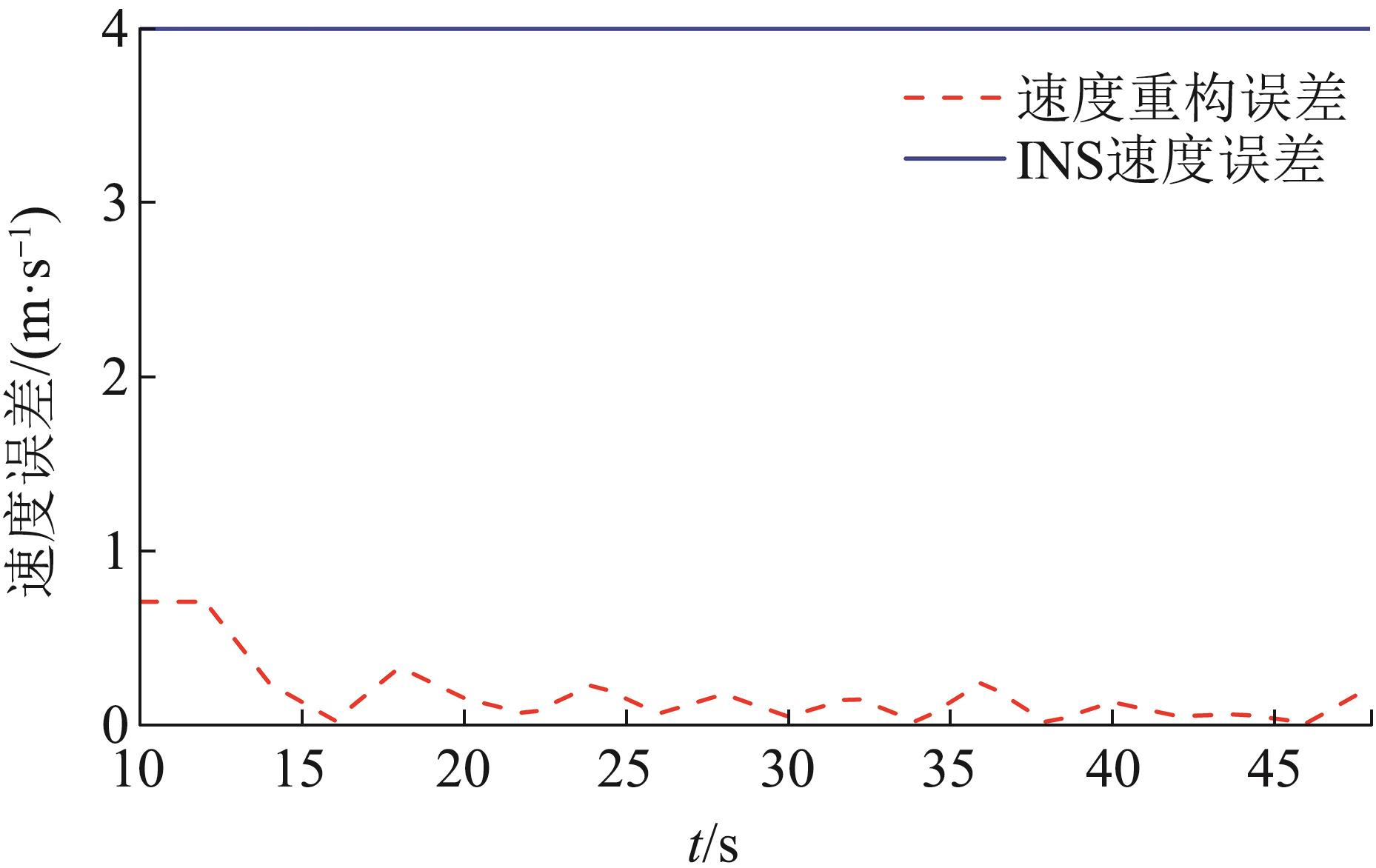

Fig. 6

Fig. 7

Fig. 8

Table 3

References 23

[1]	戴宗武, 张少甫, 刘乃强, 等. 用于自主导航的SAR/多普勒雷达一体化技术设计[J]. 兵工学报, 2022, 43(12): 3093-3102.
	Dai Zongwu, Zhang Shaofu, Liu Naiqiang, et al. SAR/Doppler Radar Integration Design for Autonomous Navigation[J]. Acta Armamentarii, 2022, 43(12): 3093-3102.
[2]	祝明波, 杨立波, 杨汝良. 弹载合成孔径雷达制导及其关键技术[M]. 北京: 国防工业出版社, 2014: 1-9.
	Zhu Mingbo, Yang Libo, Yang Ruliang. Missile-borne SAR Guidance: Fundamentals and Key Techniques[M]. Beijing: National Defense Industry Press, 2014: 1-9.
[3]	李亚超, 蓝金巧, 邢孟道, 等. SAR末制导中导弹定位方法及分析[J]. 遥测遥控, 2004, 25(6): 29-33, 56.
	Li Yachao, Lan Jinqiao, Xing Mengdao, et al. Positioning of Missile with Terminal Guide SAR System and Analysis[J]. Journal of Telemetry, Tracking and Command, 2004, 25(6): 29-33, 56.
[4]	秦玉亮, 李宏, 王宏强, 等. 基于SAR导引头的弹体定位技术[J]. 系统工程与电子技术, 2009, 31(1): 121-124.
	Qin Yuliang, Li Hong, Wang Hongqiang, et al. Missile Location Based on SAR Seeker[J]. Systems Engineering and Electronics, 2009, 31(1): 121-124.
[5]	尹奎英, 黄冠, 黄照悠. 基于广义伪距定位的SAR景象匹配导航方法[J]. 雷达科学与技术, 2021, 19(5): 589-597.
	Yin Kuiying, Huang Guan, Huang Zhaoyou. SAR Platform's Scene Matching Positioning Method Based on Generalized Pseud-range[J]. Radar Science and Technology, 2021, 19(5): 589-597.
[6]	黄照悠, 尹奎英. 一种基于广义伪距定位的SAR载机平台位置解算方法[J]. 电子测量技术, 2020, 43(18): 64-68.
	Huang Zhaoyou, Yin Kuiying. SAR Platform Positioning Method Based on Generalized Pseud-range[J]. Electronic Measurement Technology, 2020, 43(18): 64-68.
[7]	陈圣义, 刘晓春, 滕锡超, 等. 基于高精度景象匹配的SAR平台定位方法[J]. 国防科技大学学报, 2016, 38(5): 121-126.
	Chen Shengyi, Liu Xiaochun, Teng Xichao, et al. SAR Positioning Method Based on High-precision Scene Matching[J]. Journal of National University of Defense Technology, 2016, 38(5): 121-126.
[8]	冉聃, 邓欢, 李亚超, 等. 基于欧拉四面体的下降轨雷达图像定位方法[J]. 电子与信息学报, 2017, 39(3): 677-683.
	Ran Dan, Deng Huan, Li Yachao, et al. Radar Image Positioning Method on Decent Trajectory Based on Euler Tetrahedron[J]. Journal of Electronics & Information Technology, 2017, 39(3): 677-683.
[9]	梁毅, 李晴晴, 孙昆, 等. 利用SAR图像匹配的弹体定位新方法[J]. 西安电子科技大学学报, 2018, 45(6): 1-6.
	Liang Yi, Li Qingqing, Sun Kun, et al. New Method for Missile Positioning Based on SAR Scene Matching[J]. Journal of Xidian University, 2018, 45(6): 1-6.
[10]	伍薇, 苏娟. 一种基于双向匹配融合的合成孔径雷达景象匹配算法[J]. 兵工学报, 2019, 40(1): 124-133.
	Wu Wei, Su Juan. A SAR Scene Matching Algorithm Based on Bi-directional Matching Fusion[J]. Acta Armamentarii, 2019, 40(1): 124-133.
[11]	Merkle Nina, Auer Stefan, Müller Rupert, et al. Exploring the Potential of Conditional Adversarial Networks for Optical and SAR Image Matching[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2018, 11(6): 1811-1820.
[12]	Li Qixue, Yin Kuiying. High-resolution SAR Typical Targets Extraction and Heterogeneous Image Registration[J]. IETE Journal of Research, 2021, 67(3): 354-365.
[13]	Ye Yuanxin, Shen Li, Hao Ming, et al. Robust Optical-to-SAR Image Matching Based on Shape Properties[J]. IEEE Geoscience and Remote Sensing Letters, 2017, 14(4): 564-568.
[14]	张辉, 苏晓静, 张聪, 等. 基于适配性评价的合成孔径雷达景象匹配航迹规划方法研究[J]. 测试技术学报, 2018, 32(1): 60-64.
	Zhang Hui, Su Xiaojing, Zhang Cong, et al. Research on SAR Scene Matching Route Planning Based on Fitness Evaluation[J]. Journal of Test and Measurement Technology, 2018, 32(1): 60-64.
[15]	郑刚, 杨小冈, 刘云峰, 等. 一种前视红外视觉导航连续跟踪导航区选取方法[J]. 电光与控制, 2015, 22(12): 102-106, 116.
	Zheng Gang, Yang Xiaogang, Liu Yunfeng, et al. An Approach for Selecting Continuous Tracking Navigation Area for FLIR Visual Navigation[J]. Electronics Optics & Control, 2015, 22(12): 102-106, 116.
[16]	Kim Jungho, Kweon In-So. Vision-based Navigation with Pose Recovery Under Visual Occlusion and Kidnapping[C]//2010 IEEE International Conference on Robotics and Automation. Piscataway: IEEE, 2010: 1921-1927.
[17]	徐英, 谷雨, 彭冬亮, 等. 面向合成孔径雷达图像任意方向舰船检测的改进YOLOv3模型[J]. 兵工学报, 2021, 42(8): 1698-1707.
	Xu Ying, Gu Yu, Peng Dongliang, et al. An Improved YOLOv3 Model for Arbitrary-oriented Ship Detection in SAR Image[J]. Acta Armamentarii, 2021, 42(8): 1698-1707.
[18]	李诗润, 刘昕, 杨娟娟, 等. 基于星载合成孔径雷达的环扫成像模式设计[J]. 空间电子技术, 2022, 19(2): 106-110.
	Li Shirun, Liu Xin, Yang Juanjuan, et al. A Circular Scanning Imaging-mode Design Based on the Spaceborne Synthetic Aperture Radar[J]. Space Electronic Technology, 2022, 19(2): 106-110.
[19]	严恭敏, 翁浚. 捷联惯导算法与组合导航原理[M]. 西安: 西北工业大学出版社, 2019: 78-105.
[20]	Zhang Miaoyan, Zhang Jun. A Fast Satellite Selection Algorithm: Beyond Four Satellites [J]. IEEE Journal of Selected Topics in Signal Processing, 2009, 3(5): 740-747.
[21]	杨小冈, 陈世伟, 席建祥. 飞行器异源景像匹配制导技术[M]. 北京: 科学出版社, 2016: 117-137.
[22]	王现辉. 退化问题拟牛顿法超线性收敛性条件[D]. 长沙: 湖南大学, 2009: 10-30.
	Wang Xianhui. Conditions for the Superlinear Convergence of Quasi-newton Methods on Degenerate Solutions[D]. Changsha: Hu'nan University, 2009: 10-30.
[23]	周伟军. 拟牛顿法及其收敛性[D]. 长沙: 湖南大学, 2006: 1-8.
	Zhou Weijun. Quasi-newton Methods and Their Convergence Properties[D]. Changsha: Hunan University, 2016: 1-8.

算法类别	纵向精度	横向精度
多普勒测角定位法	21.34	10.98
四面体构型定位法	10.72	5.53
本文定位方法	5.08	5.45

仿真条件	具体取值
飞行速度/(m/s)	100.5
飞行高度/m	2 000
景象匹配周期/s	2
景象匹配误差/m	U(-5, 5)
测距误差/m	U(-6, 6)
INS速度误差/(m/s)	4
参与定位匹配点数量	4

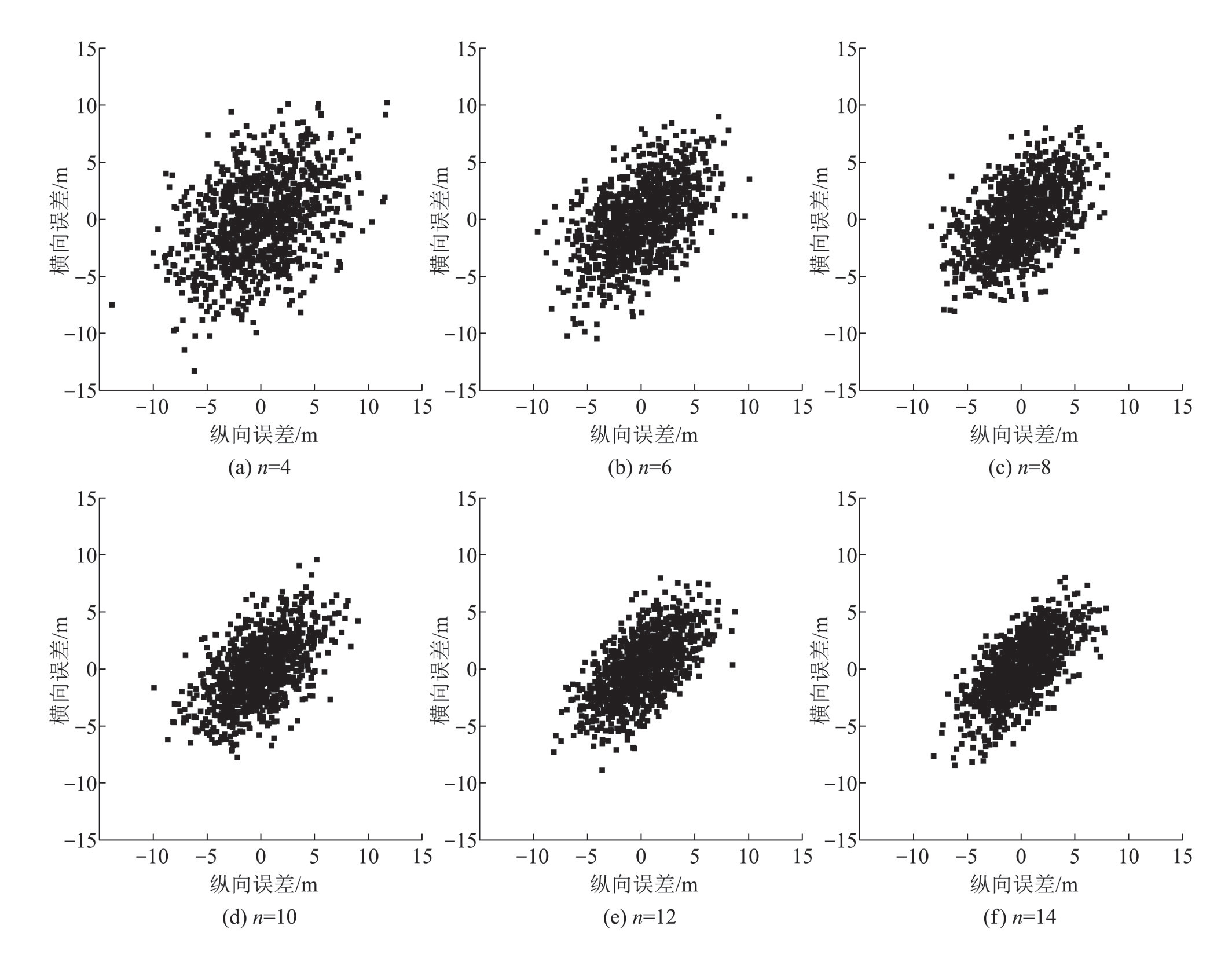

n	RMSE/m	n	RMSE/m
4	5.281 7	10	4.008 6
6	4.712 4	12	3.840 9
8	4.397 3	14	3.771 4
