Multi-strategy Partheno-genetic Algorithm Based on Dynamic Reduction Mechanism for Solving CVRP Problem

doi:10.16182/j.issn1004731x.joss.23-0662

Abstract

Abstract:

Aiming at the problems of premature, slow convergence and low accuracy of traditional genetic algorithm in solving capacitated vehicle routing problem,a multi-strategy partheno-genetic algorithm based on dynamic reduction mechanism is proposed. The algorithm divides the optimization space based on similar individuals, and uses simulated annealing criterion to eliminate or update the lowest category subspace, which constitutes the reduction and movement mechanism of the optimization space.Based on partheno-genetic algorithm,a variety of genetic evolution strategies including intra-group, inter-group, global search, disturbance and jump strategy are designedBased on the three penalty factors of individual development, population evolution and overall convergence, the adaptive penalty function component is designed for the fitness function, which is more effective to punish the infeasible solution.Through the simulation experiments on three groups of CVRP problems, the results show that DRM-MSPGA algorithm is improved in population quality, global and local optimization ability, solution accuracy and convergence speed.

Key words: vehicle routing problem, genetic algorithm, dynamic reduction mechanism, adaptive penalty function, multi-strategy genetic evolution

CLC Number:

TP391

Chen Jiajun, Tan Dailun. Multi-strategy Partheno-genetic Algorithm Based on Dynamic Reduction Mechanism for Solving CVRP Problem[J]. Journal of System Simulation, 2024, 36(10): 2396-2412.

Figures/Tables 14

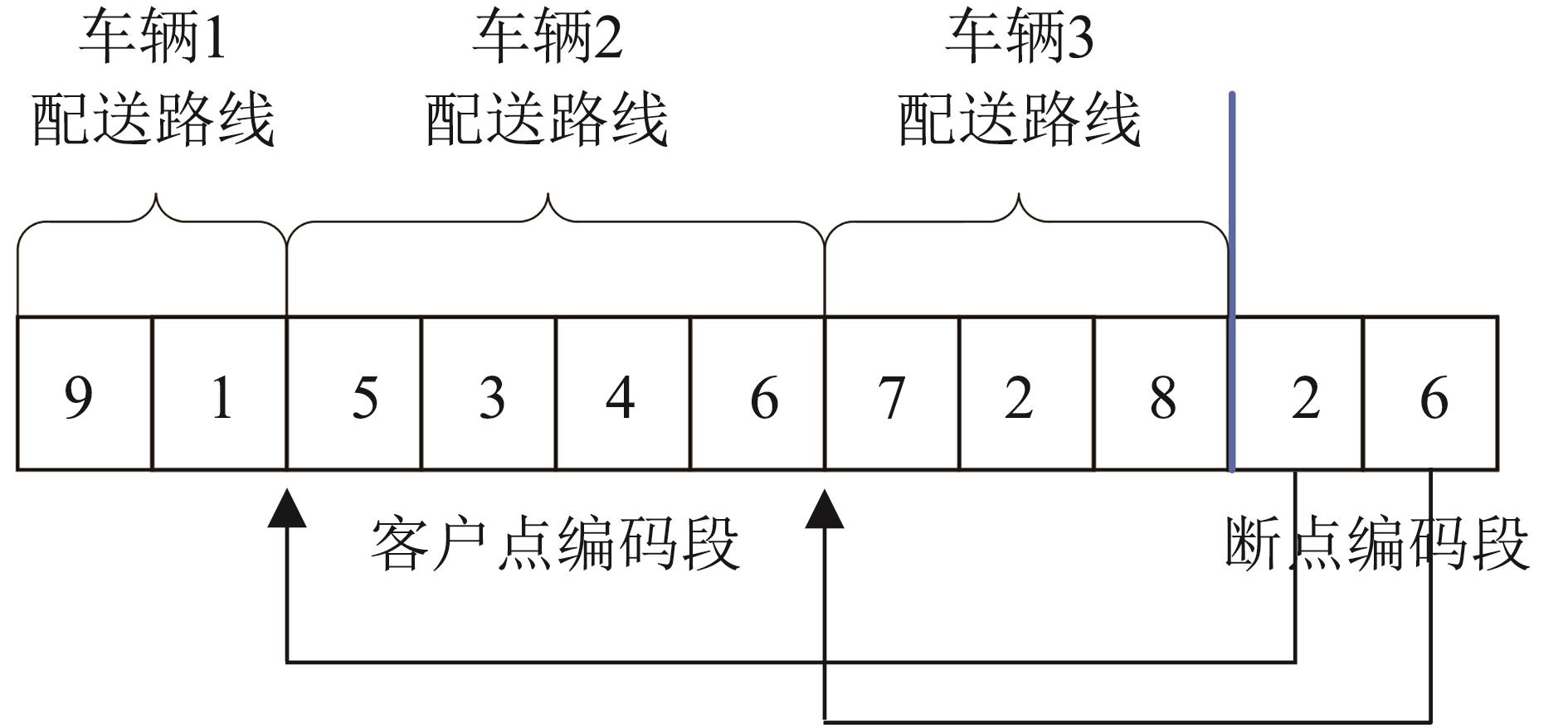

Fig. 1

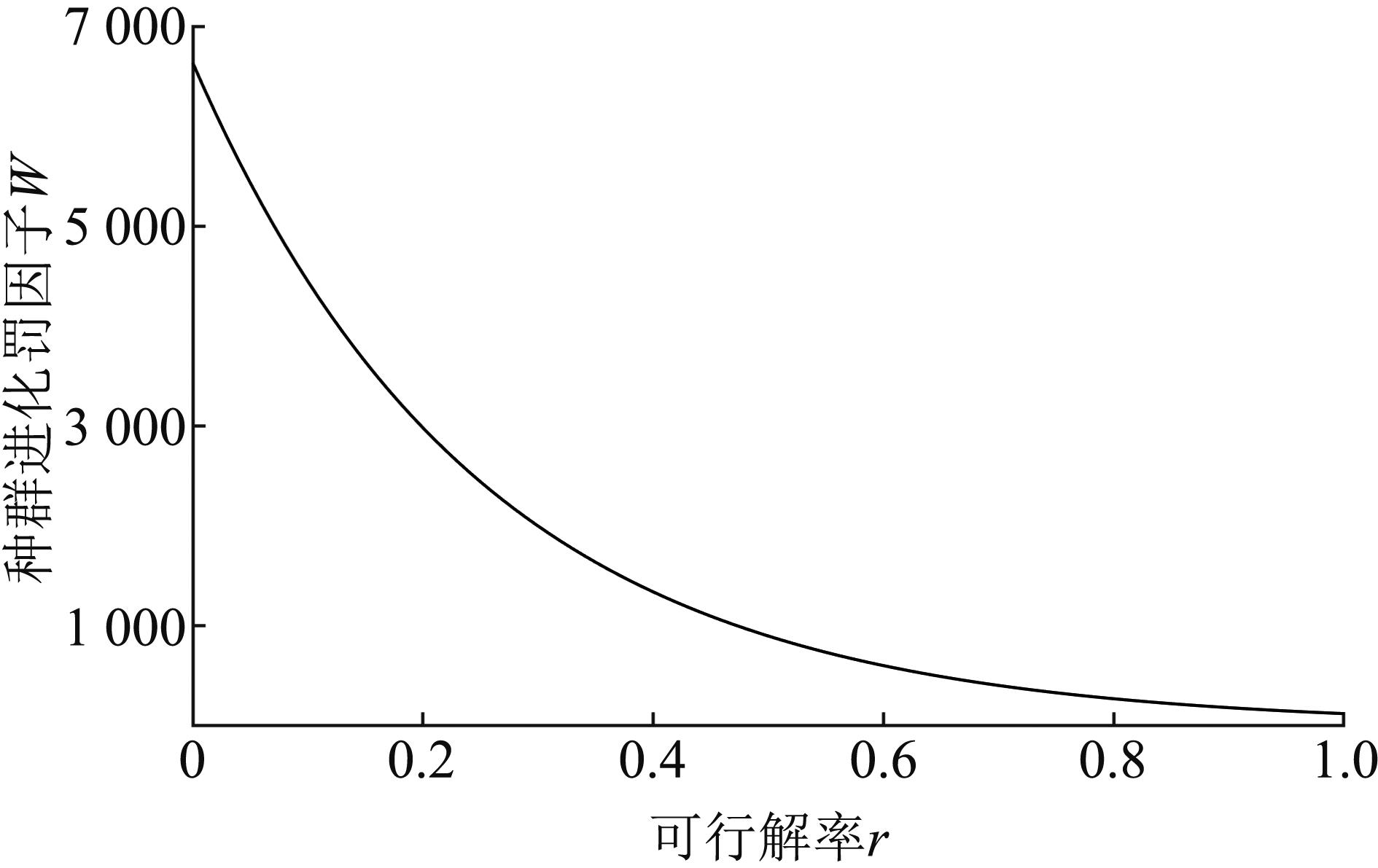

Fig. 2

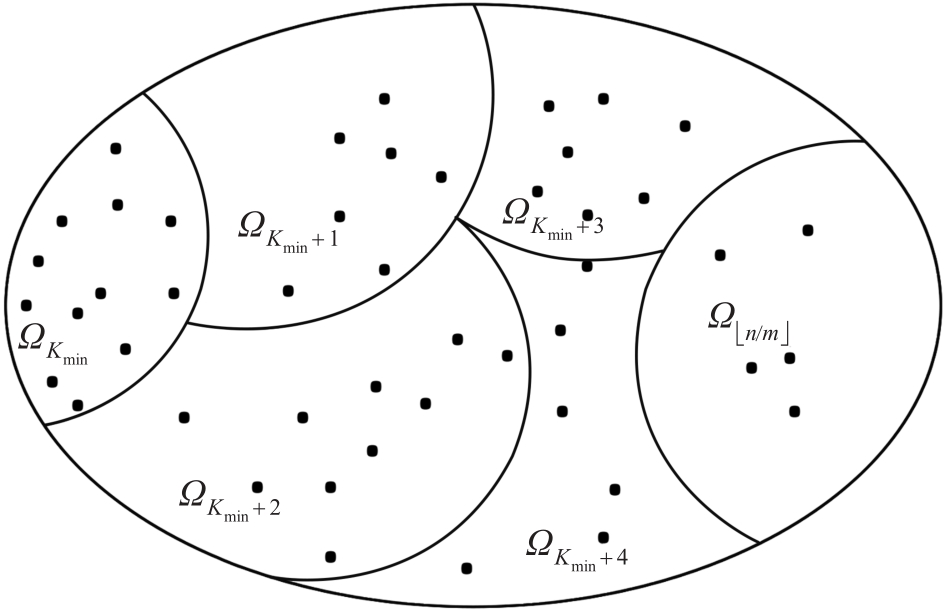

Fig. 3

Table 1

Penalty function categories

罚函数类型	公式
自适应罚函数 $F$	$F = 1 / e a (r - b) ⋅ δ ⋅ (1 + (f - f o p t) / f) ⋅ t / G$
自适应罚函数 $F 1$	$F 1 = δ ⋅ (1 + (f - f o p t) / f) ⋅ t / G$
自适应罚函数 $F 2$	$F 2 = 1 / e a (r - b) ⋅ t / G$
传统罚函数 $F 3$	$F 3 = 100$

Table 1

Table 2

Validity test of penalty factor

罚函数类型		A-n33-k5	A-n33-k6	A-n37-k6	A-n55-k9
$F$	P_PFS	73.91	57.70	42.87	40.64
	I_SCR	140	96.94	70.75	90.68
	I_SCRE	4.45	4.62	4.42	5.81
$F 1$	P_PFS	17.23	15.79	2.57	2.12
$F 2$	P_PFS	58.34	46.36	37.10	30.34
	I_SCR	129.28	88.50	68.75	72.20
	I_SCRE	4.09	4.08	3.95	3.72

Table 2

Table 3

Adaptive penalty function performance test

CVRP		A-n33-k5(661)	A-n33-k6(742)	A-n37-k6(949)	A-n55-k9 (1073)
$T F$	Best	661	742	967	1 095
	AVG	664.33	749.17	974.92	1 109.2
	$λ B D R$ /%	0	0	1.91	2.07
	$λ M D R$ /%	0.50	0.96	2.35	3.37
	NC	277.95	222.95	442.8	499.05
$F$	Best	661	742	949	1 074
	AVG	662.70	742.15	960.10	1 080.44
	$λ B D R$ /%	0	0	0	0.18
	$λ M D R$ /%	0.26	0.02	1.16	0.69
	NC	151.35	103.40	165.65	260.8

Table 3

Table 4

Reduced period parameter experiments

$Ω b e s t$	周期	Max	Min	Mean	WRT	ORT
A-n33-k5 (4)	T=50	3	2	2.45	9	11
	T=100	2	1	1.85	0	17
	T=200	2	1	1.05	0	1
P-n45-k5 (7)	T=50	5	3	4.17	9	3
	T=100	4	2	3.25	0	8
	T=200	3	1	2.10	0	0

Table 4

Table 5

Effectiveness analysis of dynamic reduction mechanism

分析方法	子空间 $Ω i$ 类别	迭代次数
分析方法	子空间 $Ω i$ 类别	200	400	600	800	1 000
使用DRM	1	929/47	0/0	0/0	0/0	0/0
	2	899/271	883/221	883/33	0/0	0/0
	3	920/24	886/72	886/6	886/51	0/0
	4	927/49	911/30	830/56	830/39	828/84
	5	954/2	912/29	828/122	828/57	827/57
	6	944/1	921/22	820/176	820/255	820/248
	7	910/3	910/7	8733/27	868/16	865/6
不使用DRM	1	949/50	917/168	899/119	899/129	899/47
	2	945/50	943/48	931/27	931/29	931/46
	3	938/42	938/28	938/48	938/39	938/55
	4	915/21	915/13	915/20	915/20	915/34
	5	897/38	897/8	896/12	896/12	896/12
	6	897/19	897/8	897/2	897/8	897/12
	7	863/163	856/144	854/190	854/178	854/198

Table 5

Table 6

Search strategy validity test

Instance (opt)	PGA			IPGA
Instance (opt)	Best	$λ B D R$ /%	$λ M D R$ /%	Best	$λ B D R$ /%	$λ M D R$ /%
A-n33-k6 (742)	824	9.95	15.86	742	0	0.17
A-n38-k5 (730)	796	9.04	23.96	730	0	0.96
P-n22-k2 (216)	216	0	5.93	216	0	0.06
P-n40-k5 (458)	501	8.58	22.43	458	0	1.25

Table 6

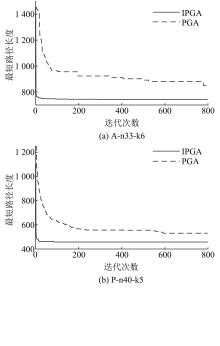

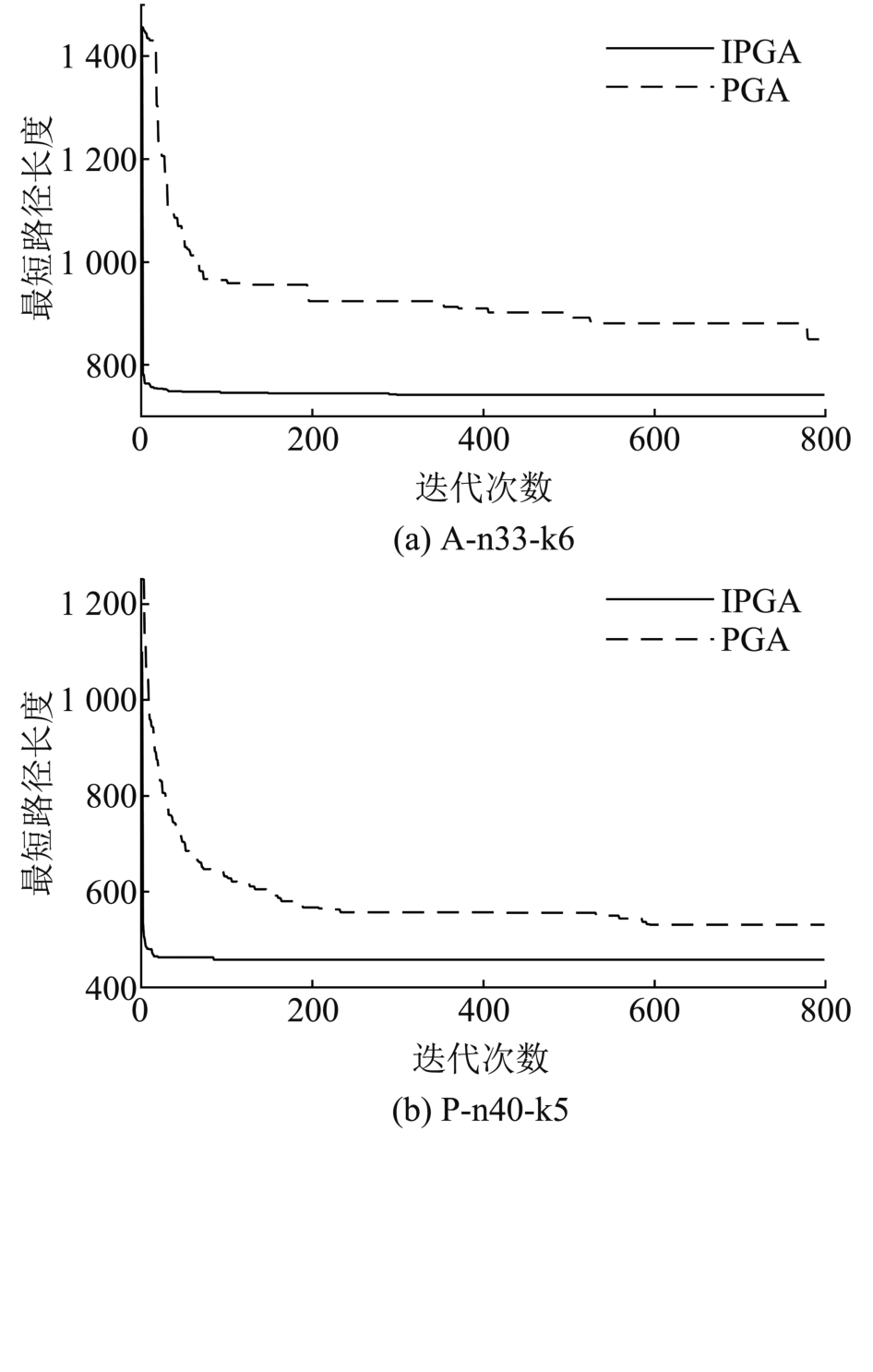

Fig. 4

Table 7

Test results for SetA examples

案例	OPT	CVRP-FA			ACGWOA			AS+VTPSO			DRM-MSPGA
案例	OPT	Best	$λ B D R$ /%	$λ M D R$ /%	Best	$λ B D R$ /%	$λ M D R$ /%	Best	$λ B D R$ /%	$λ M D R$ /%	Best	AVG	$λ B D R$ /%	$λ M D R$ /%
平均			0.12	0.38		0.03	0.98		10.02	\			0.08	0.54
A-n32-k5	784	796	1.53	1.77	784	0	0.43	882	12.50	\	784	788.30	0	0.51
A-n33-k5	661	661	0	0	661	0	0.08	698	5.60	\	661	661.00	0	0
A-n33-k6	742	742	0	0.09	742	0	0.09	751	1.21	\	742	742.15	0	0.02
A-n34-k5	778	778	0	0	778	0	0.62	785	0.90	\	778	778.00	0	0
A-n36-k5	799	799	0	0.65	799	0	0.94	881	10.26	\	799	810.00	0	1.36
A-n37-k5	669	669	0	0	669	0	0.54	754	12.71	\	669	669.50	0	0.07
A-n37-k6	949	949	0	0.68	949	0	1.20	1 112	17.18	\	949	960.10	0	1.16
A-n38-k5	730	730	0	0.10	730	0	0.50	813	11.37	\	730	733.10	0	0.42
A-n39-k5	822	822	0	0	822	0	0.49	877	6.69	\	822	823.00	0	0.12
A-n39-k6	831	831	0	0.43	833	0.24	0.69	972	16.97	\	832	834.50	0.12	0.42
A-n44-k6	937	937	0	0	937	0	1.26	1 056	12.70	\	937	941.90	0	0.52
A-n46-k7	914	914	0	0	914	0	1.12	975	6.67	\	914	916.15	0	0.23
A-n55-k9	1 073	1 073	0	0	1 073	0	2.40	1 190	10.90	\	1 074	1 080.44	0.09	0.69
A-n63-k10	1 314	1 314	0	1.45	1 323	0	2.36	1 477	12.40	\	1 322	1 337.05	0.61	1.72
A-n65-k9	1 174	1 178	0.34	0.57	1 178	0.34	2.05	1 317	12.18	\	1 178	1 184.20	0.34	0.86

Table 7

Table 8

Test results for SetP examples

案例	OPT	CVRP-FA			ACGWOA			AS+VTPSO			DRM-MSPGA
案例	OPT	Best	$λ B D R$ /%	$λ M D R$ /%	Best	$λ B D R$ /%	$λ M D R$ /%	Best	$λ B D R$ /%	$λ M D R$ /%	Best	AVG	$λ B D R$ /%	$λ M D R$ /%
平均			0.05	0.43		0.21	1.19		6.86	\			0.14	0.68
P-n16-k8	450	450	0	0	450	0	0	549	18.03	\	450	450.00	0	0
P-n19-k2	212	212	0	0	212	0	0	246	13.82	\	212	212.00	0	0
P-n20-k2	216	216	0	0	216	0	0	249	13.25	\	216	216.00	0	0
P-n21-k2	211	211	0	0	211	0	0	211	0	\	211	211.00	0	0
P-n22-k2	216	216	0	0	216	0	0	216	0	\	216	216.00	0	0
P-n40-k5	458	458	0	0.41	458	0	0.79	483	5.18	\	458	458.00	0	0
P-n45-k5	510	510	0	0	510	0	0.74	524	2.67	\	510	510.00	0	0
P-n50-k7	554	554	0	0.54	554	0	1.76	583	4.97	\	556	561.30	0.36	1.30
P-n50-k10	696	697	0.14	0.98	704	1.15	3.25	783	11.11	\	700	706.90	0.57	1.54
P-n60-k10	744	749	0.67	1.14	753	1.22	3.16	830	10.36	\	747	757.10	0.40	1.73
P-n65-k10	792	792	0	0.91	\	\	\	859	7.80	\	796	806.32	0.50	1.78
P-n76-k4	593	593	0	0.97	593	0	1.80	612	3.10	\	593	600.70	0	1.28
P-n76-k5	627	627	0	0.59	628	0.16	2.89	647	3.09	\	628	633.85	0.16	1.08
P-n101-k4	681	681	0	0.54	\	\	\	699	2.58	\	681	683.55	0	0.37

Table 8

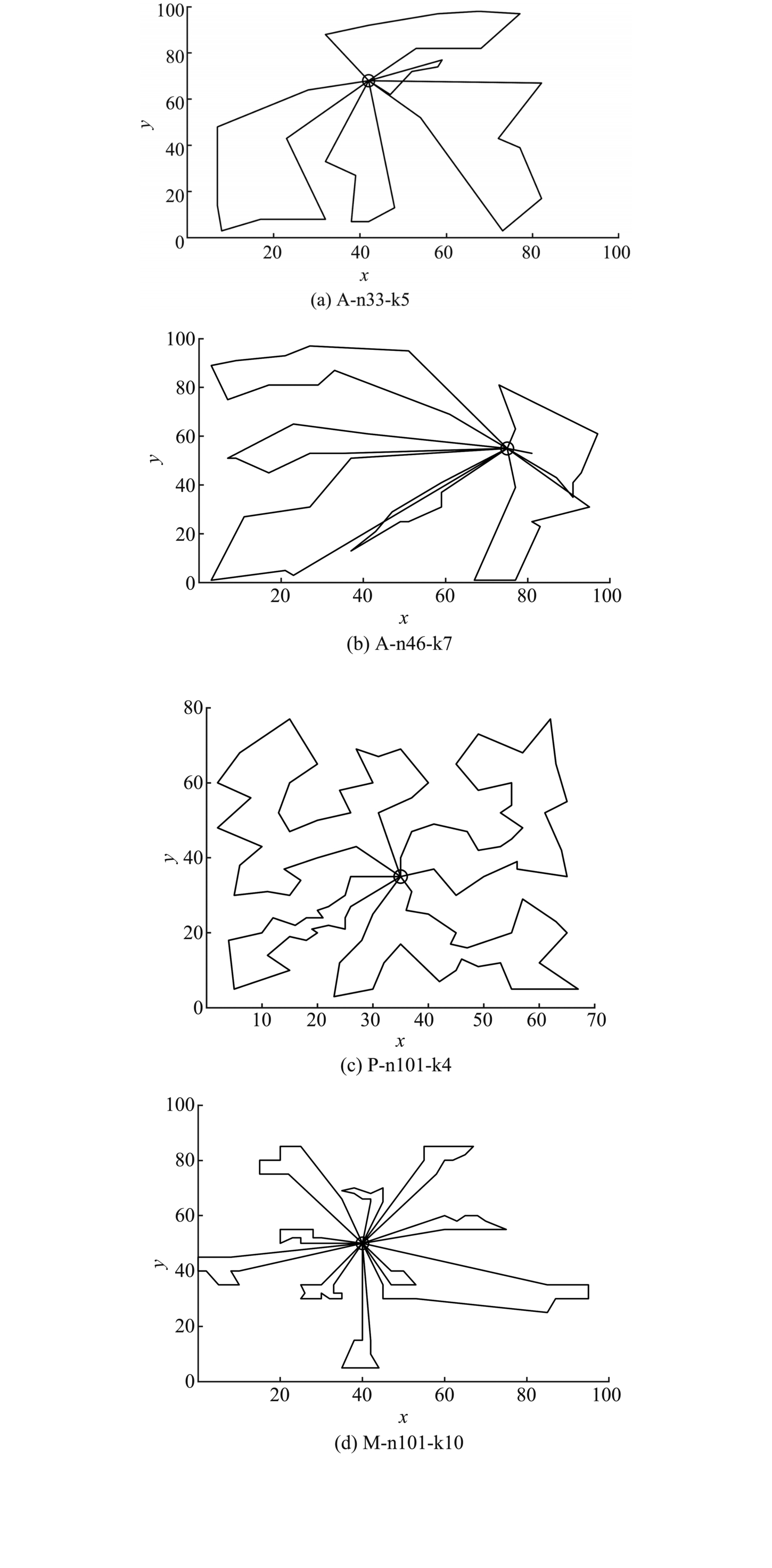

Fig. 5

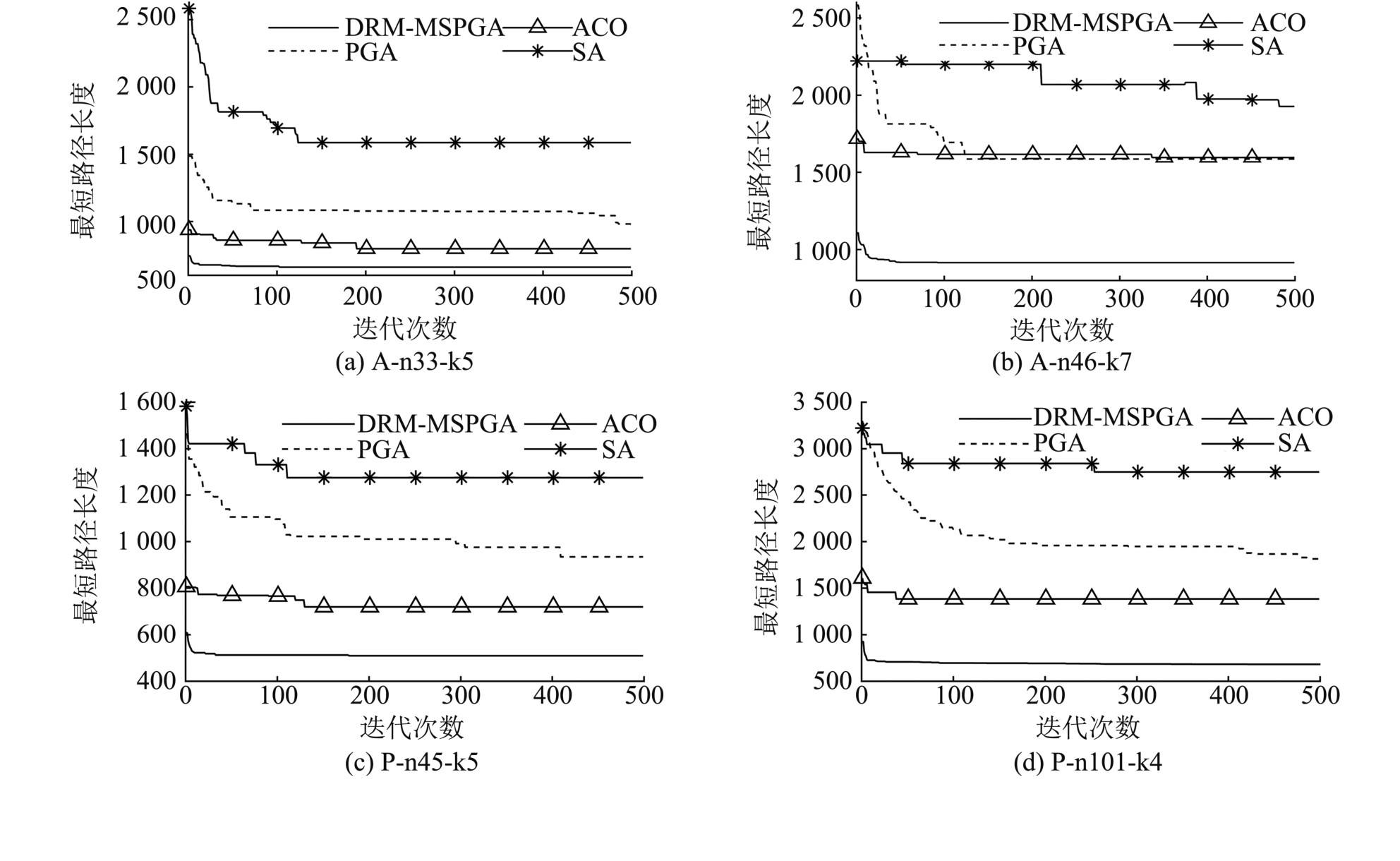

Fig. 6
