面向智能航行避碰决策与规划的虚拟仿真测试技术研究

doi:10.16182/j.issn1004731x.joss.24-0412

系统仿真学报 ›› 2024, Vol. 36 ›› Issue (8): 1780-1789.doi: 10.16182/j.issn1004731x.joss.24-0412

• “海洋、海事数字孪生与智能仿真”专栏 • 上一篇

面向智能航行避碰决策与规划的虚拟仿真测试技术研究

刘佳仑¹^,²^,⁴, 杨帆³^,⁴, 谢玲利⁵, 李诗杰²^,³, 王腾飞³^,⁴

^1.湖北隆中实验室武汉理工大学襄阳示范区, 湖北襄阳, 441000
^2.武汉理工大学水路交通控制全国重点实验室, 湖北武汉 430063
^3.武汉理工大学交通与物流工程学院, 湖北武汉 430063
^4.武汉理工大学智能交通系统研究中心, 湖北武汉 430063
^5.湖北三江航天红峰控制有限公司, 湖北孝感 432000

收稿日期:2024-03-26 修回日期:2024-07-03 出版日期:2024-08-15 发布日期:2024-08-19
通讯作者: 李诗杰
第一作者简介:刘佳仑(1987-)，男，研究员，博士，研究方向为船舶自动驾驶与测试。
基金资助:
国家重点研发计划(2022YFB4301402);国家自然科学基金(52272425);海洋工程全国重点实验室(上海交通大学)开放基金(GKZD010089)

Research on Virtual Simulation Testing Technology for Intelligent Navigation Collision Avoidance Decision-making and Planning

Liu Jialun¹^,²^,⁴, Yang Fan³^,⁴, Xie Lingli⁵, Li Shijie²^,³, Wang Tengfei³^,⁴

^1.Hubei Longzhong Laboratory, Wuhan University of Technology Xiangyang Demonstration Zone, Xiangyang 441000, China
^2.State Key Laboratory of Maritime Technology and Safety, Wuhan University of Technology, Wuhan 430063, China
^3.School of Transportation and Logistics Engineering, Wuhan University of Technology, Wuhan 430063, China
^4.Intelligent Transportation Systems Research Center, Wuhan University of Technology, Wuhan 430063, China
^5.Hong Feng Control Company Limited of San Jiang Astronautics, Xiaogan 432000, China

Received:2024-03-26 Revised:2024-07-03 Online:2024-08-15 Published:2024-08-19
Contact: Li Shijie

摘要/Abstract

摘要：

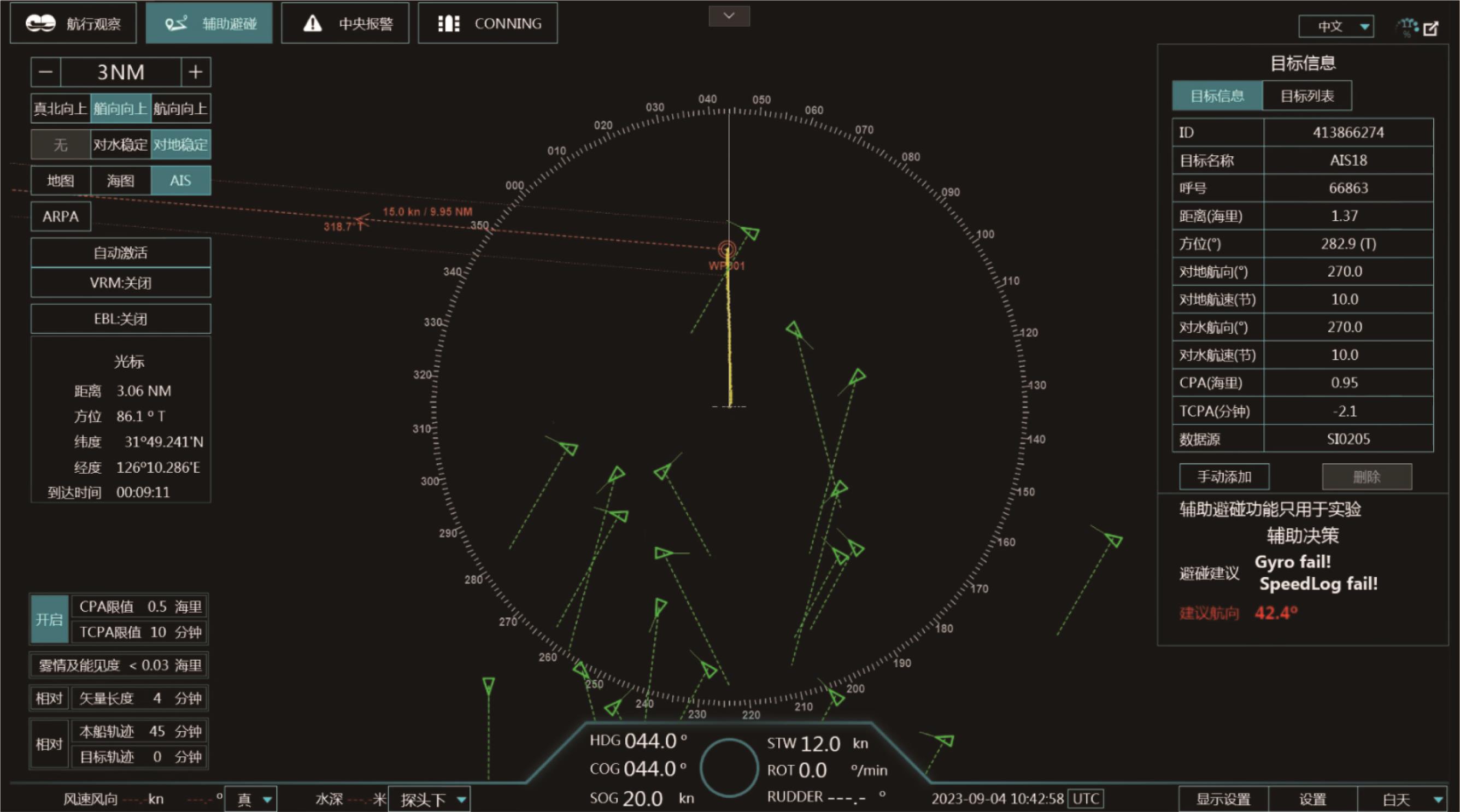

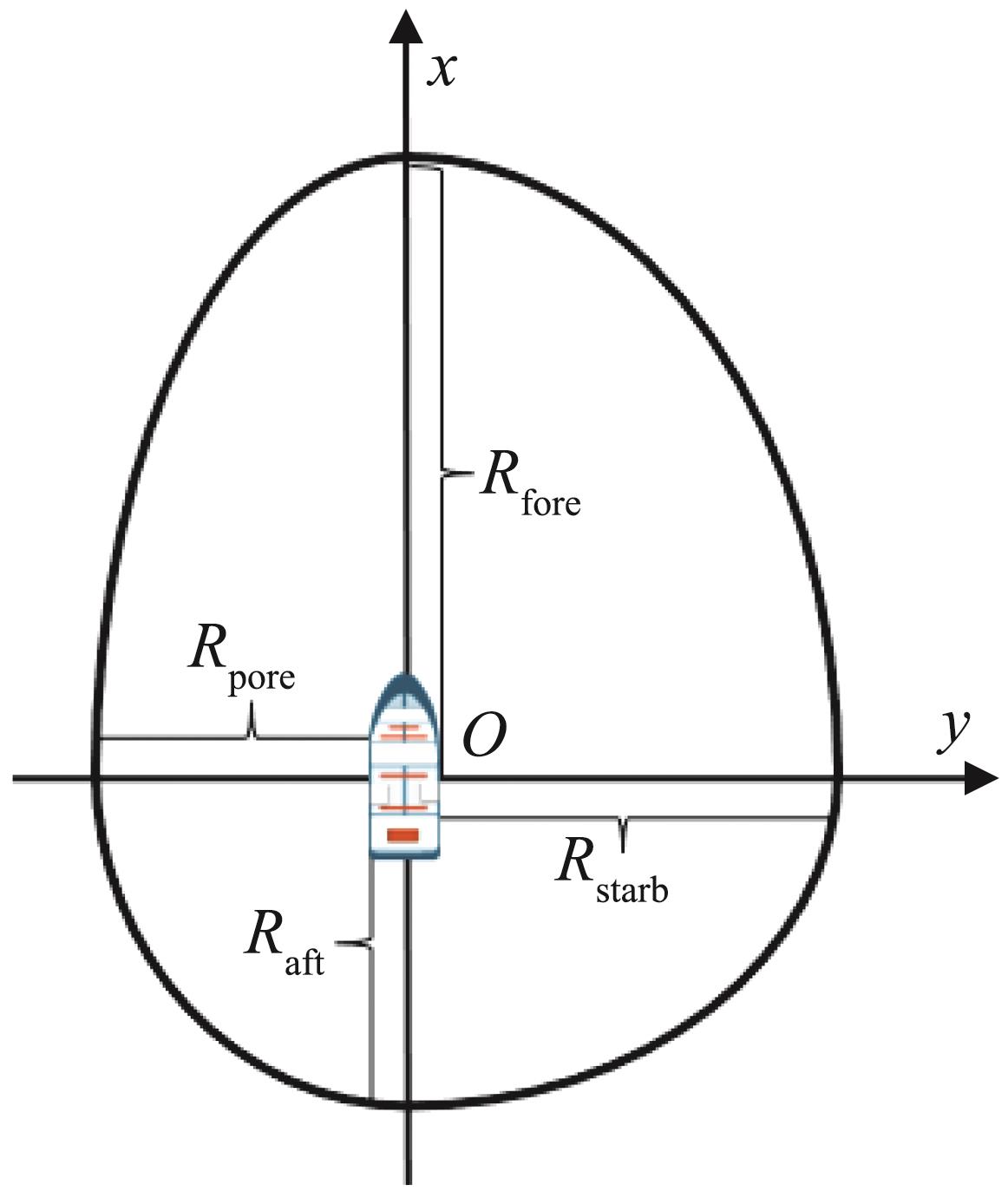

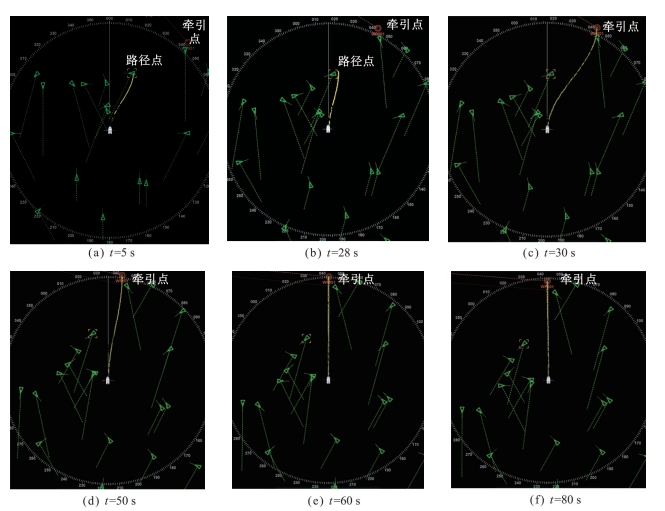

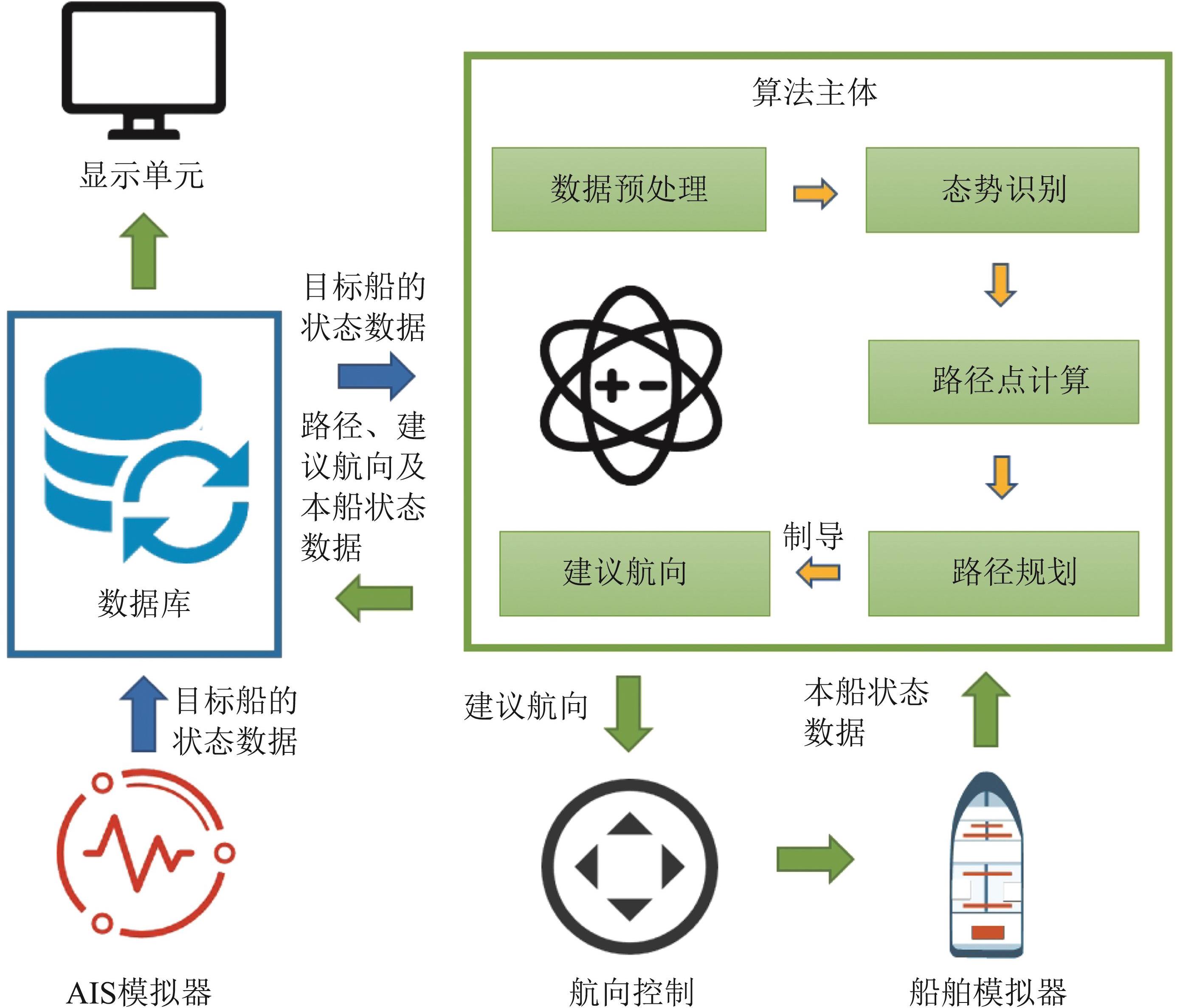

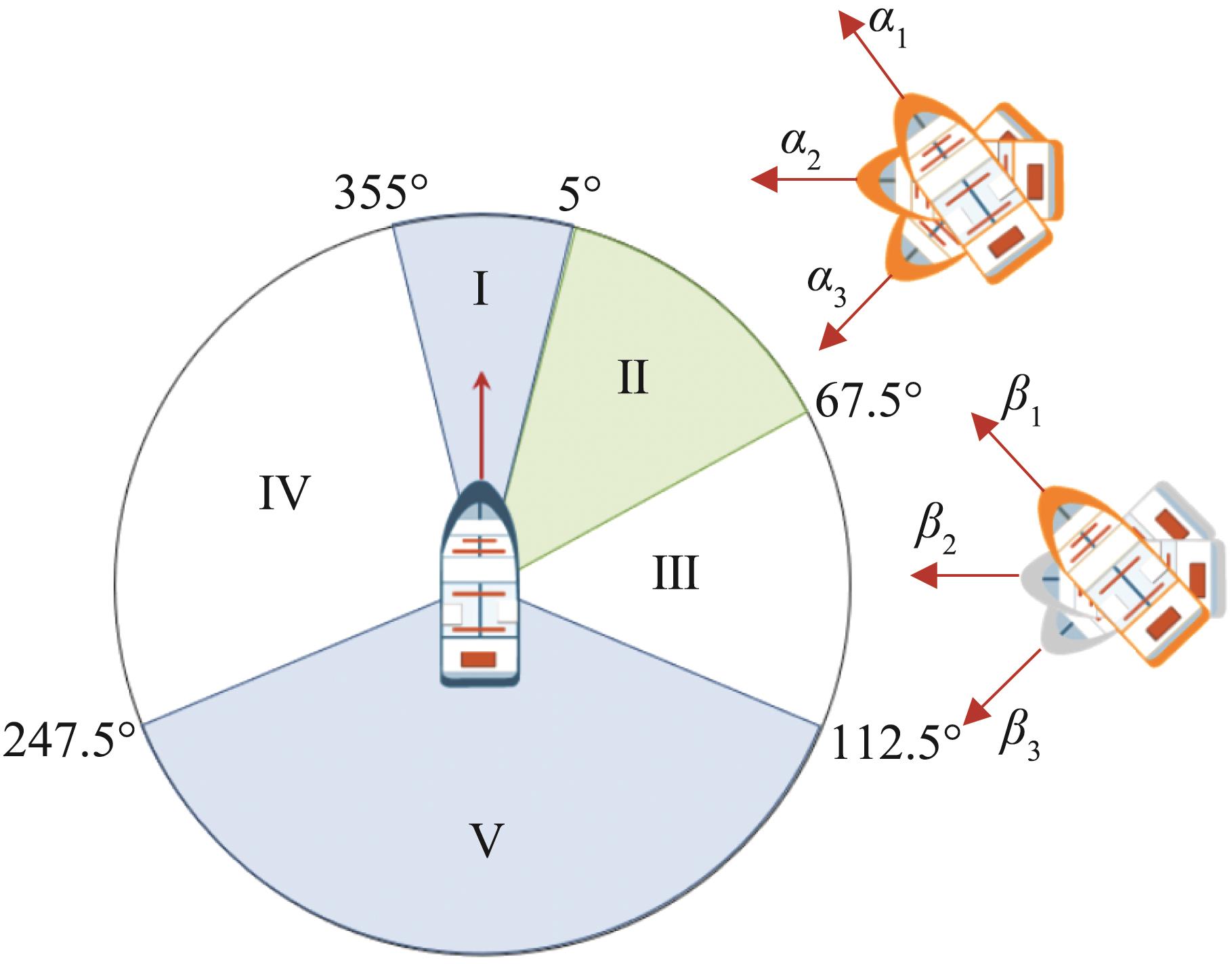

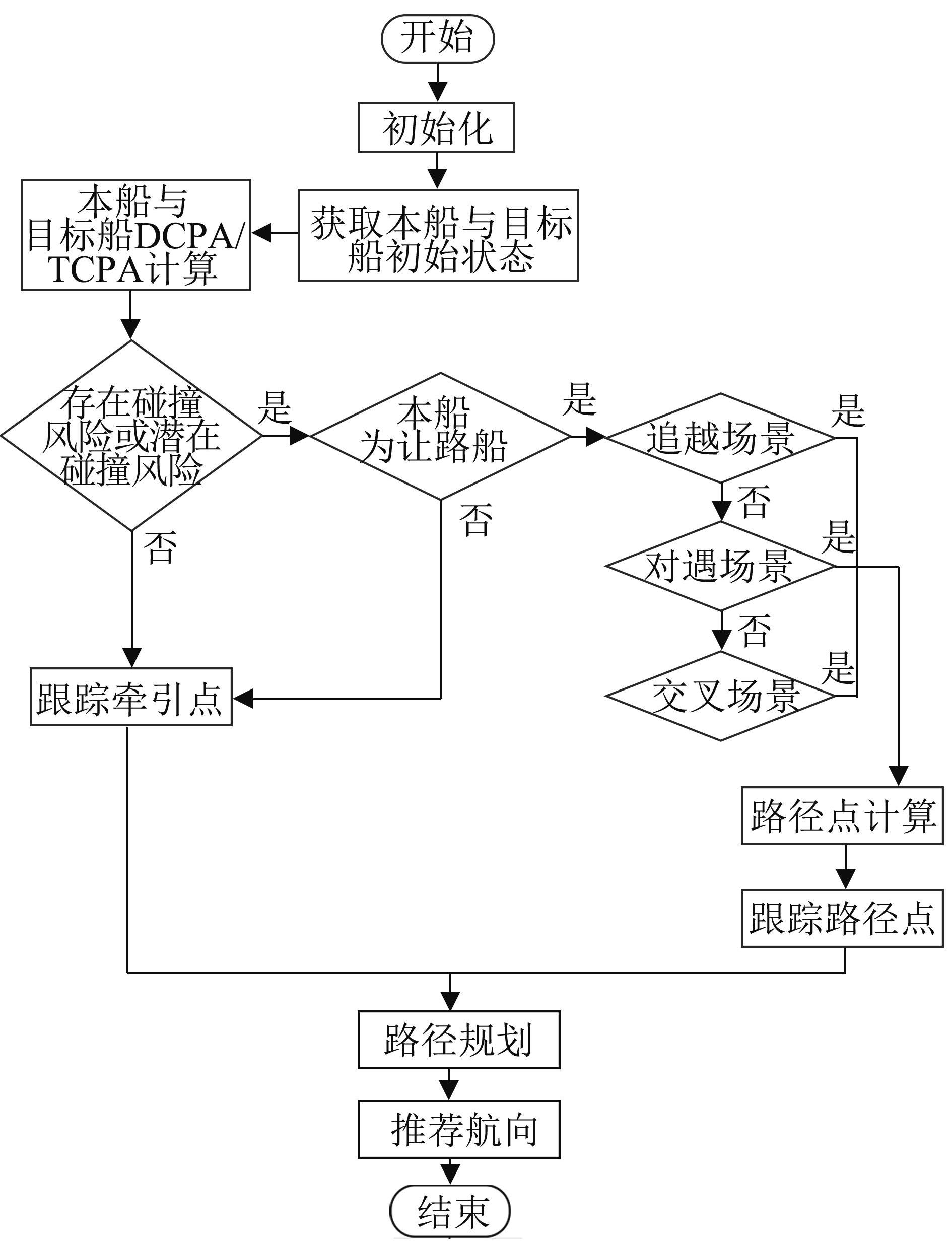

研究了面向智能航行避碰决策与规划的虚拟仿真测试技术。介绍了智能航行在货运船舶中的应用需求，分析了当下避碰决策策略、路径规划算法以及避碰决策与规划测试技术的研究现状。面向货运船舶智能航行避碰决策与规划能力，基于避碰规则中的会遇态势划分，结合四元船舶领域和贝塞尔曲线插值理论，提出了一种智能航行避碰决策与规划算法。构建了一种基于虚拟仿真环境的避碰决策与规划算法仿真测试方法，通过AIS(automatic identification system)模拟器模拟目标船的状态数据，结合船载综合导航系统(integrated navigation system，INS)实现了避碰决策与规划算法的测试。通过复杂水域仿真测试验证了所提算法的有效性和可行性，为货运船舶智能航行功能的开发与实践提供了参考。

关键词: 智能航行, 避碰决策, 路径规划, 虚拟仿真, 测试技术

Abstract:

This paper studies virtual simulation testing technology for intelligent navigation collision avoidance decision-making and planning. The application requirements of intelligent navigation in cargo ships are introduced, and the current research status of collision avoidance decision-making strategies, path planning algorithms and decision-making planning testing technology are analyzed. For the intelligent navigation collision avoidance decision-making and planning capabilities of cargo ships, an intelligent navigation collision avoidance decision-making and planning algorithm is proposed based on the encounter situation division in the collision avoidance rules, combined with the quaternary ship field and Bezier curve interpolation theory. A simulation testing method for decision-making planning algorithms based on virtual simulation environment was constructed. The AIS (automatic identification system) simulator is used to simulate the status data of the target ship, and combined with the shipboard INS (integrated navigation system), the decision-making planning algorithm is tested. The effectiveness and feasibility of the proposed algorithm are verified through complex water simulation tests, which provides an important reference for the development and practice of intelligent navigation functions for cargo ships.

Key words: intelligent navigation, collision avoidance decision-making, path planning, virtual simulation, testing technology

中图分类号:

TP391.9

刘佳仑,杨帆,谢玲利等 . 面向智能航行避碰决策与规划的虚拟仿真测试技术研究[J]. 系统仿真学报, 2024, 36(8): 1780-1789.

Liu Jialun,Yang Fan,Xie Lingli,et al . Research on Virtual Simulation Testing Technology for Intelligent Navigation Collision Avoidance Decision-making and Planning[J]. Journal of System Simulation, 2024, 36(8): 1780-1789.

图/表 10

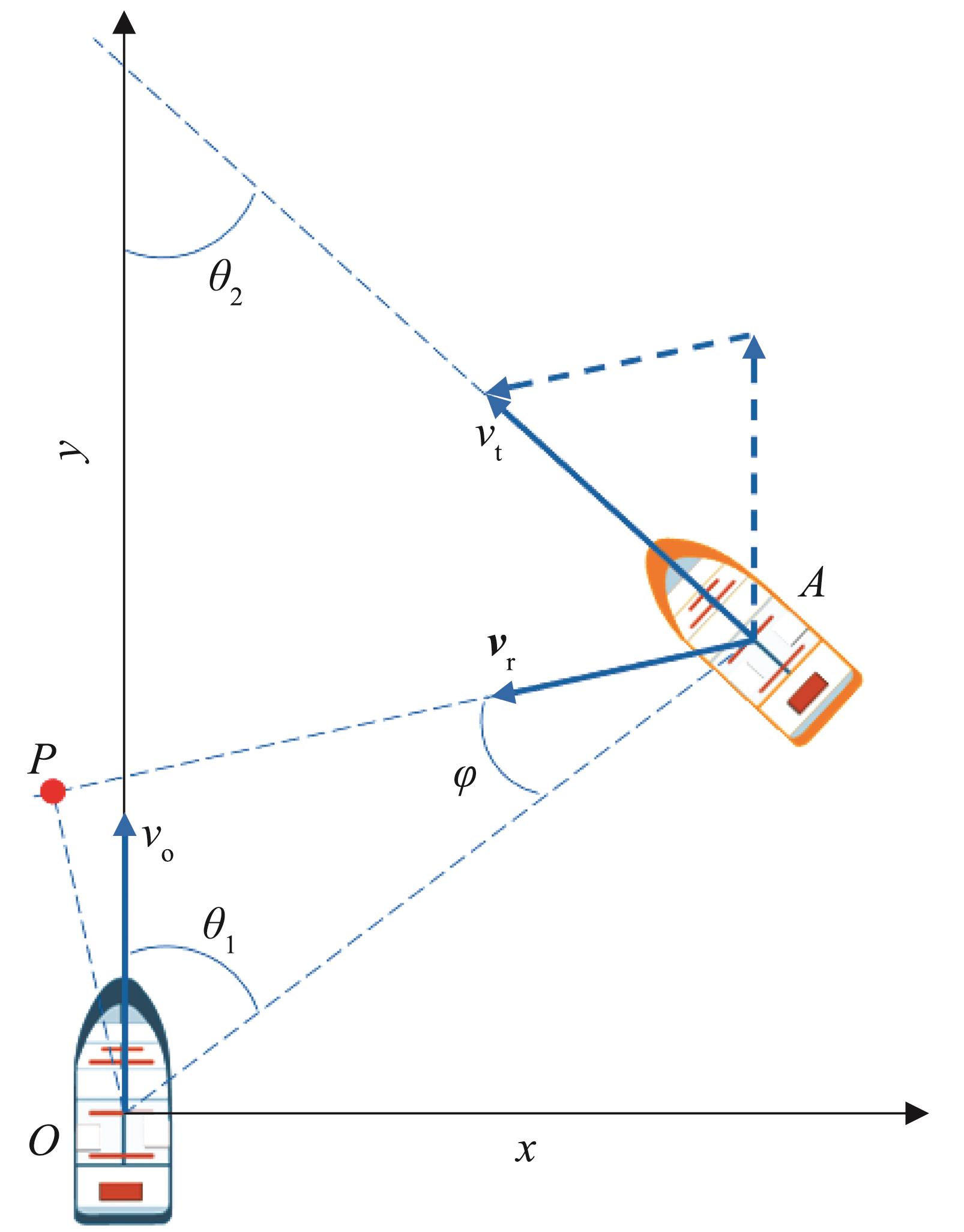

图 1

图 2

图3

图 4

图5

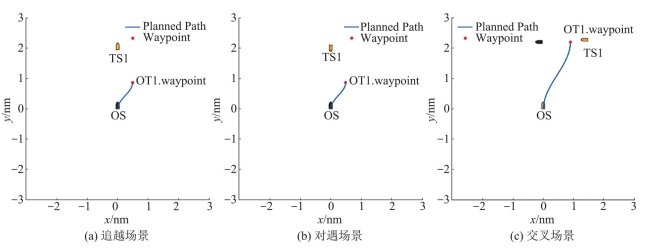

图6

图7

图8

图9

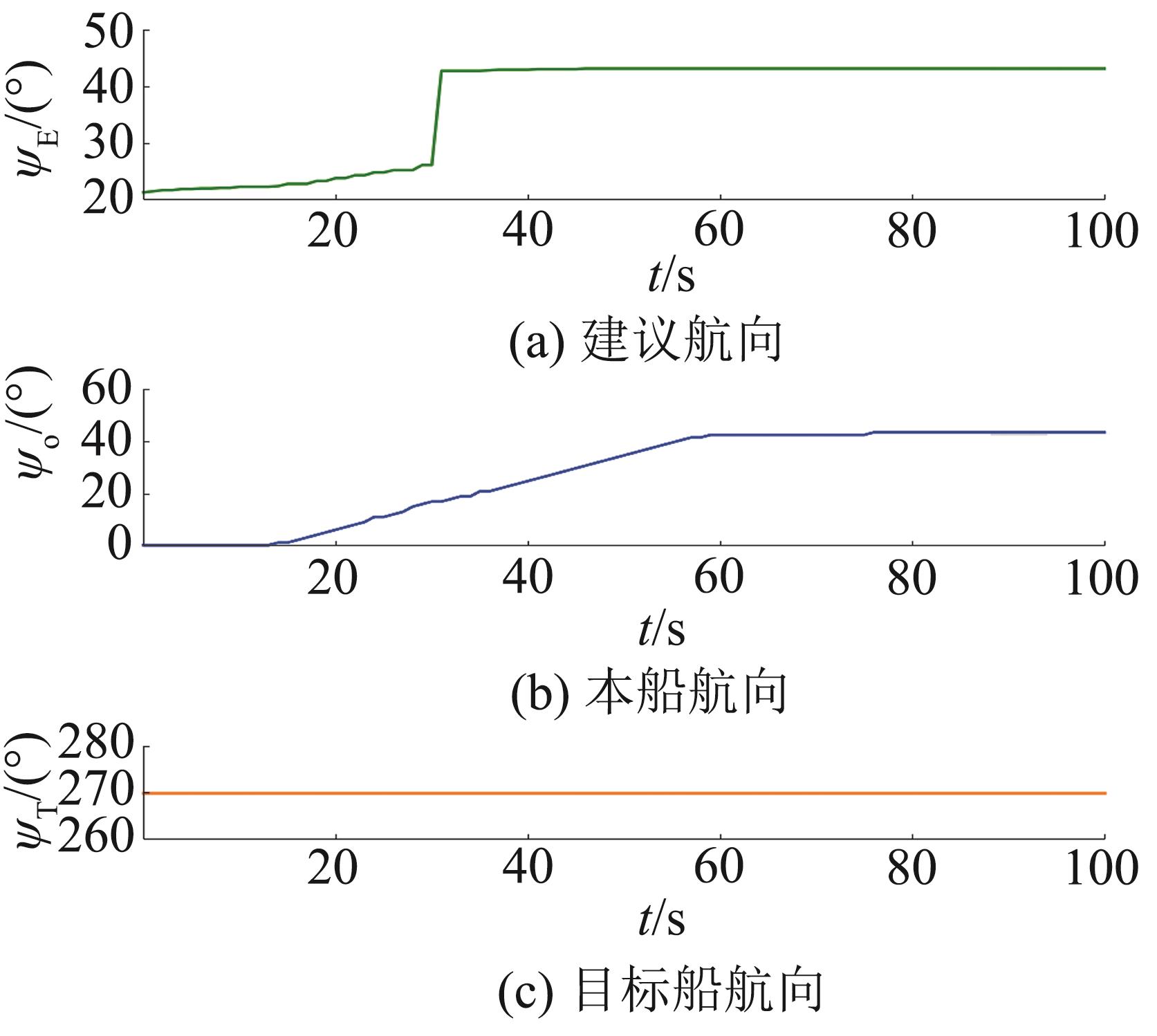

图10

参考文献 23

1	Huang Yamin, Chen Linying, Chen Pengfei, et al. Ship Collision Avoidance Methods: State-of-the-art[J]. Safety Science, 2020, 121: 451-473.
2	Öztürk Ü, Akdağ M, Ayabakan T. A Review of Path Planning Algorithms in Maritime Autonomous Surface Ships: Navigation Safety Perspective[J]. Ocean Engineering, 2022, 251: 111010.
3	Cui Zhewen, Guan Wei, Zhang Xianku. Collision Avoidance Decision-making Strategy for Multiple USVs Based on Deep Reinforcement Learning Algorithm[J]. Ocean Engineering, 2024, 308: 118323.
4	Wang C, Zhang X, Cong L, et al. Research on Intelligent Collision Avoidance Decision-making of Unmanned Ship in Unknown Environments[J]. Evolving Systems, 2019, 10(4): 649-658.
5	Liu J, Zhang J, Yan X, et al. Multi-ship Collision Avoidance Decision-making and Coordination Mechanism in Mixed Navigation Scenarios[J]. Ocean Engineering, 2022: 111666.
6	杜哲, 文元桥, 黄亮, 等. 基于动态复杂度地图的船舶航迹规划[J]. 系统仿真学报, 2018, 30(6): 2390-2397, 2404.
	Du Zhe, Wen Yuanqiao, Huang Liang, et al. Route Planning for Vessel Based on Dynamic Complexity Map[J]. Journal of System Simulation, 2018, 30(6): 2390-2397, 2404.
7	宋大雷, 干文浩, 许嘤枝, 等. 无人船实时路径规划与编队控制仿真研究[J]. 系统仿真学报, 2023, 35(5): 957-970.
	Song Dalei, Gan Wenhao, Xu Yingzhi, et al. Simulation of Real-time Path Planning and Formation Control for Unmanned Surface Vessel[J]. Journal of System Simulation, 2023, 35(5): 957-970.
8	Wu M, Zhang A, Gao M, et al. Ship Motion Planning for Mass Based on a Multi-objective Optimization Ha* Algorithm in Complex Navigation Conditions[J]. Journal of Marine Science and Engineering, 2021, 9(10): 1126.
9	Chiang H T L, Tapia L. COLREG-RRT: An RRT-based COLREGS-compliant Motion Planner for Surface Vehicle Navigation[J]. IEEE Robotics and Automation Letters, 2018, 3(3): 2024-2031.
10	Huang Y, Chen L, Van G P. Generalized Velocity Obstacle Algorithm for Preventing Ship Collisions at Sea[J]. Ocean Engineering, 2019, 173: 142-156.
11	Yuan X, Tong C, He G, et al. Unmanned Vessel Collision Avoidance Algorithm by Dynamic Window Approach Based on COLREGs Considering the Effects of the Wind and Wave[J]. Journal of Marine Science and Engineering, 2023, 11(9): 1831.
12	Ma Yong, Hu Mengqi, Yan Xinping. Multi-objective Path Planning for Unmanned Surface Vehicle With Currents Effects[J]. ISA Transactions, 2018, 75: 137-156.
13	Chen H, Ma Y, Hu W, et al. Time and Risk Optimal Path Planning for Surface Vehicle via Level Set in Dynamic Environment[J]. IEEE Transactions on Industrial Informatics, 2024, 20(6): 8639-8649.
14	Lande S V. Path Planning for Marine Vehicles Using Bézier Curves[D]. NTNU, 2018.
15	Yang Fan, Zhu Yaping, Liu Jialun, et al. Trajectory Generation for Autonomous Surface Vessels Based on Bézier Curves[C]//2023 7th International Conference on Transportation Information and Safety (ICTIS). [S.l.]: IEEE, 2023: 651-656.
16	Gao M, Shi Gy. Ship-collision Avoidance Decision-making Learning of Unmanned Surface Vehicles with Automatic Identification System Data Based on Encoder-decoder Automatic-response Neural Networks[J]. Journal of Marine Science and Engineering, 2020, 8(10): 754.
17	刘佳仑, 杨帆, 马枫, 等. 智能船舶航行功能测试验证的方法体系[J]. 中国舰船研究, 2021, 16(1): 45-50.
	Liu Jialun, Yang Fan, Ma Feng, et al. Method System of Navigation Function Test and Verification for Intelligent Ship[J]. Chinese Journal of Ship Research, 2021, 16(1): 45-50.
18	杨帆, 刘佳仑, 于淳, 等. 虚实融合的船舶智能航行测试技术[J]. 中国航海, 2022, 45(3): 113-122.
	Yang Fan, Liu Jialun, Yu Chun, et al. Test Technology for Intelligent Navigation with Mix of Virtual and Actual Reality[J]. Navigation of China, 2022, 45(3): 113-122.
19	Liu Jialun, Yang Fan, Li Shijie, et al. Testing and Evaluation for Intelligent Navigation of Ships: Current Status, Possible Solutions, and Challenges[J]. Ocean Engineering, 2024, 295: 116969.
20	Pedersen T A, Glomsrud J A, Ruud E L, et al. Towards Simulation-based Verification of Autonomous Navigation Systems[J]. Safety Science, 2020, 129: 104799.
21	金建海, 周则兴, 张波, 等. 无人艇航行仿真关键技术研究[J]. 系统仿真学报, 2021, 33(12): 2846-2853.
	Jin Jianhai, Zhou Zexing, Zhang Bo, et al. Research on USV Navigation Simulation Key Technologies[J]. Journal of System Simulation, 2021, 33(12): 2846-2853.
22	Johansen T, Blindheim S, Torben T R, et al. Development and Testing of a Risk-based Control System for Autonomous Ships[J]. Reliability Engineering & System Safety, 2023, 234: 109195.
23	孙佳文, 任鸿翔, 肖方兵, 等. 基于虚拟现实的整船仿真训练平台[J]. 系统仿真学报, 2021, 33(9): 2243-2251.
	Sun Jiawen, Ren Hongxiang, Xiao Fangbing, et al. Whole Ship Simulation Training Platform Based on Virtual Reality[J]. Journal of System Simulation, 2021, 33(9): 2243-2251.
