基于改进Q学习算法的无人物流配送车路径规划

doi:10.16182/j.issn1004731x.joss.23-0051

摘要/Abstract

摘要：

为解决传统的Q学习算法用于无人车路径规划时，存在规划效率低和收敛速度慢等问题，为此，提出一种基于改进Q学习算法的无人物流配送车路径规划算法。借鉴模拟退火算法的能量迭代原理，对贪婪因子ε进行调整，使其在训练过程中动态变化，以平衡探索与利用之间的关系，提高规划效率。将奖励机制中的奖励值由离散值变为连续值，并使其随着无人物流配送车与目标点的欧式距离减小而增大，让目标点牵引无人物流配送车移动以加快算法收敛速度。在两种不同的环境下对改进的Q学习算法进行仿真实验，结果表明：改进后的Q学习算法可以高效地规划出一条从起始点至目标点的路径，步数为34步，优于对比算法的路径质量。通过改变道路环境，验证了改进Q学习算法对不同环境的适应性，规划效率和收敛速度依然优于传统Q学习算法。

关键词: Q学习, 路径规划, 收敛速度, 规划效率, 路径质量

Abstract:

To solve the traditional Q-learning algorithm for unmanned vehicle path planning suffers from the problems of low planning efficiency and slow convergence speed, for this reason, a path planning algorithm for unmanned delivery vehicles based on the improved Q-learning algorithm is proposed. Learning from the energy iteration principle of the simulated annealing algorithm, adjusts the greedy factor ε to make it change dynamically during the training process, so as to balance the relationship between exploration and utilization, and thus improve the planning efficiency. The reward value in the reward mechanism is changed from a discrete value to a continuous value, and it increases as the European distance between the unmanned delivery vehicle and the target point decreases,so that the target point can pull the unmanned delivery vehicle to move and accelerate the convergence speed of the algorithm. The improved Q-learning algorithm is simulated in two different environments, the simulation results show that the improved Q-learning algorithm can efficiently plan a path from the starting point to the target point with 34 steps, which is better path quality than comparison algorithms. The adaptability of the improved Q-learning algorithm to different environments is verified by changing the road environment, and the planning efficiency and convergence speed are still better than the traditional Q-learning algorithm.

Key words: Q-learning, path planning, convergence speed, planning efficiency, path quality

中图分类号:

TP391.9

王小康,冀杰,刘洋等 . 基于改进Q学习算法的无人物流配送车路径规划[J]. 系统仿真学报, 2024, 36(5): 1211-1221.

Wang Xiaokang,Ji Jie,Liu Yang,et al . Path Planning of Unmanned Delivery Vehicle Based on Improved Q-learning Algorithm[J]. Journal of System Simulation, 2024, 36(5): 1211-1221.

图/表 14

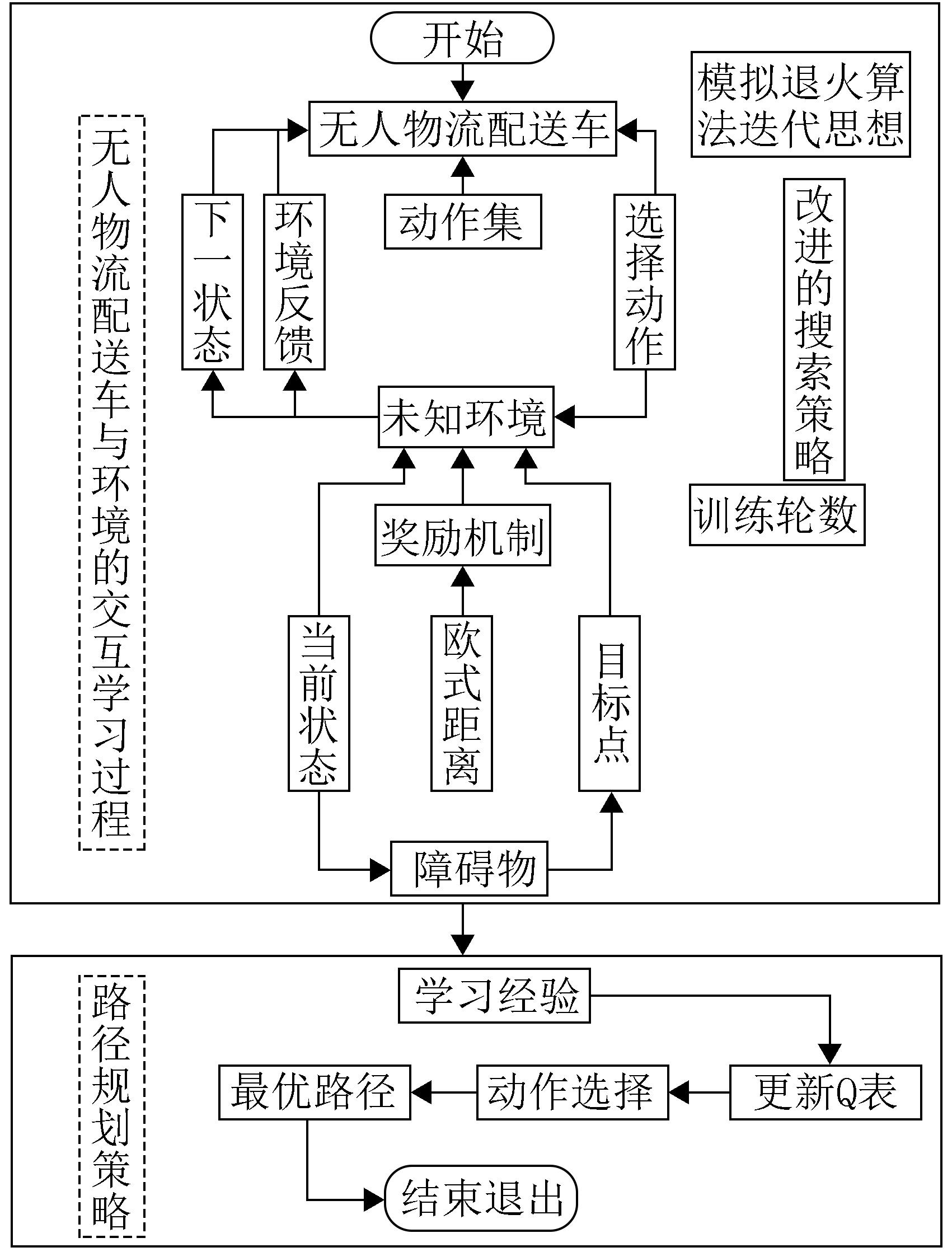

图1

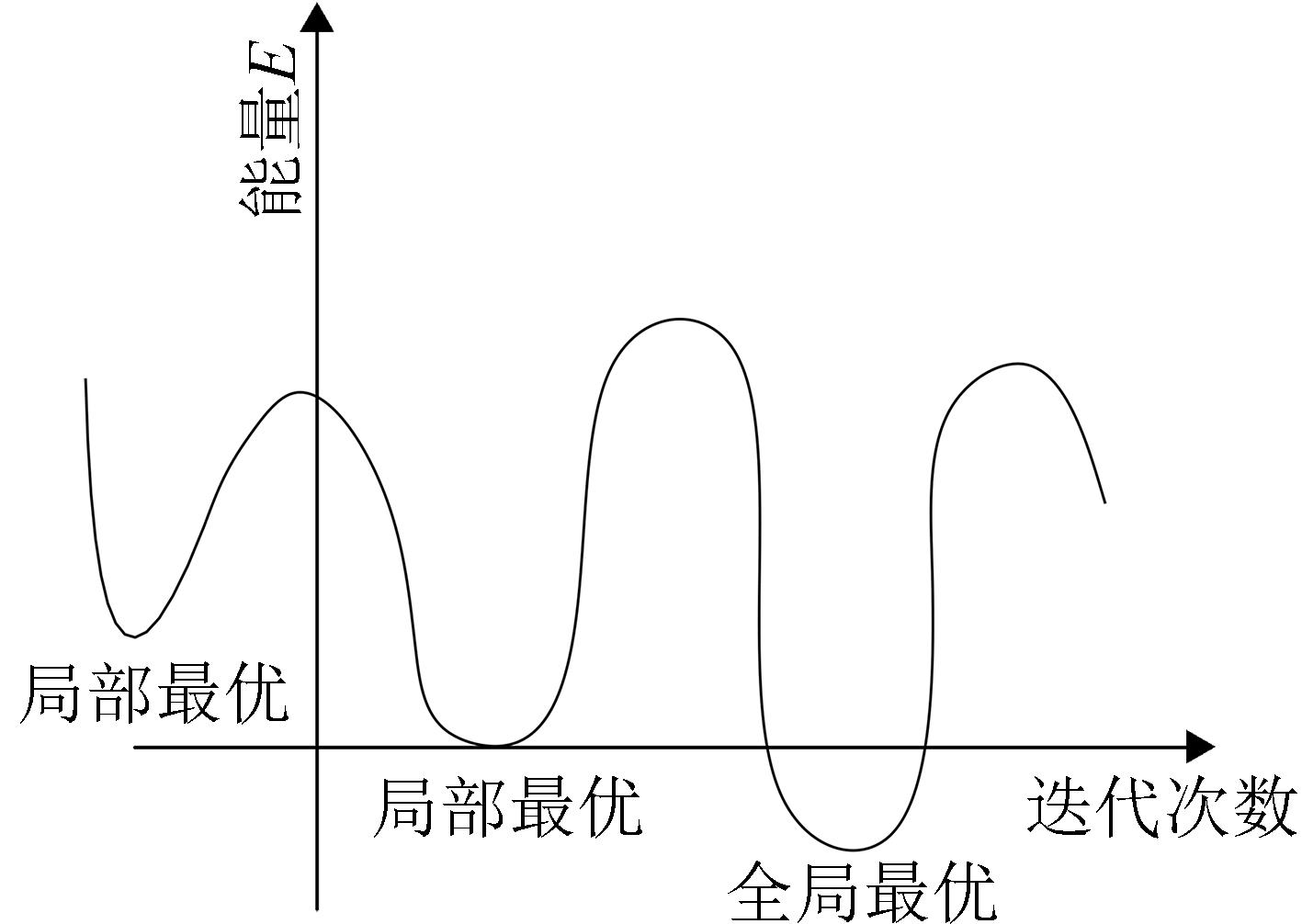

图2

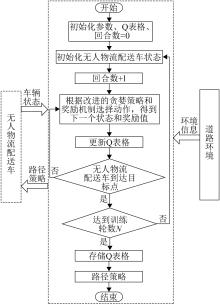

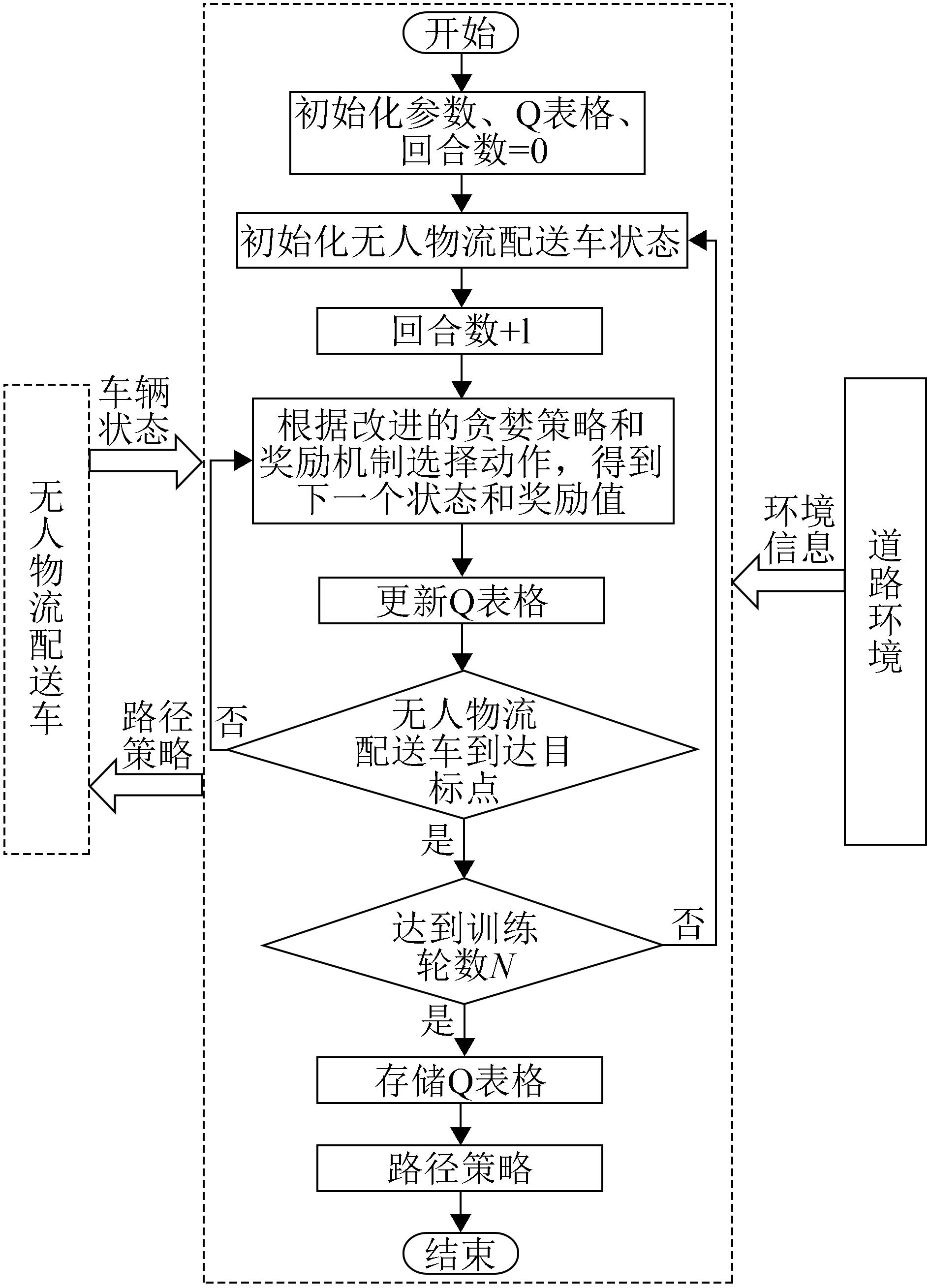

图3

表1

参数设置

参数	值	参数	值
折扣率 $γ$	0.9	比例因子 $μ 2$	0.000 1
学习率 $α$	0.1	训练轮数 $N$	5 000
探索率 $ε 2$	0.4	比例因子 $μ 3$	42.192 5
初始探索率 $ε 1$	0.4	比例因子 $μ 4$	$-$ 0.004 2
最终探索率 $ε f$	0.001	目标点即时奖励 $r 1$	100
比例因子 $μ 1$	$-$ 1

表1

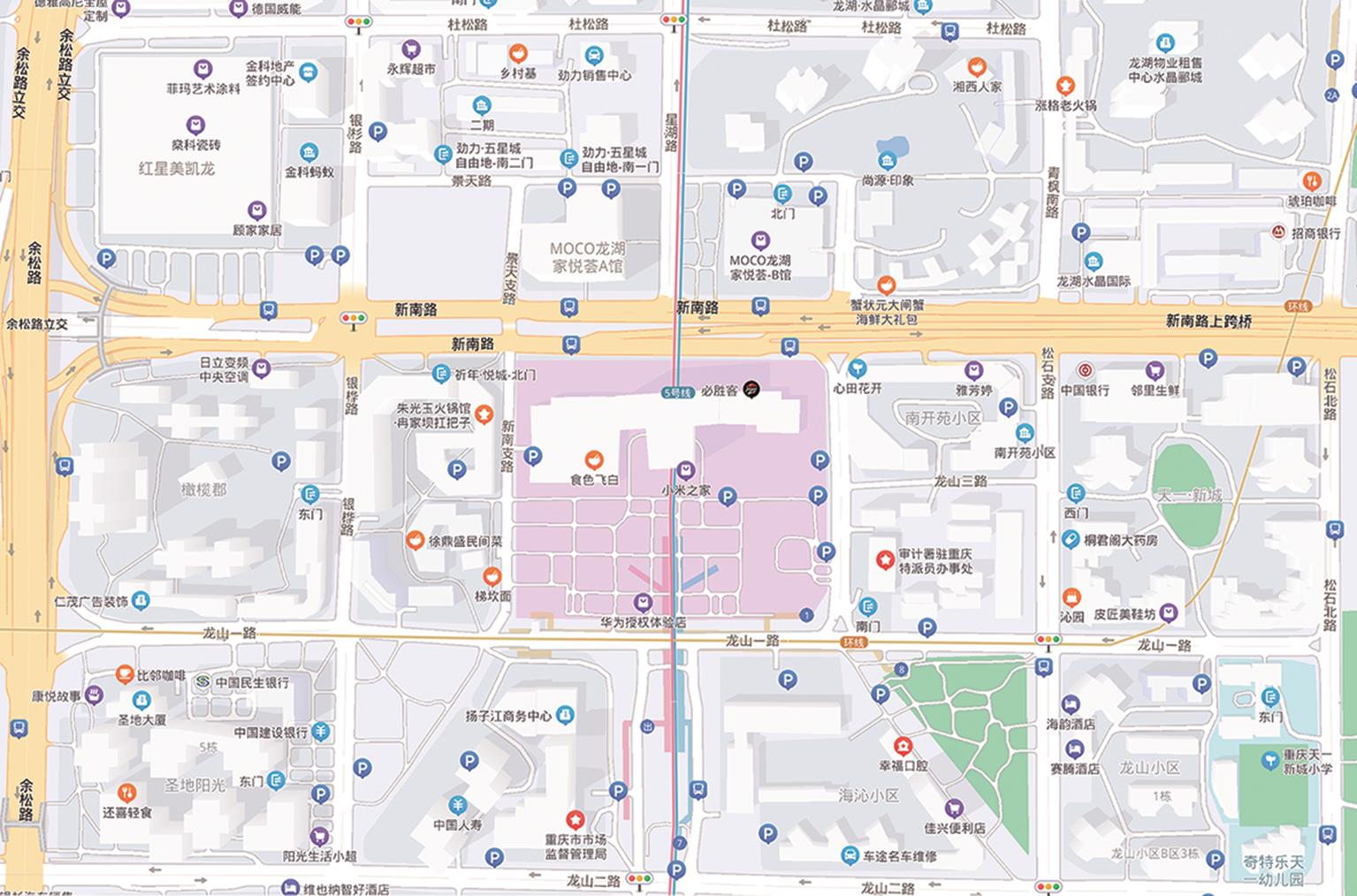

图4

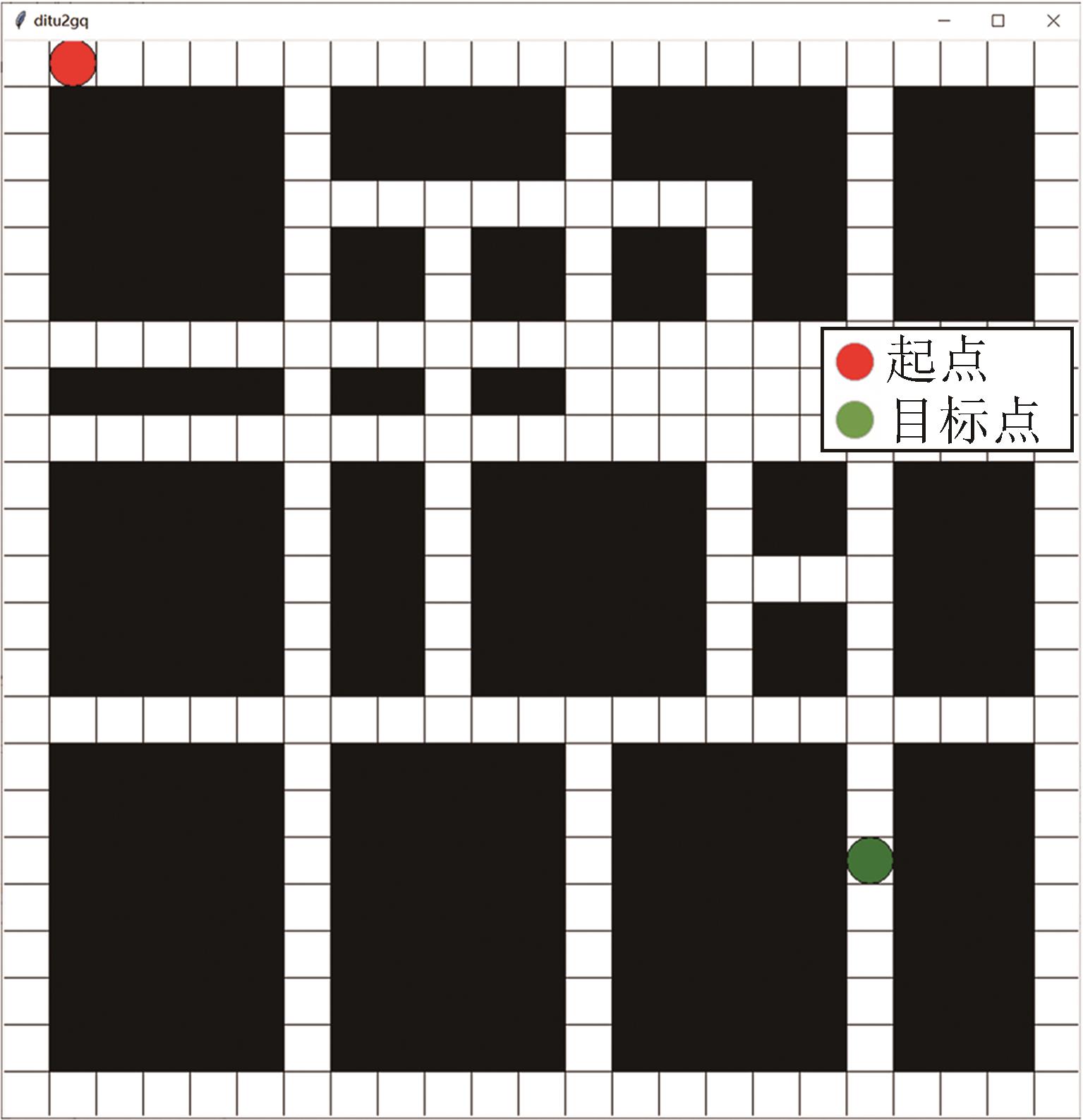

图5

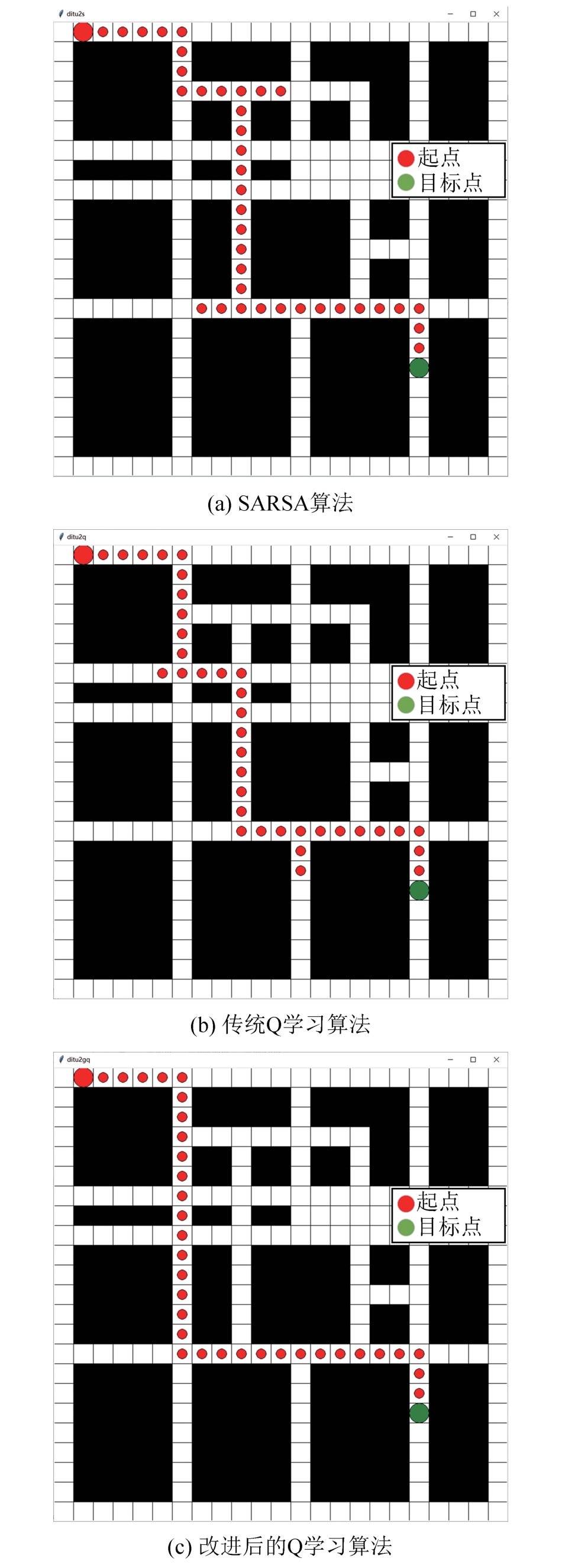

图6

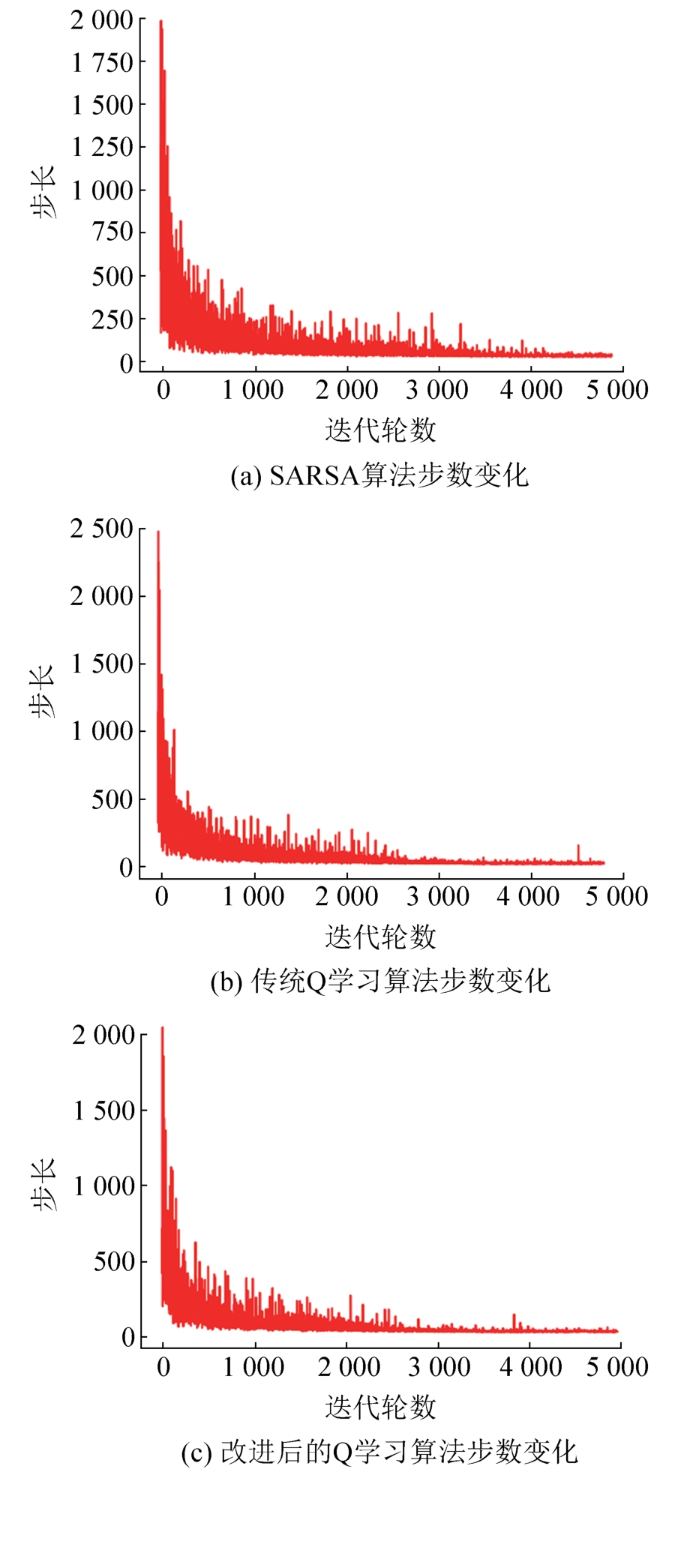

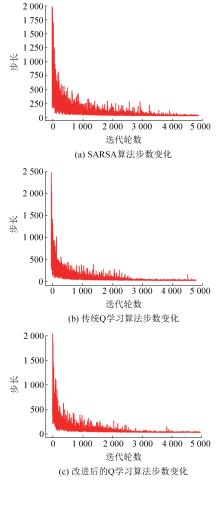

图7

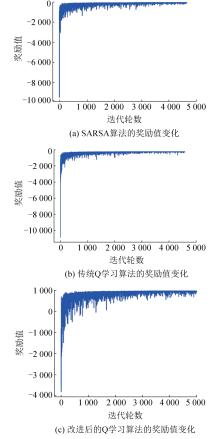

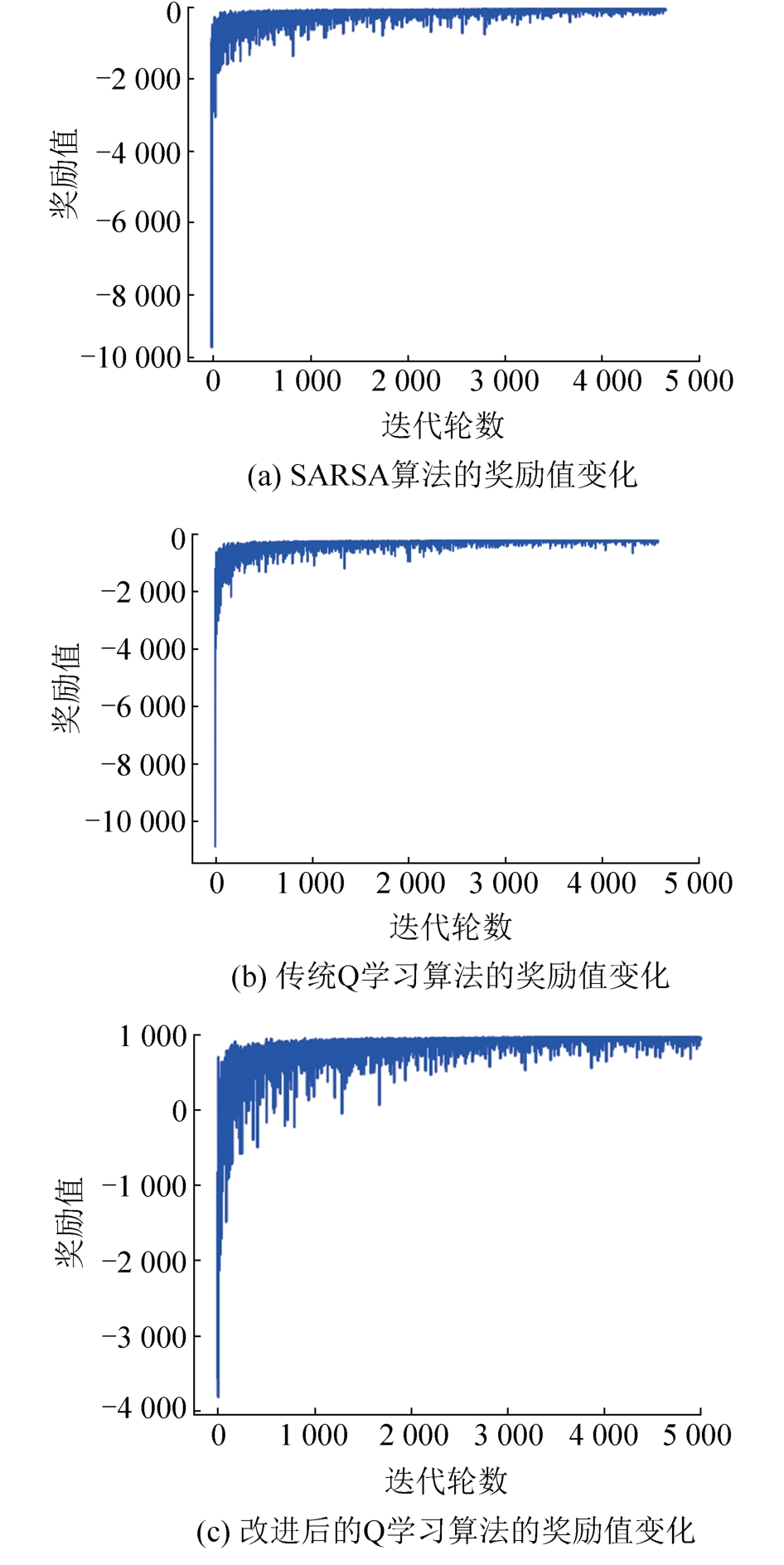

图8

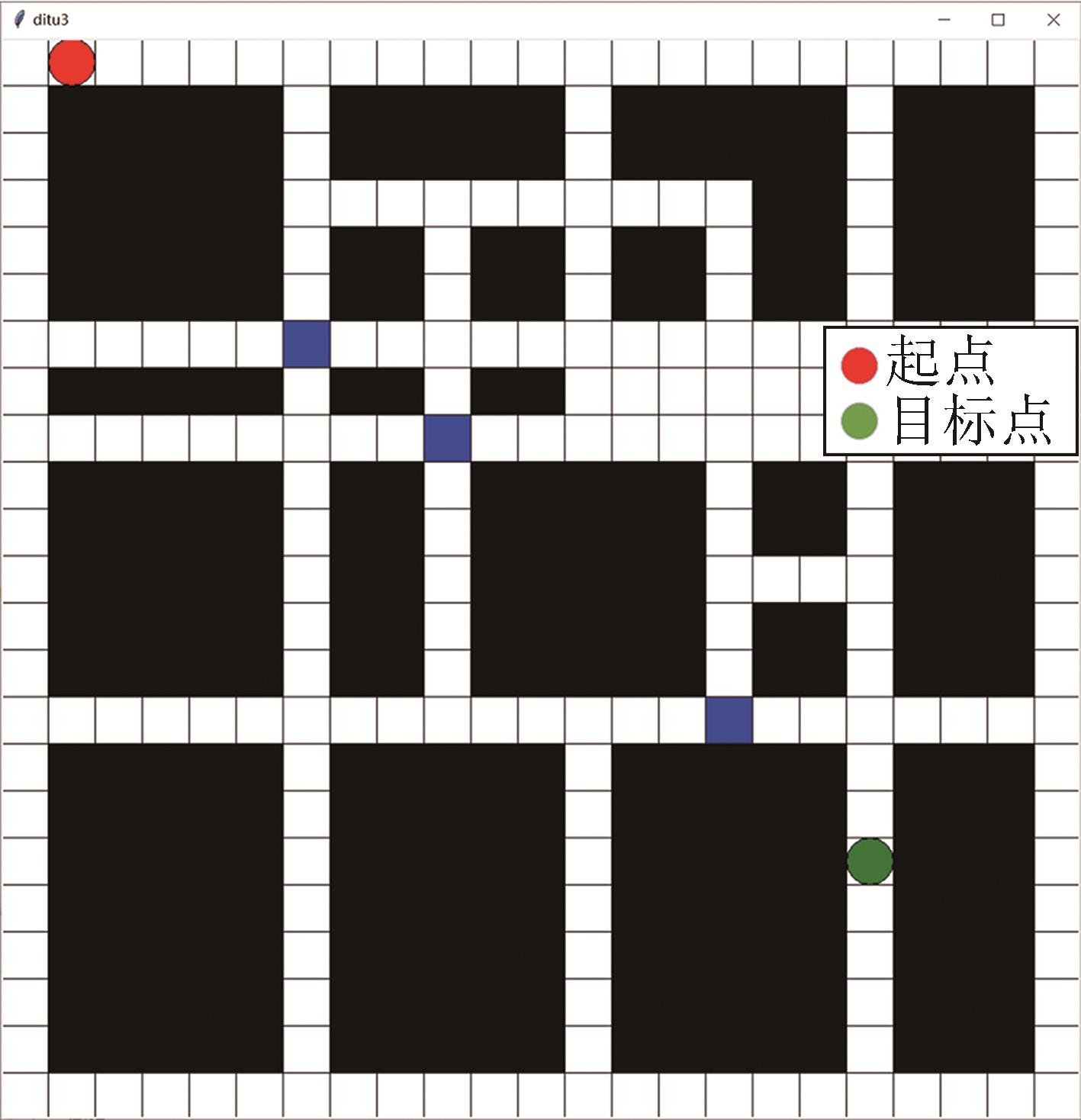

图9

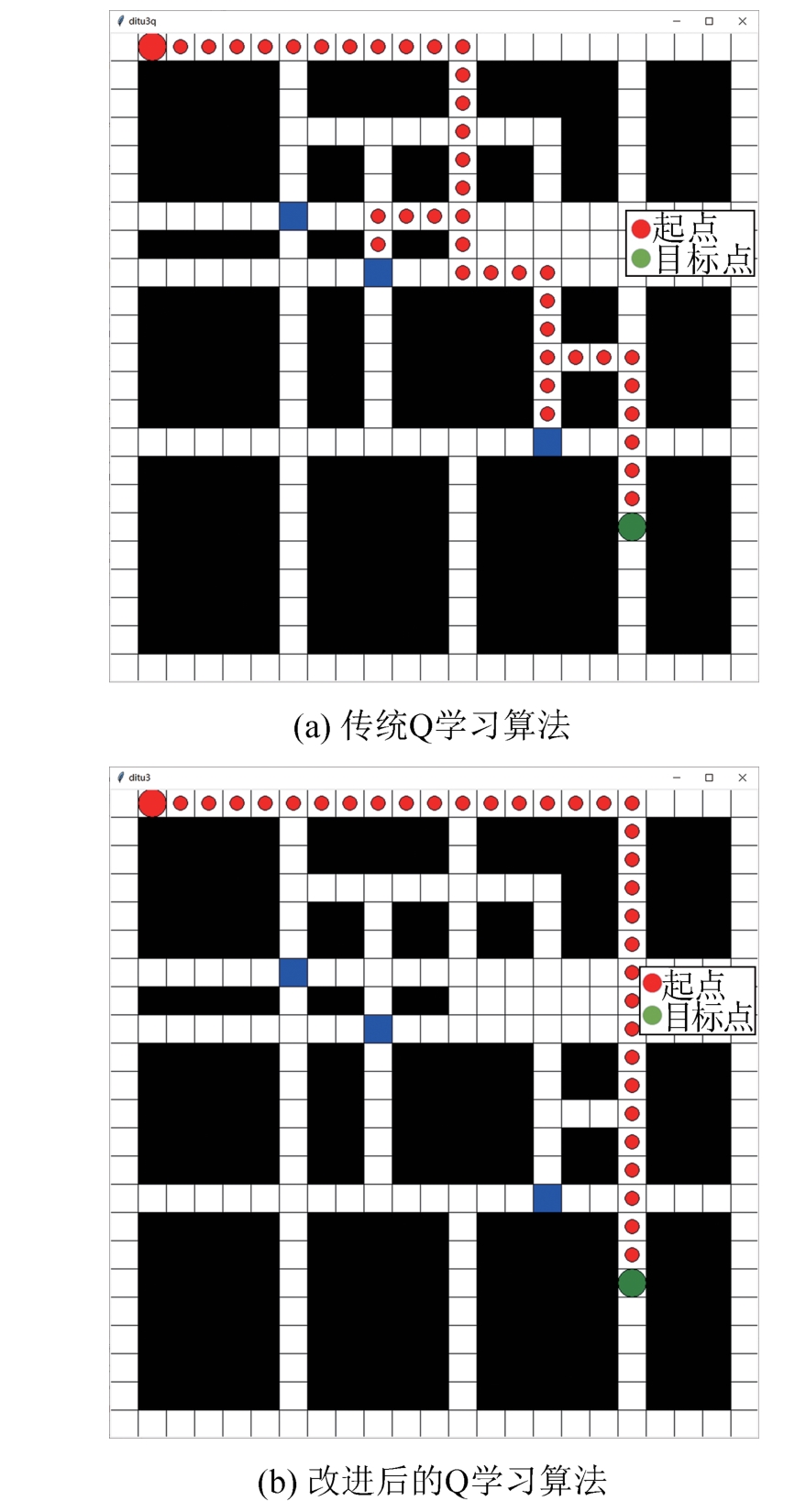

图10

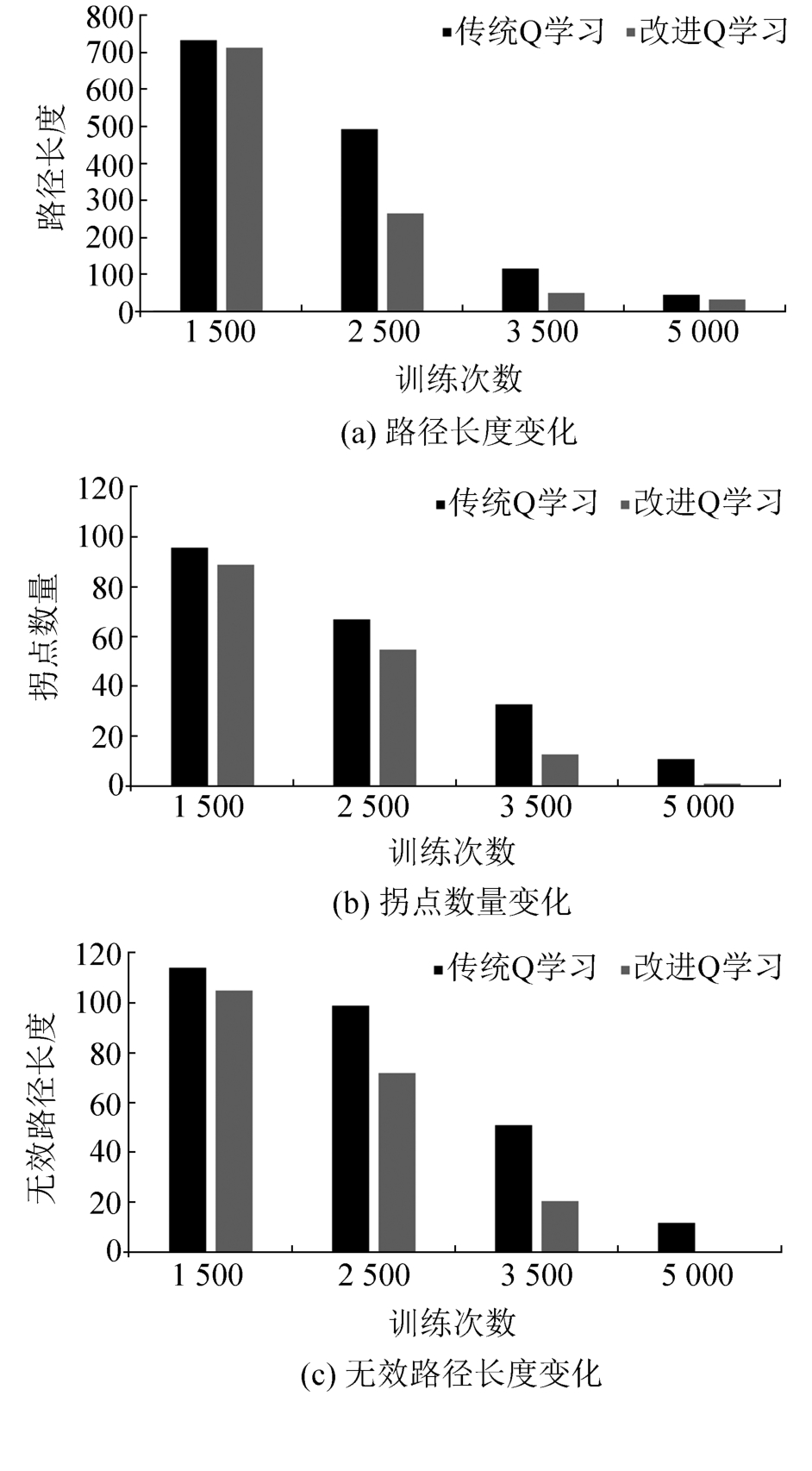

图11

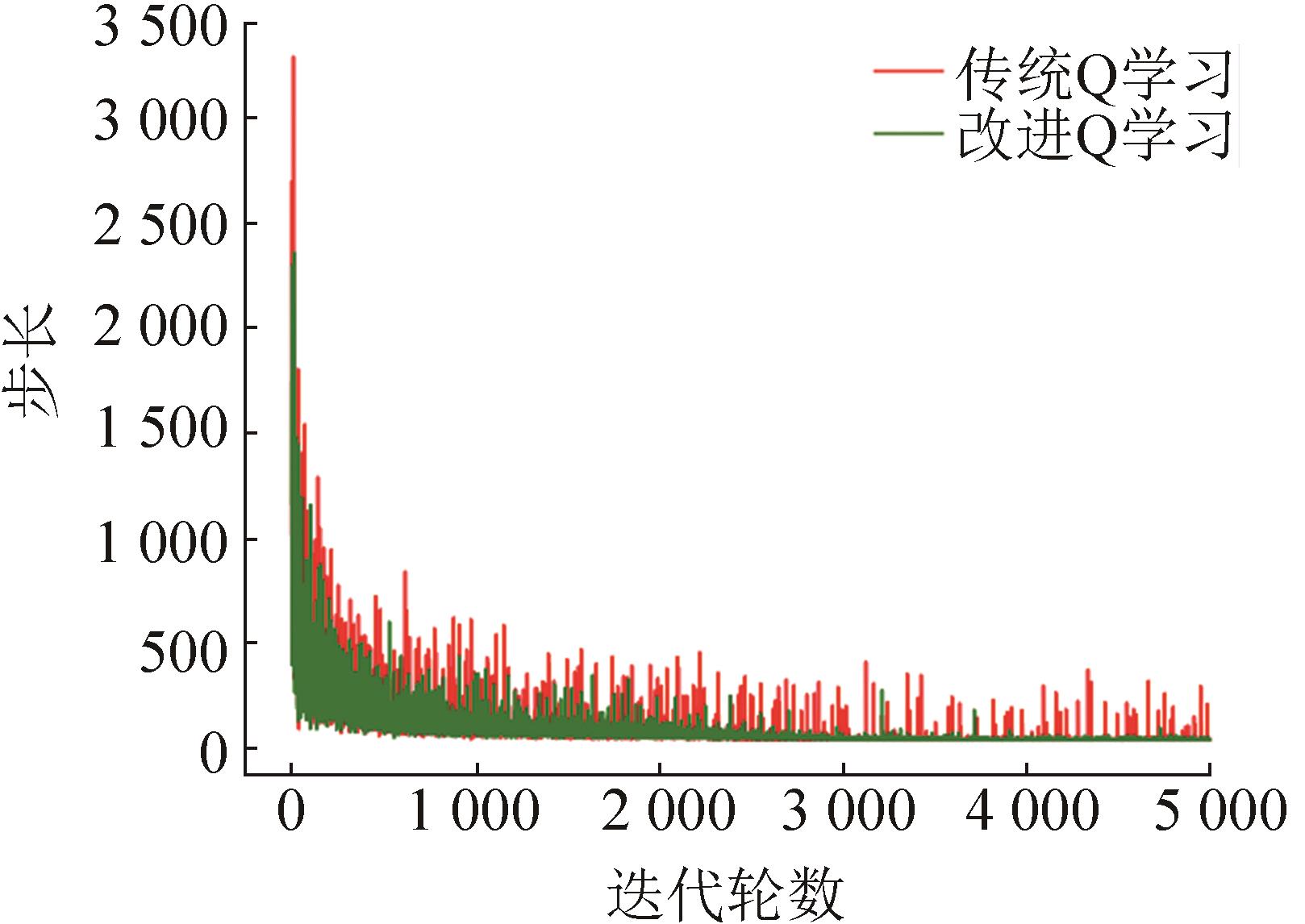

图12

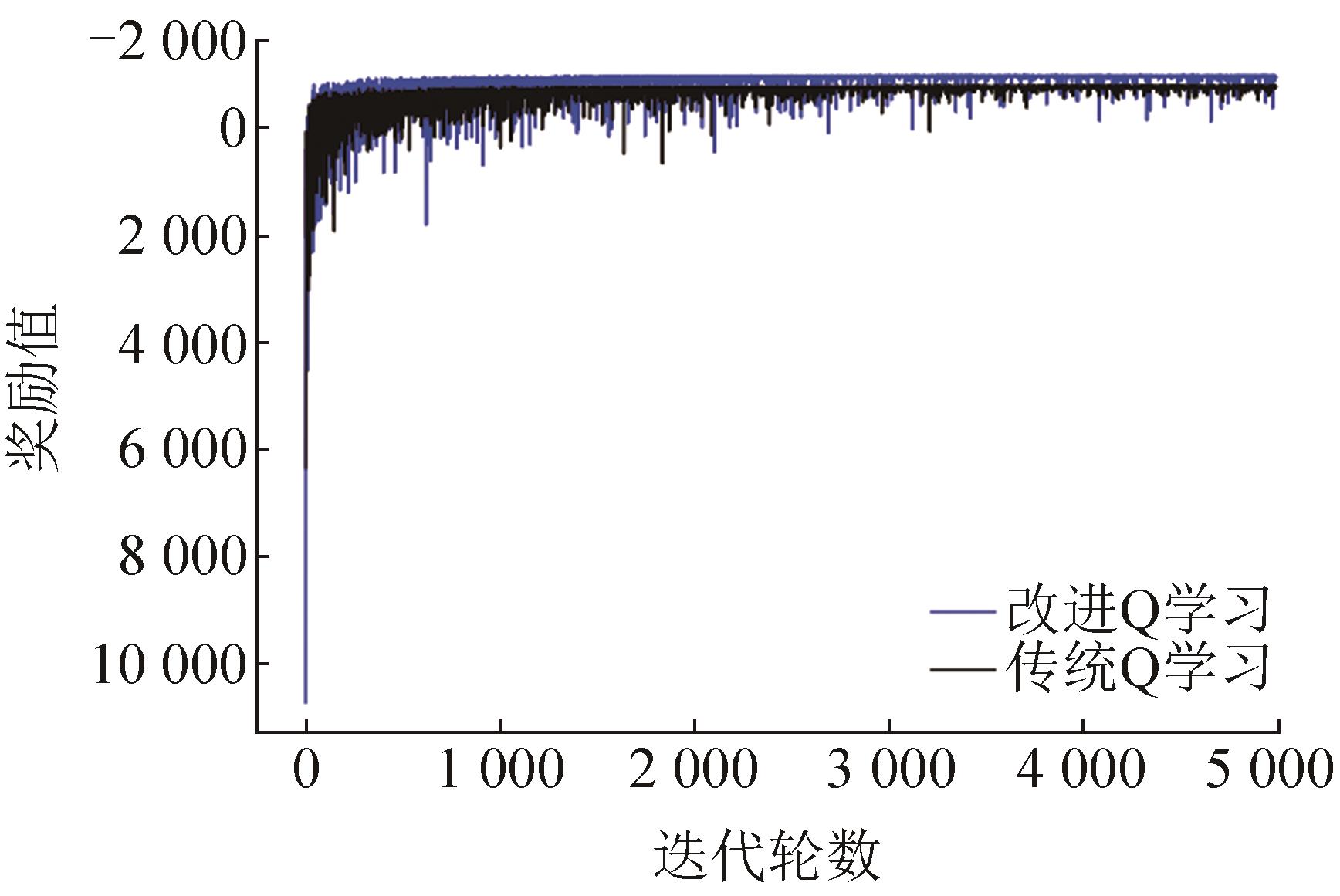

图13
