多移动机器人混合避障算法的编队策略

doi:10.16182/j.issn1004731x.joss.22-1249

系统仿真学报 ›› 2024, Vol. 36 ›› Issue (3): 726-734.doi: 10.16182/j.issn1004731x.joss.22-1249

多移动机器人混合避障算法的编队策略

刘福琳¹^,³(), 李庆鑫²^,³^,⁴()

^1.沈阳工业大学软件学院, 辽宁沈阳 110870
^2.中国科学院网络化控制系统重点实验室, 辽宁沈阳 110016
^3.中国科学院沈阳自动化研究所, 辽宁沈阳 110016
^4.中国科学院机器人与智能制造创新研究院, 辽宁沈阳 110169

收稿日期:2022-10-19 修回日期:2022-12-27 出版日期:2024-03-15 发布日期:2024-03-14
通讯作者: 李庆鑫 E-mail:fulinliuer@163.com;2533439838@qq.com
第一作者简介:刘福琳(1998-)，女，硕士生，研究方向为多移动机器人编队控制。E-mail： fulinliuer@163.com
基金资助:
国家重点研发计划(2019YFB1705104)

Formation Strategy of Hybrid Obstacle Avoidance Algorithm for Multiple Mobile Robots

Liu Fulin¹^,³(), Li Qingxin²^,³^,⁴()

^1.College of Software, Shenyang University of Technology, Shenyang 110870, China
^2.Key Laboratory of Networked Control Systems, Chinese Academy of Sciences, Shenyang 110016, China
^3.Shenyang Institute of Automation, Chinese Academy of Sciences, Shenyang 110016, China
^4.Institutes for Robotics and Intelligent Manufacturing, Chinese Academy of Sciences, Shenyang 110169, China

Received:2022-10-19 Revised:2022-12-27 Online:2024-03-15 Published:2024-03-14
Contact: Li Qingxin E-mail:fulinliuer@163.com;2533439838@qq.com

摘要/Abstract

摘要：

针对多移动机器人系统在未知静态障碍物环境下的编队避障问题，提出了一种多移动机器人混合避障算法的编队策略，使多移动机器人系统在整个运行过程中保证系统内不发生碰撞，并且在未知静态障碍物环境中能最大程度地保持队形进行有效避障，以及能够在较短时间到达指定目标点。该编队策略基于领航跟随法和人工势场法，将系统内机器人划分为领航机器人及跟随机器人，并根据各自角色任务的差异，对其采用了不同改进方法的人工势场法进行避障，形成一种混合避障算法，其中针对领航机器人提出了LAPF （leader artificial potential field）避障算法，该算法改进了传统人工势场法的斥力函数，解决了传统人工势场法极易陷入局部极值困境的问题，并有效缩短了避障过程所用时间。为保证整个系统运行过程及避障行为之后能够恢复队形保持系统稳定性，该编队策略利用一致性模型控制机器人的速度，使领航机器人与跟随机器人的状态趋于一致，进而保持队形。仿真结果验证了LAPF算法及该多移动机器人混合避障算法编队策略的有效性。

关键词: 多移动机器人, 一致性编队, 领航跟随法, 人工势场法, 避障

Abstract:

For the obstacle avoidance problem of multiple mobile robots in the unknown static obstacle environment, this paper proposed a formation strategy of a hybrid obstacle avoidance algorithm for multiple mobile robots, ensuring that multiple mobile robots do not collide during operation, can maintain the formation to the maximum extent in the unknown static obstacle environment for effective obstacle avoidance, and can reach the designated target point in a short time. Based on the leader-follower method and artificial potential field (APF) method, the formation strategy divided the robots in the system into the leader robot and the follower robot. According to the differences in their roles and tasks, the APF method with different improved methods was adopted to avoid obstacles, forming a hybrid obstacle avoidance algorithm. The leader APF (LAPF) obstacle avoidance algorithm was proposed for the leader robot, which improved the repulsive force function of the traditional APF method, solved the problem that the traditional APF method is easy to fall into the local extrema dilemma, and effectively reduced the time for obstacle avoidance. In order to ensure that the formation can be restored, and the stability of the system can be maintained during system operation and after obstacle avoidance, the formation strategy used the consistency model to control the speed of the robot so that the states of the leader robot and the follower robot tend to be consistent, and then the formation can be maintained. Simulation results verify the effectiveness of the LAPF algorithm and the formation strategy of a hybrid obstacle avoidance algorithm for multiple mobile robots.

Key words: multiple mobile robots, consistent formation, leader-follower method, artificial potential field(APF), obstacle avoidance

中图分类号:

TP242

刘福琳,李庆鑫 . 多移动机器人混合避障算法的编队策略[J]. 系统仿真学报, 2024, 36(3): 726-734.

Liu Fulin,Li Qingxin . Formation Strategy of Hybrid Obstacle Avoidance Algorithm for Multiple Mobile Robots[J]. Journal of System Simulation, 2024, 36(3): 726-734.

图/表 12

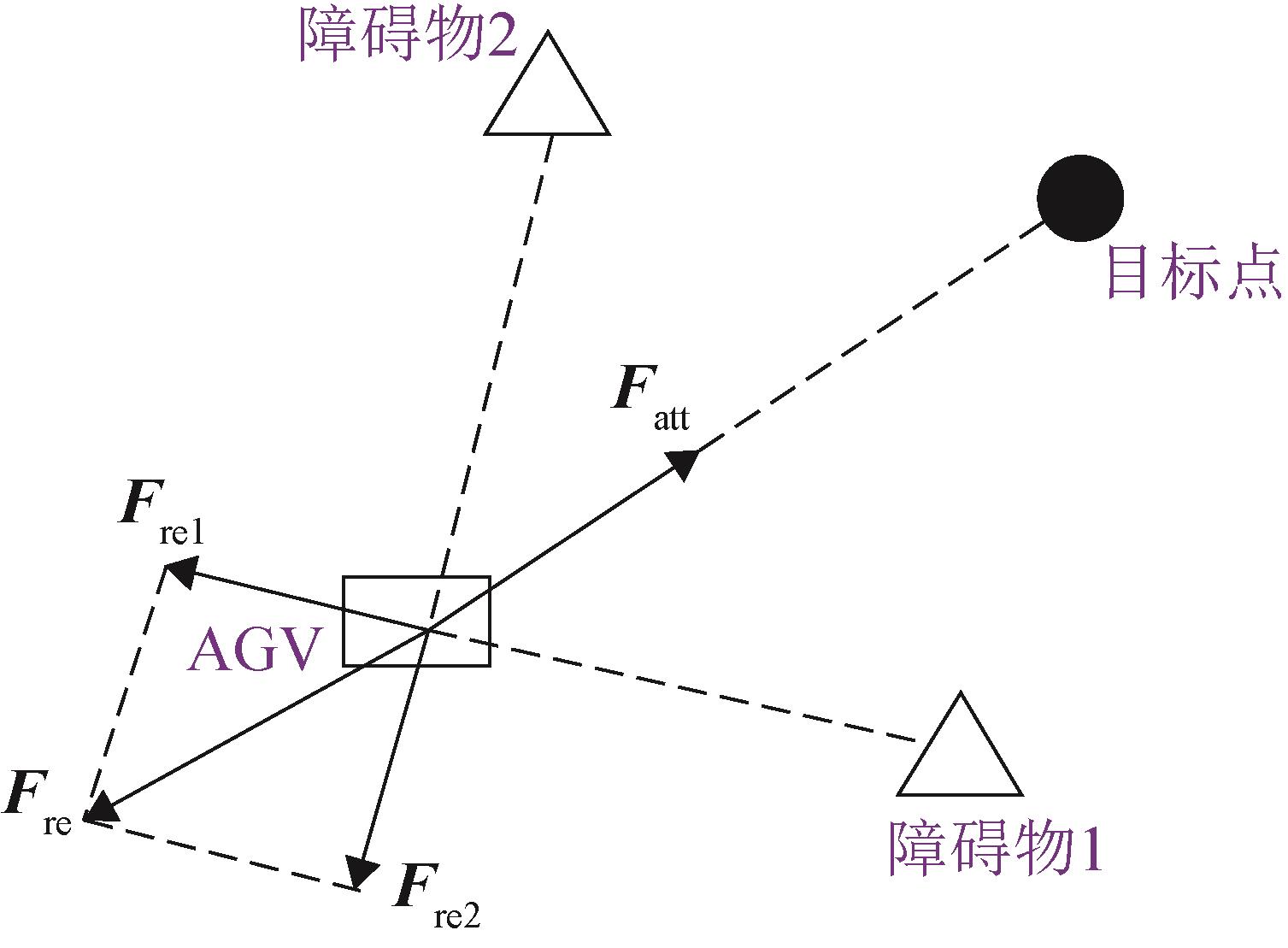

图1

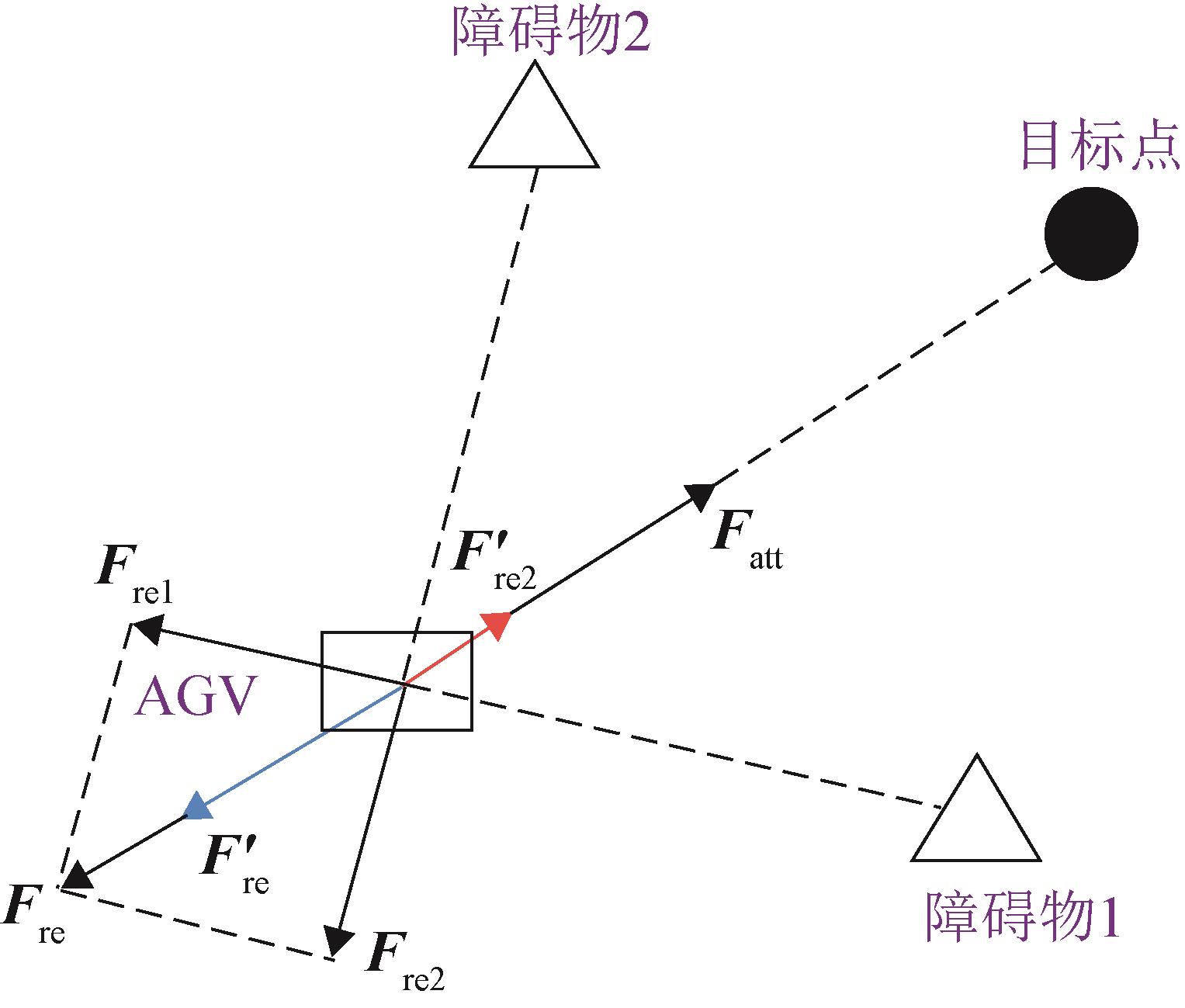

图2

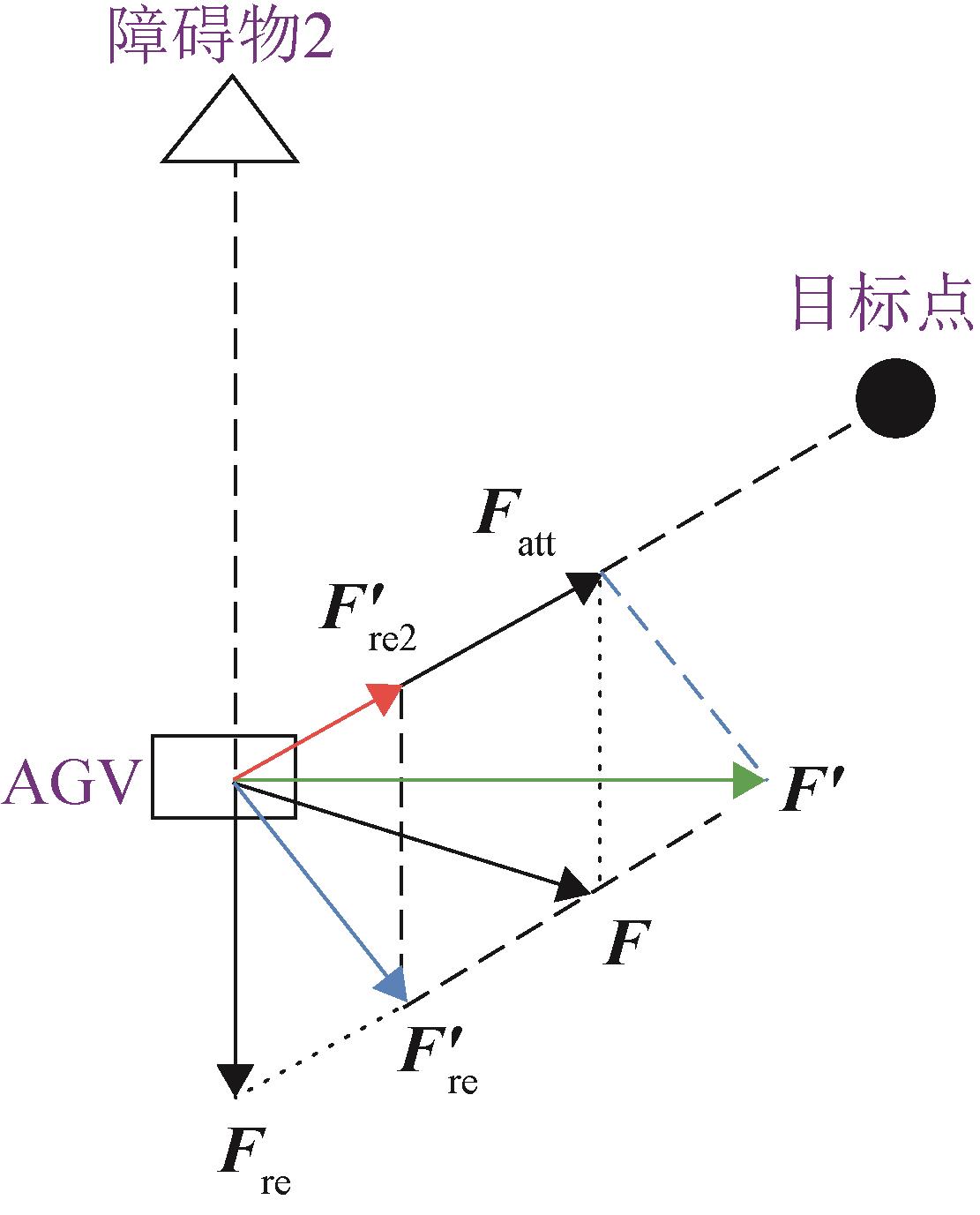

图3

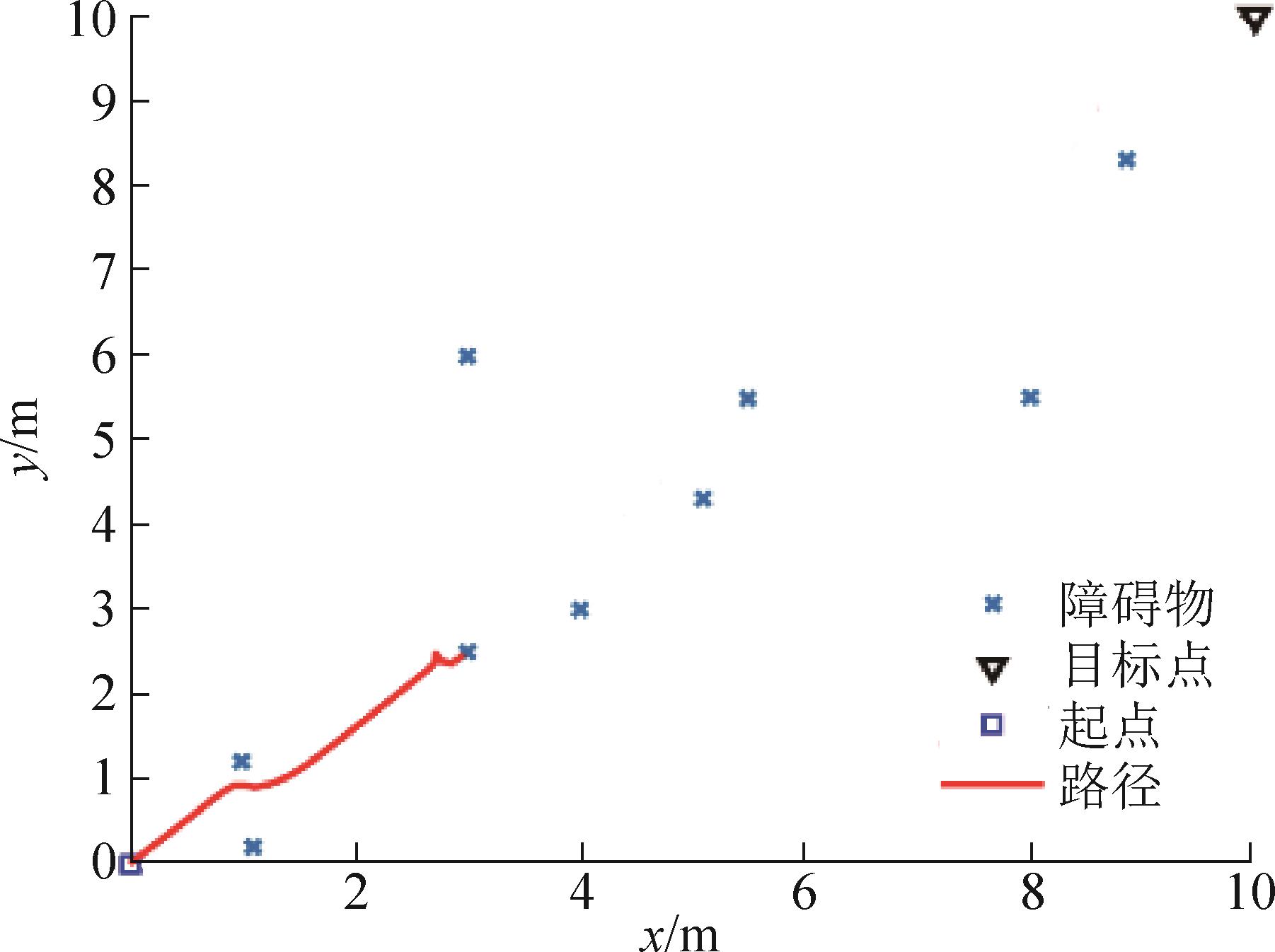

图4

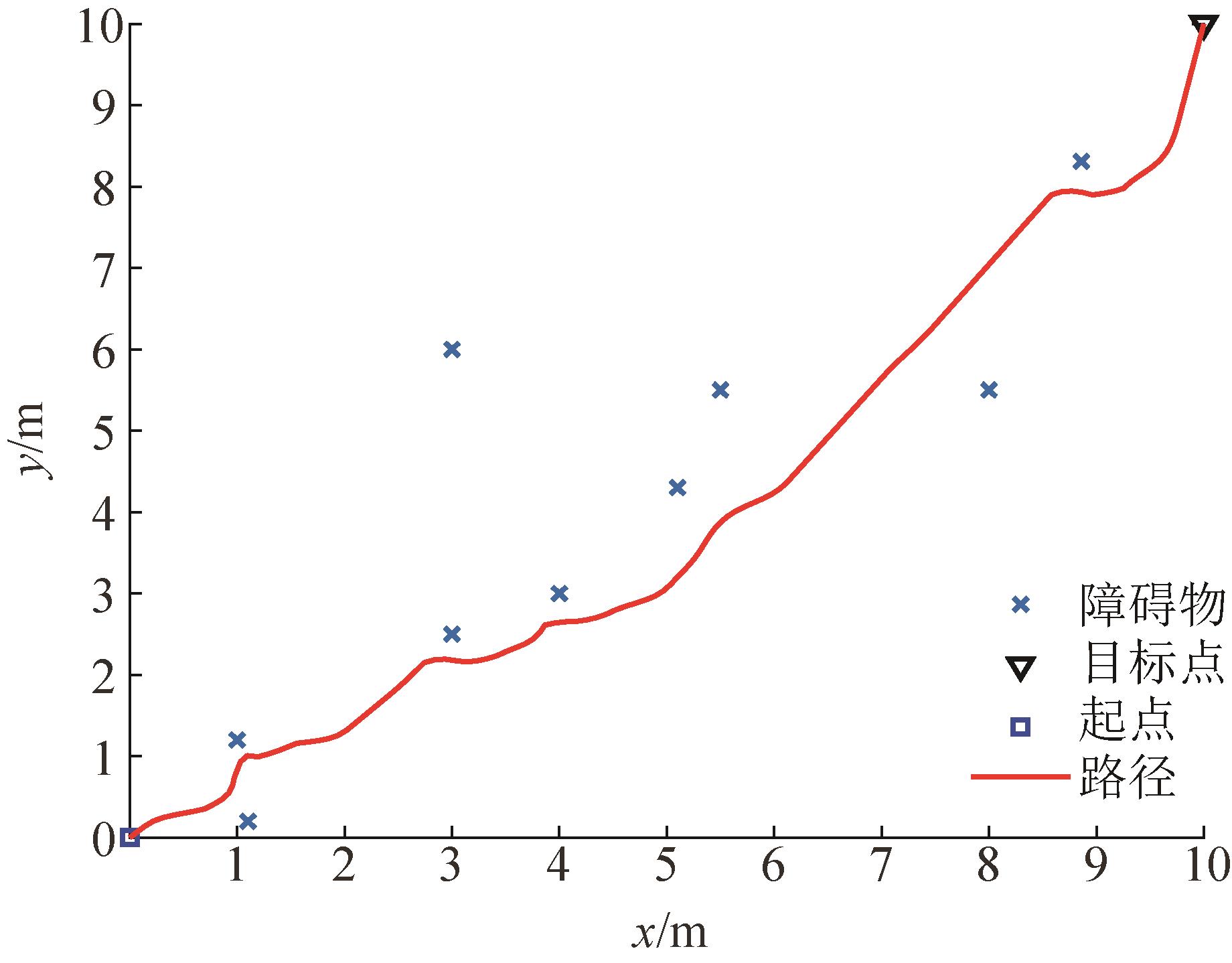

图5

表1

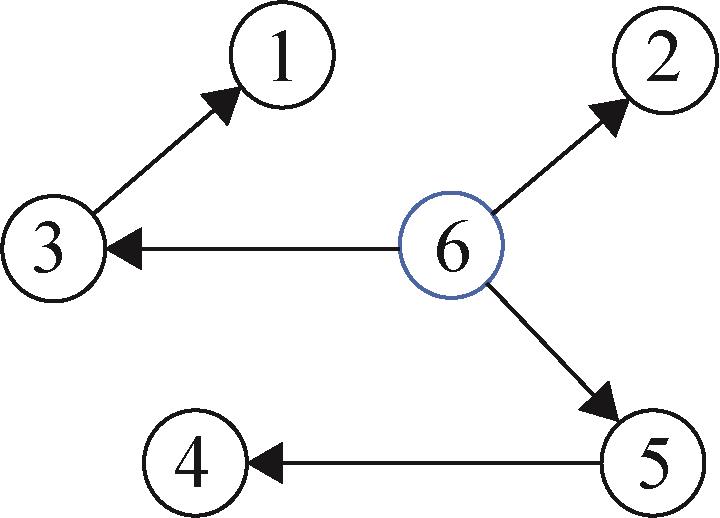

图6

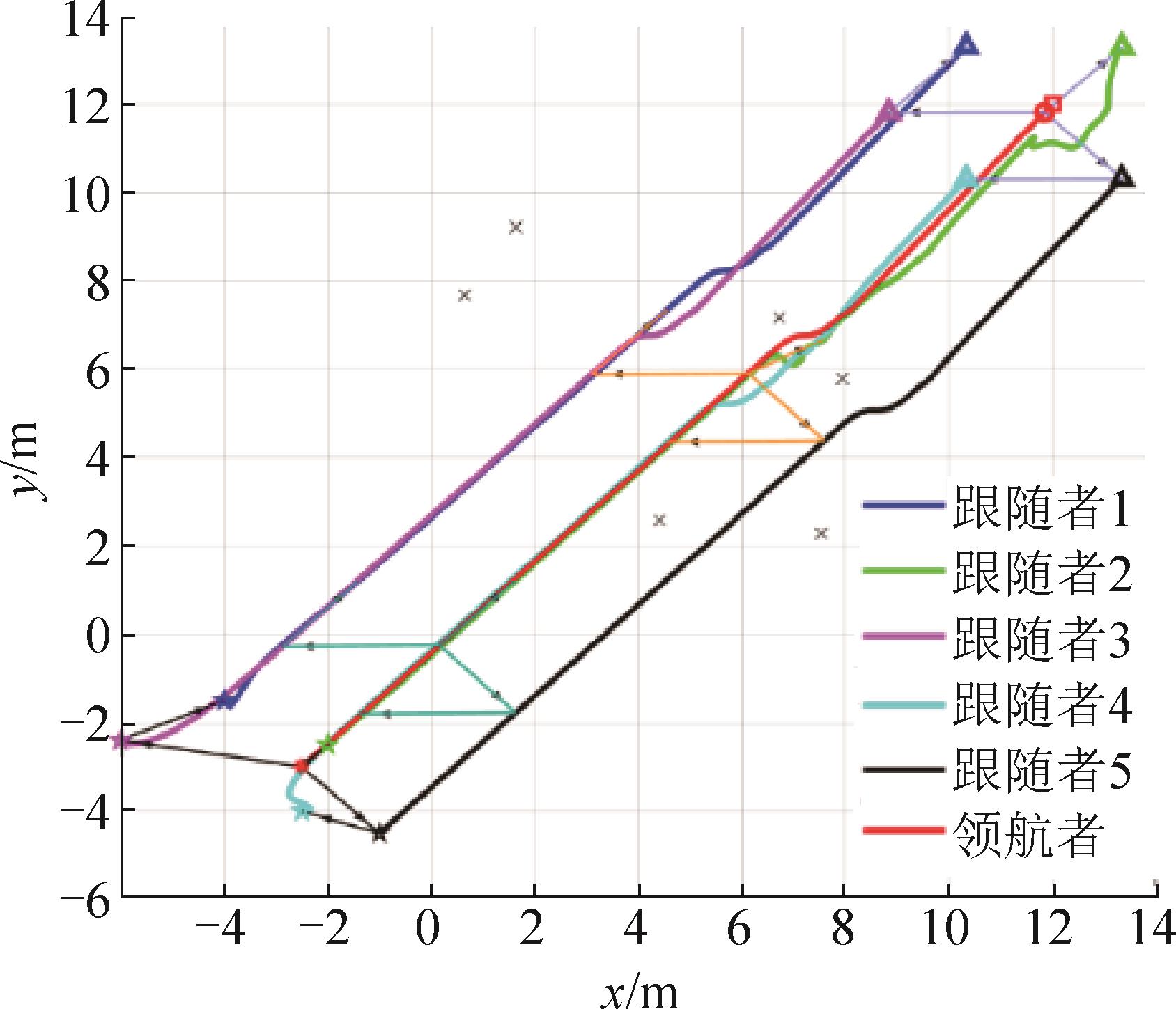

图7

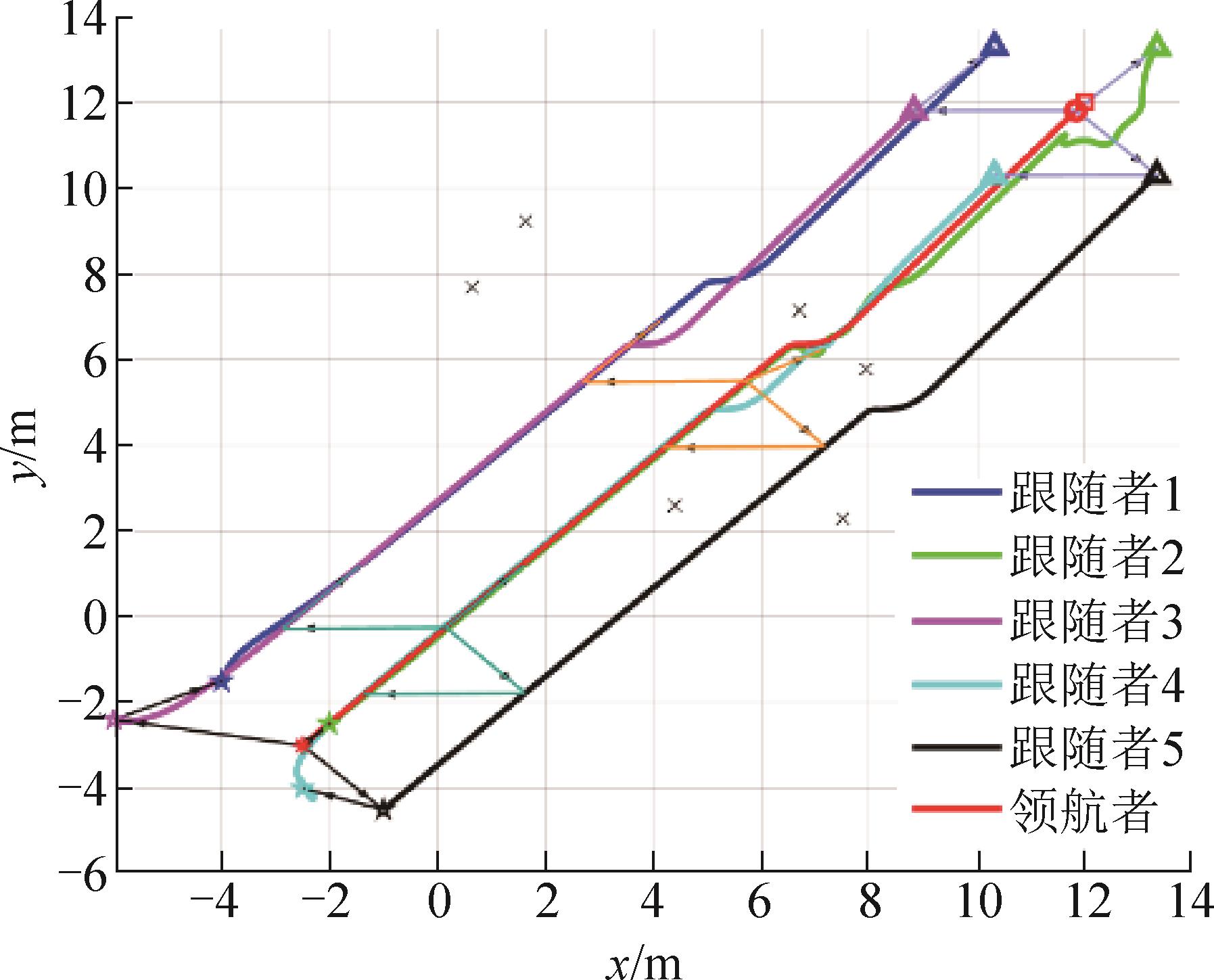

图8

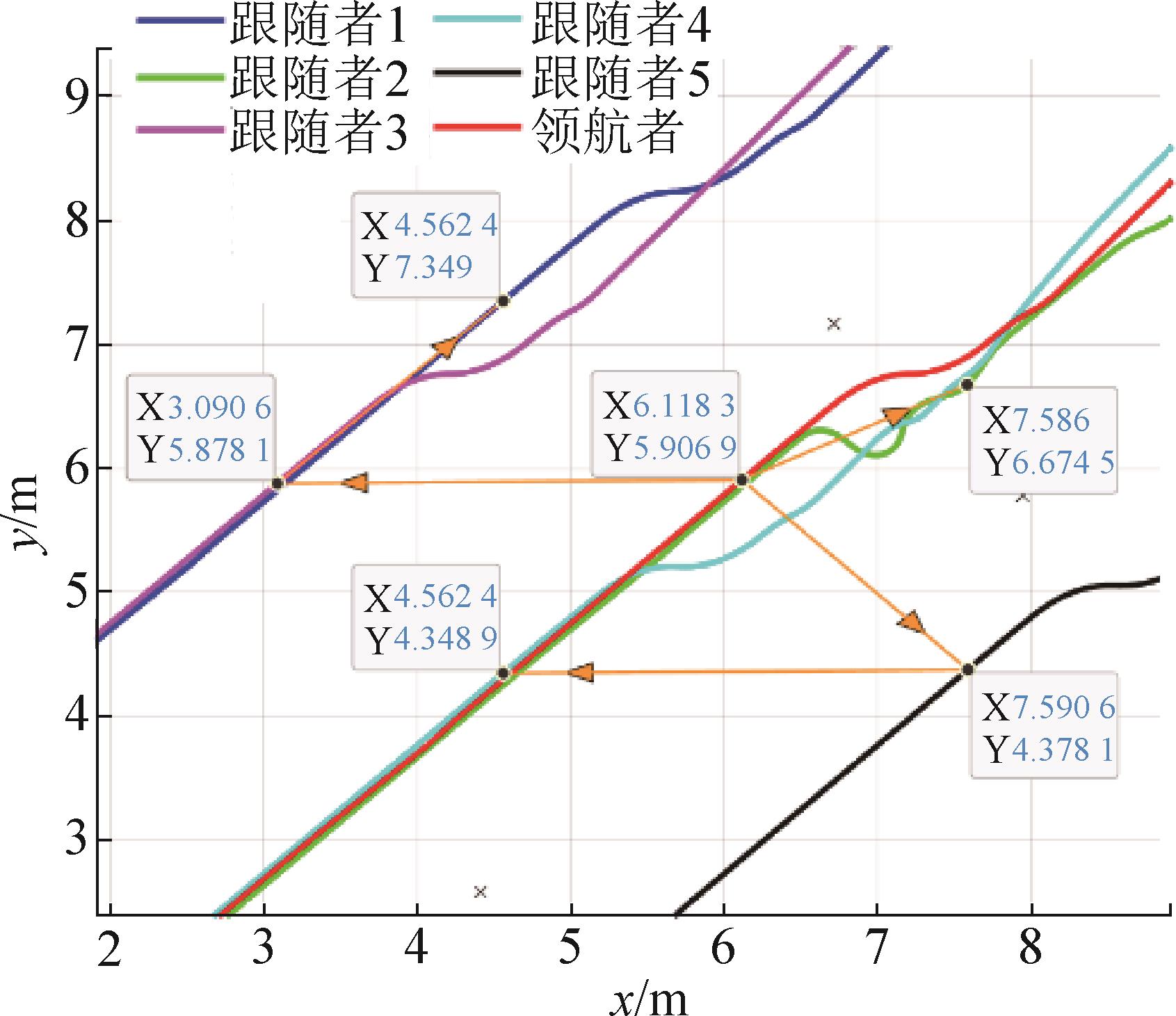

图9

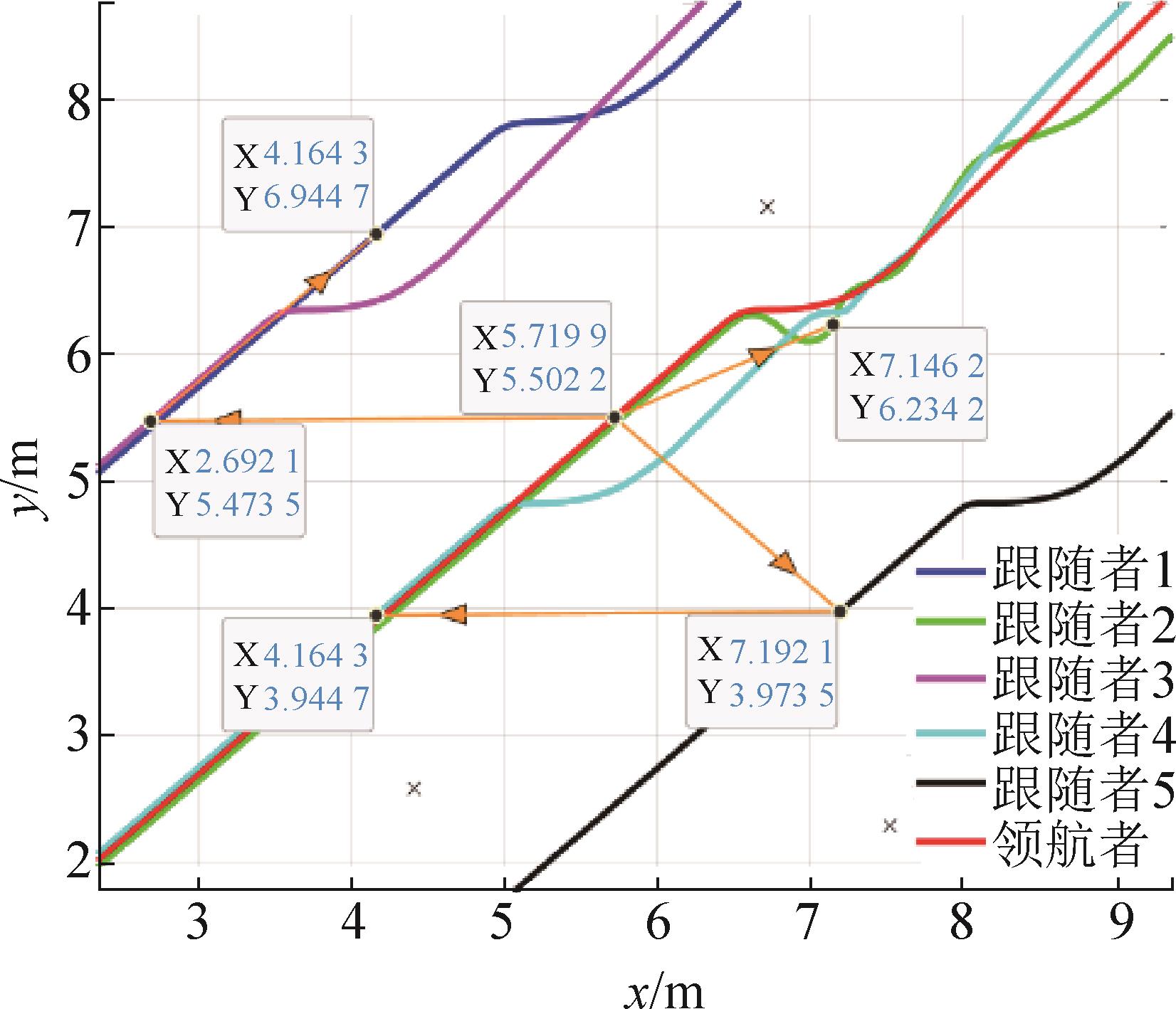

图10

表2

参考文献 16

1	师五喜, 王健. 多移动机器人的协同编队控制[J]. 天津工业大学学报, 2020, 39(1): 63-68.
	Shi Wuxi, Wang Jian. Cooperative Formation Control for Multiple Mobile Robots[J]. Journal of Tiangong University, 2020, 39(1): 63-68.
2	禹鑫燚, 何燕琳, 欧林林, 等. 多智能体系统的队形控制方法及应用综述[J]. 计算机测量与控制, 2017, 25(7): 1-7, 15.
	Yu Xinyi, He Yanlin, Linlin Ou, et al. Research on Formation Control Method and Application of Multi-agent Systems[J]. Computer Measurement & Control, 2017, 25(7): 1-7, 15.
3	Miao Zhiqiang, Liu Yunhui, Wang Yaonan, et al. Distributed Estimation and Control for Leader-following Formations of Nonholonomic Mobile Robots[J]. IEEE Transactions on Automation Science and Engineering, 2018, 15(4): 1946-1954.
4	Balch T, Arkin R C. Behavior-based Formation Control for Multirobot Teams[J]. IEEE Transactions on Robotics and Automation, 1998, 14(6): 926-939.
5	Perdereau V, Passi C, Drouin M. Real-time Control of Redundant Robotic Manipulators for Mobile Obstacle Avoidance[J]. Robotics and Autonomous Systems, 2002, 41(1): 41-59.
6	李珣, 何晶晶, 赵征凡, 等. 基于一致性改进模型的多机器人编队运动规划方法[J]. 西安工程大学学报, 2021, 35(3): 44-53, 59.
	Li Xun, He Jingjing, Zhao Zhengfan, et al. Multi-robot Formation Motion Planning Method Based on Improved Consistency Model[J]. Journal of Xi'an Polytechnic University, 2021, 35(3): 44-53, 59.
7	梁旭东. 多机器人系统编队一致性研究[D]. 兰州: 兰州交通大学, 2018.
	Liang Xudong. Research on Formation Consensus of the Multi-robot System[D]. Lanzhou: Lanzhou Jiaotong University, 2018.
8	吴晋, 张国良, 曾静, 等. 多机器人编队离散模型及队形控制稳定性分析[J]. 控制理论与应用, 2014, 31(3): 293-301.
	Wu Jin, Zhang Guoliang, Zeng Jing, et al. Discrete-time Modeling for Multirobot Formation and Stability of Formation Control Algorithm[J]. Control Theory & Applications, 2014, 31(3): 293-301.
9	许剑鑫. 基于一致性算法的移动机器人编队控制研究[D]. 武汉: 武汉理工大学, 2020.
	Xu Jianxin. Research on Formation Control of Mobile Robot Based on Consensus Algorithm[D]. Wuhan: Wuhan University of Technology, 2020.
10	牛秦玉, 李美凡, 赵勇. 改进人工势场法的AGV路径规划算法研究[J]. 机床与液压, 2022, 50(17): 19-24.
	Niu Qinyu, Li Meifan, Zhao Yong. Research on Improved Artificial Potential Field Method for AGV Path Planning[J]. Machine Tool & Hydraulics, 2022, 50(17): 19-24.
11	王翼虎, 王思明. 基于改进人工势场法的机器人实时路径规划[J]. 兰州交通大学学报, 2020, 39(3): 60-66.
	Wang Yihu, Wang Siming. Real-time Path Planning of Robot Based on Improved Artificial Potential Field Method[J]. Journal of Lanzhou Jiaotong University, 2020, 39(3): 60-66.
12	张铠翔, 姜文刚, 薛慧. 改进人工势场法的室内移动机器人的局部规划研究[J]. 计算机与数字工程, 2022, 50(5): 989-994, 1034.
	Zhang Kaixiang, Jiang Wengang, Xue Hui. Research on Local Planning of Indoor Mobile Robot with Improved Artificial Potential Field Method[J]. Computer & Digital Engineering, 2022, 50(5): 989-994, 1034.
13	杨立炜, 付丽霞, 李萍. 多智能体系统编队控制发展综述[J]. 电子测量技术, 2020, 43(24): 18-27.
	Yang Liwei, Fu Lixia, Li Ping. Summary of Development of Multi-agent System Formation Control[J]. Electronic Measurement Technology, 2020, 43(24): 18-27.
14	Ren Wei, Beard R W. Consensus Seeking in Multiagent Systems Under Dynamically Changing Interaction Topologies[J]. IEEE Transactions on Automatic Control, 2005, 50(5): 655-661.
15	Li Yushan, He Jianping, Chen Cailian, et al. Learning-based Intelligent Attack Against Formation Control with Obstacle-avoidance[C]//2019 American Control Conference (ACC). Piscataway, NJ, USA: IEEE, 2019: 2690-2695.
16	魏丁丁. 动态环境下多机器人编队路径规划研究[D]. 邯郸: 河北工程大学, 2017.
	Wei Dingding. The Research on Multi-robot Formation and Path Planning in Dynamic Environment[D]. Handan: Hebei University of Engineering, 2017.

障碍物数量	成功率/%			平均运行时间/s
障碍物数量	法1	法2	法3	法1	法2	法3
0	100	100	100	0.062	0.062	0.062
5	85	82	88	0.063	0.089	0.084
9	80	83.5	95	0.063	0.086	0.082

组合算法	运行时间
一	97.81
二	116.83
