一种面向异质多移动机器人的改进猫群算法

doi:10.16182/j.issn1004731x.joss.23-0783

摘要/Abstract

摘要：

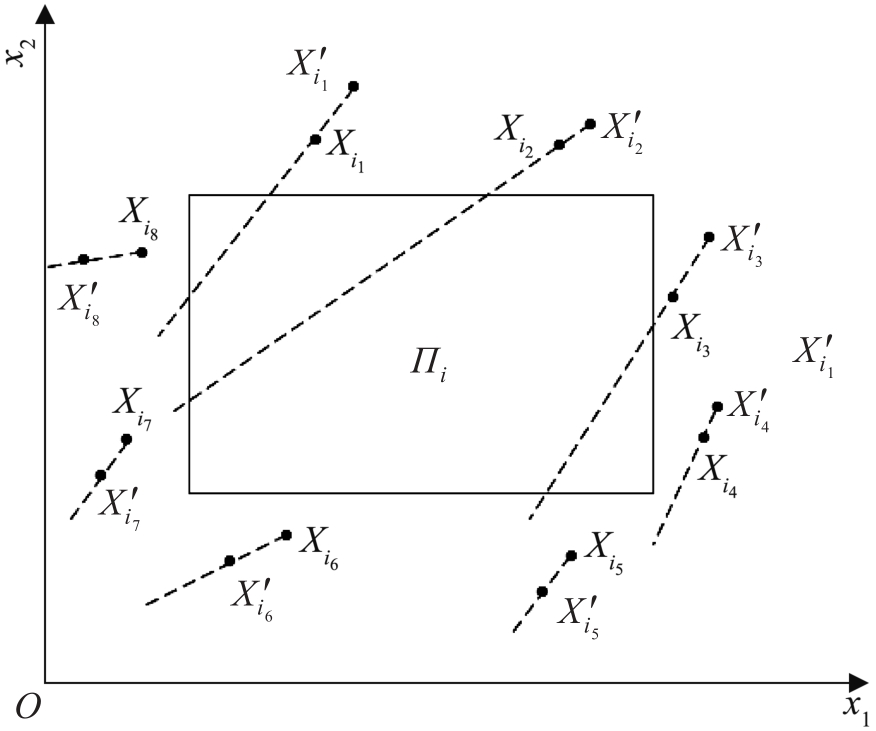

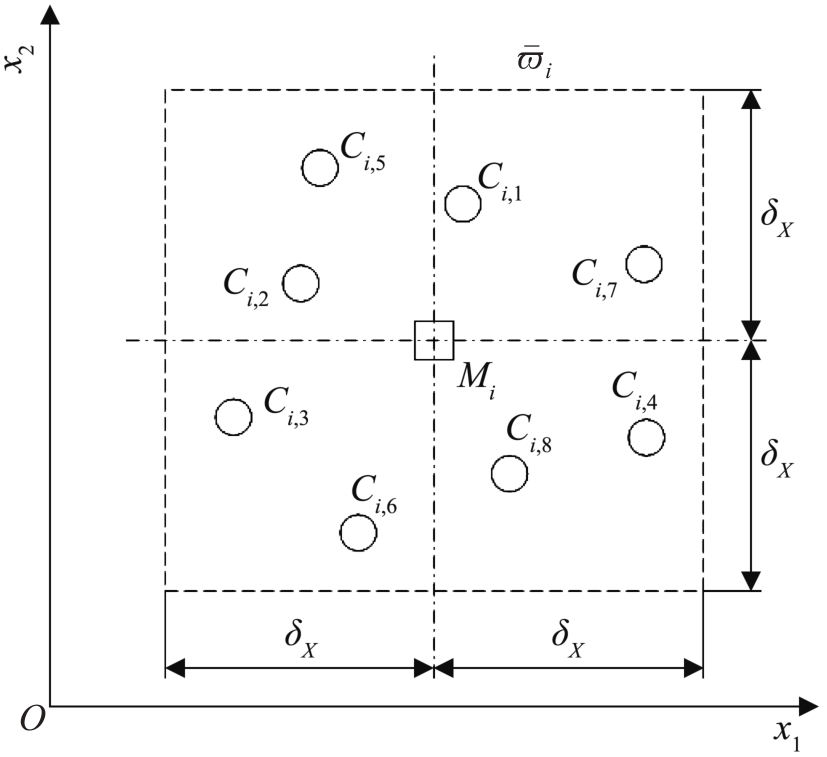

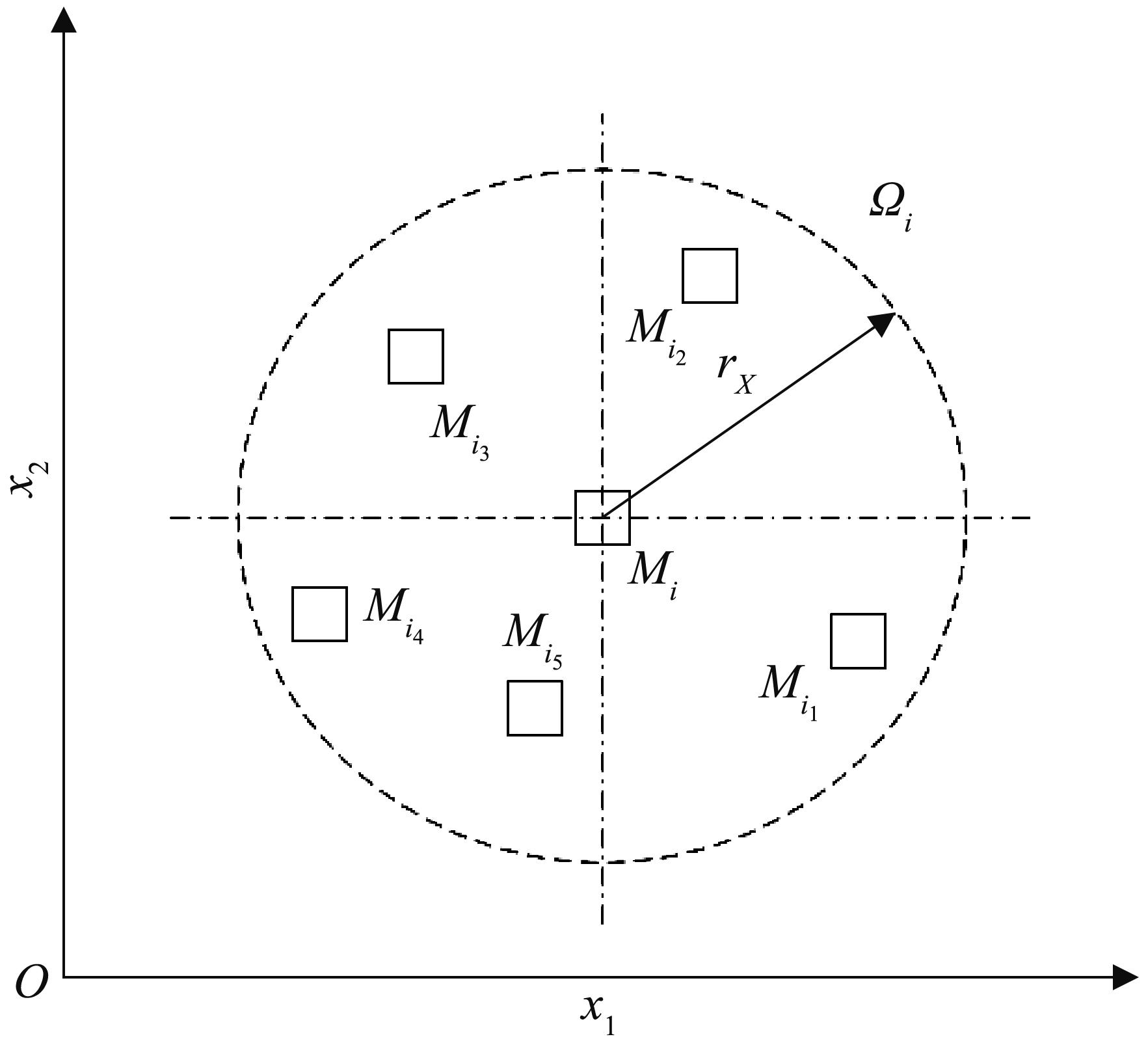

目前的多移动机器人群组很难做到成员的真正同质，现有的群智能算法也很难包容团队的异质性。关注多移动机器人的异质性协同，提出母子机器人概念。为实现群智能算法在异质多移动机器人中的应用，改进了基本的猫群算法。定义了猫群的子域和邻域，提出了搜索方向的优先级、机器人的扩展轨迹跟踪、搜索空间的吸引力和候选搜索区域等8个方面的猫群算法改进。实验结果表明：母子机器人概念可以实现异质多移动机器人的目标搜索，可以包容团队成员的异质性，验证了改进猫群算法的适用性和有效性。

关键词: 多移动机器人, 猫群算法, 异质, 子域, 搜索方向

Abstract:

At present, it is difficult to achieve the real homogeneity of the members of the multiple mobile robots. The existing swarm intelligence algorithm is also difficult to accommodate the heterogeneity of the team. Focusing on the heterogeneous cooperation of multiple mobile robots, the concept of mother and child robots is proposed. In order to realize the application of swarm intelligence algorithm in heterogeneous multiple mobile robots, the basic cat swarm algorithm is improved. The sub-domain and neighborhood of cat swarm are defined, and eight improvements of cat swarm algorithm are proposed, including priority of search direction, extended trajectory tracking of robot, attraction of search space and candidate search area. The experimental results show that the concept of mother-child robot can realize the target search of heterogeneous multiple mobile robots, and can contain the heterogeneity of team members and verify the applicability and effectiveness of the improved cat swarm algorithm.

Key words: multiple mobile robots, cat swarm optimization, heterogeneous, sub-domain, search direction

中图分类号:

TP18

康亮,杜奕,尹丽华 . 一种面向异质多移动机器人的改进猫群算法[J]. 系统仿真学报, 2024, 36(8): 1958-1968.

Kang Liang,Du Yi,Yin Lihua . An Improved Cat Swarm Optimization for Heterogeneous Multiple Mobile Robots[J]. Journal of System Simulation, 2024, 36(8): 1958-1968.

图/表 7

图1

图2

图3

图4

图5

表1

测试函数CF1-CF6

Name	Definition	Global Minimum X*
CF1	$f (X) = ∑ i = 1 D x i 2$	$X * = (0, ⋯, 0)$
CF2	$f (X) = - 20 e x p - 0.2 1 / D ∑ i = 1 D x i 2 - e x p (1 / D ∑ i = 1 D c o s (2 π x i) + 20 + e x p (1)$	$X * = (0, ⋯, 0)$
CF3	$f (X) = ∑ i = 1 D - 1 [100 (x i + 1 - x i 2) 2 + (x i - 1) 2]$	$X * = (1, ⋯, 1)$
CF4	$f (X) = 10 D + ∑ i = 1 D [x i 2 - 10 × c o s (2 π x i)]$	$X * = (0, ⋯, 0)$
CF5	$f (X) = s i n 2 (π x i) + ∑ i = 1 D - 1 [(w i - 1) 2 (1 + 10 × s i n 2 (π w i + 1))] + (w d + 1) 2 [1 + s i n 2 (2 π w d)] w i = 1 + (x i - 1) / 4, i = 1, ⋯, d$	$X * = (1, ⋯, 1)$
CF6	$f (X) = ∑ i = 1 D (x i - 1) 2 - ∑ i = 2 D x i x i = 1$	$X i * = i (D + 1 - i), i = 1, ⋯, D$

表1

表2

参考文献 27

1	陈超, 李强, 闫青. 基于异质传感器信息融合的移动机器人同步定位与构图[J]. 科学技术与工程, 2018, 18(13): 86-91.
	Chen Chao, Li Qiang, Yan Qing. Mobile Robot Simulataneous Localization and Mapping Based on Heterogeneous Sensor Information Fusion[J]. Science Technology and Engineering, 2018, 18(13): 86-91.
2	陈少斌, 蒋静坪. 运用异质传感器信息融合的移动机器人自定位[J]. 控制理论与应用, 2008, 25(5): 883-886.
	Chen Shaobin, Jiang Jingping. Self-localization of the Mobile Robot Utilizing the Heterogeneous Sensor Information Fusion[J]. Control Theory & Applications, 2008, 25(5): 883-886.
3	Guilherme Carlos R de Oliveira, Kevin B de Carvalho, Brandão Alexandre S. A Hybrid Path-planning Strategy for Mobile Robots with Limited Sensor Capabilities[J]. Sensors, 2019, 19(5): 1049.
4	Lin H Y, Huang Yichun. Collaborative Complete Coverage and Path Planning for Multi-robot Exploration[J]. Sensors, 2021, 21(11): 3709.
5	Wei Yongyong, Zheng Rong. Multi-robot Path Planning for Mobile Sensing Through Deep Reinforcement Learning[C]//IEEE INFOCOM 2021-IEEE Conference on Computer Communications. Piscataway: IEEE, 2021: 1-10.
6	Brian Lee K M, Kong F, Cannizzaro R, et al. An Upper Confidence Bound for Simultaneous Exploration and Exploitation in Heterogeneous Multi-robot Systems[C]//2021 IEEE International Conference on Robotics and Automation (ICRA). Piscataway: IEEE, 2021: 8685-8691.
7	Bae J, Park M. A Heuristic for Efficient Coordination of Multiple Heterogeneous Mobile Robots Considering Workload Balance[J]. IEEE Robotics and Automation Letters, 2021, 6(2): 4064-4070.
8	Patil A, Bae J, Park M. An Algorithm for Task Allocation and Planning for a Heterogeneous Multi-robot System to Minimize the Last Task Completion Time[J]. Sensors, 2022, 22(15): 5637.
9	Wu Guohua, Mallipeddi Rammohan, Suganthan P N. Ensemble Strategies for Population-based Optimization Algorithms-A Survey[J]. Swarm and Evolutionary Computation, 2018, 44: 695-711.
10	Zedadra Ouarda, Guerrieri Antonio, Jouandeau Nicolas, et al. Swarm Intelligence-based Algorithms Within IoT-based Systems: A Review[J]. Journal of Parallel and Distributed Computing, 2018, 122: 173-187.
11	Fister Iztok, Iglesias Andres, Galvez Akemi, et al. Novelty Search for Global Optimization[J]. Applied Mathematics and Computation, 2019, 347: 865-881.
12	Mirjalili S, Lewis A. The Whale Optimization Algorithm[J]. Advances in Engineering Software, 2016, 95: 51-67.
13	Agirbas Asli. Façade Form-finding with Swarm Intelligence[J]. Automation in Construction, 2019, 99: 140-151.
14	Singh Prabhat R, Mohamed Abd Elaziz, Xiong Shengwu. Modified Spider Monkey Optimization Based on Nelder-mead Method for Global Optimization[J]. Expert Systems with Applications, 2018, 110: 264-289.
15	Singh Kavita, Sundar Shyam. Artifical Bee Colony Algorithm Using Problem-specific Neighborhood Strategies for the Tree T-spanner Problem[J]. Applied Soft Computing, 2018, 62: 110-118.
16	Krishnanand K N, Ghose D. Detection of Multiple Source Locations Using a Glowworm Metaphor with Applications to Collective Robotics[C]//Proceedings 2005 IEEE Swarm Intelligence Symposium. Piscataway: IEEE, 2005: 84-91.
17	李国亮. 狼群算法的研究与应用[D]. 南昌: 东华理工大学, 2016.
	Li Guoliang. Research and Application of Wolf Colony Algorithm[D]. Nanchang: East China University of Technology, 2016.
18	Vaishak N L, Shilpa B. A Review of Swarm Robotics: A Different Approach to Service Robot[J]. International Journal of Science, Engineering and Technology Research, 2013, 2(8): 1560-1565.
19	Orouskhani Meysam, Orouskhani Yasin, Mansouri Mohammad, et al. A Novel Cat Swarm Optimization Algorithm for Unconstrained Optimization Problems[J]. International Journal of Information Technology and Computer Science, 2013, 5(11): 32-41.
20	Tsai P W, Pan J S, Chen S M, et al. Parallel Cat Swarm Optimization[C]//2008 International Conference on Machine Learning and Cybernetics. Piscataway: IEEE, 2008: 3328-3333.
21	李昂, 付敬奇, 沈华明, 等. 基于模糊聚类和猫群算法的室内定位算法[J]. 仪器仪表学报, 2020, 41(1): 185-194.
	Li Ang, Fu Jingqi, Shen Huaming, et al. Indoor Positioning Algorithm Based on Fuzzy Clustering and Cat Swarm Optimization[J]. Chinese Journal of Scientific Instrument, 2020, 41(1): 185-194.
22	Ali Hussein Khala, El-Bakry Hazem M, Sahar Fawzy Sabbeh. University Courses Scheduling Using Cat Swarm Optimization Algorithm[J]. International Journal of Advanced Research in Computer Science & Technology, 2016, 4(1): 18-23.
23	Orouskhani Maysam, Teshnehlab Mohammad, Mohammad Ali Nekoui. Integration of Cat Swarm Optimization and Borda Ranking Method for Solving Dynamic Multi-objective Problems[J]. International Journal of Computational Intelligence and Applications, 2016, 15(3): 1650014.
24	Pettersson L M, Durand D, Johannessen O M, et al. Monitoring of Harmful Algal Blooms: [R]. London: Praxis Publishing, 2012.
25	Chu Shuchuan, Tsai P W, Pan J S. Cat Swarm Optimization[C]//PRICAI 2006: Trends in Artificial Intelligence. Berlin: Springer Berlin Heidelberg, 2006: 854-858.
26	Seyyedabbasi Amir, Kiani Farzad. Sand Cat Swarm Optimization: A Nature-inspired Algorithm to Solve Global Optimization Problems[J]. Engineering with Computers, 2023, 39(4): 2627-2651.
27	Guo Lei, Meng Zhuo, Sun Yize, et al. A Modified Cat Swarm Optimization Based Maximum Power Point Tracking Method for Photovoltaic System Under Partially Shaded Condition[J]. Energy, 2018, 144: 501-514.

		CF1	CF2	CF3	CF4	CF5	CF6
最小值	CSO	1.554 6×10^-11	1.875 8	1.594 9×10^-5	1.831 7×10²	1.812 3×10²	4.286 4×10³
	SCSO	1.498 8×10^-28	1.373 3	6.113 5×10^-5	1.622 8×10²	1.850 3×10²	1.357 0×10⁴
	MCSO	1.182 7×10^-150	7.539 5×10^-15	1.600 5×10	1.780 9×10	9.323 3×10^-33	7.476 5×10²
	本文CSO	0	4.340 9×10^-16	1.817 7×10^-4	8.138 7×10	9.403 3×10^-33	3.137 3×10^-1
中间值	CSO	1.835 7×10^-99	4.137 9	2.278 7×10¹	4.118 1×10²	1.438 1×10³	5.053 9×10³
	SCSO	4.518 4×10^-27	3.437 5	1.961 1×10¹	4.337 2×10²	5.941 6×10³	1.467 0×10⁴
	MCSO	1.348 5×10^-14	1.475 5×10^-14	2.919 5×10¹	3.870 3×10¹	9.323 3×10^-33	7.057 9×10³
	本文CSO	0	1.501 5	2.081 6	1.323 2×10²	1.110 7×10	2.102 9×10³
均值	CSO	1.402 4×10^-91	5.336 4	5.639 8×10¹	4.971 0×10²	2.130 0×10³	5.264 9×10³
	SCSO	9.157 3×10^-21	4.524 1	4.037 0×10³	5.439 5×10²	6.304 3×10³	1.437 0×10⁴
	MCSO	2.588 3×10^-143	3.477 5	1.417 9×10²	4.121 5×10¹	2.101 4×10^-32	8.507 8×10³
	本文CSO	9.445 3×10^-105	1.687 5	5.631 4	1.417 1×10²	2.527 7×10¹	2.324 5×10³
标准差	CSO	1.028 5×10^-90	4.135 4	1.221 8×10²	2.710 3×10²	2.154 9×10³	8.475 2×10²
	SCSO	6.544 7×10^-20	4.128 0	2.858 5×10⁴	3.513 3×10²	4.316 4×10³	3.472 3×10^-2
	MCSO	1.548 7×10^-14	6.455 1	4.873 1×10²	1.778 8×10¹	2.431 0×10^-32	7.043 5×10³
	本文CSO	2.888 1×10^-10	7.690 8×10^-1	5.688 3	3.010 4×10¹	3.666 6×10¹	3.021 5×10³
