Simulation on Water Hammer Characteristics of Bipropellant Attitude and Orbit Control Propulsion System

doi:10.16182/j.issn1004731x.joss.24-0954

Abstract

Abstract:

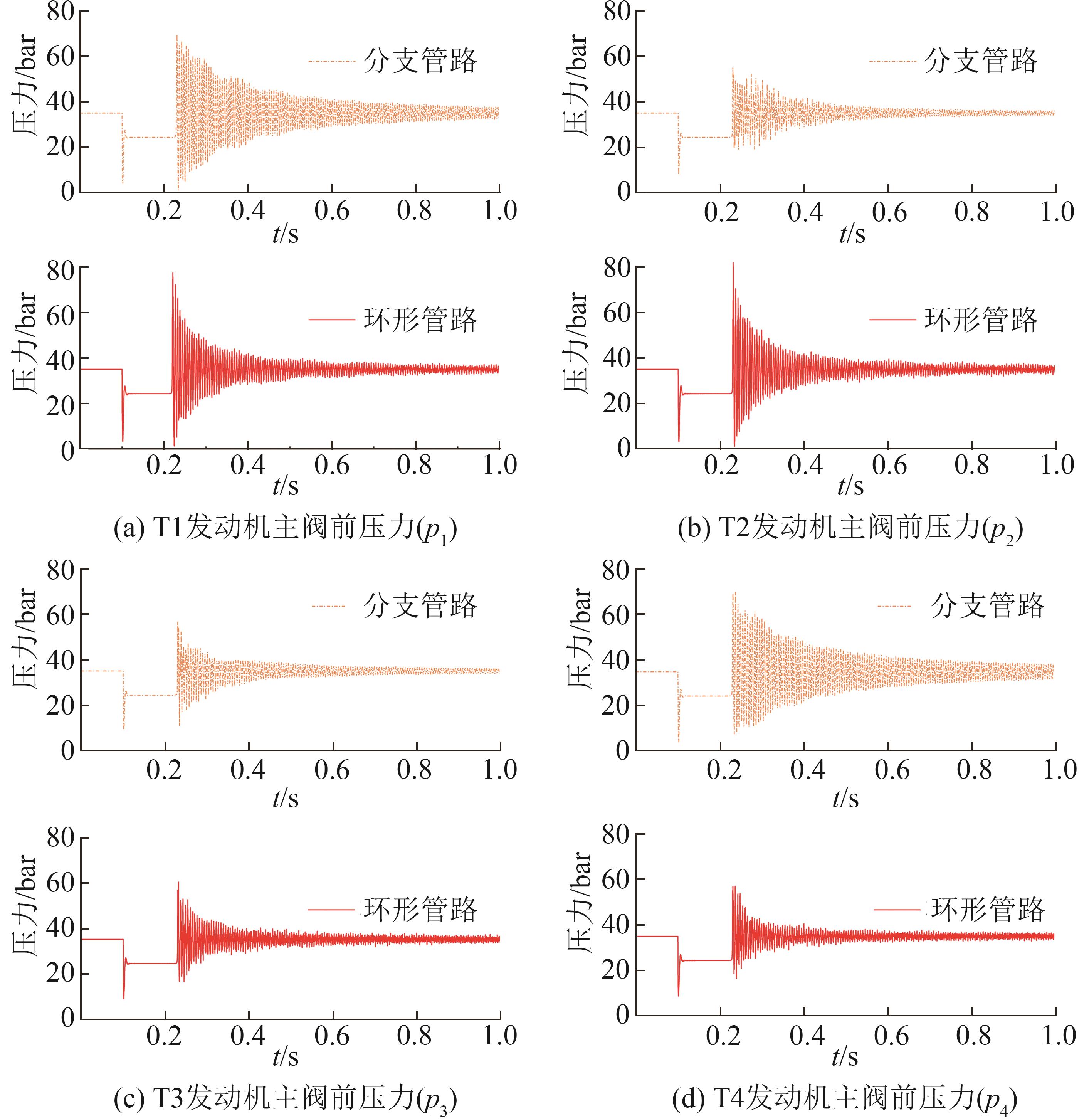

To address the water hammer problem in bipropellant attitude and orbit control propulsion systems during start-up, shutdown, and periodic operation, the water hammer characteristics under different operating conditions are investigated using simulation methods. The water hammer characteristics of annular and branched propellant delivery lines are compared, and the effects of multi-engine interactions under various operating conditions, as well as the influence of water hammer on engine performance, are analyzed. The results show that the attenuation rate of pressure fluctuation in the annular pipeline system is significantly higher than that in the branch pipeline system. Under the condition of multi-cycle and multi-engine simultaneous start-up and shutdown, the fluctuation of water hammer generated in different cycles affects each other and causes the fluctuation amplitude to increase, but the effect on the engine thrust chamber pressure is relatively small. When multi-engine start-up and shutdown are performed at intervals, water hammer effects lead to severe fluctuations in thrust chamber pressure and nozzle flow rate, affecting the stability of the engine operation. The simulation results provide a reference for the structural design and optimization of the propulsion system and contribute to improving its reliability and safety.

Key words: attitude and orbit control engine, propellant feed system, water hammer characteristic, numerical simulation

CLC Number:

V434.1

Lang Xianwei, Wang Yantao, Zhang Fang, Zu Yizhen, Zhang Xinyu, Xiang Weibin. Simulation on Water Hammer Characteristics of Bipropellant Attitude and Orbit Control Propulsion System[J]. Journal of System Simulation, 2026, 38(4): 1046-1057.

Figures/Tables 14

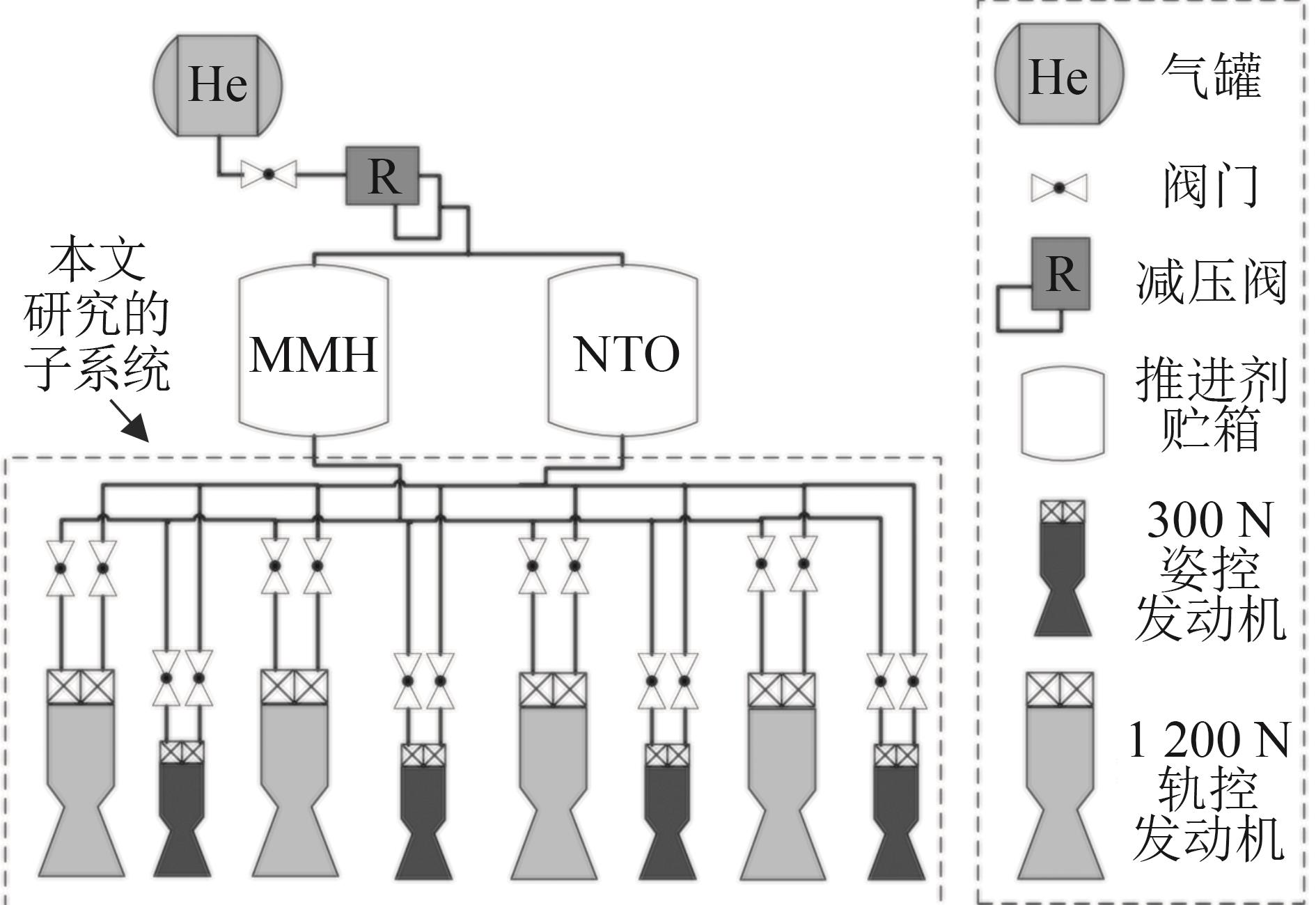

Fig. 1

Table 1

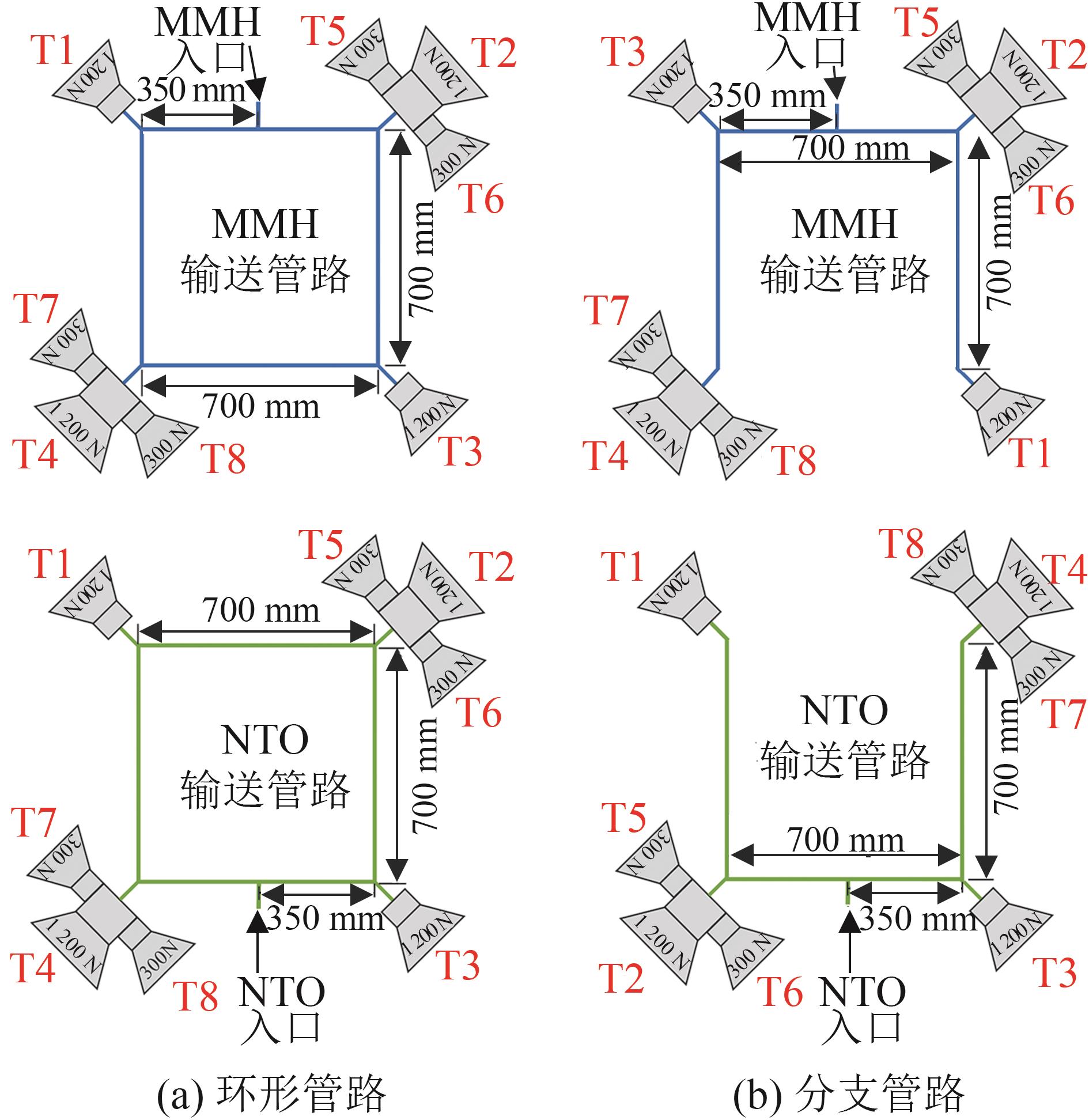

Fig. 2

Table 2

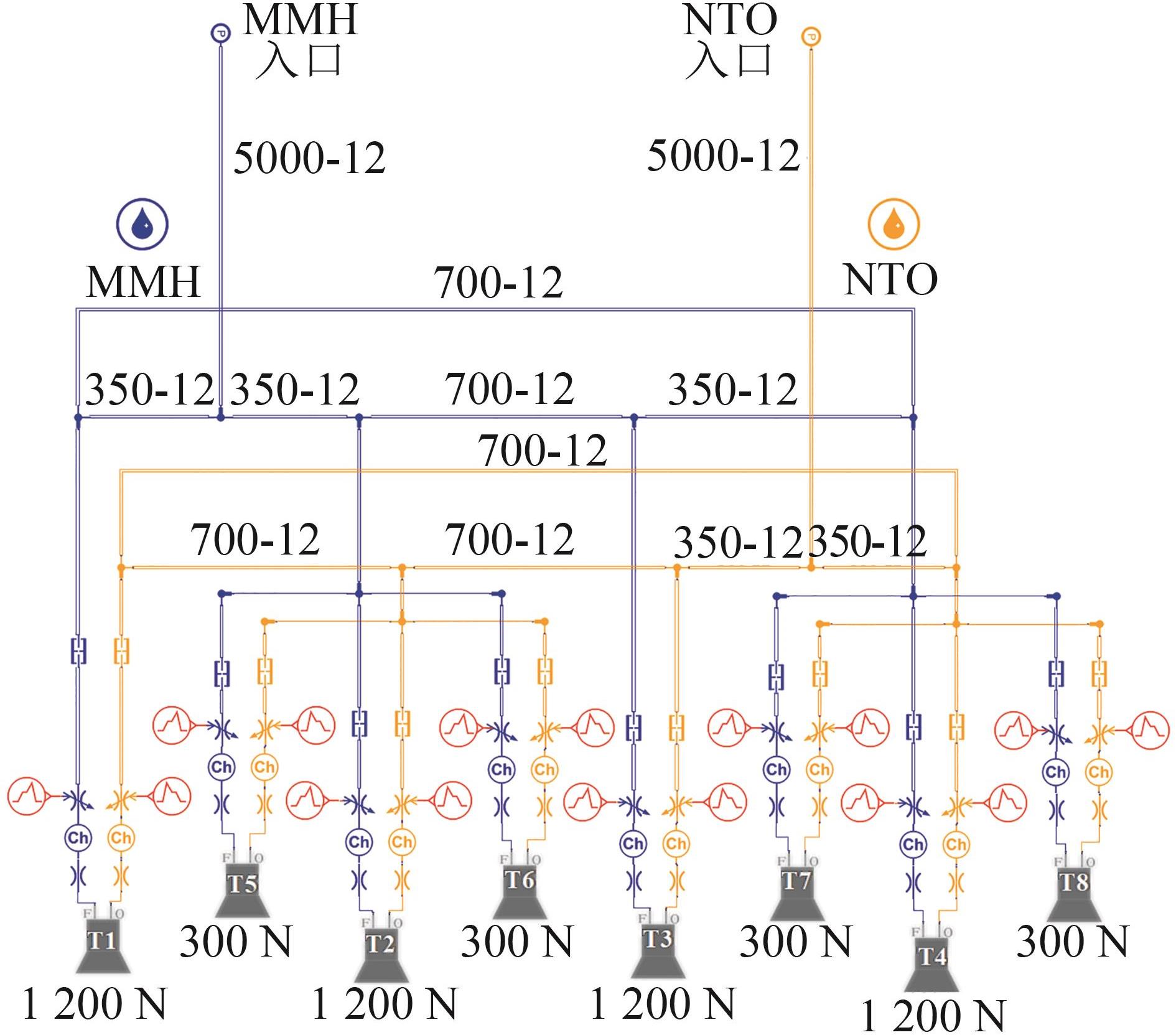

Fig. 3

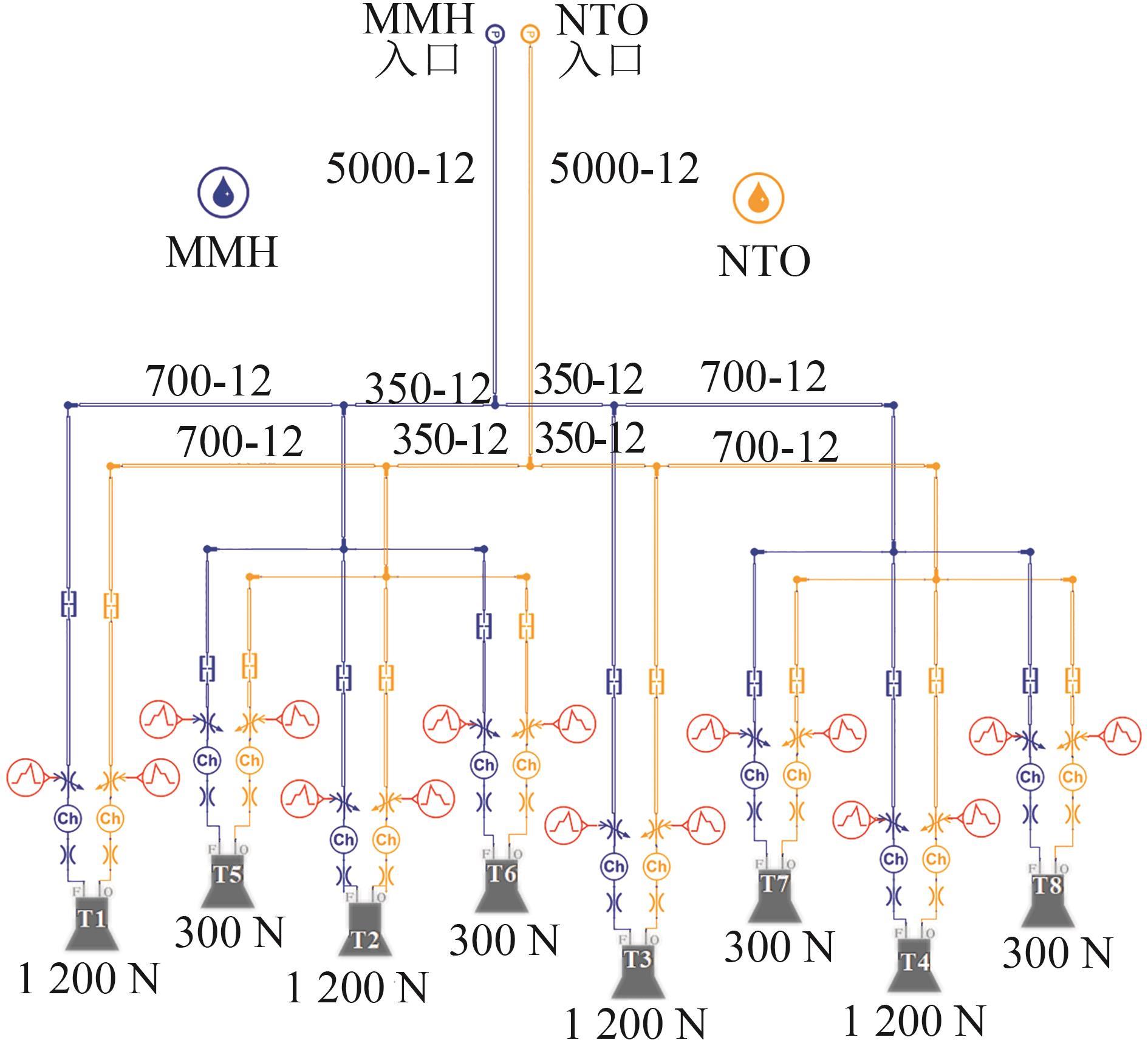

Fig. 4

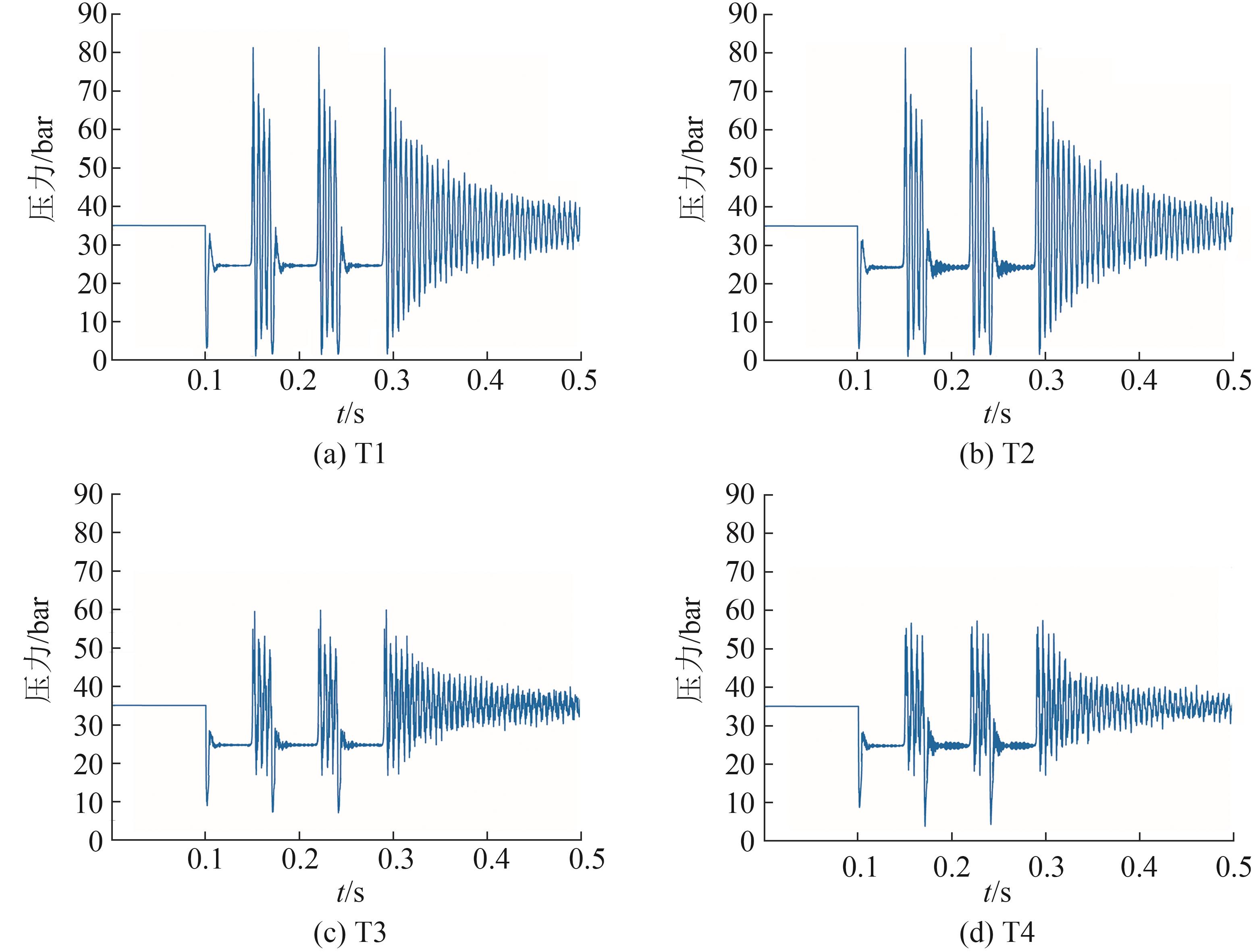

Fig. 5

Table 3

Table 4

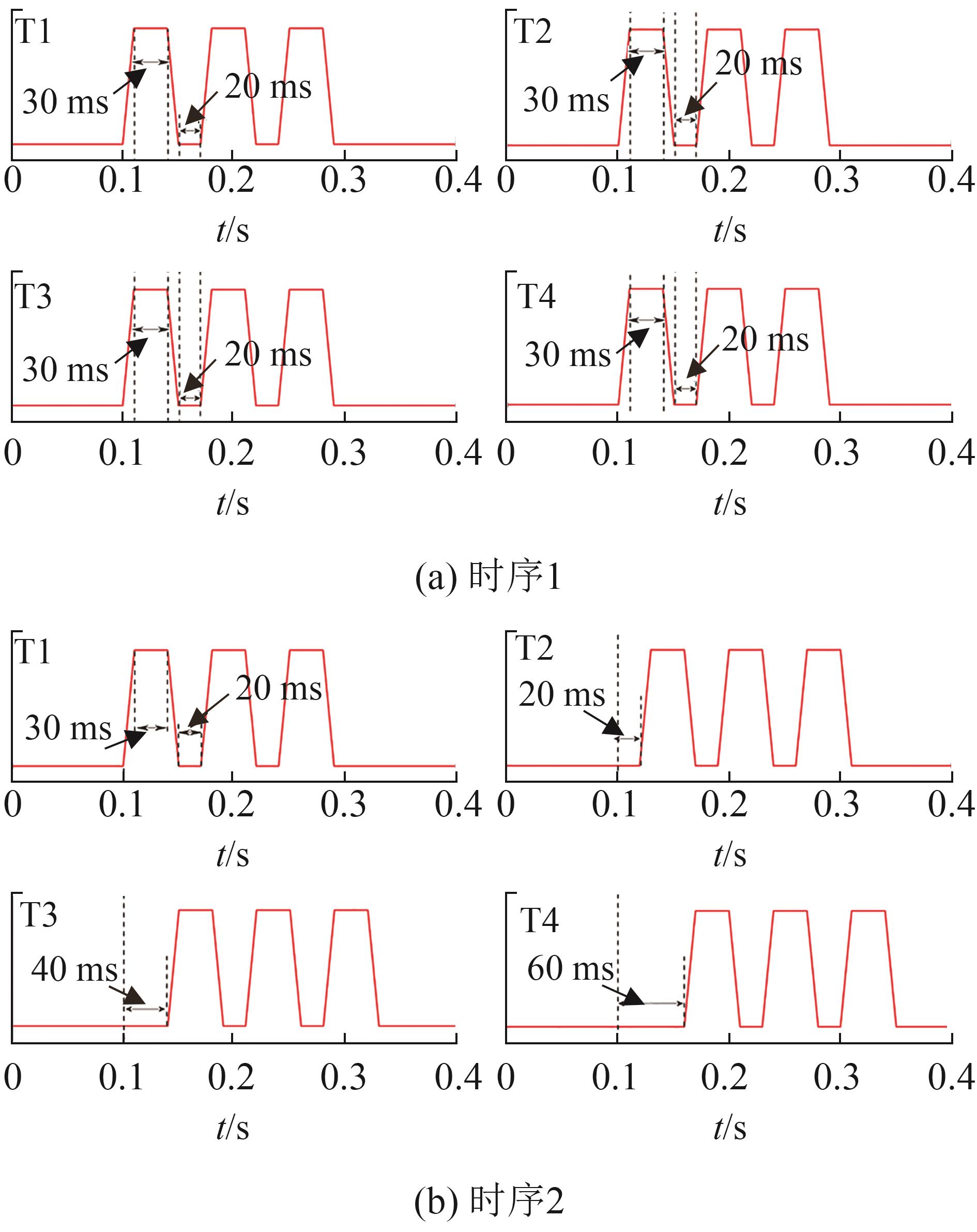

Fig. 6

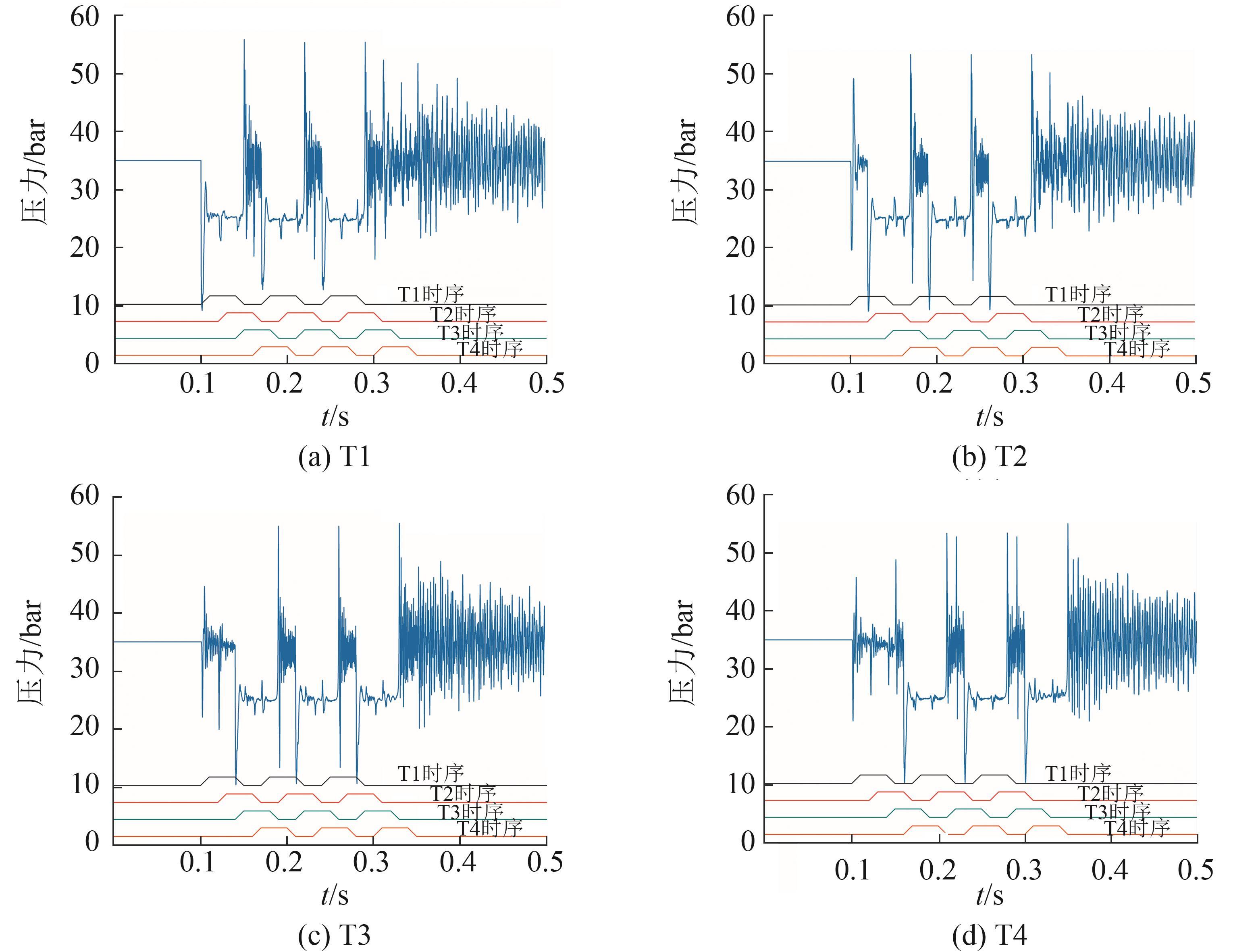

Fig. 7

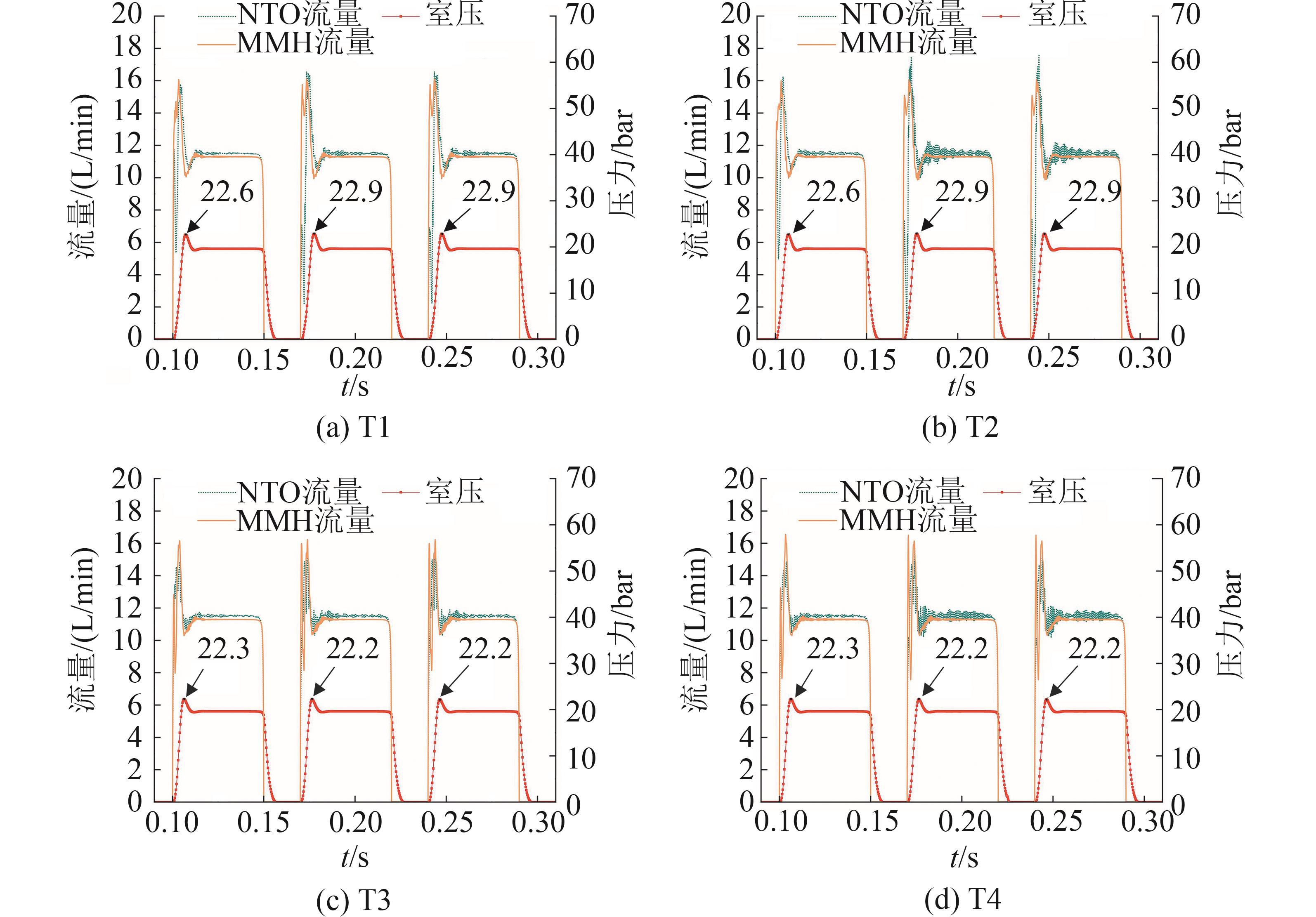

Fig. 8

Fig. 9

Fig. 10

References 25

[1]	蒋耀东, 徐全勇, 马玉林, 等. 肼基单组元火箭发动机的动态响应[J]. 航空学报, 2023, 44(21): 341-353.
	Jiang Yaodong, Xu Quanyong, Ma Yulin, et al. Dynamic Response of Hydrazine-based Monocomponent Rocket Engine[J]. Acta Aeronautica et Astronautica Sinica, 2023, 44(21): 341-353.
[2]	刘禹同, 梁国柱. 固体轨控动力系统燃气阀门设计和动态特性仿真[C]//第六届空天动力联合会议暨中国航天第三专业信息网第四十二届技术交流会论文集(第七册). 北京: 中国科协航空发动机产学联合体, 2022: 394-399.
[3]	潘海林, 丁凤林, 李永, 等. 空间推进[M]. 西安: 西北工业大学出版社, 2016.
[4]	Kumar Avanish, Satya Prasad P, Raghavendra Rao M. Experimental Studies of Water Hammer in Propellant Feed System of Reaction Control System[J]. Propulsion and Power Research, 2018, 7(1): 52-59.
[5]	臧月进, 李仁俊, 周藜莎. 动能拦截器姿控地面验证试验误差建模与仿真[J]. 兵器装备工程学报, 2018, 39(4): 151-154.
	Zang Yuejin, Li Renjun, Zhou Lisha. Error Modeling and Simulation of Kill Vechicle Attitude Control System Ground Test[J]. Journal of Sichuan Ordnance, 2018, 39(4): 151-154.
[6]	石奇玉, 方晓辉, 张伟. 发动机试验台管路关机水击仿真[J]. 机械工程与自动化, 2022(4): 100-102.
	Shi Qiyu, Fang Xiaohui, Zhang Wei. Water Hammer Simulation of Engine Test Bench Pipeline Shutdown[J]. Mechanical Engineering & Automation, 2022(4): 100-102.
[7]	聂万胜, 陈新华, 戴德海, 等. 姿控推进系统发动机关机的管路瞬变特性[J]. 推进技术, 2003, 24(1): 6-8.
	Nie Wansheng, Chen Xinhua, Dai Dehai, et al. Transient Characteristics During Shutdown Operation of Liquid Feed Line for Attitude Control Propulsion Subsystem[J]. Journal of Propulsion Technology, 2003, 24(1): 6-8.
[8]	张鹏, 程云开, 杨志松, 等. 液体火箭发动机供应系统水击特性仿真[J]. 现代机械, 2023(3): 6-10, 38.
	Zhang Peng, Cheng Yunkai, Yang Zhisong, et al. Simulation of Water Hammer Characteristics of Liquid Rocket Engine Supply System[J]. Modern Machinery, 2023(3): 6-10, 38.
[9]	周晨初, 李舒欣, 陈宏玉, 等. 液体火箭发动机关机水击特性仿真[J]. 火箭推进, 2021, 47(1): 70-75.
	Zhou Chenchu, Li Shuxin, Chen Hongyu, et al. Simulation on Water Hammer During Liquid Rocket Engine Shutdown[J]. Journal of Rocket Propulsion, 2021, 47(1): 70-75.
[10]	张峥岳, 康乃全. 轨姿控液体火箭发动机水击仿真模拟[J]. 火箭推进, 2012, 38(3): 12-16.
	Zhang Zhengyue, Kang Naiquan. Simulation of Water Hammer in Liquid Rocket Engine of Orbit and Attitude Control System[J]. Journal of Rocket Propulsion, 2012, 38(3): 12-16.
[11]	林景松, 王平阳, 高红, 等. 液体推进剂管路局部损失及瞬变流动数值模拟[J].水动力学研究与进展, 2008, 23(1): 112-118.
	Lin Jingsong, Wang Pingyang, Gao Hong, et al. Numerical Simulation of Key Loss Coefficient and Fluid Transients in Liquid Rocket Engine[J]. Chinese Journal of Hydrodynamics, 2008, 23(1): 112-118.
[12]	晏政, 彭小辉, 程玉强, 等. 航天器推进系统水击及其抑制方法[J]. 航空动力学报, 2012, 27(9): 2028-2034.
	Yan Zheng, Peng Xiaohui, Cheng Yuqiang, et al. Research of Water Hammer and Its Suppression Methods for Spacecraft Propulsion System[J]. Journal of Aerospace Power, 2012, 27(9): 2028-2034.
[13]	杨月诚. 火箭发动机理论基础[M]. 西安: 西北工业大学出版社, 2010.
	Yang Yuecheng. Textbook for Higher Education[M]. Xi'an: Northwestern Polytechnical University Press, 2010.
[14]	王小波. 低温姿轨控动力系统动态特性仿真及试验研究[D]. 长沙: 国防科技大学, 2017.
	Wang Xiaobo. Numerical and Experiment Analysis on Dynamic Characteristic of Cryogenic Space Propulsion System for Attitude and Orbit Control[D]. Changsha: National University of Defense Technology, 2017.
[15]	杨林涛. 姿轨控动力系统响应特性仿真研究[D]. 长沙: 国防科技大学, 2018.
	Yang Lintao. Numerical Analysis on Response Characteristic of Space Propulsion System for Attitude and Orbit Control[D]. Changsha: National University of Defense Technology, 2018.
[16]	Leonardi Marco, Nasuti Francesco, Francesco Di Matteo, et al. A Methodology to Study the Possible Occurrence of Chugging in Liquid Rocket Engines During Transient Start-up[J]. Acta Astronautica, 2017, 139: 344-356.
[17]	汪洪波, 吴海燕, 谭建国. 推进系统动力学[M]. 北京: 科学出版社, 2018.
	Wang Hongbo, Wu Haiyan, Tan Jianguo. Dynamics of Propulsion Systems[M]. Beijing: Science Press, 2018.
[18]	沈赤兵. 液体火箭发动机非线性静特性与响应特性[M]. 北京: 科学出版社, 2019.
	Shen Chibing. Nonlinear Static Characteristics and Response Characteristics of Liquid Rocket Engines[M]. Beijing: Science Press, 2019.
[19]	刘建盈, 陈汇龙. 多阀门燃料输送系统复杂工况水击特性分析[J]. 排灌机械工程学报, 2024, 42(1): 43-48.
	Liu Jianying, Chen Huilong. Analysis of Water Hammer Characteristics of Liquid Fuel Transmission Pipeline Under Complex Working Conditions with Multiple Valves[J]. Journal of Drainage and Irrigation Machinery Engineering, 2024, 42(1): 43-48.
[20]	何康康, 娄振. 基于AMESim的姿控发动机推进剂供应管路优化设计[J]. 导弹与航天运载技术, 2016(3): 9-12.
	He Kangkang, Lou Zhen. Optimal Design of Propellant Feedlines of Attitude Control Engine Based on AMESim[J]. Missiles and Space Vehicles, 2016(3): 9-12.
[21]	刘洋, 曹文庆, 唐斌运, 等. 试验台冷却水系统水击压力仿真研究[J]. 火箭推进, 2016, 42(1): 83-87, 100.
	Liu Yang, Cao Wenqing, Tang Binyun, et al. Simulation Study on Water Hammer Pressure in Cooling Water System of LRE Test-bed[J]. Journal of Rocket Propulsion, 2016, 42(1): 83-87, 100.
[22]	晏政. 航天器推进系统基于定性模型的故障诊断方法研究[D]. 长沙: 国防科学技术大学, 2013.
	Yan Zheng. Investigation on Model-based Fault Diagnosis Methods for Spacecraft Propulsion System[D]. Changsha: National University of Defense Technology, 2013.
[23]	冀鹏, 肖明杰, 梁树强. 单组元姿控动力系统动态过程仿真研究[J]. 兵器装备工程学报, 2022, 43(1): 114-119.
	Ji Peng, Xiao Mingjie, Liang Shuqiang. Simulation Study on Transient Process of Monopropellant Attitude Control Propulsion System[J]. Journal of Ordnance Equipment Engineering, 2022, 43(1): 114-119.
[24]	张黎辉, 李家文, 张雪梅, 等. 航天器推进系统发动机动态特性研究[J]. 航空动力学报, 2004, 19(4): 546-549.
	Zhang Lihui, Li Jiawen, Zhang Xuemei, et al. Dynamic Characteristics Study of Spacecraft Propulsion System Engine[J]. Journal of Aerospace Power, 2004, 19(4): 546-549.
[25]	戴佳, 黄敏超, 沈赤兵, 等. 挤压式液体火箭发动机水击特性研究[J]. 上海航天, 2007, 24(1): 52-55.
	Dai Jia, Huang Minchao, Shen Chibing, et al. Study on Water Hammer Characteristics in Pressure-fed Liquid Rocket Engine[J]. Aerospace Shanghai, 2007, 24(1): 52-55.

物理量	液态NTO	液态MMH
密度/(kg/m³)	1 446	874
粘度/(Pa·s)	0.000 42	0.000 85
体积弹性模量/MPa	2 160	1 721
比热/(J·kg/K)	1 515	2 930
热导率/(W/(m·K))	0.153 5	0.251 7

管路类型	管径/ mm	壁厚/ mm	弹性模量/ (N/m²)	相对粗糙度
贮箱出口管段	12	1	2.06×10¹¹	5×10^-6
环形管路	12	1	2.06×10¹¹	1×10^-5
分支管路	12	1	2.06×10¹¹	1×10^-5
300 N发动机入口段	6	1	2.06×10¹¹	1×10^-5
1 200 N发动机入口段	12	1	2.06×10¹¹	1×10^-5

管路布局	p_1,max	p_2,max	p_3,max	p_4,max
环形管路	77.5	81.9	60.2	57.1
分支管路	69.6	55.1	56.7	70

管路布局	T1	T2	T3	T4
环形管路	0.34	0.37	0.41	0.36
分支管路	0.61	0.4	0.42	0.76
