Microsimulation of Infectious Disease Transmission Considering Virus Release, Transmission, and Action

doi:10.16182/j.issn1004731x.joss.24-0485

Abstract

Abstract:

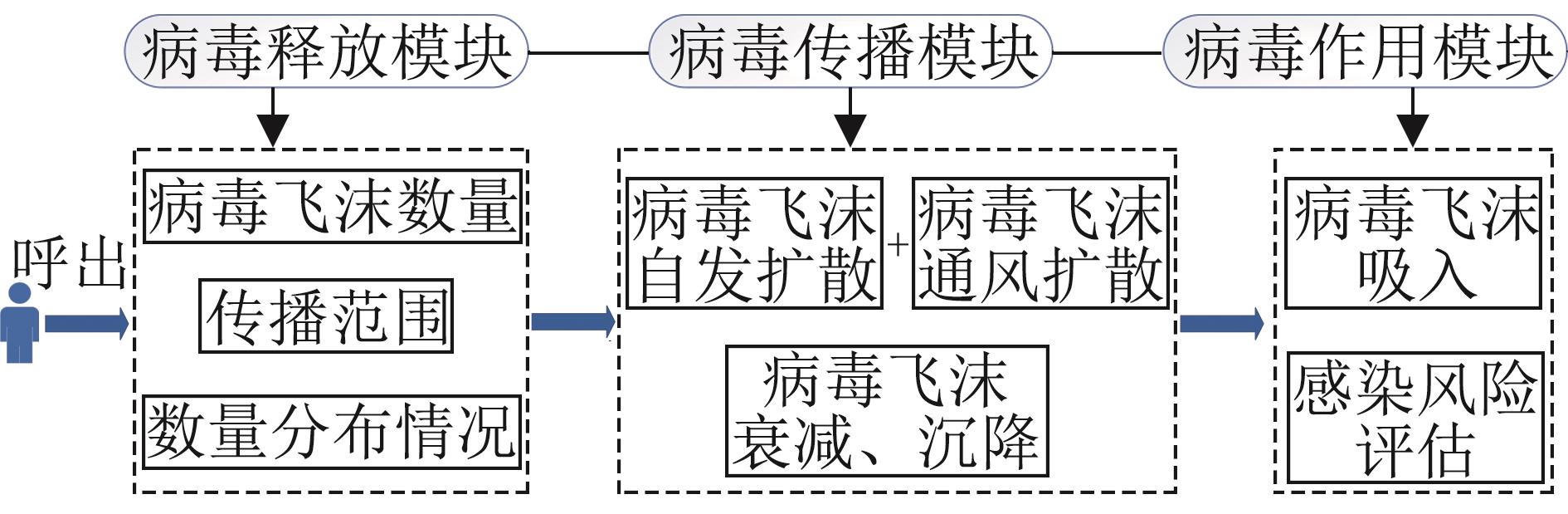

Existing infection risk assessment methods mostly evaluate infection probability through mathematical models or simulation, but they lack analysis of the relationship between air circulation and individual infection probability. This study proposed a risk prediction model for infectious disease transmission based on indoor air circulation. At the microscopic scale, the space was discretized into grid points.By integrating CFD numerical simulation, the entire process of virus droplet release, transmission, and action was fully simulated. The simulation results show that in an obstacle-free room, the error between the total indoor viral load predicted by the model under windless and low wind speed conditions and the CFD simulation values remains within 10%. In the presence of obstacles and under different ventilation conditions, the error of the maximum total viral load between the model simulation and CFD simulation remains around 15%. The results of the model in predicting infection risks are basically consistent with the actual condition and can provide a reference for epidemic prevention and control work to a certain extent.

Key words: COVID-19, infection risk prediction, microscopic model, CFD simulation, airborne transmission

CLC Number:

TP391.9

Fang Zhiming, Yuan Shengdong, Huang Ge, Yang Jingqian, Huang Zhongyi. Microsimulation of Infectious Disease Transmission Considering Virus Release, Transmission, and Action[J]. Journal of System Simulation, 2025, 37(10): 2533-2544.

Figures/Tables 17

Fig. 1

Fig. 2

Fig. 3

Table 1

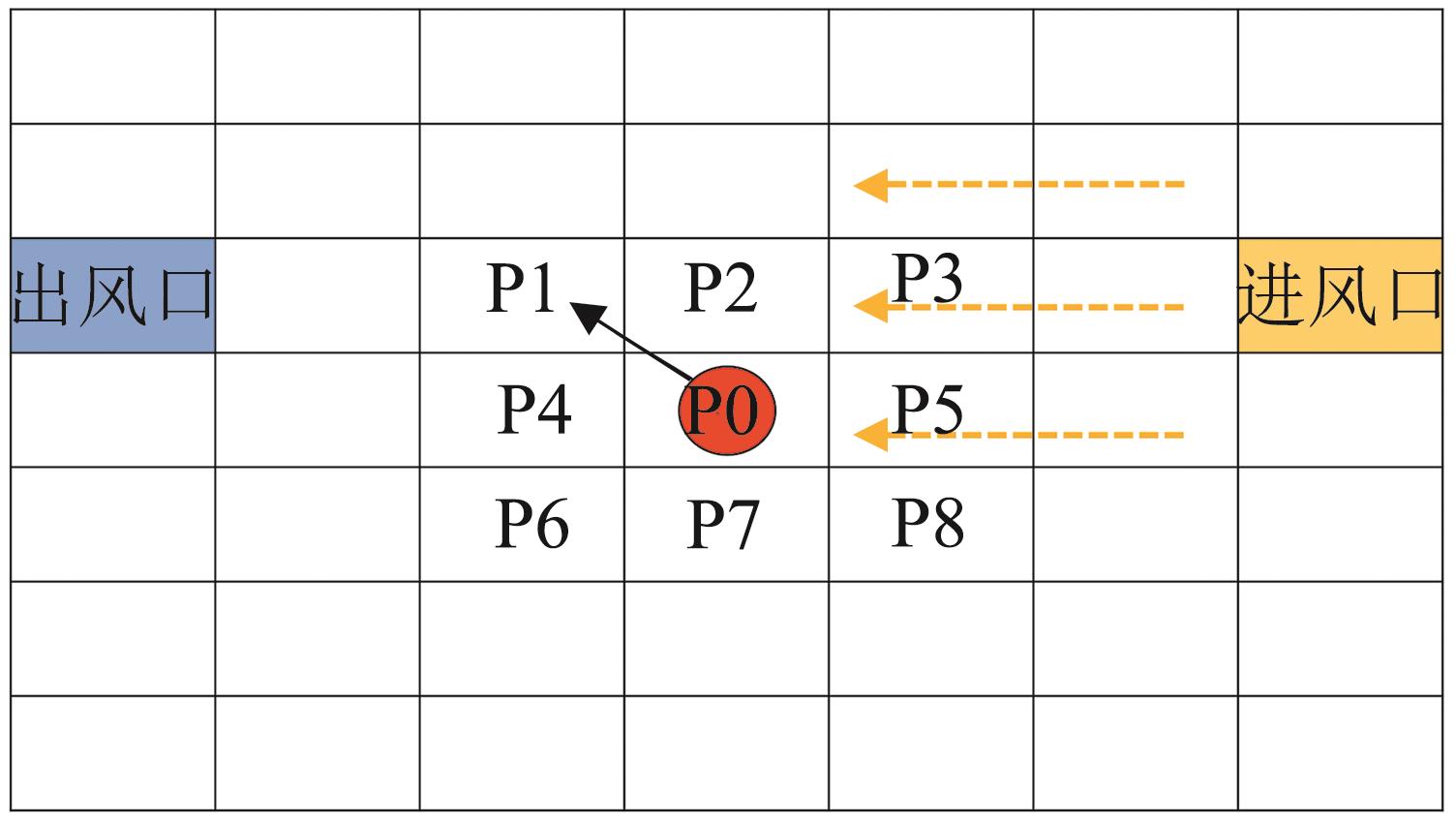

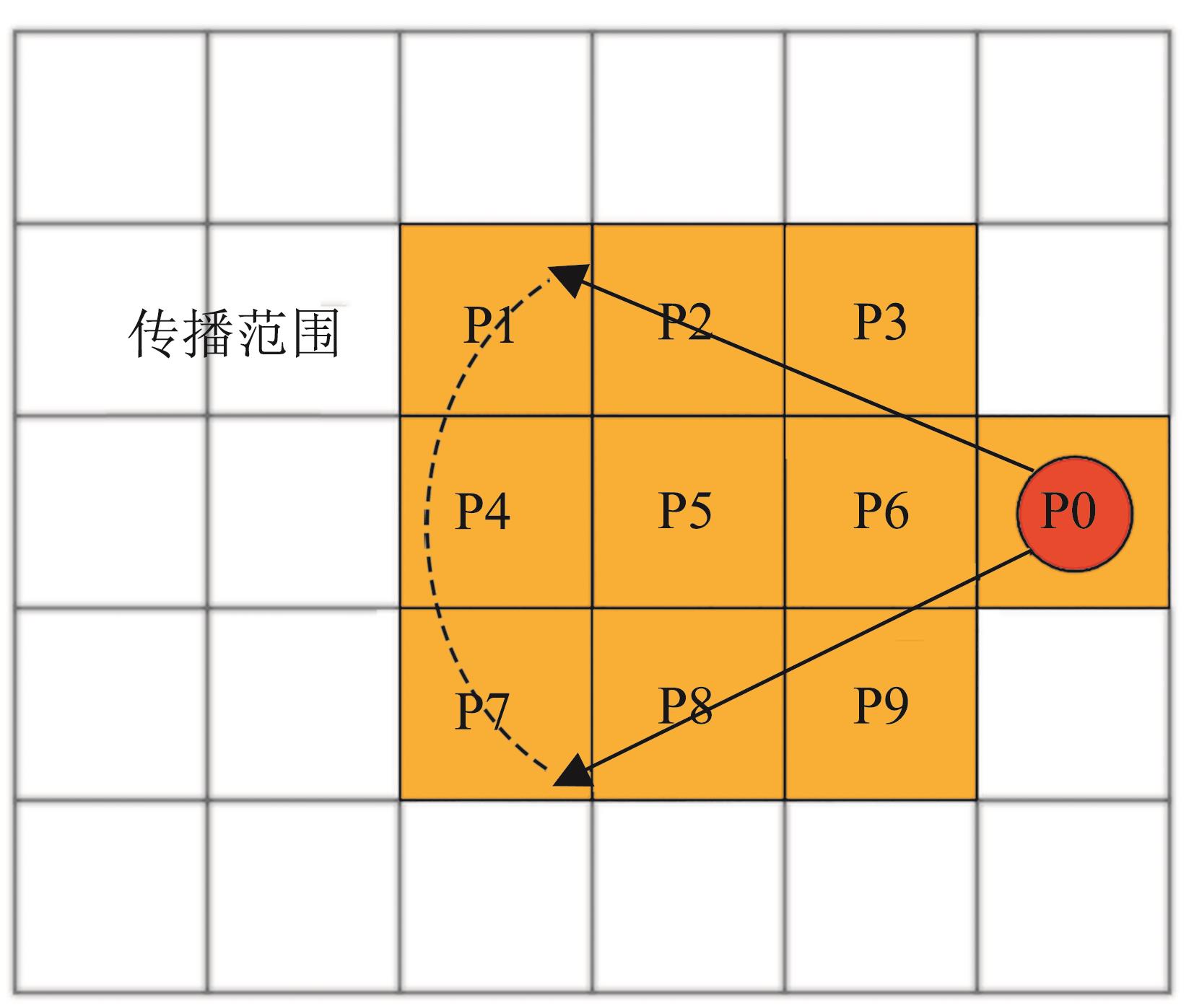

Distribution of droplet counts in surrounding grid points

格点	相对位置	咳嗽情况下占比/%	说话情况下占比/%
P0	$(i, j)$	19.18	40.18
P1	$(i - 3, j - 1)$	0.86	/
P2	$(i - 2, j - 1)$	1.11	/
P3	$(i - 1, j - 1)$	/	0.46
P4	$(i - 3, j)$	5.29	/
P5	$(i - 2, j)$	16.46	/
P6	$(i - 1, j)$	55.39	58.96
P7	$(i - 3, j + 1)$	0.68	/
P8	$(i - 2, j + 1)$	1.04	/
P9	$(i - 1, j + 1)$	/	0.40

Table 1

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig. 10

Fig. 11

Fig. 12

Table 2

Fig. 13

Table 3

Fig. 14

References 28

[1]	Ashok Kumar Verma, Prakash Sadguru. Impact of COVID-19 on Environment and Society[J]. Journal of Global Biosciences, 2020, 9(5): 7352-7363.
[2]	世界卫生组织. 关于2019新型冠状病毒疫情的《国际卫生条例(2005)》突发事件委员会第二次会议的声明[EB/OL]. (2020-01-30) [2020-02-25]. .
	WHO. Statement on the Second Meeting of the International Health Regulations (2005) Emergency Committee Regarding the Outbreak of Novel Coronavirus (2019-nCoV)[EB/OL]. (2020-01-30) [2020-02-25]. .
[3]	Nishiura Hiroshi, Oshitani Hitoshi, Kobayashi Tetsuro, et al. Closed Environments Facilitate Secondary Transmission of Coronavirus Disease 2019 (COVID-19)[J/OL]. medRxiv. (2020-04-16) [2024-03-14]. .
[4]	于雷, 朱喜绸, 廖华明, 等. 病毒传播变异与人群交叉活动的相互影响及扩散模型研究[J]. 系统仿真学报, 2024, 36(7): 1713-1728.
	Yu Lei, Zhu Xichou, Liao Huaming, et al. Interaction Between Virus Transmission Variation and Population Crossover Activity and Diffusion Model[J]. Journal of System Simulation, 2024, 36(7): 1713-1728.
[5]	胡明伟, 杨文杰. 基于宏微观多尺度建模的校园疫情演化仿真研究[J]. 系统仿真学报, 2024, 36(1): 170-182.
	Hu Mingwei, Yang Wenjie. Research on Campus Epidemic Evolution Based on Multi-scale Modeling and Simulation in Microscopic & Microscopic View[J]. Journal of System Simulation, 2024, 36(1): 170-182.
[6]	路雪鹏, 尚娇, 赵俊辉, 等. 基于系统动力学的新冠病毒传播过程预测[J]. 系统仿真学报, 2021, 33(7): 1713-1721.
	Lu Xuepeng, Shang Jiao, Zhao Junhui, et al. Transmission Process Prediction of Novel Coronavirus Based on System Dynamics[J]. Journal of System Simulation, 2021, 33(7): 1713-1721.
[7]	李锋, 魏莹. 小世界网络下病毒式信息传播的仿真分析[J]. 系统仿真学报, 2019, 31(9): 1790-1801.
	Li Feng, Wei Ying. Simulation Analysis of Viral-style Information Diffusion in Small World Networks[J]. Journal of System Simulation, 2019, 31(9): 1790-1801.
[8]	Zhang Sheng, Lin Zhang. Dilution-based Evaluation of Airborne Infection Risk-thorough Expansion of Wells-riley Model[J]. Building and Environment, 2021, 194: 107674.
[9]	Zhang Anxiao, Zhen Qi, Zheng Chi, et al. Assessing the Impact of Architectural and Behavioral Interventions for Controlling Indoor COVID-19 Infection Risk: An Agent-based Approach[J]. Journal of Building Engineering, 2023, 74: 106807.
[10]	Lai A C K, Chen F Z. Comparison of a New Eulerian Model with a Modified Lagrangian Approach for Particle Distribution and Deposition Indoors[J]. Atmospheric Environment, 2007, 41(25): 5249-5256.
[11]	Zhang Z, Chen Q. Comparison of the Eulerian and Lagrangian Methods for Predicting Particle Transport in Enclosed Spaces[J]. Atmospheric Environment, 2007, 41(25): 5236-5248.
[12]	Mariam A M, Joshi Manish, Rajagopal Pachalla S, et al. CFD Simulation of the Airborne Transmission of COVID-19 Vectors Emitted During Respiratory Mechanisms: Revisiting the Concept of Safe Distance[J]. ACS Omega, 2021, 6(26): 16876-16889.
[13]	Wu Jialin, Geng Jing, Weng Wenguo, et al. Effect of Ventilation Mode and Rate on Airborne Transmission of Respiratory Disease in Indoor Environments[J]. Journal of Physics: Conference Series, 2023, 2478(12): 122043.
[14]	Zhang Mingkan, Shrestha P, Liu Xiaobing, et al. Computational Fluid Dynamics Simulation of SARS-CoV-2 Aerosol Dispersion Inside a Grocery Store[J]. Building and Environment, 2022, 209: 108652.
[15]	施烨闻, 张若愚, 张涛, 等. 病毒通过气溶胶传播扩散及感染概率模拟——以地铁车厢为例[J]. 环境与职业医学, 2023, 40(11): 1240-1249.
	Shi Yewen, Zhang Ruoyu, Zhang Tao, et al. Virus Aerosol Transmission, Dispersion, and Infection Probability Simulation: A Case Study in Subway Carriages[J]. Journal of Environmental and Occupational Medicine, 2023, 40(11): 1240-1249.
[16]	郭伟旗, 李鹏辉, 刘硕, 等. 隔离病房内呼吸道传染性疾病气溶胶吸入感染风险[J]. 科学通报, 2024, 69(7): 854-865.
	Guo Weiqi, Li Penghui, Liu Shuo, et al. The Risk of Aerosol Transmission of Respiratory Infectious Diseases in the Isolation Ward[J]. Chinese Science Bulletin, 2024, 69(7): 854-865.
[17]	Lee K K, Savani A, Matos Sergio, et al. Four-hour Cough Frequency Monitoring in Chronic Cough[J]. Chest, 2012, 142(5): 1237-1243.
[18]	Ni Xiaoyue, Ouyang Wei, Jeong H, et al. Automated, Multiparametric Monitoring of Respiratory Biomarkers and Vital Signs in Clinical and Home Settings for COVID-19 Patients[J]. Proceedings of the National Academy of Sciences of the United States of America, 2021, 118(19): e2026610118.
[19]	刘鹏. 病房飞沫污染物的浓度变化特征及污染控制[D]. 重庆: 重庆大学, 2016.
	Liu Peng. Variation Characteristics and Pollution Control of Droplet Contaminant Concentration in Wards[D]. Chongqing: Chongqing University, 2016.
[20]	张桉康, 张华玲, 刘鹏. 普通病房飞沫污染物传播特性与评价[J]. 重庆大学学报, 2021, 44(3): 82-92.
	Zhang Ankang, Zhang Hualing, Liu Peng. The Propagation Characteristics and Assessment of Airborne Droplets in a General Ward[J]. Journal of Chongqing University(Natural Science Edition), 2021, 44(3): 82-92.
[21]	Anchordoqui L A, Chudnovsky E M. A Physicist View of COVID-19 Airborne Infection Through Convective Airflow in Indoor Spaces[J]. (2020-08-24) [2024-03-14]. .
[22]	Dabisch P, Schuit M, Herzog A, et al. The Influence of Temperature, Humidity, and Simulated Sunlight on the Infectivity of SARS-CoV-2 in Aerosols[J]. Aerosol Science and Technology, 2021, 55(2): 142-153.
[23]	Wölfel Roman, Corman Victor M, Guggemos Wolfgang, et al. Virological Assessment of Hospitalized Patients with COVID-2019[J]. Nature, 2020, 581(7809): 465-469.
[24]	Villers Jennifer, Henriques Andre, Calarco Serafina, et al. SARS-CoV-2 Aerosol Transmission in Schools: The Effectiveness of Different Interventions[J]. Swiss Medical Weekly, 2022, 152: w30178.
[25]	Nicas M. An Analytical Framework for Relating Dose, Risk, and Incidence: An Application to Occupational Tuberculosis Infection[J]. Risk Analysis, 1996, 16(4): 527-538.
[26]	Watanabe Toru, Bartrand T A, Weir M H, et al. Development of a Dose-response Model for SARS Coronavirus[J]. Risk Analysis, 2010, 30(7): 1129-1138.
[27]	Vernez David, Schwarz Sophie, Sauvain Jean-Jacques, et al. Probable Aerosol Transmission of SARS-CoV-2 in a Poorly Ventilated Courtroom[J]. Indoor Air, 2021, 31(6): 1776-1785.
[28]	Li Yuguo, Qian Hua, Hang Jian, et al. Probable Airborne Transmission of SARS-CoV-2 in a Poorly Ventilated Restaurant[J]. Building and Environment, 2021, 196: 107788.

房间类型	时间/s	无风			0.5 m/s			1.0 m/s			1.5 m/s
房间类型	时间/s	Fluent仿真	模型仿真	误差/%	Fluent仿真	模型仿真	误差/%	Fluent仿真	模型仿真	误差/%	Fluent仿真	模型仿真	误差/%
无障碍物	5	1 798	1 687	6.2	1 800	1 788	0.6	1 799	1 677	6.8	1 669	1 529	8.3
	10	1 600	1 470	8.1	1 519	1 371	9.7	703	952	35.4	743	513	30.8
	15	1 433	1 343	6.2	942	1 039	10.3	512	445	13.0	327	97	70.3
障碍物	5	1 998	1 754	12.2	1 869	1 810	3.1	1 847	1 772	4.0	1 850	1 734	6.3
	10	1 786	1 500	16.1	1 652	1 470	11.0	1 645	1 488	9.5	1 651	1 426	13.6
	15	1 600	1 354	15.3	1 574	1 351	14.1	1 574	1 357	13.7	1 444	1 293	10.4
教室	5	1 836	1 749	4.7	1 695	1 851	9.2	1 725	1 823	5.7	1 759	1 776	1.0
	10	1 401	1 505	7.5	1 401	1 543	10.2	1 417	1 509	6.5	1 443	1 460	1.2
	15	1 224	1 365	11.5	1 214	1 369	12.8	1 249	1 273	2.0	1 037	903	12.9
会议室	5	1 799	1 749	2.7	1 693	1 851	9.4	1 716	1 823	6.3	1 739	1 776	2.1
	10	1 590	1 505	5.3	1 491	1 543	3.5	1 488	1 514	1.8	1 576	1 515	3.8
	15	1 400	1 365	2.5	1 395	1 371	1.7	1 400	1 362	2.7	1 235	1 253	1.5

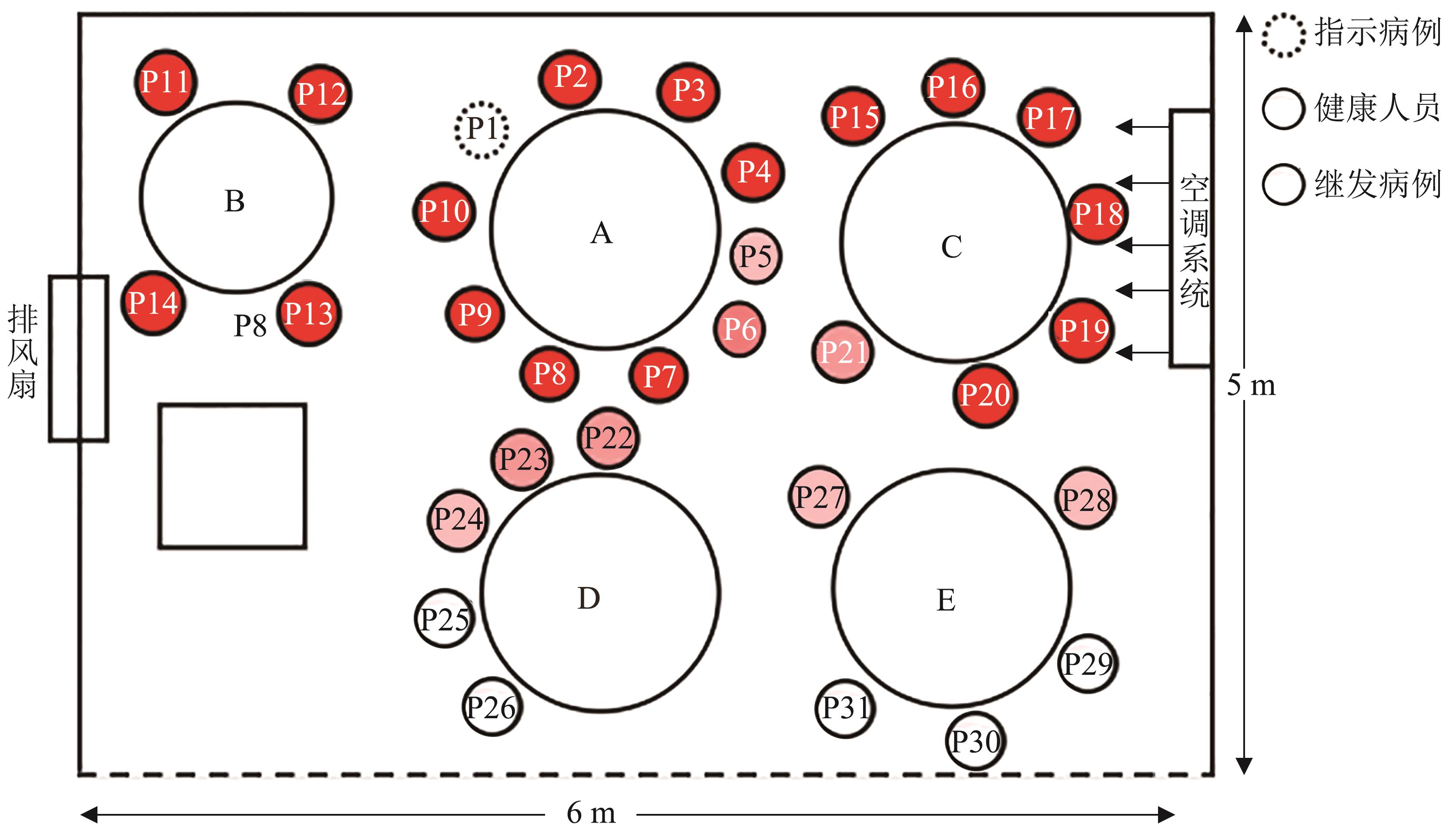

桌	到达时间	离开时间
A	12:01	13:23
B	11:37	12:54
C	12:03	13:18
D	11:34	13:18
E	13:00	14:19
