Research on Cooperative Adaptive Cruise Control Strategy Based on Improved MPC

doi:10.16182/j.issn1004731x.joss.21-0388

Abstract

Abstract:

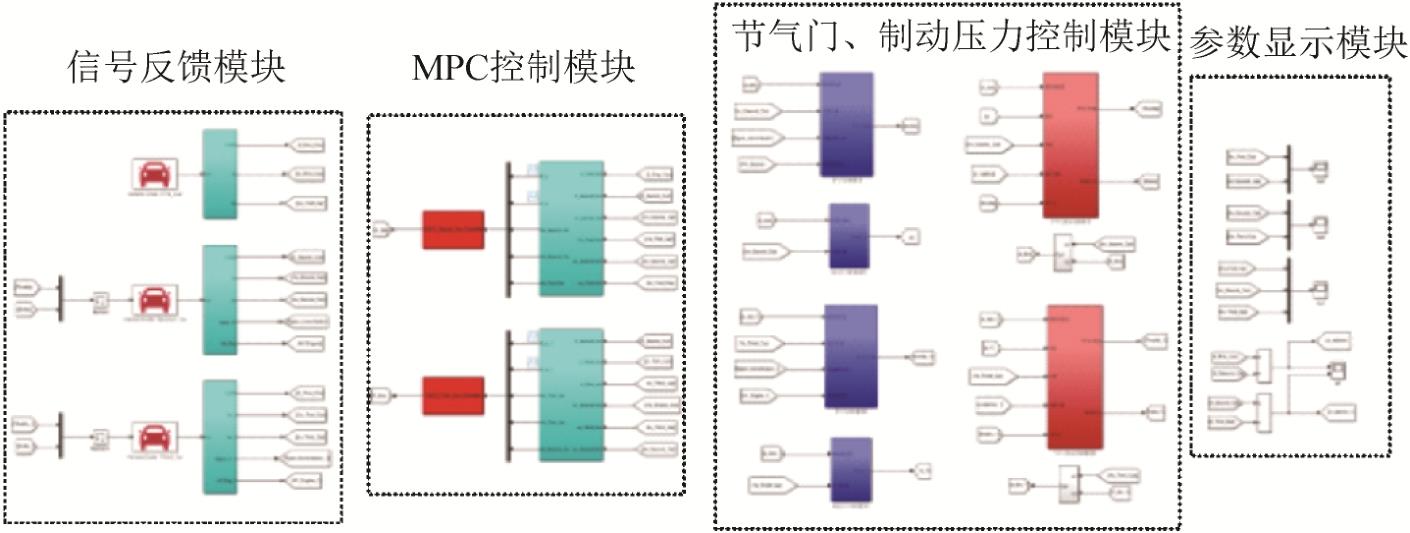

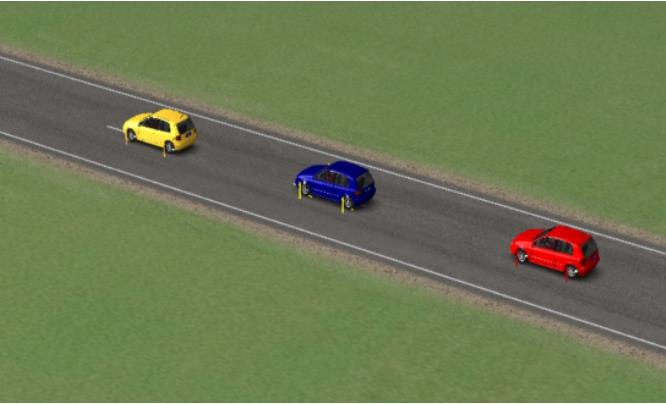

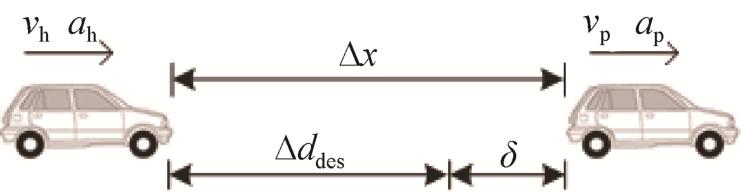

To solve the problems of environmental interference, sensor noise and poor tracking stability of time-varying speed, an improved MPC (model predictive control) algorithm based on KF (kalman filtering) is proposed. The longitudinal kinematics model of CACC(cooperative adaptive cruise control)between vehicles is established and the discrete state space equation is created. KF is used to reduce the noise of state variables, and at the same time, the prediction model is designed for robustness. The CACC control objectives are analyzed under different working conditions and the objective optimization functions are created. Verify by building Simulink and CarSim co-simulation model, the simulation results indicate that the improved MPC algorithm performs better, which improves economy of the fuel and driving comfort of vehicles, achieves stable tracking of time-varying speed.

Key words: automotive engineering, cooperative adaptive cruise, model predictive control, Kalman filter, time-varying speed

CLC Number:

Qiming Wang, Jiangyue Jiang, Zhichao Lü, Hanzu Zhang. Research on Cooperative Adaptive Cruise Control Strategy Based on Improved MPC[J]. Journal of System Simulation, 2022, 34(09): 2087-2097.

Figures/Tables 18

Fig. 1

Table 1

Table 2

Fig. 2

Fig. 3

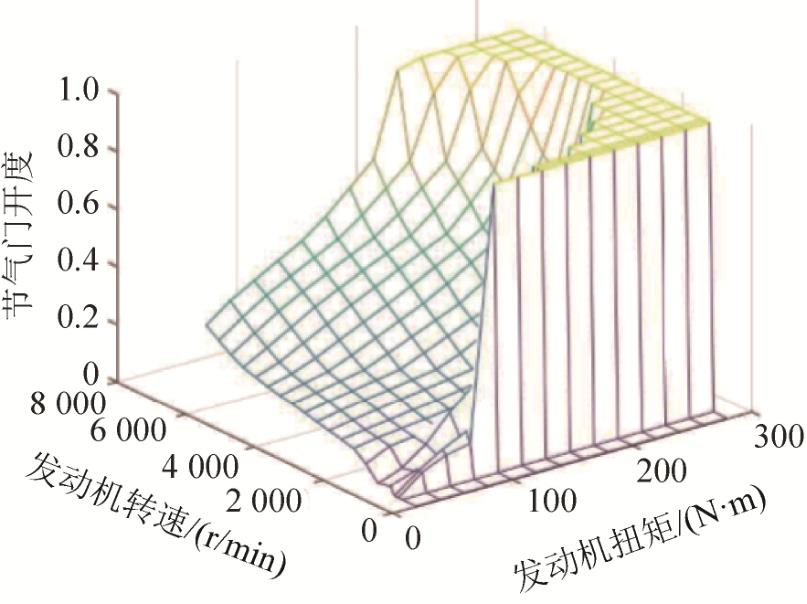

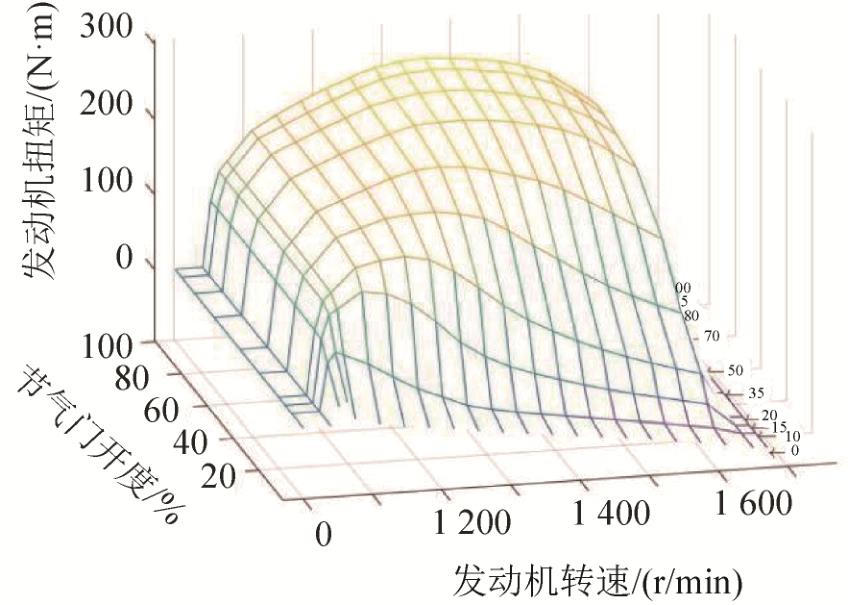

Fig. 4

Fig. 5

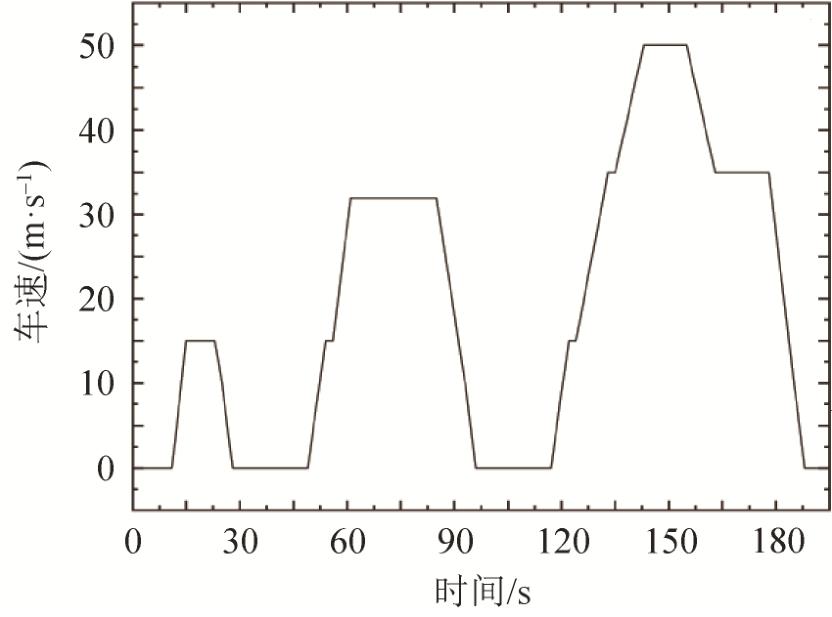

Fig. 6

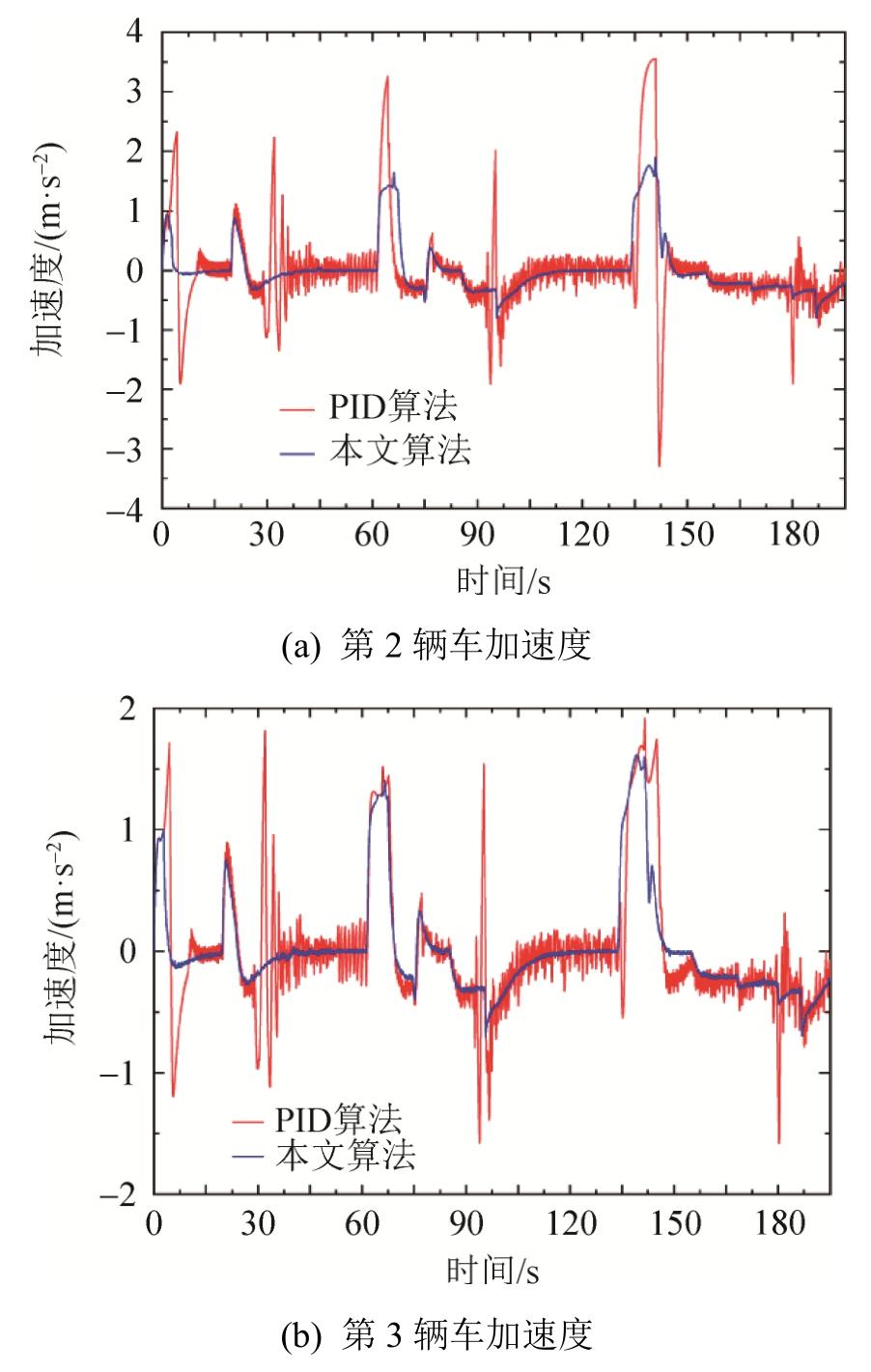

Fig. 7

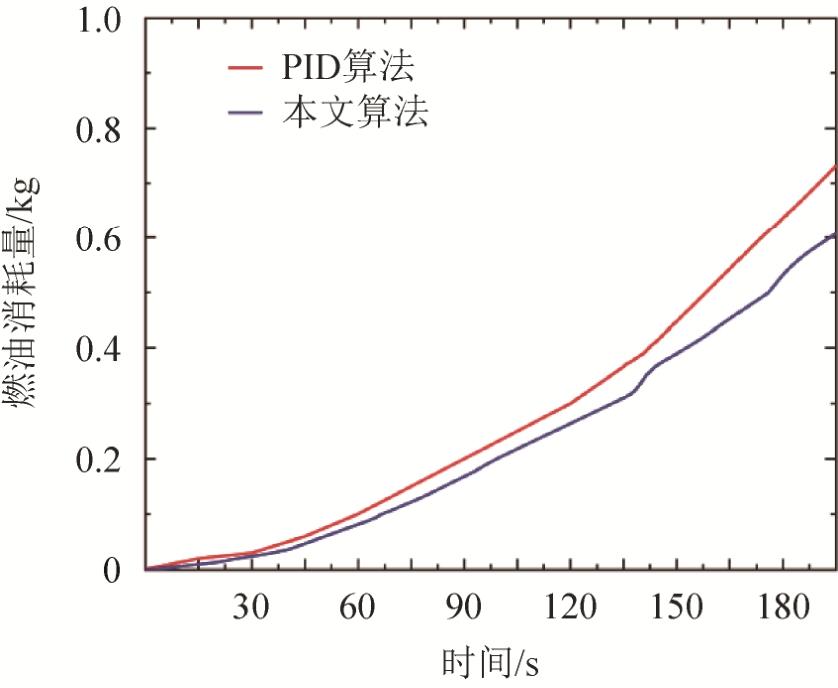

Fig. 8

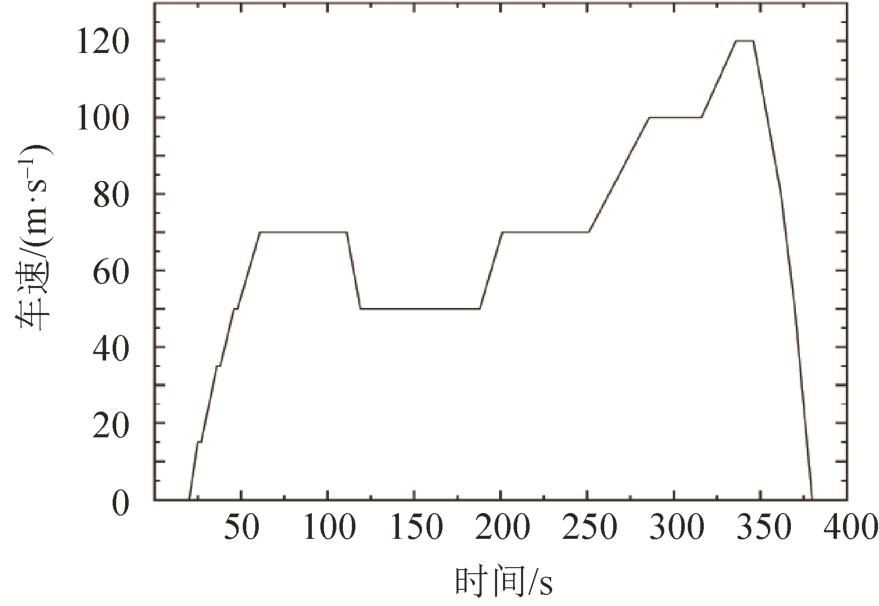

Fig. 9

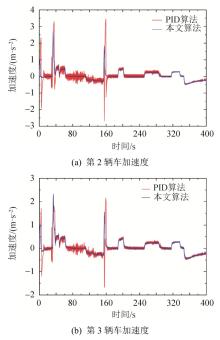

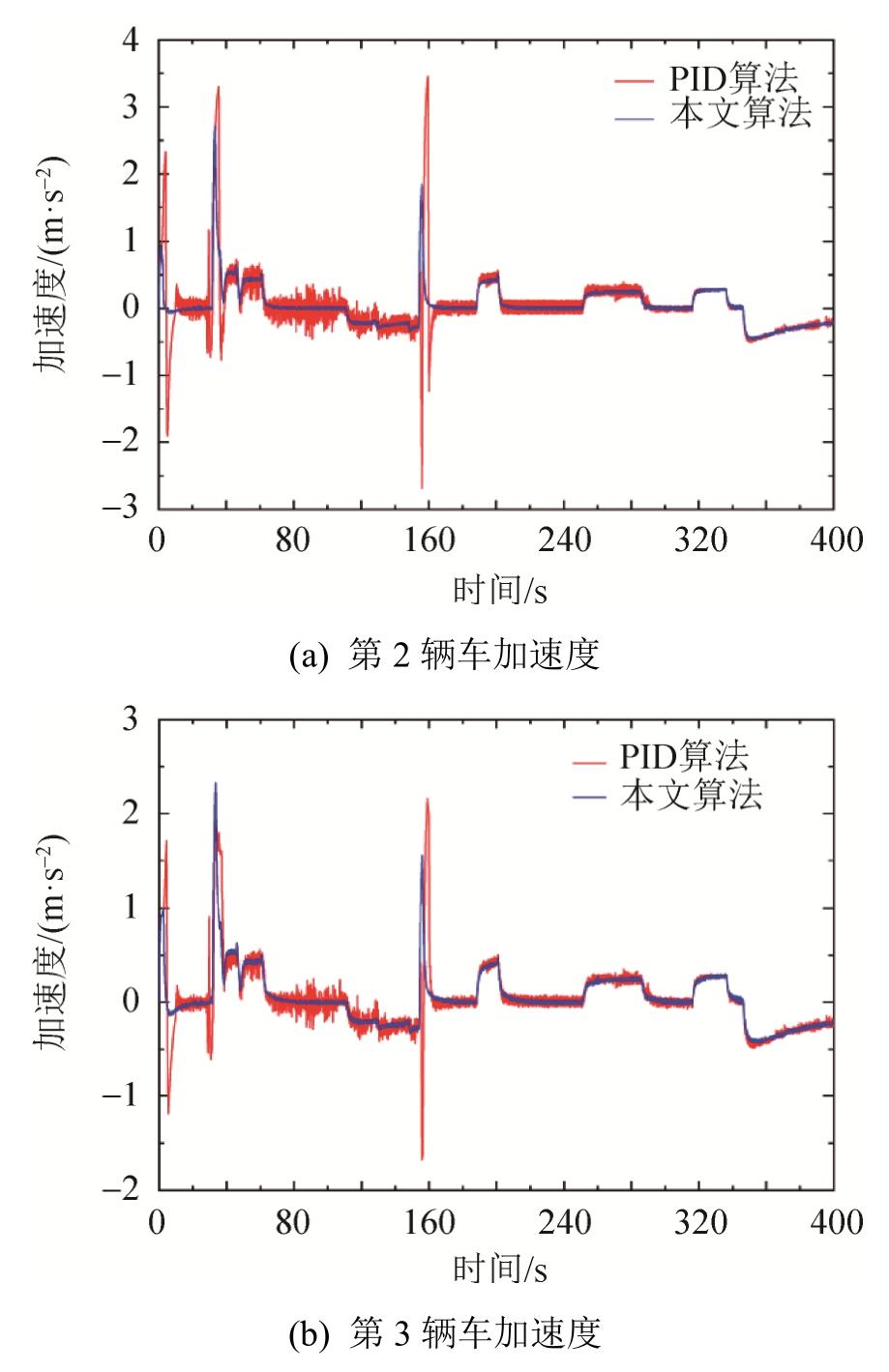

Fig. 10

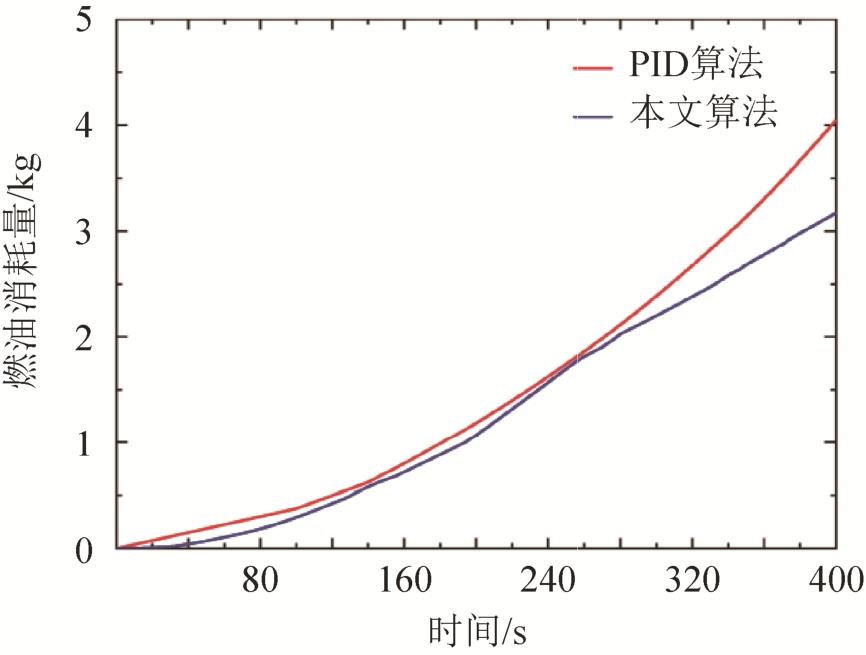

Fig. 11

Table 3

Fig. 12

Fig. 13

Table 4

Table 5

References 22

[1]	翟志强, 许进亮, 袁皓, 等. 自适应巡航系统车辆跟驰控制策略仿真[J]. 系统仿真学报, 2020, 32(5): 885-891.
	Zhai Zhiqiang, Xu Jinliang, Yuan Hao, et al. Simulation on a Car-following Strategy for Adaptive Cruise Control System[J] Journal of System Simulation, 2020, 32(5): 885-891.
[2]	周稼铭, 张亮修, 衣丰艳, 等. 基于粒子群寻优的汽车自适应巡航预测控制[J]. 北京理工大学学报, 2021, 41(2): 214-220.
	Zhou Jiaming, Zhang Liangxiu, Yi Fengyan, et al. Adaptive Cruise Predictive Control for Vehicle Based on Particle Swarm Optimization[J]. Transactions of Beijing Institute of Technology, 2021, 41(2): 214-220.
[3]	Li S E, Guo Q Q, Xu S B, et al. Performance Enhanced Predictive Control for Adaptive Cruise Control System Considering Road Elevation Information[J]. IEEE Transactions on Intelligent Vehicles (S2379-8858), 2017, 2(3): 150-160.
[4]	Bekiaris-Liberis N, Roncoli C, Papageorgiou M.Predictor-Based Adaptive Cruise Control Design[J]. IEEE Transactions on Intelligent Transportation Systems (S1524-9050), 2018, 19(10): 3181-3195.
[5]	Milanés V, Shladover S, Spring J, et al. Cooperative Adaptive Cruise Control in Real Traffic Situations[J].IEEE Transactions on Intelligent Transportation Systems (S1524-9050), 2014, 15(1): 296-305.
[6]	Dey K C, Yan L, Wang X, et al. A Review of Communication, Driver Characteristics, and Controls Aspects of Cooperative Adaptive Cruise Control(CACC)[J]. IEEE Transactions on Intelligent Transportation Systems (S1524-9050), 2016, 17(2): 491-509.
[7]	Ma F, Yang Y, Wang J, et al. Eco-driving-based Cooperative Adaptive Cruise Control of Connected Vehicles Platoon at Signalized Intersections[J].Transportation Research Part D: Transport and Environment (S1361-9209), 2021, 92: 102746.
[8]	Qin W B, Gomez M M, Orosz G. Stability and Frequency Response under Stochastic Communication Delays with Applications to Connected Cruise Control Design[J].IEEE Transactions on Intelligent Transportation Systems (S1524-9050), 2017, 18(2): 388-403.
[9]	蒋阳升, 王思琛, 高宽, 等. 混入智能网联车队的混合交通流元胞自动机模型[J]. 系统仿真学报, 2022, 34(5): 1025-1032.
	Jiang Yangsheng, Wang Sichen, Gao Kuan, et al. Cellular Automata Model of Mixed Traffic Flow Composed of Intelligent Connected Vehicles' Platoon[J]. Journal of System Simulation, 2022, 34(5): 1025-1032.
[10]	Xu L W, Zhuang W C, Yin G D, et al. Stable Longitudinal Control of Heterogeneous Vehicular Platoon with Disturbances and Information Delays[J]. IEEE Access (S2169-3536), 2018, 6(4): 69794-69806.
[11]	章军辉, 李庆, 陈大鹏. 协同式多目标自适应巡航控制[J]. 工程科学学报, 2020, 42(4): 423-433.
	Zhang Junhui, Li Qing, Chen Dapeng. Multi-objective Adaptive Cruise Control (ACC) Algorithm for Cooperative ACC Platooning[J]. Chinese Journal of Engineering, 2020, 42(4): 423-433.
[12]	于晓海, 郭戈. 一种协同式车队控制的新方法[J]. 控制与决策, 2018, 33(7): 1223-1230.
	Yu Xiaohai, Guo Ge. A New Method for Cooperative Platoon Control[J]. Control and Decision, 2018, 33(7): 1223-1230.
[13]	王文飒, 梁军, 陈龙, 等. 基于深度强化学习的协同式自适应巡航控制[J]. 交通信息与安全, 2019, 37(3): 93-100.
	Wang Wensa, Liang Jun, Chen Long, et al. Collaborative Adaptive Cruise Control Based on Deep Reinforcement Learning[J]. Journal of Transport Information and Safety, 2019, 37(3): 93-100.
[14]	Oncu S, Ploeg J, Van D, et al. Cooperative Adaptive Cruise Control: Network-aware Analysis of String Stability[J]. Transactions on Intelligent Transportation Systems (S1524-9050), 2014, 15(4): 1527-1537.
[15]	Wang C, Nijmeijer H. String Stable Heterogeneous Vehicle Platoon Using Cooperative Adaptive Cruise Control[C]// 18th International Conference on Intelligent Transportation Systems. Gran Canaria, Spain: IEEE, 2015: 1977-1982.
[16]	Filho C Massera, M H Terra, D F Wolf. Safe Optimization of Highway Traffic with Robust Model Predictive Control-Based Cooperative Adaptive Cruise Control[J]. Transactions on Intelligent Transportation Systems (S1524-9050), 2017, 18(11): 3193-3203.
[17]	宋秀兰, 丁锋, 漏小鑫, 等. 异构通信网联车系统鲁棒协同自适应巡航控制[J]. 控制与决策, 2019, 34(11): 2407-2413.
	Song Xiulan, Ding Feng, Lou Xiaoxin, et al. Robust Cooperative Adaptive Cruise Control of Connected Vehicle Systems with Heterogonous Communication[J].Control and Decision, 2019, 34(11): 2407-2413.
[18]	Graffione S, Bersani C, Sacile R, et al. Model Predictive Control of a Vehicle Platoon[C]// 15th International Conference of System of Systems Engineering (SoSE).Budapest, Hungary: IEEE, 2020: 513-518.
[19]	孙涛, 夏维, 李道飞. 基于模型预测控制的协同式自适应巡航控制系统[J]. 中国机械工程, 2017, 28(4): 486-491.
	Sun Tao, Xia Wei, Li Daofei. CACC System Based on MPC[J]. China Mechanical Engineering, 2017, 28(4): 486-491.
[20]	邓国红, 张熏, 宋红松, 等. 协同自适应巡航控制系统跟车算法设计[J]. 重庆理工大学学报 (自然科学), 2019, 33(12): 32-37.
	Deng Guohong, Zhang Xun, Song Hongsong, et al. Design of Car-following Algorithms for Cooperative Adaptive Cruise Control System[J]. Journal of Chongqing University of Technology (Natural Science), 2019, 33(12): 32-37.
[21]	朱敏, 陈慧岩. 考虑车间反应时距的汽车自适应巡航控制策略[J]. 机械工程学报, 2017, 53(24): 144-150.
	Zhu Min, Chen Huiyan. Strategy for Vehicle Adaptive Cruise Control Considering the Reaction Headway[J].Journal of Mechanical Engineering, 2017, 53(24): 144-150.
[22]	李升波, 王建强, 李克强, 等. MPC实用化问题处理及在车辆ACC中的应用[J]. 清华大学学报 (自然科学版), 2010, 50(5): 645-648.
	Li Shengbo, Wang Jianqiang, Li Keqiang, et al. Processing of MPC Practical Problems and Its Application to Vehicular Adaptive Cruise Control Systems[J]. Journal of Tsinghua University (Science and Technology), 2010, 50(5): 645-648.

参数	数值
车辆质量/kg	1550
轴距/m	2.6
风阻系数/(kg·m^–2)	0.38
车轮半径/m	0.334
前轮转动惯量/(kg·m²)	1.8
后轮转动惯量/(kg·m²)	1.8
滚动阻力系数	0.02

排序	参数	值
1	控制时域c	5
2	预测时域p	10
3	控制量最大值u/(m·s^–2)	2.5
4	控制量最小值u/(m·s^–2)	–4.5
5	控制增量最大值Δu_max/(m·s^–3)	3
6	控制增量最小值Δu_min/(m·s^–3)	–3
7	加速度最大值a_max/(m·s^–2)	2.5
8	加速度最小值a_min/(m·s^–2)	–4.5

排序	时间/s	速度/(km·h^-1)
1	0~10	0~72
2	10~20	72~99
3	20~37.5	99~22.5
4	37.5~50	22.5~108
5	50~60	108~94.5

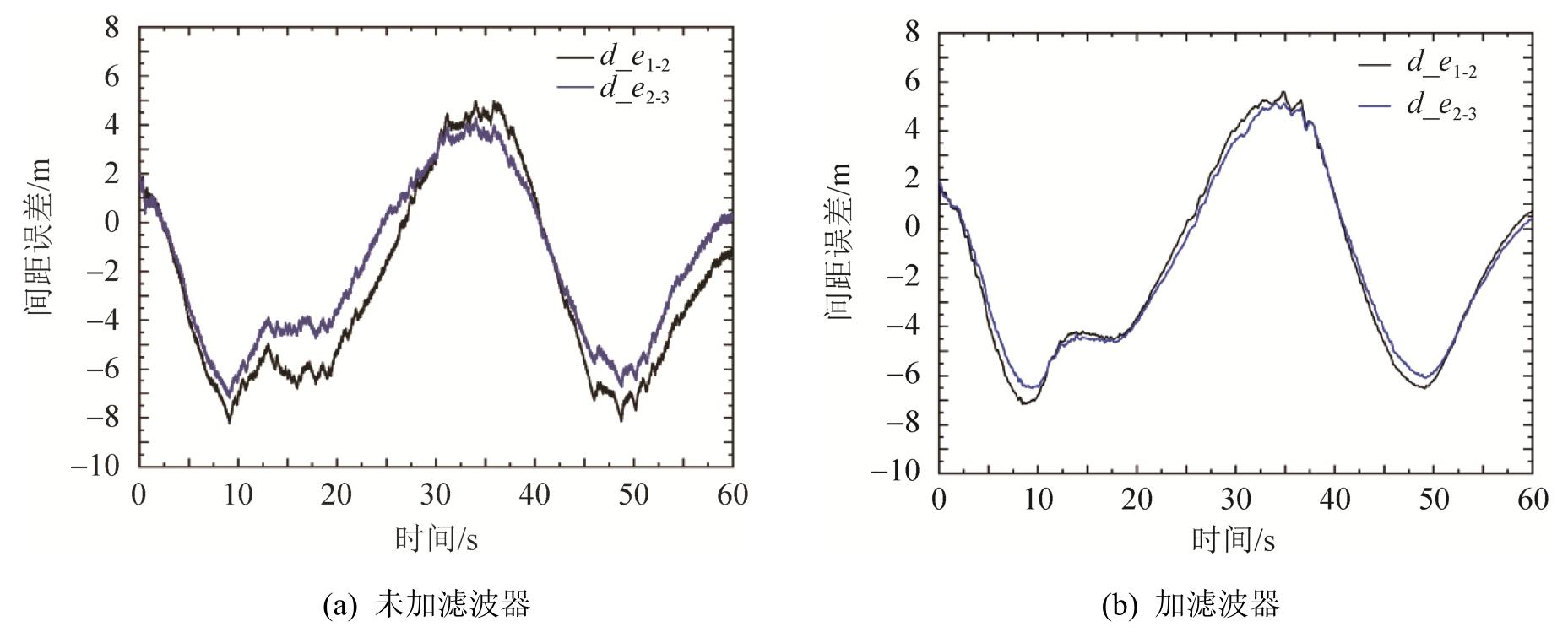

间距误差		均方根值/m/百分比%	最大值/m/百分比%
d_e_1-2	无滤波器	1.9634/-	5.5986/-
d_e_1-2	有滤波器	1.8385/6.36	4.9716/11.20
d_e_2-3	无滤波器	1.8785/-	5.1248/-
d_e_2-3	有滤波器	1.7919/6.60	4.2676/16.73

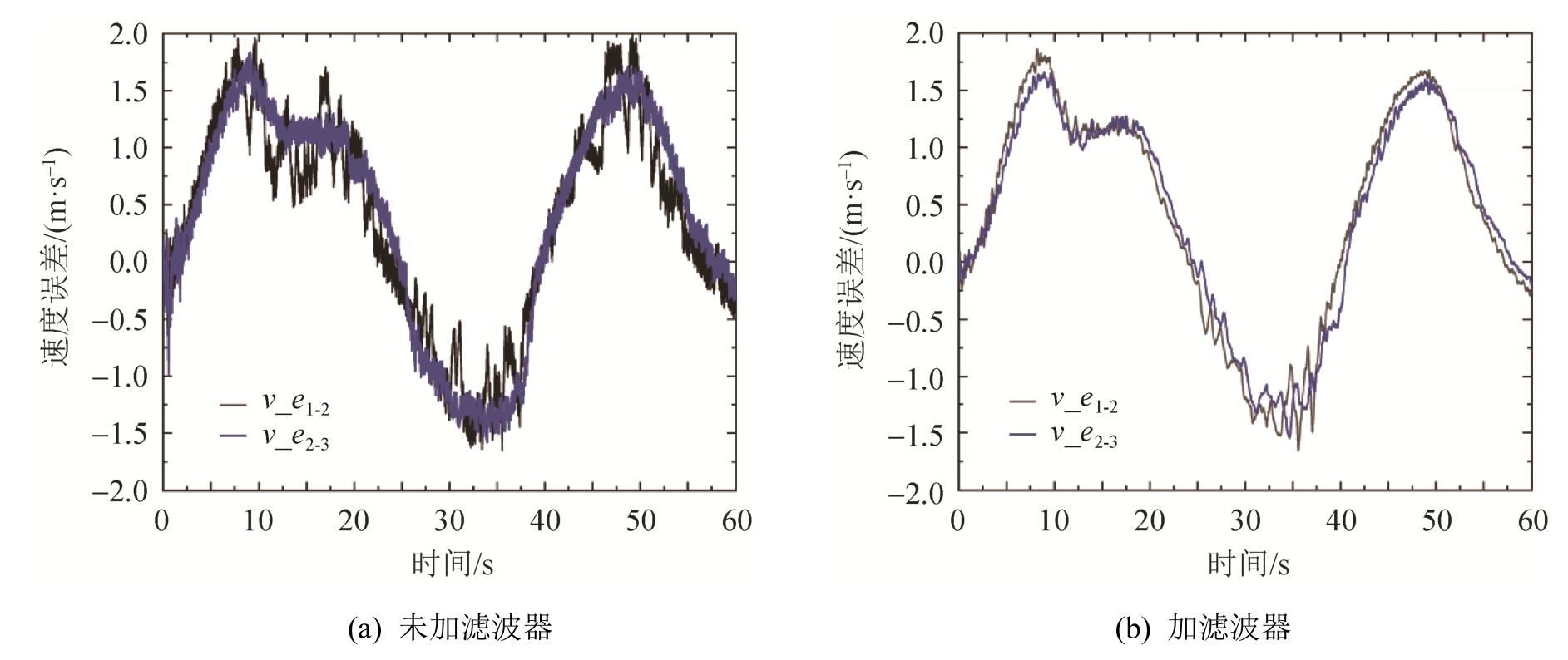

车速误差		均方根值/(m/s)百分比%	最大值/(m/s)/百分比%
v_e_1-2	无滤波器	0.9762/-	1.9898/-
v_e_1-2	有滤波器	0.9441/3.28	1.8607/6.49
v_e_2-3	无滤波器	0.9788/-	1.8371/-
v_e_2-3	有滤波器	0.9477/3.17	1.6556/9.88
