Research on Prediction of Model Based on Multi-scale LSTM

doi:10.16182/j.issn1004731x.joss.21-0182

Abstract

Abstract:

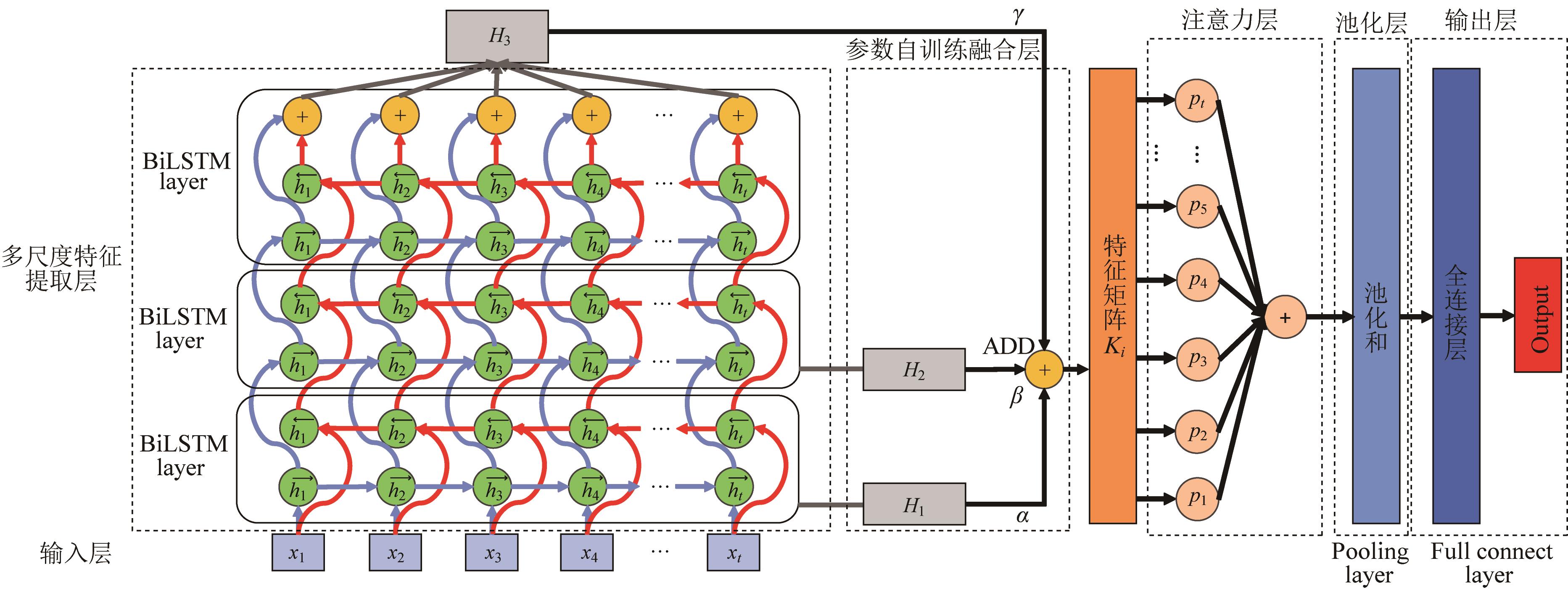

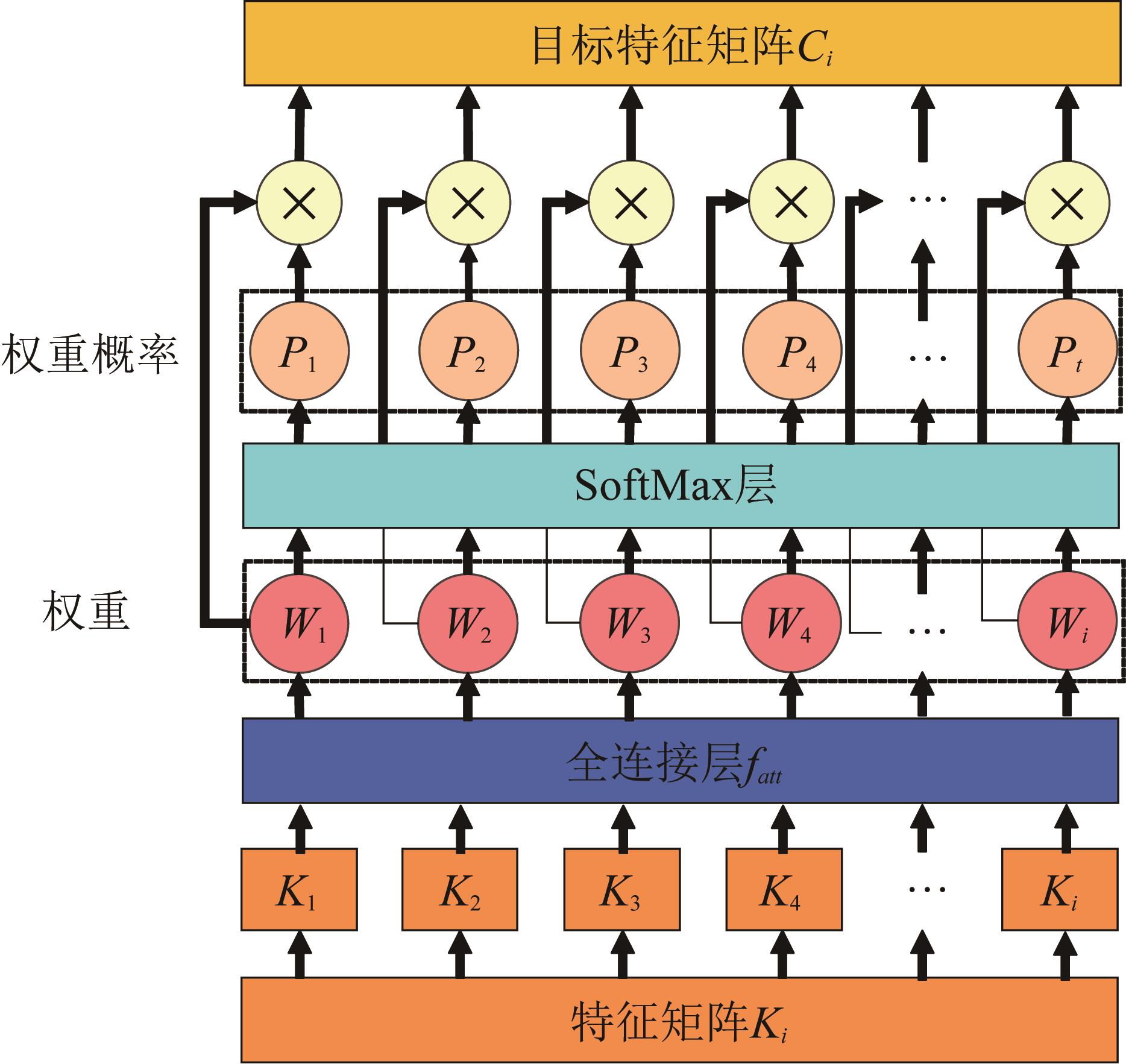

Aircraft engine remaining useful life (RUL) prediction is the core issue in equipmentfailure prognostics and health management (PHM). Aiming at the characteristics of high dimensionality, high lag and complexity of engine data, a multi-scale attention-based bidirectional long short-term memory neural network model based on self-training weights is proposed. Multi-scale features are extracted through bidirectional long short-term memory neural network (BiLSTM) of different scales. A fusion algorithm based on self-training weights is proposed, and an attention mechanism is introduced to screen features at different scales to improve prediction accuracy. Various models are compared on the NASA's C-MAPSS data set. The results prove that the proposed prediction model improves in both accuracy and root mean square error indicators.

Key words: PHM, RUL, BiLSTM, self-training weights, attention mechanism, fusion algorithm

CLC Number:

TP391.9

Junjie Qiu, Hong Zheng, Yunhui Cheng. Research on Prediction of Model Based on Multi-scale LSTM[J]. Journal of System Simulation, 2022, 34(7): 1593-1604.

Figures/Tables 17

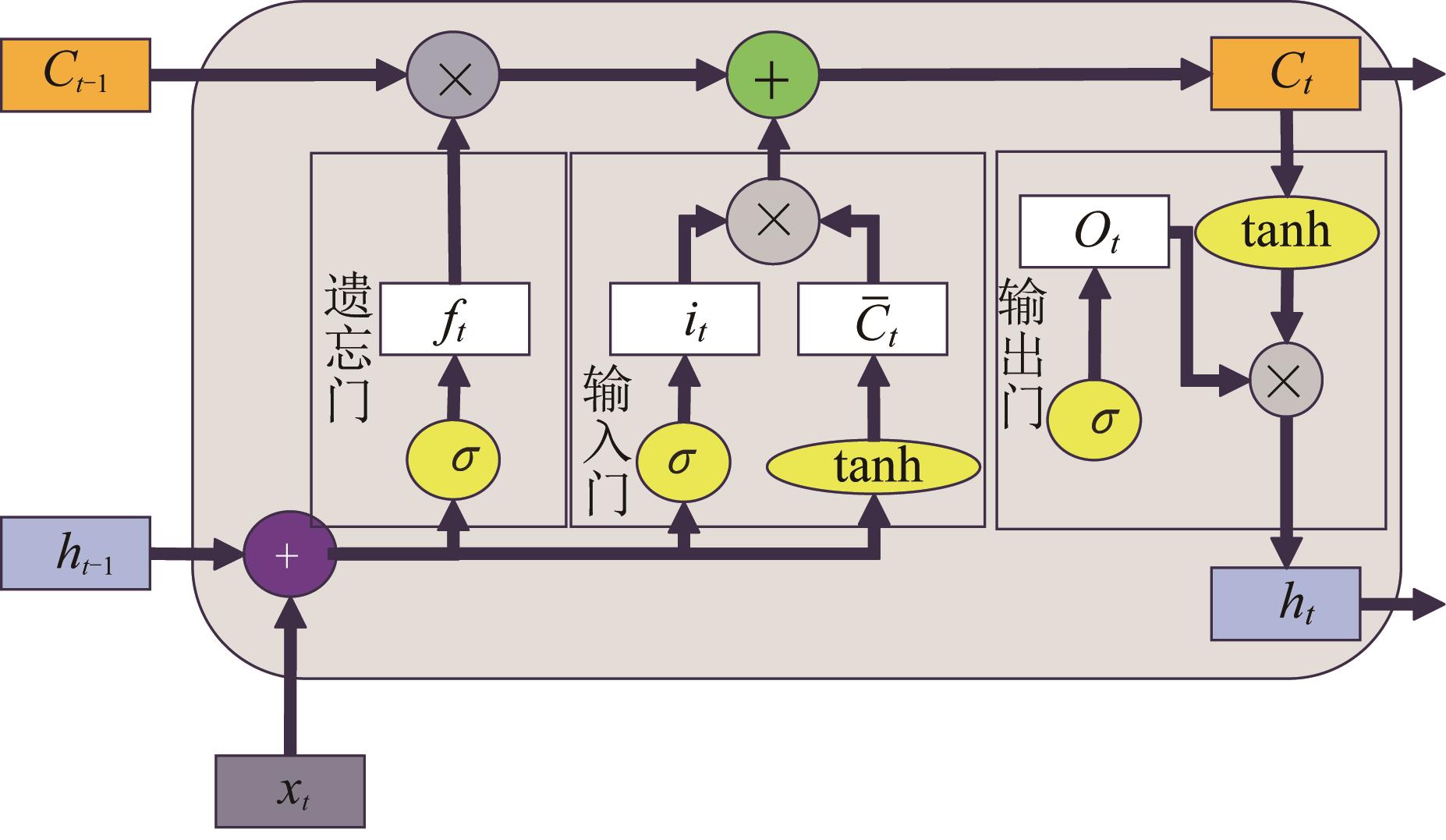

Fig. 1

Fig. 2

Fig. 3

Table 1

Table 2

Table 3

Table 4

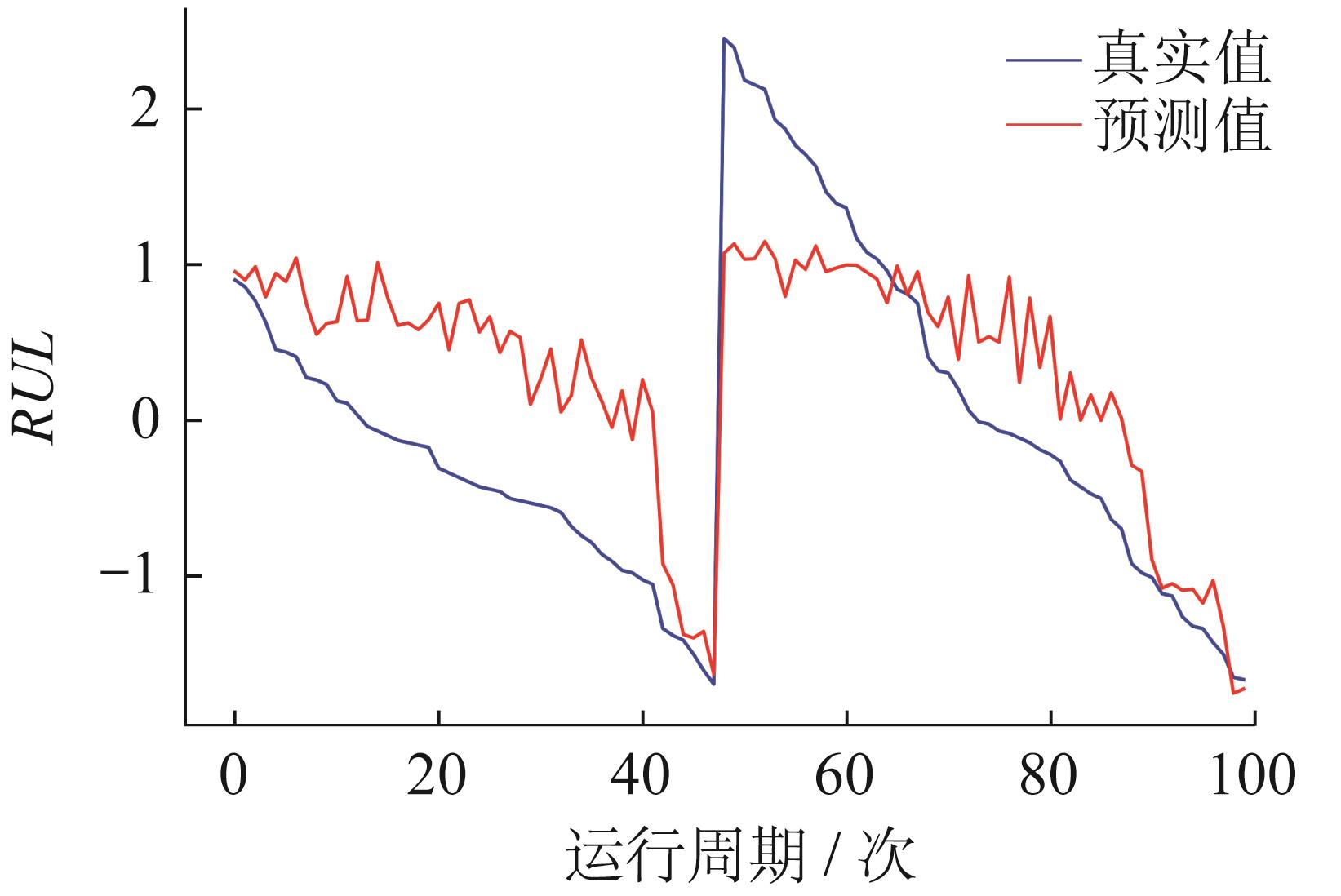

Fig. 4

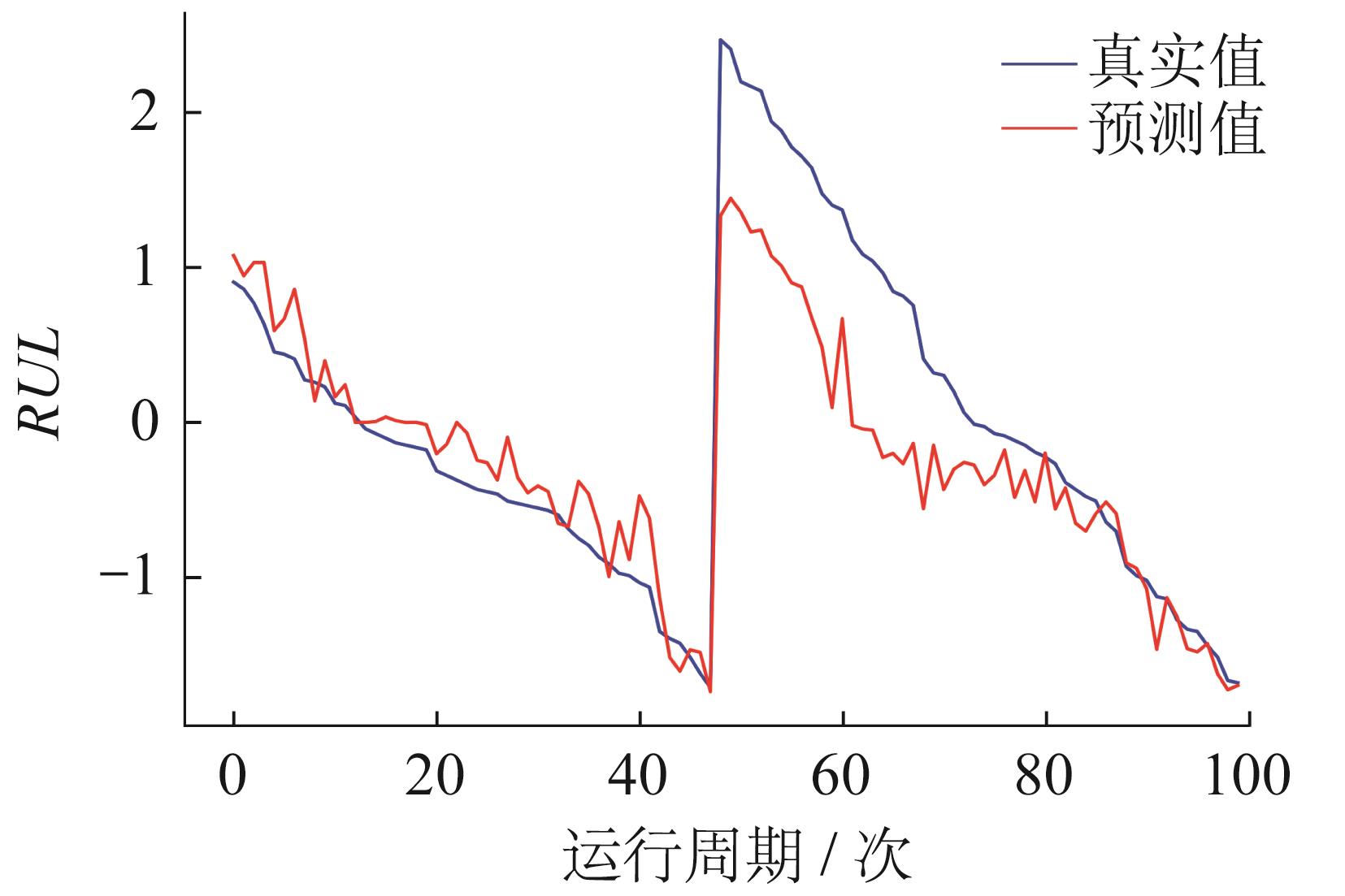

Fig. 5

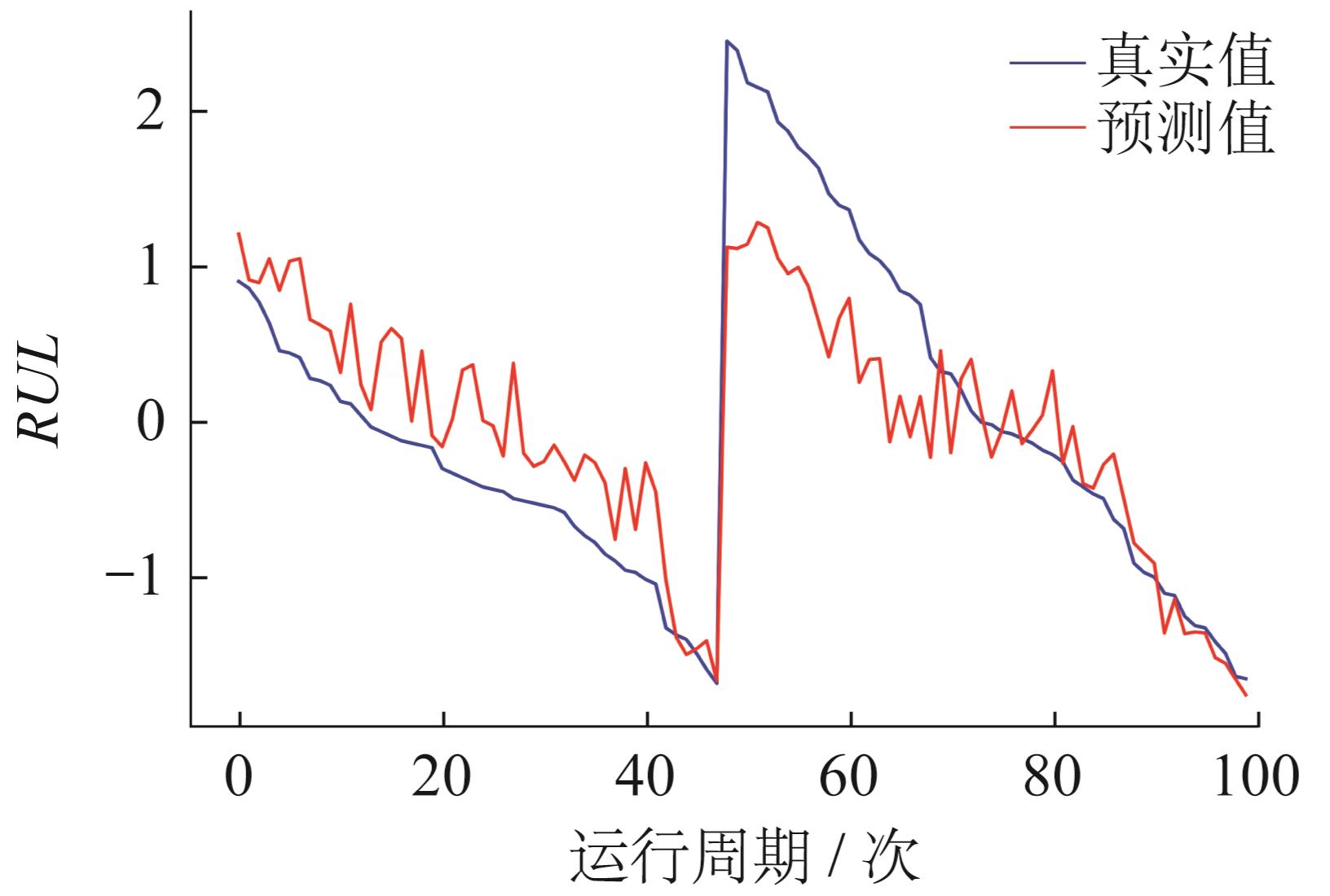

Fig. 6

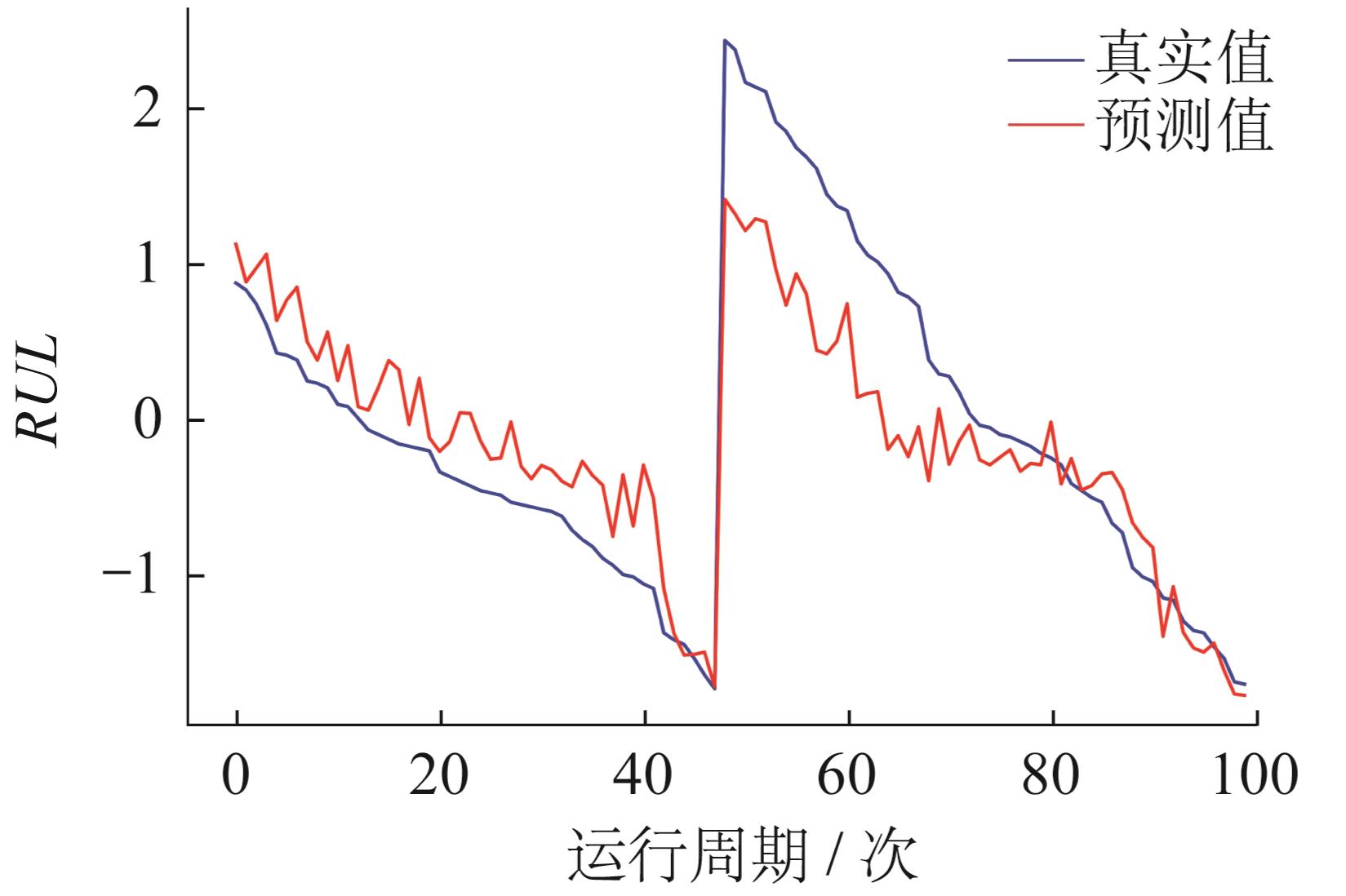

Fig. 7

Table 5

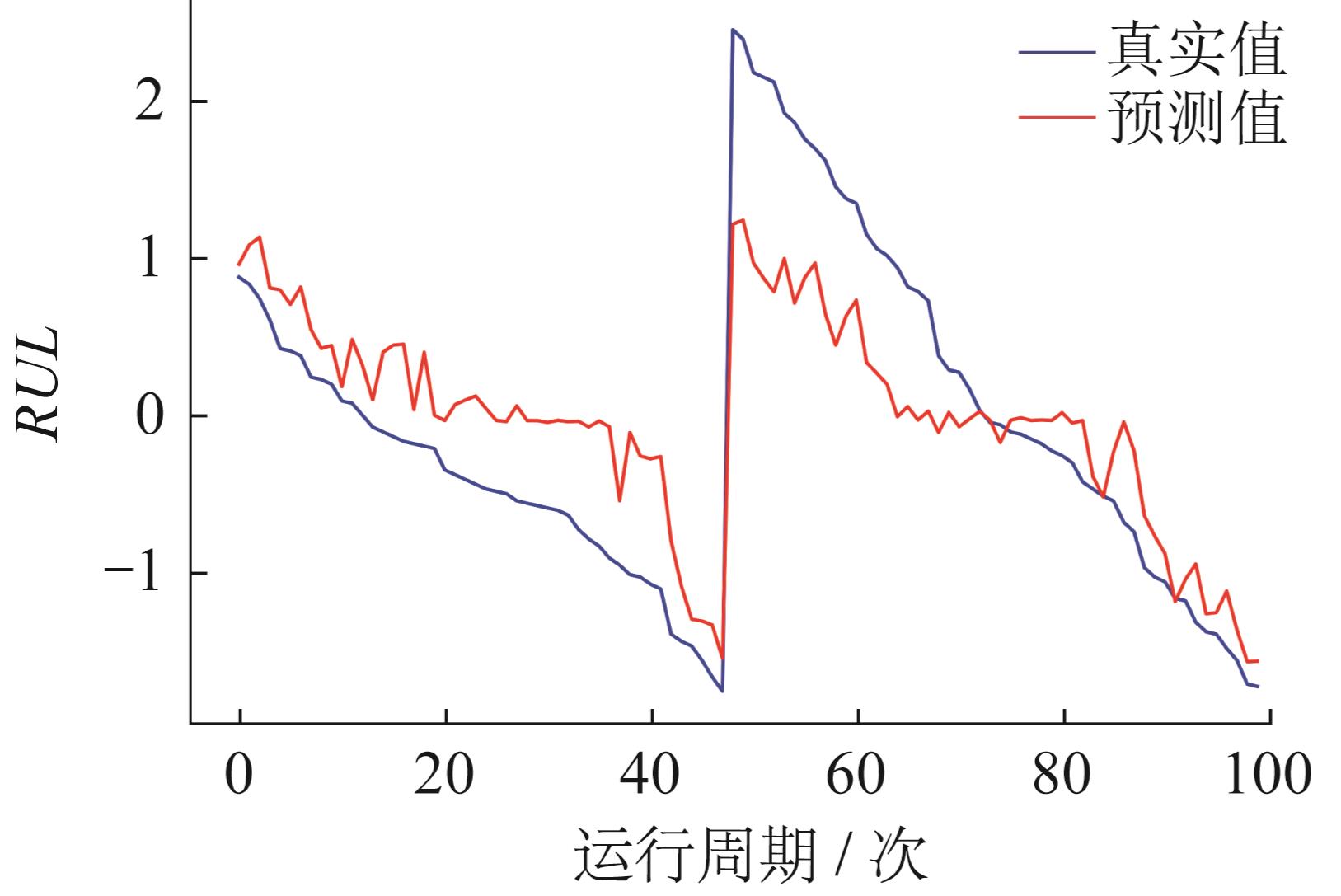

Fig. 8

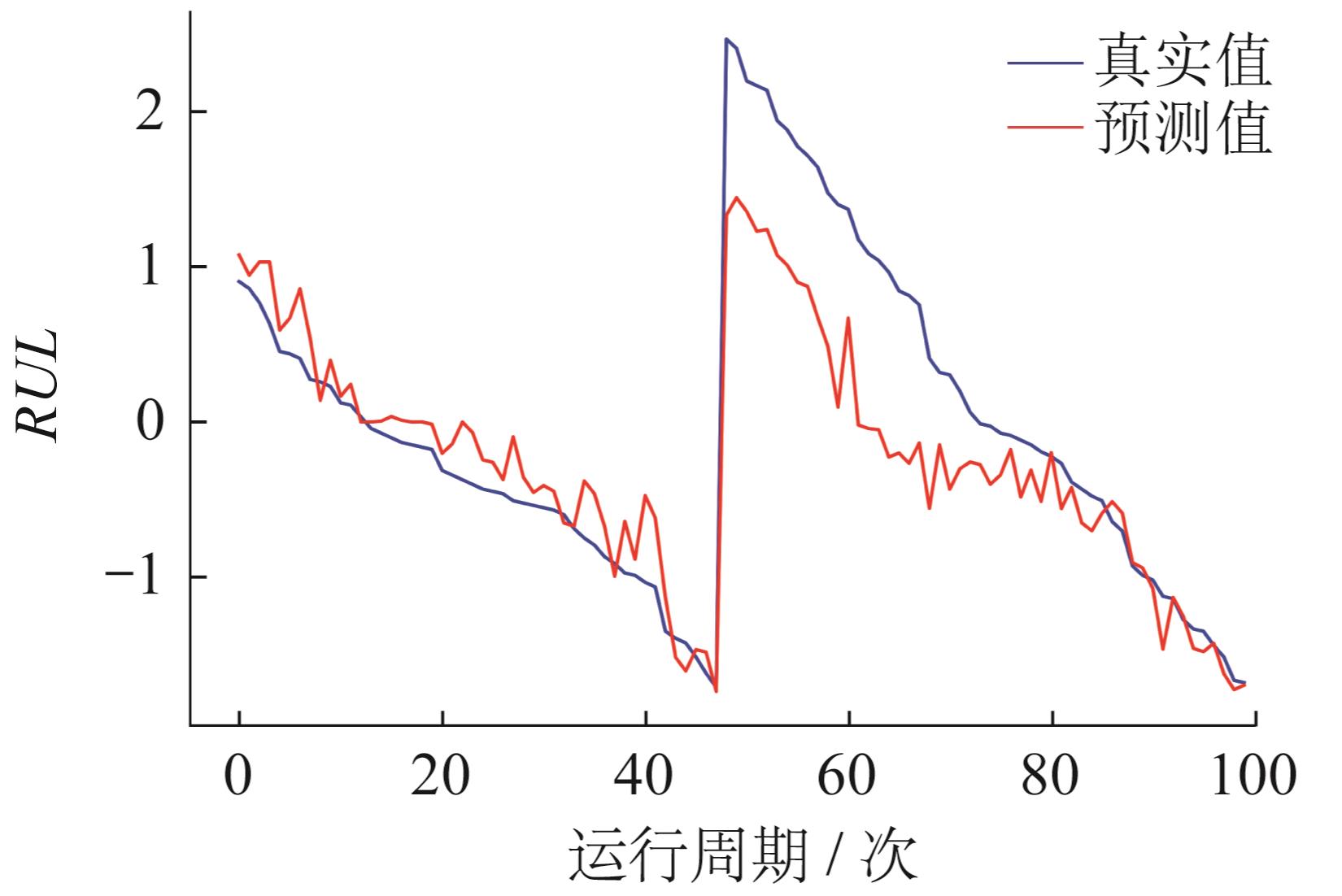

Fig. 9

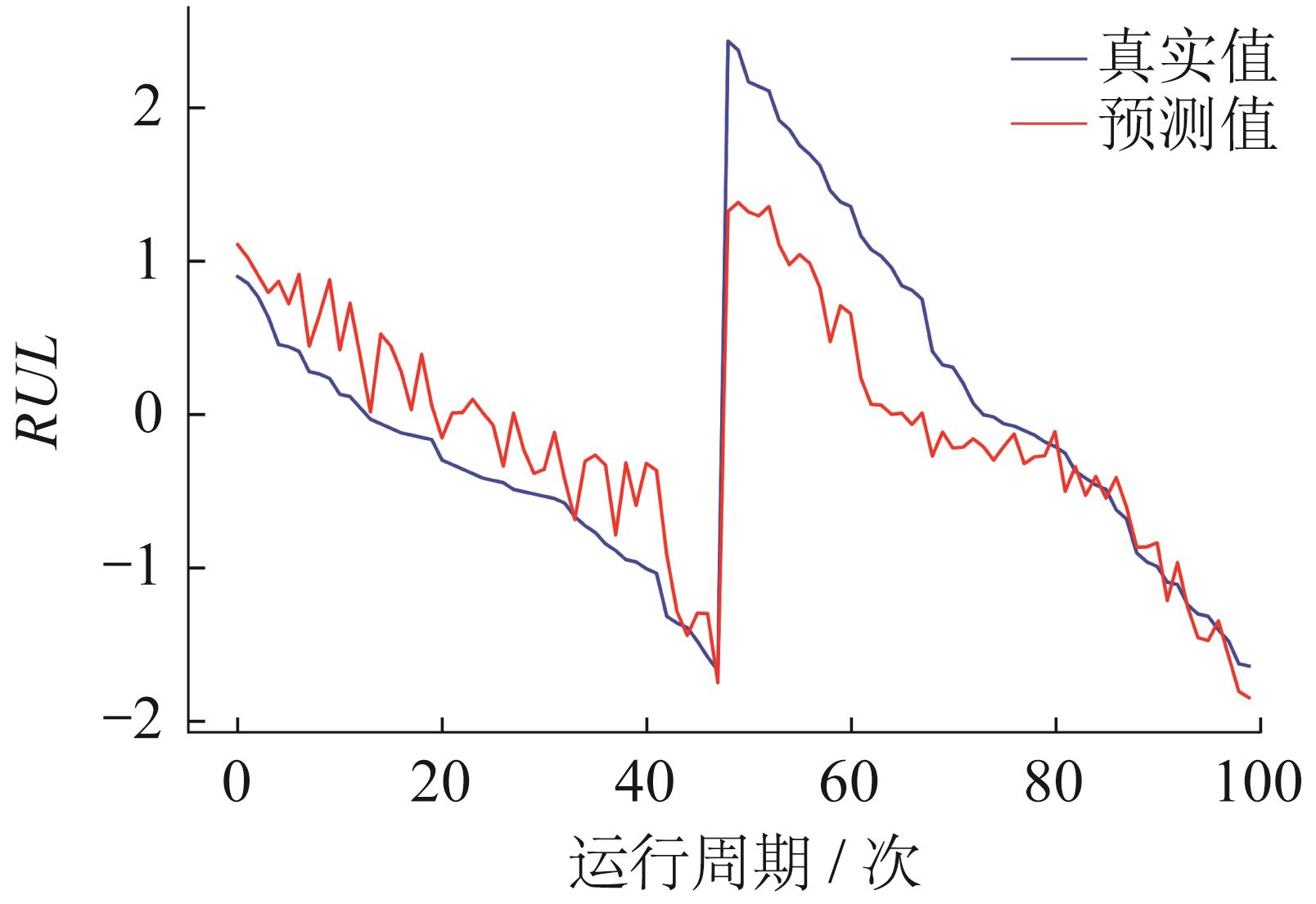

Fig. 10

Table 6

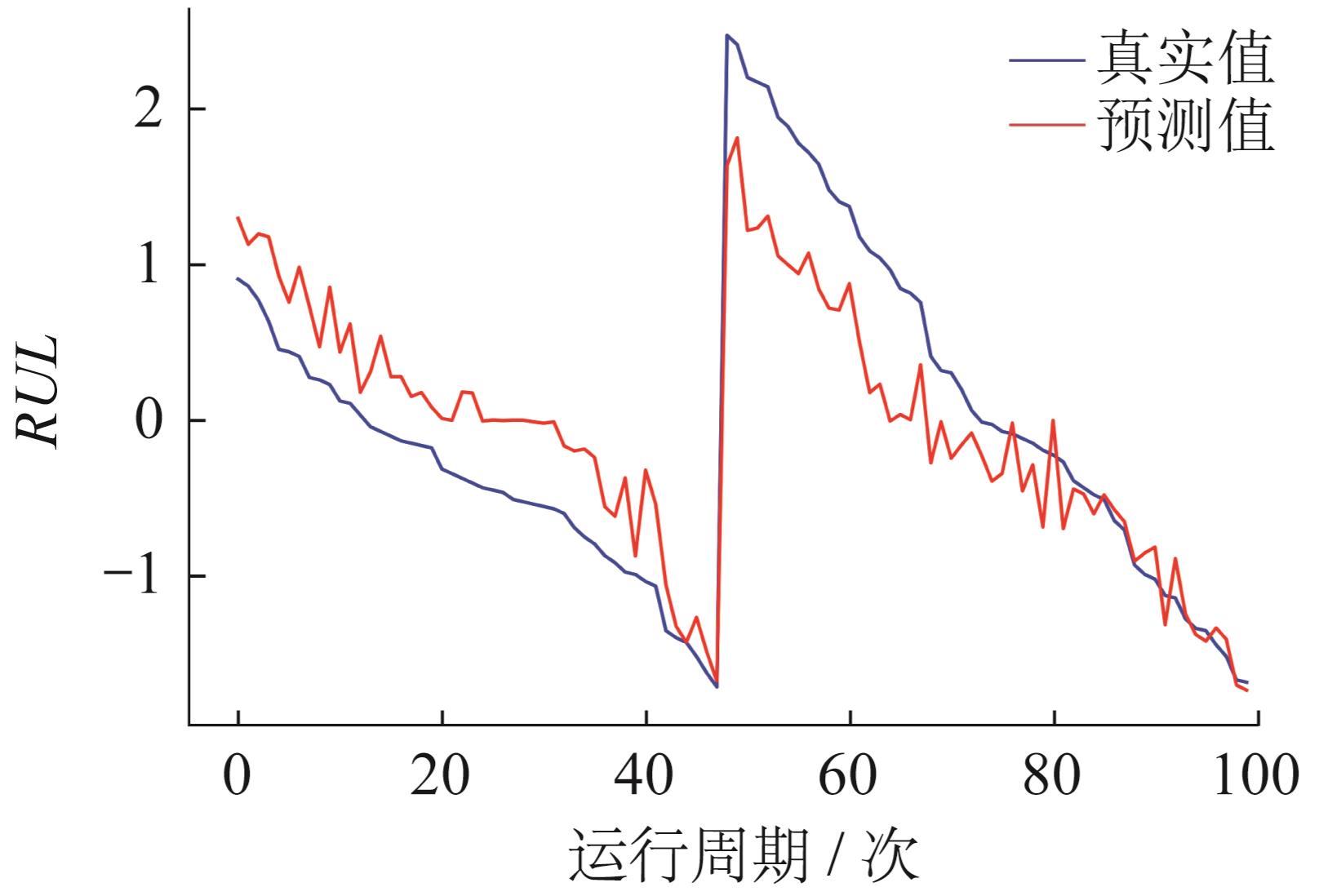

Fig. 11

References 17

1	孔祥伟, 王丹, 吴瑀, 等. 基于堆叠稀疏自编码神经网络的航空发动机剩余寿命预测方法研究[J]. 计算机测量与控制, 2019, 27(12): 29-33, 38.
	Kong Xiangwei, Wang Dan, Wu Yu, et al. Research on Prediction Method of Aeroengine Residual Life Based on Stacked Sparse Automatic Encoder[J]. Computer Measurement & Control, 2019, 27(12): 29-33, 38.
2	葛承垄, 朱元昌, 邸彦强, 等. 面向装备RUL预测的平行仿真框架[J]. 系统仿真学报, 2018, 30(6): 2216-2224.
	Ge Chenglong, Zhu Yuanchang, Di Yanqiang, et al. Equipment RUL Prediction Oriented Parallel Simulation Framework[J]. Journal of System Simulation, 2018, 30(6): 2216-2224.
3	温海茹. 基于深度学习的航空发动机剩余使用寿命预测研究[J]. 内燃机与配件, 2020(3): 41-42.
	Wen Hairu. Research on Remaining Life Prediction of Aero-engine Based on Deep Learning[J]. Internal Combustion Engine & Parts, 2020(3): 41-42.
4	皮骏, 高树伟, 黄江博, 等. 基于QAR数据的涡轮叶片疲劳寿命预测[J]. 系统仿真学报, 2019, 31(6): 1165-1171.
	Pi Jun, Gao Shuwei, Huang Jiangbo, et al. Fatigue Life Prediction of Turbine Blades Based on QAR Data[J]. Journal of System Simulation, 2019, 31(6): 1165-1171.
5	张朝龙, 何怡刚, 袁莉芬. 基于CPSO-RVM的锂电池剩余寿命预测方法[J]. 系统仿真学报, 2018, 30(5): 1935-1940.
	Zhang Chaolong, He Yigang, Yuan Lifen. Approach for Lithiumion Battery RUL Prognostics Based on CPSO-RVM[J]. Journal of System Simulation, 2018, 30(5): 1935-1940.
6	赵申坤, 姜潮,龙湘云. 一种基于数据驱动和贝叶斯理论的机械系统剩余寿命预测方法[J]. 机械工程学报, 2018, 54(12): 115-124.
	Zhao Shenkun, Jiang Chao, Long Xiangyun. Remaining Useful Life Estimation of Mechanical Systems Based on the Data-driven Method and Bayesian Theory[J]. Journal of Mechanical Engineering, 2018, 54(12): 115-124.
7	彭鸿博, 蒋雄伟. 基于相关向量机的发动机剩余寿命预测[J]. 科学技术与工程, 2020, 20(18): 7538-7544.
	Peng Hongbo, Jiang Xiongwei. Remaining Useful Life Prediction for Aeroengine Based on Relevance Vector Machine[J]. Science Technology and Engineering, 2020, 20(18): 7538-7544.
8	Qin X L, Zhao Q, Zhao H B, et al. Prognostics of Remaining Useful Life for Lithiumion Batteries Based on a Feature Vector Selection and Relevance Vector Machine Approach[C]// 2017 IEEE International Conference on Prognostics and Health Management (ICPHM). Dallas, TXUSA: IEEE,2017: 1-6.
9	ZHANG C, LIM P, QIN A K, et al. Multiobjective Deep Belief Networks Ensemble for Remaining Useful Life Estimation in Prognostics[J]. IEEE Transactions on Neural Networks & Learning Systems (S2162-2388),2016, 28(10): 2306-2318.
10	马忠, 郭建胜, 顾涛勇, 等. 基于改进卷积神经网络的航空发动机剩余寿命预测[J]. 空军工程大学学报(自然科学版), 2020, 21(6): 19-25.
	Ma Zhong, Guo Jiansheng, Gu Taoyong, et al. A Remaining Useful Life Prediction for Aero-Engine Based on Improved Convolution Neural Networks[J]. Journal of Air Force Engineering University(Natural Science Edition), 2020, 21(6): 19-25.
11	Zhang X, Dong Y, Wen L, et al. Remaining Useful Life Estimation Based on a New Convolutional and Recurrent Neural Network[C]// 2019 IEEE 15th International Conference on Automation Science and Engineering (CASE). Vancouver, BC, Canada: IEEE, 2019: 317-322.
12	Kakati P, Dandotiya D, Pal B. Remaining Useful Life Predictions for Turbofan Engine Degradation Using Online Long Short-Term Memory Network[C]// ASME 2019 Gas Turbine India Conference. Chennai, Tamil Nadu, India: ASME, 2019: 1-7.
13	王鑫, 吴际, 刘超, 等. 基于LSTM循环神经网络的故障时间序列预测[J]. 北京航空航天大学学报, 2018, 44(4): 772-784.
	Wang Xin, Wu Ji, Liu Chao, et al. Exploring LSTM Based Recurrent Neural Network for Failure Time Series Prediction[J]. Journal of Beijing University of Aeronautics and Astronautics, 2018, 44(4): 772-784.
14	Jiang Y, Lü Y, Wang Y, et al. Fusion Network Combined With Bidirectional LSTM Network and Multiscale CNN for Remaining Useful Life Estimation[C]// 2020 12th International Conference on Advanced Computational Intelligence (ICACI). Dali, China: IEEE, 2020: 620-627.
15	王太勇, 王廷虎, 王鹏, 等. 基于注意力机制BiLSTM的设备智能故障诊断方法[J]. 天津大学学报, 2020, 53(6): 601-608.
	Wang Taiyong, Wang Tinghu, Wang Peng, et al. An Intelligent Fault Diagnosis Method Based on Attention-Based Bidirectional LSTM Network[J]. Journal of Tianjin University, 2020, 53(6): 601-608.
16	Babu G S, Zhao P, Li X L. Deep Convolutional Neural Network Based Regression Approach for Estimation of Remaining Useful Life[C]// International Conference on Database Systems for Advanced Applications. Berlin, Springer, Cham, 2016: 214-228.
17	王旭, 艾红. 基于CAE与LSTM的航空发动机剩余寿命预测[J]. 北京信息科技大学学报(自然科学版), 2020, 35(4): 57-62.
	Wang Xu, Ai Hong. Prediction of the Remaining Life of Aerospace Engine Based on CAE and LSTM[J]. Journal of Beijing Information Science & Technology University, 2020, 35(4): 57-62.

描述	单位
风扇入口总温度	°R
低压压缩机进气道总温度	°R
高压压缩机进气道总温度	°R
低压涡轮进气道总温度	°R
风机进口压力	psia
旁路管道总压	psia
高压压缩机出口处总压力发动机压力比（P50/P2）	psia
物理风机转速	r/min
物理核心速度	r/min
高压压缩机出口静压	r/min
燃料流量与PS30 的比率	pps/psi
修正风机转速	r/min
修正核心转速	r/min
涵道比要求的风扇转速要求的修正风扇转速	rpm r/pm
燃烧器燃气比例
放气热含量
高压涡轮冷却剂释放速度	lbm/s
低压涡轮冷却剂释放速度	lbm/s

参数	取值
激活函数	tanh_shrink
优化器	Adam
初始学习率	0.003
批量尺寸	100
训练周期/个	100

ABiLSTM模型尺度	BiLSTM层数	BiLSTM层节点数
1	1	8
2	2	8，16
3	3	8，16，64
4	4	8，16，64，128

ABiLSTM模型尺度	准确率/%	RMSE	训练时间/s
1	91.61	8.98	264
2	92.51	7.55	488
3	94.47	7.38	664
4	94.40	7.51	889

BiLSTM模型	准确率/%	RMSE	训练时间/s
3	93.15	8.47	639
3+Attenion	94.47	7.38	664
3+STW	94.76	8.07	804
