基于双重注意力时间卷积长短期记忆网络的短期负荷预测

doi:10.16182/j.issn1004731x.joss.24-0282

系统仿真学报 ›› 2025, Vol. 37 ›› Issue (8): 2004-2015.doi: 10.16182/j.issn1004731x.joss.24-0282

• 论文 • 上一篇

基于双重注意力时间卷积长短期记忆网络的短期负荷预测

李丽芬¹^,⁴, 张近月¹^,⁴, 曹旺斌²^,³, 梅华威¹^,⁵

^1.华北电力大学计算机系，河北保定 071000
^2.华北电力大学电子与通信工程系，河北保定 071000
^3.河北省电力物联网技术重点实验室(华北电力大学)，河北保定 071000
^4.河北省能源电力知识计算重点实验室，河北保定 071000
^5.复杂能源系统智能计算教育部工程研究中心，河北保定 071000

收稿日期:2024-03-25 修回日期:2024-05-08 出版日期:2025-08-20 发布日期:2025-08-26
通讯作者: 曹旺斌
第一作者简介:李丽芬(1970-)，女，副教授，博士，研究方向为智能电网及电力物联网，电力系统信息化。
基金资助:
国家自然科学基金(62001166);河北省自然科学基金(E2019502186)

Short-term Load Forecasting Based on Dual-attention Temporal Convolutional Long Short-term Memory Network

Li Lifen¹^,⁴, Zhang Jinyue¹^,⁴, Cao Wangbin²^,³, Mei Huawei¹^,⁵

^1.Department of Computer, North China Electric Power University, Baoding 071000, China
^2.Department of Electronic & Communication Engineering, North China Electric Power University, Baoding 071000, China
^3.Hebei Key Laboratory of Power Internet of Things Technology, North China Electric Power University, Baoding 071000, China
^4.Hebei Key Laboratory of Knowledge Computing for Energy & Power, Baoding 071000, China
^5.Engineering Research Center of Intelligent Computing for Complex Energy Systems, Ministry of Education, Baoding 071000, China

Received:2024-03-25 Revised:2024-05-08 Online:2025-08-20 Published:2025-08-26
Contact: Cao Wangbin

摘要/Abstract

摘要：

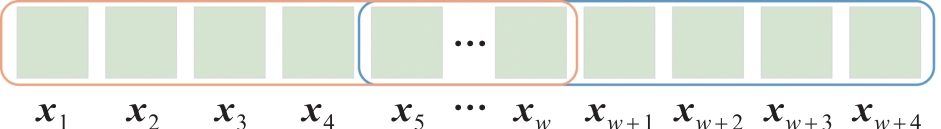

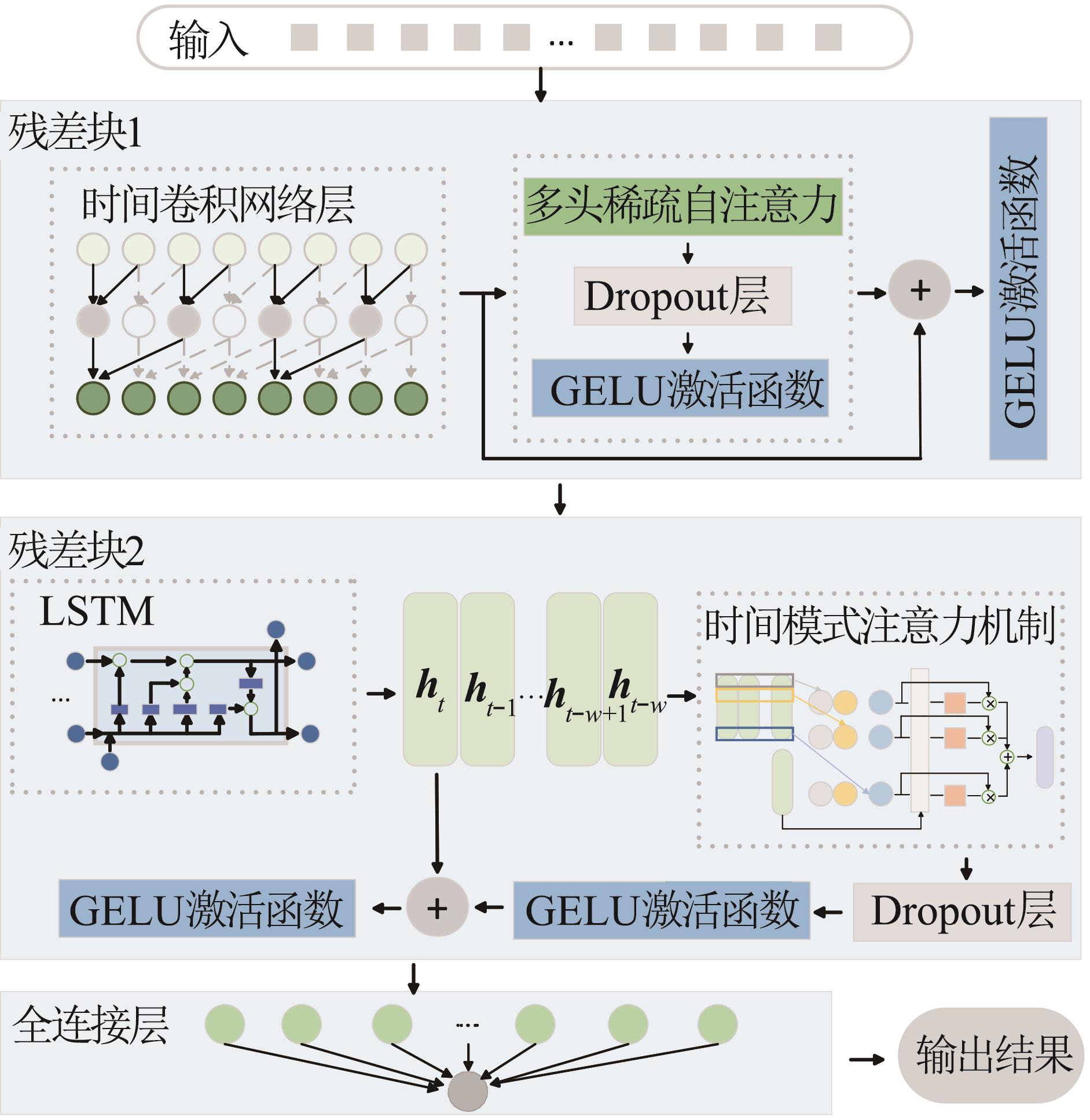

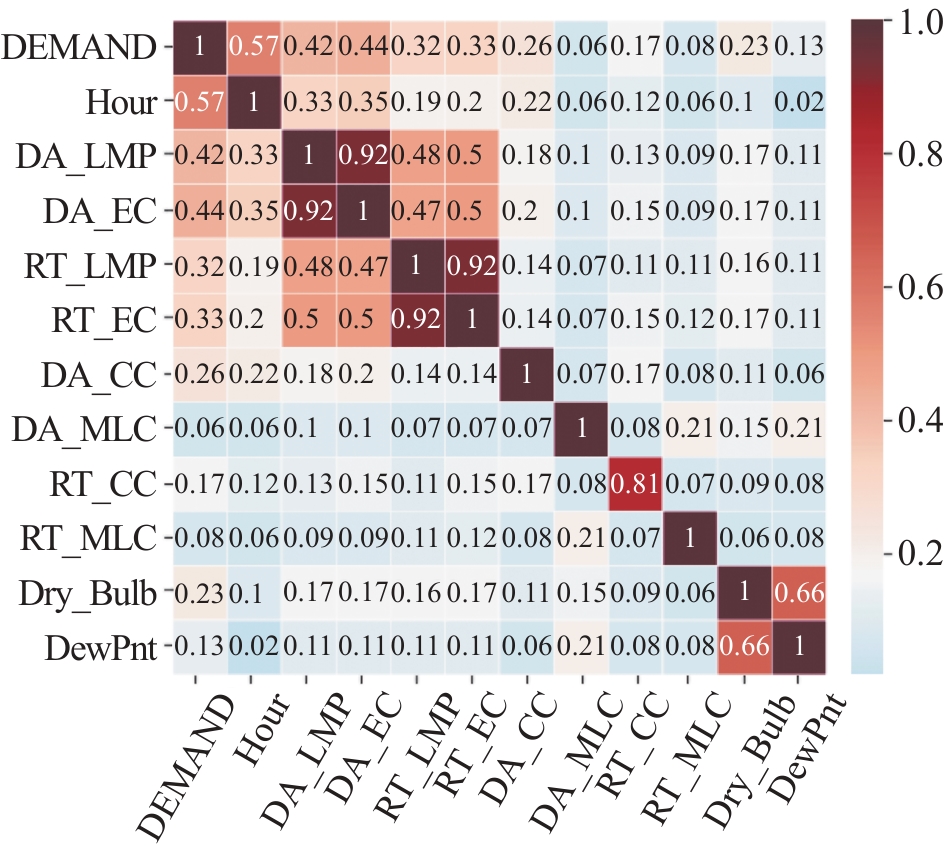

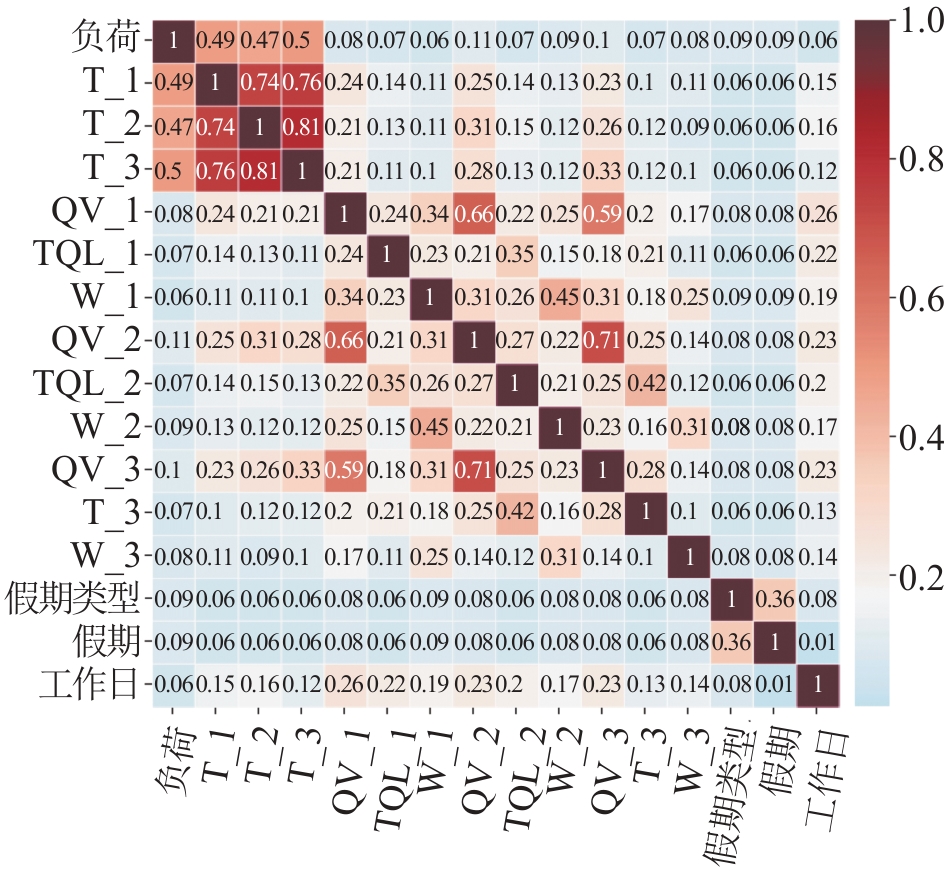

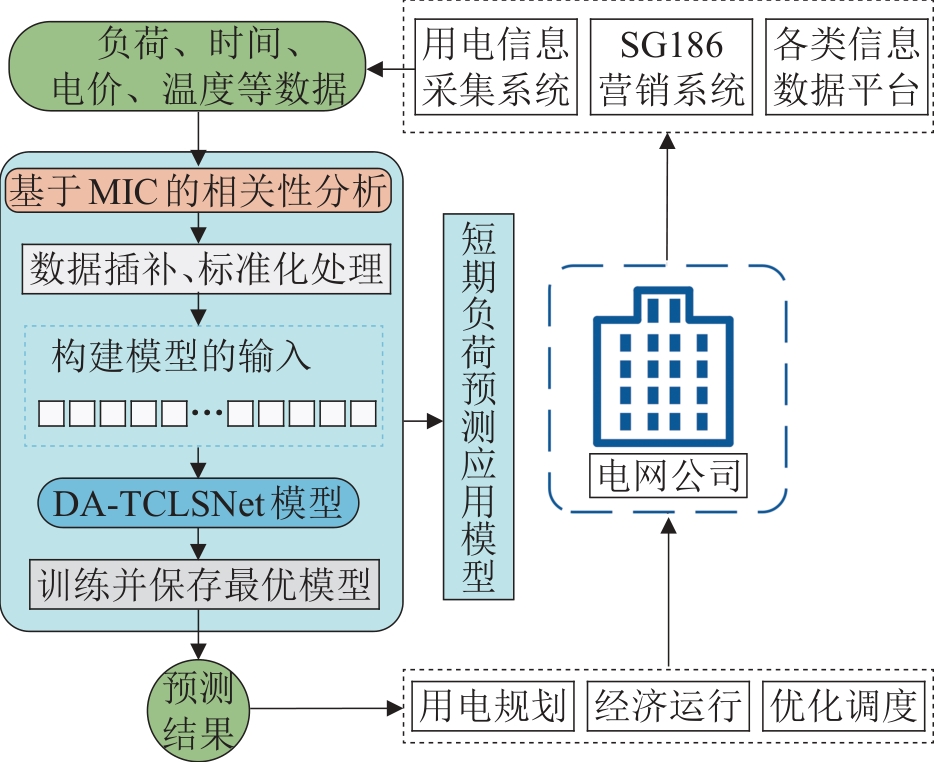

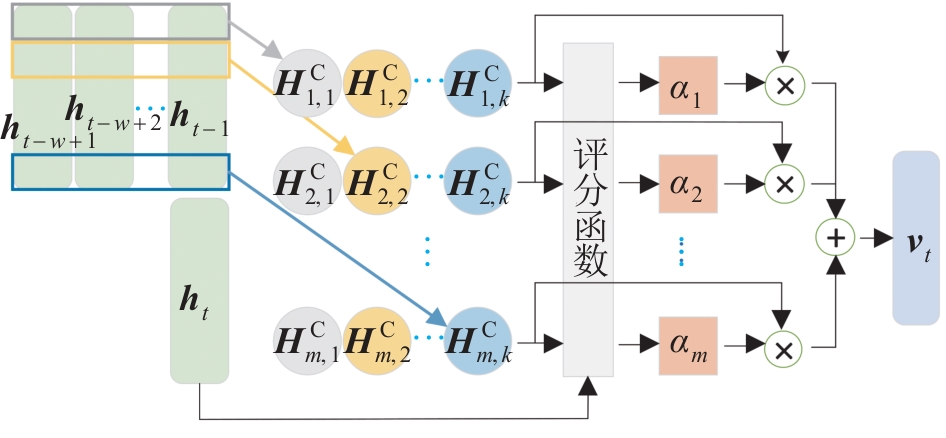

为提高负荷预测的精度，充分提取负荷与其他特征因素之间的隐藏关系，提出一种基于双重注意力时间卷积长短期记忆网络(dual-attention temporal convolutional LSTM network，DA-TCLSNet)的负荷预测方法。基于最大信息系数法对数据集进行相关性分析，完成特征筛选以减少模型的计算量，采用滑动窗构建模型的输入。构建DA-TCLSNet预测模型，时间卷积层提取不同时间尺度下的依赖关系、挖掘负荷及天气等数据之间的非线性特征；多头稀疏自注意力层关注重要信息；长短期记忆网络层挖掘时间序列的长期依赖关系；时间模式注意力层实现自适应学习同一时间步上不同变量间的联系，并通过残差结构连接上述模块以提高模型的表达能力。实验结果表明：该方法相比于其他负荷预测方法具有更佳的预测性能。

关键词: 负荷预测, 时间卷积网络, 注意力, 残差结构, 相关性分析

Abstract:

In order to improve the accuracy of load forecasting and fully extract the hidden relationships between load and other characteristic factors, a load forecasting method based on dual-attention temporal convolutional LSTM network (DA-TCLSNet) was proposed. Correlation analysis was conducted on the dataset using the maximum information coefficient method to perform feature screening to reduce the computational cost of the model. The model input was constructed using a sliding window. The DA-TCLSNet forecastingmodel was constructed. The temporal convolutional layer extracted dependencies at different time scales and captured the nonlinear characteristics among variables such as load and weather. The multi-head sparse self-attention layer focused on important information. The LSTM network layer explored the long-term dependency of time series. The temporal pattern attention layer realized adaptive learning of the relationships among different variables at the same time step and connected the above modules through a residual structure to improve the expressive power of the model. Experimental results show that the proposed algorithm offers better forecasting performance than other load forecasting methods.

Key words: load forecasting, temporal convolutional network, attention, residual structure, correlation analysis

中图分类号:

TP391.9

李丽芬,张近月,曹旺斌等 . 基于双重注意力时间卷积长短期记忆网络的短期负荷预测[J]. 系统仿真学报, 2025, 37(8): 2004-2015.

Li Lifen,Zhang Jinyue,Cao Wangbin,et al . Short-term Load Forecasting Based on Dual-attention Temporal Convolutional Long Short-term Memory Network[J]. Journal of System Simulation, 2025, 37(8): 2004-2015.

图/表 20

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

表1

图11

表2

图12

图13

图14

表3

表4

表5

表6

参考文献 16

[1]	韩富佳, 王晓辉, 乔骥, 等. 基于人工智能技术的新型电力系统负荷预测研究综述[J]. 中国电机工程学报, 2023, 43(22): 8569-8591.
	Han Fujia, Wang Xiaohui, Qiao Ji, et al. Review on Artificial Intelligence Based Load Forecasting Research for the New-type Power System[J]. Proceedings of the CSEE, 2023, 43(22): 8569-8591.
[2]	刘雨佳, 樊艳芳, 白雪岩, 等. 基于特征交叉机制和误差补偿的风力发电功率短期预测[J]. 电工技术学报, 2023, 38(12): 3277-3288.
	Liu Yujia, Fan Yanfang, Bai Xueyan, et al. Short-term Wind Power Prediction Based on Feature Crossover Mechanism and Error Compensation[J]. Transactions of China Electrotechnical Society, 2023, 38(12): 3277-3288.
[3]	乔石, 王磊, 张鹏超, 等. 基于模态分解及注意力机制长短时间网络的短期负荷预测[J]. 电网技术, 2022, 46(10): 3940-3951.
	Qiao Shi, Wang Lei, Zhang Pengchao, et al. Short-term Load Forecasting by Long-and Short-term Temporal Networks with Attention Based on Modal Decomposition[J]. Power System Technology, 2022, 46(10): 3940-3951.
[4]	Jiang Huaiguang, Zhang Yingchen, Muljadi E, et al. A Short-term and High-resolution Distribution System Load Forecasting Approach Using Support Vector Regression with Hybrid Parameters Optimization[J]. IEEE Transactions on Smart Grid, 2018, 9(4): 3341-3350.
[5]	孙超, 吕奇, 朱思曈, 等. 基于双层XGBoost算法考虑多特征影响的超短期电力负荷预测[J]. 高电压技术, 2021, 47(8): 2885-2895.
	Sun Chao, Qi Lü, Zhu Sitong, et al. Ultra-short-term Power Load Forecasting Based on Two-layer XGBoost Algorithm Considering the Influence of Multiple Features[J]. High Voltage Engineering, 2021, 47(8): 2885-2895.
[6]	臧海祥, 许瑞琦, 刘璟璇, 等. 基于多维融合特征和卷积神经网络的多任务用户短期负荷预测[J]. 电力系统自动化, 2023, 47(13): 69-77.
	Zang Haixiang, Xu Ruiqi, Liu Jingxuan, et al. Short-term Load Forecasting for Multi-task Consumers Based on Multi-dimensional Fusion Feature and Convolutional Neural Network[J]. Automation of Electric Power Systems, 2023, 47(13): 69-77.
[7]	Vaswani A, Shazeer N, Parmar N, et al. Attention is All You Need[C]///Proceedings of the 31st International Conference on Neural Information Processing Systems. Red Hook: Curran Associates Inc., 2017: 6000-6010.
[8]	Guo Yixiu, Li Yong, Qiao Xuebo, et al. BiLSTM Multitask Learning-based Combined Load Forecasting Considering the Loads Coupling Relationship for Multienergy System[J]. IEEE Transactions on Smart Grid, 2022, 13(5): 3481-3492.
[9]	Jayashankara M, Shah Priyansh, Sharma Anshul, et al. A Novel Approach for Short-term Energy Forecasting in Smart Buildings[J]. IEEE Sensors Journal, 2023, 23(5): 5307-5314.
[10]	刘国海, 孙文卿, 吴振飞, 等. 基于Attention-GRU的短期光伏发电功率预测[J]. 太阳能学报, 2022, 43(2): 226-232.
	Liu Guohai, Sun Wenqing, Wu Zhenfei, et al. Short-term Photovoltaic Power Forecasting Based on Attention-GRU Model[J]. Acta Energiae Solaris Sinica, 2022, 43(2): 226-232.
[11]	Imani Maryam. Electrical Load-temperature CNN for Residential Load Forecasting[J]. Energy, 2021, 227: 120480.
[12]	王琛, 王颖, 郑涛, 等. 基于ResNet-LSTM网络和注意力机制的综合能源系统多元负荷预测[J]. 电工技术学报, 2022, 37(7): 1789-1799.
	Wang Chen, Wang Ying, Zheng Tao, et al. Multi-energy Load Forecasting in Integrated Energy System Based on ResNet-LSTM Network and Attention Mechanism[J]. Transactions of China Electrotechnical Society, 2022, 37(7): 1789-1799.
[13]	王炜, 冯斌, 黄刚, 等. 基于自注意力编码器和深度神经网络的短期净负荷预测[J]. 中国电机工程学报, 2023, 43(23): 9072-9083.
	Wang Wei, Feng Bin, Huang Gang, et al. Short-term Net Load Forecasting Based on Self-attention Encoder and Deep Neural Network[J]. Proceedings of the CSEE, 2023, 43(23): 9072-9083.
[14]	Dong Ming, Grumbach L. A Hybrid Distribution Feeder Long-term Load Forecasting Method Based on Sequence Prediction[J]. IEEE Transactions on Smart Grid, 2020, 11(1): 470-482.
[15]	Reshef D N, Reshef Y A, Finucane H K, et al. Detecting Novel Associations in Large Data sets[J]. Science, 2011, 334(6062): 1518-1524.
[16]	Shih S Y, Sun Fankeng, Lee H Y. Temporal Pattern Attention for Multivariate Time Series Forecasting[J]. Machine Learning, 2019, 108(8): 1421-1441.

模块	参数类型	参数值
TCN	膨胀因子	[1, 2]
	膨胀层	2
	隐藏层单元数	[64, 16]
多头稀疏自注意力	注意头	8
	注意力因子	5
	隐藏单元数	96
时间模式注意力	隐藏单元数	10
LSTM	隐藏单元数	100

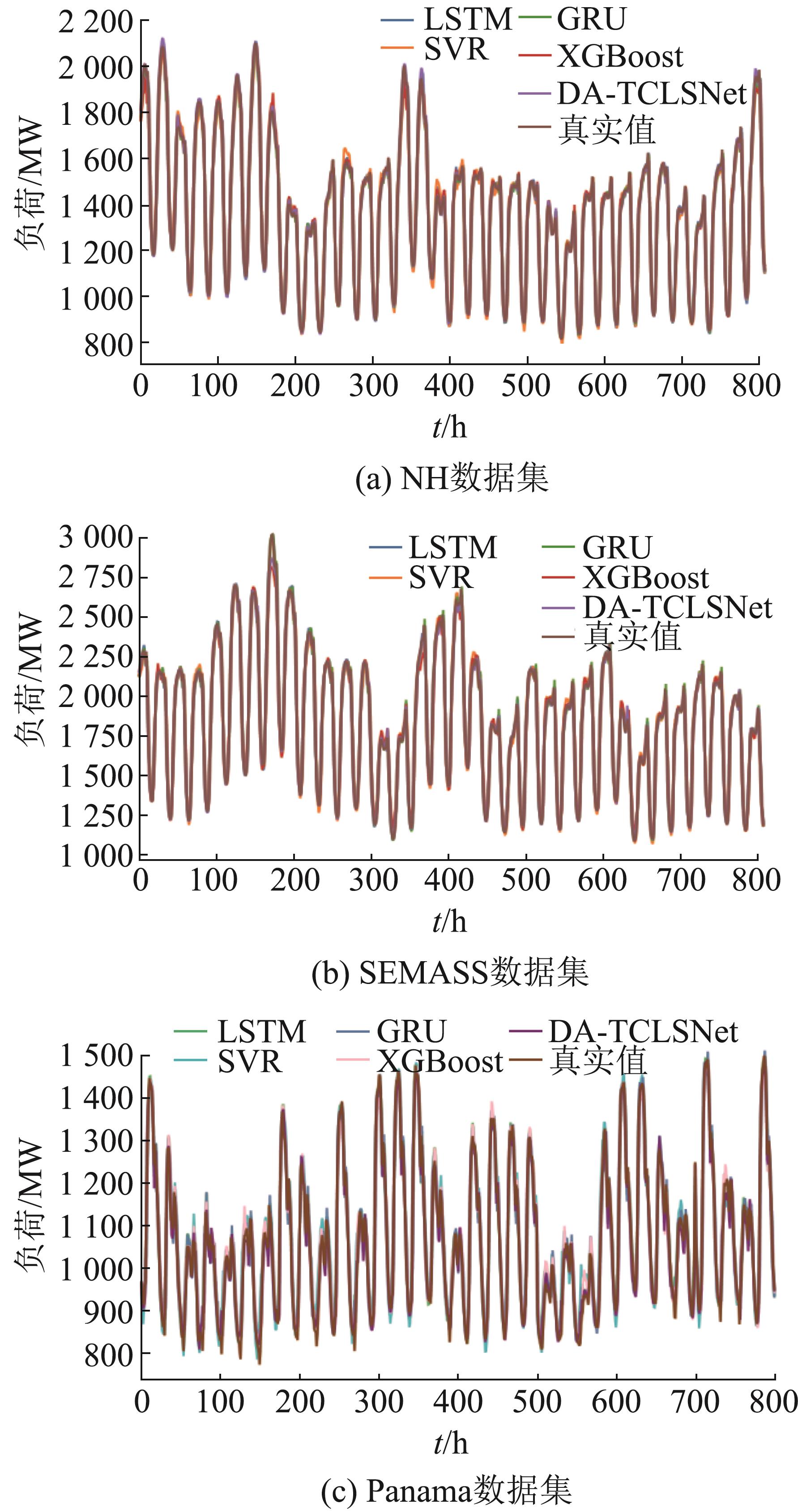

数据集	模型	MAPE/%	RMSE/MW	MAE/MW	R²
NH	LSTM	1.60	28.74	21.31	0.991 2
	GRU	1.62	30.58	22.41	0.990 0
	XGBoost	1.61	30.37	22.26	0.990 2
	SVR	1.81	33.02	25.00	0.988 4
	DA-TCLSNet	0.91	17.96	12.70	0.996 5
SEMASS	LSTM	1.33	32.98	24.52	0.993 8
	GRU	1.32	33.46	24.24	0.993 6
	XGBoost	1.82	43.72	32.29	0.989 1
	SVR	1.52	34.76	27.54	0.993 1
	DA-TCLSNet	0.99	26.58	18.32	0.996 0
Panama	LSTM	2.31	32.88	23.86	0.963 5
	GRU	2.31	32.33	23.94	0.964 7
	XGBoost	2.26	31.35	23.83	0.966 8
	SVR	2.42	32.70	24.67	0.963 9
	DA-TCLSNet	1.81	26.00	18.92	0.977 2

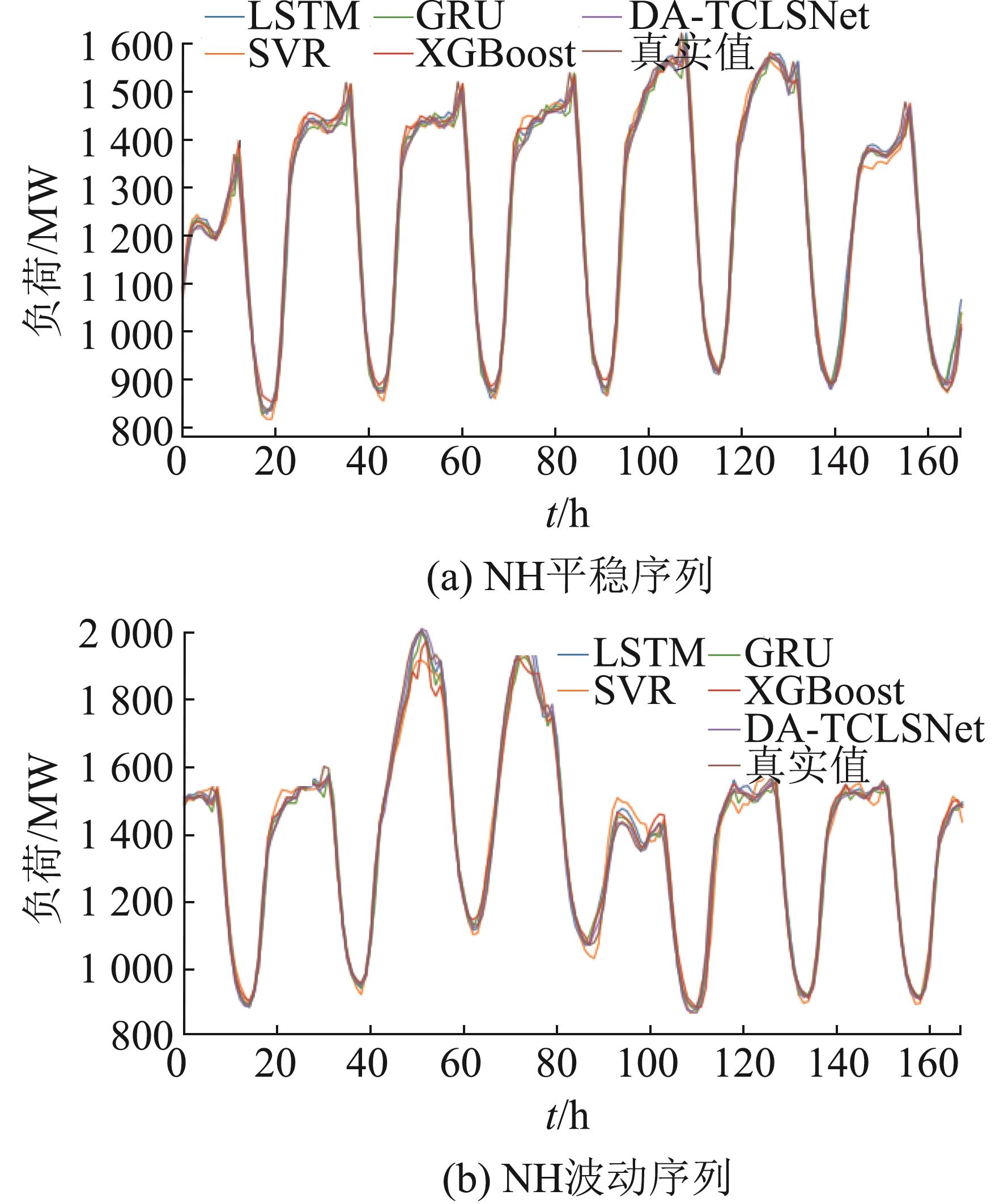

数据类型	模型	MAPE/%	RMSE/MW	MAE/MW	R²
平稳序列	LSTM	1.57	26.57	19.29	0.987 1
	GRU	1.70	29.73	21.37	0.983 8
	XGBoost	1.47	23.97	18.27	0.989 5
	SVR	1.42	22.79	17.79	0.990 5
	DA-TCLSNet	0.86	15.24	10.93	0.995 8
波动序列	LSTM	1.72	31.98	23.64	0.987 6
	GRU	1.59	30.87	22.24	0.988 4
	XGBoost	1.71	34.62	24.19	0.985 4
	SVR	2.21	40.73	30.57	0.979 8
	DA-TCLSNet	0.82	16.56	11.54	0.996 7

数据类型	模型	MAPE/%	RMSE/MW	MAE/MW	R²
平稳序列	LSTM	1.36	32.82	23.61	0.990 7
	GRU	1.31	32.39	22.83	0.990 9
	XGBoost	1.82	38.01	30.28	0.987 5
	SVR	1.54	32.34	27.09	0.990 9
	DA-TCLSNet	0.89	21.93	15.45	0.995 8
波动序列	LSTM	1.38	35.15	25.22	0.993 2
	GRU	1.43	35.70	25.74	0.993 0
	XGBoost	2.41	53.42	42.07	0.984 3
	SVR	1.70	38.73	29.62	0.991 8
	DA-TCLSNet	1.20	29.97	22.21	0.995 1

模型	MAPE/%	RMSE/MW	MAE/MW	R²
LSTM	2.37	34.91	24.07	0.957 7
GRU	2.44	35.34	24.81	0.956 6
XGBoost	2.47	36.32	26.35	0.954 2
SVR	3.22	41.49	32.55	0.940 2
DA-TCLSNet	1.96	28.77	20.24	0.971 2

基于双重注意力时间卷积长短期记忆网络的短期负荷预测

Short-term Load Forecasting Based on Dual-attention Temporal Convolutional Long Short-term Memory Network

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 20

参考文献 16

相关文章 15

编辑推荐

Metrics

本文评价

数据集	模型	MAPE/%	RMSE/MW	MAE/MW	R²
NH	no-Sparse	1.33	23.47	17.52	0.994 1
	no-TPA	1.17	22.71	16.37	0.994 5
	no-LSTM	1.51	26.73	20.05	0.992 4
	no-TCN	1.33	25.23	18.14	0.993 2
	no-MIC	1.15	22.73	15.51	0.994 5
	DA-TCLSNet	0.91	17.96	12.69	0.996 5
SEMASS	no-Sparse	1.19	30.96	22.31	0.994 5
	no-TPA	1.02	28.59	19.14	0.995 3
	no-LSTM	1.33	35.51	24.86	0.992 8
	no-TCN	1.41	36.16	25.76	0.992 5
	no-MIC	1.19	32.61	22.18	0.993 9
	DA-TCLSNet	0.99	26.58	18.32	0.996 0
Panama	no-Sparse	1.87	28.48	19.67	0.972 6
	no-TPA	1.89	27.46	19.63	0.974 6
	no-LSTM	2.17	31.90	22.78	0.965 7
	no-TCN	2.35	35.35	24.71	0.957 9
	no-MIC	1.95	26.91	20.36	0.975 6
	DA-TCLSNet	1.81	26.00	18.92	0.977 2
