Modeling and Simulation of Target Characteristic Architecture of Target Missile Based on DoDAF

doi:10.16182/j.issn1004731x.joss.25-0266

Abstract

Abstract:

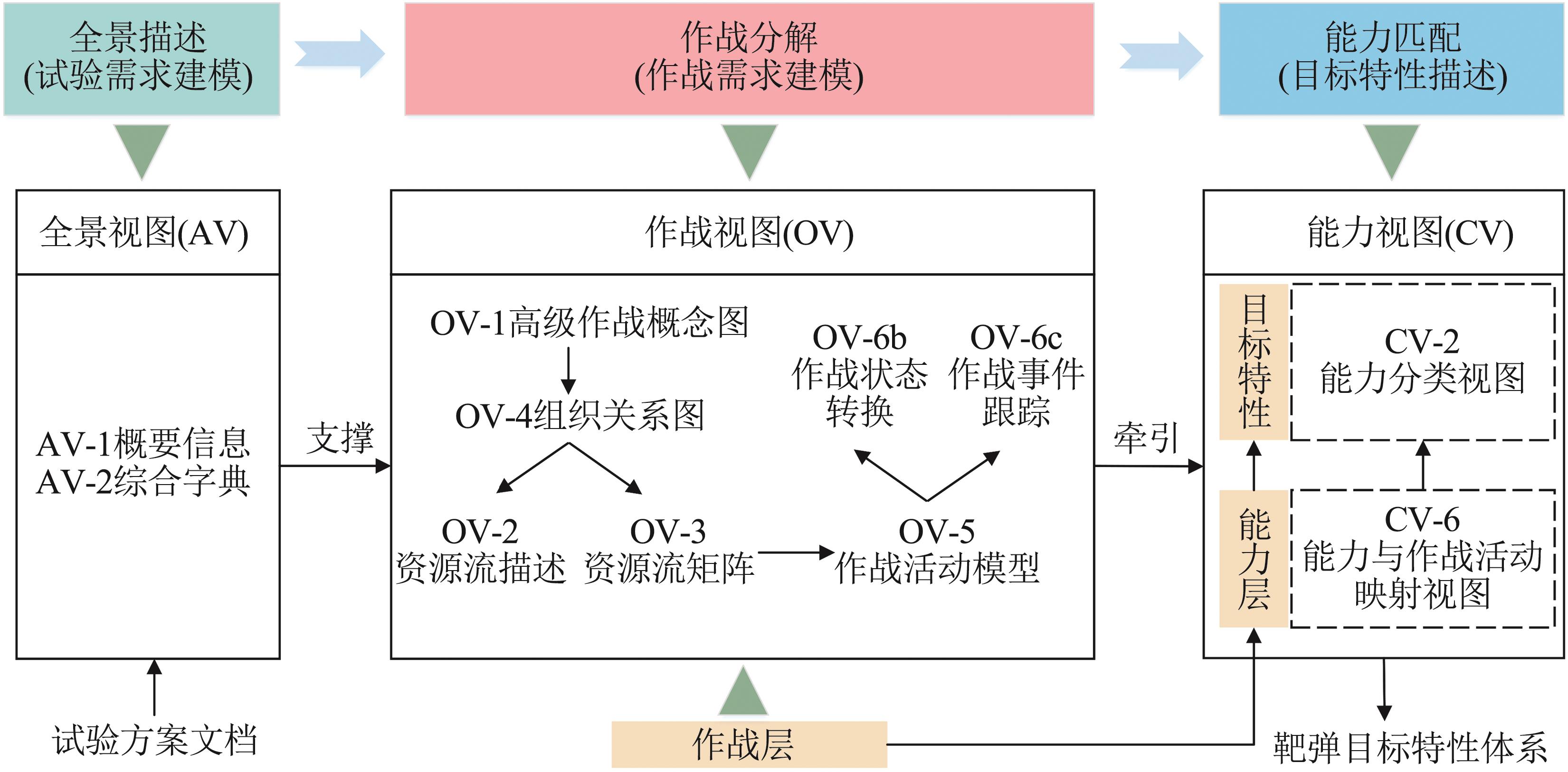

In view of the problems of incomplete elements and missing architecture in the research of target characteristics of target missiles, this paper introduced the panoramic view, operational view, and capability view models in the DoDAF from the perspective of system engineering. According to the view development sequence of "panoramic description, operational decomposition, and capability matching", a target characteristic architecture of the target missile was constructed, which included target elements such as maneuvering characteristics and infrared radiation characteristics. The mapping relationship among "operational layer, capability layer, and target characteristic layer" of the target missile was obtained, and the architecture was verified by static and dynamic simulations. Simulation results show that the target characteristic architecture conforms to the requirements of rationality, consistency, and completeness of system architecture design and has guiding significance for the practical application of target missiles in equipment test and evaluation.

Key words: target missile, target characterization, architecture, DoDAF, equipment testing

CLC Number:

TP391.9

Zhao Tuo, Liu Yuqiao, Ma Yuan, Cheng Yun, Li Shen. Modeling and Simulation of Target Characteristic Architecture of Target Missile Based on DoDAF[J]. Journal of System Simulation, 2026, 38(4): 1094-1105.

Figures/Tables 17

Fig. 1

Table 1

Table 2

Fig. 2

Fig. 3

Fig. 4

Table 3

Fig. 5

Fig. 6

Fig. 7

Table 4

Fig. 8

Fig. 9

Fig. 10

Table 5

Fig. 11

Table 6

References 20

[1]	Berardini Daniele, Migliorelli Lucia, Galdelli Alessandro, et al. Edge Artificial Intelligence and Super-resolution for Enhanced Weapon Detection in Video Surveillance[J]. Engineering Applications of Artificial Intelligence, 2025, 140: 109684.
[2]	Nobles C. The Weaponization of Artificial Intelligence in Cybersecurity: A Systematic Review[J]. Procedia Computer Science, 2024, 239: 547-555.
[3]	Zgorelec Željka, Šprem Nikica, Abramović Radovan, et al. Temporal and Spatial Changes in Soil Quality at Shooting Ranges: A Case Study in Croatia[J]. Land, 2025, 14(1): 78.
[4]	王广帅, 洪功名, 秦科科, 等. 一种适用于靶弹落角约束的偏置比例导引律[J]. 战术导弹技术, 2023(2): 75-80, 87.
	Wang Guangshuai, Hong Gongming, Qin Keke, et al. A Biased Proportional Navigation Guidance Law Applicable for Impact Angle Control of Target Missile[J]. Tactical Missile Technology, 2023(2): 75-80, 87.
[5]	Grabowski Andrzej, Bereska Damian, Probierz Eryka, et al. The Influence of Human-computer Interface on Usability and Technology Acceptance of VR-based Shooting Training with a Comparison with Typical Shooting Range[J]. Displays, 2024, 81: 102621.
[6]	刘赛. 弹道导弹红外辐射特性测量及弹头目标识别技术研究[D]. 长春: 中国科学院长春光学精密机械与物理研究所, 2023.
	Liu Sai. Research on Infrared Radiation Characteristic Measurement and Warhead Recognition Technology of Ballistic Missiles[D]. Changchun: Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences, 2023.
[7]	Zhou Kaijun, Lou Yongchun, Zhang Songqin, et al. Surrogate Multi-objective Optimization of Missile RCS Performance in Hypersonic Rarefied Flow of the Near Space[J]. AIP Advances, 2024, 14(7): 075319.
[8]	Du Xubo, Yang Qingzhen, Yang Haoqi, et al. Infrared Radiation Characteristics of Dagger-type Hypersonic Missile[J]. Chinese Journal of Aeronautics, 2024, 37(4): 137-150.
[9]	董哲. 靶弹供靶轨迹控制研究[D]. 北京: 北京理工大学, 2018.
	Dong Zhe. Research on Trajectory Control of Target Missiles[D]. Beijing: Beijing Institute of Technology, 2018.
[10]	侯马市特种机械厂. 一种增强小型高速靶弹雷达散射截面的装置: CN202323347488.9[P]. 2024-07-05.
[11]	梁晓东, 王佳, 姚林海, 等. 迎头方向隐身导弹红外辐射特性分析[J]. 应用光学, 2022, 43(1): 41-44.
	Liang Xiaodong, Wang Jia, Yao Linhai, et al. Infrared Radiation Characteristics of Head-on Stealth Missile[J]. Journal of Applied Optics, 2022, 43(1): 41-44.
[12]	Wright D, Tracy C L. Hypersonic Cruise Missiles[J]. Science & Global Security, 2024, 32(1/3): 219-268.
[13]	苗学问, 董骁雄, 钱征文, 等. 基于DoDAF的航空装备智能保障系统体系结构建模[J]. 系统工程与电子技术, 2024, 46(2): 640-648.
	Miao Xuewen, Dong Xiaoxiong, Qian Zhengwen, et al. Architecture Modeling of Aviation Equipment Intelligent Support System Based on DoDAF[J]. Systems Engineering and Electronics, 2024, 46(2): 640-648.
[14]	Wang Shaokai, Li Jinzhe, Zhao Jiangtao, et al. Research on Architecture Design and Description Methods Based on DoDAF[C]//Signal and Information Processing, Networking and Computers. Singapore: Springer Nature Singapore, 2024: 366-372.
[15]	Luo Caixi, Liu Xiaohong. An Architectural Design of Urban Road Transport of Dangerous Goods Based on the DoDAF[C]//Computer Applications. Singapore: Springer Nature Singapore, 2024: 245-257.
[16]	何小二, 魏征, 夏凯, 等. 基于DoDAF和SysML的潜艇与UUV协同作战概念描述方法[J]. 舰船科学技术, 2024, 46(2): 63-67.
	He Xiaoer, Wei Zheng, Xia Kai, et al. Description of Warfare Concept of submarine-UUV Cooperative Operation with DoDAF and SysML[J]. Ship Science and Technology, 2024, 46(2): 63-67.
[17]	Xiao Jin, Chen Fengnan, Cao Siyuan, et al. Modeling and Simulation of Manned and Unmanned Cooperative Reconnaissance and Surveillance Scenario Based on DoDAF[C]//2024 IEEE 19th Conference on Industrial Electronics and Applications (ICIEA). Piscataway: IEEE, 2024: 1-5.
[18]	卫继承, 张娟, 杨文雅, 等. 基于DoDAF的低慢小飞行器综合处置体系架构设计[J]. 系统工程与电子技术, 2024, 46(1): 162-172.
	Wei Jicheng, Zhang Juan, Yang Wenya, et al. Design for Integrated Disposal System Architecture of Low-slow-small Aerocraft Based on DoDAF[J]. Systems Engineering and Electronics, 2024, 46(1): 162-172.
[19]	王新尧, 曹云峰, 孙厚俊, 等. 基于DoDAF的有人/无人机协同作战体系结构建模[J]. 系统工程与电子技术, 2020, 42(10): 2265-2274.
	Wang Xinyao, Cao Yunfeng, Sun Houjun, et al. Modeling for Cooperative Combat System Architecture of Manned/Unmanned Aerial Vehicle Based on DoDAF[J]. Systems Engineering and Electronics, 2020, 42(10): 2265-2274.
[20]	陈岩, 李志淮, 谭贤四, 等. 基于xUML的DoDAF可执行体系结构开发与验证[J]. 系统仿真学报, 2014, 26(1): 152-158.
	Chen Yan, Li Zhihuai, Tan Xiansi, et al. Design and Validation for DoDAF Executable Architecture Based on xUML[J]. Journal of System Simulation, 2014, 26(1): 152-158.

概要	基本内容

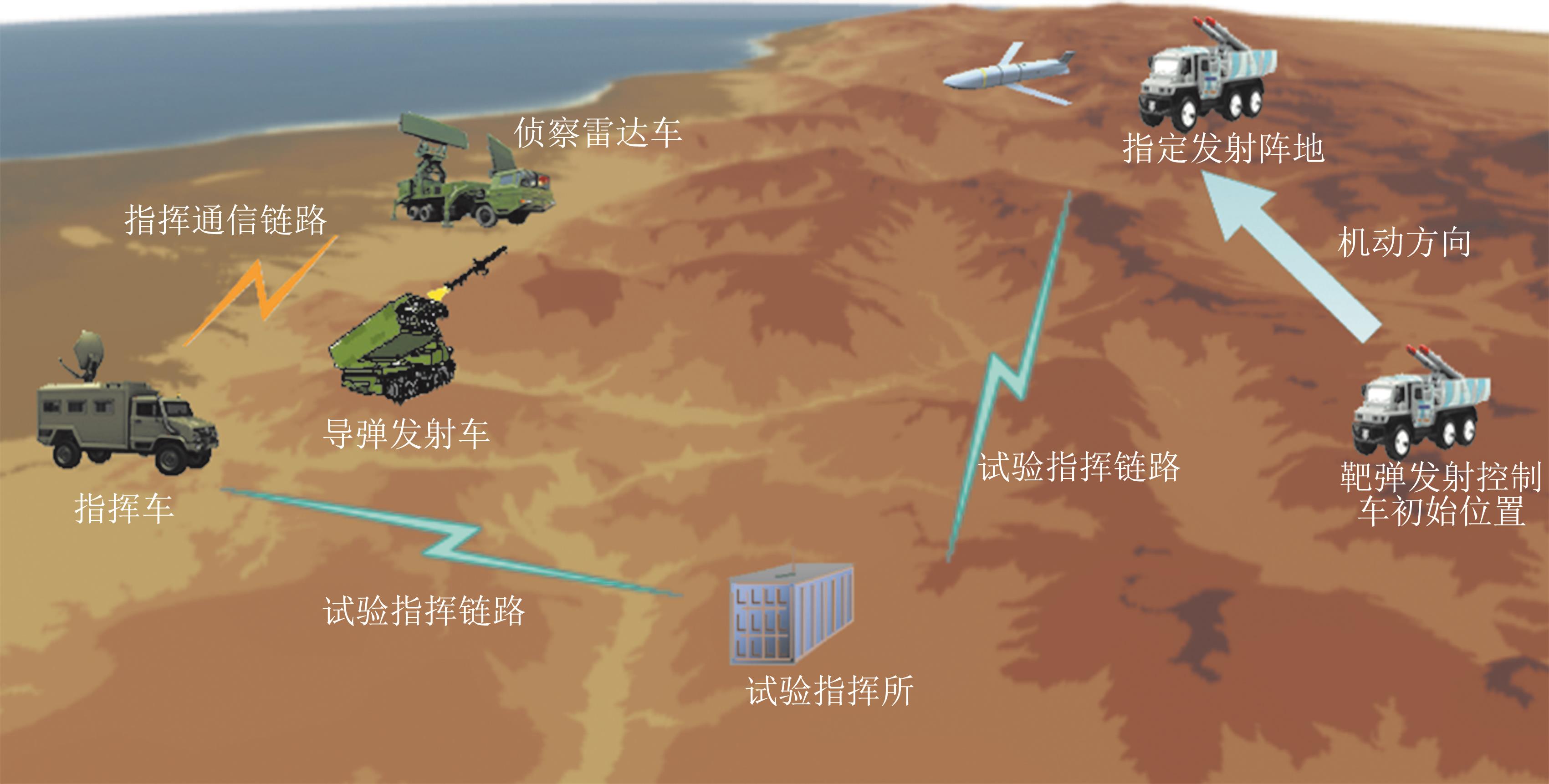

背景与范围	此次试验主要验证装备性能，靶弹主要用于模拟导弹装备，参与装备远程侦察、导弹迎攻靶弹、毁伤效果评估3个试验科目
目标与任务	靶弹能够模拟导弹的机动能力，能够在飞行过程中根据环境变化实施快速机动转弯或躲避，靶弹的巡航速度为达到高亚声速级，需要3发靶弹同空飞行等(部分展示)
地理环境	平原试验环境，地形平坦无突兀障碍
条令条例	严格遵循装备试验鉴定大纲要求
约束条件	能够与试验指控系统实现通信互操作；依赖试验指挥所指定靶弹射击阵地

目标特性种类	基本内涵
RCS特性	靶弹对于侦察雷达照射电磁波的散射能力
红外辐射特性	靶弹由于飞行向外散发的红外辐射强度
飞行特性	靶弹飞行的速度、高度、航程及有效巡航供靶时间
制导与控制特性	靶弹的定高精度、落点精度及多目标同空飞行能力
靶弹快速部署及热备份特性	靶弹发射车能够快速机动、架设和撤收，且能够保持较长时间的发射装备状态
安全保障特性	靶弹最大限度减少偏离且意外情况下完成自毁
机动特性	靶弹在飞行中展现出的灵活转弯、速度调控等动态性能
毁伤评估特性	靶弹被击中后能够自主监测、记录并回传自身损伤情况

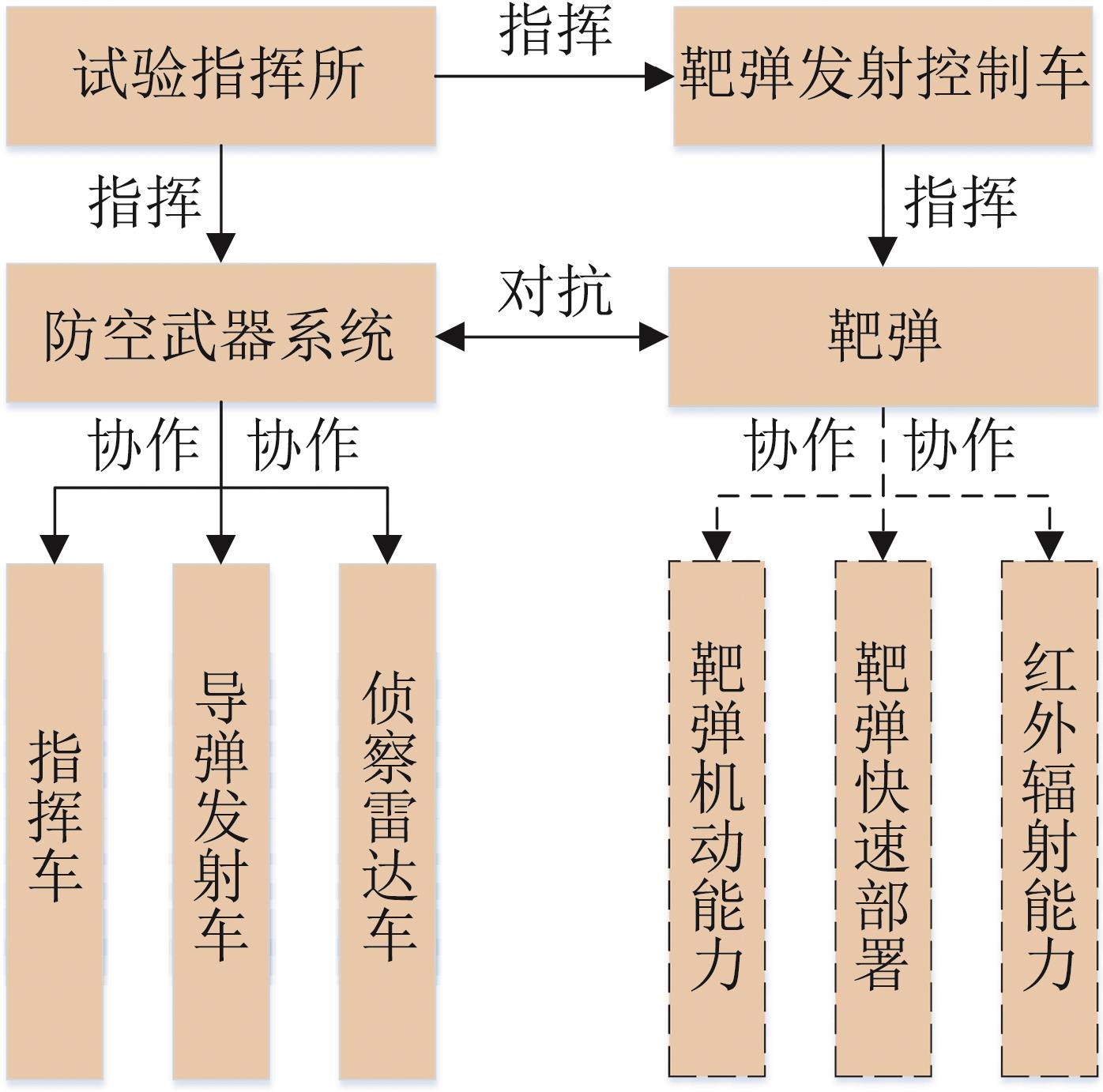

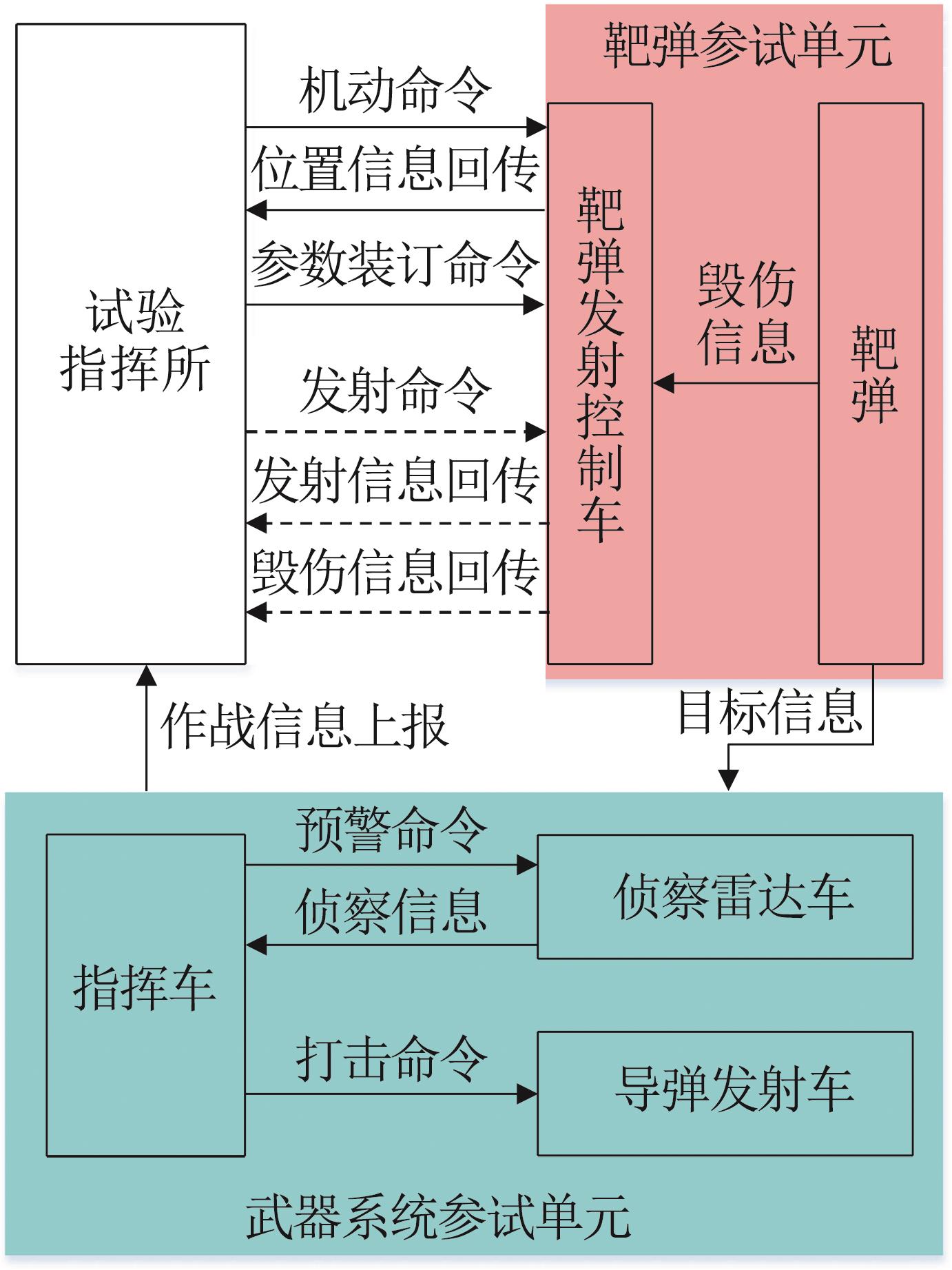

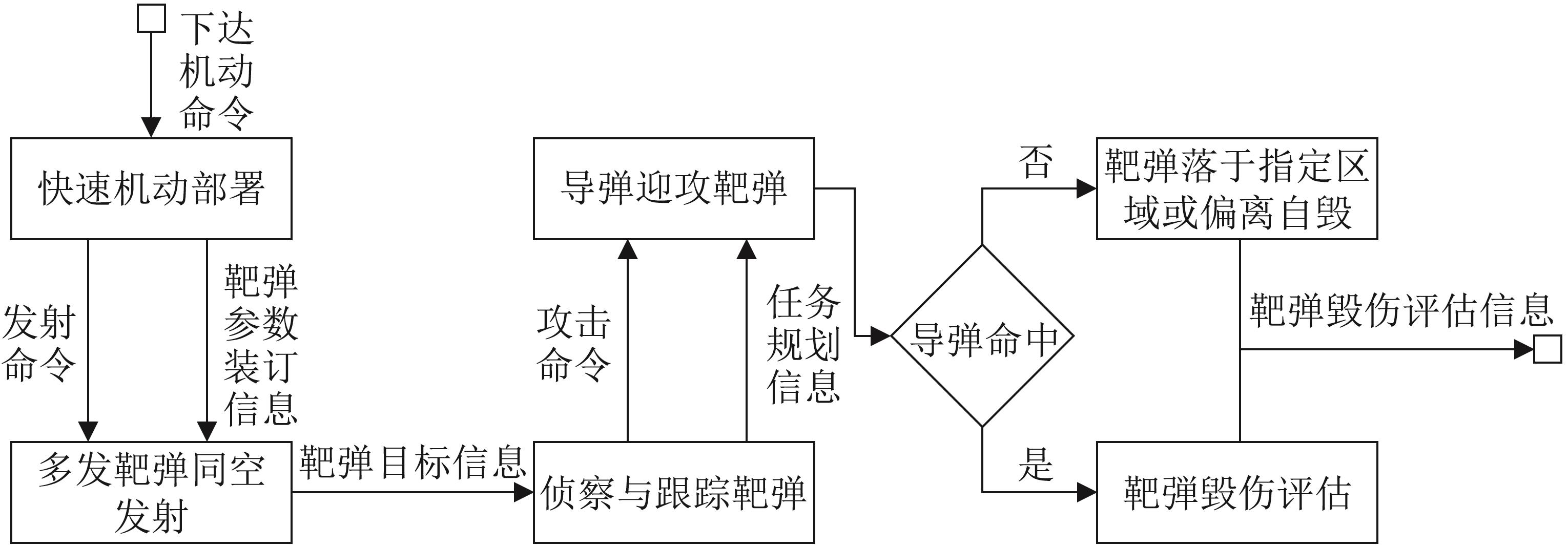

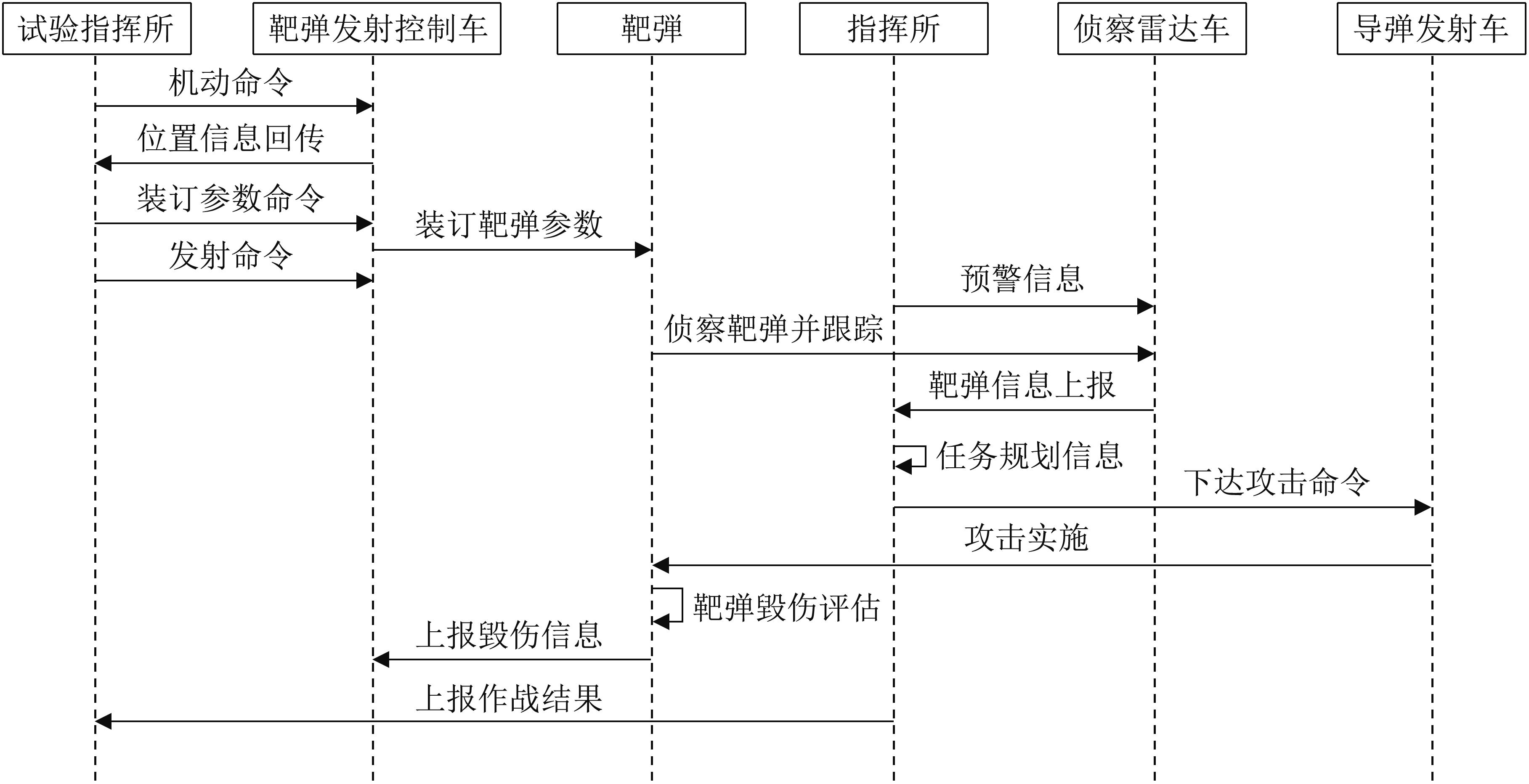

需求线名称	产生节点	产生信息活动	消耗节点	消耗信息活动
机动命令	试验指挥所	划定发射区域并下达命令	靶弹发射控制车	向预定区域机动
位置信息回传	靶弹发射控制车	到达指定发射区域	试验指挥所	记录当前靶弹发射控制车状态
参数装订命令	试验指挥所	确定靶弹飞行轨迹并下达命令	靶弹发射控制车	装订靶弹信息
发射命令	试验指挥所	下达靶弹发射命令	靶弹发射控制车	发射靶弹
预警命令	指挥车	可能存在靶弹来袭	侦察雷达车	接受命令转换战备状态

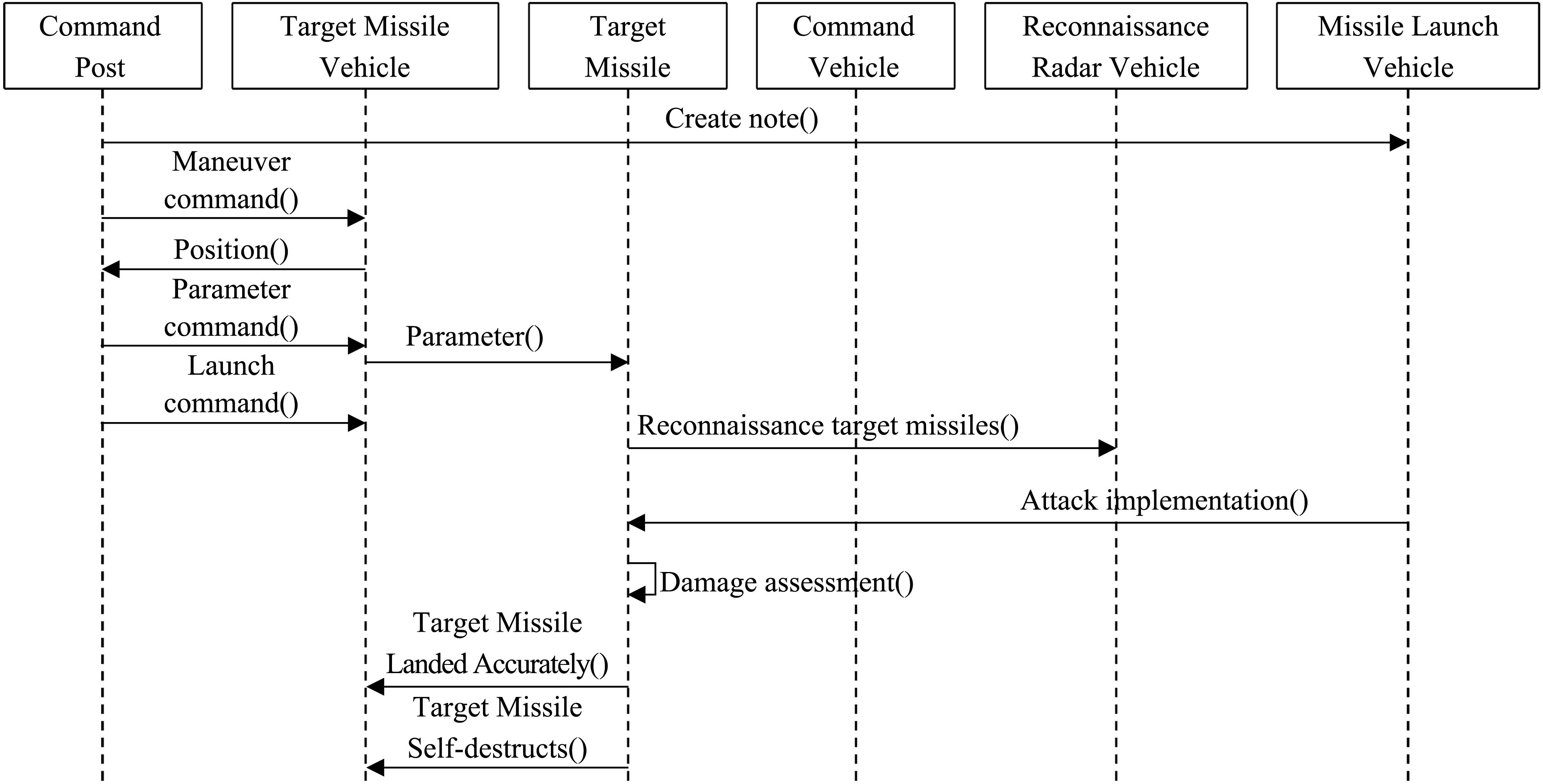

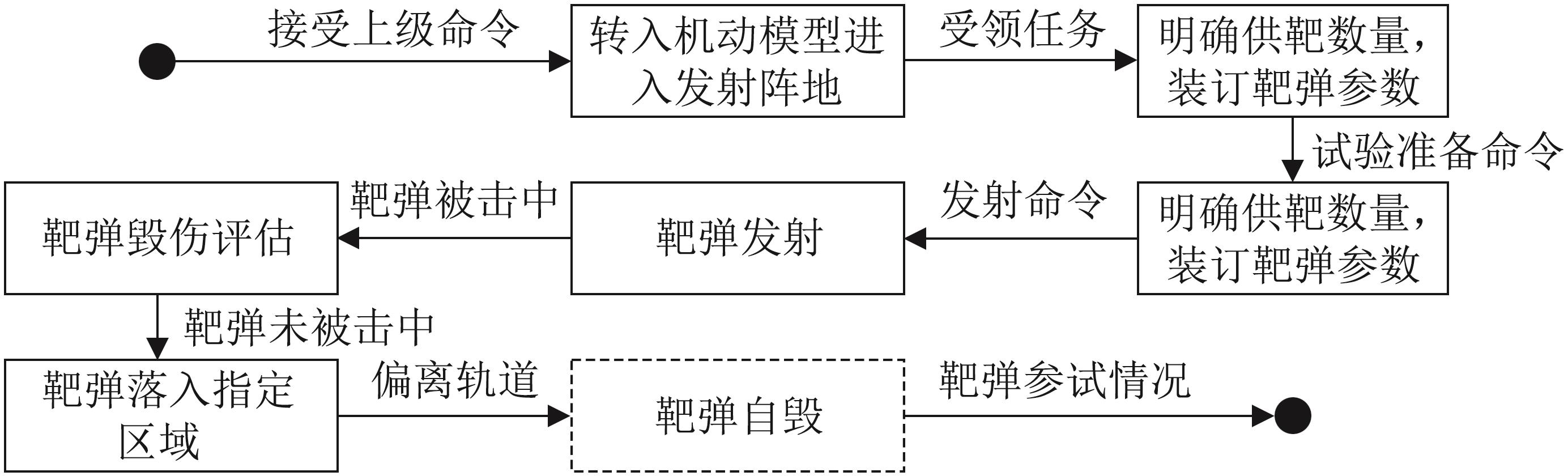

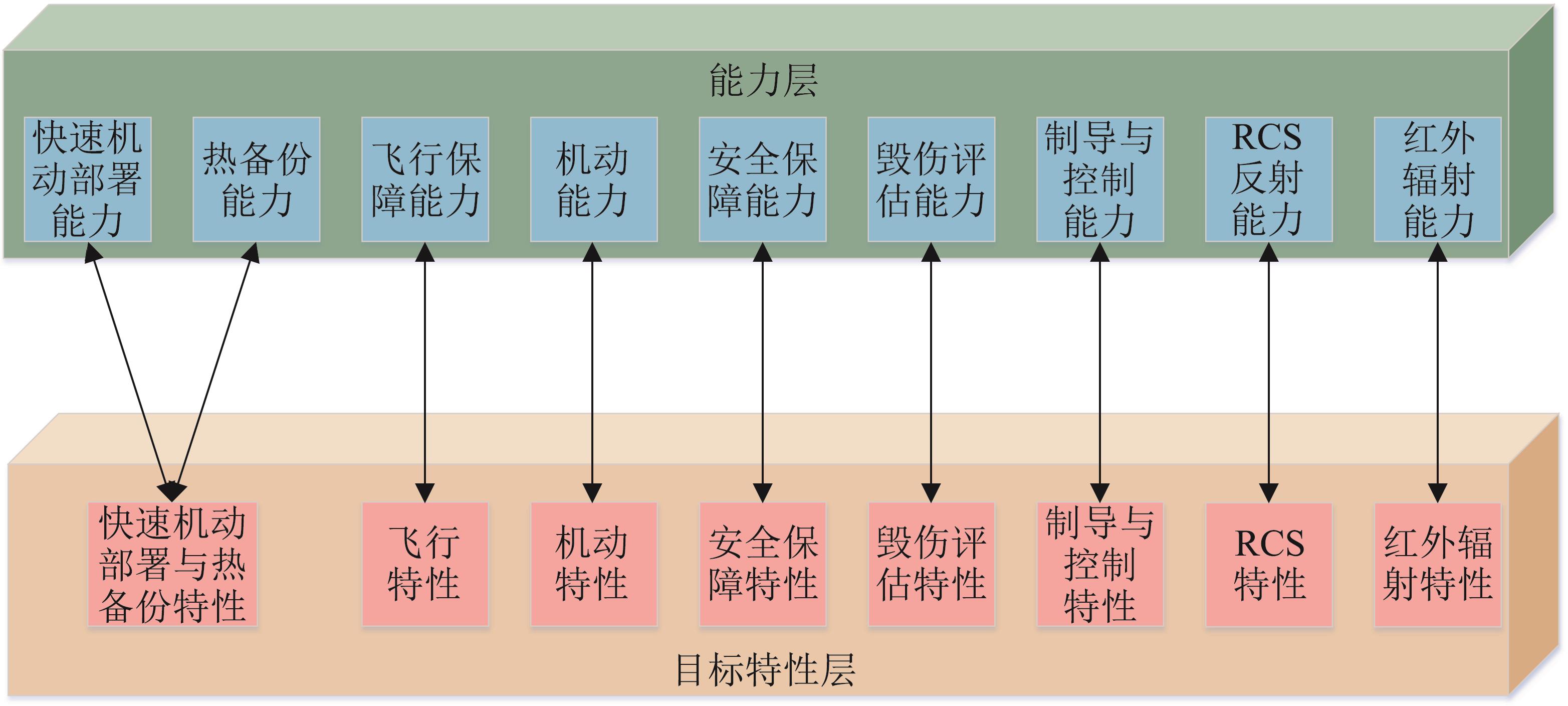

能力	作战活动
能力	快速机动部署	多发靶弹同空飞行	侦察与跟踪靶弹	导弹迎攻靶弹	毁伤评估	靶弹落于指定区域或偏离自毁
快速机动部署	√
热备份	√
飞行保障		√
机动		√
安全保障						√
毁伤评估					√
制导与控制		√
RCS反射			√
红外辐射			√	√

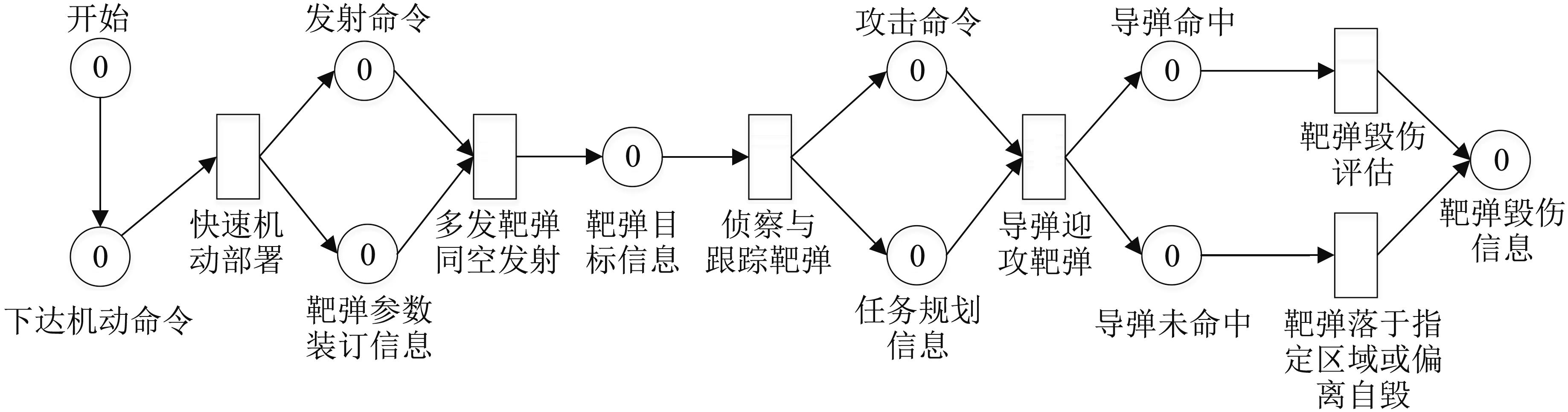

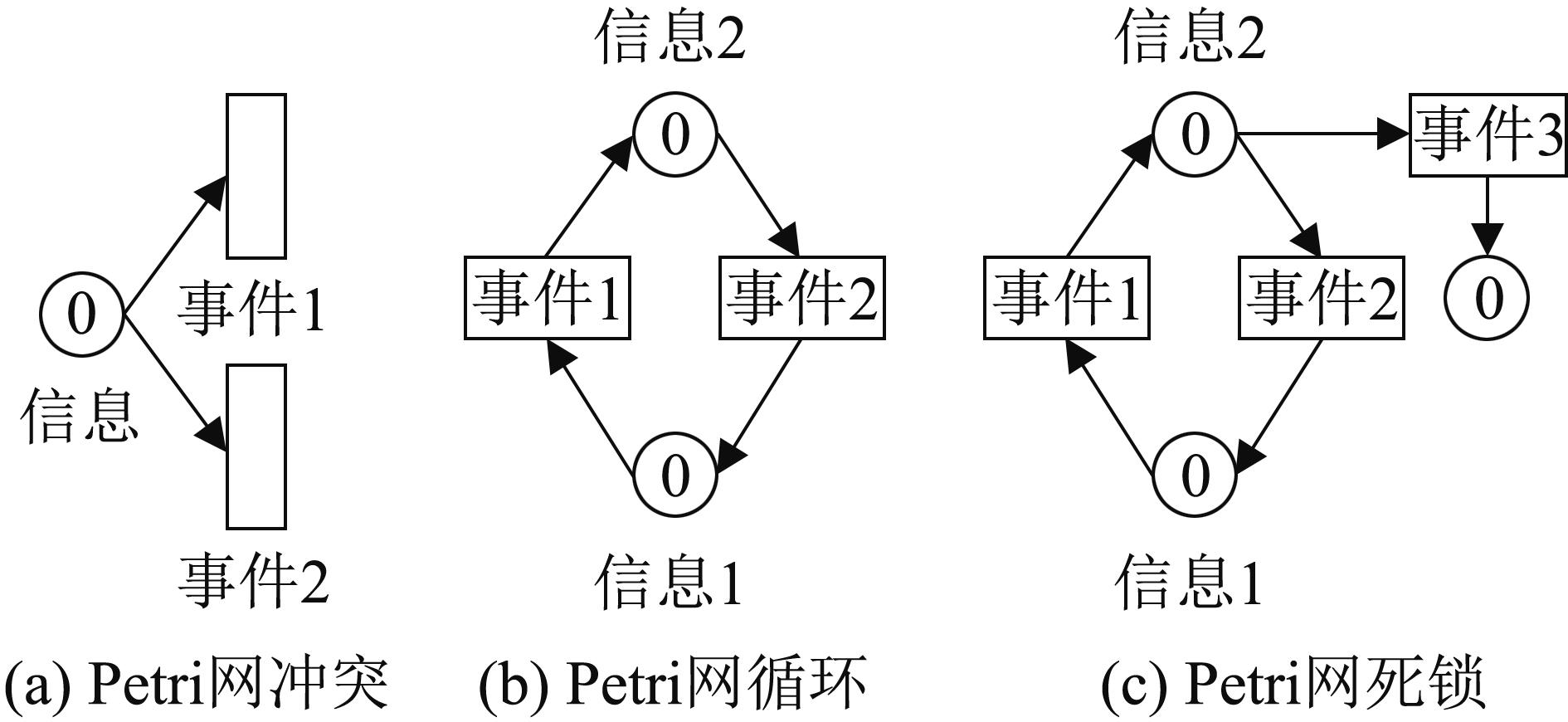

模型检查项目	检查结果
冲突检查	通过，模型不存在冲突
循环检查	通过，模型不存在循环
死锁检查	通过，模型不存在死锁
