Modeling and Analysis on Scattering Characteristics Automatic Driving Radar Bands in Rainy Environment

doi:10.16182/j.issn1004731x.joss.23-FZ0807

Abstract

Abstract:

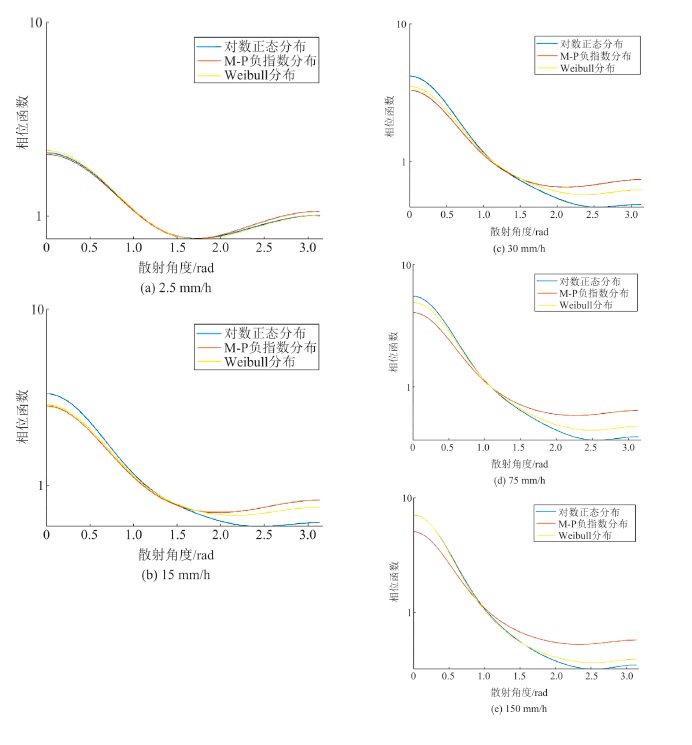

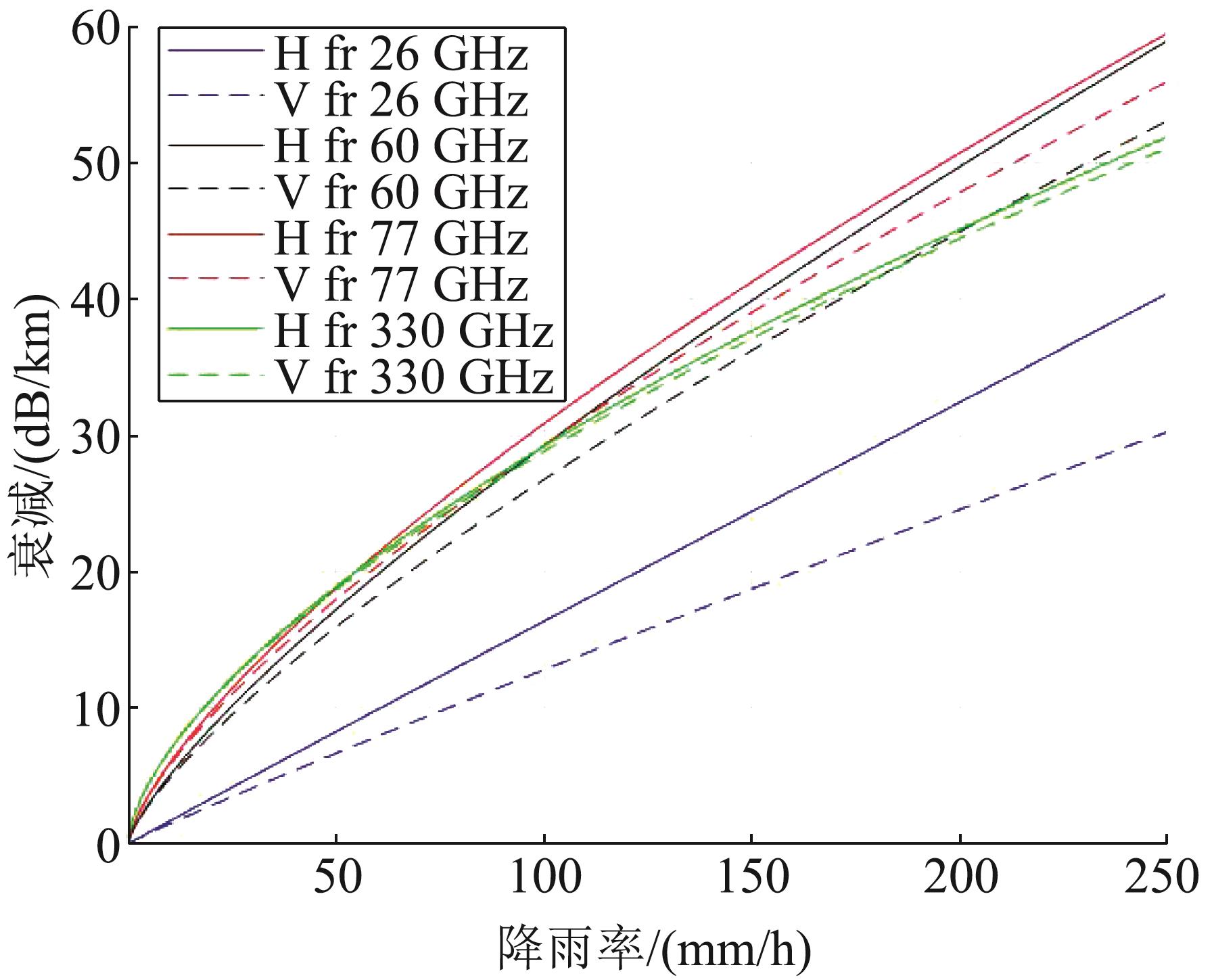

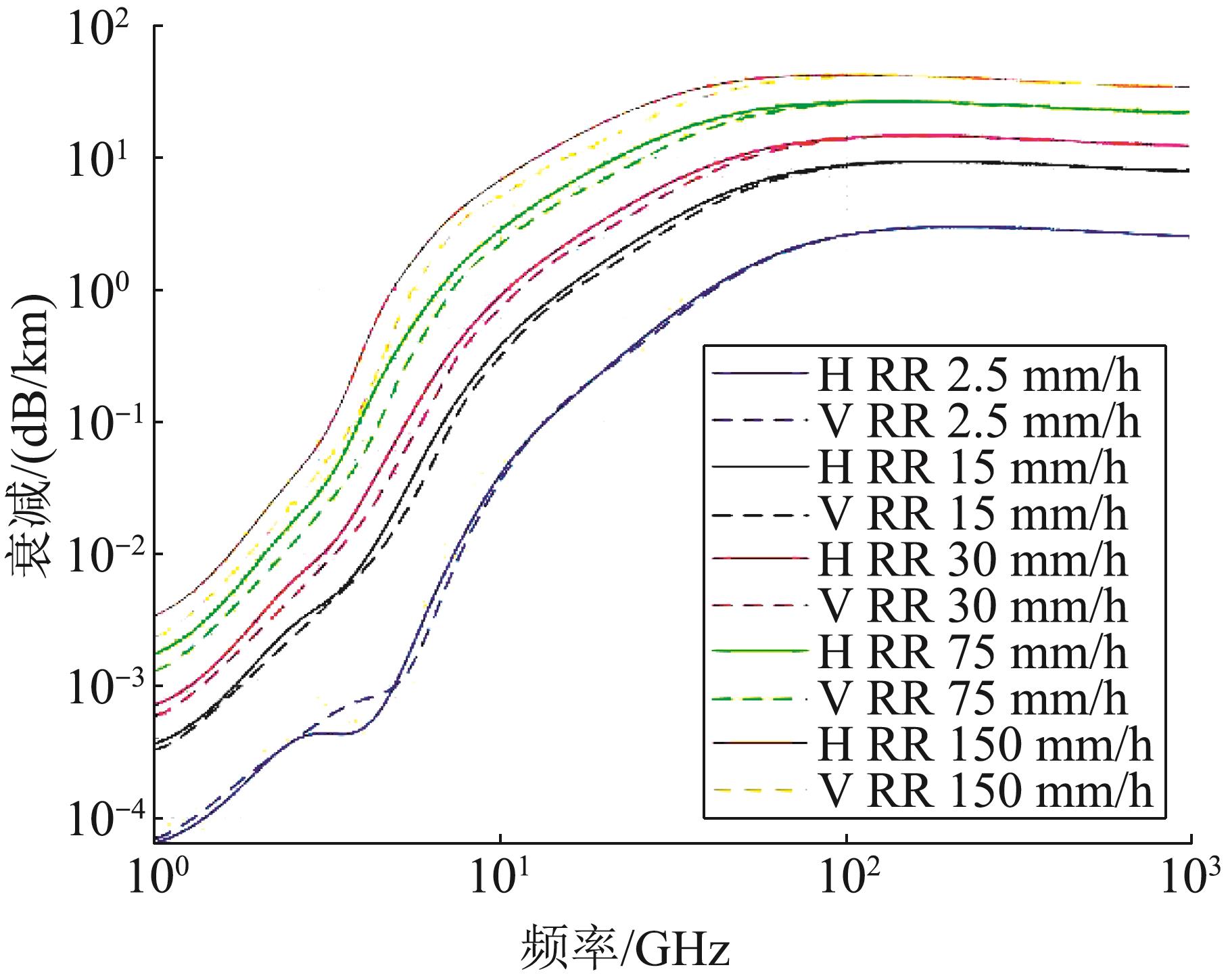

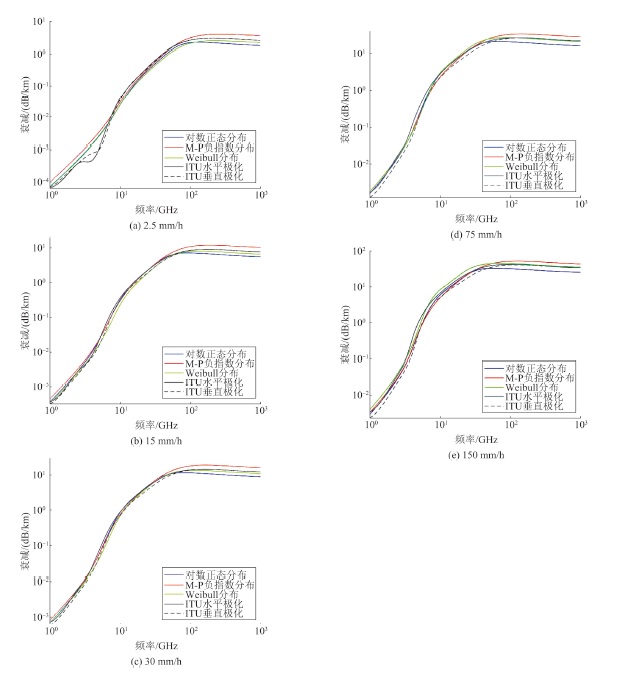

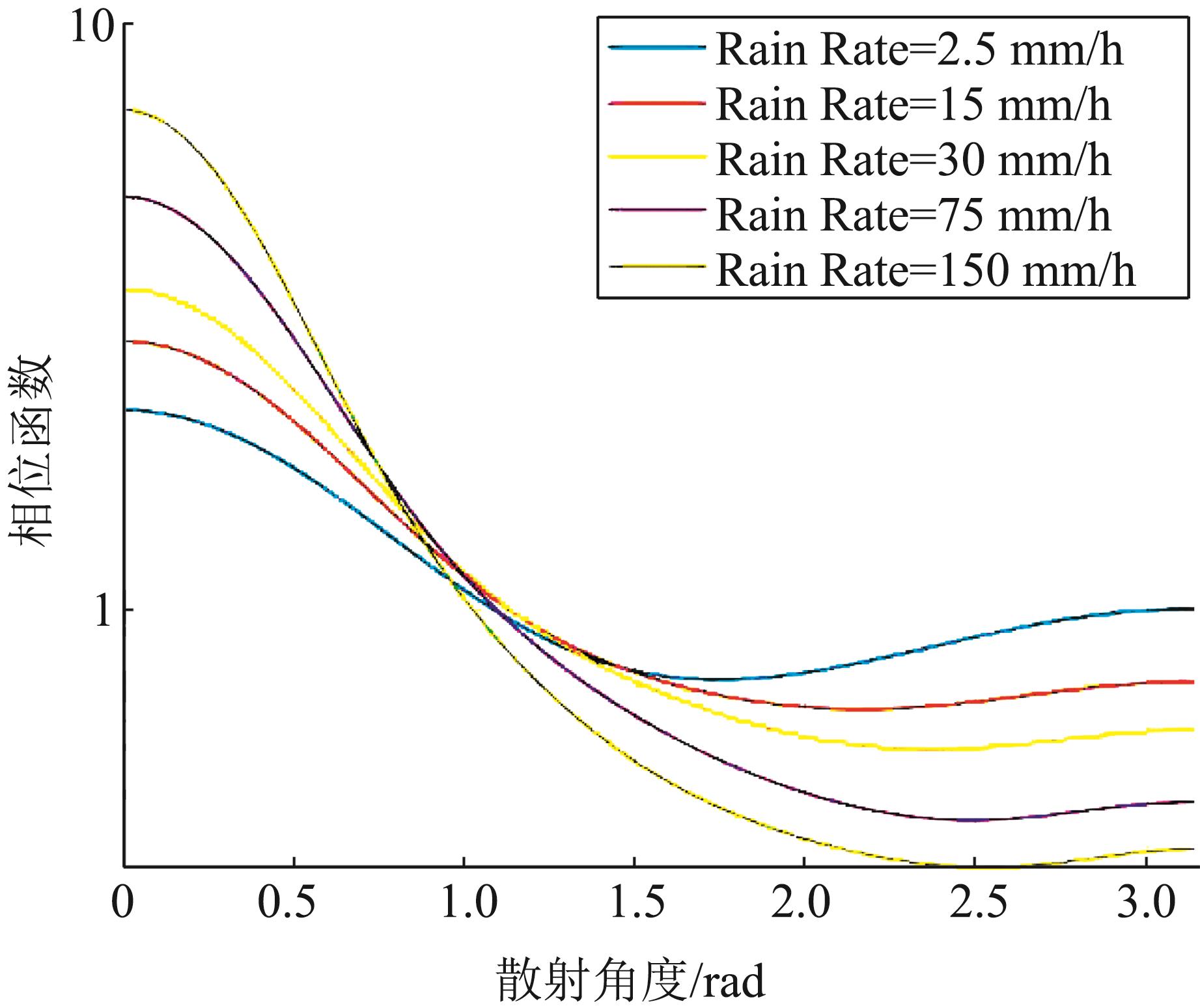

The operating frequency band of modern communication and radar systems has extended to millimeter wave and terahertz frequency band, and the analysis on propagation characteristics of electromagnetic signals in rainy environment is important. A calculation model through Mie scattering theory is built to simulate the attenuation and the scattering of electromagnetic signals in rainy environments. Different types of raindrop size distribution function are adopted to analyze the propagation attenuation under different rainfall of frequencies spanning from 1 GHz to 1 THz. Experimental results are compared with international telecommunication union (ITU) half-empirical model to verify the validation of the model.Subsequently, the spatial distribution characteristics of the scattered electromagnetic signals are calculated under different rainfalls of the autonomous driving radar bands. The scattering characteristics of rainy environment are analyzed from two aspects, the signal attenuation and the spatial distribution characteristics of the scattered signal. The results show that the attenuation of 77 GHz signal is higher than 10 dB/km under heavy rain and rainstorm condition, which significantly reduces the signal propagation distance.

Key words: rainfall attenuation, Mie scattering, scattering phase function, raindrop size distribution, radar waves

CLC Number:

TP391.9

Zou Mengfan, He Xiaoyu. Modeling and Analysis on Scattering Characteristics Automatic Driving Radar Bands in Rainy Environment[J]. Journal of System Simulation, 2023, 35(10): 2161-2169.

Figures/Tables 7

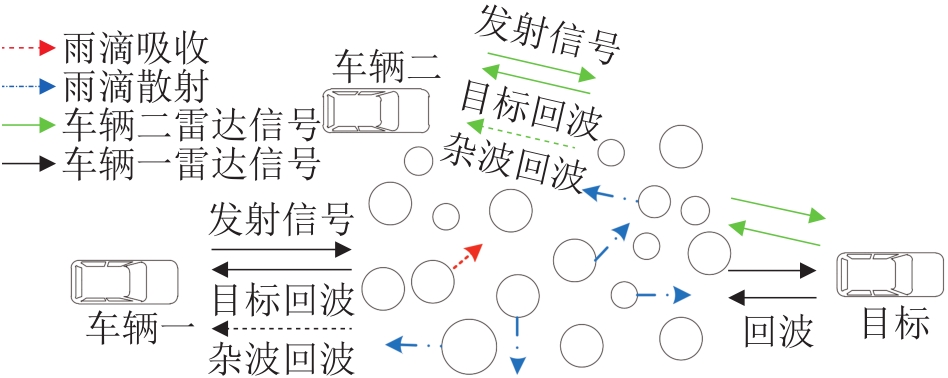

Fig. 1

Table 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

References 18

1	赵振维. 水凝物的电波传播特性与遥感研究[D]. 西安: 西安电子科技大学, 2001.
	Zhao Zhenwei. Study on Radiowave Propagation Characteristics and Remote Sensing of Hydrometeors[D]. Xi'an: Xidian University, 2001.
2	Shayea I, Abd Rahman T, Hadri Azmi M, et al. Real Measurement Study for Rain Rate and Rain Attenuation Conducted Over 26 GHz Microwave 5G Link System in Malaysia[J]. IEEE Access, 2018, 6: 19044-19064.
3	辛进, 蒙康, 王越, 等. 三亚Ka波段卫星遥感信号降雨衰减的研究[J]. 无线电通信技术, 2022, 48(5): 879-884.
	Xin Jin, Meng Kang, Wang Yue, et al. Research on Rain Attenuation of Ka Bands Satellite Remote Sensing in Sanya[J]. Radio Communications Technology, 2022, 48(5): 879-884.
4	Wang Jing, Wang Linhao, Xu Mingzhong. Rain Attenuation Analysis of Ka Band Ship-borne Satellite Communication Station in Indian Ocean and Pacific Ocean[C]//2020 IEEE 3rd International Conference on Information Communication and Signal Processing (ICICSP). Piscataway, NJ, USA: IEEE, 2020: 385-388.
5	Mandeep J S, Ng Y Y, Abdullah H, et al. The Study of Rain Specific Attenuation for the Prediction of Satellite Propagation in Malaysia[J]. Journal of Infrared Millimeter and Terahertz Waves, 2010, 31(6): 681-689.
6	International Telecommunication Union. Specific Attenuation Model for Rain for Use in Prediction Methods: P.838-3 [S]. Geneva, Switzerland: International Telecommunication Union, 2005.
7	Weerasekera R A A D O, Samarakoon D M L Y, Dayalal D L H P P, et al. Mie-theory-based Investigation of the Effect of Size Distribution on the Surface Plasmon Absorption of Silver Nanoparticles[C]//2022 Moratuwa Engineering Research Conference (MERCon). Piscataway, NJ, USA: IEEE, 2022: 1-6.
8	Pimienta-del-Valle Domingo, José Manuel Riera, Pérez-Peña Santiago, et al. Characterization of Rain Attenuation in 80-200 GHz Radio Links Considering Non-spherical Raindrops[C]//2022 16th European Conference on Antennas and Propagation (EuCAP). Piscataway, NJ, USA: IEEE, 2022: 1-5.
9	Lai Ruize, Liu Xiantong, Hu Sheng, et al. Raindrop Size Distribution Characteristic Differences During the Dry and Wet Seasons in South China[J]. Atmospheric Research, 2022, 266: 105947.
10	Feingold G, Levin Z. The Lognormal Fit to Raindrop Spectra From Frontal Convective Clouds in Israel[J]. Journal of Applied Meteorology and Climatology, 1986, 25(10): 1346-1363.
11	Marshall J S, Palmer W Mc K. The Distribution of Raindrops With Size[J]. Journal of Atmospheric Sciences, 1948, 5(4): 165-166.
12	Sekine M, Lind G. Rain Attenuation of Centimeter, Millimeter and Submillimeter Radio Waves[C]//1982 12th European Microwave Conference. Piscataway, NJ, USA: IEEE, 1982: 584-589.
13	Shrestha S, Choi D Y. Rain Attenuation Study Over an 18 GHz Terrestrial Microwave Link in South Korea[J]. International Journal of Antennas and Propagation, 2019, 2019: 1712791.
14	Thorvaldsen P, Henne I. Outdoor Transmission Measurement at 26 GHz: Results of a 4 Year Trial in Prague[J]. Radio Science, 2016, 51(5): 402-410.
15	Regonesi E, Luini L, Riva C. Limitations of the ITU-R P.838-3 Model for Rain Specific Attenuation[C]//2019 13th European Conference on Antennas and Propagation (EuCAP). Piscataway, NJ, USA: IEEE, 2019: 1-4.
16	Hasirlioglu S, Riener A. Introduction to Rain and Fog Attenuation on Automotive Surround Sensors[C]//2017 IEEE 20th International Conference on Intelligent Transportation Systems (ITSC). Piscataway, NJ, USA: IEEE, 2017: 1-7.
17	Bohren C F, Huffman D R. Absorption and Scattering of Light by Small Particles[M]. New York: Wiley, 1998.
18	董群锋. 毫米波段脉冲波在雨雾媒质中传输效应研究[D]. 西安: 西安电子科技大学, 2006.
	Dong Qunfeng. Study of Transmission Effects of Pulses at Millimeter Wavelengths Through Rain and Fog Medium[D]. Xi'an: Xidian University, 2006.

雨量等级	降雨率/(mm/h)
小雨	0.1～9.9
中雨	10～24.9
大雨	25.0～49.9
暴雨	50.0～99.9
大暴雨	100.0～249.9
