Design of Distributed Multi-functional Integrated Signal-level Confrontation Simulation System in Local Area

doi:10.16182/j.issn1004731x.joss.23-1537

Abstract

Abstract:

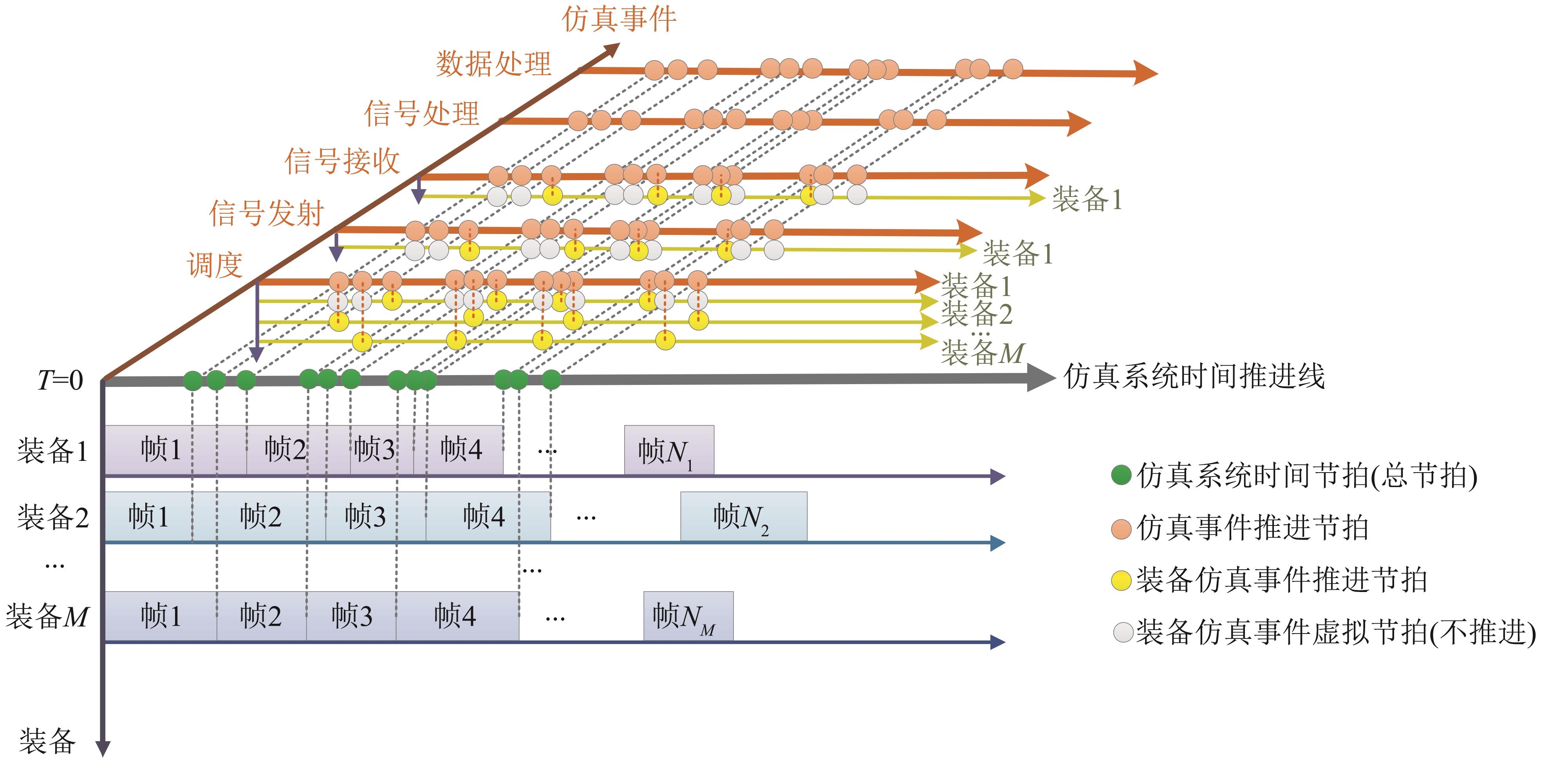

In order to study the resources management and self-organized collaborative application method of multiple multi-functional integrated electronic equipment in the region, we build a signal-level digital simulation system that supports multiple distributed multi-functional integrated electronic equipment within a region to carry out cooperation or confrontation. A joint time advancing mechanism named "variable-step time advancing method based on frame scheduling" and "independent event driven time advancing method " is proposed. It can not only ensure the integrity of each frame of radar simulation data for each equipment, but also enable multiple equipment in the simulation system to advance simultaneously and orderly according to their own timing. The simulation results show that the simulation system can realize confrontation scenario configuration, confrontation simulation and results display, and can provide a theoretical basis for research and a test platform support for the study of combat application methods of multi-functional integrated equipment.

Key words: multi-functional integrated electronic equipment, confrontation simulation, signal-level simulation, time advancing method, event driven

CLC Number:

TP391.9

Li Weiqian, Yang Tianyu, Li Zongyang, Chen Jianjun. Design of Distributed Multi-functional Integrated Signal-level Confrontation Simulation System in Local Area[J]. Journal of System Simulation, 2025, 37(4): 845-860.

Figures/Tables 16

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Table 1

Fig. 7

Table 2

Fig. 8

Fig. 9

Fig. 10

Fig. 11

Fig. 12

Fig. 13

Fig. 14

References 11

1	朱伟强, 王克让, 许华健, 等. 多功能综合一体化技术发展综述[J]. 航天电子对抗, 2020, 36(3): 1-10.
	Zhu Weiqiang, Wang Kerang, Xu Huajian, et al. Development of Multifunctional Integration Technology[J]. Aerospace Electronic Warfare, 2020, 36(3): 1-10.
2	刘瑜, 谢强. 数字孪生的技术特点及在飞行试验中的应用展望[J]. 系统仿真学报, 2021, 33(6): 1364-1373.
	Liu Yu, Xie Qiang. Technical Characteristics of Digital Twins and Application Prospects in the Field of Flight Testing[J]. Journal of System Simulation, 2021, 33(6): 1364-1373.
3	邱志明, 李恒, 周玉芳, 等. 模拟仿真技术及其在训练领域的应用综述[J]. 系统仿真学报, 2023, 35(6): 1131-1143.
	Qiu Zhiming, Li Heng, Zhou Yufang, et al. Summary of Simulation Technology and Its Application in Training Field[J]. Journal of System Simulation, 2023, 35(6): 1131-1143.
4	牟升. 多功能相控阵雷达的数字仿真研究[D]. 南京: 南京理工大学, 2019.
	Mou Sheng. Research on Digital Simulation of Multifunctional Phased Array Radar[D]. Nanjing: Nanjing University of Science and Technology, 2019.
5	毕大平, 祝本玉. 雷达电子战仿真系统设计[J]. 信息与电子工程, 2010, 8(4): 393-396, 406.
	Bi Daping, Zhu Benyu. Design of Radar Electronic Warfare Simulation System[J]. Information and Electronic Engineering, 2010, 8(4): 393-396, 406.
6	雷璐, 郝世林, 高恒, 等. 雷达功能与侦察仿真系统终端设计[J]. 信息与电脑, 2016(5): 99-100.
7	郑娟. 基于HLA作战模拟系统的时间管理研究[J]. 装备指挥技术学院学报, 2005, 16(3): 26-30.
	Zheng Juan. Research on HLA/TM in War-gaming System[J]. Journal of the Academy of Equipment Command & Technology, 2005, 16(3): 26-30.
8	杨光. 基于面向对象的电子战仿真系统设计与实现[D]. 西安: 西安电子科技大学, 2018.
	Yang Guang. Design and Implementation of Object-oriented Electronic Warfare Simulation System[D]. Xi'an: Xidian University, 2018.
9	马辉, 孙健, 刘正堂, 等. 雷达对抗数字仿真系统设计研究[J]. 航天电子对抗, 2019, 35(1): 16-18, 35.
	Ma Hui, Sun Jian, Liu Zhengtang, et al. Design for Radar Countermeasures Digital Simulation System[J]. Aerospace Electronic Warfare, 2019, 35(1): 16-18, 35.
10	杜富强. 电子对抗与反对抗策略研究[D]. 西安: 西安电子科技大学, 2017.
	Du Fuqiang. Research on Strategy of ECM and ECCM[D]. Xi'an: Xidian University, 2017.
11	贵彦乔, 吴彦鸿, 俞道滨. 跟踪雷达干扰技术综述[J]. 兵器装备工程学报, 2017, 38(4): 141-147.
	Gui Yanqiao, Wu Yanhong, Yu Daobin. Review of Jamming Techniques to Tracker Radar[J]. Journal of Ordnance Equipment Engineering, 2017, 38(4): 141-147.

装备序号	工作模式	变频带宽/MHz	方位覆盖范围/(°)	干扰类型	干扰占空比/%	干扰对象
红方1	探测	210	±180	—	—	—
红方2	探侦一体	20	±45	—	—	—
红方3	侦干一体	500	±45	切片转发	50	蓝方2
蓝方1	侦察	500	±45	—	—	—
蓝方2	探侦一体	20	±45	—	—	—
蓝方3	侦干一体	500	±45	密集假目标	50	红方1

装备序号	工作模式	变频带宽/MHz	方位覆盖范围/(°)	干扰类型	干扰占空比/%	干扰对象
红方3	探干一体	210	±45	探干一体波形	50	蓝方2
蓝方1	侦干一体	500	±45	切片转发	75	红方2
