Dynamic Scene Point Cloud Mapping Method Based on LiDAR-IMU

doi:10.16182/j.issn1004731x.joss.23-1078

Abstract

Abstract:

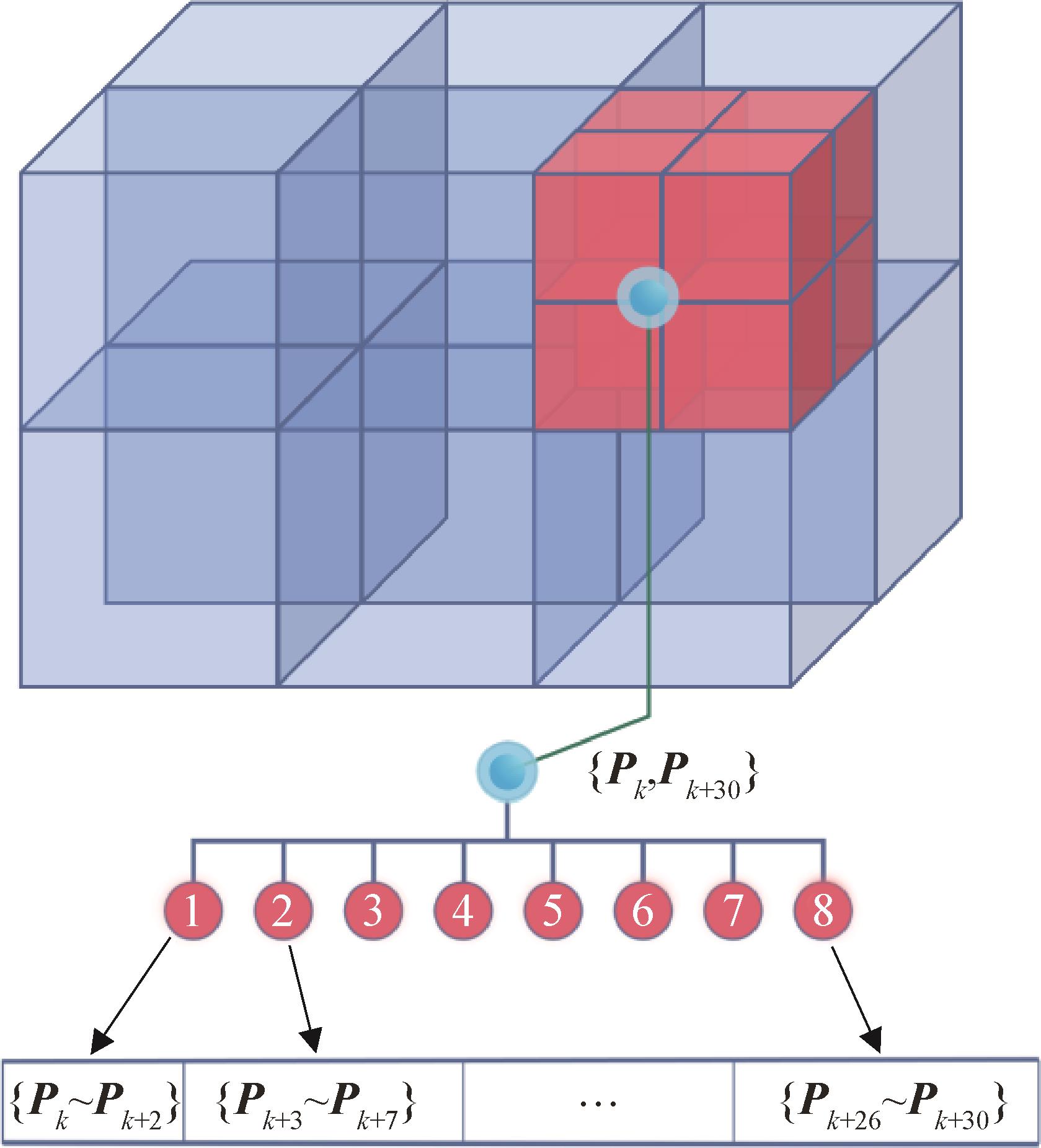

In order to address the issue of decreased mapping accuracy and precision caused by dynamic object interference during the construction of point cloud maps in dynamic scenarios such as urban roads, this study proposes a method for building dynamic scene point cloud maps based on LiDAR and inertial measurement unit (IMU). The method incorporates several key steps. An index-based Octree voxel structure is utilized to enhance the incremental update and nearest neighbor search efficiency of the local perception map (LP-Map). The point cloud is processed using ground segmentation, clustering, and dynamic score calculation methods to enable real-time identification of dynamic target point clouds. The region growing method is employed to remove the trajectories of dynamic objects in the LP-Map. Experimental results demonstrate that the proposed algorithm effectively identifies and removes dynamic targets at the mapping level while exhibiting exceptional computational speed and real-time performance. This approach provides a reliable solution for real-time construction of accurate point cloud maps in dynamic scenarios.

Key words: LiDAR, IMU, construction of point cloud maps, dynamic scenarios, local perception map

CLC Number:

TP 242

Li Weigang, Gan Lei, Wang Yongqiang. Dynamic Scene Point Cloud Mapping Method Based on LiDAR-IMU[J]. Journal of System Simulation, 2025, 37(1): 95-106.

Figures/Tables 13

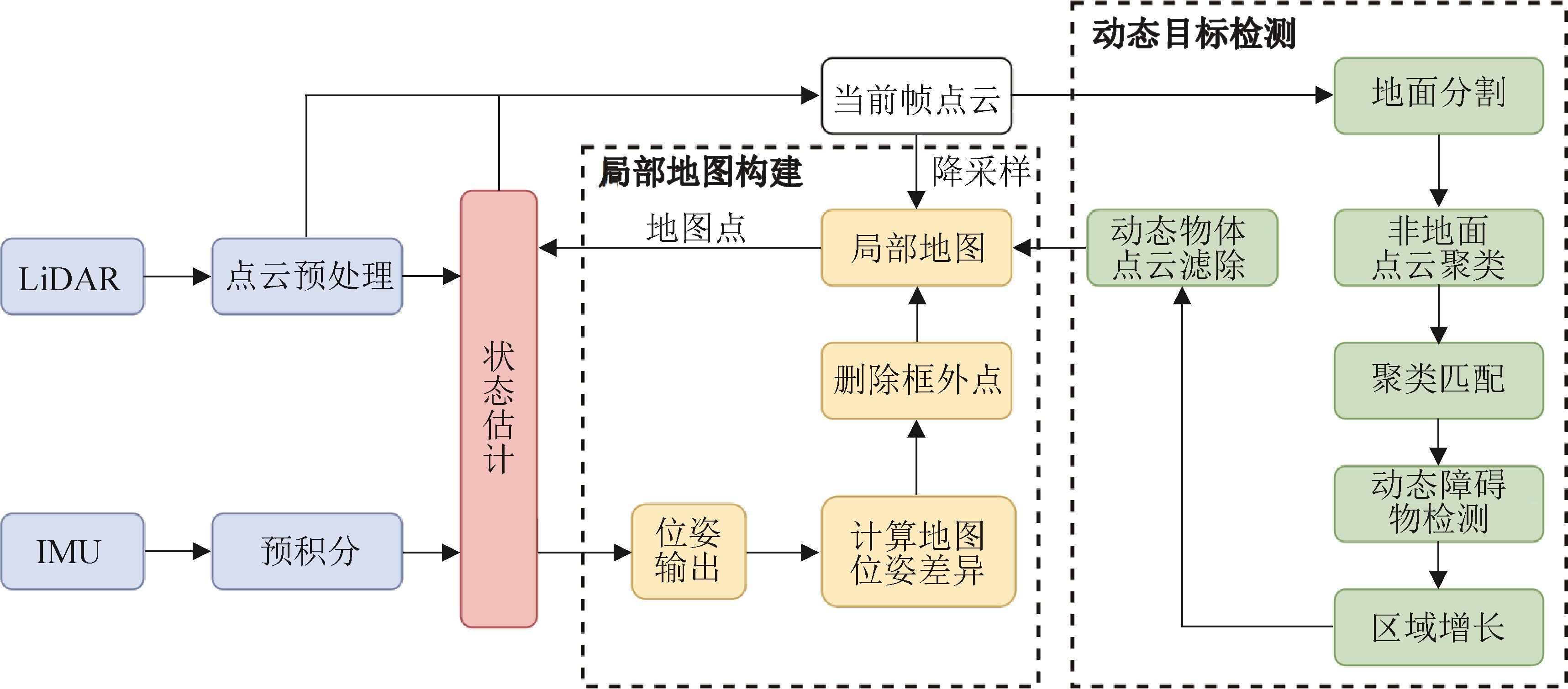

Fig. 1

Fig. 2

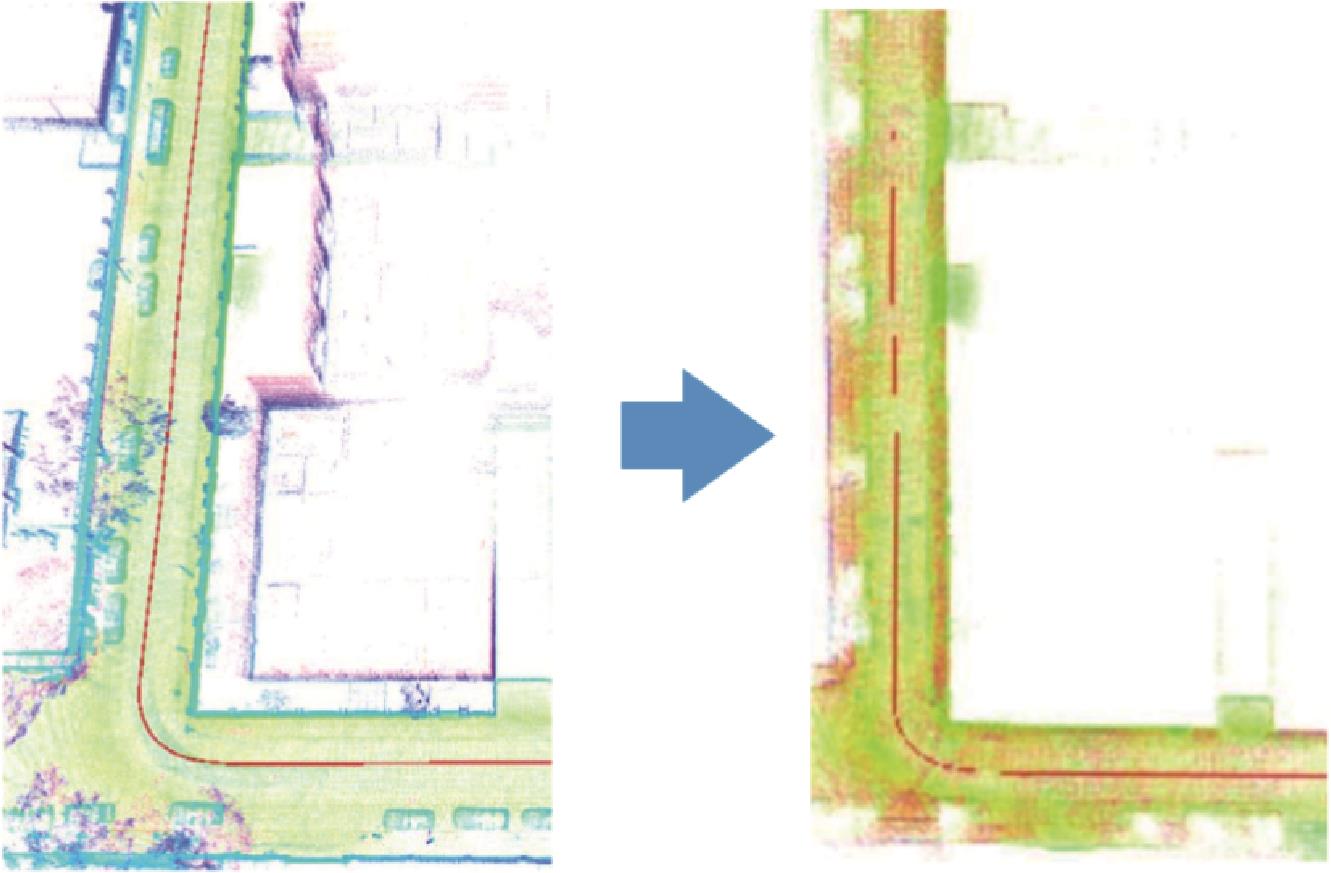

Fig. 3

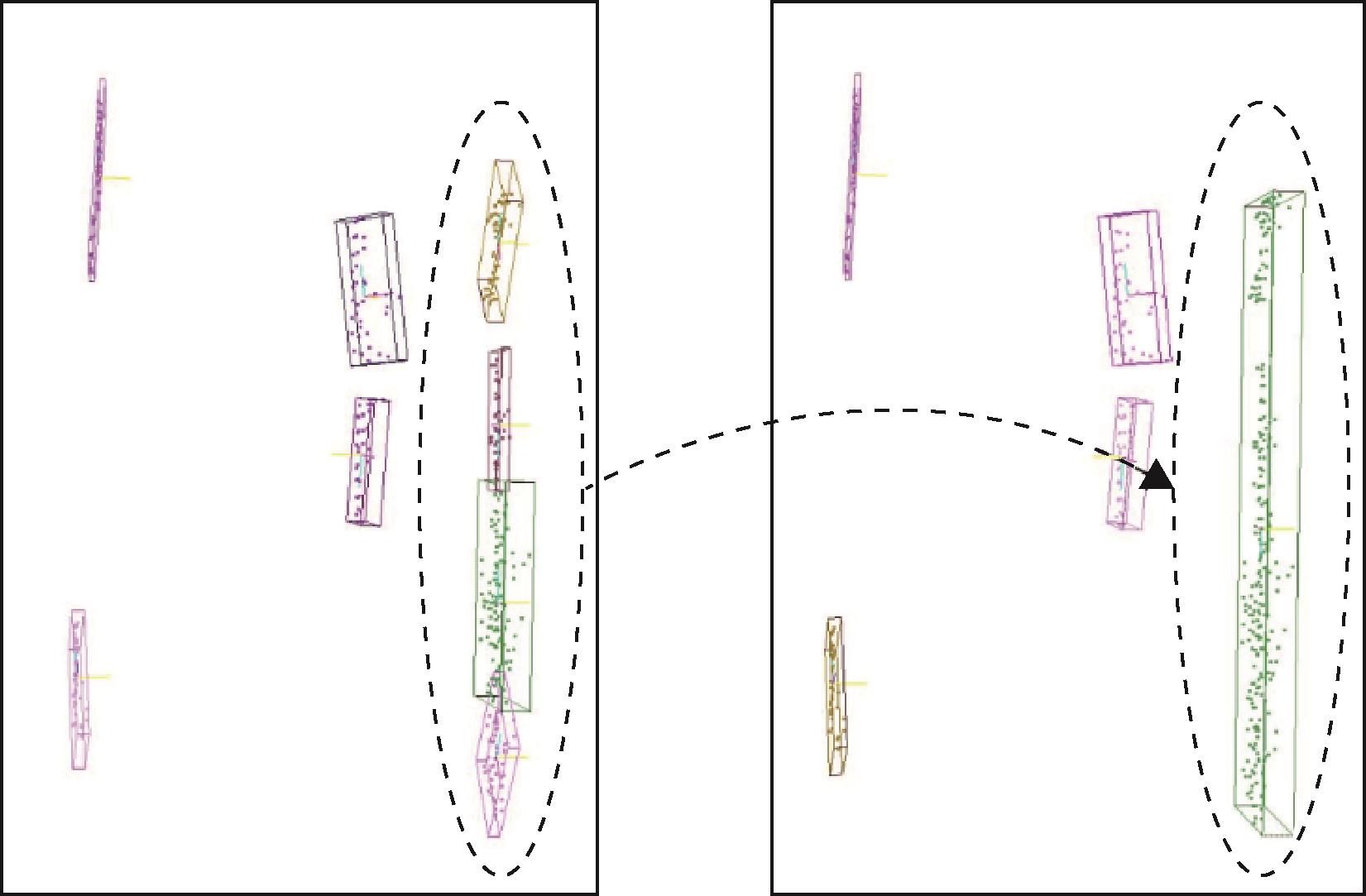

Fig. 4

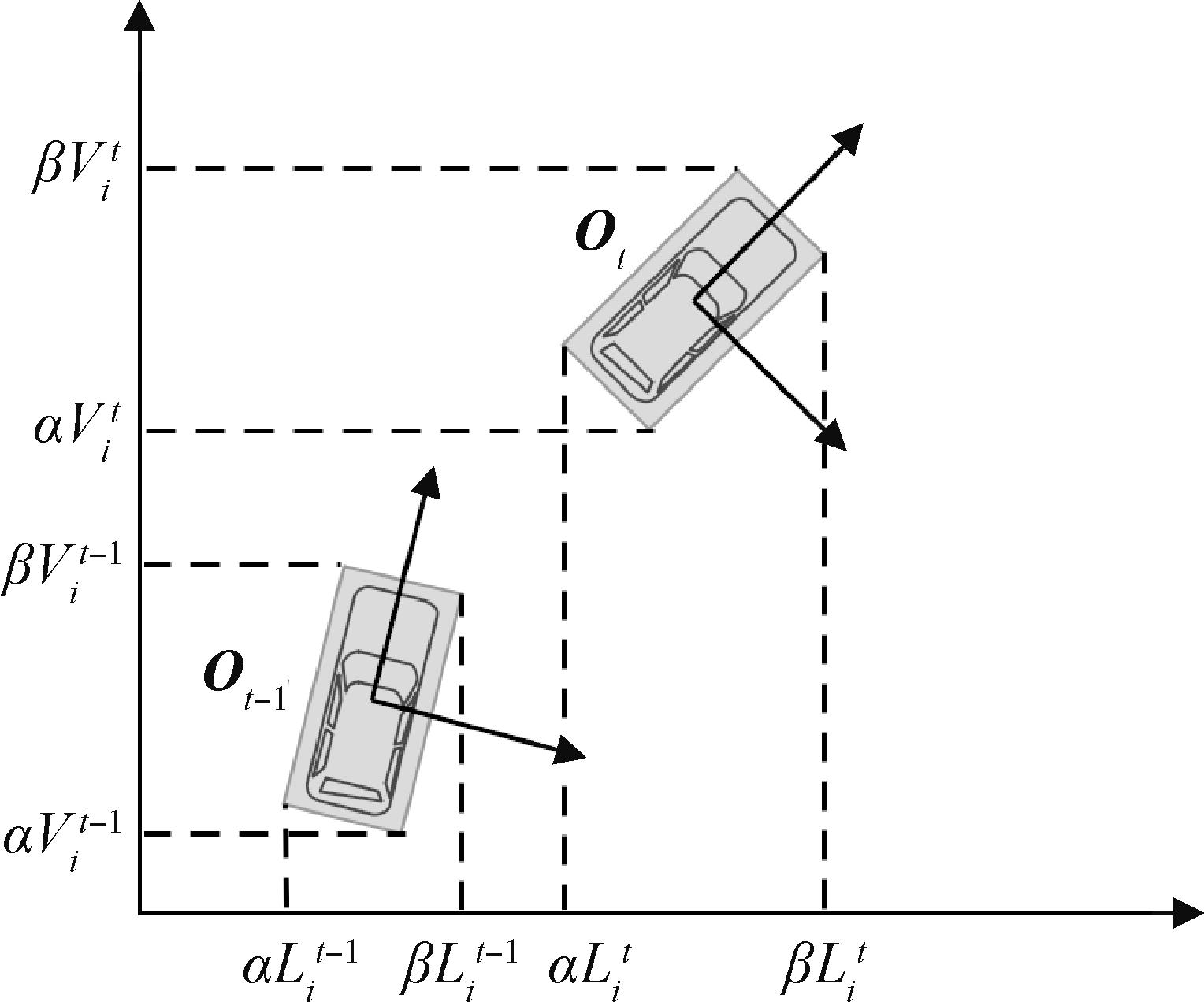

Fig. 5

Fig. 6

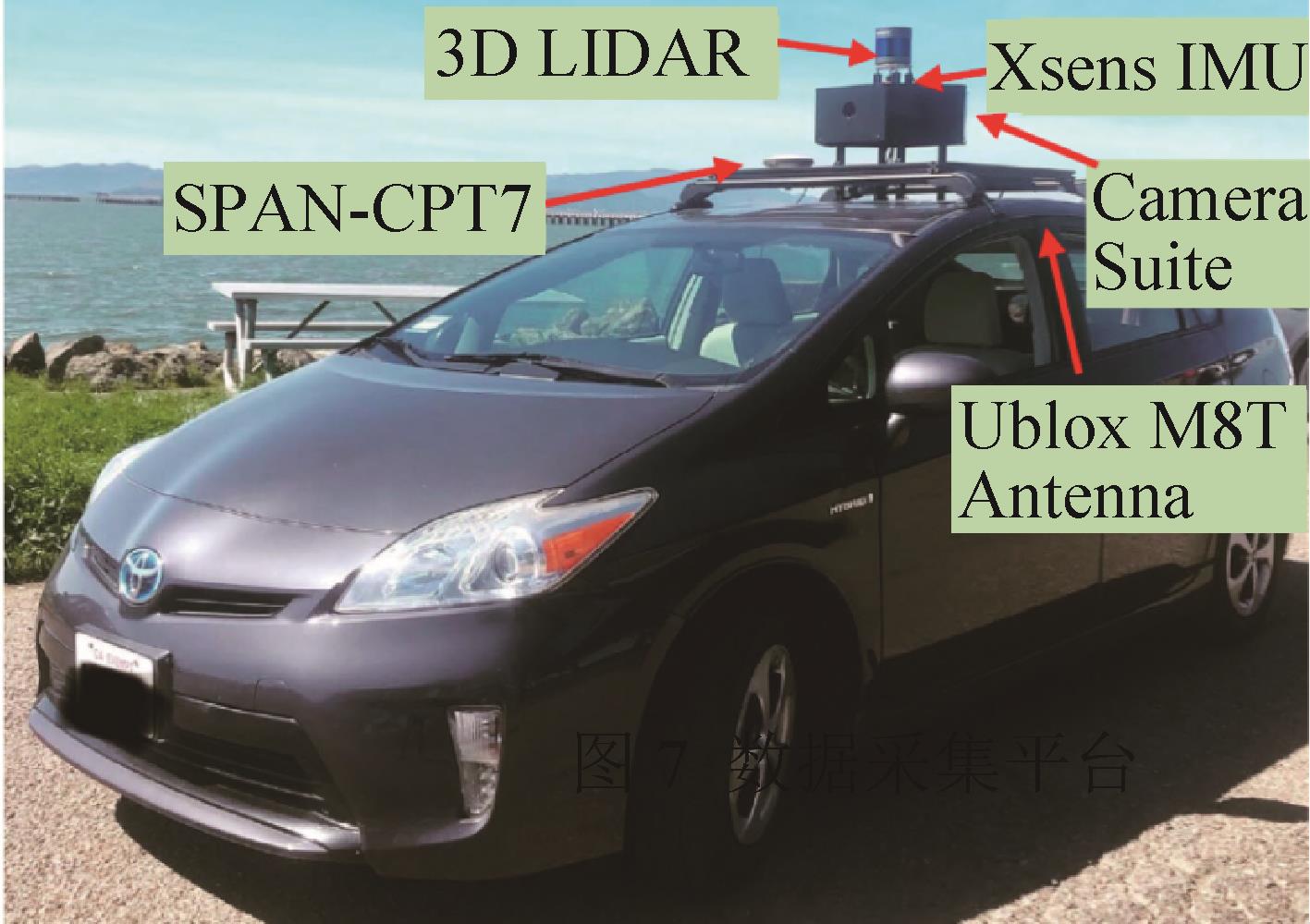

Fig. 7

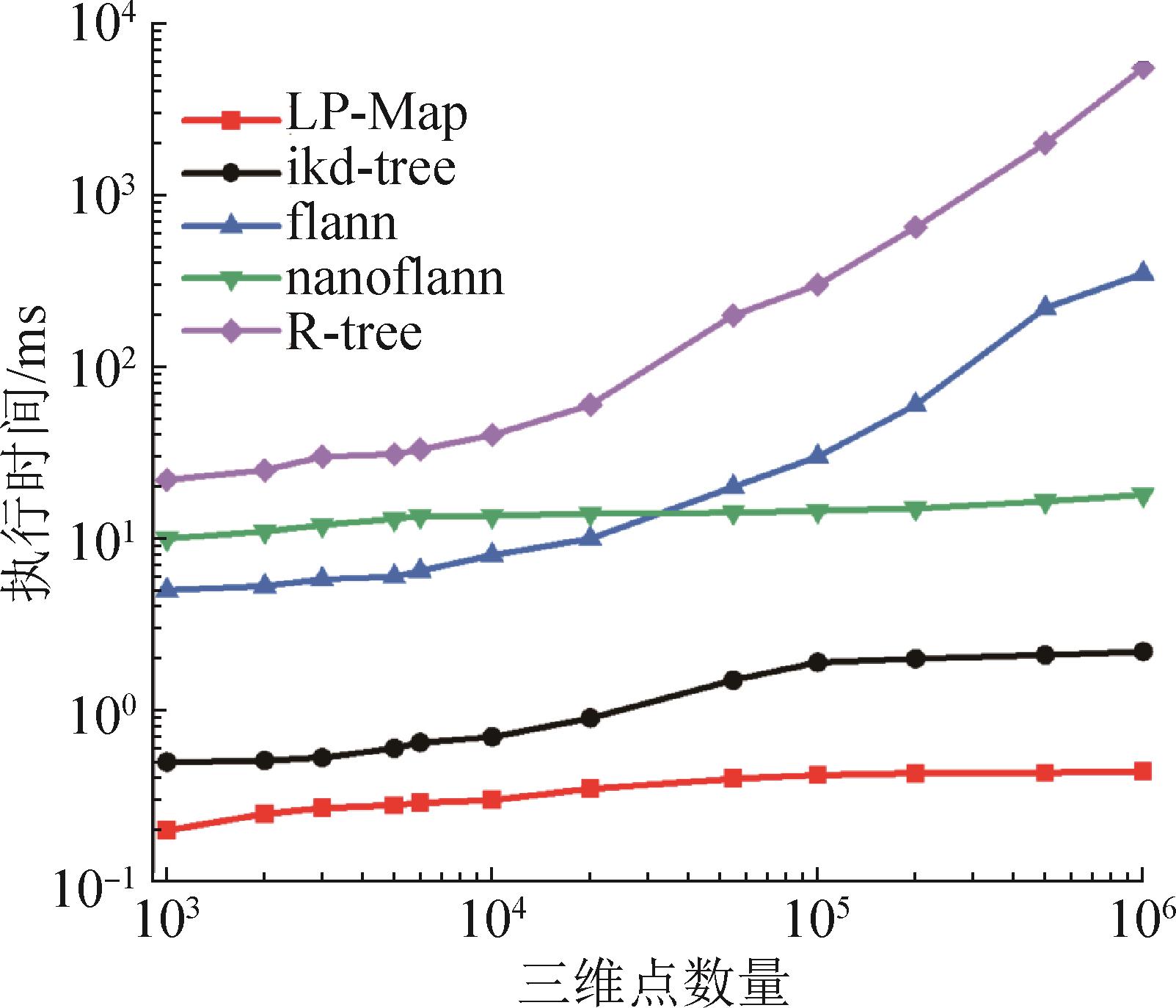

Fig. 8

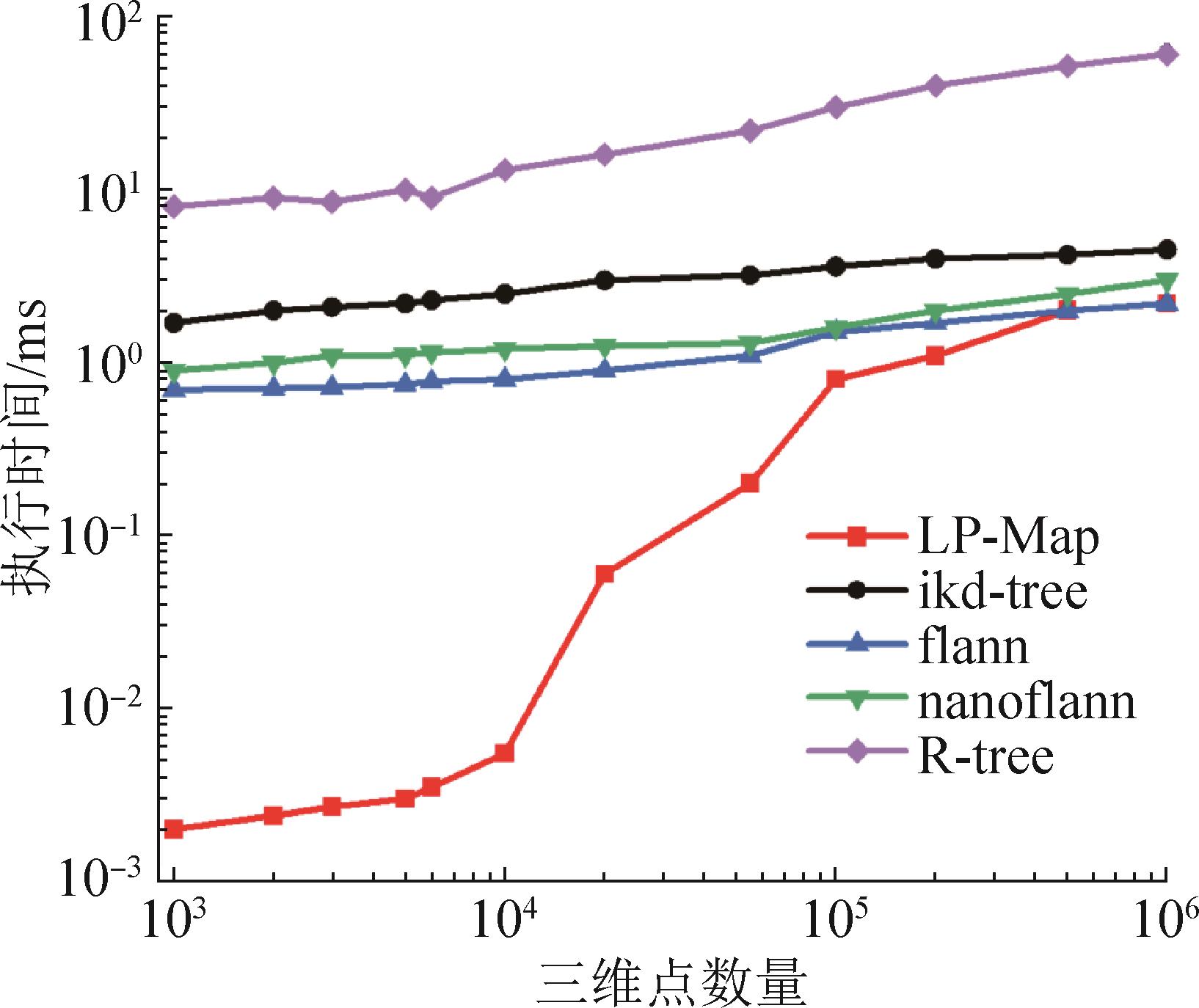

Fig. 9

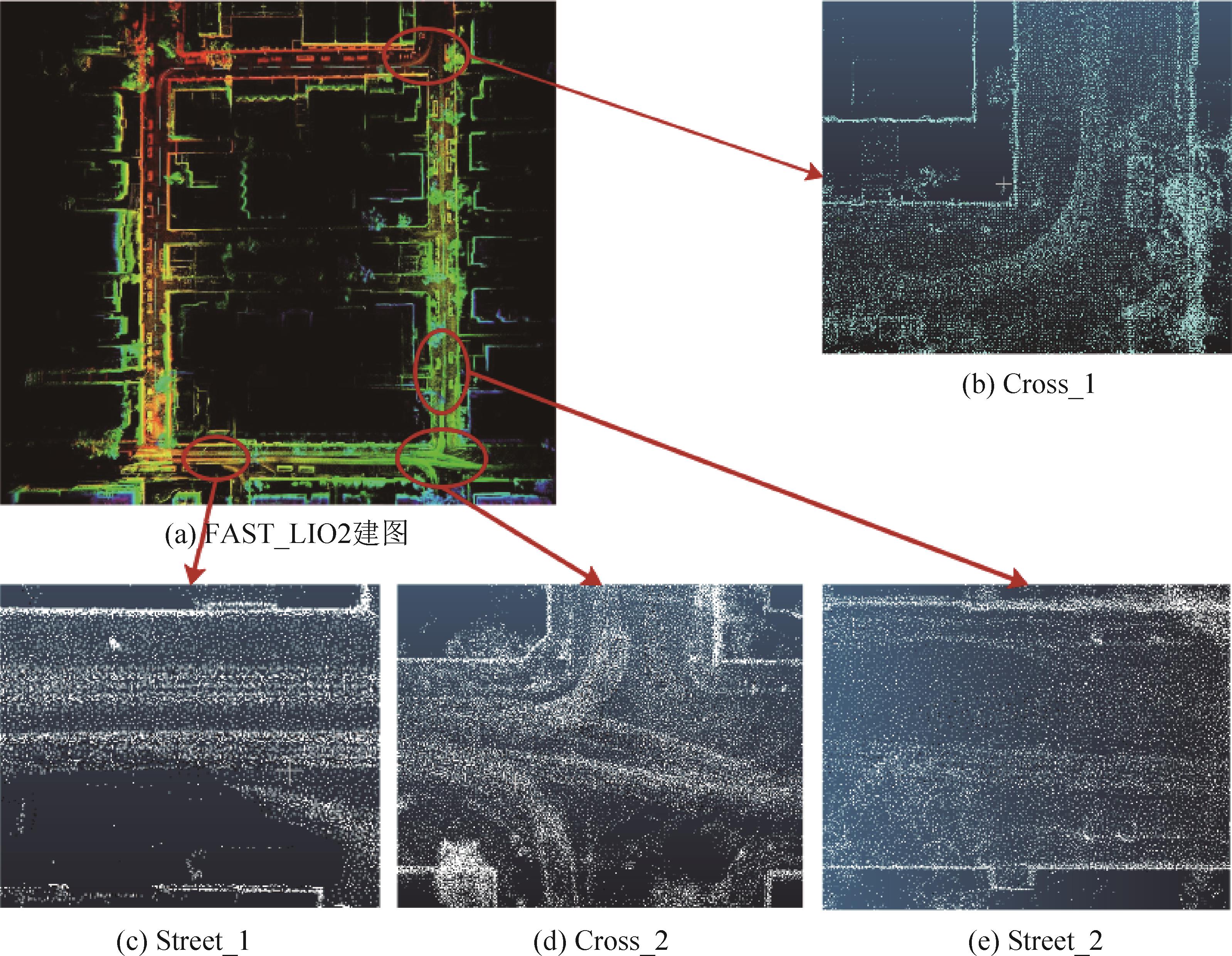

Fig. 10

Table 1

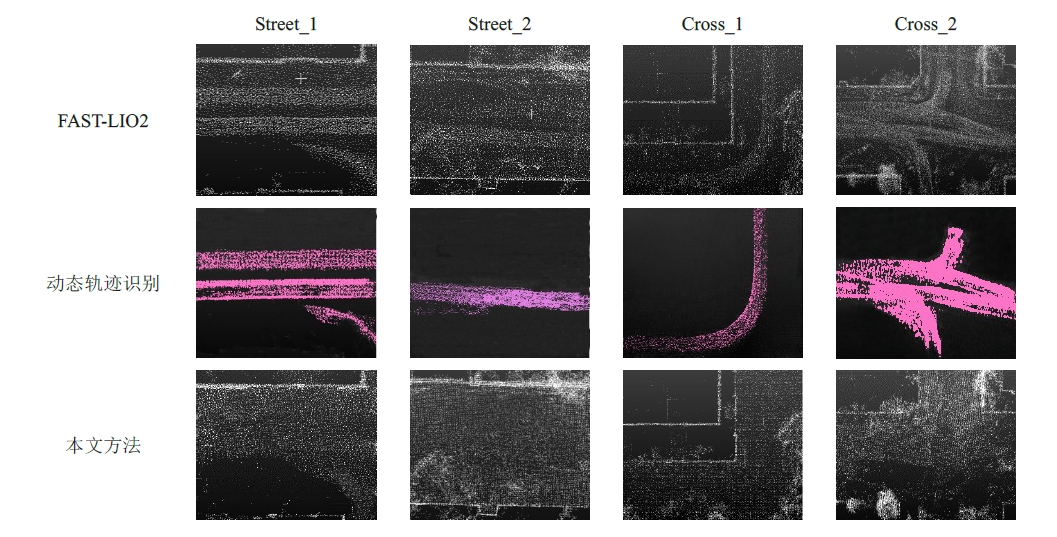

Fig. 11

Table 2

References 23

1	李凯, 王智宇, 奚瑞轩, 等. L4级自动驾驶汽车发展综述[J]. 专用汽车, 2023(2): 4-7.
2	Alif Ridzuan Khairuddin, Mohamad Shukor Talib, Haron Habibollah. Review on Simultaneous Localization and Mapping (SLAM)[C]//2015 IEEE International Conference on Control System, Computing and Engineering (ICCSCE). Piscataway: IEEE, 2015: 85-90.
3	高翔, 张涛, 刘毅, 等. 视觉SLAM十四讲[M]. 北京: 电子工业出版社, 2017: 1-2.
4	Tao Chongben, Gao Zhen, Yan Jinli, et al. Indoor 3D Semantic Robot VSLAM Based on Mask Regional Convolutional Neural Network[J]. IEEE Access, 2020, 8: 52906-52916.
5	Mur-Artal Raúl, Montiel J M M, Tardós Juan D. ORB-SLAM: A Versatile and Accurate Monocular SLAM System[J]. IEEE Transactions on Robotics, 2015, 31(5): 1147-1163.
6	Wang Xi, Christie Marc, Marchand Eric. TT-SLAM: Dense Monocular SLAM for Planar Environments[C]//2021 IEEE International Conference on Robotics and Automation (ICRA). Piscataway: IEEE, 2021: 11690-11696.
7	林士琪, 王纪凯, 裴浩渊, 等. 基于物体关系描述的单目语义SLAM方法[J]. 系统仿真学报, 2022, 34(2): 278-284.
	Lin Shiqi, Wang Jikai, Pei Haoyuan, et al. Monocular Semantic SLAM Method Based on Object Relation Description[J]. Journal of System Simulation, 2022, 34(2): 278-284.
8	李维刚, 钟正, 王永强, 等. 基于时间距离-熵减策略的同步定位与地图构建算法[J]. 信息与控制, 2023, 52(5): 660-668, 688.
	Li Weigang, Zhong Zheng, Wang Yongqiang, et al. Synchronous Localization and Mapping Algorithm Based on Time Distance-entropy Reduction Strategy[J]. Information and Control, 2023, 52(5): 660-668, 688.
9	焦嵩鸣, 姚鑫, 丁辉, 等. 适应于环境空间变化的激光雷达SLAM建图方法[J]. 系统仿真学报, 2023, 35(8): 1788-1798.
	Jiao Songming, Yao Xin, Ding Hui, et al. Lidar SLAM Mapping Method Adapted to Environmental Spatial Changes[J]. Journal of System Simulation, 2023, 35(8): 1788-1798.
10	Shan Tixiao, Englot B. LeGO-LOAM: Lightweight and Ground-optimized Lidar Odometry and Mapping on Variable Terrain[C]//2018 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). Piscataway: IEEE, 2018: 4758-4765.
11	Shan Tixiao, Englot B, Meyers D, et al. LIO-SAM: Tightly-coupled Lidar Inertial Odometry via Smoothing and Mapping[C]//2020 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). Piscataway: IEEE, 2020: 5135-5142.
12	Xu Wei, Cai Yixi, He Dongjiao, et al. FAST-LIO2: Fast Direct LiDAR-inertial Odometry[J]. IEEE Transactions on Robotics, 2022, 38(4): 2053-2073.
13	方娟, 方振虎. 基于目标检测网络的动态场景下视觉SLAM优化[J]. 北京工业大学学报, 2022, 48(5): 466-475.
	Fang Juan, Fang Zhenhu. Vision SLAM Optimization in Dynamic Scene Based on Object Detection Network[J]. Journal of Beijing University of Technology, 2022, 48(5): 466-475.
14	Yu Chao, Liu Zuxin, Liu Xinjun, et al. DS-SLAM: A Semantic Visual SLAM towards Dynamic Environments[C]//2018 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). Piscataway: IEEE, 2018: 1168-1174.
15	Lim Hyungtae, Hwang Sungwon, Myung Hyun. ERASOR: Egocentric Ratio of Pseudo Occupancy-based Dynamic Object Removal for Static 3D Point Cloud Map Building[J]. IEEE Robotics and Automation Letters, 2021, 6(2): 2272-2279.
16	Qian Chenglong, Xiang Zhaohong, Wu Zhuoran, et al. RF-LIO: Removal-first Tightly-coupled Lidar Inertial Odometry in High Dynamic Environments[C]//2021 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). Piscataway: IEEE, 2021: 4421-4428.
17	左勇, 任阳, 杜志华, 等. 基于LP-RANSAC算法的路面点云快速移除算法[J]. 激光与光电子学进展, 2023, 60(14): 376-381.
	Zuo Yong, Ren Yang, Du Zhihua, et al. Rapid Removal Algorithm of Road Surface Point Cloud Based on LP-RANSAC Algorithm[J]. Laser & Optoelectronics Progress, 2023, 60(14): 376-381.
18	Cao Yu, Wang Yancheng, Xue Yifei, et al. FEC: Fast Euclidean Clustering for Point Cloud Segmentation[J]. Drones, 2022, 6(11): 325.
19	章勤, 黄琨, 李光明. 一种基于OBB的碰撞检测算法的改进[J]. 华中科技大学学报(自然科学版), 2003, 31(1): 46-48.
	Zhang Qin, Huang Kun, Li Guangming. Improvement of Collision-detection Algorithm Based on OBB[J]. Journal of Huazhong University of Science and Technology(Natural Science Edition), 2003, 31(1): 46-48.
20	Moosmann Frank, Pink Oliver, Stiller Christoph. Segmentation of 3D Lidar Data in Non-flat Urban Environments Using a Local Convexity Criterion[C]//2009 IEEE Intelligent Vehicles Symposium. Piscataway: IEEE, 2009: 215-220.
21	Fu Cong, Xiang Chao, Wang Changxu, et al. Fast Approximate Nearest Neighbor Search with the Navigating Spreading-out Graph[J]. Proceedings of the VLDB Endowment, 2019, 12(5): 461-474.
22	Guttman A. R-trees: A Dynamic Index Structure for Spatial Searching[J]. ACM SIGMOD Record, 1984, 14(2): 47-57.
23	Kim Giseop, Kim Ayoung. Remove, then Revert: Static Point Cloud Map Construction Using Multiresolution Range Images[C]//2020 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). Piscataway: IEEE, 2020: 10758-10765.

数据集序列	帧数	时间/s	动态等级
Street_1	248	25	高
Street_2	284	28	高
Cross_1	392	40	低
Cross_2	357	35	低

序列	动态程度	Method	TP	FN	FP	R	P	Runtime/iteration/s
Street_1		Removert	12 088	208	2 050	0.983	0.855	0.820 8
	高	ERASOR	11 968	356	764	0.971	0.940	0.141 2
		Ours	11 694	602	1 312	0.951	0.899	0.064 2
Street_2		Removert	6 745	223	1 362	0.968	0.832	0.894 5
	高	ERASOR	6 658	277	934	0.960	0.877	0.165 2
		Ours	6 542	244	1 056	0.964	0.861	0.076 1
Cross_1		Removert	5 548	529	1 217	0.913	0.820	0.604 3
	低	ERASOR	5 614	475	582	0.922	0.906	0.095 4
		Ours	5 726	387	542	0.937	0.914	0.031 3
Cross_2		Removert	15 968	2 198	2 136	0.879	0.882	0.746 1
	低	ERASOR	16 394	650	2 214	0.933	0.881	0.104 6
		Ours	16 744	1 030	1 798	0.942	0.903	0.054 7
		Removert	3 671	145	643	0.962	0.850	1.156 4
Seq_01	高	ERASOR	3 726	159	743	0.959	0.834	0.218 6
		Ours	4 027	224	685	0.947	0.865	0.086 4
		Removert	8 613	634	937	0.931	0.902	0.864 4
Seq_02	低	ERASOR	8 264	603	863	0.932	0.905	0.154 6
		Ours	8 936	537	738	0.943	0.924	0.071 5
		Removert	14 273	1 902	1 836	0.882	0.886	0.785 2
Seq_03	高	ERASOR	14 382	1 003	1 761	0.935	0.891	0.135 4
		Ours	14 532	1 382	1 627	0.913	0.899	0.046 4
