Visual Monitoring System of Digital Twin Workshop for Process Manufacturing

doi:10.16182/j.issn1004731x.joss.22-1006

Abstract

Abstract:

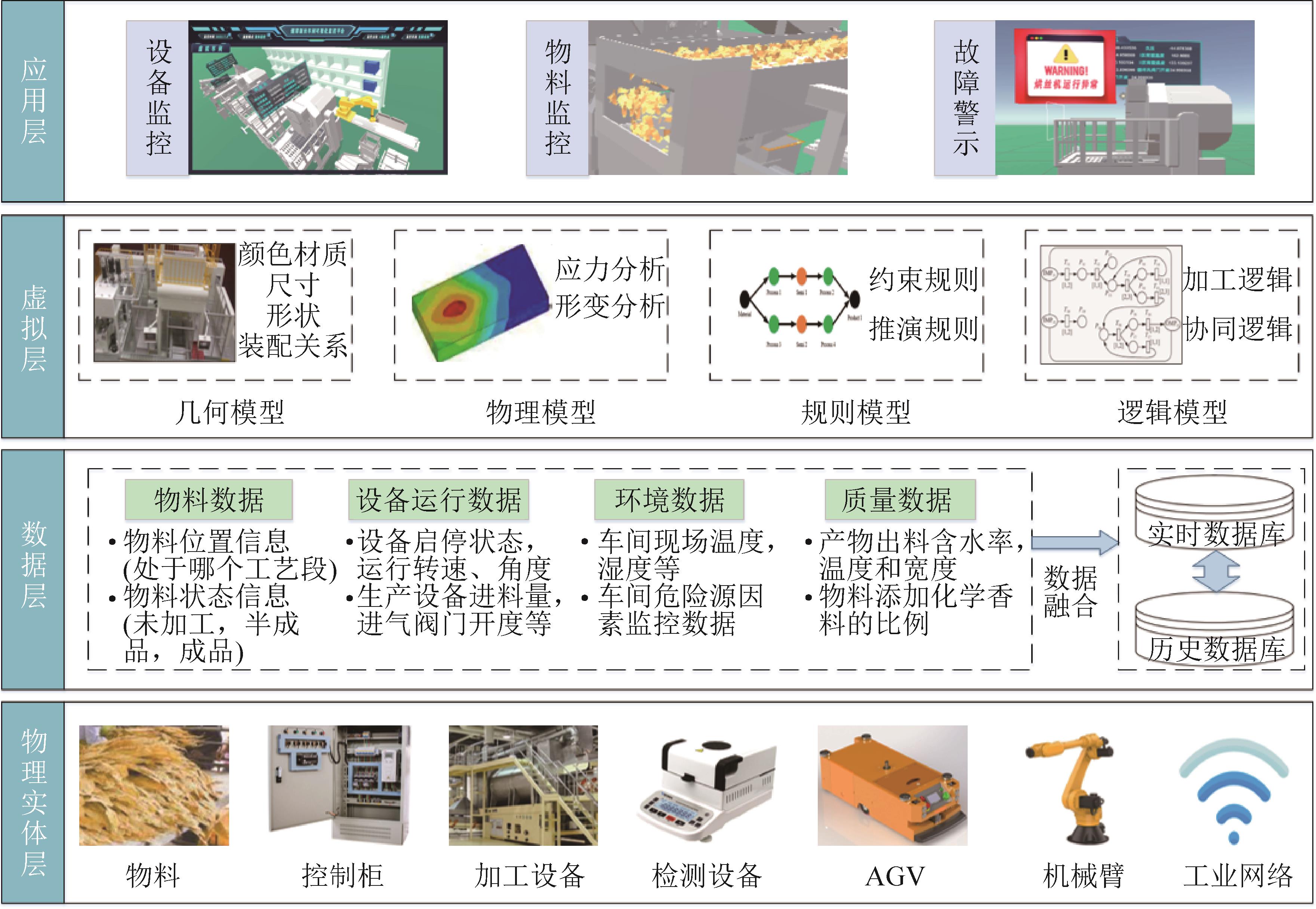

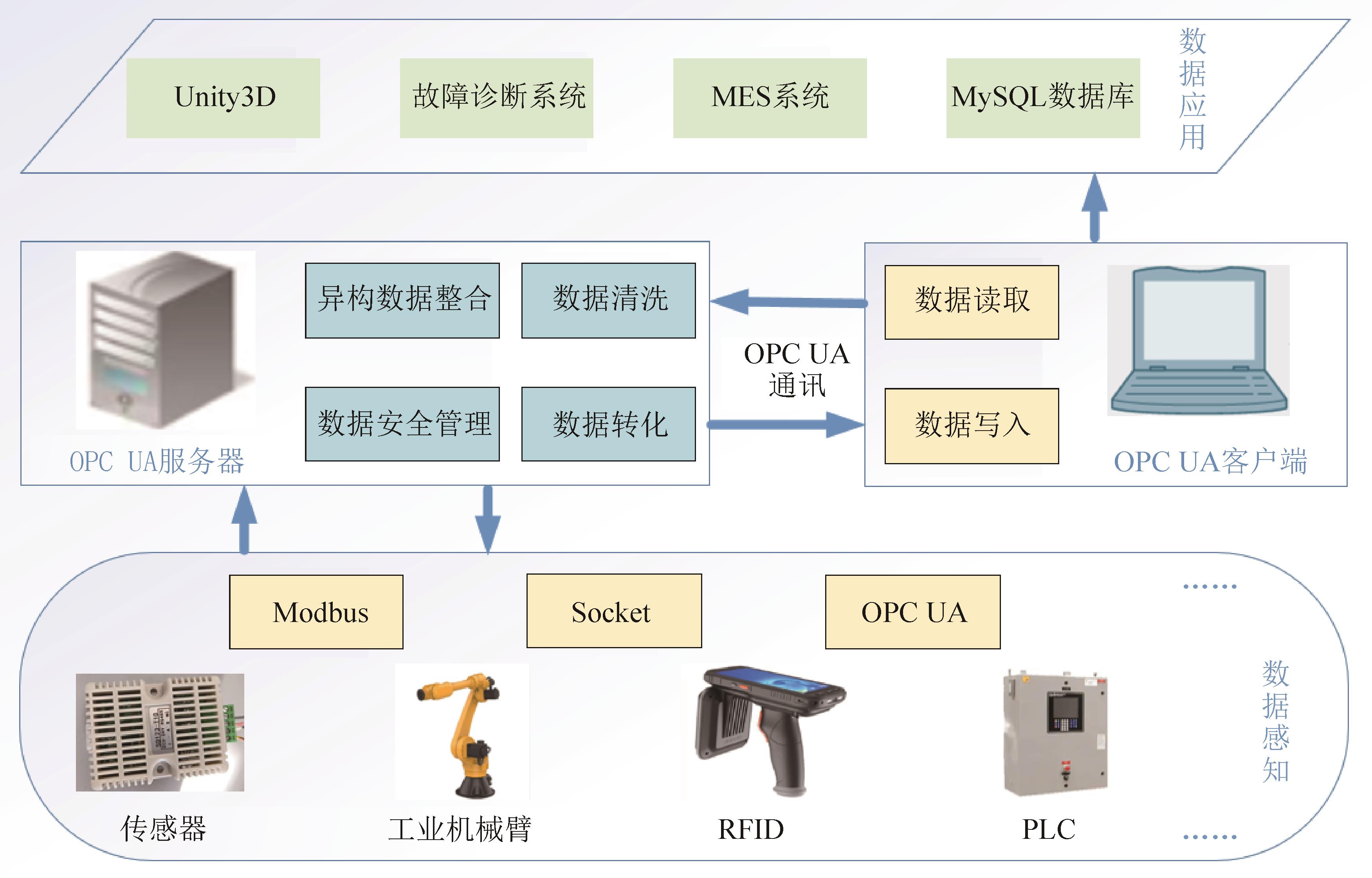

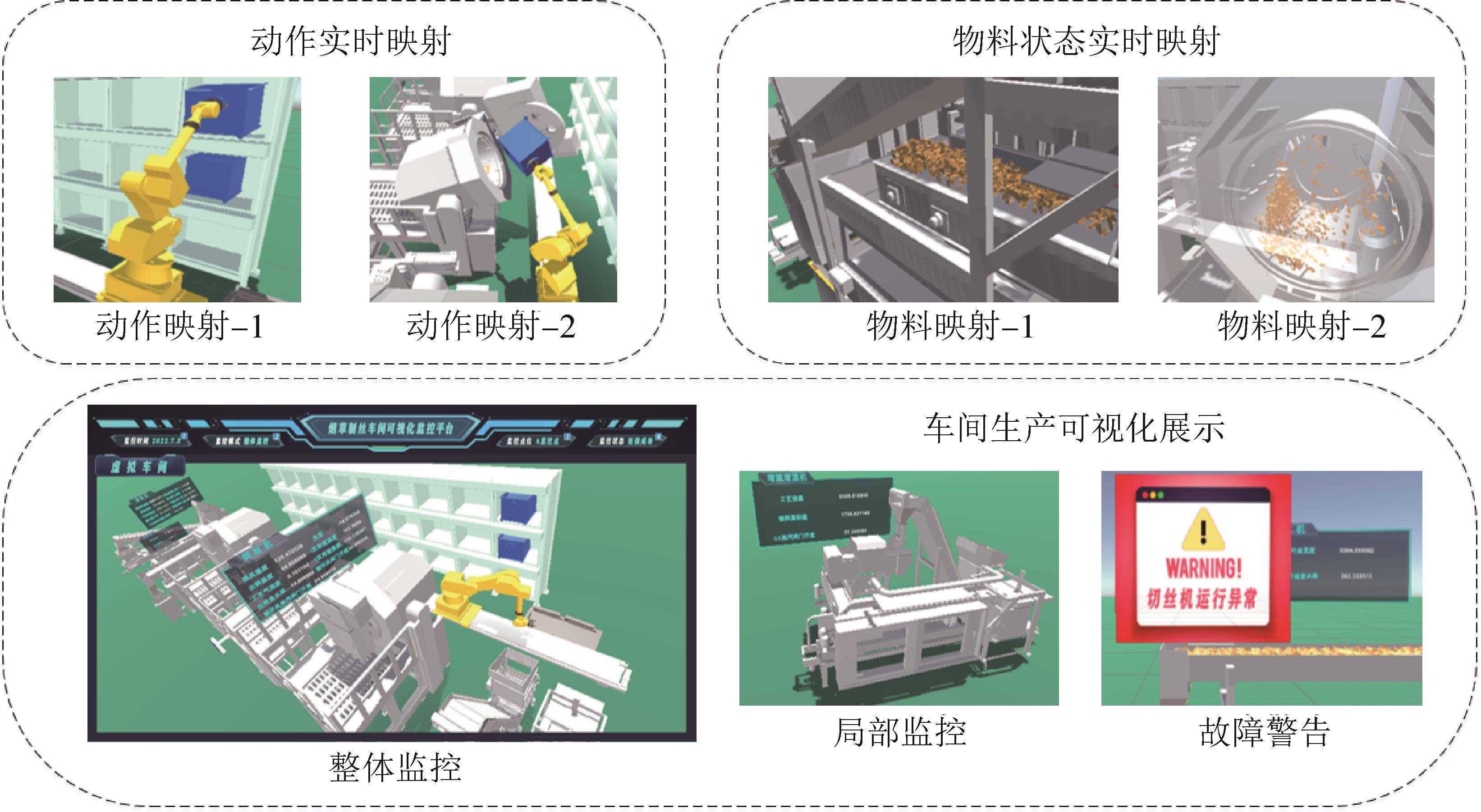

To solve the problem of poor real-time and accuracy of process manufacturing monitoring, this paper proposes a visual monitoring system architecture of digital twin workshop based on production factor data, production process, and multi-process equipment entity object amid the rapid development of digital twin technology and increasingly close integration with the manufacturing industry. Twin modeling is conducted on multi-process coupling production line entity objects from multiple dimensions such as element, state, and operation logic. Based on key technologies of data collection and transmission of OPC UA (OLE for process control unified archiecture) unified architecture and real-time drive of the virtual workshop, the three-dimensional visual monitoring of the process manufacturing equipment status and the whole process of production factors is realized. Finally, the application verification is carried out based on the silk production test line of a process manufacturing enterprise. This paper provides a method and realization way to improve the predictability, linkage, and autonomy of the whole production factors in the process manufacturing.

Key words: process manufacturing, digital twin, multi-process coupling production line, object-oriented timed Petri net(OOTPN), visual monitoring

CLC Number:

TP391.9

Yin Yanchao, Feng Jiasheng, Yi Bin, Li Wang, Yin Qingwen. Visual Monitoring System of Digital Twin Workshop for Process Manufacturing[J]. Journal of System Simulation, 2024, 36(1): 120-130.

Figures/Tables 12

Fig. 1

Fig. 2

Table 1

Table 2

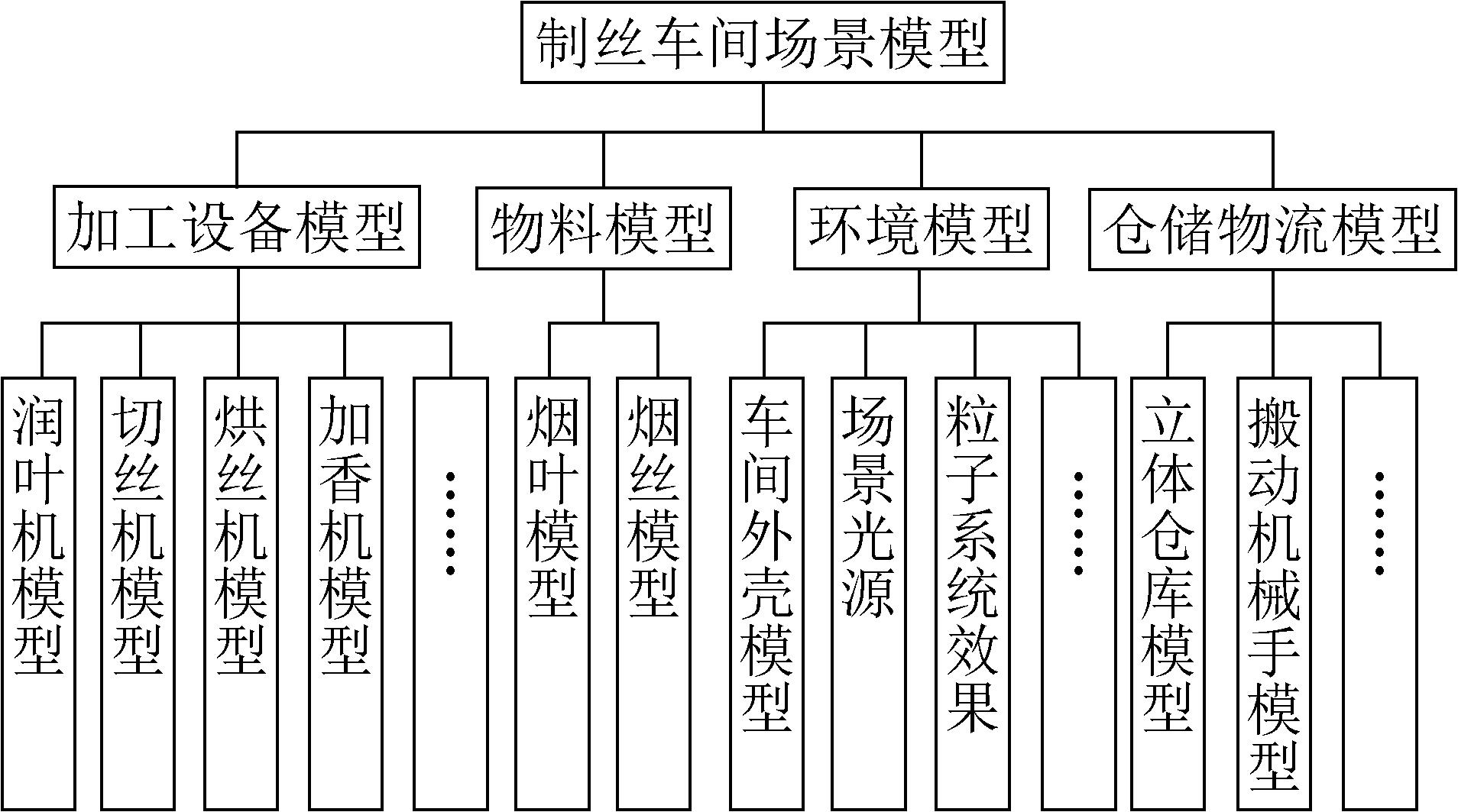

Fig. 3

Fig. 4

Table 3

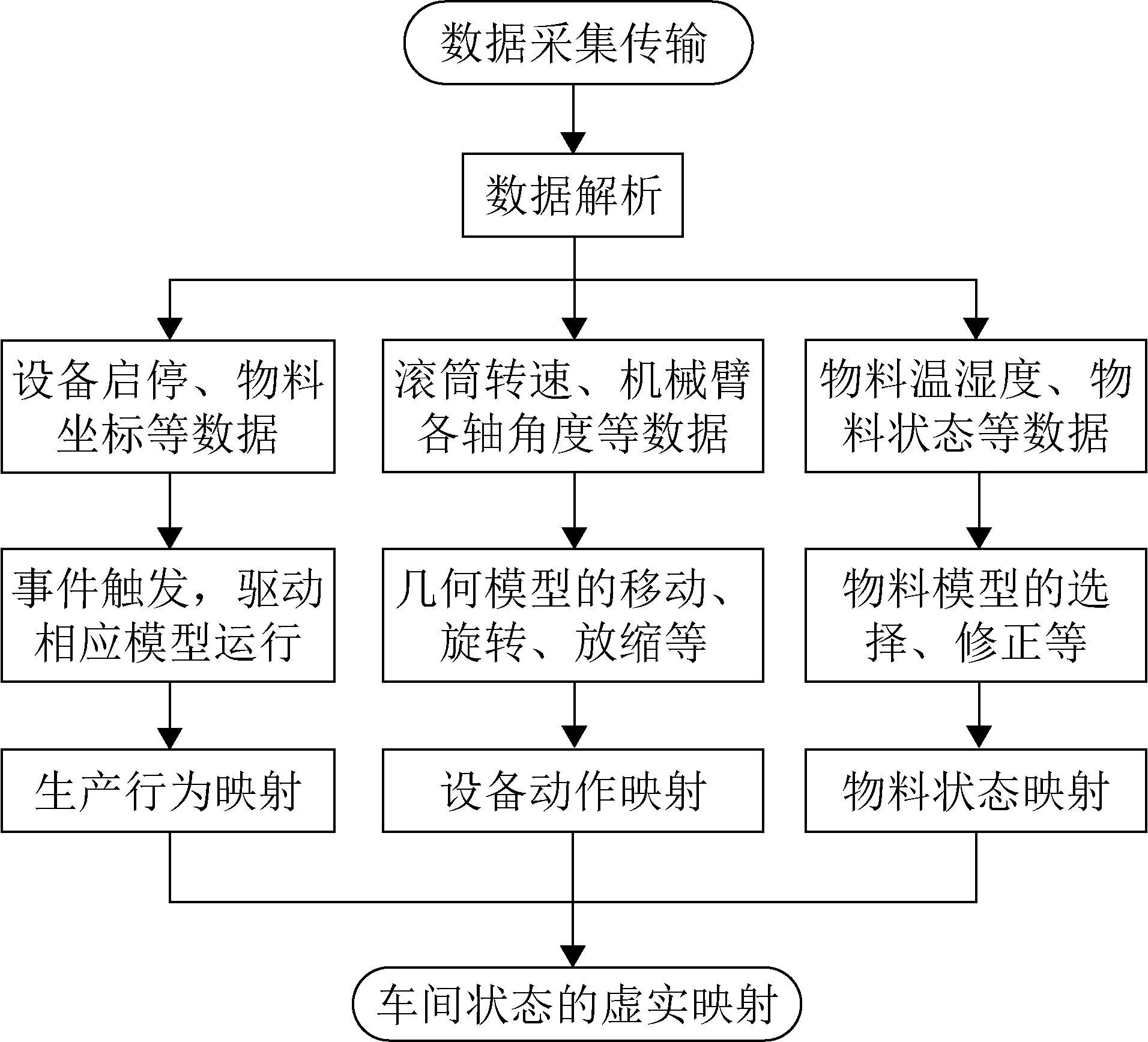

Fig. 5

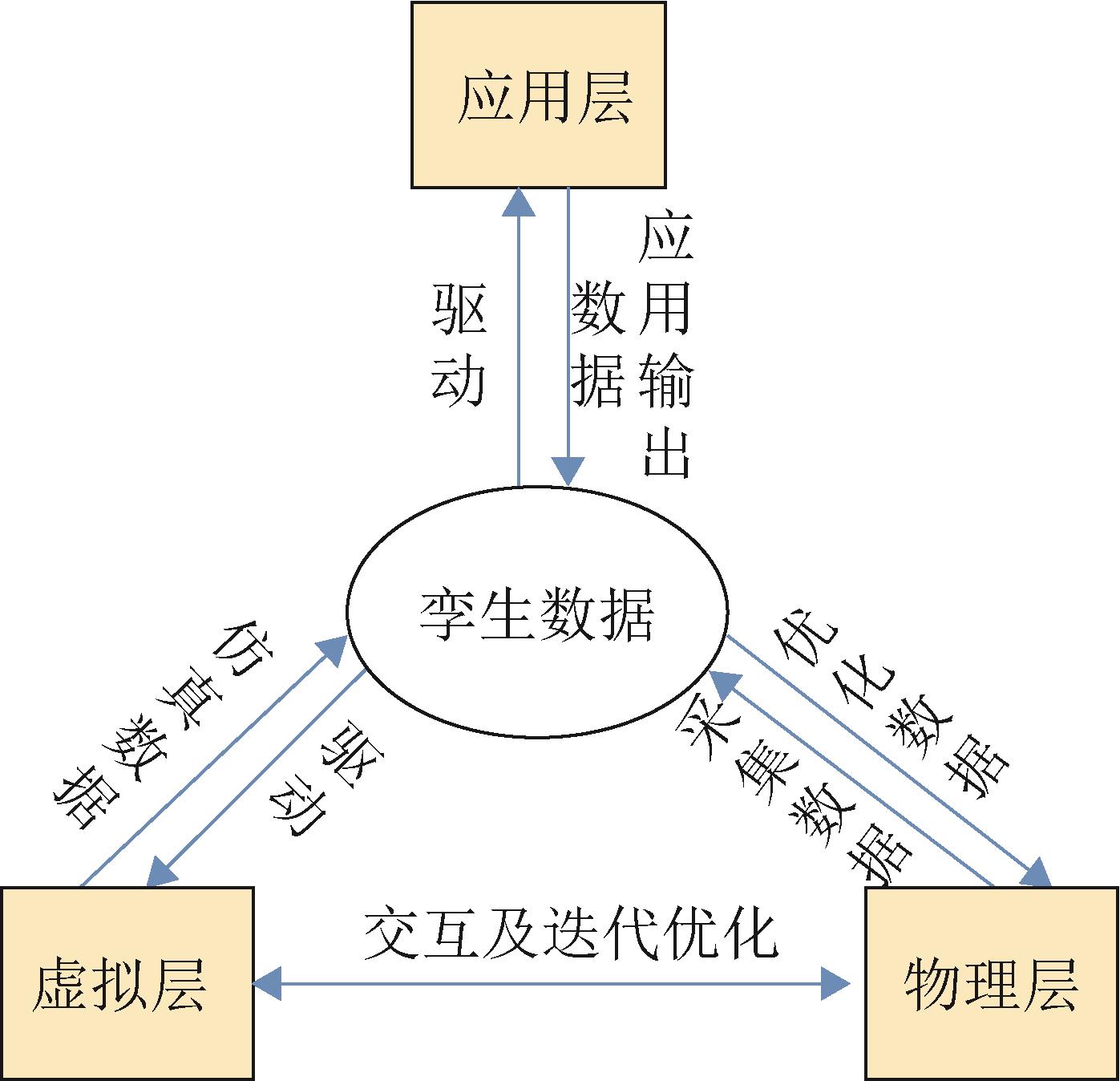

Fig. 6

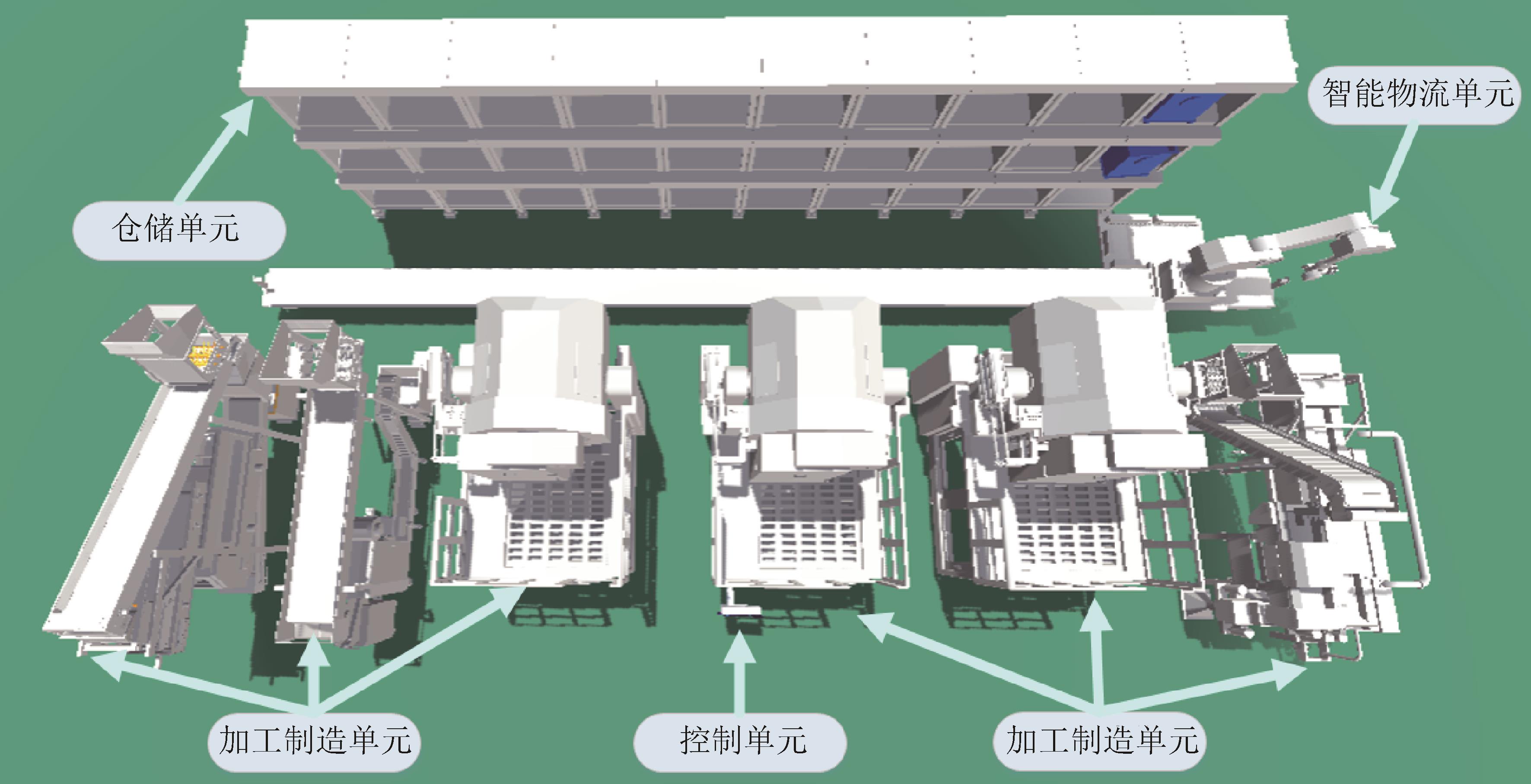

Fig. 7

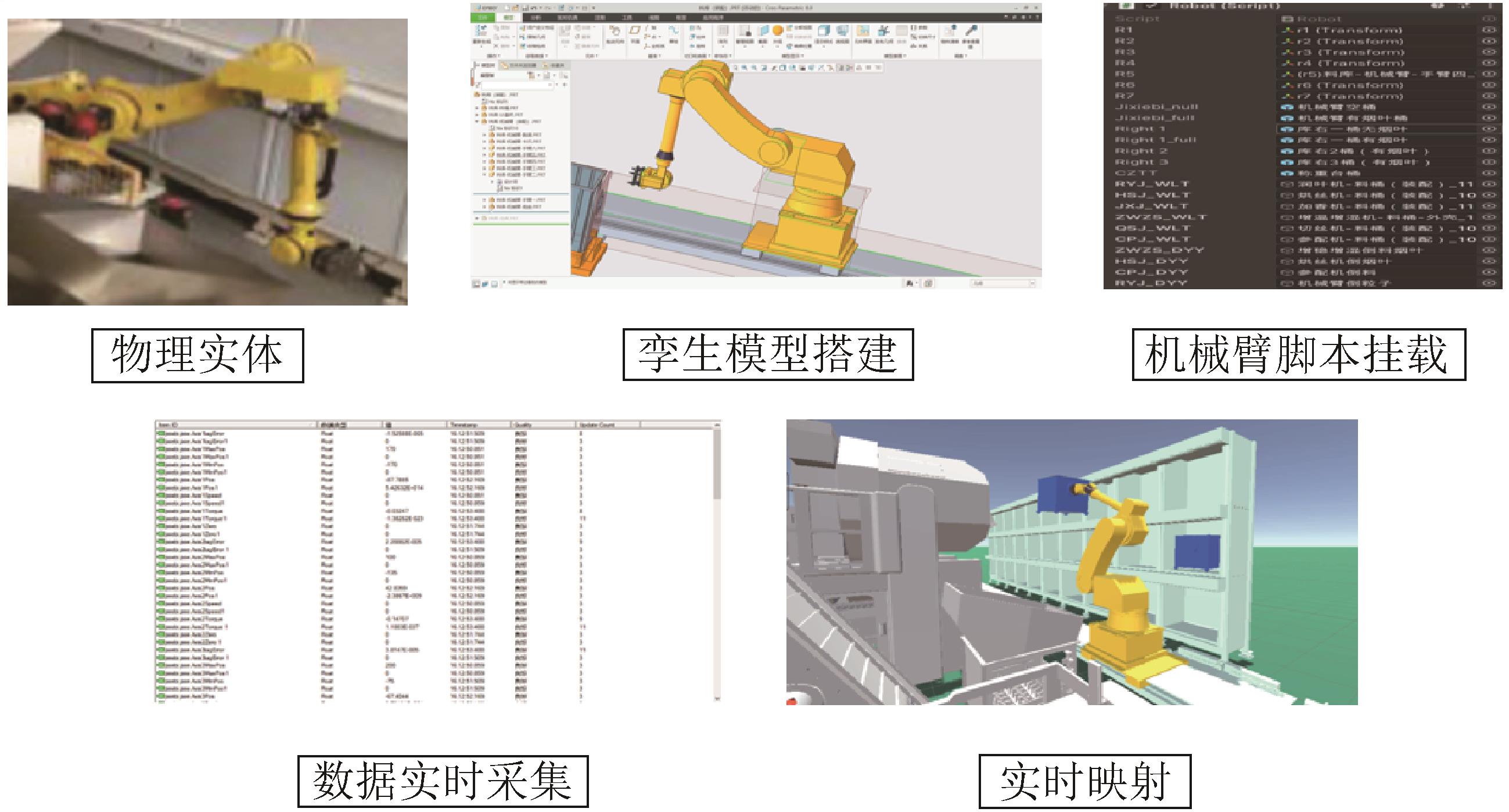

Fig. 8

Fig. 9

References 18

1	Kadlec P, Gabrys B, Strandt Sibylle. Data-driven Soft Sensors in the Process Industry[J]. Computers & Chemical Engineering, 2009, 33(4): 795-814.
2	肖通, 江海凡, 丁国富, 等. 五轴磨床数字孪生建模与监控研究[J]. 系统仿真学报, 2021, 33(12): 2880-2890.
	Xiao Tong, Jiang Haifan, Ding Guofu, et al. Research on Digital Twin-based Modeling and Monitoring of Five-axis Grinder[J]. Journal of System Simulation, 2021, 33(12): 2880-2890.
3	Ouelhadj D, Hanachi C, Bouzouia B. Multi-agent Architecture for Distributed Monitoring in Flexible Manufacturing Systems (FMS)[C]//Proceedings 2000 ICRA. Millennium Conference. IEEE International Conference on Robotics and Automation. Symposia Proceedings. Piscataway, NJ, USA: IEEE, 2000: 2416-2421.
4	侯迪波. 流程工业CIMS中GIS技术的应用[J]. 仪器仪表学报, 2005, 26(增2): 717-720, 724.
	Hou Dibo. The Application of GIS in Process Industry CIMS[J]. Chinese Journal of Scientific Instrument, 2005, 26(S2): 717-720, 724.
5	周泽伟, 冯毅萍, 荣冈. 等离子体裂解煤工艺过程的三维仿真与可视化监控系统[J]. 化工学报, 2011, 62(8): 2303-2311.
	Zhou Zewei, Feng Yiping, Rong Gang. 3D Process Simulation and Visualization Monitoring Platform for Process of Coal Pyrolysis to Acetylene[J]. CIESC Journal, 2011, 62(8): 2303-2311.
6	庄存波, 刘检华, 熊辉, 等. 复杂产品装配现场动态实时可视化监控系统[J]. 计算机集成制造系统, 2017, 23(6): 1264-1276.
	Zhuang Cunbo, Liu Jianhua, Xiong Hui, et al. Assembly Shop Floor Dynamic and Real-time Visual Monitoring System for Complex Product[J]. Computer Integrated Manufacturing Systems, 2017, 23(6): 1264-1276.
7	徐泉, 秦莹, 初延刚, 等. 选矿生产指标可视化监控平台研究[J]. 计算机集成制造系统, 2020, 26(1): 81-91.
	Xu Quan, Qin Ying, Chu Yangang, et al. Research on a Mineral Production Index Visual Monitoring Platform[J]. Computer Integrated Manufacturing Systems, 2020, 26(1): 81-91.
8	李欣, 刘秀, 万欣欣. 数字孪生应用及安全发展综述[J]. 系统仿真学报, 2019, 31(3): 385-392.
	Li Xin, Liu Xiu, Wan Xinxin. Overview of Digital Twins Application and Safe Development[J]. Journal of System Simulation, 2019, 31(3): 385-392.
9	Schleich Benjamin, Anwer Nabil, Luc Mathieu, et al. Shaping the Digital Twin for Design and Production Engineering[J]. CIRP Annals, 2017, 66(1): 141-144.
10	Tao Fei, Zhang Meng. Digital Twin Shop-floor: A New Shop-floor Paradigm Towards Smart Manufacturing[J]. IEEE Access, 2017, 5: 20418-20427.
11	Tao Fei, Zhang Meng, Nee A Y C. Digital Twin Driven Smart Manufacturing[M]. London: Academic Press, 2019.
12	Zhang Meng, Tao Fei, Nee A Y C. Digital Twin Enhanced Dynamic Job-shop Scheduling[J]. Journal of Manufacturing Systems, 2021, 58, Part B: 146-156.
13	赵浩然, 刘检华, 熊辉, 等. 面向数字孪生车间的三维可视化实时监控方法[J]. 计算机集成制造系统, 2019, 25(6): 1432-1443.
	Zhao Haoran, Liu Jianhua, Xiong Hui, et al. 3D Visualization Real-time Monitoring Method for Digital Twin Workshop[J]. Computer Integrated Manufacturing Systems, 2019, 25(6): 1432-1443.
14	Qamsane Y, Chen C Y, Balta E C, et al. A Unified Digital Twin Framework for Real-time Monitoring and Evaluation of Smart Manufacturing Systems[C]//2019 IEEE 15th International Conference on Automation Science and Engineering (CASE). Piscataway, NJ, USA: IEEE, 2019: 1394-1401.
15	柳林燕, 杜宏祥, 汪惠芬, 等. 车间生产过程数字孪生系统构建及应用[J]. 计算机集成制造系统, 2019, 25(6): 1536-1545.
	Liu Linyan, Du Hongxiang, Wang Huifen, et al. Construction and Application of Digital Twin System for Production Process in Workshop[J]. Computer Integrated Manufacturing Systems, 2019, 25(6): 1536-1545.
16	张霖. 关于数字孪生的冷思考及其背后的建模和仿真技术[J]. 系统仿真学报, 2020, 32(4): 1-10.
17	陶飞, 刘蔚然, 张萌, 等. 数字孪生五维模型及十大领域应用[J]. 计算机集成制造系统, 2019, 25(1): 1-18.
	Tao Fei, Liu Weiran, Zhang Meng, et al. Five-dimension Digital Twin Model and Its Ten Applications[J]. Computer Integrated Manufacturing Systems, 2019, 25(1): 1-18.
18	杨艳芳, 贺焕, 舒亮, 等. 基于时间Petri网的断路器虚拟装配系统研究[J]. 中国机械工程, 2019, 30(3): 310-317, 324.
	Yang Yanfang, He Huan, Shu Liang, et al. Research on Circuit Breaker Virtual Assembly Systems Based on Time Petri Net[J]. China Mechanical Engineering, 2019, 30(3): 310-317, 324.

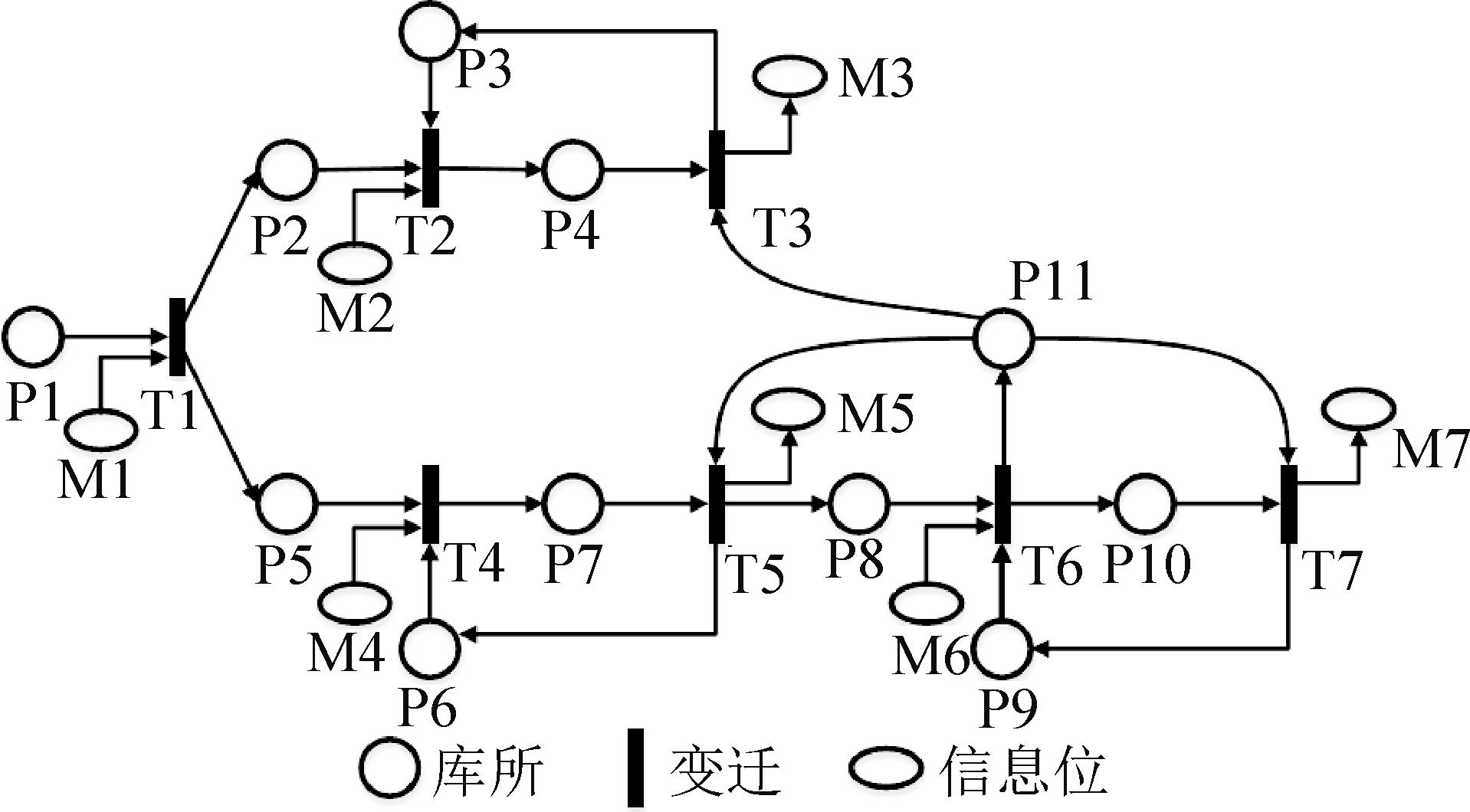

库所P	含义	信息位	含义
P1	物料待筛选状态	M1	烟丝分类指令
P2	叶丝准备气流干燥	M2	气流干燥指令
P3	气流干燥设备空闲	M3	输送完成信息
P4	叶丝气流干燥完成	M4	增温增湿指令
P5	叶丝准备增温增湿	M5	输送完成信息
P6	增温增湿设备空闲	M6	滚筒干燥指令
P7	叶丝增温增湿完成	M7	输送完成信息
P8	叶丝准备滚筒干燥
P9	滚筒干燥设备空闲
P10	叶丝滚筒干燥完成
P11	物流设备空闲

变迁T	含义	时间间隔
T1	选择干燥设备	［18，36］
T2	叶丝气流干燥	［0.1，1］
T3	送往下一环节	［18，60］
T4	叶丝增温增湿	［1.5，2］
T5	送往滚筒干燥	［18，30］
T6	叶丝滚筒干燥	［36，48］
T7	送往下一环节	［18，60］

序号	关键参数	取值
1	名称	Temperature sensor
2	地址	40001
3	扫描速率(次/s)	10
4	驱动程序	Modbus
5	连接媒体	COM端口
6	COM ID	3
7	波特率	9 600
8	数据位	8
9	奇偶性	偶
10	停止位	1
11	流量控制	无
