Optimization Dispatch Method for High-proportion Renewable Energy Power Systems Based on SC-PPO

doi:10.16182/j.issn1004731x.joss.25-0529

Abstract

Abstract:

The high proportion of renewable energy integration brings significant challenges of randomness, multi-objective coupling, and security constraints to power systems. Traditional model-driven methods have limitations in modeling accuracy and adaptability. To address these issues, this paper proposed a safety-constrained PPO algorithm (SC-PPO). The method included three improvements. A temporal convolutional network was utilized to construct a dynamic state encoder that integrated historical operation, real-time monitoring, and prediction data to form a causal state representation. A hierarchical reward structure was designed, and an adaptive weighting mechanism based on constraint satisfaction degree was introduced to coordinate multi-objective optimization. Physical constraint projection operators were embedded in the policy output layer, transforming constraints such as unit ramp rates, energy storage state of charge, and voltage magnitudes into feasible region mappings in the action space. Simulation results show that SC-PPO reduces voltage limit violations by 75% while improving wind power accommodation rate to 95.6% and reducing carbon emissions to 15 220 t, the research provides a new paradigm of intelligent decision-making that combines adaptability and security for high renewable energy penetration power systems.

Key words: deep reinforcement learning, power system dispatch, dynamic state representation, hierarchical reward mechanism, security constraint embedding

CLC Number:

TP391

Xu Zhongkai, Chu Chenyang, Xie Kai, Zhao Ruizhuo, Ke Wenjun. Optimization Dispatch Method for High-proportion Renewable Energy Power Systems Based on SC-PPO[J]. Journal of System Simulation, 2025, 37(10): 2511-2521.

Figures/Tables 12

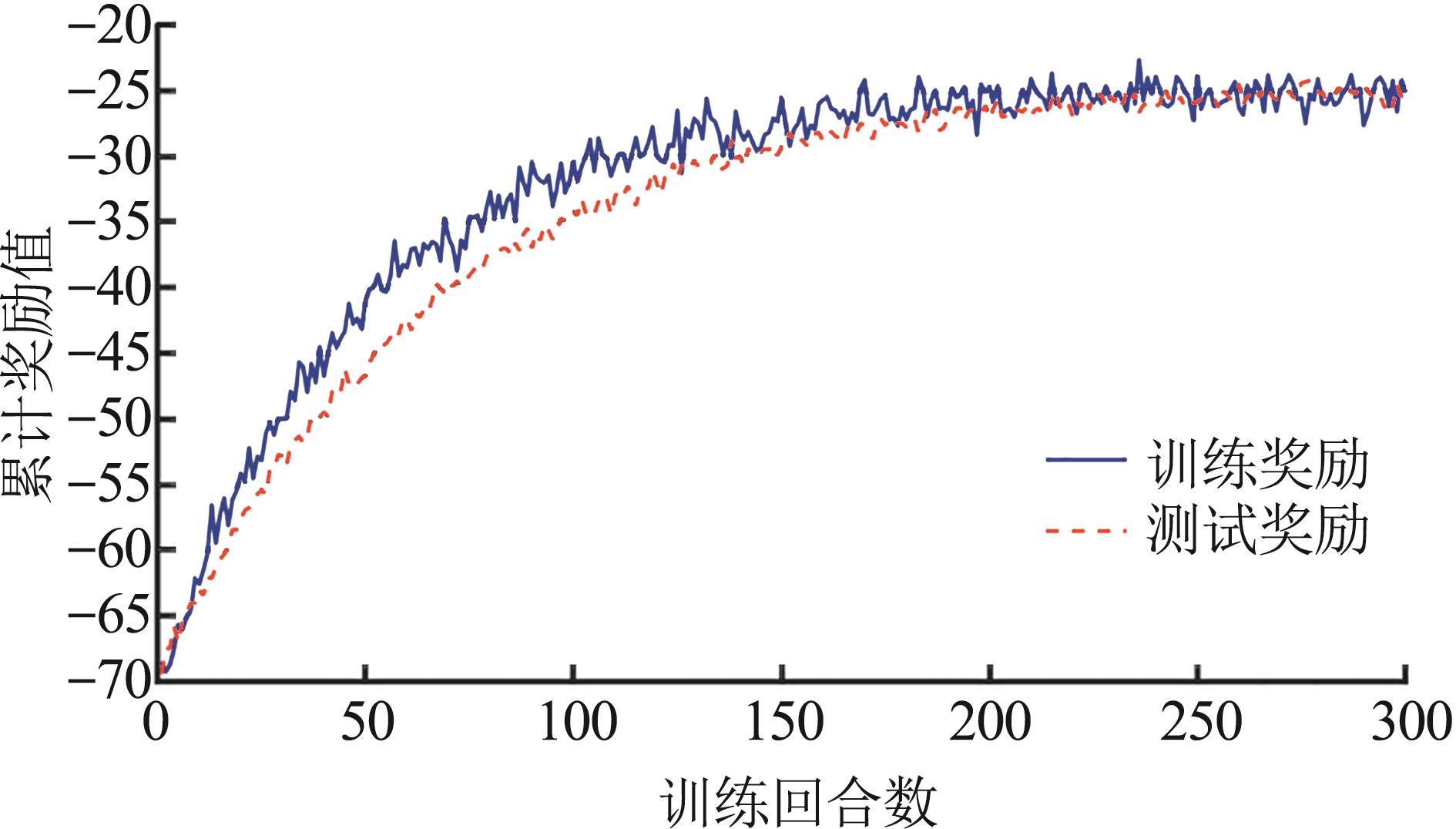

Fig.1

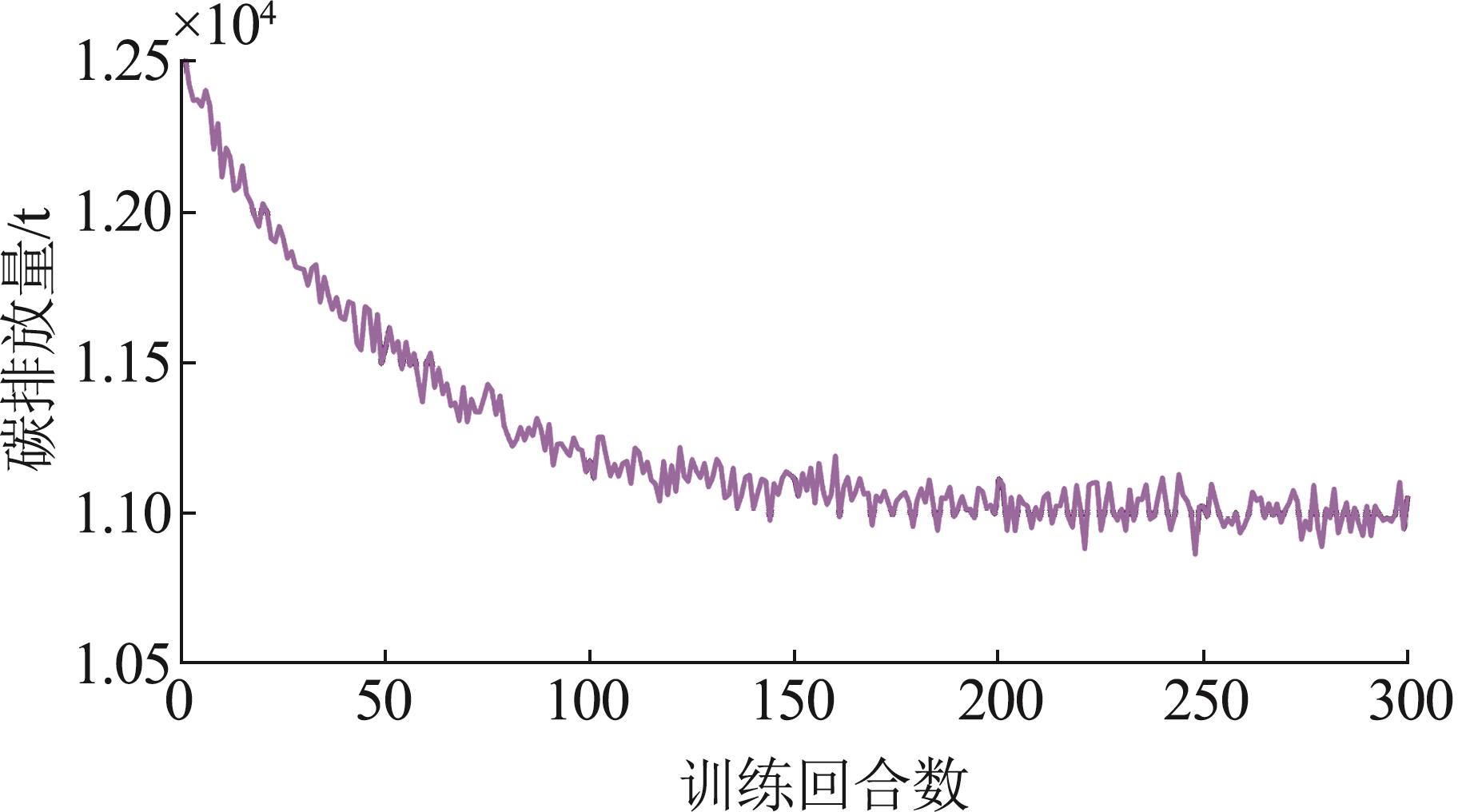

Fig. 2

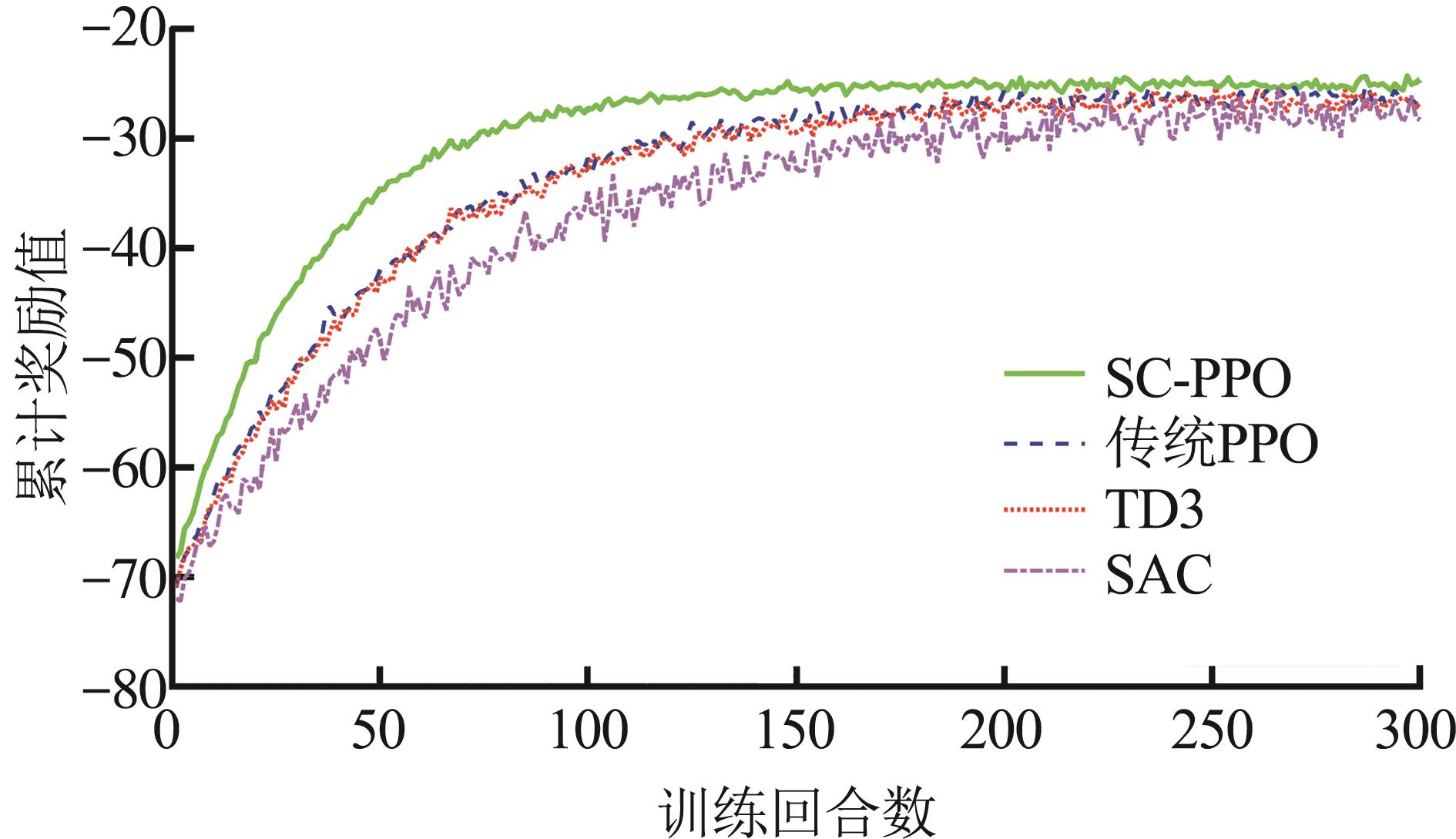

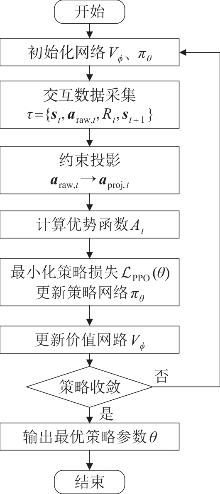

Fig. 3

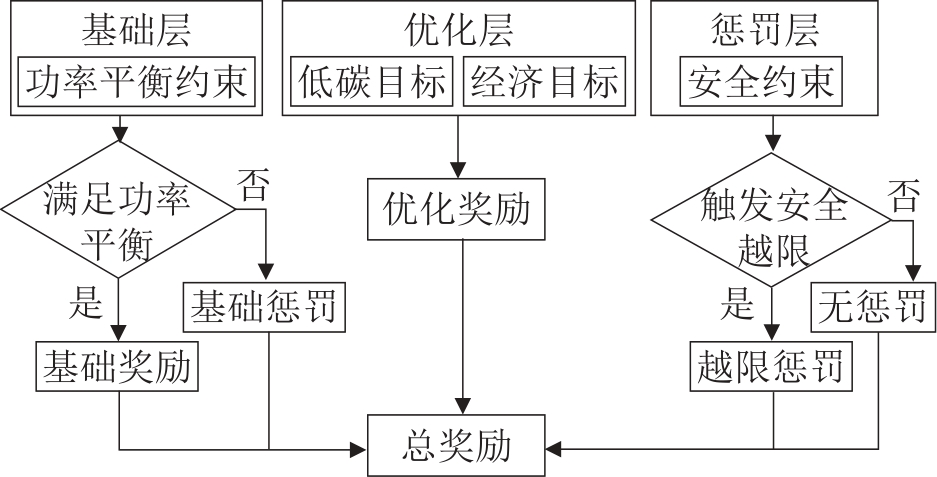

Fig. 4

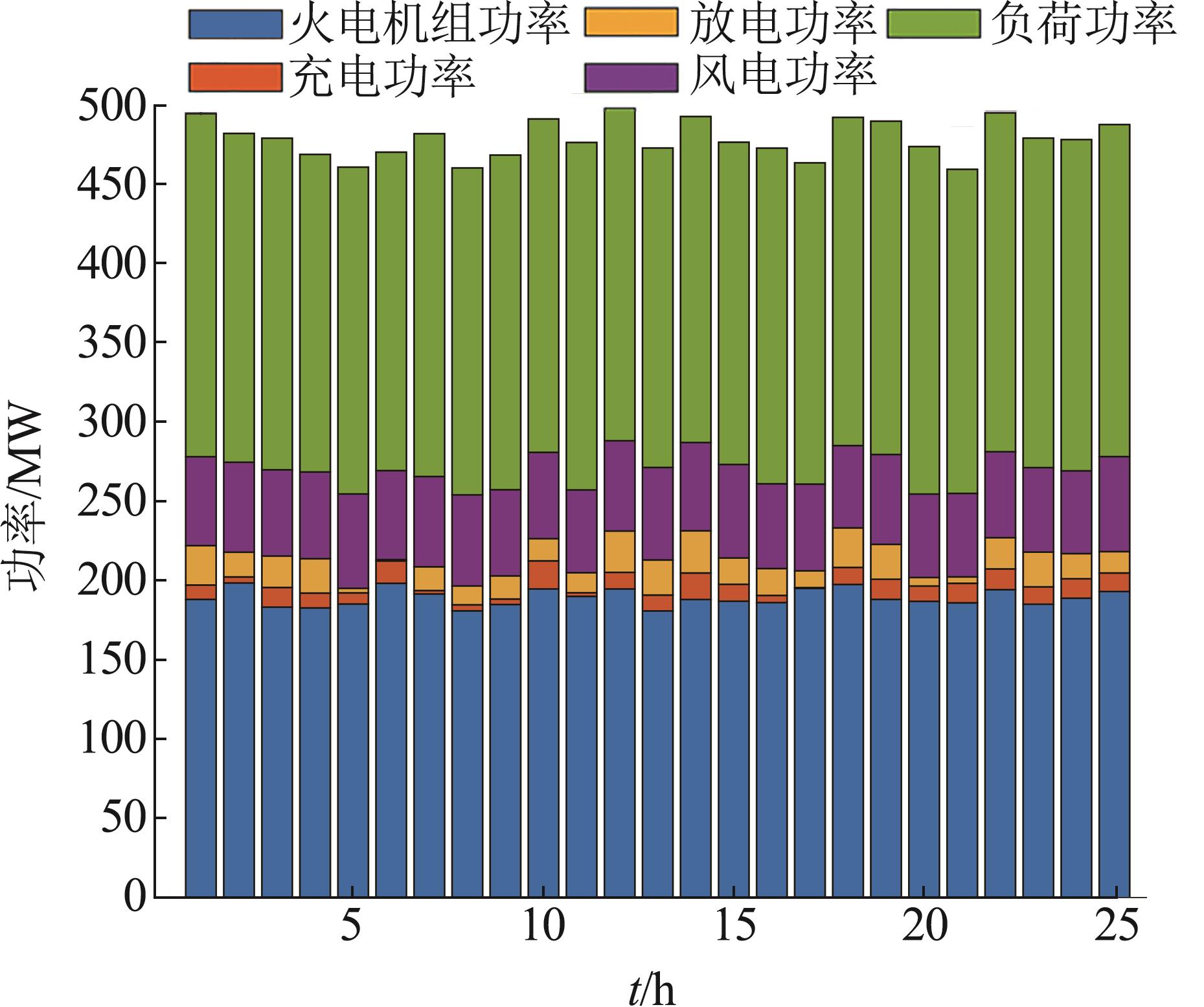

Fig. 5

Table 1

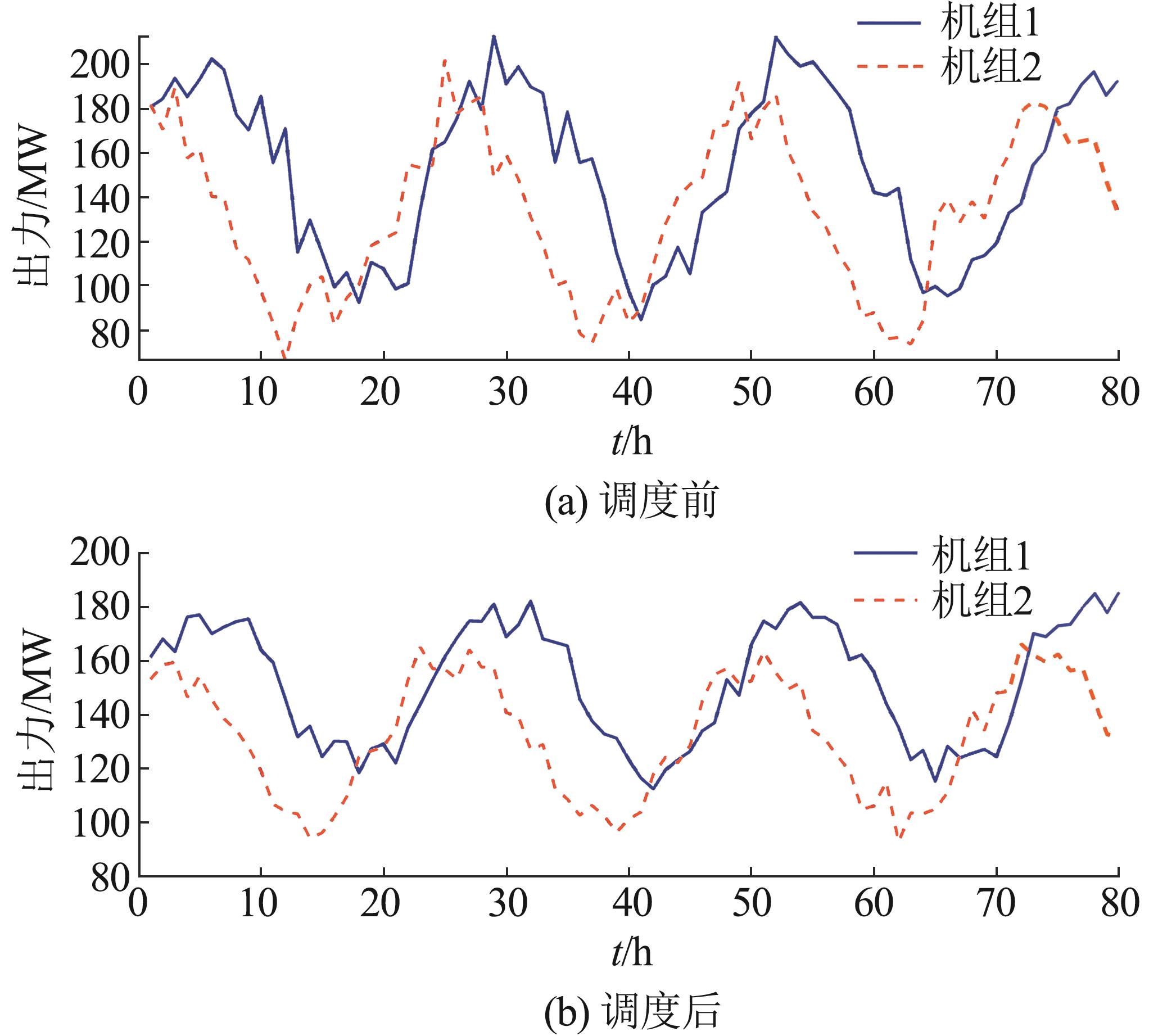

Fig. 6

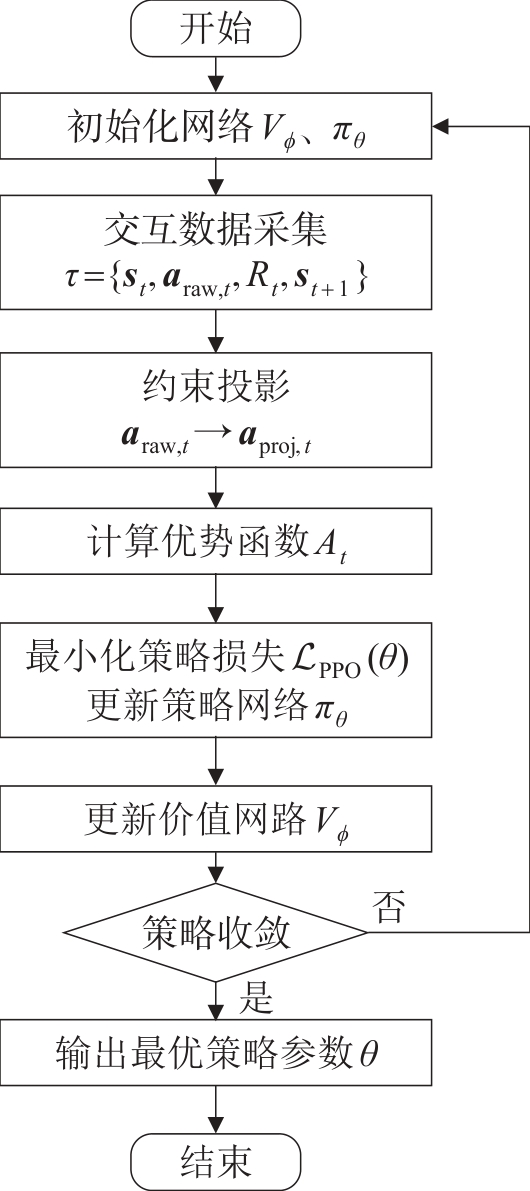

Fig. 7

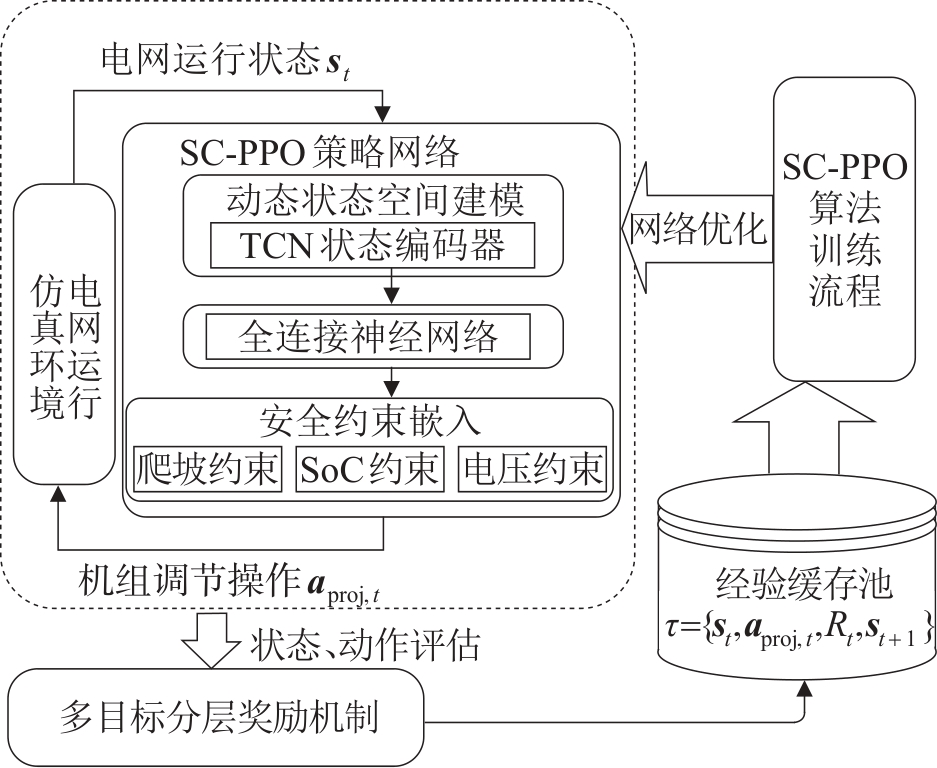

Fig. 8

Table 2

Table 3

Influence of time window length h on dispatching performance

$h$	风电消纳率/%	碳排放量/t	运行成本/万元	电压越限次数/(次/72 h)
6	93.2	15 890	412.6	4
9	94.8	15 560	409.1	3
12	95.6	15 220	406.3	2
15	95.1	15 430	408.7	3
18	94.1	15 680	411.4	4

Table 3

Table 4

References 21
