Distributed Heterogeneous Hybrid Flow-shop Scheduling Considering Combined Buffer

doi:10.16182/j.issn1004731x.joss.24-0510

Abstract

Abstract:

In order to reduce cost losses caused by delivery delays, distributed heterogeneous hybrid flow-shop scheduling problems under combined buffer conditions of finite buffer and zero-wait were studied. A hybrid estimation of distribution algorithm based on Q-learning was proposed to minimize total weighted earliness and tardiness. For the combined buffer, dynamic decoding was designed based on the average factory allocation strategy and the shortest path method. The initial job group was optimized by reverse learning. Q-learning was embedded in the probabilistic model for intelligent searching and updating based on the group state. Reconstruction of the job group was completed using Chebyshev chaotic mapping to improve the group quality. Simulation results show that the proposed algorithm performs well in solving distributed heterogeneous hybrid flow-shop scheduling problems under combined buffer conditions, with transportation time taken into account.

Key words: distributed heterogeneous hybrid flow-shop scheduling, finite buffer and zero-wait, total weighted earliness and tardiness, hybrid estimation of distribution algorithm, Q-learning

CLC Number:

TP49

Xuan Hua, Lü Lin, Li Bing. Distributed Heterogeneous Hybrid Flow-shop Scheduling Considering Combined Buffer[J]. Journal of System Simulation, 2025, 37(10): 2672-2686.

Figures/Tables 24

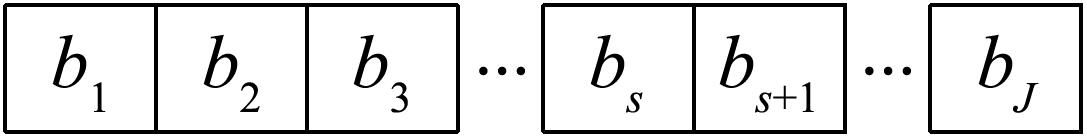

Fig. 1

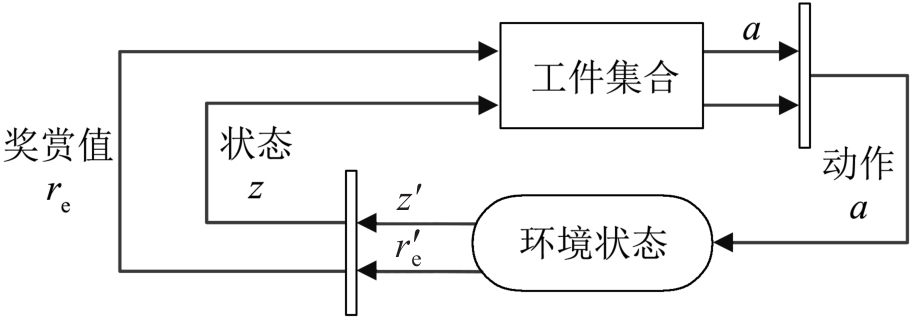

Fig. 2

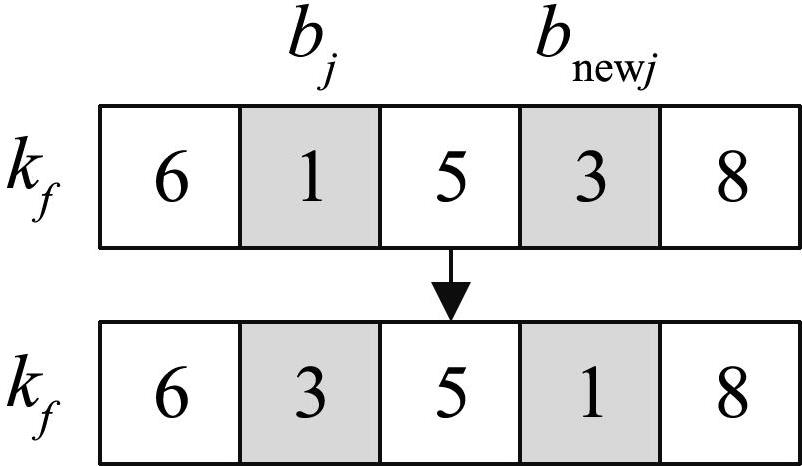

Fig. 3

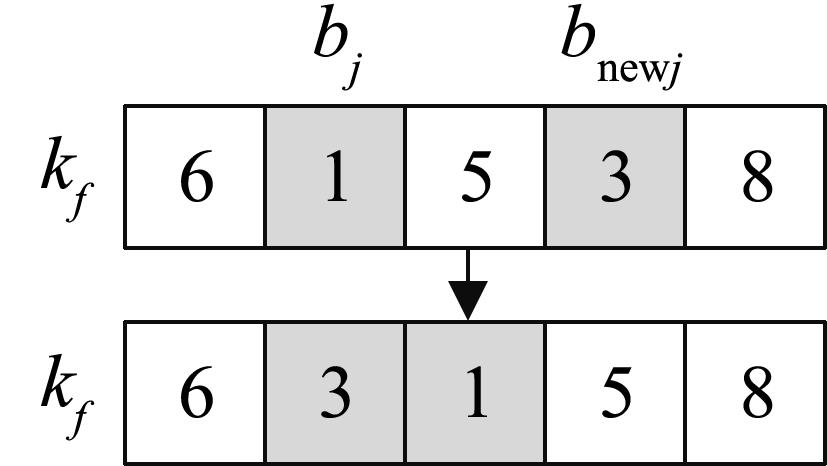

Fig. 4

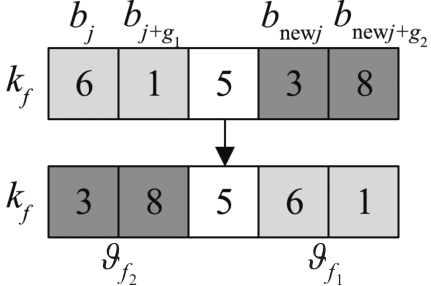

Fig. 5

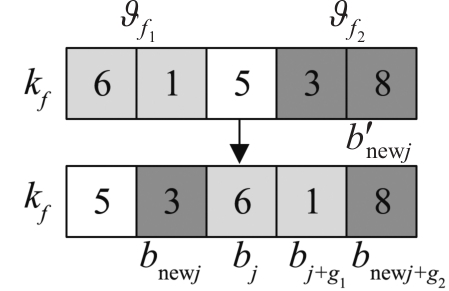

Fig. 6

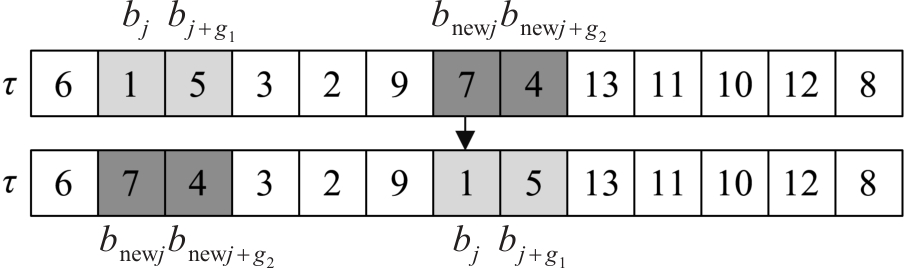

Fig. 7

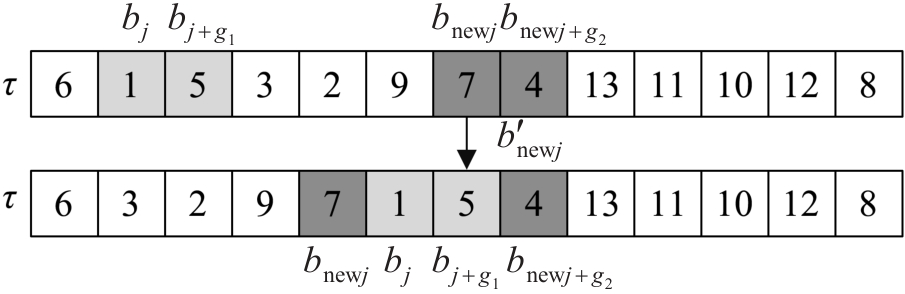

Fig. 8

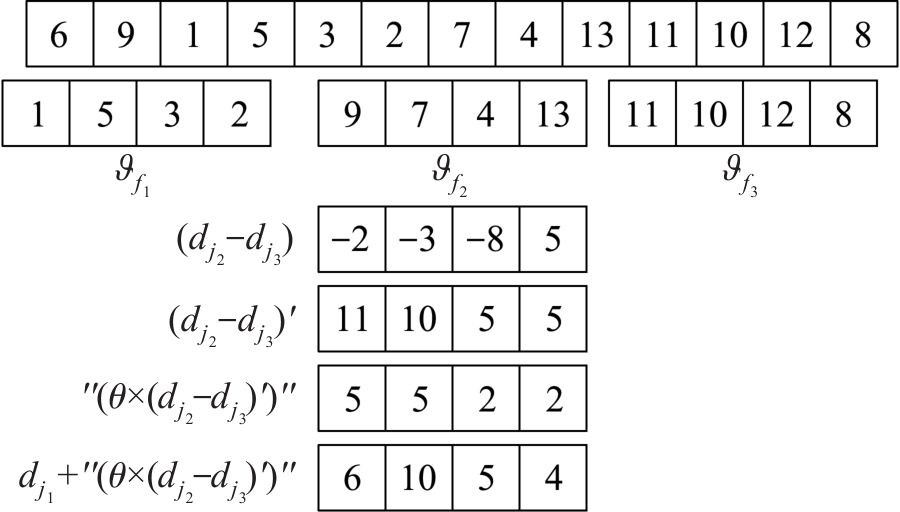

Fig. 9

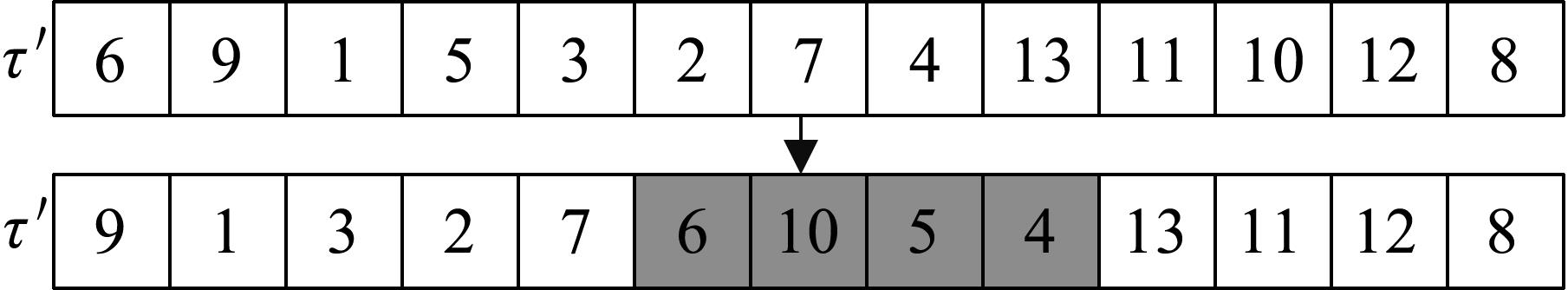

Fig. 10

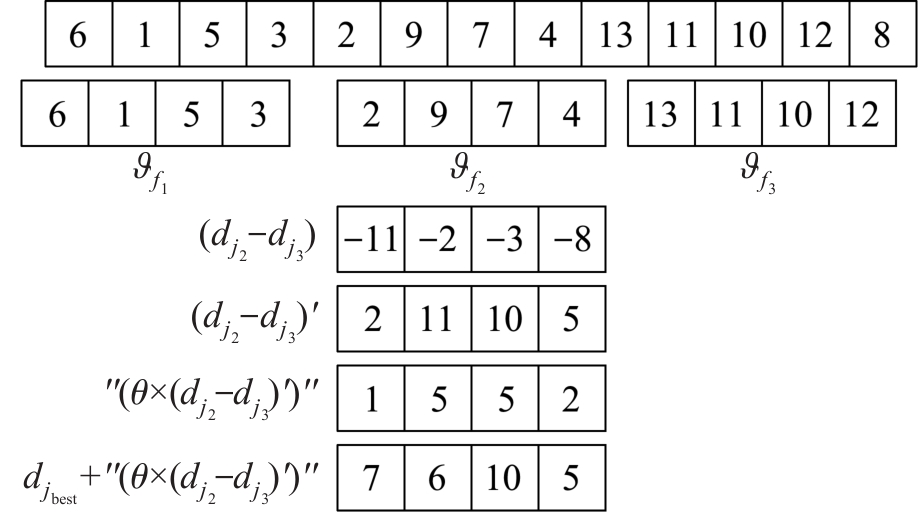

Fig. 11

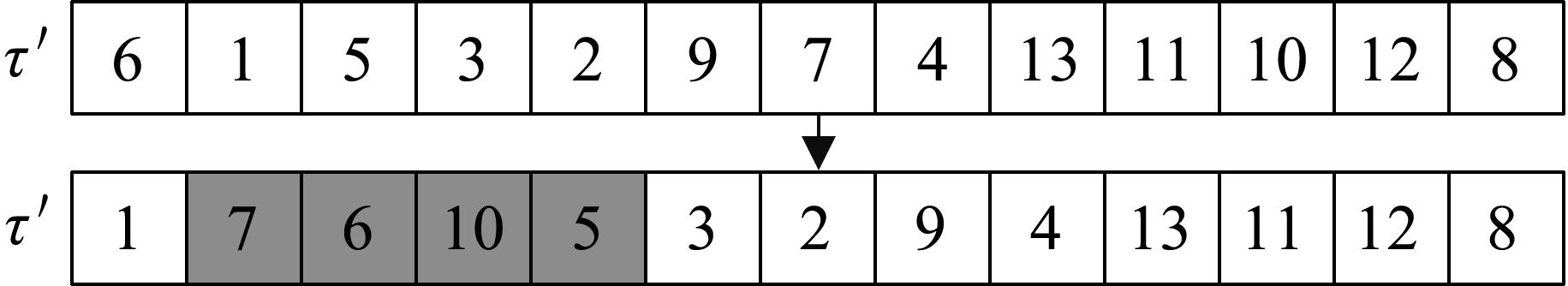

Fig. 12

Table 1

Table 2

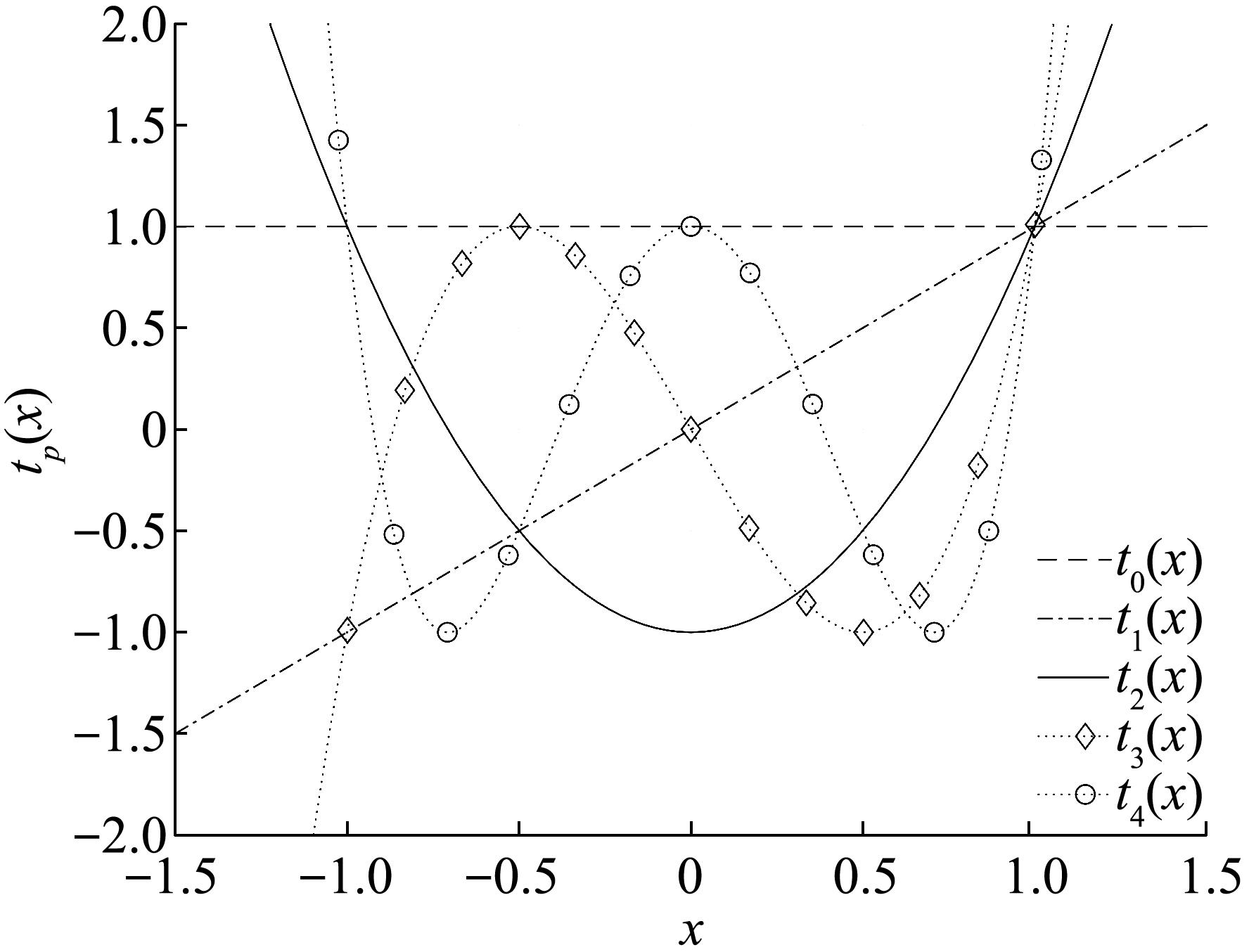

Fig. 13

Table 3

Table 4

Table 5

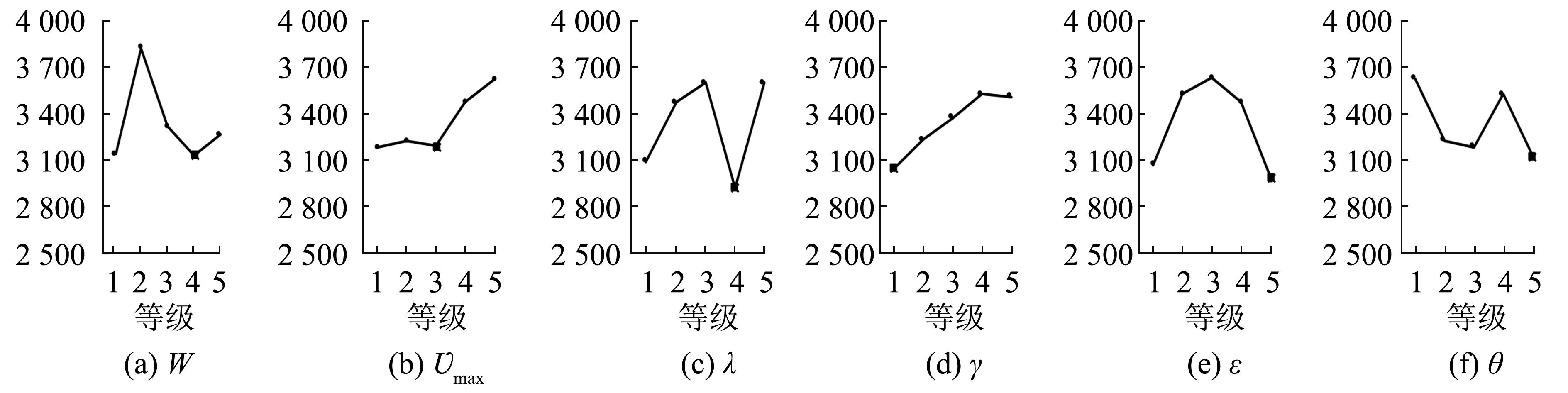

Fig. 14

Table 6

Table 7

Table 8

Table 9

Test results for medium-scale instances
