Simulation on Flood Disaster in Urban Building Complex System Based on LBM

doi:10.16182/j.issn1004731x.joss.22-FZ0930

Abstract

Abstract:

Because of the extreme climate change, the potential flood disaster risk in the southeast coastal areas of China can not be ignored. Based on lattice Boltzmann computational fluid dynamics method, a three-dimensional simulation study of waterlogging process in tsunami impact scenario is carried out for a coastal city building complex system, and the reliability and accuracy of the numerical simulation method for the flood impact test of an ideal building complex are verified. The results show that the buildings along rivers and coastlines have obvious cloaking effect, while the buildings inside the city are less affected by floods. The layout direction and spacing distribution of buildings have obvious influence on flood paths. The small-scale simulation analysis method of urban buildings under large-scale flood scenarios solves the problems that two-dimensional models can't calculate complex flow field, topography, and turbulence, and overcomes the difficulty of three-dimensional grid division of buildings. It can provide provides technical references for flood disaster emergency management and urban building planning based on urban information model.

Key words: lattice Boltzmann method(LBM), urban buildings, waterlogging disaster, computational fluid dynamics, tsunami, flooding

CLC Number:

TV131.2

Shen Zhang, Zewang Yang, Yifan Wang, Liang Sun, Ming Cheng, Fankai Meng, Ting Li. Simulation on Flood Disaster in Urban Building Complex System Based on LBM[J]. Journal of System Simulation, 2022, 34(12): 2584-2594.

Figures/Tables 12

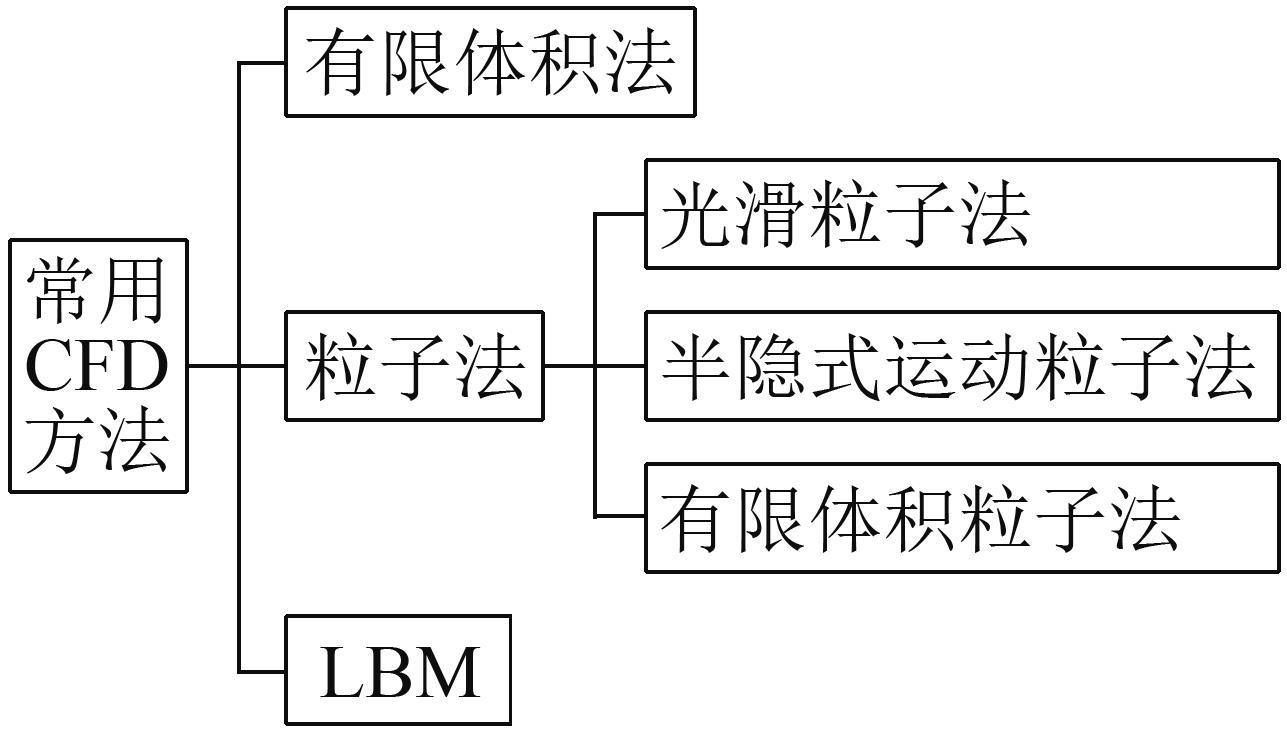

Fig. 1

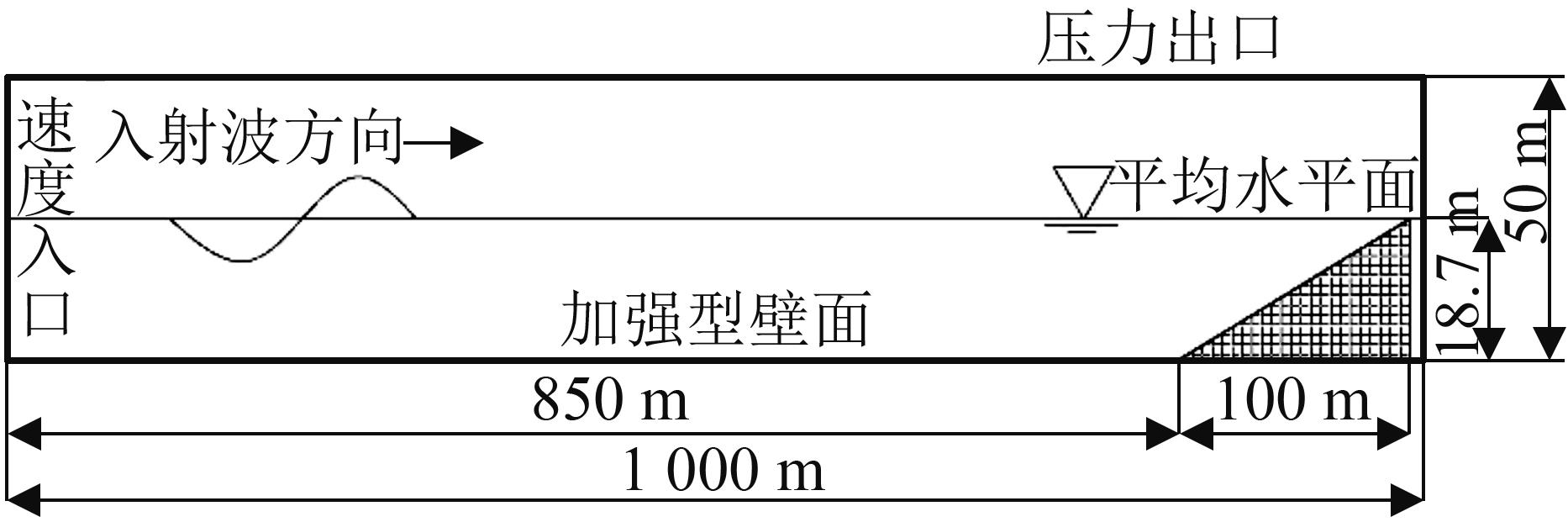

Fig. 2

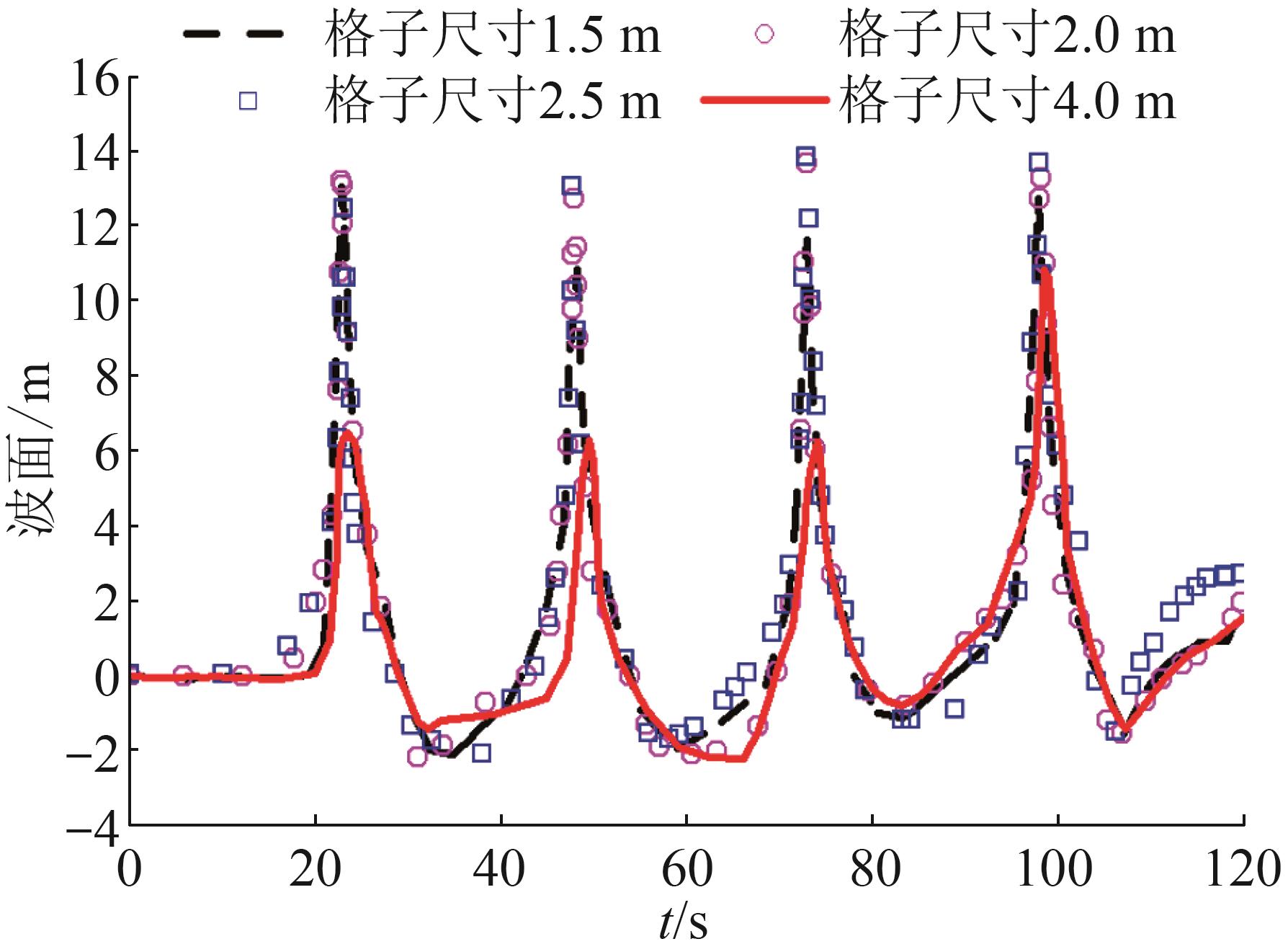

Fig. 3

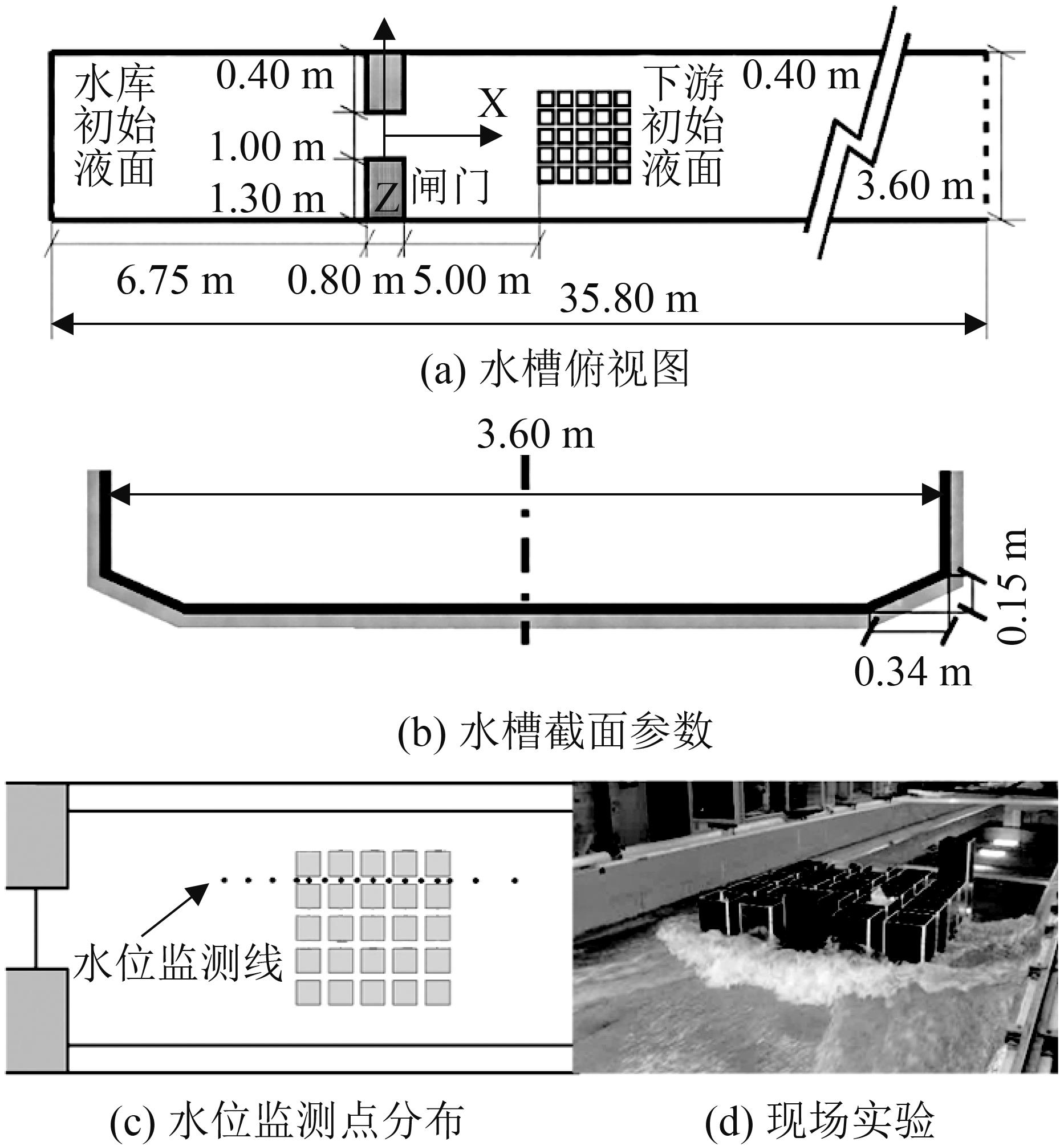

Fig. 4

Table 1

Simulation parameter setting of ideal city

参数	量值
计算模型	自由液面
壁面模型	加强型壁面
壁面粗糙度/m	$1.62 × 10 - 8$
计算控制	库朗数=1
基本格子尺寸/m	0.02
加密区格子尺寸/m	0.01

Table 1

Fig. 5

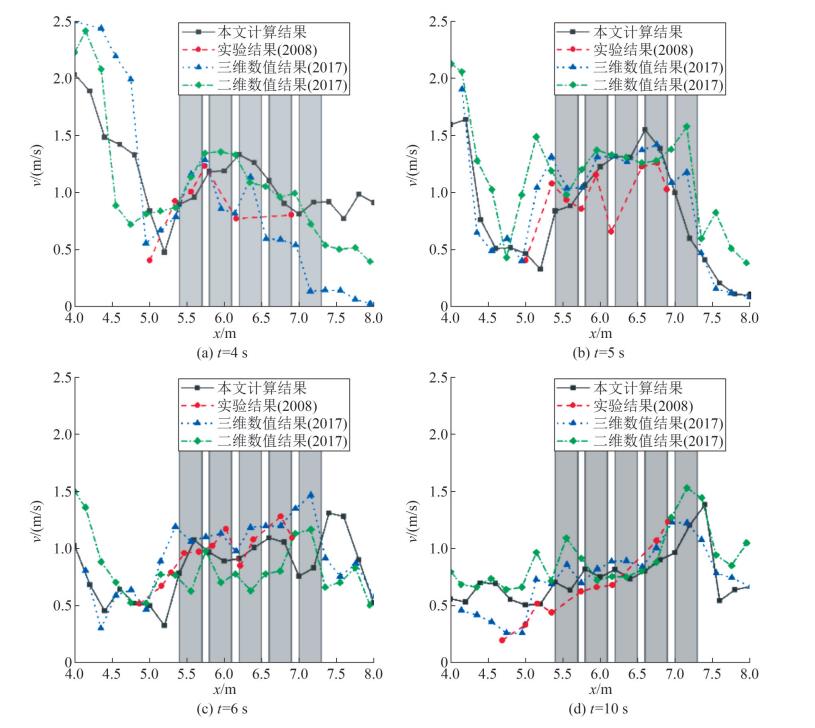

Fig. 6

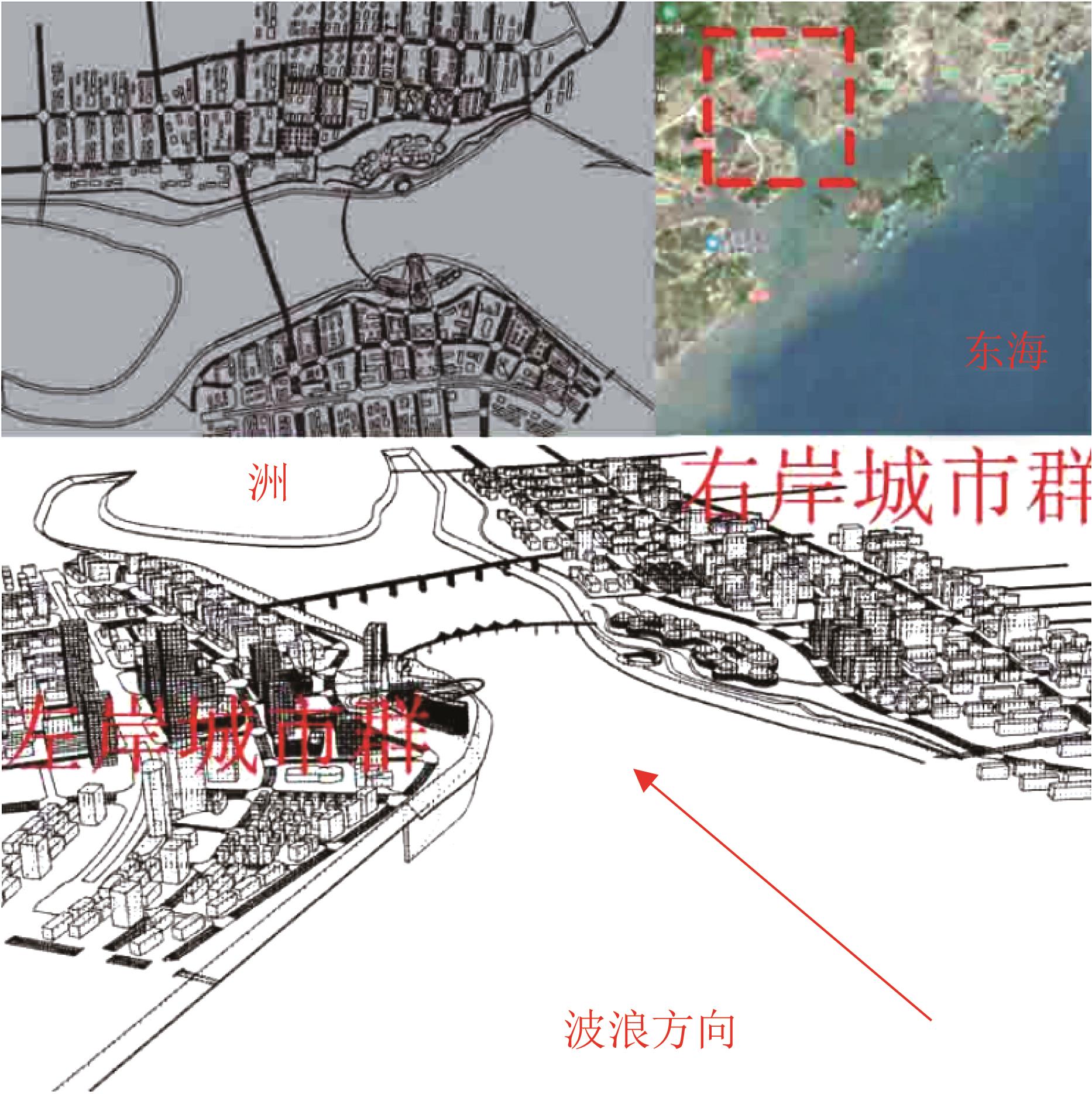

Fig. 7

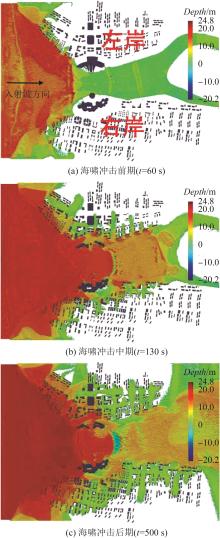

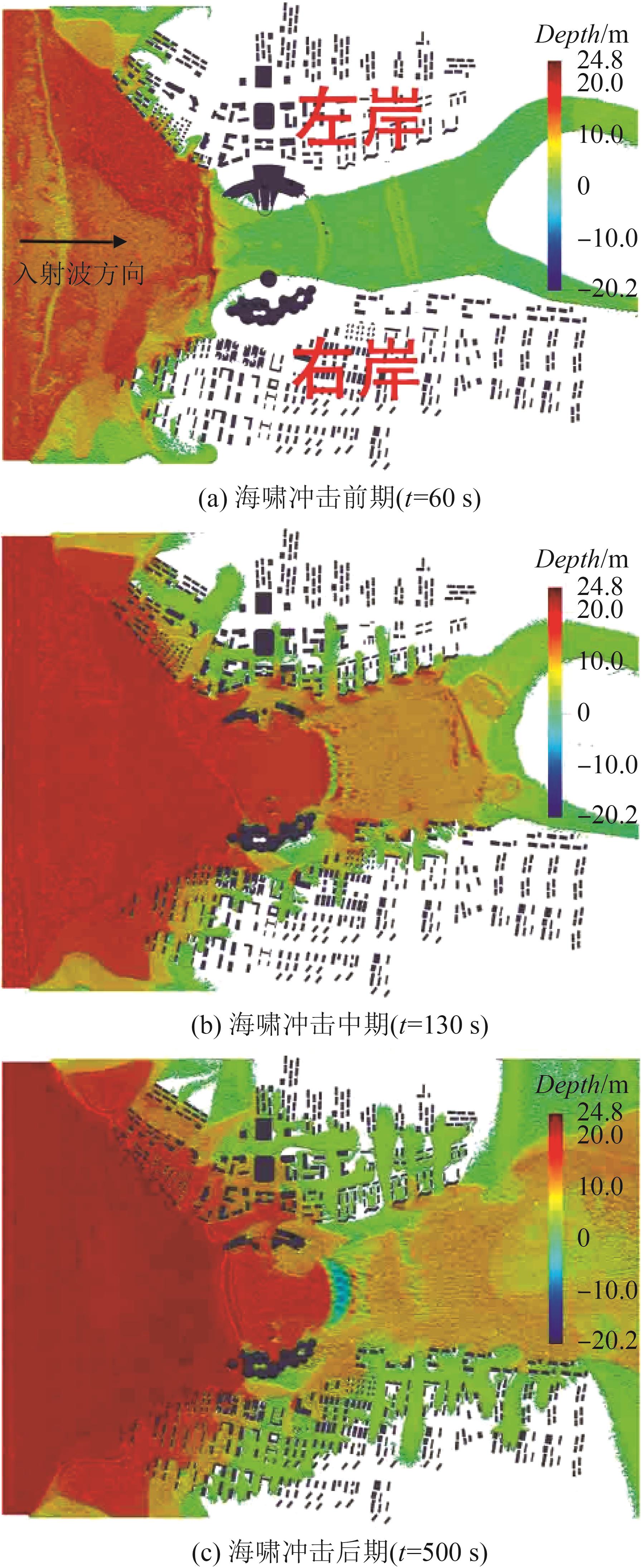

Fig. 8

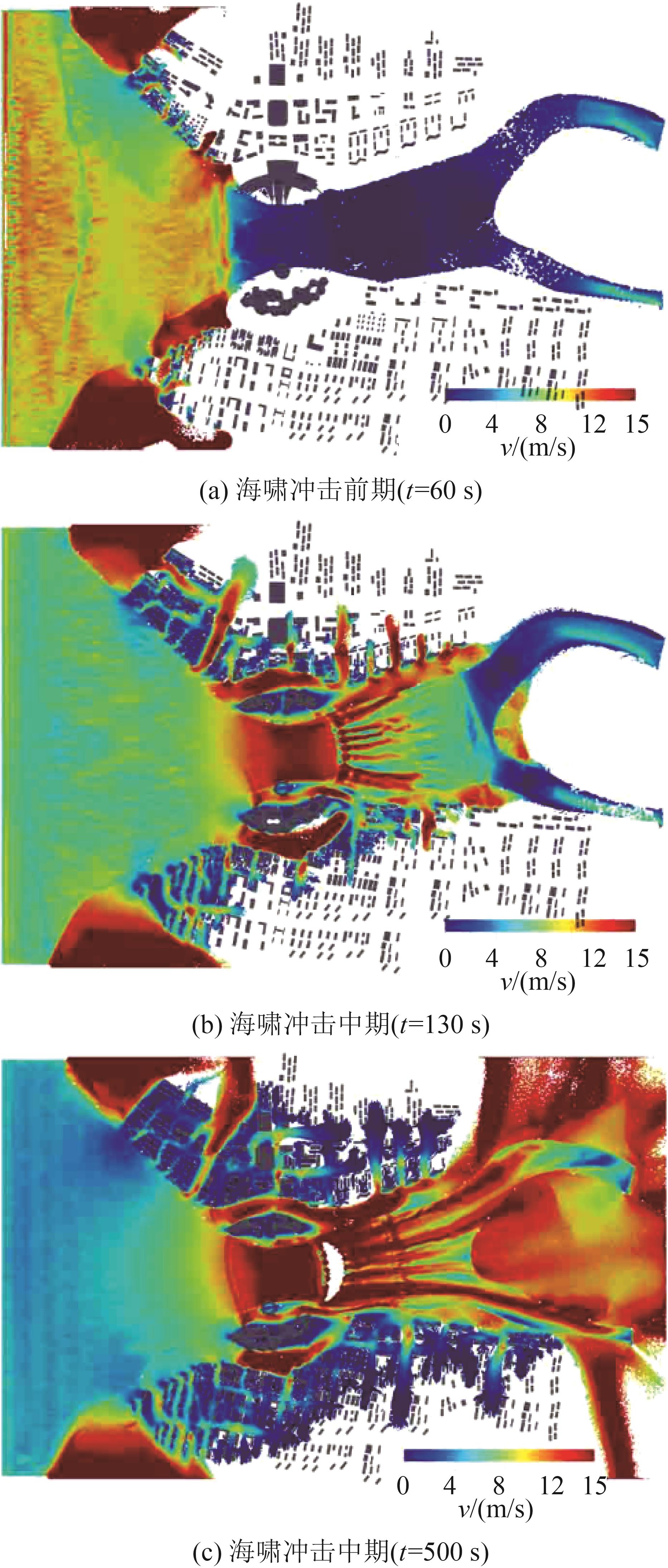

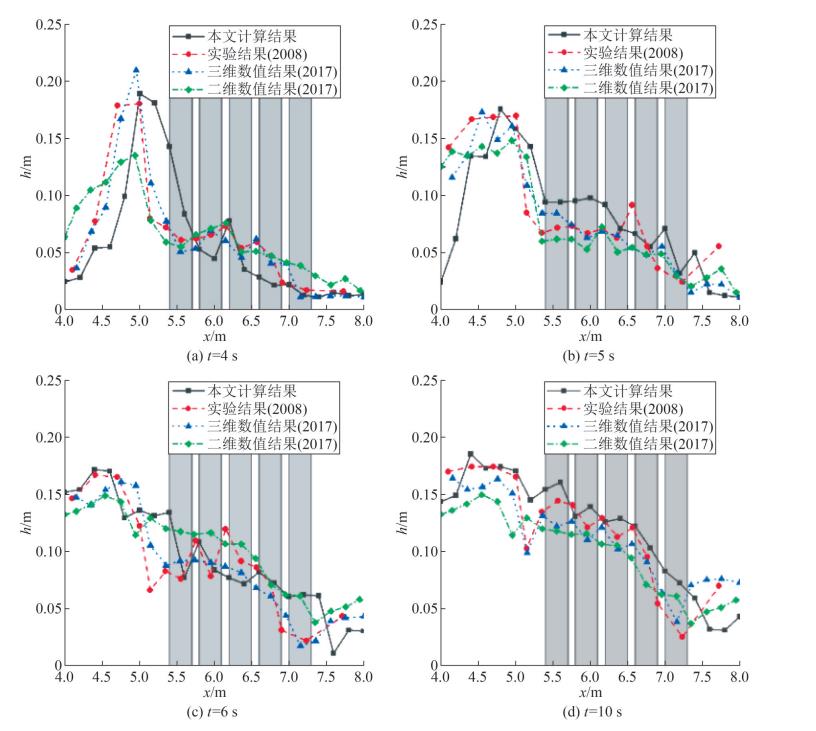

Fig. 9

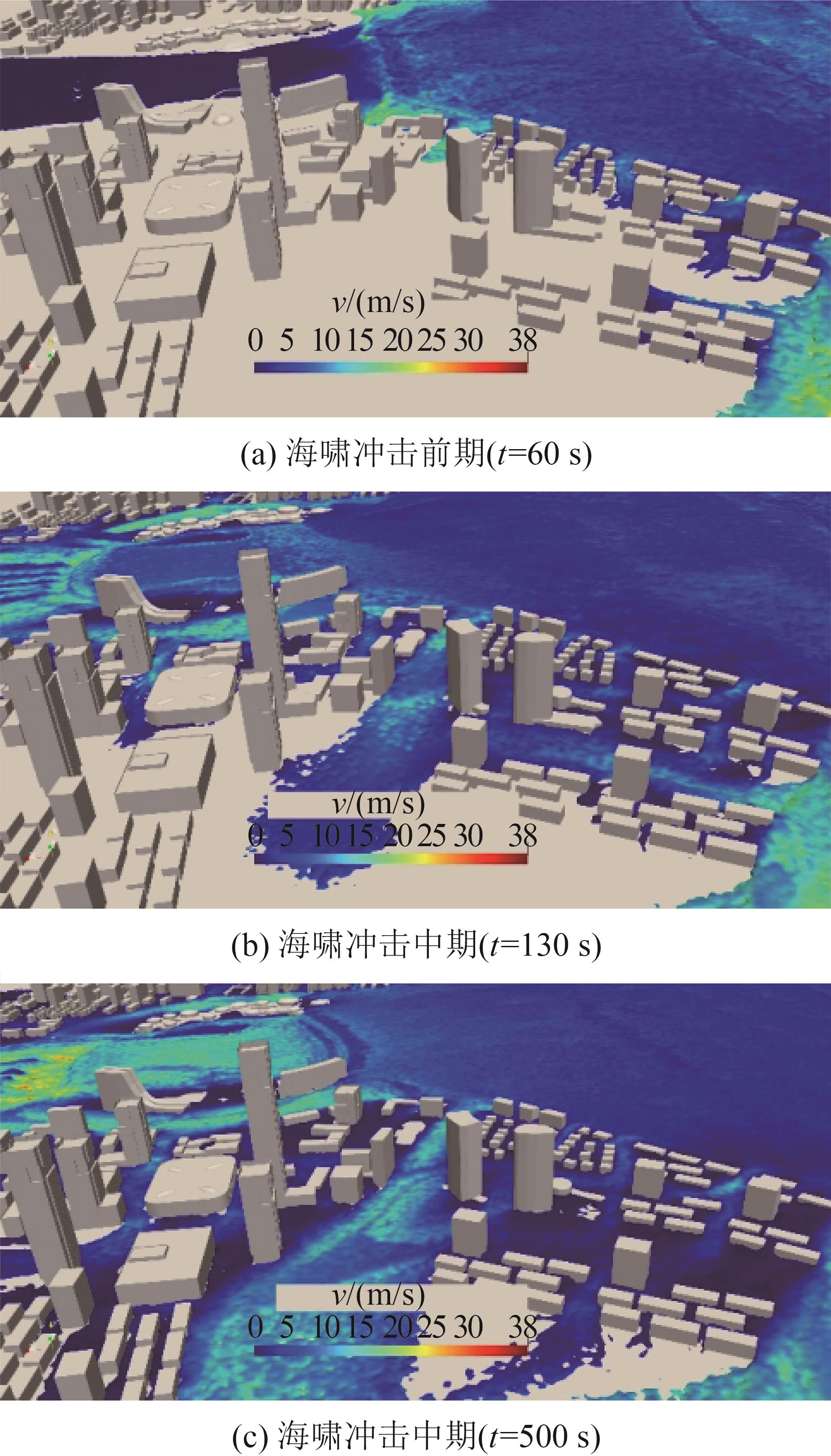

Fig. 10

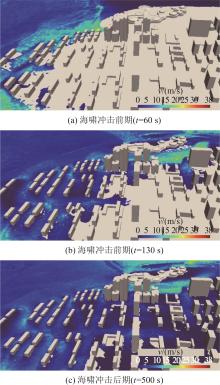

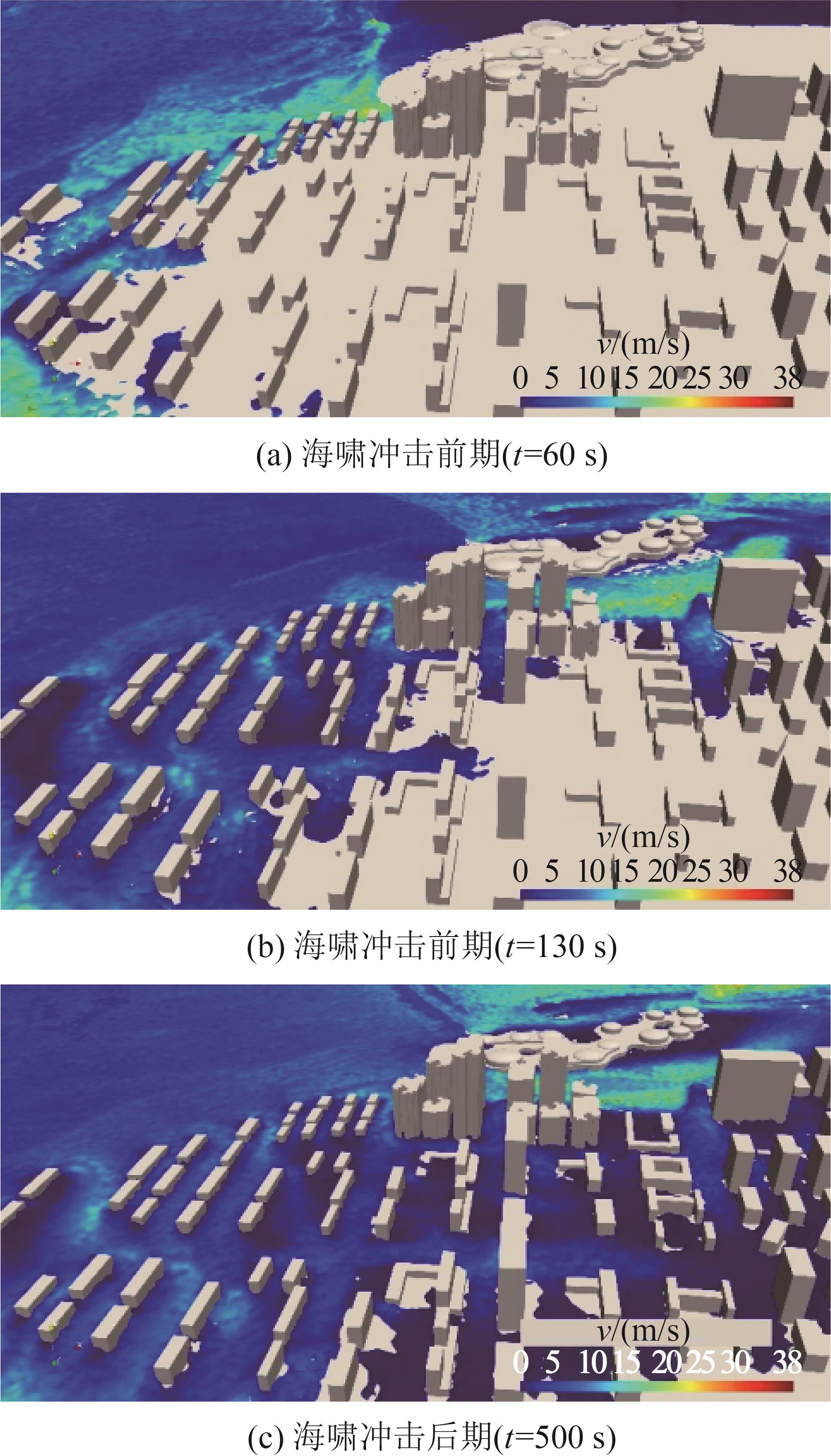

Fig. 11

References 16

1	袁绍春, 王怀鋆, 吕波, 等. 基于InfoWorks_ICM模型的山地城市老旧建筑小区海绵化改造方案设计及评估[J]. 水资源保护, 2020, 36(5): 43-49, 70.
	Yuan Shaochun, Wang Huaijun, Bo Lü, et al. Design and Evaluation of Sponge City Reconstruction Scheme for Old Building District in Mountainous City Based on InfoWorks_ICM Model[J]. Water Resources Protection, 2020, 36(5): 43-49, 70.
2	吴彦成, 丁祥, 杨利伟, 等. 基于InfoWorks ICM模型的陕西省咸阳市排水系统能力及内涝风险评估[J]. 地球科学与环境学报, 2020, 42(4): 552-559.
	Wu Yancheng, Ding Xiang, Yang Liwei, et al. Evaluation of Drainage System Capacity and Waterlogging Risk in Xianyang City of Shaanxi Province Based on InfoWorks ICM Model[J]. Journal of Earth Sciences and Environment, 2020, 42(4): 552-559.
3	Huang Minmin, Jin Shuanggen. A Methodology for Simple 2-D Inundation Analysis in Urban Area Using SWMM and GIS[J]. Natural Hazards(S0921-030X), 2019, 97(1): 15-43.
4	Nayeb Yazdi M, Ketabchy M, Sample D J, et al. An Evaluation of HSPF and SWMM for Simulating Streamflow Regimes in an Urban Watershed[J]. Environmental Modelling&Software(S1364-8152), 2019, 118: 211-225.
5	Randall M, Sun F, Zhang Y, et al. Evaluating Sponge City Volume Capture Ratio at the Catchment Scale Using SWMM[J]. Journal of Environmental Management(S0301-4797), 2019, 246: 745-757.
6	Liu J, Li Z, Shao W, et al. Urban Flood Modelling in Qiqihar City Based on MIKE Flood[J]. Proceedings of the International Association of Hydrological Sciences(S2199-8981), 2020, 383: 185-192.
7	栾震宇, 金秋, 赵思远, 等. 基于MIKE FLOOD耦合模型的城市内涝模拟[J]. 水资源保护, 2021, 37(2): 81-88.
	Luan Zhenyu, Jin Qiu, Zhao Siyuan, et al. Simulation of Urban Waterlogging Based on MIKE FLOOD Coupling Model[J]. Water Resources Protection, 2021, 37(2): 81-88.
8	荣佑同. 洪水演进三维数值模拟及建筑物防洪安全分析[D]. 天津: 天津大学, 2019.
	Rong Youtong. Three-Dimensional Numerical Simulation of Flood Propagation and Safety Evaluation of Buildings[D]. Tianjin: Tianjin University, 2019.
9	Wang X, Chen W, Zhou Z, et al. Three-Dimensional Flood Routing of a Dam Break Based on a High-Precision Digital Model of a Dense Urban Area[J]. Natural Hazards(S0921-030X), 2017, 86(3): 1147-1174.
10	Geng Yanfen, Mao Jiandong, Wang Zhili, et al. Analysis of Interaction Between Surface and Sewer Pipe System Based on Computational Fluid Dynamics[J]. Journal of Southeast University(English Edition)(S1003-7985), 2020, 36(2): 198-205.
11	张珂. 雨水口三维水动力特性数值模拟研究[D]. 西安: 西安理工大学, 2021.
	Zhang Ke. Three-Dimensional Numerical Simulation Research on Hydrodynamic Characteristics of Rainwater Inlet[D]. Xi'an: Xi'an University of Technology, 2021.
12	张宸浩, 张明亮, 柴崇顼, 等. 基于OpenFOAM波浪—植物相互作用的数值模拟研究[J]. 海洋学研究, 2022, 40(1): 42-52.
	Zhang Chenhao, Zhang Mingliang, Chai Chongxu, et al. Numerical Study of Wave-Vegetation Interaction Based on OpenFOAM Software[J]. Journal of Marine Sciences, 2022, 40(1): 42-52.
13	张力方, 张建民. SPH方法与LBM方法在溃坝水流模拟中的对比研究[J]. 中国农村水利水电, 2020(10): 236-241.
	Zhang Lifang, Zhang Jianmin. A Comparative Study of SPH and LBM Methods for Numerical Simulation of Dam-break Flow[J]. China Rural Water and Hydropower, 2020(10): 236-241.
14	Lagrava D, Brogi F, Chopard B. Palabos: Parallel Lattice Boltzmann Solver[J]. Computers & Mathematics with Applications(S0898-1221), 2021, 81: 334-350.
15	刘红军, 杨奇. 不同波浪理论下风机支撑系统的动力响应[J]. 哈尔滨工程大学学报, 2018, 39(4): 668-673.
	Liu Hongjun, Yang Qi. Dynamic Response of Wind Turbine Supporting System under Different Wave Theories[J]. Journal of Harbin Engineering University, 2018, 39(4): 668-673.
16	Soares Frazão S, Zech Y. Dam-Break Flow Through an Idealised City[J]. Journal of Hydraulic Research(S0022-1686), 2008, 46(5): 648-658.
