Dynamic Spatio-temporal Anomaly-aware Correlation Filtering Object Tracking Algorithm

doi:10.16182/j.issn1004731x.joss.22-1047

Abstract

Abstract:

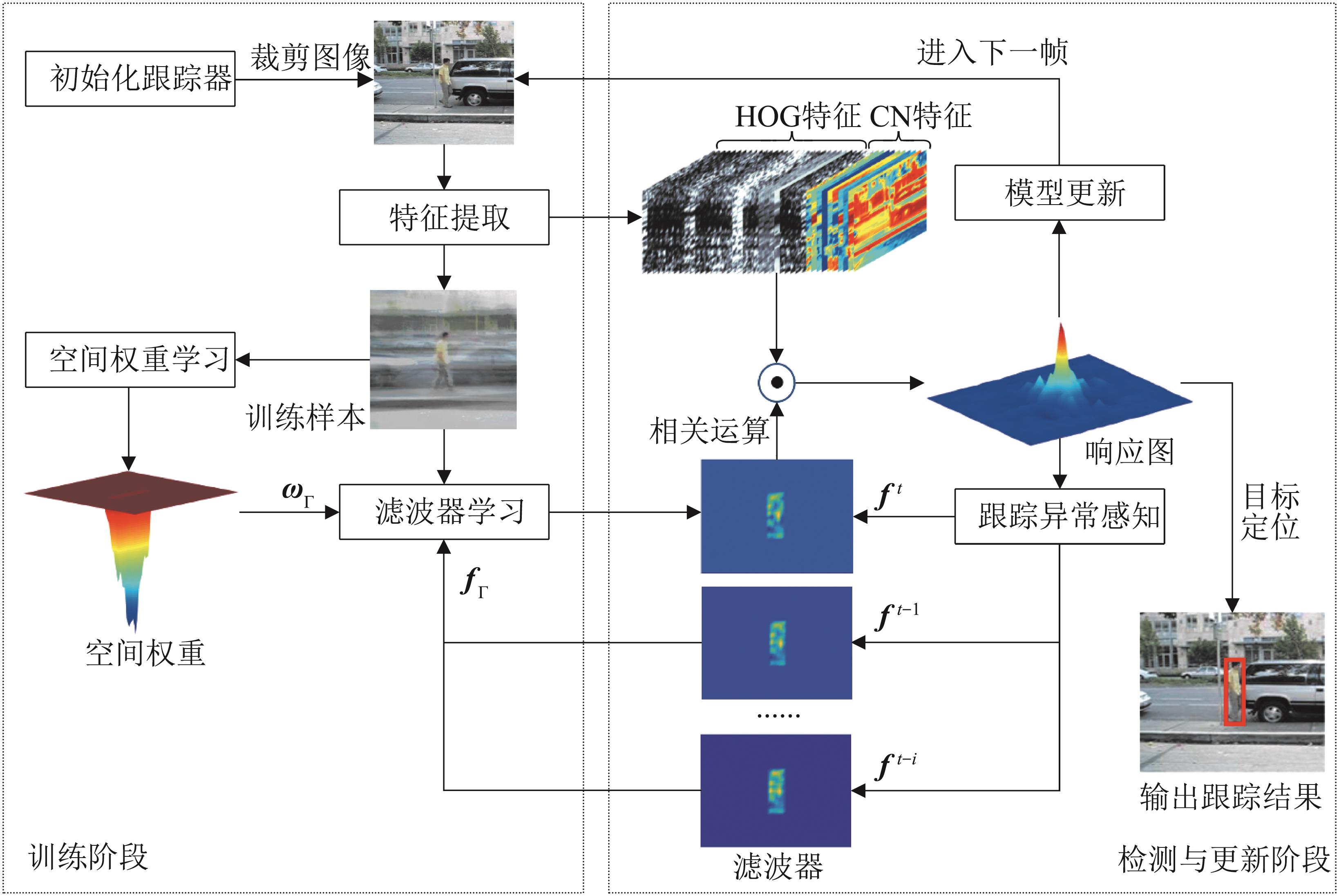

In view of the fact that the background perception algorithm does not establish a relationship with the spatio-temporal domain characteristics of the target, and cannot accurately deal with the occlusion, deformation and other abnormal tracking, a object tracking algorithm which can adaptively perceive the spatio-temporal anomalies is proposed. In the training stage of correlation filter, the adaptive spatial regularization term is introduced to establish a relationship with the spatio-temporal characteristics of sample. The abnormal perception method is proposed according to the peak value of response map. Taking advantage of the different confidence of historical filter and the continuity of target in the time domain, the historical filter with high confidence is adaptively selected as the reference template of time regularization through the abnormal perception method, which reduces the risk of filter degradation. Simulation experiments carried out on OTB50, OTB100 and TC128 test benchmarks show that the algorithm can adapt to the tracking tasks under complex scenarios such as appearance changes and messy pictures, and has strong robustness and practicability.

Key words: object tracking, correlation filter, abnormal perception, filter degradation, adaptive spatio-temporal regularization

CLC Number:

TP391.4

Qiu Yunfei, Bu Xiangrui, Zhang Boqiang. Dynamic Spatio-temporal Anomaly-aware Correlation Filtering Object Tracking Algorithm[J]. Journal of System Simulation, 2024, 36(2): 338-351.

Figures/Tables 10

Fig. 1

Table 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Table 2

Table 3

Fig. 6

Table 4

References 28

1	孟晓燕, 段建民. 基于相关滤波的目标跟踪算法研究综述[J]. 北京工业大学学报, 2020, 46(12): 1393-1416.
	Meng Xiaoyan, Duan Jianmin. Advances in Correlation Filter-based Object Tracking Algorithms: A Review[J]. Journal of Beijing University of Technology, 2020, 46(12): 1393-1416.
2	张可, 杨灿坤, 周春平, 等. 无人机视频图像运动目标检测算法综述[J]. 液晶与显示, 2019, 34(1): 98-109.
	Zhang Ke, Yang Cankun, Zhou Chunping, et al. Review of Moving Target Detection Algorithms for UAV Video Images[J]. Chinese Journal of Liquid Crystals and Displays, 2019, 34(1): 98-109.
3	常立博, 杜慧敏, 毛智礼, 等. 面向视频监控的TLD改进目标跟踪算法研究[J]. 计算机工程与应用, 2018, 54(14): 191-198.
	Chang Libo, Du Huimin, Mao Zhili, et al. Research on TLD Improved Target Tracking Algorithm for Video Surveillance[J]. Computer Engineering and Applications, 2018, 54(14): 191-198.
4	G S Amorim Thulio, Souto Leonardo A, P Do Nascimento Tiago, et al. Multi-robot Sensor Fusion Target Tracking with Observation Constraints[J]. IEEE Access, 2021, 9: 52557-52568.
5	刘艺, 李蒙蒙, 郑奇斌, 等. 视频目标跟踪算法综述[J]. 计算机科学与探索, 2022, 16(7): 1504-1515.
	Liu Yi, Li Mengmeng, Zheng Qibin, et al. Survey on Video Object Tracking Algorithms[J]. Journal of Frontiers of Computer Science & Technology, 2022, 16(7): 1504-1515.
6	孟琭, 杨旭. 目标跟踪算法综述[J]. 自动化学报, 2019, 45(7): 1244-1260.
	Meng Lu, Yang Xu. A Survey of Object Tracking Algorithms[J]. Acta Automatica Sinica, 2019, 45(7): 1244-1260.
7	柳有权, 裴雪, 李婉, 等. 基于邻近目标置信度评估的视觉目标跟踪与定位[J]. 系统仿真学报, 2020, 32(7): 1294-1300.
	Liu Youquan, Pei Xue, Li Wan, et al. Visual Tracking and Localization Based on Confidence Evaluation of Adjacent Targets[J]. Journal of System Simulation, 2020, 32(7): 1294-1300.
8	王科平, 朱朋飞, 杨艺. 双重背景感知相关滤波算法[J]. 传感器与微系统, 2021, 40(5): 154-156, 160.
	Wang Keping, Zhu Pengfei, Yang Yi. Dual Background-aware Correlation Filtering Algorithm[J]. Transducer and Microsystem Technologies, 2021, 40(5): 154-156, 160.
9	彭子通. 基于深度学习的抗遮挡目标跟踪技术研究[D]. 成都: 电子科技大学, 2022.
	Peng Zitong. Anti-occlusion Object Tracking Based on Deep Learning[D]. Chengdu: University of Electronic Science and Technology, 2022.
10	Li Yang, Zhang Yafei, Xu Yulong, et al. Robust Scale Adaptive Kernel Correlation Filter Tracker with Hierarchical Convolutional Features[J]. IEEE Signal Processing Letters, 2016, 23(8): 1136-1140.
11	张思贤, 杨艺, 张猛, 等. 高效的多特征自适应相关滤波跟踪器[J]. 系统仿真学报, 2022, 34(8): 1864-1873.
	Zhang Sixian, Yang Yi, Zhang Meng, et al. An Efficient Tracker via Multi-feature Adaptive Correlation Filter[J]. Journal of System Simulation, 2022, 34(8): 1864-1873.
12	Bolme D S, Beveridge J R, Draper B A, et al. Visual Object Tracking Using Adaptive Correlation Filters[C]//2010 IEEE Computer Society Conference on Computer Vision and Pattern Recognition. Piscataway, NJ, USA: IEEE, 2010: 2544-2550.
13	Henriques João F, Rui Caseiro, Martins Pedro, et al. High-speed Tracking with Kernelized Correlation Filters[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2015, 37(3): 583-596.
14	Li Yang, Zhu Jianke. A Scale Adaptive Kernel Correlation Filter Tracker with Feature Integration[C]//Computer Vision-ECCV 2014 Workshops. Cham: Springer International Publishing, 2015: 254-265.
15	Danelljan Martin, Häger Gustav, Fahad Shahbaz Khan, et al. Accurate Scale Estimation for Robust Visual Tracking[C]//Proceedings of the British Machine Vision Conference 2014. [S.l.]: [s.n.], 2014: 65.1-65.11.
16	Dalal N, Triggs B. Histograms of Oriented Gradients for Human Detection[C]//2005 IEEE Computer Society Conference on Computer Vision and Pattern Recognition (CVPR'05). Piscataway, NJ, USA: IEEE, 2005: 886-893.
17	Danelljan Martin, Fahad Shahbaz Khan, Felsberg Michael, et al. Adaptive Color Attributes for Real-time Visual Tracking[C]//2014 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway, NJ, USA: IEEE, 2014: 1090-1097.
18	Bertinetto L, Valmadre J, Golodetz S, et al. Staple: Complementary Learners for Real-time Tracking[C]//2016 IEEE Conference on Computer Vision and Pattern Recognition (CVPR). Piscataway, NJ, USA: IEEE, 2016: 1401-1409.
19	Hamed Kiani Galoogahi, Sim Terence, Lucey S. Correlation Filters with Limited Boundaries[C]//2015 IEEE Conference on Computer Vision and Pattern Recognition (CVPR). Piscataway, NJ, USA: IEEE, 2015: 4630-4638.
20	Danelljan Martin, Häger Gustav, Fahad Shahbaz Khan, et al. Learning Spatially Regularized Correlation Filters for Visual Tracking[C]//2015 IEEE International Conference on Computer Vision (ICCV). Piscataway, NJ, USA: IEEE, 2015: 4310-4318.
21	Galoogahi H K, Fagg Ashton, Lucey S. Learning Background-aware Correlation Filters for Visual Tracking[C]//2017 IEEE International Conference on Computer Vision (ICCV). Piscataway, NJ, USA: IEEE, 2017: 1144-1152.
22	Dai Kenan, Wang Dong, Lu Huchuan, et al. Visual Tracking via Adaptive Spatially-regularized Correlation Filters[C]//2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). Piscataway, NJ, USA: IEEE, 2019: 4665-4674.
23	Li Feng, Tian Cheng, Zuo Wangmeng, et al. Learning Spatial-temporal Regularized Correlation Filters for Visual Tracking[C]//2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway, NJ, USA: IEEE, 2018: 4904-4913.
24	Wu Yi, Lim Jongwoo, Yang M H. Online Object Tracking: A Benchmark[C]//2013 IEEE Conference on Computer Vision and Pattern Recognition. Piscataway, NJ, USA: IEEE, 2013: 2411-2418.
25	Wu Yi, Lim Jongwoo, Yang M H. Object Tracking Benchmark[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2015, 37(9): 1834-1848.
26	Liang Pengpeng, Blasch E, Ling Haibin. Encoding Color Information for Visual Tracking: Algorithms and Benchmark[J]. IEEE Transactions on Image Processing, 2015, 24(12): 5630-5644.
27	Li Yiming, Fu Changhong, Ding Fangqiang, et al. AutoTrack: Towards High-performance Visual Tracking for UAV with Automatic Spatio-temporal Regularization[C]//2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). Piscataway, NJ, USA: IEEE, 2020: 11920-11929.
28	Huang Ziyuan, Fu Changhong, Li Yiming, et al. Learning Aberrance Repressed Correlation Filters for Real-time UAV Tracking[C]//2019 IEEE/CVF International Conference on Computer Vision (ICCV). Piscataway, NJ, USA: IEEE, 2019: 2891-2900.

属性	说明
BC	目标邻近区域杂乱
DEF	目标外观改变
FM	快速运动
IPR	面内旋转
IV	光照变化
LR	低分辨率
MB	运动模糊
OCC	遮挡
OPR	面外旋转
OV	超出视野
SV	尺度变化

属性	Ours	ARCF	AutoTrack	BACF	DSST	KCF	SRDCF	STRCF	Staple
BC	0.856	0.820	0.758	0.830	0.704	0.713	0.748	0.870	0.684
DEF	0.833	0.785	0.737	0.773	0.547	0.691	0.723	0.781	0.644
FM	0.783	0.755	0.769	0.808	0.576	0.622	0.725	0.810	0.575
IPR	0.802	0.783	0.779	0.795	0.702	0.701	0.719	0.825	0.670
IV	0.815	0.793	0.784	0.826	0.722	0.724	0.757	0.848	0.685
LR	0.741	0.710	0.763	0.739	0.602	0.560	0.662	0.758	0.592
MB	0.808	0.750	0.759	0.766	0.575	0.601	0.714	0.803	0.571
OCC	0.804	0.738	0.728	0.740	0.601	0.632	0.710	0.776	0.628
OPR	0.842	0.777	0.759	0.787	0.659	0.677	0.743	0.811	0.640
OV	0.784	0.623	0.703	0.765	0.478	0.501	0.554	0.735	0.558
SV	0.826	0.762	0.746	0.771	0.644	0.635	0.739	0.819	0.665

属性	Ours	ARCF	AutoTrack	BACF	DSST	KCF	SRDCF	STRCF	Staple
BC	0.655	0.624	0.563	0.625	0.523	0.498	0.585	0.665	0.515
DEF	0.612	0.590	0.557	0.581	0.426	0.438	0.542	0.573	0.484
FM	0.617	0.582	0.594	0.606	0.461	0.459	0.574	0.630	0.459
IPR	0.596	0.572	0.560	0.584	0.508	0.469	0.533	0.604	0.493
IV	0.650	0.622	0.603	0.642	0.560	0.482	0.603	0.662	0.529
LR	0.544	0.503	0.537	0.530	0.395	0.307	0.497	0.545	0.390
MB	0.643	0.594	0.600	0.585	0.474	0.459	0.574	0.628	0.454
OCC	0.617	0.564	0.551	0.574	0.459	0.445	0.547	0.595	0.484
OPR	0.628	0.570	0.551	0.584	0.480	0.453	0.552	0.604	0.473
OV	0.599	0.479	0.533	0.552	0.386	0.393	0.434	0.561	0.430
SV	0.625	0.563	0.548	0.575	0.473	0.395	0.560	0.611	0.490

算法	跟踪速度	算法	跟踪速度
Ours	29.04	BACF	34.89
STRCF	32.36	ARCF	30.78
DSST	93.09	Staple	65.59
SRDCF	6.89	AutoTrack	31.42
KCF	478.91
