Control of Quadruped Robot Based on Impedance and Virtual Model

doi:10.16182/j.issn1004731x.joss.21-0532

Abstract

Abstract:

In order to improve the motion stability of quadruped robot, a control method based on impedance and virtual model is proposed. The force-based impedance control method is used to control the leg swing phase to realize the more accurate trajectory tracking and leg compliance control. The virtual model control method is used to control the support phase to realize the attitude control of the robot body and the stable walking of the quadruped robot. Combined with the lateral stride strategy and the yaw angle control strategy based on virtual model, a robot anti-lateral impact control method is proposed, which ensures that the quadruped robot maintains balance and resumes its motion state after being subjected to lateral impact. The simulation results verify the effectiveness of the proposed control method.

Key words: quadruped robot, impedance control, virtual model control, lateral impact, balance recovery strategy

CLC Number:

TP242

Chikun Gong, Xunwei Wu, Lipeng Yuan. Control of Quadruped Robot Based on Impedance and Virtual Model[J]. Journal of System Simulation, 2022, 34(10): 2152-2161.

Figures/Tables 14

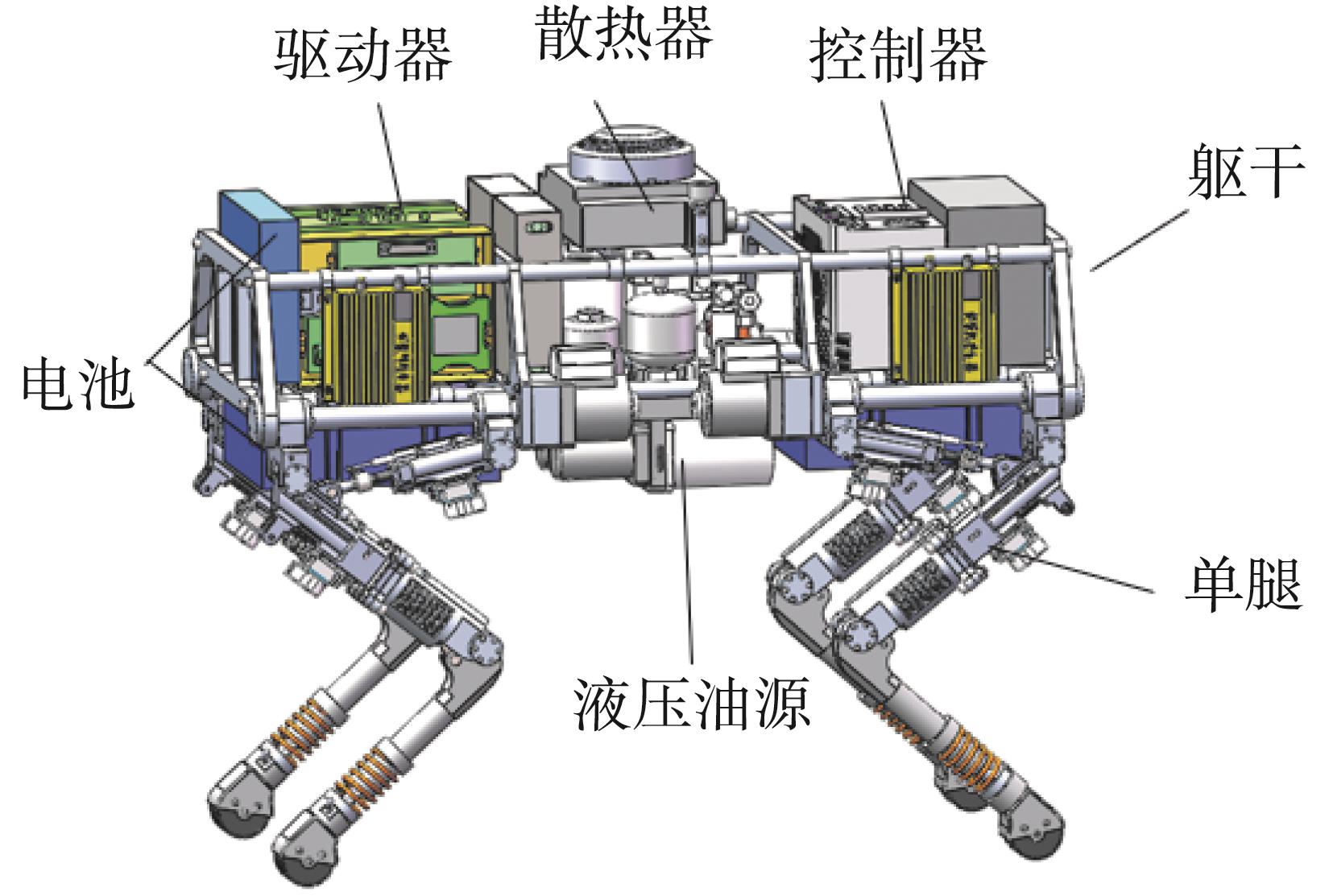

Fig. 1

Table 1

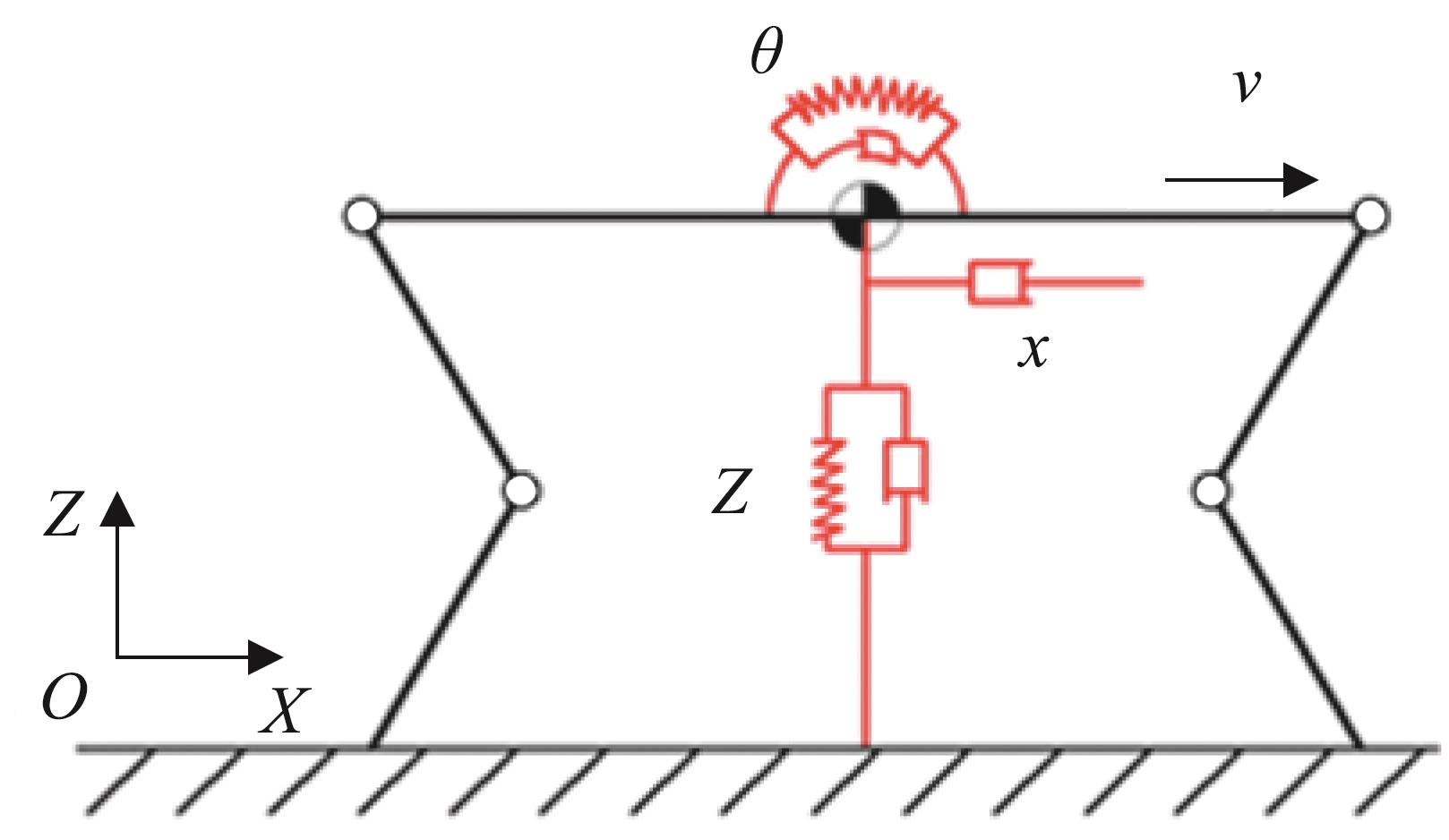

Fig. 2

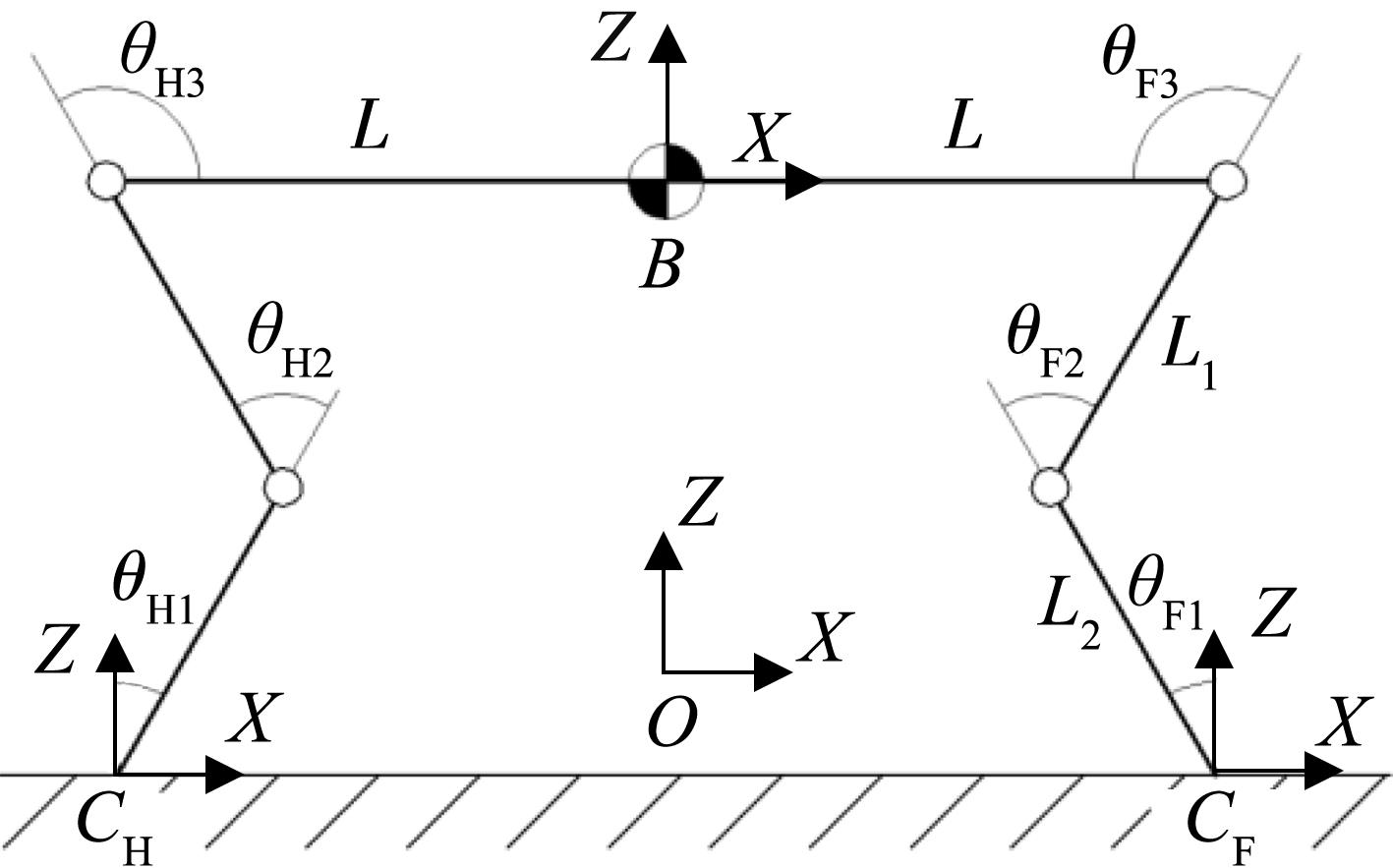

Fig. 3

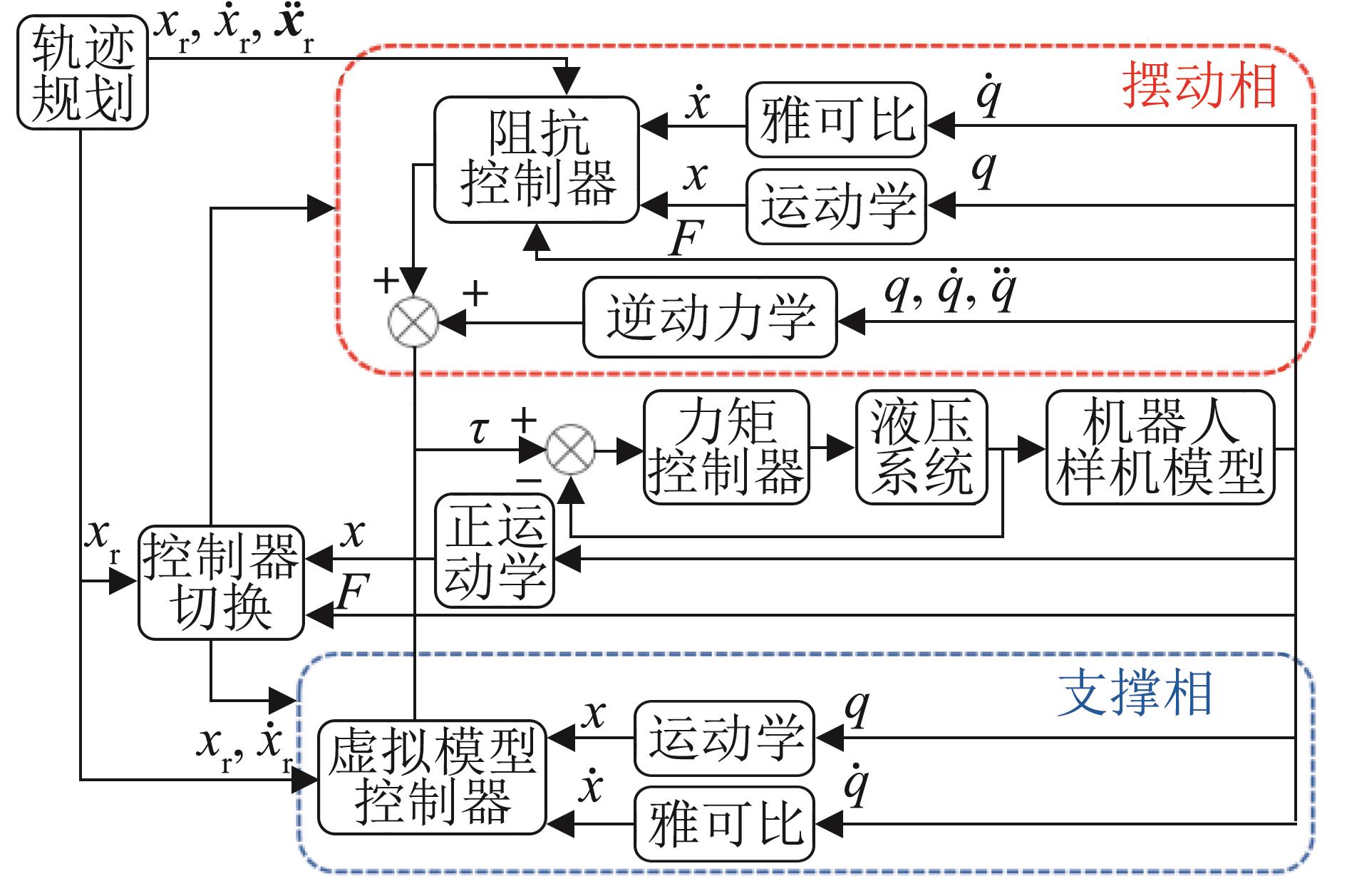

Fig. 4

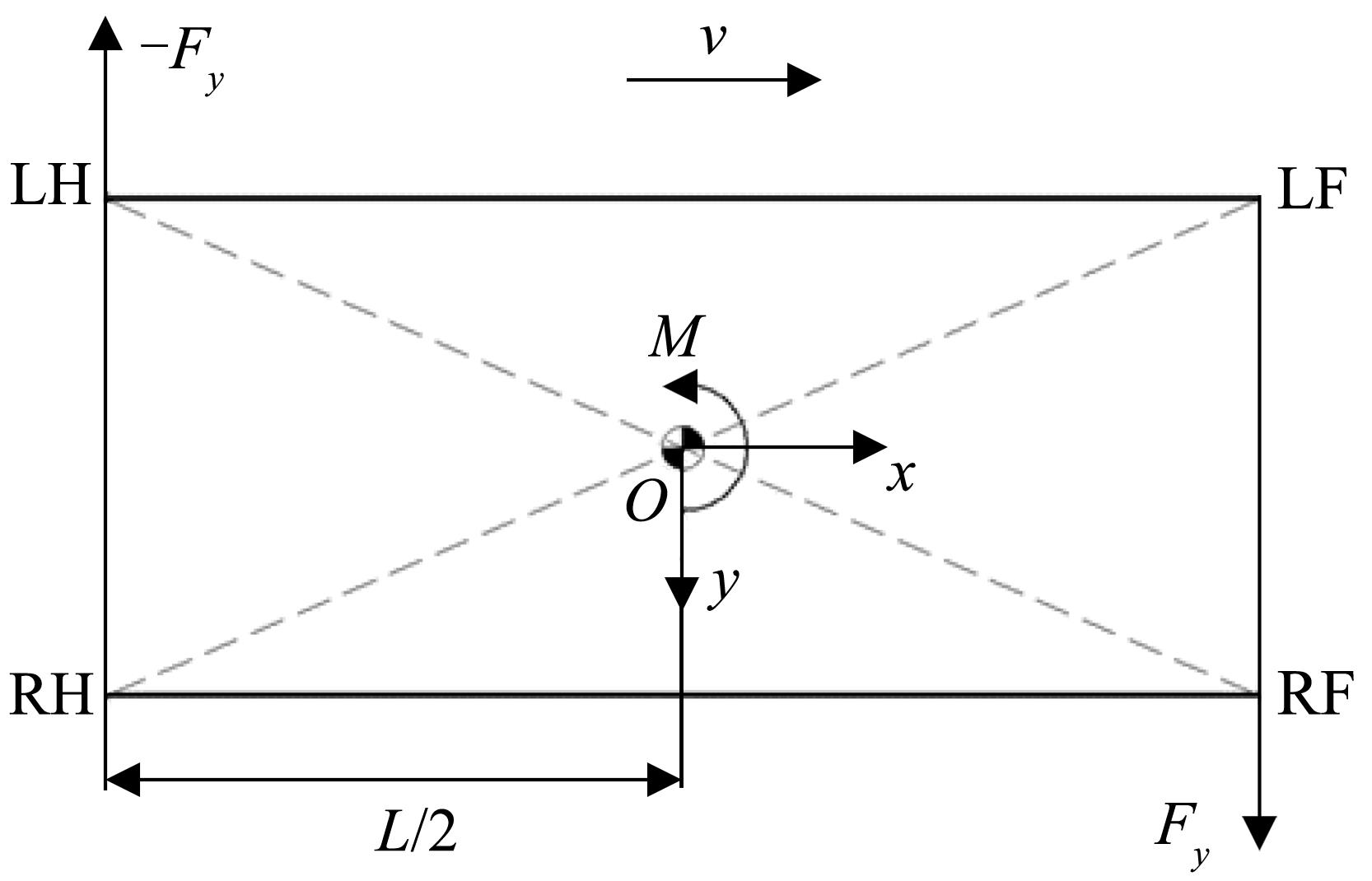

Fig. 5

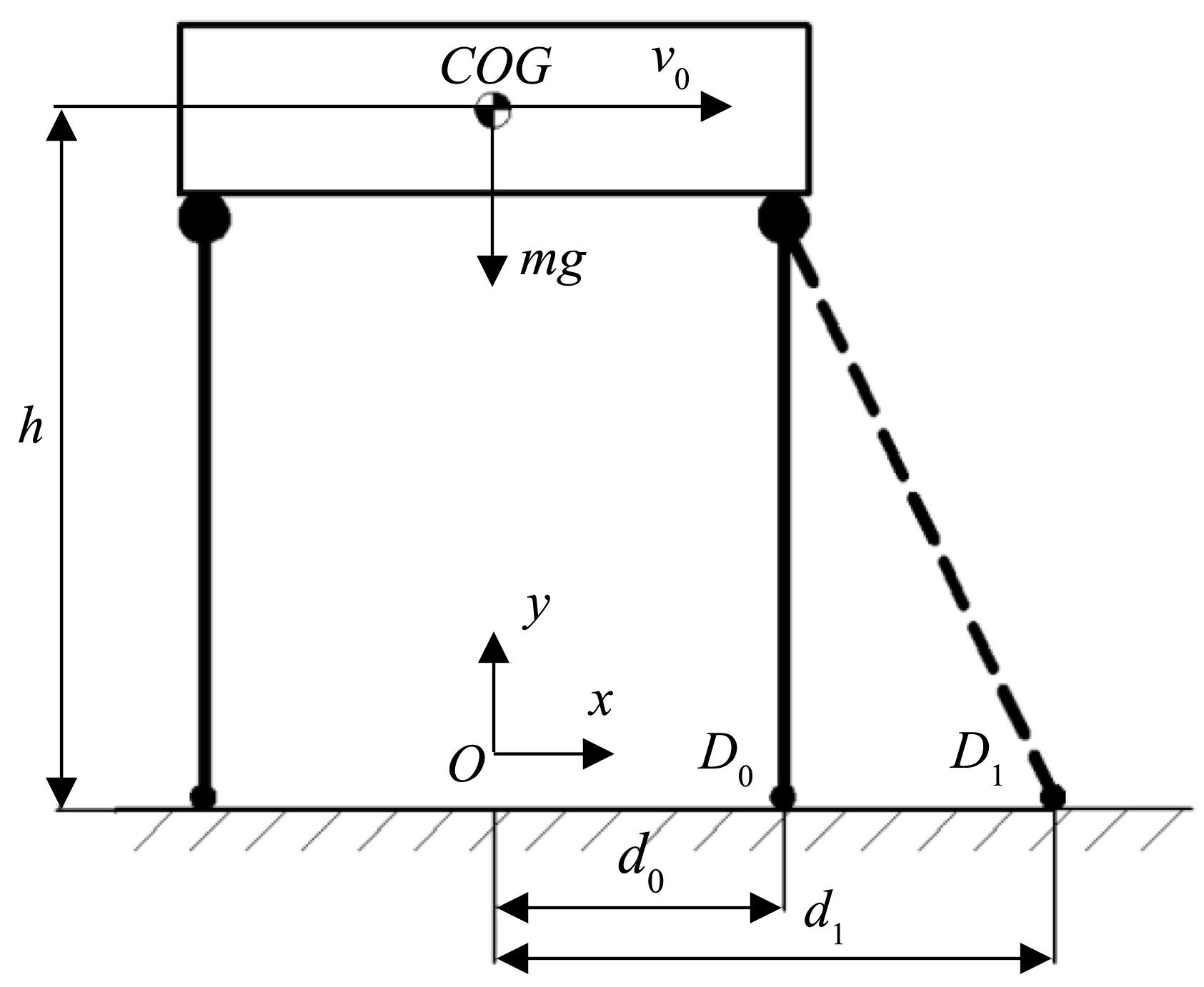

Fig. 6

Table 2

Simulation parameters

参数	数值
足端与地面接触刚度/(N/mm)	2 855
机器人与地面摩擦因数	0.35
步态周期/s	0.5
控制频率/Hz	250
$M d$ /kg	10
$B d$ /(N/(m·s^-1))	[800, 800]
$K d$ /(N/m)	[5 000, 4 000]
$K x$ /(N/m)	0
$K Z$ /(N/m)	7 000
$K θ$ /(N·m/rad)	8 000
$B x$ /(N/(m·s^-1))	1 000
$B Z$ /(N/(m·s^-1))	800
$B θ$ /(N·m/(rad·s^-1))	800
$K φ$ /(N·m/rad)	6 000
$B φ$ /(N·m/(rad·s^-1))	500

Table 2

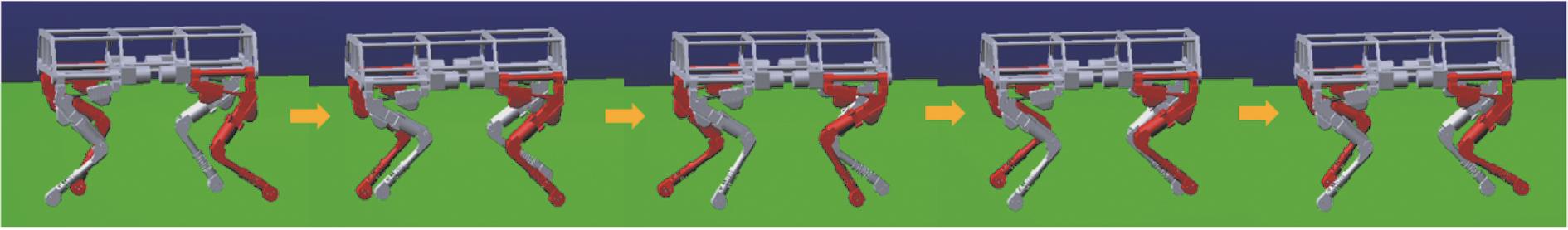

Fig. 7

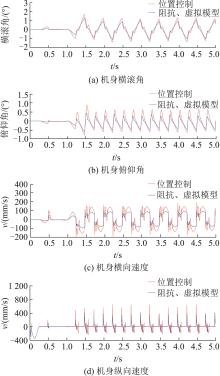

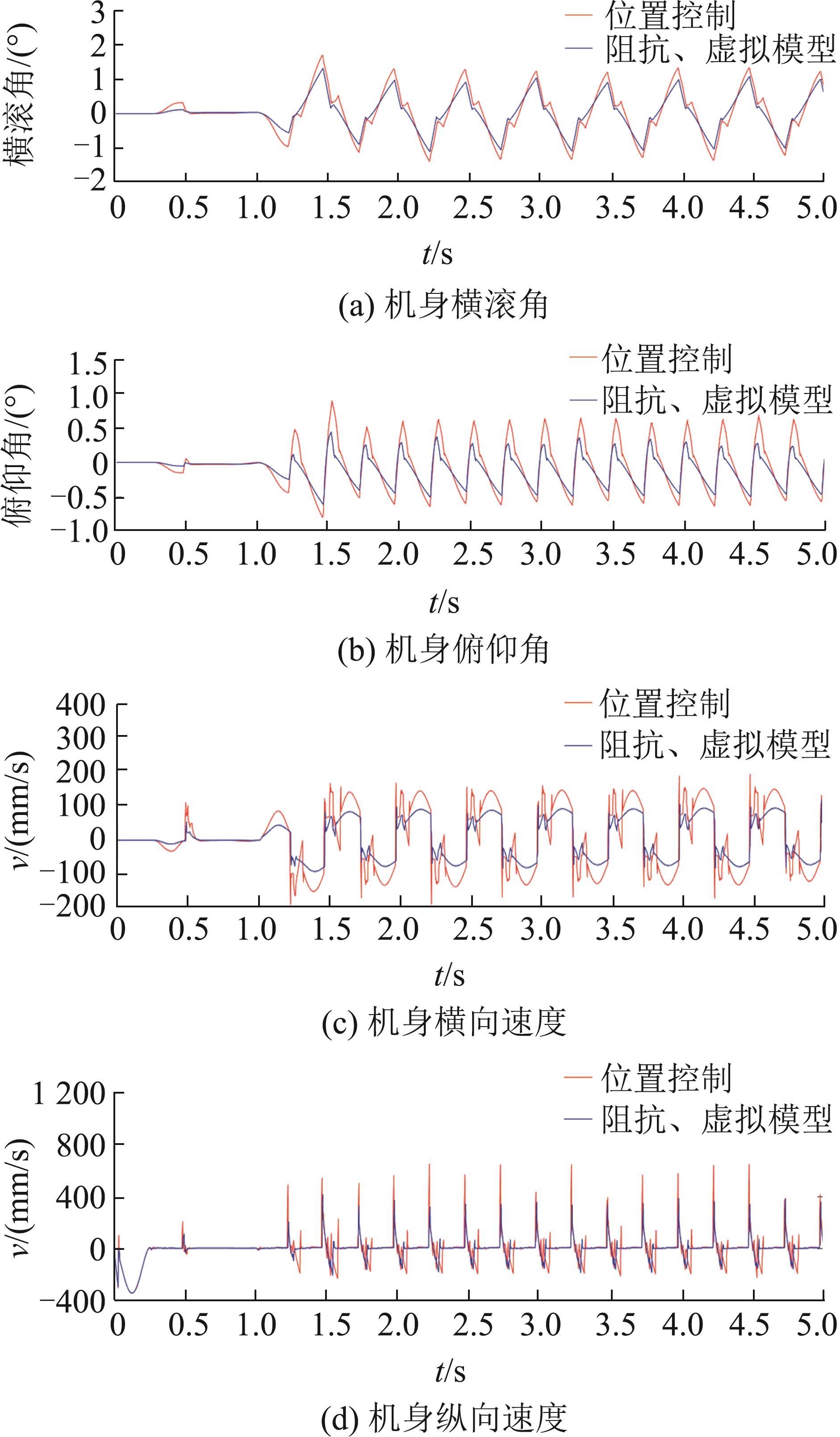

Fig. 8

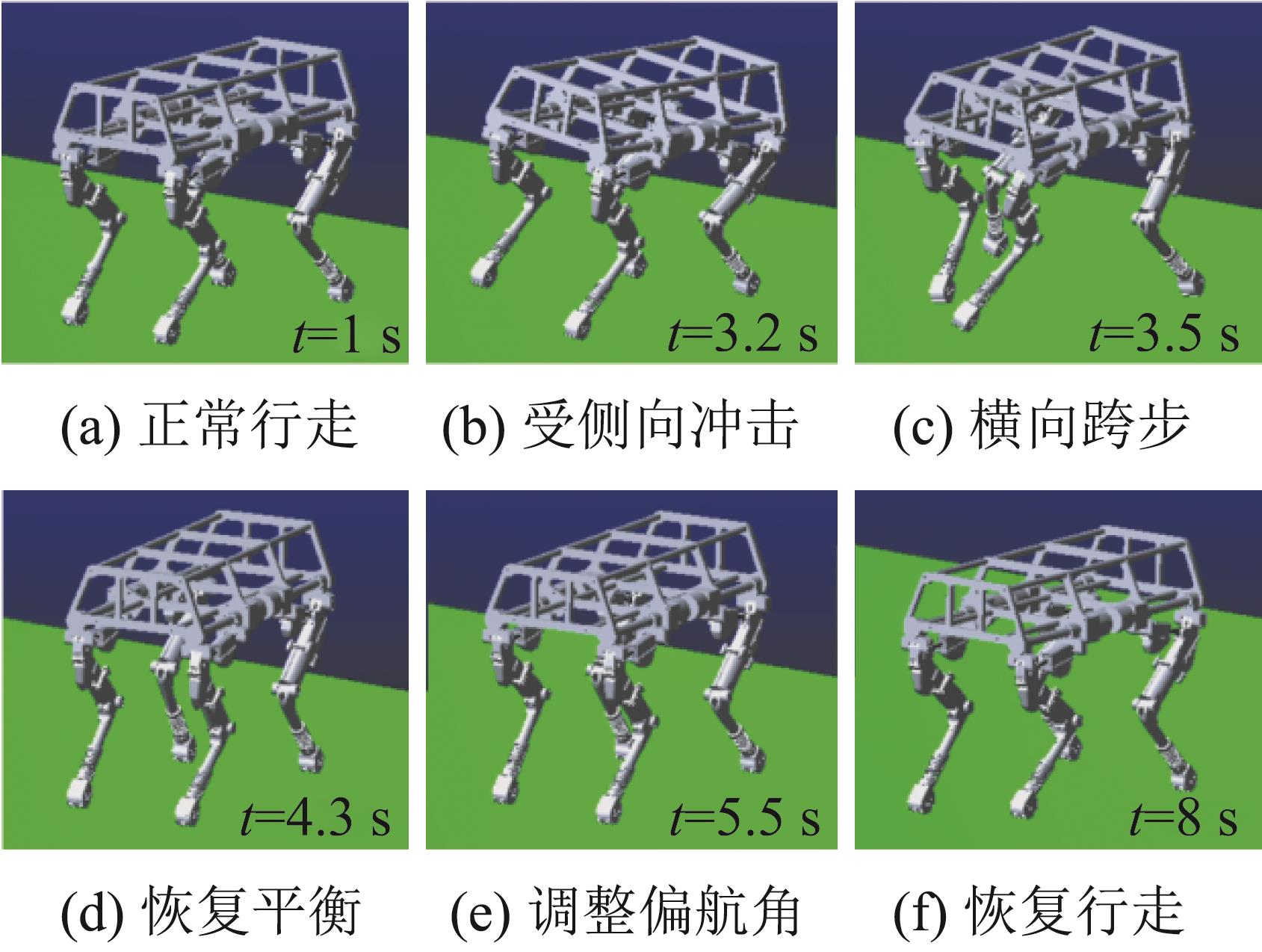

Fig. 9

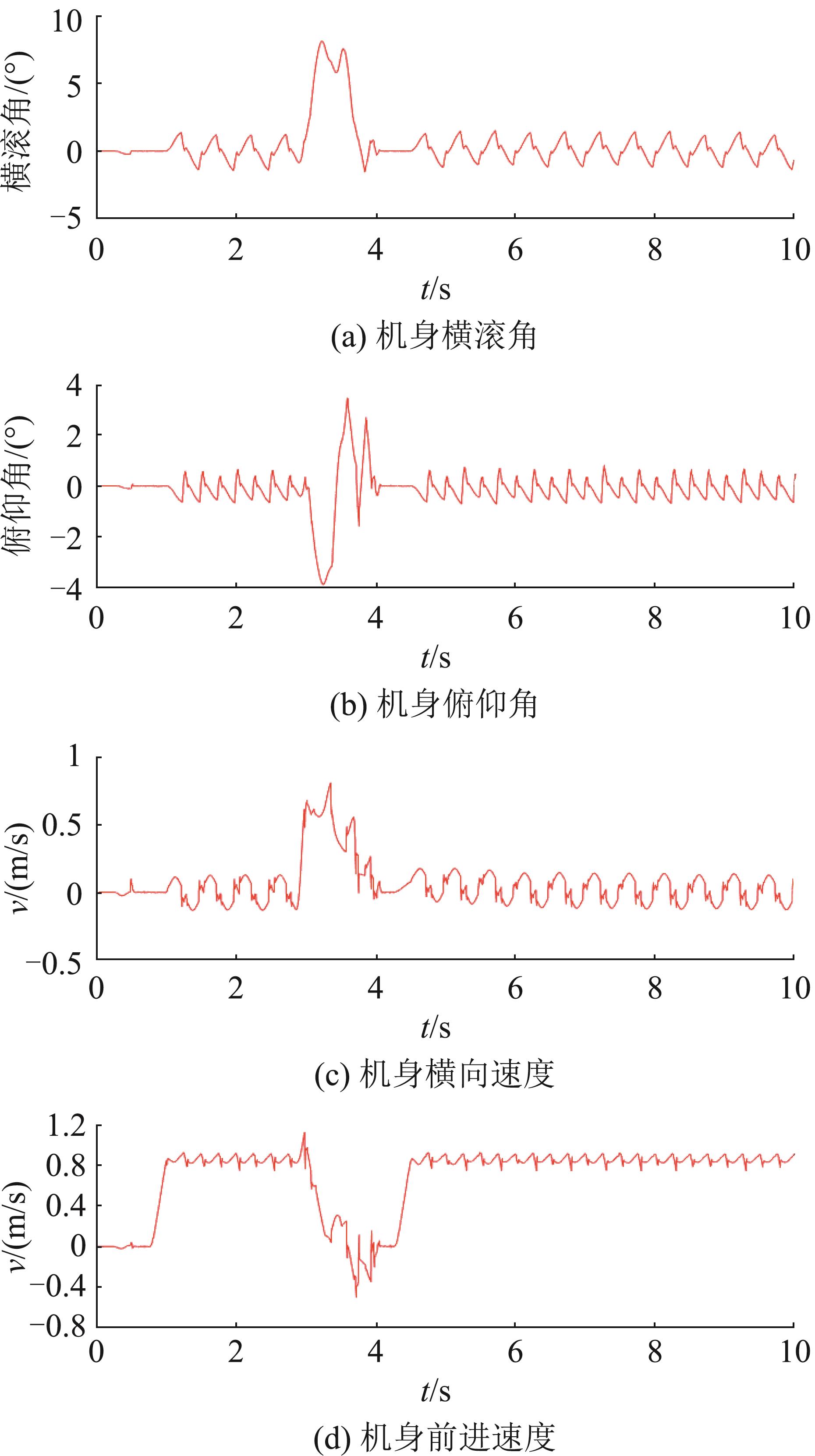

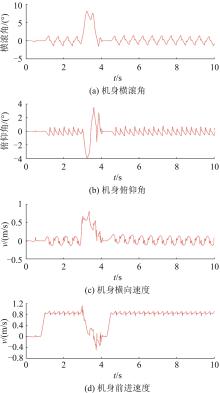

Fig. 10

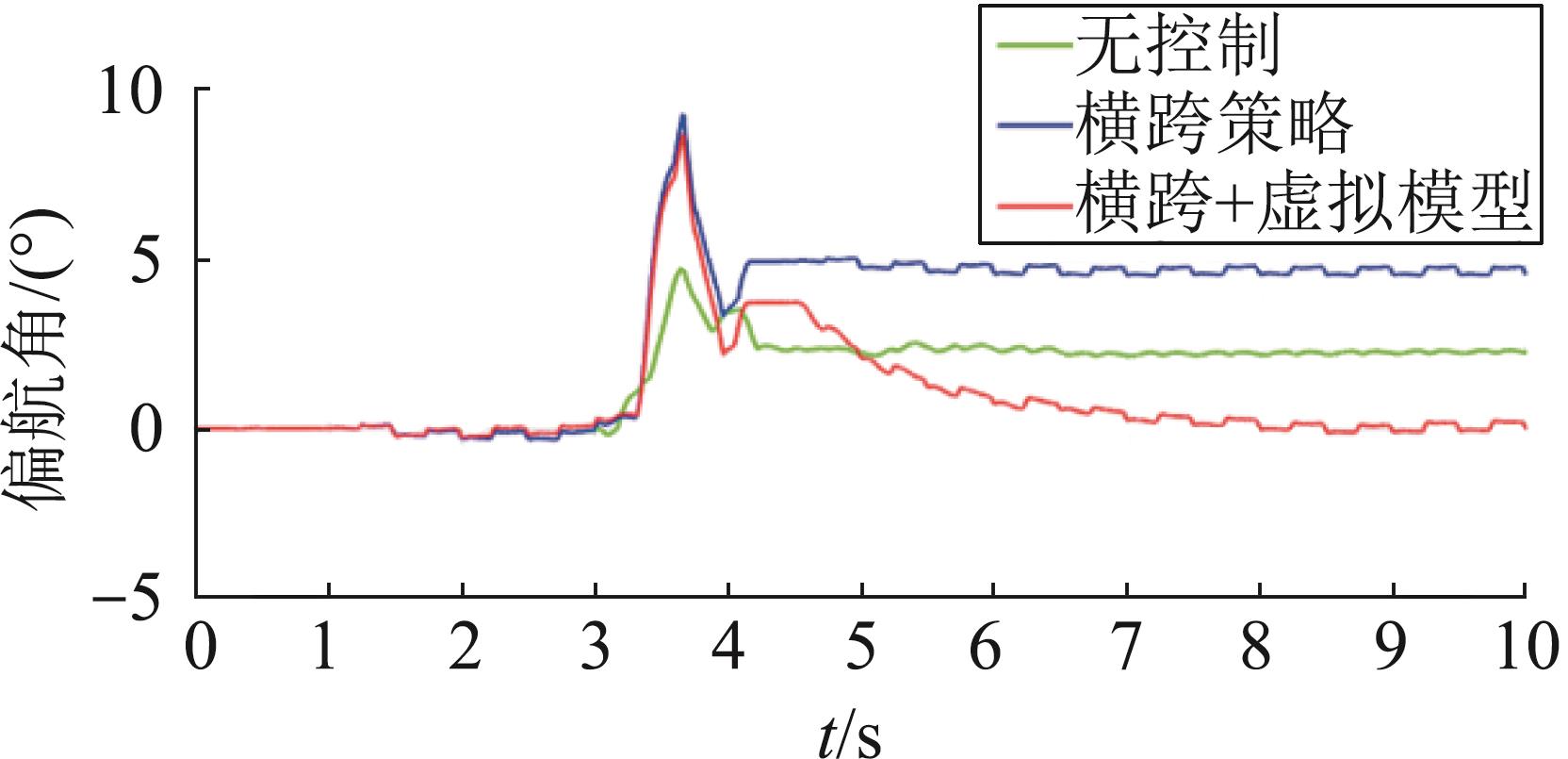

Fig. 11

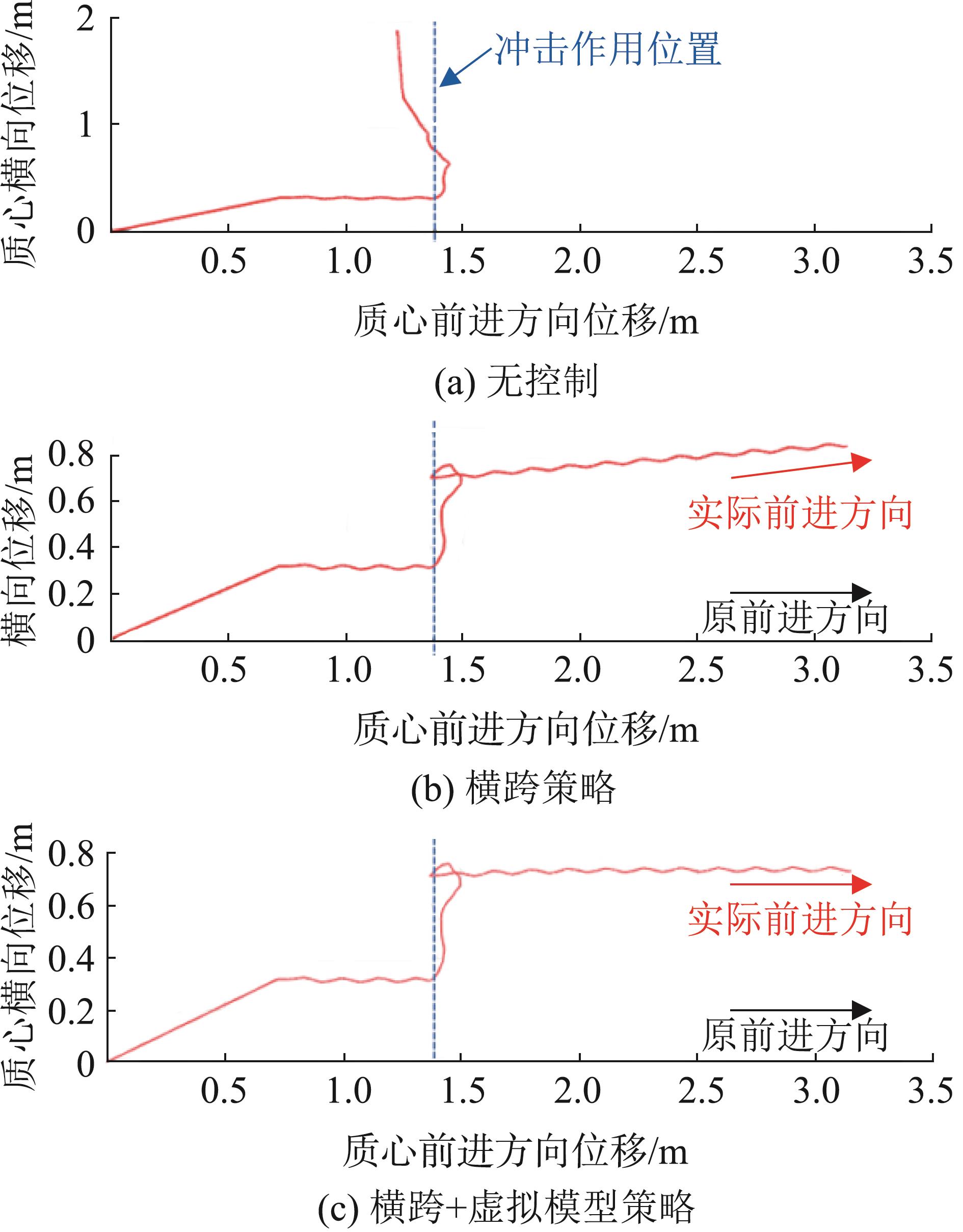

Fig. 12

References 15

1	Saradagi A, Muralidharan V, Krishnan V, et al. Formation Control and Trajectory Tracking of Nonholonomic Mobile Robots[J]. IEEE Transactions on Control Systems Technology (S1063-6536), 2018, 26(6): 2250-2258.
2	Neuhaus P D, Pratt J E, JohnsonN M J. Comprehensive Summary of the Institute for Human and Machine Cognition's Experience with LittleDog[J]. The International Journal of Robotics Research(S0278-3649), 2011, 30(2): 216-235.
3	Hobbs Sarah Jane, Clayton Hilary M. Collisional Mechanics of the Diagonal Gaits of Horses Over a Range of Speeds [J]. PeerJ(S2167-8359), 2019, 7(7): 76-89.
4	Vukobratovic M, Borovac B, Potkonjak V. ZMP:are View of Some Basic Misunder Standings[J].International Journal of Humanoid Robotics, 2006, 3(2): 153-175.
5	Kurazume R, Kan Y, Hirose S. Feedforward and Feedback Dynamic Trot Gait Control for Quadruped Walking Vehicle[J]. Autonomous Robots, 2002, 12(2): 157-172.
6	Hutter M, Gehring C, Jud D, et al. ANYmal-A Highly Mobile and Dynamic Quadrupedal Robot[C]// 2016 IEEE/RSJ International Conference on Intelligent Robots and Systems(IROS). Daejeon, Korea: IEEE, 2016: 38-44.
7	Neunert M, Farshidian F, Winkler A W, et al. Trajectory Optimization Through Contacts and Automatic Gait Discovery for Quadrupeds[J]. IEEE Robotics&Automation Letters, 2017, 2(3): 1502-1509.
8	Xiuli Z, Haojun Z, Xu G, et al. A Biological Inspired Quadruped Robot: Structure and Control[C]// International Conternational on Robotics and Biomimetics. Hong Kong, China: IEEE, 2006: 387-392.
9	胡楠, 李少远, 黄丹, 等. 高负载四足机器人的步态规划与控制[J]. 系统仿真学报, 2015, 27(3): 529-533.
	Hu Nan, Li Shaoyuan, Huang Dan, et al. Gait Planning and Control of Quadruped Robot with High Payload[J]. Journal of System Simulation, 2015, 27(3): 529-533.
10	丁庆鹏. 基于阻抗控制的四足仿生机器人稳定步态理论及实验研究[D]. 哈尔滨: 哈尔滨工业大学, 2016.
	Ding Qingpeng. Theory Amd Experimental Research on Stable Gait of Quadruped Robot Based on Impedance Control[D]. Harbin: Harbin Institute of Technology, 2016.
11	张国腾, 荣学文, 李贻斌, 等. 基于虚拟模型的四足机器人对角小跑步态控制方法[J]. 机器人, 2016, 38(1): 64-74.
	Zhang Guoteng, Rong Xuewen, Li Yibin, et al. Control of the Quadrupedal Trotting Based on Virtual Model[J]. Robot, 2016, 38(1): 64-74.
12	谢惠祥. 四足机器人对角小跑步态虚拟模型直觉控制方法研究[D]. 长沙: 国防科学技术大学, 2015.
	Xie Huixiang. Intuitive Control Based on Virtual Model for Quadruped Robot Trot Gait[D]. Changsha: National University of Defense Technology, 2015.
13	刘永, 周川, 郭健, 等. 四足机器人单步急停稳定控制策略[J]. 南京理工大学学报, 2020(3): 259-265.
	Liu Yong, Zhou Chuan, Guo Jian, et al. Stability Control Strategy of a Quadruped Robot During One-step Sudden Stop[J]. Journal of Nanjing University of Science and Technology, 2020(3): 259-265.
14	韩佳宏. 基于Flying trot步态的四足机器人奔跑控制策略研究[D]. 哈尔滨: 哈尔滨工业大学, 2019.
	Han Jiahong. Control Strategy of Quadruped Robot Running Based on Flying Trot Gai[D]. Harbin: Harbin Institute of Technology, 2019.
15	杨琨. 液压驱动四足机器人能耗分析、优化及动力系统研究[D]. 济南: 山东大学, 2019.
	Yang Kun. Energy Consumption Analysis, Optimization and Power System Research for a Hydraulic Quadruped Robot[D]. Jinan: Shandong University, 2019.

参数	数值	参数	数值
躯干质量/kg	96	小腿质量/kg	2.5
前后髋关节距离/m	1.1	髋部侧摆长度/m	0.075
左右髋关节距离/m	0.5	大腿长度/m	0.4
髋部侧摆质量/kg	2	小腿长度/m	0.36
大腿质量/kg	3.5
