两栖装甲车水上运动仿真平台开发与应用研究

doi:10.16182/j.issn1004731x.joss.23-0296

系统仿真学报 ›› 2024, Vol. 36 ›› Issue (6): 1442-1451.doi: 10.16182/j.issn1004731x.joss.23-0296

两栖装甲车水上运动仿真平台开发与应用研究

陈明哲¹(), 宋韫峥², 王佩², 张镭¹()

^1.河南大学物理与电子学院，河南开封 475004
^2.上海电控研究所有限公司，上海 200092

收稿日期:2023-03-15 修回日期:2023-05-23 出版日期:2024-06-28 发布日期:2024-06-19
通讯作者: 张镭 E-mail:chenmingzhe@henu.edu.cn;zhanglei@vip.henu.edu.cn
第一作者简介:陈明哲(1998-)，男，硕士生，研究方向为检测技术与自动化装置。E-mail：chenmingzhe@henu.edu.cn

Development and Application of Simulation Platform for Aquatic Movement of an Amphibious Armored Vehicle

Chen Mingzhe¹(), Song Yunzheng², Wang Pei², Zhang Lei¹()

^1.School of Physics and Electronics, He?nan University, Kaifeng 475004, China
^2.Shanghai Electric Control Research Institute Co. Ltd. , Shanghai 200092, China

Received:2023-03-15 Revised:2023-05-23 Online:2024-06-28 Published:2024-06-19
Contact: Zhang Lei E-mail:chenmingzhe@henu.edu.cn;zhanglei@vip.henu.edu.cn

摘要/Abstract

摘要：

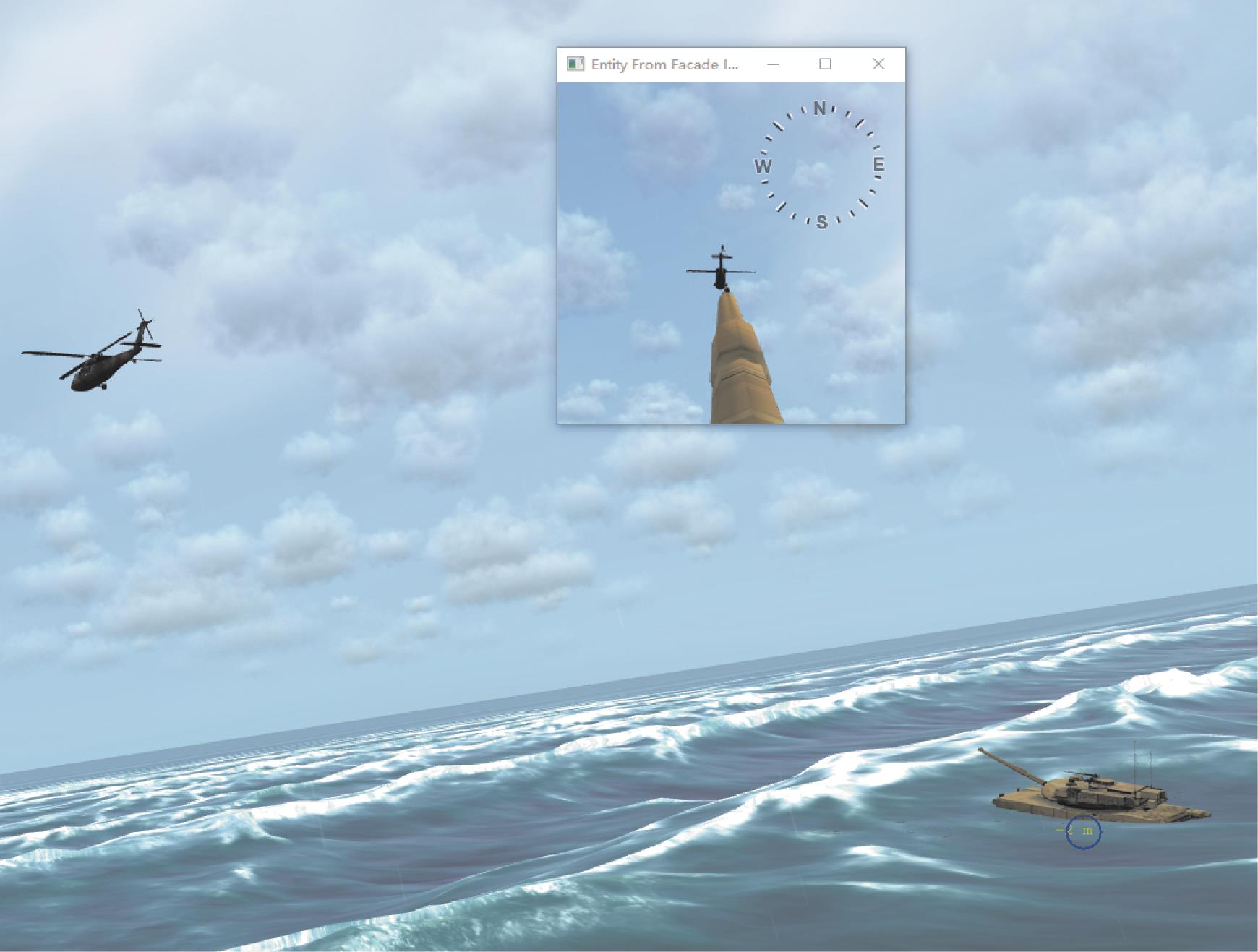

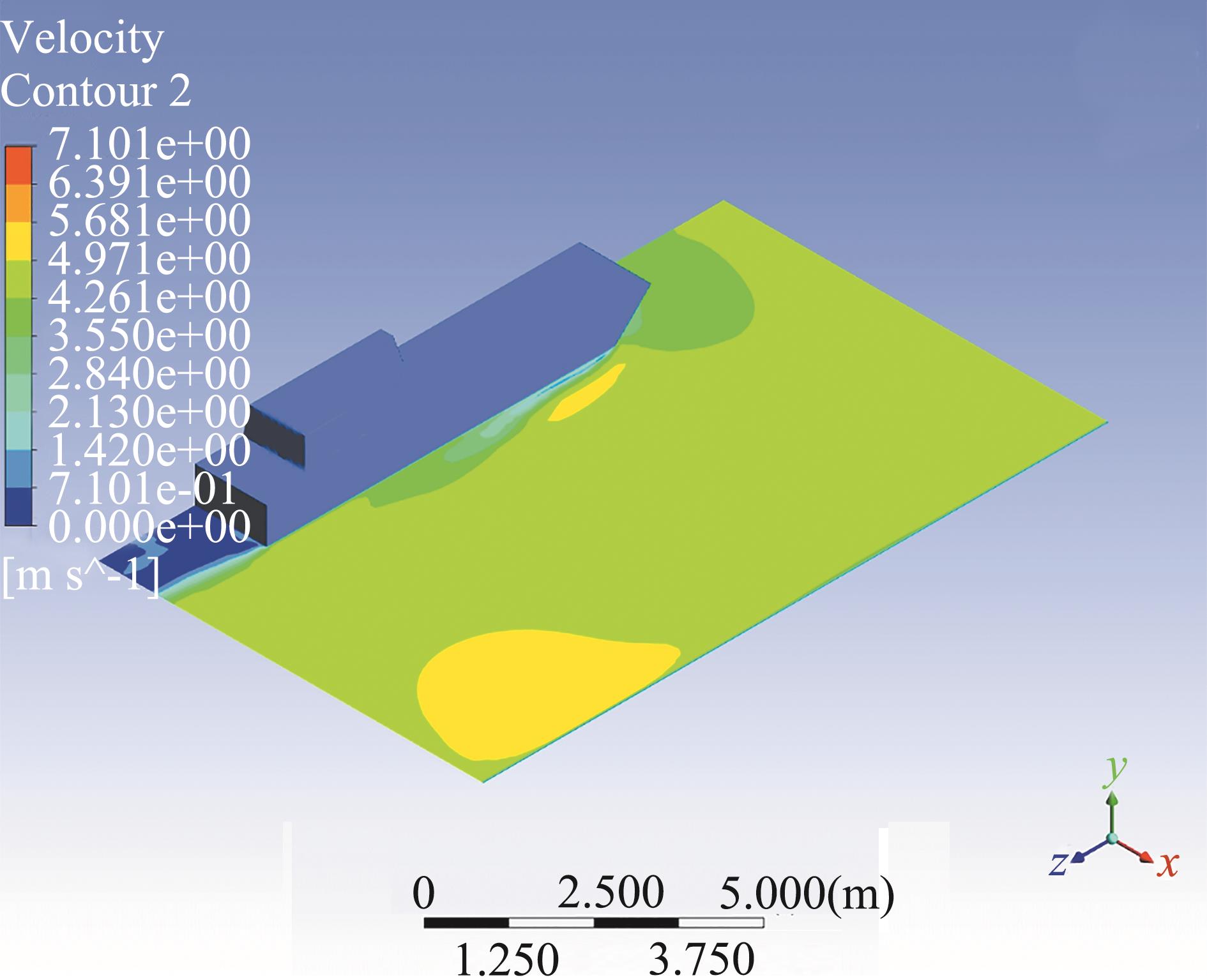

为设计及验证两栖装甲突击车大风浪条件下的火控算法，需要开发其实时仿真平台。传统单刚体车辆动力学模型无法反映车体-炮塔-炮管间复杂的动力学耦合关系，不适合于高动态特性的火控仿真。使用twist-wrench方法建立了车辆的多刚体动力学模型，根据车体与视景中生成的海浪之间的运动关系计算浮力和水动力，水动力系数则事先通过计算流体力学方法得出。以一种滑模控制器为例验证了此系统作为火控算法开发及验证平台的有效性。

关键词: 两栖装甲, 虚拟仿真, 多刚体, 水动力学分析, 火控仿真

Abstract:

In order to design and verify the fire control system(FCS) algorithm of amphibious assault vehicle under heavy wind and wave conditions, a real-time simulation platform is developed. The traditional single rigid body dynamic model can't describe the body-turret-barrel dynamic coupling relationship and it is not suitable for FCS simulation with high dynamic characteristics. Twist-wrench method is used to establish the multiple rigid body dynamic model of vehicle, the buoyancy and the hydrodynamic calculation is carried out according to the body and the moving relationship between visual generated waves, and the hydrodynamic coefficient is obtained by the computational fluid dynamic method. The example of a sliding mode controller verifies the effectiveness of the FCS algorithm development and verify platform.

Key words: amphibious assault vehicle, virtual simulation, multiple rigid body, hydrodynamic analysis, fire control system

中图分类号:

TP391.9

陈明哲,宋韫峥,王佩等 . 两栖装甲车水上运动仿真平台开发与应用研究[J]. 系统仿真学报, 2024, 36(6): 1442-1451.

Chen Mingzhe,Song Yunzheng,Wang Pei,et al . Development and Application of Simulation Platform for Aquatic Movement of an Amphibious Armored Vehicle[J]. Journal of System Simulation, 2024, 36(6): 1442-1451.

图/表 12

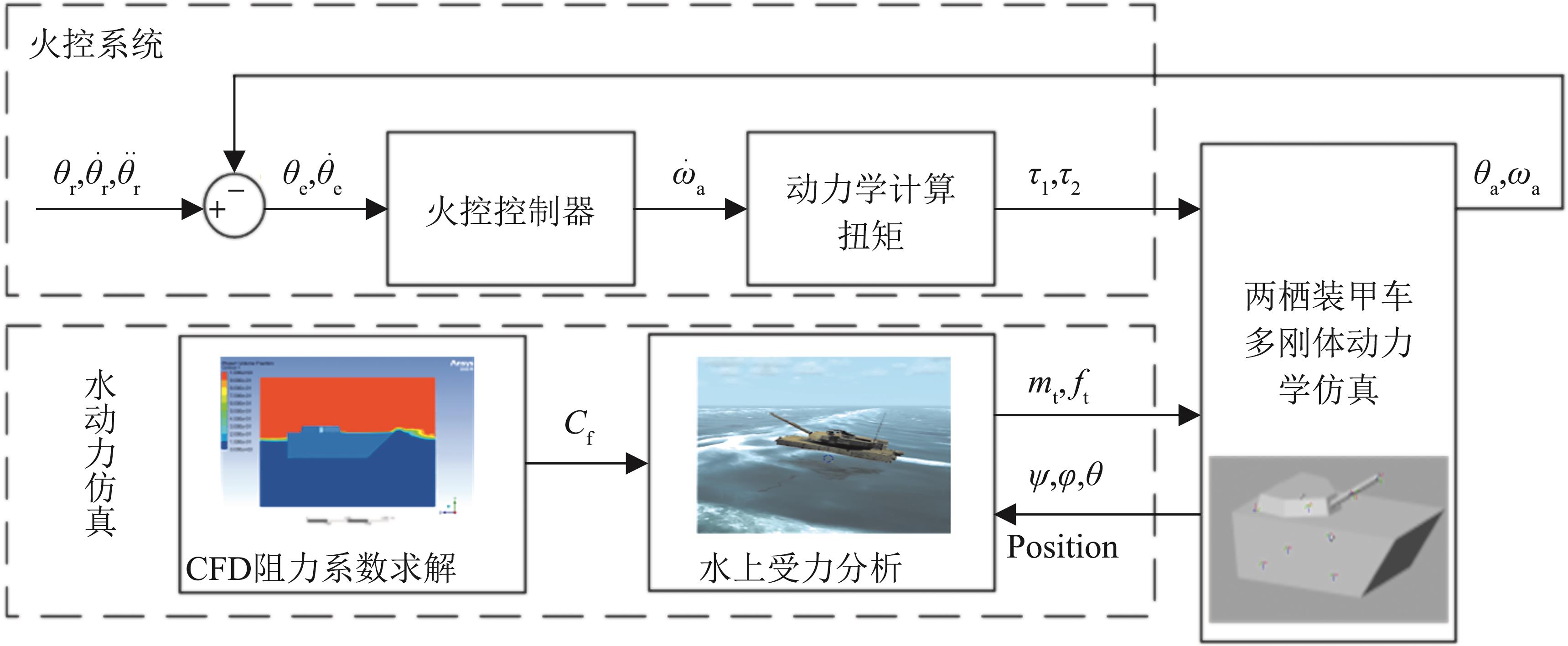

图1

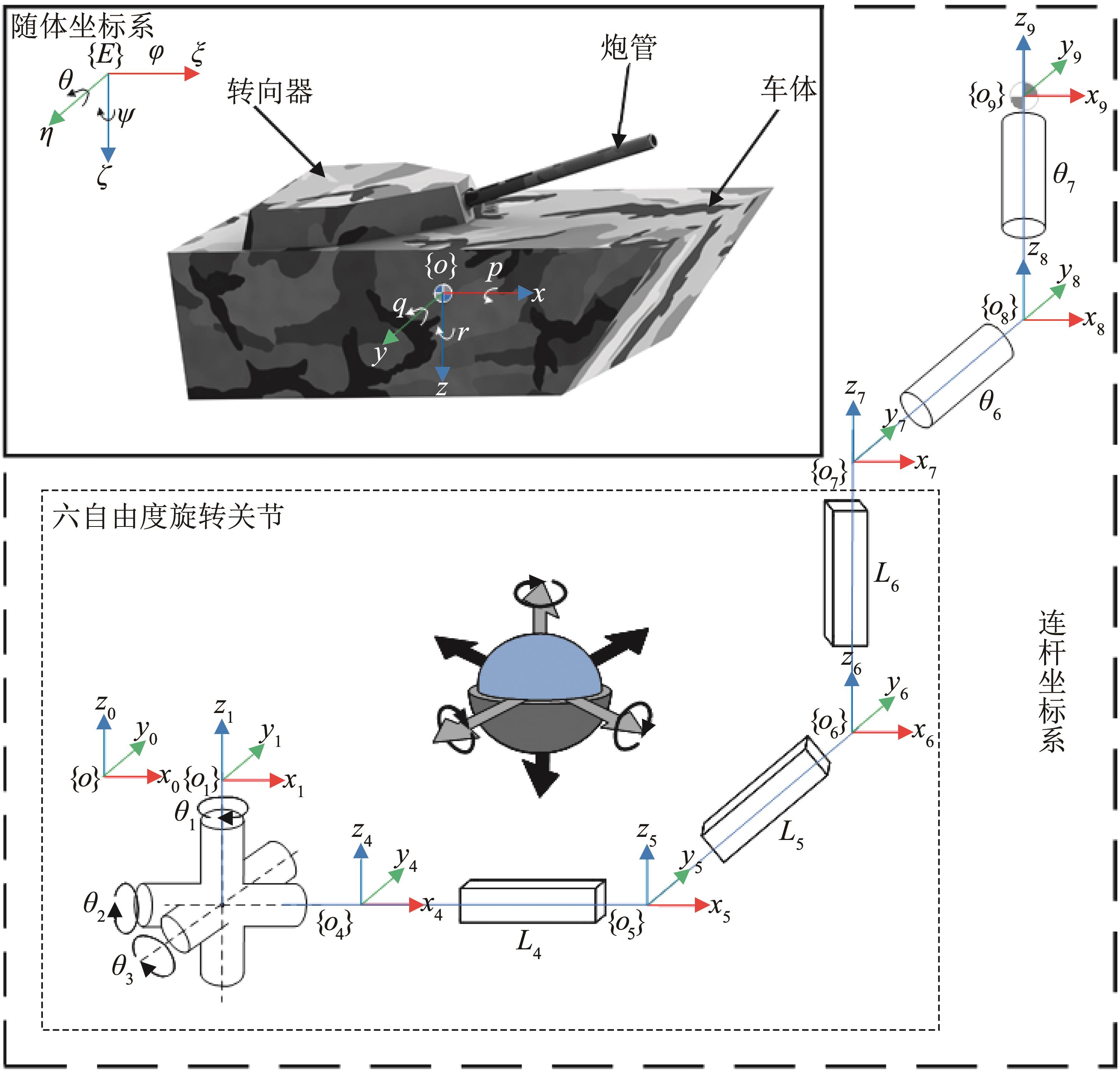

图2

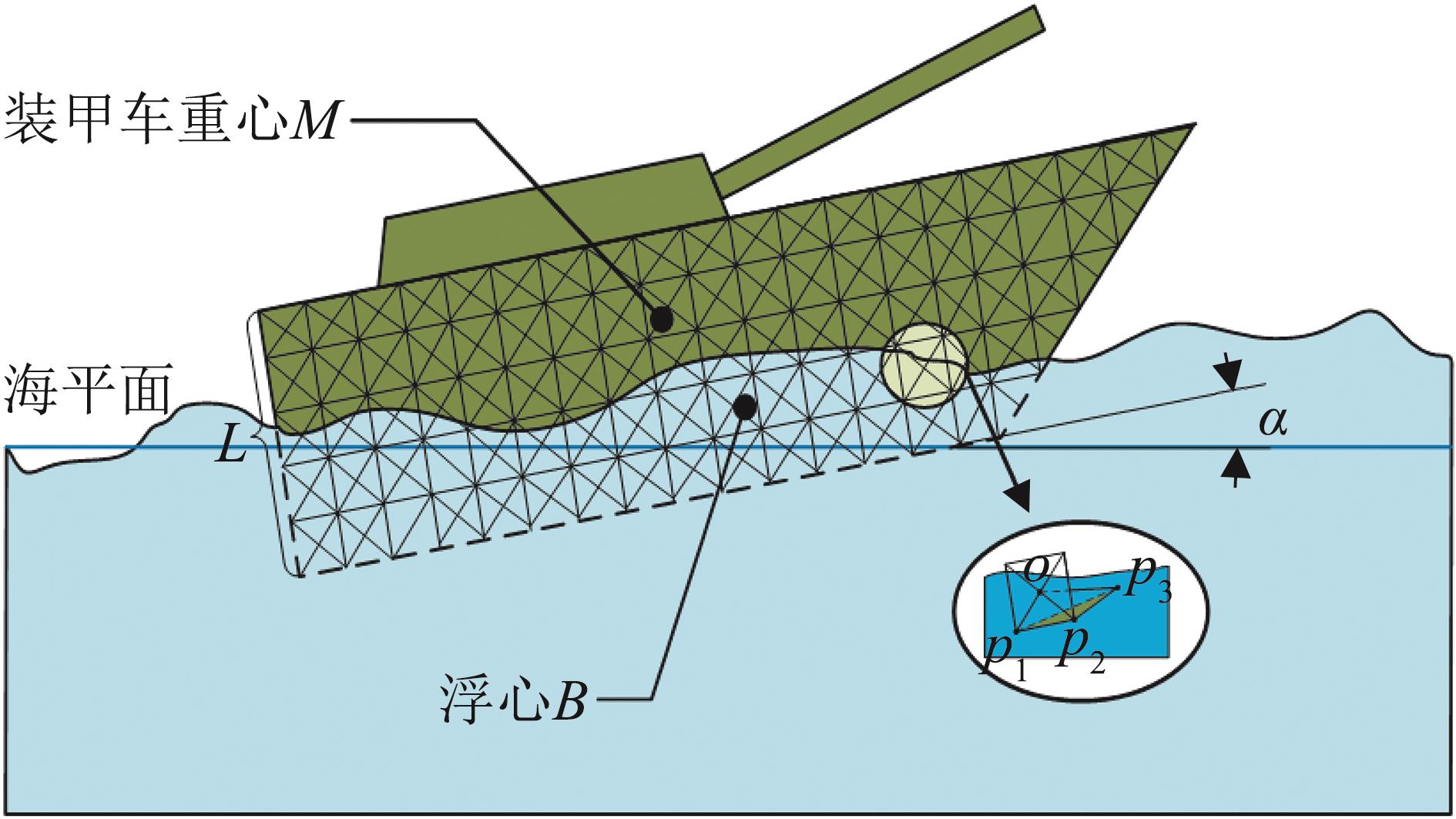

图3

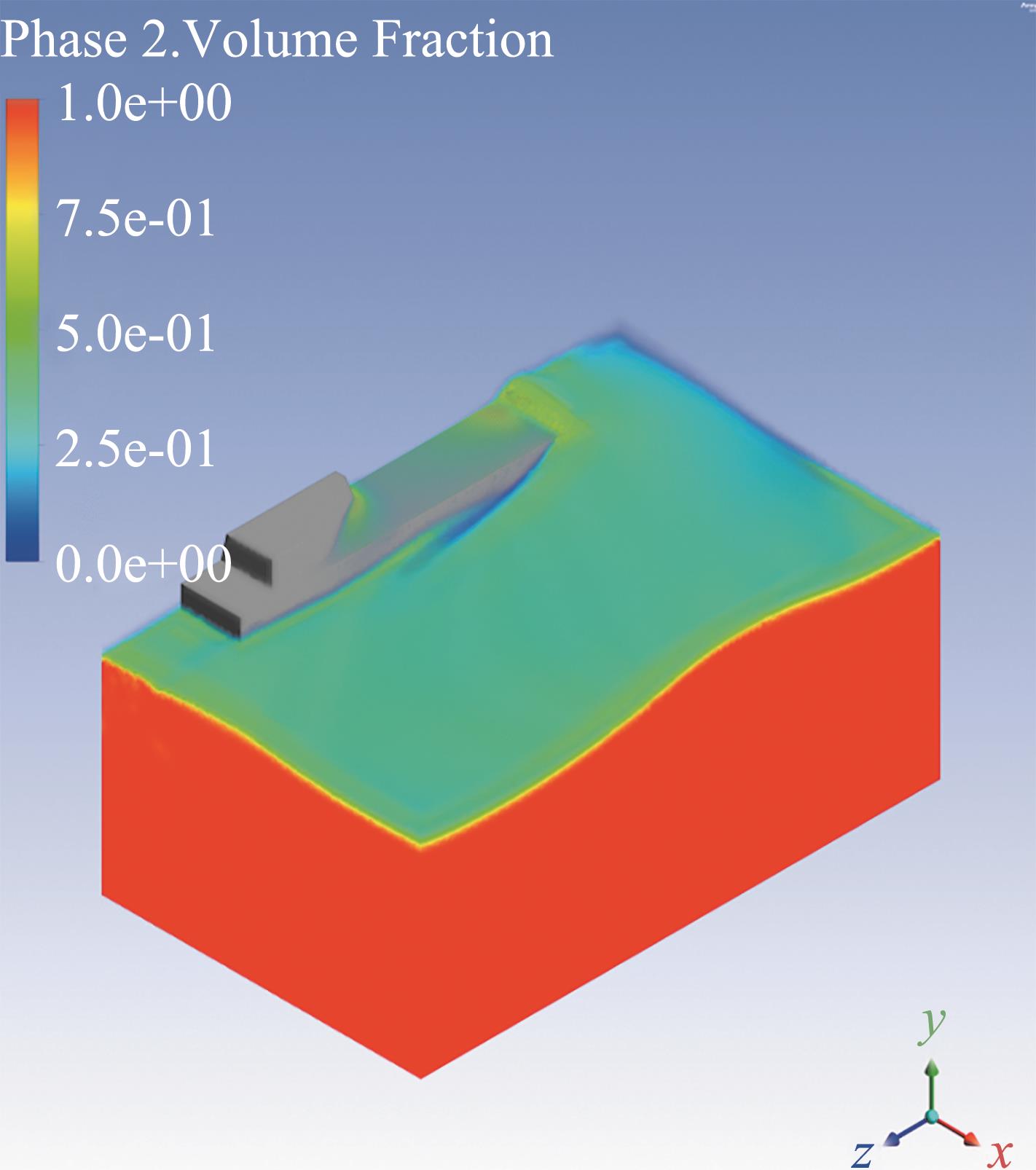

图4

表1

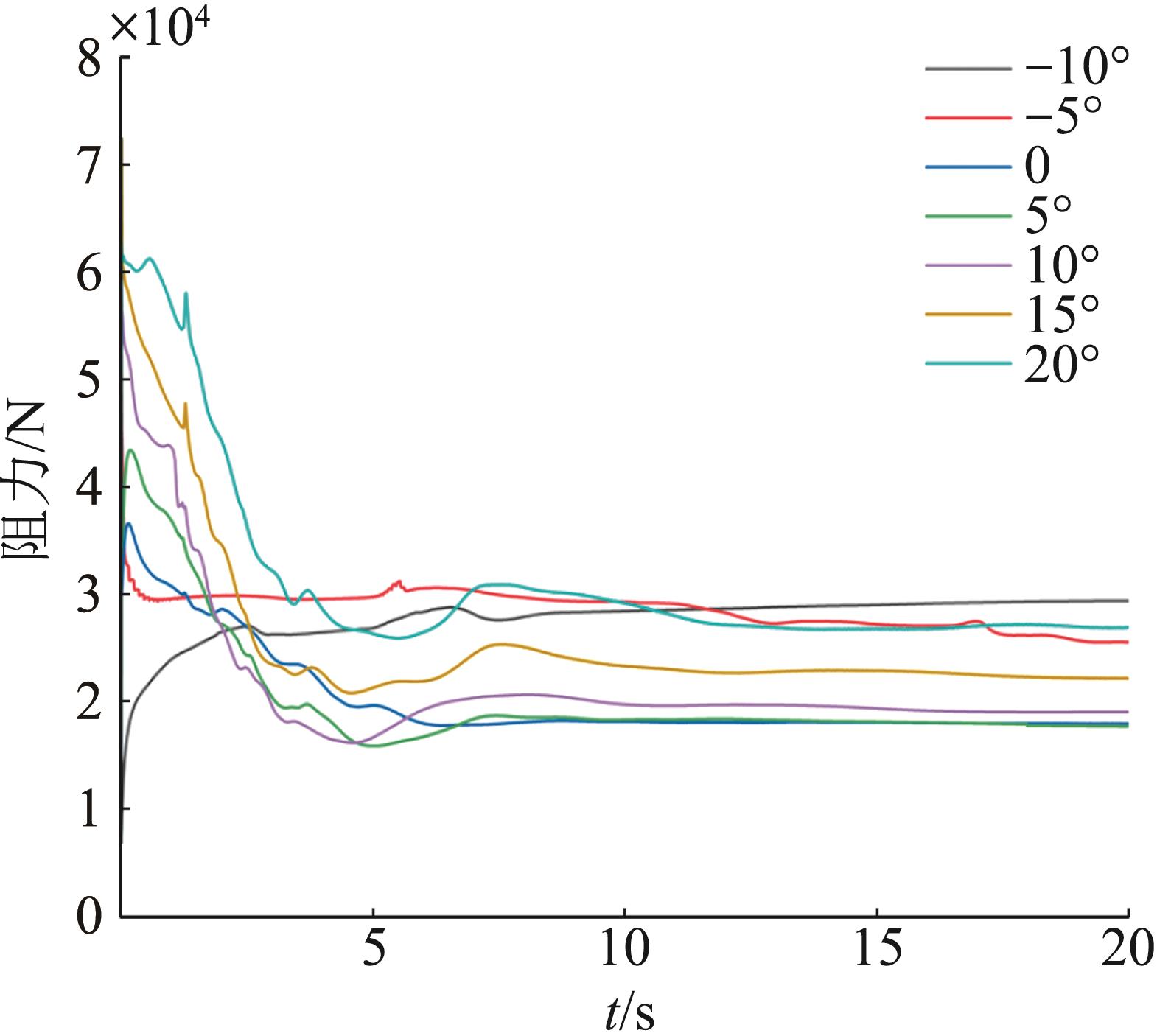

图5

图6

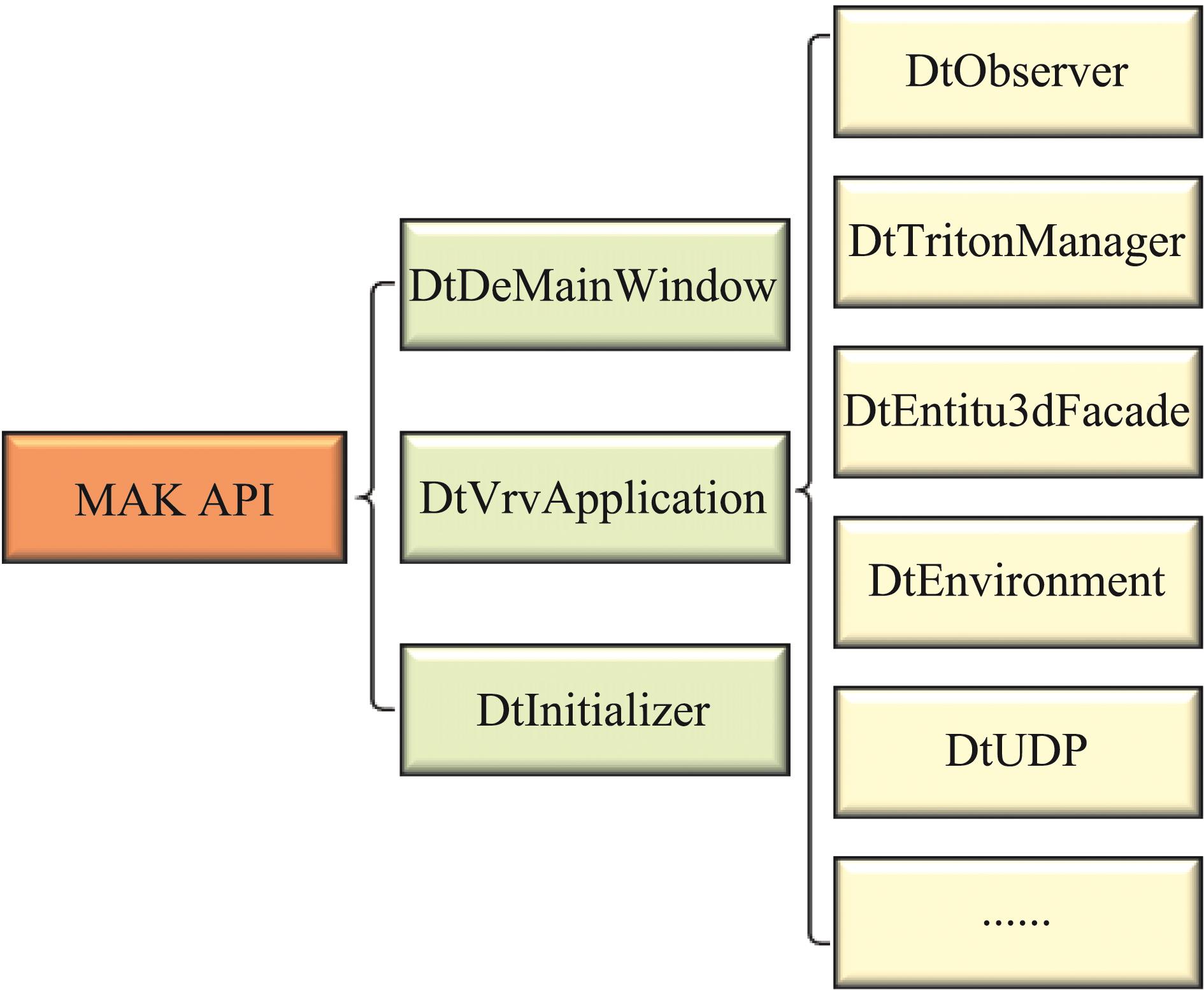

图7

图8

图9

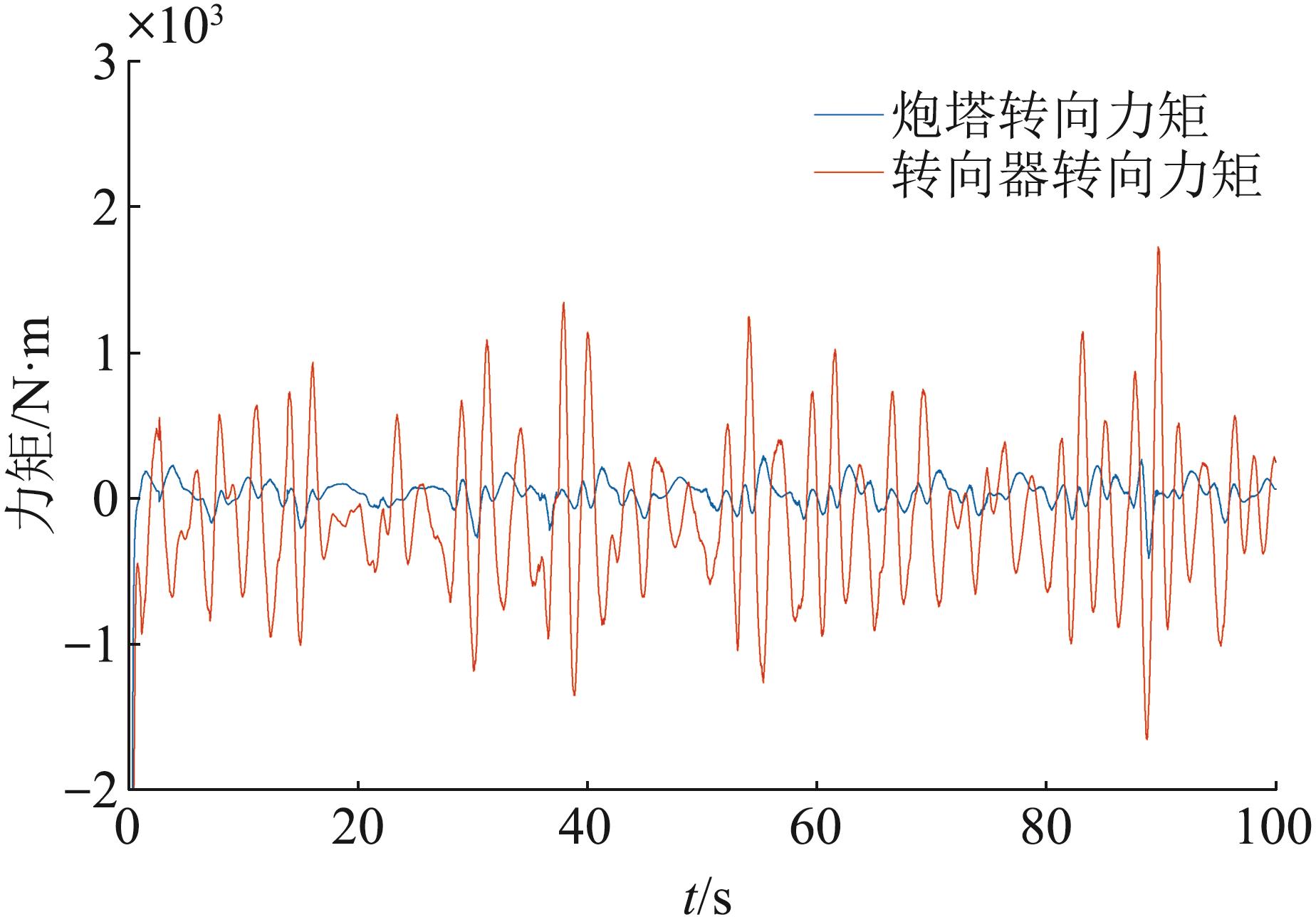

图10

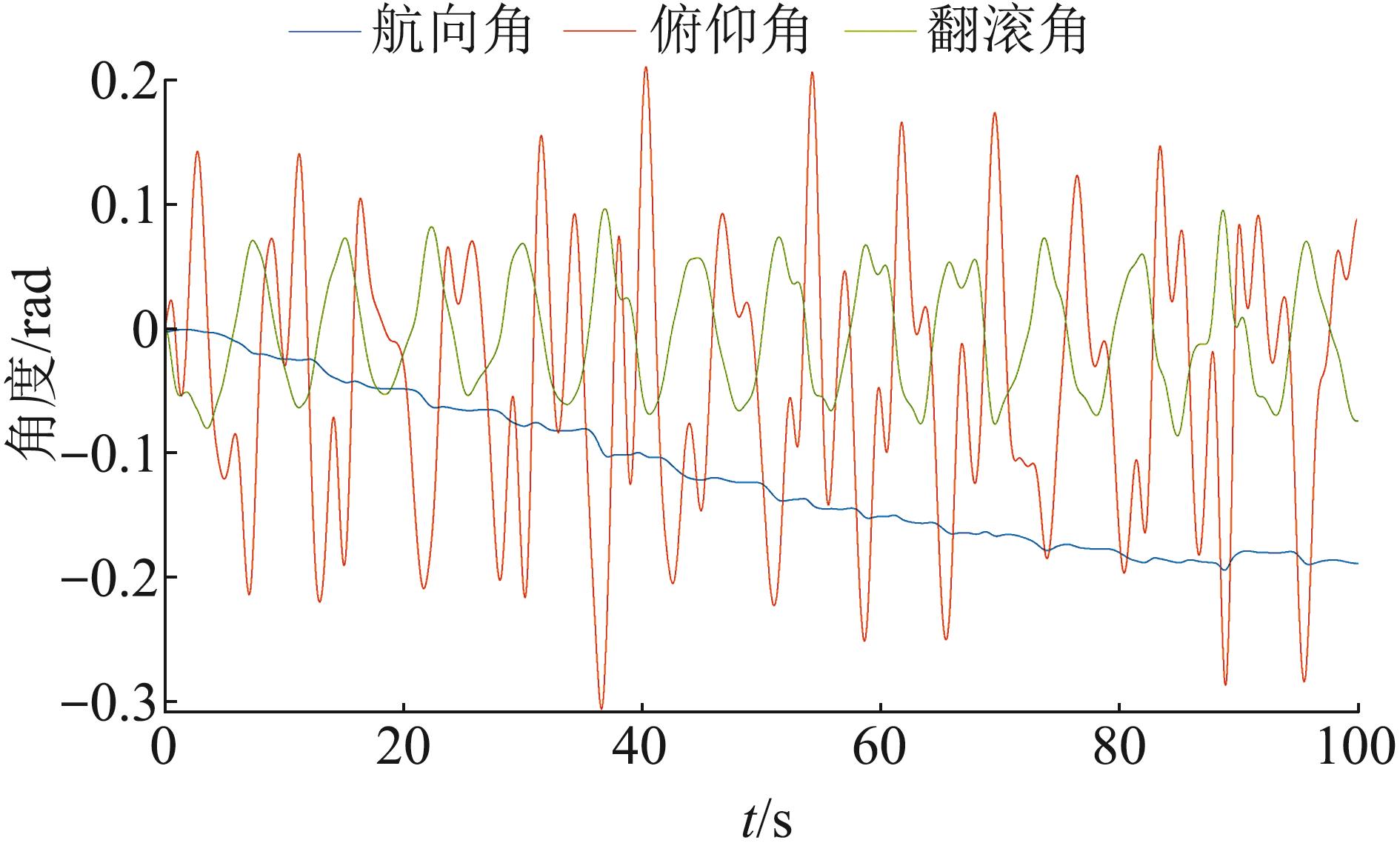

图11

参考文献 17

1	Monroe J G, Martin K, Ewing M, et al. Integrating Real-time Vehicle and Watercraft Modeling and Simulation Tools for Analysis of Amphibious Operations[C]//Modelling and Simulation for Autonomous Systems. Cham: Springer International Publishing, 2022: 113-126.
2	谢云开, 孟祥辉, 张燕燕, 等. 两栖装甲车驾驶模拟器视景系统设计与实现[J]. 软件导刊, 2021, 20(10): 186-191.
	Xie Yunkai, Meng Xianghui, Zhang Yanyan, et al. Design and Implementation of the Visual System of Amphibious Armored Vehicle Driving Simulator[J]. Software Guide, 2021, 20(10): 186-191.
3	董志明, 郭齐胜, 宋敬华, 等. 海陆战场环境的实时视景仿真[J]. 系统仿真学报, 2003, 15(11): 1524-1526, 1532.
	Dong Zhiming, Guo Qisheng, Song Jinghua, et al. Real Time Visual Simulation of Battlefield Environment of Foreshore[J]. Journal of System Simulation, 2003, 15(11): 1524-1526, 1532.
4	郭立威, 王权, 高克斌, 等. 基于虚拟现实的装甲车辆运动仿真研究[J]. 计算机系统应用, 2019, 28(6): 221-227.
	Guo Liwei, Wang Quan, Gao Kebin, et al. Research on Armored Vehicle Motion Simulation Based on Virtual Reality[J]. Computer Systems & Applications, 2019, 28(6): 221-227.
5	Zheng Shutao, Ye Zhengmao, Jin Jun, et al. 6-DOF Motion System of Amphibious Vehicle Driving Simulator Motion Parameter Design Research[J]. Key Engineering Materials, 2011, 460/461: 704-709.
6	Muhammad Akhimullah Bin Subari, Hudha K, Amer N H. Modeling and Verification of 7 DOF Armored Vehicle Model Considering Lateral Dynamics[J]. International Review on Modelling and Simulations, 2016, 9(4): 312-316.
7	金建海, 周则兴, 张波, 等. 无人艇航行仿真关键技术研究[J]. 系统仿真学报, 2021, 33(12): 2846-2853.
	Jin Jianhai, Zhou Zexing, Zhang Bo, et al. Research on USV Navigation Simulation Key Technologies[J]. Journal of System Simulation, 2021, 33(12): 2846-2853.
8	Luo Jianhua, Song Chao, Li Ling. Navigation Stability Analysis of Amphibious Armored Vehicles by Computer Virtual Reality Technology[J]. Journal of Computers, 2020, 31(3): 289-302.
9	王涛, 郭齐胜, 徐国英. 两栖车辆水上行驶流场的仿真[J]. 系统仿真学报, 2007, 19(22): 5130-5132, 5153.
	Wang Tao, Guo Qisheng, Xu Guoying. Simulation for Flow Field Around Sailing Amphibious Vehicle[J]. Journal of System Simulation, 2007, 19(22): 5130-5132, 5153.
10	Yamashita H, Arnold A, Carrica P M, et al. Coupled Multibody Dynamics and Computational Fluid Dynamics Approach for Amphibious Vehicles in the Surf zone[J]. Ocean Engineering, 2022, 257: 111607.
11	Nakisa M, Maimun A, Ahmed Y M, et al. Numerical Estimation of Shallow Water Effect on Multipurpose Amphibious Vehicle Resistance[J]. Journal of Naval Architecture and Marine Engineering, 2017, 14(1): 1-8.
12	Gao Shuang, He Bo, Yu Fei, et al. An Abnormal Motion Condition Monitoring Method Based on the Dynamic Model and Complex Network for AUV[J]. Ocean Engineering, 2021, 237: 109472.
13	Lynch K M, Park F C. Modern Robotics: Mechanics, Planning, and Control[M]. New York: Cambridge University Press, 2017.
14	Peyret R, Taylor T D. Computational Methods for Fluid Flow[M]. [S.l.]: Springer Science & Business Media, 2012.
15	赵金平, 杨任农, 王众, 等. 利用MAK Stealth进行视景仿真开发方法的研究[J]. 计算机工程与设计, 2010, 31(13): 3074-3076.
	Zhao Jinping, Yang Rennong, Wang Zhong, et al. Research of Scene Simulation Developing Method with MAK Stealth[J]. Computer Engineering and Design, 2010, 31(13): 3074-3076.
16	Technologies Inc MAK. VR-vantage 3.0 API Documentation[Z]. 2022.
17	Utkin V. Variable Structure Systems with Sliding Modes[J]. IEEE Transactions on Automatic Control, 1977, 22(2): 212-222.

迎水角度/(°)	迎水面积/m²	阻力大小/N	阻力系数
-10	8.1	29 391	0.290
-5	7.3	25 490	0.280
0	5.4	17 960	0.266
5	5.3	17 755	0.268
10	5.7	19 033	0.267
15	6.7	22 185	0.265
20	7.6	26 920	0.283
