基于区块链的无人机群可靠应急搜救模型

doi:10.16182/j.issn1004731x.joss.22-0872

摘要/Abstract

摘要：

自然灾害将突发性地导致地面通信基础设施与交通系统瘫痪，基于无人机群的应急救援方法能够有效应对这类不确定性强且高度动态的特殊场景。针对弱中心化环境下无人机搜救系统的高鲁棒性需求，提出基于区块链技术的无人机应急救援链(UAV emergency rescue chain，UERChain)。通过在分层局部网络中部署无人机骨干节点，设计考虑无人机社交关系的信誉度管理智能合约，利用区块链作为信任机器实现分布式环境下无人机群的可信交互。实验结果表明：无人机应急救援链UERChain具有较好的鲁棒性，在资源消耗可控的情况下，能够实现分布式环境中信誉度管理以及故障节点筛选，实现应急救援任务中的可靠协同。

关键词: 无人机, 区块链, 智能合约, 信誉管理, 应急救援

Abstract:

Natural disasters may unpredictably disrupt ground communication infrastructure and transportation systems, and UAVs emergency response can deal with such uncertainties and highly dynamic scenarios. Aiming at the robustness requirements of decentralized rescue systems. UAV emergency rescue chain (UERChain) based on blockchain technology is proposed. By deploying UAV backbone nodes within a layered local network, the smart contracts for managing reputation considering UAV social relationships are designed. The blockchain is employed as a trust mechanism to realize the trustworthy interactions among distributed UAVs. Experimental results show that, UERChain has higher robustness, and within controllable resource constraints, the reputation management and faulty nodes filtering in a distributed environment and the reliable collaboration during emergency rescue missions can be realized.

Key words: UAV, blockchain, smart contract, trust management, emergency rescue

中图分类号:

TP391.9

杜梦瑶,许凯,张淼等 . 基于区块链的无人机群可靠应急搜救模型[J]. 系统仿真学报, 2023, 35(12): 2537-2549.

Du Mengyao,Xu Kai,Zhang Miao,et al . Reliable Emergency Rescue Model of UAVs Based on Blockchain[J]. Journal of System Simulation, 2023, 35(12): 2537-2549.

图/表 7

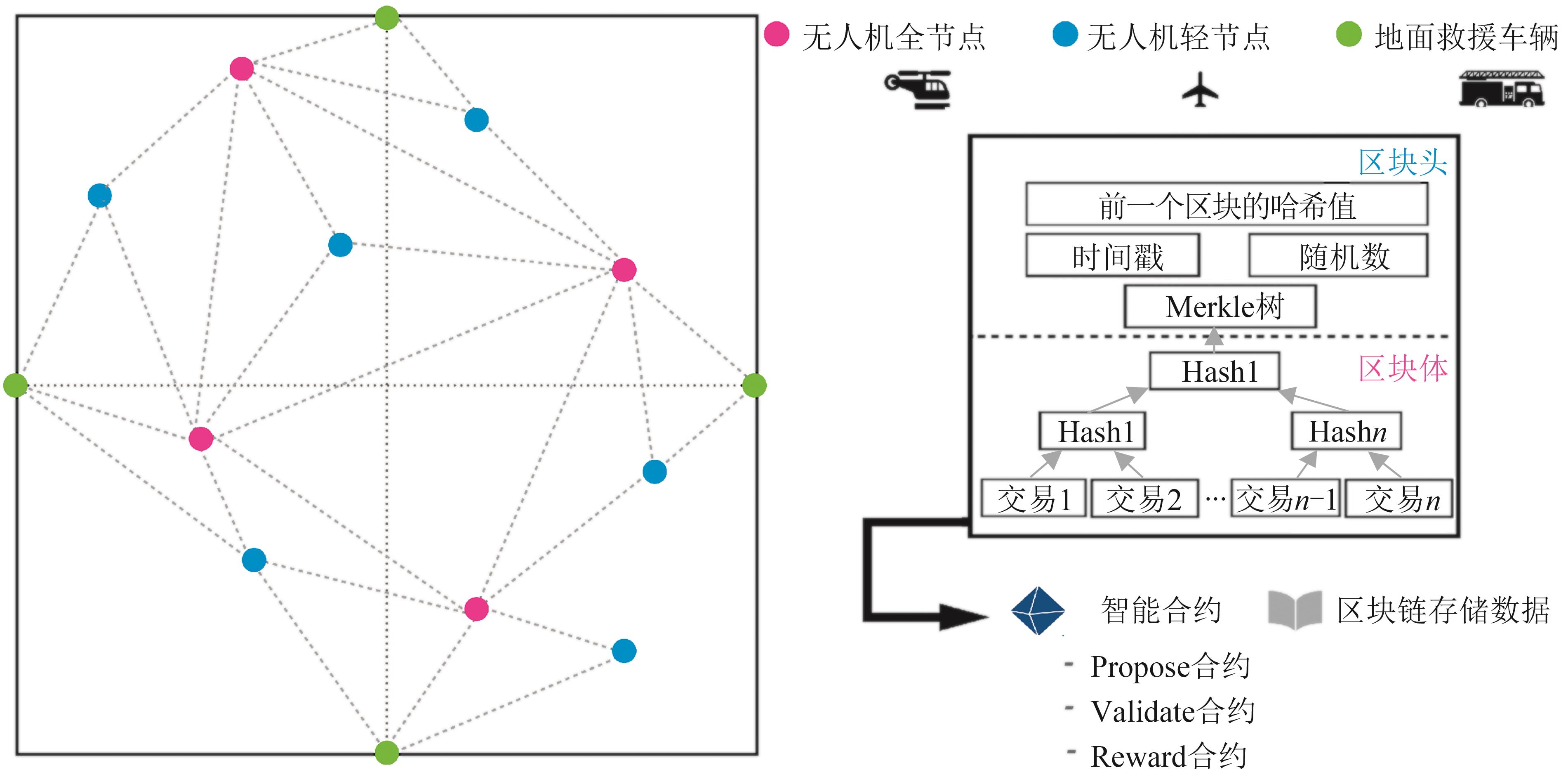

图1

表1

UERChain仿真参数设置

参数设置	参数介绍	设置值
M	救援无人机数量	10
N	待救援人员数量	20
K	地面救援车辆数量	4
$F u$	无人机全节点数量	4
$L u$	无人机轻节点数量	6
$c i n i f$	无人机全节点初始信誉值	12
$c i n i l$	无人机轻节点初始信誉值	10
$T c$	无人机信誉值阈值	10
$d m a x$ /km	无人机最大通信距离	6
$d m i n$ /m	无人机防碰撞距离	20
m/kg	无人机自身负载	6.3
v/(m/s)	无人机飞行速度	15
θ	交互强度控制参数	$e - 2$
z	交互强度控制参数	$1 / 2$

表1

表2

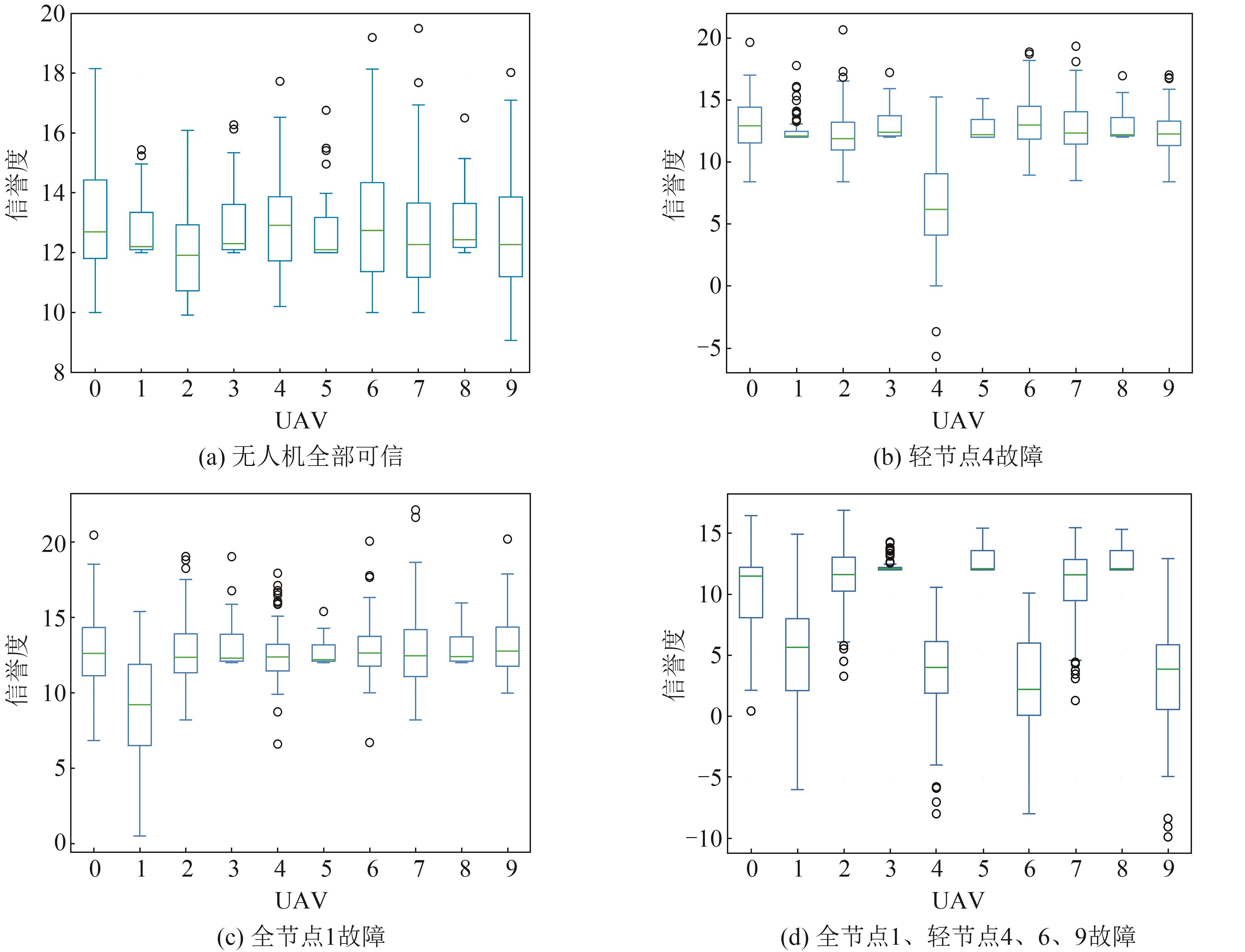

图2

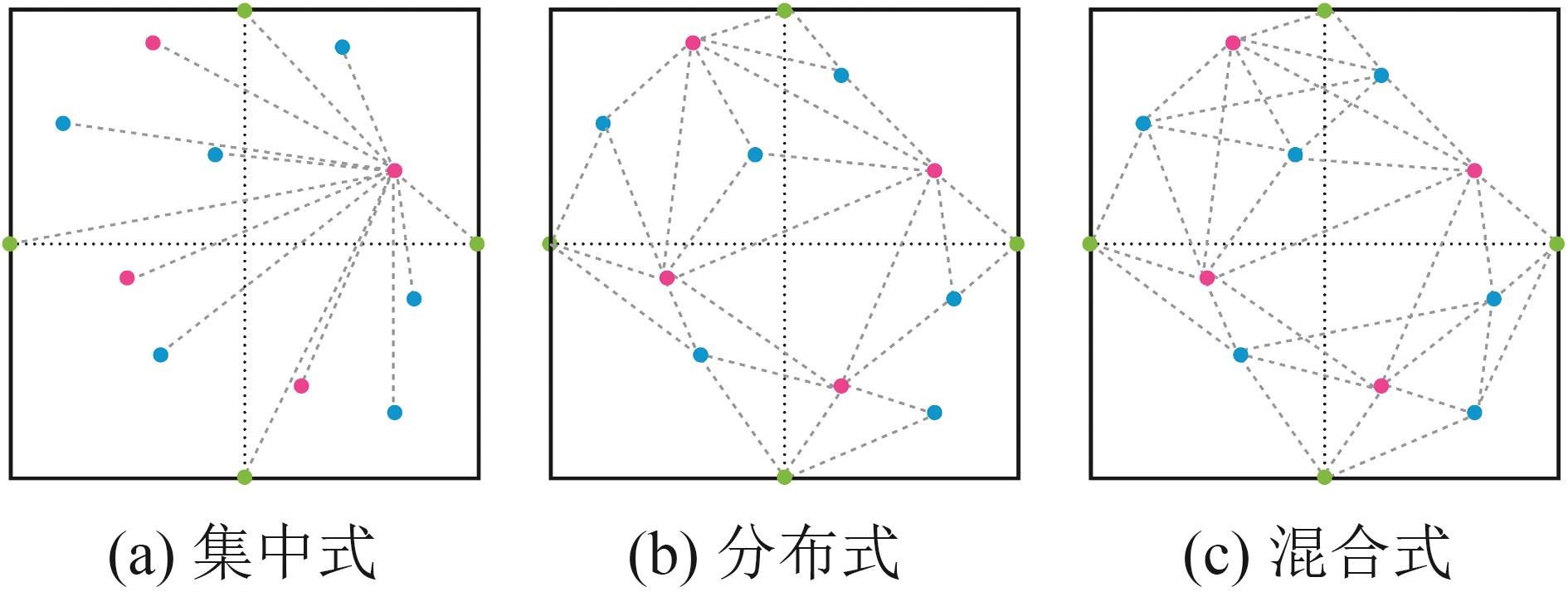

图3

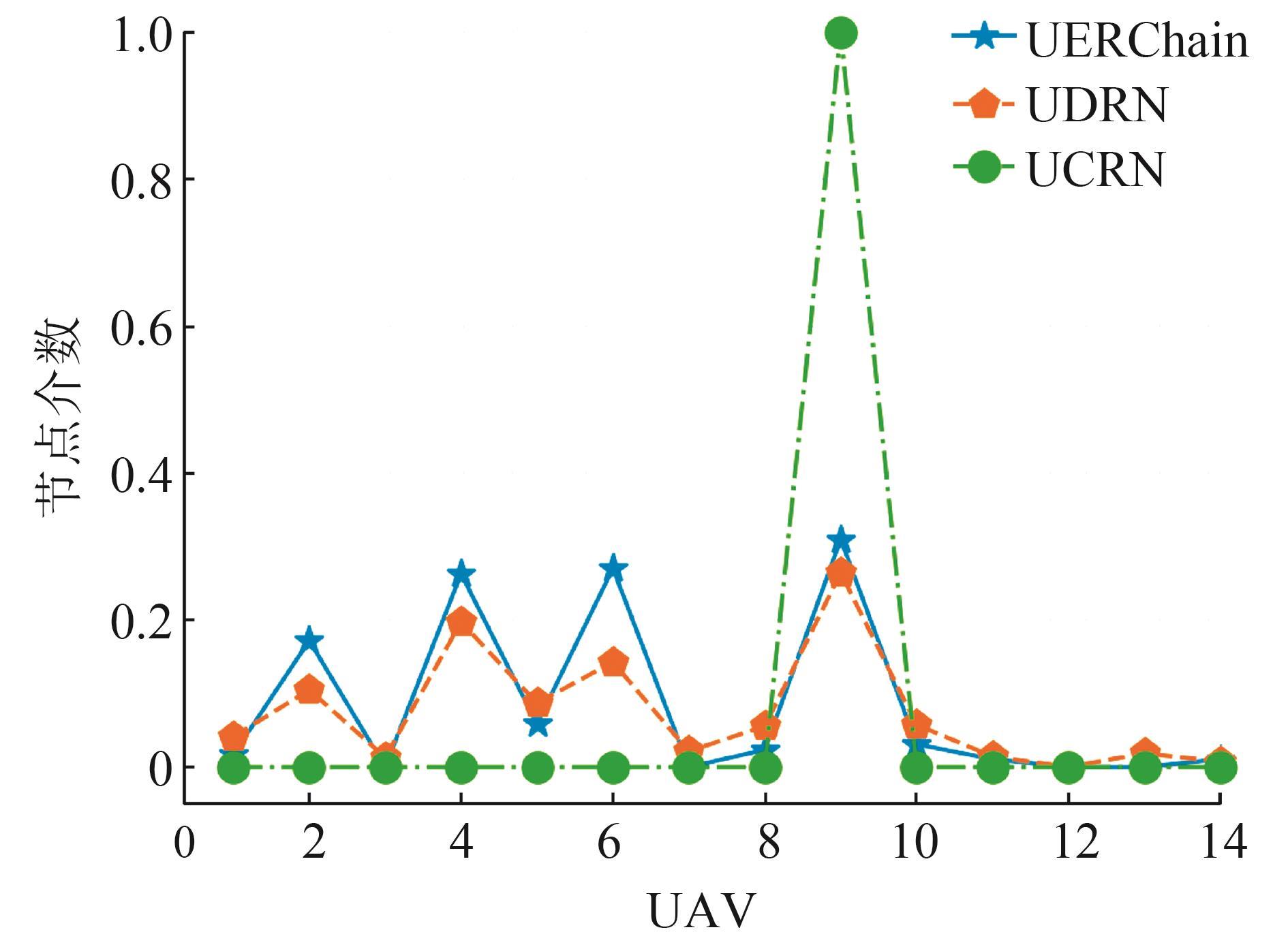

图4

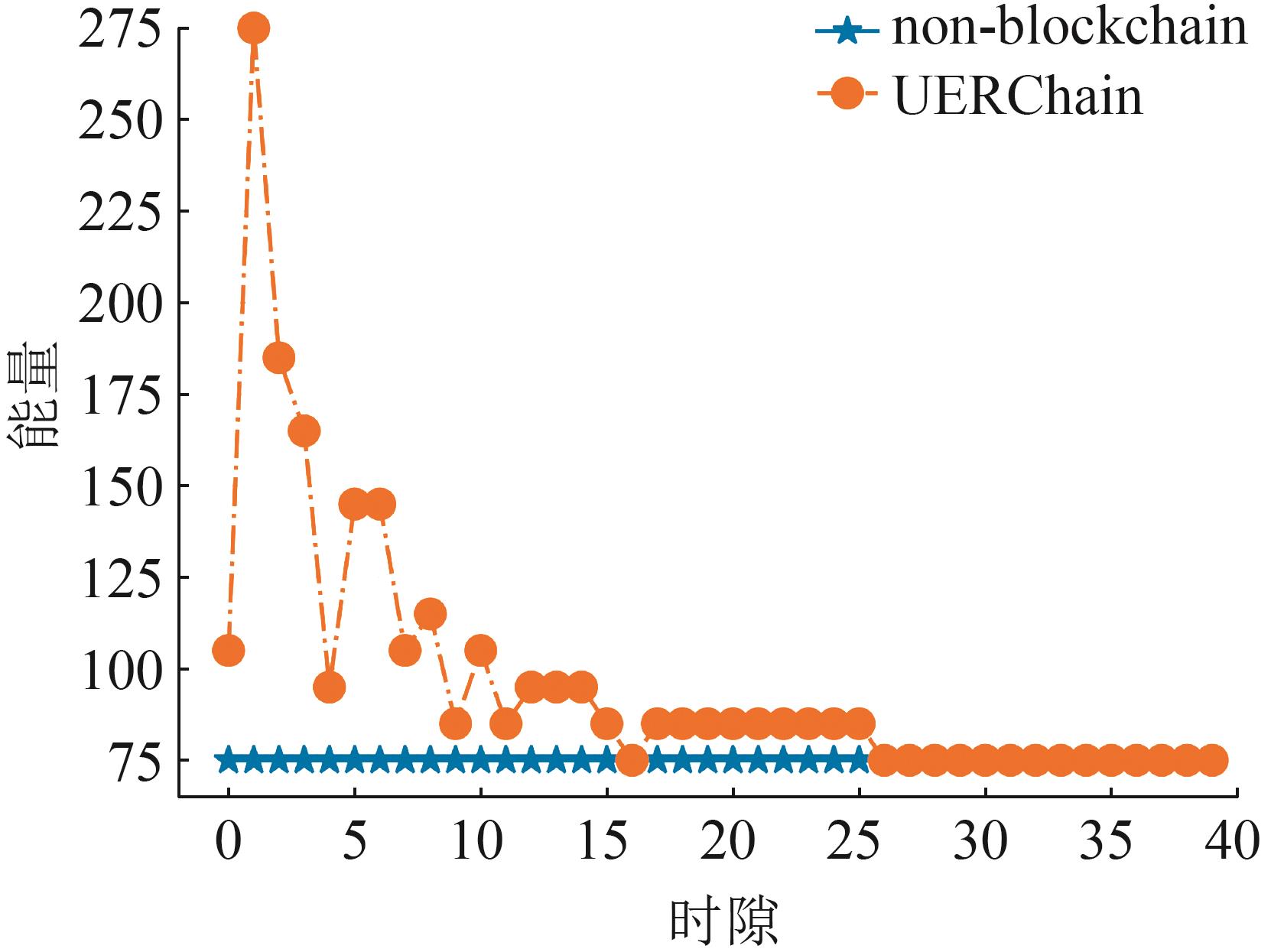

图5

参考文献 37

1	Zhao Nan, Lu Weidang, Sheng Min, et al. UAV-assisted Emergency Networks in Disasters[J]. IEEE Wireless Communications, 2019, 26(1): 45-51.
2	Chen Jie, Zhang Yifan, Li Jianqiang, et al. Integrated Air-ground Vehicles for UAV Emergency Landing Based on Graph Convolution Network[J]. IEEE Internet of Things Journal, 2022, 9(12): 9106-9116.
3	Steenbeek A, Nex F. CNN-based Dense Monocular Visual SLAM for Real-time UAV Exploration in Emergency Conditions[J]. Drones, 2022, 6(3): 79.
4	Song Hongyu, Yu Jincheng, Qiu Jiantao, et al. Multi-UAV Disaster Environment Coverage Planning with Limited-endurance[C]//2022 International Conference on Robotics and Automation (ICRA). Piscataway, NJ, USA: IEEE, 2022: 10760-10766.
5	Guo Zhenwei, Pinson P, Chen Shibo, et al. Online Optimization for Real-time Peer-to-peer Electricity Market Mechanisms[J]. IEEE Transactions on Smart Grid, 2021, 12(5): 4151-4163.
6	袁勇, 王飞跃. 区块链技术发展现状与展望[J]. 自动化学报, 2016, 42(4): 481-494.
	Yuan Yong, Wang Feiyue. Blockchain: The State of the Art and Future Trends[J]. Acta Automatica Sinica, 2016, 42(4): 481-494.
7	Wang Guizhou, Zhang Si, Yu Tao, et al. A Systematic Overview of Blockchain Research[J]. Journal of Systems Science and Information, 2021, 9(3): 205-238.
8	解岩凯, 魏凌波, 张驰, 等. 面向区块链轻节点的支付通道瞭望塔技术研究[J]. 密码学报, 2021, 8(5): 778-794.
	Xie Yankai, Wei Lingbo, Zhang Chi, et al. On Watchtower of Payment Channel for Blockchain Light Nodes[J]. Journal of Cryptologic Research, 2021, 8(5): 778-794.
9	Agrawal T K, Kumar V, Pal R, et al. Blockchain-based Framework for Supply Chain Traceability: A Case Example of Textile and Clothing Industry[J]. Computers & Industrial Engineering, 2021, 154: 107130.
10	Auer S, Nagler S, Mazumdar S, et al. Towards Blockchain-IoT Based Shared Mobility: Car-sharing and Leasing as a Case Study[J]. Journal of Network and Computer Applications, 2022, 200: 103316.
11	Shukla S, Thakur S, Hussain S, et al. Identification and Authentication in Healthcare Internet-of-things Using Integrated Fog Computing Based Blockchain Model[J]. Internet of Things, 2021, 15: 100422.
12	Tuli S, Basumatary N, Gill S S, et al. HealthFog: An Ensemble Deep Learning Based Smart Healthcare System for Automatic Diagnosis of Heart Diseases in Integrated IoT and Fog Computing Environments[J]. Future Generation Computer Systems, 2020, 104: 187-200.
13	Olfati-Saber R, Murray R M. Consensus Problems in Networks of Agents with Switching Topology and Time-delays[J]. IEEE Transactions on Automatic Control, 2004, 49(9): 1520-1533.
14	Papi F G, Jomi Fred Hübner, Maiquel de Brito. A Blockchain Integration to Support Transactions of Assets in Multi-agent Systems[J]. Engineering Applications of Artificial Intelligence, 2022, 107: 104534.
15	Khan M A, Ghosh S, Busari S A, et al. Robust, Resilient and Reliable Architecture for V2X Communications[J]. IEEE Transactions on Intelligent Transportation Systems, 2021, 22(7): 4414-4430.
16	方俊杰, 雷凯. 面向边缘人工智能计算的区块链技术综述[J]. 应用科学学报, 2020, 38(1): 1-21.
	Fang Junjie, Lei Kai. Blockchain for Edge AI Computing: A Survey[J]. Journal of Applied Sciences, 2020, 38(1): 1-21.
17	Su Zhou, Wang Yuntao, Xu Qichao, et al. LVBS: Lightweight Vehicular Blockchain for Secure Data Sharing in Disaster Rescue[J]. IEEE Transactions on Dependable and Secure Computing, 2022, 19(1): 19-32.
18	Aloqaily M, Bouachir O, Boukerche A,et al.Design Guidelines for Blockchain-Assisted 5G-UAV Networks[J]. IEEE Network 2020, 35(1): 64-71
19	García-Magariño Iván, Lacuesta R, Rajarajan M, et al. Security in Networks of Unmanned Aerial Vehicles for Surveillance with an Agent-based Approach Inspired by the Principles of Blockchain[J]. Ad Hoc Networks, 2019, 86: 72-82.
20	Lei Kai, Zhang Qichao, Lou Junjun, et al. Securing ICN-based UAV ad Hoc Networks with Blockchain[J]. IEEE Communications Magazine, 2019, 57(6): 26-32.
21	Wang Y, Su Z, Xu Q,et al.Lifesaving with RescueChain: Energy-Efficient and Partition-Tolerant Blockchain Based Secure Information Sharing for UAV-Aided Disaster Rescue[C]//IEEE INFOCOM 2021 - IEEE Conference on Computer Communications.IEEE. Vancouver, BC, Canada, 2021: 1-10
22	徐恪, 凌思通, 李琦, 等. 基于区块链的网络安全体系结构与关键技术研究进展[J]. 计算机学报, 2021, 44(1): 55-83.
	Xu Ke, Ling Sitong, Li Qi, et al. Research Progress of Network Security Architecture and Key Technologies Based on Blockchain[J]. Chinese Journal of Computers, 2021, 44(1): 55-83.
23	李朝阳. 基于区块链的分布式系统隐私保护方法研究[D]. 北京: 北京邮电大学, 2021.
	Li Chaoyang. Research on Privacy Protection Methods in Blockchain-enabled Distributed System[D]. Beijing: Beijing University of Posts and Telecommunications, 2021.
24	Warnat-Herresthal S, Schultze H, Shastry K L, et al. Swarm Learning for Decentralized and Confidential Clinical Machine Learning[J]. Nature, 2021, 594(7862): 265-270.
25	Zhou Huan, Shi Zeshun, Ouyang Xue, et al. Building a Blockchain-based Decentralized Ecosystem for Cloud and Edge Computing: An ALLSTAR Approach and Empirical Study[J]. Peer-to-Peer Networking and Applications, 2021, 14(6): 3578-3594.
26	Strobel V, Eduardo Castelló Ferrer, Dorigo M. Blockchain Technology Secures Robot Swarms: A Comparison of Consensus Protocols and Their Resilience to Byzantine Robots[J]. Frontiers in Robotics and AI, 2020, 7: 54.
27	Douceur J R. The Sybil Attack[C]//Peer-to-Peer Systems. Berlin, Heidelberg: Springer Berlin Heidelberg, 2002: 251-260.
28	Xiong Zehui, Feng Shaohan, Wang Wenbo, et al. Cloud/Fog Computing Resource Management and Pricing for Blockchain Networks[J]. IEEE Internet of Things Journal, 2019, 6(3): 4585-4600.
29	Nick Szabo. Smart Contracts: Building Blocks for Digital Markets[J]. EXTROPY: The Journal of Transhumanist Thought, 1996, 18(2), 28.
30	Ollero Aníbal, Maza Iván. Multiple Heterogeneous Unmanned Aerial Vehicles[M]. Berlin, Heidelberg: Springer Berlin Heidelberg, 2007.
31	王博文. 基于图论与匹配理论的社交物联网资源分配方法研究[D]. 徐州: 中国矿业大学, 2020.
	Wang Bowen. Study on the Graph Theory and Matching Theory Based Resource Allocation Methods in Social Internet of Things[D]. Xuzhou: China University of Mining and Technology, 2020.
32	Chea E, Livesay D R. How Accurate and Statistically Robust Are Catalytic Site Predictions Based on Closeness Centrality?[J]. BMC Bioinformatics, 2007, 8(1): 153.
33	Freeman L C. A Set of Measures of Centrality Based on Betweenness[J]. Sociometry, 1977, 40(1): 35-41.
34	齐盛. 面向无人机集群的协同通信理论与仿真实现[D]. 成都: 电子科技大学, 2021.
	Qi Sheng. Collaborative Communication Theories and Simulation Implementations for UAV Clusters[D]. Chengdu: University of Electronic Science and Technology of China, 2021.
35	Nakamoto S. Bitcoin: A Peer-to-peer Electronic Cash System[EB/OL].(2008-10-31)[2022-06-20].
36	傅翔. 场景相关的区块链系统共识技术研究[D]. 长沙: 国防科技大学, 2020.
	Fu Xiang. Research on Distributed Consensus for Scenario-related Blockchain Systems[D]. Changsha: National University of Defense Technology, 2020.
37	Karame G O, Androulaki E, Roeschlin M, et al. Misbehavior in Bitcoin: A Study of Double-spending and Accountability[J]. ACM Transactions on Information and System Security, 2015, 18(1): 1-32.

区块链函数	函数介绍	燃料费
addUAV	无人机在区块链中注册	21 624
addRescueInfo	无人机将救援信息写入区块链	21 484
validateTrue	无人机进行救援信息验证	21 344
reward	地面救援车辆进行奖励	46 429
