基于自适应分段势场法的多无人机航迹规划

doi:10.16182/j.issn1004731x.joss.21-0538

摘要/Abstract

摘要：

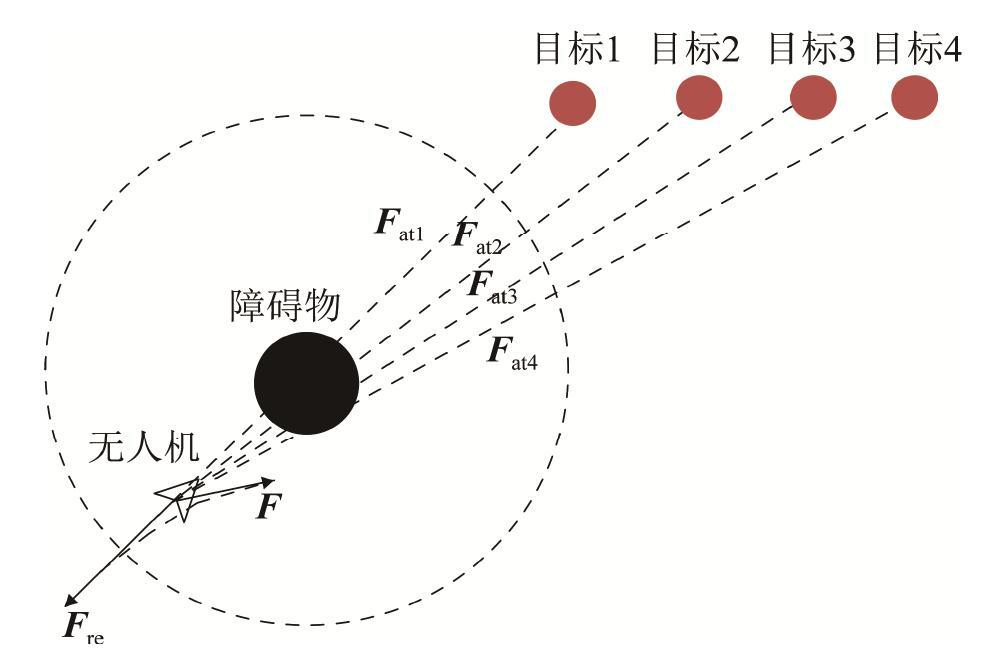

为解决传统人工势场法在无人机进行航迹规划应用中易陷入局部极值、目标不可达与规划航迹曲率过大等问题，在分层势场法基础上提出了目标点处附加的第二局部引力场和由目标引力场组成的引力集合的方法。该方法克服了目标不可达和易陷入局部极值的缺陷，且在原有分层势场法中引入分段函数，提高了航迹规划效率，缩短了航迹长度。仿真对比了传统人工势场算法、对比算法一、对比算法二、本文提出的基于附加引力场和复合引力场的势场算法以及自适应分段势场算法。结果表明：自适应分段势场算法具有较好的有效性和较强的鲁棒性。

关键词: 人工势场, 航迹规划, 多无人机, 复合引力场, 附加引力场

Abstract:

To solve the problems that the traditional artificial potential field method is prone to fall into the local extreme value, target unreachability and excessive curvature of the planned trajectory curvature in the application of UAV trajectory planning, on the basis of the layered potential field method, a method of adding a second local attractive field at the target point and an attractive set composed of the target attractive field is proposed. This method overcomes the defects of unreachable targets and easy falling into local extremes. In addition, a piecewise function is introduced into the original layered potential field method, which improves the efficiency of trajectory planning and shortens the length of the trajectory. The simulation compares the traditional artificial potential field algorithm, comparison algorithm one, comparison algorithm two, the potential field algorithm based on the additional attractive field and the compound attractive field proposed in this paper, and the adaptive segmented potential field algorithm. The results show that the adaptive segmented potential field algorithm has better effectiveness and strong robustness.

Key words: artificial potential field, trajectory planning, multi-UAV, compound attractive field, additional attractive field

中图分类号:

TP391.9

田广键, 代冀阳, 应进, 王宁. 基于自适应分段势场法的多无人机航迹规划[J]. 系统仿真学报, 2022, 34(11): 2368-2376.

Guangjian Tian, Jiyang Dai, Jin Ying, Ning Wang. Multi-UAV Trajectory Planning Based on Adaptive Segmented Potential Field Method[J]. Journal of System Simulation, 2022, 34(11): 2368-2376.

图/表 14

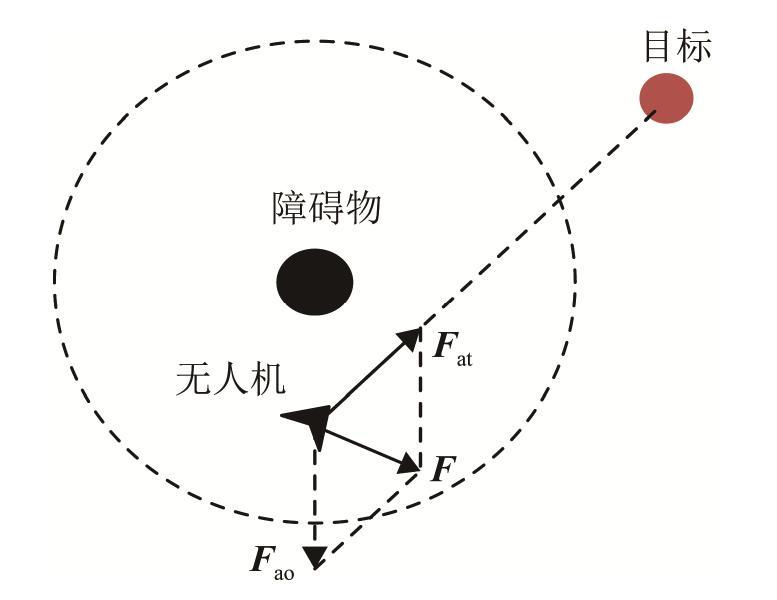

图1

图2

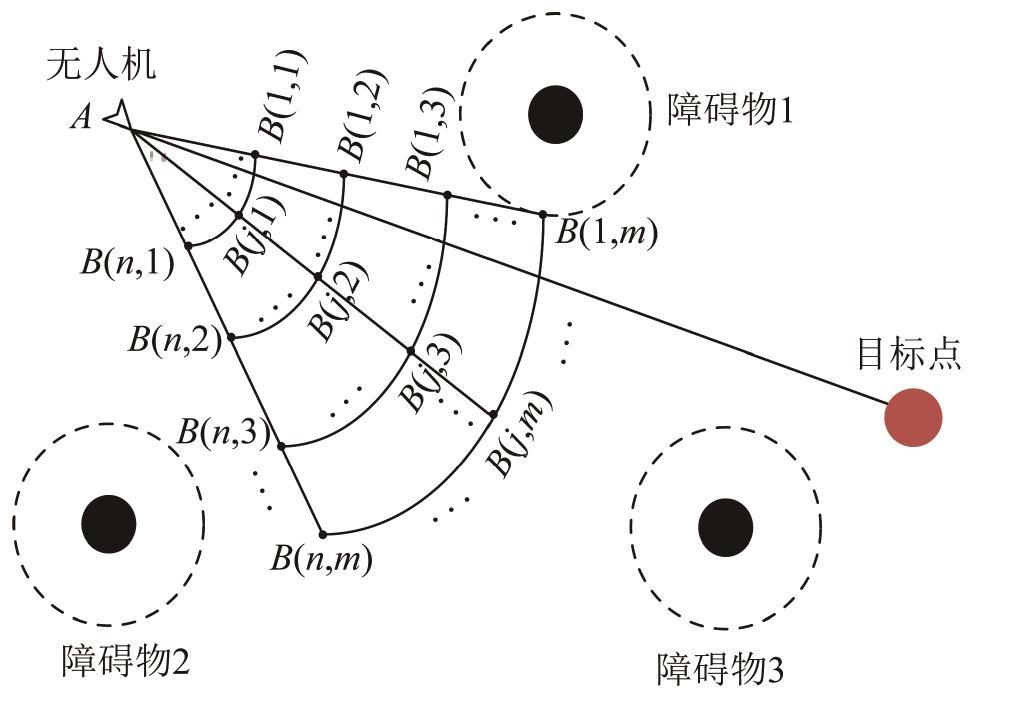

图3

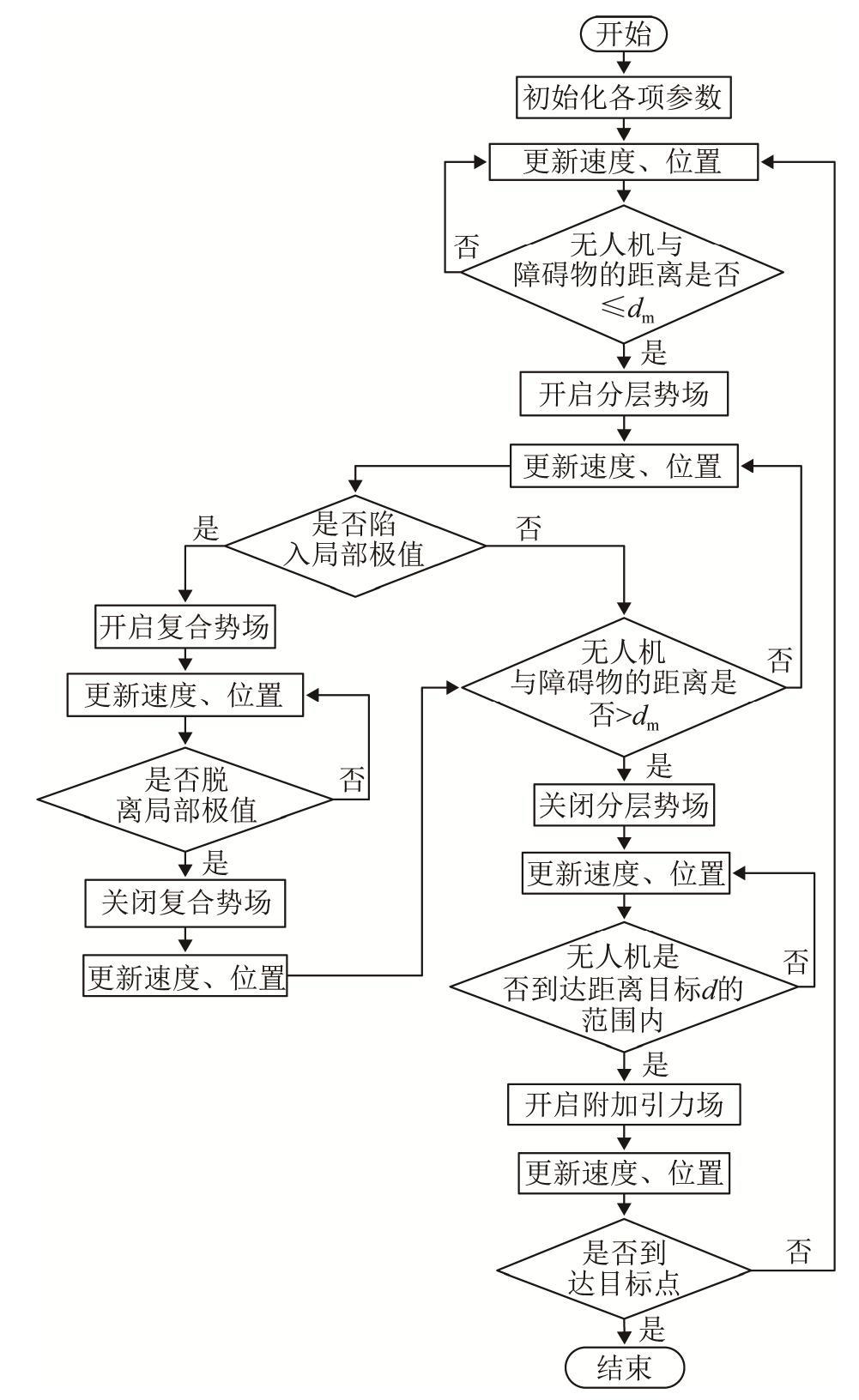

图4

表1

图5

表2

表3

表4

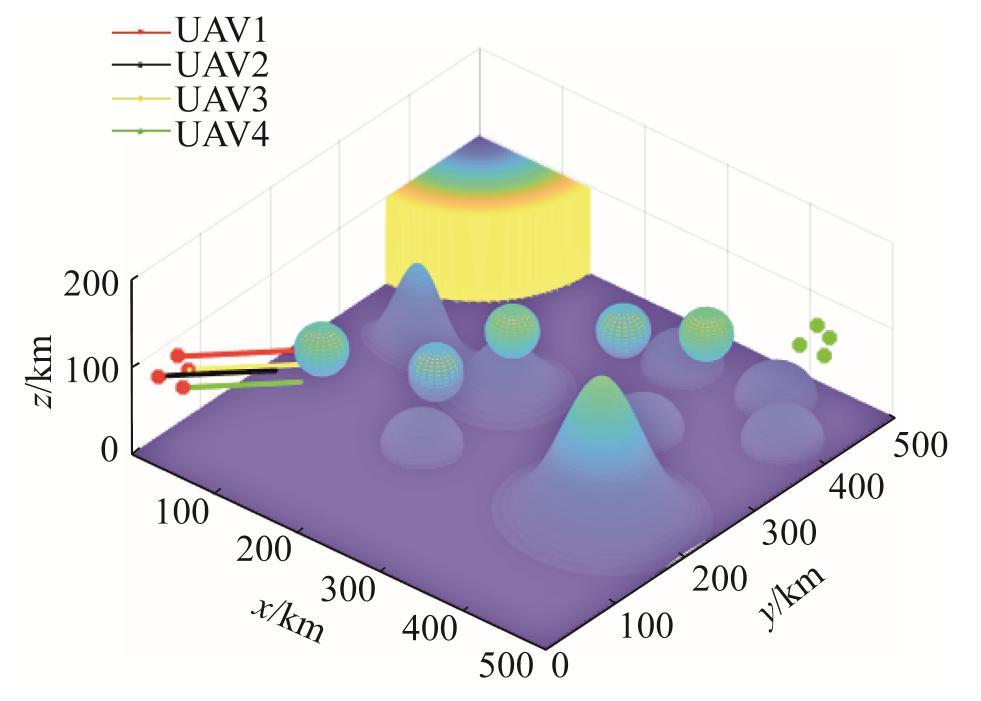

图6

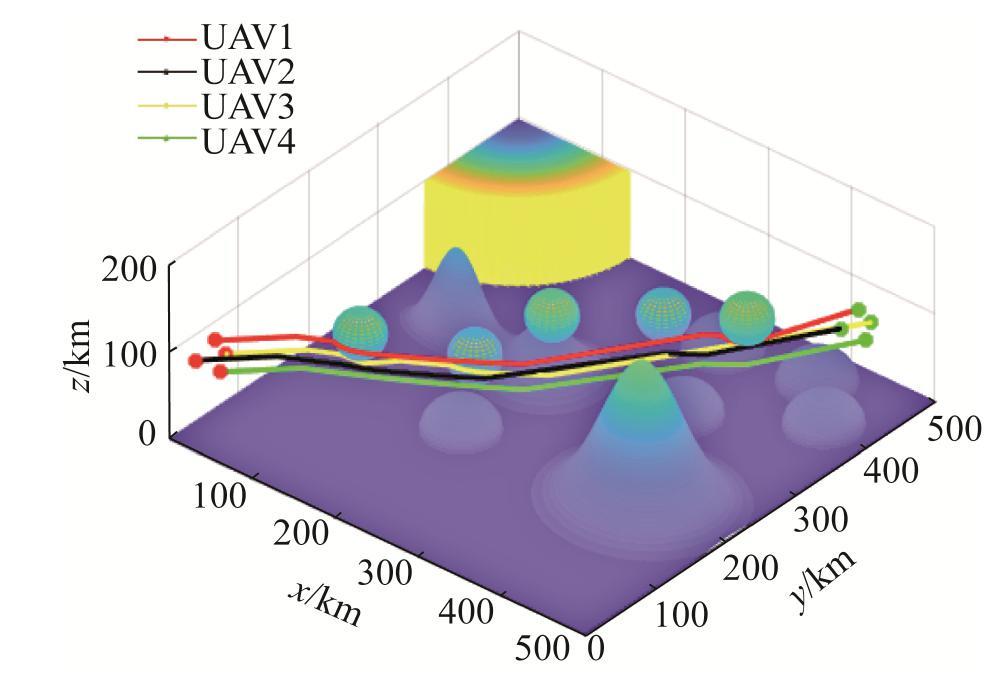

图10

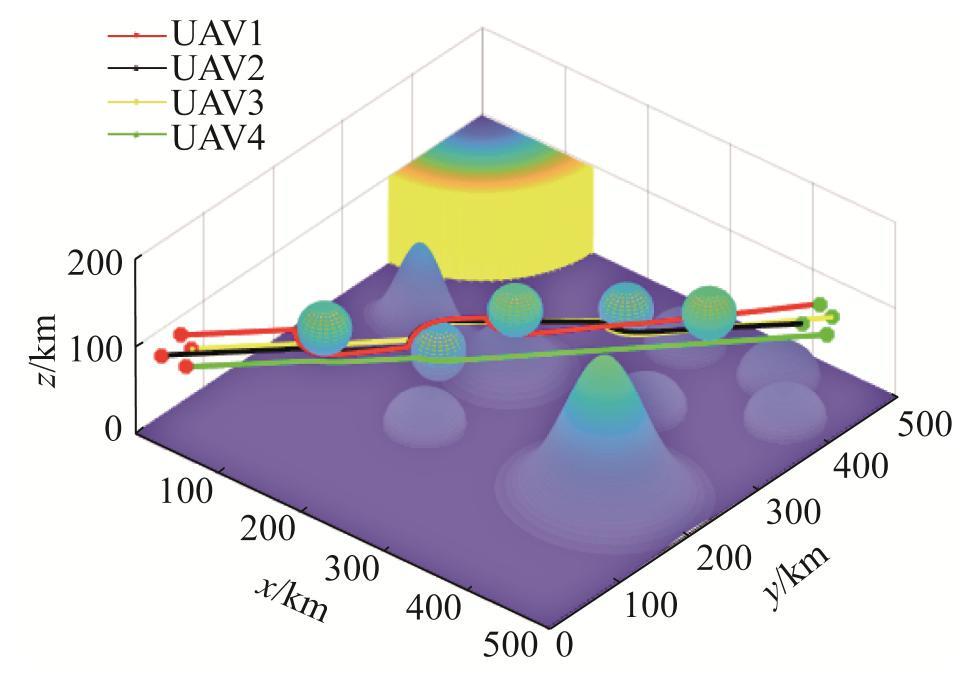

图7

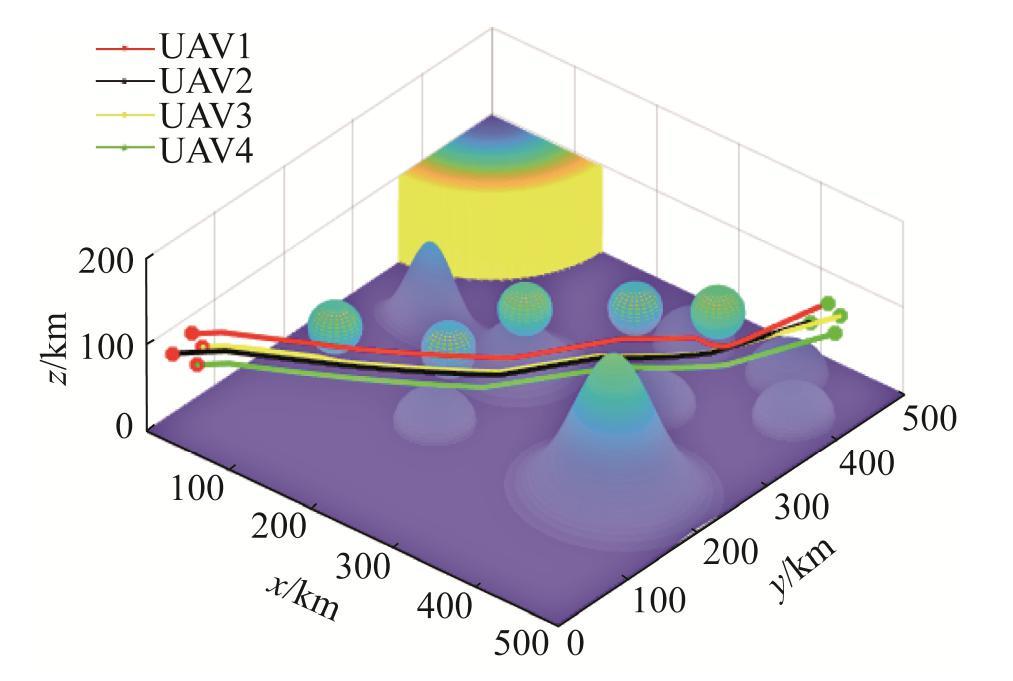

图8

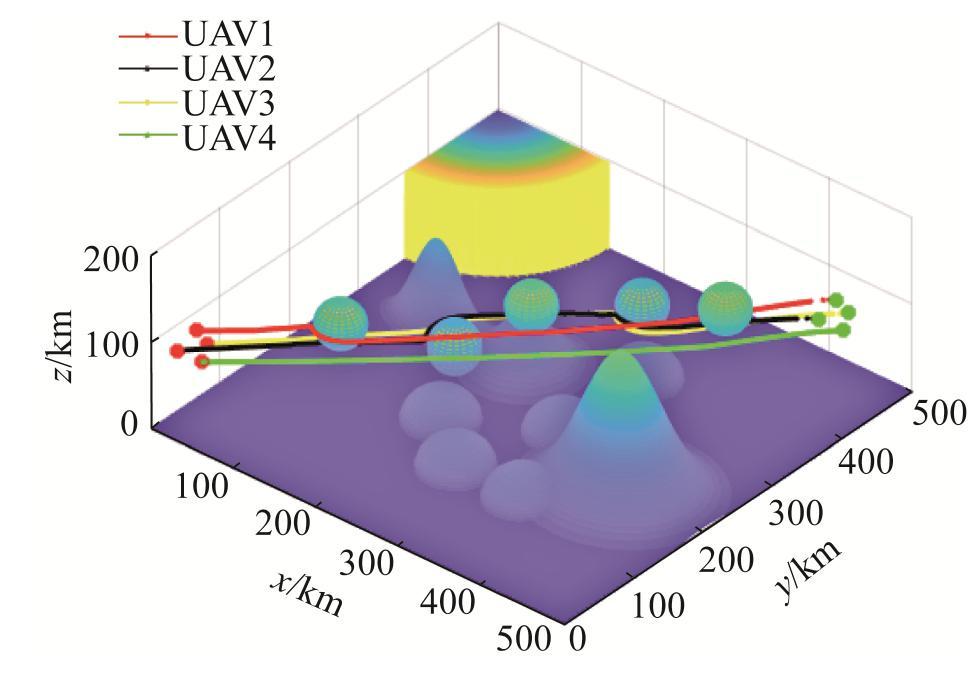

图9

参考文献 16

[1]	Liu Chenguang, Mao Qingzhou, Chu Xiumin, et al. An Improved A-Star Algorithm Considering Water Current, Traffic Separation and Berthing for Vessel Path Planning[J]. Applied Sciences (S0305-0548), 2019, 9(6): 1057.
[2]	Mohammed H, Romdhane L, Jaradat M A. RRT* N: An Efficient Approach to Path Planning in 3D for Static and Dynamic Environments[J]. Advanced Robotics (S0169-1864), 2021, 35(3/4): 168-180.
[3]	Zhou Q, Zhou Y. Wolf Colony Search Algorithm Based on Leader Strategy[J]. Application Research of Computers (S0305-0548), 2013, 30(9): 2629-2632.
[4]	Haghighi H, Sadati S H, Dehghan S M, et al. Hybrid Form of Particle Swarm Optimization and Genetic Algorithm for Optimal Path Planning in Coverage Mission by Cooperated Unmanned Aerial Vehicles[J]. Journal of Aerospace Technology and Management (S1984-9648), 2020, 12: 1169.
[5]	朱大奇, 朱婷婷, 颜明重. 基于改进神经网络的多AUV全覆盖路径规划[J]. 系统仿真学报, 2020, 32(8): 1505-1514.
	Zhu Daqi, Zhu Tingting, Yan Mingzhong. Multi-AUV Complete Coverage Path Planning Based on Improved Neural Network[J]. Jurnal of System Simulation, 2020, 32(8): 1505-1514.
[6]	Zhang Honghan, Guo Yanyang, Xu Yajie, et al. Mission Planning Method of Multi-UUV Search Submarine Acoustic Beacon[J]. Chinese Journal of Ship Research (S1000-9604), 2020, 15(1): 1-9.
[7]	Biswas S, Anavatti S G, Garratt M A. Obstacle Avoidance for Multi-agent Path Planning Based on Vectorized Particle Swarm Optimization[M]. Springer, Cham: Intelligent and Evolutionary Systems, 2017: 61-74.
[8]	Sang H, You Y, Sun X, et al. The Hybrid Path Planning Algorithm Based on Improved A^* and Artificial Potential Field for Unmanned Surface Vehicle Formations[J]. Ocean Engineering (S0029-8018), 2021, 223: 108709.
[9]	Fan X, Guo Y, Liu H, et al. Improved Artificial Potential Field Method Applied for AUV Path Planning[J]. Mathematical Problems in Engineering (S1024-123X), 2020(1): 1-21.
[10]	林立雄, 何洪钦, 何炳蔚, 等. 基于改进人工势场模型的无人机局部避障方法[J]. 华中科技大学学报(自然科学版), 2021, 49(8): 86-91.
	Lin Lixiong, He Hongqin, He Bingwei, et al. Local Obstacle Avoidance Method for Unmanned Aerial Vehicle Based on Improved Artificial Potential Field[J]. Journal of Huazhong University of Science and Technology(Natural Science Edition), 2021, 49(8): 86-91.
[11]	陈廷楠. 飞机飞行性能品质与控制[M]. 北京: 国防工业出版社, 2010: 21-27.
	Chen Tingnan. Aircraft Flight Performance Quality and Control[M]. Beijing: National Defense Industry Press, 2010: 21-27.
[12]	Khatib O. Real-Time Obstacle Avoidance for Manipulators and Mobile Robots[J]. International Joumal of Robotics Research (S0278-3649), 1986, 5(1): 90-98.
[13]	张殿富, 刘福. 基于人工势场法的路径规划方法研究及展望[J]. 计算机工程与科学, 2013, 35(6): 88-95.
	Zhang Dianfu, Liu Fu. Research and Development Trend of Path Planning Based on Artificial Field Method[J]. Computer Engineering & Science, 2013, 35(6): 88-95.
[14]	曲成刚, 曹喜滨, 张泽旭. 人工势场和虚拟领航者结合的多智能体编队[J]. 哈尔滨工业大学学报, 2014, 46(5): 1-5.
	Qu Chenggang, Cao Xibin, Zhang Zexu. Multi-agent System Formation Integrating Virtual Leaders into Artificial Potentials[J]. Journal of Harbin institute of technology, 2014, 46(5): 1-5.
[15]	代冀阳, 王村松, 殷林飞, 等. 飞行器分层势场路径规划算法[J]. 控制理论与应用, 2015, 32(11): 1505-1510.
	Dai Jiyang, Wang Cunsong, Yin Linfei, et al. Aircraft Layered Potential Field Path Planning Algorithm[J]. Control Theory and Applications, 2015, 32(11): 1505-1510.
[16]	王宁, 代冀阳, 应进, 等. 基于自适应扩展势场的多无人机航迹规划仿真[J]. 系统仿真学报, 2021, 33(9): 2147-2156.
	Wang Ning, Dai Jiyang, Ying Jin, et al. Multi-UAV Trajectory Planning Simulation Based on Adaptive Extended Potential Field[J]. Journal of System Simulation, 2021, 33(9): 2147-2156.

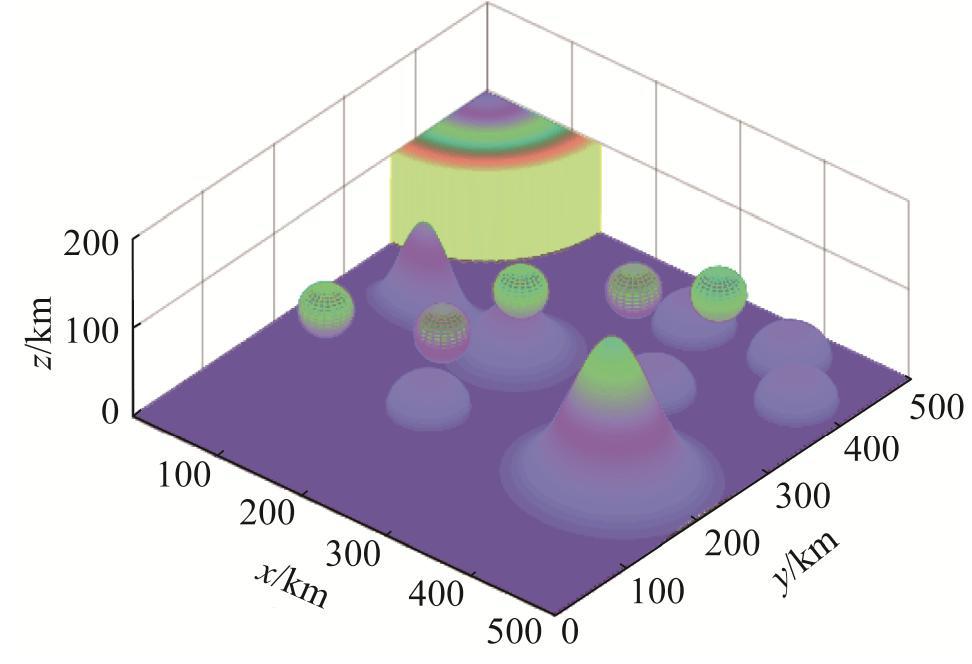

障碍物	编号	具体位置
山峰	1	400, 200, 0
	2	200, 300, 0
	3	95, 300, 0
恶劣天气	1	0, 500, 0
雷达	1	300, 450, 0
	2	450, 400, 0
	3	340, 330, 0
	4	200, 180, 0
	5	450, 400, 0
导弹	1	200, 200, 80
	2	125, 125, 110
	3	300, 350, 90
	4	250, 250, 120
	5	200, 200, 75
	6	400, 350, 130

参数	数值	参数	数值
α	1.5	γ	10
β	0.1	ν_max	5
η	2.0	ε	4 300

无人机	目标
(30, 30, 110)	(450, 450, 110)
(15, 21.397 0, 85.505 1)	(435, 441.339 7, 85.505 1)
(30, 47.320 5, 85.505 1)	(450, 467.320 5, 85.505 1)
(45, 21.339 7, 85.505 1)	(465, 441.339 7, 85.550 1)

方法	时间/s	航线长度/km
附加引力场和复合引力场算法	65.994 2	669.822 5
		613.036 3
		608.454 3
		598.539 8
对比算法一	212.197 4	618.830 2
		626.496 9
		615.069 4
		614.523 5
对比算法二	63.579 6	618.339 2
		613.952 4
		608.770 0
		595.721 5
自适应分段势场算法	62.979 9	617.627 6
		610.596 3
		612.765 1
		610.057 4
