Optimal Scheduling of Integrated Energy Systems Considering Source-load Uncertainty and Linear Carbon Trading

doi:10.16182/j.issn1004731x.joss.25-0521

Abstract

Abstract:

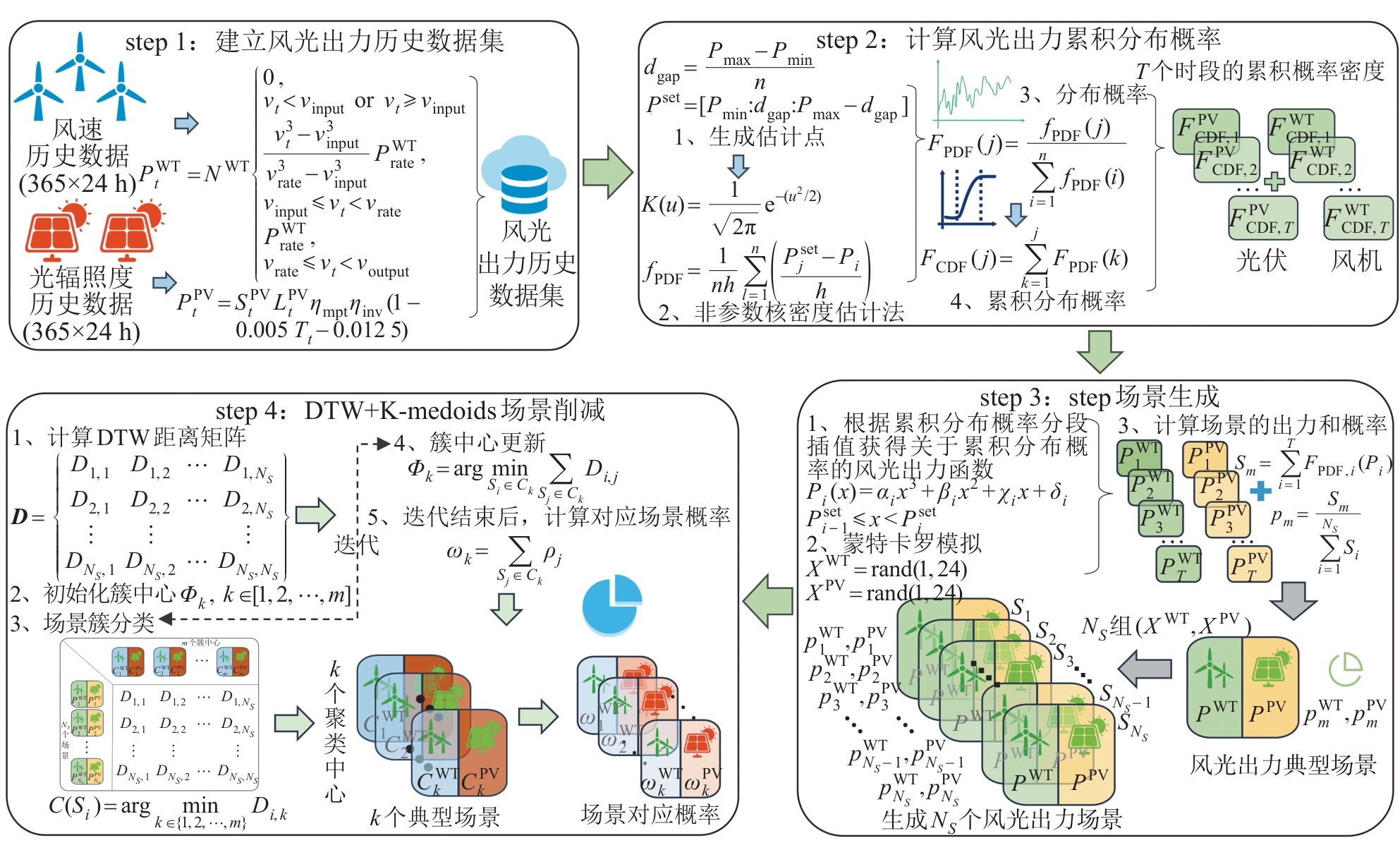

In order to overcome the impact of source-load uncertainty on the scheduling of integrated energy systems (IES) and reflect the flexibility of the carbon trading price with the change in trading volume, an optimal scheduling method for integrated energy systems considering source-load uncertainty and linear carbon trading was proposed. The equipment within the IES was modeled, and nonparametric kernel density estimation was used to obtain the probability density function for each time period, generating the set of scenes through Monte Carlo simulation and calculating the probability of each scene. For the time shift of wind and solar output peaks and fluctuations, the scene set was processed using a scene reduction method that integrated the dynamic time warping (DTW) distance and K-medoids clustering to obtain the typical scenes and probabilities.Alinear carbon trading mechanism was designed, which was derived from the ladder carbon trading mechanism, and an IES optimization scheduling model was established. The simulation results show that the proposed method can effectively promote the low-carbon operation of the IES.

Key words: integrated energy system, source-load uncertainty, carbon trading mechanism, nonparametric kernel density estimation method, dynamic time warping distance

CLC Number:

TP391.9

Zhong Huaping, Fan Yubo, Shui Jijun, Wang Danhao, Peng Daogang. Optimal Scheduling of Integrated Energy Systems Considering Source-load Uncertainty and Linear Carbon Trading[J]. Journal of System Simulation, 2025, 37(10): 2485-2499.

Figures/Tables 17

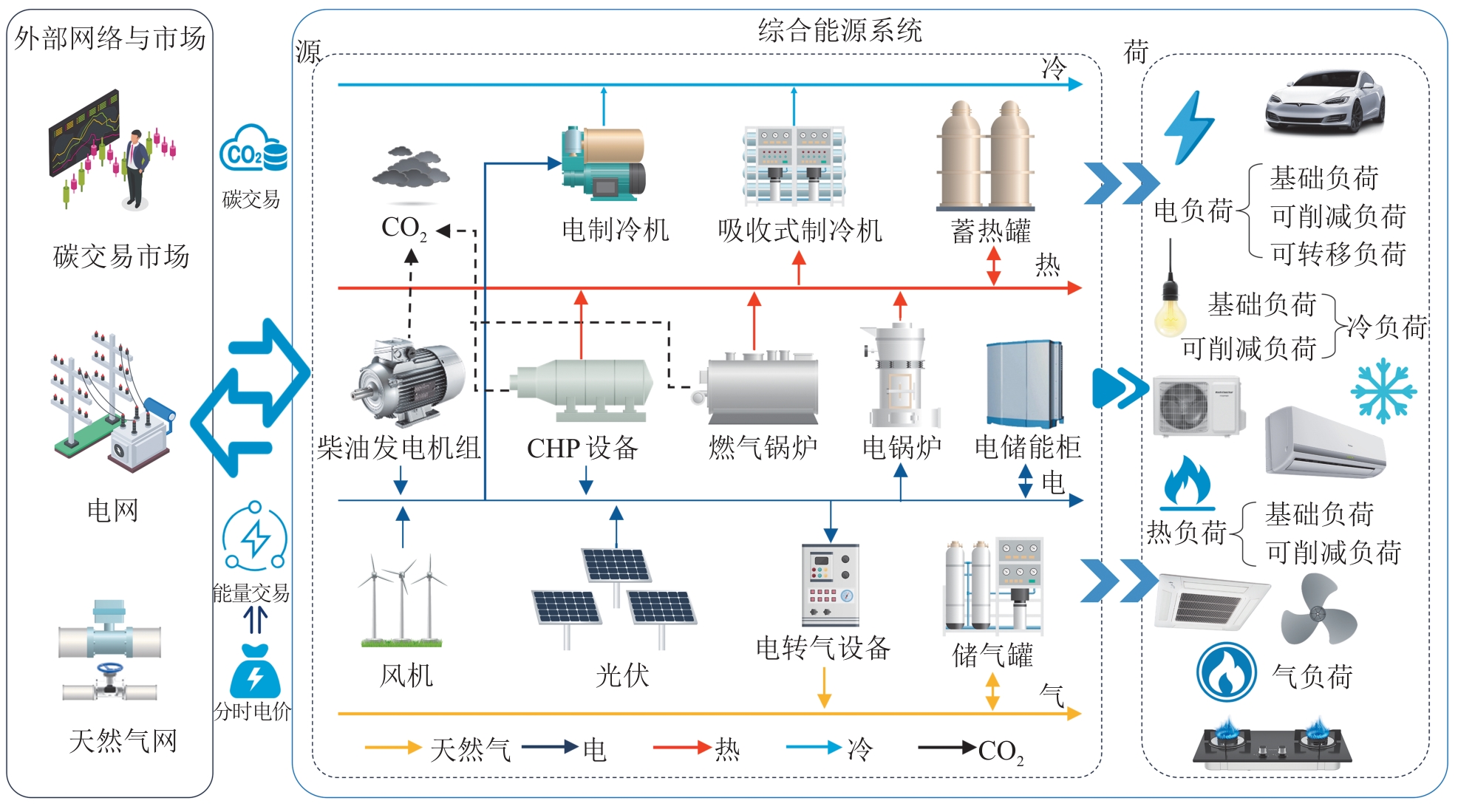

Fig. 1

Fig. 2

Table 1

Table 2

Table 3

Table 4

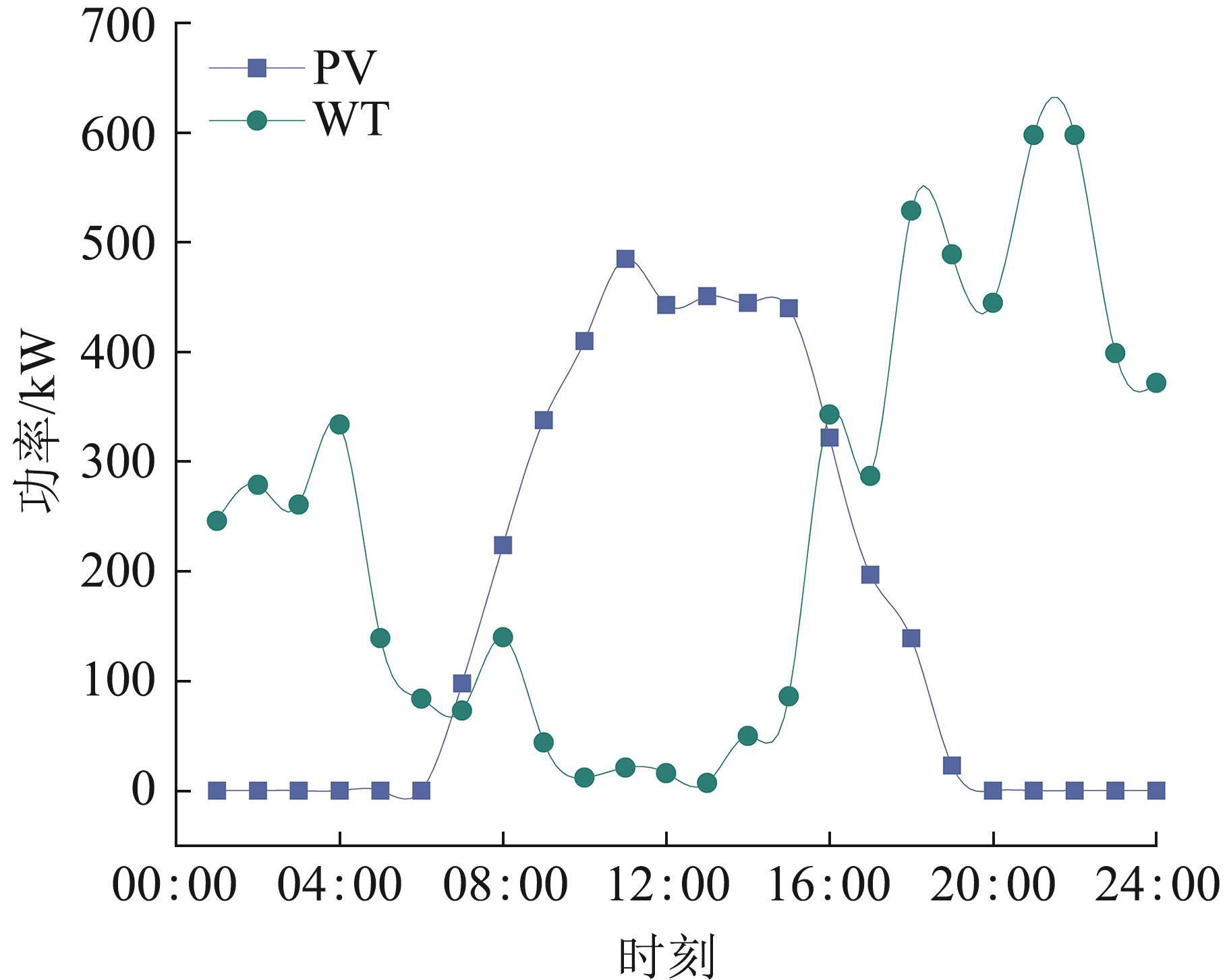

Fig. 3

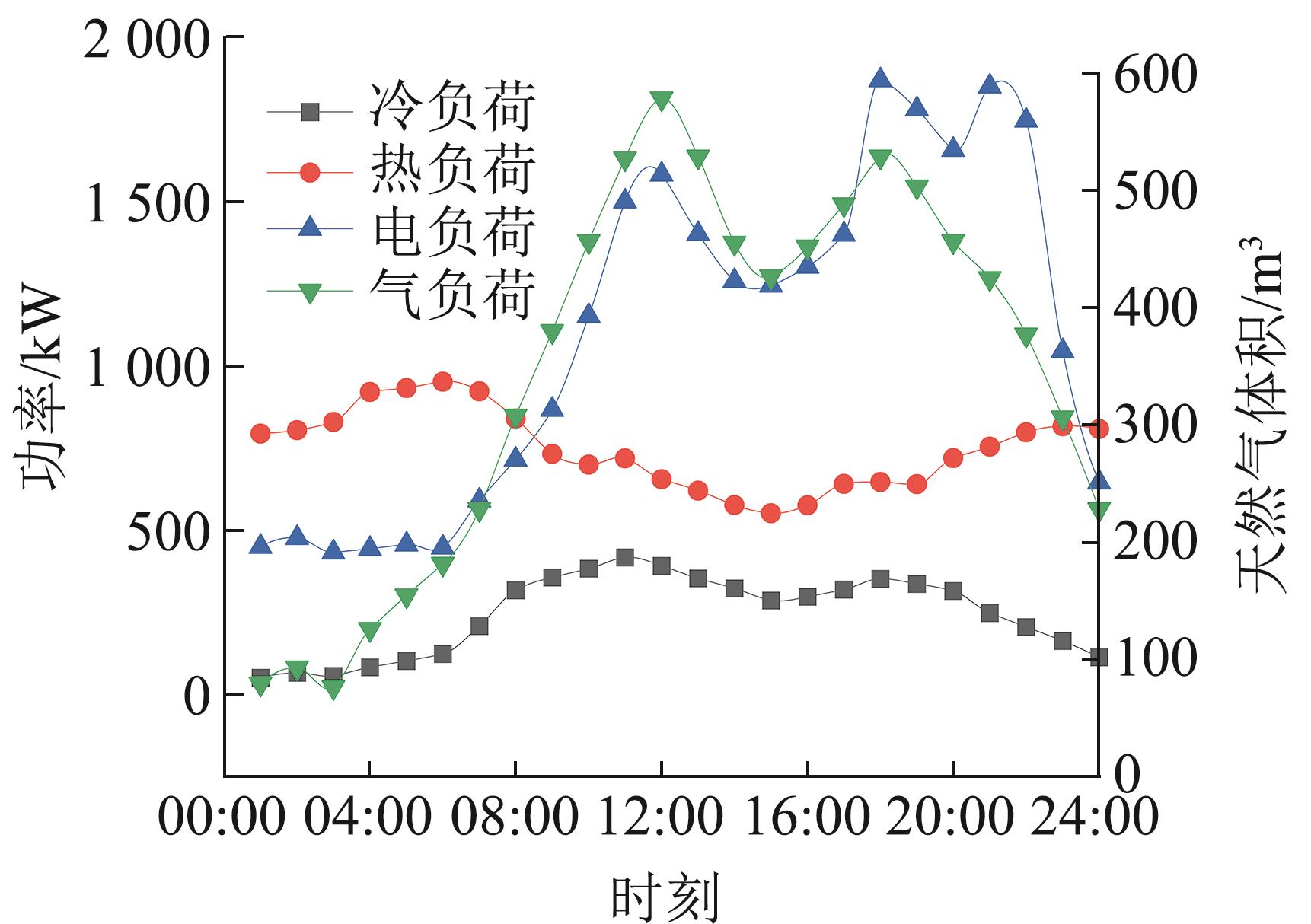

Fig. 4

Table 5

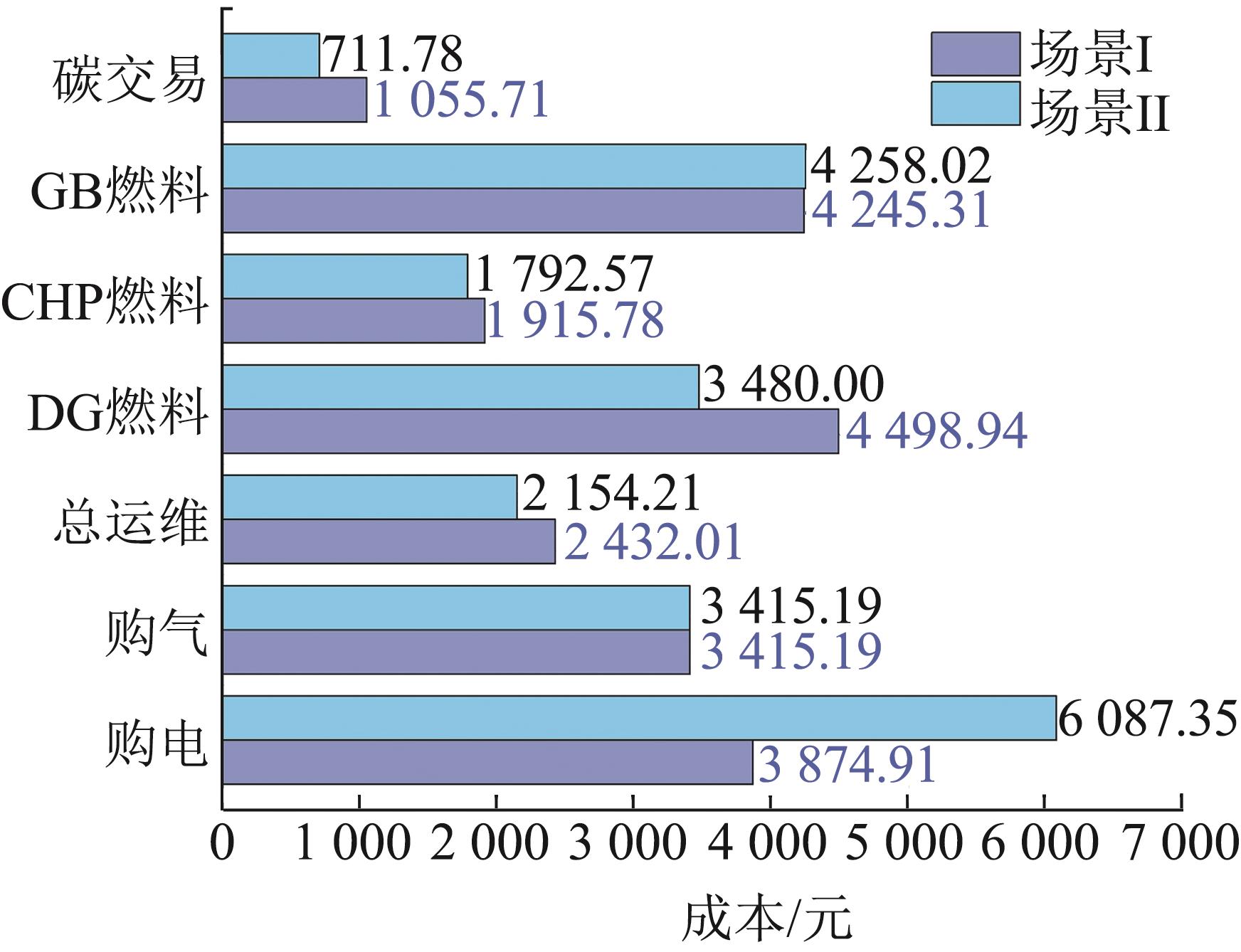

Fig. 5

Fig. 6

Fig. 7

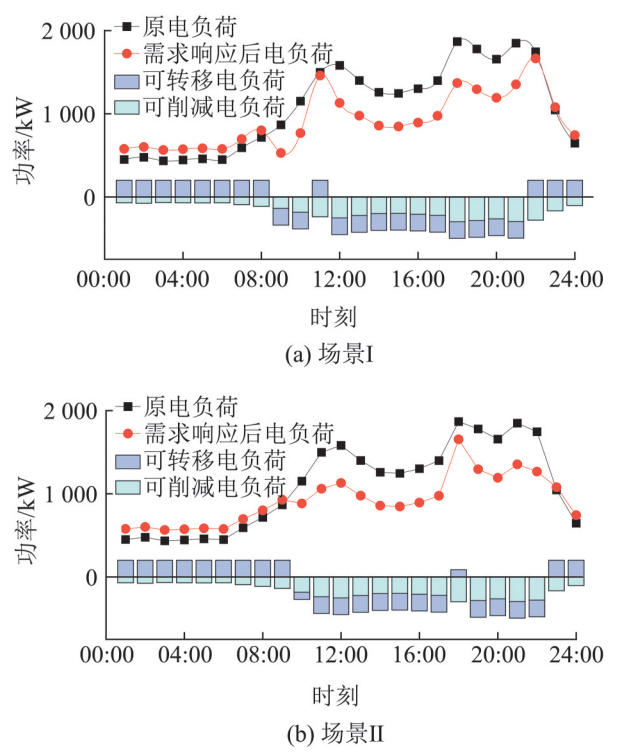

Fig. 8

Fig. 9

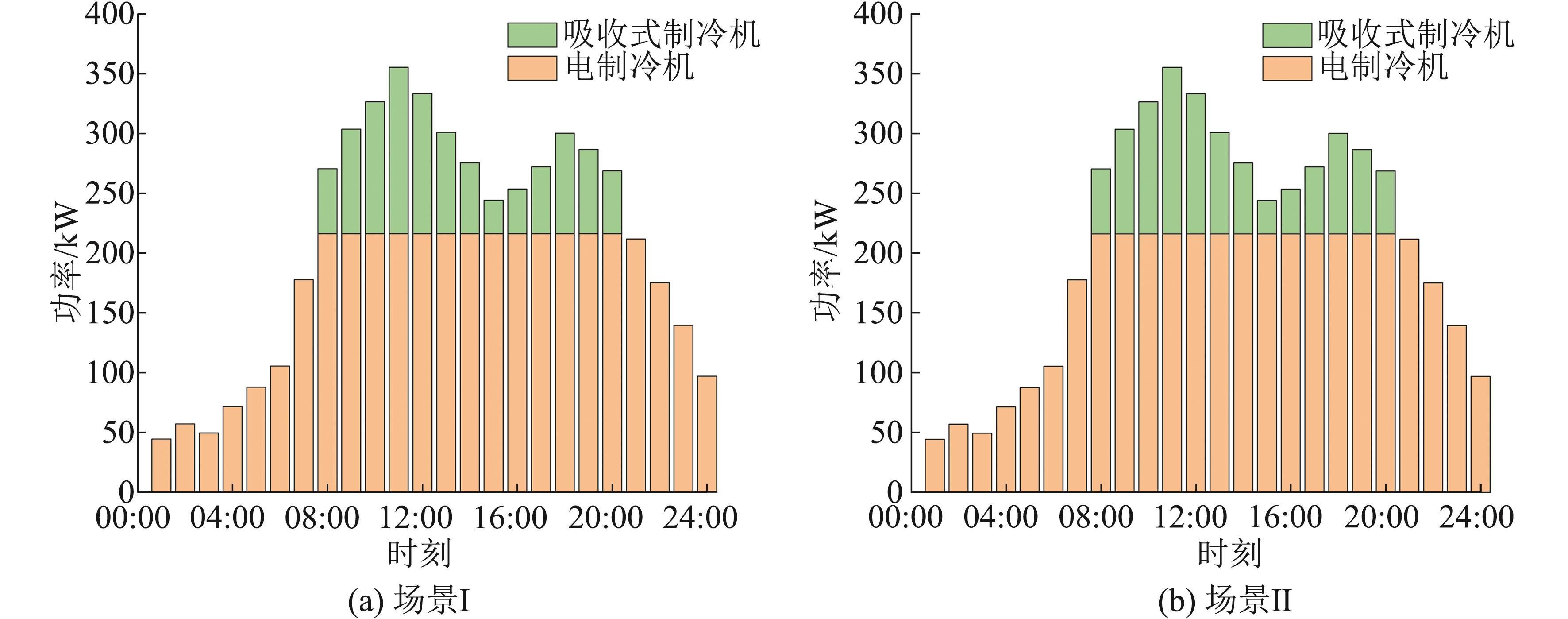

Fig. 10

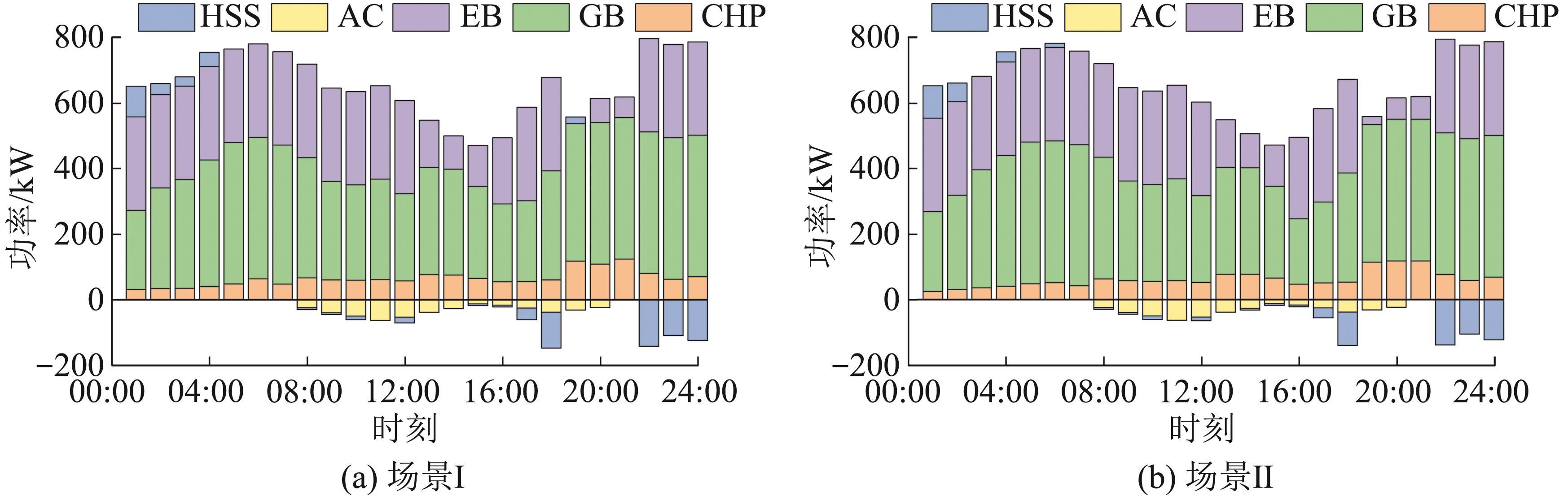

Fig. 11

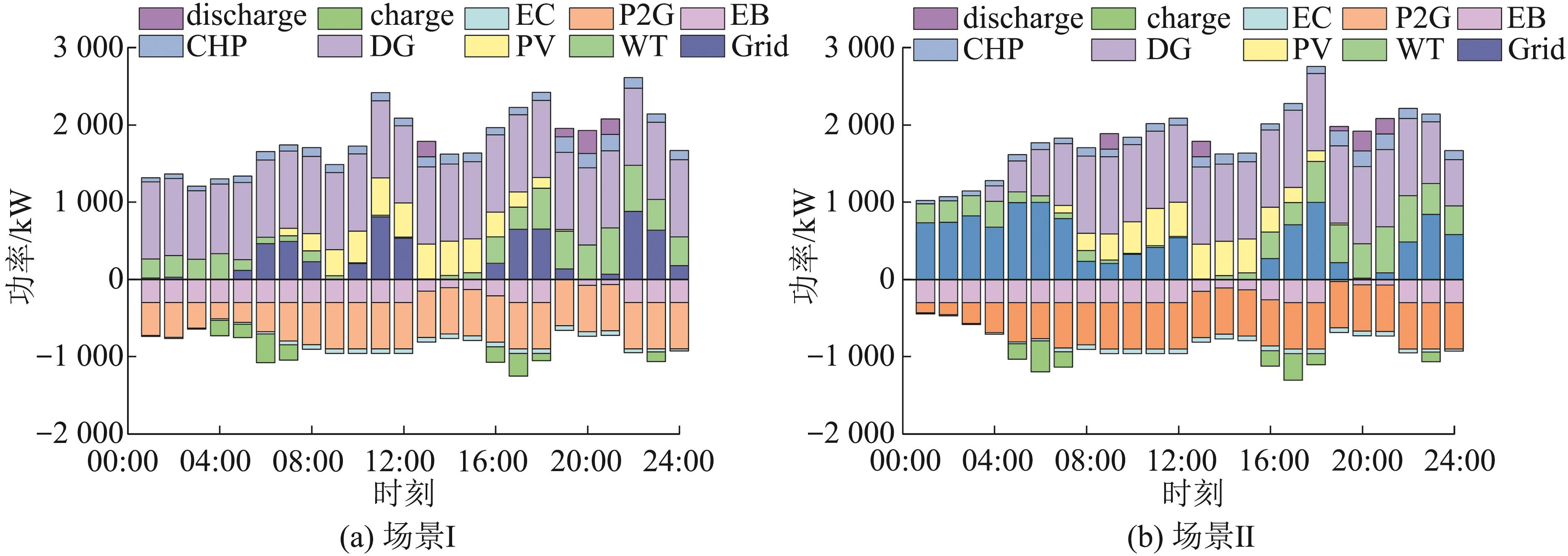

Fig. 12

References 29

[1]	辛保安, 陈梅, 赵鹏, 等. 碳中和目标下考虑供电安全约束的我国煤电退减路径研究[J]. 中国电机工程学报, 2022, 42(19): 6919-6930.
	Xin Baoan, Chen Mei, Zhao Peng, et al. Research on Coal Power Generation Reduction Path Considering Power Supply Adequacy Constraints Under Carbon Neutrality Target in China[J]. Proceedings of the CSEE, 2022, 42(19): 6919-6930.
[2]	彭道刚, 税纪钧, 王丹豪, 等. "双碳"背景下虚拟电厂研究综述[J]. 发电技术, 2023, 44(5): 602-615.
	Peng Daogang, Shui Jijun, Wang Danhao, et al. Review of Virtual Power Plant Under the Background of "Dual Carbon" [J]. Power Generation Technology, 2023, 44(5): 602-615.
[3]	王永真, 康利改, 张靖, 等. 综合能源系统的发展历程、典型形态及未来趋势[J]. 太阳能学报, 2021, 42(8): 84-95.
	Wang Yongzhen, Kang Ligai, Zhang Jing, et al. Development History, Typical form and Future Trend of Integrated Energy System[J]. Acta Energiae Solaris Sinica, 2021, 42(8): 84-95.
[4]	袁越, 苗安康, 吴涵, 等. 低碳综合能源系统研究框架与关键问题研究综述[J]. 高电压技术, 2024, 50(9): 4019-4036.
	Yuan Yue, Miao Ankang, Wu Han, et al. Review of the Research Framework and Key Issues for Low-carbon Integrated Energy System[J]. High Voltage Engineering, 2024, 50(9): 4019-4036.
[5]	陈洁, 王樊云, 徐涛, 等. 电-碳市场下考虑风光不确定性的虚拟电厂优化调度[J]. 分布式能源, 2024, 9(4): 60-68.
	Chen Jie, Wang Fanyun, Xu Tao, et al. Optimal Scheduling of Virtual Power Plant Considering Wind Power and PV Uncertainty in Electric-carbon Market[J]. Distributed Energy, 2024, 9(4): 60-68.
[6]	薄利明, 郑惠萍, 程雪婷, 等. 基于核密度与Copula函数的风光储日前竞价优化模型[J/OL]. 南京信息工程大学学报. (2024-08-27)[2025-06-03]. .
	Bo Liming, Zheng Huiping, Cheng Xueting, et al. Optimization Model for Day Ahead Bidding of Wind and Solar Energy Storage Based on Kernel Density and Copula Function[J/OL]. Journal of Nanjing University of Information Science & Technology. (2024-08-27)[2025-06-03]. .
[7]	Li Peng, Wang Zixuan, Wang Jiahao, et al. Two-stage Optimal Operation of Integrated Energy System Considering Multiple Uncertainties and Integrated Demand Response[J]. Energy, 2021, 225: 120256.
[8]	曹林锋, 呼斯乐, 杨家强, 等. 计及灵活性和源荷不确定性的储能优化配置方法[J]. 太阳能学报, 2024, 45(9): 623-629.
	Cao Linfeng, Hu Sile, Yang Jiaqiang, et al. Optimal Configuration Method of Energy Storage Considering Flexibility and Source-load Uncertainty[J]. Acta Energiae Solaris Sinica, 2024, 45(9): 623-629.
[9]	Hu Junjie, Wang Yudong, Dong Lei. Low Carbon-oriented Planning of Shared Energy Storage Station for Multiple Integrated Energy Systems Considering Energy-carbon Flow and Carbon Emission Reduction[J]. Energy, 2024, 290: 130139.
[10]	Rajaei Arash, Rashidinejad Masoud, Afzali Peyman, et al. Empowering Sustainable Energy Communities: Optimizing Multi-carrier Energy Systems with Green Energy, Uncertainty Management, and Demand Response[J]. e-Prime-Advances in Electrical Engineering, Electronics and Energy, 2024, 8: 100560.
[11]	张金良, 张泽晴. 考虑不确定性和需求响应的配电网储能优化配置[J]. 东北电力技术, 2024, 45(4): 29-37.
	Zhang Jinliang, Zhang Zeqing. Optimized Configuration of Energy Storage in Distribution Network Considering Uncertainty and Demand Response[J]. Northeast Electric Power Technology, 2024, 45(4): 29-37.
[12]	陈俊志, 朱文广, 王欣, 等. 考虑源荷不确定性的区域综合能源系统优化调度方法[J]. 南昌大学学报(理科版), 2024, 48(4): 375-383.
	Chen Junzhi, Zhu Wenguang, Wang Xin, et al. Optimization Scheduling Method for Regional Integrated Energy Systems Considering Source and Load Uncertainties[J]. Journal of Nanchang University(Natural Science), 2024, 48(4): 375-383.
[13]	Wang Jiaqiang, Cui Yanping, Liu Zhiqiang, et al. Multi-energy Complementary Integrated Energy System Optimization with Electric Vehicle Participation Considering Uncertainties[J]. Energy, 2024, 309: 133109.
[14]	邢家维, 赵帅, 杨颂, 等. 计及阶梯碳交易机制的热电氢联供型综合能源系统多目标优化调度[J]. 山东电力技术, 2025, 52(3): 21-31.
	Xing Jiawei, Zhao Shuai, Yang Song, et al. Multi-objective Optimal Scheduling of Combined Heat, Power, and Hydrogen Integrated Energy System Considering the Stepped Carbon Trading Mechanism[J]. Shandong Electric Power, 2025, 52(3): 21-31.
[15]	Wang Liying, Dong Houqi, Lin Jialin, et al. Multi-objective Optimal Scheduling Model with IGDT Method of Integrated Energy System Considering Ladder-type Carbon Trading Mechanism[J]. International Journal of Electrical Power & Energy Systems, 2022, 143: 108386.
[16]	Wang Limeng, Ren Xing, Ma Yuze, et al. Optimal Low-carbon Scheduling of Integrated Energy Systems Considering Stepped Carbon Trading and Source-load Side Resources[J]. Energy Reports, 2024, 12: 3145-3154.
[17]	Guo Rui, Ye Hanwen, Zhao Yan. Low Carbon Dispatch of Electricity-gas-thermal-storage Integrated Energy System Based on Stepped Carbon Trading[J]. Energy Reports, 2022, 8, Supplement 8: 449-455.
[18]	崔锦瑞, 江海龙, 程鸿鹄, 等. 计及综合需求响应和阶梯式碳交易的综合能源系统优化[J]. 浙江工业大学学报, 2025, 53(2): 179-188, 236.
	Cui Jinrui, Jiang Hailong, Cheng Honghu, et al. Integrated Energy System Optimization Considering Comprehensive Demand Response and Tiered Carbon Trading[J]. Journal of Zhejiang University of Technology, 2025, 53(2): 179-188, 236.
[19]	李云鸷, 刘吉臻, 胡阳. 计及低碳响应的综合能源系统多时间尺度源-荷互动优化调度[J]. 太阳能学报, 2024, 45(11): 84-98.
	Li Yunzhi, Liu Jizhen, Hu Yang. Multi-time Scale Source-load Interactive Optimal Scheduling of Integrated Energy System Considering Low-carbon Demand Response[J]. Acta Energiae Solaris Sinica, 2024, 45(11): 84-98.
[20]	徐光晨, 薛田良, 张磊, 等. 考虑风光不确定和阶梯式需求响应的园区综合能源系统博弈优化运行[J]. 东北电力技术, 2024, 45(3): 16-22.
	Xu Guangchen, Xue Tianliang, Zhang Lei, et al. Game Optimization Operation of PIES Considering Landscape Uncertainty and Stepped Demand Response[J]. Northeast Electric Power Technology, 2024, 45(3): 16-22.
[21]	黄冬梅, 何梦飞, 孙锦中, 等. 冷热电气微能源网优化调度研究[J]. 电气自动化, 2025, 47(2): 23-27, 31.
	Huang Dongmei, He Mengfei, Sun Jinzhong, et al. Research on Optimal Scheduling of Cold and Hot Electricity Micro-energy Network[J]. Electrical Automation, 2025, 47(2): 23-27, 31.
[22]	Yang Meng, Liu Yisheng. Research on Multi-energy Collaborative Operation Optimization of Integrated Energy System Considering Carbon Trading and Demand Response[J]. Energy, 2023, 283: 129117.
[23]	柳思贤, 丁坤, 董海鹰. 考虑碳捕集和电转气的零碳园区综合能源系统经济调度[J]. 太阳能学报, 2024, 45(9): 188-196.
	Liu Sixian, Ding Kun, Dong Haiying. Zero-carbon Economic Dispatch of Park Integrated Energy System Considering Carbon Capture and Power to Gas[J]. Acta Energiae Solaris Sinica, 2024, 45(9): 188-196.
[24]	税纪钧, 彭道刚, 宋炎侃, 等. 计及风光不确定性含碳排放和碳惩罚的虚拟电厂优化调度策略[J]. 系统仿真学报, 2024, 36(2): 305-319.
	Shui Jijun, Peng Daogang, Song Yankan, et al. Optimal Scheduling Strategy of Virtual Power Plant with Carbon Emission and Carbon Penalty Considering Uncertainty of Wind Power and Photovoltaic Power[J]. Journal of System Simulation, 2024, 36(2): 305-319.
[25]	Shui Jijun, Peng Daogang, Zeng Hui, et al. Optimal Scheduling of Multiple Entities in Virtual Power Plant Based on the Master-slave Game[J]. Applied Energy, 2024, 376, Part B: 124286.
[26]	Yan Zhichao, Li Chunyan, Yao Yiming, et al. Bi-level Carbon Trading Model on Demand Side for Integrated Electricity-gas System[J]. IEEE Transactions on Smart Grid, 2023, 14(4): 2681-2696.
[27]	Zhang Jinliang, Liu Ziyi. Low Carbon Economic Scheduling Model for a Park Integrated Energy System Considering Integrated Demand Response, Ladder-type Carbon Trading and Fine Utilization of Hydrogen[J]. Energy, 2024, 290: 130311.
[28]	Cui Yang, Xu Yang, Huang Tao, et al. Low-carbon Economic Dispatch of Integrated Energy Systems That Incorporate CCPP-P2G and PDR Considering Dynamic Carbon Trading Price[J]. Journal of Cleaner Production, 2023, 423: 138812.
[29]	潘军, 卢彦杉, 何彬彬, 等. 计及风、光出力不确定性的微电网经济调度研究[J]. 电工电能新技术, 2024, 43(2): 56-64.
	Pan Jun, Lu Yanshan, He Binbin, et al. Research on Economic Dispatch of Microgrid Considering Uncertainty of Wind and Solar Output[J]. Advanced Technology of Electrical Engineering and Energy, 2024, 43(2): 56-64.

现有研究	场景生成方法	初始场景概率	场景削减方法
文献[5]	拉丁超立方抽样	概率均等	Kantorovich距离
文献[24]	韦伯分布和贝塔分布、蒙特卡罗	概率均等	曼哈顿距离、概率距离
文献[29]	蒙特卡罗	概率均等	欧式距离、K-means、同步回代、FCM聚类
本文	核密度估计法、蒙特卡罗	非等概率	DTW、K-medoids聚类

分类	时段	价格/(元/kW·h)
峰	12:00—15:00	1.22
峰	18:00—21:00	1.22
平	07:00—12:00	0.69
	15:00—18:00
	21:00—22:00
谷	00:00—07:00	0.40
谷	22:00—24:00	0.40

设备类型	参数	数值
柴油发电机组 (DG)	油电转化系数	4.6
	额定功率/kW	1 000
	运维系数	0.05
	CO₂排放系数/(kg/kW·h)	0.74
热电联产机组 (CHP)	电\热比	0.6\0.35
	额定功率/kW	1000
	运维系数	0.04
	电功率排放系数/(kg/kW·h)	0.580
	单位热电功率排放比	0.6
燃气锅炉 (GB)	制热效率	0.72
	额定功率/kW	600
	运维系数	0.03
	CO₂排放系数/(kg/kW·h)	0.36
电转气设备 (P2G)	工作效率	0.6
	气电比/(m³/kW·h)	0.25
	额定功率/kW	600
	运维系数	0.028
电锅炉 (EB)	制热效率	0.95
	额定功率/kW	300
	运维系数	0.021

参数	储能柜	蓄热罐	储气罐
自损率	0.05	0.10	0.02
充\放能效率	0.92\0.90	0.95\0.85	0.95\0.95
最大充\放能功率/kW	400\300	350\300	300\250
充\放能运维系数	0.018\0.016	0.016\0.014	0.015\0.013
平均充放次数	12	—	12
爬坡上限/kW	500	400	500
最大容量/(kW·h)	1 000	800	1 000
最小安全容量/(kW·h)	100	50	100
最大安全容量/(kW·h)	950	750	950

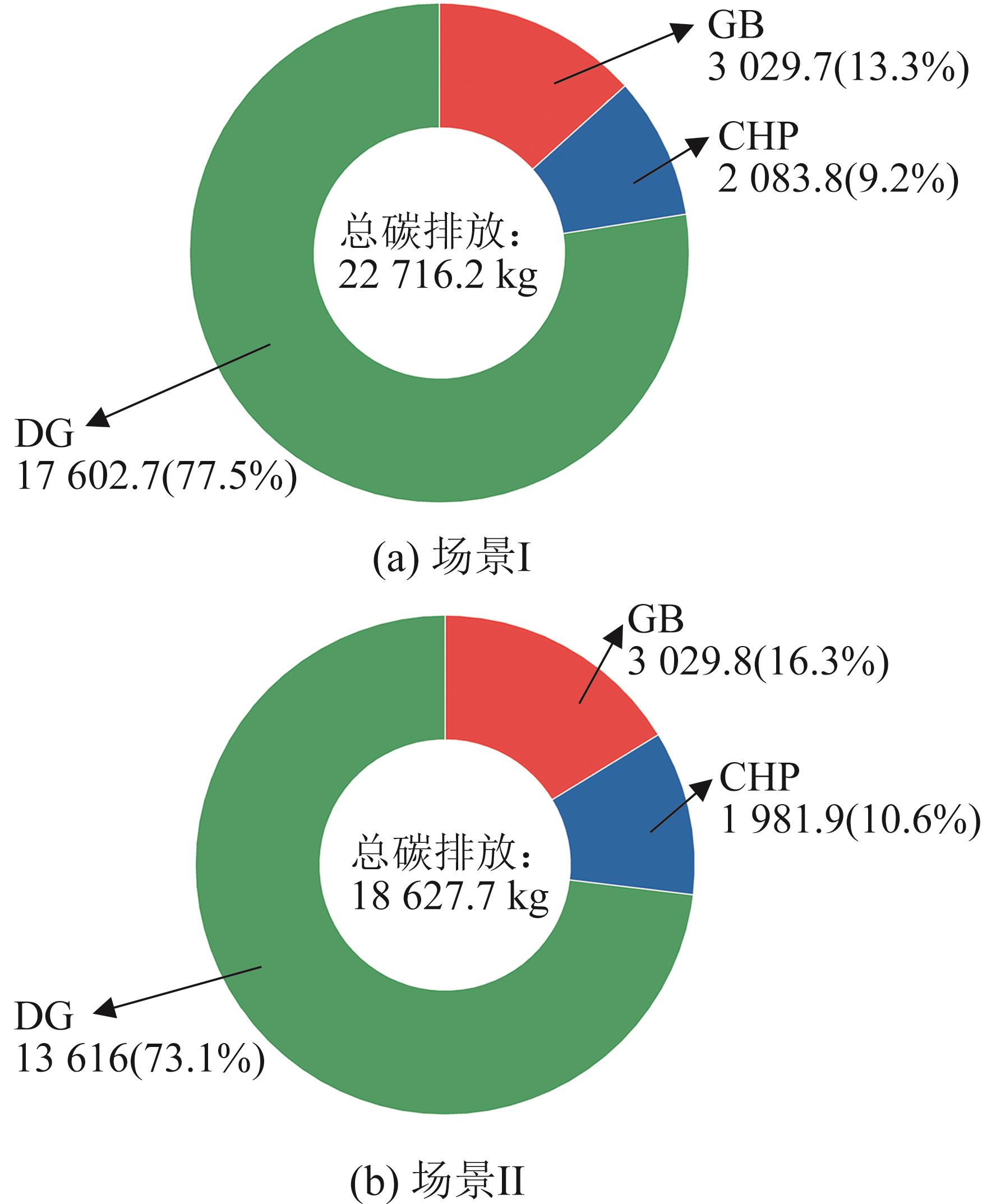

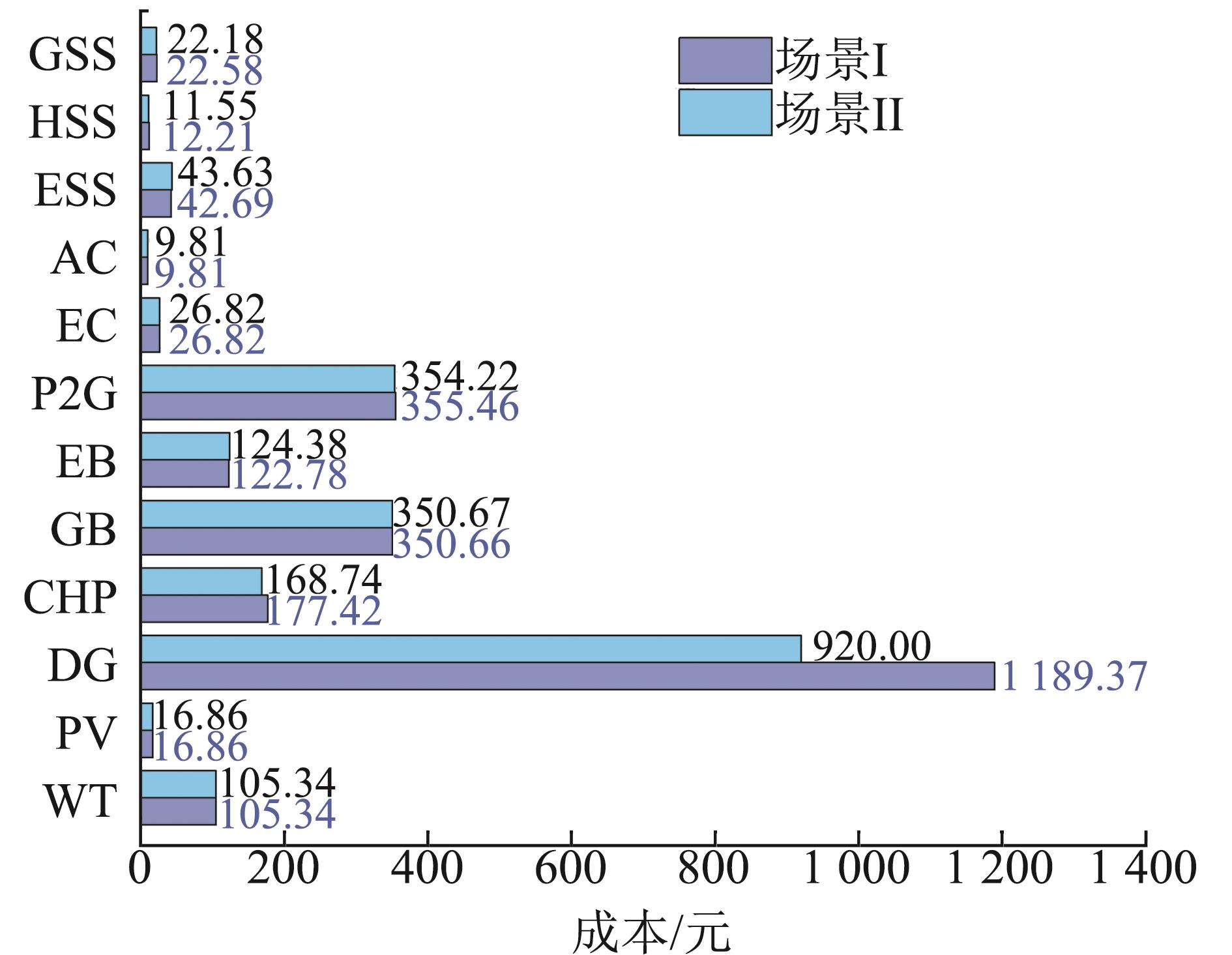

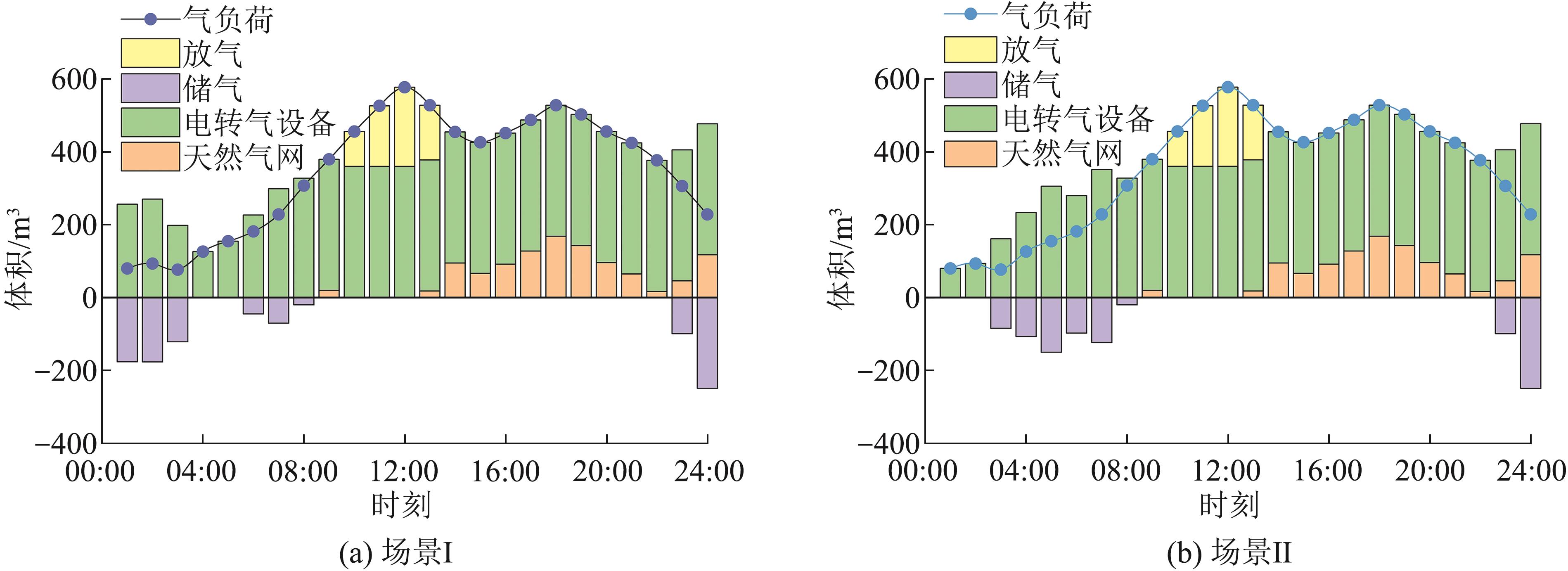

场景	总成本/元	碳排放/kg	P2G消耗量/kg	免费碳配额/kg	碳交易量/kg
I	21 315.06	22 716.22	8 977.28	9 090.15	4 648.78
II	21 774.74	18 627.67	8 945.82	7 299.02	2 382.83
III	20 927.43	22 986.87	8 977.28	9 205.98	4 803.60
