Modeling and Analysis of Hybrid Traffic Flow Considering Actual Behavior of Platoon

doi:10.16182/j.issn1004731x.joss.22-1510

Abstract

Abstract:

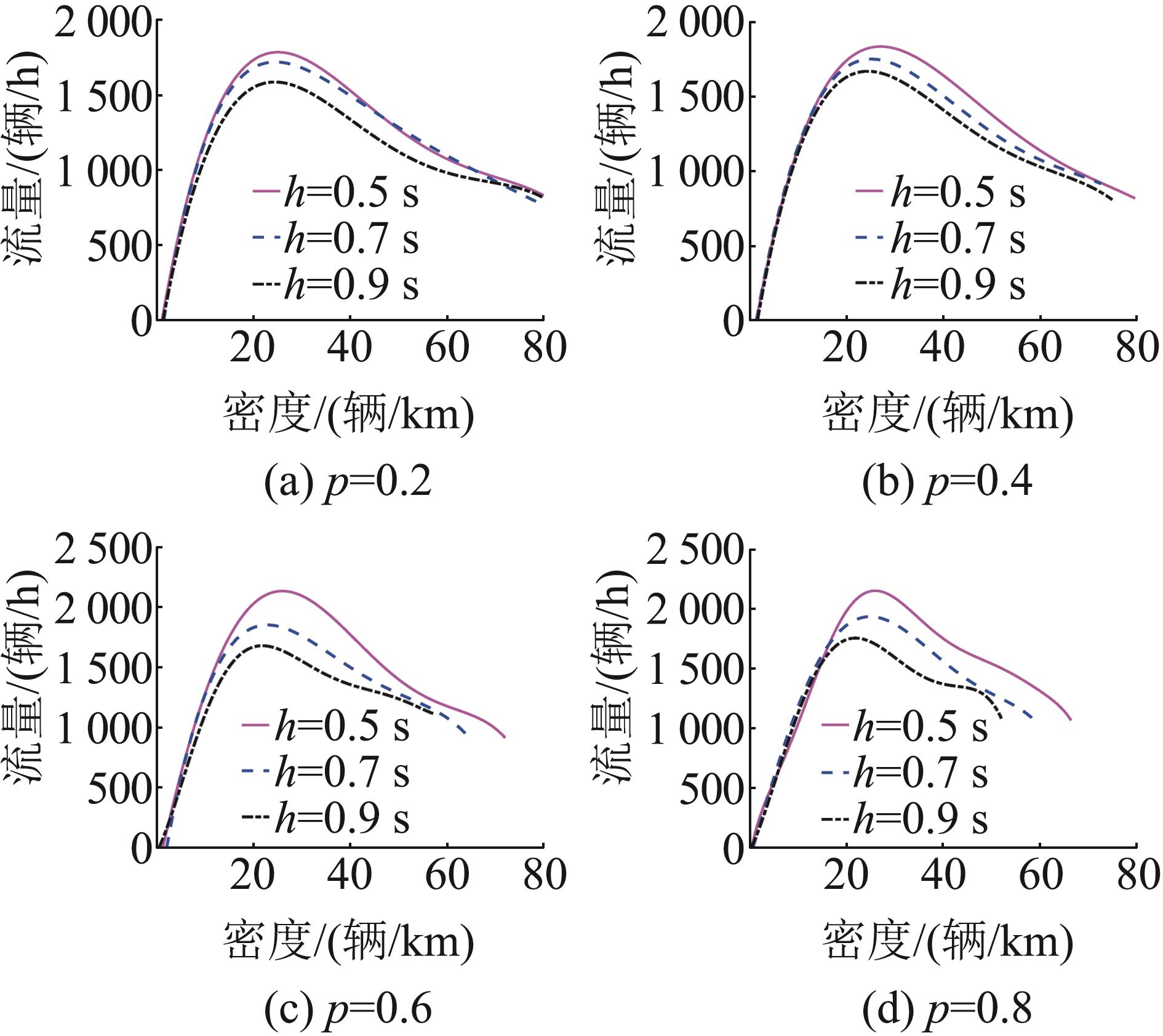

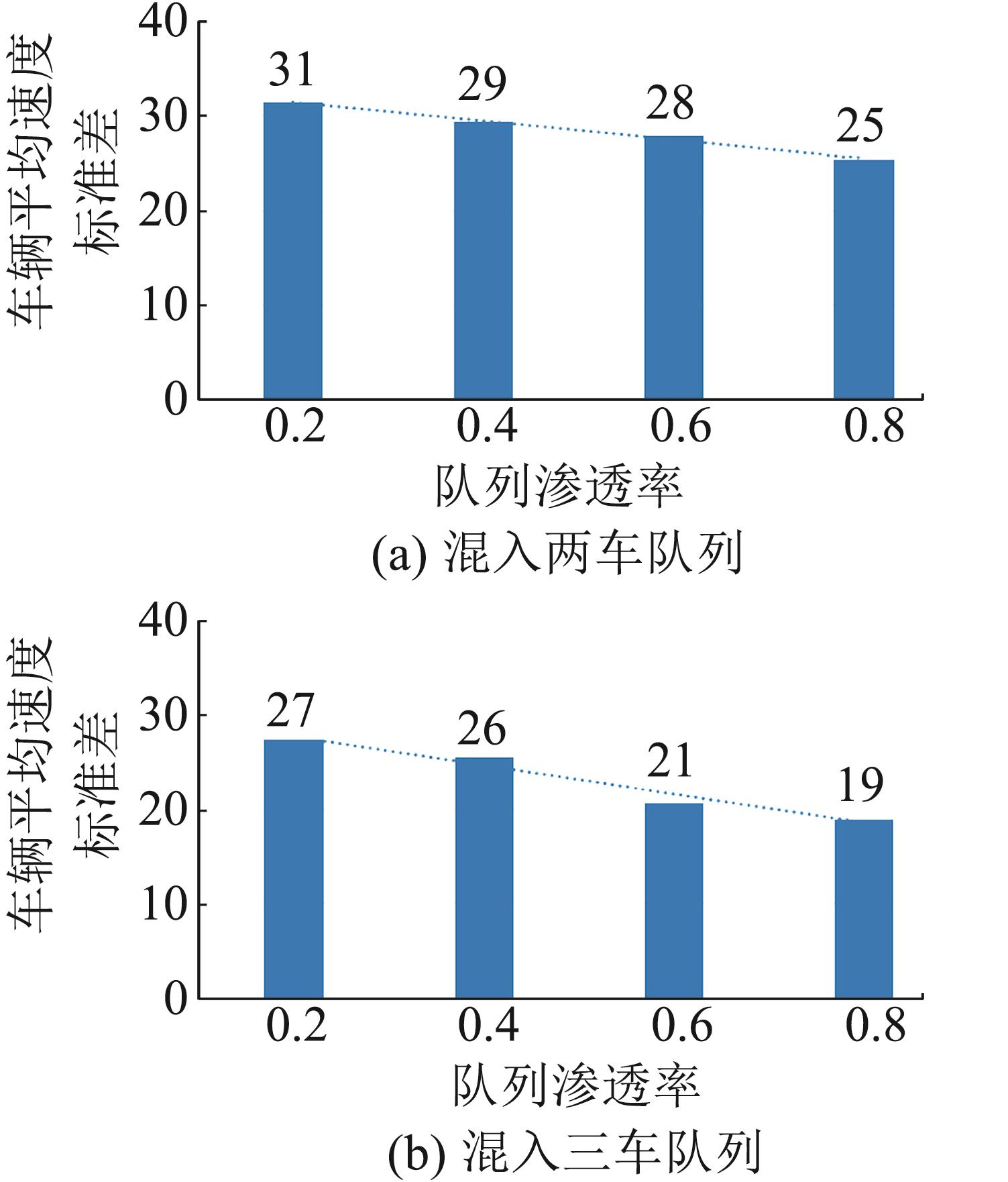

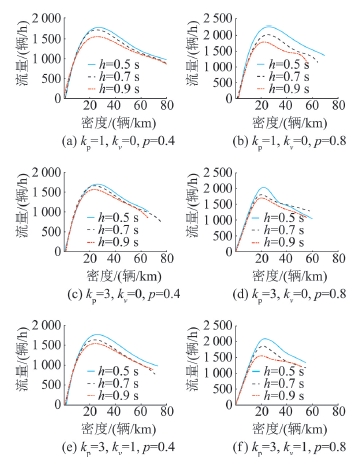

To explore the effect of actual behavior of autonomous vehicular platoon on traffic flow, aiming at the hybrid traffic flow mixed with predecessor following(PF) platoon which is modeled according to the actual control strategy, a hybrid traffic flow model is established based on cellular automata(CA) modeling method. Simulation analysis shows that the effect of platoon characteristics such as time headway, market penetration, platoon size, and control gains on hybrid traffic flow presents coupling and nonlinear properties. The spatiotemporal behavior of hybrid traffic flow with different platoon characteristics is generally much different. Reducing time headway or increasing platoon market penetration is generally beneficial to enhance road capacity. The consistent laws of the effect of platoon size and control gains on traffic flow are not obvious, which must be combined with other platoon characteristics to carry out the analysis.

Key words: intelligent transportation, vehicular platoon, cellular automata, hybrid traffic flow, predecessor following

CLC Number:

TP391.9

Wang Xi, Yang Xiujian, Jia Xiaohan, Wang Shenyi. Modeling and Analysis of Hybrid Traffic Flow Considering Actual Behavior of Platoon[J]. Journal of System Simulation, 2024, 36(4): 929-940.

Figures/Tables 13

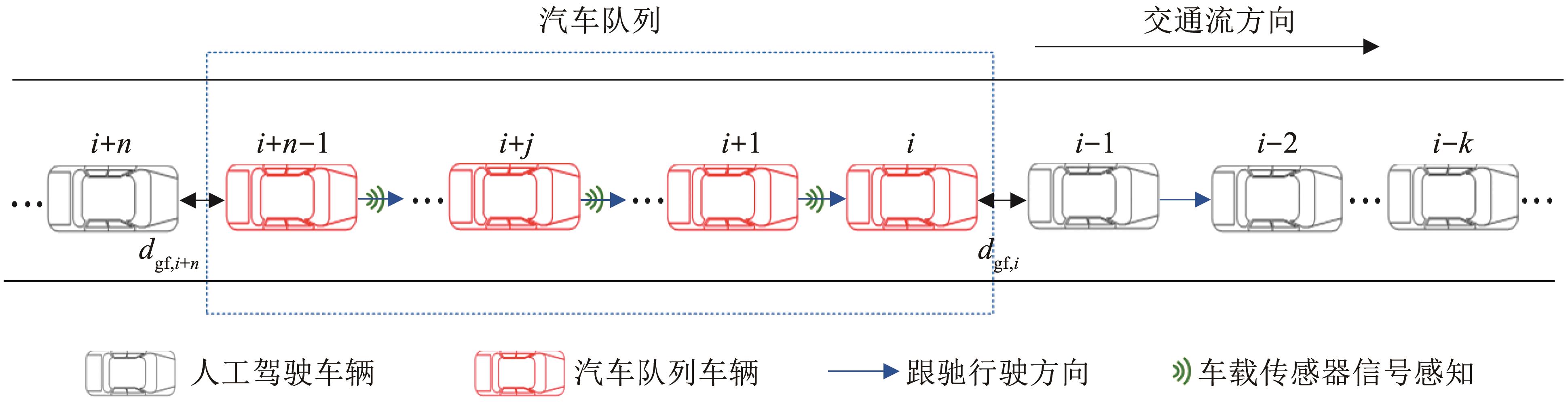

Fig. 1

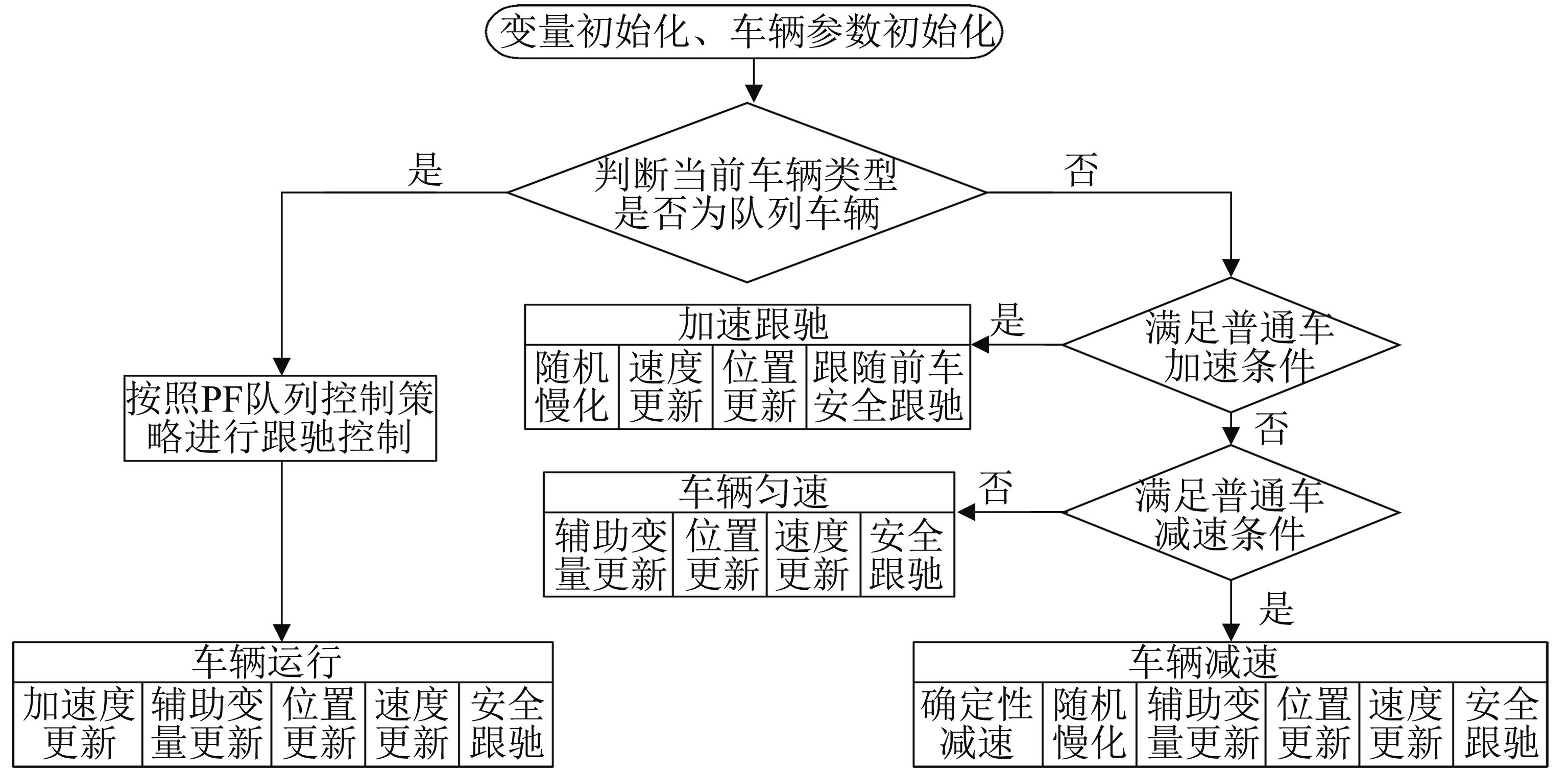

Fig. 2

Table 1

Value for parameters in simulation

参数	取值
仿真时长/s	1 000
人工驾驶车辆最大加、减速度 $a c a r$ /(m/s²)	6
人工驾驶车辆限速值 $v c, m a x$ /(m/s)	33
车辆车身长度 $L c a r$ /m	5
队列车辆反应时间 $τ i P l a t o o n / s$	1
人工驾驶车辆常规加速度 $a i - k$ /(m/s²)	6
步长/s	1
人工驾驶车辆随机慢化概率P_slow	0.3
队列车辆限速值 $v p, m a x$ /(m/s)	33
安全保护距离d_gs/m	2
人工驾驶车辆反应时间 $τ i H D V / s$	2
人工驾驶车辆随机慢化减速度 $b i - k /$ (m/s²)	6

Table 1

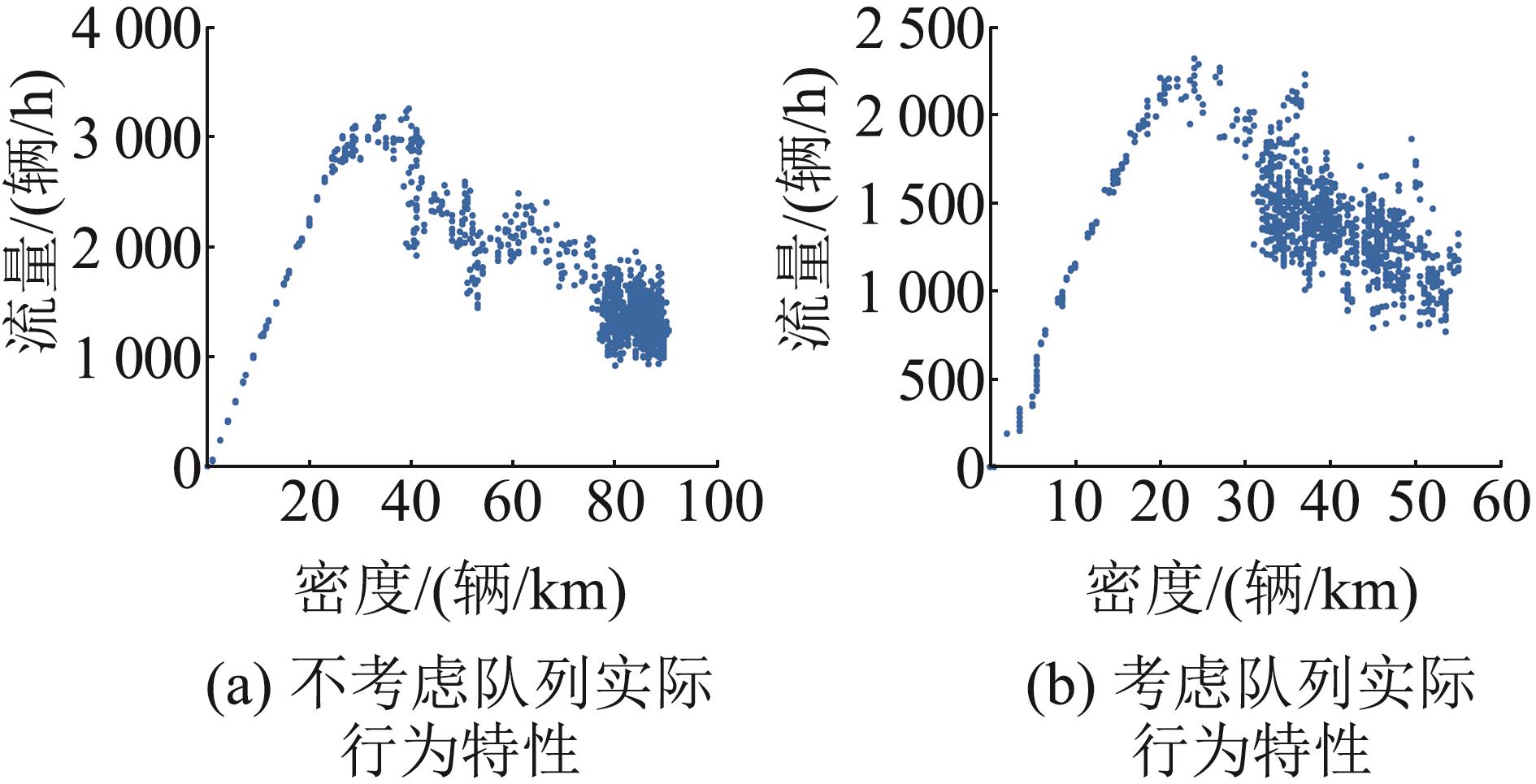

Fig. 3

Fig. 4

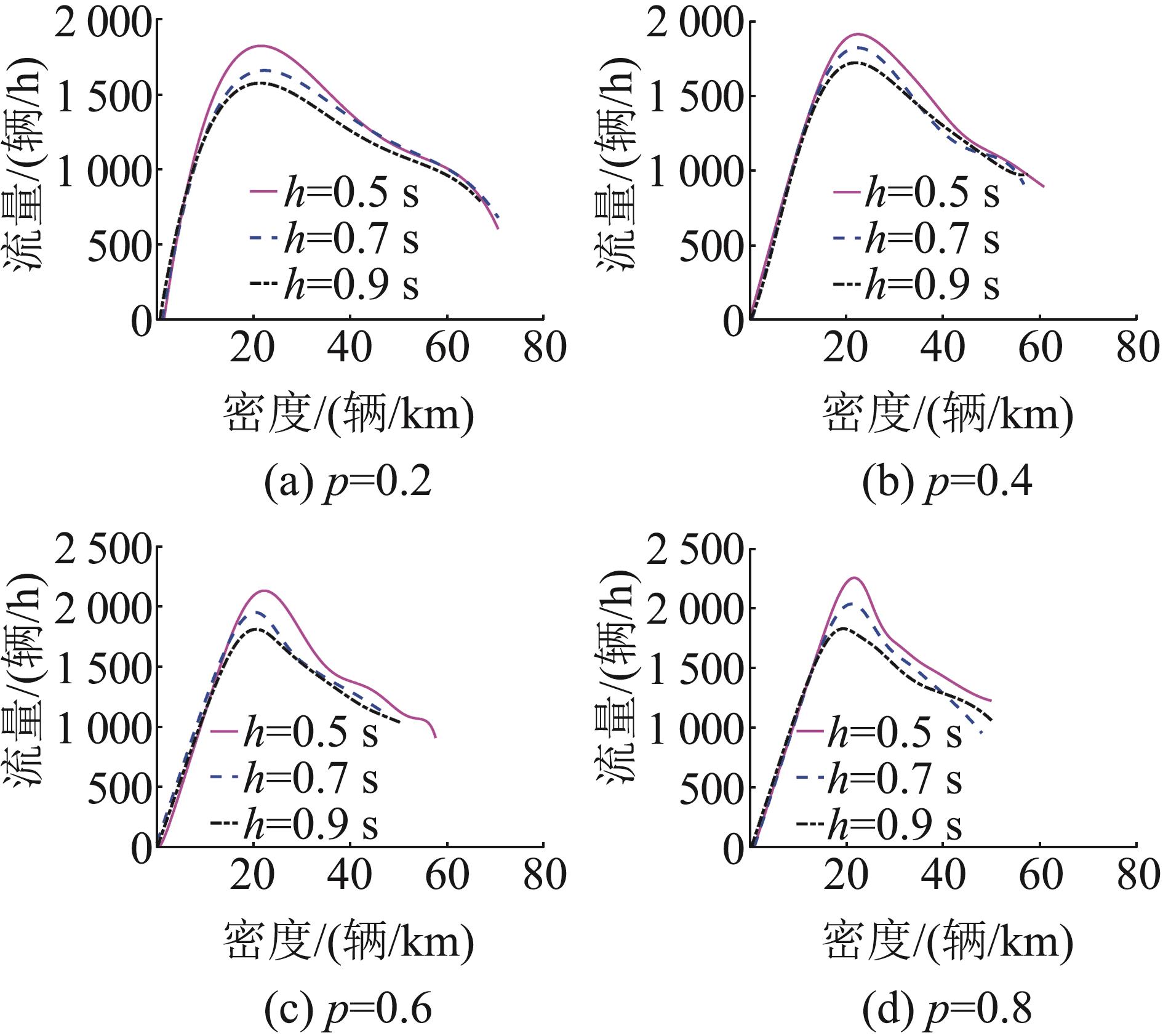

Fig. 5

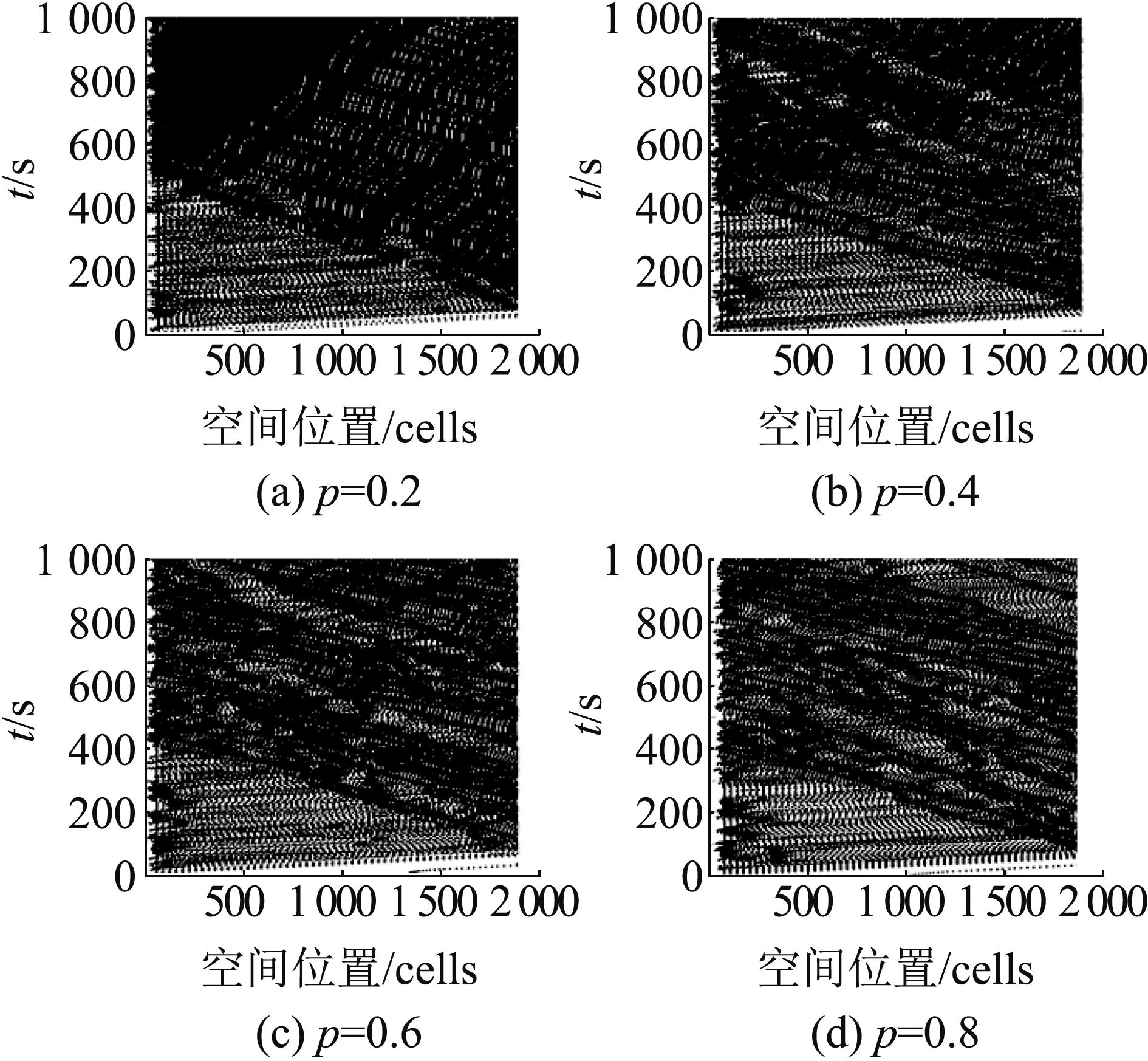

Fig. 6

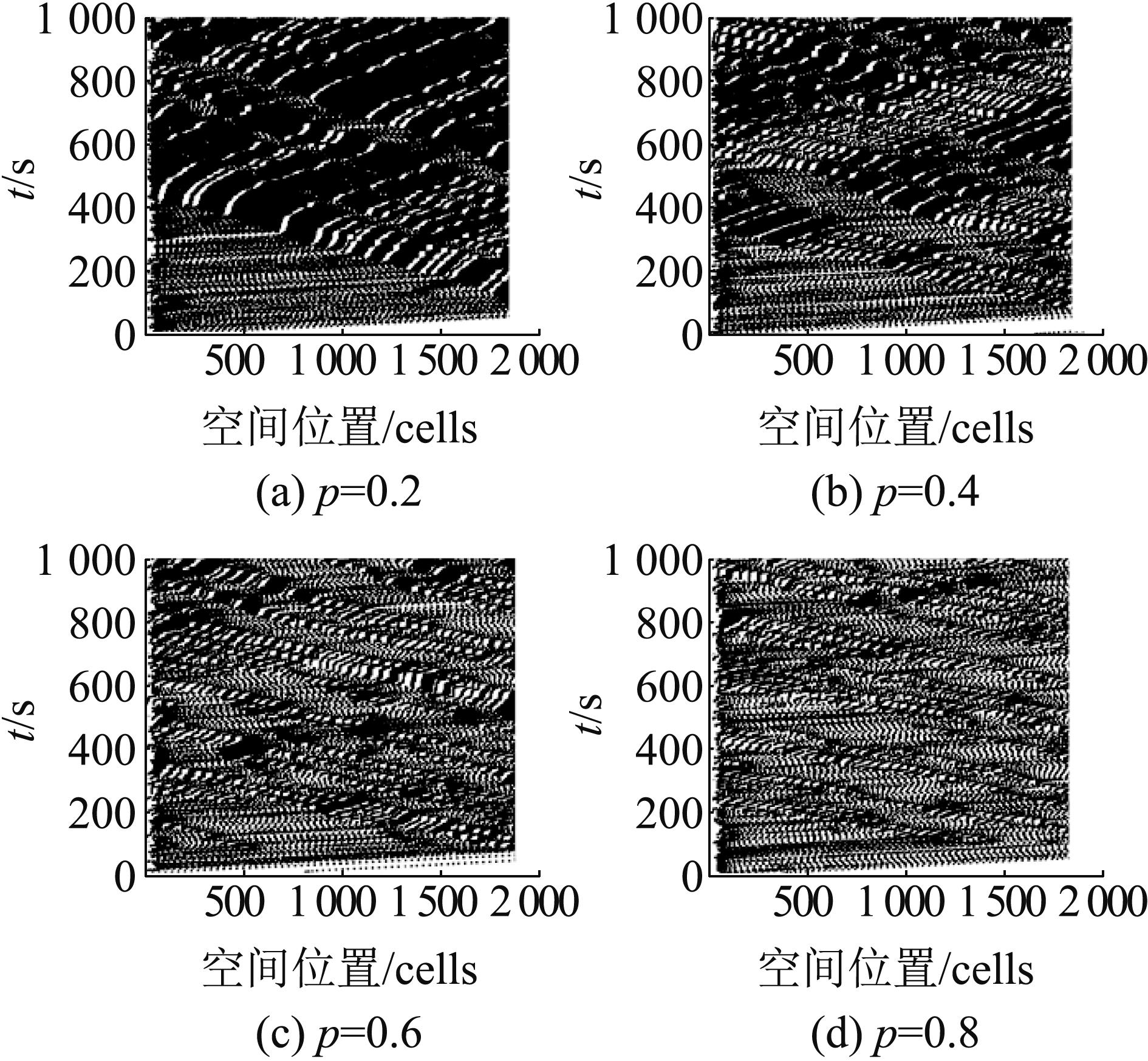

Fig. 7

Fig. 8

Fig. 9

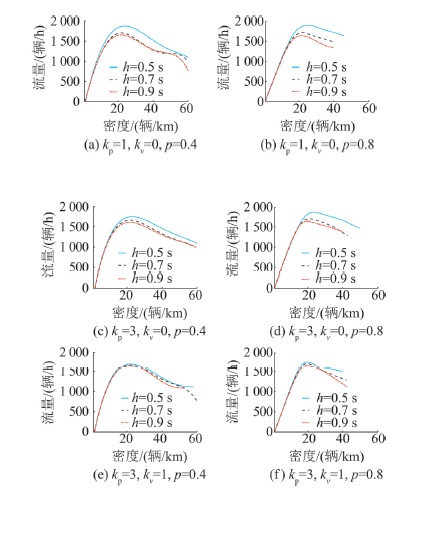

Fig. 10

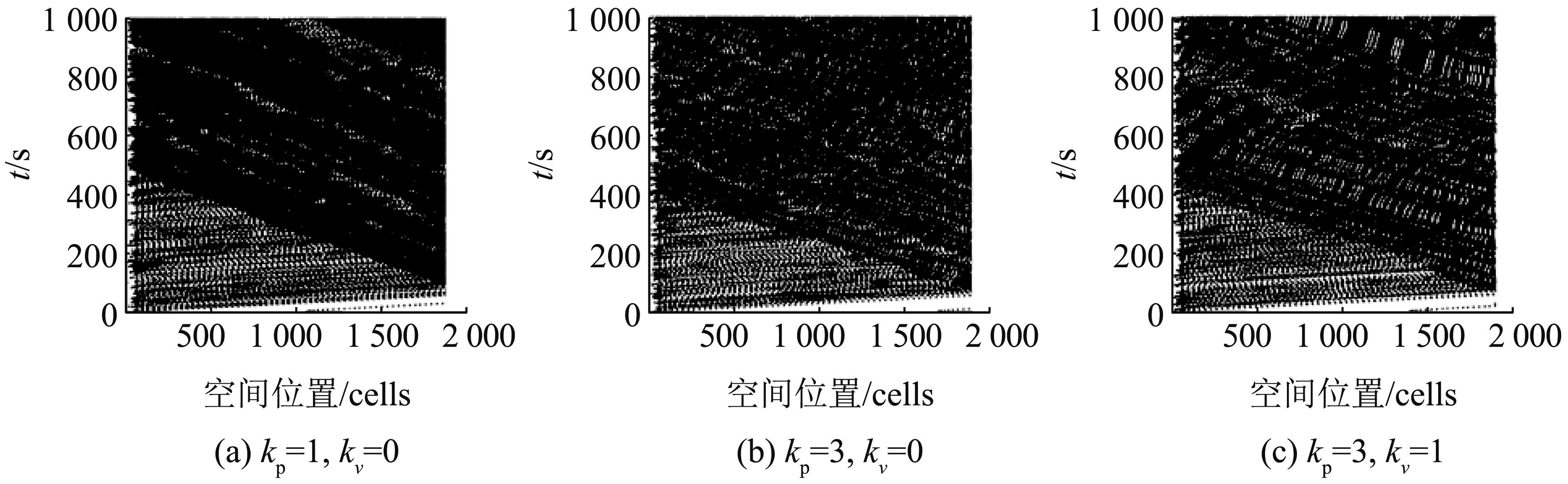

Fig. 11

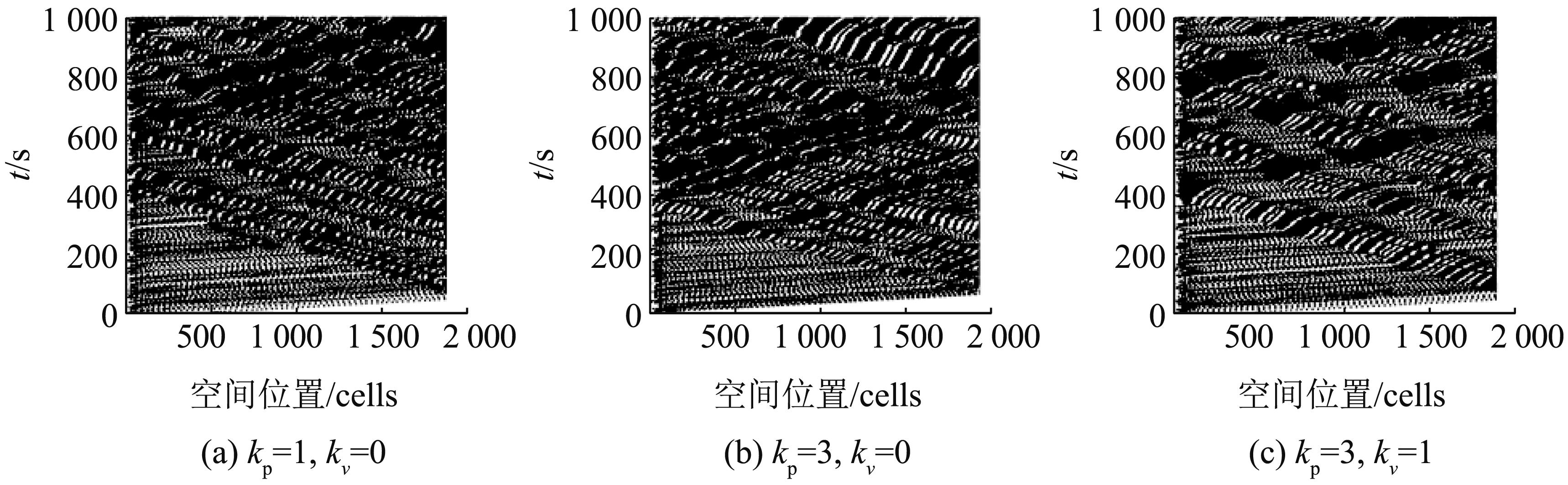

Fig. 12

References 25

1	Li Yongfu, Li Kezhi, Zheng Taixiong, et al. Evaluating the Performance of Vehicular Platoon Control Under Different Network Topologies of Initial States[J]. Physica A: Statistical Mechanics and Its Applications, 2016, 450: 359-368.
2	Kerner Boris S. Failure of Classical Traffic Flow Theories: Stochastic Highway Capacity and Automatic Driving[J]. Physica A: Statistical Mechanics and Its Applications, 2016, 450: 700-747.
3	Ploeg Jeroen, Shladover S, Nijmeijer Henk, et al. Introduction to the Special Issue on the 2011 Grand Cooperative Driving Challenge[J]. IEEE Transactions on Intelligent Transportation Systems, 2012, 13(3): 989-993.
4	Alam Assad, Besselink Bart, Turri Valerio, et al. Heavy-duty Vehicle Platooning for Sustainable Freight Transportation: A Cooperative Method to Enhance Safety and Efficiency[J]. IEEE Control Systems Magazine, 2015, 35(6): 34-56.
5	Xin Qi, Fu Rui, Ukkusuri S V, et al. Modeling and Impact Analysis of Connected Vehicle Merging Accounting for Mainline Random Length Tight-platoon[J]. Physica A: Statistical Mechanics and Its Applications, 2021, 563: 125452.
6	蒋阳升, 王思琛, 高宽, 等. 混入智能网联车队的混合交通流元胞自动机模型[J]. 系统仿真学报, 2022, 34(5): 1025-1032.
	Jiang Yangsheng, Wang Sichen, Gao Kuan, et al. Cellular Automata Model of Mixed Traffic Flow Composed of Intelligent Connected Vehicles' Platoon[J]. Journal of System Simulation, 2022, 34(5): 1025-1032.
7	Li Tang, Guo Fangce, Krishnan R, et al. Right-of-way Reallocation for Mixed Flow of Autonomous Vehicles and Human Driven Vehicles[J]. Transportation Research Part C: Emerging Technologies, 2020, 115: 102630.
8	Chang Xin, Li Haijian, Rong Jian, et al. Analysis on Traffic Stability and Capacity for Mixed Traffic Flow with Platoons of Intelligent Connected Vehicles[J]. Physica A: Statistical Mechanics and Its Applications, 2020, 557: 124829.
9	Nagel Kai, Schreckenberg Michael. A Cellular Automaton Model for Freeway Traffic[J]. Journal de Physique I, 1992, 2(12): 2221-2229.
10	Zhu Liling, Tang Yandong, Yang Da. Cellular Automata-Based Modeling and Simulation of the Mixed Traffic Flow of Vehicle Platoon and Normal Vehicles[J]. Physica A: Statistical Mechanics and its Applications, 2021, 584: 126368.
11	Jiang Yangsheng, Wang Sichen, Yao Zhihong, et al. A Cellular Automata Model for Mixed Traffic Flow Considering the Driving Behavior of Connected Automated Vehicle Platoons[J]. Physica A: Statistical Mechanics and its Applications, 2021, 582: 126262.
12	Yang Da, Qiu Xiaoping, Ma Lina, et al. Cellular Automata-based Modeling and Simulation of a Mixed Traffic Flow of Manual and Automated Vehicles[J]. Transportation Research Record, 2017, 2622(1): 105-116.
13	Zeng Junwei, Qian Yongsheng, Mi Pengfei, et al. Freeway Traffic Flow Cellular Automata Model Based on Mean Velocity Feedback[J]. Physica A: Statistical Mechanics and Its Applications, 2021, 562: 125387.
14	Zhou Jiazu, Zhu Feng. Analytical Analysis of the Effect of Maximum Platoon Size of Connected and Automated Vehicles[J]. Transportation Research Part C: Emerging Technologies, 2021, 122: 102882.
15	秦严严, 王昊, 王炜, 等. 混有CACC车辆和ACC车辆的异质交通流基本图模型[J]. 中国公路学报, 2017, 30(10): 127-136.
	Qin Yanyan, Wang Hao, Wang Wei, et al. Fundamental Diagram Model of Heterogeneous Traffic Flow Mixed with Cooperative Adaptive Cruise Control Vehicles and Adaptive Cruise Control Vehicles[J]. China Journal of Highway and Transport, 2017, 30(10): 127-136.
16	董长印, 王昊, 王炜, 等. 混入智能车的下匝道瓶颈路段交通流建模与仿真分析[J]. 物理学报, 2018, 67(14): 167-182.
	Dong Changyin, Wang Hao, Wang Wei, et al. Hybrid Traffic Flow Model for Intelligent Vehicles Exiting to Off-ramp[J]. Acta Physica Sinica, 2018, 67(14): 167-182.
17	Li Shengbo, Zheng Yang, Li Keqiang, et al. An Overview of Vehicular Platoon Control Under the Four-component Framework[C]//2015 IEEE Intelligent Vehicles Symposium (IV). Piscataway, NJ, USA: IEEE, 2015: 286-291.
18	Zheng Yang, Bian Yougang, Li Shen, et al. Cooperative Control of Heterogeneous Connected Vehicles with Directed Acyclic Interactions[J]. IEEE Intelligent Transportation Systems Magazine, 2021, 13(2): 127-141.
19	Lunze Jan. Adaptive Cruise Control with Guaranteed Collision Avoidance[J]. IEEE Transactions on Intelligent Transportation Systems, 2019, 20(5): 1897-1907.
20	Peters A A, Middleton R H, Mason O. Leader Tracking in Homogeneous Vehicle Platoons with Broadcast Delays[J]. Automatica, 2014, 50(1): 64-74.
21	边有钢, 杨依琳, 胡满江, 等. 基于双向多车跟随式拓扑的混合车辆队列稳定性研究[J]. 中国公路学报, 2022, 35(3): 66-77.
	Bian Yougang, Yang Yilin, Hu Manjiang, et al. Study on the Stability of Mixed Vehicular Platoon Based on Bidirectional Multiple-vehicle Following Topologies[J]. China Journal of Highway and Transport, 2022, 35(3): 66-77.
22	于晓海, 郭戈. 车队控制中的一种通用可变时距策略[J]. 自动化学报, 2019, 45(7): 1335-1343.
	Yu Xiaohai, Guo Ge. A General Variable Time Headway Policy in Platoon Control[J]. Acta Automatica Sinica, 2019, 45(7): 1335-1343.
23	Gipps P G. A Behavioural Car-following Model for Computer Simulation[J]. Transportation Research Part B: Methodological, 1981, 15(2): 105-111.
24	敬明, 邓卫, 季彦婕, 等. 更新步长和元胞尺寸对元胞自动机模型的影响[J]. 吉林大学学报(工学版), 2013, 43(2): 310-316.
	Jing Ming, Deng Wei, Ji Yanjie, et al. Influences of Time Step and Cell Size on Cellular Automaton Model[J]. Journal of Jilin University(Engineering and Technology Edition), 2013, 43(2): 310-316.
25	叶冬. 基于元胞自动机的交通流模型研究[D]. 西安: 长安大学, 2014.
	Ye Dong. Study on the Model of Traffic Flow Based on Cellular Automata Theory[D]. Xi'an: Chang'an University, 2014.
