Dynamics Modeling and Online Prediction of Energy Consumption of Discrete Manufacturing System

doi:10.16182/j.issn1004731x.joss.21-1304

Abstract

Abstract:

Aiming at the traditional energy consumption modeling methods of discrete manufacturing system being difficult to adapt to the complexity and variability of working conditions, an online dynamic energy consumption modeling method based on real-time data is proposed. The energy consumption affecting factors are determined by analyzing the operation mechanism of the discrete manufacturing system and equipment. An online sequential extreme learning machine algorithm that can dynamically adjust the number of hidden layer nodes is proposed to construct the energy consumption model. The real-time data can update the model quickly. Bernstein's inequality is introduced to improve the model data screening ability. The simulation experiment and the comparison show that the method has better regression accuracy, smaller prediction error and shorter modeling time, and can be applied to the dynamic modeling and online prediction scenarios of energy consumption of discrete manufacturing systems.

Key words: discrete manufacturing, prediction of energy consumption, online sequential extreme learning machine, Bernstein inequality

CLC Number:

TP391.9

Wei Chen, Yan Wang, Zhicheng Ji. Dynamics Modeling and Online Prediction of Energy Consumption of Discrete Manufacturing System[J]. Journal of System Simulation, 2023, 35(4): 760-772.

Figures/Tables 13

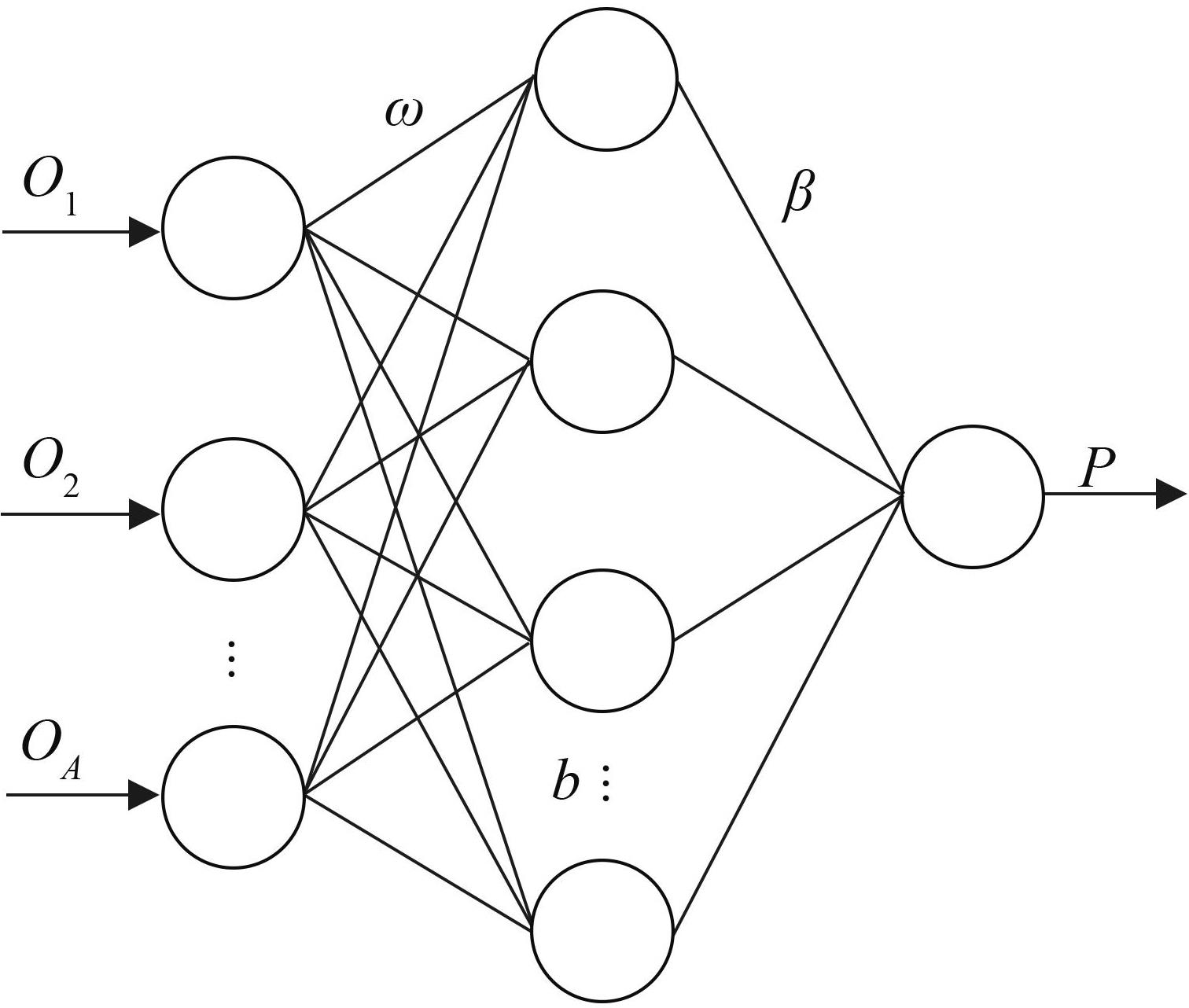

Fig. 1

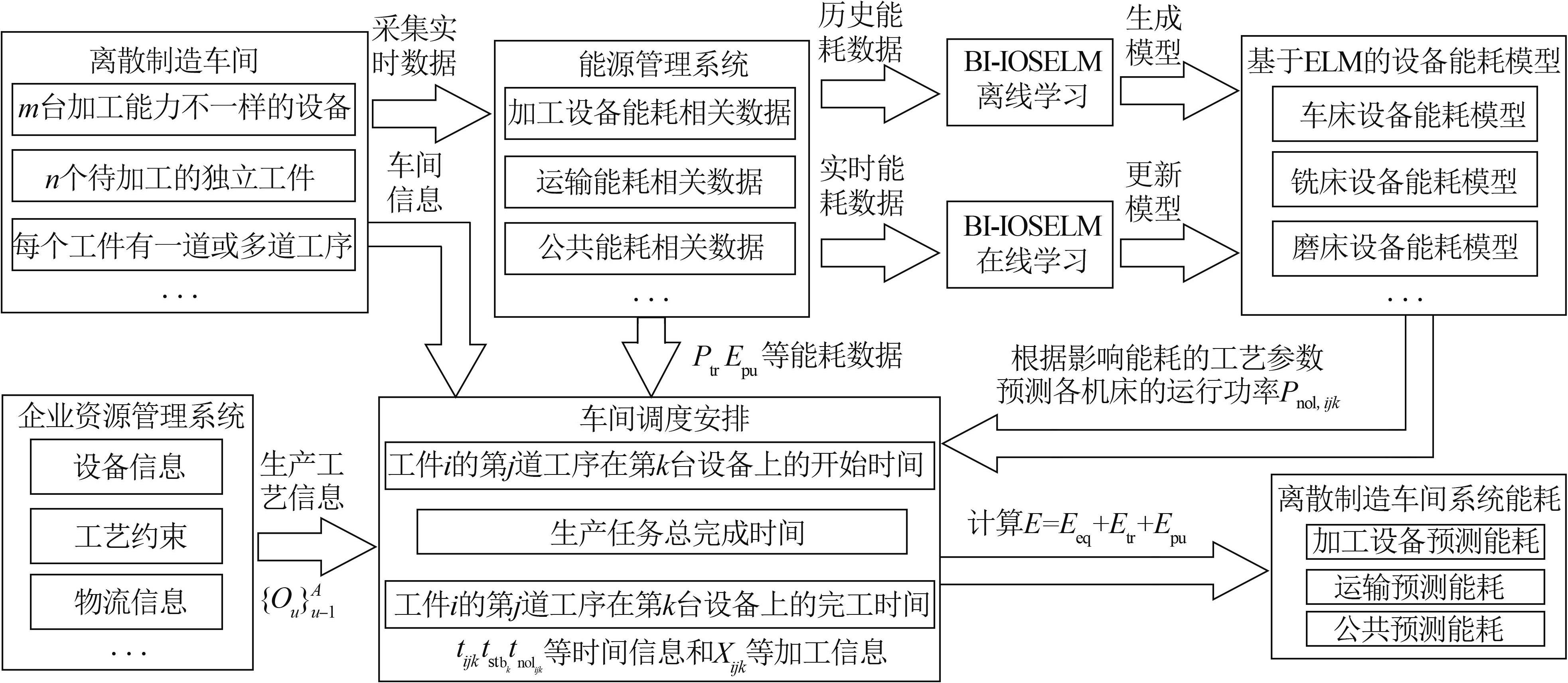

Fig. 2

Table 1

Table 2

Algorithm test results when N2=1

数据集	ELM			OSELM			IOSELM			BI-IOSELM
数据集	$R 2$	RMSE	t/s	$R 2$	RMSE	t/s	$R 2$	RMSE	t/s	$R 2$	RMSE	t/s
Energy Efficiency	0.887	3.052	3.641	0.891	3.065	0.188	0.891	3.016	0.250	0.923	2.664	0.266
Real Estate Valuation	0.504	7.929	1.516	0.501	7.854	0.163	0.571	7.454	0.188	0.637	7.113	0.227
Air Quality	0.957	67.998	340.980	0.949	66.619	1.297	0.900	66.139	1.318	0.961	63.845	2.406
Yacht Hydrodynamics	0.741	5.114	0.984	0.721	8.175	0.125	0.658	7.630	0.141	0.766	4.914	0.198
SkillCraft1 Master Table	0.974	9.951	40.875	0.942	9.744	0.500	0.838	8.592	0.503	0.986	7.283	0.641

Table 2

Table 3

Algorithm test results when N2=2

数据集	ELM			OSELM			IOSELM			BI-IOSELM
数据集	$R 2$	RMSE	t/s	$R 2$	RMSE	t/s	$R 2$	RMSE	t/s	$R 2$	RMSE	t/s
Energy Efficiency	0.885	3.050	1.984	0.876	3.152	0.250	0.880	3.116	0.266	0.916	2.653	0.322
Real Estate Valuation	0.541	7.620	0.766	0.466	8.032	0.234	0.592	7.326	0.250	0.645	6.965	0.297
Air Quality	0.954	68.951	184.200	0.953	70.112	1.313	0.937	69.312	1.516	0.962	63.085	3.469
Yacht Hydrodynamics	0.738	6.896	0.547	0.632	7.830	0.141	0.641	7.758	0.172	0.826	5.838	0.188
SkillCraft1 Master Table	0.961	10.864	24.750	0.954	10.588	0.281	0.907	12.495	0.297	0.971	8.711	0.516

Table 3

Table 4

Algorithm test results when N2=3

数据集	ELM			OSELM			IOSELM			BI-IOSELM
数据集	$R 2$	RMSE	t/s	$R 2$	RMSE	t/s	$R 2$	RMSE	t/s	$R 2$	RMSE	t/s
Energy Efficiency	0.889	3.000	1.594	0.876	3.157	0.219	0.882	3.094	0.234	0.902	2.835	0.313
Real Estate Valuation	0.520	7.321	0.578	0.517	7.767	0.203	0.281	7.271	0.225	0.638	7.018	0.291
Air Quality	0.956	67.393	122.530	0.952	69.556	0.329	0.953	69.225	0.391	0.960	64.476	2.984
Yacht Hydrodynamics	0.786	6.363	0.453	0.547	8.419	0.115	0.632	7.830	0.121	0.805	6.114	0.126
SkillCraft1 Master Table	0.964	9.652	15.844	0.968	9.217	0.219	0.892	10.038	0.328	0.969	9.069	0.507

Table 4

Table 5

Test Data

序号	$v$ /(m/min)	$f$ /(mm/r)	$a$ /mm	$n$ /(r/min)	$P$ /W
1	60	0.10	0.5	381.97	1 440.8
2	60	0.25	2.0	561.72	3 463.3
3	80	0.10	0.5	509.29	1 583.9
4	80	0.25	2.0	748.96	4 364.4
…
61	100	0.15	1.5	860.29	3 503.8
62	120	0.15	1.5	1 032.40	4 074.9
63	100	0.10	1.0	649.61	2 312.7
64	80	0.10	2.0	578.74	2 638.8

Table 5

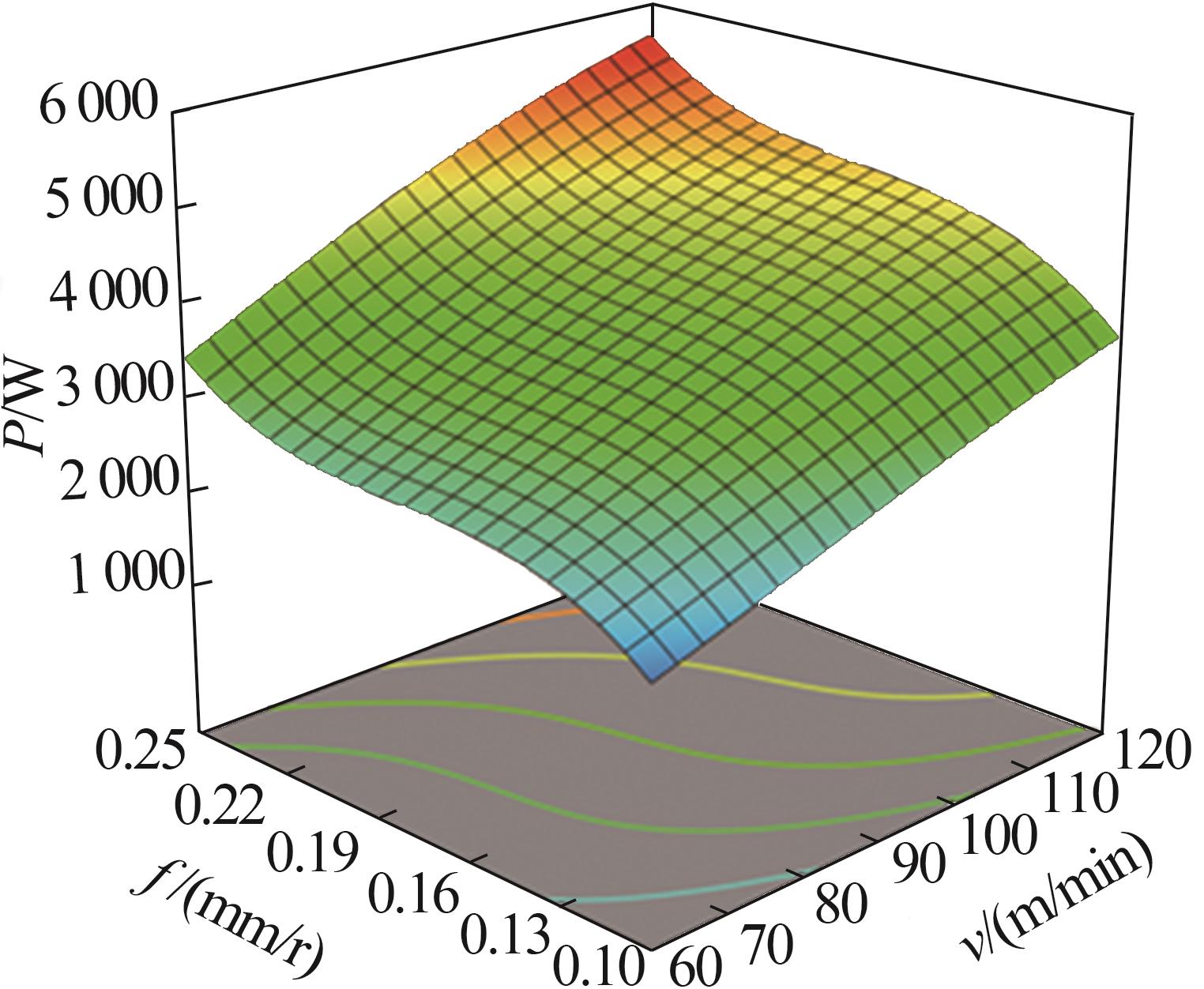

Fig. 3

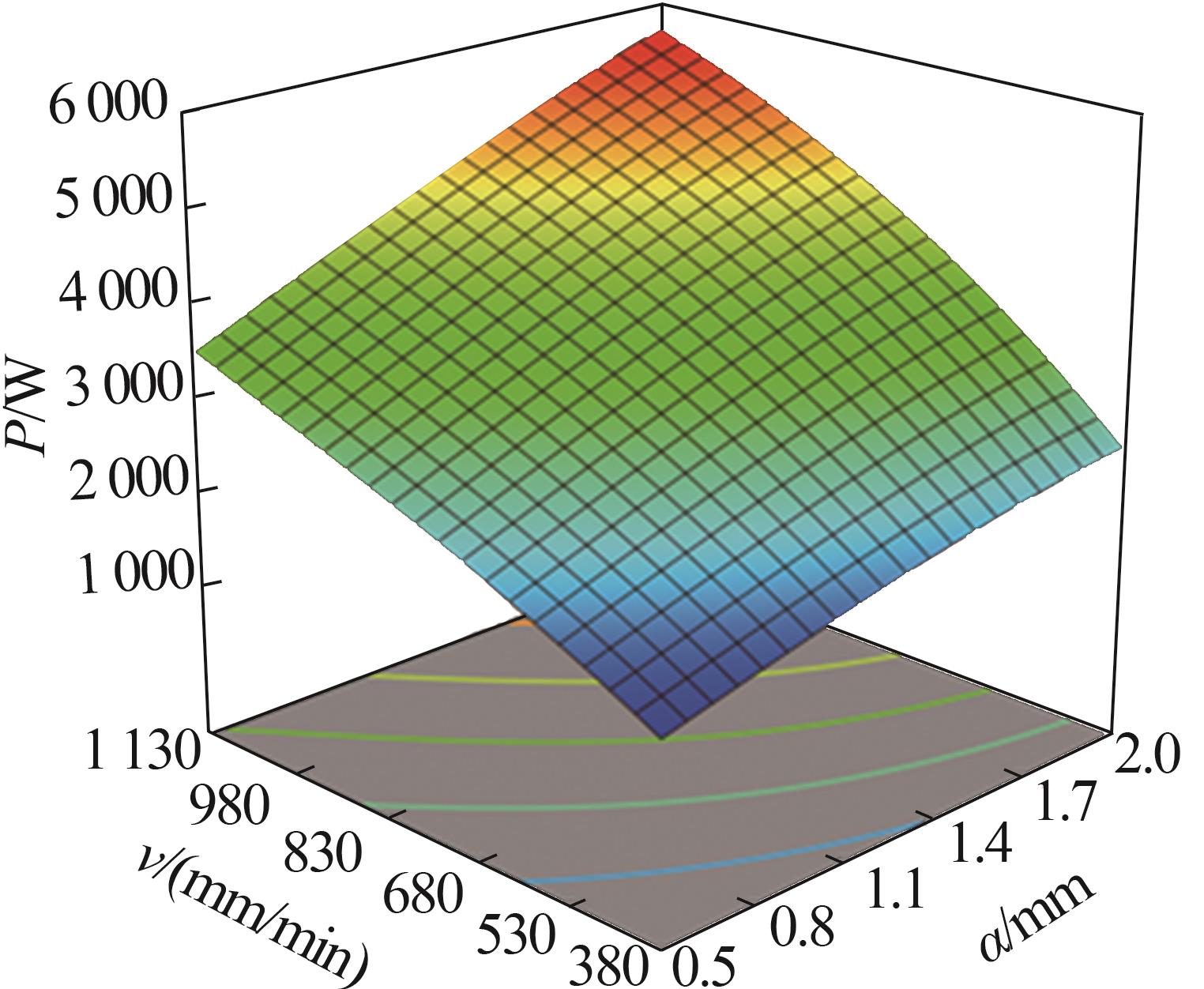

Fig. 4

Table 6

Model test results

算法模型	$R 2$	RMSE	t/s
DE-SVR	0.982 8	130.980	2.312 5
BPNN	0.978 1	121.100	5.203 1
CART	0.853 5	356.460	0.718 8
ELM	0.995 8	64.833	0.171 9
OSELM	0.989 9	99.627	0.078 1
IOSELM	0.989 3	102.800	0.125 0
BI-IOSELM	0.997 4	50.503	0.140 6

Table 6

Table 7

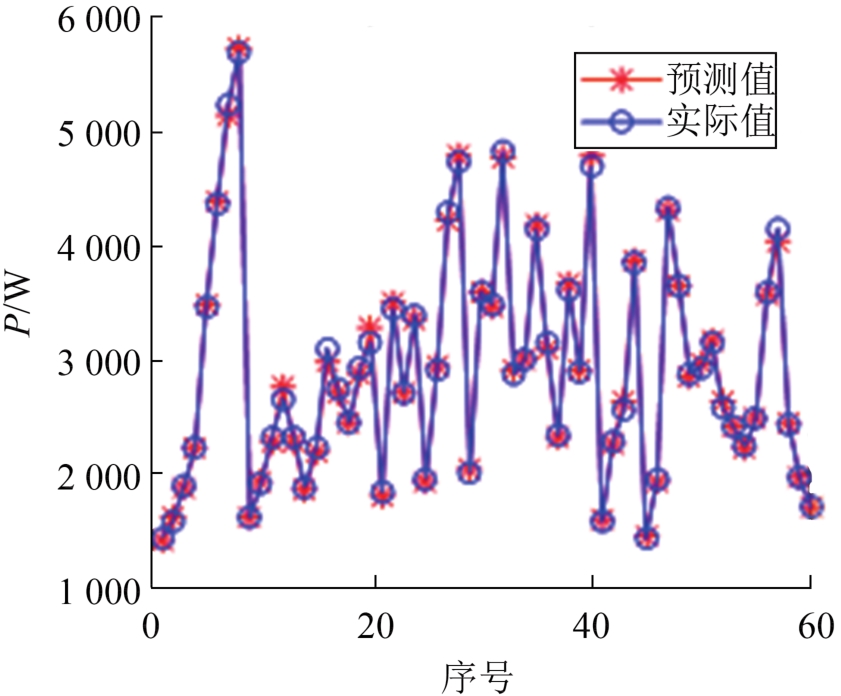

Fig. 5

Table 8

References 23

1	Cai W, Liu F, Zhou X N, et al. Fine Energy Consumption Allowance of Workpieces in the Mechanical Manufacturing Industry[J]. Energy(S0360-5442), 2016, 114: 623-633.
2	尚振东. 重型数控铣镗床能耗特性及能效评价方法研究[D]. 哈尔滨: 哈尔滨工业大学, 2019.
	Shang Zhendong. Research on Characteristics and Performance Evaluation of Energy Consumption of Heavy-duty CNC Milling and Boring Machine Tools[D]. Harbin: Harbin Institute of Technology, 2019.
3	Li L, Yan J H, Xing Z W. Energy Requirements Evaluation of Milling Machines Based on Thermal Equilibrium and Empirical Modelling[J]. Journal of Cleaner Production(S0959-6526), 2013, 52: 113-121.
4	Asrai R I, Newman S T, Nassehi A. A Mechanistic Model of Energy Consumption in Milling[J]. International Journal of Production Research(S1366-588X), 2018, 56(1/2): 642-659.
5	He Y, Wu P C, Wang Y L, et al. An OPC UA Based Framework for Predicting Energy Consumption of Machine Tools[J]. Procedia CIRP(S2212-8271), 2020, 90: 568-572.
6	李聪波, 尹誉先, 肖溱鸽, 等. 数据驱动下基于元动作的数控车削能耗预测方法[J]. 中国机械工程, 2020, 31(21): 2601-2611.
	Li Congbo, Yin Yuxian, Xiao Qinge, et al. Data-driven Energy Consumption Prediction Method of CNC Turning Based on Meta-action[J]. China Mechanical Engineering, 2020, 31(21): 2601-2611.
7	Lü L S, Deng Z H, Yan C, et al. Modelling and Analysis for Processing Energy Consumption of Mechanism and Data Integrated Machine Tool[J]. International Journal of Production Research(S0020-7543), 2020, 58(23): 7078-7093.
8	Kant G, Sangwan K S. Predictive Modelling for Energy Consumption in Machining Using Artificial Neural Network[J]. Procedia CIRP(S2212-8271), 2015, 37: 205-210.
9	林雨谷, 王艳. 离散车间能效数据挖掘及调度优化[J]. 系统仿真学报, 2019, 31(12): 2702-2711.
	Lin Yugu, Wang Yan. Energy Efficiency Data Mining and Scheduling Optimization of Dicsrete Workshop[J]. Journal of System Simulation, 2019, 31(12): 2702-2711.
10	Zheng J, Zheng W, Chen A, et al. Sustainability of Unconventional Machining Industry Considering Impact Factors and Reduction Methods of Energy Consumption: A Review and Analysis[J]. Science of The Total Environment(S0048-9697), 2020, 722: 137897.
11	Liang N Y, Huang G B, Saratchandran P, et al. A Fast and Accurate Online Sequential Learning Algorithm for Feedforward Networks[J]. IEEE Transactions on Neural Networks(S1045-9227), 2006, 17(6): 1411-1423.
12	Huang G B, Zhu Q Y, Siew C K. Extreme Learning Machine: Theory and Applications[J]. Neurocomputing(S0925-2312), 2006, 70(1): 489-501.
13	Alaba P A, Popoola S I, Olatomiwa L, et al. Towards a More Efficient and Cost-sensitive Extreme Learning Machine: A State-of-the-art Review of Recent Trend[J]. Neurocomputing(S0925-2312), 2019, 350: 70-90.
14	Huang G B, Chen L, Siew C K. Universal Approximation Using Incremental Constructive Feedforward Networks with Random Hidden Nodes[J]. IEEE Transactions on Neural Network(S1941-0093), 2006, 17(4): 879-892.
15	Vershynin R. High Dimensional Probability: An Introduction with Applications in Data Science[M]. Cambridge: Cambridge University Press, 2018: 37-39.
16	Tian H X, Qin P L. State of Health Prediction for Lithium-ion Batteries with a Novel Online Sequential Extreme Learning Machine Method[J]. International Journal of Energy Research(S1099-114X), 2021, 45(2): 2383-2397.
17	田慧欣, 秦鹏亮, 李坤, 等. 基于HI-DD-AdaBoost.RT的锂离子动力电池SOH预测[J]. 控制与决策, 2021, 36(3): 686-692.
	Tian Huixin, Qin Pengliang, Li Kun, et al. Prediction of Li-ion Battery SOH Based on HI-DD-AdaBoost.RT[J]. Control and Decision, 2021, 36(3): 686-692.
18	徐敬通, 李涛, 陈俊超, 等. 数控机床的能耗模型及实验研究[J]. 中南大学学报(自然科学版), 2017, 48(8): 2024-2033.
	Xu Jingtong, Li Tao, Chen Junchao, et al. An Energy Consumption Model and Experimental Research of Numerical Control Machine Tools[J]. Journal of Central South University(Science and Technology), 2017, 48(8): 2024-2033.
19	岳彩旭, 刘鑫, 姜男, 等. 硬态切削过程建模技术研究发展[J]. 系统仿真学报, 2020, 32(6): 982-999.
	Yue Caixu, Liu Xin, Jiang Nan, et al. Research on Modeling Technology for Hard Cutting Process[J]. Journal of System Simulation, 2020, 32(6): 982-999.
20	周志恒. 数控车床切削过程能耗预测建模及参数优化[D]. 武汉: 华中科技大学, 2016.
	Zhou Zhiheng. Research on Modeling and Parameter Optimization of Cutting Process Energy Consumption in NC Lathe[D]. Wuhan: Huazhong University of Science and Technology, 2016.
21	Hamdi T, Ali J B, Costanzo V D, et al. Accurate Prediction of Continuous Blood Glucose Based on Support Vector Regression and Differential Evolution Algorithm[J]. Biocybernetics and Biomedical Engineering(S0208-5216), 2018, 38(2): 362-372.
22	Li J S, Yao X W, Xu K L. A Comprehensive Model Integrating BP Neural Network and RSM for the Prediction and Optimization of Syngas Quality[J]. Biomass and Bioenergy(S0961-9534), 2021, 155: 106278.
23	Ji Y, Xu P, Chen J Y. An Hourly Electricity Consumption Calculation Method for Hvac Terminal Units with Classification and Regression Tree on the Basis of Sub-metering[J]. IOP Conference Series Earth and Environmental Science(S1755-1315), 2019, 238(1): 012002.

算法模型	样本预测值
算法模型	最大相对误差	平均相对误差
DE-SVR	14.84	3.70
BPNN	22.80	5.74
CART	34.34	10.12
ELM	9.47	1.90
OSELM	11.41	2.74
IOSELM	13.21	3.26
BI-IOSELM	5.33	1.39

测试算法	测试数据1		测试数据2		测试数据3		测试数据4
测试算法	预测值	误差/%	预测值	误差/%	预测值	误差/%	预测值	误差/%
DE-SVR	3 593.5	2.56	3 868.9	5.06	2 226.7	3.72	2 758.8	4.55
BPNN	3 280.3	6.38	3 820.3	6.25	2 272.0	1.76	3 156.0	19.60
CART	4 666.7	33.18	4 666.7	14.52	2 135.2	7.68	3 266.5	23.79
ELM	3 598.6	2.71	4 099.5	0.60	2 296.4	0.70	2 513.6	4.74
OSELM	2 859.1	18.40	3 317.2	18.59	2 691.0	16.35	3 158.6	19.70
IOSELM	3 057.7	12.73	4 147.6	1.78	2 691.9	16.40	3 055.3	15.78
BI-IOSELM	3 541.1	1.06	4 058.3	0.41	2 328.1	0.67	2 632.4	0.24
