Contribution Rate Calculation Method to System-of-Systems Based on Interval-Valued Intuitionistic Fuzzy Number ANP

doi:10.16182/j.issn1004731x.joss.21-0597

Abstract

Abstract:

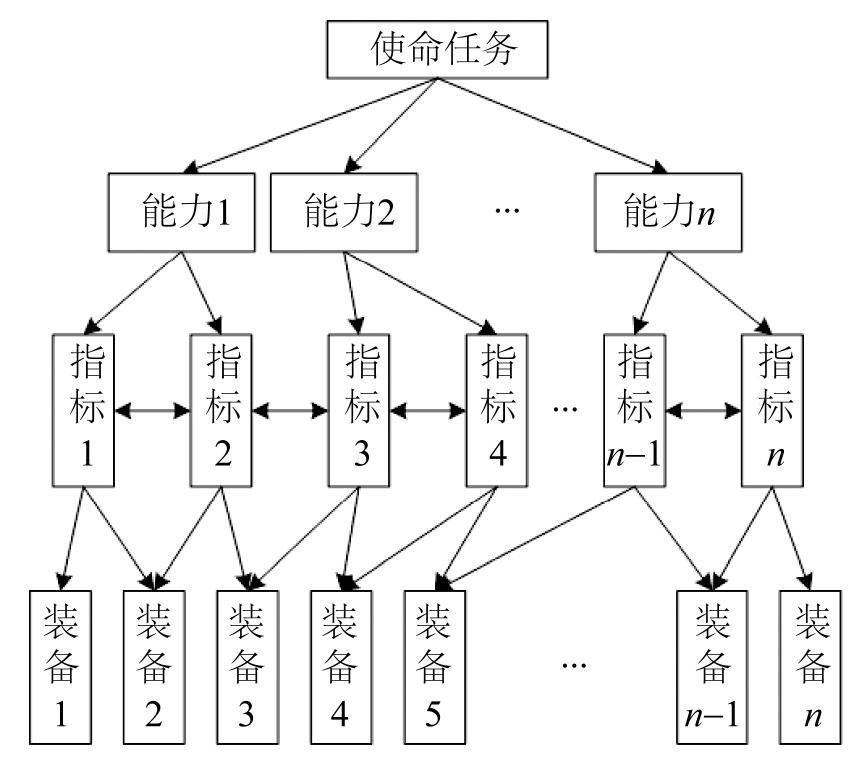

Contribution rate to system-of-systems (CRSoS) is mainly used to measure the contribution of an equipment to system of systems (SoS) in system construction. In order to solve some problems in the calculation of CRSoS, a multi-level equipment indicator architecture of "task-ability-indicator- equipment" is proposed. At the same time, considering the characteristics of the equipment indicator architecture, ANP (analytic network process) and IVIFN (interval-valued intuitionistic fuzzy number), a IVIF-ANP calculation method is proposed to obtain more accurate CRSoS. Experiments show that this method can not only solve the problem of the calculation formula of CRSoS, but also obtain more accurate CRSoS compared with analytic hierarchy process (AHP) and analytic network process (ANP), which provides more effective support for system construction.

Key words: system of systems (SoS), contribution rate to system-of-systems, interval-valued intuitionistic fuzzy number (IVIFN), analytic network process (ANP), calculation method

CLC Number:

TP391.9

Zejian Ding, Songtao Sun, Zhiwen He, Fei Liu. Contribution Rate Calculation Method to System-of-Systems Based on Interval-Valued Intuitionistic Fuzzy Number ANP[J]. Journal of System Simulation, 2022, 34(11): 2386-2395.

Figures/Tables 9

Fig. 1

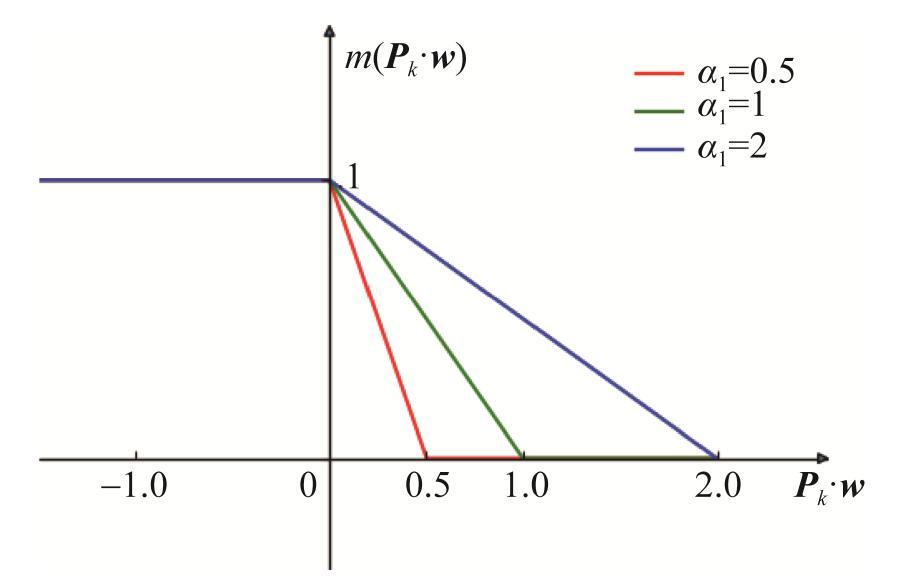

Fig. 2

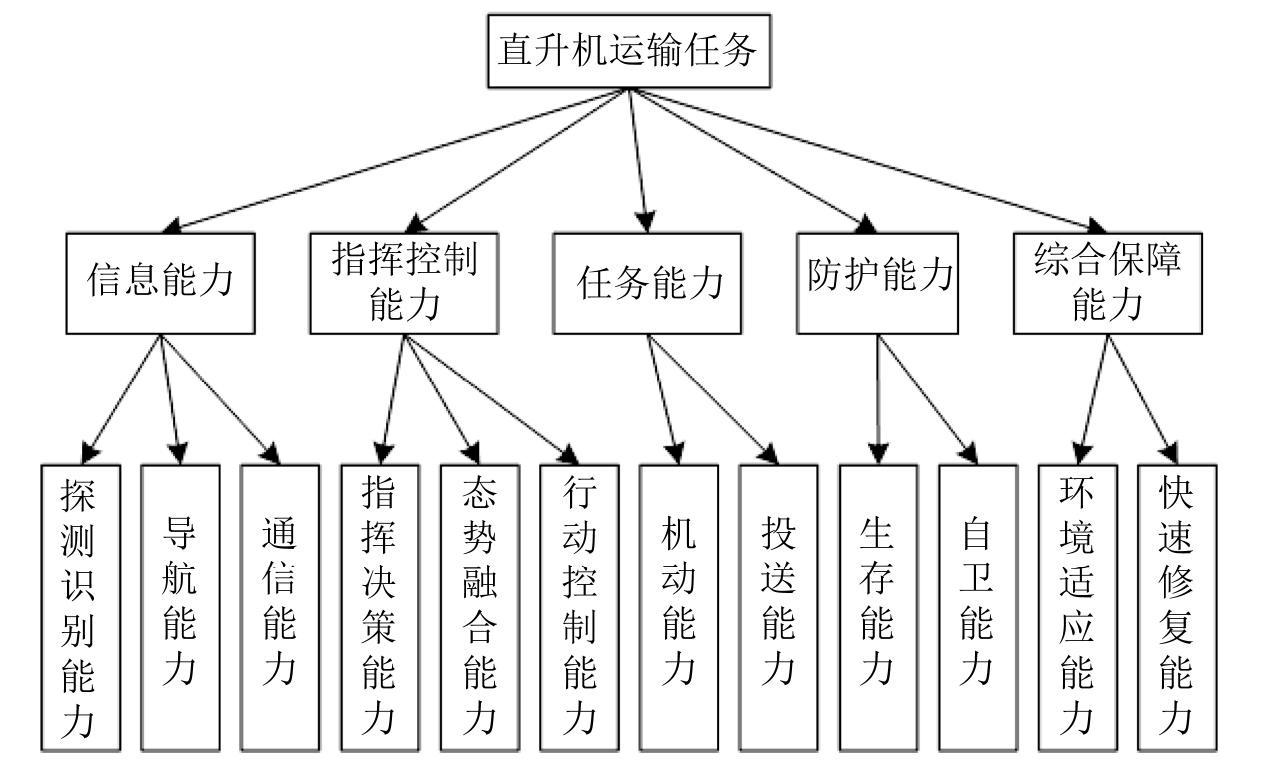

Fig. 3

Table 1

Table 2

Table 3

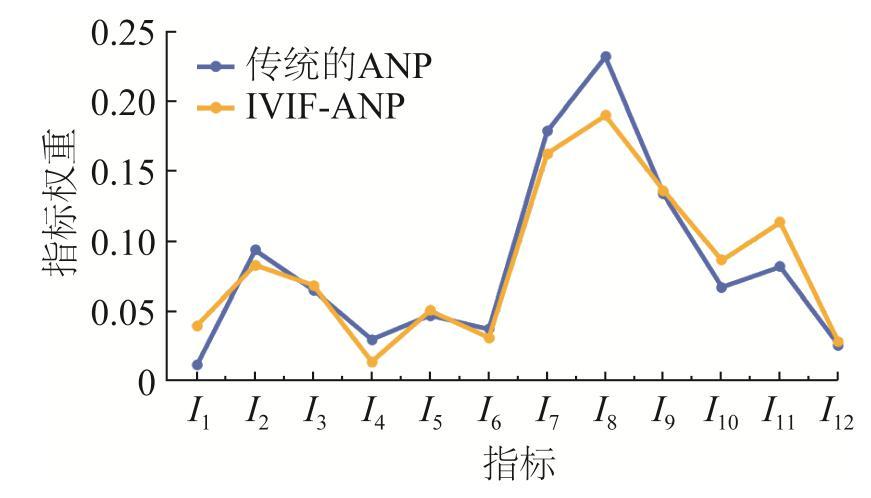

Fig. 4

Table 4

Table 5

References 21
