执行器位姿异常的机器人轨迹规划调整方法

doi:10.16182/j.issn1004731x.joss.25-0541

摘要/Abstract

摘要：

为解决机器人执行器异常位姿对机器人轨迹的影响，提出一种虚实融合的轨迹自适应规划调整方法。引入AR技术耦合机器人运动学模型，通过三维虚实位姿同步比对取代多传感器硬件依赖；结合AR手势与语音交互简化操作流程；基于执行器实际位姿动态调整机器人末端轴轨迹。实验结果表明：该方法突破传统校准的技术与成本限制，设备需求减少且部署成本降低；校对效率提升，操作专业性要求弱化；机器人轨迹自适应规划调整能力增强，尤其解决现有规划算法对外部环境响应成熟但对执行器本体位姿突变响应不足的缺陷，为机器人作业提供了高适应性、低成本的执行器位姿校准与轨迹优化新范式。

关键词: 数字孪生, 增强现实, 轨迹规划, 位姿校对, 机器人, 末端执行器

Abstract:

To address the influence of the abnormal pose of the robot actuator on the robot trajectory, an adaptive planning and adjustment method of trajectory based on virtual-real fusion was proposed. AR technology was introduced to couple with the robot kinematics model, and the hardware dependence on multiple sensors was replaced by synchronous comparison of three-dimensional virtual and real poses; AR gestures and voice interaction were combined to simplify the operation process; based on the actual pose of the actuator, the trajectory of the robot terminal axis was dynamically adjusted. The experimental results show that this method breaks through the technical and cost limitations of traditional calibration, reduces equipment requirements, and lowers deployment costs. The calibration efficiency is improved, and the requirement for operation professionalism is weakened. The adaptive planning and adjustment capability of the robot trajectory is enhanced, especially solving the defect that existing planning algorithms have mature responses to the external environment but insufficient responses to sudden changes in the pose of the actuator body. It provides a new paradigm with high adaptability and low cost for actuator pose calibration and trajectory optimization in robot operations.

Key words: digital twin, augmented reality, trajectory planning, pose calibration, robot, end effector

中图分类号:

TP391.9

秦浪,谢嘉成,乔晓军等 . 执行器位姿异常的机器人轨迹规划调整方法[J]. 系统仿真学报, 2026, 38(5): 1466-1483.

Qin Lang,Xie Jiacheng,Qiao Xiaojun,et al . Robot Trajectory Planning and Adjustment Method for Abnormal Pose of Actuator[J]. Journal of System Simulation, 2026, 38(5): 1466-1483.

图/表 31

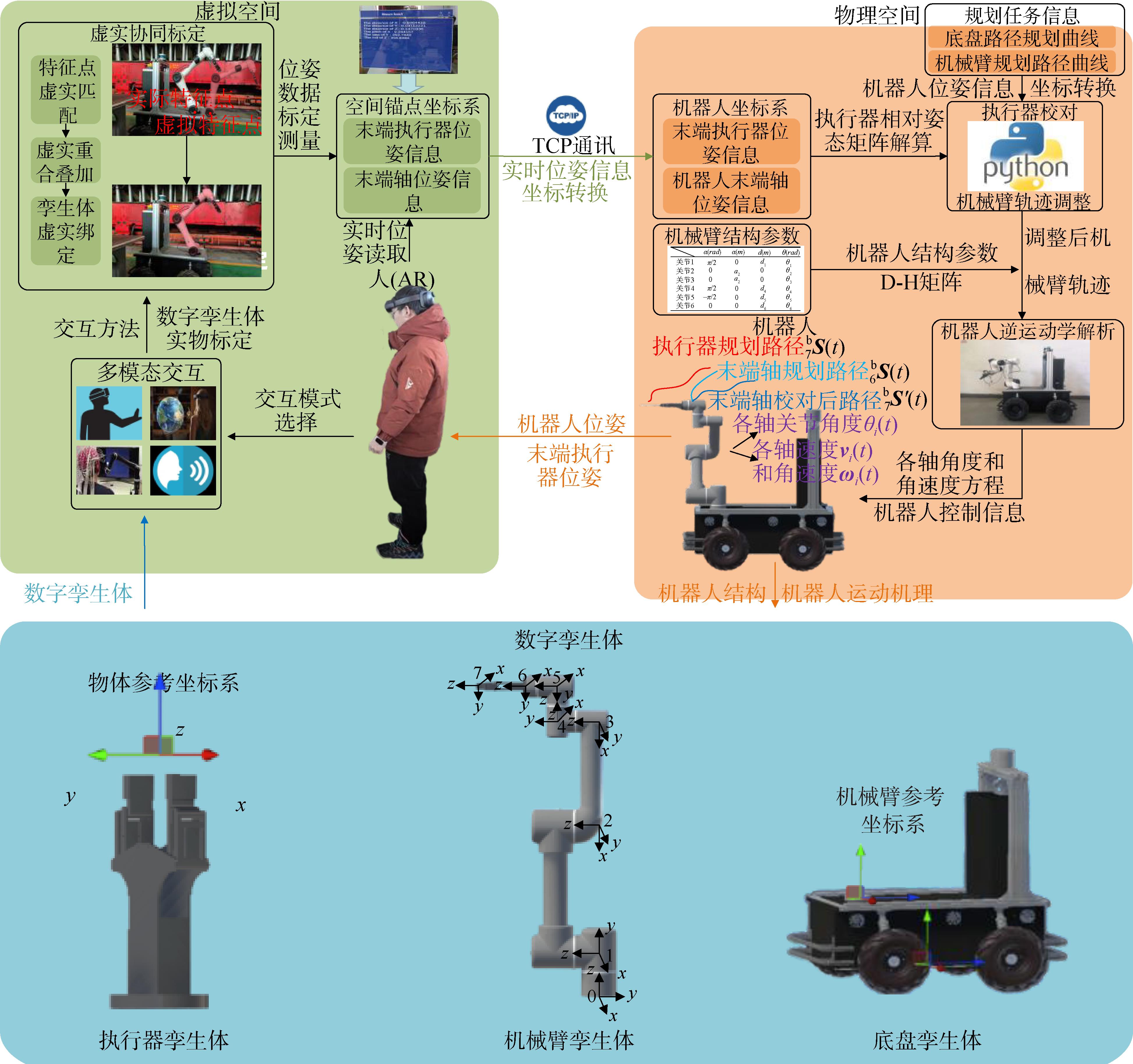

图1

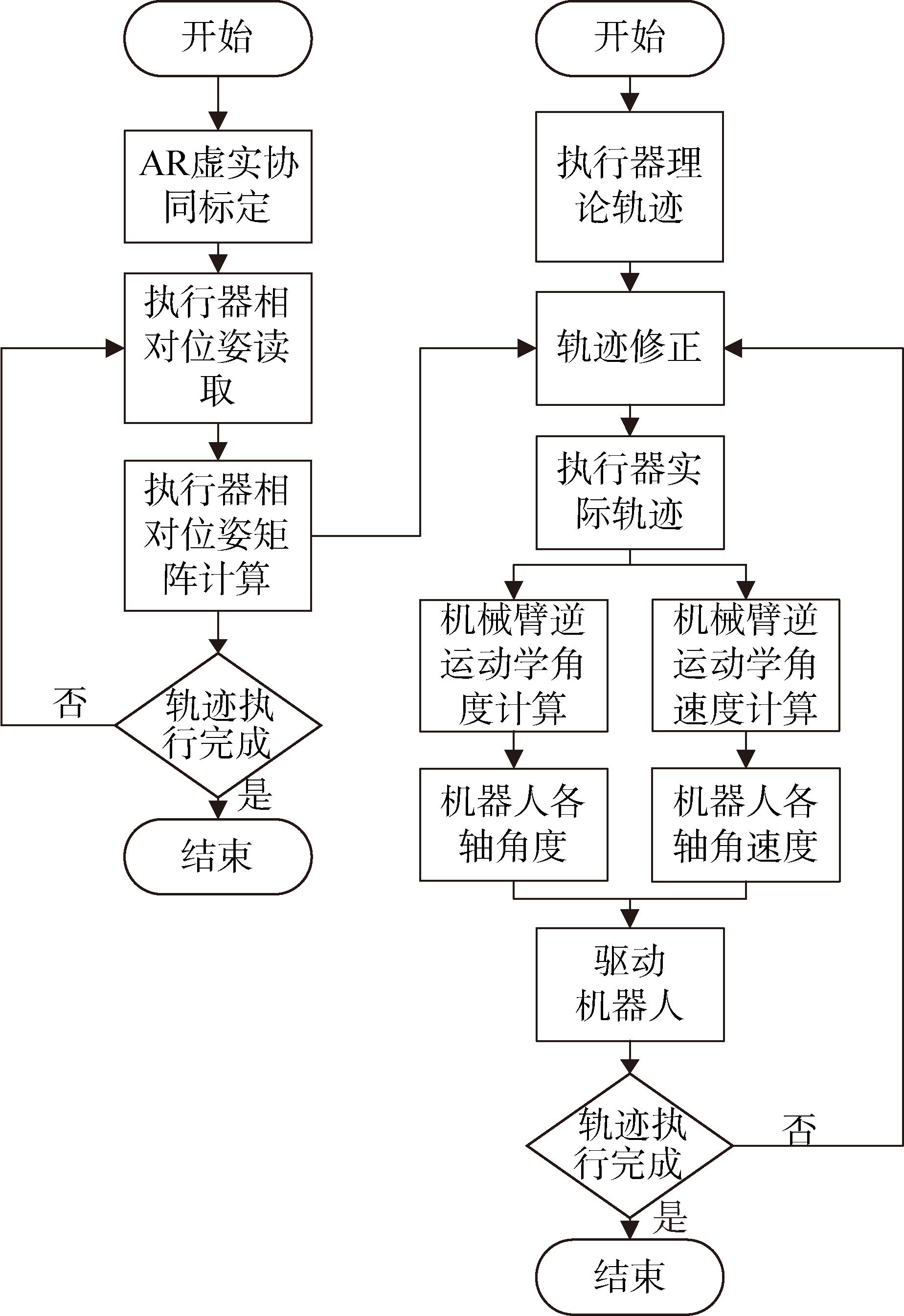

图2

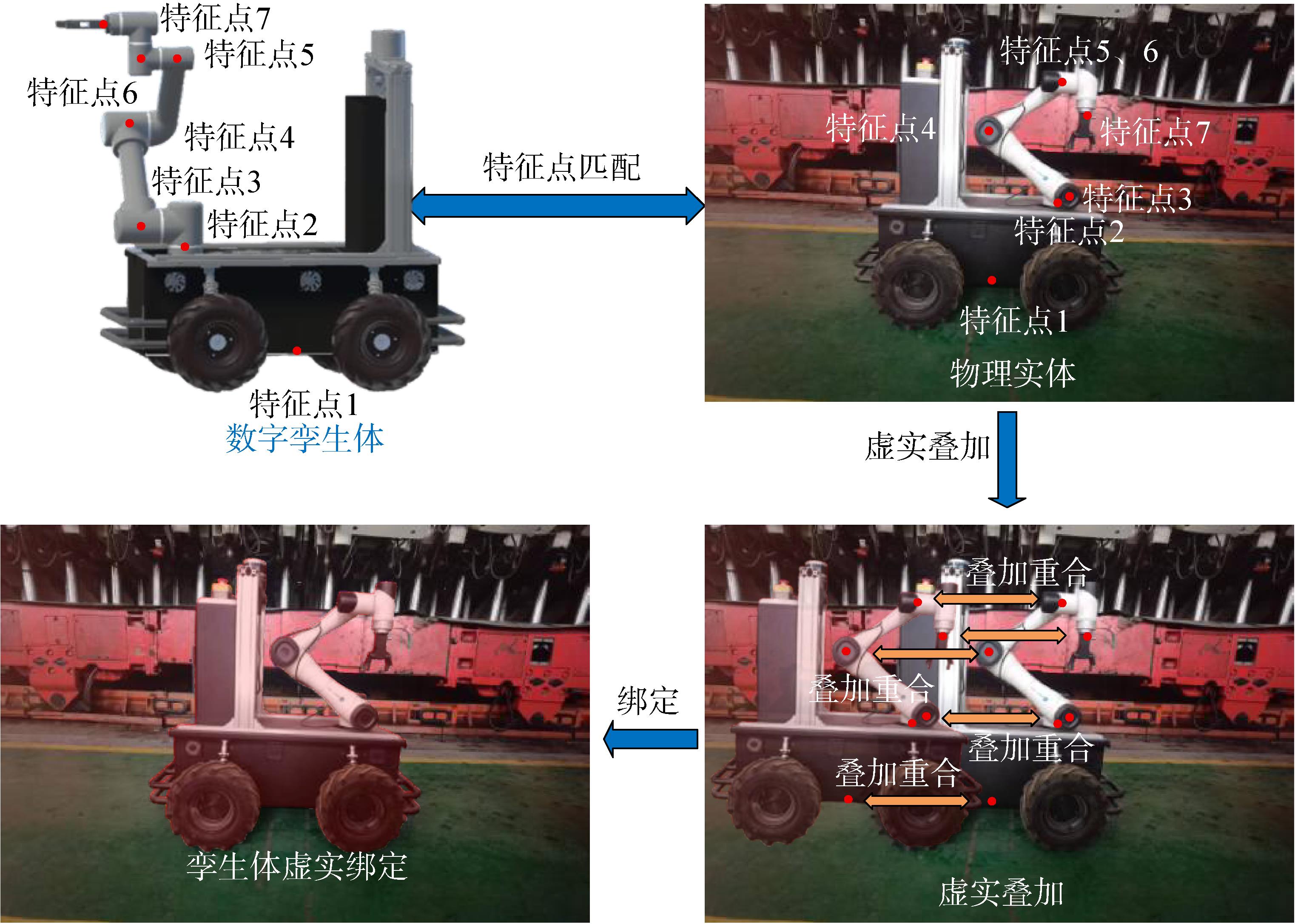

图3

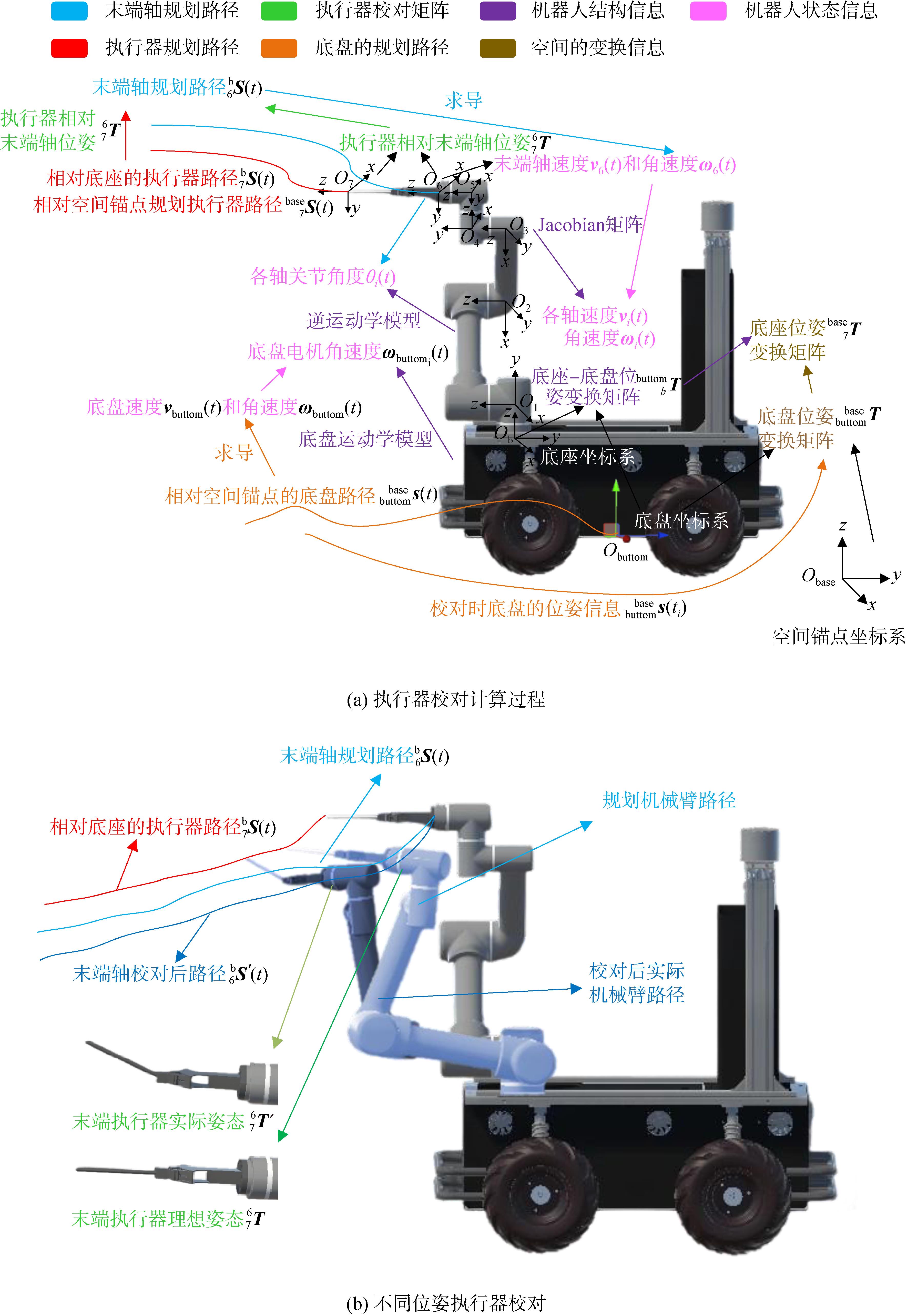

图4

图5

表1

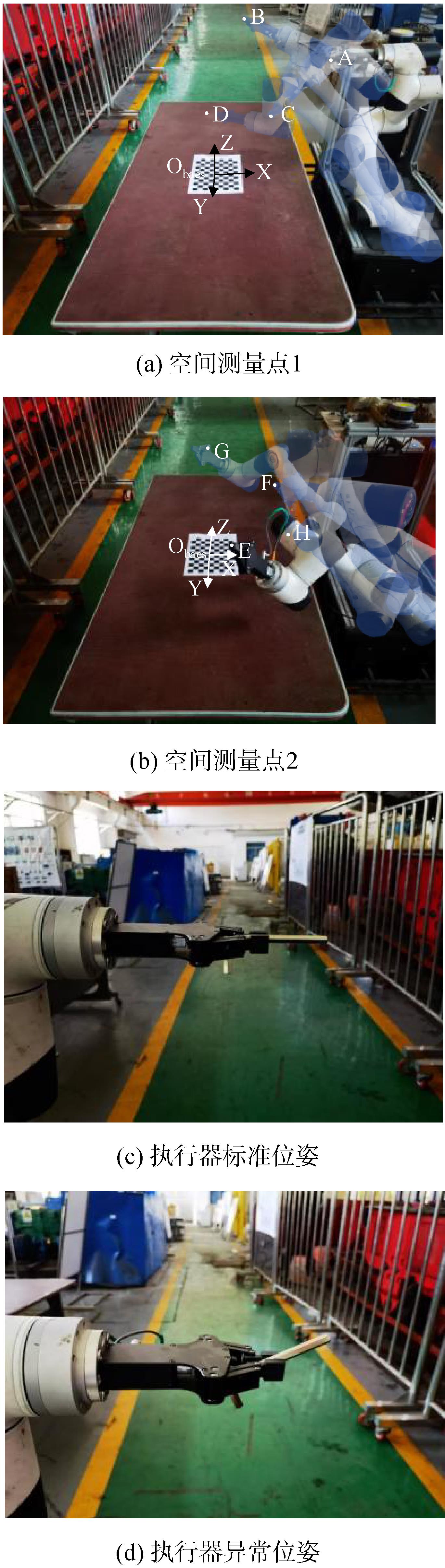

图6

表2

表3

表4

表5

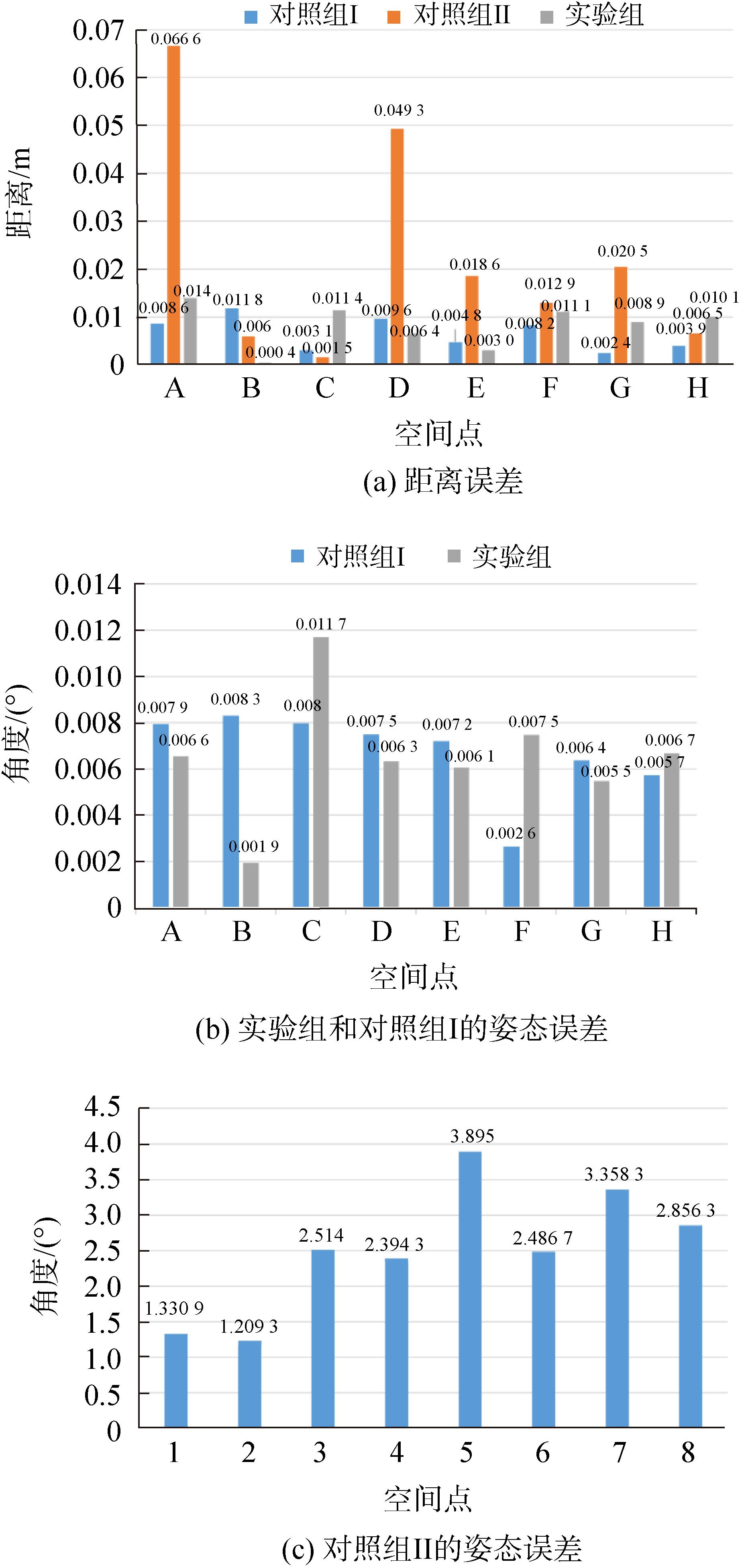

图7

表6

表7

表8

表9

表10

表11

表12

表13

表14

表15

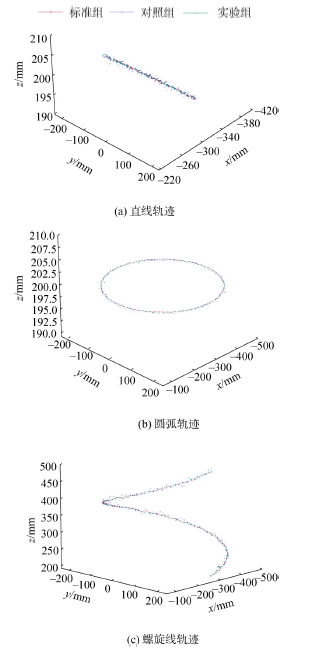

图8

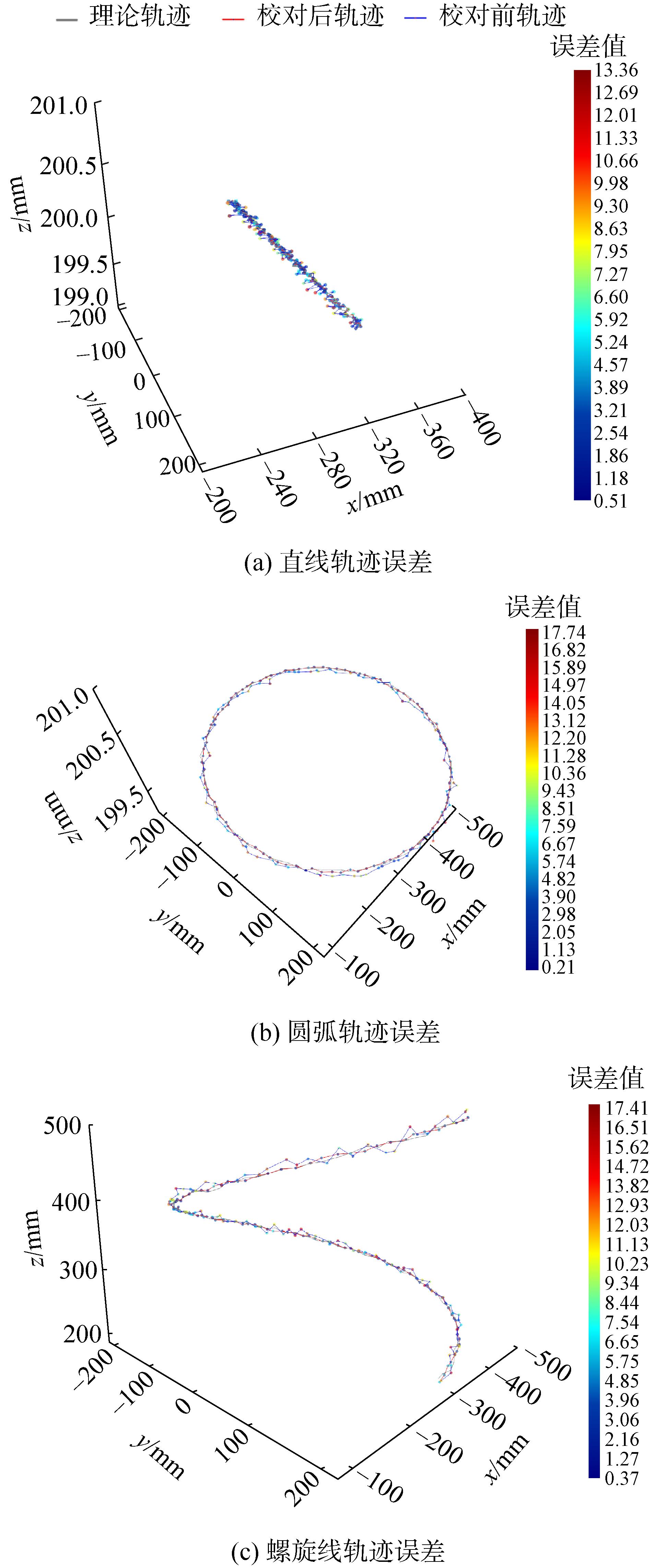

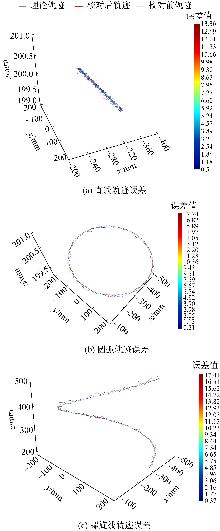

图9

表16

表17

表18

表19

表20

表21

表22

参考文献 27

[1]	工业和信息化部, 国家发展改革委, 财政部, 等. 关于印发推动工业领域设备更新实施方案的通知: 工信部联规〔2024〕53号[EB/OL]. (2024-03-27) [2025-05-30]. .
[2]	王巍, 徐磊, 牛孝霞, 等. 摄影测量系统在自动制孔机器人末端执行器位姿调整中的应用[J]. 机械工程师, 2025(4): 1-5, 12.
	Wang Wei, Xu Lei, Niu Xiaoxia, et al. Application of Industrial Photogrammetric System in Position and Pose Measurement of Automatic Hole Making Robotprocess End Effector[J]. Mechanical Engineer, 2025(4): 1-5, 12.
[3]	Li Zhibin, Li Shuai, Francis A, et al. A Novel Calibration System for Robot Arm via an Open Dataset and a Learning Perspective[J]. IEEE Transactions on Circuits and Systems II: Express Briefs, 2022, 69(12): 5169-5173.
[4]	高文斌, 褚亚杰, 余晓流. 一种基于工具坐标系的机器人运动学参数标定方法[J]. 中国机械工程, 2022, 33(18): 2183-2189.
	Gao Wenbin, Chu Yajie, Yu Xiaoliu. A Kinematic-parameter Calibration Method of Robots Based on Tool Coordinate[J]. China Mechanical Engineering, 2022, 33(18): 2183-2189.
[5]	梁亮, 吴成东, 刘世昌. 基于关节几何误差的机器人绝对位置精度标定算法[J]. 东北大学学报(自然科学版), 2025, 46(4): 1-7.
	Liang Liang, Wu Chengdong, Liu Shichang. Absolute Position Accuracy Calibration Algorithm for Robots Based on Joint Geometric Error[J]. Journal of Northeastern University(Natural Science), 2025, 46(4): 1-7.
[6]	Li Xirui, Zhang Enzheng, Fang Xiujun, et al. Calibration Method for Industrial Robots Based on the Principle of Perigon Error Close[J]. IEEE Access, 2022, 10: 48569-48576.
[7]	王东霞, 唐颖, 李国成, 等. 机器人几何参数标定误差模型对定位精度影响研究[J]. 计量学报, 2024, 45(8): 1108-1114.
	Wang Dongxia, Tang Ying, Li Guocheng, et al. Research on the Influence of Robot Geometric Parameter Calibration Error Model on Positioning Accuracy[J]. Acta Metrologica Sinica, 2024, 45(8): 1108-1114.
[8]	Li Zhibin, Li Shuai, Luo Xin. An Overview of Calibration Technology of Industrial Robots[J]. IEEE/CAA Journal of Automatica Sinica, 2021, 8(1): 23-36.
[9]	Wu Wei, Liu Chang, Cao Wenhan, et al. Multi-sensor Calibration System for Mobile Robots[C]//2023 7th CAA International Conference on Vehicular Control and Intelligence (CVCI). Piscataway: IEEE, 2023: 1-7.
[10]	Mao Jincheng, Xu Ruidi, Ma Xiaojie, et al. Fast Calibration Method for Base Coordinates of the Dual-robot Based on Three-point Measurement Calibration Method[J]. Applied Sciences, 2023, 13(15): 8799.
[11]	Wang Ziyi, Liu Yang, Wang Xinyue, et al. Field Calibration Method for Industrial Robots Based on Single Position Sensitive Device[J]. IEEE Transactions on Instrumentation and Measurement, 2023, 72: 1-12.
[12]	Nguyen Hoai-Nhan, Le Phu-Nguyen, Kang Hee-Jun. A Performance Comparison of the Full Pose-based and Partial Pose-based Robot Calibration for Various Types of Robot Manipulators[J]. Advances in Mechanical Engineering, 2021, 2021(9): 168781402110477.
[13]	于振, 万俊贺, 刘海林, 等. 基于IGCF算法和CSF-PPSO-ESN算法的工业机器人末端执行器位姿重复性检测[J]. 仪器仪表学报, 2023, 44(6): 43-53.
	Yu Zhen, Wan Junhe, Liu Hailin, et al. Industrial Robot End Effector Pose Repeatability Test Based on IGCF and CSF-PPSO-ESN Algorithm[J]. Chinese Journal of Scientific Instrument, 2023, 44(6): 43-53.
[14]	王逸峰, 逯永康, 李俊卿, 等. 基于摄影测量的移动机器人末端标定方法研究[J]. 航空制造技术, 2022, 65(18): 92-97.
	Wang Yifeng, Lu Yongkang, Li Junqing, et al. Research on End Calibration Method of Mobile Robot Based on Photogrammetry[J]. Aeronautical Manufacturing Technology, 2022, 65(18): 92-97.
[15]	高文斌, 杜涛, 罗瑞卿. 一种利用位置误差模型的机器人位姿标定方法[J]. 机械科学与技术, 2023, 42(11): 1852-1859.
	Gao Wenbin, Du Tao, Luo Ruiqing. A Robot Pose Calibration Method Using Position Error Model[J]. Mechanical Science and Technology for Aerospace Engineering, 2023, 42(11): 1852-1859.
[16]	高国琴, 韩滢. 改进PROSAC算法的并联机器人末端位姿检测方法[J]. 计算机应用与软件, 2022, 39(4): 205-212, 262.
	Gao Guoqin, Han Ying. Pose Detection for Parallel Robot Based on Improved PROSAC Algorithm[J]. Computer Applications and Software, 2022, 39(4): 205-212, 262.
[17]	Zhang Qi, Tian Wei, Hu Junshan, et al. Robot Hand-eye Calibration Method Based on Intermediate Measurement System[C]//Intelligent Robotics and Applications. Cham: Springer International Publishing, 2021: 37-47.
[18]	Kuo Yong-Lin, Hsieh Chia-Hang. Static Calibration and Dynamic Compensation of the SCORBOT Robot Using Sensor Fusion and LSTM Networks[J]. Journal of the Chinese Institute of Engineers, 2023, 46(8): 881-894.
[19]	李明, 徐群, 王艳, 等. 基于自适应动态规划机械臂运动策略仿真研究[J]. 系统仿真学报, 2023, 35(10): 2182-2192.
	Li Ming, Xu Qun, Wang Yan, et al. Simulation and Research of Manipulator Motion Strategy Based on Adaptive Dynamic Programming[J]. Journal of System Simulation, 2023, 35(10): 2182-2192.
[20]	尤波, 王明睿, 李智, 等. 基于模型预测控制的轮式移动机器人轨迹规划[J]. 系统仿真学报, 2020, 32(4): 591-600.
	You Bo, Wang Mingrui, Li Zhi, et al. Trajectory Planning of Wheeled Mobile Robot Based on Model Predictive Control[J]. Journal of System Simulation, 2020, 32(4): 591-600.
[21]	李敏, 张森, 曾祥光, 等. 基于深度强化学习的四足机器人单腿越障轨迹规划[J]. 系统仿真学报, 2025, 37(4): 895-909.
	Li Min, Zhang Sen, Zeng Xiangguang, et al. Trajectory Planning of Quadruped Robot over Obstacle with Single Leg Based on Deep Reinforcement Learning[J]. Journal of System Simulation, 2025, 37(4): 895-909.
[22]	张茜, 王平. 激光传感自适应的装配式建筑机器人轨迹规划[J]. 光学技术, 2024, 50(5): 598-605.
	Zhang Qian, Wang Ping. Trajectory Planning of Prefabricated Building Robot Based on Laser Sensing Adaptive Method[J]. Optical Technique, 2024, 50(5): 598-605.
[23]	彭海兵, 赵亚东. 考虑能耗的煤矿井下水仓清挖机器人轨迹规划方法[J]. 工矿自动化, 2022, 48(增2): 130-134.
	Peng Haibing, Zhao Yadong. Trajectory Planning Method of Underground Mine Sump Cleaning Robot Considering Energy Consumption[J]. Journal of Mine Automation, 2022, 48(S2): 130-134.
[24]	姚江云, 王宽田. 基于膜计算的搬运机器人轨迹规划和模型预测控制[J]. 现代制造工程, 2024(10): 82-89.
	Yao Jiangyun, Wang Kuantian. Trajectory Planning of Handling Robots Based on Membrane Computing and Model Prediction Control[J]. Modern Manufacturing Engineering, 2024(10): 82-89.
[25]	王学文, 刘曙光, 王雪松, 等. 面向多人-多机复杂协作任务的煤矿XR智能运维系统[J]. 煤炭学报, 2024, 49(4): 2124-2140.
	Wang Xuewen, Liu Shuguang, Wang Xuesong, et al. Research on Coal Mine XR Intelligent Operation and Maintenance System for Complex Collaborative Tasks Involving Multiple Humans and Multiple Robots[J]. Journal of China Coal Society, 2024, 49(4): 2124-2140.
[26]	陈赛旋. 协作机器人零力控制与碰撞检测技术研究[D]. 合肥: 中国科学技术大学, 2018.
	Chen Saixuan. Research on the Technology of Zero Moment Control and Collision Detection of Collaborative Robot[D]. Hefei: University of Science and Technology of China, 2018.
[27]	周扬. 基于UR5机械臂在线受力误差补偿系统的研究与实现[D]. 沈阳: 沈阳工业大学, 2024.
	Zhou Yang. Research and Implementation of an Online Force Error Compensation System Based on UR5 Robotic Arm[D]. Shenyang: Shenyang University of Technology, 2024.

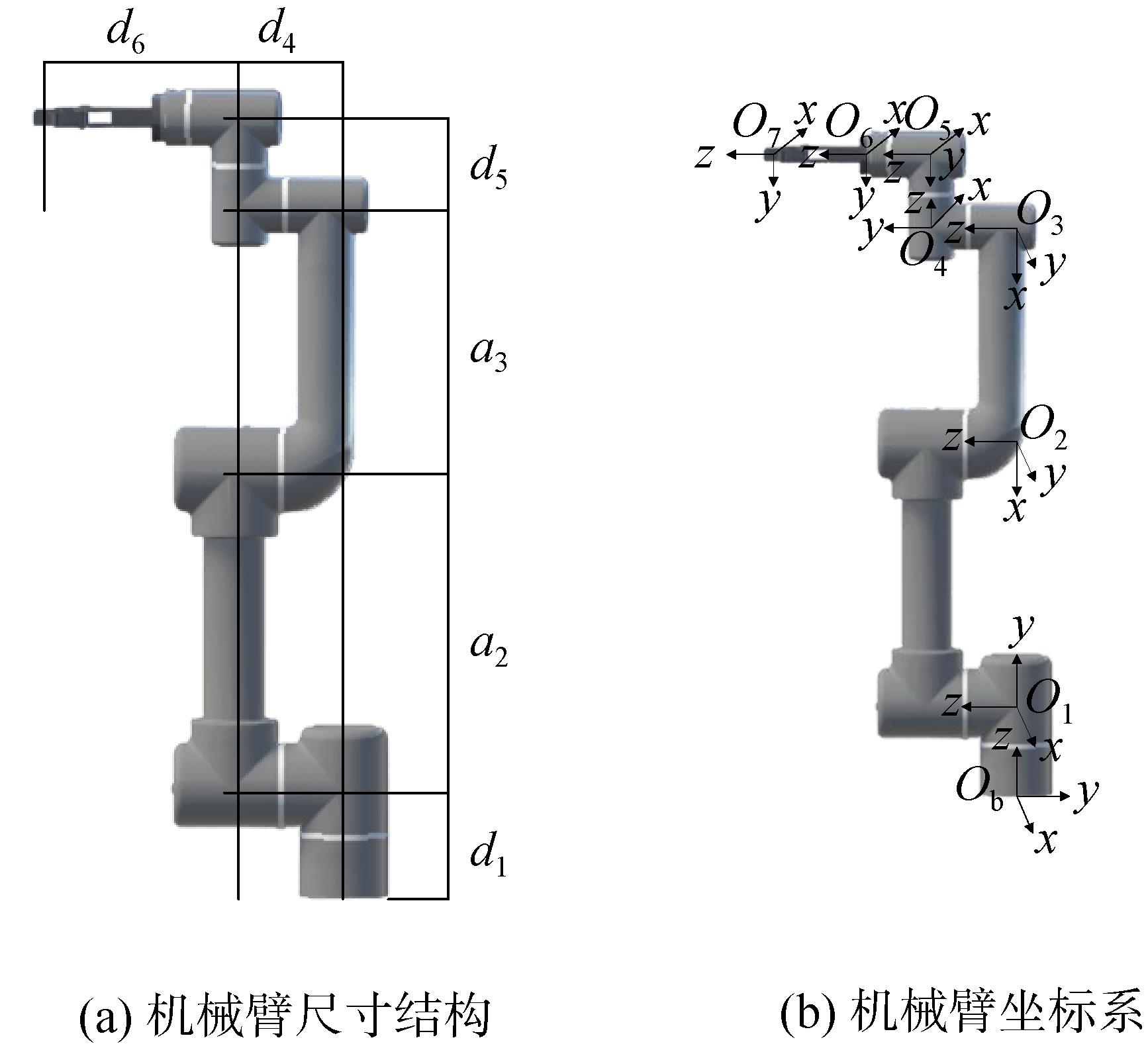

关节轴	连杆扭转角α/rad	连杆长度a/m	连杆偏距d/m	关节转角θ/m
关节1	π/2	0	d₁	θ₁
关节2	0	a₂	0	θ₂
关节3	0	a₃	0	θ₃
关节4	π/2	0	d₄	θ₄
关节5	-π/2	0	d₅	θ₅
关节6	0	0	d₆	θ₆

空间点	距离/m	横滚角/(°)	俯仰角/(°)	偏航角/(°)
A	0.859	127.066	-88.892	-127.165
B	1.038	-35.107	-74.522	10.927
C	0.984	-176.575	-39.089	175.736
D	0.882	-108.787	85.577	36.385
E	1.005	-32.998	28.935	156.788
F	0.998	103.439	-50.584	-143.583
G	0.998	-49.219	29.768	120.126
H	0.888	175.980	0.360	-176.807

空间点	距离/m	横滚角/(°)	俯仰角/(°)	偏航角/(°)
A	0.917	126.086	-89.888	-129.166
B	1.086	-34.785	-76.210	12.549
C	0.943	-175.060	-41.629	179.203
D	0.842	-105.190	83.143	37.563
E	0.991	-29.865	28.606	165.010
F	1.020	107.291	-51.019	-146.762
G	0.945	-50.293	27.944	127.280
H	0.898	181.964	-0.833	-175.400

空间点	距离/m	横滚角/(°)	俯仰角/(°)	偏航角/(°)
A	0.864	127.085	-88.887	-127.180
B	1.050	-35.101	-74.516	10.926
C	0.992	-176.584	-39.097	175.726
D	0.885	-108.762	85.576	36.404
E	1.007	-33.008	28.953	156.797
F	0.996	103.430	-50.600	-143.591
G	1.005	-49.224	29.788	120.117
H	0.902	175.988	0.360	-176.788

空间点	距离/m	横滚角/(°)	俯仰角/(°)	偏航角/(°)
A	0.850	127.079	-88.882	-127.172
B	1.050	-35.101	-74.516	10.931
C	0.981	-176.592	-39.083	175.739
D	0.891	-108.769	85.576	36.392
E	1.010	-32.999	28.944	156.797
F	1.007	103.437	-50.588	-143.587
G	0.996	-49.226	29.781	120.109
H	0.892	175.990	0.358	-176.804
