基于Stackelberg-GMO的电力系统双层协同调度与优化

doi:10.16182/j.issn1004731x.joss.26-0115E

摘要/Abstract

摘要：

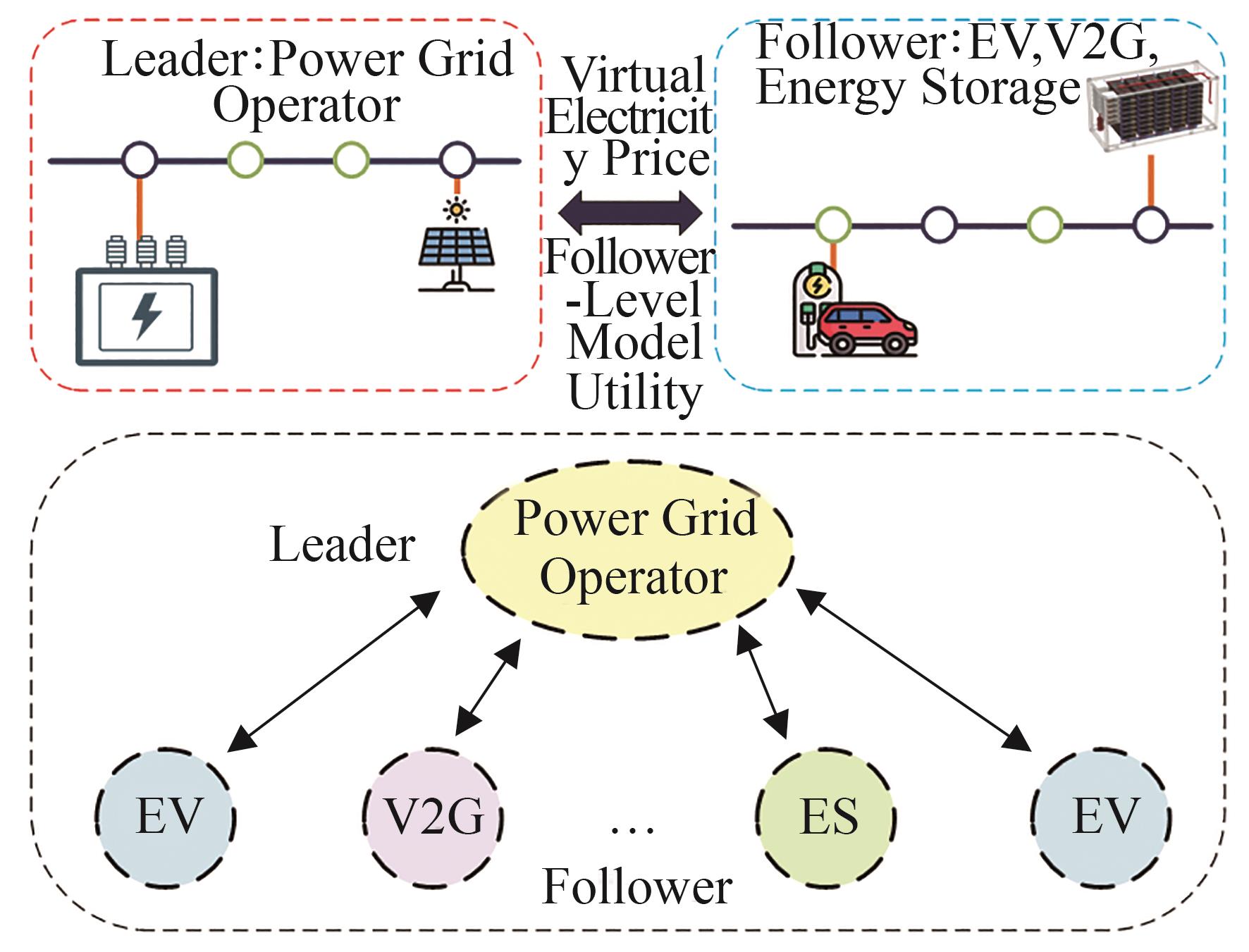

为平衡电网与需求侧利益诉求，实现系统经济性、环保性与新能源消纳能力的协同提升，提出了一种基于Stackelberg博弈与几何平均优化器的双层协同调度模型。构建了含碳排放约束、光伏多场景随机约束的主从博弈模型，以电网运营商为领导者、EV/V2G及储能为跟随者，破解全局优化与个体理性的核心矛盾；精细化纳入EV出行时空随机特性、储能循环寿命与用户出行舒适度约束，缩小了模型与实际运行的偏差；深度适配GMO算法与Stackelberg博弈序贯决策逻辑，设计了专属求解框架，可稳定获取子博弈完美纳什均衡；设计融合了碳排放成本与弃电惩罚的虚拟电价激励机制，引导需求侧资源匹配新能源出力特性。仿真结果表明：GMO算法寻优性能显著优于PSO、GA；所提方案较传统无序运行模式，总运行成本最大降低了50.25%，光伏消纳率提升至96.5%，碳排放最大减少了51.46%。该研究可为新型电力系统柔性资源协同调度提供理论与工程参考。

关键词: 新型电力系统, 协同调度, Stackelberg博弈, 几何平均优化器, 需求侧响应, 电动汽车

Abstract:

, To balance the interests of the power grid and the demand side, and achieve coordinated improvements in system economic efficiency, environmental friendliness, and renewable energy accommodation capacity, this paper proposes a bi-level coordinated scheduling model based on the Stackelberg game and the GMO. A leader-follower game model incorporating carbon emission constraints and multi-scenario stochastic constraints for photovoltaic generation is constructed, with the grid operator as the leader and EVs/V2G and energy storage as the followers, resolving the core contradiction between global optimization and individual rationality. The spatio-temporal stochastic characteristics of EV travel, the cycle life of energy storage systems, and user travel comfort constraints are carefully incorporated to reduce the deviation between the model and actual operation.The GMO algorithm is closely adapted to the sequential decision-making logic of the Stackelberg game, and a dedicated solution framework is designedto reliably obtain a SPNE. A virtual electricity price incentive mechanism integrating carbon emission costs and curtailment penalties is designed to guide demand-side resources to match the output characteristics of renewable energy. Results show that the optimization performance of the GMO algorithm is significantly superior to that of the PSO and the GA. Compared with the traditional uncoordinated operation mode, the proposed scheme reduces the total operating cost by up to 50.25%, increases the photovoltaic power accommodation rate to 96.5%, and reduces carbon emissions by up to 51.46%. This research can serve as a theoretical and engineering reference for the coordinated scheduling of flexible resources in new-type power systems.

Key words: new-type power system, coordinated scheduling, Stackelberg game, geometric mean optimizer, demand response, electric vehicle

中图分类号:

TM734

张元星,李建锋,李涛永等 . 基于Stackelberg-GMO的电力系统双层协同调度与优化[J]. 系统仿真学报, 2026, 38(8): 2132-2151.

Zhang Yuanxing,Li Jianfeng,Li Taoyong,et al . Bi-level Coordinated Scheduling and Optimization of Power Systems Based on Stackelberg-GMO[J]. Journal of System Simulation, 2026, 38(8): 2132-2151.

图/表 12

Step	Step description

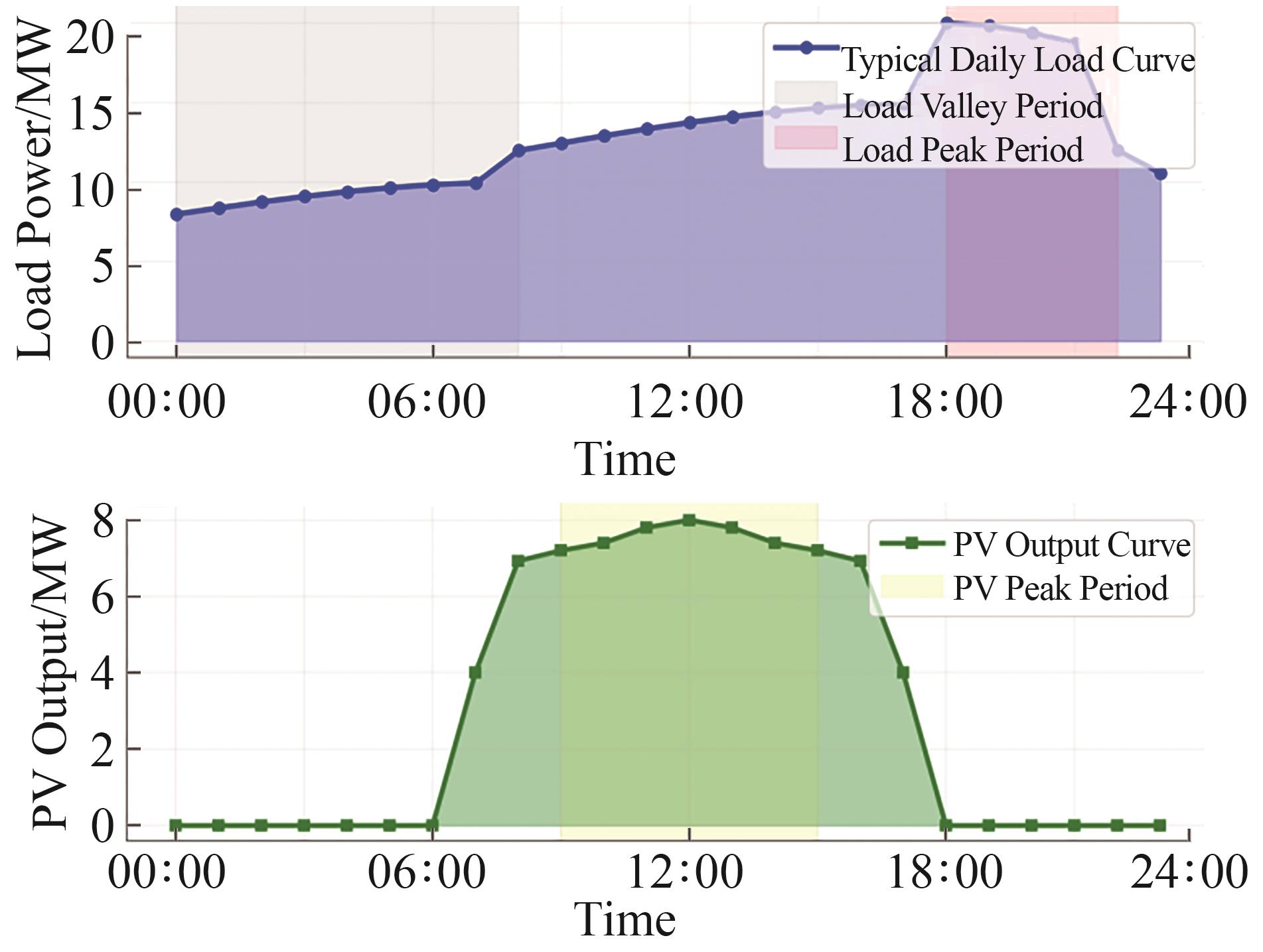

1	Scenario preprocessing: Generate a set of typical photovoltaic output scenarios and a set of EV spatio-temporal distribution scenarios, and determine the probability of each scenario and the equipment operating parameters
2	Upper-level initialization: Generate a population of virtual electricity prices that satisfy the lower and upper bound constraints, and initialize the agent positions   X_i,₀ and velocities V_i,₀
3	Lower-level initialization: For each upper-level virtual electricity price agent, generate initial EV/V2G/energy storage charging and discharging power schemes that satisfy the technical and user constraints by incorporating the EV spatio-temporal parameters and energy storage life constraints, and set the initial SOC values
4	Calculation of the upper-level objective function: Based on the current virtual electricity price λ_t,_v, calculate the expected fitness value under multiple scenarios and record the individual best and global best solutions
5	Lower-level response optimization: Using the upper-level virtual electricity price as input, construct a DR model incorporating EV spatio-temporal constraints and energy storage life constraints, and solve for the optimal charging and discharging power of each participant
6	Calculation of the DFI in GMO: Collect the individual best fitness values under multiple scenarios, calculate their mean and standard deviation, and then obtain the membership function values and the DFI
7	Generation and mutation of the GMO global guidance vector: Calculate the global guidance vector Y_i_,_k and perform Gaussian mutation
8	Update of GMO agent positions and velocities: Update the velocity V_i,k+₁ and position  X_i,k+₁ , and verify the boundary constraints
9	Update of the individual best and global best solutions: Compare the expected objective values under multiple scenarios after the update. If the updated values are better than the historical values, update the individual best solution. Then, examine all individual best solutions and select the solution with the maximum objective value as the global best solution
10	Convergence assessment: If ‖ $X k + 1, G b e s t$ $-$ $X k, G b e s t$ ‖<ε or the maximum number of iterations is reached, terminate the iterative optimization; otherwise, return to Step 4

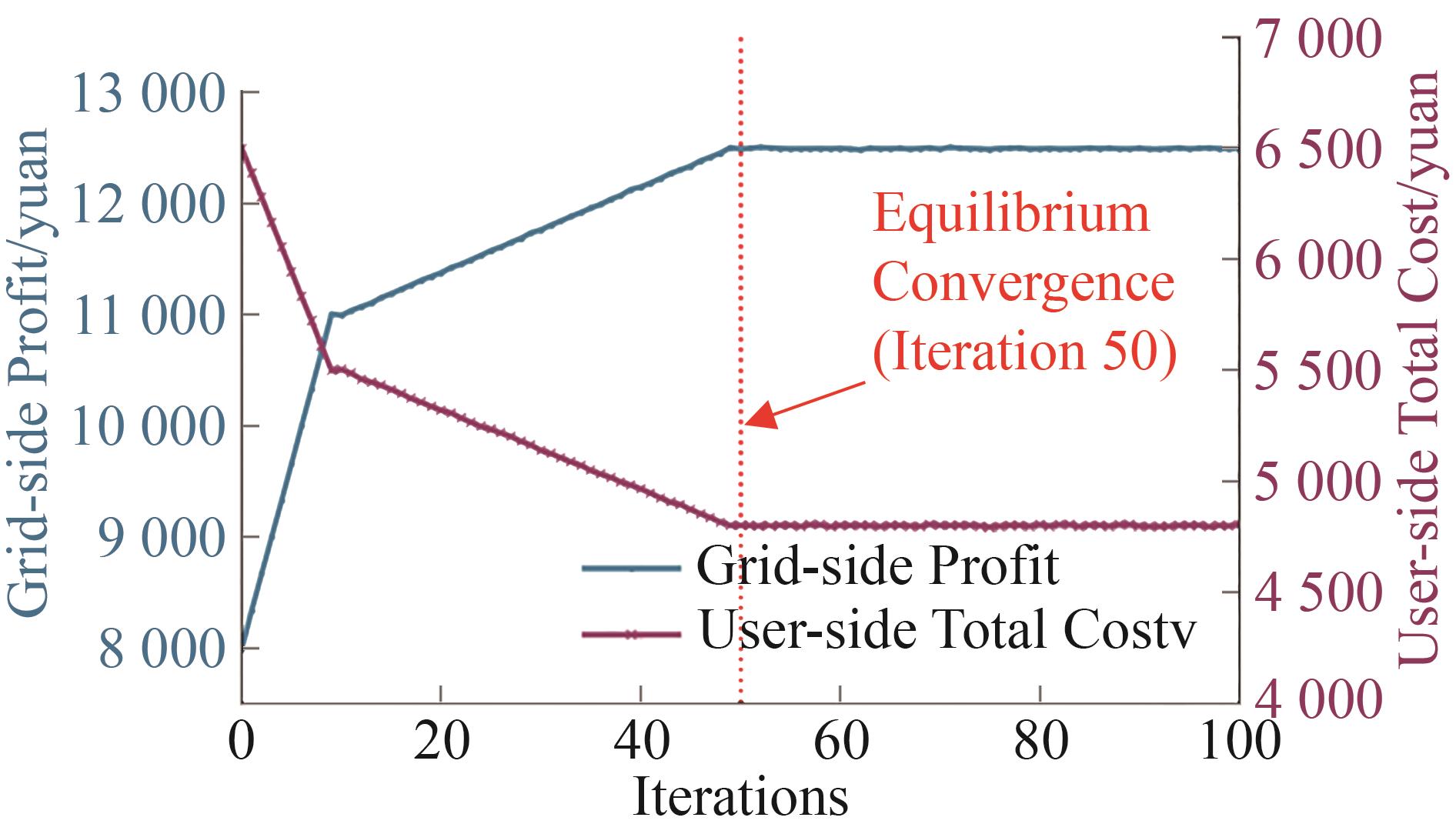

11	Equilibrium assessment: Determine whether the game has reached equilibrium. If not, return to Step 4; otherwise, output the optimal solution

参考文献 33

[1]	Wu Danman, Ding Yucheng, Xie Guanglong, et al. Economic Analysis Method for Park-level Source-grid-load-storage Integration Project Under Independent Investment Operation Mode[J]. Electric Power, 2026, 59(2): 61-70.
[2]	Meng Xuyao, Liu Jiajia, Wen Fushuan, et al. Development Situation and Key Technologies of Source-grid-load-storage Integrated Projects[J]. Automation of Electric Power Systems, 2026, 50(1): 1-19.
[3]	Ma Teng, Li Mingjia, Xu Hang, et al. Study on Multi-time Scale Frequency Hierarchical Control Method and Dynamic Response Characteristics of the Generation-grid-load-storage Type Integrated System Under Double-side Randomization Conditions[J]. Applied Energy, 2024, 367: 123436.
[4]	Wang Bin, Tian Zengyao, Yang Haotian, et al. Collaborative Planning of Source-grid-load-storage Considering Wind and Photovoltaic Support Capabilities[J]. Energies, 2025, 18(8): 2045.
[5]	Yang Xuexin, Zhang Zhiquan, Li Zhenkun. Optimal Operation of Smart Distribution Networks Considering Demand-side Response[J/OL]. Modern Electric Power. (2025-11-18)[2026-01-02]..
[6]	Liu Jiejie, Wu Binghui, Meng Xianyang, et al. LearnAMR: Learning-based Adaptive Model Predictive Control Enhanced by Reinforcement Learning for Optimizing Energy Flexibility in Building Energy Systems Incorporating Demand-side Management[J]. Applied Energy, 2025, 401: 126707.
[7]	高赐威, 严兴煜. 支撑分布式新能源入市的需求侧资源参与系统运行和市场交易关键技术[J]. 供用电, 2025, 42(11): 1-2.
[8]	Yan Laiqing, Wang Kang, Xu Jiaqi, et al. Hybrid Energy Storage Wind Power Fluctuation Stabilization Strategy Based on Multi-layer Energy Management[J]. Acta Energiae Solaris Sinica, 2025, 46(9): 98-107.
[9]	Zhang Zongnan, Shen Xiaojun, Chang Mingjiang. Dual Stochastic Multi-stage Robust Optimization of Integrated Energy System Considering Long Medium and Short-term Uncertainties[J]. Applied Energy, 2025, 400: 126573.
[10]	Hua Haochen, Zhang Zhouhe, Zou Yiqun, et al. Review of Low-carbon Co-optimization Research on Demand-side Flexibility Resources for New Power Systems[J]. Electric Power Construction, 2025, 46(6): 60-75.
[11]	Li Bin, Wang Fengqiao, Tang Tianyue. Energy Optimization Technology for Parks Based on Demand-side Resource Response Quantity Quota Transfer[J]. Southern Power System Technology, 2025, 19(9): 15-24.
[12]	Dengiz Thomas, Raith Andrea, Kleinebrahm Max, et al. Pareto Local Search for a Multi-objective Demand Response Problem in Residential Areas with Heat Pumps and Electric Vehicles[J]. Energy, 2025, 335: 138063.
[13]	Li Zening, Sun Hongbin, Xue Yixun, et al. A Stochastic Optimization Method for Coordinated Restoration of Electricity-transportation Systems Considering Demand-side Resources: A Case Study of Building Energy[J]. Proceedings of the CSEE, 2025, 45(20): 8024-8039.
[14]	Wang Jinkun, Xue Xian, Wu Huimin, et al. Optimization Model of Distributed Multi Energy Fusion System Considering the Mobile Energy Storage Characteristics of Electric Vehicles[J]. Electric Power, 2025, 58(11): 164-174.
[15]	Xiao Renxin, Ma Silin, Pan Nan, et al. Bi-level Optimization Scheduling of Microgrid Considering Demand Response and Ordered Integration of EVS[J]. Acta Energiae Solaris Sinica, 2026, 47(5): 123-134.
[16]	Wang Yu, Tong Xiangrui, Xie Yiheng, et al. A Two-stage Robust Optimization for EV User-friendly VPP Participation in Ancillary Service Markets[J]. International Journal of Electrical Power & Energy Systems, 2025, 171: 111004.
[17]	Zhang Zhiqiang, Yuan Zhi, Li Ji. Low-carbon Optimization Strategy for Integrated Energy Systems Based on Three-level Stackelberg Game Considering Carbon-source Uncertainties[J]. Power System Technology, 2026, 50(1): 157-167.
[18]	Li Jiale, Yang Bo, Pan Zhenning, et al. Stackelberg-nash Bargaining-based Low-carbon Scheduling for Multiple Integrated Multi-energy Systems[J]. Energy, 2025, 339: 139024.
[19]	Zheng Mohan, Lin Pengfeng, Zhang Chuanlin, et al. Optimal Configuration of Low-carbon Building Microgrid Clusters and Shared Hydrogen Storage Power Station Systems Based on Stackelberg Game[J/OL]. Journal of Shanghai Jiao Tong University. (2025-10-14) [2026-01-04]. .
[20]	Liang Yunyang, Pu Yang, Yu Mengmeng, et al. A Dual Carbon Reward Mechanism for Electric Vehicle Charging Scheduling Based on Multi-level Stackelberg Game[J]. Energy, 2025, 337: 138620.
[21]	Wang Xuan, Tang Wei, Zhang Zhigang, et al. Stackelberg Game Collaborative Optimal Scheduling of Distribution Network-plant Factory Based on Adjustable Potential Assessment[J]. Distribution & Utilization, 2025, 42(12): 23-32, 40.
[22]	Dorahaki Sobhan, Muyeen S M, Amjady Nima. A Stackelberg Game Theory Model for Integrated Community Energy Storage Systems[J]. IEEE Access, 2024, 12: 152908-152920.
[23]	Zhang Linyao, Liao Jinlin, Wu Guilian, et al. Two-level Collaborative Planning Model of Virtual Power Plant and Distribution Network Based on Stackelberg Game[J]. Distribution & Utilization, 2024, 41(6): 21-27.
[24]	Qi Bing, Zhang Hengyuan, Li Bin, et al. Strategies for Coordinated Operation of Scaled-up Micro-electric Vehicle Switching Cabinet and Distributed Photovoltaic[J]. Distribution & Utilization, 2025, 42(7): 94-101.
[25]	Zhang Linjuan, Zhou Zhiheng, Chen Jinghua, et al. Research on Optimal Allocation of Energy Storage Capacity in County Photovoltaic Distribution Station Area with Electric Vehicles[J]. Distribution & Utilization, 2024, 41(10): 101-113.
[26]	Gong Ziqi, Liu Didi, Liu Yituan. Optimal Scheduling Strategy for Integrated Energy Systems Based on Improved Particle Swarm Optimization Algorithm[J]. Journal of Chongqing University of Posts and Telecommunications(Natural Science Edition), 2026, 38(2): 331-341.
[27]	Liu Kenan, Cai Yaohui, Sun Wei, et al. Optimal Configuration of a Stand-alone PV/Diesel/Battery Hybrid Energy System Based on Modified PSO for a Translational Sprinkler Irrigation Machine Applied in Remote and Water-scarce Areas[J]. Energy, 2025, 320: 135113.
[28]	Xu Zhanpeng, Chen Fuxin, Yang Xuefan, et al. Research on Optimization Model of Capacity Configuration of PV/Storage/Hydrogen Grid-connected Microgrid Based on Improved PSO Algorithm with Genetic Algorithm[J]. Acta Energiae Solaris Sinica, 2025, 46(7): 144-153.
[29]	Pei Lijun, Xu Hui, Chen Han, et al. Prediction Method for Winding Temperature of SA-LSTM Transformer Based on PSO Optimization[J]. Distribution & Utilization, 2025, 42(8): 112-119.
[30]	Ren Hui, Gao Luli, Su Zhibin, et al. GMO: A General Multimodal Optimization Framework Applicable to Various Global Metaheuristic Algorithms[J]. Swarm and Evolutionary Computation, 2025, 99: 102207.
[31]	Joy G, Huyck C, Yang Xinshe. Parameter Tuning of the Firefly Algorithm by Three Tuning Methods: Standard Monte Carlo, Quasi-monte Carlo and Latin Hypercube Sampling Methods[J]. Journal of Computational Science, 2025, 87: 102588.
[32]	Wang Shunli, Ma Chao, Gao Haiying, et al. Improved Hyperparameter Bayesian Optimization-bidirectional Long Short-term Memory Optimization for High-precision Battery State of Charge Estimation[J]. Energy, 2025, 328: 136598.
[33]	Wang Shunli, Fan Yongcun, Jin Siyu, et al. Improved Anti-noise Adaptive Long Short-term Memory Neural Network Modeling for the Robust Remaining Useful Life Prediction of Lithium-ion Batteries[J]. Reliability Engineering & System Safety, 2023, 230: 108920.

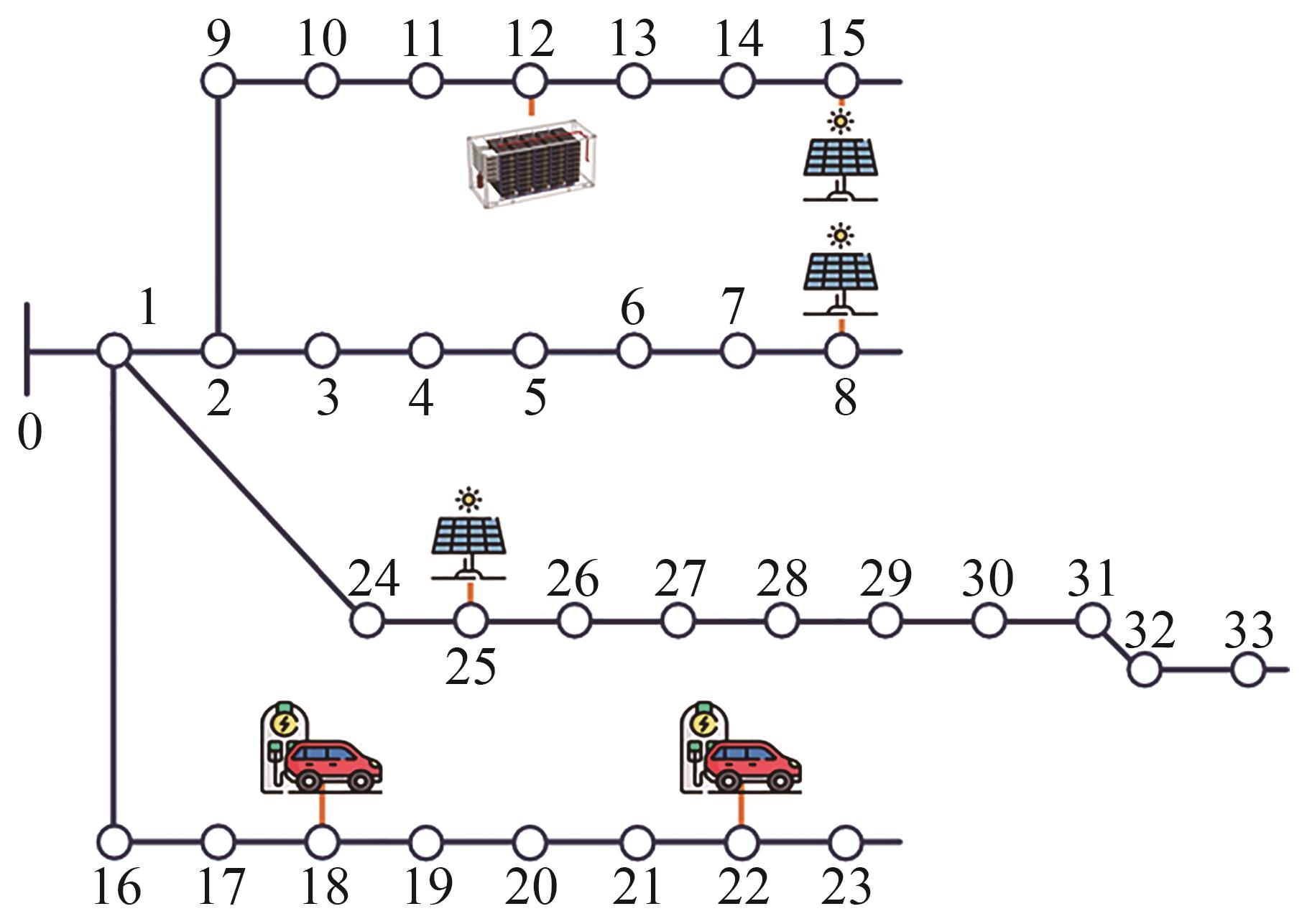

Parameter	Value
P_g,max/MW	20
P_g,min/MW	3
R_g,up/down/(MW·h)	2
e_i	0.8 kg CO₂/kW·h
k_cur/(yuan/kW·h)	0.2
E_i,_bat(Energy storage)/(MW·h)	8
P_i,_c/P_i,_d(Energy storage)/MW	4
η_c/η_d(Energy storage /EV)	90%
E_i,_bat(EV)/(kW·h)	60
P_i,_c/P_i,_d(EV)/kW	7

Parameter	Value
α	0.06 yuan/kg CO₂
c_i,_deg/(yuan/(kW·h))	0.08
k_i,_com	20 yuan per SOC deviation unit
α_i,_c	0.8 kg CO₂/kW·h
α_i,_d/(yuan/(kW·h))	0.2
β_i,_c/(yuan/(kW·h))	0.05
β_i,_d/(yuan/(kW·h))	0.1
ω_i,₁	0.5
ω_i,₂	0.3
ω_i,₃	0.2
μ_i,₁	0.7
μ_i,₂	0.3

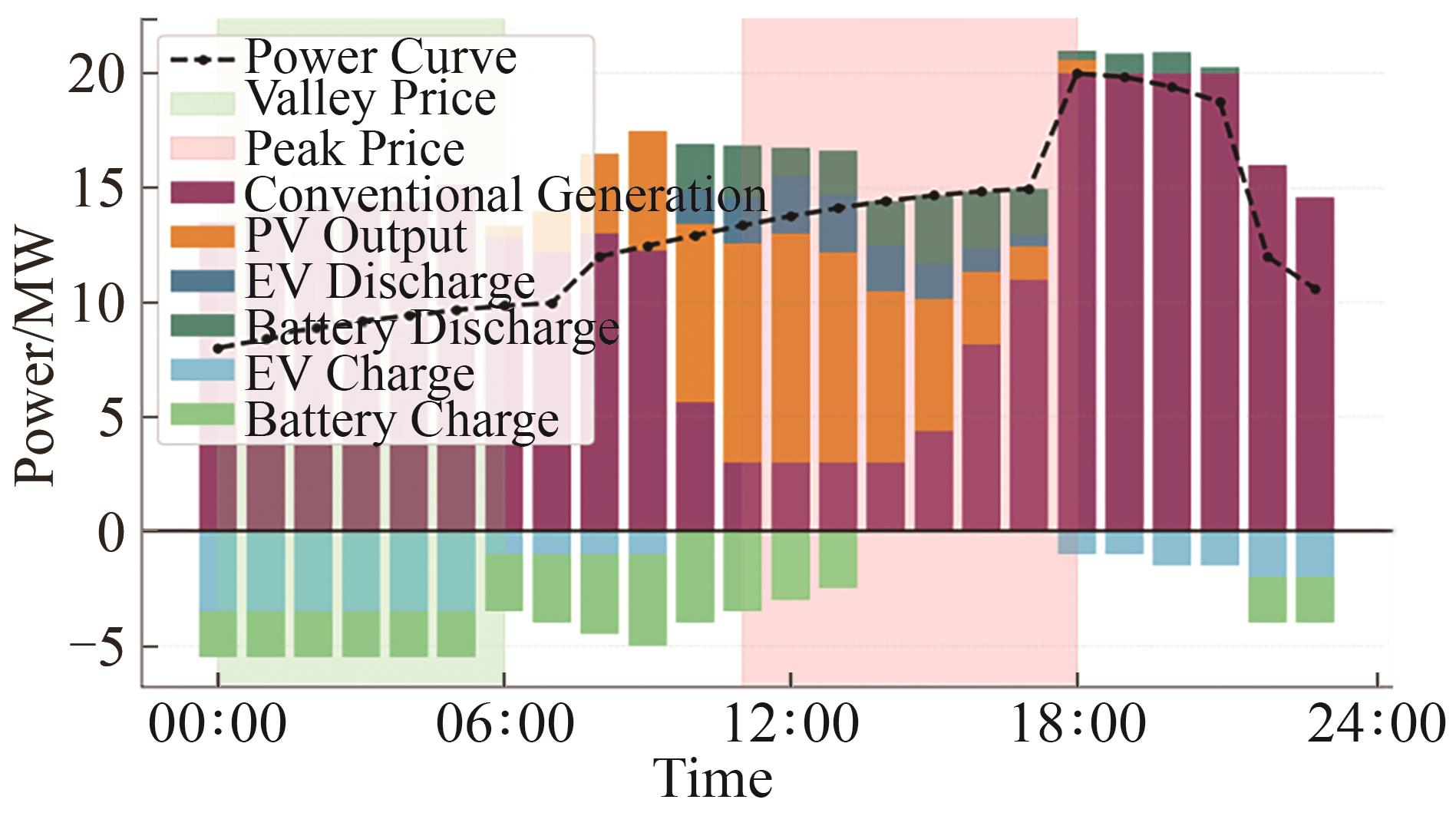

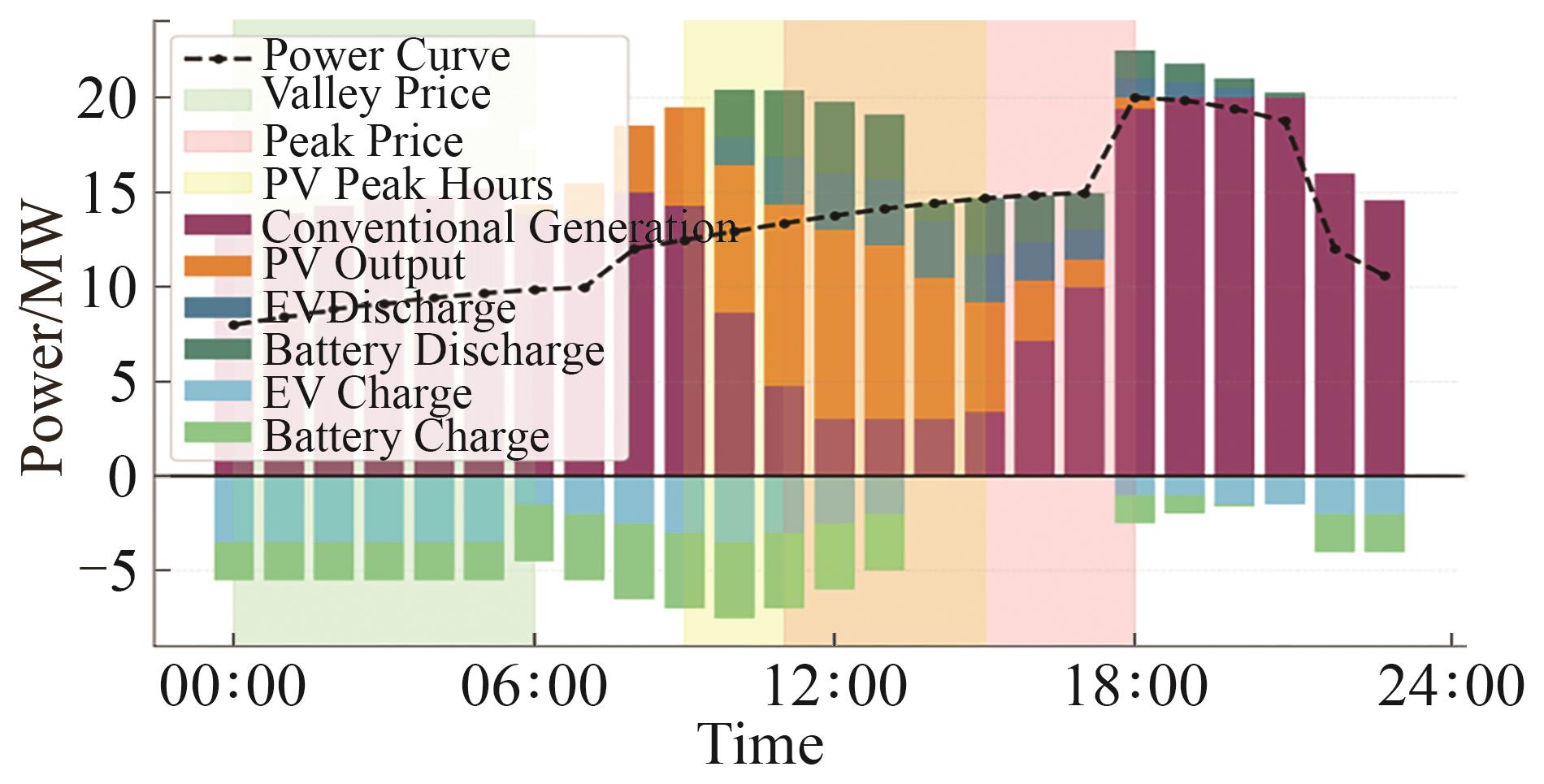

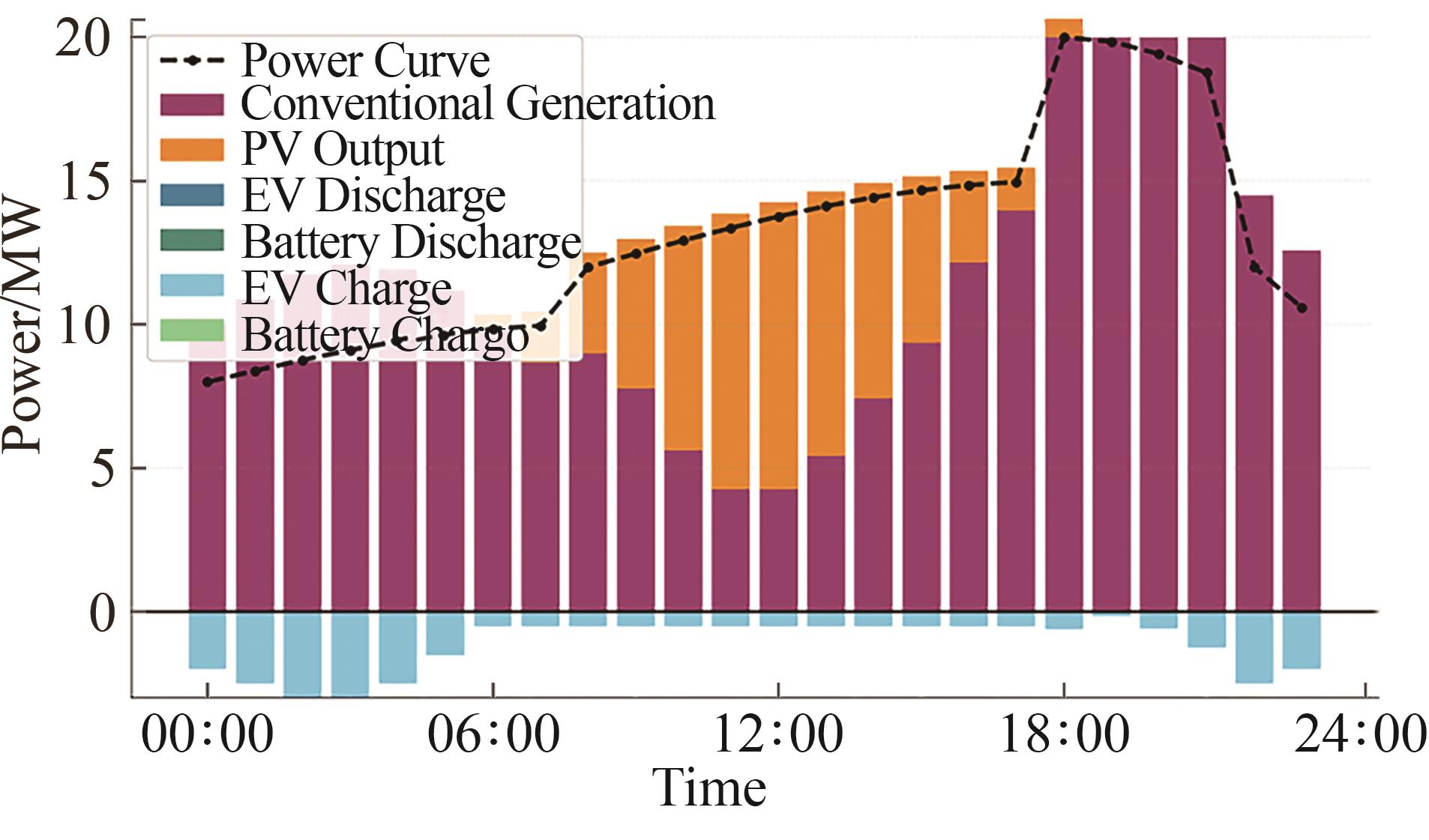

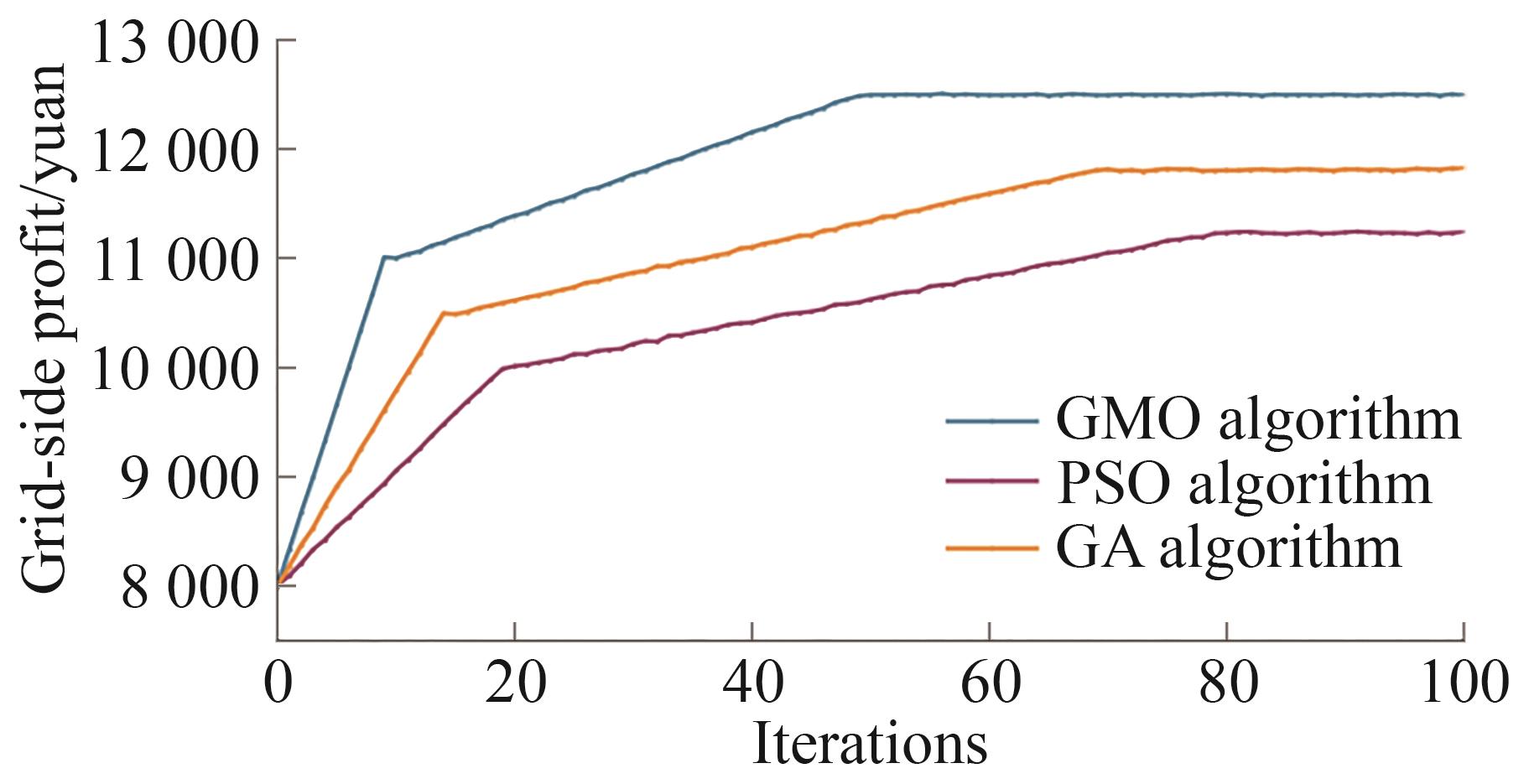

Indicator	Scheme 1	Scheme 2	Scheme 3	Scheme 4
Total system operating cost/yuan	2 946.12	1 881.67	1 465.7	1 512.3
Photovoltaic power accommodation rate/%	62.1	85.0	96.5	95.8
Daily system carbon emissions/(kg CO₂)	243 264	159 744	118 080	120 520
Power generation cost of conventional units/yuan	2 821.44	1 837.06	1 458.24	1 486.7
PV curtailment penalty cost/yuan	124.68	44.61	7.55	8.92
EV SOC satisfaction rate at departure/%	—	82.6	89.3	100
Number of daily energy storage cycles	—	3.2	2.8	1.7
System curtailment rate volatility/%	—	28.6	22.4	8.7
