基于直线模型提升同轴磁齿轮设计效率的研究

doi:10.16182/j.issn1004731x.joss.24-0125

摘要/Abstract

摘要：

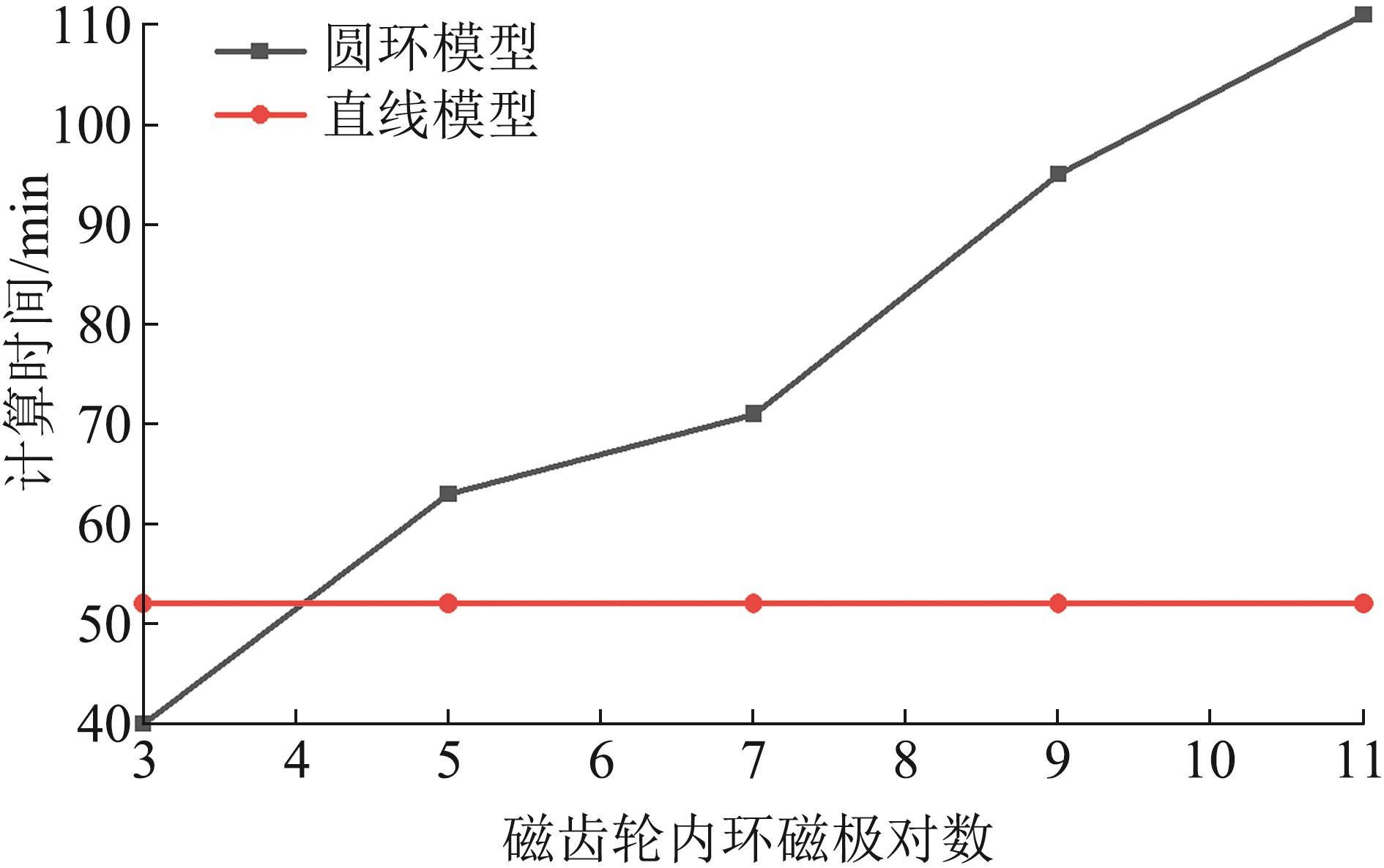

为解决同轴磁场调制型磁齿轮在进行仿真设计时，模型计算量大及磁化方向设定工作繁琐的问题，提出一种采用直线模型代替原有常规圆环模型的简化设计方法。基于磁齿轮各部分结构和磁场的周期性，简化建模工作和减少仿真分析的计算量，结果表明：直线结构相较于圆环结构，充磁坐标系设定数量减少85%以上，磁齿轮的内环磁极数量超过4对时，单模型进行有限元分析的时间明显缩短，并且提升效果随磁极数量增加而更为显著。

关键词: 同轴磁性齿轮, 有限元仿真分析, 直线模型, 设计简化, 磁场调制

Abstract:

To address the issues of large model computation load and cumbersome magnetization direction setting during the simulation design of coaxial magnetic field modulation type magnetic gears, a simplified design method is proposed, which uses a linear model to replace the original conventional circular ring model. Based on the periodicity of the structure and magnetic field of each part of the magnetic gear, the modeling work is simplified and the computational load of the simulation analysis is reduced. The results show that compared with the circular ring structure, the number of magnetization coordinate system settings for the linear structure is reduced by more than 85%. When the number of inner ring magnetic poles of the magnetic gear exceeds 4 pairs, the time for finite element analysis of a single model is significantly shortened, and the improvement effect becomes more significant as the number of magnetic poles increases.

Key words: coaxial magnetic gear, finite element simulation analysis, linear model, design simplification, field modulation

中图分类号:

TP391.9

赵曙光,陈策,谢孝昌等 . 基于直线模型提升同轴磁齿轮设计效率的研究[J]. 系统仿真学报, 2025, 37(6): 1574-1581.

Zhao Shuguang,Chen Ce,Xie Xiaochang,et al . Research on Improving Design Efficiency of Coaxial Magnetic Gear Based on Linear Model[J]. Journal of System Simulation, 2025, 37(6): 1574-1581.

图/表 15

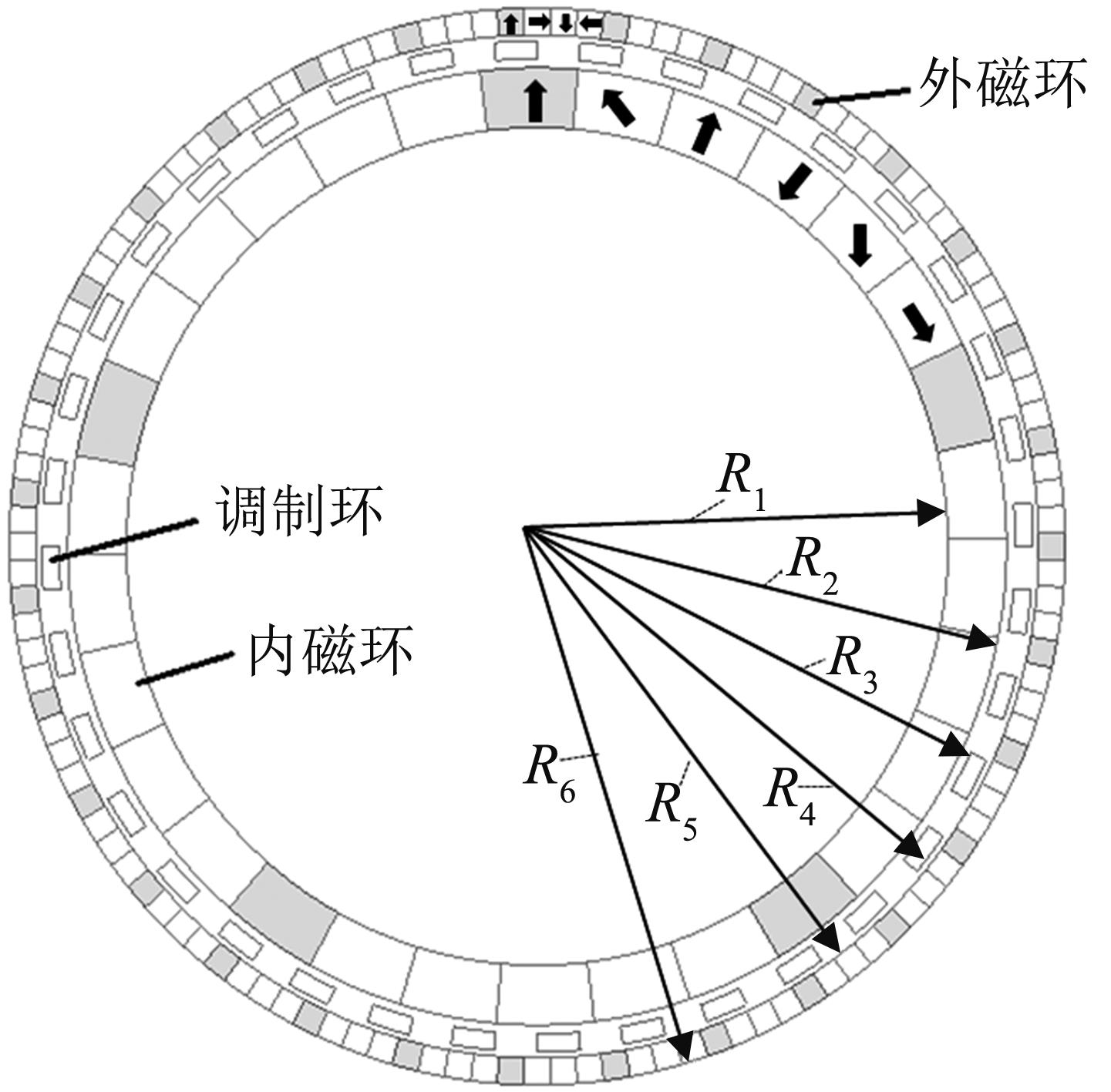

图1

图2

表1

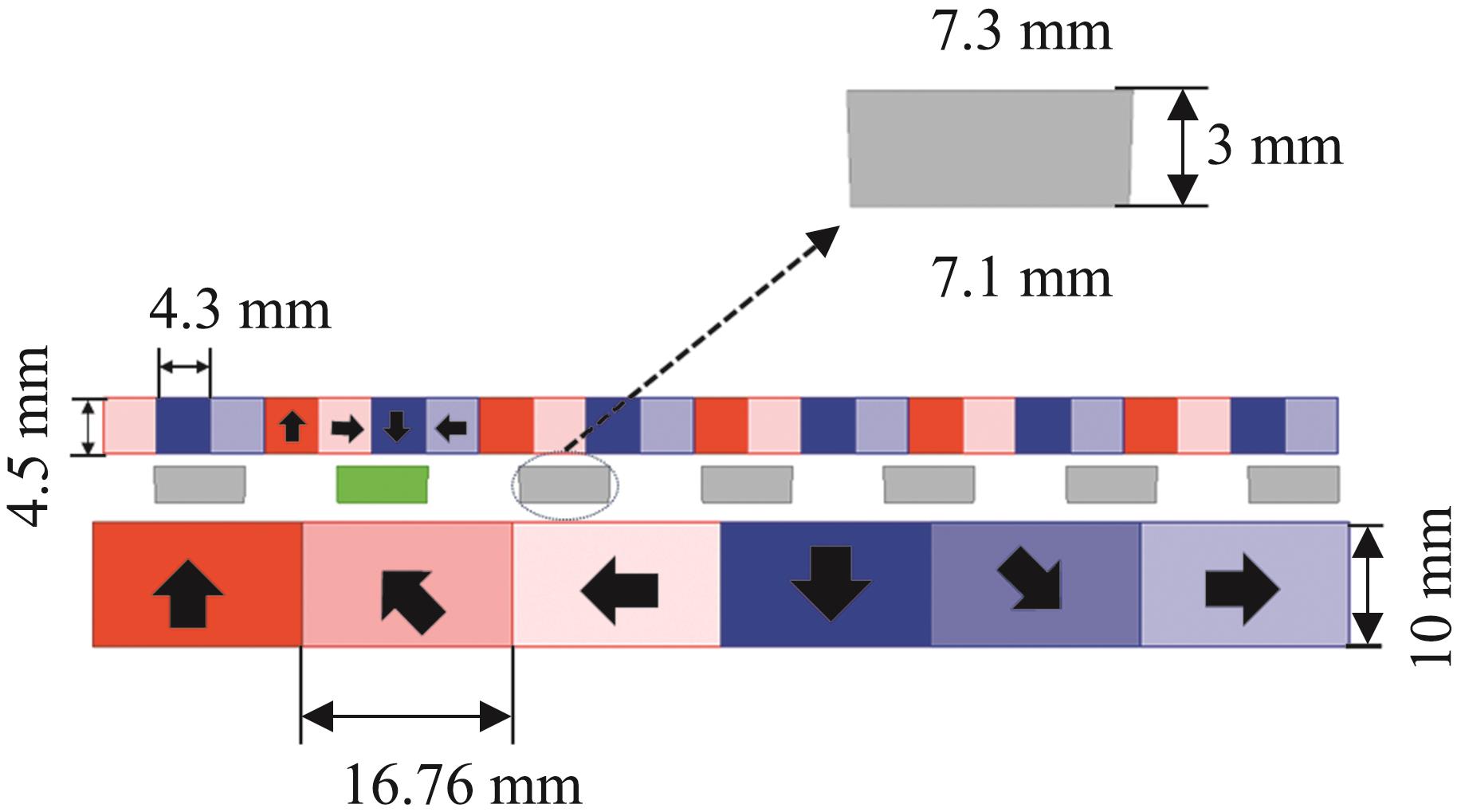

图3

图4

图5

图6

图7

图8

图9

图10

图11

表2

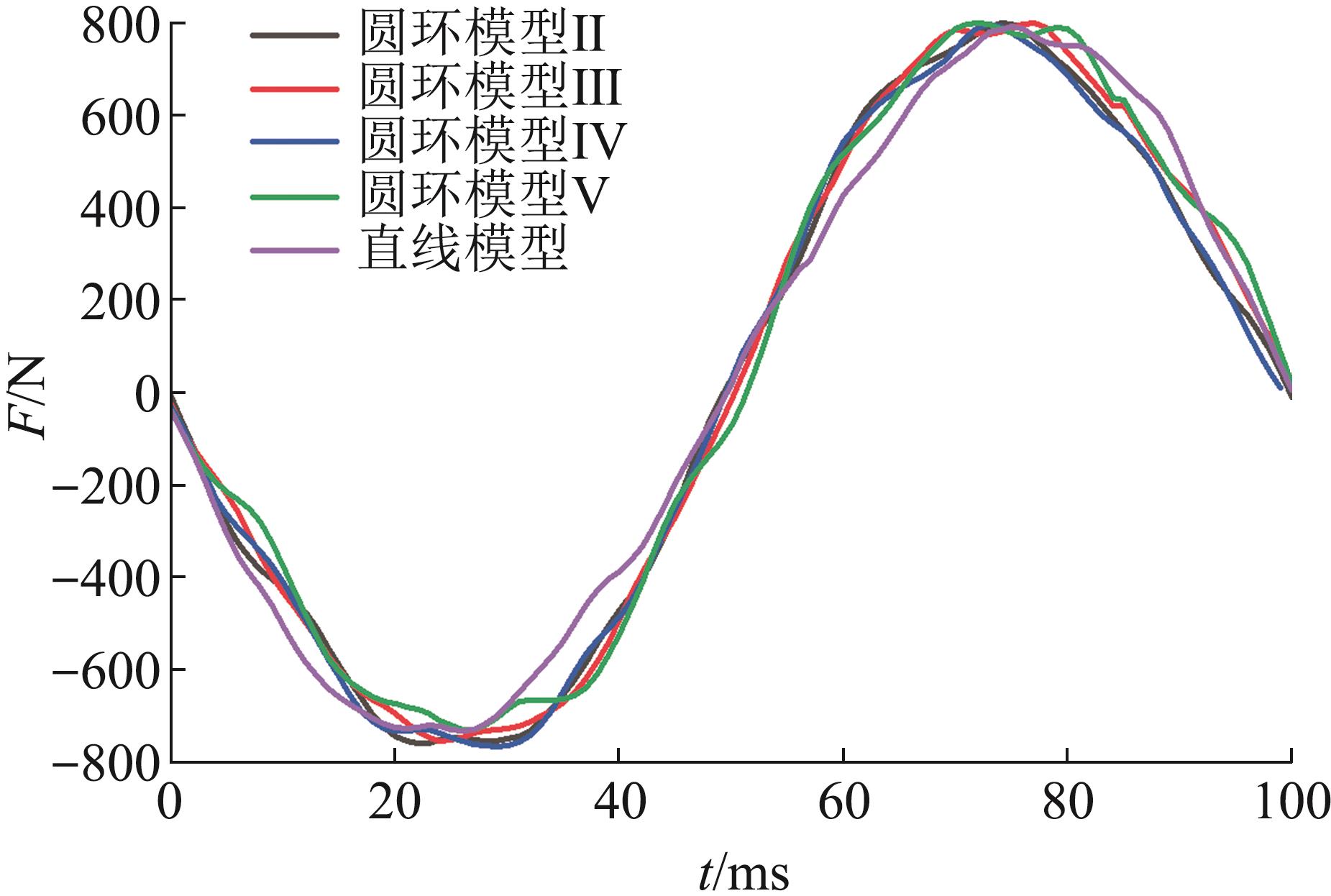

图12

图13

参考文献 16

1	袁晓明, 庞浩东, 高鸿发, 等. 磁场调制型磁齿轮研究综述[J]. 机械工程学报, 2024, 60(14): 347-363.
	Yuan Xiaoming, Pang Haodong, Gao Hongfa, et al. Research Overview on Field Modulated Magnetic Gear[J]. Journal of Mechanical Engineering, 2024, 60(14): 347-363.
2	魏毓. 波浪发电用新型磁场调制电机的设计与优化[D]. 天津: 天津大学, 2022.
	Wei Yu. Design and Optimization of a Novel Flux Modulated Generator for Ocean Wave Energy Conversion[D]. Tianjin: Tianjin University, 2022.
3	叶文龙. 车轮磁场调制型直驱电机设计与有限元性能仿真研究[D]. 武汉: 华中科技大学, 2020.
	Ye Wenlong. Design and Electromagnetic Analysis of in-wheel Direct Drive Motor Based on Magnetic Field Modulation Technology[D]. Wuhan: Huazhong University of Science and Technology, 2020.
4	Lang Jiewen, Tong Chengde, Bai Jingang, et al. A High‐efficiency Magnetic‐geared Double‐rotor Machine with the Coreless Stator for Hybrid Aircraft Propulsion[J]. IET Electric Power Applications, 2023, 17(11): 1367-1378.
5	乔田怀, 朱景伟, 马瑞. 磁场调制型永磁容错轮缘推进电机设计与优化[J]. 大连海事大学学报, 2021, 47(4): 100-107.
	Qiao Tianhuai, Zhu Jingwei, Ma Rui. Design and Optimization of Flux-modulated Fault Tolerant Permanent Magnet Rim-driven Motor[J]. Journal of Dalian Maritime University, 2021, 47(4): 100-107.
6	王均刚, 徐帅睿, 欧阳爱国, 等. 调磁块连接方式对磁场调制型磁性齿轮传动性能的影响[J]. 中国铁道科学, 2020, 41(2): 106-112.
	Wang Jungang, Xu Shuairui, Ouyang Aiguo, et al. Effect of Connection Mode of Magnetic Modulation Block on Transmission Performance of Magnetic Field Modulated Magnetic Gear[J]. China Railway Science, 2020, 41(2): 106-112.
7	肖磊, 张海, 许宝玉, 等. 径向调制永磁齿轮磁极数量对传动特性的影响研究[J]. 机械传动, 2019, 43(5): 1-5.
	Xiao Lei, Zhang Hai, Xu Baoyu, et al. Study on Influence of Number of Permanent Magnetic Pole Pair on Transmission Characteristic of Radial Modulated Permanent Magnetic Gear[J]. Journal of Mechanical Transmission, 2019, 43(5): 1-5.
8	罗帅, 邹易达, 郝秀红, 等. 永磁齿轮静态转矩影响因素分析[J]. 机械设计与制造, 2022, 378(8): 142-147, 152.
	Luo Shuai, Zou Yida, Hao Xiuhong, et al. Study on Influence of Dimension Factors on Static Torque of Magnetic Gear[J]. Machinery Design & Manufacture, 2022, 378(8): 142-147, 152.
9	Lubin Thierry, Mezani Smail, Rezzoug Abderrezak. Analytical Computation of the Magnetic Field Distribution in a Magnetic Gear[J]. IEEE Transactions on Magnetics, 2010, 46(7): 2611.
10	Tzouganakis Panteleimon, Gakos Vasilios, Kalligeros Christos, et al. Fast and Efficient Simulation of the Dynamical Response of Coaxial Magnetic Gears Through Direct Analytical Torque Modelling[J]. Simulation Modelling Practice and Theory, 2023, 123: 102699.
11	井立兵, 章跃进. 同心式磁力齿轮磁场及转矩全局解析法分析[J]. 中国电机工程学报, 2012, 32(30): 139-146.
	Jing Libing, Zhang Yuejin. An Exact Analytical Method for Magnetic Field Computation and Electromagnetic Torque in a Concentric Magnetic Gear[J]. Proceedings of the CSEE, 2012, 32(30): 139-146.
12	黄章仚. 磁场调制式磁力齿轮机械特性与损耗分析[D]. 宜昌: 三峡大学, 2020.
	Huang Zhangxian. Mechanical Characteristics and Loss Analysis of Field Modulation Magnetic Gear[D]. Yichang: China Three Gorges University, 2020.
13	Liu Xiao, Zhao Yunyun, Lu Meng, et al. Multi-objective Optimization for a Dual-flux-modulator Coaxial Magnetic Gear with Double-layer Permanent Magnet Inner Rotor[J]. IEEE Transactions on Magnetics, 2021, 57(7): 1-5.
14	蹇林旎. 同轴磁性齿轮的原理及应用[M]. 北京: 科学出版社, 2015.
15	蒙亮, 罗应立, 刘晓芳, 等. 汽轮发电机转子铁心表面电磁力分布的实例研究[J]. 中国电机工程学报, 2005, 25(1): 81-86.
	Meng Liang, Luo Yingli, Liu Xiaofang, et al. A Case Study of Electromagnetic Force Distribution on Rotor Core Surface of Turbogenerator[J]. Proceedings of the CSEE, 2005, 25(1): 81-86.
16	Grabner C, Schmidt E. Torque Calculation of Electrical Machines Based on Distributions of Surface Forces Along the Stator Boundary as Well as Volume Forces Inside Conducting and Iron Domains[C]//IEEE International Electric Machines and Drives Conference. Piscataway: IEEE, 2003: 595-600.

主要参数	圆环模型Ⅰ	圆环模型Ⅱ	圆环模型Ⅲ	圆环模型Ⅳ	圆环模型Ⅴ
P_i	5	3	7	9	11
R₁/mm	70	38	102	134	166
R₂/mm	80	48	112	144	176
P_s	36	22	50	65	79
R₃/mm	81.5	49.5	113.5	145.5	177.5
R₄/mm	84.5	52.5	116.5	148.5	180.5
P_o	31	19	43	56	68
R₅/mm	85.5	53.5	117.5	149.5	181.5
R₆/mm	90	58	122	154	186
L/mm	50	50	50	50	50

模型	模型大小	网格数	坐标系数量	t/min	F_max/N	δ/%
直线模型	3	71 754	6	52	792
圆环模型Ⅰ	5	105 292	154	63	795	0.4
圆环模型Ⅱ	3	62 322	94	40	801.6	0.8
圆环模型Ⅲ	7	133 212	42	71	798.8	0.4
圆环模型Ⅳ	9	167 144	54	95	800	0.6
圆环模型Ⅴ	11	208 010	66	111	796.5	0.2
