基于安全强化学习的热电联产机组经济调度策略研究

doi:10.16182/j.issn1004731x.joss.23-1472

摘要/Abstract

摘要：

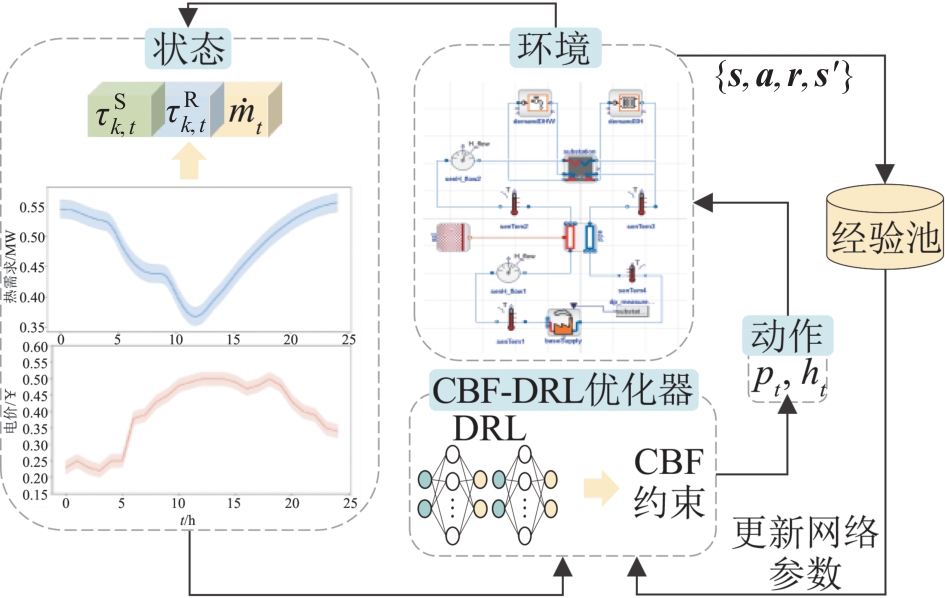

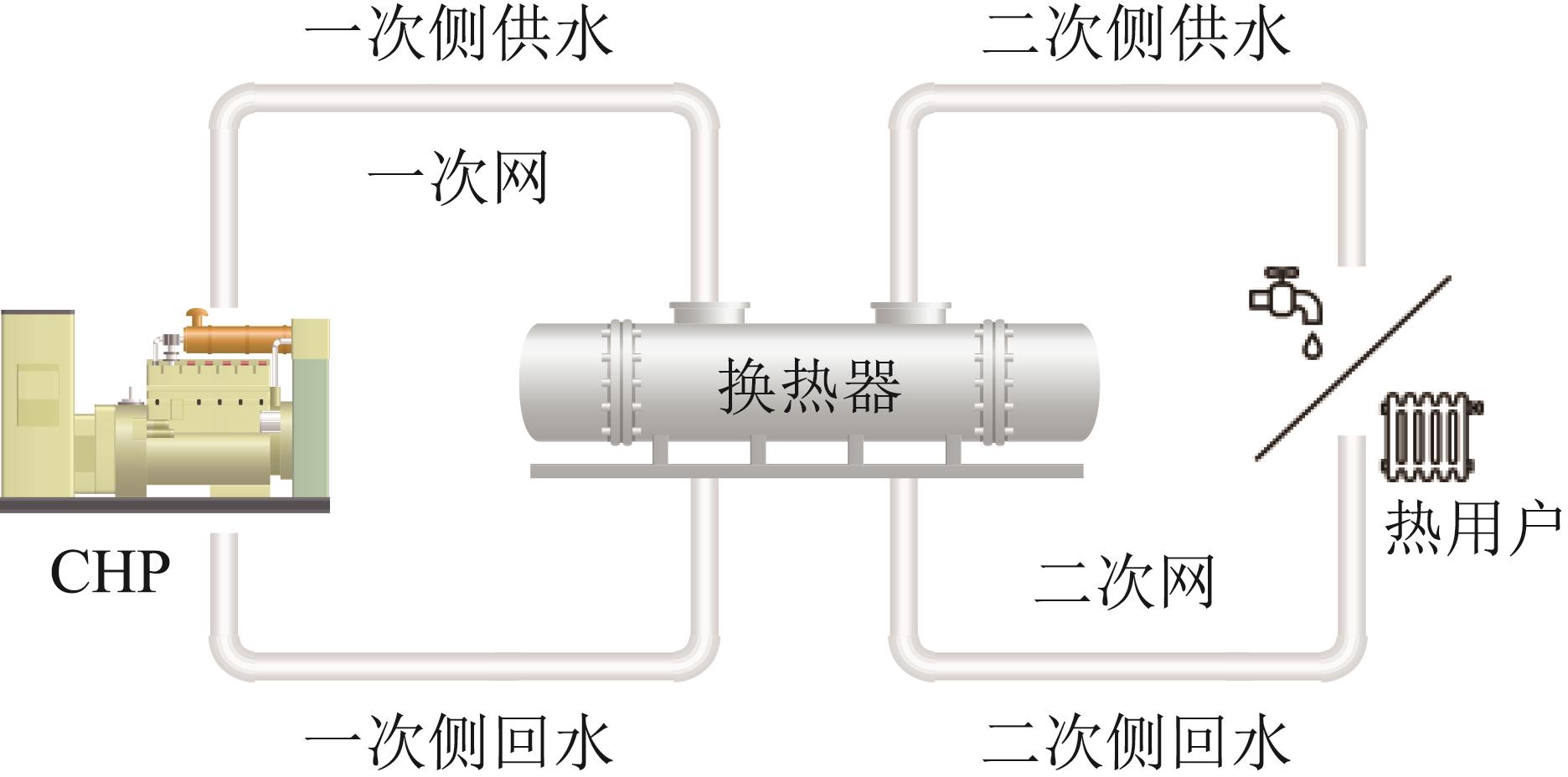

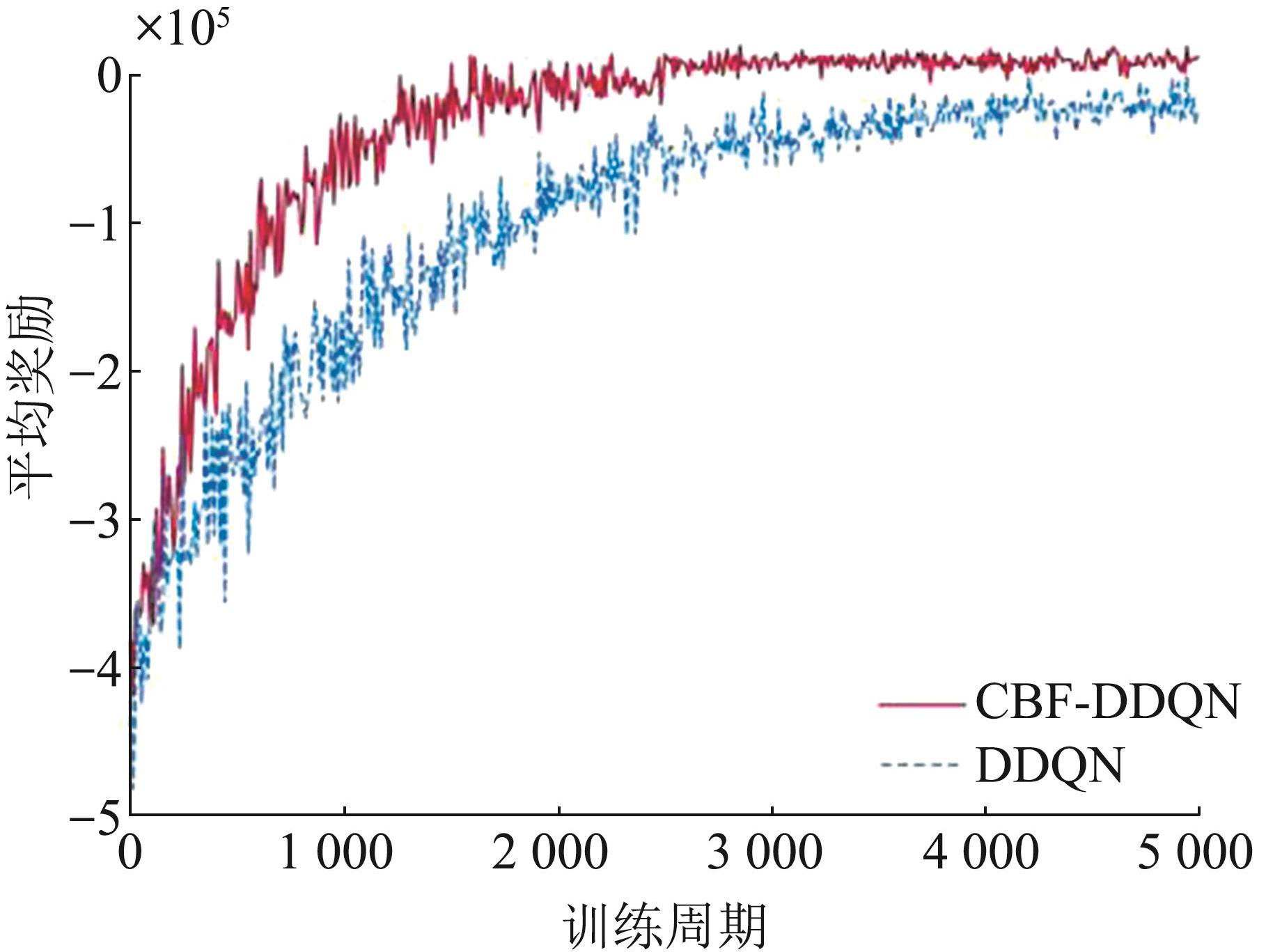

针对DRL算法在热电联产(combined heat and power，CHP)机组优化中缺乏安全性和稳定性保证的问题，提出了一种基于安全强化学习(SRL)的调度优化方法。在Dymola平台以CHP机组为热源建立了区域供热系统模型。设计了CHP机组经济调度的MDP模型，并通过控制障碍函数(control barrier functions，CBF)指导DRL安全探索。仿真结果表明：CBF-DRL方法在复杂且非线性的区域供热系统中，不仅能够提升DRL算法的收敛速度，还能够有效利用供热管道的热惯性提高CHP机组的经济效益，并在安全性方面表现出优势。

关键词: 热电联产, 区域供热系统, 安全强化学习, 控制障碍函数, 经济调度, 协同仿真

Abstract:

In addressing the challenge of the DRL algorithm in the optimization of combined heat and power (CHP) units, lacking safety and stability guarantees, a scheduling optimization method based on SRL is proposed. Utilizing Dymola platform, a district heating system model is constructed with the CHP unit as the heat source. A MDP model for the economic dispatching of CHP units is designed, incorporating control barrier functions (CBF) to guide safe exploration in DRL. Simulation results show that the CBF-DRL method, in complex and nonlinear district heating systems, not only accelerates the convergence of DRL algorithms but also efficiently utilizes the thermal inertia of heating pipelines to enhance the economic performance of CHP units. In particular, it has significant safety benefits.

Key words: combined heat and power(CHP), district heating system, safe reinforcement learning, control barrier function(CBF), economic dispatch, co-simulation

中图分类号:

TP391.9

王欣,崔承刚,王想想等 . 基于安全强化学习的热电联产机组经济调度策略研究[J]. 系统仿真学报, 2025, 37(4): 968-981.

Wang Xin,Cui Chenggang,Wang Xiangxiang,et al . Research on Economic Dispatching Strategy of CHP Units Based on SRL[J]. Journal of System Simulation, 2025, 37(4): 968-981.

图/表 18

图1

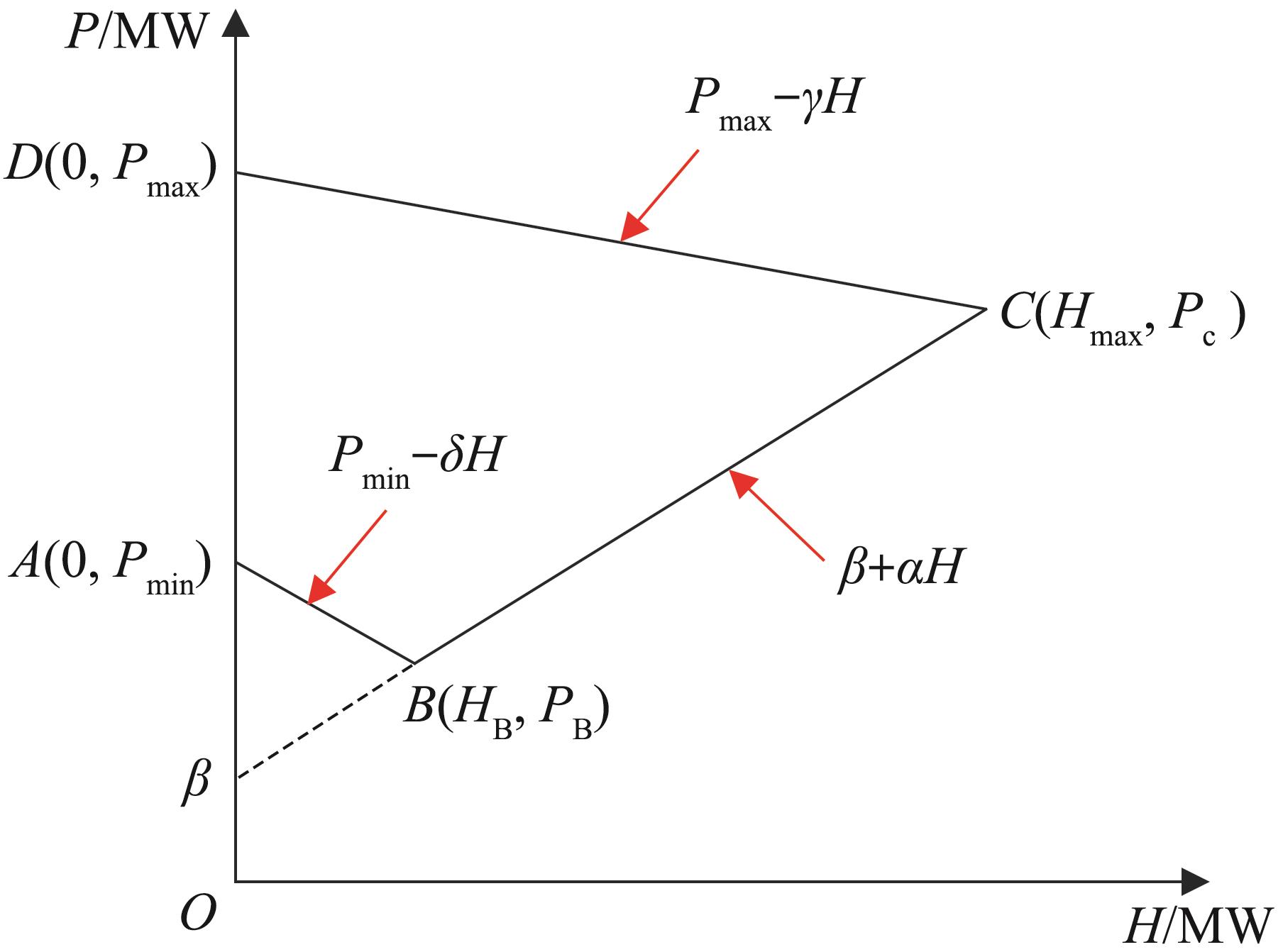

图2

图3

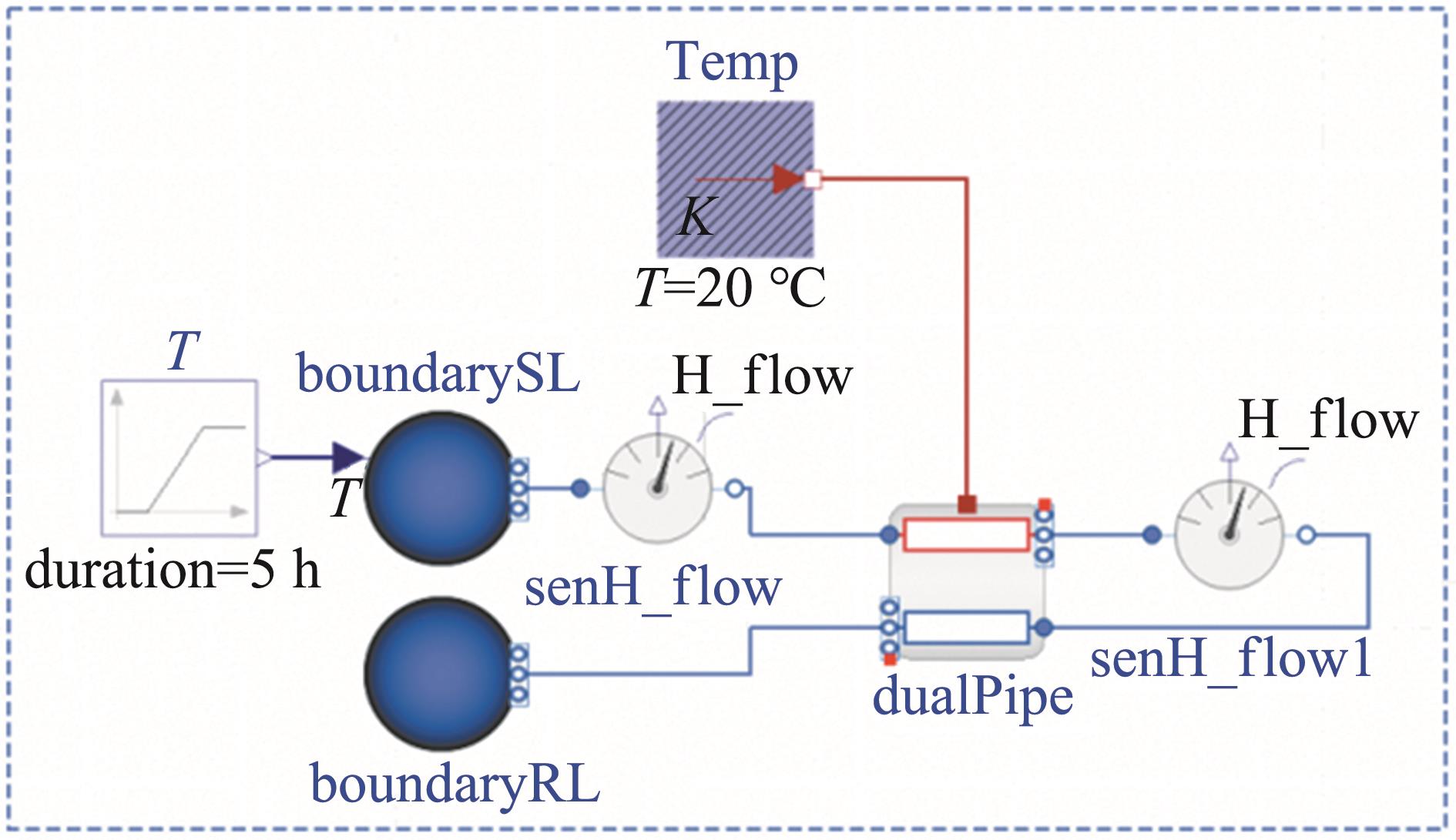

图4

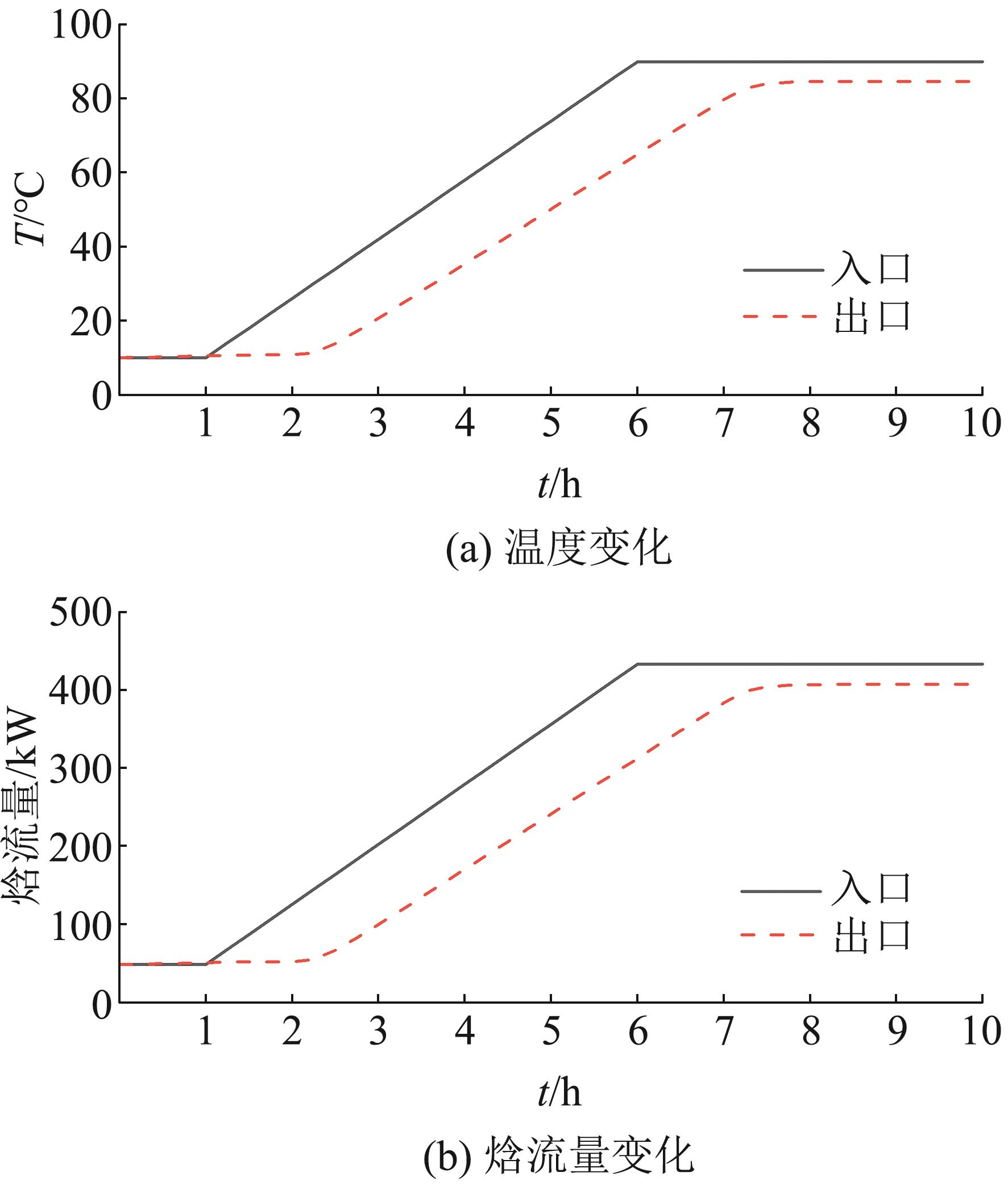

图5

图6

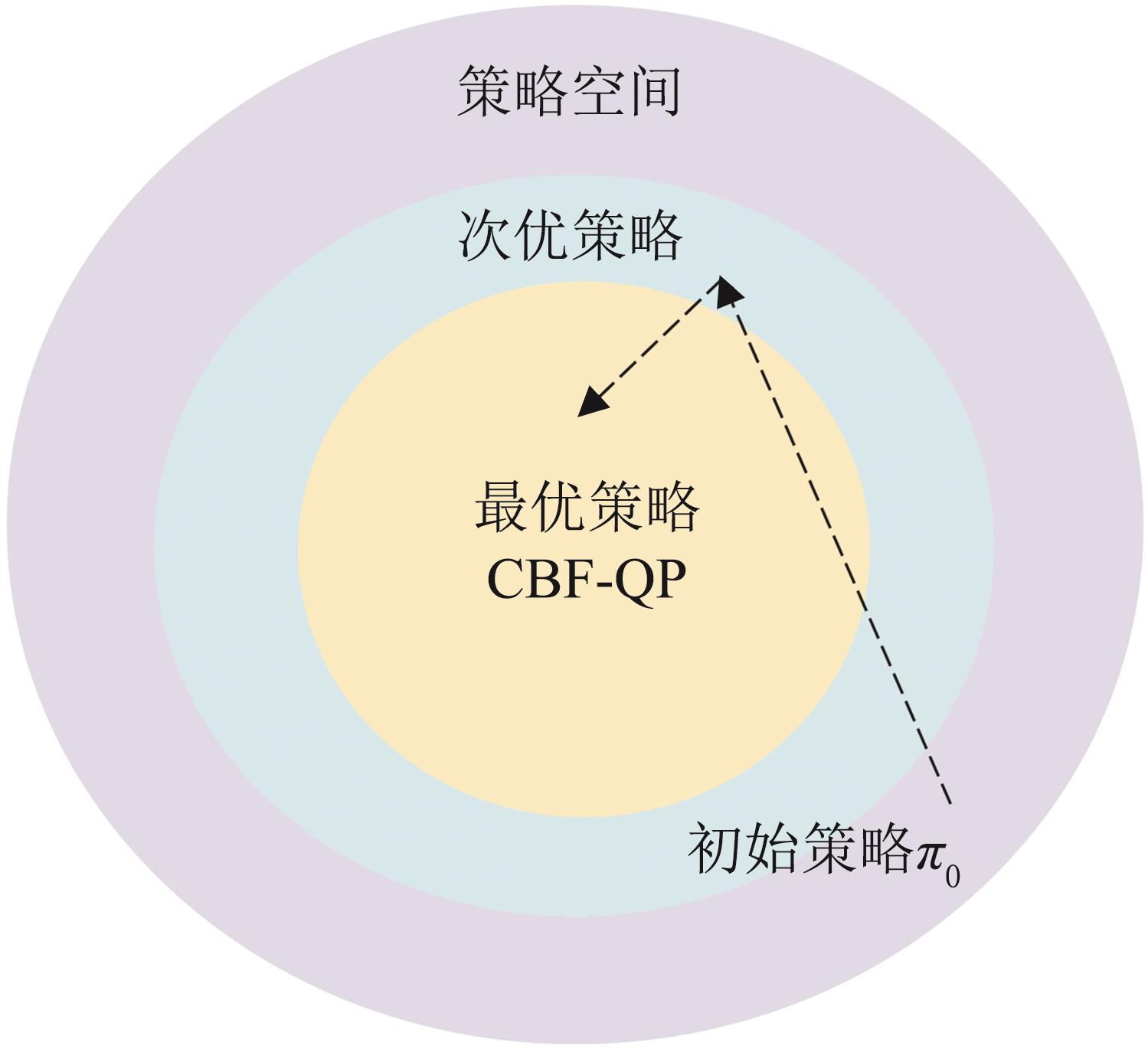

图7

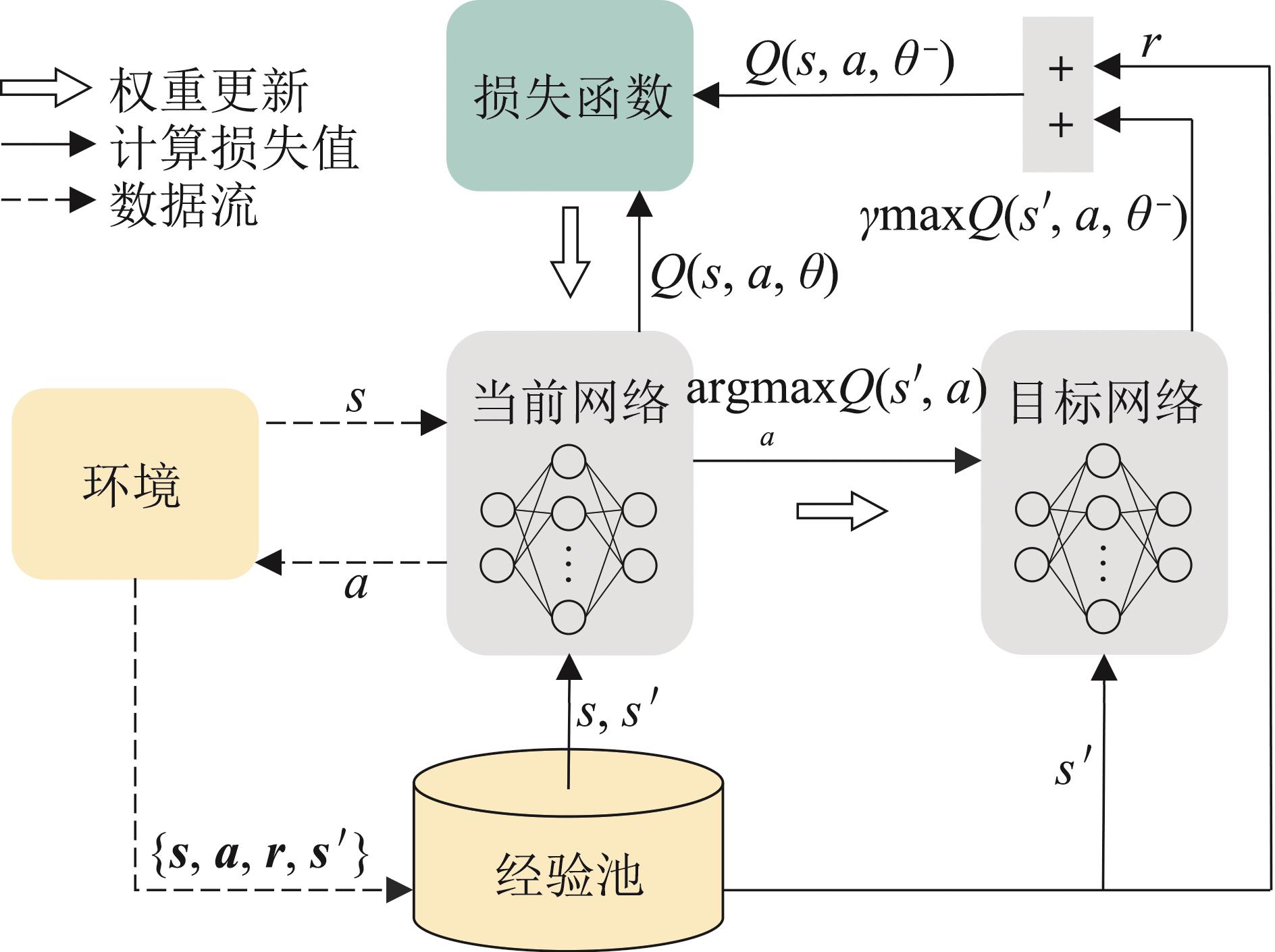

图8

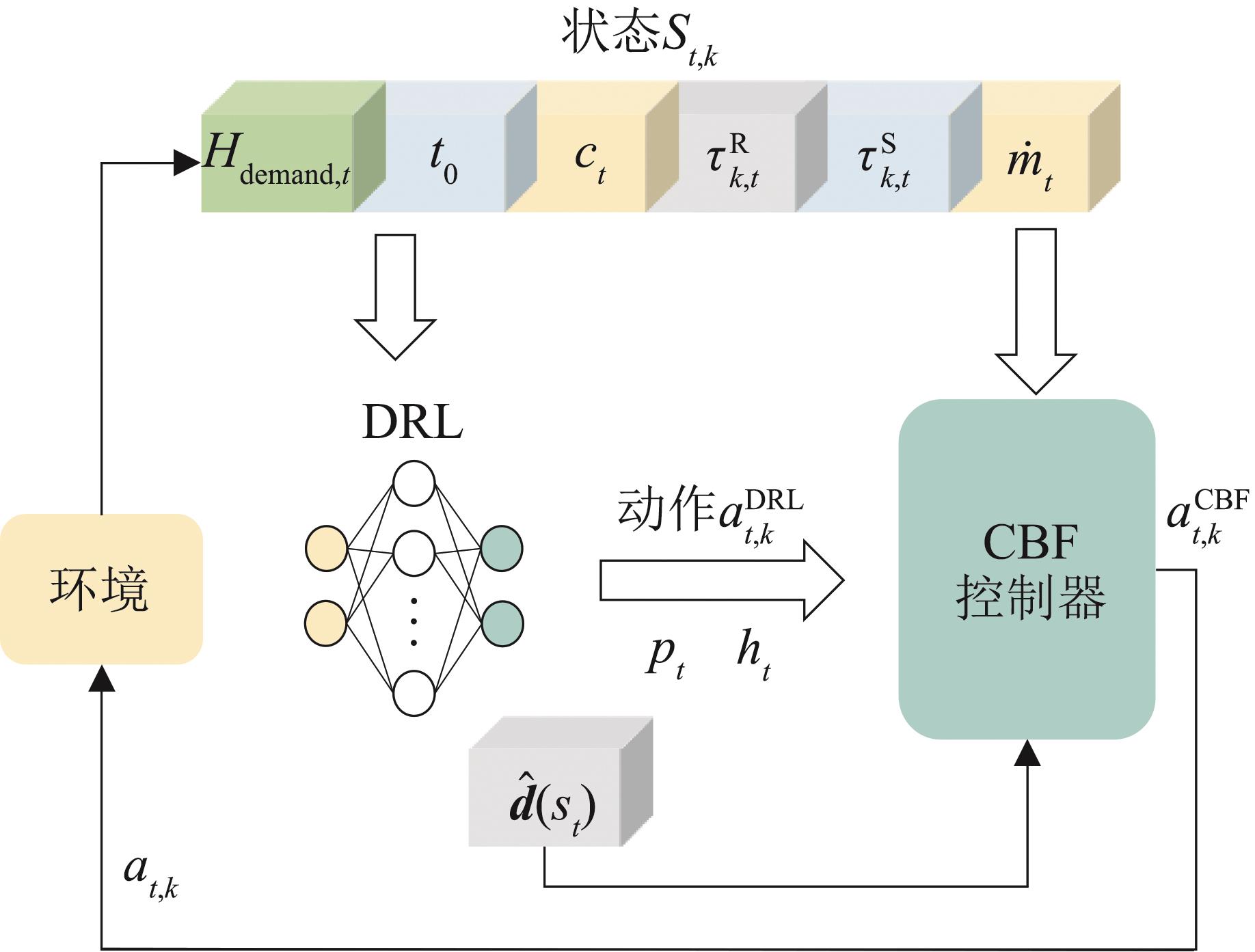

图9

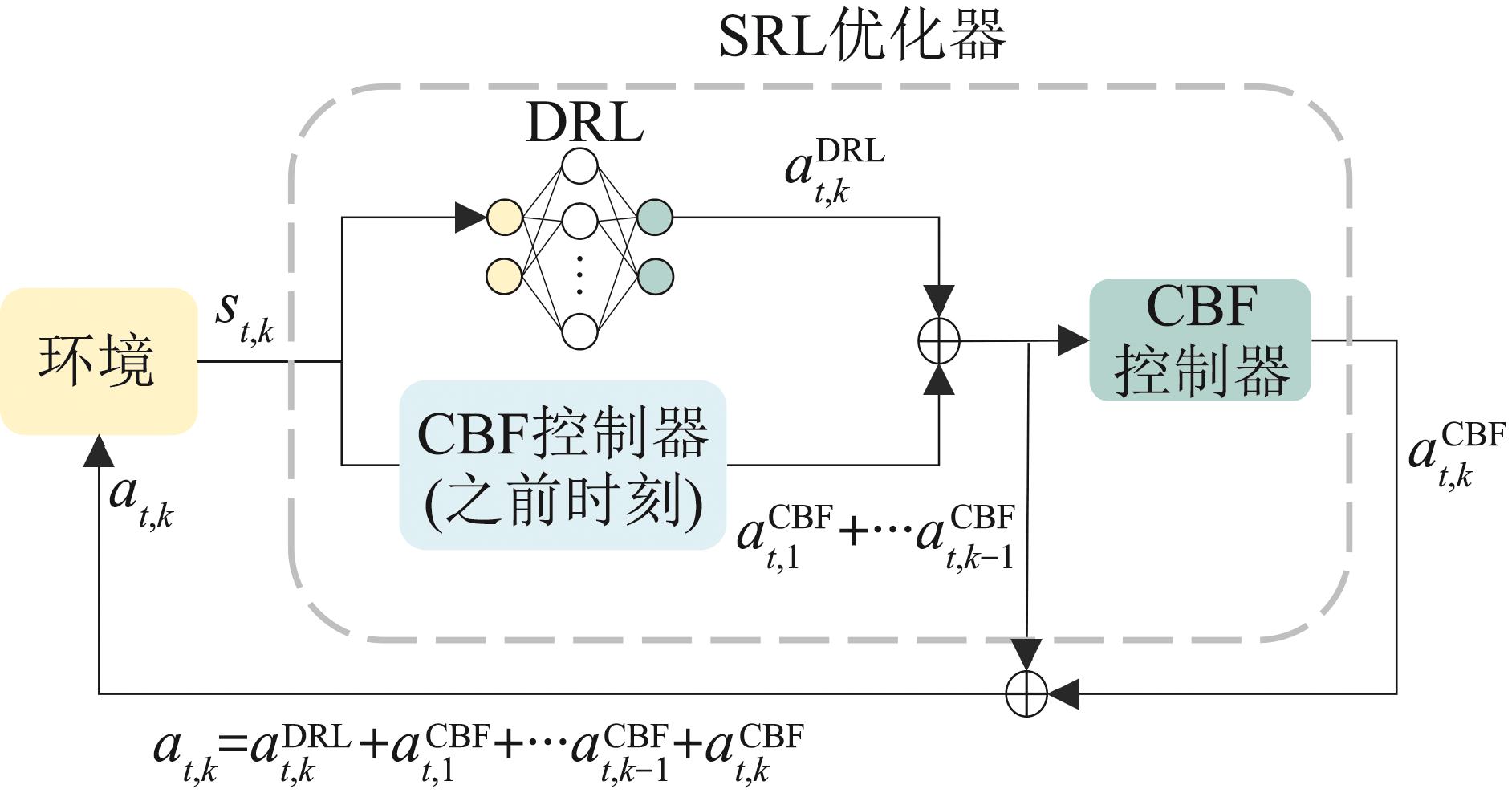

图10

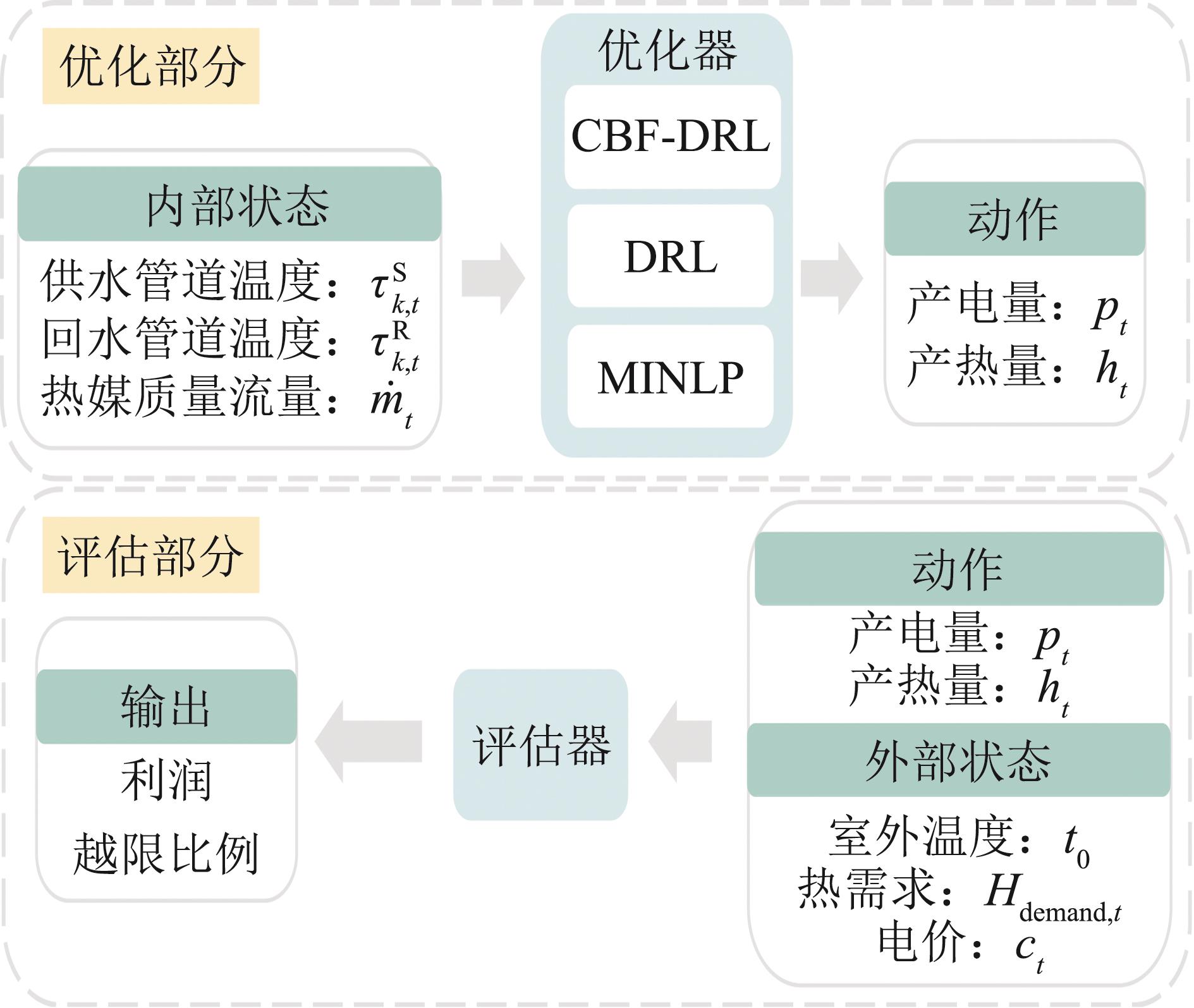

图11

图12

表1

供热系统参数

参数	数值
[h_t, p_t ]/MW	(0,10), (10,5), (70,35), (0,50)
a₀	58.908 2
a₁	274.899 6
$T m i n S$ /℃	70
$τ m a x S$ /℃	110
$m ˙ m a x$ /(m·s^-1)	3
τ^R_min/℃	45
L/m	5 000, 15 000
d/m	0.595 8

表1

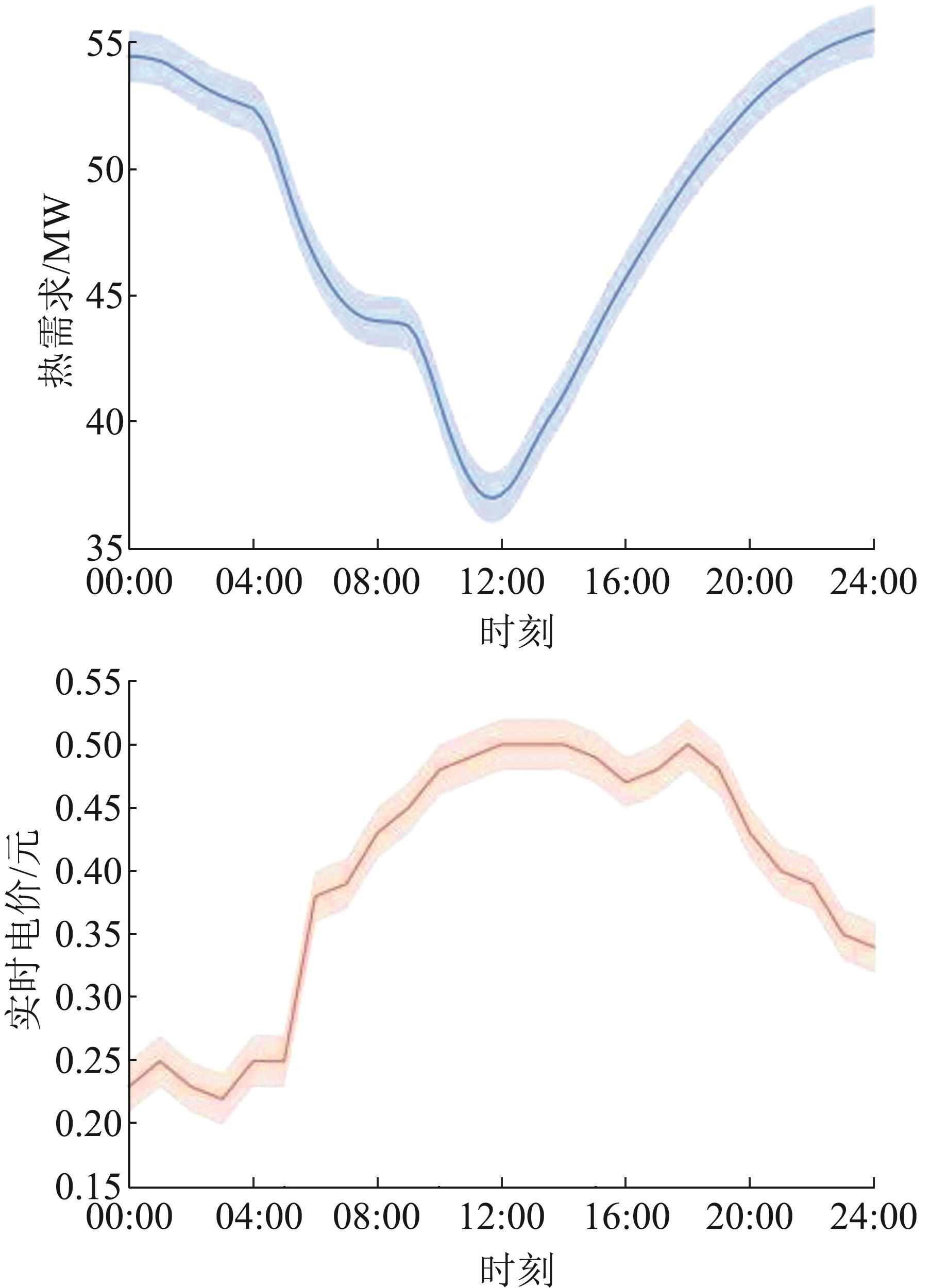

图13

图14

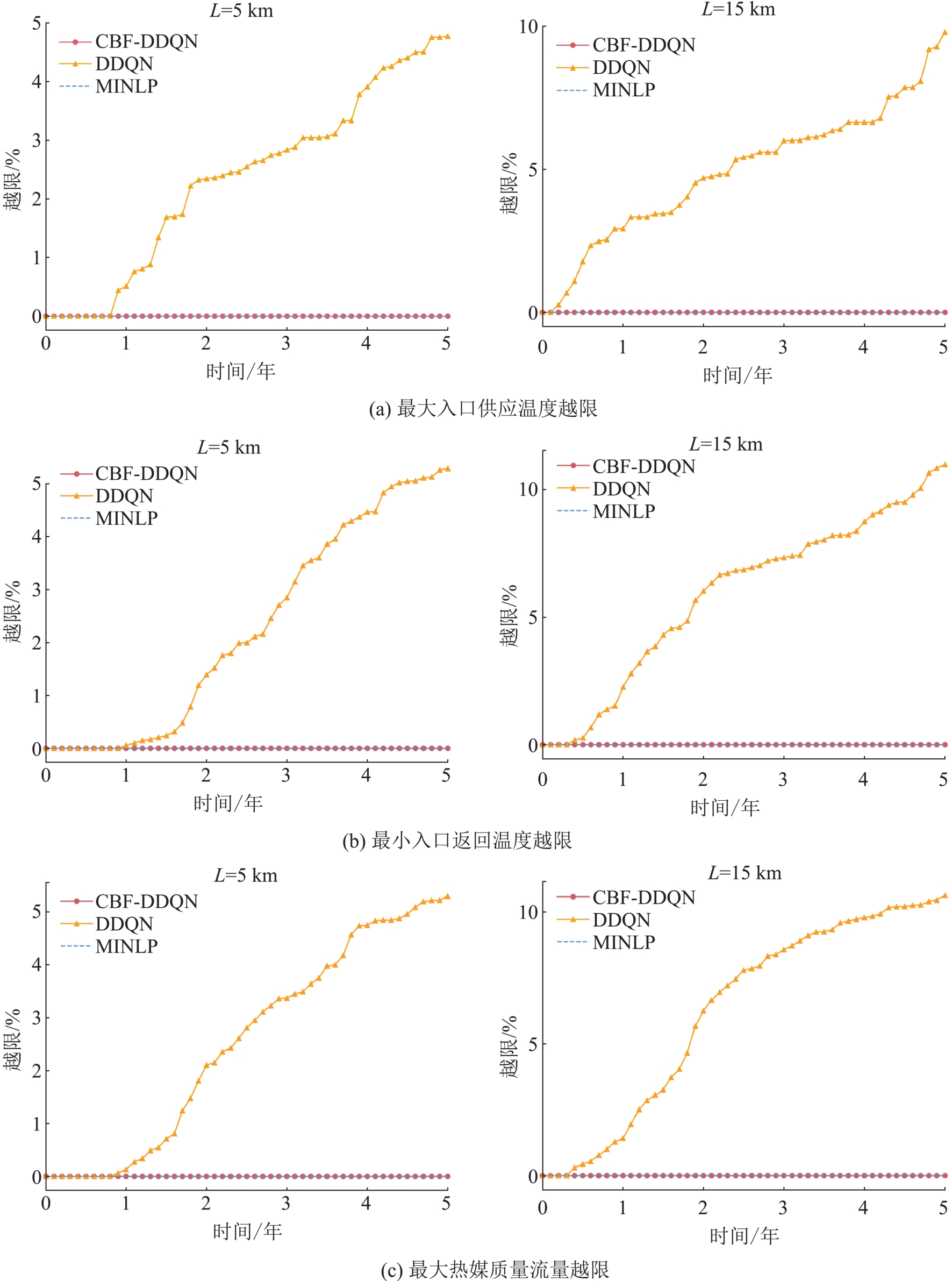

图15

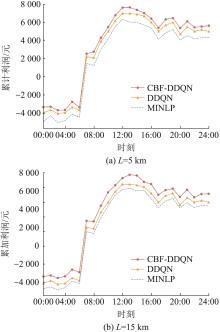

图16

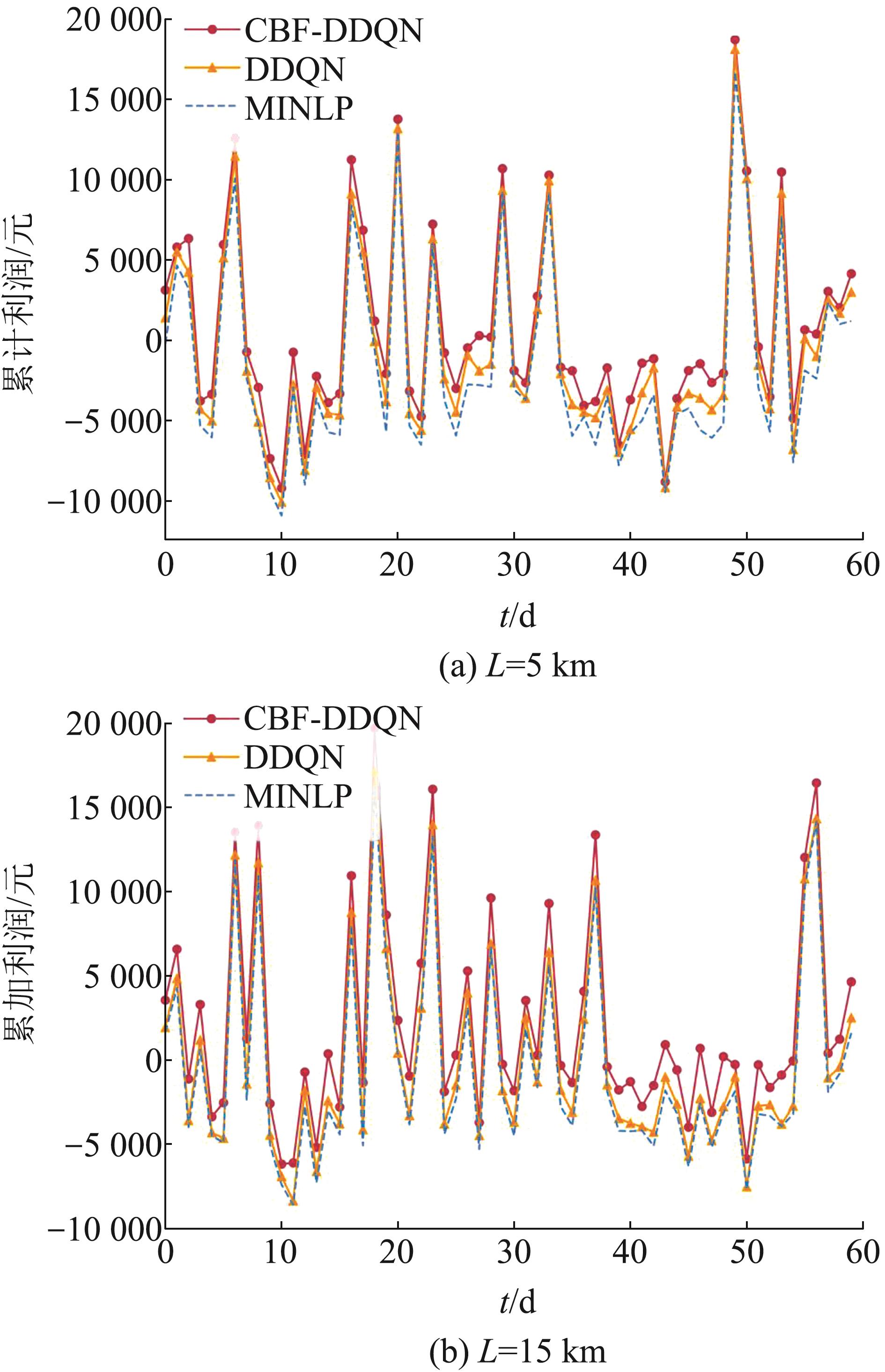

图17
