考虑光伏发电不确定性的日前火电-光伏经济调度

doi:10.16182/j.issn1004731x.joss.21-0336

系统仿真学报 ›› 2022, Vol. 34 ›› Issue (8): 1874-1884.doi: 10.16182/j.issn1004731x.joss.21-0336

考虑光伏发电不确定性的日前火电-光伏经济调度

刘兴华¹(), 耿晨¹, 谢胜寒¹, 田佳强¹(), 曹晖²

^1.西安理工大学电气工程学院，陕西西安 710054
^2.西安交通大学电气工程学院，陕西西安 710049

收稿日期:2021-04-20 修回日期:2021-05-27 出版日期:2022-08-30 发布日期:2022-08-15
通讯作者: 田佳强 E-mail:liuxh@xaut.edu.cn;tjq1992@mail.ustc.edu.cn
作者简介:刘兴华(1984-)，男，博士，教授，研究方向为智能电网运行优化与控制。E-mail：liuxh@xaut.edu.cn
基金资助:
国家自然科学基金(61903296);陕西省教育厅重点实验室项目(20JS110);陕西省青年科技新星项目(2020KJXX-094)

Day Ahead Thermal-photovoltaic Economic Dispatch Considering Uncertainty of Photovoltaic Power Generation

Xinghua Liu¹(), Chen Geng¹, Shenghan Xie¹, Jiaqiang Tian¹(), Hui Cao²

^1.School of Electrical Engineering, Xi'an University of Technology, Xi'an 710054, China
^2.School of Electrical Engineering, Xi'an Jiaotong University, Xi'an 710049, China

Received:2021-04-20 Revised:2021-05-27 Online:2022-08-30 Published:2022-08-15
Contact: Jiaqiang Tian E-mail:liuxh@xaut.edu.cn;tjq1992@mail.ustc.edu.cn

摘要/Abstract

摘要：

针对光伏发电受季节天气因素影响产生的不确定性和随机性的问题，建立了考虑光伏发电不确定性的日前火电-光伏经济调度的数学模型。以传统火电机组的运行成本、光伏发电成本、旋转备用成本，以及受到季节天气因素影响的光伏发电预测误差成本为经济目标函数；以火电机组的二氧化硫排放为环保目标函数。为提高光伏出力预测的准确性，采用加入季节天气因素的长短时记忆神经网络对于光伏发电进行预测，通过Cplex对所构建的模型进行求解，结果表明了所提模型的有效性和可行性。

关键词: 经济调度, 光伏发电, 预测误差成本, 长短时记忆神经网络

Abstract:

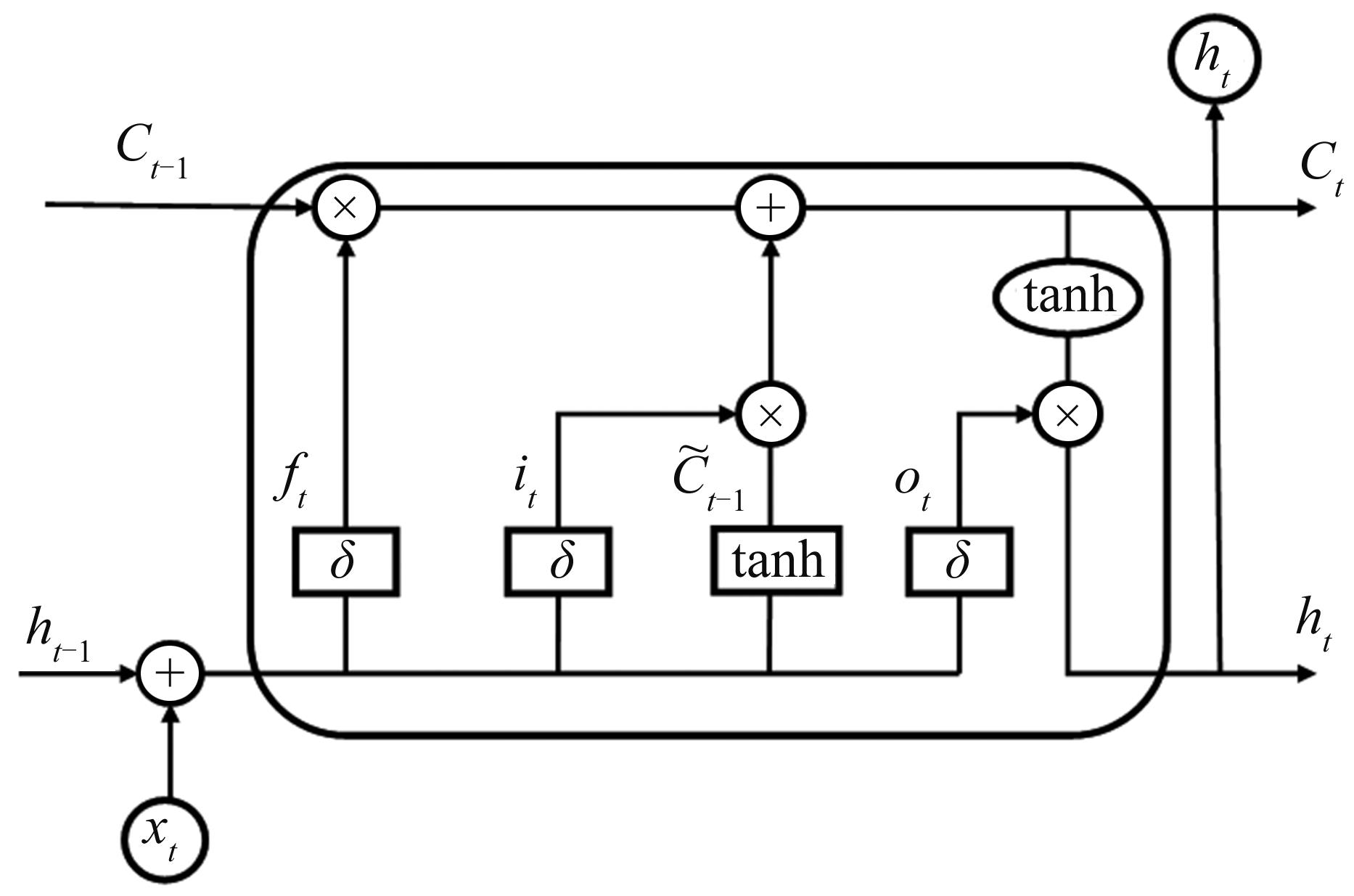

Aiming at the uncertainty and randomness of photovoltaic power generation affected by weather factors, a mathematical model of day ahead thermal-photovoltaic economic dispatch considering seasonal weather factors is established. The mathematical model takes the operation cost of thermal power units, the cost of photovoltaic power generation, the cost of spinning reserve and the forecast error cost of photovoltaic power generation affected by weather factors as the economic objective function, and the sulfur dioxide emission of thermal power units as the environmental objective function. In order to improve the accuracy of photovoltaic output prediction, the long short term memory neural network with seasonal weather factors is used to predict the photovoltaic power generation. The model is solved by Cplex, and the effectiveness and feasibility of the proposed model are proved by case simulation.

Key words: economic dispatch, photovoltaic power generation, prediction error cost, long short term memory neural network

中图分类号:

刘兴华, 耿晨, 谢胜寒, 田佳强, 曹晖. 考虑光伏发电不确定性的日前火电-光伏经济调度[J]. 系统仿真学报, 2022, 34(8): 1874-1884.

Xinghua Liu, Chen Geng, Shenghan Xie, Jiaqiang Tian, Hui Cao. Day Ahead Thermal-photovoltaic Economic Dispatch Considering Uncertainty of Photovoltaic Power Generation[J]. Journal of System Simulation, 2022, 34(8): 1874-1884.

图/表 15

图1

表1

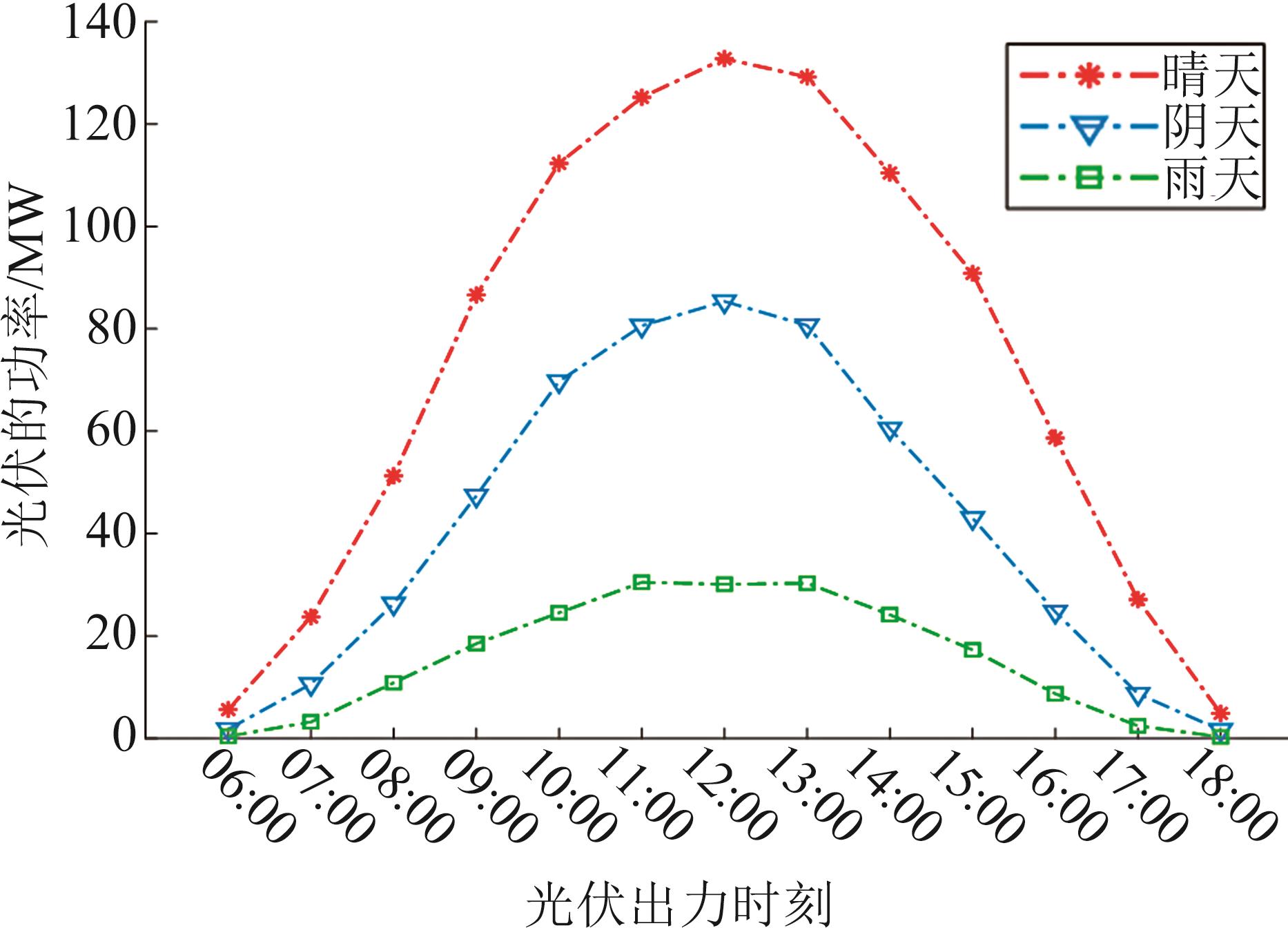

图2

表2

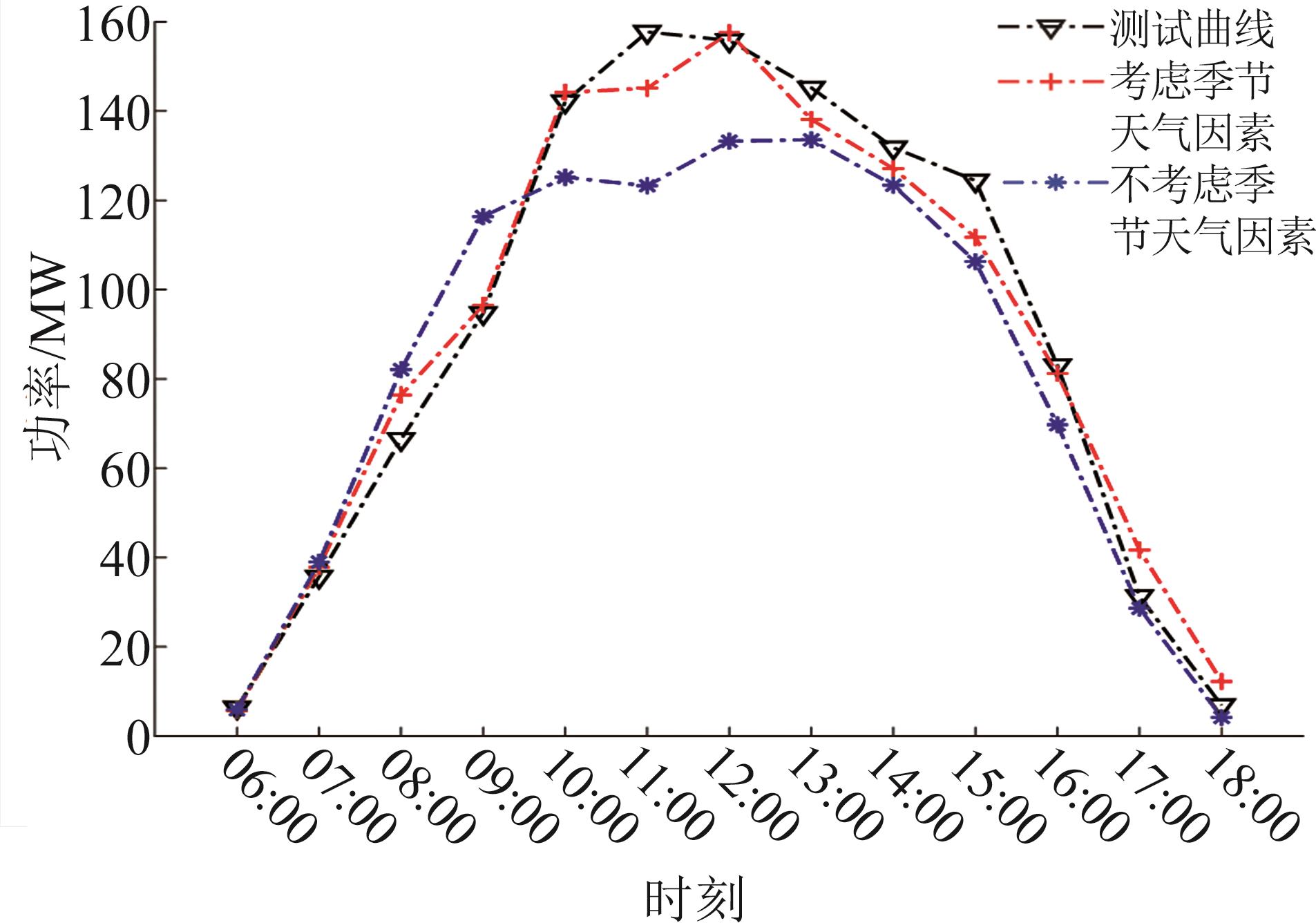

图3

表3

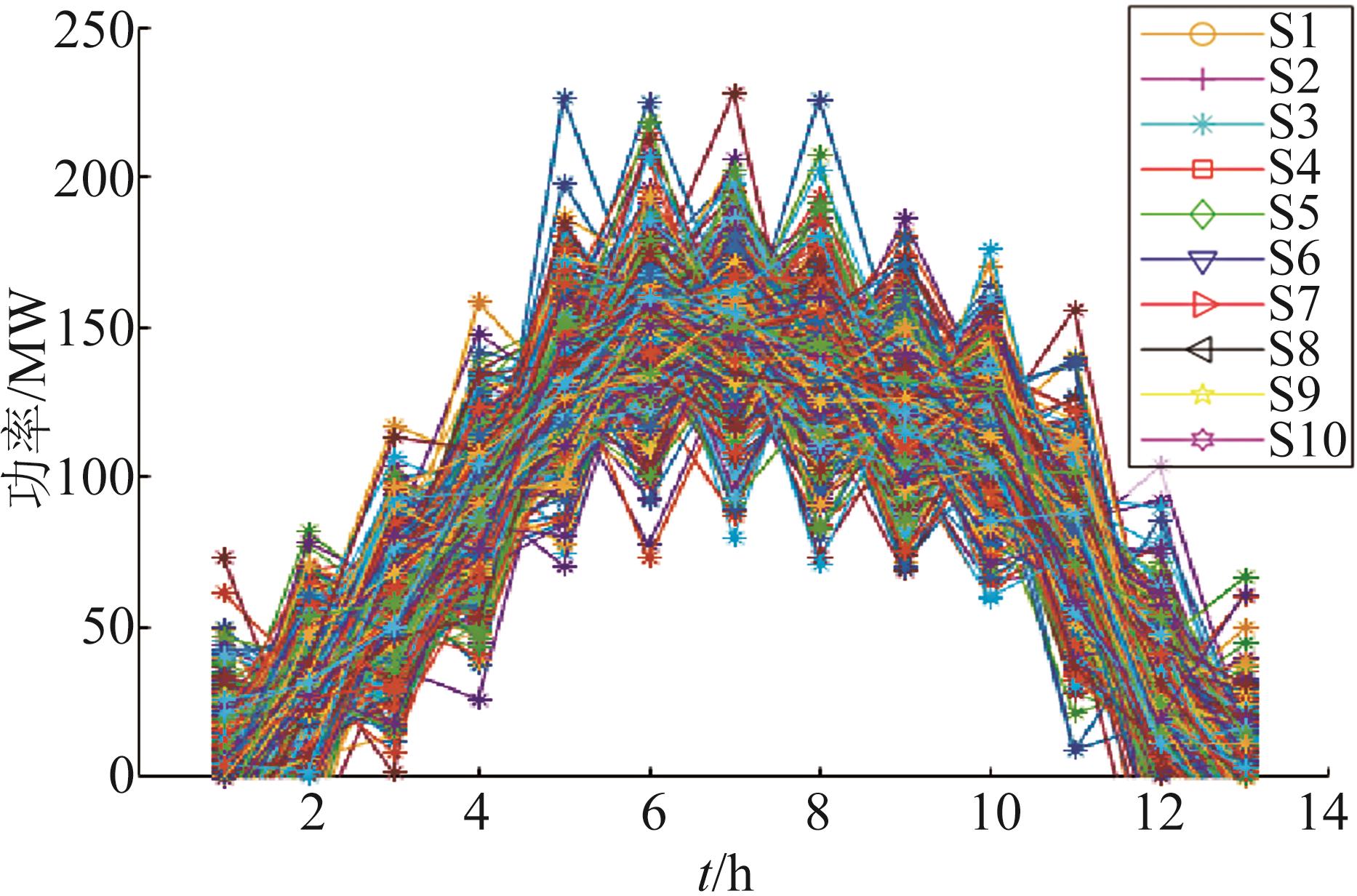

图4

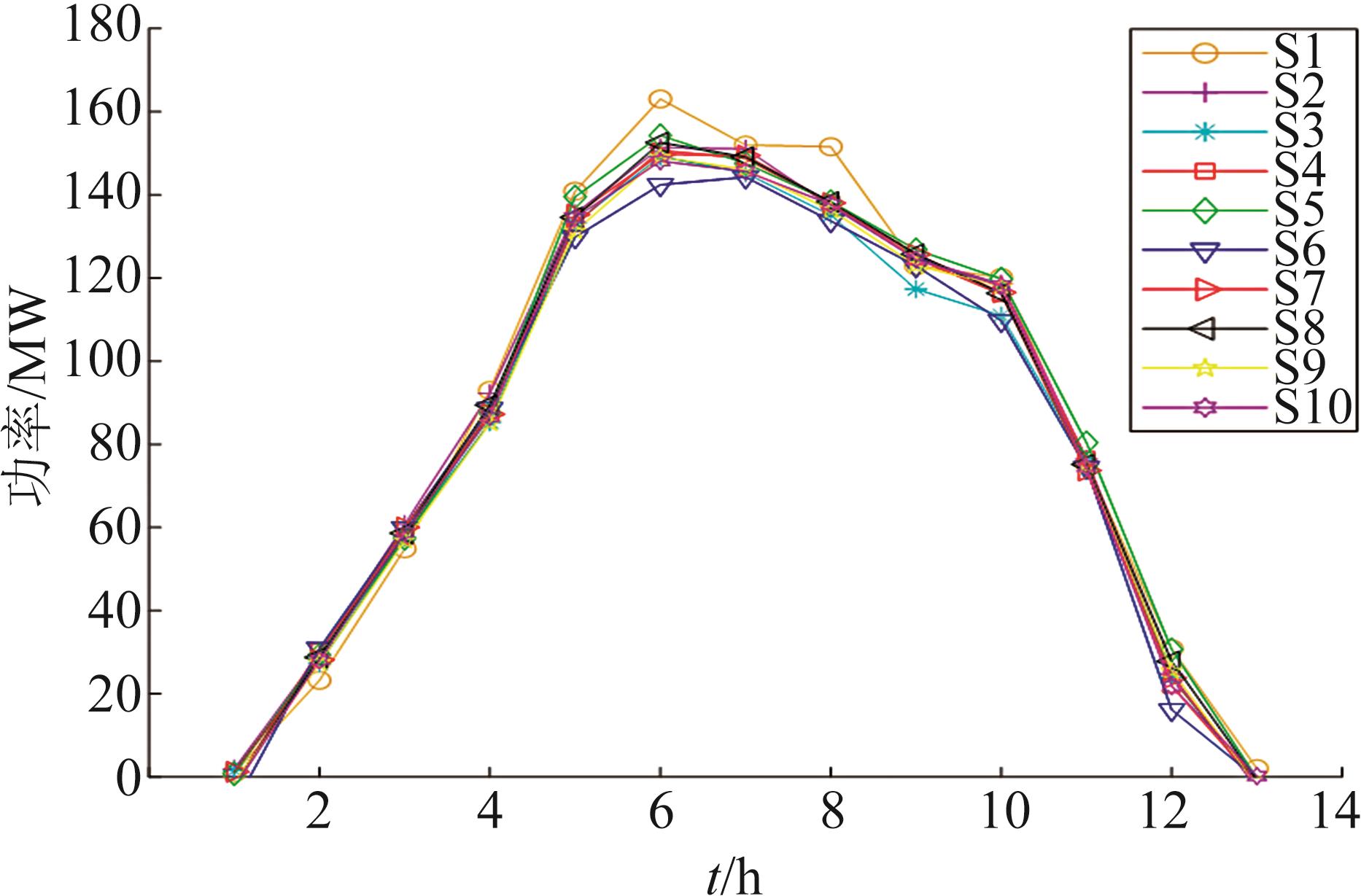

图5

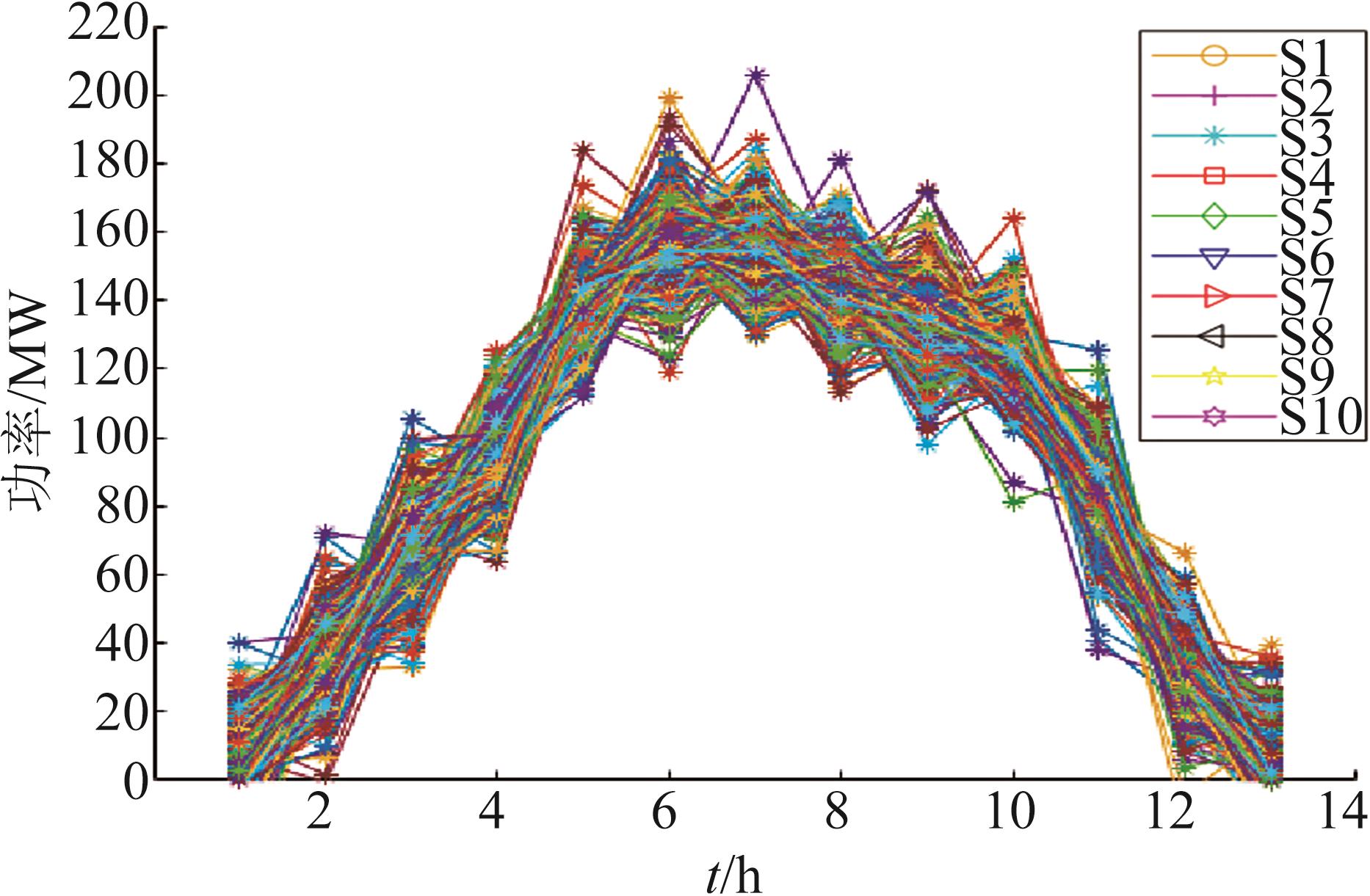

图6

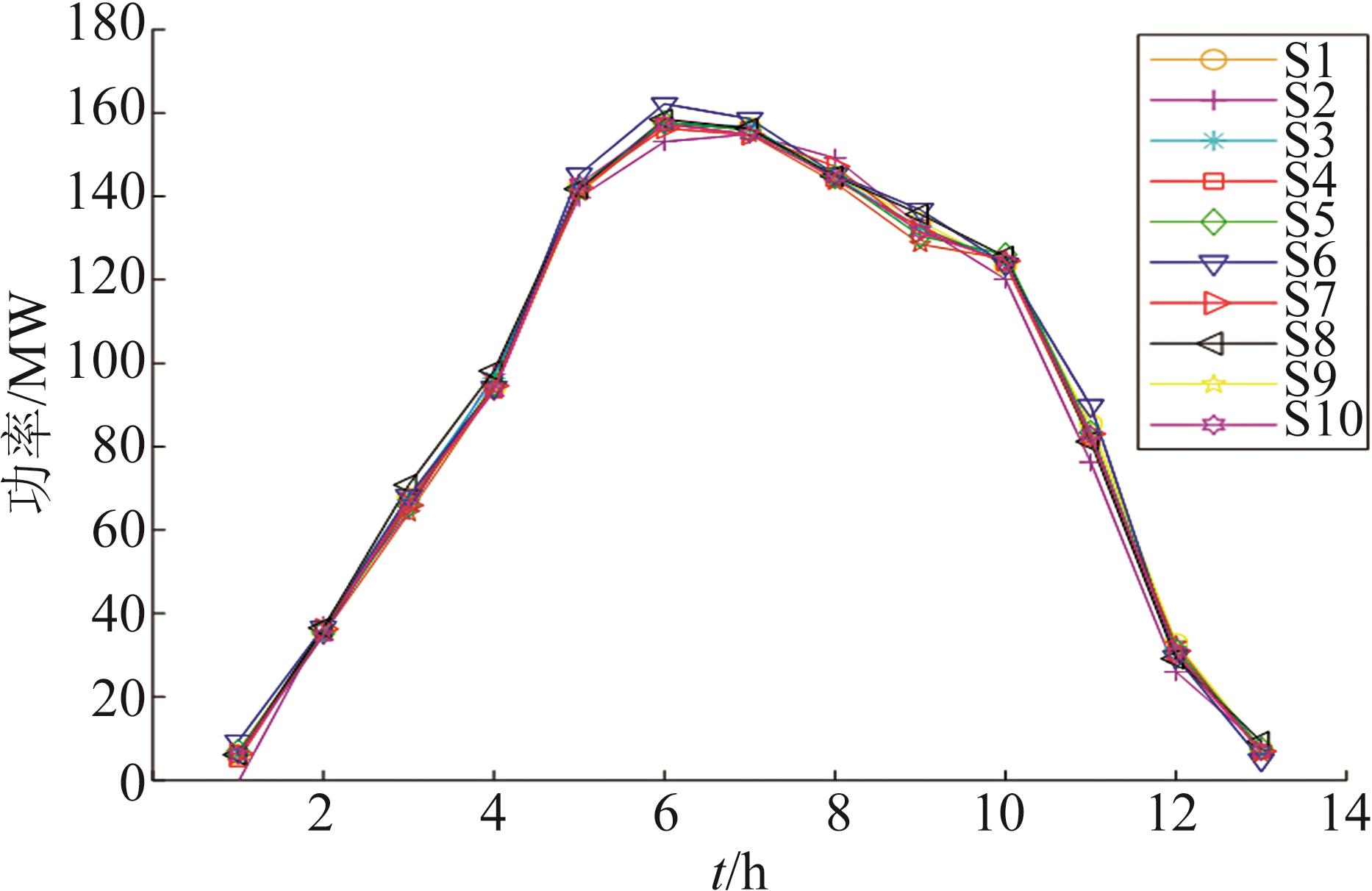

图7

表4

表5

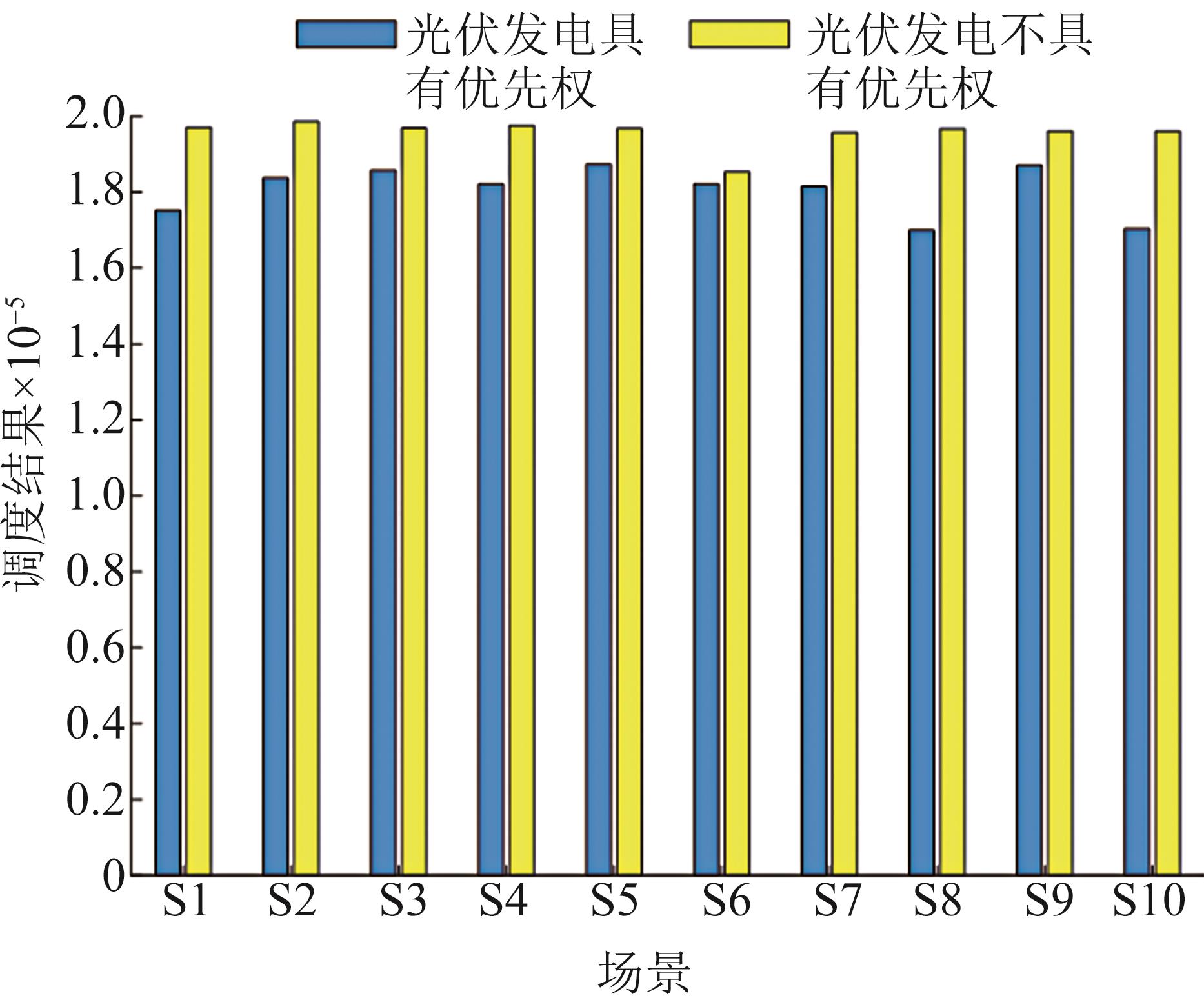

图8

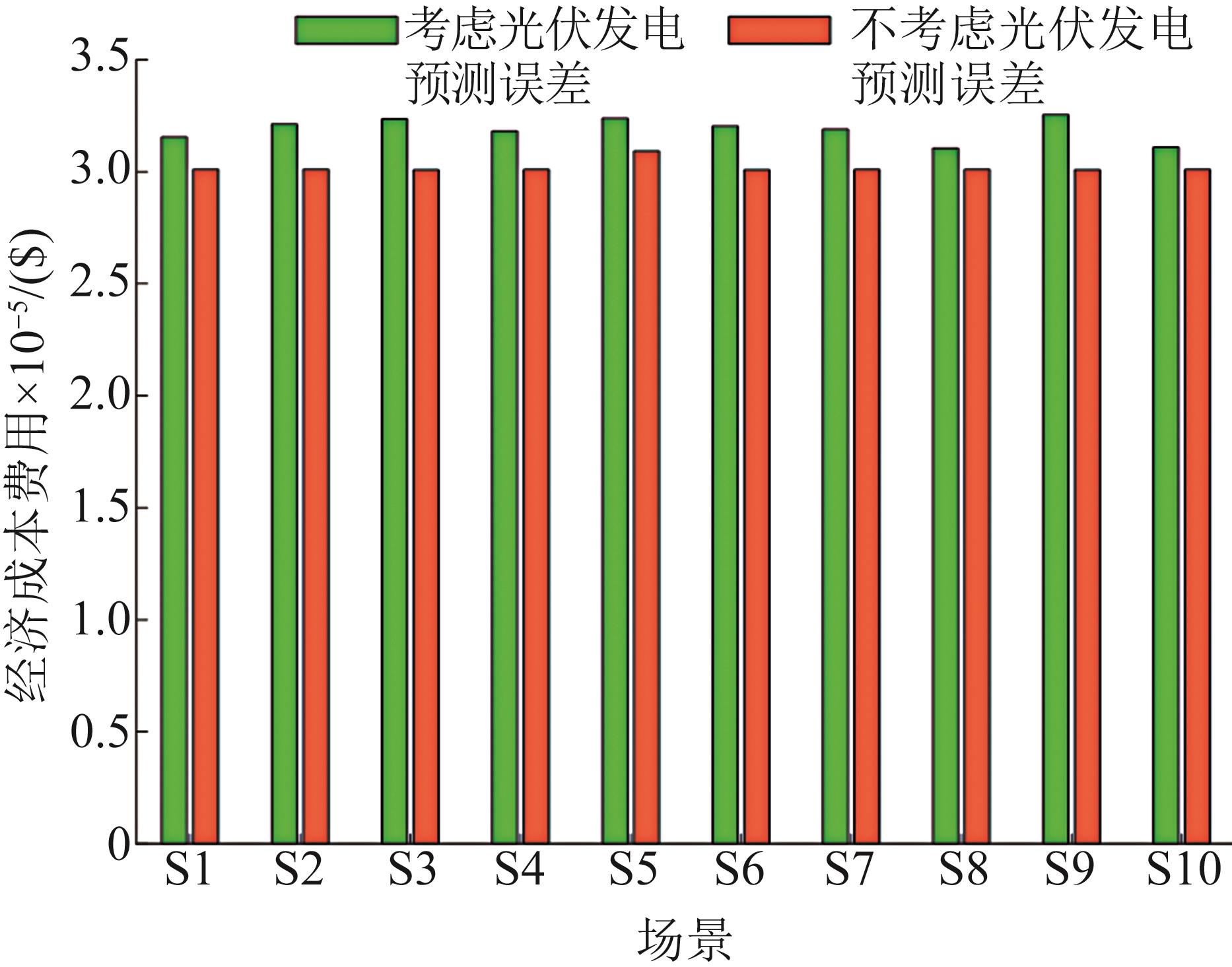

图9

表6

参考文献 19

1	国家能源局. 国家能源局2021年一季度网上新闻发会文字实录[EB/OL]. (2021-01-30)[2021-04-12]. .
	National Energy Administration. Transcript of Online News Conference of the National Energy Administration in the First Quarter of 2021[EB/OL]. (2021-01-30) [2021-04-12]. .
2	舒印彪, 张智刚, 郭剑波, 等. 新能源消纳关键因素分析及解决措施研究[J]. 中国电机工程学报, 2017, 37(1): 1-9.
	Shu Yinbiao, Zhang Zhigang, Guo Jianbo, et al. Study on Key Factors and Solution of Renewable Energy Accommodation[J]. Proceedings of the CSEE, 2017, 37(1): 1-9.
3	Basu M. Economic Environmental Dispatch of Solar-Wind-Hydro-Thermal Power System[J]. Renewable Energy Focus(S1755-0086), 2019, 30: 107-122.
4	Yin Y, Liu T, He C. Day-Ahead Stochastic Coordinated Scheduling for Thermal-Hydro-Wind-Photovoltaic Systems [J]. Energy(S 0360- 5422), 2019, 187: 115944.
5	Yu H, Chung C, Wong K P, et al. Probabilistic Load Flow Evaluation with Hybrid Latin Hypercube Sampling and Cholesky Decomposition[J]. IEEE Transactions on Power Systems(S0885-8950), 2009, 24(2): 661-667.
6	Wang W, Li C, Liao X, et al. Study on Unit Commitment Problem Considering Pumped Storage and Renewable Energy Via a Novel Binary Artificial Sheep Algorithm [J]. Applied Energy(S0306-2619), 2017, 187: 612-626.
7	冯新扬, 邵超. 跨卷积网络特征融合的SAR图像目标识别[J]. 系统仿真学报, 2021, 33(3): 554-561.
	Feng Xinyang, Shao Chao. SAR Image Target Recognition Based on Across Convolution Network Feature Fusion[J]. Journal of System Simulation, 2021, 33(3): 554-561.
8	Zhou H, Zhang Y, Yang L, et al. Short-Term Photovoltaic Power Forecasting Based on Long Short Term Memory Neural Network and Attention Mechanism [J]. IEEE Access(S2169-3536), 2019, 7: 78063-78074.
9	赵唯嘉, 张宁, 康重庆, 等. 光伏发电出力的条件预测误差概率分布估计方法[J]. 电力系统自动化, 2015, 39(16): 8-15.
	Zhao Weijia, Zhang Ning, Kang Chongqing, et al. A Method of Probabilistic Distribution Estimation of Condition Forecast Error for Photovoltaic Power Generation[J]. Automatic of Electric Power Systems, 2015, 39(16): 8-15.
10	陈瑶琪. 基于典型天气类型计及随机预测误差的光伏发电短期预测研究[J]. 中国电力, 2016, 49(5): 157-162.
	Chen Yaoqi. Short-Term Photovoltaic Power Prediction Based on Typical Climate Types and Stochastic Prediction Error[J]. Electric Power, 2016, 49(5): 157-162.
11	Hlalele Thabo G, Naidoo Raj M, Bansal Ramesh C, et al. Multi-Objective Stochastic Economic Dispatch with Maximal Renewable Penetration under Renewable Obligation[J]. Applied Energy(S0306-2619), 2020, 270: 115120.
12	Kothari D P, Dhillon J S. Power System Optimization [M]. New Delhi: Prentice Hall in India, 2004.
13	中国气象局. 公共气象服务—天气图形符号: [S]. 北京: 中国标准出版社, 2017.
	China Meteorological Administration. Public Meteorological Service-Weather Graphic Symbols: [S]. Beijing: Standards Press of China, 2017.
14	邱瑞东, 何山, 董宁, 等. 基于LSTM-LGB模型的光伏电站辐照强度预测[J]. 安徽大学学报(自然科学版), 2021, 45(3): 66-71.
	Qiu Ruidong, He Shan, Dong Ning, et al. Irradiation Intensity Prediction of Photovoltaic Power Station Based on LSTM-LGB Model[J]. Journal of Anhui University (Natural Science Edition), 2021, 45(3): 66-71.
15	宋绍剑, 李博涵. 基于LSTM网络的光伏发电功率短期预测方法的研究[J]. 可再生能源, 2021, 39(5): 594-602.
	Song Shaojian, Li Bohan. Short-Term Forecasting Method of Photovoltaic Power Based on LSTM[J]. Renewable Energy Resources, 2021, 39(5): 594-602.
16	李文静, 王潇潇. 基于简化型LSTM神经网络的时间序列预测方法[J]. 北京工业大学学报, 2021, 47(5): 480-488.
	Li Wenjing, Wang Xiaoxiao. Time Series Prediction Method Based on Simplified LSTM Neural Network[J]. Journal of Beijing University of Technology, 2021, 47(5): 480-488.
17	李秉晨, 于惠钧, 刘靖宇. 基于Kmeans和CEEMD-PE-LSTM的短期光伏发电功率预测[J]. 水电能源科学, 2021, 39(4): 204-208.
	Li Bingchen, Yu Huijun, Liu Jingyu. Prediction of Short-Term Photovoltaic Power Generation Based on Kmeans and CEEMD-PE-LSTM[J]. Water Resources and Power, 2021, 39(4): 204-208.
18	Zhen S, Panida J. Latin Hypercube Sampling Techniques for Power Systems Reliability Analysis with Renewable Energy Sources[J]. IEEE Transactions on Power Systems(S0885-8950), 2011, 26(4): 2066-2073.
19	王文潇. 水-火-新能源电力系统优化调度研究[D]. 武汉: 华中科技大学, 2018.
	Wang Wenxiao. Resource on Optimal Scheduling of Hydro-Thermal-Renewable Power System[D]. Wuhan: Huazhong University of Science and Technology, 2018.

时间/h	负荷/MW	时间/h	负荷/MW	时间/h	负荷/MW
1	400	9	520	17	490
2	420	10	555	18	520
3	430	11	570	19	530
4	440	12	585	20	540
5	450	13	520	21	560
6	480	14	500	22	540
7	490	15	490	23	500
8	500	16	580	24	405

季节	晴天	阴天	雨天
冬季	0.076	0.381	0.543
春季	0.506	0.325	0.169
夏季	0.541	0.320	0.139
秋季	0.065	0.607	0.328

指标	考虑季节天气因素		不考虑季节天气因素
指标	LSTM	BP	LSTM	BP
RMES	17.250 3	21.508 4	20.286 3	28.697 5
MAE	0.101 9	0.192 1	0.183 6	0.274 4

场景	案例1调度结果	案例2调度结果
1	175 741	175 207
2	184 283	183 719
3	190 547	185 751
4	175 922	182 076
5	189 118	187 374
6	184 227	182 180
7	186 717	181 451
8	173 242	169 967
9	185 728	187 051
10	183 679	170 365

场景	案例2	案例3
1	315 421	335 603
2	321 266	337 204
3	323 424	335 442
4	318 108	335 948
5	323 862	335 526
6	320 397	324 865
7	318 940	334 052
8	310 452	335 446
9	325 452	334 981
10	310 896	334 747
