考虑电热联产的虚拟电厂两阶段鲁棒优化经济调度

doi:10.16182/j.issn1004731x.joss.23-0508

摘要/Abstract

关键词: 虚拟电厂, 两阶段鲁棒优化, 鲁棒系数, 经济调度, 电热联产

Key words: virtual power plant, two-stage robust optimization, robustness factor, economic scheduling, cogeneration

刘金朋, 彭锦淳, 邓嘉明, 刘胡诗涵. 考虑电热联产的虚拟电厂两阶段鲁棒优化经济调度[J]. 系统仿真学报, 2023, 35(8): 1799-1813.

Jinpeng Liu, Jinchun Peng, Jiaming Deng, Hushihan Liu. Two-stage Robust Optimization-based Economic Dispatch of Virtual Power Plants Considering Cogeneration[J]. Journal of System Simulation, 2023, 35(8): 1799-1813.

图/表 17

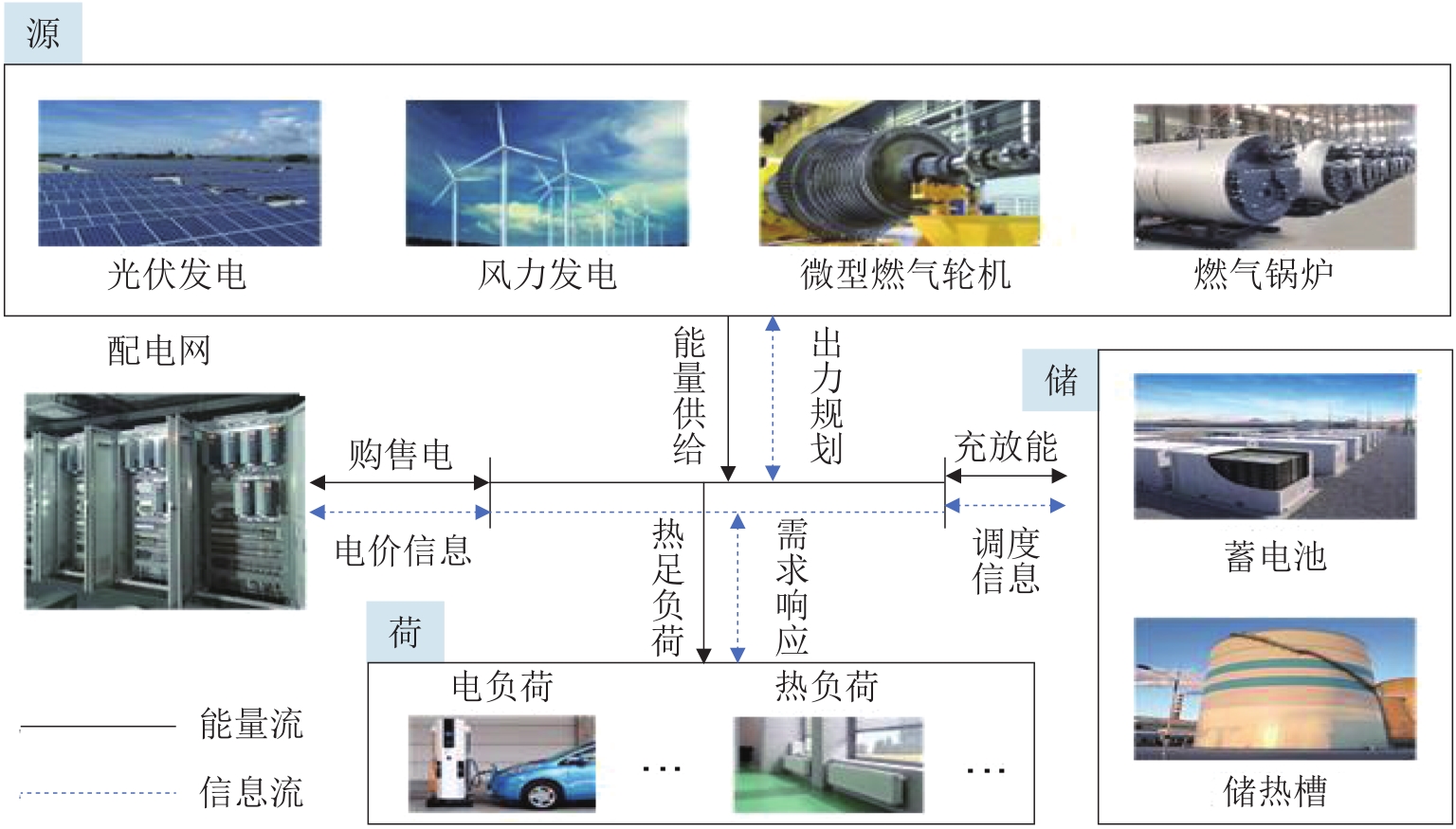

图1

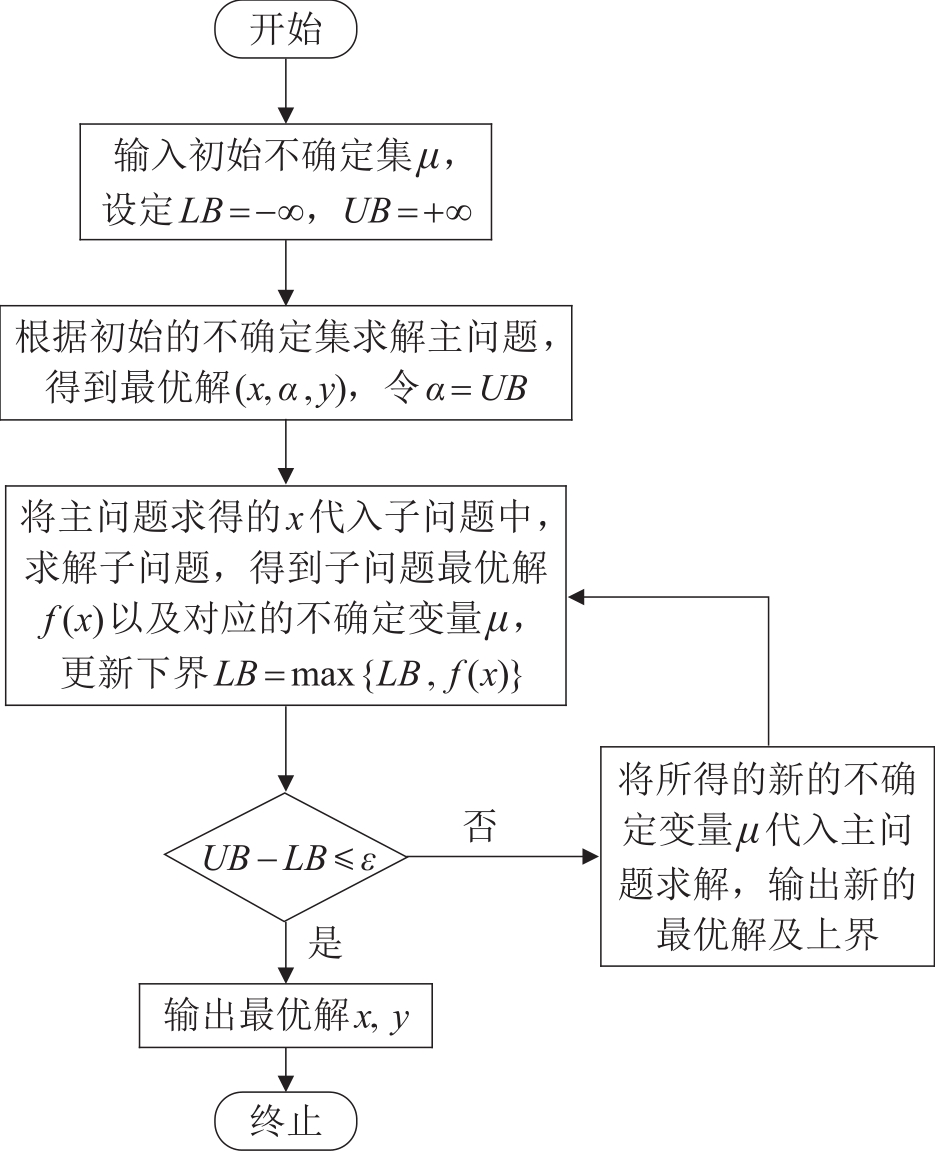

图2

表1

虚拟电厂机组参数

机组	参数	数值
燃气轮机	$Q G T m a x$ /kW	600
	$η G T$	0.9
	$η e$	0.4
	$η l$	0.05
	$r G T d o w n$ (kW)/ $r G T u p$ (kW)	120/120
锅炉	$Q G B m a x$ /kW	300
	$η G B$	0.85
	$r G B d o w n$ (kW)/ $r G B u p$ (kW)	60/60
储热槽	$Q h s m a x$ /kW	250
	$E h s m a x$ (kW)/ $E h s m i n$ (kW)	1 000/200
	$E h s (0)$ /(kW·h)	500
	$η h s$	0.9
	$K h s$ /(元/kW·h)	0.3
蓄电池	$P b s m a x$ /kW	400
	$E h s m a x$ (kW·h)/ $E h s m i n$ (kW·h)	2 000/400
	$E b s (0)$ /(kW·h)	500
	$η b s$	0.95
	$K b s$ /(元/ kW·h)	0.38
配电网	$P m m a x$ /kW	1 500
电柔性负荷	D _pf /(kW·h)	2 500
电柔性负荷	K _pf/(元/kW·h)	0.32
热柔性负荷	D _qf /(kW·h)	2 000
热柔性负荷	K _qf /(元/kW·h)	0.4

表1

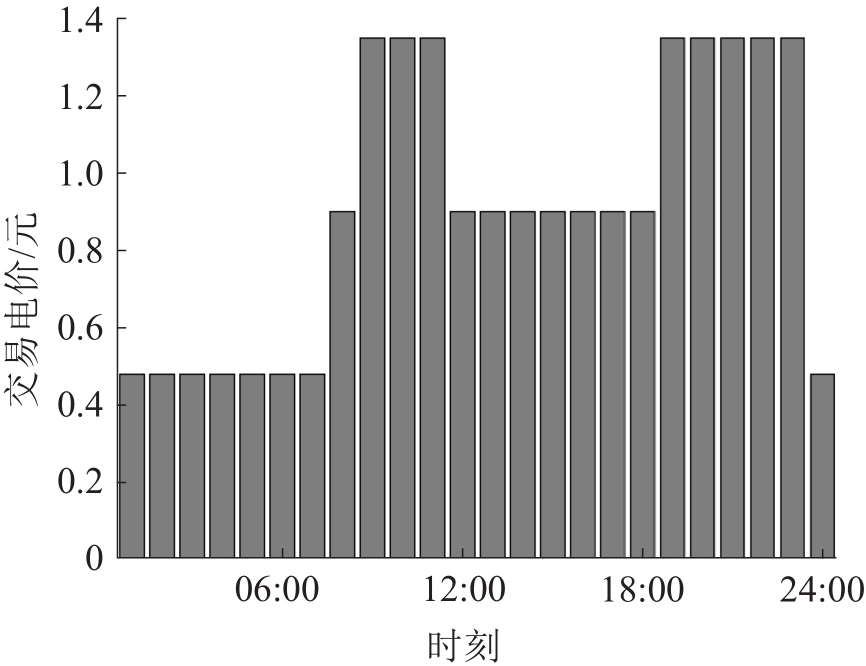

图3

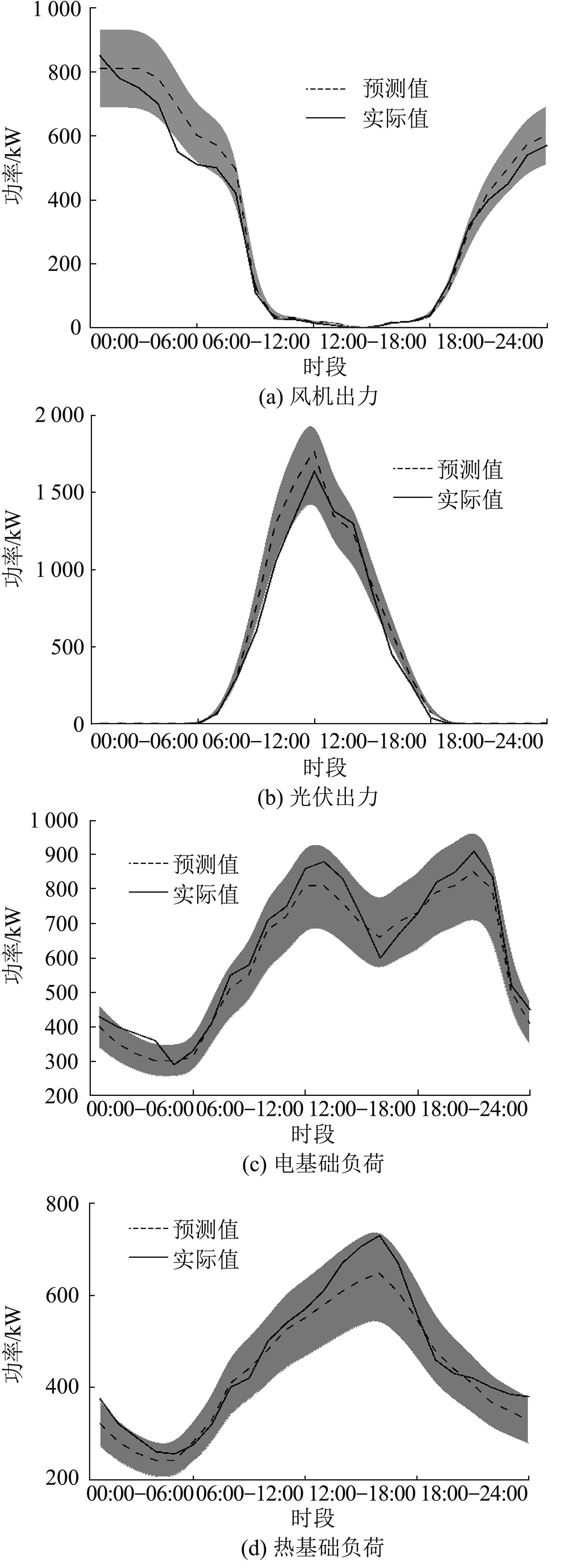

图4

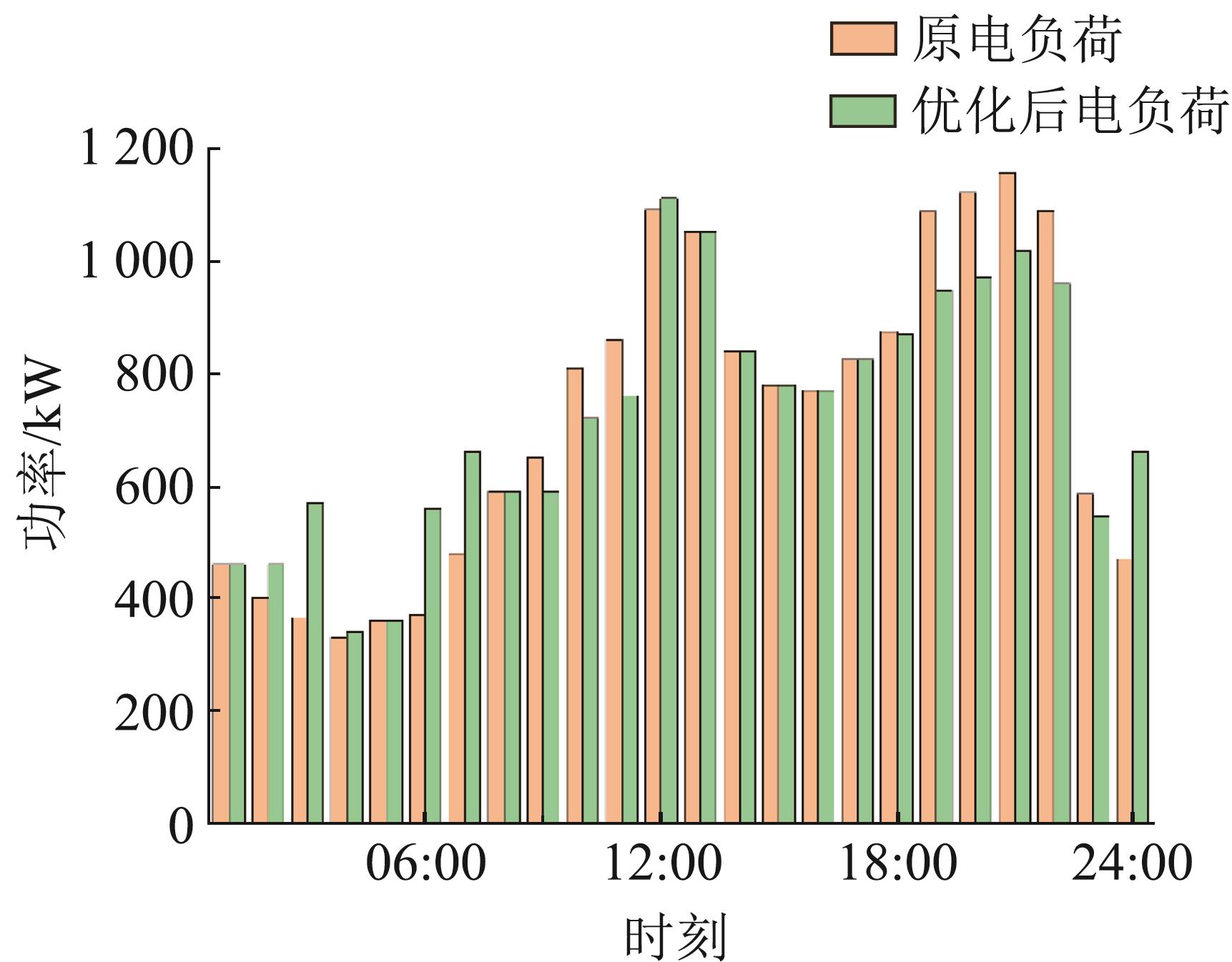

图5

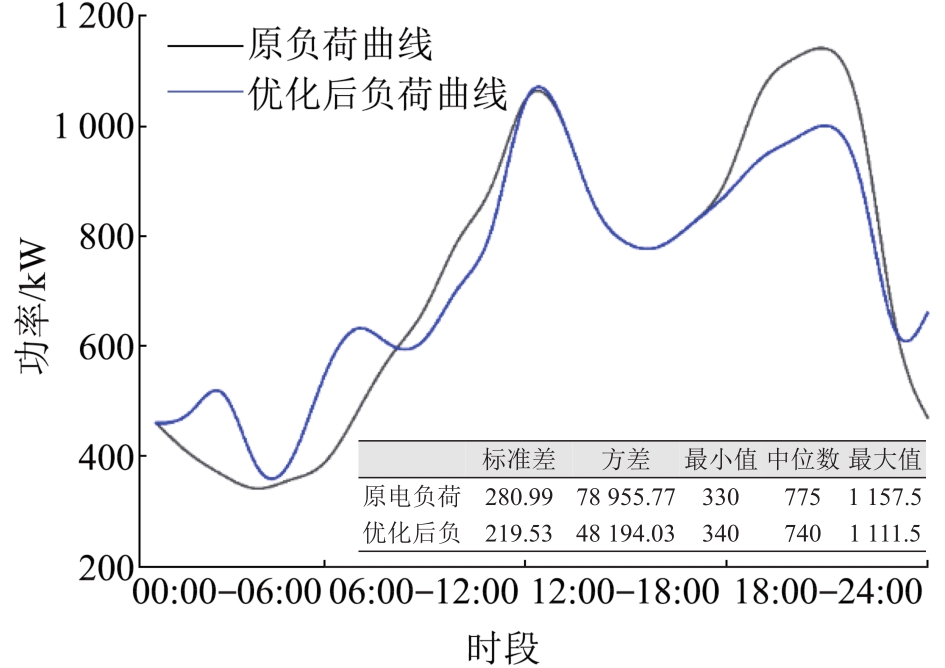

图6

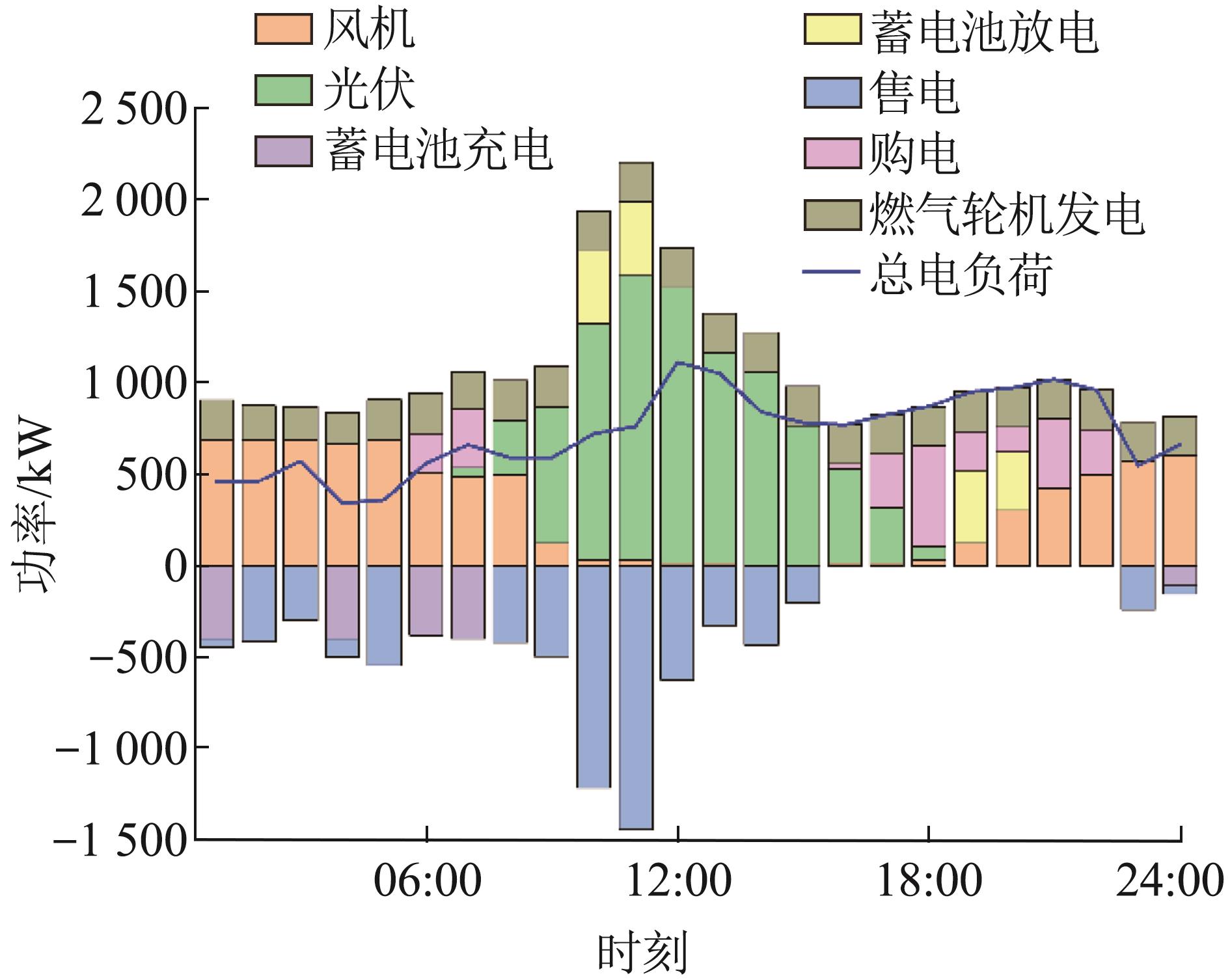

图7

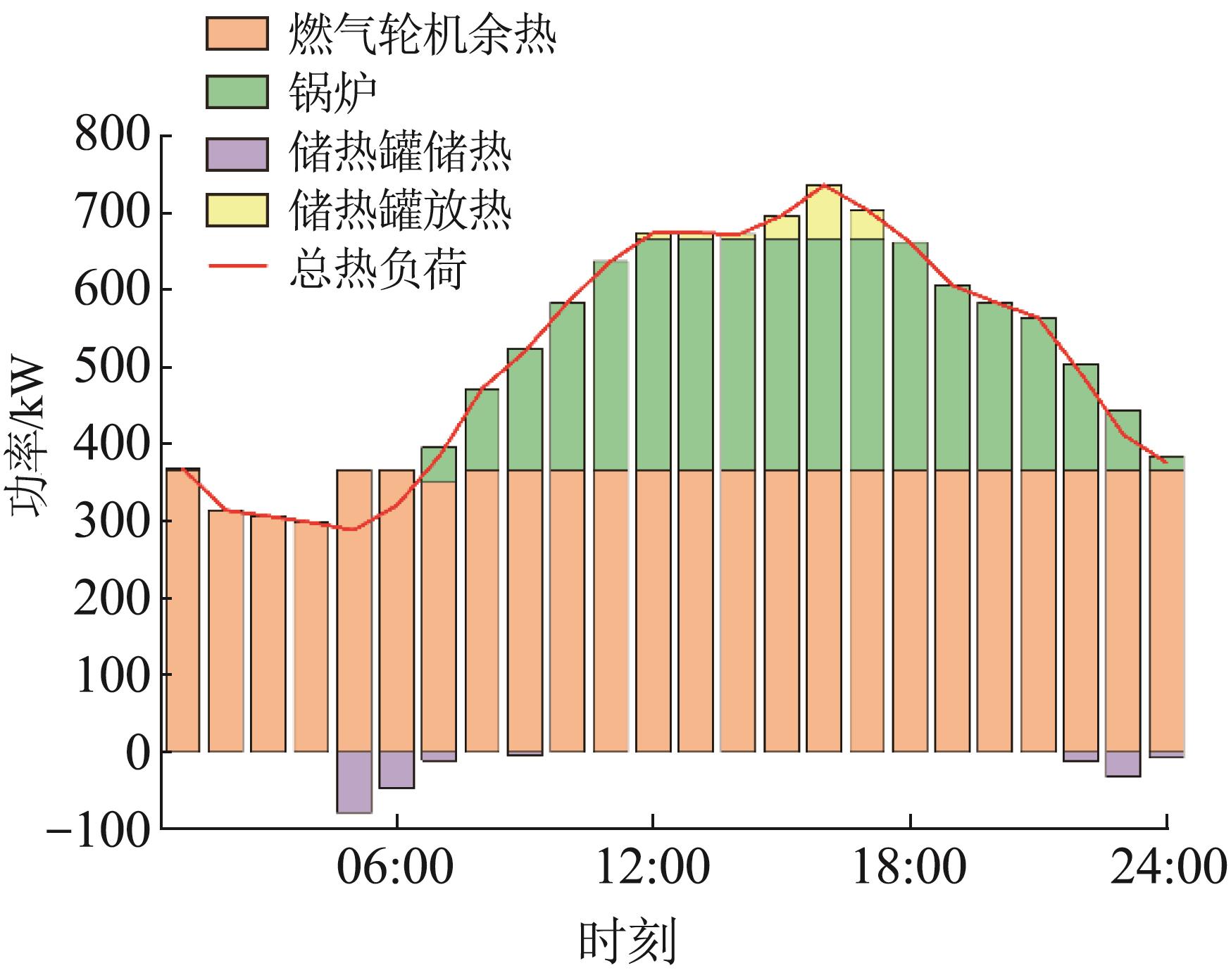

图8

表2

图9

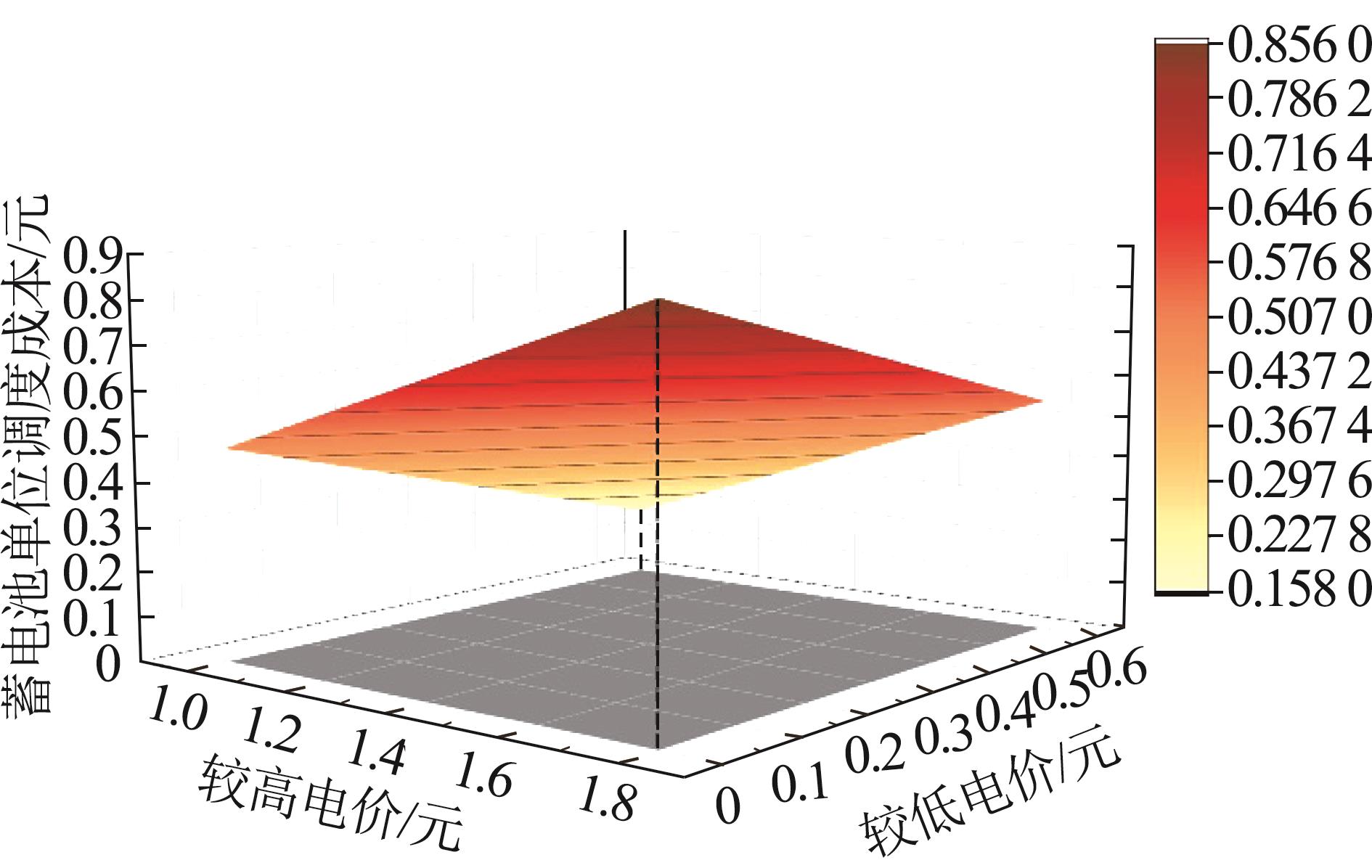

图10

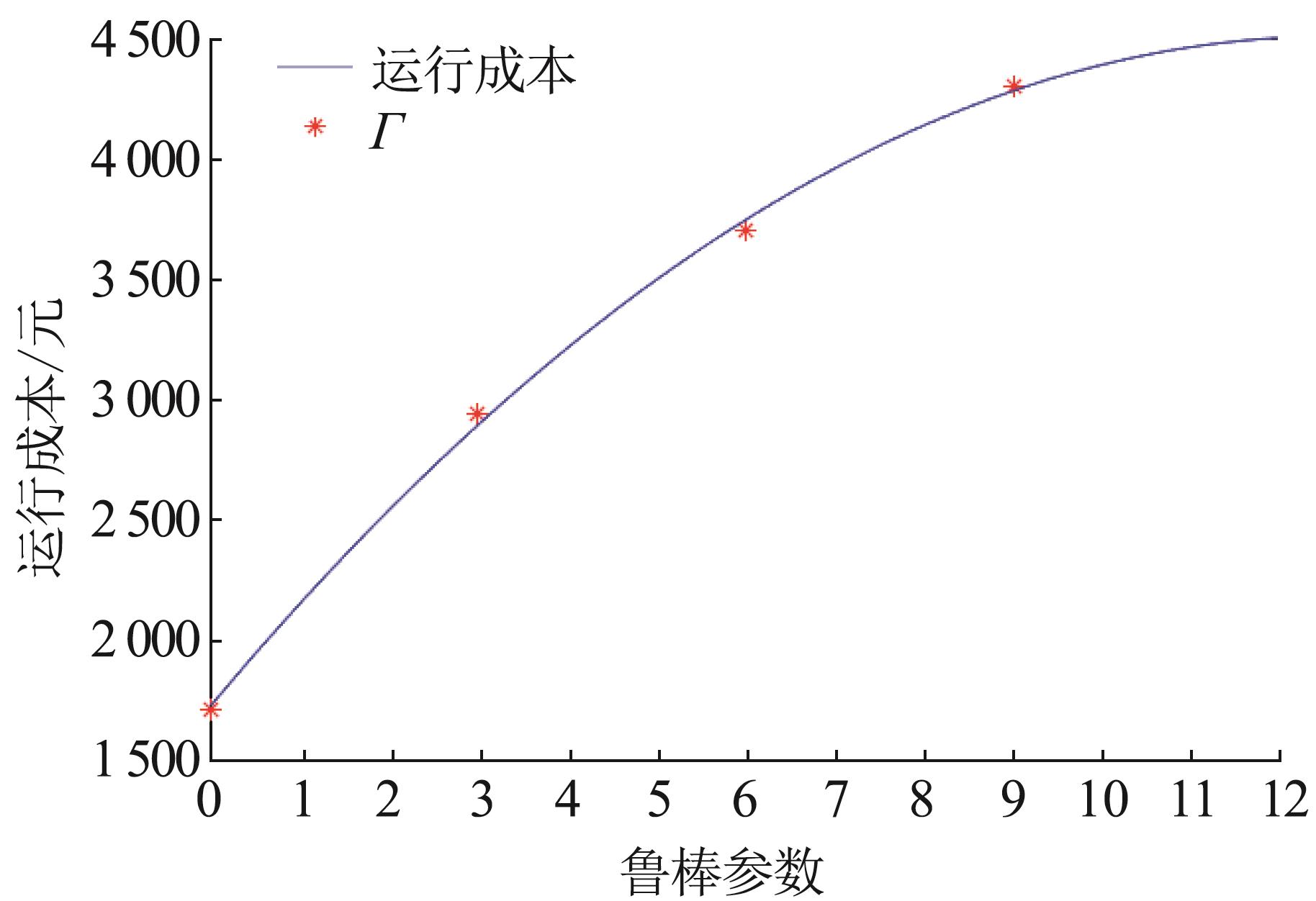

表3

不同鲁棒参数下虚拟电厂运行成本 (元)

优化模型	日前运行成本
确定性优化	1 712.87
$Γ w t$ =0， $Γ p v$ =0， $Γ p$ =0， $Γ q$ =0	1 712.87
$Γ w t$ =3， $Γ p v$ =3， $Γ p$ =3， $Γ q$ =3	2 942.86
$Γ w t$ =6， $Γ p v$ =6， $Γ p$ =6， $Γ q$ =6	3 701.15
$Γ w t$ =9， $Γ p v$ =9， $Γ p$ =9， $Γ q$ =9	4 298.93

表3

表4

不同鲁棒参数下与配电网电量交互情况 (kW·h)

鲁棒参数	总购电量	总售电量
$Γ w t$ =0， $Γ p v$ =0， $Γ p$ =0， $Γ q$ =0	1 680.81	8 433.52
$Γ w t$ =3， $Γ p v$ =3， $Γ p$ =3， $Γ q$ =3	1 825.31	7 257.27
$Γ w t$ =6， $Γ p v$ =6， $Γ p$ =6， $Γ q$ =6	2 381.81	6 858.27
$Γ w t$ =9， $Γ p v$ =9， $Γ p$ =9， $Γ q$ =9	2 586.82	6 362.79

表4

图11

图12

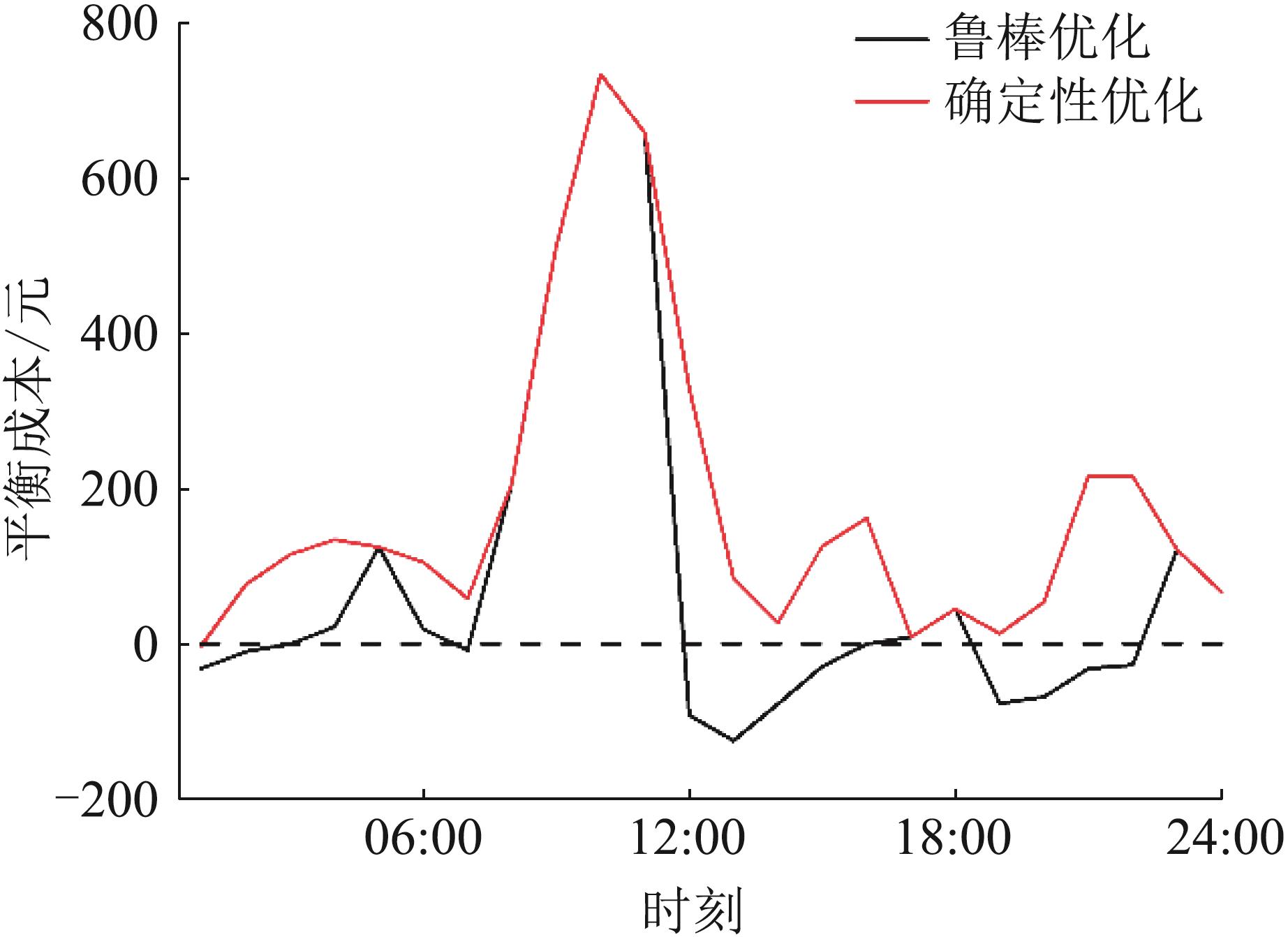

图13
