学习型蚁群算法求解一类复杂两级车辆路径问题

doi:10.16182/j.issn1004731x.joss.22-0682

摘要/Abstract

摘要：

针对考虑同时取送货的绿色两级车辆路径问题，以最小化带碳排放成本的总运输成本为优化目标，提出一种结合聚类分解的学习型蚁群优化算法。针对两级问题相互耦合的特点，采用基于距离的聚类算法将原问题分解为一组子问题，提出一种学习型蚁群优化算法对各子问题进行求解，进而获得原问题的解。提出一种考虑问题结构特征的三维概率矩阵作为信息素矩阵，用于学习优质解的优良特征信息，以提高算法的全局搜索能力；提出一种考虑算法行为特征的局部搜索策略，用于学习所设计的六种邻域算子的搜索信息，以提高算法的局部搜索能力。通过仿真实验和算法比较，验证了所提算法的有效性。

关键词: 绿色两级车辆路径问题, 蚁群优化, 聚类分解, 学习, 三维概率矩阵, 同时取送货

Abstract:

Aiming at green 2-echelon vehicle routing problem with simultaneous pick-up and delivery, a learning-based ant colony optimization algorithm combined with clustering decomposition is proposed. The objective function to be minimized is total transportation cost wherein carbon emission cost is specially considered. Associated with the mutual coupling features of the 2-echelon vehicle routing problem, we propose a distance-based clustering method to decompose the original problem into a set of sub-problems. Then, a learning-based ant colony optimization algorithm is presented to find the solutions of the sub-problems based on which the solution of the original problem can be obtained. In the algorithm, we introduce a problem-dependent three-dimensional probability matrix to represent pheromone matrix, which is used to learn valuable information about high-quality solutions and improve global search ability. Thereafter, we propose a local search strategy based on the search behavior of the algorithm to learn information about excellent individuals for six dedicated neighborhood search operators, so as to enhance local search ability. Results of numerical experiments and algorithm comparisons demonstrate the effectiveness of the proposed algorithm.

Key words: green 2-echelon vehicle routing problem, ant colony optimization algorithm, clustering decomposition, machine learning, Three-dimensional probabilistic model, simultaneous pick-up and delivery

中图分类号:

TP391.9

陈雪,胡蓉,王辉等 . 学习型蚁群算法求解一类复杂两级车辆路径问题[J]. 系统仿真学报, 2023, 35(11): 2476-2495.

Chen Xue,Hu Rong,Wang Hui,et al . Learning-based Ant Colony Optimization Algorithm for Solving a Kind of Complex 2-Echelon Vehicle Routing Problem[J]. Journal of System Simulation, 2023, 35(11): 2476-2495.

图/表 18

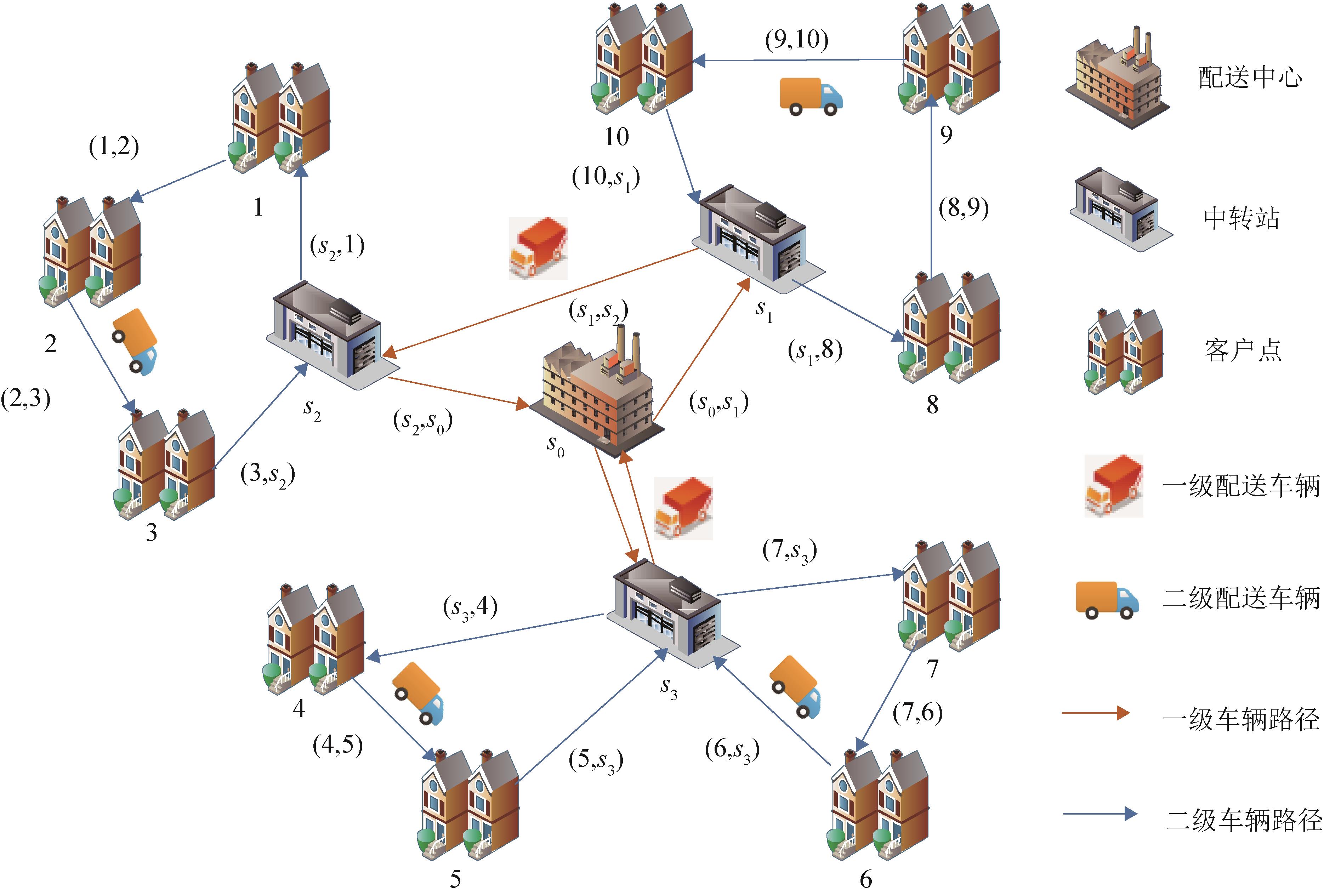

图1

表1

符号及释义

符号	释义
$V$	节点集
$S$	配送中心及中转站集
$S s$	中转站集
$s 0$	配送中心
$C$	客户点集， $C = {1,2, …, n}$
$K 1 D$	一级车辆中进行送货服务的车辆集
$K 1 P$	一级车辆中进行取货服务的车辆集
$K 2$	二级车辆集
$d i j$	点 $i$ 与点 $j$ 之间的距离
$D f 1$	一级配送中中转站 $f$ 处的送货量
$P f 1$	一级配送中中转站 $f$ 处的取货量
$D a 2$	二级配送中客户点 $a$ 处的送货量
$P a 2$	二级配送中客户点 $a$ 处的取货量
$ρ 1$	车辆单位距离行驶成本
$b i 1$	一级配送中用于消除子环回路的变量
$b i 2$	二级配送中用于消除子环回路的变量
$Q 1$	一级车辆最大载重
$Q 2$	二级车辆最大载重
$M$	中转站最大容量
$x i j k$	决策变量：1，车辆 $k$ 从点 $i$ 行驶到点 $j$ ；0，其他
$y i j k$	决策变量：车辆 $k$ 由点 $i$ 行驶到点 $j$ 的载货量

表1

表2

碳排放模型的相关参数

参数	释义	取值
$ω c$	每升燃油释放二氧化碳的质量/t	0.002 7
$E f$	车辆单位重量单位距离耗油量L/(t·km)	0.016 53
$ρ 2$	排放每单位二氧化碳产生的成本	$20$
$G 1$	一级车辆单位质量/t	$16.2$
$G 2$	二级车辆单位质量/t	$10.2$
$μ$	车辆质量利用系数	5.017 5

表2

图2

图3

图4

图5

图6

表3

关键参数水平表

参数	水平设置
参数	1	2	3	4
$α$	0.5	1	1.5	2
$β$	0.5	1	1.5	2
$ρ$	0.1	0.3	0.5	0.7
$Q$	1	2	3	4
$a n t n$	20	30	40	50

表3

表4

参数设置的正交表

标号	水平设置					$A V G$
标号	$α$	$β$	$ρ$	$Q$	$a n t n$	$A V G$
1	1	1	1	1	1	1 017.6
2	1	2	2	2	2	1 038.6
3	1	3	3	3	3	1 030.0
4	1	4	4	4	4	1 031.5
5	2	1	2	3	4	1 018.4
6	2	2	1	4	3	1 038.0
7	2	3	4	1	2	1 024.2
8	2	4	3	2	1	1 005.0
9	3	1	3	4	2	1 010.5
10	3	2	4	3	1	1 026.4
11	3	3	1	2	4	1 053.4
12	3	4	2	1	3	1 029.0
13	4	1	4	2	3	1 041.4
14	4	2	3	1	4	1 042.2
15	4	3	2	4	1	1 028.4
16	4	4	1	3	2	1 014.1

表4

表5

各参数平均响应值

水平	$α$	$β$	$ρ$	$Q$	$a n t n$
1	1 029.4	1 022.0	1 030.8	1 028.3	1 019.4
2	1 021.4	1 036.3	1 028.6	1 034.6	1 021.9
3	1 029.8	1 034.0	1 021.9	1 022.2	1 034.6
4	1 031.5	1 020.0	1 030.9	1 027.1	1 036.4
极差	10.1	16.3	9	12.4	17
影响力排名	4	2	5	3	1

表5

图7

表6

LACO与ACO、ACO1、ACO2的对比结果（2Ns）

$n_s$	ACO			ACO₁			ACO₂			LACO
$n_s$	最大值	最小值	平均值	最大值	最小值	平均值	最大值	最小值	平均值	最大值	最小值	平均值
30_3	672.5	563.5	610.5	651.4	556.2	607.6	514.9	487.4	495.1	518.3	487.4	494.5
40_3	893.3	800.8	839.9	916.7	797.7	844.6	648.8	553.9	592.9	628.7	554.2	586.9
50_3	1 069.8	987.9	1 021.6	1 133.9	1 001.1	1 072.0	764.0	687.5	736.9	768.9	690.7	736.4
60_3	1 184.5	1 071.8	1 125.1	1 314.7	1 178.1	1 237.4	737.5	676.8	704.3	755.7	680.9	711.9
70_3	1 439.1	1 270.4	1 371.9	1 596.1	1 442.3	1 529.7	913.4	814.3	871.5	863.0	806.1	829.4
80_3	1 637.8	1 504.2	1 566.3	1 856.2	1 719.7	1 789.6	1 025.3	887.1	932.5	1 032.8	877.8	916.9
50_5	1 006.4	922.6	969.4	1 020.2	918.8	961.9	845.3	731.9	776.3	843.6	735.4	779.6
60_5	1 086.9	999.9	1 047.8	1 107.0	1 027.7	1 068.8	855.0	767.1	794.6	861.0	767.8	811.4
70_5	1 261.6	1 111.7	115.8	1 293.1	1 158.7	1 228.8	939.1	851.3	892.6	941.3	843.7	873.9
80_5	1 412.9	1 280.3	1 328.5	1 536.5	1 386.6	1 444.0	991.4	886.3	935.0	955.1	872.3	910.8
90_5	1 598.2	1 433.9	1 509.3	1 679.8	1 539.6	1 624.5	1 067.2	969.2	1 022.2	1 028.9	929.5	966.7
100_5	1 723.8	1 560.9	1 622.5	1 897.0	1 718.9	1 797.6	1 134.1	969.7	1 073.9	1 096.4	965.7	1 042.6
60_8	1 081.0	921.6	1 030.7	1 483.9	1 275.0	1 397.4	895.4	771.9	824.9	901.7	781.8	847.1
80_8	1 407.2	1 274.8	1 325.4	1 823.7	1 581.1	1 689.2	1 105.1	928.6	1 006.3	1 094.3	931.4	987.1
100_8	1 661.7	1 458.0	1 564.1	2 036.3	1 843.6	1 918.3	1 267.3	1 129.1	1 182.8	1 250.2	1 091.0	1 159.2
120_8	1 842.9	1 684.9	1 759.7	2 460.4	2 214.4	2 324.0	1 469.3	1 187.1	1 341.3	1 348.9	1 168.5	1 243.3
140_8	2 168.1	1 940.0	2 067.7	2 713.7	2 468.4	2 599.6	1 551.9	1 285.3	1 437.1	1 517.7	1 279.6	1 404.0
160_8	2 423.9	2 214.6	2 331.5	3 115.1	2 896.7	3 011.1	1 693.1	1 459.3	1 568.3	1 661.7	1 452.9	1 544.4
100_10	1 487.8	1 270.3	1 386.6	1 510.3	1 332.7	1 409.1	1 286.3	1 092.8	1 181.6	1 293.0	1 080.8	1 186.6
120_10	1 607.1	1 424.5	1 522.1	1 752.9	1 504.8	1 600.1	1 420.3	1 195.7	1 271.6	1 373.6	1 181.0	1 264.3
140_10	1 888.1	1 659.8	1 783.1	2 029.6	1 748.8	1 896.9	1 575.2	1 274.3	1 399.0	1 549.4	1 265.3	1 392.6
160_10	2 085.6	1 783.4	1 978.6	2 249.9	2 042.6	2 127.5	1 701.3	1 383.1	1 502.8	1 667.8	1 368.1	1 494.8
180_10	2 279.4	2 025.9	2 166.2	2 543.0	2 246.1	2 396.3	1 785.9	1 439.2	1 579.3	1 666.6	1 409.1	1 568.4
200_10	2 621.5	2 356.1	2 499.6	2 877.4	2 556.5	2 703.5	1 966.3	1 603.5	1 803.9	1 945.0	1 598.5	1 779.3

表6

表7

LACO与VND_LS和CW_LS的对比结果(2Ns)

$n_s$	VND_LS			CW_LS			LACO
$n_s$	最大值	最小值	平均值	最大值	最小值	平均值	最大值	最小值	平均值
30_3	525.5	509.6	513.4	499.4	483.6	489.2	518.3	487.4	494.5
40_3	679.5	631.1	653.0	654.9	596.9	624.5	628.7	554.2	586.9
50_3	788.1	718.2	753.3	763.1	658.7	693.4	768.9	690.7	736.4
60_3	871.4	758.4	817.6	868.7	707.9	795.7	755.7	680.9	711.9
70_3	994.0	826.7	911.8	905.4	778.4	859.9	863.0	806.1	829.4
80_3	1 093.9	1 013.5	1 037.1	1 032.3	897.0	950.8	1 032.8	877.8	916.9
50_5	820.9	711.3	750.8	773.9	717.9	744.0	843.6	735.4	779.6
60_5	887.4	793.7	827.1	895.4	804.0	838.0	861.0	767.8	811.4
70_5	966.0	824.9	894.9	961.7	838.5	877.0	941.3	843.7	873.9
80_5	1 058.3	946.4	990.8	1 051.2	952.2	991.5	955.1	872.3	910.8
90_5	1 218.5	1 052.6	1 126.1	1 226.8	1 063.1	1 138.1	1 028.9	929.5	966.7
100_5	1 287.0	1 145.9	1 221.1	1 241.7	1 109.9	1 186.6	1 096.4	965.7	1 042.6
60_8	1 016.2	780.0	912.3	967.6	815.4	895.1	901.7	781.8	847.1
80_8	1 151.5	978.2	1 072.0	1 167.6	1 037.7	1 120.2	1 094.3	931.4	987.1
100_8	1 392.5	1 141.0	1 243.3	1 454.4	1 179.6	1 314.5	1 250.2	1 091.0	1 159.2
120_8	1 500.7	1 296.6	1 382.5	1 442.3	1 270.1	1 359.2	1 348.9	1 168.5	1 243.3
140_8	1 646.0	1 405.0	1 527.4	1 696.6	1 479.4	1 582.1	1 517.7	1 279.6	1 404.0
160_8	1 766.9	1 537.9	1 688.9	1 824.3	1 637.3	1 744.5	1 661.7	1 452.9	1 544.4
100_10	1 394.6	1 112.6	1 260.3	1 377.5	1 107.0	1 269.9	1 293.0	1 080.8	1 186.6
120_10	1 455.3	1 228.7	1 369.4	1 506.1	1 252.9	1 369.5	1 373.6	1 181.0	1 264.3
140_10	1 733.4	1 394.1	1 561.4	1 732.2	1 448.7	1 525.8	1 549.4	1 265.3	1 392.6
160_10	1 751.3	1 481.1	1 651.4	1 792.6	1 537.1	1 670.1	1 667.8	1 368.1	1 494.8
180_10	2 027.6	1 616.6	1 781.4	1 974.7	1 777.8	1 869.6	1 666.6	1 409.1	1 568.4
200_10	2 304.1	1 900.3	2 179.3	2 096.1	1 818.4	1 976.9	1 945.0	1 598.5	1 779.3

表7

图8

图9

图10

图11
