Research on System-of-systems Confrontation Simulation Method Based on Operation Loops

doi:10.16182/j.issn1004731x.joss.23-0592

Abstract

Abstract:

In the field of modeling and analyzing capabilities for operation system-of-systems (SoS), traditional structured capability assessment models lack the analysis of the interaction between both rivals and armies in different roles. The system model based on operation loop theory can be combined with the relationship between sensor, decision-making, influence, and target nodes for system capability calculation, but the existing model is usually only suitable for static analysis and cannot be used for dynamic simulation of SoS confrontation. In order to solve the problems above, a SoS confrontation simulation method based on operation loops is proposed. It abstracts both rivals’ SoS as confrontation network model, develops combat strategies, extracts executing operation loops from strategy steps and generates an edge execution sequence by decomposition and scheduling algorithm. After the execution of edge sequence with the concept of self-information, the combat efficacy and strike effectiveness of operation loops can be figured out to promote the evolution of the SoS. The benefits can be solved by combining the revenue function selected by strategic or campaign purpose, and combat result and losses of both rivals can be summarized. The simulation results prove that the method can simulate the combat process and derive the confrontation results relying on strategies and operation SoS. It’s proved to be effective and feasible for operation SoS confrontation’s simulation.

Key words: system-of-systems confrontation, operation loop, execution sequence of combat edges, operation strategy, self-information quantity

CLC Number:

TP319

Zhong Shan, Zhu Yesheng, Zhou Menglu. Research on System-of-systems Confrontation Simulation Method Based on Operation Loops[J]. Journal of System Simulation, 2024, 36(9): 2219-2230.

Figures/Tables 15

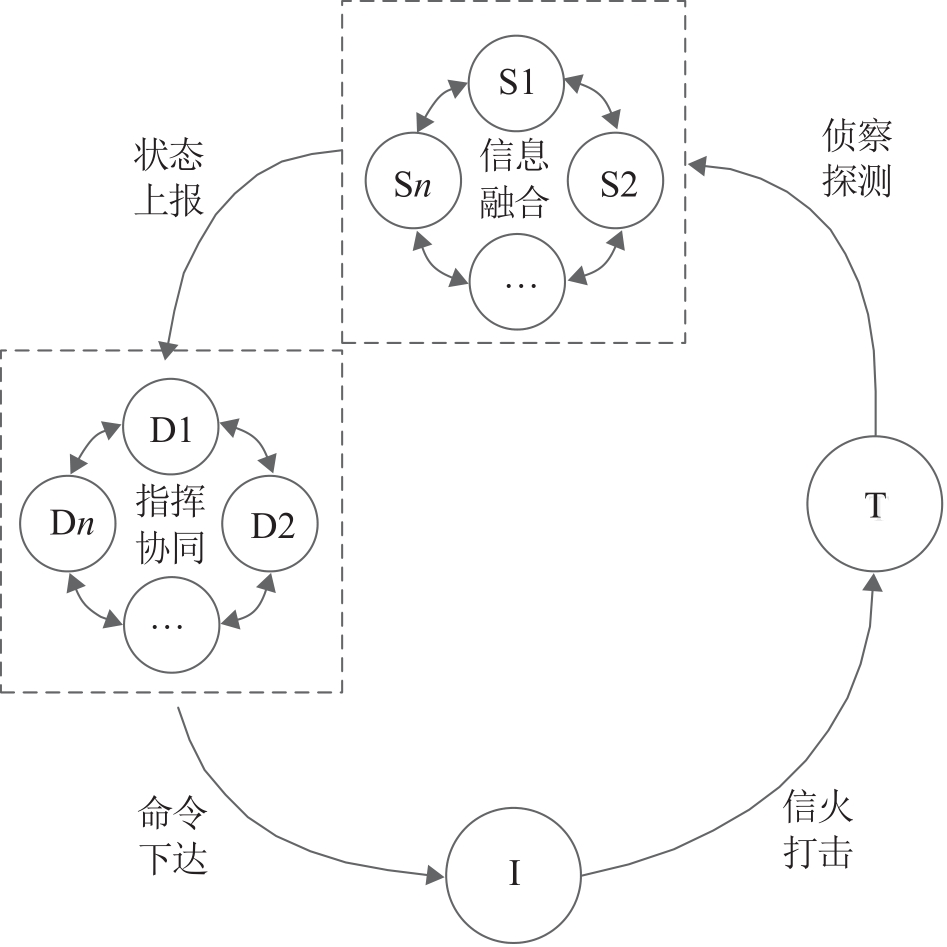

Fig. 1

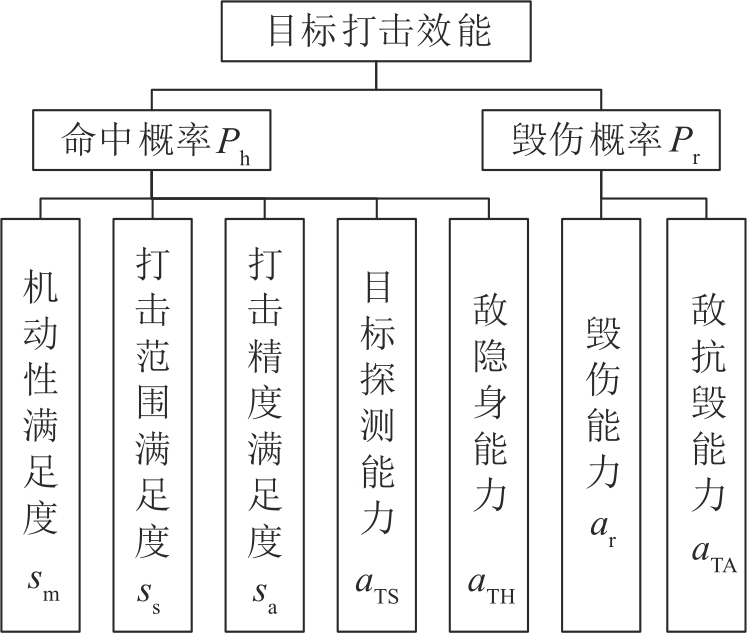

Fig. 2

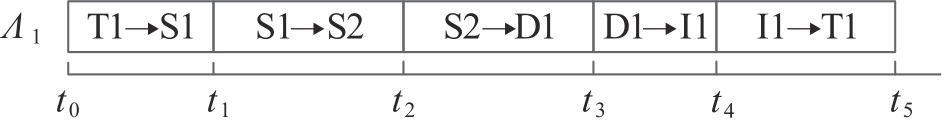

Fig. 3

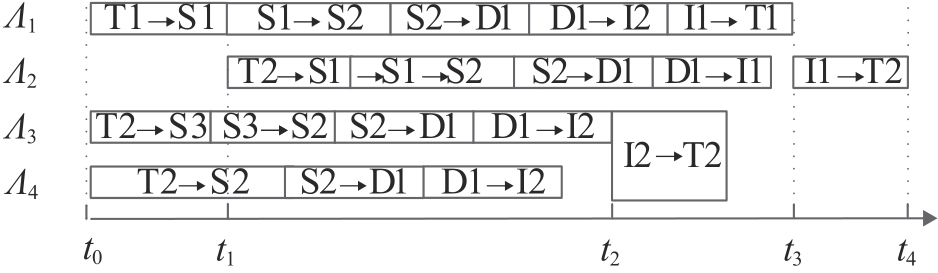

Fig. 4

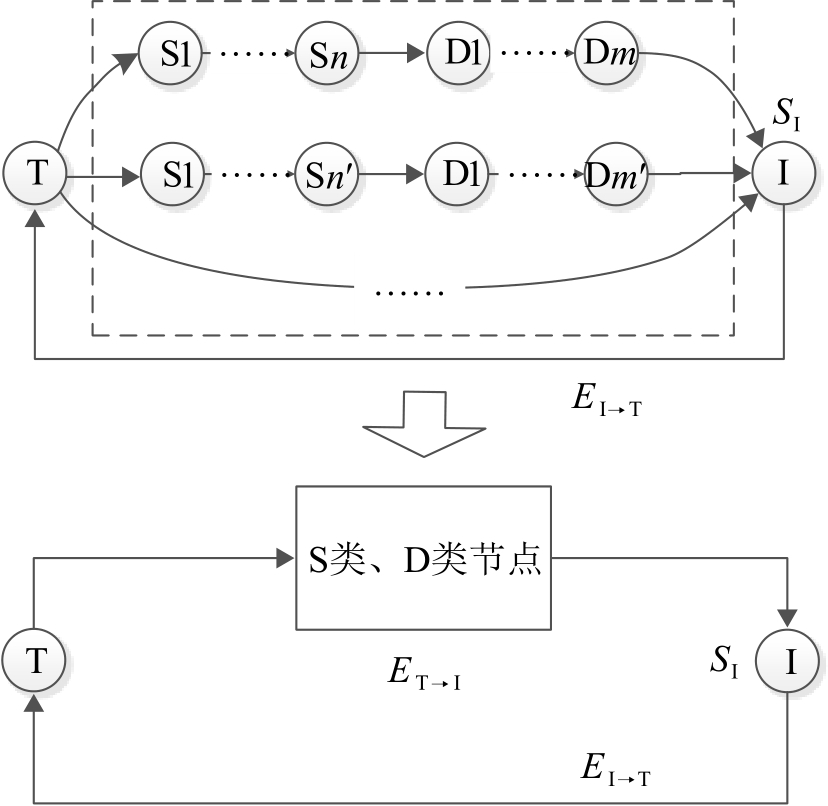

Fig. 5

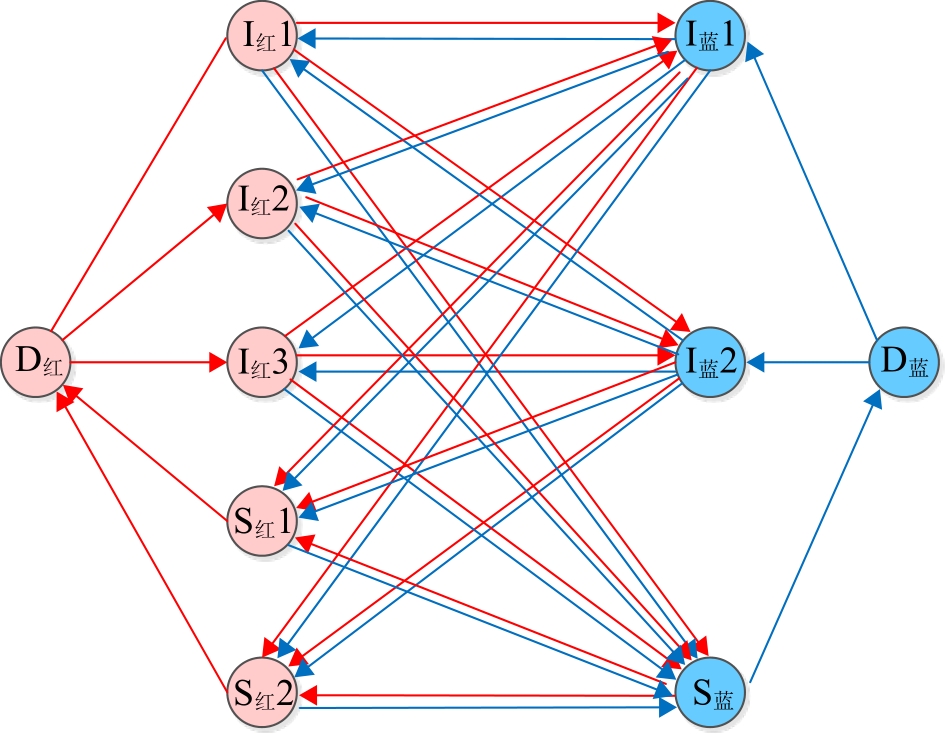

Fig. 6

Table 1

Table 2

Table 3

Strategy set of red

策略	策略描述	目标	投入力量
$π 红 1$	集中攻击S	S_蓝1	D_红1、S_红1、S_红2、I_红1、I_红2、I_红3
		I_蓝1	D_红1、S_红1、S_红2、I_红1、I_红2、I_红3
		I_蓝2	D_红1、S_红1、S_红2、I_红1、I_红2、I_红3
$π 红 2$	集中攻击I	I_蓝1	D_红1、S_红1、S_红2、I_红1、I_红2、I_红3
		I_蓝2	D_红1、S_红1、S_红2、I_红1、I_红2、I_红3
		S_蓝1	D_红1、S_红1、S_红2、I_红1、I_红2、I_红3
$π 红 3$	分兵攻击I(I_红3一组)	I_蓝1	D_红1、S_红1、I_红1、I_红2
		I_蓝2	D_红1、S_红2、I_红3
		S_蓝1	D_红1、S_红1、S_红2、I_红1、I_红2、I_红3
$π 红 4$	分兵攻击I (I_红2一组)	I_蓝1	D_红1、S_红1、I_红1、I_红3
		I_蓝2	D_红1、S_红2、I_红2
		S_蓝1	D_红1、S_红1、S_红2、I_红1、I_红2、I_红3
$π 红 5$	分兵攻击I(I_红1一组)	I_蓝1	D_红1、S_红1、I_红2、I_红3
		I_蓝2	D_红1、S_红2、I_红1
		S_蓝1	D_红1、S_红1、S_红2、I_红1、I_红2、I_红3

Table 3

Table 4

Strategy set of blue

策略	策略描述	目标	投入力量
$π 蓝 1$	集中攻击I	I_红1	D_蓝1、S_蓝1、I_蓝1、I_蓝2
		I_红2	D_蓝1、S_蓝1、I_蓝1、I_蓝2
		I_红3	D_蓝1、S_蓝1、I_蓝1、I_蓝2
		S_红1	D_蓝1、S_蓝1、I_蓝1、I_蓝2
		S_红2	D_蓝1、S_蓝1、I_蓝1、I_蓝2
$π 蓝 2$	分兵攻击I	I_红1	D_蓝1、S_蓝1、I_蓝1
		I_红2	D_蓝1、S_蓝1、I_蓝2
		I_红3	D_蓝1、S_蓝1、I_蓝1、I_蓝2
		S_红1	D_蓝1、S_蓝1、I_蓝1、I_蓝2
		S_红2	D_蓝1、S_蓝1、I_蓝1、I_蓝2
$π 蓝 3$	集中攻击S	S_红1	D_蓝1、S_蓝1、I_蓝1、I_蓝2
		I_红1	D_蓝1、S_蓝1、I_蓝1、I_蓝2
		I_红2	D_蓝1、S_蓝1、I_蓝1、I_蓝2
		I_红3	D_蓝1、S_蓝1、I_蓝1、I_蓝2
		S_红2	D_蓝1、S_蓝1、I_蓝1、I_蓝2
$π 蓝 4$	分兵攻击S	S_红1	D_蓝1、S_蓝1、I_蓝1
		I_红1	D_蓝1、S_蓝1、I_蓝2
		I_红2	D_蓝1、S_蓝1、I_蓝1、I_蓝2
		I_红3	D_蓝1、S_蓝1、I_蓝1、I_蓝2
		S_红2	D_蓝1、S_蓝1、I_蓝1、I_蓝2

Table 4

Table 5

Earning matrix of red

	$π 蓝 1$	$π 蓝 2$	$π 蓝 3$	$π 蓝 4$
$π 红 1$	–3.96	–3.96	2.00	2.70
$π 红 2$	0.28	–1.12	3.00	3.00
$π 红 3$	–0.17	–0.17	1.63	1.82
$π 红 4$	0.04	0.04	1.78	1.95
$π 红 5$	0.25	0.25	1.92	2.08

Table 5

Table 6

Table 7

Table 8

Table 9

References 19

1	刘德胜, 马宝林, 葛亚维. 作战体系建模方法与应用[J]. 指挥控制与仿真, 2020, 42(5): 1-6.
	Liu Desheng, Ma Baolin, Ge Yawei. Modeling Method and Application of Combat System of Systems[J]. Command Control & Simulation, 2020, 42(5): 1-6.
2	程贲, 谭跃进, 黄魏, 等. 基于能力需求视角的武器装备体系评估[J]. 系统工程与电子技术, 2011, 33(2): 320-323.
	Cheng Ben, Tan Yuejin, Huang Wei, et al. Weapon System-of-systems Evaluation Based on Capability Requirement Perspective[J]. Systems Engineering and Electronics, 2011, 33(2): 320-323.
3	孙云柯. 不确定信息下武器装备体系能-效综合评估技术研究[D]. 南京: 南京航空航天大学, 2021.
	Sun Yunke. Research on Comprehensive Evaluation Technology of Capability and Effectiveness for Weapon Equipment System-of-systems Under Uncertain Information[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2021.
4	李旋. 基于OODA环的作战网络评估与优化研究[D]. 武汉: 华中科技大学, 2021.
	Li Xuan. Research on Evaluation and Optimization of Combat Network Based on OODA Loop[D]. Wuhan: Huazhong University of Science and Technology, 2021.
5	王涛, 汪刘应, 常雷雷, 等. 基于作战环的导弹作战体系效能动态评估[J]. 现代防御技术, 2019, 47(3): 42-49.
	Wang Tao, Wang Liuying, Chang Leilei, et al. Dynamic Evaluation of Missile Combat System Effectiveness Based on Operation Loop[J]. Modern Defence Technology, 2019, 47(3): 42-49.
6	罗凯, 张明智, 吴曦. 基于作战环的空间信息时效网关键节点分析模型[J]. 系统工程与电子技术, 2016, 38(7): 1572-1576.
	Luo Kai, Zhang Mingzhi, Wu Xi. Key Nodes Analysis Model for Space Information Temporal Network Based on Operation Loop[J]. Systems Engineering and Electronics, 2016, 38(7): 1572-1576.
7	Han Qi, Pang Bo, Li Sen, et al. Evaluation Method and Optimization Strategies of Resilience for Air & Space Defense System of Systems Based on Kill Network Theory and Improved Self-information Quantity[J]. Defence Technology, 2023, 21: 219-239.
8	孙利娜, 梁葆华, 陈志伟. 综合节点重要性及攻击代价的作战网络抗毁性分析[J]. 火力与指挥控制, 2022, 47(10): 119-124.
	Sun Lina, Liang Baohua, Chen Zhiwei. Combat Network Invulnerability Analysis Considering Node Importance and Attack Cost[J]. Fire Control & Command Control, 2022, 47(10): 119-124.
9	雷梓烽. 基于OODA环的作战体系对抗博弈建模研究[D]. 武汉: 华中科技大学, 2020.
	Lei Zifeng. Research on Operation System-of-systems Combat Game Model Based on OODA Loop[D]. Wuhan: Huazhong University of Science and Technology, 2020.
10	方冰, 张翠侠, 戴昕林, 等. 基于OODA环的网络信息体系信息架构贡献度评估[J]. 指挥信息系统与技术, 2022, 13(4): 52-57.
	Fang Bing, Zhang Cuixia, Dai Xinlin, et al. Information Architecture Contribution Evaluation for Networking Information-centric SoS Based on OODA Loop[J]. Command Information System and Technology, 2022, 13(4): 52-57.
11	商慧琳. 武器装备体系作战网络建模及能力评估方法研究[D]. 长沙: 国防科学技术大学, 2013.
	Shang Huilin. Research on Armament System-of-systems Operation Network Modeling and Capability Evaluation Methods[D]. Changsha: National University of Defense Technology, 2013.
12	陈红彬, 钱林方, 赵立宏, 等. 多用途中口径火炮火力综合打击效能评估[J]. 南京理工大学学报, 2013, 37(1): 182-186.
	Chen Hongbin, Qian Linfang, Zhao Lihong, et al. Firepower Integrated Strike Effectiveness Evaluation for Multi-role Medium Caliber Gun[J]. Journal of Nanjing University of Science and Technology, 2013, 37(1): 182-186.
13	王波, 于升涛, 孙凯华. 舰载无人机对海突击作战效能评估研究[J]. 无人系统技术, 2023, 6(1): 72-81.
	Wang Bo, Yu Shengtao, Sun Kaihua. Research on the Effectiveness Evaluation of Shipborne UAV in Sea Assault Operations[J]. Unmanned Systems Technology, 2023, 6(1): 72-81.
14	吴超, 徐宏飞. 潜艇打击水面舰艇的作战方案效能评估ADC法[J]. 火力与指挥控制, 2005, 30(2): 75-77, 80.
	Wu Chao, Xu Hongfei. Effectiveness Evaluation Method of QADC for Operational Project of Which Submarine Attack Naval Ship[J]. Fire Control & Command Control, 2005, 30(2): 75-77, 80.
15	陈军, 高晓光, 丁琳. 时敏打击系统作战效能评估与效费分析[J]. 系统仿真学报, 2007, 19(17): 4042-4044, 4060.
	Chen Jun, Gao Xiaoguang, Ding Lin. Operational Effectiveness Evaluation and Cost-effectiveness Analysis of System for Destroying Time-sensitive Target[J]. Journal of System Simulation, 2007, 19(17): 4042-4044, 4060.
16	王剑钦, 张伟华, 马润年. 基于指数标度和灰色理论的空军通信能力评估模型[J]. 空军工程大学学报(自然科学版), 2009, 10(5): 64-69.
	Wang Jianqin, Zhang Weihua, Ma Runnian. Evaluation Model of Air Force Communication Capability Based on Index Scale and Grey Theory[J]. Journal of Air Force Engineering University(Natural Science Edition), 2009, 10(5): 64-69.
17	许贵君, 王晖, 赵凯. 基于仿真的装备保障指挥效能评估方法研究[J]. 计算机仿真, 2017, 34(11): 1-6.
	Xu Guijun, Wang Hui, Zhao Kai. Effectiveness Evaluation Method Based on Simulation for Equipment Support Command[J]. Computer Simulation, 2017, 34(11): 1-6.
18	罗承昆, 陈云翔, 胡旭, 等. 基于作战环和自信息量的装备体系贡献率评估方法[J]. 上海交通大学学报, 2019, 53(6): 741-748.
	Luo Chengkun, Chen Yunxiang, Hu Xu, et al. Evaluation Method of Equipment's Contribution Rate to System-of-systems Based on Operation Loop and Self-information Quantity[J]. Journal of Shanghai Jiao Tong University, 2019, 53(6): 741-748.
19	孟令辉, 孙宝琛, 迭旭鹏, 等. 基于兰彻斯特方程的进攻战斗作战方案动态调整方法研究[J]. 指挥控制与仿真, 2020, 42(5): 97-100.
	Meng Linghui, Sun Baochen, Xupeng Die, et al. Dynamic Adjustment Method of Attacking Battle Plan Based on Lanchester's Equation[J]. Command Control & Simulation, 2020, 42(5): 97-100.

所属类型	关联指标	作战边
信息处理	通信传输速率误码率、时延信息处理分析能力满足度	D_红➝I_红
		S_红➝D_红

目标打击	命中概率毁伤概率	I_红➝I_蓝
目标打击	命中概率毁伤概率	I_红➝S_蓝
目标侦察	最大探测距离巡航时间、气象影响	I_蓝➝S_红
目标侦察	最大探测距离巡航时间、气象影响	S_蓝➝S_红

类型	红方			蓝方
类型	作战边	E^L	T^L /min	作战边	E^L	T^L /min
D➝I	D_红1➝I_红1	1.0	60	D_蓝1➝I_蓝1	1.0	60
	D_红1➝I_红2	1.0	60	D_蓝1➝I_蓝2	1.0	60
	D_红1➝I_红3	1.0	60
S➝D	S_红1➝D_红1	1.0	60	S_蓝1➝D_蓝1	1.0	60
S➝D	S_红2➝D_红1	1.0	60
I➝T	I_红1➝I_蓝1	0.7	100	I_蓝1➝I_红1	0.9	100
	I_红1➝I_蓝2	0.7	100	I_蓝1➝I_红2	0.9	100
	I_红1➝S_蓝	0.4	160	I_蓝1➝I_红3	0.9	100
	I_红2➝I_蓝1	0.6	100	I_蓝1➝S_红1	0.5	160
	I_红2➝I_蓝2	0.6	100	I_蓝1➝S_红2	0.5	160
	I_红2➝S_蓝1	0.4	160	I_蓝2➝I_红1	0.9	100
	I_红3➝I_蓝1	0.5	100	I_蓝2➝I_红2	0.9	100
	I_红3➝I_蓝2	0.5	100	I_蓝2➝I_红3	0.9	100
	I_红3➝S_蓝	0.4	160	I_蓝2➝S_红1	0.5	160
				I_蓝2➝S_红2	0.5	160
T➝S	I_蓝1➝S_红1	0.7	80	I_红1➝S_蓝1	0.9	80
	I_蓝2➝S_红1	0.7	80	I_红2➝S_蓝1	0.9	80
	S_蓝1➝S_红1	0.5	140	I_红3➝S_蓝1	0.9	80
	I_蓝1➝S_红2	0.7	80	S_红1➝S_蓝1	0.6	140
	I_蓝2➝S_红2	0.7	80	S_红2➝S_蓝1	0.6	140
	S_蓝1➝S_红2	0.5	140

时刻	S_红	S_蓝
收益	–3.96	3.96
300	I_红1：1➝0	―
400	I_红2：1➝0	―
420	―	S_蓝1：1➝0.72
500	I_红3：1➝0	―
660	S_红1：1➝0.38	―
820	S_红2：1➝0.38	―

时刻	π_红2–π_蓝1		π_红2–π_蓝2
时刻	S_红	S_蓝	S_红	S_蓝
收益	0.28	–0.28	–1.12	1.12
300	I_红1:1➝0	I_蓝1:1➝0	I_红1:1➝0	I_蓝1:1➝0
380	―	―	I_红2:1➝0	―
400	I_红2：1➝0	I_蓝2:1➝0	―	I_蓝2:1➝0.58
480	―	―	I_红3:1➝0.53	―
580	―	S_蓝1:1➝0.72	―	S_蓝1:1➝0.79
660	―	―	S_红1:1➝0.86	―
960	―	―	S_红2:1➝0.86	―

时刻	π_红3–π_蓝1		π_红3–π_蓝2
时刻	S_红	S_蓝	S_红	S_蓝
收益	–0.17	0.17	–0.17	0.17
300	I_红1:1➝0	I_蓝1, I_蓝2: 1➝0, 1➝0.65	I_红1:1➝0	I_蓝1, I_蓝2: 1➝0, 1➝0.65
380	―	―	I_红2:1➝0.47	―
400	I_红2:1➝0.47	―	―	―
560	I_红3:1➝0.47	S_蓝1:1➝0.34	I_红3:1➝0.47	S_蓝1:1➝0.34
820	S_红1:1➝0.93	―	S_红1:1➝0.93	―
1020	S_红2: 1➝0.93	―	S_红2: 1➝0.93	―
