Bi-Level Optimization of Distribution Network for Hybrid Energy Storage System of Storage Battery and Hydrogen Storage

doi:10.16182/j.issn1004731x.joss.22-0139

Abstract

Abstract:

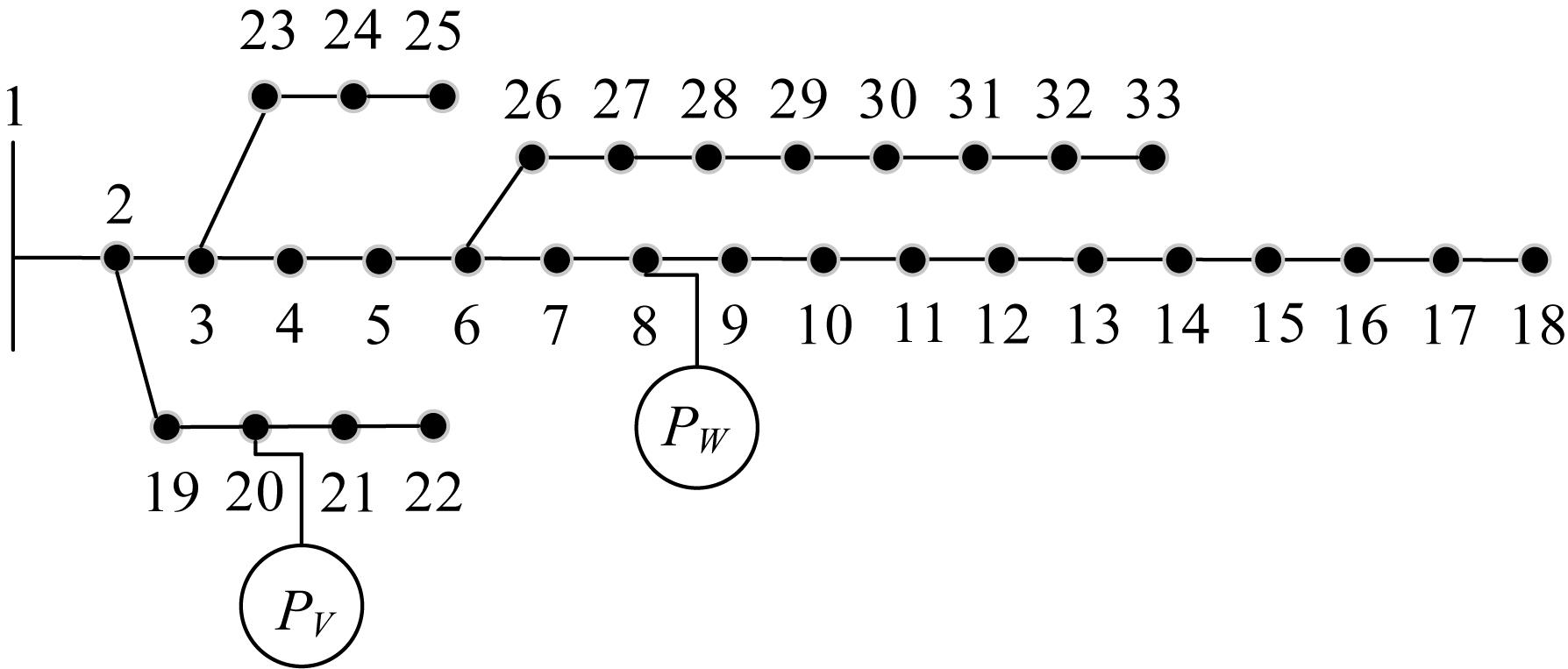

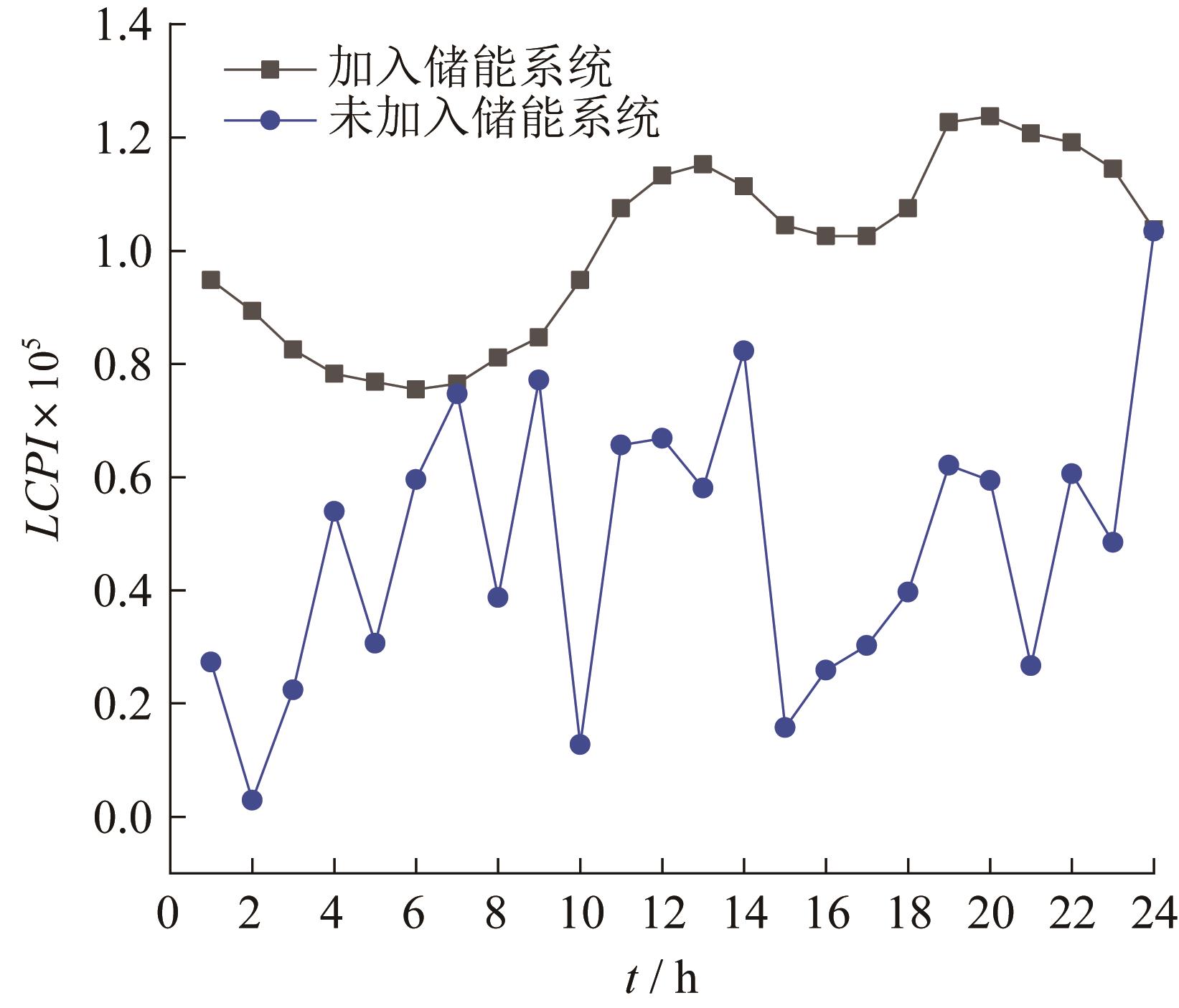

Under the background of carbon neutralization and emission peaking goals and the utilization of clean hydrogen energy, aiming at the demand of distribution network configuring electrochemical energy storage and hydrogen energy storage system to form a hybrid energy storage system to improve power quality, a bi-level optimization model of the hybrid energy storage system is established. The upper level location and capacity model comprehensively considers the investment cost, network loss cost and voltage offset, while the lower level optimization operation model considers the operation cost of hybrid energy storage system, and the voltage stability index is introduced for evaluation. In the solution process, the dimension of the feasible region of location is reduced by sensitivity analysis, and an improved niche multi-objective particle swarm optimization algorithm is proposed, which combines the niche processing mechanism with external file selection technology and chaotic mutation technology. Using the IEEE33 node system connected to new energy to conduct numerical example simulation, the results show that the optimal configuration of hybrid energy storage system capacity and access points can improve the economy of the system, reduce the active power loss of the whole network, reduce the voltage offset and improve the voltage stability.

Key words: hybrid energy storage, bi-level optimization, multi-objective particle swarm optimization algorithm, niche mirror technology, sensitivity test

CLC Number:

TP391.9

Feibo Feng, Xingde Yan, Baoqiang Zheng, Xiaofeng Yin, Mengzhen Zhou, Xin Jiang. Bi-Level Optimization of Distribution Network for Hybrid Energy Storage System of Storage Battery and Hydrogen Storage[J]. Journal of System Simulation, 2022, 34(7): 1405-1416.

Figures/Tables 11

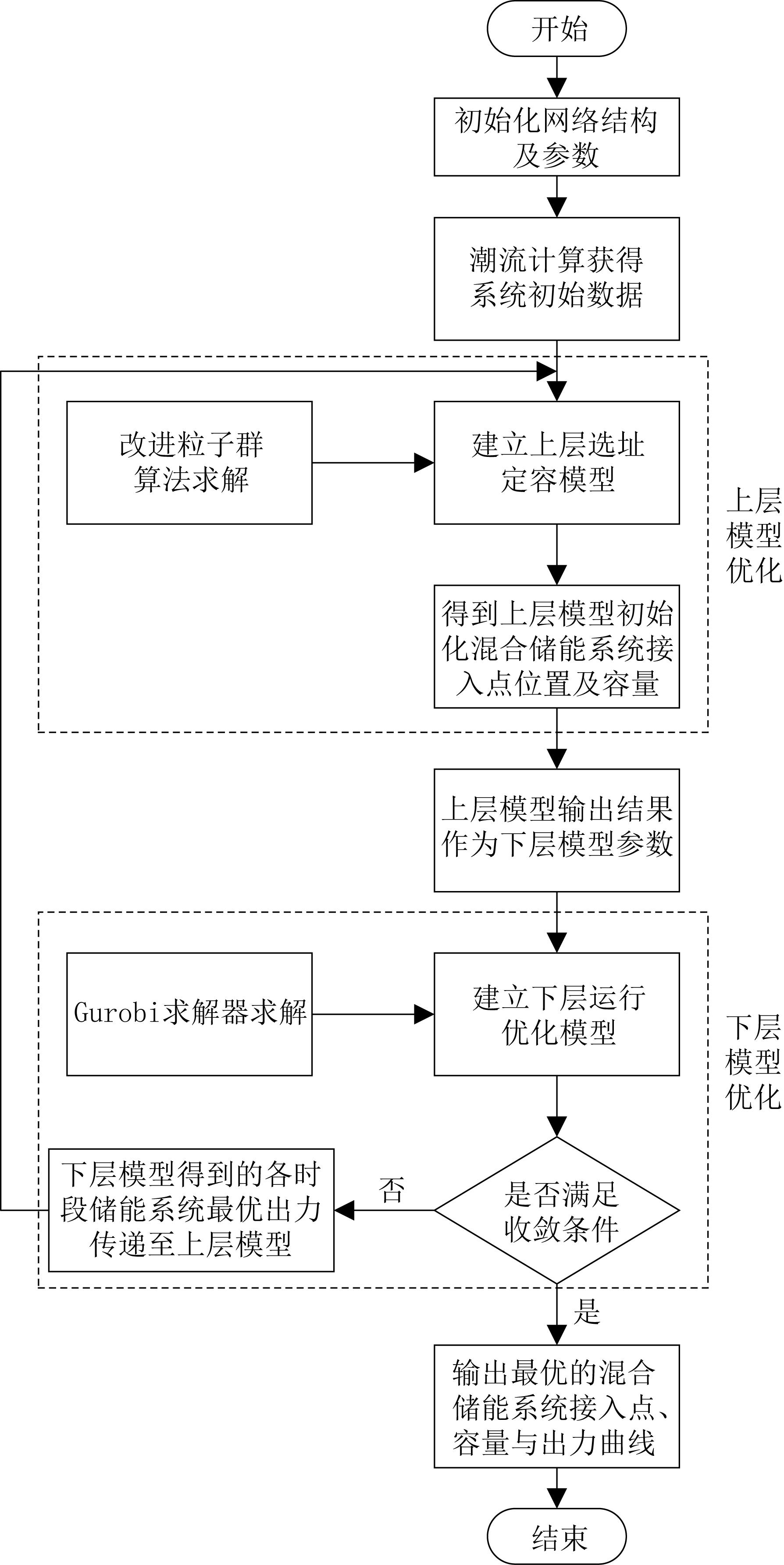

Fig. 1

Fig. 2

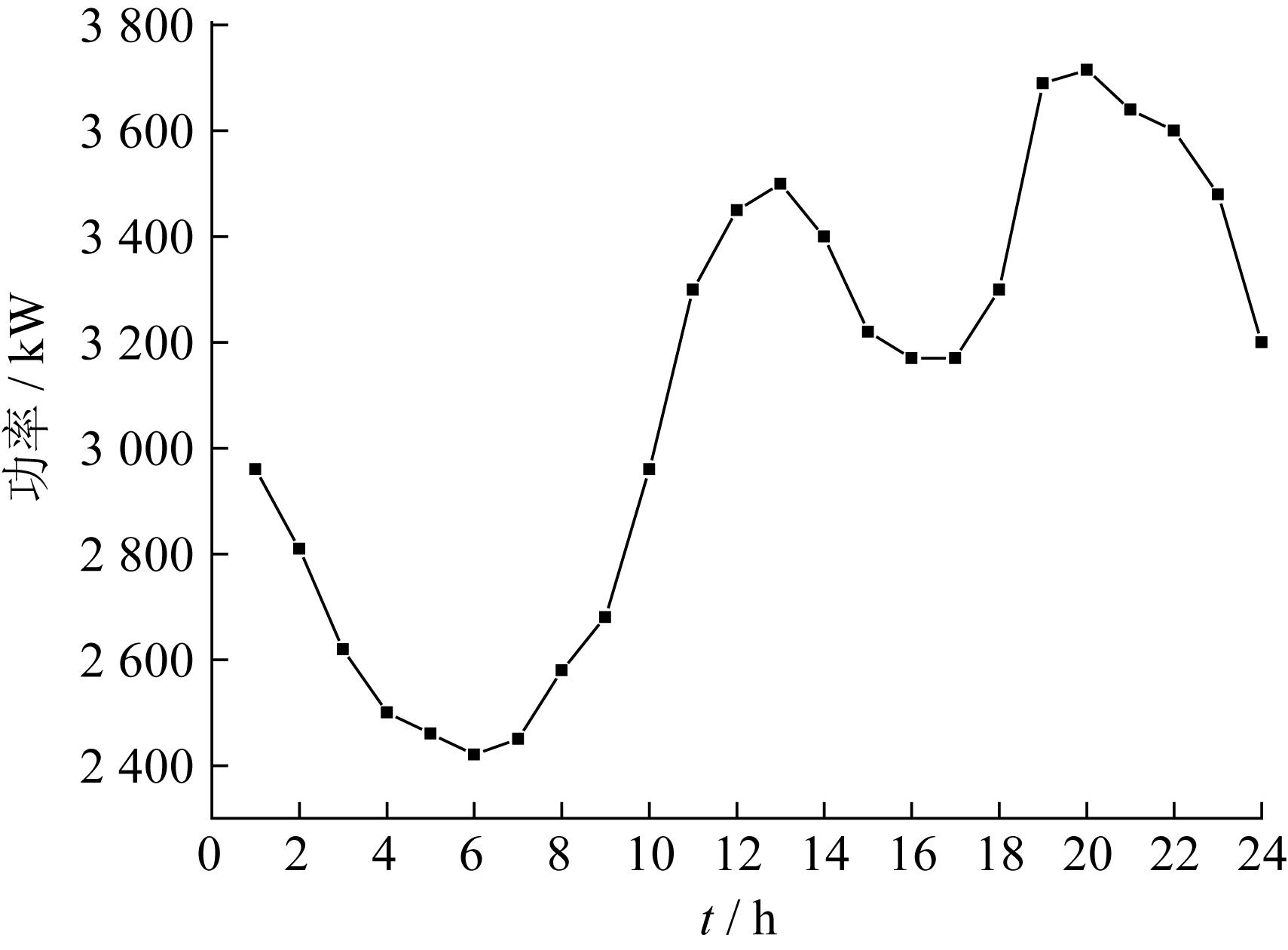

Fig. 3

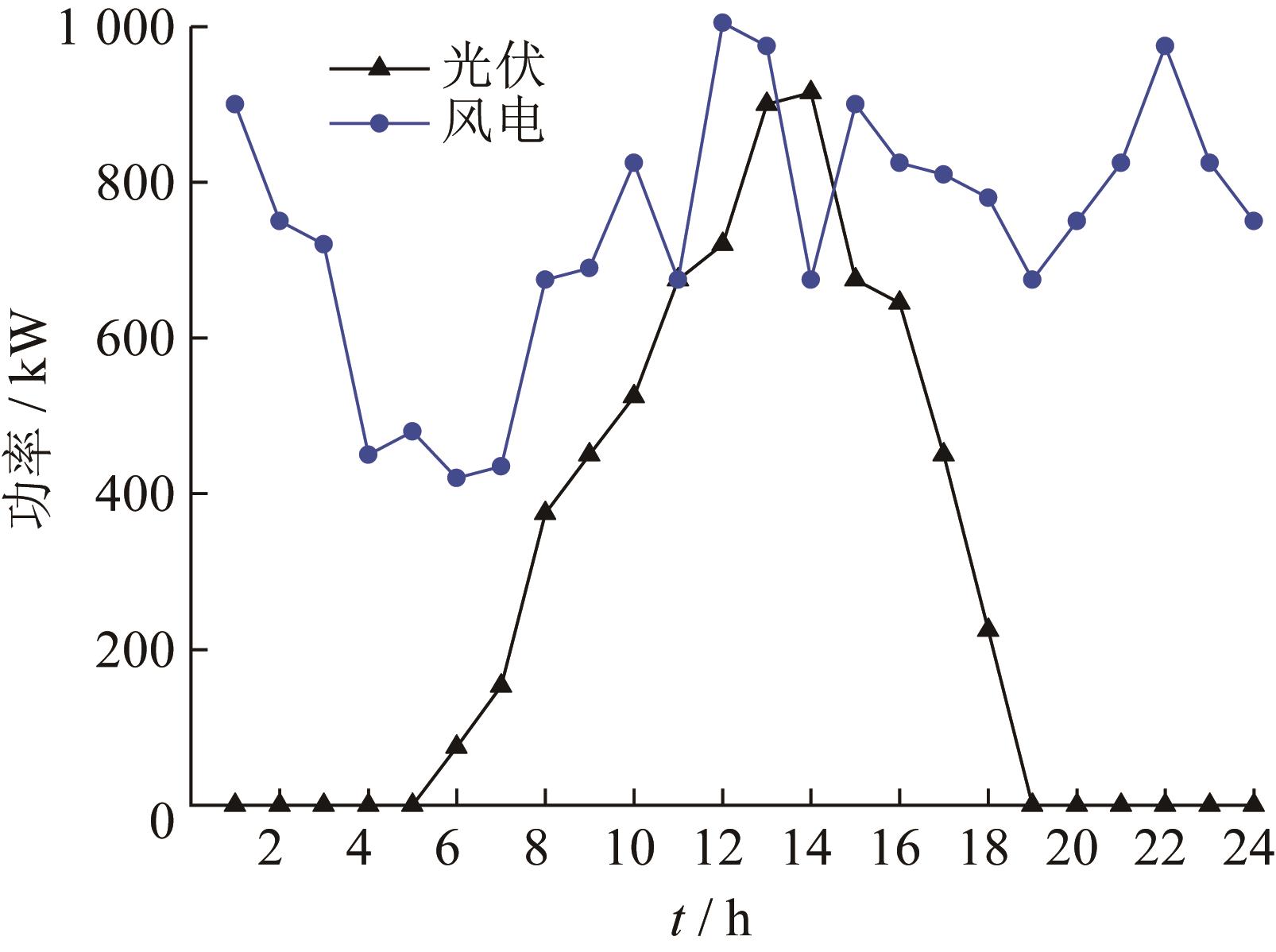

Fig. 4

Table 1

Basic parameters of energy storage equipment

储能类型	参数	数值
蓄电池	储能寿命/a	2
	充放电效率/%	85
	单位功率成本/(元/kW)	80
	单位容量成本/(元/kWh)	100
	单位功率运维费用/(元/kW)	0.2
	单位容量运维费用/(元/kWh)	0.2
氢储能	储能寿命/a	10
	电解槽制氢效率/%	80
	燃料电池转换效率/%	70
	电解槽单位功率成本/(元/kW)	250
	燃料电池单位功率成本/(元/kW)	600
	储氢罐单位体积成本/(元/ $m 3$ )	400
	电解槽单位功率运维费用/(元/kW)	0.3
	燃料电池单位功率运维费用/(元/kW)	0.3
	储氢罐单位体积运维费用/(元/ $m 3$ )	0.1

Table 1

Fig. 5

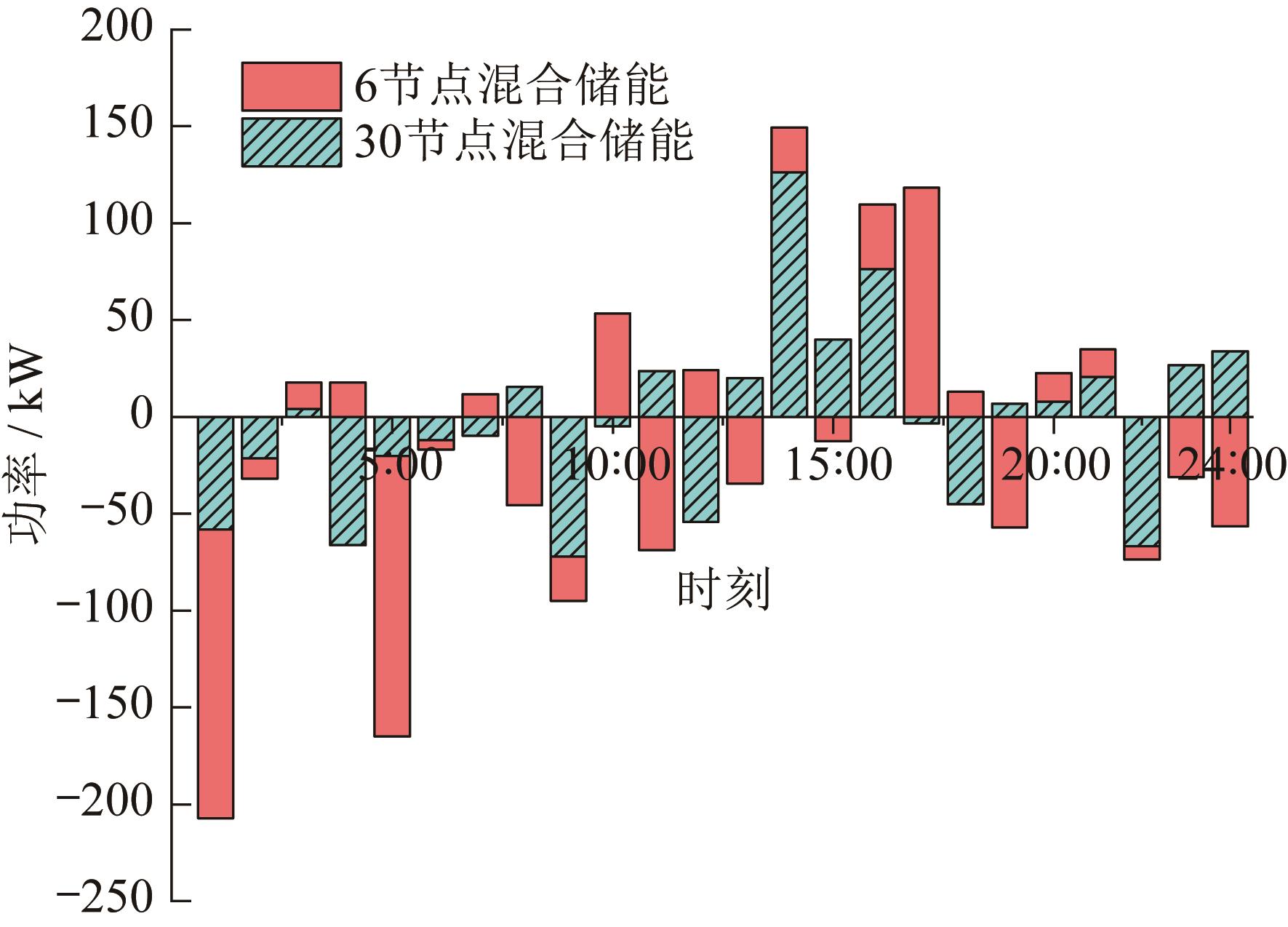

Fig. 6

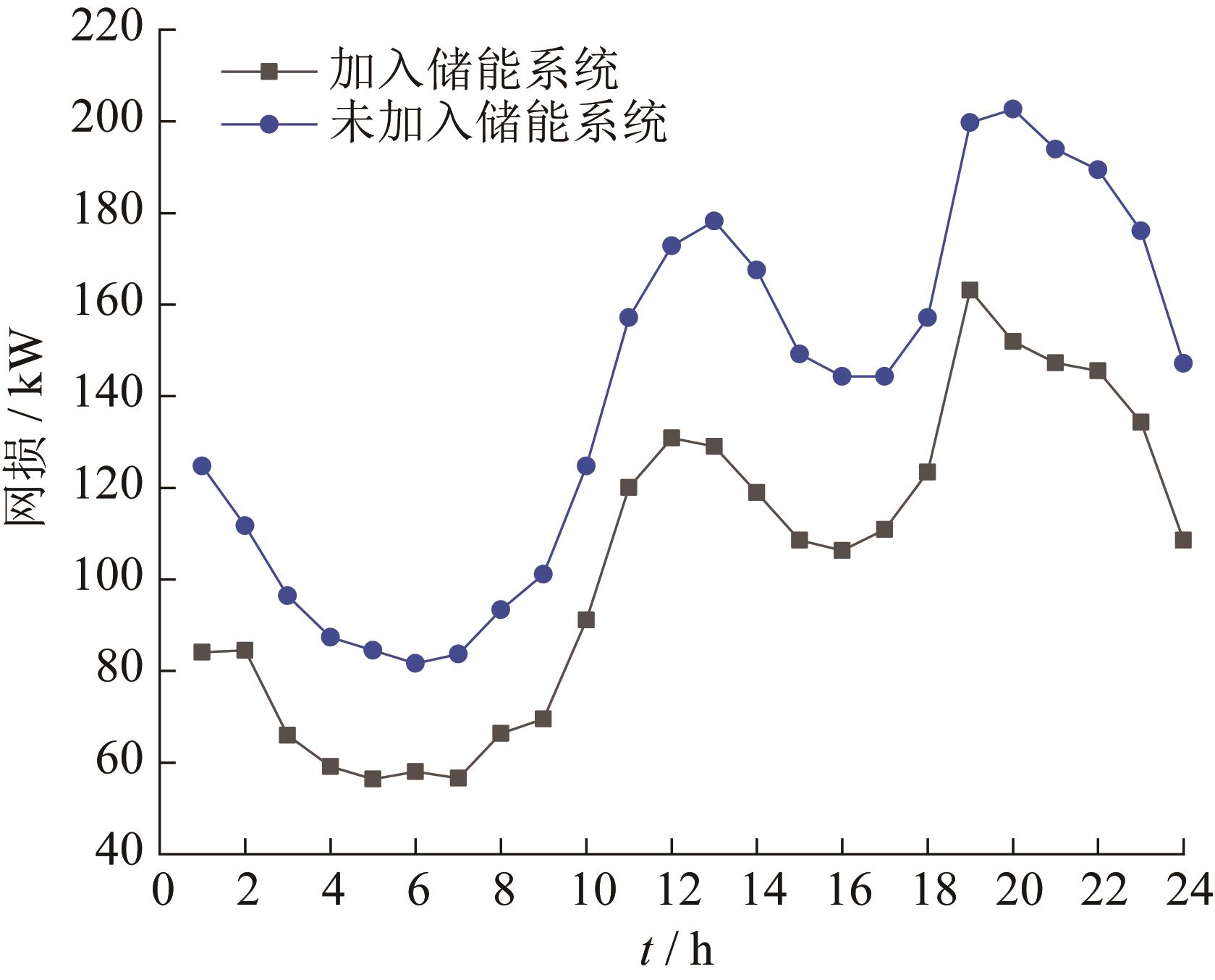

Fig. 7

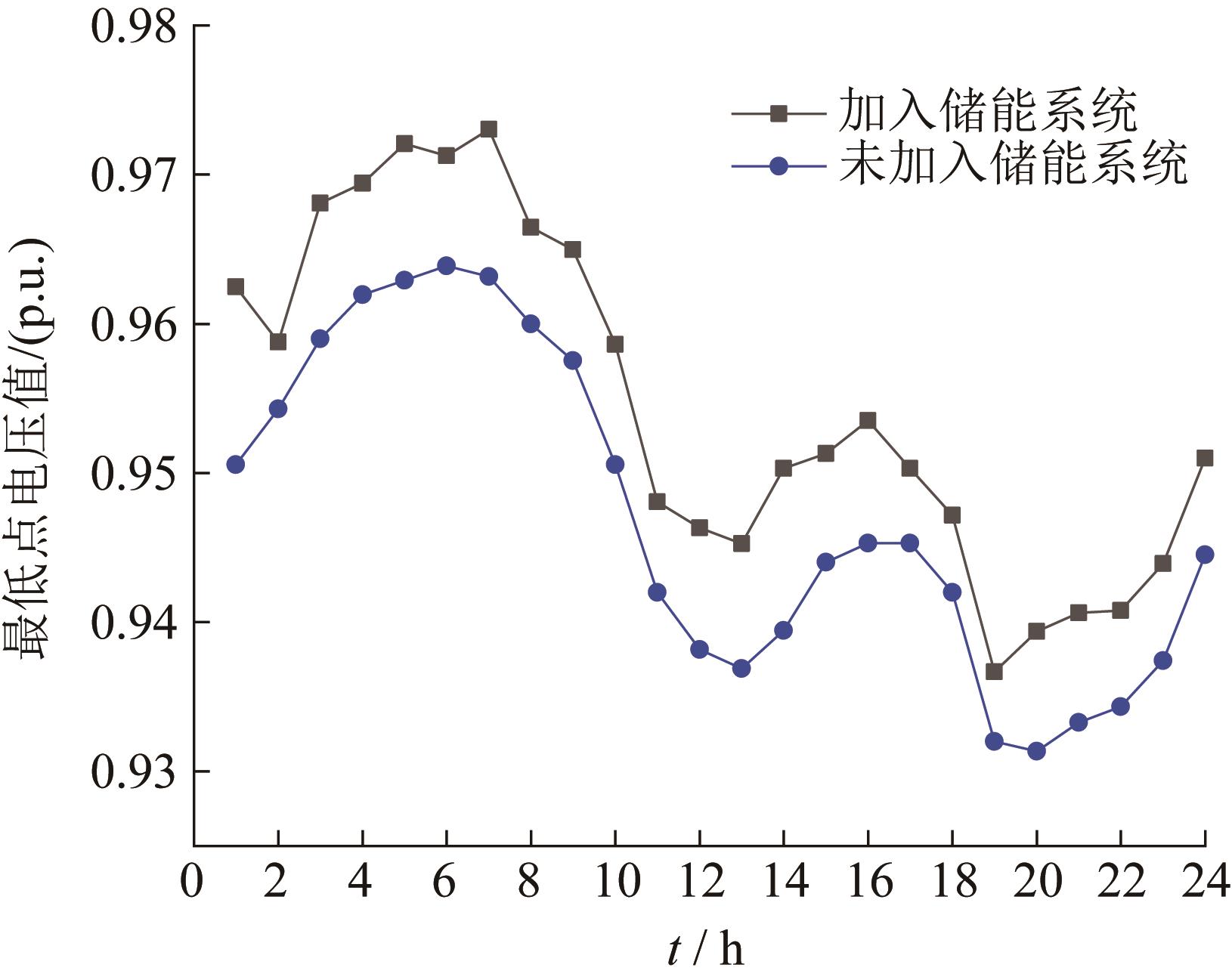

Fig. 8

Fig. 9

Table 2

References 20

1	LIU Y, ZHENG R, CHEN S, et al. The Economy of Wind-Integrated-Energy-Storage Projects in China's Upcoming Power Market: a Real Options Approach[J]. Resources Policy (S0301-4207), 2019, 63: 1-10.
2	康重庆, 姚良忠. 高比例可再生能源电力系统的关键科学问题与理论研究框架[J]. 电力系统自动化, 2017,41(9): 2-11.
	Kang Chongqing, Yao Liangzhong. Key Scientific Issues and Theoretical Research Framework for Power Systems with High Proportion of Renewable Energy[J]. Automation of Electric Power Systems, 2017, 41(9): 2-11.
3	刘金朋, 侯焘. 氢储能技术及其电力行业应用研究综述及展望[J]. 电力与能源, 2020, 41(2): 230-233, 247.
	Liu Jinpeng, Hou Tao. Review and Prospect of Hydrogen Energy Storage Technology and Its Application in Power Industry[J]. Power & Energy, 2020, 41(2): 230-233, 247.
4	Tao Y., Qiu J., Lai S., et al. Integrated Electricity and Hydrogen Energy Sharing in Coupled Energy Systems[J]. IEEE Transactions on Smart Grid (S1949-3061), 2021, 12(2): 1149-1162.
5	刘畅, 卓建坤, 赵东明, 等. 利用储能系统实现可再生能源微电网灵活安全运行的研究综述[J]. 中国电机工程学报, 2020, 40(1): 1-18, 369.
	Liu Chang, Zhuo Jiankun, Zhao Dongming, et al. A Review on the Utilization of Energy Storage System for the Flexible and Safe Operation of Renewable Energy Microgrids[J]. CSEE, 2020, 40(1): 1-18, 369.
6	李瑞民, 张新敬, 徐玉杰, 等. 风光互补系统中混合储能容量优化配置研究[J]. 储能科学与技术, 2019, 8(3): 512-522.
	Li Ruimin, Zhang Xinjing, Xu Yujie, et al. Research on Optimal Configuration of Hybrid Energy Storage Capacity for Wind-Solar Generation System[J]. Energy Storage Science and Technology, 2019, 8(3): 512-522.
7	鲁鹏, 田浩, 武伟鸣, 等. 需求侧能量枢纽和储能协同提升风电消纳和平抑负荷峰谷模型[J]. 电力科学与技术学报, 2021, 36(1): 42-51.
	Lu Peng, Tian Hao, Wu Weiming, et al. Demand Side Energy Storage Cooperate to Smooth Peak and Valley and Improve Wind Power Consumption Model[J]. Journal of Electric Power Science and Technology, 2021, 36(1): 42-51.
8	姚海涛. 含氢储的混合储能在风光互补发电系统中容量优化研究[J]. 电气开关, 2020, 58(6): 18-22.
	Yao Haitao. Research on Capacity Optimization of Hybrid Energy Storage with Hydrogen Storage in a Wind-solar Hybrid Power System[J]. Electric Switchgear, 2020, 58(6): 18-22.
9	张峰, 张熙, 张利, 等. 区域风电场群储能电站的优化配置及运行策略[J]. 电工技术学报, 2016, 31(14): 49-57.
	Zhang Feng, Zhang Xi, Zhang Li, et al. Size Optimization and Operating Strategies for Battery Energy Storage Station in Adjacent Wind Farms[J]. Transactions of China Electrotechnical Society, 2016, 31(14): 49-57.
10	刘永前, 梁超, 阎洁, 等. 风-光电站中储能系统混合最优配置及其经济性研究[J]. 中国电力, 2020, 53(12): 143-150.
	Liu Yongqian, Liang Chao, Yan Jie, et al. Optimal Configuration and Economic Study of Hybrid Energy Storage System in Wind and Solar Power Plants[J]. Electric Power, 2020, 53(12): 143-150.
11	袁铁江, 张昱, 栗磊, 等. 计及功率密度约束含氢储能的预装式多元储能电站容量优化配置研究[J]. 电工技术学报, 2021, 36(3): 496-506.
	Yuan Tiejiang, Zhang Yu, Li Lei, et al. Capacity Optimization Configuration of Pre-Installed Multi-Energy Storage Power Station Considering Power Density Constrained Hydrogen Storage[J]. Transactions of China Electrotechnical Society, 2021, 36(3): 496-506.
12	张新松, 袁越, 茅靖峰, 等. 基于蒙特卡洛模拟的电池储能系统容量优化配置[J]. 电力自动化设备, 2017, 37(4): 82-88.
	Zhang Xinsong, Yuan Yue, Mao Jingfeng, et al. BESS Capacity Optimization Based on Monte Carlo Simulation[J]. Electric Power Automation Equipment, 2017, 37(4): 82-88.
13	孙伟卿, 李臻, 谈一鸣, 等. 基于灵活性提升的电力系统储能装置定容方法[J]. 系统仿真学报,2018, 30(1): 235-241, 248.
	Sun Weiqing, Li Zhen, Tan Yiming, et al. Method of Power System Energy Storage Configuration Based on Flexibility Promotion[J]. Journal of System Simulation, 2018, 30(1): 235-241, 248.
14	Fantauzzi M, Lauria F D. Mottola,et al. Sizing Energy Storage Systems in DC Networks: A General Methodology Based upon Power Losses Minimization[J]. Applied Energy (S0306-2619), 2017, 187: 862-872.
15	杨江涛, 刘佳, 孙春顺, 等. 计及分布式电源的配电网储能配置研究[J].电力科学与技术学报,2018, 33(1):108-114.
	Yang Jiangtao, Liu Jia, Sun Chunshun, et al. Research on Energy Storage Configuration of Distribution Network Considering Distributed Power Supply[J]. Journal of Electric Power Science and Technology, 2018, 33(1):108-114.
16	宋柄兵, 顾洁. 考虑电网输电能力改善的超导储能装置优化选址定容[J]. 电力系统及其自动化学报, 2017, 29(11): 92⁃98.
	Song Bingbing, Gu Jie. Optimal Locating and Sizing of Superconducting Magnetic Energy Storage Device for Transfer Capability Improvement of Power Grid[J]. CSU-EPSA, 2017, 29(11): 92-98.
17	李振坤, 陈思宇, 符杨, 等. 基于时序电压灵敏度的有源配电网储能优化配置[J].中国电机工程学报, 2017, 37(16): 4630-4640.
	Li Zhenkun, Chen Siyu, Fu Yang, et al. Optimal Allocation of ESS in Distribution Network Containing DG Base on Timing-Voltage-Sensitivity Analysis[J]. CSEE, 2017, 37(16): 4630-4640.
18	Tiwari R, Niazi K, Gupta V. Line Collapse Proximity Index for Prediction of Voltage Collapse in Power Systems[J]. International Journal of Electrical Power & Energy Systems (S0142-0615), 2012, 41(1): 105-111.
19	李康顺, 余锡伦, 张文生, 等. 基于改进小生境演化算法的多峰函数优化算法[J]. 系统仿真学报, 2013, 25(6): 1170-1175.
	Li Kangshun, Yu Xilun, Zhang Wensheng, et al. Multimodal Function Optimization Algorithm Based on Improved Niche Evolutionary Algorithm[J]. Journal of System Simulation, 2013, 25(6): 1170-1175.
20	邹玙琦, 杨国华, 郑豪丰, 等. 基于改进小生境PSO算法的综合能源系统调度[J]. 电力系统及其自动化学报, 2020, 32(7): 47-52, 60.
	Zou Yuqi, Yang Guohua, Zheng Haofeng, et al. Dispatching for Integrated Energy System Based on Improved Niche PSO Algorithm[J]. CSU-EPSA, 2020, 32(7): 47-52, 60.

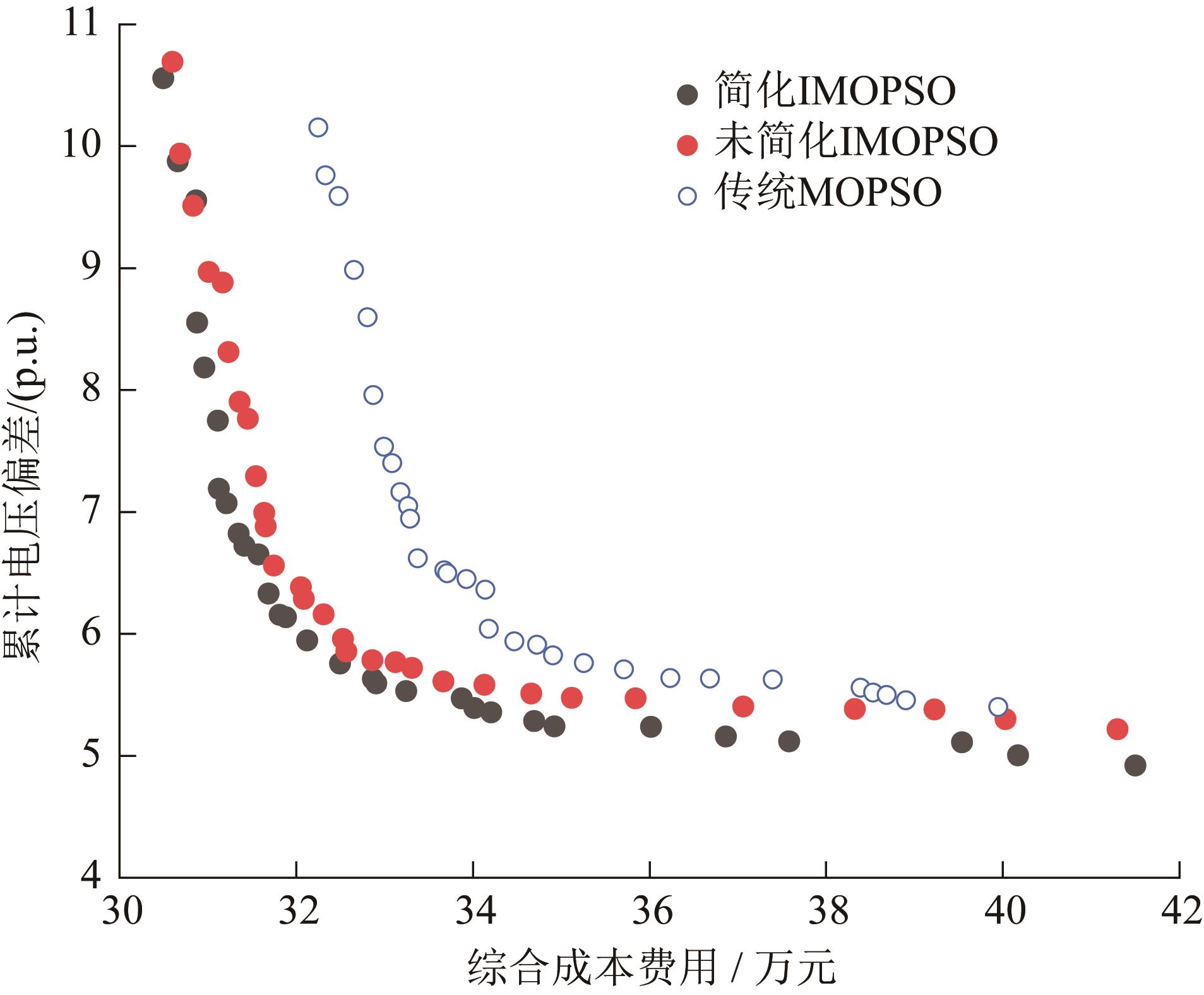

算法	测试次数	平均收敛时间/s	平均综合成本/万元	平均网损值/kW	平均电压偏移/p.u.
灵敏度分析简化后的IMOPSO	50	18.2	32.1	96	5.94
未简化IMOPSO	50	38.7	32.5	101	6.15
MOPSO	50	50.4	33.9	142	6.45
