Computation Offloading Strategy Based on Stackelberg Game and DRL

doi:10.16182/j.issn1004731x.joss.21-1118

Abstract

Abstract:

To achieve the optimal computation offloading strategy for two kinds of MEC users in 5G hybrid private network, Stackelberg game is used to build the model of the competition for MEC server resources of two kinds of users, andthe strategies of complete information game and partially incomplete information game are researched respectively. It is proved that there is only one Nash equilibrium solution in the complete information scenario. In the incomplete information scenario, the environment is modeled as POMDP, and a two-stage deep reinforcement learning(TSDRL) is proposed to obtain the optimal computation offloading strategy. Simulation results show the proposed algorithm having a total reduction of 20.81% time delay and 3.38 % energy consumption compared with the D-DRL algorithm and can effectively improve the user QoE(quality of experience).

Key words: 5G hybrid private network, computation offloading, Stackelberg game theory, Nash equilibrium, partially observable Markov decision process(POMDP)

CLC Number:

TP393.01

Xianwei Zhou, Qixu Gong, Songsen Yu. Computation Offloading Strategy Based on Stackelberg Game and DRL[J]. Journal of System Simulation, 2023, 35(2): 372-385.

Figures/Tables 8

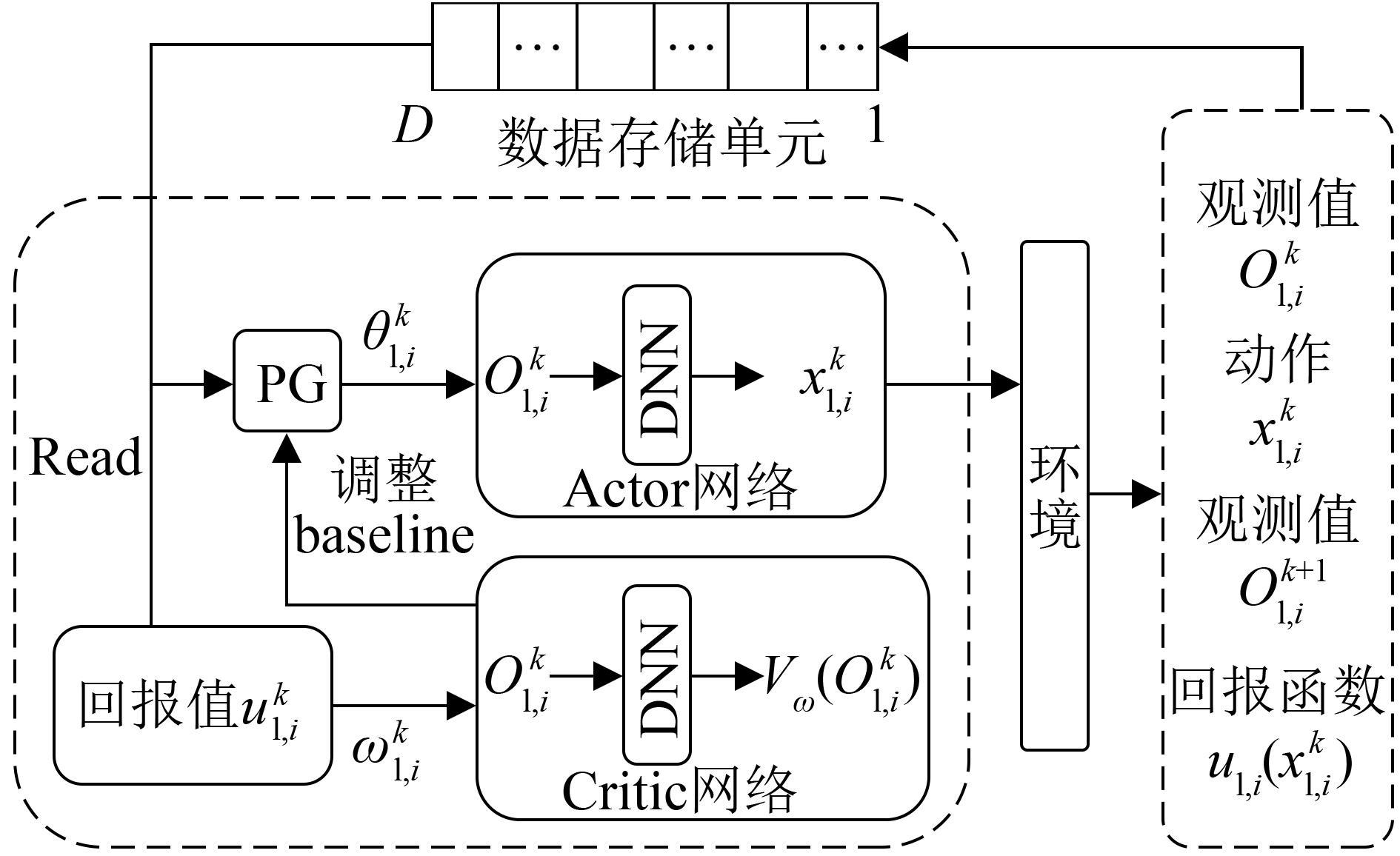

Fig. 1

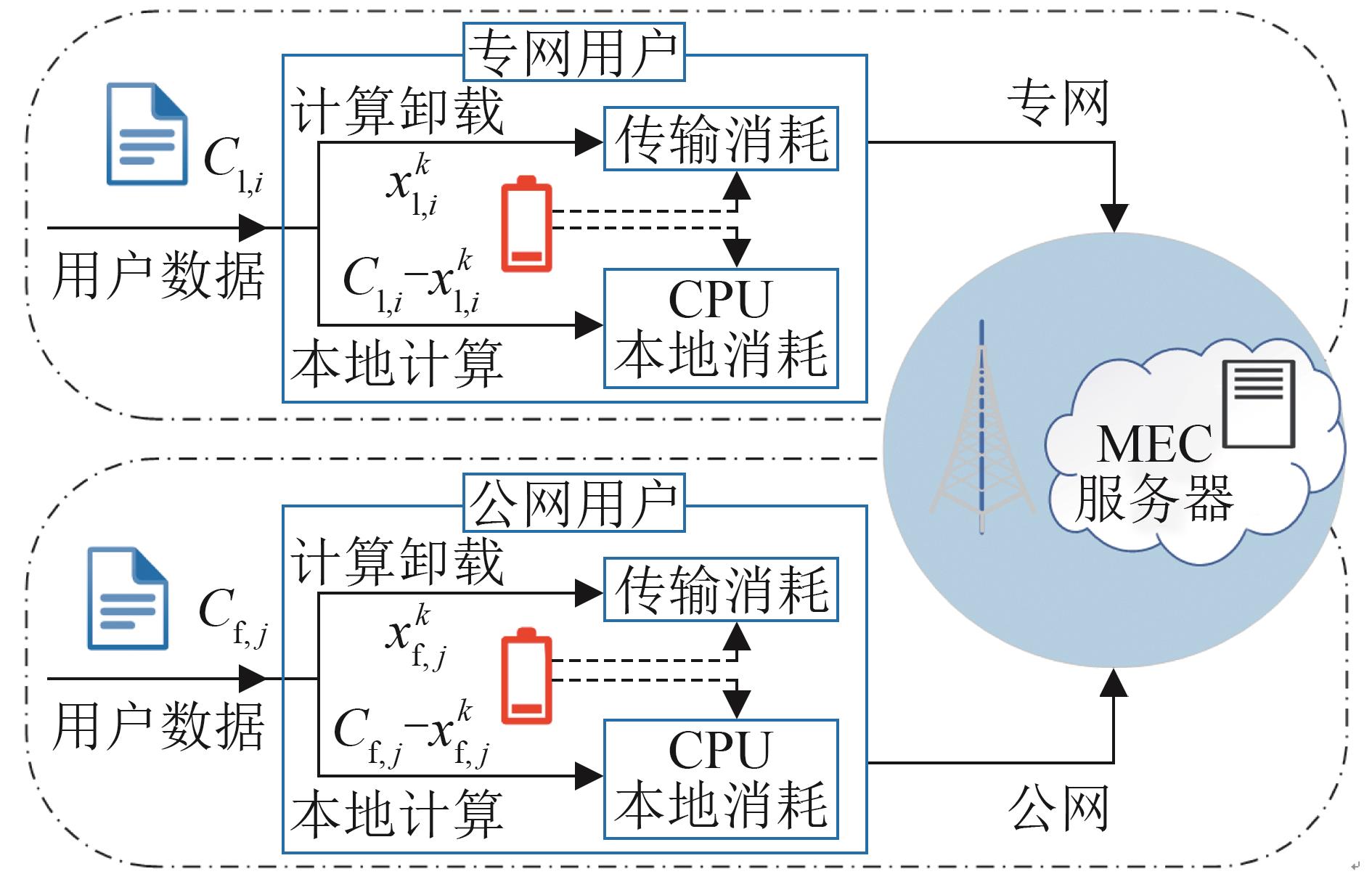

Fig. 2

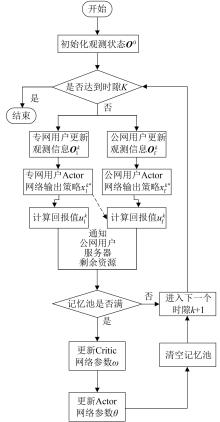

Fig. 3

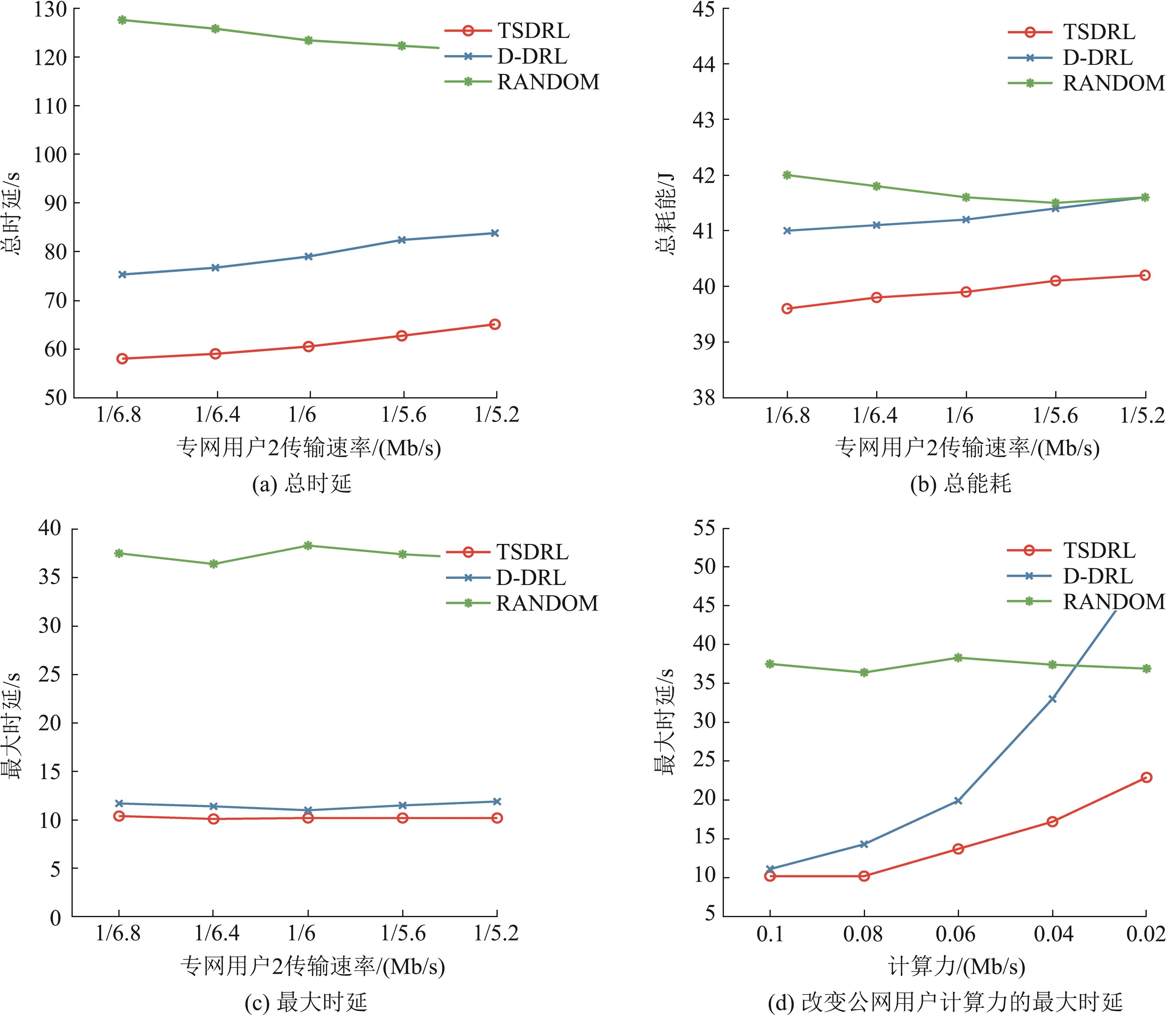

Fig. 4

Table 1

Experimental parameter setting

参数	值	参数	值
计算总资源 $R$ / $M b p s$	$50$	专网用户2传输速率 $r l, 2 k$ ( $M b / s$ )	$1 / 6$
专网用户任务总量 $C l, i$ / $M b$	$10$	专网用户3传输速率 $r l, 3 k$ ( $M b / s$ )	$1 / 5.6$
公网用户任务总量 $C f, j$ / $M b$	$1$	公网用户1传输速率 $r f, 1 k$ ( $M b / s$ )	$1 / 8.4$
单位传输时间成本 $ρ$ /( $J / s$ )	$1$	公网用户2传输速率 $r f, 2 k$ ( $M b / s$ )	$1 / 8.3$
单位数据消耗功率成本 $ν$ /( $J / M b$ )	$0.1$	公网用户3传输速率 $r f, 3 k$ ( $M b / s$ )	$1 / 8.2$
专网用户本地计算资源 $F l, i k$ ( $M b / s$ )	$0.1$	公网用户4传输速率 $r f, 4 k$ ( $M b / s$ )	$1 / 8.1$
公网用户本地计算资源 $F f, j k$ ( $M b / s$ )	$0.01$	公网用户5传输速率 $r f, 5 k$ ( $M b / s$ )	$1 / 8$
专网用户1传输速率 $r l, 1 k$ ( $M b / s$ )	$1 / 6.4$

Table 1

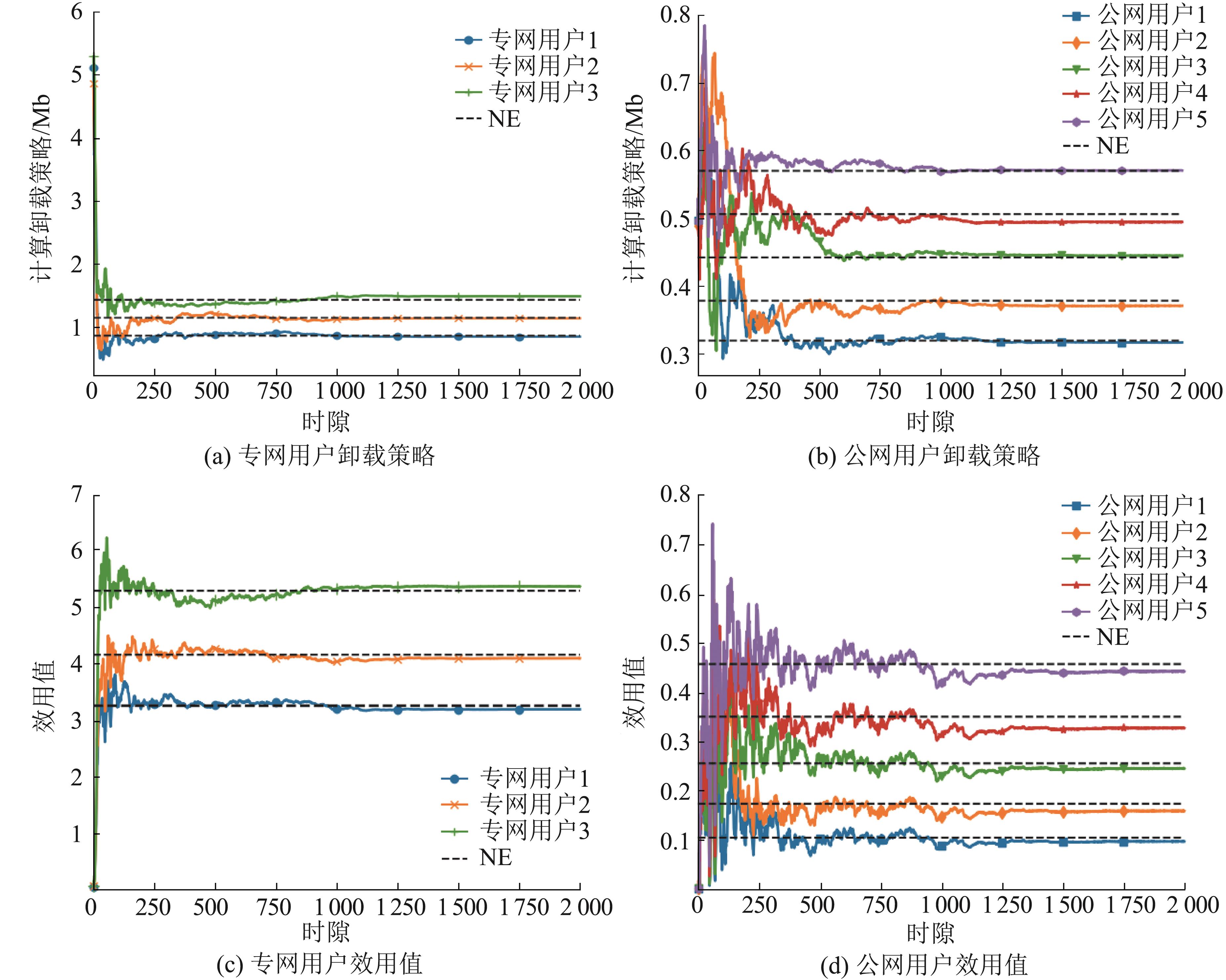

Fig. 5

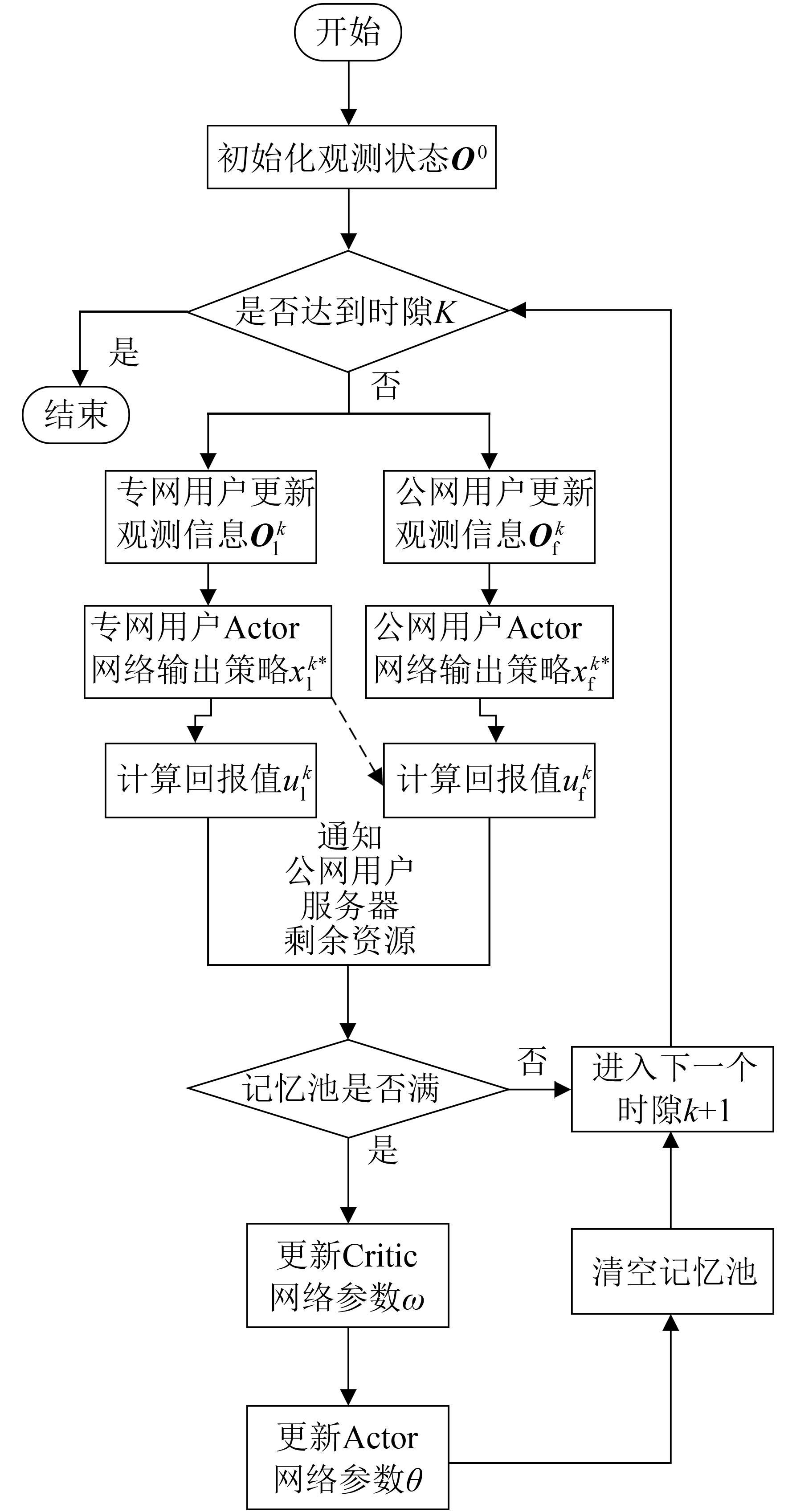

Fig. 6

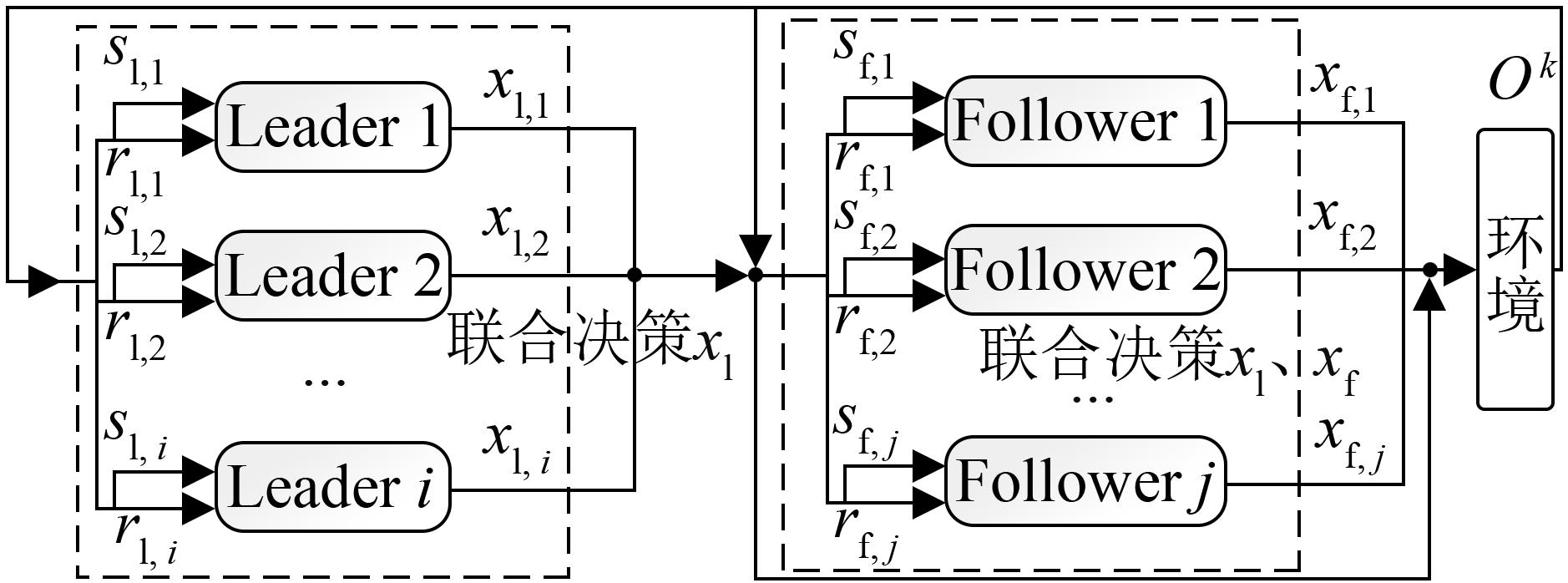

Fig. 7

References 22
