考虑不确定参数的含润滑间隙柔性机构动力学分析

doi:10.16182/j.issn1004731x.joss.25-1114

摘要/Abstract

摘要：

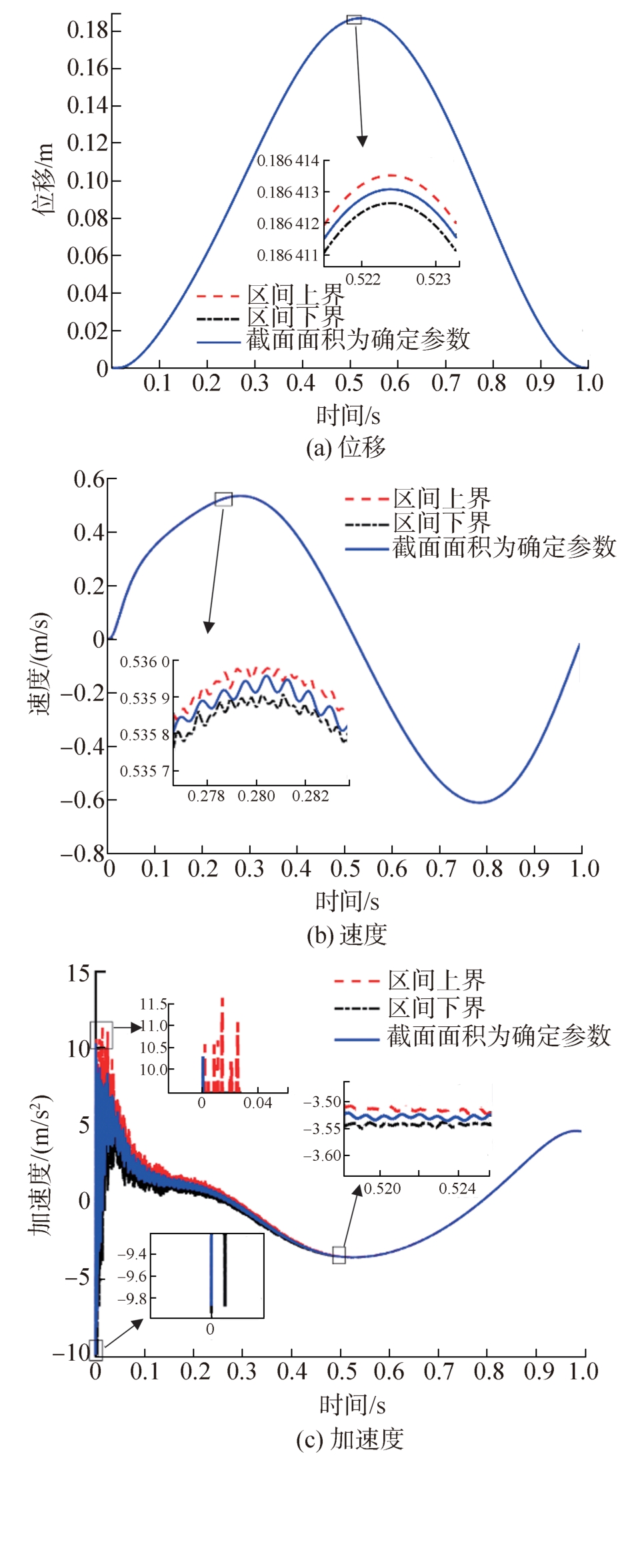

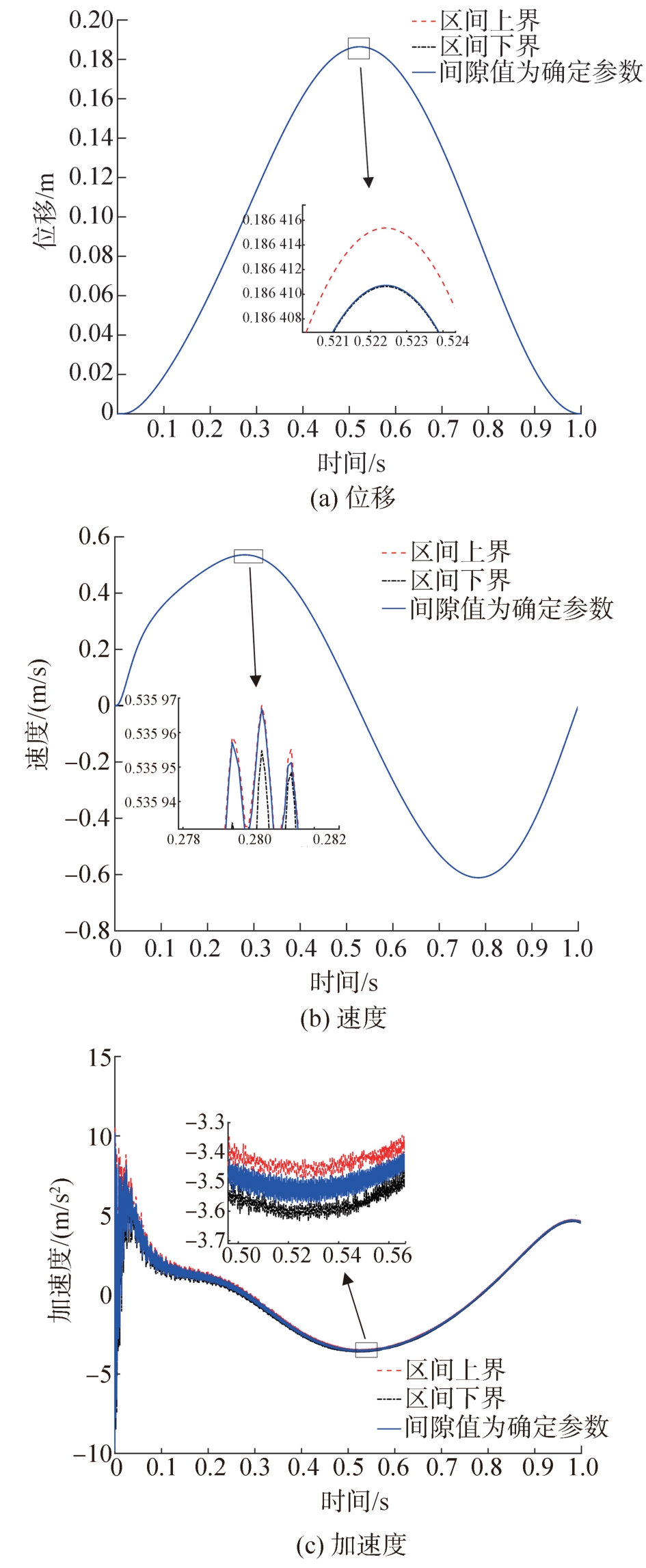

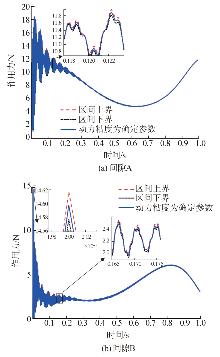

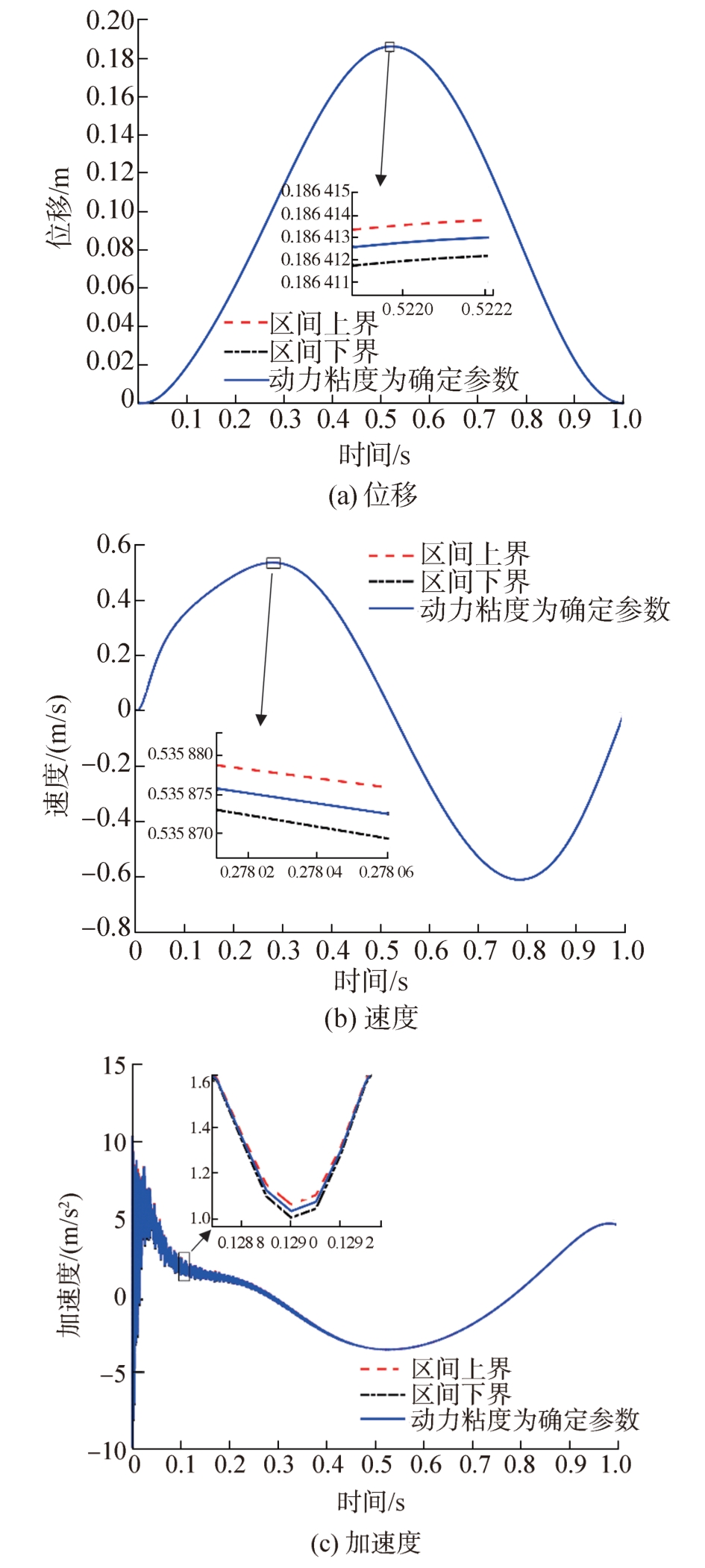

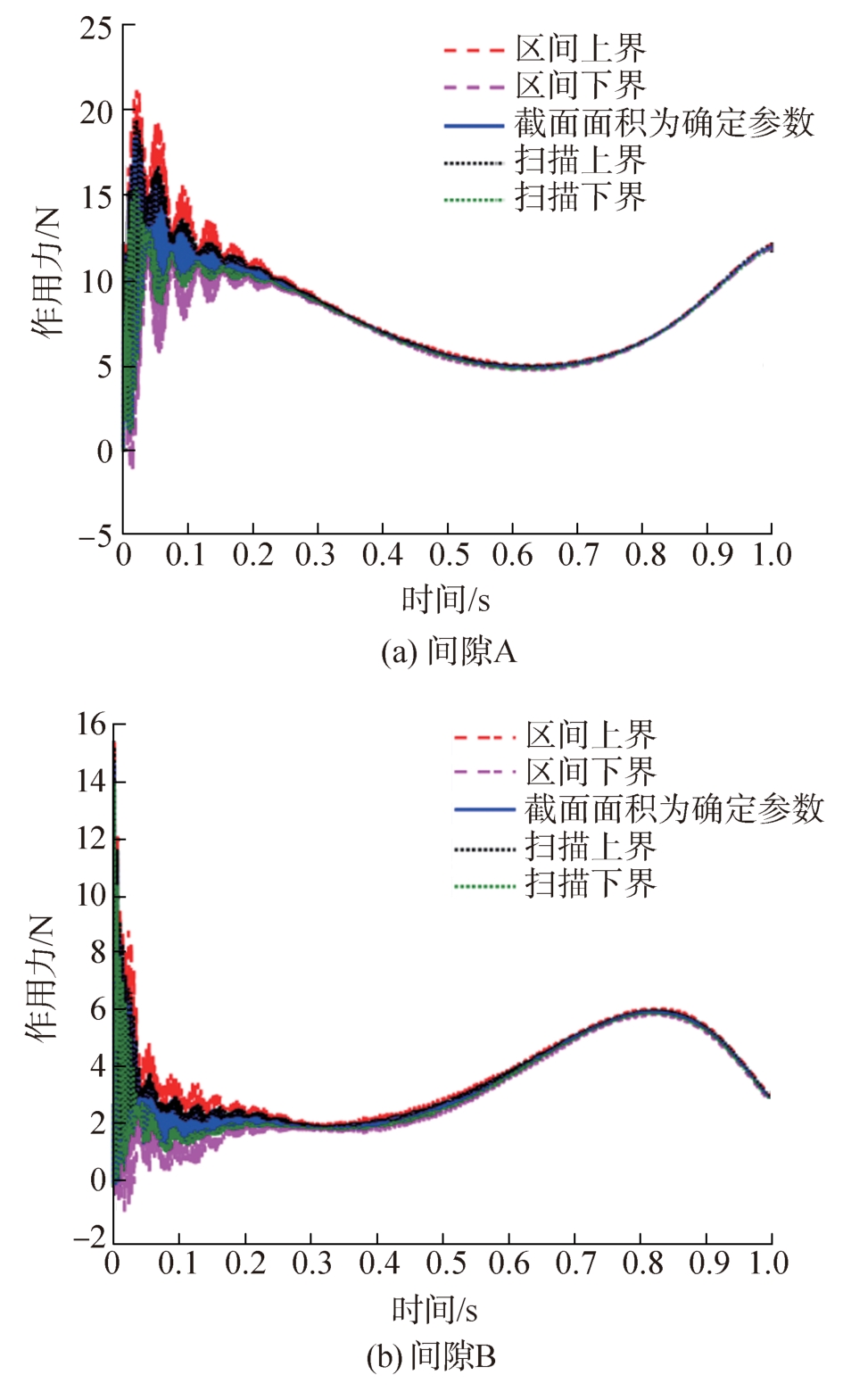

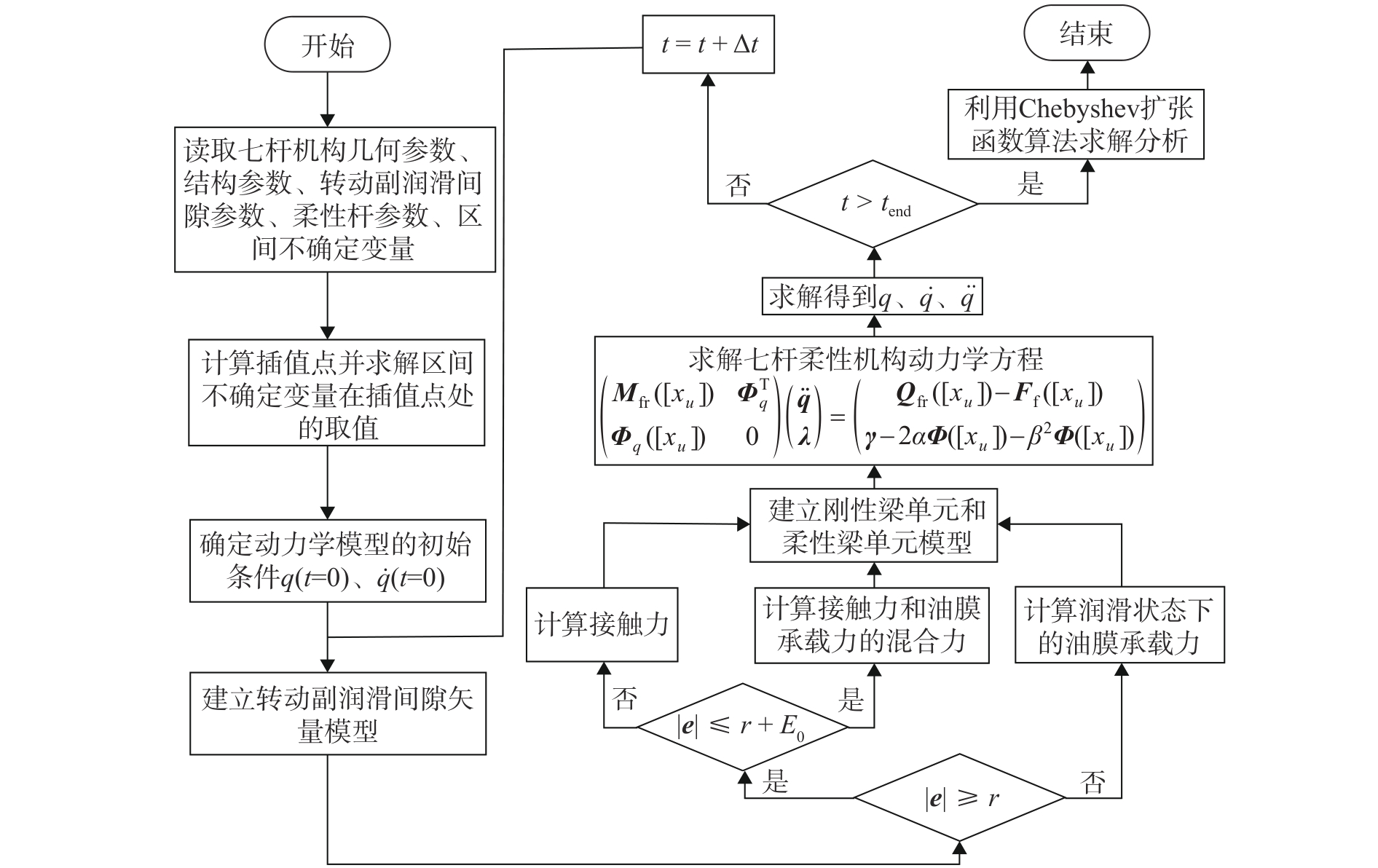

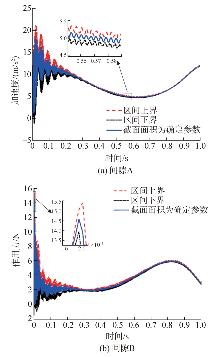

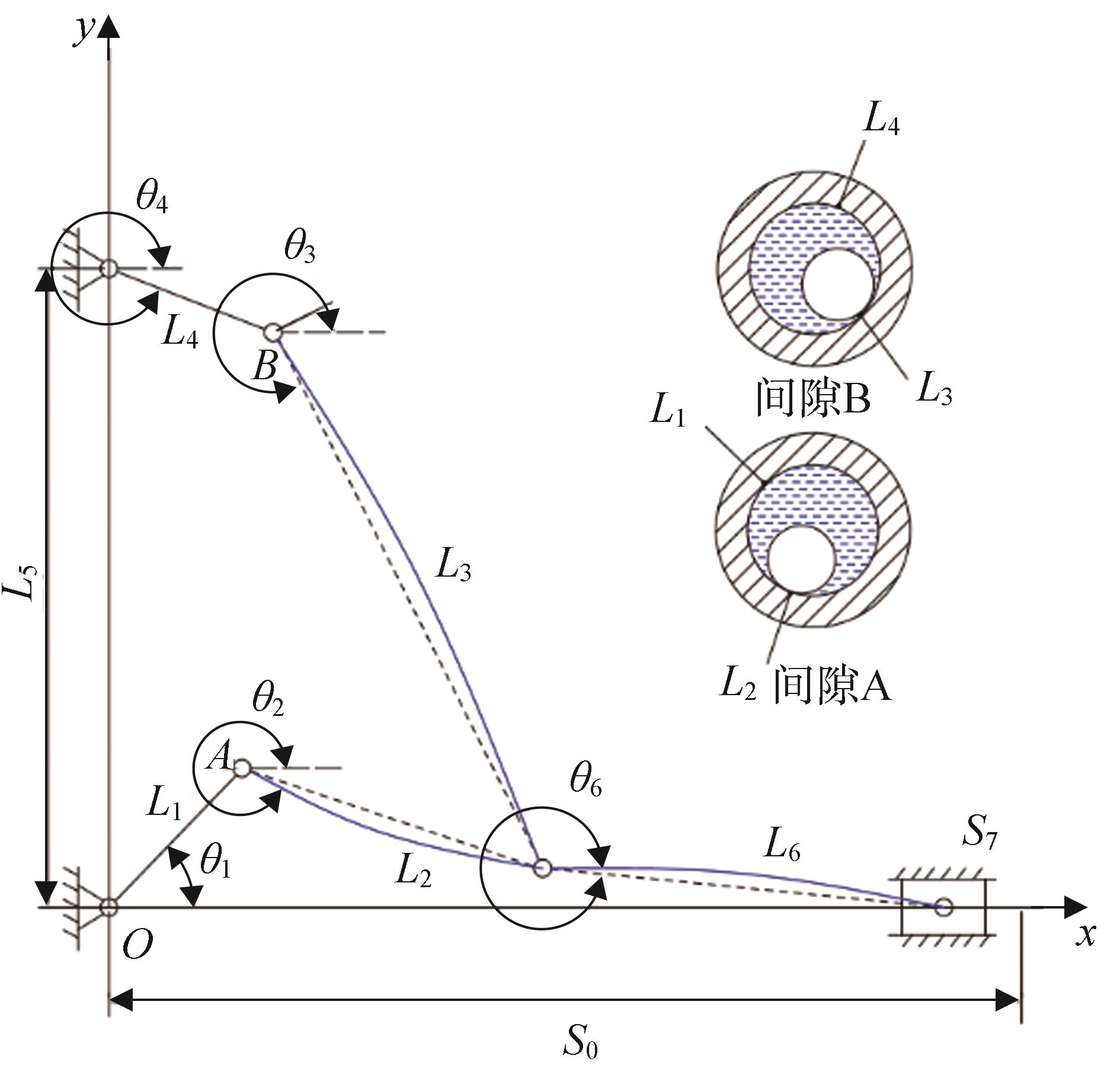

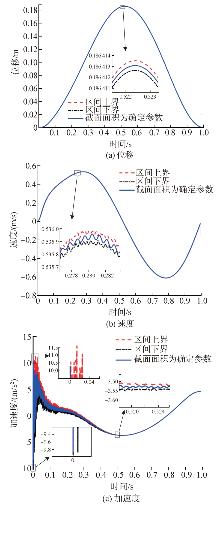

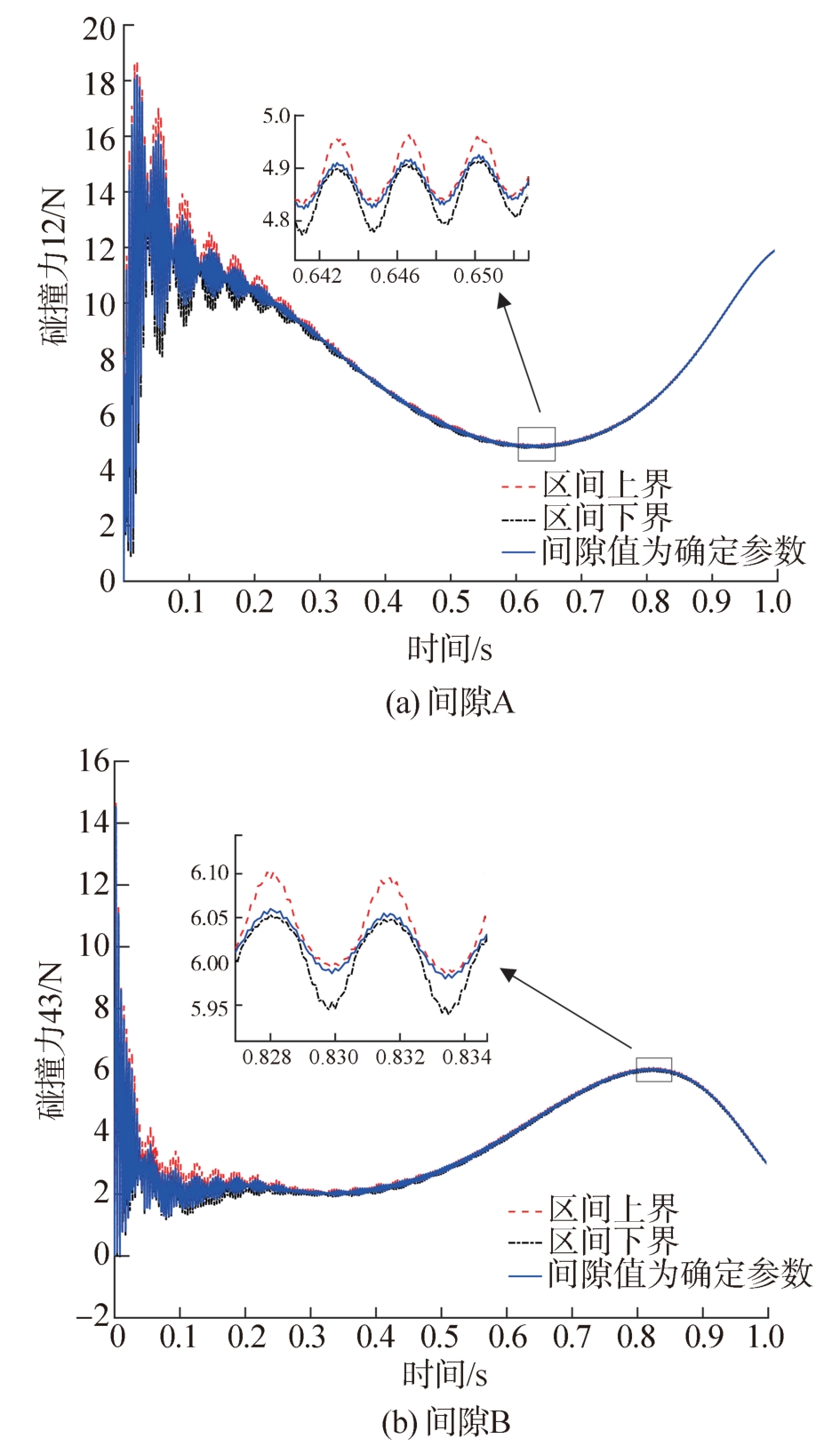

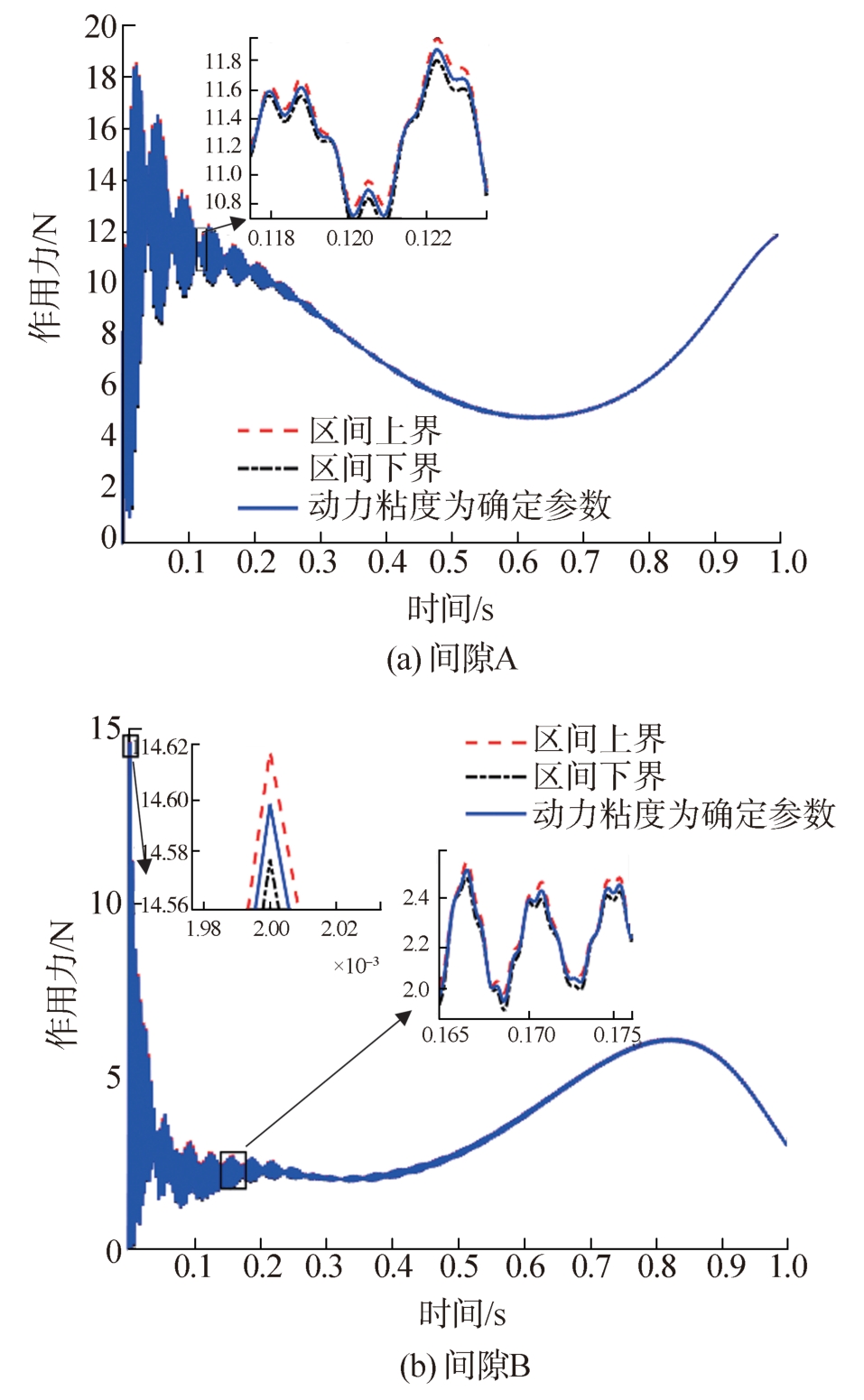

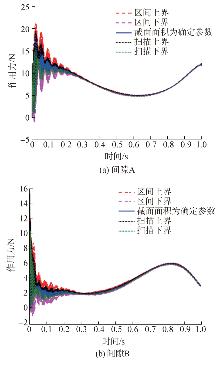

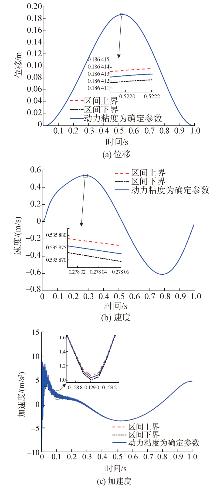

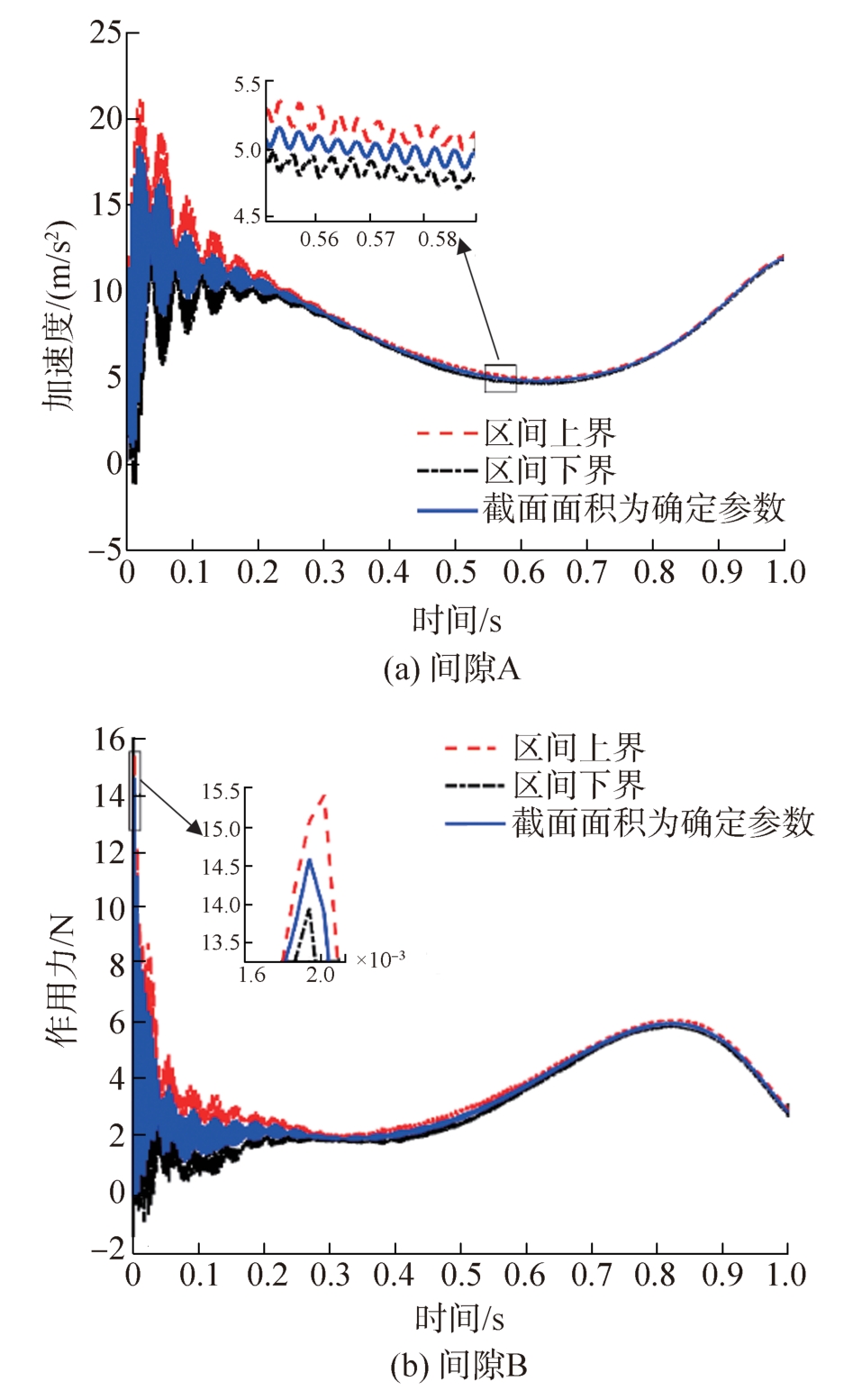

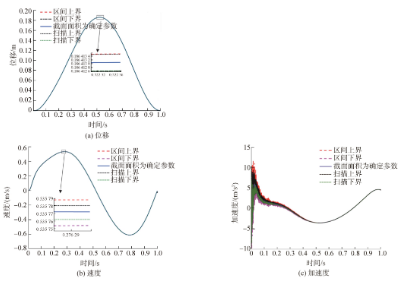

以适用于混合驱动压力机的七连杆机构为研究对象，开展了同时考虑润滑间隙、区间参数与杆件柔性的动力学分析。基于第一类Lagrange方程建立了确定参数下含润滑间隙柔性机构的动力学方程；引入区间变量建立考虑区间参数的动力学模型，并采用Chebyshev区间算法与 $R u n g e - K u t t a$ 法求解间隙值、动力粘度、截面面积等区间参数的响应区间曲线。结果表明：与确定参数结果相比，各区间参数对滑块位移和速度的影响均较小，而截面面积不确定性导致滑块加速度、转动副A处间隙作用力的峰值区间宽度分别达1.49 m/s²和6.06 N，对机构运动冲击的影响最为显著。该研究成果为准确预测多连杆机构动态特性和优化设计等方面提供了理论支撑。

关键词: 区间参数, 润滑间隙, 柔性杆件, 动力学, 多连杆机构

Abstract:

This paper conducted a dynamic analysis on a seven-link mechanism suitable for a hybrid-driven press, simultaneously considering lubrication clearances, interval parameters, and link flexibility. Based on the Lagrange equations of the first kind, the dynamic equationsof the flexible mechanism with lubrication clearances under deterministic parameters were established; interval variables were introduced to establish a dynamic model considering interval parameters, and the Chebyshev interval algorithm and the $R u n g e - K u t t a$ method were used to solve the response interval curves of interval parameters such as clearances value, dynamic viscosity, and cross-sectional area. The results show that compared with the results under deterministic parameters, each interval parameter has a minor effect on the displacement and velocity of the slider, while the uncertainty of the cross-sectional area causes the peak interval widths of the slider acceleration and the clearances acting force at revolute joint A to reach 1.49 m/s² and 6.06 N, respectively, which has the most significant impact on the motion shock of the mechanism. The research results provide theoretical support for accurately predicting the dynamic characteristics and optimizing the design of multi-link mechanisms.

Key words: interval parameter, lubrication clearances, flexible link, dynamics, multi-link mechanism

中图分类号:

TP391.9

陈修龙,孙毅,王爱郭 . 考虑不确定参数的含润滑间隙柔性机构动力学分析[J]. 系统仿真学报, 2026, 38(6): 1567-1582.

Chen Xiulong,Sun Yi,Wang Aiguo . Dynamic Analysis of Flexible Mechanism with Lubrication Clearances Considering Uncertain Parameters[J]. Journal of System Simulation, 2026, 38(6): 1567-1582.

图/表 15

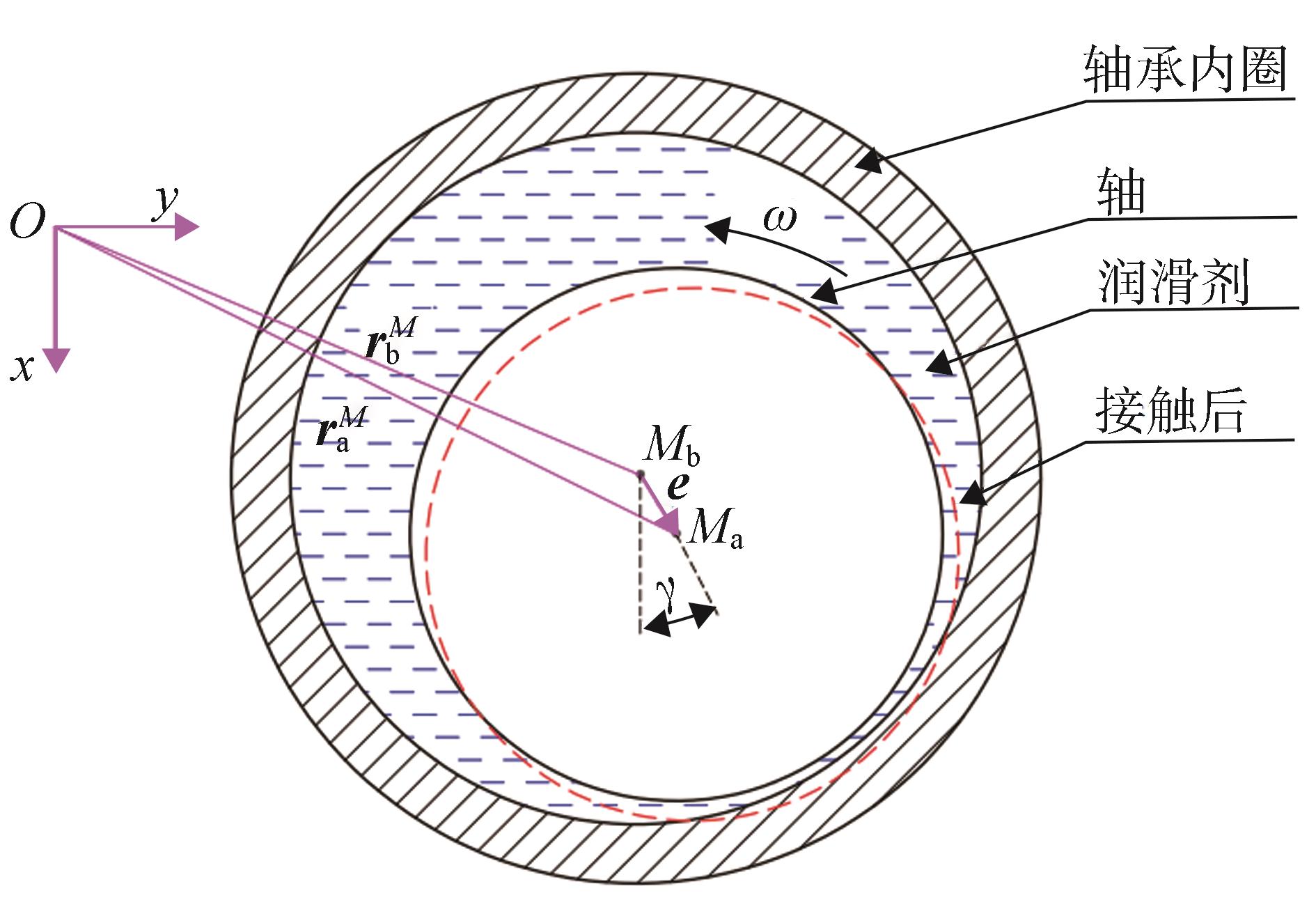

图1

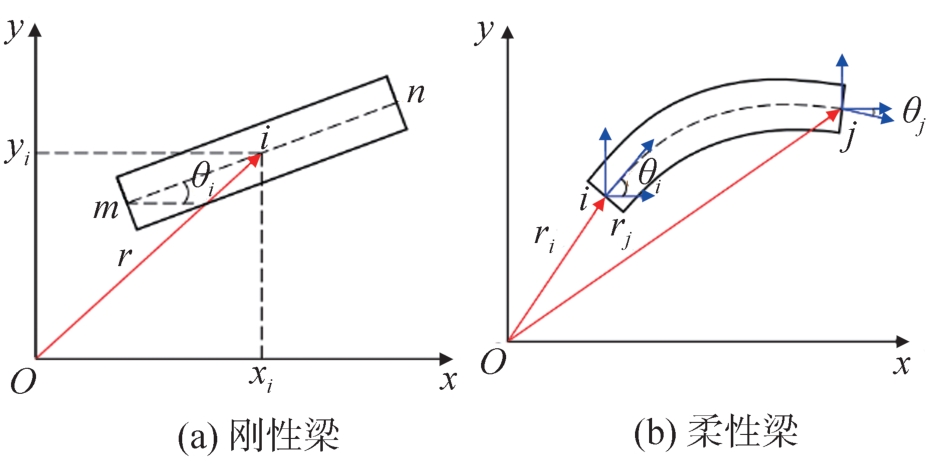

图2

图3

图4

图5

图6

图7

图8

图9

图10

表1

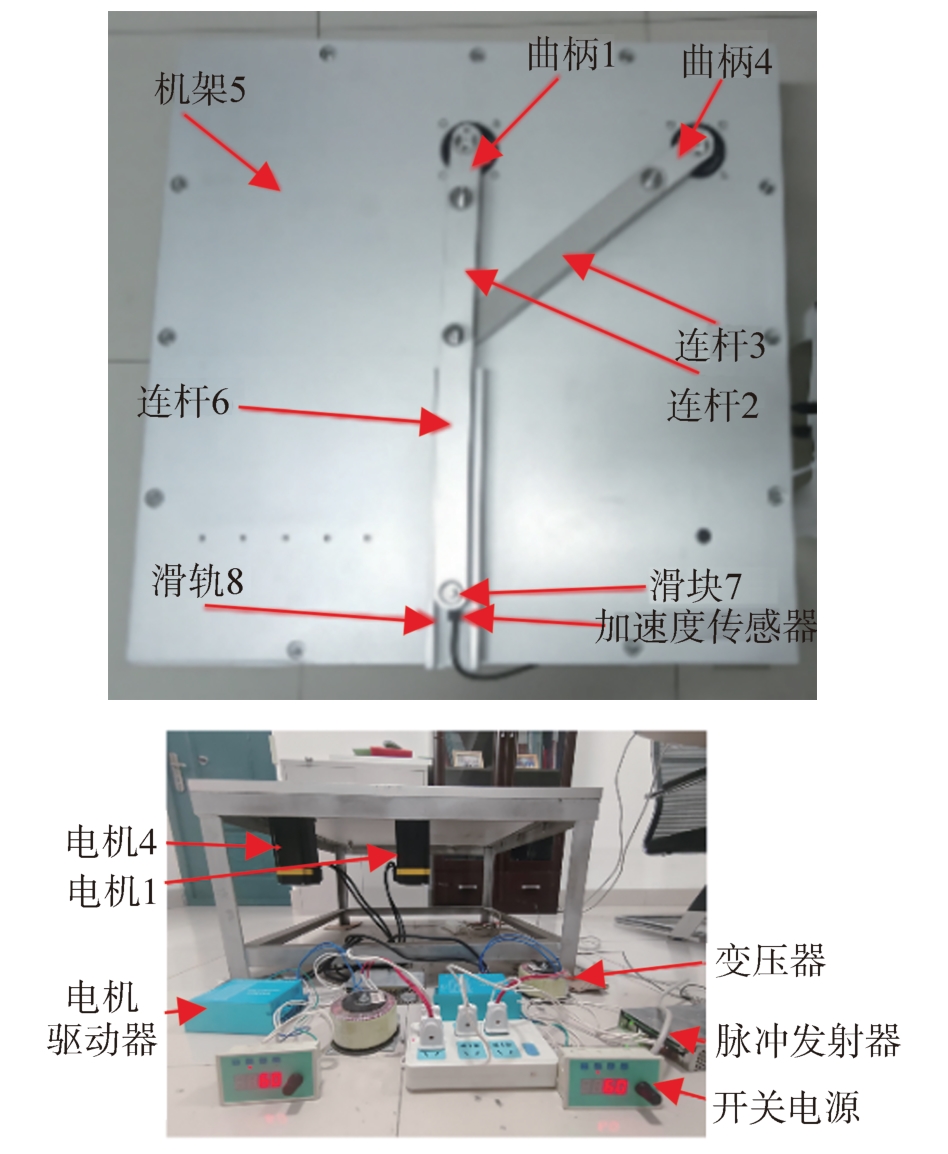

图11

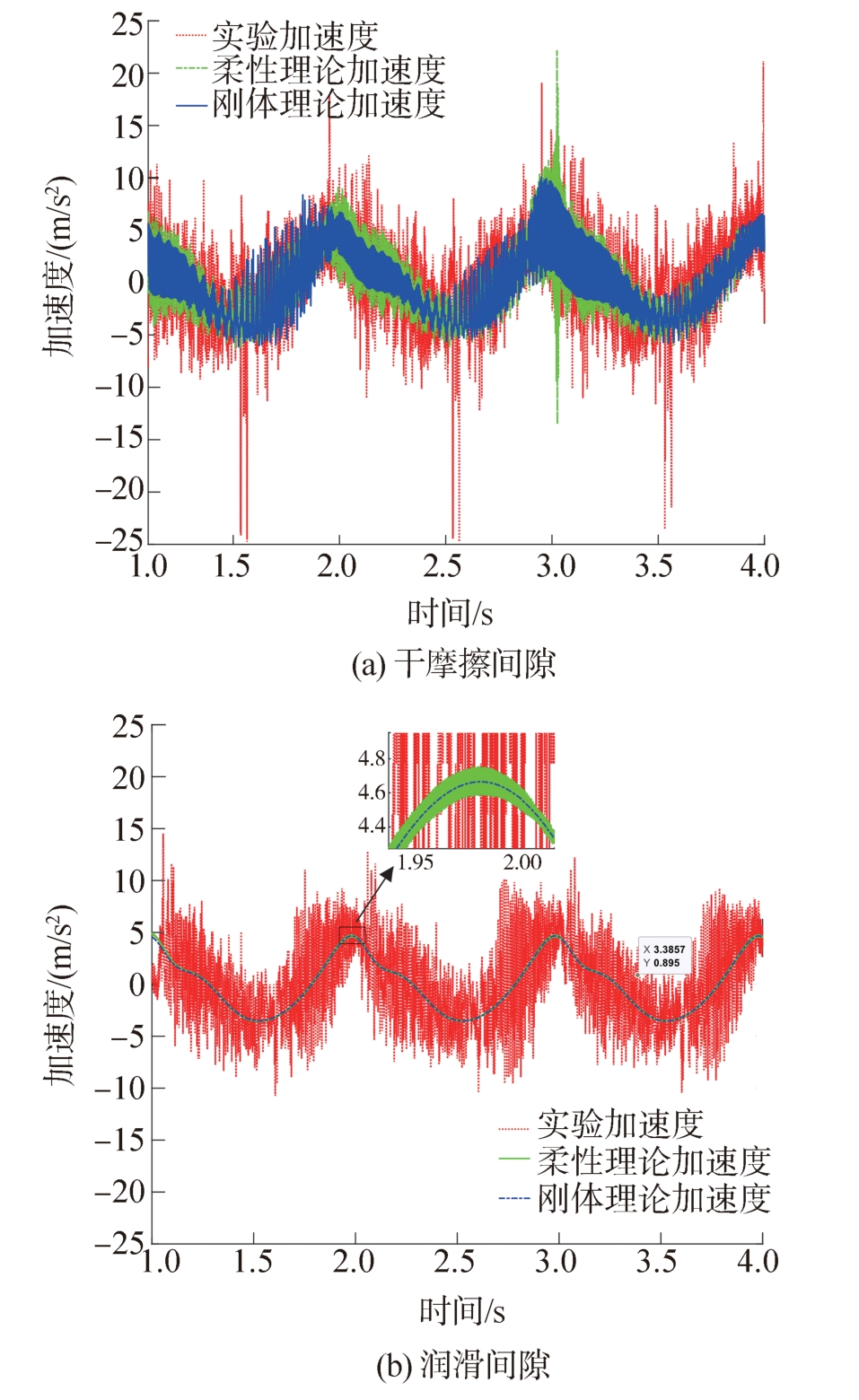

图12

图13

图14

参考文献 21

[1]	崔盼礼, 贺尔铭, 宋得军, 等. 基于多项式维数分解法的起落架参数不确定性量化分析[J]. 振动与冲击, 2025, 44(7): 286-292.
	Cui Panli, He Erming, Song Dejun, et al. Quantitative Analysis of Landing Gear Parametric Uncertainty Based on Polynomial Dimensional Decomposition Method[J]. Journal of Vibration and Shock, 2025, 44(7): 286-292.
[2]	王森, 宋敬伟, 李浩然, 等. 含间隙冗余混联机构高精度刚度建模方法[J]. 机械工程学报, 2025, 61(11): 72-85.
	Wang Sen, Song Jingwei, Li Haoran, et al. High Accuracy Stiffness Modeling Method for Hybrid Mechanism with Clearance and Redundant Drive[J]. Journal of Mechanical Engineering, 2025, 61(11): 72-85.
[3]	杜超凡, 徐宁宁, 黎亮, 等. 基于无网格法的中心刚体- FGM微梁动力学建模和仿真[J]. 力学学报, 2025, 57(10): 2432-2445.
	Du Chaofan, Xu Ningning, Li Liang, et al. Dynamic Modeling and Simulation of a Hub-FGM Micro-beam Based on Meshless Method[J]. Chinese Journal of Theoretical and Applied Mechanics, 2025, 57(10): 2432-2445.
[4]	Salahshoor Esmaeil, Ebrahimi Saeed, Zhang Yunqing. Frequency Analysis of a Typical Planar Flexible Multibody System with Joint Clearances[J]. Mechanism and Machine Theory, 2018, 126: 429-456.
[5]	万琦, 张永芳, 朱成龙. 多间隙铰链印刷机递纸机构动力学特性研究[J]. 机械传动, 2024, 48(9): 43-48, 75.
	Wan Qi, Zhang Yongfang, Zhu Chenglong. Research on the Dynamic Characteristics of the Gripper Mechanism with Multi-clearance Joints for Printing Machines[J]. Journal of Mechanical Transmission, 2024, 48(9): 43-48, 75.
[6]	Zheng Enlai, Wang Tianyu, Guo Jun, et al. Dynamic Modeling and Error Analysis of Planar Flexible Multilink Mechanism with Clearance and Spindle-bearing Structure[J]. Mechanism and Machine Theory, 2019, 131: 234-260.
[7]	陈修龙, 江守源. 含间隙多连杆机构刚柔耦合动力学建模与分析[J]. 计算机集成制造系统, 2023, 29(10): 3366-3379.
	Chen Xiulong, Jiang Shouyuan. Rigid-flexible Coupling Dynamic Modeling and Analysis of Multi-link Mechanism with Clearance[J]. Computer Integrated Manufacturing Systems, 2023, 29(10): 3366-3379.
[8]	王志敏, 金国光, 梁栋, 等. 考虑多间隙关节和不确定参数机构的非线性动力学分析[J]. 振动与冲击, 2023, 42(12): 48-58.
	Wang Zhimin, Jin Guoguang, Liang Dong, et al. Nonlinear Dynamics Analysis of Mechanism with Multi-clearance Joints and Uncertain Parameters[J]. Journal of Vibration and Shock, 2023, 42(12): 48-58.
[9]	郑延丰, 李思远, 杨超, 等. 基于Chebyshev多项式和有限质点法的Bennett机构动力响应不确定性分析[J]. 工程力学, 2026, 43(3): 21-30, 55.
	Zheng Yanfeng, Li Siyuan, Yang Chao, et al. Dynamics Analysis of Bennett Linkage with Parameter Uncertainties Using Chebyshev Polynomials Method and Finite Particle Method[J]. Engineering Mechanics, 2026, 43(3): 21-30, 55.
[10]	Xiang Wuweikai, Yan Shaoze. Dynamic Analysis of Space Robot Manipulator Considering Clearance Joint and Parameter Uncertainty: Modeling, Analysis and Quantification[J]. Acta Astronautica, 2020, 169: 158-169.
[11]	马新星, 张振果, 华宏星. 考虑参数非概率不确定性的碰摩转子非线性振动响应分析[J]. 振动与冲击, 2021, 40(18): 56-62.
	Ma Xinxing, Zhang Zhenguo, Hua Hongxing. Nonlinear Vibration Responses of a Rubbing Rotor Considering the Non-probabilistic Uncertainty of Parameters[J]. Journal of Vibration and Shock, 2021, 40(18): 56-62.
[12]	Sun Dongyang, Zhang Baoqiang, Liang Xuefeng, et al. Dynamic Analysis of a Simplified Flexible Manipulator with Interval Joint Clearances and Random Material Properties[J]. Nonlinear Dynamics, 2019, 98(2): 1049-1063.
[13]	Marques Filipe, Flores Paulo, Pimenta Claro J C, et al. Modeling and Analysis of Friction Including Rolling Effects in Multibody Dynamics: A Review[J]. Multibody System Dynamics, 2019, 45(2): 223-244.
[14]	Chen Xiulong, Mu Xing. Theoretical and Experimental Studies on Effect of Impact Load on Dynamic Characteristics of Multi-link Press Mechanisms with Clearances[J]. Nonlinear Dynamics, 2024, 112(1): 81-100.
[15]	Tan Haiyan, Hu Yujin, Li Li. A Continuous Analysis Method of Planar Rigid-body Mechanical Systems with Two Revolute Clearance Joints[J]. Multibody System Dynamics, 2017, 40(4): 347-373.
[16]	王铁成, 陈国平, 马方, 等. 含混合间隙多体系统动力学分析[J]. 振动与冲击, 2016, 35(9): 178-183.
	Wang Tiecheng, Chen Guoping, Ma Fang, et al. Dynamic Analysis of Multibody Systems with Mixed Clearance[J]. Journal of Vibration and Shock, 2016, 35(9): 178-183.
[17]	Chen Yu, Feng Jun, Peng Xu, et al. An Approach for Dynamic Analysis of Planar Multibody Systems with Revolute Clearance Joints[J]. Engineering With Computers, 2021, 37(3): 2159-2172.
[18]	Chen Xiulong, Jiang Shuai, Wang Suyu, et al. Dynamics Analysis of Planar Multi-DOF Mechanism with Multiple Revolute Clearances and Chaos Identification of Revolute Clearance Joints[J]. Multibody System Dynamics, 2019, 47(4): 317-345.
[19]	Zhang Haodong, Zhang Xianmin, Zhan Zhenhui, et al. Dynamic Modeling and Comparative Analysis of a 3-PRR Parallel Robot with Multiple Lubricated Joints[J]. International Journal of Mechanics and Materials in Design, 2020, 16(3): 541-555.
[20]	Leonov O A, Shkaruba N Z, Vergazova Y G. Determination of Ultimate Functional Clearances of a Plain Bearing Under Hydrodynamic Lubrication Conditions[J]. Journal of Friction and Wear, 2024, 45(4): 223-227.
[21]	Flores Paulo, Ambrósio Jorge, Pimenta Claro J. Dynamic Analysis for Planar Multibody Mechanical Systems with Lubricated Joints[J]. Multibody System Dynamics, 2004, 12(1): 47-74.

构件	长度/m	质心距离/m	质量/kg	转动惯量/(kg·m²)
曲柄1	0.080	0.040	0.107	1.179×10^-4
连杆2	0.180	0.090	0.219	7.736×10^-4
连杆3	0.318	0.159	0.374	3.595×10^-3
曲柄4	0.080	0.040	0.107	1.179×10^-4
机架5	0.301	—	—	—
连杆6	0.300	0.150	0.354	3.056×10^-3
滑块7	—	—	0.139	6.083×10^-5
