基于SEIiRD模型的COVID-19传播及防控仿真研究

doi:10.16182/j.issn1004731x.joss.21-0912

摘要/Abstract

摘要：

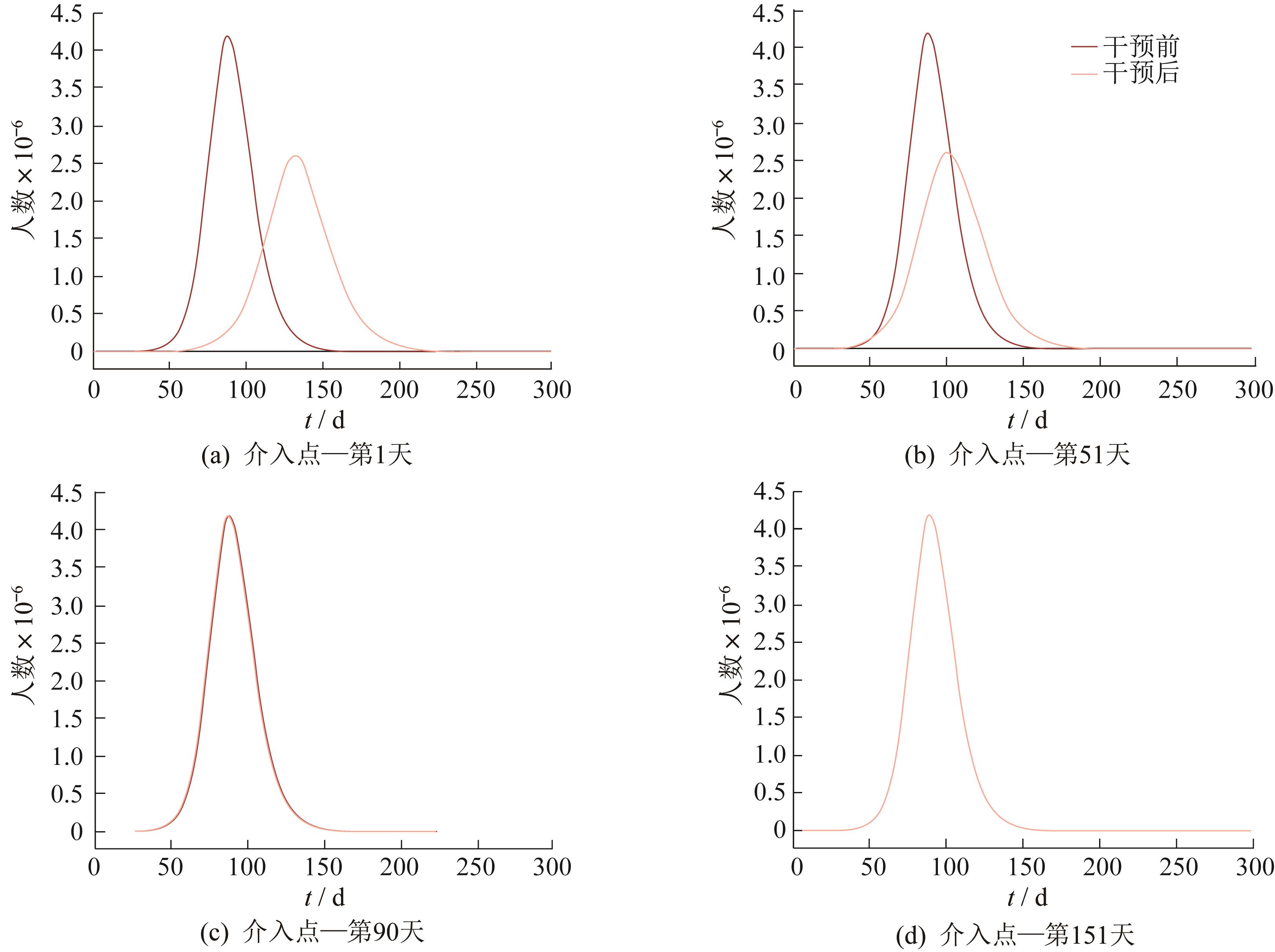

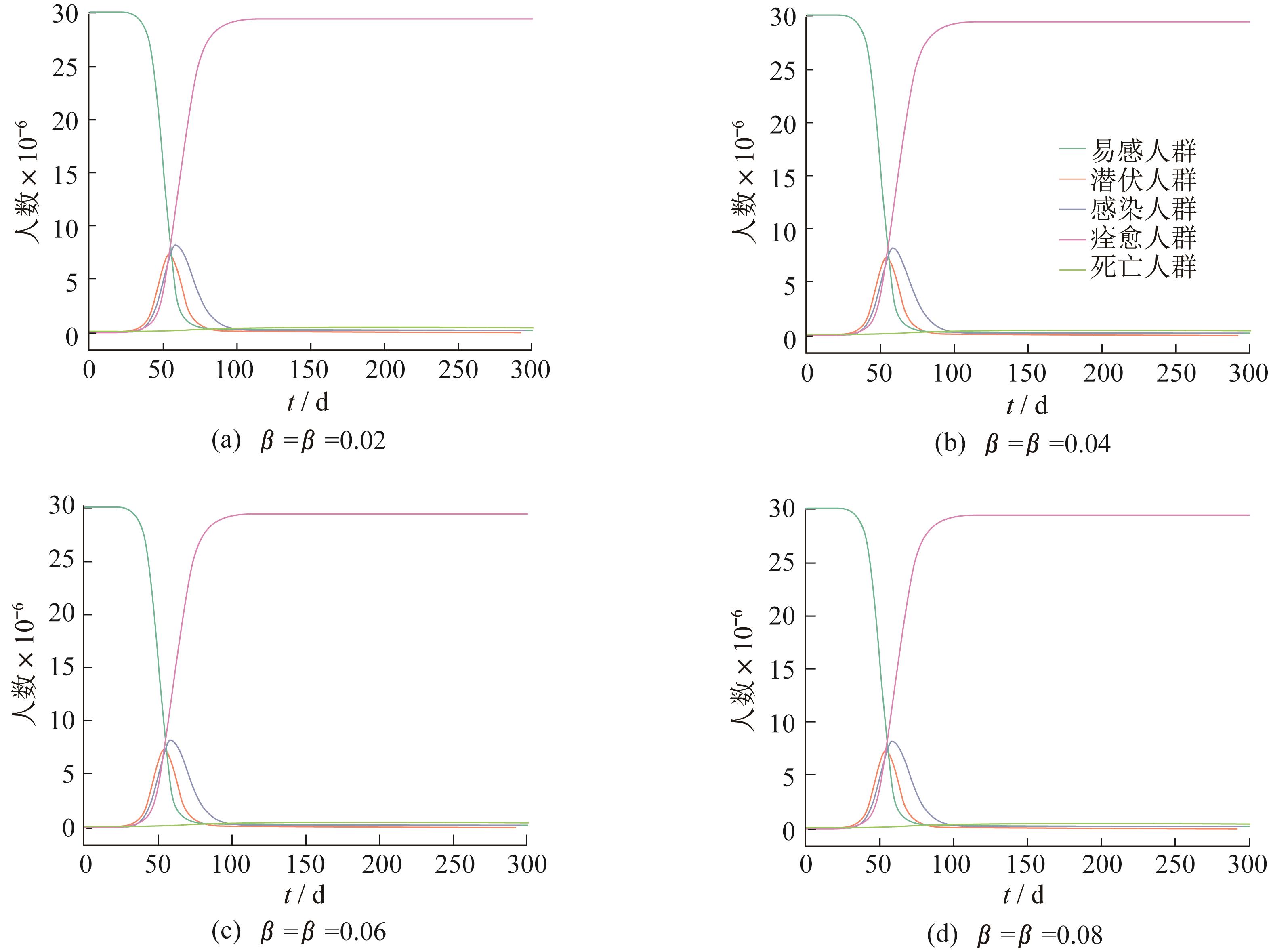

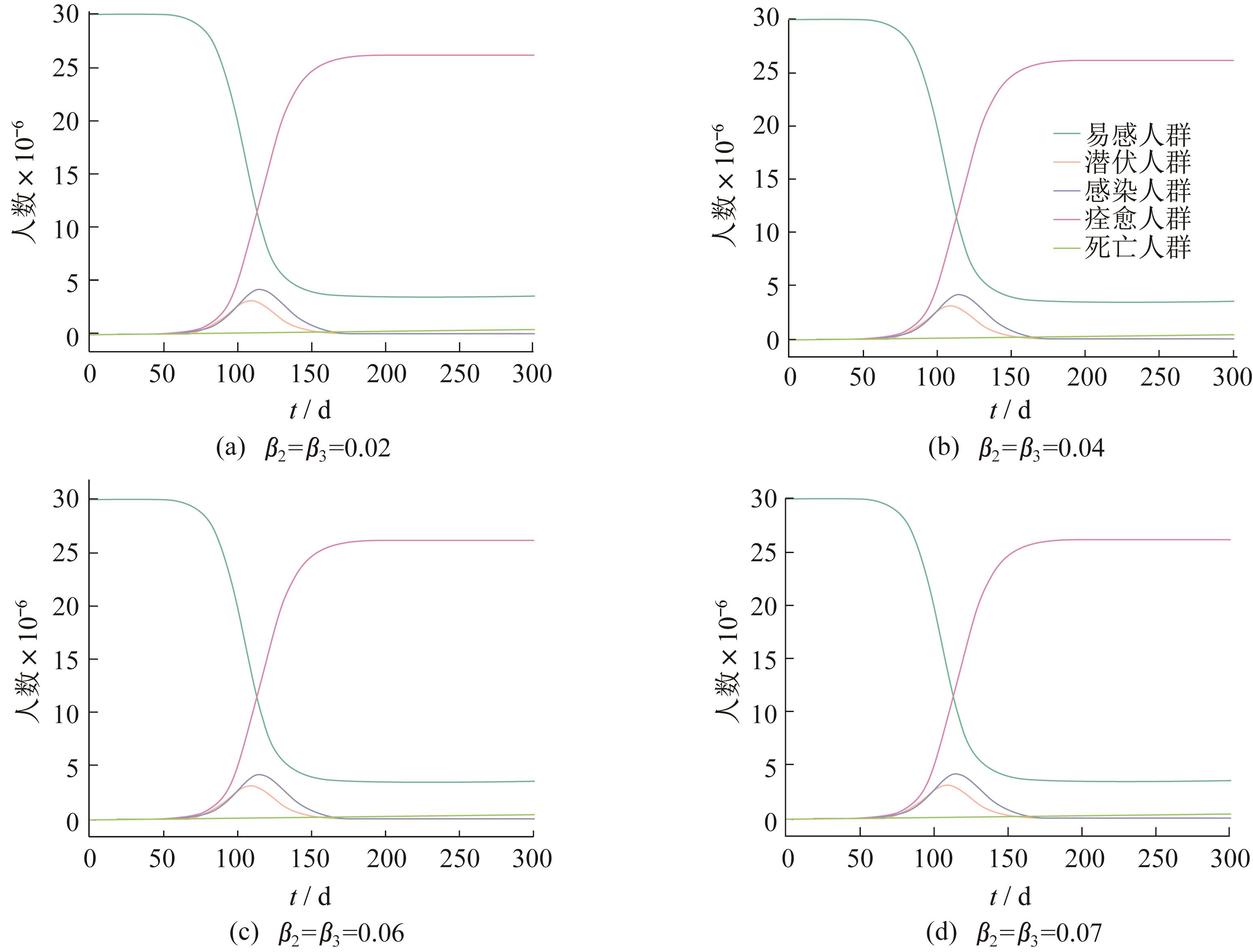

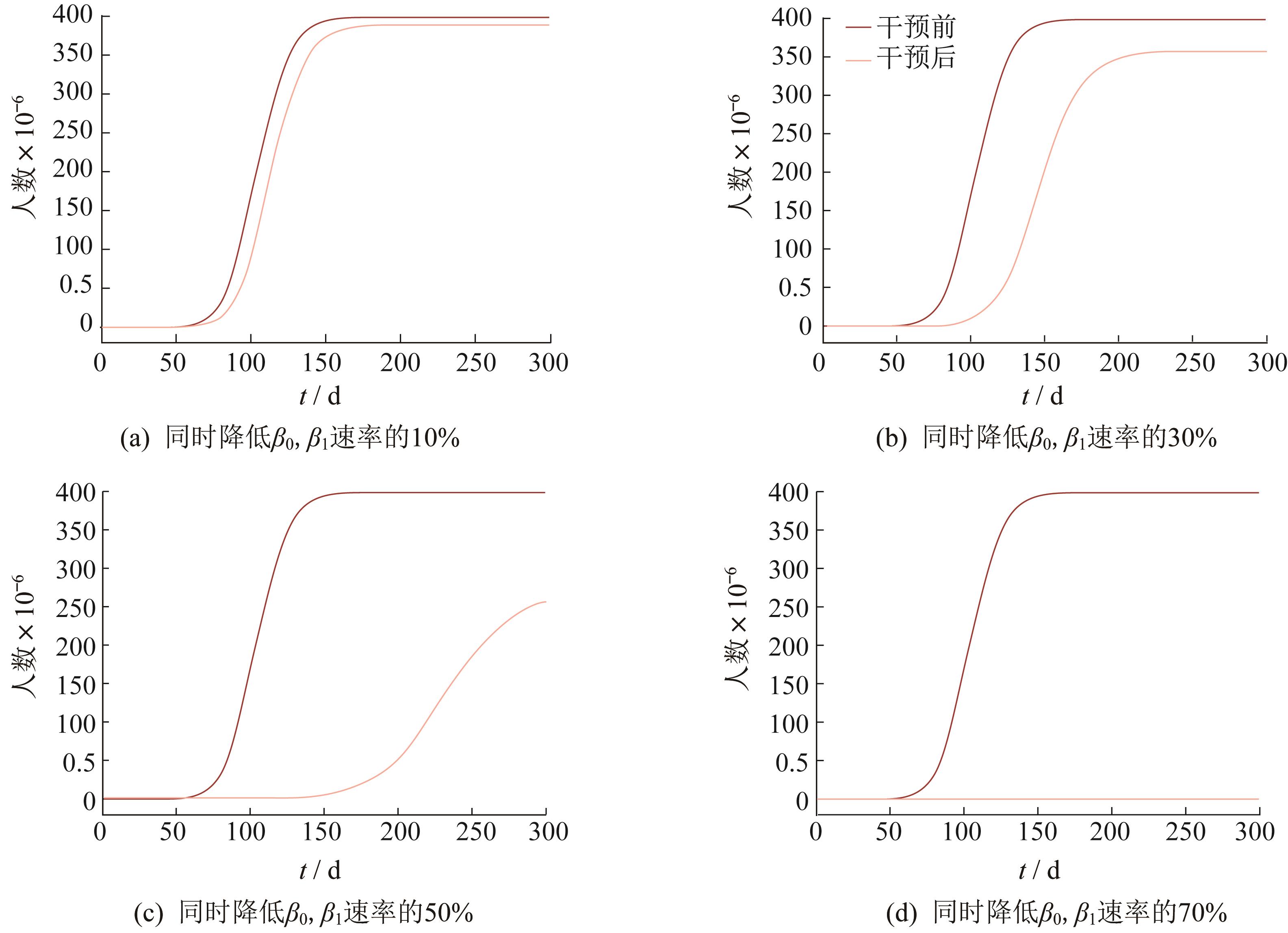

随着新冠肺炎疫情在全世界各地传播，通过对其数据和传播机理的分析，已有SEIRD模型的基础上构建SEI_iRD模型，将感染人群分为无症状感染者、轻症感染者、重症感染者和危重症感染者，分析不同感染人群的传播率对疫情发展的影响。在拟合现实数据的基础上进行仿真实验，研究发现影响疫情发展的主要感染人群是无症状感染者和轻症感染者。在此基础上进一步分析了不同的无症状和轻症感染者的传播速率所造成感染人数和死亡人数的变化情况。针对介入干预时间对感染人数和死亡人数的影响进行了仿真分析。实验结果表明该模型能有效模拟新冠肺炎疫情传播规律，有助于防控职能部门实施相应的疫情防控策略提供决策支持。

关键词: SEI_iRD模型, 疫情传播, COVID-19, 防控措施, 传播动力学

Abstract:

With the spread of the novel coronavirus pneumonia around the world, the data and transmission mechanism are analyzed. The SEI_iRD model is constructed based on the existing SEIRD model, and the infected population is divided into asymptomatic infections, mild infections, severe infections and critical infections. The impact of the transmission rate of different infected people on the development of the epidemic was analyzed. Simulation experiments were carried out on the basis of fitting real data, and it was found that the main infected populations that affected the discovery of the epidemic were asymptomatic and mildly infected. On this basis, the transmission rate of different asymptomatic and mildly infected people was further analyzed. The impact of different intervention times on the number of infections and deaths was simulated. Results show that the model can effectively simulate the spread of COVID-19 and provide decision-making support to the departments to implement corresponding epidemic prevention and control strategies.

Key words: SEI_iRD model, epidemic spread, COVID-19, prevention and control measures, spread dynamics

中图分类号:

TP391.9

汪婧, 董莹. 基于SEI_iRD模型的COVID-19传播及防控仿真研究[J]. 系统仿真学报, 2022, 34(7): 1532-1546.

Jing Wang, Ying Dong. Simulation Research on COVID-19 Transmission and Control Measures Based on SEI_iRD Model[J]. Journal of System Simulation, 2022, 34(7): 1532-1546.

图/表 13

图1

图2

表1

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

参考文献 20

1	王树忠, 刘晓宇, 李冬梅. 一类潜伏期和染病期均有传染力的 SEIR 模型的稳定性分析[J]. 哈尔滨理工大学学报, 2010, 15(2): 71-75.
	Wang Shuzhong, Liu Xiaoyu, Li Dongmei. Stability Analysis of an SEIR Model with Infectious Force in Latent Period and Inflected Period[J].Journal of Harbin University of Science and Technology, 2010, 15(2): 71-75.
2	李冬梅, 桂春羽, 温盼盼. 一类潜伏期具有常数输入率的SEIR模型在流感防控中的应用[J]. 数学的实践与认识, 2015, 45(12): 160-166.
	Li Dongmei, Gui Chunyu, Wen Panpan. Application of SEIR Model with Constant Input Rate During Incubation Period in Influenza Prevention and Control[J]. Journal of Mathematics in Practice and Theory,2015,45(12):160-166.
3	单英骥, 邵鹏. 考虑无症状携带者的疫情防控措施计算模拟[J]. 现代计算机, 2021(1): 45-48.
	Shan Yingji, Shao Peng. Computational Simulation on Infectious Diseases Control Measures Considering Asymptomatic Carrier[J]. Modern Computer,2021(1):45-48.
4	Bae Tae Wuk, KeeKoo Kwon, Kim KyuHyung. Mass Infection Analysis of COVID-19 Using the SEIRD Model in Daegu-Gyeongbuk of Korea from April to May, 2020[J]. Journal of Korean medical science (S1011-8934), 2020, 35(34): 317.
5	Chatterjee Saptarshi, Sarkar Apurba, Karmakar Mintu, et al. SEIRD Model to Study the Asymptomatic Growth During COVID-19 Pandemic in India[J]. Indian Journal of Physics (S3325-0600), 2021, 95(12): 2575-2587.
6	Ferjouchia H, Kouidere A, Zakary O, et al. Optimal Control Strategy of COVID-19 Spread in Morocco using SEIRD Model[J]. Moroccan Journal of Pure and Applied Analysis (S2605-6364), 2020, 7(1): 66-79.
7	Kliestik T, Tarana Aliyeva, Ulviyya Rzayeva, et al. A SEIRD Model for Control of COVID-19: Case of Azerbaijan[J]. SHS Web of Conferences (S2261-2424), 2021, 92: 01001.
8	Hu Tianci, Gao Nan, Zhu He, et al. Research on the Spread of Infectious Diseases in Closed Systems Based on SIR and SEIRD Models[J]. Frontiers in Medical Science Research (S2618-1584), 2021, 3(1): 40-44.
9	Viguerie Alex, Lorenzo Guillermo, Auricchio Ferdinando, et al. Simulating the Spread of COVID-19 via a Spatially-Resolved Susceptible-Exposed-Infected-Recovered-Deceased (SEIRD) Model with Heterogeneous Diffusion[J]. Applied Mathematics Letters (S2383-4475), 2021, 111:106617.
10	Ivan Korolev. Identification and Estimation of the SEIRD Epidemic Model for COVID-19[J]. Journal of Econometrics (S3283-4475), 2021, 22(1): 63-85.
11	Liu Fenglin, Wang Jie, Liu Jiawen, et al. Predicting and Analyzing the COVID-19 Epidemic in China: Based on SEIRD, LSTM and GWR Models[J]. PLoSONE (S3239-6126), 2020, 15(8): e0238280.
12	Tian Sijia, Hu Nan, Lou Jing, et al. Characteristics of COVID-19 Infection in Beijing[J]. The Journal of Infection (S3211-2886), 2020, 80(4): 401-406.
13	桑茂盛, 丁一, 包铭磊, 等. 基于新冠病毒特征及防控措施的传播动力学模型[J]. 系统工程理论与实践, 2021, 41(1):124-133.
	Sang Maosheng, Ding Yi, Bao Minglei, et al. Propagation Dynamics model Considering the Characteristics of 2019-nCoV and Prevention-Control Measurements. Systems Engineering - Theory & Practice, 2021, 41(1): 124-133.
14	王昕炜, 彭海军, 钟万勰. 具有潜伏期时滞的时变SEIR模型的最优疫苗接种策略[J]. 应用数学和力学, 2019, 40(7):701-712.
	Wang Xinwei, Peng Haijun, Zhong Wanxie. Optimal Vaccination Strategies for a Time-Varying SEIR Epidemic Model With Latent Delay[J]. Applied Mathematics and Mechanics, 2019, 40(7): 701-712.
15	Rothe C, Schunk M, Sothmann P, et al. Transmission of 2019-nCoV Infection From an Asymptomatic Contact in Germany[J]. The New England Journal of Medecine(S3200-3551), 2020, 382: 9710-971.
16	BAI Y, YAO L, WEI T,et al. Presumed Asymptomatic Carrier Transmission of COVID-19[J].JAMA (S3208-3643), 2020: 323(14): 1406-1407.
17	中央应对疫情工作领导小组. «抗击新冠肺炎疫情的中国行动»白皮书术语英译精选[J]. 中国翻译, 2020, 41(4): 1-8.
	Central Leading Group for Response to the Epidemic.Selected English Translations of Terms in the White Paper "China's Action Against the New Coronary Pneumonia Epidemic"[J]. Chinese Translator, 2020, 41(4): 1-8.
18	汤芳, 王晓芹, 栾进. 新型冠状病毒肺炎的流行病学研究进展[J]. 武警医学, 2020, 31(3): 272-276.
	Tang Fang, Wang Xiaoqin, Luan Jin. Epidemiological Research Progress of Novel Coronavirus Pneumonia[J].Medical Journal of the Chinese People's Armed Police Force, 2020, 31(3): 272-276.
19	何文盛, 李雅青. 突发公共卫生事件中信息公开共享的协同机制分析与优化[J]. 兰州大学学报(社会科学版),2020, 48(2): 12-24.
	He Wensheng, Li Yaqing. Analysis and Optimization of Collaborative Mechanism of Information Publicity and Sharing in Public Health Emergencies Exemplified by NCP[J]. Journal of Lanzhou University(Social Sciences),2020, 48(2): 12-24.
20	武汉大学公共卫生治理研究课题组. 防疫常态化下公共卫生治理的思考与建议[J]. 学习与探索, 2020(6): 1-7.
	Public Health Governance Research Group of Wuhan University. Thinking on and Suggestions of Public Health Management under the Normalization of Epidemic Prevention[J]. Study&Exploration, 2020(6): 1-7.

参数	描述	取值
1/a	疾病平均潜伏期	5
β₀	无症状感染者单日传染速率	0~1
β₁	轻症感染者单日传染速率	0~1
β₂	重症感染者单日传染速率	0~1
β₃	危重症感染者单日传染速率	0~1
x₁	轻度感染平均持续时间	6
x₂	重度感染平均持续时间	6
x₃	危重度感染平均持续时间	8
x₄	无症状感染平均持续时间	6
h₁	轻度感染者平均比例	8 070
h₂/%	重度感染者平均比例	15
h₃/%	危重度感染者平均比例	5
h₄/%	无症状感染者平均比例	30
μ/%	危重症感染者平均死亡率	40
n/%	疾病平均病死率	2
