对抗条件下的无人集群目标重分配方法研究

doi:10.16182/j.issn1004731x.joss.24-1005

摘要/Abstract

摘要：

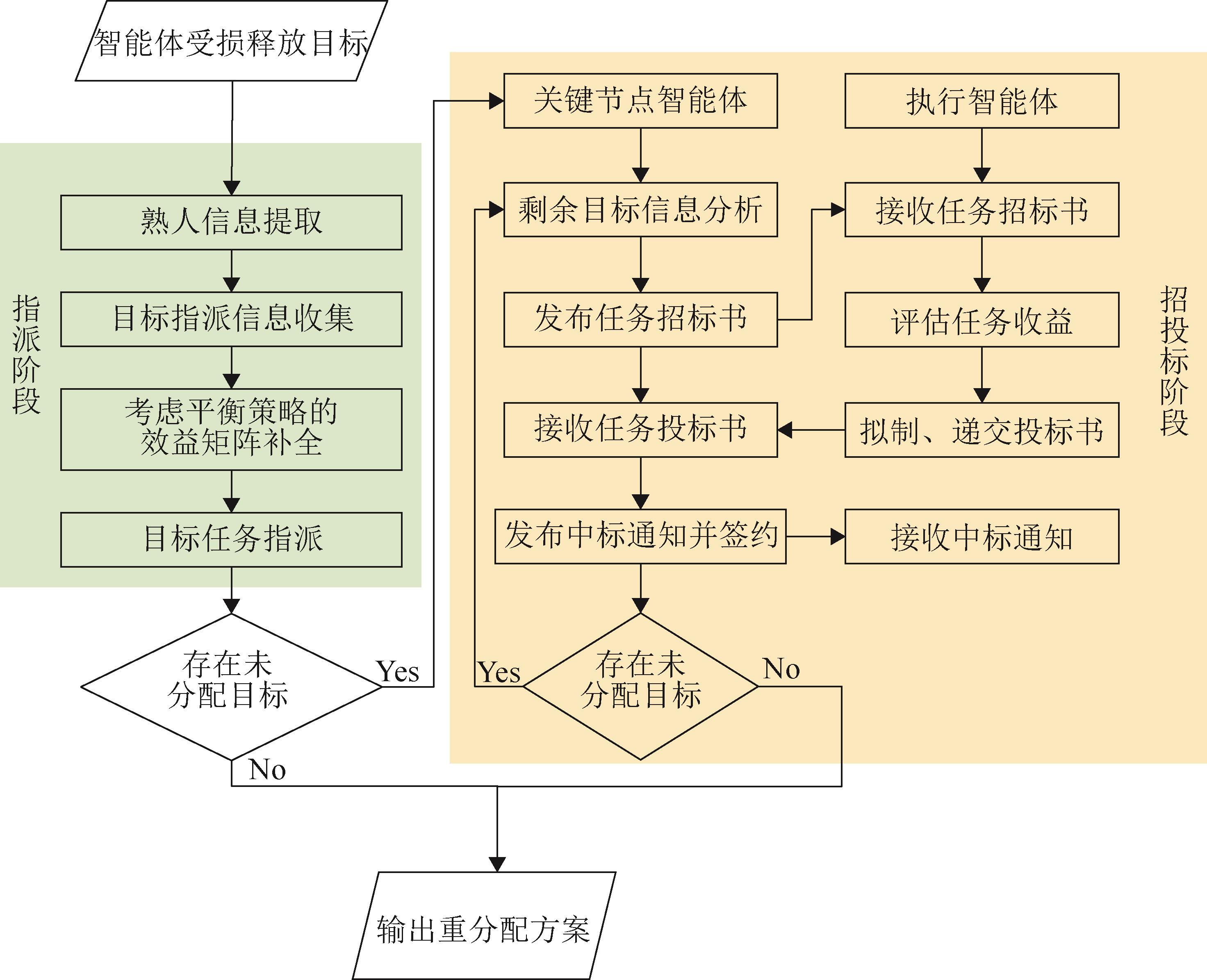

异构无人集群在未来战争中具有重要的应用潜力，然而，在高强度的对抗中，集群个体遭受打击后，如何高效快速地将受损智能体携带的任务进行重分配进而保证集群任务顺利完成，是无人集群作战运用中必须面对的难题。提出了一种基于改进合同网-匈牙利算法的目标重分配方法。该方法通过指派机制和招标机制，相比对比算法实现了较低通信代价、较快速度的受损智能体目标重分配。仿真实验中，在单个智能体受损情况下，提出的方法将目标重分配完成度平均值由87%提升到100%，在多个智能体受损时仍能稳定完成目标重分配，且该方法资源调度率和快速性均优于对比算法。

关键词: 对抗条件, 个体受损, 无人集群, 目标分配, 重分配

Abstract:

Heterogeneous unmanned swarms have important potential applications in future wars. However, during the high-intensity confrontation in the battlefield, how to efficiently and quickly redistribute the tasks carried by the damaged agents so that the swarms could successfully complete the mission is a difficult problem that must be addressed in the combat application of unmanned swarms. This paper proposes a task reallocation method named improved CNP-HA (contract net protocol-Hungarian algorithm). Through the allocation mechanism and the bidding mechanism, the method realizes the task reallocation of damaged agents with lower communication cost and faster speed comparing with baseline methods. In the simulation experiment, when a single agent is damaged, the average completion rate of target reallocation is increased from 87% to 100% by the proposed method, and the target reallocation can still be completed stably when multiple agents are damaged, and the resource scheduling rate and rapidity of the proposed method are better than the comparison algorithms.

Key words: adversarial conditions, agent damage, unmanned swarm, task allocation, reallocation

中图分类号:

TP391.9

张伦,杨妹,赵拓等 . 对抗条件下的无人集群目标重分配方法研究[J]. 系统仿真学报, 2025, 37(1): 1-12.

Zhang Lun,Yang Mei,Zhao Tuo,et al . Task Reallocation Method for Unmanned Swarm Under Adversarial Conditions[J]. Journal of System Simulation, 2025, 37(1): 1-12.

图/表 17

图1

图2

图3

图4

图5

图6

图7

图8

表1

图9

表2

表3

表4

图10

图11

图12

图13

参考文献 18

1	吴立珍, 李宏男, 牛轶峰. 无人机小样本条件下遮挡和混淆目标识别方法[J]. 国防科技大学学报, 2022, 44(4): 13-21.
	Wu Lizhen, Li Hongnan, Niu Yifeng. Occlusion and Confusion Targets Recognition Method for UAV Under Small Sample Conditions[J]. Journal of National University of Defense Technology, 2022, 44(4): 13-21.
2	姜杰, 闫文君, 刘凯, 等. 基于多源图像融合的无人机航拍舰船目标识别方法[J/OL]. 北京航空航天大学学报. (2024-08-15) [2024-09-06]. .
	Jiang Jie, Yan Wenjun, Liu Kai, et al. A Ship Target Recognition Method Based on Multi-source Image Fusion for Unmanned Aerial Vehicle Aerial Photography[J/OL]. Journal of Beijing University of Aeronautics and Astronautics. (2024-08-15) [2024-09-06]. .
3	陈军, 梁晶, 程龙, 等. 基于FCM的多无人机协同攻击决策建模方法[J]. 航空学报, 2022, 43(7): 370-387.
	Chen Jun, Liang Jing, Cheng Long, et al. Cooperative Attack Decision Modeling Method of Multiple UAVs Based on FCM[J]. Acta Aeronautica et Astronautica Sinica, 2022, 43(7): 370-387.
4	李军, 陈士超. 无人机蜂群关键技术发展综述[J]. 兵工学报, 2023, 44(9): 2533-2545.
	Li Jun, Chen Shichao. Overview of Key Technology and Its Development of Drone Swarm[J]. Acta Armamentarii, 2023, 44(9): 2533-2545.
5	高卫峰, 王琼, 李宏, 等. 无人机集群任务分配的多目标算法研究[J]. 西安电子科技大学学报, 2024, 51(2): 1-12.
	Gao Weifeng, Wang Qiong, Li Hong, et al. Research on the Multi-objective Algorithm of UAV Cluster Task Allocation[J]. Journal of Xidian University, 2024, 51(2): 1-12.
6	朱建文, 赵长见, 李小平, 等. 基于强化学习的集群多目标分配与智能决策方法[J]. 兵工学报, 2021, 42(9): 2040-2048.
	Zhu Jianwen, Zhao Changjian, Li Xiaoping, et al. Multi-target Assignment and Intelligent Decision Based on Reinforcement Learning[J]. Acta Armamentarii, 2021, 42(9): 2040-2048.
7	甄子洋, 江驹, 孙绍山, 等. 无人机集群作战协同控制与决策[M]. 北京: 国防工业出版社, 2022.
	Zhen Ziyang, Jiang Ju, Sun Shaoshan, et al. Cooperative Control and Decision of UAV Swarm Operations[M]. Beijing: National Defense Industry Press, 2022.
8	Liu Cuntao, Guo Yan, Li Ning, et al. Multiuser Oriented Multi-UAV Mission Assignment with Cooperative Information Sharing[J]. IEEE Wireless Communications Letters, 2021, 10(4): 907-911.
9	Wu Husheng, Li Hao, Xiao Renbin, et al. Modeling and Simulation of Dynamic Ant Colony's Labor Division for Task Allocation of UAV Swarm[J]. Physica A: Statistical Mechanics and its Applications, 2018, 491: 127-141.
10	Wang Ziheng, Zhang Jianlei. A Task Allocation Algorithm for a Swarm of Unmanned Aerial Vehicles Based on Bionic Wolf Pack Method[J]. Knowledge-Based Systems, 2022, 250: 109072.
11	刘西, 李贤, 陈伟, 等. 基于NSGA-Ⅲ算法的多目标分配方法研究[J]. 空天防御, 2021, 4(1): 109-114.
	Liu Xi, Li Xian, Chen Wei, et al. Research on Multi-objective Assignment Method Based on NSGA-Ⅲ Algorithm[J]. Air & Space Defense, 2021, 4(1): 109-114.
12	Hou Yukai, Zhao Jin, Zhang Rongqing, et al. UAV Swarm Cooperative Target Search: A Multi-agent Reinforcement Learning Approach[J]. IEEE Transactions on Intelligent Vehicles, 2024, 9(1): 568-578.
13	Wu Qichao, Xia Xuewen, Song Haojie, et al. A Neighborhood Comprehensive Learning Particle Swarm Optimization for the Vehicle Routing Problem with Time Windows[J]. Swarm and Evolutionary Computation, 2024, 84: 101425.
14	张安, 毕文豪, 邱鹏, 等. 基于改进合同网的多UAV打击地面TST任务重分配[J]. 战术导弹技术, 2019(2): 39-46.
	Zhang An, Bi Wenhao, Qiu Peng, et al. Mission Re-assignment for Attacking Ground TSTs with Multi-UAVs Based on Improved CNP[J]. Tactical Missile Technology, 2019(2): 39-46.
15	谷旭平, 唐大全. 基于细菌觅食算法的多异构无人机任务规划[J]. 系统工程与电子技术, 2021, 43(11): 3312-3320.
	Gu Xuping, Tang Daquan. Multi-heterogeneous UAV Task Planning Based on Bacterial Foraging Algorithm[J]. Systems Engineering and Electronics, 2021, 43(11): 3312-3320.
16	Zhang Zhenshi, Liu Huan, Wu Guohua. A Dynamic Task Scheduling Method for Multiple UAVs Based on Contract Net Protocol[J]. Sensors, 2022, 22(12): 4486.
17	魏兆恬, 赵晓林, 李俊涛, 等. 考虑时间窗约束的多无人机任务分配[J]. 电光与控制, 2022, 29(8): 17-22.
	Wei Zhaotian, Zhao Xiaolin, Li Juntao, et al. Multi-UAV Task Allocation Under Time Window Constraints[J]. Electronics Optics & Control, 2022, 29(8): 17-22.
18	Kensler J A, Agah A. Neural Networks-based Adaptive Bidding with the Contract Net Protocol in Multi-robot Systems[J]. Applied Intelligence, 2009, 31(3): 347-362.

类别	速度/(m/s)	位置	数量	最大任务数
侦察智能体	[1,30]	随机	10	6
打击智能体	[1,30]	随机	10	6

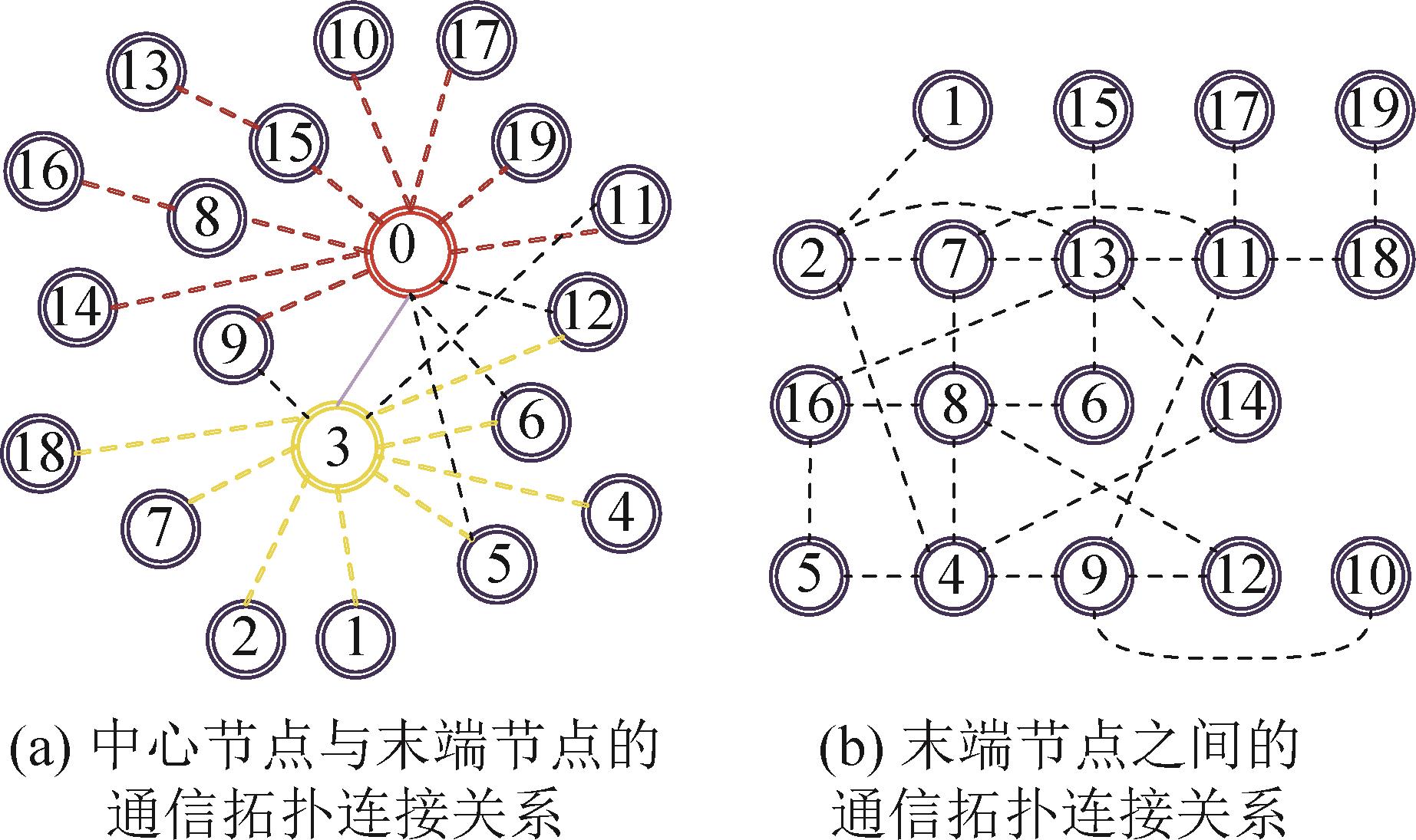

关键节点	组内成员
U₀	U₉、U₁₀、U₈、U₁₅、U₁₄、U₁₁、U₁₇、U₁₉
U₃	U₁、U₂、U₄、U₅、U₆、U₇、U₁₂、U₁₈

智能体编号	任务类型	目标分配情况
U₀	侦察	T₁₆→T₂₄→T₁₈
U₁	侦察	T₂₁→T₂₀→T₂₇→T₂₃
U₂	侦察	T₂₂→T₂₆→T₈→T₁
U₃	侦察	T₁₂
U₄	侦察	0
U₅	侦察	T₃
U₆	侦察	T₁₁→T₁₃→T₁₇→T₂
U₇	侦察	T₆
U₈	侦察	T₁₄→T₉→T₇ →T₅→T₂₈→T₂₉
U₉	侦察	T₁₉→T₂₅→T₄→T₀→T₁₅→T₁₀
U₁₀	打击	T₁₉→T₃
U₁₁	打击	T₁₄→T₉→T₁₆→T₂₄→T₁₈→T₂₈
U₁₂	打击	T₇→T₁₂
U₁₃	打击	T₂₆→T₁
U₁₄	打击	T₂₁→T₂₀→T₅→T₂₇→T₂₃→T₂₉
U₁₅	打击	T₆→T₂
U₁₆	打击	T₂₂→T₂₅→T₄→T₀→T₁₅→T₈
U₁₇	打击	0
U₁₈	打击	T₁₁→T₁₃→T₁₇
U₁₉	打击	T₁₀

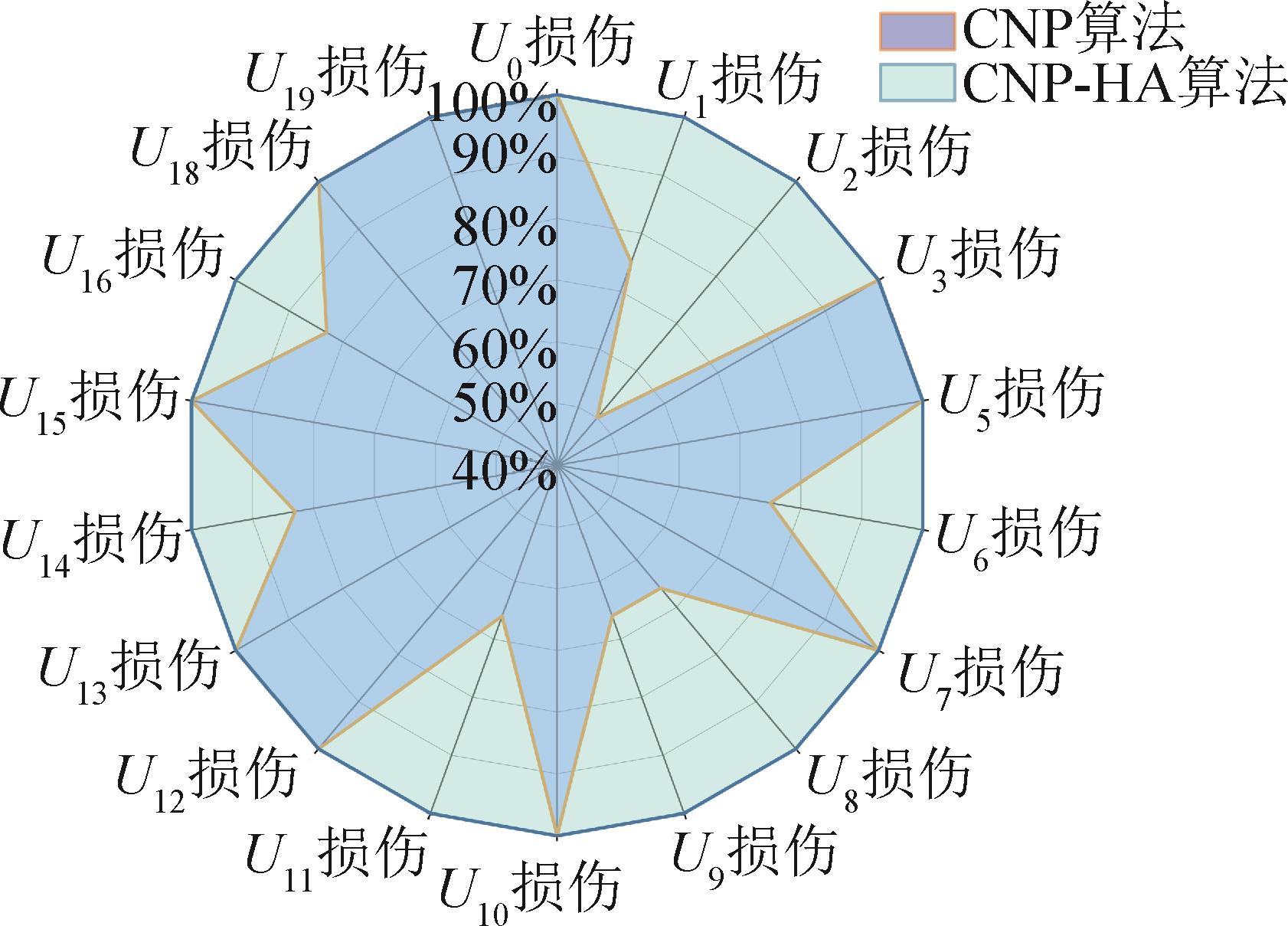

智能体编号	任务类型	携带目标数量	CNP算法完成度/%	CNP-HA算法完成度/%
U₀	侦察	3	100	100
U₁	侦察	4	75	100
U₂	侦察	4	50	100
U₃	侦察	1	100	100
U₄	侦察	0
U₅	侦察	1	100	100
U₆	侦察	4	75	100
U₇	侦察	1	100	100
U₈	侦察	6	66	100
U₉	侦察	6	66	100
U₁₀	打击	2	100	100
U₁₁	打击	6	66	100
U₁₂	打击	2	100	100
U₁₃	打击	2	100	100
U₁₄	打击	6	83	100
U₁₅	打击	2	100	100
U₁₆	打击	6	83	100
U₁₇	打击	0
U₁₈	打击	3	100	100
U₁₉	打击	1	100	100
