基于知识蒸馏的轻量化Transformer目标检测

doi:10.16182/j.issn1004731x.joss.24-0754

系统仿真学报 ›› 2024, Vol. 36 ›› Issue (11): 2517-2527.doi: 10.16182/j.issn1004731x.joss.24-0754

• 专栏：基于视觉的智能驾驶环境感知 • 上一篇

基于知识蒸馏的轻量化Transformer目标检测

王改华¹^,², 李柯鸿¹, 龙潜¹^,³, 姚敬萱¹, 朱博伦¹, 周正书¹, 潘旭冉¹

^1.天津科技大学人工智能学院，天津 300457
^2.湖北光信息与模式识别重点实验室，湖北武汉 430205
^3.北京中科慧眼科技有限公司，北京 100020

收稿日期:2024-07-15 修回日期:2024-09-19 出版日期:2024-11-13 发布日期:2024-11-19
通讯作者: 李柯鸿
第一作者简介:王改华(1979-)，女，副教授，博士，研究方向为模式识别与图像处理。
基金资助:
湖北省光学信息与模式识别重点实验室开放基金(202306)

Object Detection of Lightweight Transformer Based on Knowledge Distillation

Wang Gaihua¹^,², Li Kehong¹, Long Qian¹^,³, Yao Jingxuan¹, Zhu Bolun¹, Zhou Zhengshu¹, Pan Xuran¹

^1.College of Artificial Intelligence, Tianjin University of Science & Technology, Tianjin 300457, China
^2.Hubei Key Laboratory of Optical Information and Pattern Recognition, Wuhan Institute of Technology, Wuhan 430205, China
^3.Beijing Smarter Technology Co. , Ltd, Beijing 100020, China

Received:2024-07-15 Revised:2024-09-19 Online:2024-11-13 Published:2024-11-19
Contact: Li Kehong

摘要/Abstract

摘要：

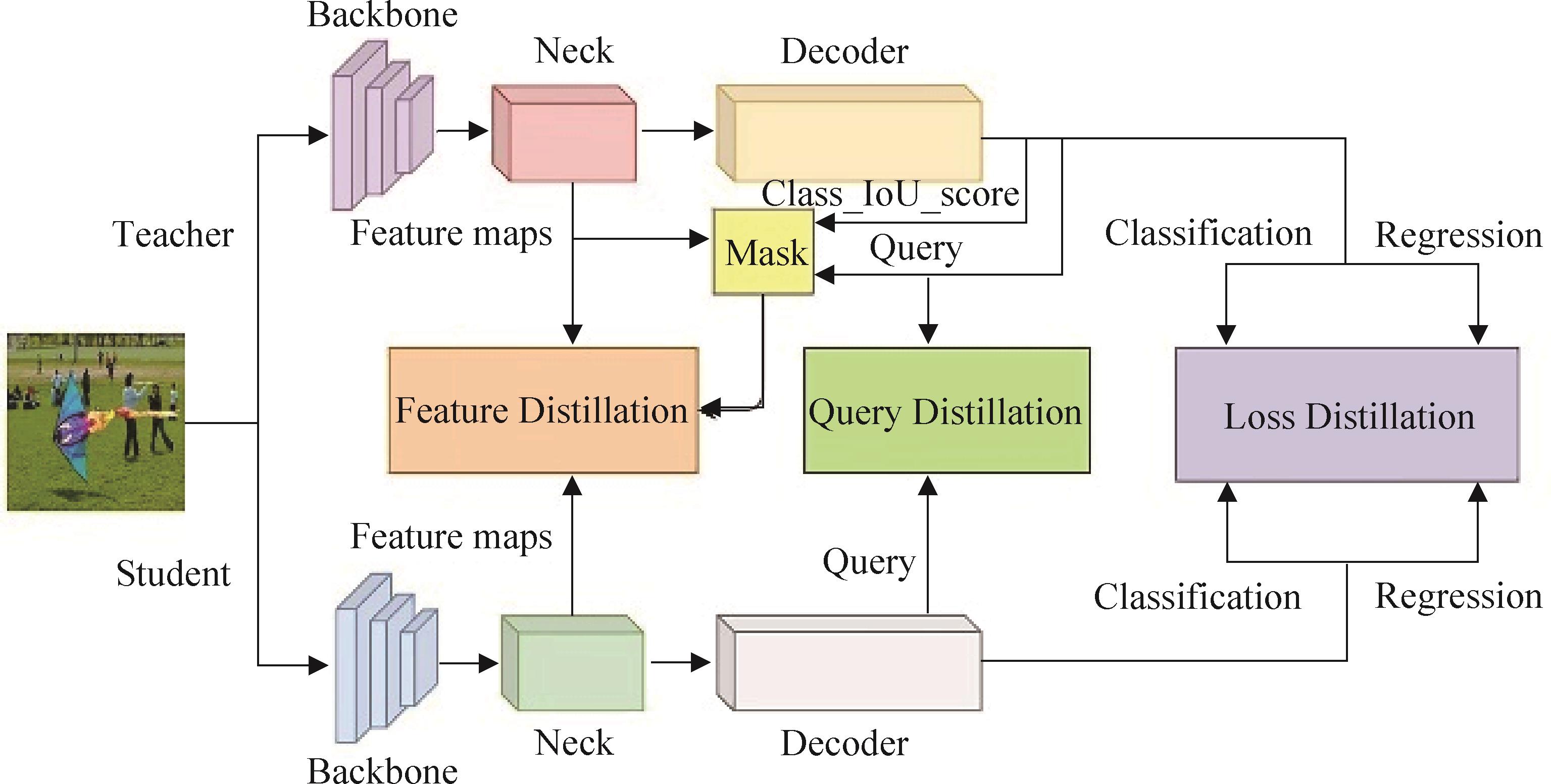

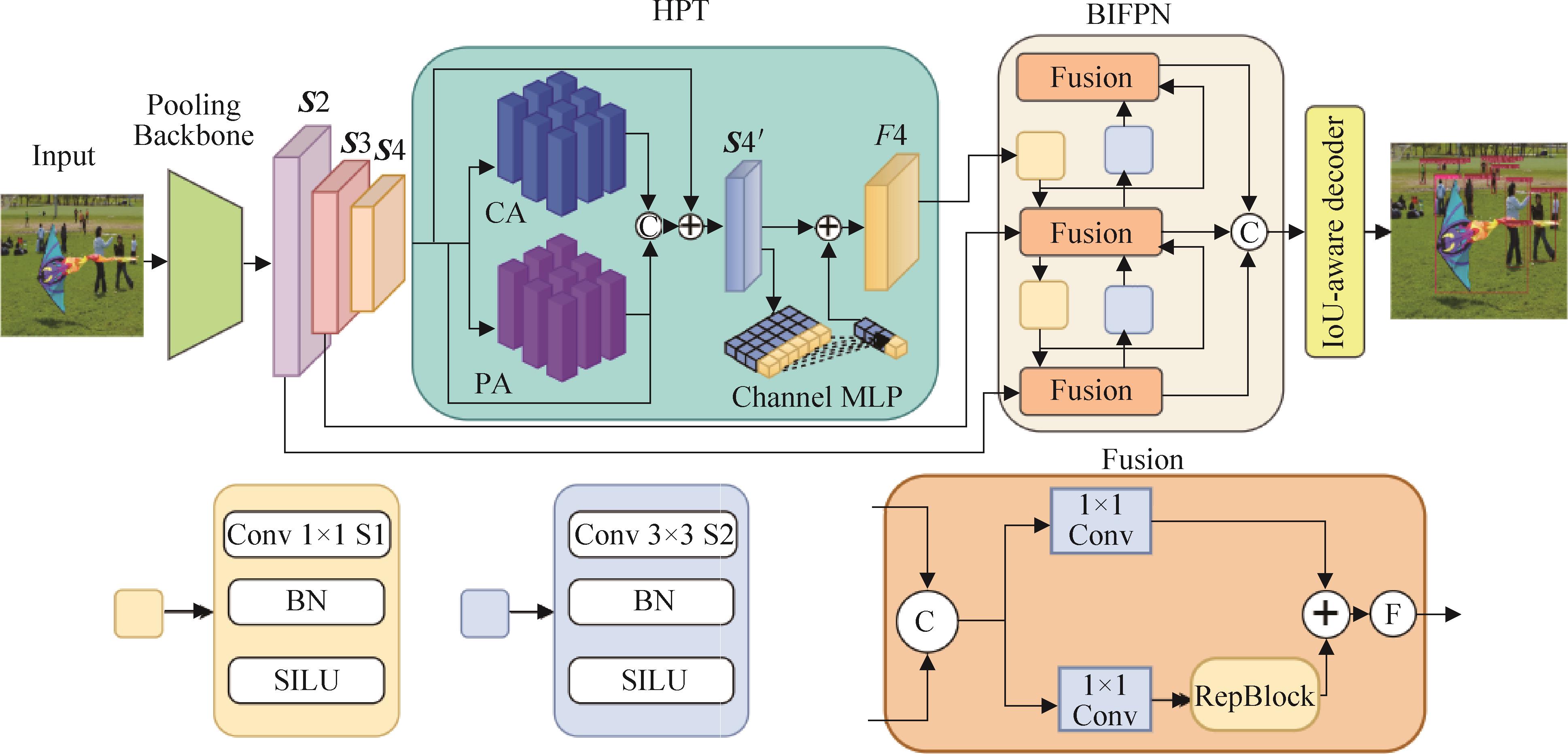

在自动驾驶领域，目标检测的高效性和准确性尤为重要，基于Transformer结构的目标检测方法逐渐成为主流，省去了复杂的锚点生成和非极大值抑制。针对现有方法计算成本高和收敛速度慢的问题，设计了一种基于池化操作的轻量化Transformer目标检测模型（LPT），包含了池化主干网络和双池化注意力机制，设计了针对DETR（detection transformer）模型的通用知识蒸馏方法，将预测结果、查询向量和教师提取的特征作为知识传递给轻量化的Transformer模型，帮助其提升精确度性能。通过在MS COCO 2017数据集上的实验，验证经过蒸馏的LPT模型在自动驾驶中的应用潜力，实验结果表明：本文方法具有较好的准确性，与一些先进的方法相比具有一定优势。

关键词: 目标检测, 知识蒸馏, 轻量化, DETR, Transformer, 自动驾驶

Abstract:

In autonomous driving, the efficiency and accuracy of object detection are significant. Object detection based on Transformer structure has gradually become the mainstream method, eliminating the complex anchor generation and non-maximum suppression (NMS). It has problems of high computing cost and slow convergence. An object detection model of the based lightweight pooling transformer (LPT) is designed, which contains a pooling backbone network and dual pooling attention mechanism. A general knowledge distillation method is intended for the DETR (detection transformer) model, which transfers prediction results, query vector, and features extracted by the teacher as knowledge to the LPT model to improve its accuracy. To verify the application potential of the distilled LPT model in autonomous driving, extensive experiments are conducted on the MS COCO 2017 dataset. The results show that the method has great efficiency and accuracy, and is competitive with some advanced techniques.

Key words: object detection, knowledge distillation, lightweight, DETR(detection Transformer), Transformer, autonomous driving

中图分类号:

TP391.9

王改华,李柯鸿,龙潜等 . 基于知识蒸馏的轻量化Transformer目标检测[J]. 系统仿真学报, 2024, 36(11): 2517-2527.

Wang Gaihua,Li Kehong,Long Qian,et al . Object Detection of Lightweight Transformer Based on Knowledge Distillation[J]. Journal of System Simulation, 2024, 36(11): 2517-2527.

图/表 10

图1

图2

图3

图4

表1

图5

图6

图7

表2

表3

参考文献 28

1	卢裕秋, 孙金玉, 马世伟. 基于深度卷积神经网络的运动目标检测方法[J]. 系统仿真学报, 2019, 31(11): 2275-2280.
	Lu Yuqiu, Sun Jinyu, Ma Shiwei. Moving Object Detection Based on Deep Convolutional Neural Network[J]. Journal of System Simulation, 2019, 31(11): 2275-2280.
2	张稀柳, 张晓玲, 何敏军. 基于改进YOLOX-s的车辆检测方法研究[J]. 系统仿真学报, 2024, 36(2): 487-496.
	Zhang Xiliu, Zhang Xiaoling, He Minjun. Research on Vehicle Detection Method Based on Improved YOLOX-s[J]. Journal of System Simulation, 2024, 36(2): 487-496.
3	石敏, 姚瀚钦, 李淳芃, 等. 基于深度Alignment网络的足部测量[J]. 系统仿真学报, 2020, 32(7): 1267-1278.
	Shi Min, Yao Hanqin, Li Chunpeng, et al. Foot Measurement Based on Deep Alignment Network[J]. Journal of System Simulation, 2020, 32(7): 1267-1278.
4	Girshick R. Fast R-CNN[C]//2015 IEEE International Conference on Computer Vision (ICCV). Piscataway: IEEE, 2015: 1440-1448.
5	Liu Wei, Anguelov D, Erhan D, et al. SSD: Single Shot MultiBox Detector[C]//Computer Vision – ECCV 2016. Cham: Springer International Publishing, 2016: 21-37.
6	Redmon J, Divvala S, Girshick R, et al. You Only Look Once: Unified, Real-time Object Detection[C]//2016 IEEE Conference on Computer Vision and Pattern Recognition (CVPR). Piscataway: IEEE, 2016: 779-788.
7	Zhang Shifeng, Chi Cheng, Yao Yongqiang, et al. Bridging the Gap Between Anchor-based and Anchor-free Detection Via Adaptive Training Sample Selection[C]//2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). Piscataway: IEEE, 2020: 9756-9765.
8	Carion N, Massa F, Synnaeve G, et al. End-to-end Object Detection with Transformers[C]//Computer Vision – ECCV 2020. Cham: Springer International Publishing, 2020: 213-229.
9	Zhu Xizhou, Su Weijie, Lu Lewei, et al. Deformable DETR: Deformable Transformers for End-to-end Object Detection[EB/OL]. (2021-03-18) [2023-11-21]. .
10	Dai Xiyang, Chen Yinpeng, Yang Jianwei, et al. Dynamic DETR: End-to-end Object Detection with Dynamic Attention[C]//2021 IEEE/CVF International Conference on Computer Vision (ICCV). Piscataway: IEEE, 2021: 2968-2977.
11	Li Feng, Zhang Hao, Liu Shilong, et al. DN-DETR: Accelerate DETR Training by Introducing Query DeNoising[C]//2022 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). Piscataway: IEEE, 2022: 13609-13617.
12	高昕, 甄国涌, 储成群, 等. 基于改进YOLOv5的自动驾驶目标检测方法[J]. 科学技术与工程, 2024, 24(16): 6757-6765.
	Gao Xin, Zhen Guoyong, Chu Chengqun, et al. Autonomous Driving Target Detection Method Based on Improved YOLOv5[J]. Science Technology and Engineering, 2024, 24(16): 6757-6765.
13	Hinton G, Vinyals O, Dean J. Distilling the Knowledge in a Neural Network[EB/OL]. (2015-03-09) [2024-01-15]. .
14	Chen Guobin, Choi W, Yu Xiang, et al. Learning Efficient Object Detection Models with Knowledge Distillation[C]//Proceedings of the 31st International Conference on Neural Information Processing Systems. Red Hook: Curran Associates Inc., 2017: 742-751.
15	Wang Tao, Yuan Li, Zhang Xiaopeng, et al. Distilling Object Detectors with Fine-grained Feature Imitation[C]//2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). Piscataway: IEEE, 2019: 4928-4937.
16	Sun Ruoyu, Tang Fuhui, Zhang Xiaopeng, et al. Distilling Object Detectors with Task Adaptive Regularization[EB/OL]. (2020-06-23) [2024-02-09]. .
17	Zhang Linfeng, Ma Kaisheng. Improve Object Detection with Feature-based Knowledge Distillation: Towards Accurate and Efficient Detectors[C]//ICLR 2021. New York: ICLR, 2020: 1-14.
18	Yang Zhendong, Li Zhe, Jiang Xiaohu, et al. Focal and Global Knowledge Distillation for Detectors[C]//2022 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). Piscataway: IEEE, 2022: 4633-4642.
19	朱志豪, 王艳, 纪志成. 基于模型压缩的安瓿瓶外观检测仿真研究[J]. 系统仿真学报, 2022, 34(12): 2575-2583.
	Zhu Zhihao, Wang Yan, Ji Zhicheng. Simulation Research on Appearance Detection of Ampoules Based on Lightweight Network and Model Compression[J]. Journal of System Simulation, 2022, 34(12): 2575-2583.
20	Yao Zhuyu, Ai Jiangbo, Li Boxun, et al. Efficient DETR: Improving End-to-end Object Detector with Dense Prior[EB/OL]. (2021-04-03) [2023-12-28]. .
21	Meng Depu, Chen Xiaokang, Fan Zejia, et al. Conditional DETR for Fast Training Convergence[C]//2021 IEEE/CVF International Conference on Computer Vision (ICCV). Piscataway: IEEE, 2021: 3631-3640.
22	Roh Byungseok, Jae Woong Shin, Shin Wuhyun, et al. Sparse DETR: Efficient End-to-end Object Detection with Learnable Sparsity[EB/OL]. (2022-03-04) [2024-01-06]. .
23	Zhang Hao, Li Feng, Liu Shilong, et al. DINO: DETR with Improved DeNoising Anchor Boxes for End-to-end Object Detection[EB/OL]. (2022-07-11) [2024-01-18]. .
24	Yu Weihao, Luo Mi, Zhou Pan, et al. MetaFormer is Actually What You Need for Vision[C]//2022 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). Piscataway: IEEE, 2022: 10809-10819.
25	Romero Adriana, Ballas Nicolas, Samira Ebrahimi Kahou, et al. FitNets: Hints for Thin Deep Nets[EB/OL]. (2015-03-27) [2024-02-21]. .
26	Zheng Zhaohui, Ye Rongguang, Hou Qibin, et al. Localization Distillation for Object Detection[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2023, 45(8): 10070-10083.
27	Zhao Yian, Wenyu Lü, Xu Shangliang, et al. DETRs Beat YOLOs on Real-time Object Detection[C]//2024 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). Piscataway: IEEE, 2024: 16965-16974.
28	Liu Shilong, Li Feng, Zhang Hao, et al. DAB-DETR: Dynamic Anchor Boxes are Better Queries for DETR[EB/OL]. (2022-03-30) [2024-03-07]. .

模型	Pooling Backbone	HPT	参数量/M	权重值/MB	帧率/(帧/s)	AP
RT-DETR	—	—	42.944	164	19.99	47.0
LPTv1	√	—	40.136	153	21.13	45.8
LPTv2	—	√	44.622	170	20.92	46.2
LPTv3	√	√	41.814	159	22.05	45.7

模型	模块	Backbone	AP	AP_S	AP_M	AP_L
Deformable DETR	教师	Resnet-101	45.5	27.5	48.7	60.3
	学生(未蒸馏)	Resnet-50	44.1	27.0	47.4	58.3
	学生(蒸馏)	Resnet-50	46.6	28.5	48.6	61.0
Conditional DETR	教师	Resnet-101	42.4	22.6	46.0	61.2
	学生(未蒸馏)	Resnet-50	40.7	20.3	43.8	60.0
	学生(蒸馏)	Resnet-50	42.9	21.6	46.5	62.2
LPT	教师	HgnetV2	48.1	29.3	51.9	66.4
	学生(未蒸馏)	Pooling backbone	45.7	27.8	49.0	63.8
	学生(蒸馏)	Pooling backbone	48.3	28.9	49.7	65.5

模型	参数量/M	计算复杂度/G	帧率/(帧/s)	AP	AP₅₀	AP₇₅	AP_S	AP_M	AP_L
DETR	41.580	86.556	14.80	15.5	29.4	14.5	4.3	15.1	26.7
DAB-DETR	43.722	90.740	10.80	38.0	60.3	39.8	19.2	40.9	55.4
RT-DETR	42.940	69.157	19.99	47.0	64.6	50.8	28.5	51.1	65.2
Ours(未蒸馏)	41.814	60.949	22.02	45.7	63.4	48.9	27.8	49.0	63.8
Ours(蒸馏)	41.814	60.949	22.02	48.3	64.4	51.2	28.9	49.7	65.5
